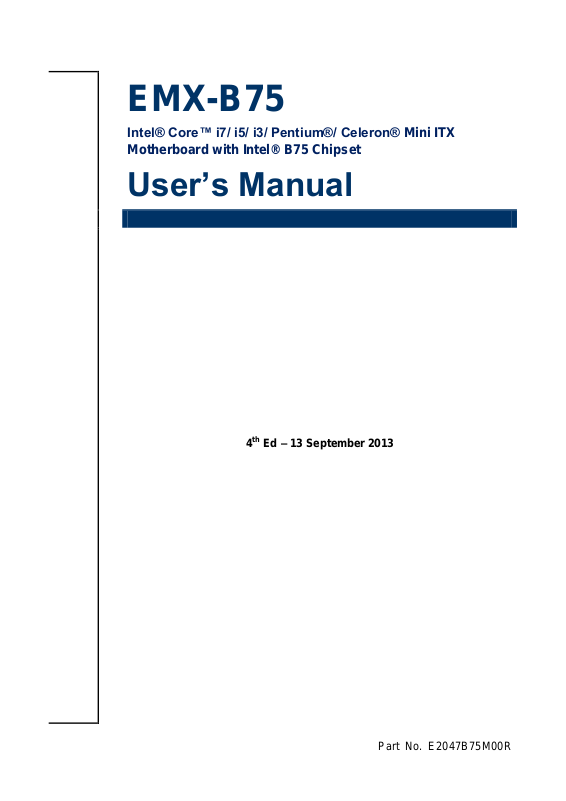

EMX-B75
Intel® Core™ i7/ i5/ i3/ Pentium®/ Celeron® Mini ITX
Motherboard with Intel® B75 Chipset
User’s Manual
4th Ed – 13 September 2013
Part No. E2047B75M00R
EMX-B75 User’s Manual
Content
1. Getting Started ............................................................................................................ 5
1.1 Safety Precautions .......................................................................................... 5
1.2 Packing List .................................................................................................... 5
1.3 Document Amendment History ....................................................................... 6
1.4 Manual Objectives .......................................................................................... 7
1.5 Specifications ................................................................................................. 8
1.6 Architecture Overview—Block Diagram........................................................ 11
2. Hardware Configuration ........................................................................................... 12
2.1 Product Overview ......................................................................................... 13
2.2 Installation Procedure ................................................................................... 14
2.3 Jumper and Connector List .......................................................................... 15
2.4 Setting Jumpers & Connectors ..................................................................... 17
2.4.1 mSATA/Mini PCIe function Jumper (JS1/JS2) .................................... 17
2.4.2 Clear CMOS (JBAT) ............................................................................ 17
2.4.3 ME update (JME)................................................................................. 18
2.4.4 Serial port 1/3/4/5/6 – Normal, 5V, 12V PIN 9 selector
(JC11/31/41/51/61) .............................................................................................. 18
2.4.5 Serial port 2 in RS-422-485 mode (JRS_1) ......................................... 19
2.4.6 Serial port 10 in RS-422-485 mode (JRS_2) ....................................... 19
2.4.7 PS/2 keyboard & mouse connector (JKB_MS) .................................... 20
2.4.8 Keyboard power select jumper (JKB) .................................................. 21
2.4.9 DDR3L using (JDIMM) ........................................................................ 21
2.4.10 General Purpose I/O (JGPIO1) .......................................................... 22
2.4.11 VGA connector (JVGA1) .................................................................... 22
2.4.12 Serial port 4~9 connector (COM4~9) .................................................. 23
2.4.13 Serial port 2/10 connector (COM2/10) ................................................ 23
2.4.14 System Fan connector (SFAN1) ......................................................... 24
2.4.15 CPU Fan connector (CFAN1) ............................................................. 24
2.4.16 Printer (JLPT) ..................................................................................... 25
2.4.17 USB Connector 1/2 - USB2.0 (FUSB1/2) ........................................... 25
2.4.18 USB Connector 3 - USB3.0 (F_USB3) ............................................... 26
2.4.19 Front Panel Switches (FPANEL) ........................................................ 26
2.4.20 Sony/Philips Digital Interface (JSPDIF1) ............................................ 27
2.4.21 Power connector (PWR12V) .............................................................. 27
2.4.22 ATX Power Input Connector (ATXPWR1) .......................................... 28
2.4.23 Front Panel Audio Connection Header (F_AUDIO) ............................ 28
2 EMX-B75 User’s Manual
EMX-B75 User’s Manual
3.BIOS Setup .................................................................................................................... 29
3.1 Introduction ................................................................................................... 30
3.2 Starting Setup ............................................................................................... 30
3.3 Using Setup .................................................................................................. 31
3.4 Getting Help ................................................................................................. 32
3.5 In Case of Problems ..................................................................................... 32
3.6 BIOS setup ................................................................................................... 33
3.6.1 Main Menu ........................................................................................... 33
3.6.1.1 System Language ......................................................................... 33
3.6.1.2 System Date ................................................................................. 33
3.6.1.3 System Time ................................................................ ................. 33
3.6.2 Advanced BIOS settings ...................................................................... 34
3.6.2.1 ACPI Settings ............................................................................... 34
3.6.2.2 CPU Configuration ........................................................................ 35
3.6.2.3 PowerManagement Configuration................................................. 36
3.6.2.4 Onboard Device Configuration ...................................................... 37
3.6.2.5 SATA Configuration ...................................................................... 38
3.6.2.6 USB Configuration ........................................................................ 39
3.6.2.7 F81216 Super IO Configuration .................................................... 40
3.6.2.8 NCT6106D Super IO Configuration .............................................. 43
3.6.2.9 HW Monitor ................................................................................... 49
3.6.2.10 WatchDog Parameters .................................................................. 49
3.6.3 Chipset ............................................................................................... 50
3.6.3.1 Host bridge ................................................................................... 50
3.6.4 Boot settings ........................................................................................ 52
3.6.5 Security ............................................................................................... 53
3.6.5.1 Administrator Password ................................................................ 53
3.6.5.2 User Password.............................................................................. 53
3.6.6 Save & Exit .......................................................................................... 54
3.6.6.1 Save Changes and Exit ................................................................ 54
3.6.6.2 Discard Changes and Exit ............................................................ 55
3.6.6.3 Save Changes and Reset ............................................................. 55
3.6.6.4 Discard Changes and Reset ......................................................... 55
3.6.6.5 Save Changes .............................................................................. 55
3.6.6.6 Discard Changes .......................................................................... 55
3.6.6.7 Restore Defaults ........................................................................... 55
3.6.6.8 Save as User Defaults .................................................................. 55
3.6.6.9 Restore as User Defaults .............................................................. 55
4. Drivers Installation....................................................................................................... 56
4.1 Install Chipset Driver .................................................................................... 57
EMX-B75 User’s Manual 3
EMX-B75 User’s Manual
4.2 Install VGA Driver ......................................................................................... 58
4.3 Install LAN Driver (For Realtek 8111E Gigabit Ethernet) ............................. 59
4.4 Install USB 3.0 Driver ................................................................................... 60
4.5 Install MEI Driver .......................................................................................... 61
4.6 Install Audio Driver (For Realtek ALC661 HD Audio) ................................... 63
5. Mechanical Drawing .................................................................................................... 64
4 EMX-B75 User’s Manual
EMX-B75 User’s Manual
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
Always note that improper disassembling action could cause damage to the
motherboard. We suggest not removing the heatsink without correct
instructions in any circumstance. If you really have to do this, please contact
us for further support.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
Quick Installation Guide X 1
Driver/Utility CD X 1
Serial ATA Signal Cable X 1
IO Shield
COM Cable X 1
VGA Cable X 1
Screw X 2
Motherboard X 1
EMX-B75 User’s Manual 5
EMX-B75 User’s Manual
Revision
Date
By
Comment
1st
November 2012
Avalue
Initial Release
2nd
January 2013
Avalue
Update Drivers Installation
3rd
August 2013
Avalue
Update FPANEL Signal
4th
September 2013
Avalue
Update Part Number
1.3 Document Amendment History
6 EMX-B75 User’s Manual
EMX-B75 User’s Manual
1.4 Manual Objectives
This manual describes in details Avalue Technology EMX-B75 Single Board.
We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.
We strongly recommend that you study this manual carefully before attempting to set up
EMX-B75 series or change the standard configurations. Whilst all the necessary
information is available in this manual we would recommend that unless you are confident,
you contact your supplier for guidance.
If you have any suggestions or find any errors regarding this manual and want to inform us
of these, please contact our Customer Service department with the relevant details.
EMX-B75 User’s Manual 7
EMX-B75 User’s Manual
Title
EMX-B75
Features
Intel Maho bay platform
2 x 204-pin Dual-Channel DDR3/DDR3L(jumper selectable) 1333/1600 SODIMMs,
up to 16 GB
2 x Realtek Gigabit Ethernet
DVI-D, HDMI, VGA
5 x SATA II, 1 x Mini PCI-e, 2 x USB3.0, 8 x USB 2.0, 8 x RS232, 2 x RS422/485
iAMT 8.0
System
CPU
Intel Ivy Bridge Desktop LGA1155(Socket H2) ( Max. TDP at 65W)
BIOS
AMI uEFI BIOS, 64Mbit SPI Flash ROM
System Chipset
Panthan Point ( Intel® B75 Chipset)
I/O Chip
Nuvoton NUT6106D Support 6 COMs
Fintek F81216AD for 4 COMs
System Memory
2 x 204-pin DDR3/DDR3L(jumper selectable) DIMMs socket
Data transfer rates 1333 MT/s and 1600MT/s
Up to 16 GB
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.
1sec. or 1min. step
H/W Status
Monitor
CPU & system temperature monitoring
Voltages monitoring
TPM
N/A
Buzzer
Buzzer onboard
Expansion
1 x Mini PCI-e
I/O
Rear Side External
I/O Connector
2 x RJ-45 / dual deck USB 2.0 connectors
1 x DVI-D
1 x HDMI
2 x DB-9 conn. COM1,COM3:RS232 w/ +5V&+12V supported
1 x two deck audio connector for Mic-In and Line-out
1 x KB/MS stack
Internal I/O
Connector
Storage:
- 5 x SATA II connectors
- 1 x mSATA (Mini PCI-e jump switch, SATAIII)
1.5 Specifications
8 EMX-B75 User’s Manual
EMX-B75 User’s Manual
COM:
- COM2&COM10: RS-422/485
- COM4~9: support RS-232 connector, w/ +5V&+12V supported
GPIO: 8 bits
Audio:
1 x 2 x 5pin, pitch 2.54mm connector for front audio
USB:
USB2.0 - 2 x 2 x 5 pin, pitch 2.54mm connector
USB3.0 - 1 x 2 x 10in, pitch 2.0mm
1 x 2 x 5 pin, pitch 2.54mm JVGA
1 x 2 x 13 pin, pitch 2.54mm connector for printer
1 x 4 pin CPU fan connector with smart fan function supported
1 x 3 pin System fan connector.
1 x 3 pin, pitch 2.54mm SPDIF
1 x horizontal type battery connector
1 x 2 x 8 pin, pitch 2.54mm connector for front panel
1 x 2 x 2 pin ATX power connector for DC +12V input
1 x 20 pin ATX power connector
Display
Chipset
Intel B75 integrated
Resolution
3 display pipes supported
- HDMI: 1080P
- VGA: 1920x1200
- DVI-D: 1920x1200
Audio
Chipset
Realtek ALC661 HD Audio Decoding Controller.
Audio Interface
Mic-In, Line-In
Ethernet
Chipset
1 x Realtek RTL8111E PCI-Express Gigabit Ethernet
1 x Realtek RTL8111E PCI-Express Gigabit Ethernet
Ethernet Interface
10/100/1000 GbE LAN
Mechanical &
Environmental
Power
Requirement
ATX
Power Type
ATX mode
ACPI
Single power ATX Support S0,S1, S3, S4, S5
ACPI 3.0 Compliant
Operating Temp.
0°C ~60°C
EMX-B75 User’s Manual 9
EMX-B75 User’s Manual
Storage Temp.
-40°C ~75°C
Operating
Humidity
0%~90% relative humidity, non-condensing
Size (L x W)
6.7" x 6.7" (170mm x 170mm)
Weight
0.40 kg
10 EMX-B75 User’s Manual
EMX-B75 User’s Manual
1.6 Architecture Overview—Block Diagram
The following block diagram shows the architecture and main components of EMX-B75.
EMX-B75 User’s Manual 11
EMX-B75 User’s Manual
2. Hardware
Configuration
12 EMX-B75 User’s Manual
EMX-B75 User’s Manual
2.1 Product Overview
EMX-B75 User’s Manual 13
EMX-B75 User’s Manual
2.2 Installation Procedure
This chapter explains you the instructions of how to setup your system.
1. Turn off the power supply.
2. Insert the DIMM module (be careful with the orientation).
3. Insert all external cables for hard disk, floppy, keyboard, mouse, USB etc. except for flat
panel. A CRT monitor must be connected in order to change BIOS settings to support flat
panel.
4. Connect power supply to the board via the AC/DC Adapter.
5. Turn on the power.
6. Enter the BIOS setup by pressing the delete key during boot up. Use the "Save & Exit \
Restore Defaults" feature.
7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before
connecting the display cable and turning on the power.
14 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Jumpers
Label
Function
Note
JS1/JS2
mSATA/Mini PCIe function Jumper
3 x 1 header, pitch 2.00 mm
JBAT
Clear CMOS
3 x 1 header, pitch 2.00 mm
JME
ME update
2 x 1 header, pitch 2.00 mm
JC11/31/41/51/61
Serial port 1/3/4/5/6 – Normal, 5V,12V
PIN 9 selector
3 x 2 header, pitch 2.00 mm
JRS_1
Serial port 2 in RS-422-485 mode
3 x 1 header, pitch 2.00 mm
JRS_2
Serial port 10 in RS-422-485 mode
3 x 1 header, pitch 2.00 mm
JKB_MS
PS/2 keyboard & mouse connector
5 x 2 header, pitch 2.54 mm
JKB
Keyboard power select jumper
3 x 1 header, pitch 2.00 mm
JDIMM
DDR3L using
2 x 1 header, pitch 2.00 mm
2.3 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board’s jumpers and connectors.
EMX-B75 User’s Manual 15
EMX-B75 User’s Manual
Connectors
Label
Function
Note
ATXPWR1
ATX Power Input Connector
10 x 2 header, pitch 4.20 mm
PWR12V
Power connector
2 x 2 wafer, pitch 4.20 mm
FPANEL
Front Panel Switches
8 x 2 header, pitch 2.54 mm
JSPDIF1
Sony/Philips Digital Interface
3 x 1 header, pitch 2.54 mm
JLPT
Printer
2 x 13 header, pitch 2.54 mm
HDMI
HDMI connector
DVI-D
DVI-D connector
F_AUDIO
Front Panel Audio Connection Header
2 x 5 header, pitch 2.54 mm
AUDIO
Audio connector
COM1_3
Serial port 1_3 connector
COM2/10
Serial port 2/10 connector
4 x 1 header, pitch 2.54 mm
COM4~9
Serial port 4~9 connector
5 x 2 header, pitch 2.00 mm
JGPIO1
General Purpose I/O
6 x 2 header, pitch 2.54 mm
USBLANA/B
USB and RJ45LAN Connector A/B
PS/2
Keyboard and Mouse
F_USB1/2
USB Connector 1/2 - USB2.0
5 x 2 header, pitch 2.54 mm
F_USB3
USB Connector 3 - USB3.0
10 x 2 header, pitch 2.00 mm
SATA2~6
Serial ATA connector 2~6
SFAN1
System Fan connector
3 x 1 wafer, pitch 2.54 mm
CFAN1
CPU Fan connector
4 x 1 wafer, pitch 2.54 mm
JVGA
VGA connector
5 x 2 header, pitch 2.54 mm
MPCIE1
Mini-PCIe
DIMM1
DDR3 SODIMM connector1
DIMM2
DDR3 SODIMM connector2
16 EMX-B75 User’s Manual
EMX-B75 User’s Manual
* Default
JS1
JS2
MPCIE* MSATA
Pin
Pin
Define
1-3
2-4
M-SATA
3-5
4-6
MINIPCIE
* Default
Normal*
Clear
Pin
Define
1-2
Normal
2-3
Clear
JS2
JS1
2.4 Setting Jumpers & Connectors
2.4.1 mSATA/Mini PCIe function Jumper (JS1/JS2)
2.4.2 Clear CMOS (JBAT)
EMX-B75 User’s Manual 17
EMX-B75 User’s Manual
* Default
Refresh the ME*
Can’t refresh the ME
* Default
Normal*
5V
12V
PIN
Define
1-2
Normal
3-4
5V
5-6
12V
JC11
JC31
JC41
JC51
JC61
2.4.3 ME update (JME)
2.4.4 Serial port 1/3/4/5/6 – Normal, 5V, 12V PIN 9 selector (JC11/31/41/51/61)
18 EMX-B75 User’s Manual
EMX-B75 User’s Manual
* Default
RS422*
RS485
Pin
Define
1-2
RS422
2-3
RS485
* Default
RS422*
RS485
Pin
Define
1-2
RS422
2-3
RS485
2.4.5 Serial port 2 in RS-422-485 mode (JRS_1)
2.4.6 Serial port 10 in RS-422-485 mode (JRS_2)
EMX-B75 User’s Manual 19
EMX-B75 User’s Manual
KBCLK
MSCLK
KBDATA
MSDATA
PIN
Define
PIN
Define
1
VCC5V
2
GND
3
KBCLK-
4
KBDATA-
5
KBCLK+
6
KBDATA+
7
MSCLK-
8
MSDATA-
9
MSCLK+
10
MSDATA+
2.4.7 PS/2 keyboard & mouse connector (JKB_MS)
20 EMX-B75 User’s Manual
EMX-B75 User’s Manual
* Default
5V*
5VSB
Pin
Define
1-2
5V
2-3
5VSB
* Default
DDR3*
DDR3L
Pin
Define
Open
DDR3L
Close
DDR3
2.4.8 Keyboard power select jumper (JKB)
2.4.9 DDR3L using (JDIMM)
EMX-B75 User’s Manual 21
EMX-B75 User’s Manual
Signal
PIN
PIN
Signal
+5V
1 2 +12V
GPIO
3 4 GPIO
GPIO
5 6 GPIO
GPIO
7 8 GPIO
GPIO
9
10
GPIO
GND
11
12
GND
Signal
PIN
PIN
Signal
GND
1
2 R GND
3
4 G GND
5
6 B HSYNC
7 8 VSYNC
DDC_DATA
9
10
DDC_CLK
2.4.10 General Purpose I/O (JGPIO1)
2.4.11 VGA connector (JVGA1)
22 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Signal
PIN
PIN
Signal
DCD
1 2 RXD
TXD
3 4 RTD
GND
5 6 DSR
RTS
7 8 CTS
Normal
9
Note:
Serial Port Function
Serial Port number
RS 232 with 5V/12V
COM1, COM3~COM6
RS 232 without voltage
COM7, COM8, COM9
PIN
Signal
1
RS485_TX-
2
RS485_TX+
3
RS422_RX-
4
RS422_RX+
Note:
Serial Port Function
Serial Port number
RS 422/485
COM2 , COM10
COM9
COM7
COM6
COM5
COM4
COM8
COM2
COM10
COM1_3
2.4.12 Serial port 4~9 connector (COM4~9)
2.4.13 Serial port 2/10 connector (COM2/10)
EMX-B75 User’s Manual 23
EMX-B75 User’s Manual
PIN
Signal
1
RPM
2
+12V
3
Ground
PIN
Signal
1
Ground
2
+12V
3
RPM
2
Control
2.4.14 System Fan connector (SFAN1)
2.4.15 CPU Fan connector (CFAN1)
24 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Signal
PIN
PIN
Signal
STB
1 2 AFD
PD0
3 4 ERR
PD1
5 6 INIT
PD2
7 8 SLIN
PD3
9
10
GND
PD4
11
12
GND
PD5
13
14
GND
PD6
15
16
GND
PD7
17
18
GND
ACK
19
20
GND
BUSY
21
22
GND
PE
23
24
GND
SLCT
25
Signal
PIN
PIN
Signal
VCC
1 2 VCC
Data_0-
3 4 Data_1-
DATA_0+
5 6 DATA_1+
GND
7 8 GND
10
GND
FUSB1
FUSB2
2.4.16 Printer (JLPT)
2.4.17 USB Connector 1/2 - USB2.0 (FUSB1/2)
EMX-B75 User’s Manual 25
EMX-B75 User’s Manual
Signal
PIN
PIN
Signal
1 VCC
VCC
19 2 SSRX-
SSRX-
18 3 SSRX+
SSRX+
17 4 GND
GND
16 5 SSTX-
SSTX-
15 6 SSTX+
SSTX+
14 7 GND
GND
13 8 D-
D-
12 9 D+
D+
11
10
ID
Signal
PIN
PIN
Signal
5VSB
1
2
+HD_LED
+P_LED
3
4
-HD_LED
-P_LED
5
6
PS_ON
+SPEAK
7
8
-PS_ON
NC
9
10
RESET
NC
11
12
-RESET
-SPEAK
13
14
+SLPLED
16
-SLPLED
2.4.18 USB Connector 3 - USB3.0 (F_USB3)
2.4.19 Front Panel Switches (FPANEL)
26 EMX-B75 User’s Manual
EMX-B75 User’s Manual
PIN
Signal
1
VCC5V
2
OUT
3
GND
Signal
PIN
PIN
Signal
+12V
4 3 +12V
GND
2 1 GND
2.4.20 Sony/Philips Digital Interface (JSPDIF1)
2.4.21 Power connector (PWR12V)
EMX-B75 User’s Manual 27
EMX-B75 User’s Manual
Signal
PIN
PIN
Signal
+12V
10
20
+5V
+5VSB
9
19
+5V
PWR_OK
8
18
-5V
GND
7
17
GND
+5V
6
16
GND
GND
5
15
GND
+5V
4
14
PS-ON
GND
3
13
GND
+3.3V
2
12
-12V
+3.3V
1
11
+3.3V
Signal
PIN
PIN
Signal
FRONT_MIC
1 2 GND
VREF_OUT
3 4 5V
FRONT_OUT_R
5 6 AUD_RET_R
GND
7
FRONT_OUT_L
9
10
AUD_RET_L
2.4.22 ATX Power Input Connector (ATXPWR1)
2.4.23 Front Panel Audio Connection Header (F_AUDIO)
28 EMX-B75 User’s Manual
EMX-B75 User’s Manual
3.BIOS Setup
EMX-B75 User’s Manual 29
EMX-B75 User’s Manual
3.1 Introduction
The BIOS setup program allows users to modify the basic system configuration. In this
following chapter will describe how to access the BIOS setup program and the
configuration options that may be changed.
3.2 Starting Setup
The BIOS is immediately activated when you first power on the computer. The BIOS reads
the system information contained in the NVRAM and begins the process of checking out
the system and configuring it. When it finishes, the BIOS will seek an operating system on
one of the disks and then launch and turn control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <Del> immediately after switching the system on, or
By pressing the <Del> key when the following message appears briefly at the bottom of the
screen during the POST (Power On Self Test).
Press DEL to enter setup, F11 to popup menu
If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys. If you do not press the keys at the correct time and the system does not boot, an error
message will be displayed and you will again be asked to.
Press DEL to enter setup, F11 to popup menu
30 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Button
Description
↑
Move to previous item
↓
Move to next item
←
Move to the item in the left hand
→
Move to the item in the right hand
Esc key
Main Menu -- Quit and not save changes into NVRAM
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and
return to the pervious page or Main Menu
+ key
Increase the numeric value or make changes
- key
Decrease the numeric value or make changes
F1 key
General help, only for Status Page Setup Menu and Option Page Setup Menu
F2 key
Previous Values
F9 key
Optimized Defaults
F10 key
Save and Exit
3.3 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.
Navigating Through The Menu Bar
Use the left and right arrow keys to choose the menu you want to be in.
Note: Some of the navigation keys differ from one screen to another.
To Display a Sub Menu
Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A “” pointer marks all sub menus.
EMX-B75 User’s Manual 31
EMX-B75 User’s Manual
3.4 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1
key again.
3.5 In Case of Problems
If, after making and saving system changes with Setup, you discover that your computer no
longer is able to boot, the AMI BIOS supports an override to the NVRAM settings which
resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both AMI and your systems manufacturer to
provide the absolute maximum performance and reliability. Even a seemingly small change
to the chipset setup has the potential for causing you to use the override.
32 EMX-B75 User’s Manual
EMX-B75 User’s Manual
3.6 BIOS setup
Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main
Menu allows you to select from several setup functions and exit choices. Use the arrow
keys to select among the items and press <Enter> to accept and enter the sub-menu.
3.6.1 Main Menu
This section allows you to record some basic hardware configurations in your computer and
set the system clock.
3.6.1.1 System Language
Use this option to select system language
3.6.1.2 System Date
Use the system date option to set the system date. Manually enter the day, month and
year.
3.6.1.3 System Time
Use the system time option to set the system time. Manually enter the hours, minutes and
seconds.
Note: BIOS setup screens shown in this chapter are for reference only, and may
not exactly match what you see on your screen. Visit the Avalue website
(www.avalue.com.tw) to download the latest product and BIOS information.
EMX-B75 User’s Manual 33
EMX-B75 User’s Manual
Item
Options
Description
Enable ACPI Auto Configuration
Disabled[Default] ,
Enabled
Enables or Disables BIOS ACPI
Auto Configuration.
Enable Hibernation
Disabled,
Enabled[Default]
Enables or Disables System
ability to Hibernate (OS/S4 Sleep
3.6.2 Advanced BIOS settings
This section allows you to configure your CPU and other system devices for basic operation
through the following sub-menus.
3.6.2.1 ACPI Settings
You can use this item to set up ACPI Configuration.
34 EMX-B75 User’s Manual
EMX-B75 User’s Manual
State). This option may be not
effective with some OS.
MotherBoard Support S3
No
Yes[Default]
Support S3 Yes or No.
ACPI Sleep State
Suspend Disabled
S1 only (CPU Stop Clock) [Default]
S3 only (Suspend to RAM)
Select ACPI sleep state the
system will enter when the
SUSPEND button is pressed.
Item
Options
Description
Limit CPUID Maximum
Disabled[Default],
Enabled
Disabled for Windows XP
Execute Disable Bit
Disabled
Enabled[Default],
XD can prevent certain classed of malicious
buffer overflow attacks when combined with a
supporting OS (Windows Server 2003 SP1,
Windows XP SP2,SuSE Linux 9.2,RedHat
Enterprise 3 Update 3).
3.6.2.2 CPU Configuration
Use the CPU configuration menu to view detailed CPU specification and configure the
CPU.
EMX-B75 User’s Manual 35
EMX-B75 User’s Manual
Item
Options
Description
PS/2 Keyboard Wakeup from
S3/S4/S5
Disabled[Default]
Anykey
Password
Setting PS/2 Keyboard Wakeup function.
PS/2 Mouse Wakeup from S4/S5
Enabled
Disabled[Default]
Setting PS/2 Mouse Wakeup function.
PME Wakeup
Enabled
Disabled[Default]
Wakeup from S1/S3/S4/S5 by lan.
Power-Loss State
Always off[Default]
Always on
Keep last state
Control the status when Power loss occurs.
Wake system with Fixed Time
Enabled
Disabled[Default]
Enable or disable System wake on alarm
event. When enabled, System will wake on the
hr::min::sec specified.
Wake system with Dynamic
Time
Enabled
Disabled[Default]
Enable or disable System wake on alarm
event. When enabled, System will wake on the
current time + Increase minute(s).
3.6.2.3 PowerManagement Configuration
36 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Item
Options
Description
Audio Controller
Disabled
Enabled
Auto [Default]
Control Detection of the Azalia device.
Disabled = Azalia will be unconditionally
disabled Enabled = Azalia will be
unconditionally Enabled Auto = Azalia will be
enabled if present, disabled otherwise.
Lan 1/2# Controller
Enabled[Default]
Disabled
Enable/Disable Lan 1/2#.
Lan PXE OpROM
Enabled
Disabled[Default]
Controls the execution of UEFI and Legacy
PXE OpROM.
3.6.2.4 Onboard Device Configuration
EMX-B75 User’s Manual 37
EMX-B75 User’s Manual
Item
Options
Description
SATA Controller(s)
Enabled[Default]
Disabled
Enable or disable SATA Device.
SATA Mode Selection
IDE[Default]
AHCI
Determines how SATA controller(s) operate.
IDE Legacy / Native Mode
Selection
Native[Default]
Legacy
IDE Legacy / Native Mode Selection.
3.6.2.5 SATA Configuration
38 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Item
Options
Description
Legacy USB Support
Enabled[Default]
Disabled
Auto
Enables Legacy USB support.
AUTO option disables legacy support if no USB
devices are connected. DISABLE option will keep
USB devices available only for EFI applications.
USB Controller
Enabled[Default]
Disabled
Enable/Disable all usb port.
xHCI Mode
Auto[Default]
Enabled
Disabled
Mode of operation of xHCI controller.
3.6.2.6 USB Configuration
The USB configuration menu is used to read USB configuration information and configure
USB.
EMX-B75 User’s Manual 39
EMX-B75 User’s Manual
Item
Description
Serial Port 7 Configuration
Set Parameters of Serial Port 7 (COM7).
Serial Port 8 Configuration
Set Parameters of Serial Port 8 (COM8).
Serial Port 9 Configuration
Set Parameters of Serial Port 9 (COM9).
Serial Port 10 Configuration
Set Parameters of Serial Port 10 (COM10).
3.6.2.7 F81216 Super IO Configuration
You can use this item to set up or change the F81216 Super IO configuration for FDD
controllers, parallel ports and serial ports.
3.6.2.7.1 Serial Port 7 Configuration
40 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=A60h; IRQ=11;
IO=A60h; IRQ=10,11;
IO=A68h; IRQ=10,11;
IO=A70h; IRQ=10,11;
IO=A58h; IRQ=10,11;
Select an optimal setting for
Super IO device.
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=A68h; IRQ=11;
IO=A60h; IRQ=10,11;
IO=A68h; IRQ=10,11;
IO=A70h; IRQ=10,11;
IO=A58h; IRQ=10,11;
Select an optimal setting for
Super IO device.
3.6.2.7.2 Serial Port 8 Configuration
EMX-B75 User’s Manual 41
EMX-B75 User’s Manual
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=A70h; IRQ=11;
IO=A60h; IRQ=10,11;
IO=A68h; IRQ=10,11;
IO=A70h; IRQ=10,11;
IO=A58h; IRQ=10,11;
Select an optimal setting for
Super IO device.
3.6.2.7.3 Serial Port 9 Configuration
3.6.2.7.4 Serial Port 10 Configuration
42 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=A58h; IRQ=11;
IO=A60h; IRQ=10,11;
IO=A68h; IRQ=10,11;
IO=A70h; IRQ=10,11;
IO=A58h; IRQ=10,11;
Select an optimal setting for
Super IO device.
Item
Description
Serial Port 1 Configuration
Set Parameters of Serial Port 1 (COM1).
Serial Port 2 Configuration
Set Parameters of Serial Port 2 (COM2).
Serial Port 3 Configuration
Set Parameters of Serial Port 3 (COM3).
Serial Port 4 Configuration
Set Parameters of Serial Port 4 (COM4).
Serial Port 5 Configuration
Set Parameters of Serial Port 5 (COM5).
Serial Port 6 Configuration
Set Parameters of Serial Port 6 (COM6).
Parallel Port Configuration
Set Parameters of Parallel Port (LPT/LPTE).
3.6.2.8 NCT6106D Super IO Configuration
You can use this item to set up or change the NCT6106D Super IO configuration for FDD
controllers, parallel ports and serial ports.
EMX-B75 User’s Manual 43
EMX-B75 User’s Manual
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=3F8h; IRQ=4;
IO=3F8h; IRQ=3,4,5,6,7,10,11,12;
IO=2F8h; IRQ=3,4,5,6,7,10,11,12;
IO=3E8h; IRQ=3,4,5,6,7,10,11,12;
IO=2E8h; IRQ=3,4,5,6,7,10,11,12;
Select an optimal setting for
Super IO device.
3.6.2.8.1 Serial Port 1 Configuration
3.6.2.8.2 Serial Port 2 Configuration
44 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=2F8h; IRQ=3;
IO=3F8h; IRQ=3,4,5,6,7,10,11,12;
IO=2F8h; IRQ=3,4,5,6,7,10,11,12;
IO=3E8h; IRQ=3,4,5,6,7,10,11,12;
IO=2E8h; IRQ=3,4,5,6,7,10,11,12;
Select an optimal setting for
Super IO device.
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=220h; IRQ=10;
IO=220h; IRQ=3,4,5,6,7,10,11,12;
IO=228h; IRQ=3,4,5,6,7,10,11,12;
IO=238h; IRQ=3,4,5,6,7,10,11,12;
IO=338h; IRQ=3,4,5,6,7,10,11,12;
Select an optimal setting for
Super IO device.
3.6.2.8.3 Serial Port 3 Configuration
EMX-B75 User’s Manual 45
EMX-B75 User’s Manual
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=228h; IRQ=10;
IO=220h; IRQ=3,4,5,6,7,10,11,12;
IO=228h; IRQ=3,4,5,6,7,10,11,12;
IO=238h; IRQ=3,4,5,6,7,10,11,12;
IO=338h; IRQ=3,4,5,6,7,10,11,12;
Select an optimal setting for
Super IO device.
3.6.2.8.4 Serial Port 4 Configuration
3.6.2.8.5 Serial Port 5 Configuration
46 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=238h; IRQ=10;
IO=220h; IRQ=3,4,5,6,7,10,11,12;
IO=228h; IRQ=3,4,5,6,7,10,11,12;
IO=238h; IRQ=3,4,5,6,7,10,11,12;
IO=338h; IRQ=3,4,5,6,7,10,11,12;
Select an optimal setting for
Super IO device.
Item
Option
Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=338h; IRQ=10;
IO=220h; IRQ=3,4,5,6,7,10,11,12;
IO=228h; IRQ=3,4,5,6,7,10,11,12;
IO=238h; IRQ=3,4,5,6,7,10,11,12;
IO=338h; IRQ=3,4,5,6,7,10,11,12;
Select an optimal setting for
Super IO device.
3.6.2.8.6 Serial Port 6 Configuration
EMX-B75 User’s Manual 47
EMX-B75 User’s Manual
Item
Option
Description
Parallel Port
Enabled,
Disabled[Default]
Enable or Disable Parallel Port
(LPT/LPTE).
Change Settings
Auto[Default]
IO=378h; IRQ=7;
IO=378h; IRQ=6,7,10,11,12;
IO=278h; IRQ=6,7,10,11,12;
IO=3BCh; IRQ=6,7,10,11,12;
Select an optimal setting for
Super IO device.
Device Mode
STD Printer Mode[Default]
SPP Mode
EPP-1.9 and SPP Mode
EPP-1.7 and SPP Mode
ECP Mode
ECP and EPP 1.9 Mode
ECP and EPP 1.7 Mode
Change the Printer Port mode.
3.6.2.8.7 Parallel Port Configuration
48 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Item
Options
Description
CpuFan Smart Setting
Disabled[Default]
Enabled
Disabled/Enabled SmartFan.
Item
Options
Description
WatchDog Count Mode
Second[Default]
Minute
WatchDog Count Mode Selection.
WatchDog TimeOut Value
0
Fill WatchDog TimerOut Value,0 means
disabled.
3.6.2.9 HW Monitor
The H/W Monitor shows the operating temperature, fan speeds and system voltages.
3.6.2.10 WatchDog Parameters
EMX-B75 User’s Manual 49
EMX-B75 User’s Manual
Item
Description
Host Bridge
System Agent (SA) Parameters.
Item
Options
Description
Memory Configuration
Memory Configuration Parameters.
3.6.3 Chipset
3.6.3.1 Host bridge
50 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Item
Option
Description
DIMM profile
Default DIMM profile[Default]
Custom Profile
XMP Profile 1
XMP Profile 2
Select DIMM timing profile that
should be used.
Memory Frequency Limiter
Auto[Default]
1067
1333
1600
1867
2133
2400
2667
Maximum Memory Frequency
Selections in Mhz.
3.6.3.1.1 Memory Configuration
EMX-B75 User’s Manual 51
EMX-B75 User’s Manual
Item
Option
Description
Setup Prompt Timeout
1~65535
Number of seconds to wait for
setup activation key.
65535(0xFFFF) means indefinite
waiting.
Bootup NumLock State
On[Default]
Off
Select the keyboard NumLock
state.
Full Screen Logo
Disabled[Default]
Enabled
Enables or disables Quiet Boot
option.
GateA20 Active
Upon Request[Default]
Always
UPON REQUEST – GA20 can be
disabled using BIOS services.
ALWAYS – do not allow disabling
GA20; this option is useful when
any RT code is executed above
1MB.
Option ROM Messages
Force BIOS[Default]
Keep Current
Set display mode for Option
ROM.
INT19 Trap Response
Immediate
Postponed[Default]
BIOS reaction on INT19 trapping
by Option ROM: IMMEDIATE –
execute the trap right away;
POSTPONED – execute the trap
during legacy boot.
3.6.4 Boot settings
52 EMX-B75 User’s Manual
EMX-B75 User’s Manual
3.6.5 Security
Use the Security menu to set system and user password.
3.6.5.1 Administrator Password
This setting specifies a password that must be entered to access the BIOS Setup Utility. If
only the Administrator's password is set, then this only limits access to the BIOS setup
program and is only asked for when entering the BIOS setup program. By default, no
password is specified.
3.6.5.2 User Password
This setting specifies a password that must be entered to access the BIOS Setup Utility or
to boot the system. If only the User's password is set, then this is a power on password and
must be entered to boot or enter the BIOS setup program. In the BIOS setup program, the
User will have Administrator rights. By default, no password is specified.
EMX-B75 User’s Manual 53
EMX-B75 User’s Manual
3.6.6 Save & Exit
3.6.6.1 Save Changes and Exit
Use the save changes and reset option to save the changes made to the BIOS options and
to exit the BIOS configuration setup program.
54 EMX-B75 User’s Manual
EMX-B75 User’s Manual
3.6.6.2 Discard Changes and Exit
Use the Discard changes and Exit option to exit the system without saving the changes
made to the BIOS configuration setup program.
3.6.6.3 Save Changes and Reset
Any changes made to BIOS settings are stored in NVRAM. The setup program then exits
and reboots the controller.
3.6.6.4 Discard Changes and Reset
Any changes made to BIOS settings during this session of the BIOS setup program are
discarded. The setup program then exits and reboots the controller.
3.6.6.5 Save Changes
Changes made to BIOS settings during this session are committed to NVRAM. The setup
program remains active, allowing further changes.
3.6.6.6 Discard Changes
Any changes made to BIOS settings during this session of the BIOS setup program are
discarded. The BIOS setup continues to be active.
3.6.6.7 Restore Defaults
This option restores all BIOS settings to the factory default. This option is useful if the
controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting.
3.6.6.8 Save as User Defaults
This option saves a copy of the current BIOS settings as the User Defaults. This option is
useful for preserving custom BIOS setup configurations.
3.6.6.9 Restore as User Defaults
This option restores all BIOS settings to the user defaults. This option is useful for restoring
previously preserved custom BIOS setup configurations.
EMX-B75 User’s Manual 55
EMX-B75 User’s Manual
4. Drivers Installation
Note: Installation procedures and screen shots in this section are
for your reference and may not be exactly the same as
shown on your screen.
56 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, click on “start” icon and it
should show the index page of Avalue’s
products automatically. If not, locate the
folder HTML and choose the product from
the targeted folder.
Note: The installation procedures and
screen shots in this section are
based on Windows 7 operating
system.
Step 1. Locate
「\Driver_Audio\EMX-B75_Audio」.
Step 4. Select Next to continue installation.
Step 2. Select Next to start setup.
Step 5. Select Next to continue
installation.Select Finish to complete
Installation.
Step 3. Select Yes to the next step.
Step 6. Select Finish to complete
Installation.
4.1 Install Chipset Driver
EMX-B75 User’s Manual 57
EMX-B75 User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, click on “start” icon and it
should show the index page of Avalue’s
products automatically. If not, locate the
folder HTML and choose the product from
the targeted folder.
Note: The installation procedures and
screen shots in this section are
based on Windows 7 operating
system.
Step 1. Locate 「\VGA\EMX-B75_VGA」.
Step 4. Select Next to continue
installation.
Step 2. Select Next to start setup.
Step 5. Select Next to continue installation.
Step 3. Select Yes to the next step.
Step 6. Select Finish to complete
installation.
4.2 Install VGA Driver
58 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Network\EMX-B75_LAN.
Note: The installation procedures and
screen shots in this section are
based on Windows 7 operation
system.
Step 3. Click Finish to complete setup.
Step 1. Click Next to Install.
Step 2. Click Install to begin the installation.
4.3 Install LAN Driver (For Realtek 8111E Gigabit Ethernet)
EMX-B75 User’s Manual 59
EMX-B75 User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, click on “start” icon and it
should show the index page of Avalue’s
products automatically. If not, locate the
folder HTML and choose the product from
the targeted folder.
Note: The installation procedures and
screen shots in this section are
based on Windows 7 operating
system.
Step 1. Locate 「\Utility\USB3.0」.
Step 4. Select Next to continue
installation.
Step 2. Select Next to start setup.
Step 5. Select Next to continue
installation.
Step 3. Select Yes to the next step.
Step 6. Select Finish to complete
installation
4.4 Install USB 3.0 Driver
60 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, click on “start” icon and it
should show the index page of Avalue’s
products automatically. If not, locate the
folder HTML and choose the product from
the targeted folder.
Note: The installation procedures and
screen shots in this section are
based on Windows 7 operating
system.
Step 1. Locate 「\Utility\MEI」.
Step 4. Select Next to continue
installation.
Step 2. Select Next to start setup.
Step 5. Select Install to continue
installation.
Step 3. Select Yes to the next step.
Step 6. Select Next to continue
installation.
4.5 Install MEI Driver
EMX-B75 User’s Manual 61
EMX-B75 User’s Manual
Step 6. Select Finish to complete installation
62 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Audio\EMX-B75_Audio
Note: The installation procedures and
screen shots in this section are
based on Windows 7 operation
system. If the warning message
appears while the installation
process, click Continue to go on.
Step1. Click Next to Install..
Step 2. Select Finish to complete
Installation.
4.6 Install Audio Driver (For Realtek ALC661 HD Audio)
EMX-B75 User’s Manual 63
EMX-B75 User’s Manual
5. Mechanical Drawing
64 EMX-B75 User’s Manual
EMX-B75 User’s Manual
Unit: mm
EMX-B75 User’s Manual 65
EMX-B75 User’s Manual
Unit: mm
66 EMX-B75 User’s Manual
Loading...
