Page 1

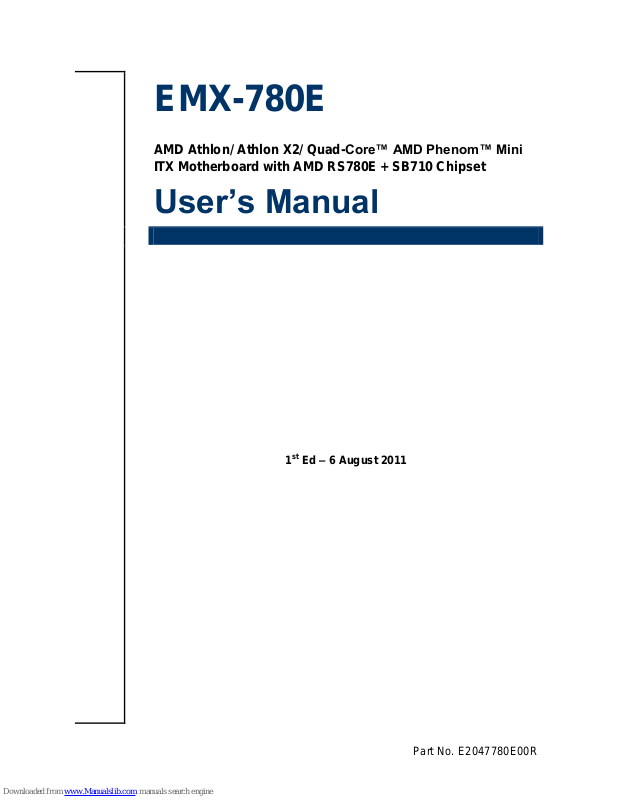

Part No. E2047780E00R
EMX-780E
AMD Athlon/ Athlon X2/ Quad-Core™ AMD Phenom™ Mini
ITX Motherboard with AMD RS780E + SB710 Chipset
User’s Manual
1st Ed – 6 August 2011
Page 2
EMX-780E
2 EMX-780E User’s Manual
FCC Statement
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Notice
This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.
Copyright Notice
Copyright 2011 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
these products are free from patent, copyright, or mask work right infringement, unless
Page 3
User’s Manual
EMX-780E User’s Manual
3
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Life Support Policy
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose failure
to perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.
A Message to the Customer
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
Page 4
EMX-780E
4 EMX-780E User’s Manual
If you still cannot find the answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our dealers are well trained
and ready to give you the support you need to get the most from your Avalue’s products. In
fact, most problems reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from Avalue’s engineers every business day.
We are always ready to give advice on application requirements or specific information on
the installation and operation of any of our products. Please do not hesitate to call or e-mail
us.
Headquarters and Branch
Avalue USA
Avalue Technology Inc.
7F, 228, Lian-cheng Road, Chung Ho City, Taipei,
Taiwan
Tel:+886-2-8226-2345
Fax: +886-2-8226-2777
Information:[email protected]
Service: [email protected]
Avalue Technology Inc.
9 Timber Lane, Marlboro, NJ 07746-1443
Tel: (732) 414-6500
Fax: (732) 414-6501
Information: [email protected]
Service: [email protected]
BCM Advanced Research
Avalue Europe
BCM Advanced Research
an Avalue Company
7 Marconi, Irvine, CA92618
Tel: +1-949-470-1888
Fax: +1-949-470-0971
Information: [email protected]
Web: www.bcmcom.com
Avalue Europe A/S
Moelledalen 22C, 3140
Aalsgaarde, Denmark
Tel: +45-7025-0310
Fax:+45-4975-5026
Information: [email protected]
Service: [email protected]
Avalue China
Avalue Japan
Avalue Technology Inc.
Room 805, Building 9,No.99 Tianzhou Rd.,
Caohejing Development Area,
Xuhui District, Shanghai
Tel: +86-21-5169-3609
Fax:+86-21-5445-3266
Information: [email protected]
Service: [email protected]
Avalue Technology Inc.
2F keduka-Bldg, 2-27-3 Taito,
Taito-Ku, Tokyo 110-0016 Japan
Tel: +81-3-5807-2321
Fax: +81-3-5807-2322
Information: [email protected]
Service: [email protected]
Page 5
User’s Manual
EMX-780E User’s Manual
5
Product Warranty
Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Avalue, or which have been subject to
misuse, abuse, accident or improper installation. Avalue assumes no liability under the
terms of this warranty as a consequence of such events. Because of Avalue’s high
quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Avalue’s products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU type and
speed, Avalue’s products model name, hardware & BIOS revision number, other
hardware and software used, etc.) Note anything abnormal and list any on-screen
messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any
helpful information available.
3. If your product is diagnosed as defective, obtain an RMA (return material authorization)
number from your dealer. This allows us to process your good return more quickly.
4. Carefully pack the defective product, a complete Repair and Replacement Order Card
and a photocopy proof of purchase date (such as your sales receipt) in a shippable
container. A product returned without proof of the purchase date is not eligible for
warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your
dealer.
Page 6
EMX-780E
6 EMX-780E User’s Manual
Contents
1. Getting Started ............................................................................................................ 8
1.1 Safety Precautions .................................................................................................... 8
1.2 Packing List ............................................................................................................... 8
1.3 Document Amendment History ................................................................................. 9
1.4 Manual Objectives ................................................................................................... 10
1.5 System Specifications ............................................................................................. 11
1.6 Architecture Overview – Block Diagram .................................................................. 13
2. Hardware Configuration ........................................................................................... 14
2.1 Product Overview .................................................................................................... 15
2.2 Installation Procedure ............................................................................................. 16
2.2.1 Main Memory .................................................................................................................................. 17
2.3 Jumper and Connector List ..................................................................................... 19
2.4 Setting Jumpers & Connectors ............................................................................... 21
2.4.1 CF mode select (CN5) .................................................................................................................... 21
2.4.2 Serial port 1/ 2/ 3/ 4 pin-9 signal select .......................................................................................... 21
(COM1SEL1/ COM2SEL1/ COMP1SEL2/ COMP9SEL2) .......................................................................... 21
2.4.3 Case open (JP305) ........................................................................................................................ 22
2.4.4 Clear password & CMOS select (RTC1) ........................................................................................ 22
2.4.5 LVDS power select (CN6) .............................................................................................................. 23
2.4.6 ATX power supply connector (ATXPWR) ...................................................................................... 24
2.4.7 SMB CLK & SMB DATA connector (CN3) ..................................................................................... 25
2.4.8 Serial port 2/ 3/ 4 connector (COM2/ COM3/ COM4) .................................................................... 25
2.4.9 CPU Fan (CPU_FAN) .................................................................................................................... 26
2.4.10 System Fan (SYS_FAN) ............................................................................................................ 26
2.4.11 System panel connector (F_PANEL) ......................................................................................... 27
2.4.12 Audio header connector (HD1) .................................................................................................. 27
2.4.13 Amplifier connector (JAMP1) ..................................................................................................... 28
2.4.14 General purpose I/O connector (JDIO) ...................................................................................... 28
2.4.15 LVDS connector (LVDS1) .......................................................................................................... 29
2.4.16 SPDIF out connector (SPDIF_OUT1) ........................................................................................ 30
2.4.17 SPI BIOS ROM out connector (SPI_JP1) .................................................................................. 30
2.4.18 USB connector 4&5/ 6&7 (USB45/ USB67) ............................................................................... 31
3. BIOS Setup ................................................................................................................... 32
3.1 Introduction ............................................................................................................. 33
3.2 Starting Setup ......................................................................................................... 33
3.3 Using Setup ............................................................................................................ 34
3.4 Getting Help ............................................................................................................ 35
Page 7
User’s Manual
EMX-780E User’s Manual
7
3.5 In Case of Problems ................................................................................................ 35
3.6 BIOS setup .............................................................................................................. 36
3.6.1 Main Menu ...................................................................................................................................... 36
3.6.1.1 System information .............................................................................................................................. 37
3.6.2 Advanced Menu ............................................................................................................................. 38
3.6.2.1 CPU Configuration .............................................................................................................................. 38
3.6.2.2 Chipset ................................................................................................................................................. 39
3.6.2.2.1 Advances Chipset Settings ................................................................................................................... 39
3.6.2.2.2 NorthBridge2 Configuration ................................................................................................................ 40
3.6.2.2.2.1 Internal Graphics Configuration ...................................................................................................... 41
3.6.2.2.2.2 Primary Video Controller ................................................................................................................ 42
3.6.2.3 Onboard Device Configuration ............................................................................................................ 43
3.6.2.4 USB Configuration .............................................................................................................................. 44
3.6.2.5 PCIPnP ................................................................................................................................................. 45
3.6.2.5.1 Plug & play O/S ................................................................................................................................... 46
3.6.3 Power ............................................................................................................................................. 47
3.6.3.1 Power Management ................................................................................................................... 48

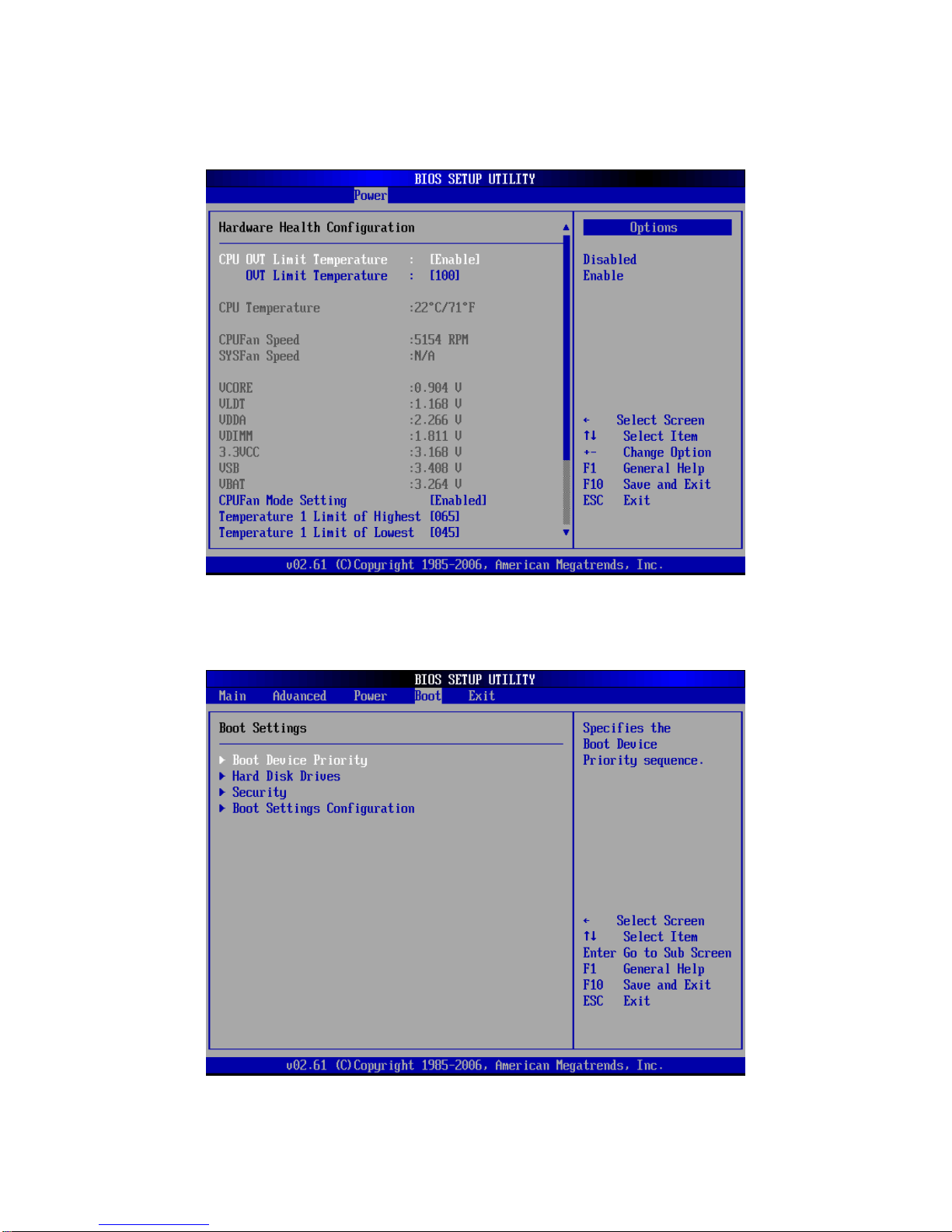

3.6.3.2 Hardware Health Configuration.................................................................................................. 49
3.6.4 Boot ................................................................................................................................................ 49
3.6.4.1 Boot Device Priority ................................................................................................................... 50
3.6.4.2 Hard Disk Devices ..................................................................................................................... 50

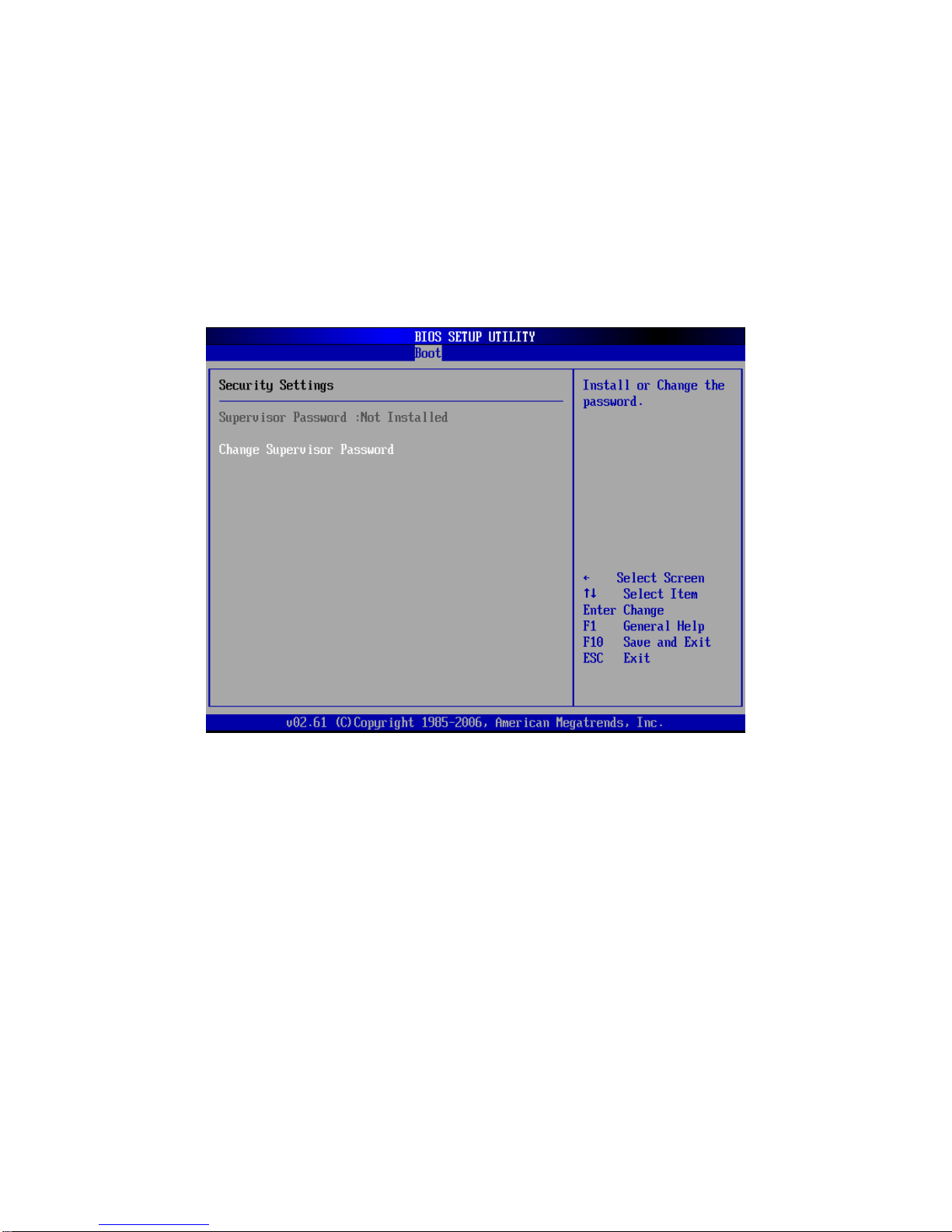

3.6.4.3 Security ...................................................................................................................................... 50

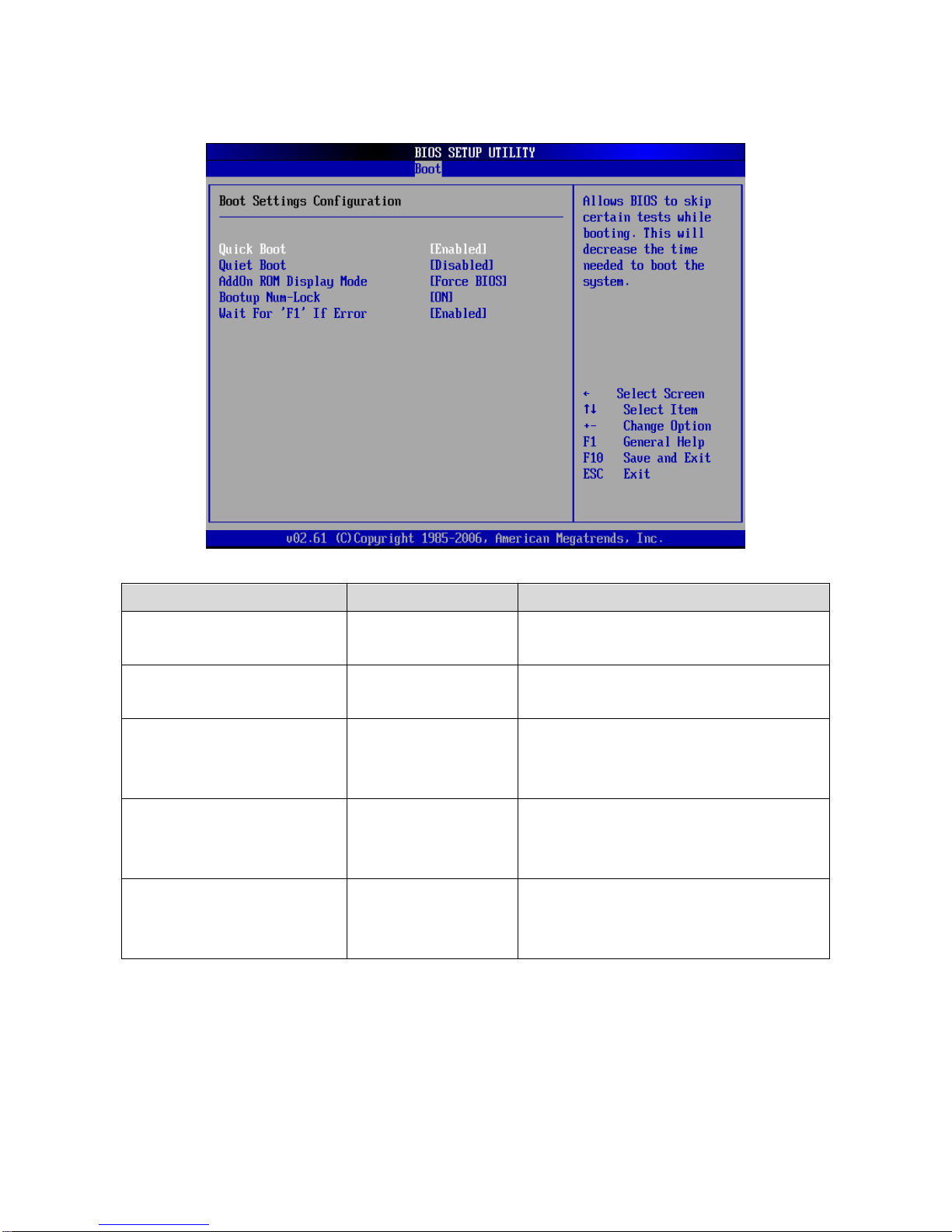

3.6.4.4 Boot Settings Configuration ....................................................................................................... 51

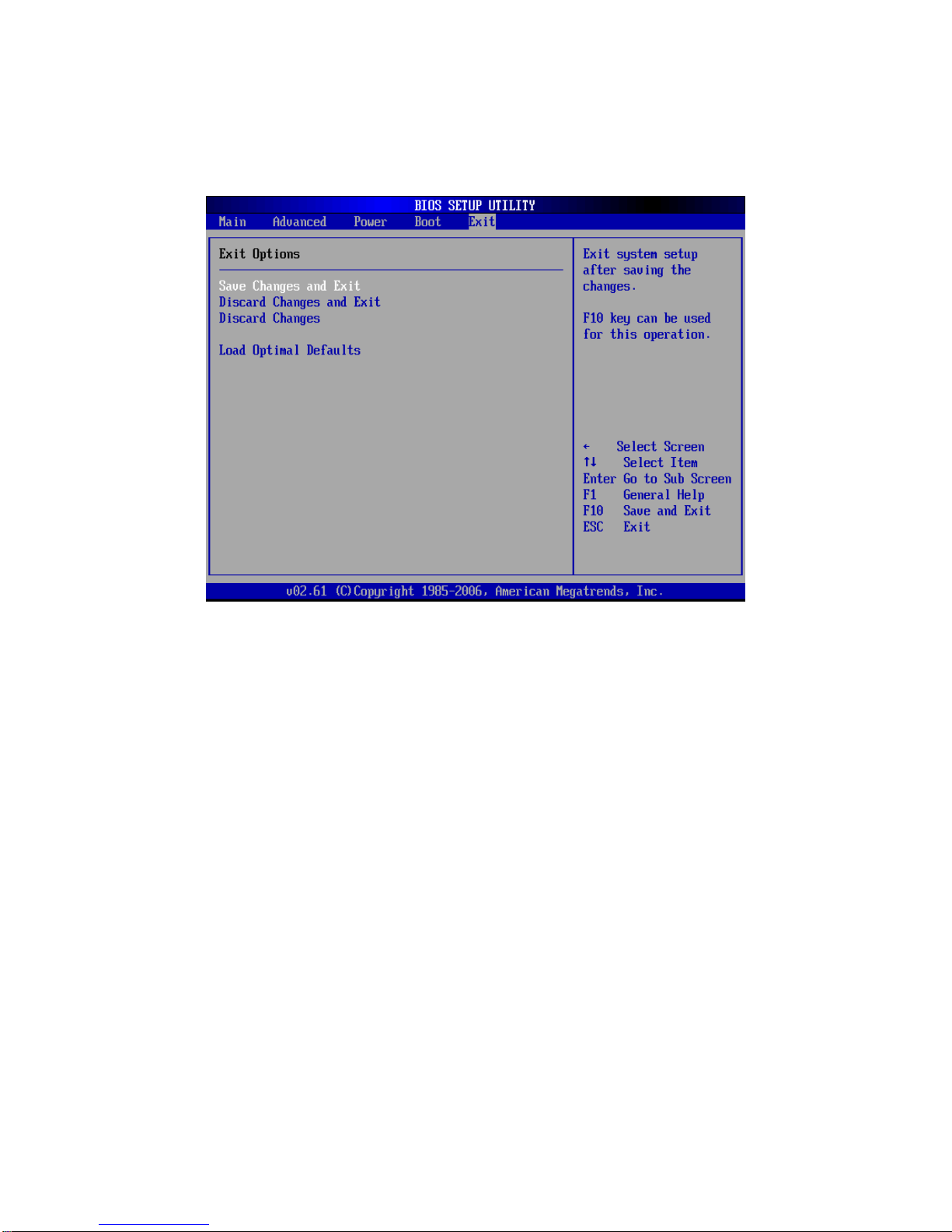

3.6.5 Exit .................................................................................................................................................. 52
3.6.5.1 Save Changes and Exit ............................................................................................................. 52
3.6.5.2 Discard Changes and Exit ......................................................................................................... 52
3.6.5.3 Discard Changes ....................................................................................................................... 52
3.6.5.4 Load Optimal Defaults ............................................................................................................... 52

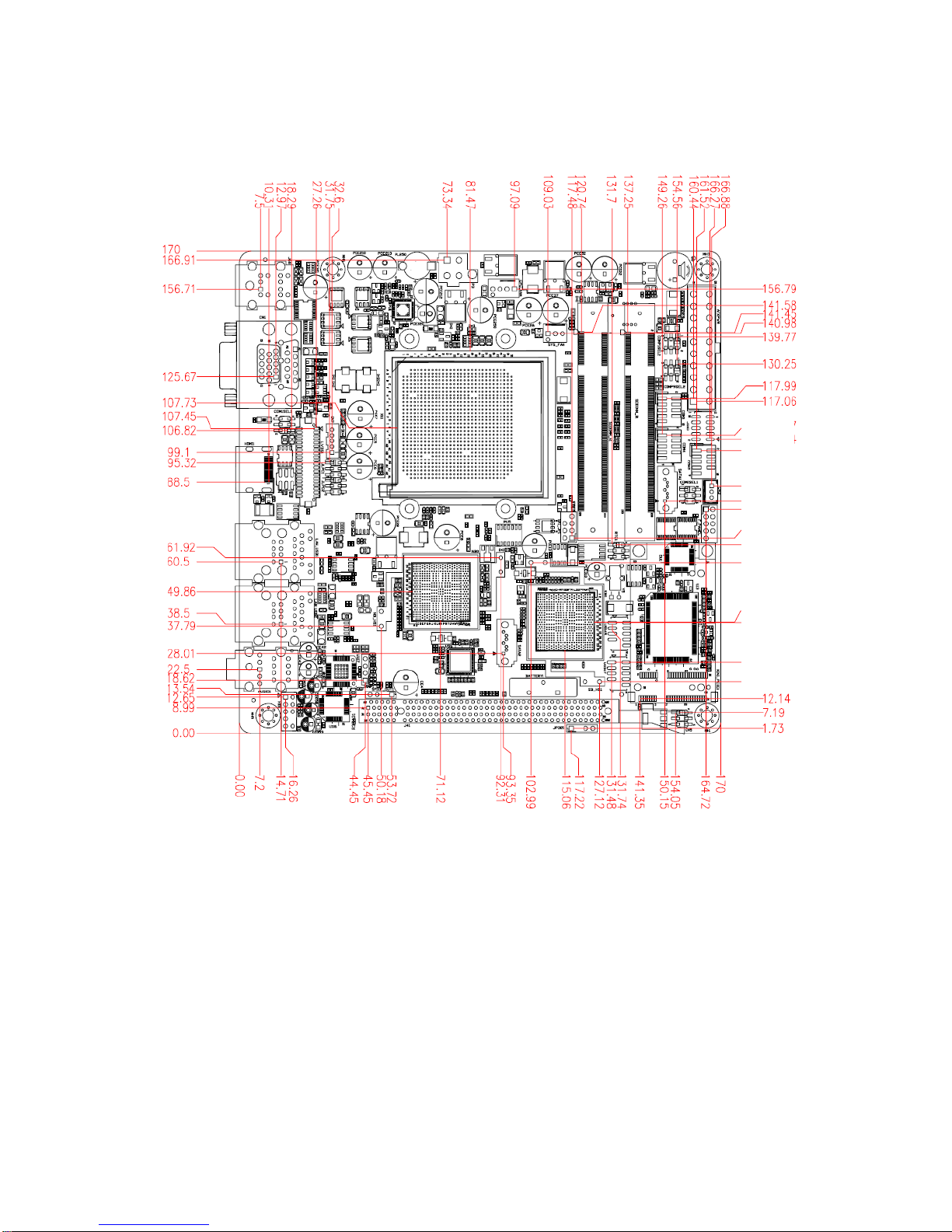

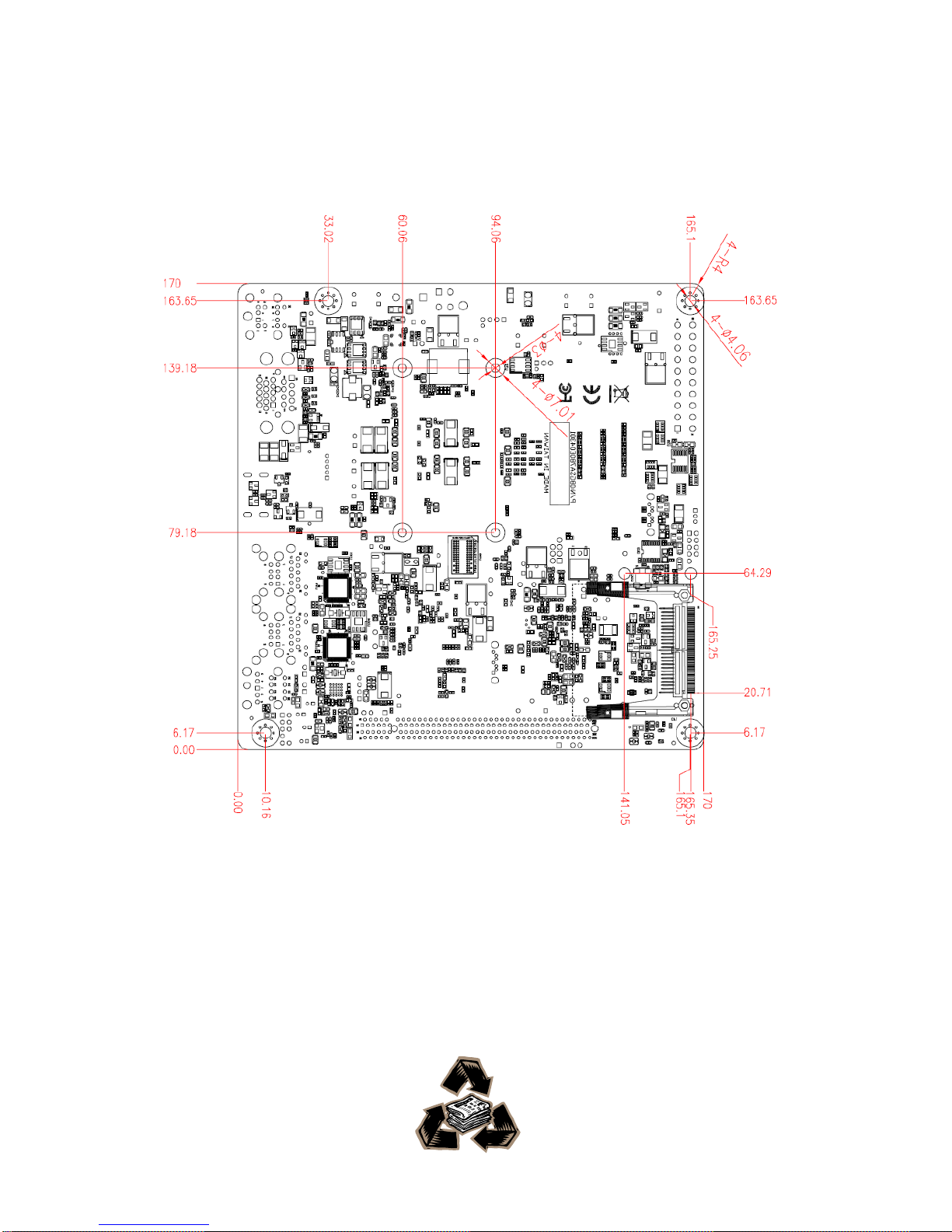

4. Mechanical Drawing .................................................................................................... 55
Page 8
EMX-780E
8 EMX-780E User’s Manual
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
1 x EMX-780E Mini ITX Main Board
2 x SATA Cable kit
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— LAN drivers and utilities
— Audio drivers and utilities
Page 9
User’s Manual
EMX-780E User’s Manual
9
1.3 Document Amendment History
Revision
Date
Comment
1st
August 2010
Initial Release
Page 10
EMX-780E
10 EMX-780E User’s Manual
1.4 Manual Objectives
This manual describes in detail the Avalue Technology EMX-780E motherboard.
We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.
We strongly recommend that you study this manual carefully before attempting to interface
with EMX-780E series or change the standard configurations. Whilst all the necessary
information is available in this manual we would recommend that unless you are confident,
you contact your supplier for guidance.
Please be aware that it is possible to create configurations within the CMOS RAM that
make booting impossible. If this should happen, clear the CMOS settings, (see the
description of the Jumper Settings for details).
If you have any suggestions or find any errors concerning this manual and want to inform
us of these, please contact our Customer Service department with the relevant details.
Page 11
User’s Manual
EMX-780E User’s Manual
11
1.5 System Specifications
System
CPU
AM2/ AM2+/ AM3 Socket Support 65W Athlon/ Athlon X2/Quad-Core™ AMD
Phenom™ II Processors
FSB
400MHz
BIOS
AMI 2MB SPI BIOS
System Chipset
AMD RS780E/ SB710
I/O Chip
FINTEK F71863FG
System Memory
Two 200-pin SODIMMs Support Up to 4GB DDR2 800 SDRAM
SSD
1 CompactFlash Type I/II Socket
Watchdog Timer
1sec. ~ 255min. and 1sec. or 1min/step
H/W Status Monitor
Monitoring CPU Temperature and Cooling Fan Status with Auto Throttling
Control
S3/ S4
Yes (S1/ S2/ S3/ S4)
SmartFan Control
Yes
Expansion
1 PCIex16, 1 Mini PCI
I/O
MIO
2 SATA, 1 K/B, 1 Mouse, 4 RS-232 (COM1 on Edge, COM2 & 3 & 4, 10-pin
2.0 Pitch Box Header)
USB
8 x USB 2.0
DI/O
8-bit
Display
Chipset
IGP ATI Radeon HD3200
Resolution
CRT Mode: 2560 x 1600 @ 32bpp
Dual Display
CRT + HDMI, CRT + LVDS
LVDS
2-CH 24-bit LVDS
HDMI
1 x External Port (HDMI 1.3)
Audio
AC97 Codec
Realtek ALC888 Supports 5.1-CH Audio
Audio Interface
Mic-in, Line-in, CD Audio-in, Line-out
Audio Amplifer
TPA A3005D2 Stereo 5W Per Channel
Page 12
EMX-780E
12 EMX-780E User’s Manual
Ethernet
LAN1
Realtek RTL8111D Gigabit Ethernet
LAN2
Realtek RTL8111D Gigabit Ethernet
Mechanical & Environmental
Power Requirement
ATX (5V/ 12V), 5Vsb
Operation Temperature
0 ~ 60°C (32 ~ 140°F)
Operating Humidity
0 ~ 90% Relative Humidity, Non-condensing
Size ( L x W )
6.69” x 6.69” (170mm x 170mm)
Weight
0.88lbs (0.4kg)
Page 13
User’s Manual
EMX-780E User’s Manual
13

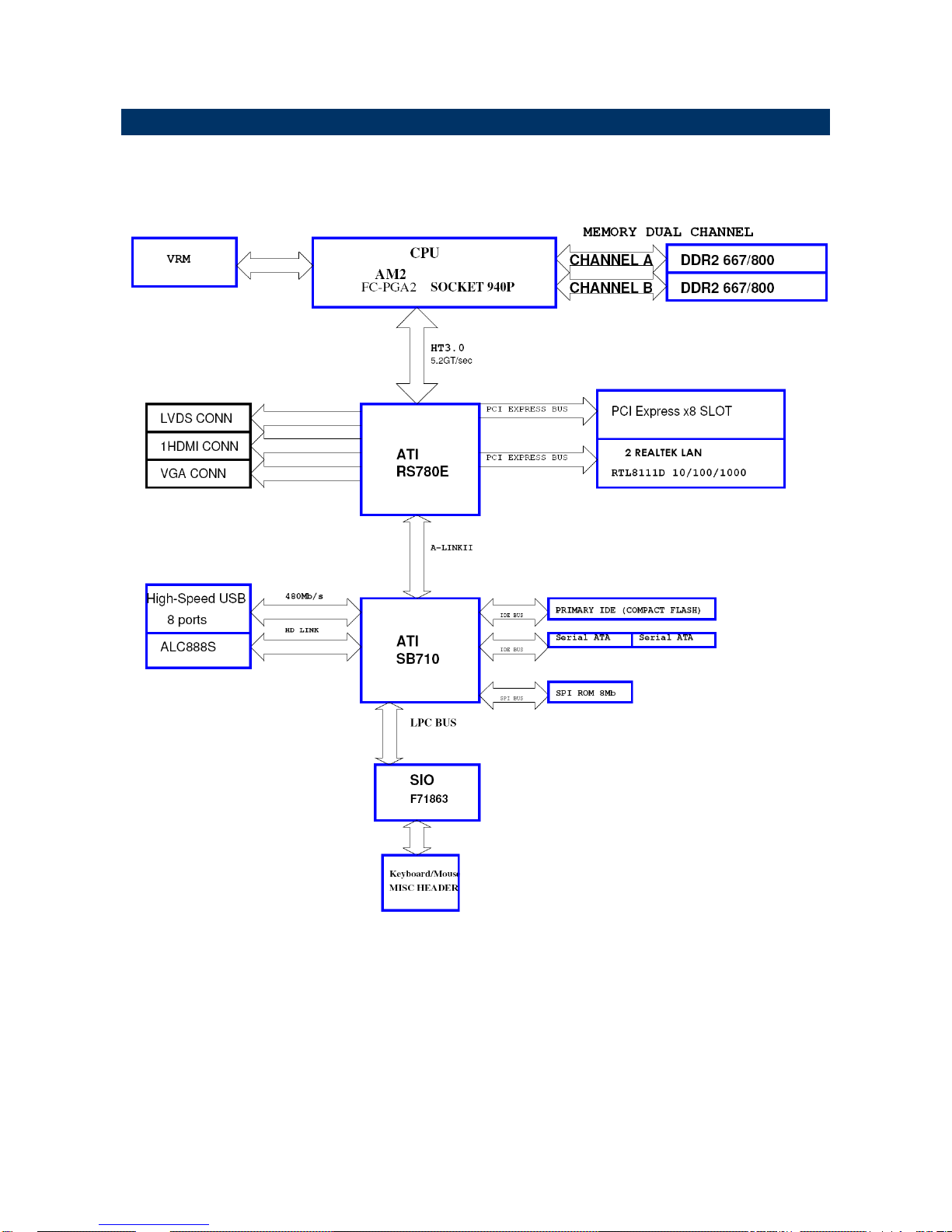

1.6 Architecture Overview – Block Diagram
The following block diagram shows the architecture and main components of EMX-780E.
Page 14
EMX-780E
14 EMX-780E User’s Manual
2. Hardware
Configuration
Page 15
User’s Manual
EMX-780E User’s Manual
15

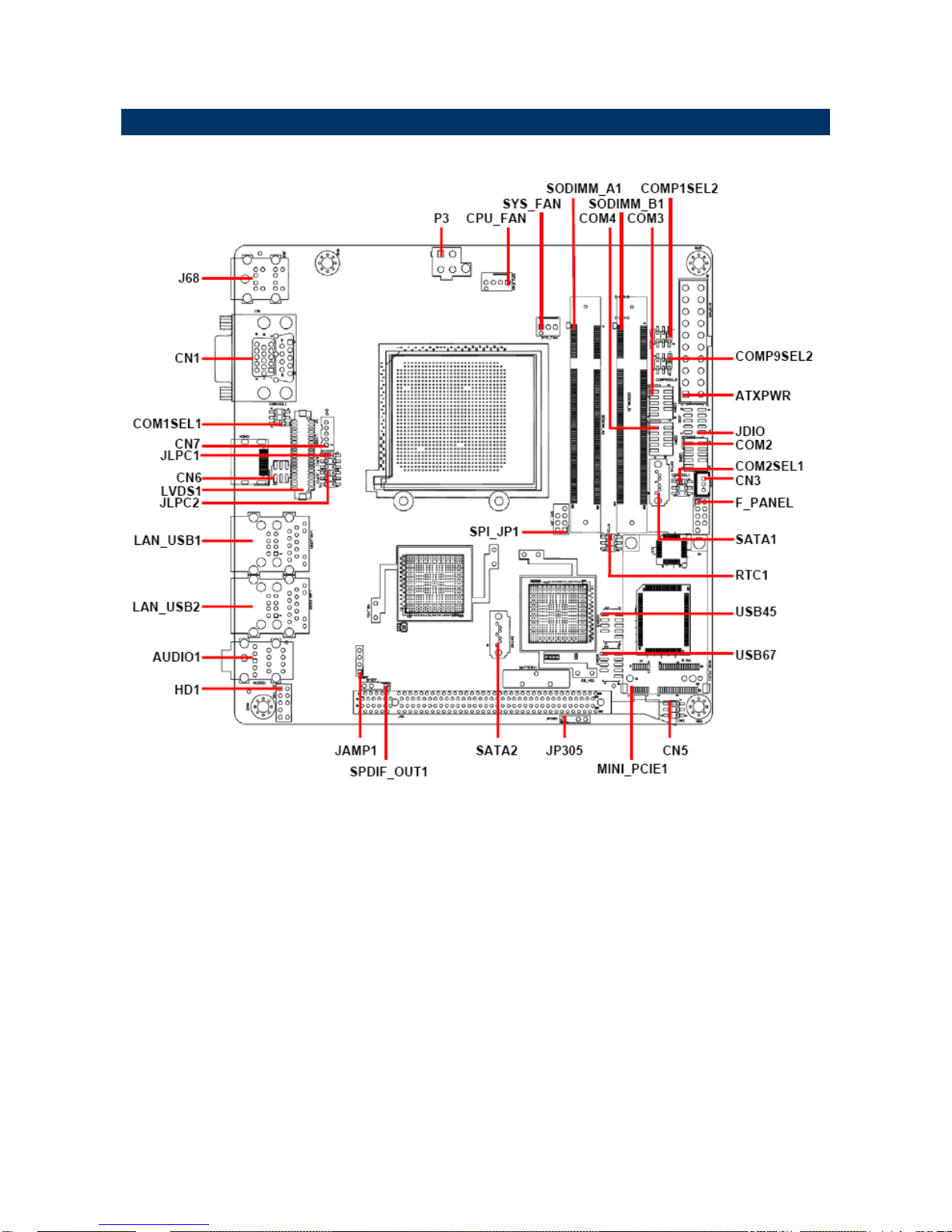

2.1 Product Overview
Page 16
EMX-780E
16 EMX-780E User’s Manual
2.2 Installation Procedure
This chapter explains you the instructions of how to setup your system.
1. Turn off the power supply.
2. Insert the SODIMM module (be careful with the orientation).
3. Insert all external cables for hard disk, floppy, keyboard, mouse, USB etc. except for flat
panel. A CRT monitor must be connected in order to change CMOS settings to support
flat panel.
4. Connect power supply to the board via the ATXPWR.
5. Turn on the power.
6. nter the BIOS setup by pressing the delete key during boot up. Use the “LOAD BIOS
DEFAULTS” feature. The Integrated Peripheral Setup and the Standard CMOS Setup
Window must be entered and configured correctly to match the particular system
configuration.
7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before
connecting the display cable and turning on the power.
Note: Make sure the heat sink and the CPU top surface are in total contact to
avoid CPU overheating problem that would cause the system to hang or
unstable
Page 17
User’s Manual
EMX-780E User’s Manual
17

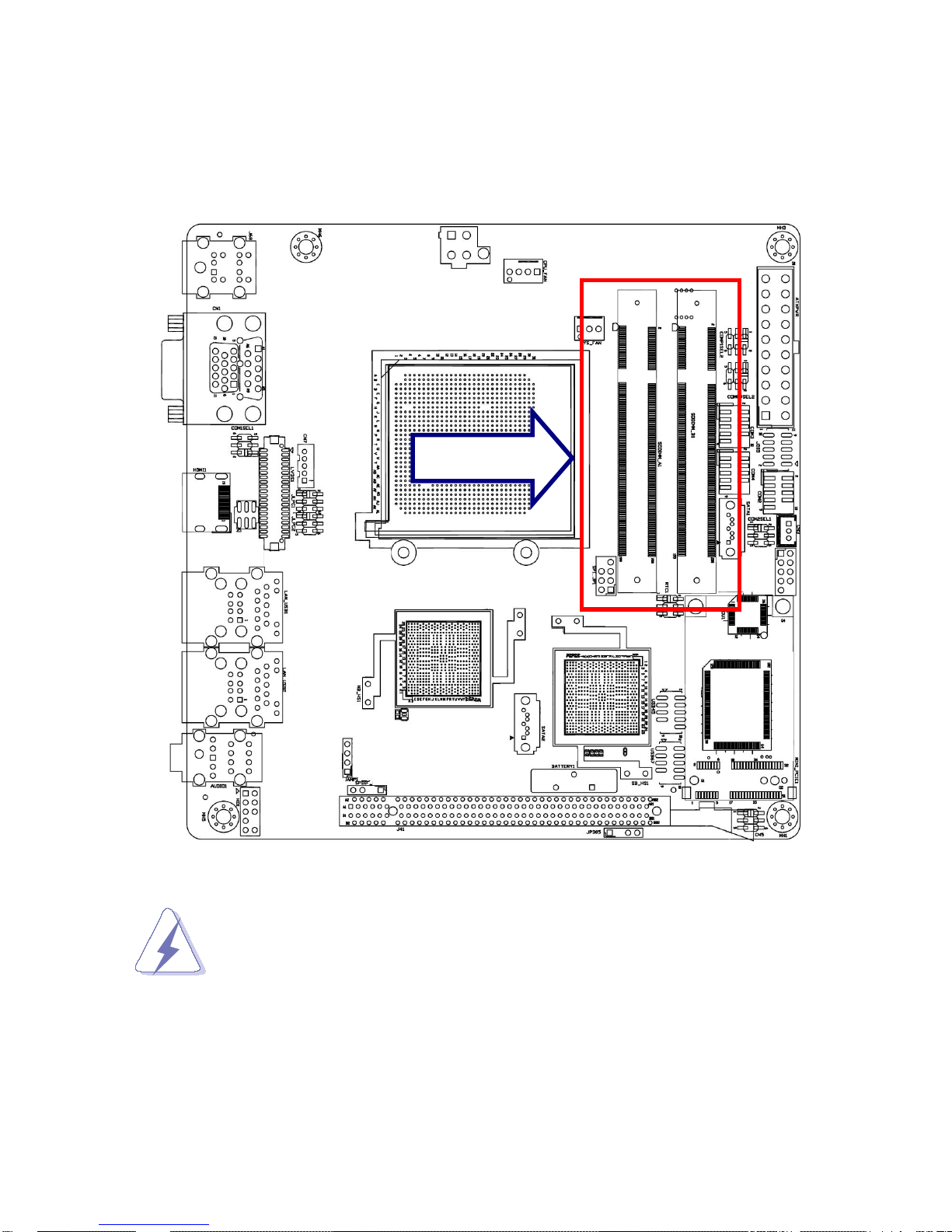

2.2.1 Main Memory
EMX-780E provides two 200-pin SODIMM non-ECC socket support up to DDR2 800
SDRAM. The total maximum memory size is 4GB.
(Rear side)
Make sure to unplug the power supply before adding or removing SODIMMs
or other system components. Failure to do so may cause severe damage to
both the board and the components.
Locate the SODIMM socket on the board.
Hold two edges of the SODIMM module carefully. Keep away of touching its
connectors.
Align the notch key on the module with the rib on the slot.
SODIMM
Page 18
EMX-780E
18 EMX-780E User’s Manual

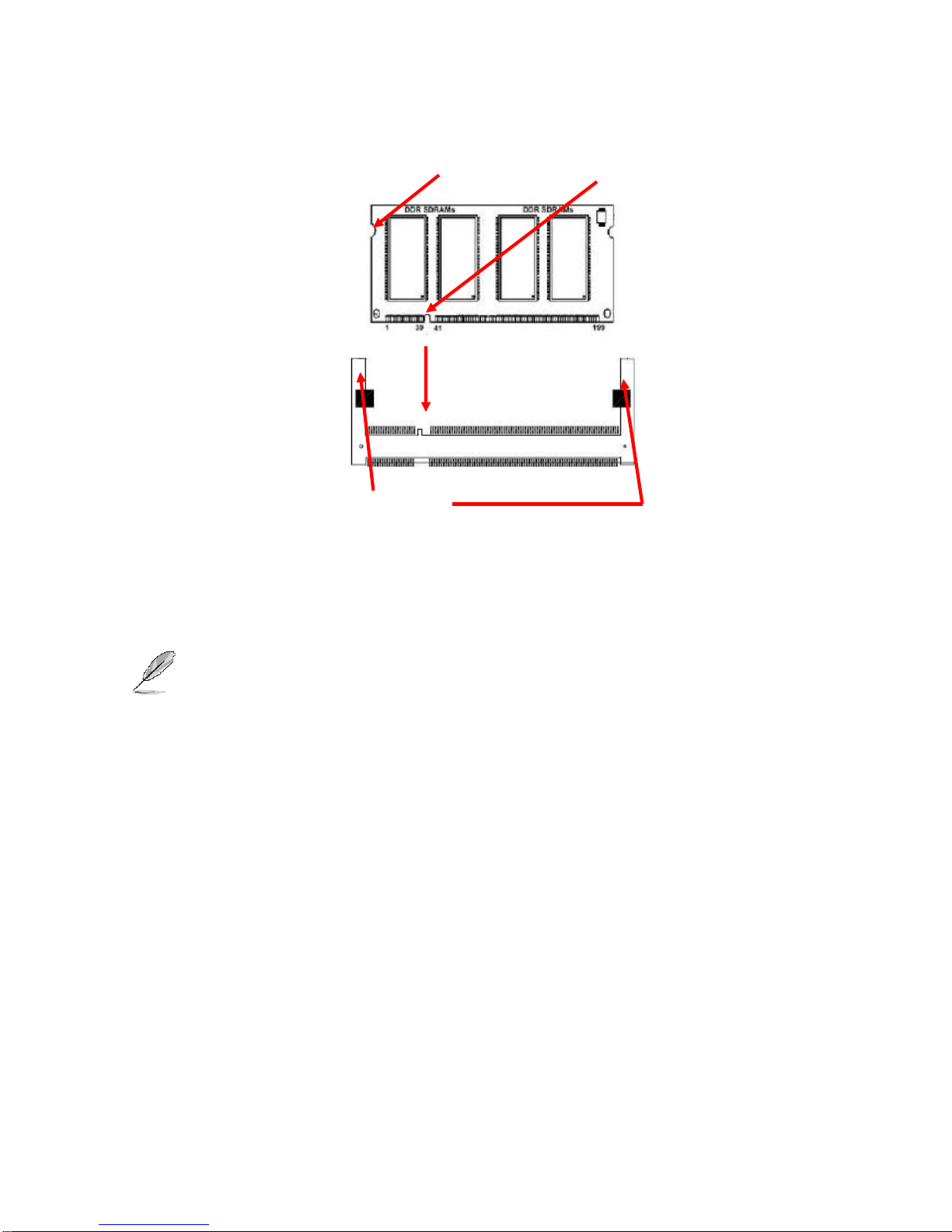

Firmly press the modules into the socket automatically snaps into the mounting notch.
Do not force the SODIMM module in with extra force as the SODIMM module only fit
in one direction.
To remove the SODIMM modules, push the two ejector tabs on the slot outward
simultaneously, and then pull out the SODIMM module.
Note:
(1) Please do not change any DDR2 SDRAM parameter in BIOS setup to increase
your system’s performance without acquiring technical information in advance.
(2) Static electricity can damage the electronic components of the computer or
optional boards. Before starting these procedures, ensure that you are
discharged of static electricity by touching a grounded metal object briefly.
Mounting Notch
Notch Key
Ejector
200-pin DDR2 SODIMM
Page 19
User’s Manual
EMX-780E User’s Manual
19

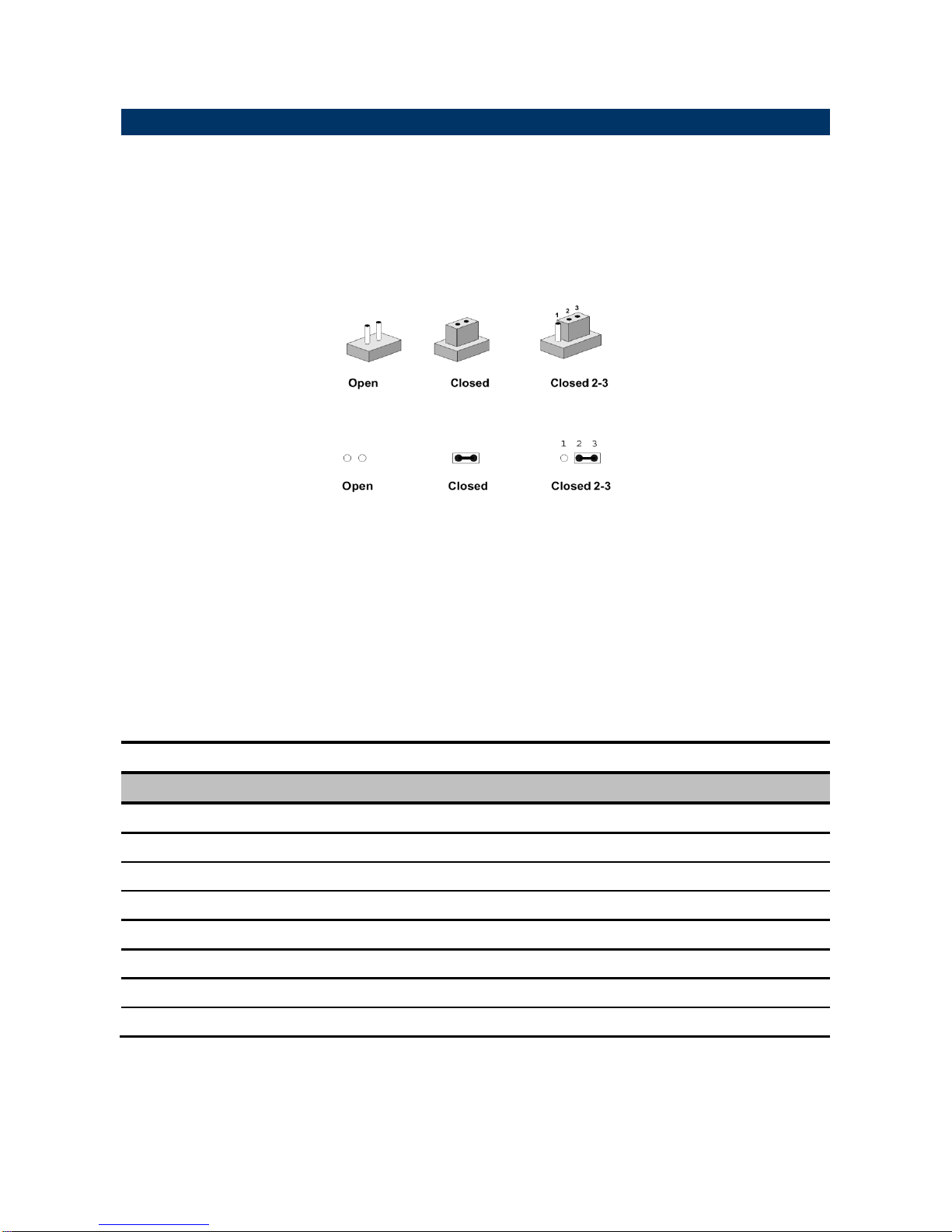

2.3 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board’s jumpers and connectors.
Jumpers
Label
Function
Note
CN5
CF mode select
3 x 2 header, pitch 2.0mm
CN6
LVDS power select
3 x 2 header, pitch 2.0mm
COM1SEL1
Serial port 1 pin-9 signal select
3 x 2 header, pitch 2.0mm
COM2SEL1
Serial port 1 pin-10 signal select
3 x 2 header, pitch 2.0mm
COMP1SEL2
Serial port 3 pin-9 signal select
3 x 2 header, pitch 2.0mm
COMP9SEL2
Serial port 4 pin-9 signal select
3 x 2 header, pitch 2.0mm
JP305
Case Open
4 x 1 header, pitch 2.54mm
RTC1
Clear password & COMS select
3 x 2 header, pitch 2.0mm
Page 20
EMX-780E
20 EMX-780E User’s Manual
Connectors
Label
Function
Note

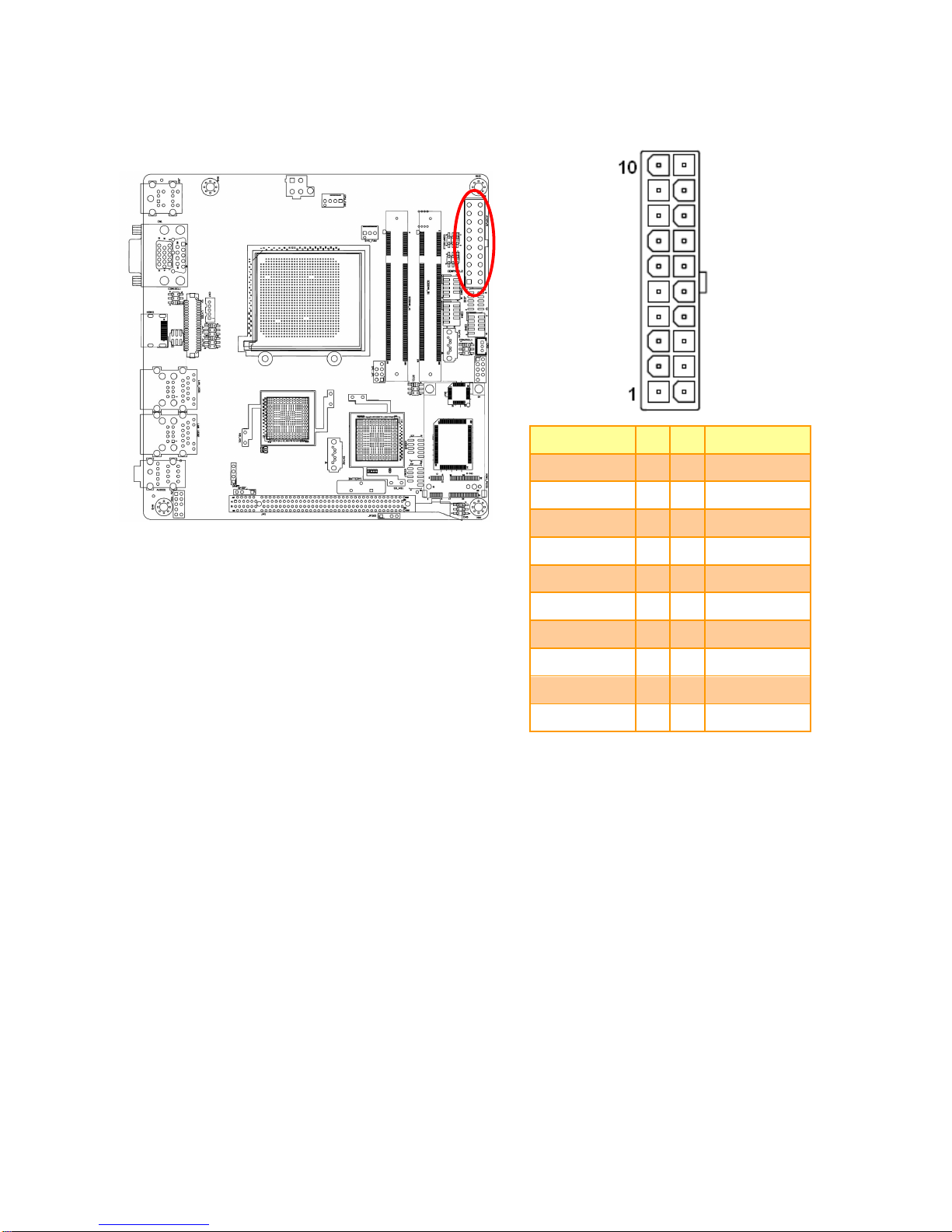

ATXPWR
ATX power supply connector
10 x 2 header, pitch 2.54mm
AUDIO1
Audio connector
CN1
VGA and serial port 1 connecter
CN3
SMB CLK & SMB DATA connector
3 x 1 wafer, pitch 1.54mm
COM2
Serial port 2 connector
5 x 2 header, pitch 2.0mm
COM3
Serial port 3 connector
5 x 2 header, pitch 2.0mm
COM4
Serial port 4 connector
5 x 2 header, pitch 2.0mm
CPU_FAN
CPU fan connector
3 x 1 wafer, pitch 254mm
F_PANEL
System panel connector
5 x 2 header, pitch 2.54mm
HD1
Audio header connector
5 x 2 header, pitch 2.54mm
J68
PS/S keyboard & mouse connector
JAMP1
Amplifier connector
4 x 1 header, pitch 2.54mm
JDIO
General purpose I/O connector
5 x 2 header, pitch 2.0mm

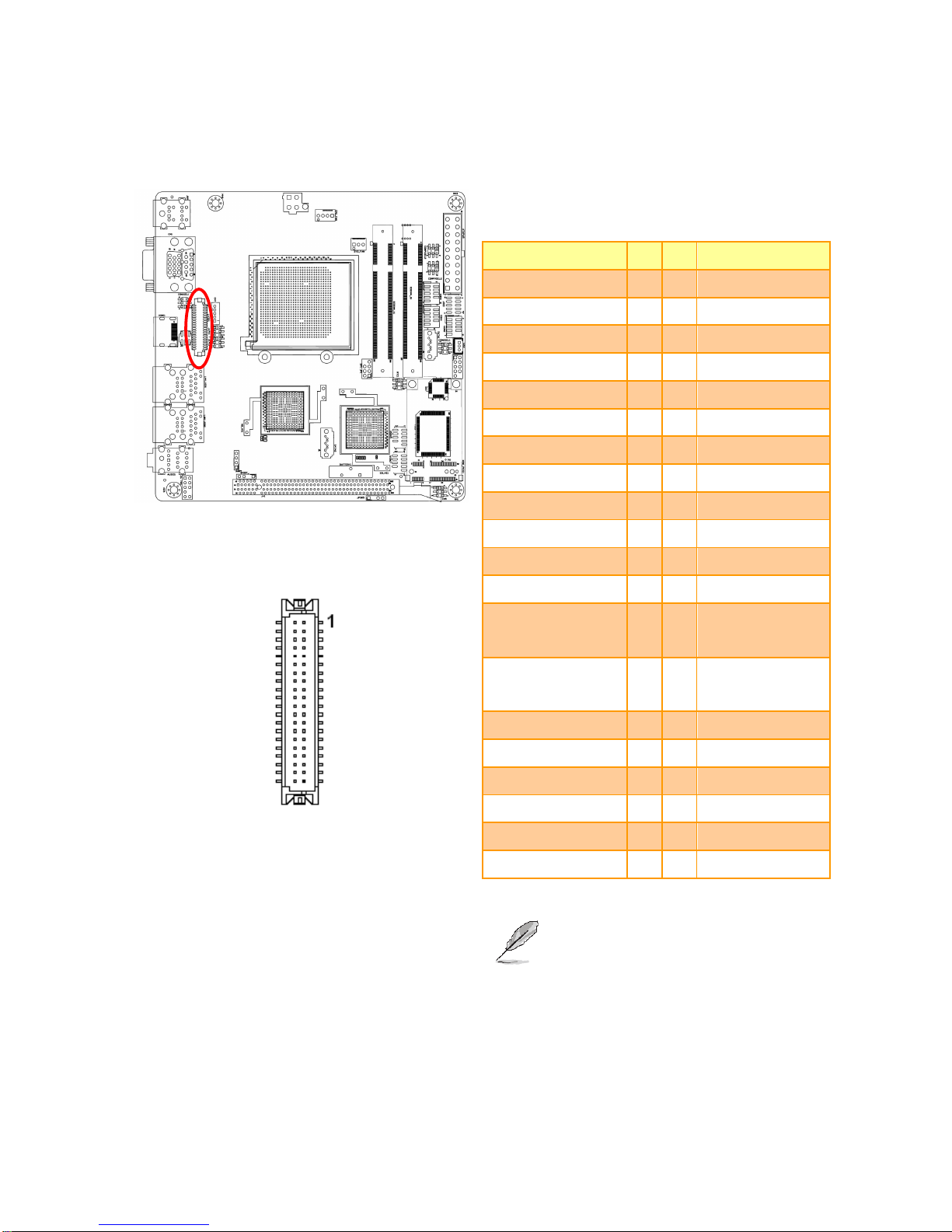

LVDS1
LVDS connector
Hirose DF13-40DP-1.25V
LAN_USB1
Rear USB connector 0 & 1
LAN_USB2
Rear USB connector 2 & 3
MINI_PCIE1
PCI express mini card
P3
VRM power supply connector
Wafer box 4p, pitch 4.2mm
SATA1
Serial ATA connector 1
SATA2
Serial ATA connector 2
SODIMM_A1
200-pin DDR2 SODIMM socket
SODIMM_B1
200-pin DDR2 SODIMM socket
SPDIF_OUT1
SPDIF out connector
4 x 1 header, pitch 2.54mm
SPI_JP1
SPI BIOS ROM connector
4 x 2 header, pitch 2.54mm
SYS_FAN
System fan connector
3 x 1 wafer, pitch 254mm
USB45
USB connector 4 & 5
5 x 2 header, pitch 2.0mm
USB67
USB connector 6 & 7
5 x 2 header, pitch 2.0mm
Page 21
User’s Manual
EMX-780E User’s Manual
21
2.4 Setting Jumpers & Connectors

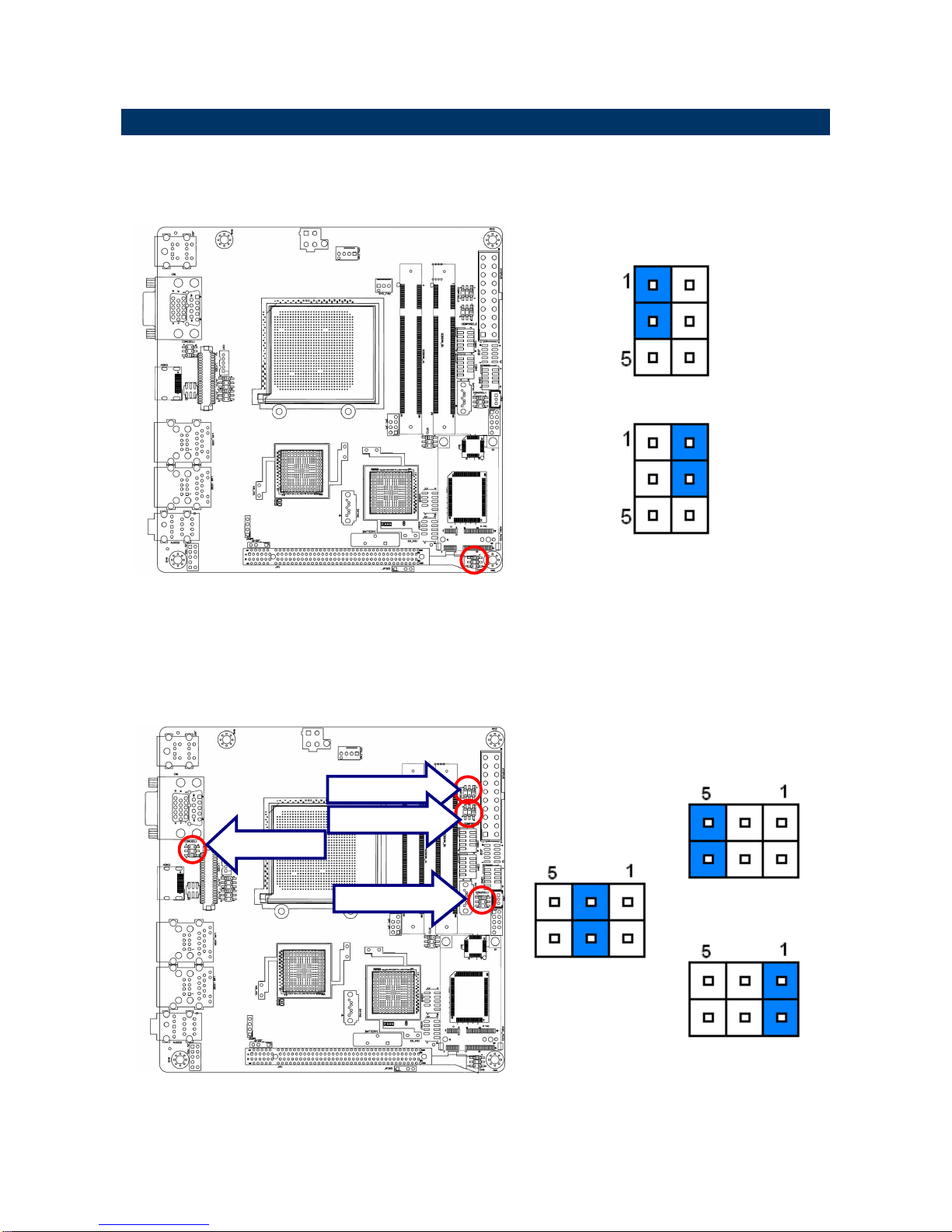

2.4.1 CF mode select (CN5)
*Default
Low: Master*
Hi: Slave

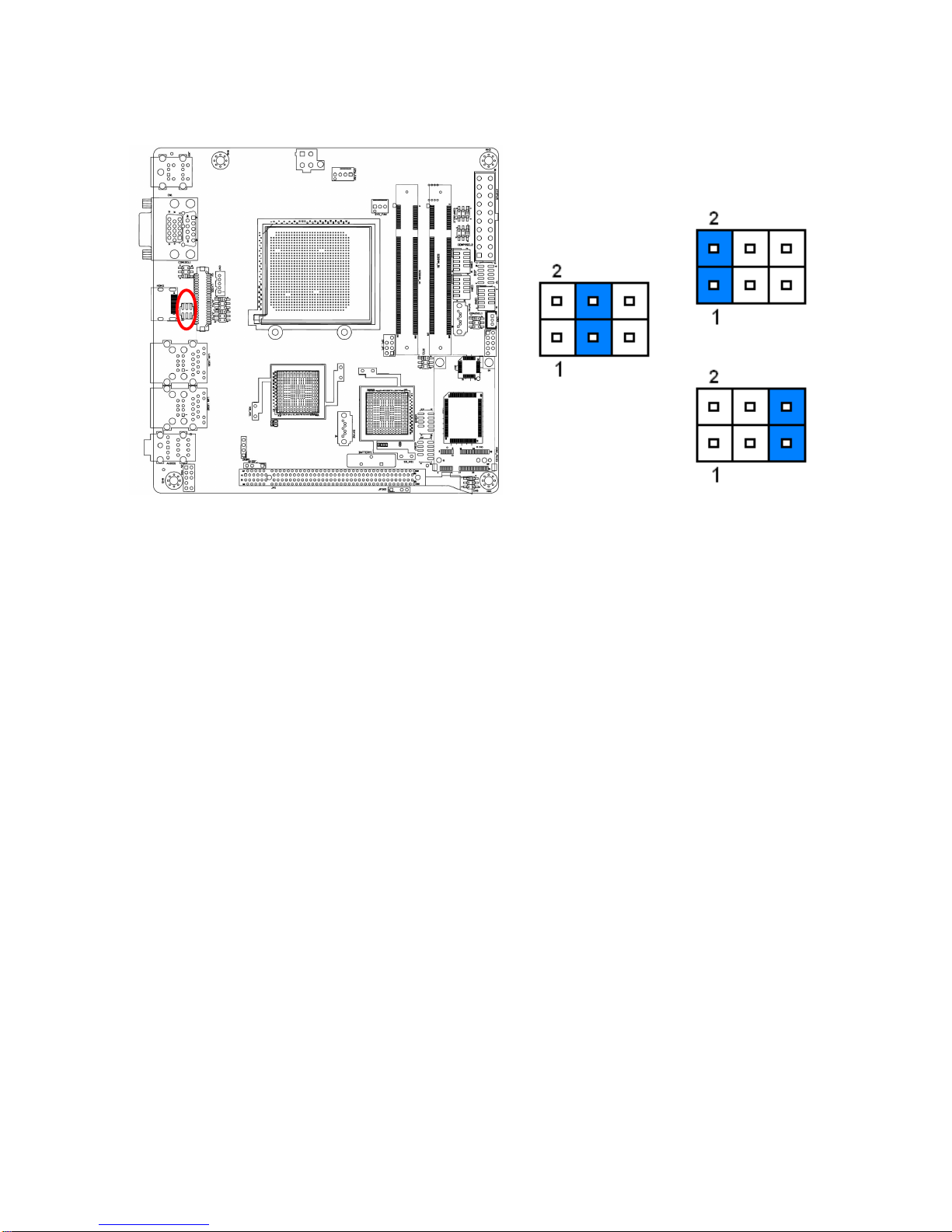

2.4.2 Serial port 1/ 2/ 3/ 4 pin-9 signal select
(COM1SEL1/ COM2SEL1/ COMP1SEL2/ COMP9SEL2)
*Default
Ring*
+5V
+12V+
COM1SEL1
COMP1SEL2
COMP9SEL2
COM2SEL1
Page 22
EMX-780E
22 EMX-780E User’s Manual

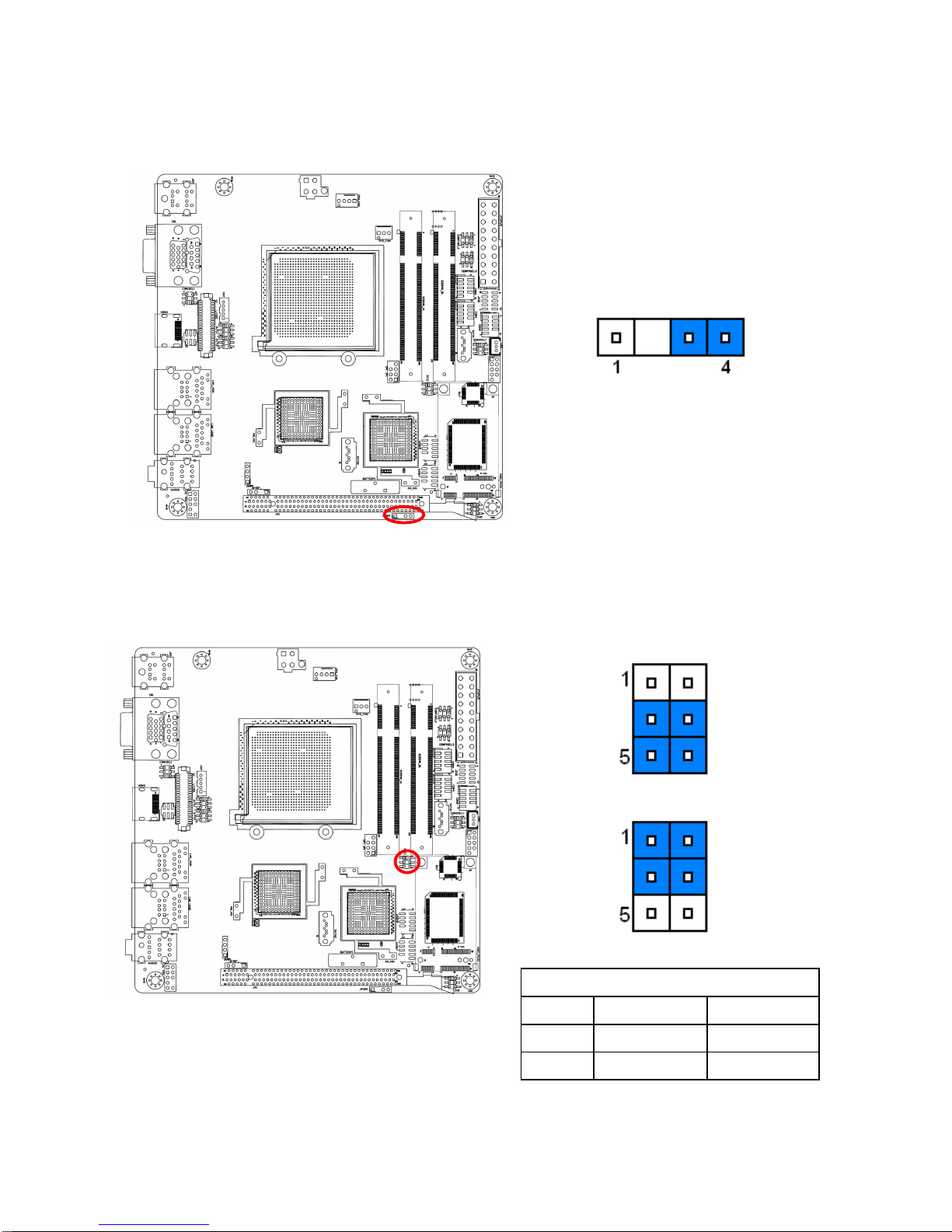

2.4.3 Case open (JP305)
*Default
Open*
2.4.4 Clear password & CMOS select (RTC1)
*Default
Password & CMOS*
Clear
Clear password & CMOS
Clear PW
Clear CMOS
Default
3-5
4-6
Clear
1-3
2-4
Page 23
User’s Manual
EMX-780E User’s Manual
23
2.4.5 LVDS power select (CN6)
*Default
+5V*
+3.3V
+12V
Page 24
EMX-780E
24 EMX-780E User’s Manual
2.4.6 ATX power supply connector (ATXPWR)
Signal
PIN
PIN
Signal
+12V
10
20
+5V
5VSB
9
19
+5V
POK
8
18
-5V
GND
7
17
GND
+5V
6
16
GND
GND
5
15
GND
+5V
4
14
PSON
GND
3
13
GND
+3.3V
2
12
-12V
+3.3V
1
11
+3.3V
Page 25
User’s Manual
EMX-780E User’s Manual
25
2.4.7 SMB CLK & SMB DATA connector (CN3)
PIN
Signal
1
SMBCLK_PCI
2
SMBDATA_PCI
3
GND

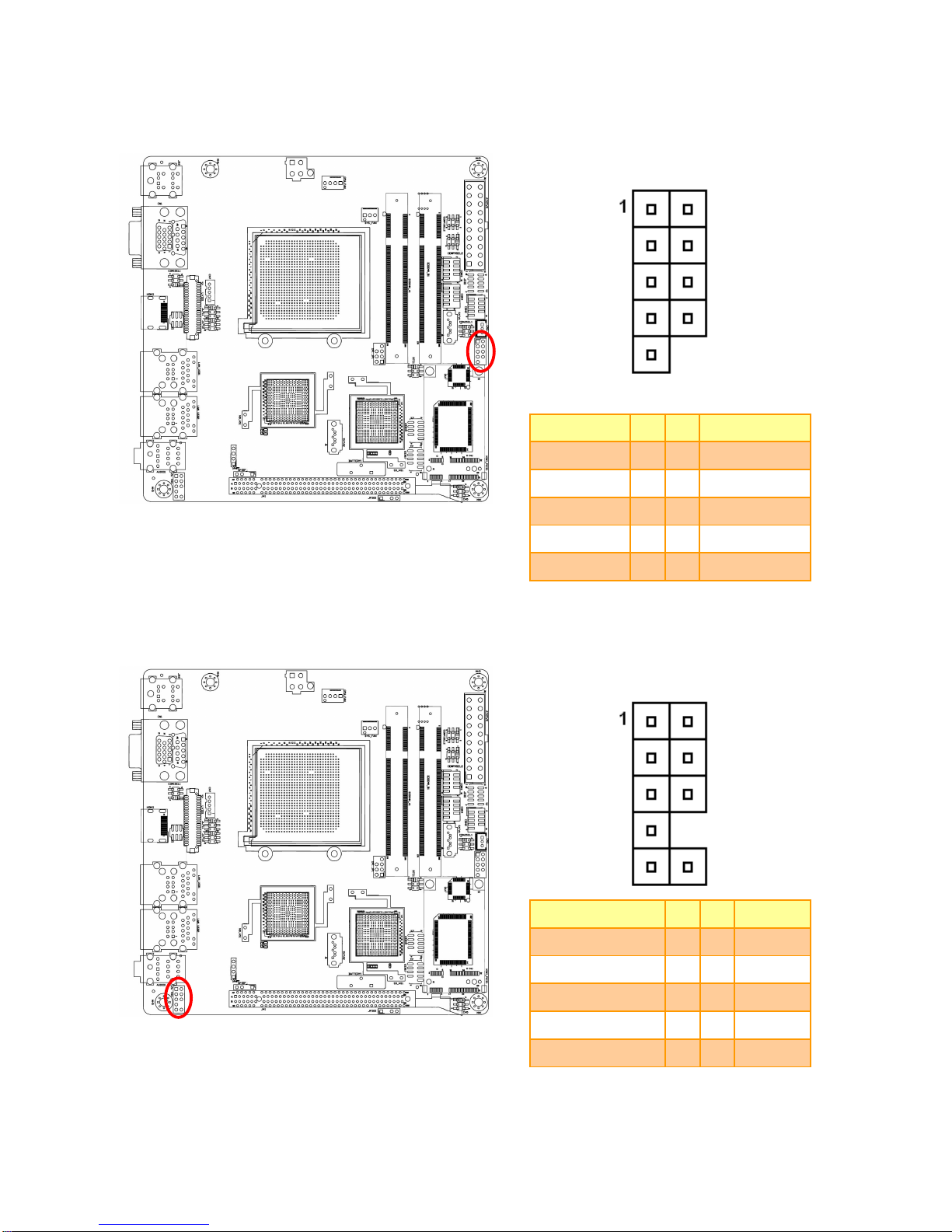

2.4.8 Serial port 2/ 3/ 4 connector (COM2/ COM3/ COM4)
Signal
PIN
PIN
Signal
DCD
1 2 RxD
TxD
3 4 DTR
GND
5 6 DSR
RTS
7 8 CTS
RI
9
10
NC
COM3
COM4
COM2
Page 26
EMX-780E
26 EMX-780E User’s Manual

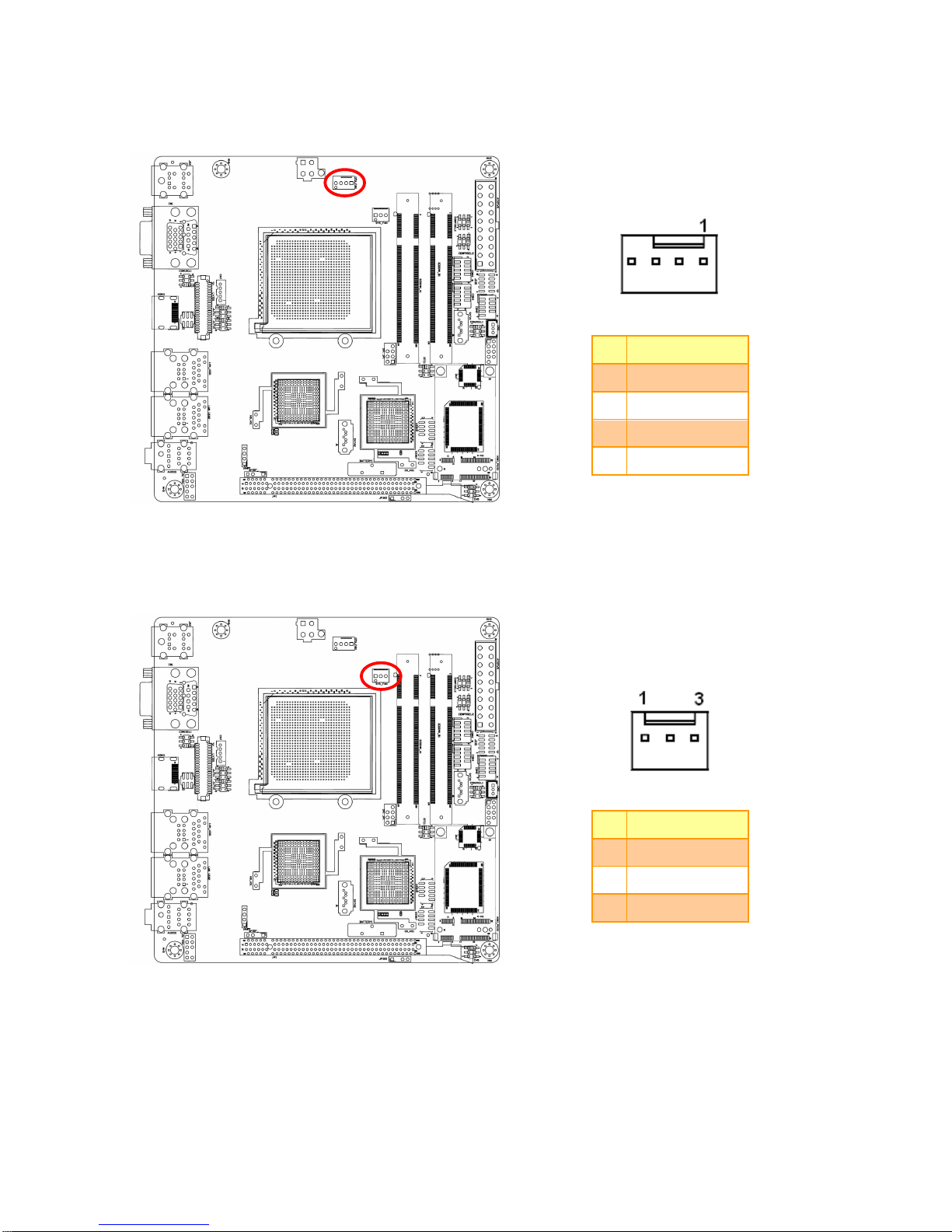

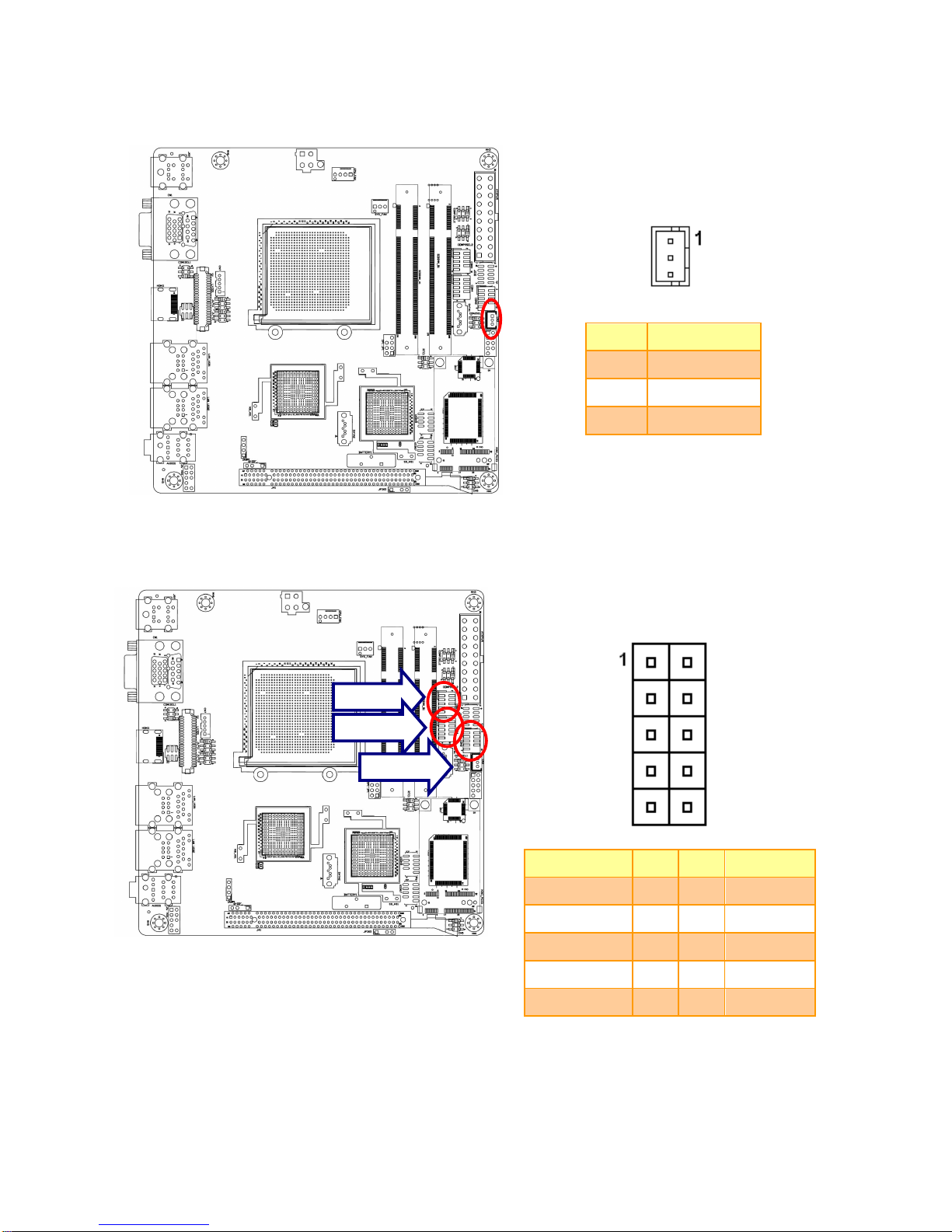

2.4.9 CPU Fan (CPU_FAN)
PIN
Signal
1
GND
2
+12V
3
CFAN_TACH
4
NC
2.4.10 System Fan (SYS_FAN)
PIN
Signal
1
FFAN_TACH
2
+12V
3
GND
Page 27
User’s Manual
EMX-780E User’s Manual
27
2.4.11 System panel connector (F_PANEL)
Signal
PIN
PIN
Signal
HDLED+
1 2 FP_LED+
HDLED-
3 4 FP_LED-
GND
5 6 PWRBTN
RESET
7 8 GND
NC
9
2.4.12 Audio header connector (HD1)
Signal
PIN
PIN
Signal
APORT_F_L
1 2 GND
APORT_F_R
3 4 +3.3V
APORT_E_R
5 6 GND
FRONT-IO-SENSE
7
APORT_E_L
9
10
GND
Page 28
EMX-780E
28 EMX-780E User’s Manual

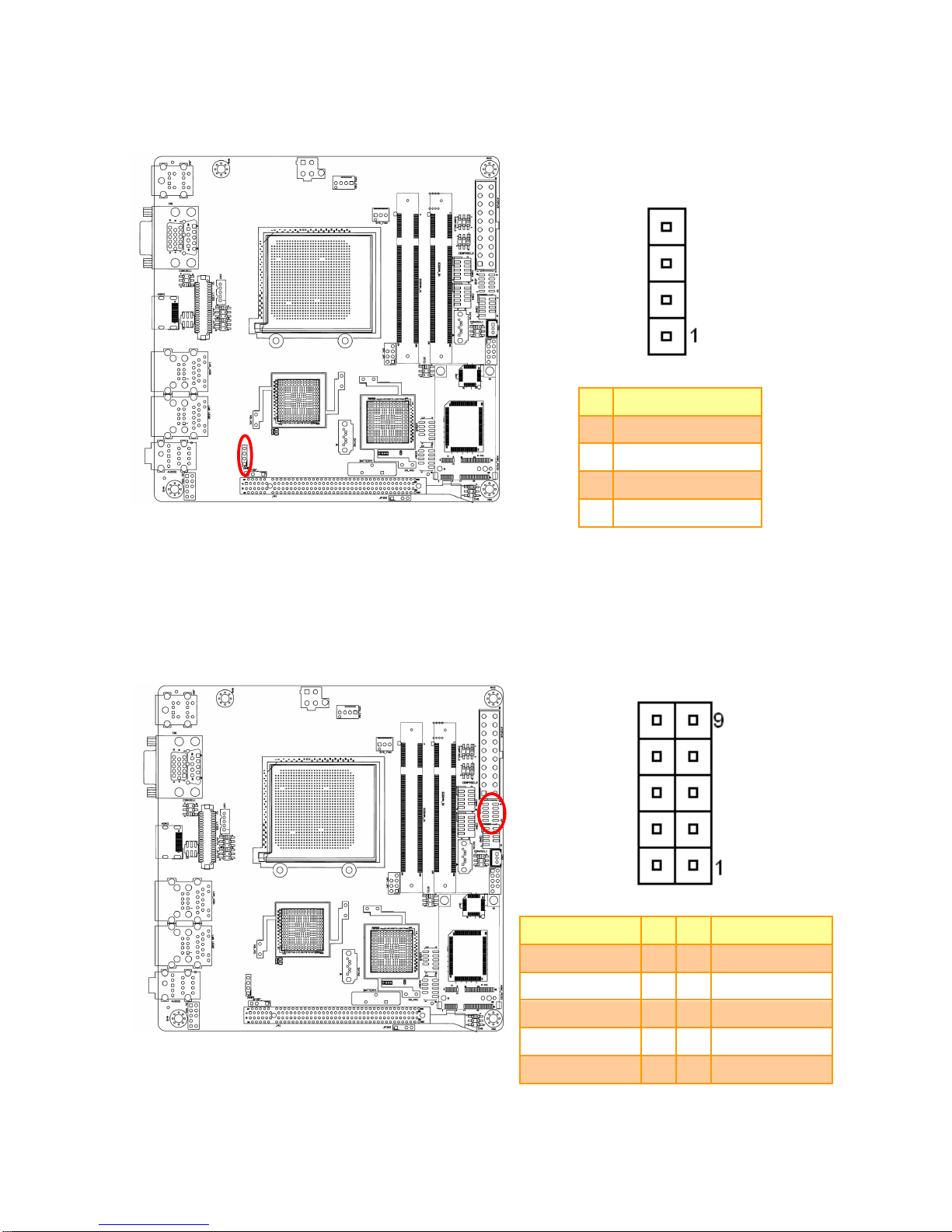

2.4.13 Amplifier connector (JAMP1)
PIN
Signal
4
AMP_R+
3
AMP_R-
2
AMP_L+
1
AMP_L-
2.4.14 General purpose I/O connector (JDIO)
Signal
PIN
PIN
Signal
+5V
10 9 GND
DIO7
8 7 DIO3
DIO6
6 5 DIO2
DIO5
4 3 DIO1
DIO4
2 1 DIO0
Page 29
User’s Manual
EMX-780E User’s Manual
29
2.4.15 LVDS connector (LVDS1)
Signal
PIN
PIN
Signal
LVDS_Power
2 1 LVDS_Power
GND
4 3 GND
LVDS_Power
6 5 LVDS_Power
LVDS1_OUTD 0-
8 7 LVDS0_OUTD0-
LVDS1_OUTD0+
10 9 LVDS0_OUTD0+
GND
12
11
GND
LVDS1_OUTD1-
14
13
LVDS0_OUTD1-
LVDS1_OUTD1+
16
15
LVDS0_OUTD1+
GND
18
17
GND
LVDS1_OUTD2-
20
19
LVDS0_OUTD2-
LVDS1_OUTD2+
22
21
LVDS0_OUTD2+
GND
24
23
GND
LVDS1_OUTD CLK-
26
25
LVDS0_OUTD
CLK-
LVDS1_OUTDCLK+
28
27
LVDS0_OUTDCL
K+
GND
30
29
GND
I2C_DATA
32
31
I2C_CLK
GND
34
33
GND
LVDS1_OUTD3-
36
35
LVDS0_OUTD3-
LVDS1_OUTD3+
38
37
LVDS0_OUTD3+
GND
40
39
NC
NOTE:
Pin1/ 2/ 5/ 6 are selected by CN6.
Please refer to section 2.4.5 for more information.
Page 30
EMX-780E
30 EMX-780E User’s Manual

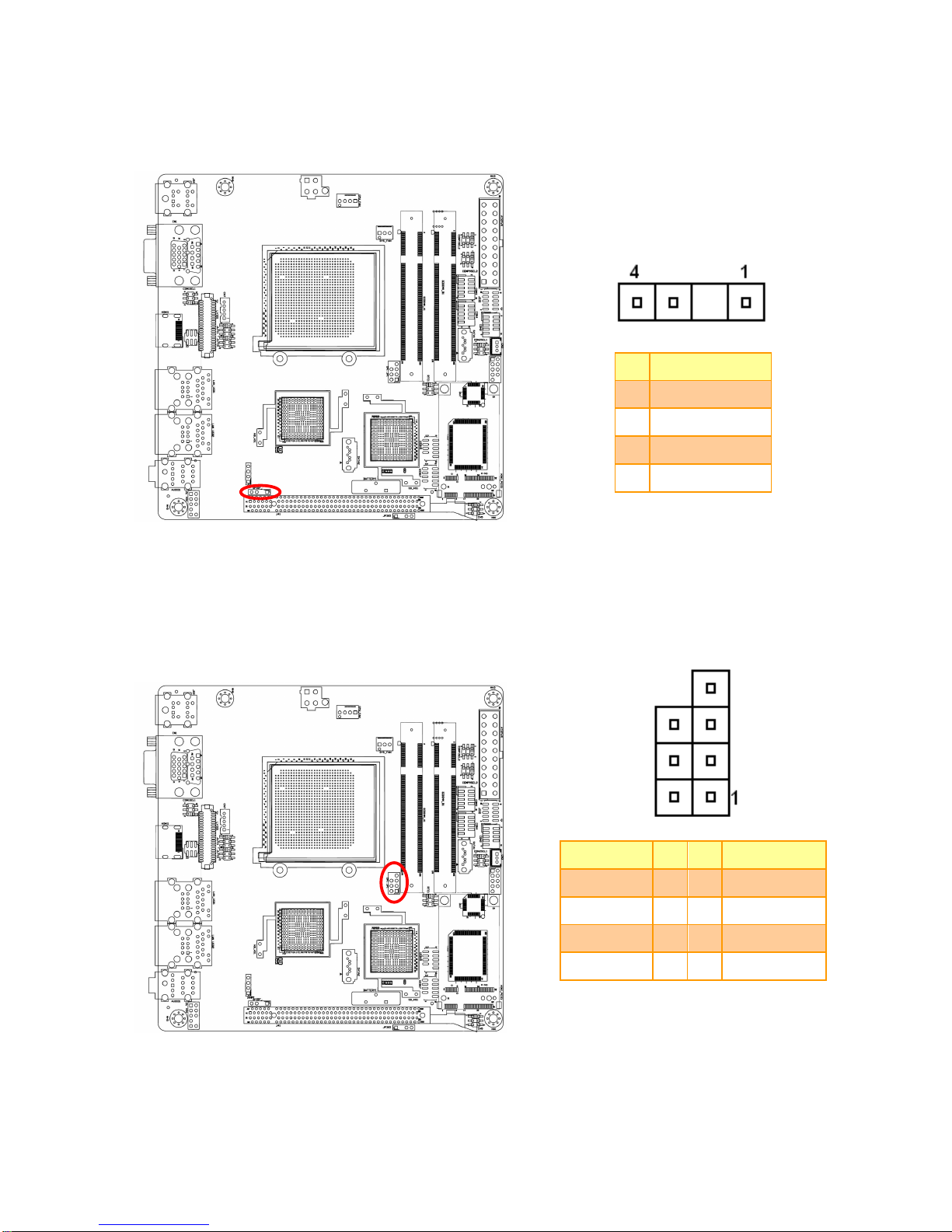

2.4.16 SPDIF out connector (SPDIF_OUT1)
PIN
Signal
1
+5V
3
SPDIF_O
4
GND
2.4.17 SPI BIOS ROM out connector (SPI_JP1)
Signal
PIN
PIN
Signal
7 SPI_HOLD#
SPI_MOSI
6 5 SPI_MISO
SPI_CLK
4 3 SPI_CS#
GND
2 1 +3.3V
Page 31
User’s Manual
EMX-780E User’s Manual
31

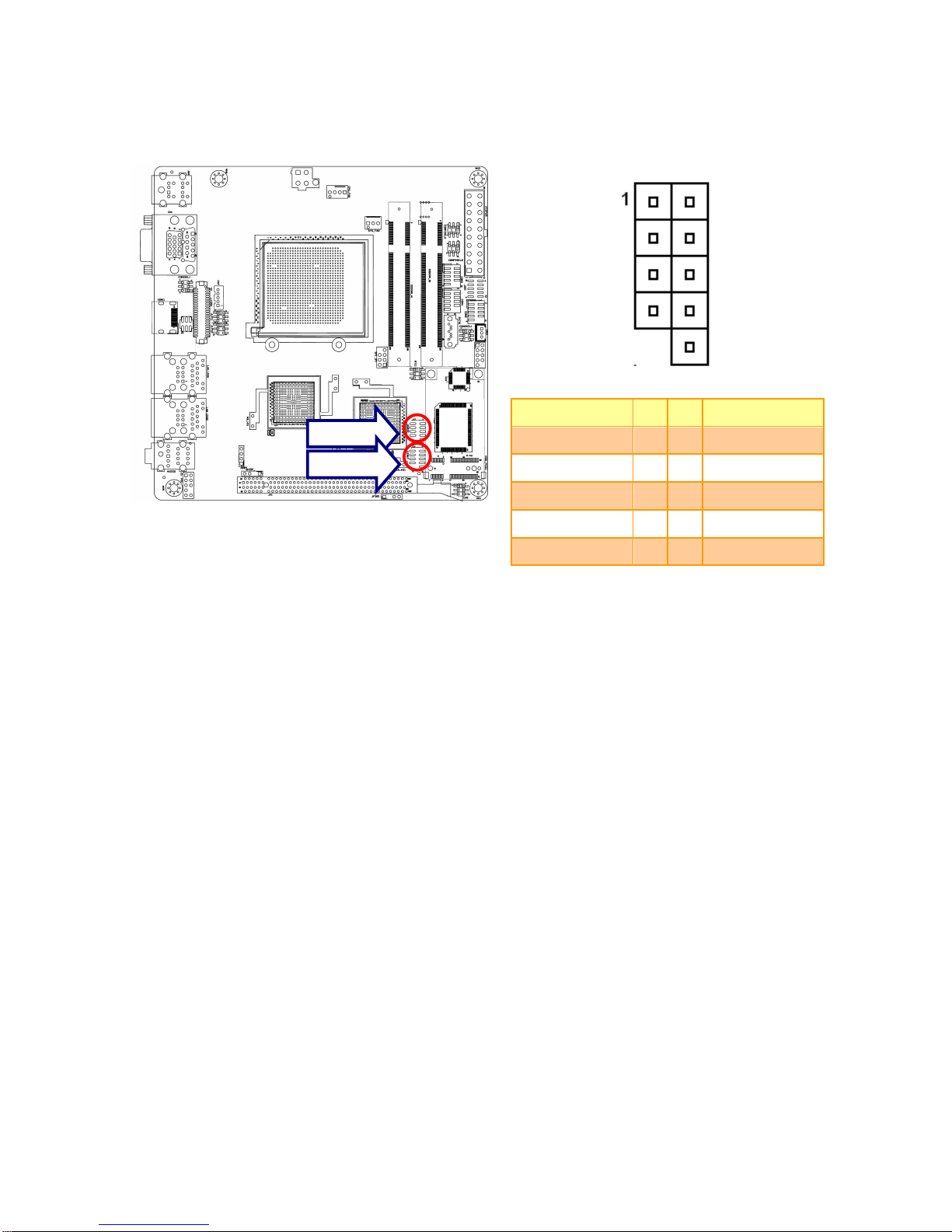

2.4.18 USB connector 4&5/ 6&7 (USB45/ USB67)
Signal
PIN
PIN
Signal
+5V
1 2 +5V
P5-/ P7-
3 4 P4-/ P6-
P5+/ P7+
5 6 P4+/ P6+
GND
7 8 GND
10
NC
USB45
USB67
Page 32
EMX-780E
32 EMX-780E User’s Manual
3. BIOS Setup
Page 33
User’s Manual
EMX-780E User’s Manual
33
3.1 Introduction
The BIOS setup program allows users to modify the basic system configuration. In this
following chapter will describe how to access the BIOS setup program and the
configuration options that may be changed.
3.2 Starting Setup
The AMI BIOS™ is immediately activated when you first power on the computer. The BIOS
reads the system information contained in the CMOS and begins the process of checking
out the system and configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <Del> immediately after switching the system on, or
By pressing the <Del> key when the following message appears briefly at the bottom of the
screen during the POST (Power On Self Test).
Press DEL to enter SETUP
If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys. If you do not press the keys at the correct time and the system does not boot, an error
message will be displayed and you will again be asked to.
Press F1 to Continue, DEL to enter SETUP
Page 34
EMX-780E
34 EMX-780E User’s Manual
3.3 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.
Button
Description
↑
Move to previous item
↓
Move to next item
←
Move to the item in the left hand
→
Move to the item in the right hand
Esc key
Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and
return to Main Menu
PgUp key
Increase the numeric value or make changes
PgDn key
Decrease the numeric value or make changes
+ key
Increase the numeric value or make changes
- key
Decrease the numeric value or make changes
F1 key
General help, only for Status Page Setup Menu and Option Page Setup Menu
(Shift) F2 key
Change color from total 16 colors. F2 to select color forward, (Shift) F2 to select
color backward
F3 key
Calendar, only for Status Page Setup Menu
F4 key
Reserved
F5 key
Restore the previous CMOS value from CMOS, only for Option Page Setup Menu
F6 key
Load the default CMOS value from BIOS default table, only for Option Page Setup
Menu
F7 key
Load the default
F8 key
Reserved
F9 key
Reserved
F10 key
Save all the CMOS changes, only for Main Menu
Navigating Through The Menu Bar
Use the left and right arrow keys to choose the menu you want to be in.
Note: Some of the navigation keys differ from one screen to another.
To Display a Sub Menu
Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A “” pointer marks all sub menus.
Page 35
User’s Manual
EMX-780E User’s Manual
35
3.4 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1
key again.
3.5 In Case of Problems
If, after making and saving system changes with Setup, you discover that your computer no
longer is able to boot, the AMI BIOS supports an override to the CMOS settings which
resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both Award and your systems manufacturer to
provide the absolute maximum performance and reliability. Even a seemingly small change
to the chipset setup has the potential for causing you to use the override.
Page 36
EMX-780E
36 EMX-780E User’s Manual
3.6 BIOS setup
Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the
screen. The Main Menu allows you to select from several setup functions and exit choices.
Use the arrow keys to select among the items and press <Enter> to accept and enter the
sub-menu.

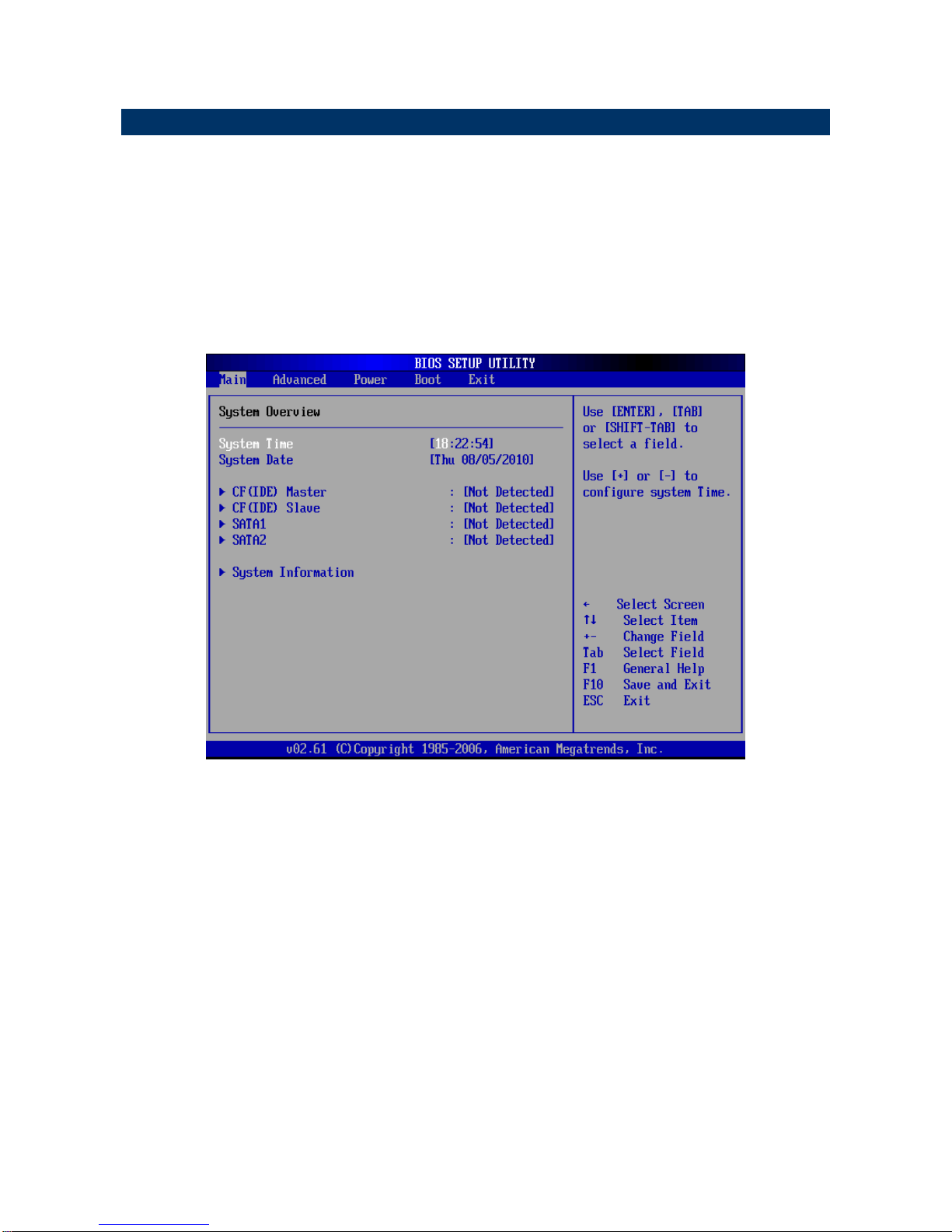

3.6.1 Main Menu
This section allows you to record some basic hardware configurations in your computer and
set the system clock.
Page 37
User’s Manual
EMX-780E User’s Manual
37

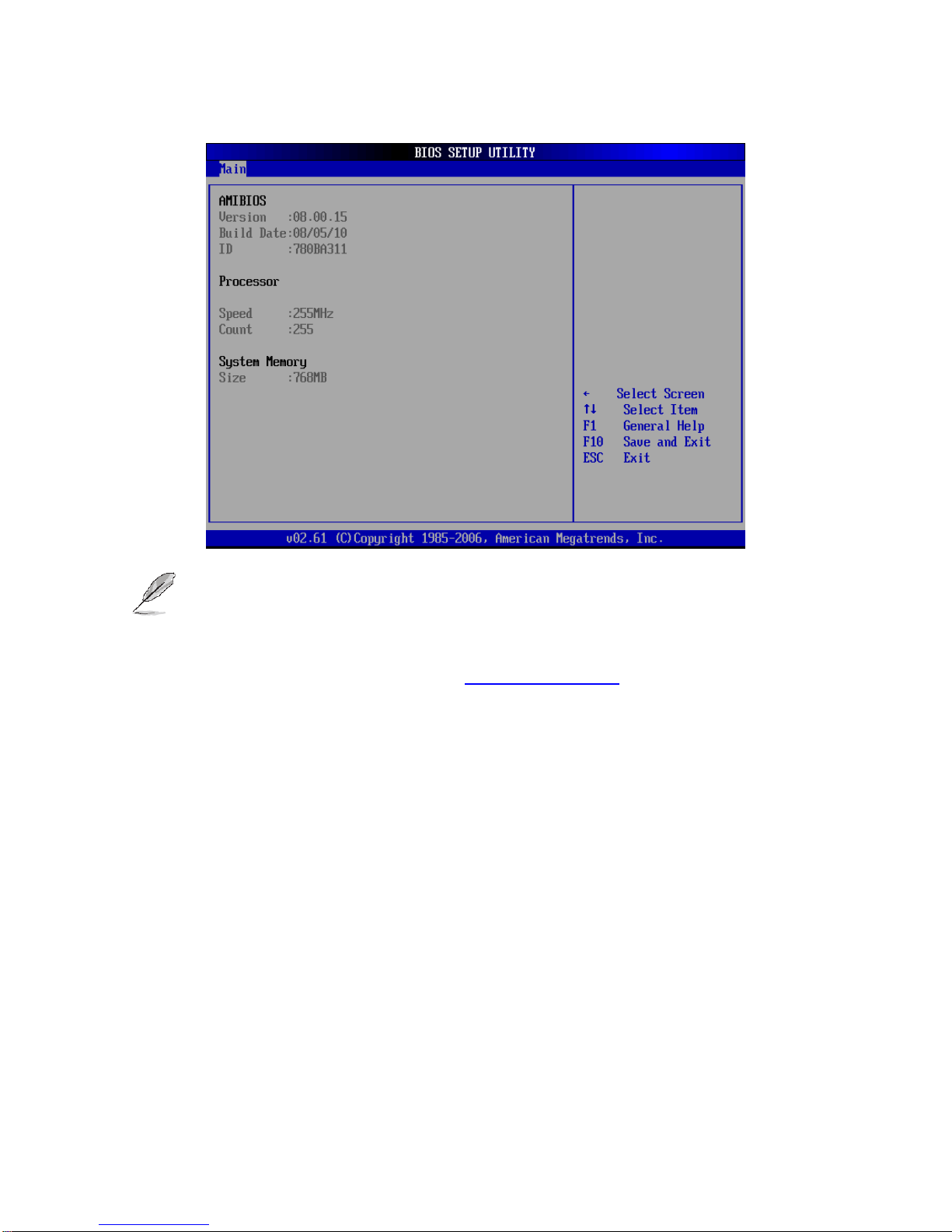

3.6.1.1 System information
Note: The BIOS setup screens shown in this chapter are for reference purposes
only, and may not exactly match what you see on your screen.
Visit the Avalue website (www.avalue.com.tw) to download the latest
product and BIOS information.
Page 38
EMX-780E
38 EMX-780E User’s Manual

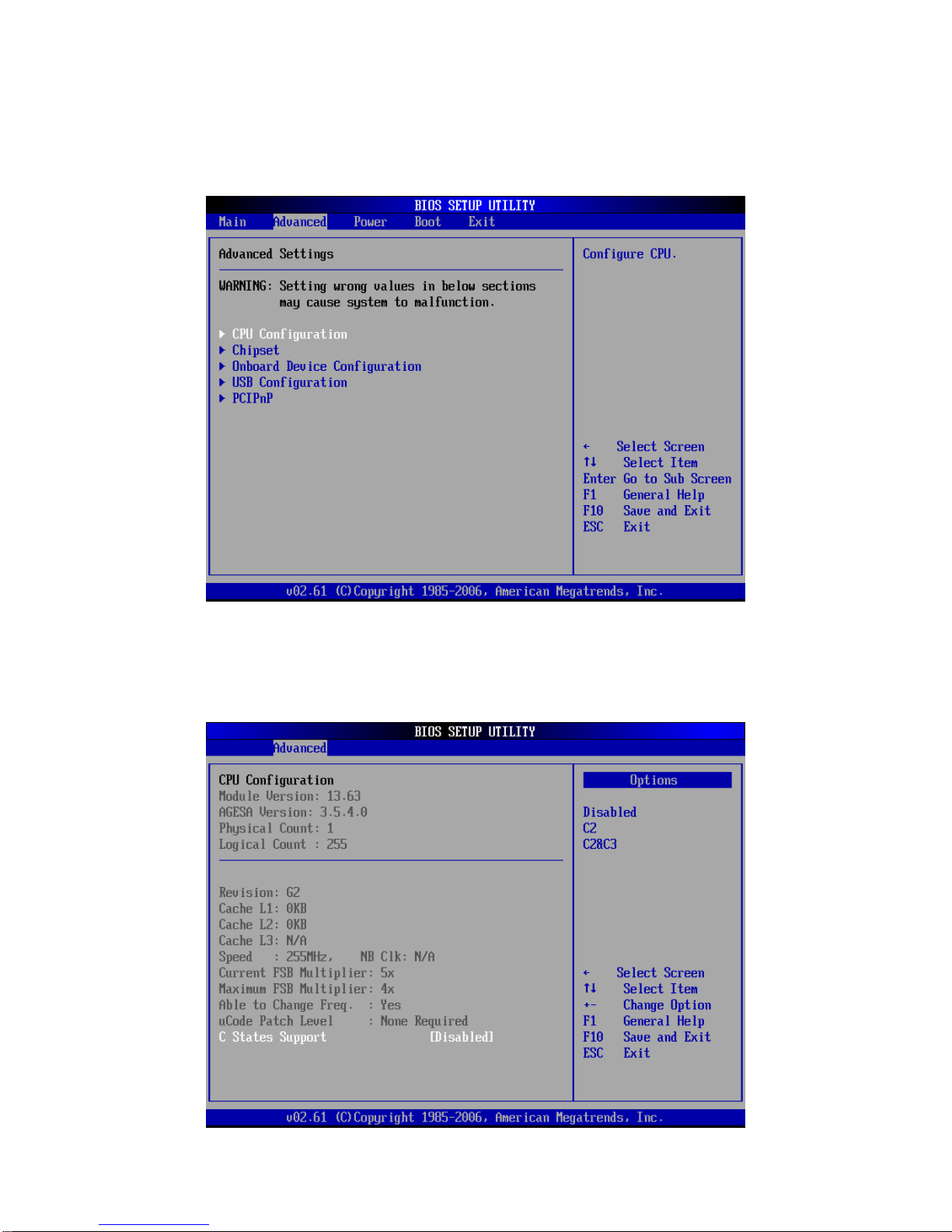

3.6.2 Advanced Menu
This section allows you to configure your CPU and other system devices for basic operation
through the following sub-menus.

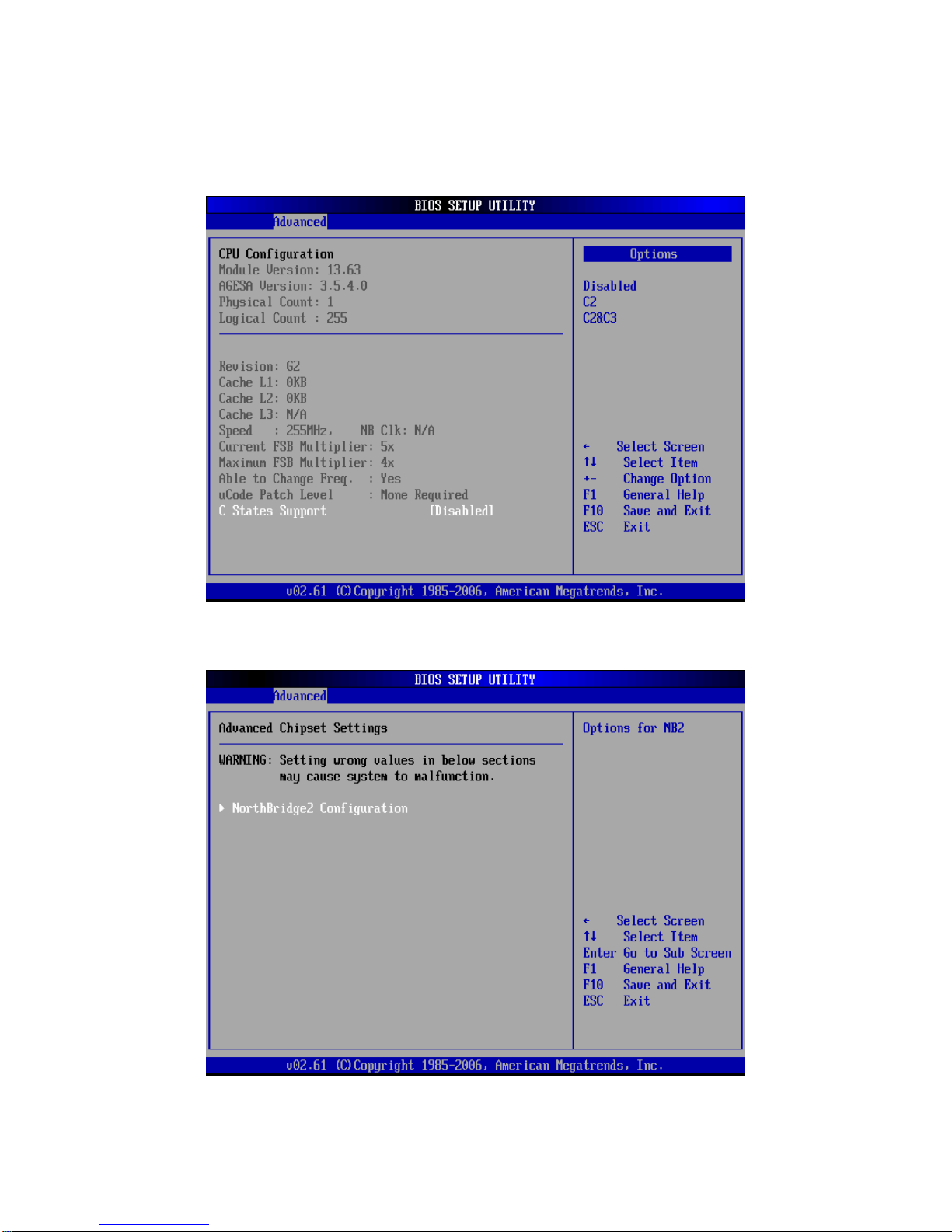

3.6.2.1 CPU Configuration
Use the CPU configuration menu to view detailed CPU specification and configure the
CPU.
Page 39
User’s Manual
EMX-780E User’s Manual
39
3.6.2.2 Chipset
Use this menu to change the values in the chipset registers and optimize your system’s
performance.
3.6.2.2.1 Advances Chipset Settings
Page 40
EMX-780E
40 EMX-780E User’s Manual

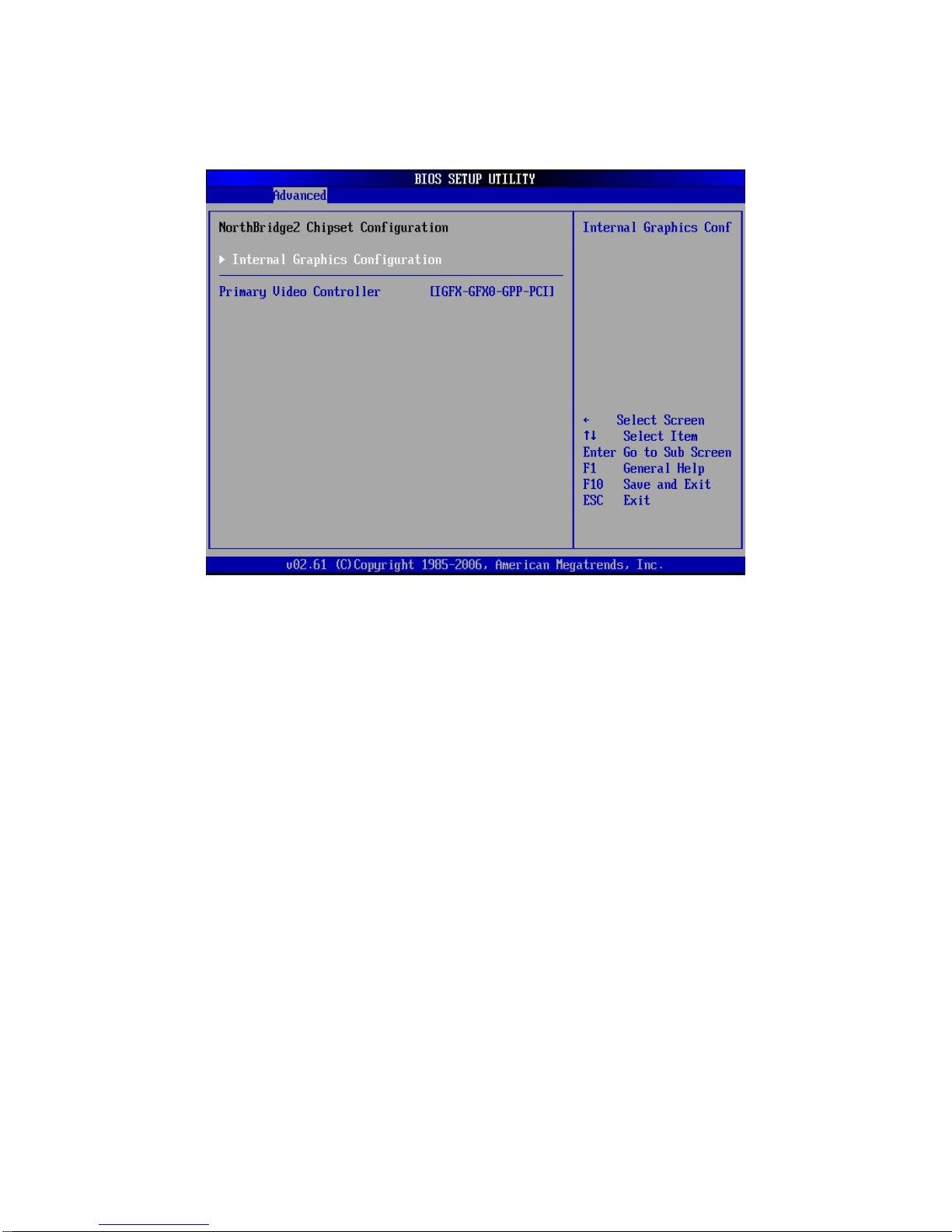

3.6.2.2.2 NorthBridge2 Configuration
Use the Northbridge chipset configuration menu to configure the Northbridge chipset.
Page 41
User’s Manual
EMX-780E User’s Manual
41

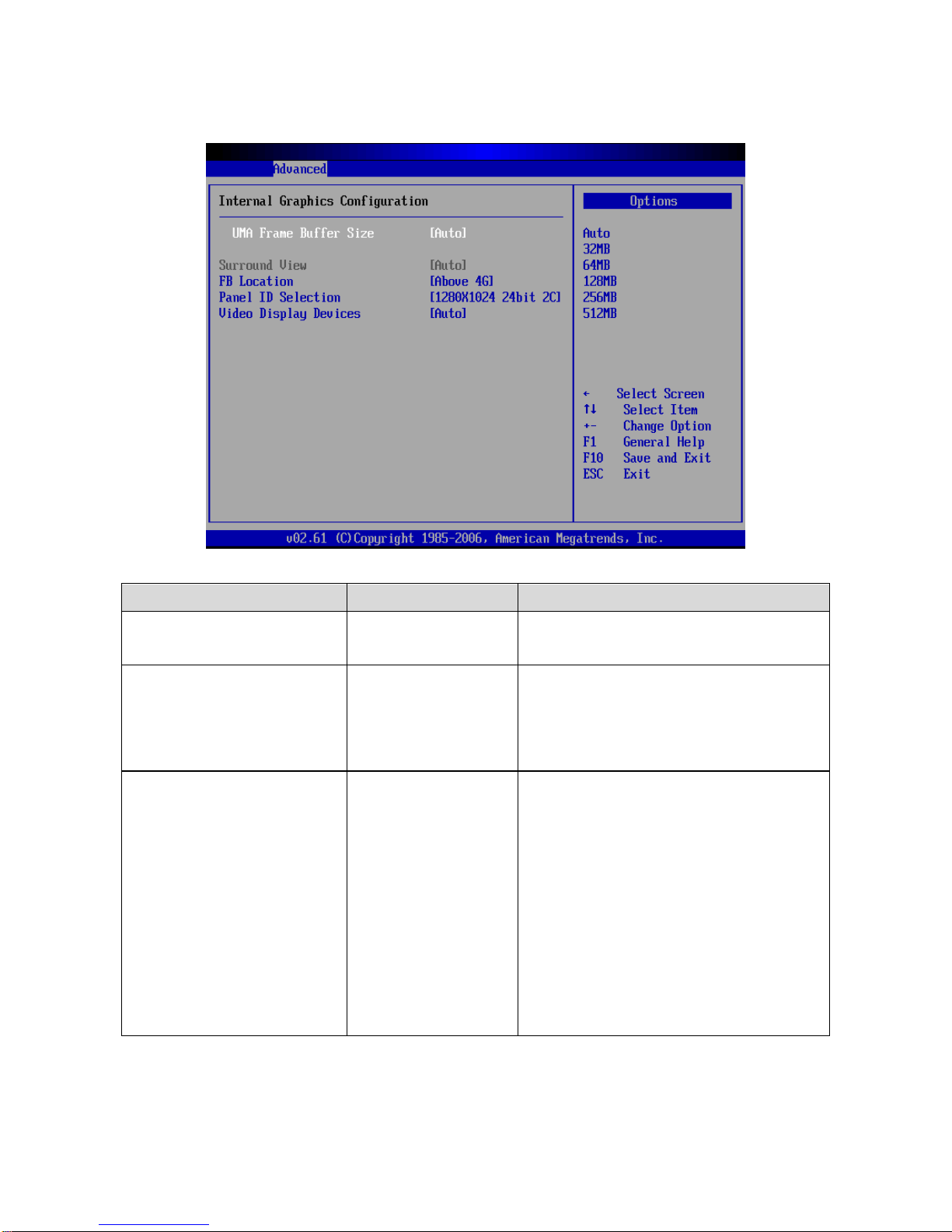

3.6.2.2.2.1 Internal Graphics Configuration
Item
Options
Description
FB Location
Below 4G,
Above 4G
This option helps to select FB location mode.
Panel ID Selection
1280x768 1bit,
1280x768 2bit,
1280x1024,
1920x1080
This item allows you to select which panel
resolution you want.
Video Display Devices
Auto,
CRT only,
LCD only.
DFP only,
TV only,
CRT+LCD,
CRT+DFP,
LCD+DFP,
TV+LCD,
TV+DFP
Select boot display device at post stage.
Page 42
EMX-780E
42 EMX-780E User’s Manual

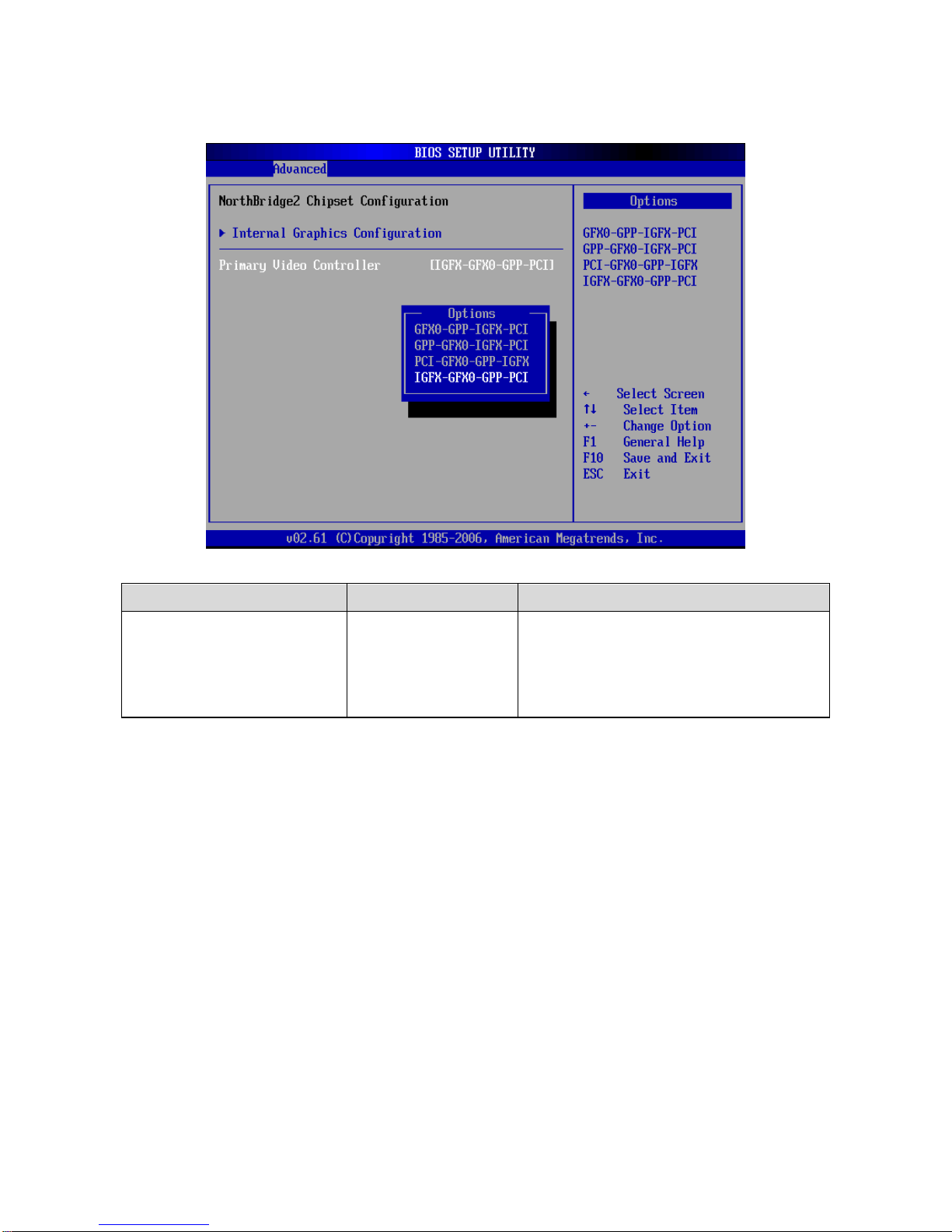

3.6.2.2.2.2 Primary Video Controller
Item
Options
Description
Primary Video Controller
GFX0-GPP-IGFX-PCI,
GPP-GFX0-IGFX-PCI,
PCI-GFX0-GPP-IGFX,
IGFX-GFX0-GPP-PCI
This option allows to select primary video
controller mode.
Page 43
User’s Manual
EMX-780E User’s Manual
43

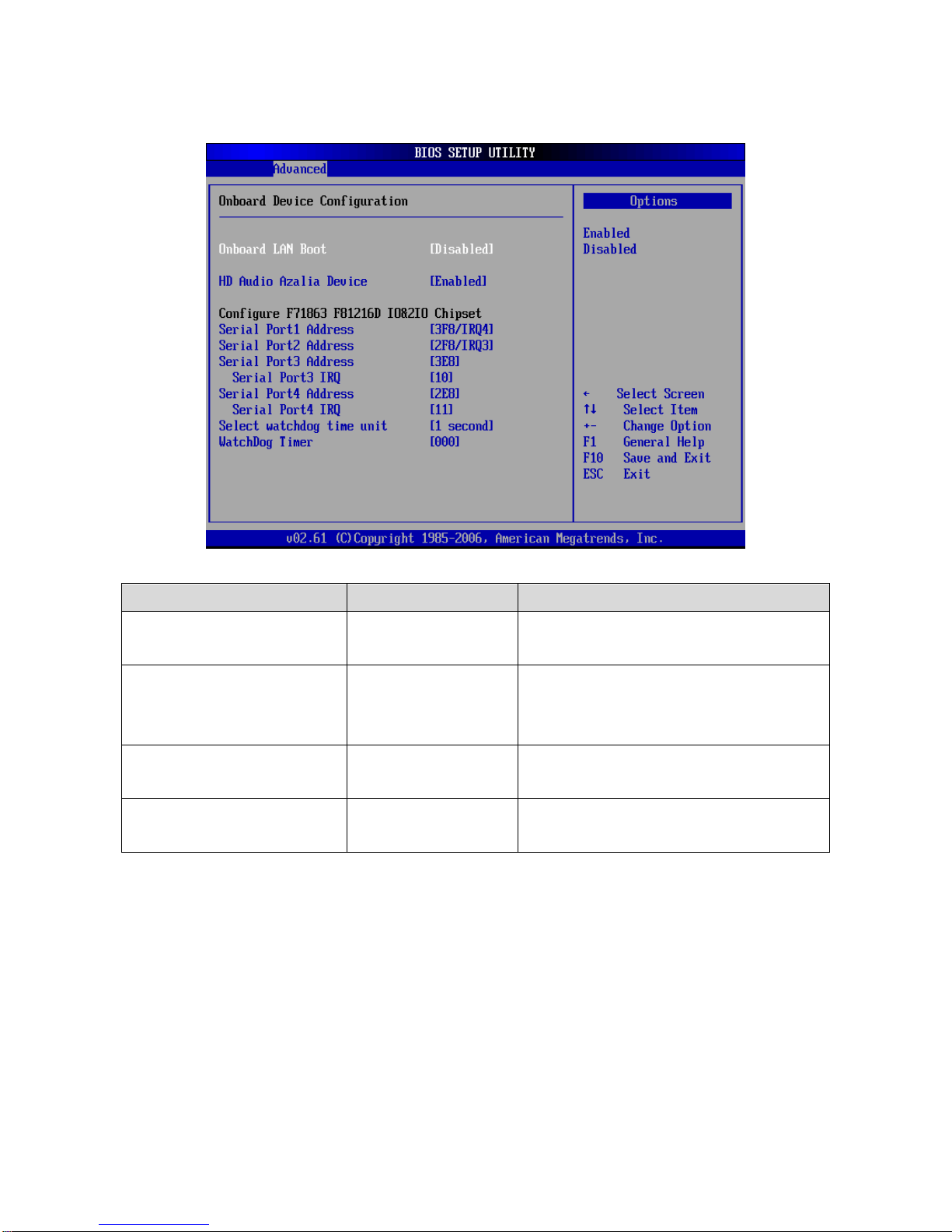

3.6.2.3 Onboard Device Configuration
Item
Options
Description
HD Audio Azalia Device
Enabled,
Disabled
This item allows you to set HD Audio Azalia
device mode.
Serial Port 1/ 2/ 3/ 4 Address
Disabled,
3E8,
2E8
This item allows you to set Serial Port 1/ 2/ 3/
4 Address.
Serial port 3/ 4 IRQ
10,
11
This item allows you to set Serial port 3/ 4
IRQ
Select watchdog time unit
1 Second,
1 Minute
This item allows you to set watchdog timer.
Page 44
EMX-780E
44 EMX-780E User’s Manual

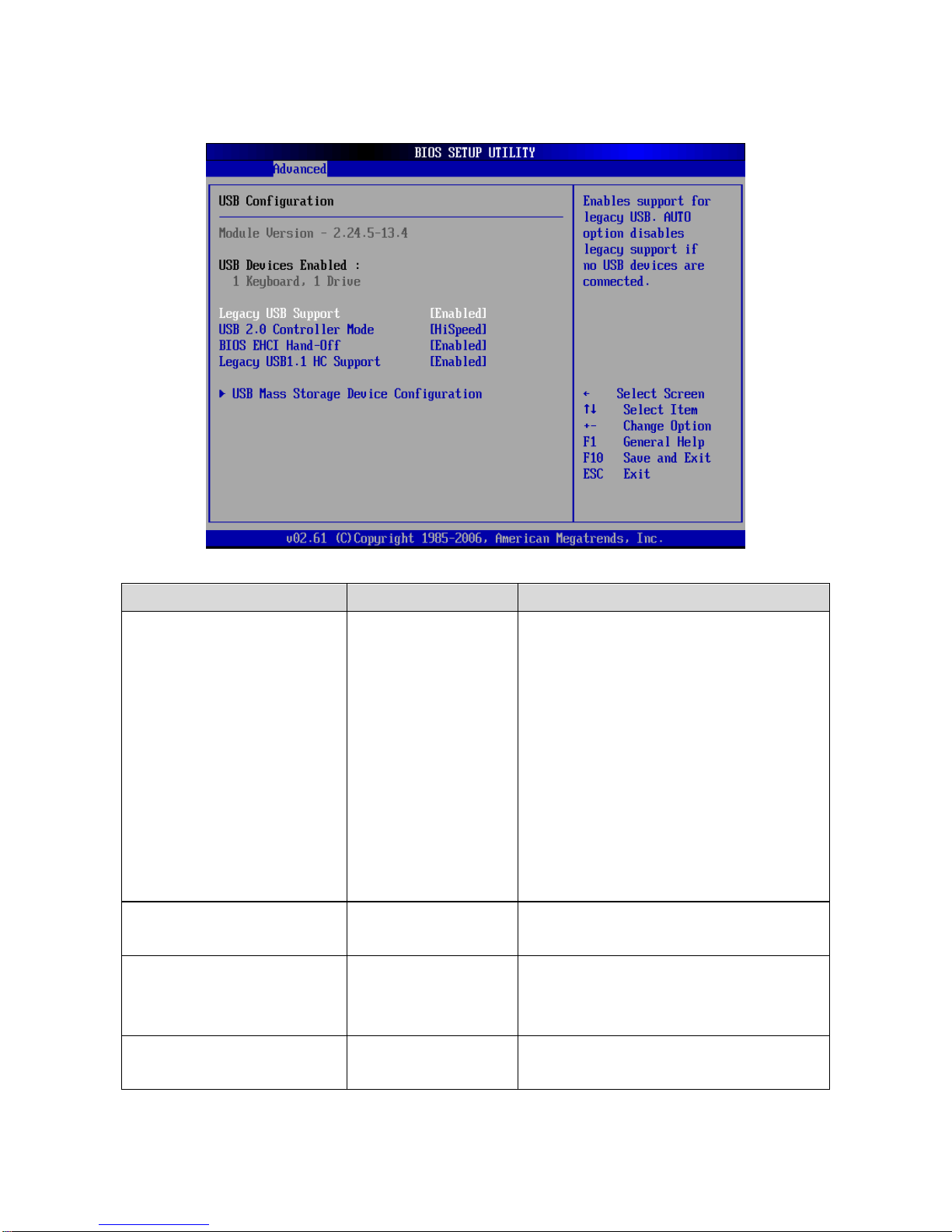

3.6.2.4 USB Configuration
Item
Options
Description
Legacy USB Support
Enabled,
Disabled,
Auto
Use the Legacy USB Support BIOS option to
enable USB mouse and USB keyboard
support. Normally if this option is not enabled,
any attached USB mouse or USB keyboard
does not become available until a USB
compatible operating system is fully booted
with all USB drivers loaded. When this option
is enabled, any attached USB mouse or USB
keyboard can control the system even when
there is no USB driver loaded onto the
system.
USB 2.0 Controller Mode
HiSpeed (480Mbps),
FullSpeed (12Mpbs)
This item allows you to select HiSpeed
(480Mbps) or FullSpeed (12Mpbs).
BIOS EHCI Hand-Off
Enabled,
Disabled
This is a workaround for OSs without EHCI
hand-off support. The EHCI ownership
change should be claimed by EHCI driver.
Legacy USB1.1 HC Support
Enabled,
Disabled
This item allows you to select Legacy USB1.1
HC Support mode.
Page 45
User’s Manual
EMX-780E User’s Manual
45

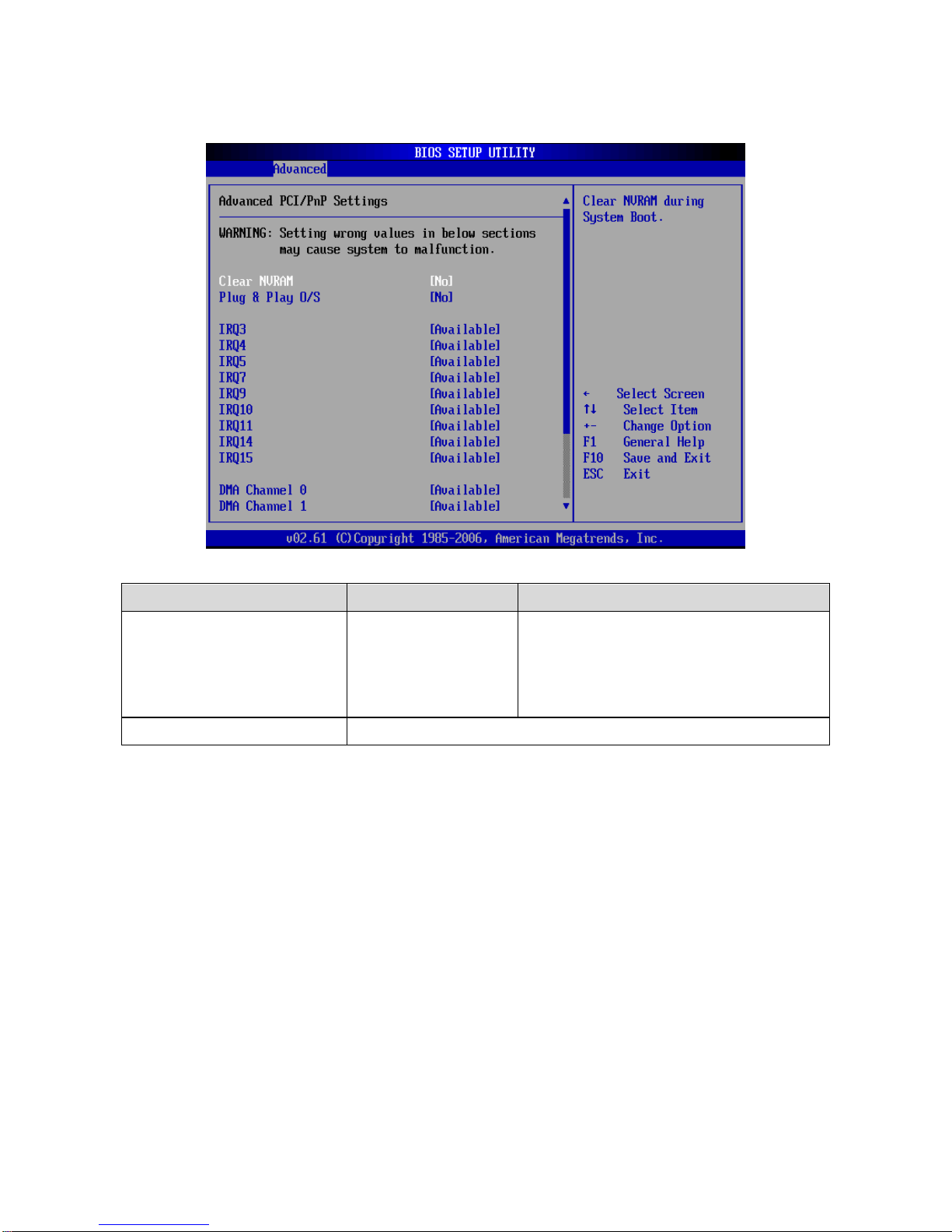

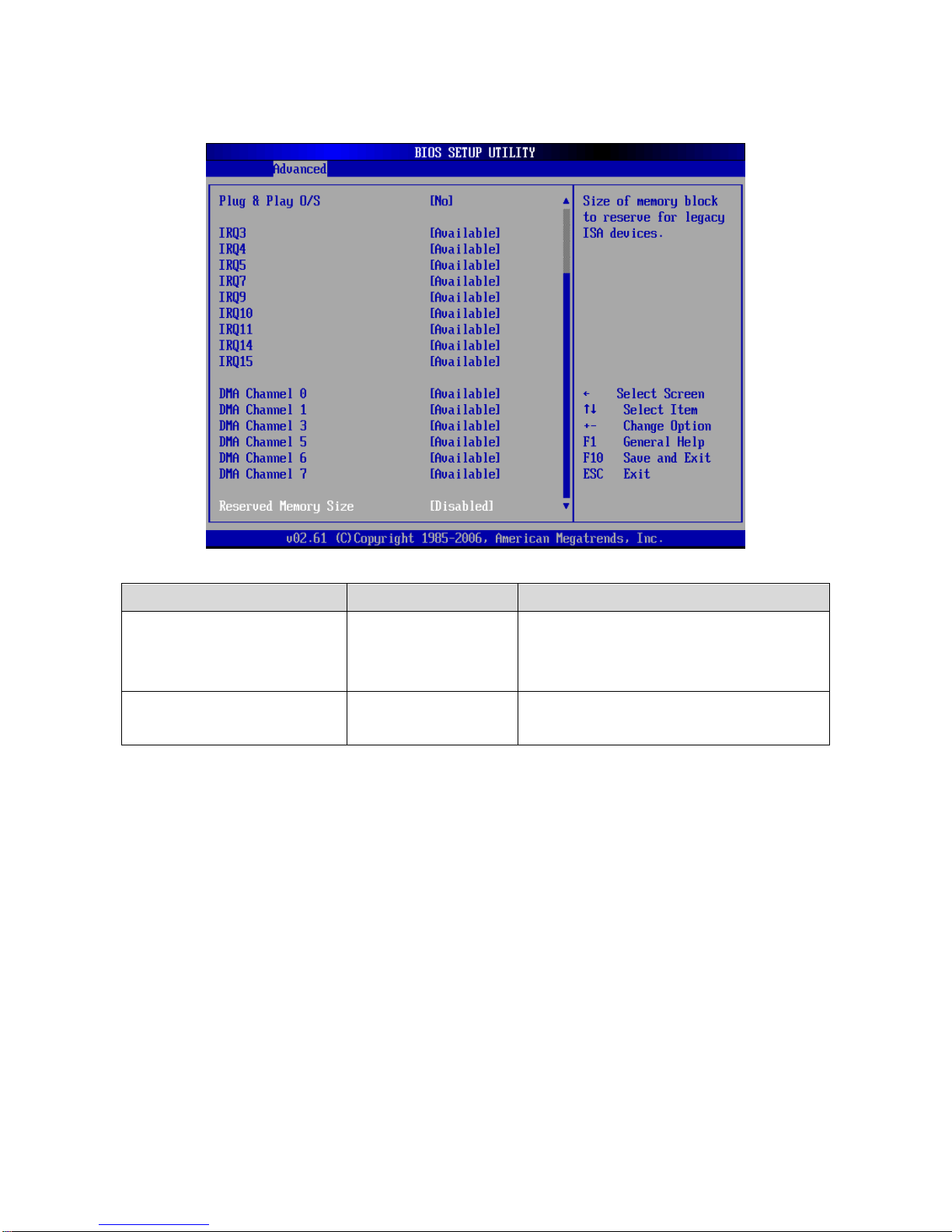

3.6.2.5 PCIPnP
Item
Options
Description
Clear NVRAM
No,
Yes
Set this value to force the BIOS to clear the
Non-volatile Random Access Memory
(NVRAM). The Original and Fail-Safe default
setting is No.
Plug & Play O/S
Please refer to 3.5.2.5.1 for more information.
Page 46
EMX-780E
46 EMX-780E User’s Manual
3.6.2.5.1 Plug & play O/S
Item
Options
Description
IRQ3/ 4/ 5/ 7/ 9/ 10/ 11/ 14/ 15
Available,
Reserved
Use the IRQ# address to specify what IRQs
can be assigned to a particular peripheral
device.
DMA Channel 0/ 1/ 3/ 5/ 6/ 7
Available,
Reserved
This item allows you to set up DMA channel
0/ 1/ 3/ 5/ 6/ 7 mode.
Page 47
User’s Manual
EMX-780E User’s Manual
47

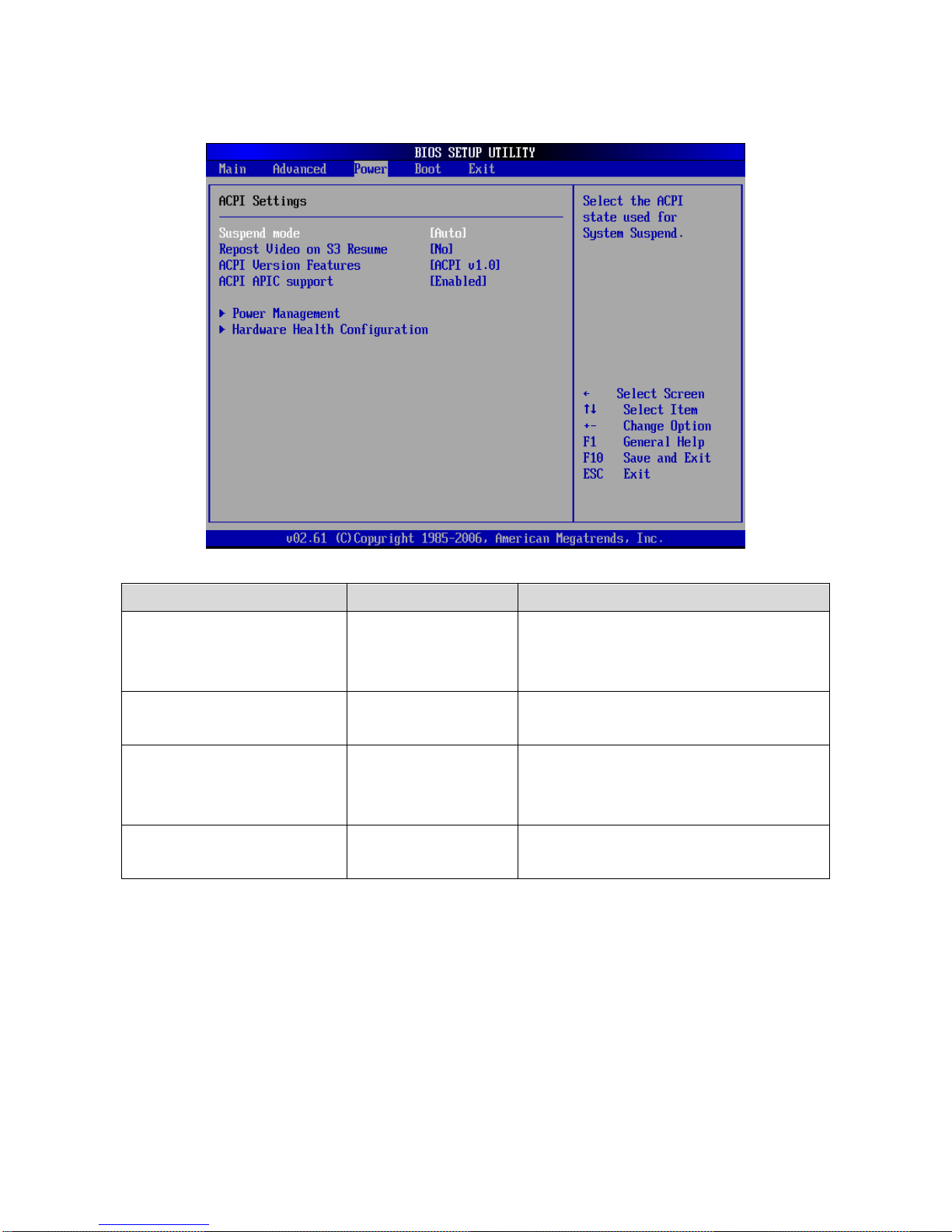

3.6.3 Power
Item
Options
Description
Suspend mode
S1 (POS),
S3 (STR),
Auto
Select the ACPI states used for system
suspend.
Repost Video on S3 Resume
No,
Yes
This item allows you to invoke VA BIOS
POST on S3/ STR resume.
ACPI Version Features
ACPI v1.0,
ACPI v2.0,
ACPI v3.0
This item allows you enable RSDP pointers to
64-bit fixed system description tables.
ACPI APIC support
Enabled,
Disabled
Include APIC table pointer to RSDT pointer
list.
Page 48
EMX-780E
48 EMX-780E User’s Manual

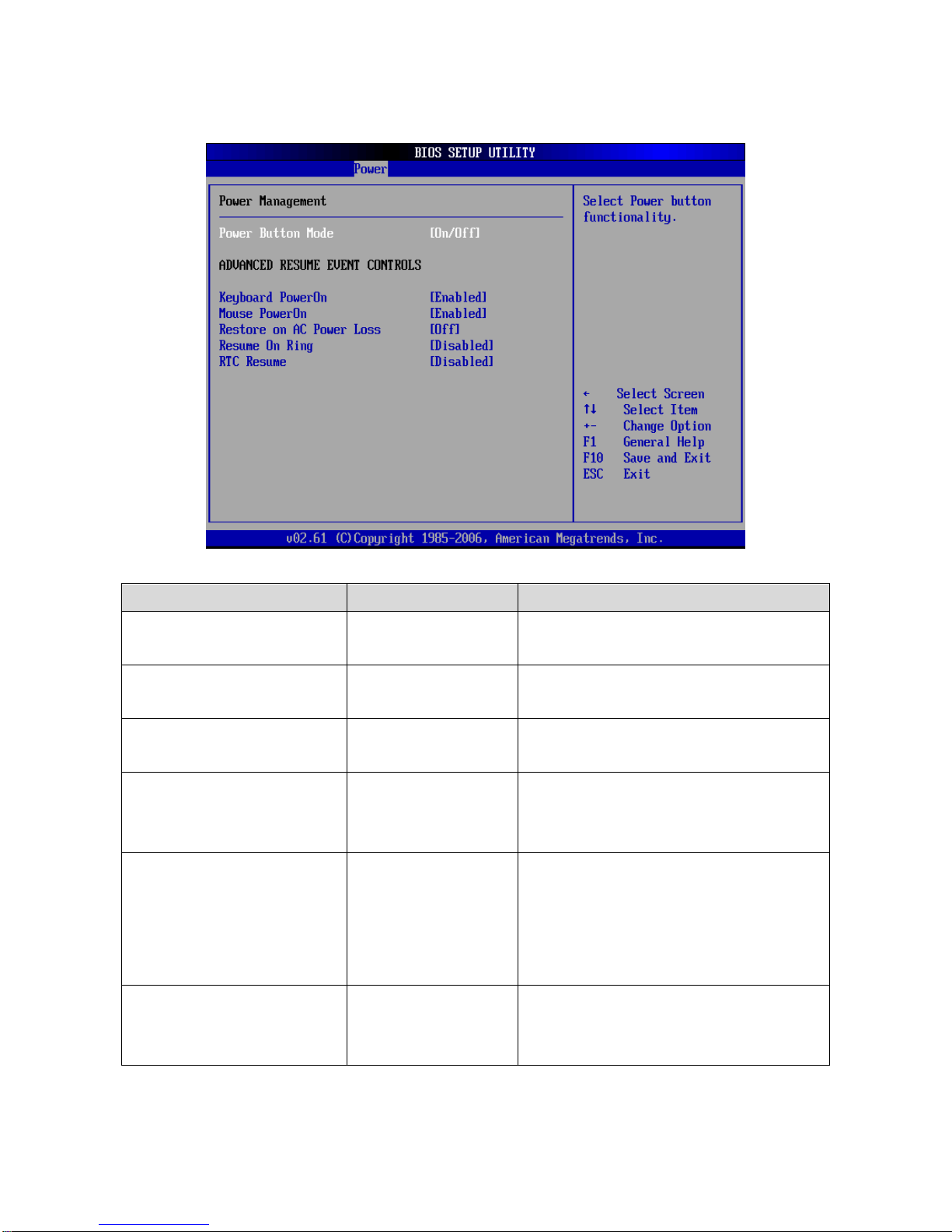

3.6.3.1 Power Management
Item
Options
Description
Power Button Mode
Disabled,
Enabled
This section allows you to select power button
mode.
Keyboard PowerOn
Disabled,
Enabled
This section allows you to select keyboard
power on mode.
Mouse PowerOn
Disabled,
Enabled
This section allows you to select mouse
power on mode.
Restore on AC Power Loss
Last Status,
On,
Off
Use this to set up the system response after a
power failure.
Resume On Ring
Disabled,
Enabled
Use the Resume on Ring BIOS option to
enable activity on the RI (ring in) modem line
to rouse the system from a suspend or
standby state. That is, the system is roused
by an incoming call on modem.
RTC Resume
Disabled,
Enabled
Use the Resume on RTC Alarm option to
specify the time the system should be roused
from a suspend state.
Page 49
User’s Manual
EMX-780E User’s Manual
49
3.6.3.2 Hardware Health Configuration
This section allows you to control H/W monitoring.
3.6.4 Boot
Use the Boot menu to configure system boot options.
Page 50
EMX-780E
50 EMX-780E User’s Manual
3.6.4.1 Boot Device Priority
Use the Boot Device Priority menu to specify the boot sequence from the available devices.
3.6.4.2 Hard Disk Devices
Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs.
3.6.4.3 Security
Use the Security menu to set system and user password.
Page 51
User’s Manual
EMX-780E User’s Manual
51
3.6.4.4 Boot Settings Configuration
Item
Options
Description
Quick Boot
Disabled,
Enabled
Use the quick boot BIOS option to make the
computer speed up the boot process.
Quiet Boot
Disabled,
Enabled
Use the quiet boot BIOS option to select the
screen display when the system boots.
AddOn ROM Display Mode
Force BIOS,
Keep Current
The AddOn ROM Display Mode option allows
add-on ROM (read-only memory) messages
to be displayed.
Bootup Num-Lock
On,
Off
The Bootup Num-Lock BIOS option allows
the number Lock setting to be modified during
boot up.
Wait For “F1” If Error
Disabled,
Enabled
When set to enable, the system waits for the
F1 key to be pressed when error occurs. This
allows option ROM to trap interrupt19.
Page 52
EMX-780E
52 EMX-780E User’s Manual
3.6.5 Exit
Use the Exit menu to load default BIOS values, optional failsafe values and to save
configuration changes.
3.6.5.1 Save Changes and Exit
Use the save changes and reset option to save the changes made to the BIOS options and
to exit the BIOS configuration setup program.
3.6.5.2 Discard Changes and Exit
Use the Discard changes and Exit option to exit the system without saving the changes
made to the BIOS configuration setup program.
3.6.5.3 Discard Changes
Use the Discard Changes option to discard the changes and remain in the BIOS
configuration setup program.
3.6.5.4 Load Optimal Defaults
Use the Load Optimal Defaults option to load the optimal default values for each of the
parameters on the setup menus. F9 key can be used for this operation.
Page 53
User’s Manual
EMX-780E User’s Manual
53
4. Mechanical Drawing
Page 54
EMX-780E
54 EMX-780E User’s Manual
Unit: mm
Page 55
User’s Manual
EMX-780E User’s Manual
55
Unit: mm
