EEV-Q702
Qseven Carrier Board
Quick Installation Guide
1st Ed – 26 March 2014
Part No. E2017Q70200R
EEV-Q702
FCC Statement
Notice
Copyright Notice
Trademark Acknowledgement
Disclaimer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.
Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Brand and product names are trademarks or registered trademarks of their respective
owners.
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
2 EEV-Q702 Quick Installation Guide
Quick Installation Guide
Life Support Policy
A Message to the Customer
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose
failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
EEV-Q702 Quick Installation Guide 3
EEV-Q702
Contents
1. Getting Started ........................................................................................................... 5
1.1 Safety Precautions ................................................................................................ 5
1.2 Packing List ........................................................................................................... 5
2. Hardware Configuration ............................................................................................ 6
2.1 Product Overview .................................................................................................. 7
2.2 Jumper and Connector List.................................................................................... 8
2.3 Setting Jumpers & Connectors ............................................................................ 10
2.3.1 PCIE signal selector (JPCIESEL) ............................................................................................ 10
2.3.2 Module/Carrier BIOS selector (JBIOS) .................................................................................... 10
2.3.3 USB power selector (JUSB_PW) ............................................................................................ 11
2.3.4 USB Port selector (JUSBSEL) ................................................................................................ 11
2.3.5 AT/ ATX Input power select (JAT_ATX) .................................................................................. 12
2.3.6 Clear CMOS (JCMOS) ............................................................................................................ 12
2.3.7 eDP/ LVDS selector (JEDPLVDS) .......................................................................................... 13
2.3.8 JDPQVER selector (JQ7_VER) .............................................................................................. 13
2.3.9 CPU fan connector (JCPUFAN) .............................................................................................. 14
2.3.10 Miscellaneous setting connector (JFP) ................................................................................... 14
2.3.11 USB connector 2 & 3 (JUSB2) ................................................................................................ 15
2.3.12 USB connector 4 & 5 (JUSB3) ................................................................................................ 15
2.3.13 ATX1 Power connector (PWR1) .............................................................................................. 16
2.3.14 ATX2 Power connector (PWR2) .............................................................................................. 16
2.3.15 Carrier board SPI FLASH programming (JSPIC) .................................................................... 17
2.3.16 LPC port Connector (JLPC)..................................................................................................... 17
2.3.17 LCD Inverter connector (JBKLT) ............................................................................................. 18
2.3.17.1 Signal Description – LCD Inverter connector (JBKLT) ............................................ 18
2.3.18 General Purpose I/O connector (JDIO) ................................................................................... 19
2.3.19 HD Power connector 1/2 (HD_PWR1/2) ................................................................................. 19
2.3.20 LVDS connector (LVDS) .......................................................................................................... 20
4 EEV-Q702 Quick Installation Guide
Quick Installation Guide
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
1 x EEV-Q702 Qseven Carrier Board
1 x Quick Installation Guide
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Audio drivers and utilities
4 x Screws for fixing
EEV-Q702 Quick Installation Guide 5
EEV-Q702
2. Hardware
Configuration
6 EEV-Q702 Quick Installation Guide
2.1 Product Overview
Quick Installation Guide
EEV-Q702 Quick Installation Guide 7
EEV-Q702
Jumpers
Label
Function
Note
JPCIESEL
PCIE signal selector
3 x 1 header, pitch 2.00mm
JUSB_PW
USB power selector
3 x 1 header, pitch 2.00mm
JAT_ATX
AT/ ATX Input power select
3 x 1 header, pitch 2.00mm
JCMOS
Clear CMOS
3 x 1 header, pitch 2.00mm
JBIOS
Module/Carrier BIOS selector
3 x 1 header, pitch 2.00mm
JUSBSEL
USB Port selector
3 x 1 header, pitch 2.00mm
JEDPLVDS
eDP/ LVDS selector
3 x 1 header, pitch 2.00mm
JQ7_VER
JDPQVER selector
DP for Q7 1.2 VS 2.0
3 x 1 header, pitch 2.00mm
2.2 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.

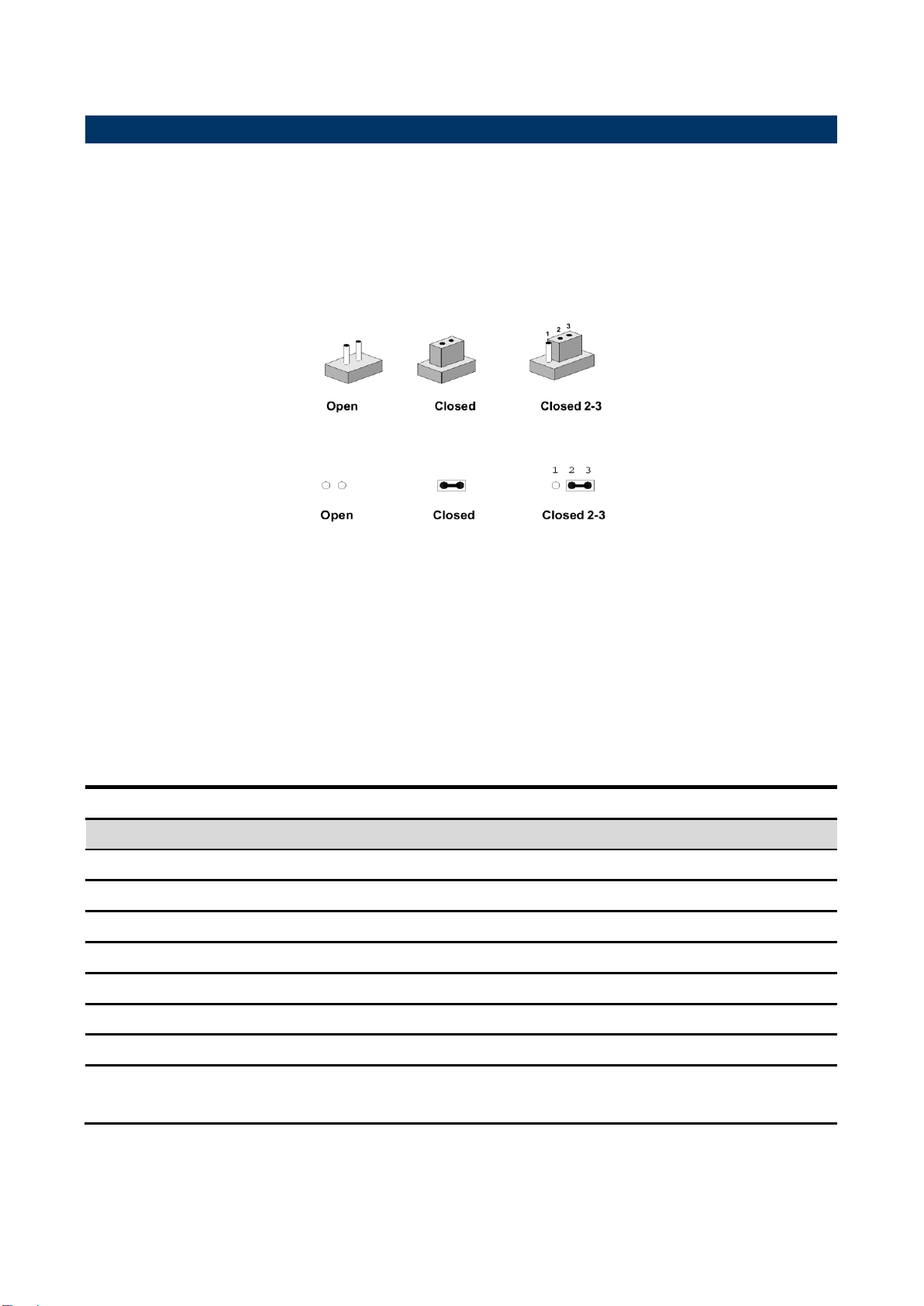

The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board's jumpers and connectors.
8 EEV-Q702 Quick Installation Guide
Quick Installation Guide
Connectors
Label
Function
Note
SD
SD card slot
JCPUFAN
CPU fan connector
4 x 1 wafer, pitch 2.54mm
HD_PWR1/2
HD Power connector 1/2
4 x 1 wafer, pitch 2.50mm
BAT-1
Battery connector
JFP
Miscellaneous setting connector
5 x 2 wafer, pitch 2.00mm
JBKLT
LCD inverter connector
5 x 1 wafer, pitch 2.00mm
EDP
eDP connector
DIN 44-pin wafer, pitch 0.50mm
COM1
Serial Port 1 connector
D Sub 9 pin male
JDIO
General purpose I/O connector
10 x 2 header, pitch 2.00mm
HDMI
HDMI connector
LAN
LAN port connector
On-board connector for USB2.0 x 2
LVDS
LVDS connector
20 x 2 wafer, pitch 1.25mm
JLPC
LPC port connector
7 x 2 header, pitch 2.00mm
PCIE1
PCIE connector
PWR1
ATX1 Power connector
12 x 2 wafer, pitch 4.20mm
PWR2
ATX2 Power connector
2 x 2 wafer, pitch 4.20mm
JQSEVEN1
Qseven connector
SIM
SIM card connector
JSPIC
Carrier board SPI FLASH programming
4 x 2 header, pitch 2.00mm
SATA1/2
SATA connector 1/2
DP
DP connector
Audio
Audio connector
JUSB1
USB connector 1
JUSB2
USB connector 2 & 3
5 x 2 header, pitch 2.00mm
JUSB3
USB connector 4 & 5
5 x 2 header, pitch 2.00mm
EEV-Q702 Quick Installation Guide 9
EEV-Q702
*Default
PCIE 1*
PCIE 2
*Default
Q7 Module BIOS*
Carrier BIOS
2.3 Setting Jumpers & Connectors
2.3.1 PCIE signal selector (JPCIESEL)
2.3.2 Module/Carrier BIOS selector (JBIOS)
10 EEV-Q702 Quick Installation Guide
*Default
Standby power to USB*
USB power when main power ok
*Default
Port 6, 7 to JUSB1 (USB3.0)*
Port 6, 7 to JUSB3 (USB2.0)
2.3.3 USB power selector (JUSB_PW)
Quick Installation Guide
2.3.4 USB Port selector (JUSBSEL)
EEV-Q702 Quick Installation Guide 11
EEV-Q702
*Default
AT MODE*
ATX MODE
*Default
Normal*
Clear CMOS
2.3.5 AT/ ATX Input power select (JAT_ATX)
2.3.6 Clear CMOS (JCMOS)
12 EEV-Q702 Quick Installation Guide
*Default
HI, LVDS port OUTPUT*
LOW, eDP port OUTPUT
*Default
Q7 2.0*
Q7 1.2
2.3.7 eDP/ LVDS selector (JEDPLVDS)
Quick Installation Guide
2.3.8 JDPQVER selector (JQ7_VER)
EEV-Q702 Quick Installation Guide 13
EEV-Q702
Signal
PIN
CPU_FAN_CTRL
4
FAN_TACHOIN
3
+12V
2
GND
1
Signal
PIN
PWBT
1
2
RST#
3
4
PWR-LED-
5
PWR-LED+
6
HDD-LED+
7
HDD-LED-
8
NC
9
10
2.3.9 CPU fan connector (JCPUFAN)
2.3.10 Miscellaneous setting connector (JFP)
14 EEV-Q702 Quick Installation Guide
Signal
PIN
PIN
Signal
+5V
1 2 GND
USB_NP4
3 4 GND
USB_PP4
5 6 USB_PP5
GND
7 8 USB_NP5
GND
9
10
+5V
Signal
PIN
PIN
Signal
+5V
1 2 GND
USB_NP6
3 4 GND
USB_PP6
5 6 USB_PP7
GND
7 8 USB_NP7
GND
9
10
+5V
2.3.11 USB connector 2 & 3 (JUSB2)
Quick Installation Guide
2.3.12 USB connector 4 & 5 (JUSB3)
EEV-Q702 Quick Installation Guide 15
EEV-Q702
Signal
PIN
PIN
Signal
+3.3V
12
24
GND
+12V
11
23
+5V
+12V
10
22
+5V
+5V
9
21
+5V
ATX_POK
8
20
NC
GND
7
19
GND
+5V
6
18
GND
GND
5
17
GND
+5V
4
16
PS_ON#
GND
3
15
GND
+3.3V
2
14
NC
+3.3V
1
13
+3.3V
Signal
PIN
PIN
Signal
+12V
3 1 GND
+12V
4 2 GND
.
2.3.13 ATX1 Power connector (PWR1)
2.3.14 ATX2 Power connector (PWR2)
16 EEV-Q702 Quick Installation Guide
Signal
PIN
PIN
Signal
+3.3V
1 2 GND
SPI_CS#
3 4 SPI_CLK
SPI_SO
5 6 SPI_SI
SPI_WP#_PRG
7 8 NC
Signal
PIN
PIN
Signal
LPC_AD0
1 2 +3.3V
LPC_AD1
3 4 PCIE_RST#
LPC_AD2
5 6 LPC_LFRAME#
LPC_AD3
7 8 LPC_CLK
SERIRQ
9
10
GND
+5V
11
12
GND
+V5_DUAL
13
14
GND
2.3.15 Carrier board SPI FLASH programming (JSPIC)
Quick Installation Guide
2.3.16 LPC port Connector (JLPC)
EEV-Q702 Quick Installation Guide 17
EEV-Q702
Signal
PIN
+5V
(max 400mA)
5
+3.3V
4
+5V
3
GND
2
+12V
(max 300mA)
1
Signal
Signal Description
LVDS_BKLTCTL
LVDS backlight PWM control
LVDS_BPEN
LCD backlight Enable/Disable control signal
LVDS_EN level
selectable resistor - 5V or 3.3V
(Default 5V level)
2.3.17 LCD Inverter connector (JBKLT)
2.3.17.1 Signal Description – LCD Inverter connector (JBKLT)
18 EEV-Q702 Quick Installation Guide
Signal
PIN
PIN
Signal
DI0
1 2 DO0
DI1
3 4 DO1
DI2
5
6
DO2
DI3
7
8
DO3
DI4
9
10
DO4
DI5
11
12
DO5
DI6
13
14
DO6
DI7
15
16
DO7
SMB_CLK
17
18
SMB_DATA
GND
19
20
DIO_VDD5
(Max 500mA)
Signal
PIN
GND
1
GND
2
+5V
(Max 1000Ma)
3
4
HD_PWR1
HD_PWR2
2.3.18 General Purpose I/O connector (JDIO)
Quick Installation Guide
2.3.19 HD Power connector 1/2 (HD_PWR1/2)
EEV-Q702 Quick Installation Guide 19
EEV-Q702
Signal
PIN
PIN
Signal
+3V
1
2
+5V
+3V
3
4
+5V
LVDS_DDC_CLK
5 6 LVDS_DDC_DATA
GND
7
8
GND
LVDS_A1+
9
10
LVDS_A0+
LVDS_A1-
11
12
LVDS_A0-
GND
13
14
GND
LVDS_A3+
15
16
LVDS_A2+
LVDS_A3-
17
18
LVDS_A2-
GND
19
20
GND
LVDS_B1+
21
22
LVDS_B0+
LVDS_B1-
23
24
LVDS_B0-
GND
25
26
GND
LVDS_B3+
27
28
LVDS_B2+
LVDS_B3-
29
30
LVDS_B2-
GND
31
32
GND
LVDS_B_CLK+
33
34
LVDS_A_CLK+
LVDS_B_CLK-
35
36
LVDS_A_CLK-
GND
37
38
GND
+12V
39
40
+12V
2.3.20 LVDS connector (LVDS)
20 EEV-Q702 Quick Installation Guide
Loading...
