Page 1
ECM-SKLH
Intel® Skylake H Processor 3.5” Micro Module
User’s Manual
2nd Ed – 02 November 2016
Part No. E2047392801R
Page 2
ECM-SKLH User’s Manual
FCC Statement
Notice
Copyright Notice
Trademark Acknowledgement
Disclaimer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.
Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Brand and product names are trademarks or registered trademarks of their respective
owners.
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
2 ECM-SKLH User’s Manual
Page 3
User’s Manual
3
Life Support Policy
A Message to the Customer
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose
failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
ECM-SKLH User’s Manual
Page 4
ECM-SKLH User’s Manual
Product Warranty
Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Avalue, or which have been subject to
misuse, abuse, accident or improper installation. Avalue assumes no liability under the
terms of this warranty as a consequence of such events. Because of Avalue’s high
quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Avalue’s products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example,
CPU type and speed, Avalue’s products model name, hardware & BIOS
revision number, other hardware and software used, etc.) Note anything
abnormal and list any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information available.
3. If your product is diagnosed as defective, obtain an RMA (return material
authorization) number from your dealer. This allows us to process your good
return more quickly.
4. Carefully pack the defective product, a complete Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales
receipt) in a shippable container. A product returned without proof of the
purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it
prepaid to your dealer.
4 ECM-SKLH User’s Manual
Page 5
User’s Manual
5
Content
1. Getting Started ............................................................................................................ 8
1.1 Safety Precautions .................................................................................................... 8
1.2 Packing List ............................................................................................................... 8
1.3 Document Amendment History ................................................................................. 9
1.4 Manual Objectives ................................................................................................... 10
1.5 System Specifications ............................................................................................. 11

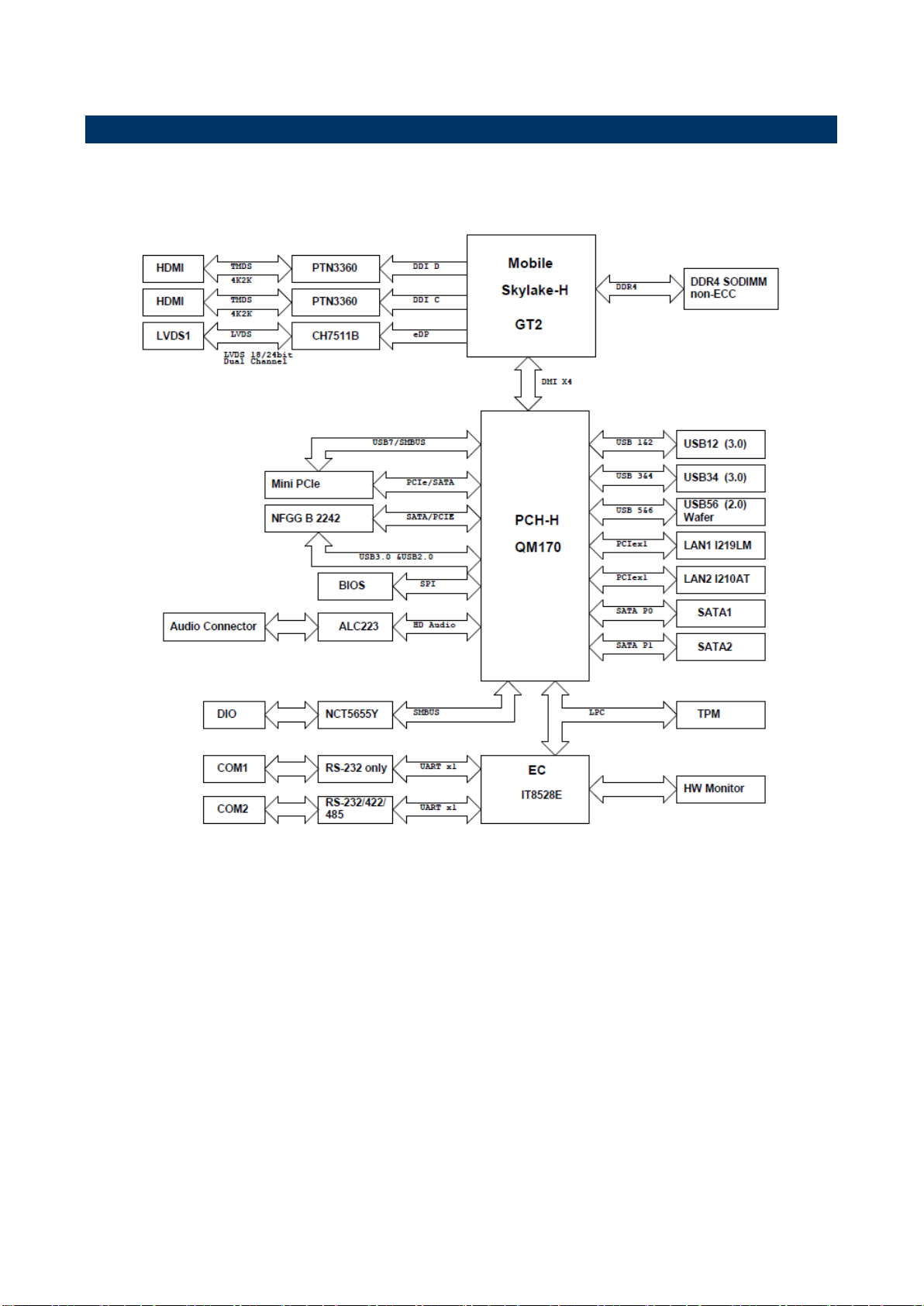

1.6 Architecture Overview—Block Diagram .................................................................. 13
2. Hardware Configuration ........................................................................................... 14
2.1 Product Overview .................................................................................................... 15
2.2 Jumper and Connector List ..................................................................................... 17
2.3 Setting Jumpers & Connectors ............................................................................... 19
2.3.1 AT/ ATX Input power select (JAT1) ................................................................................................ 19
2.3.2 Serial port 1 pin9 signal select (JRI) .............................................................................................. 19
2.3.3 Clear CMOS (JCMOS) ................................................................................................................... 20
2.3.4 LCD backlight brightness adjustment (JVR) .................................................................................. 20
2.3.5 LCD Inverter connector (JBKL) ...................................................................................................... 21
2.3.6 CPU fan connector (CPU_FAN) ..................................................................................................... 21
2.3.7 System fan connector (SYS_FAN) ................................................................................................. 22
2.3.8 Serial port 2 connector (JCOM2) ................................................................................................... 22
2.3.9 Serial port 2 in RS-422/485 mode (J422_485)............................................................................... 23
2.3.10 General purpose I/O connector (JDIO) ...................................................................................... 23
2.3.11 SATA Power header 1/2 (SATAPW1/2) .................................................................................... 24
2.3.12 Power connector (PWR) ............................................................................................................ 24
2.3.13 On-board header for USB2.0 (JUSB) ........................................................................................ 25
2.3.14 LPC connector (JLPC) ............................................................................................................... 25
2.3.15 LVDS connector (JLVDS) .......................................................................................................... 26
2.3.16 Miscellaneous setting connector (JFP) ...................................................................................... 27
2.3.17 SPI header (JSPI) ...................................................................................................................... 27
2.3.18 Battery connector (JBAT) ........................................................................................................... 28
2.3.19 Audio connector (JAUDIO) ........................................................................................................ 28
2.3.19.1 Signal Description – Audio connector (JAUDIO) ................................................................... 28
3.BIOS Setup .................................................................................................................... 29
3.1 Introduction ............................................................................................................. 30
3.2 Starting Setup ......................................................................................................... 30
3.3 Using Setup ............................................................................................................ 31
3.4 Getting Help ............................................................................................................ 32
ECM-SKLH User’s Manual
Page 6
ECM-SKLH User’s Manual
3.5 In Case of Problems ................................................................................................ 32
3.6 BIOS setup ................................................................ ................................ .............. 33
3.6.1 Main Menu ...................................................................................................................................... 33
3.6.1.1 System Language .................................................................................................................. 34
3.6.1.2 System Date .......................................................................................................................... 34
3.6.1.3 System Time .......................................................................................................................... 34
3.6.2 Advanced Menu ............................................................................................................................. 35
3.6.2.1 Trusted Computing ................................................................................................................ 35
3.6.2.2 APCI Settings ........................................................................................................................ 36
3.6.2.3 IT8528 Super IO Configuration .............................................................................................. 37
3.6.2.3.1 Serial Port 1 Configuration .................................................................................................... 38
3.6.2.3.2 Serial Port 2 Configuration .................................................................................................... 38
3.6.2.4 AMT Configuration ................................................................................................................. 39
3.6.2.5 PCH-FW Configuration .......................................................................................................... 40
3.6.2.5.1 Firmware Update Configuration ............................................................................................. 41
3.6.2.6 H/W Monitor ........................................................................................................................... 41
3.6.2.6.1 Smart Fan Mode Configuration ............................................................................................. 42
3.6.2.7 S5 RTC Wake Settings .......................................................................................................... 43
3.6.2.8 Serial Port Console Redirection ............................................................................................ 45
3.6.2.9 CPU Configuration ................................................................................................................. 46
3.6.2.10 Intel TXT Configuration .......................................................................................................... 47
3.6.2.11 SATA Configuration ............................................................................................................... 48
3.6.2.12 Network Stack Configuration ................................................................................................. 49
3.6.2.13 CSM Configuration ................................................................................................................ 50
3.6.2.14 USB Configuration ................................................................................................................. 52
3.6.3 Chipset.......................................................................................................................................... 53
3.6.3.1 System Agent (SA) Configuration .......................................................................................... 53
3.6.3.1.1 Graphics Configuration .......................................................................................................... 54
3.6.3.1.2 DMI/OPI Configuration .......................................................................................................... 55
3.6.3.1.3 Memory Configuration ........................................................................................................... 56
3.6.3.1.4 GT- Power Management Control ........................................................................................... 57
3.6.3.2 PCH-IO Configuration ............................................................................................................ 57
3.6.3.2.1 PCI Express Configuration .................................................................................................... 58
3.6.3.2.2 USB Configuration ................................................................................................................. 60
3.6.3.2.3 HD Audio Configuration ......................................................................................................... 60
3.6.4 Security ......................................................................................................................................... 61
3.6.4.1 Secure Boot menu ................................................................................................................. 62
3.6.5 Boot .............................................................................................................................................. 63
3.6.6 Save and exit ................................................................................................................................ 64
3.6.6.1 Save Changes and Reset ...................................................................................................... 64
6 ECM-SKLH User’s Manual
Page 7
User’s Manual
7
3.6.6.2 Discard Changes and Reset .................................................................................................. 64
3.6.6.3 Restore Defaults .................................................................................................................... 64

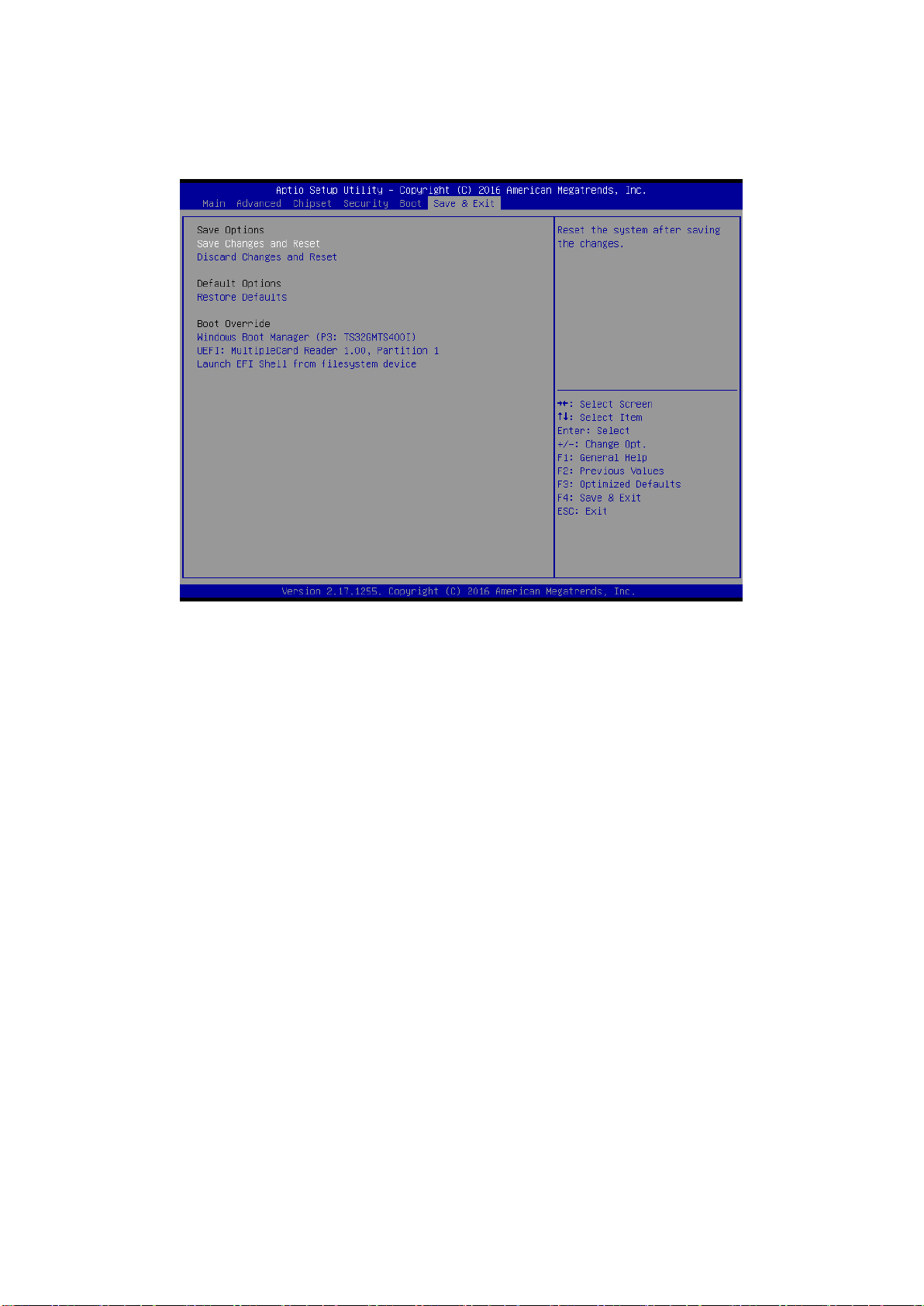

3.6.6.4 Launch EFI Shell from filesystem device .............................................................................. 64
4. Drivers Installation....................................................................................................... 65

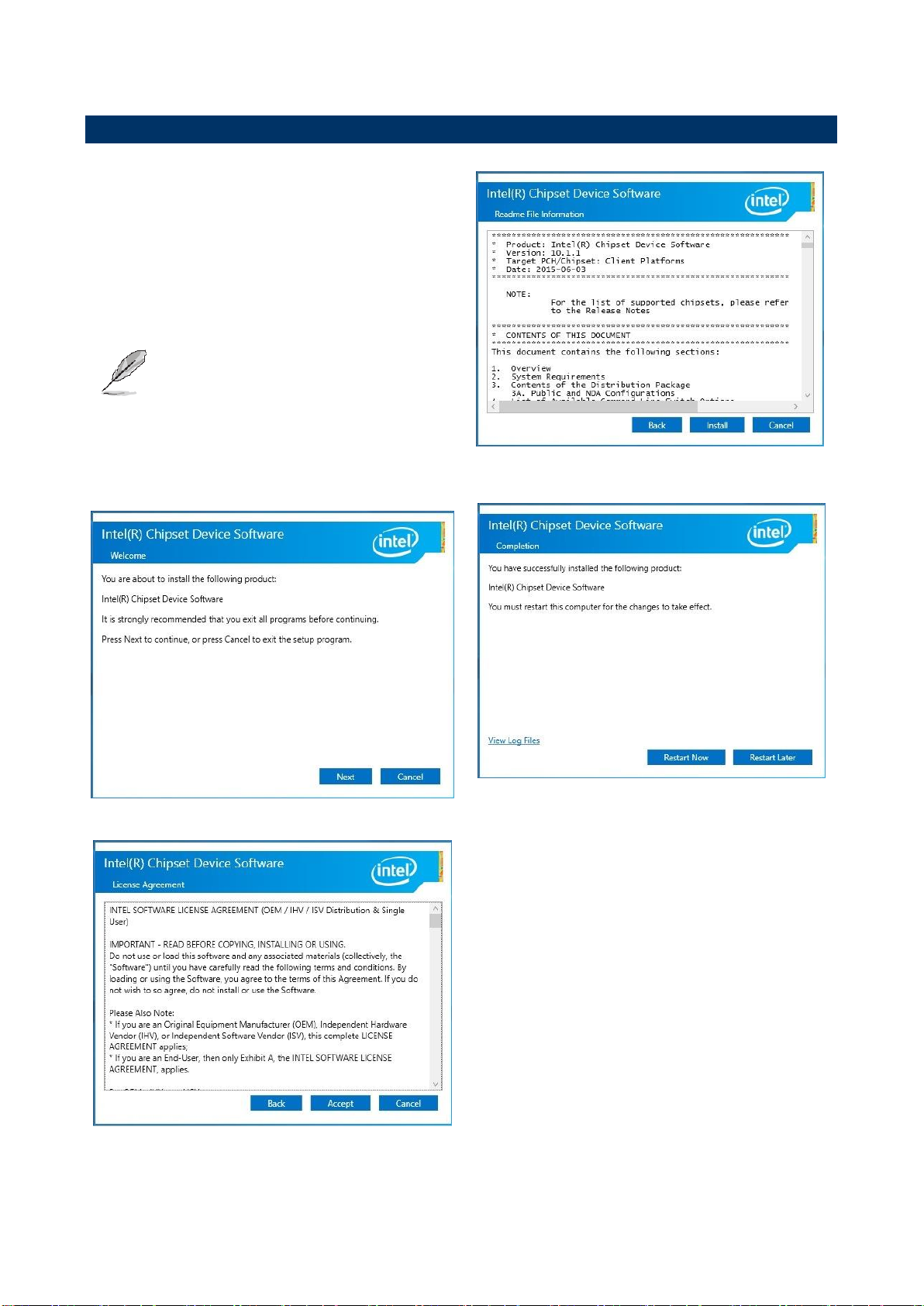

4.1 Install Chipset Driver ............................................................................................... 66

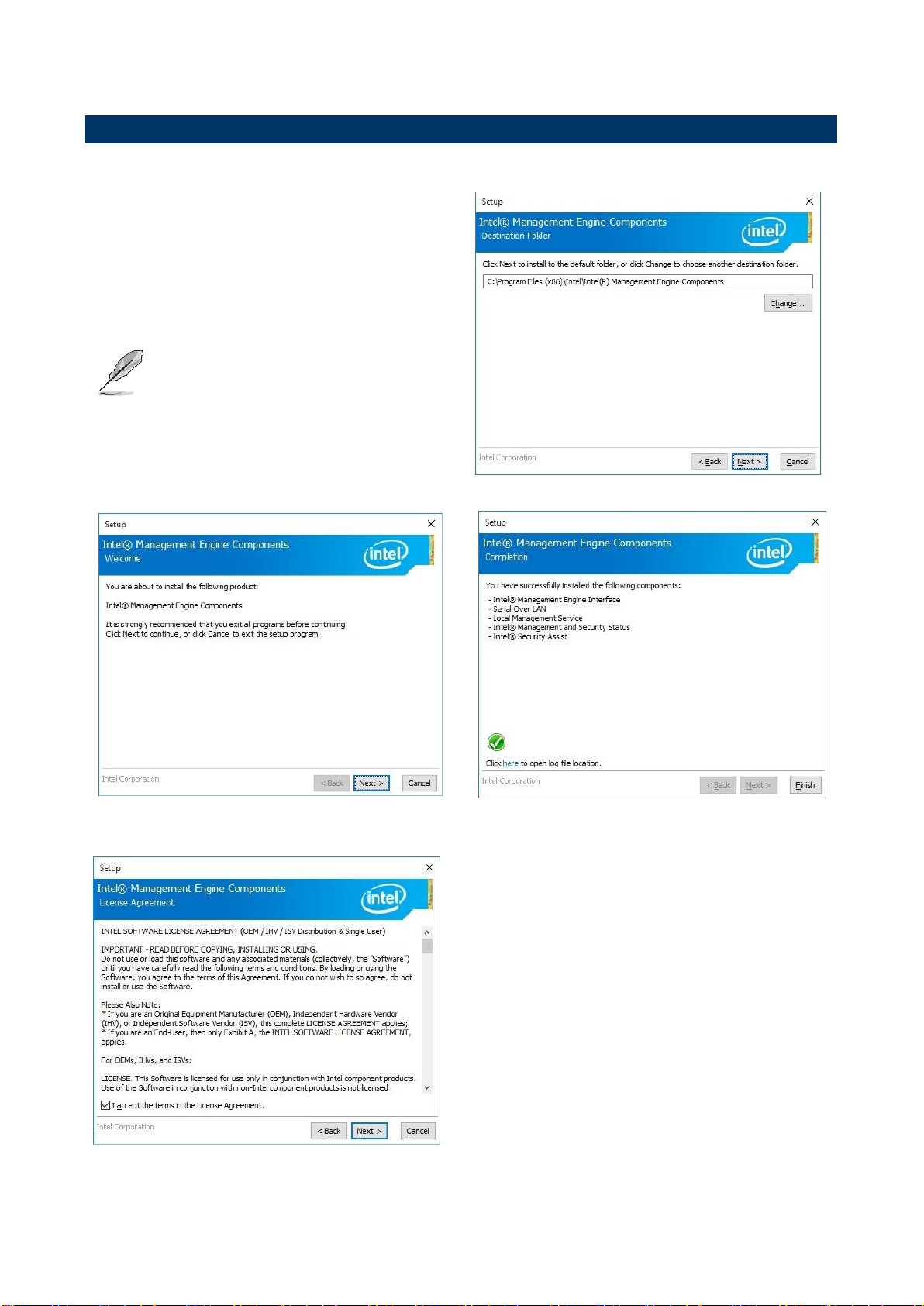

4.2 Install ME Driver ...................................................................................................... 67

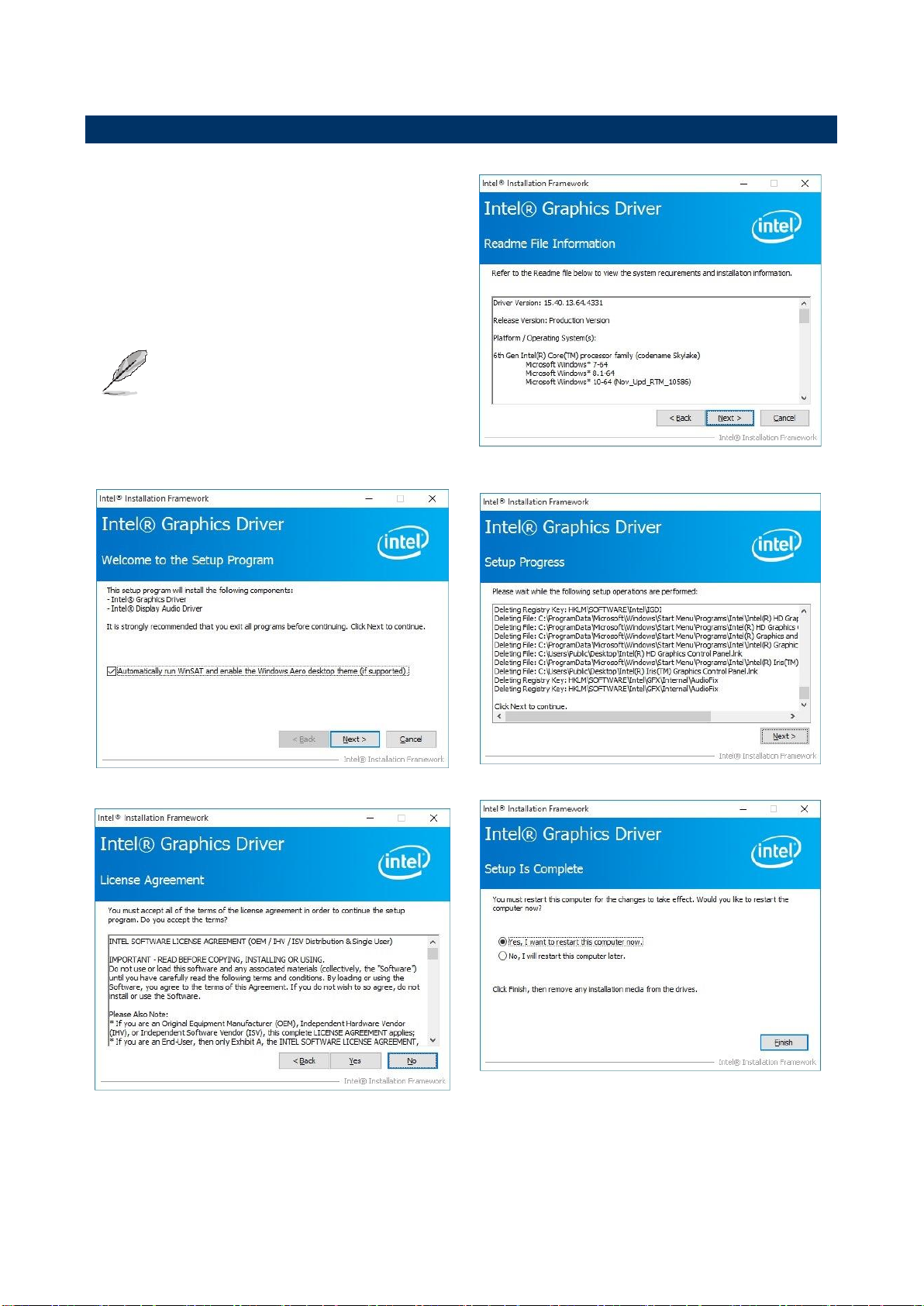

4.3 Install VGA Driver .................................................................................................... 68

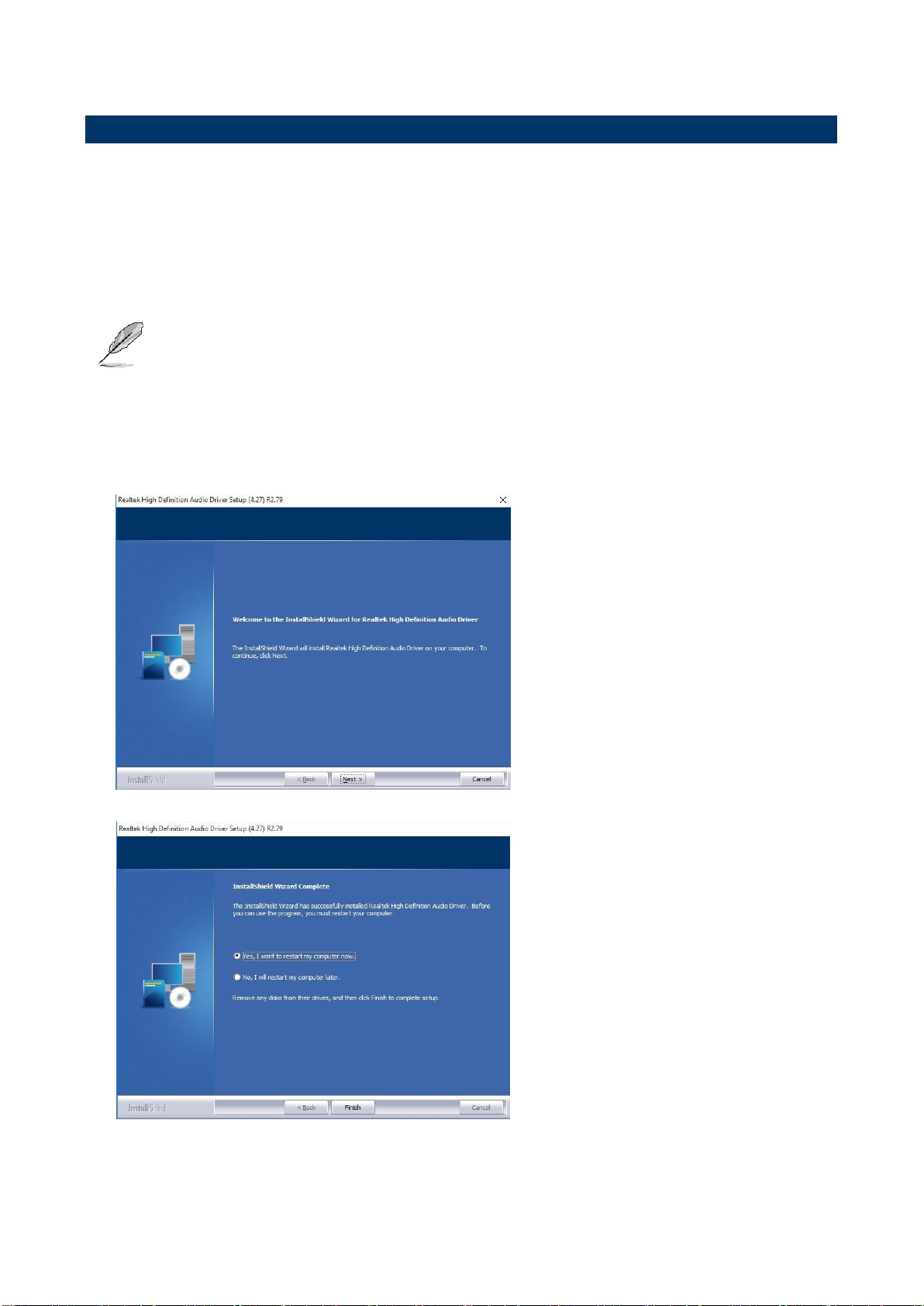

4.4 Install Audio Driver (For Realtek ALC233) .............................................................. 69

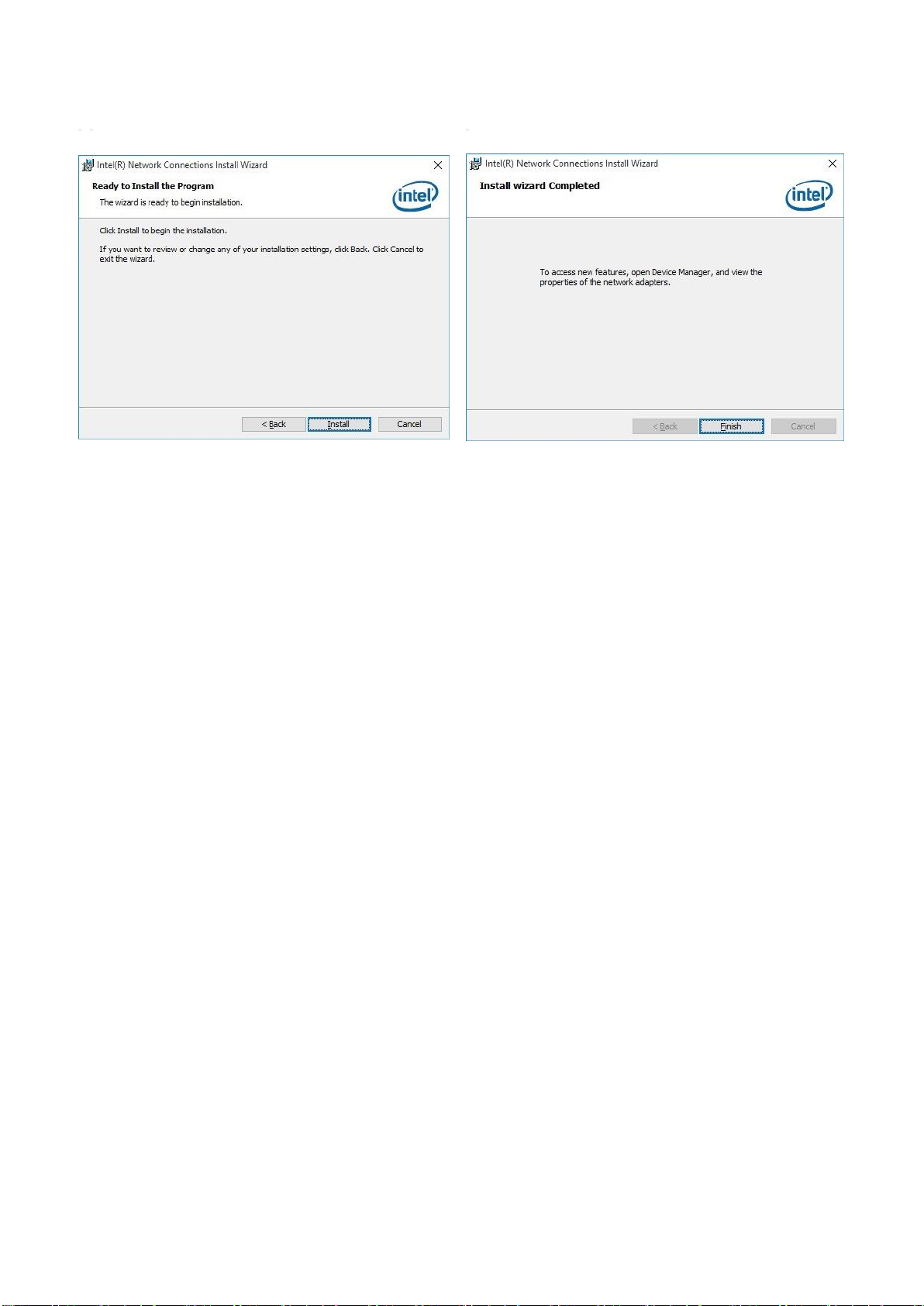

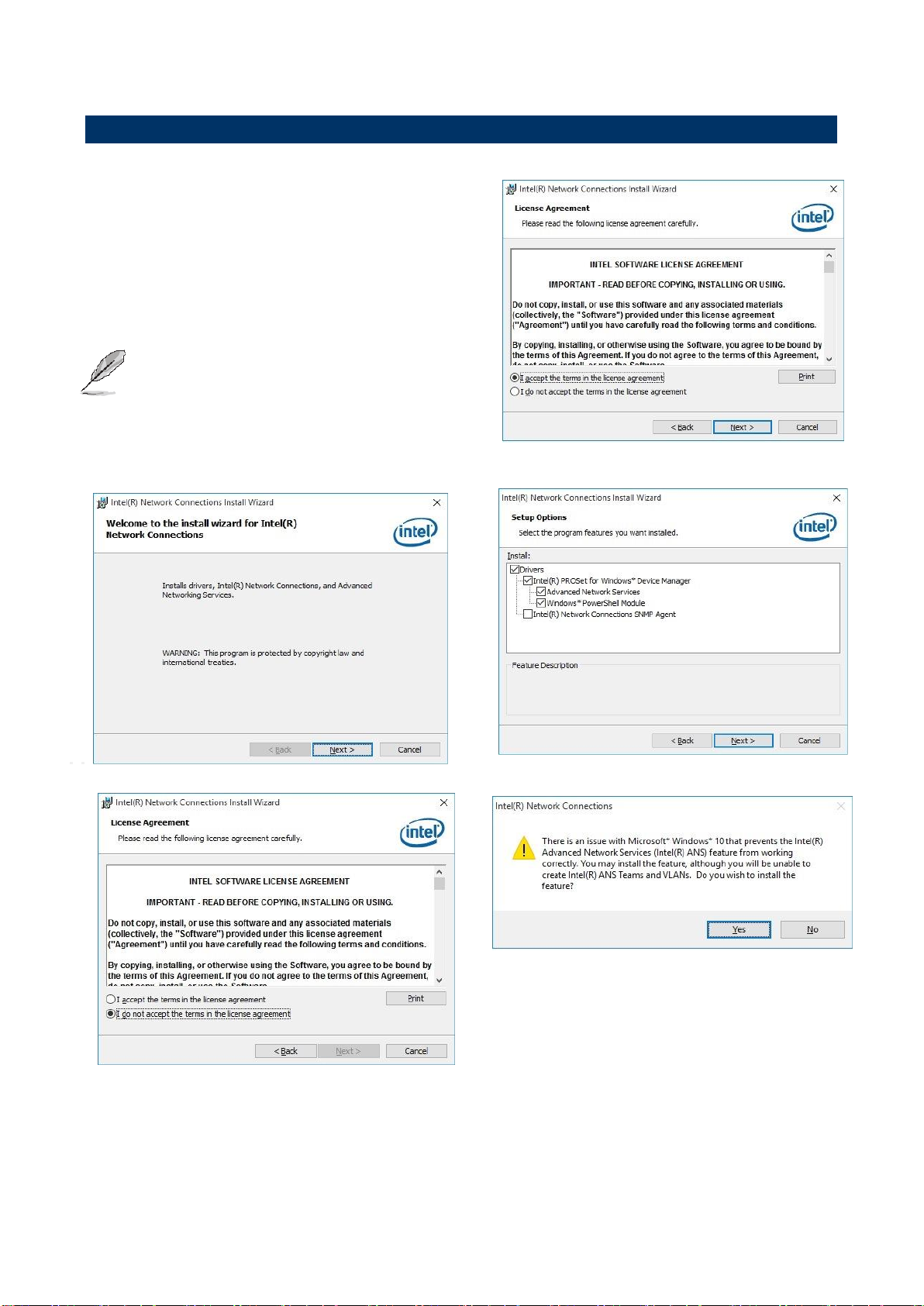

4.5 Install Ethernet Driver .............................................................................................. 70

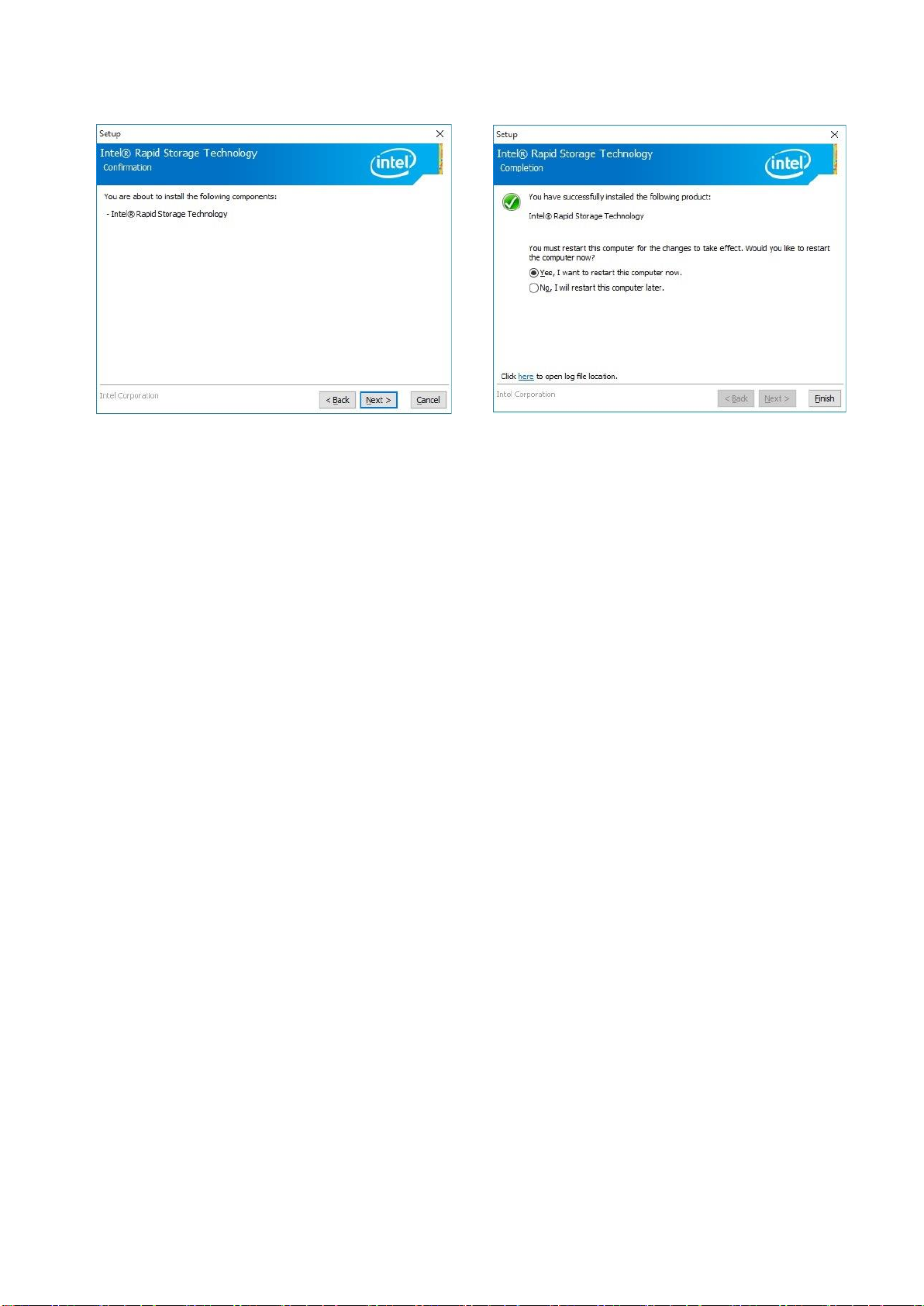

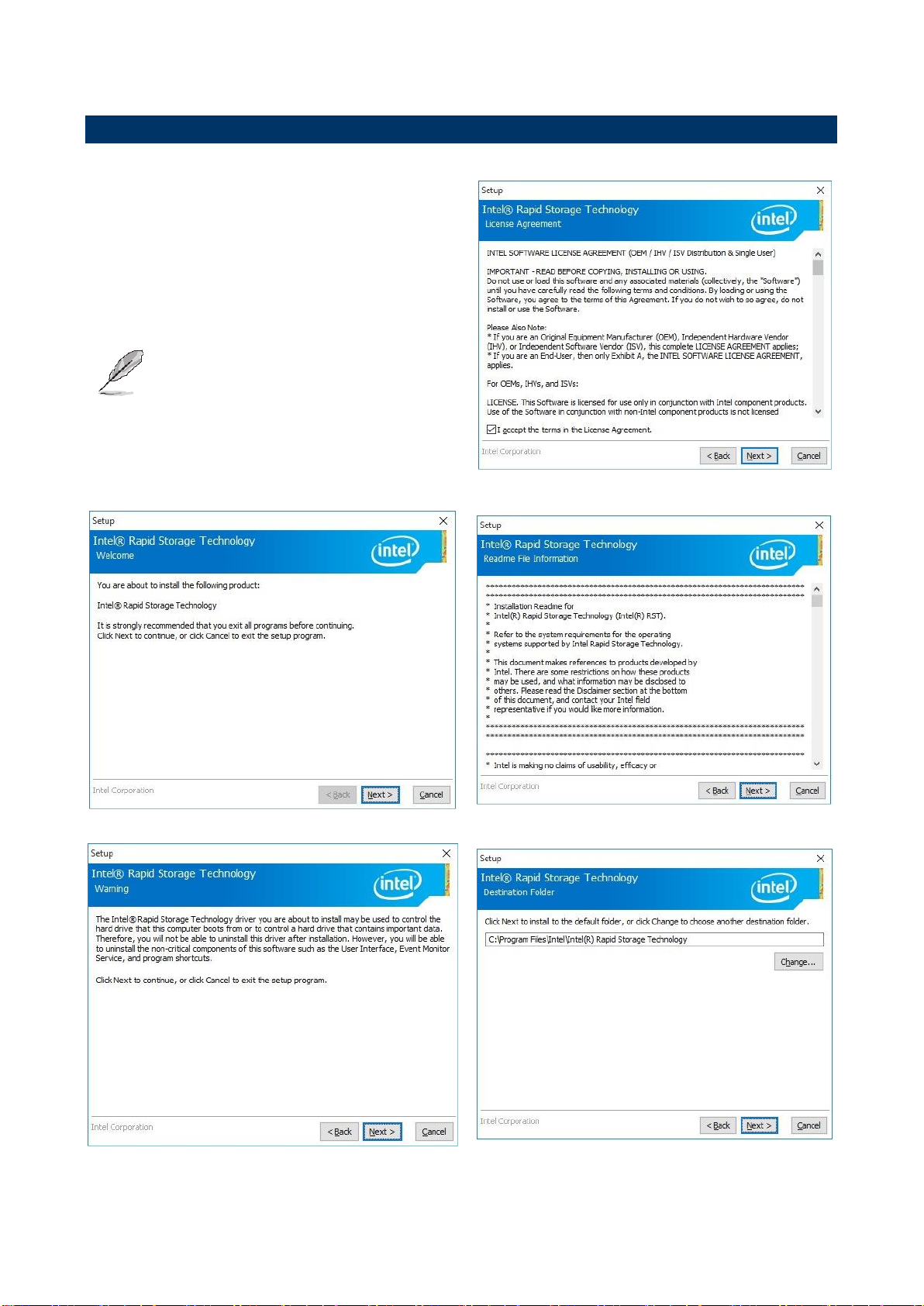

4.6 Install RST Driver .................................................................................................... 72

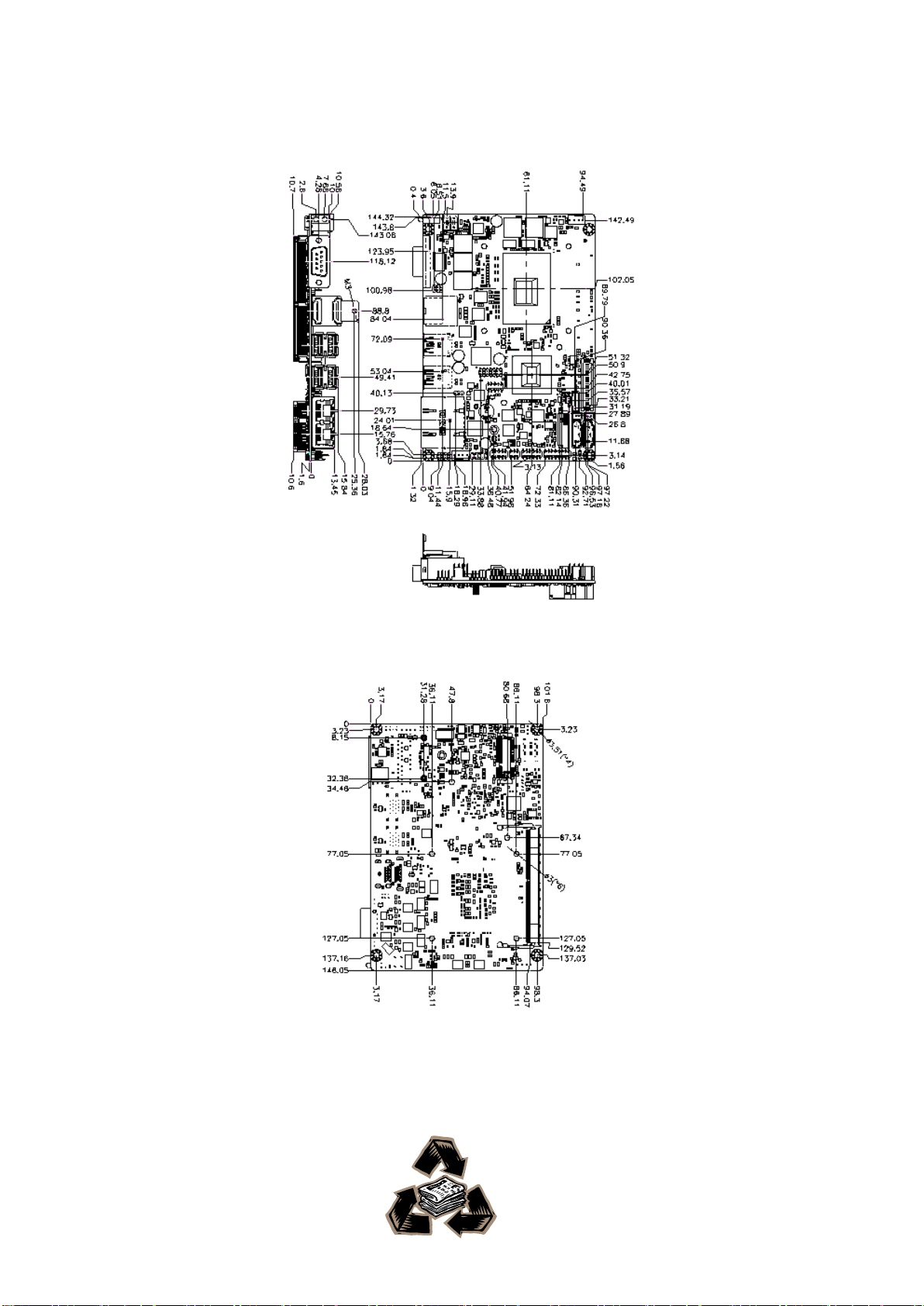

5. Mechanical Drawing .................................................................................................... 74
ECM-SKLH User’s Manual
Page 8
ECM-SKLH User’s Manual
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
1 x 3.5” ECM-SKLH Micro Module
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
1 x Cable set contains the followings:
— 1 x Audio cable (12pin, 2.0 pitch)
— 1 x USB 2.0 cable (10P/2.0mm-10P/2.0mm)
— 1 x Serial ATA cable (7-pin, standard)
— 1 x Wire SATA power cable (15-pin, 4P/2.5mm)
— 1 x Flat Cable 9P(M)-PHD (10P/2.0mm)
3M foam (VHB-4622 10mm*20mm*1.1mm)
8 ECM-SKLH User’s Manual
Page 9
9
Revision
Date
By
Comment
1st
January 2016
Avalue
Initial Release
2nd
September 2016
Avalue
Update Setting Jumpers & Connectors
1.3 Document Amendment History
User’s Manual
ECM-SKLH User’s Manual
Page 10
ECM-SKLH User’s Manual
1.4 Manual Objectives
This manual describes in details Avalue Technology ECM-SKLH Single Board.
We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.
We strongly recommend that you study this manual carefully before attempting to set up
ECM-SKLH or change the standard configurations. Whilst all the necessary information is
available in this manual we would recommend that unless you are confident, you contact
your supplier for guidance.
Please be aware that it is possible to create configurations within the NVRAM that make
booting impossible. If this should happen, clear the NVRAM settings, (see the description of
the Jumper Settings for details).
If you have any suggestions or find any errors regarding this manual and want to inform us
of these, please contact our Customer Service department with the relevant details.
10 ECM-SKLH User’s Manual
Page 11
11
System
CPU
Onboard 6th generation Intel® Skylake H Processor 45W/35W/25W (CPU GT4 not
support)
BIOS
AMI uEFI BIOS,128 Mbit SPI Flash ROM
iAMTsupported
System Chipset
Intel® Skylake PCH-H QM170 Corp
I/O Chip
EC(IT8528E)
System Memory
1 x 260-Pin DDR4 2133MTs SO-DIMM
(support non-ECC only)
SSD
1 xM.2( 2242) SSD (B key support SATA or PCIEx1 & USB3 only & USB2)
mSATA from MiniPCIe
Watchdog
Timer
H/W Reset, 1sec. –65535sec.
H/W Status
Monitor
Monitoring System Temperature, Voltage and FAN Status with Auto Throttling
Control
Expansion
1 x Full-Size Mini PCI Express Mini Card with mSATA supported
I/O
MIO
2 x SATA III, 1 x RS232 (COM1)
1 x RS232/422/485 COM2, LPC, SPI
USB
4 x USB3.0 (dual deck USB connector for 2 USB3.0 port), 2 x USB 2.0 (Wafer)
GPIO
8-bit GPIO
Display
Chipset
Intel® Skylake Processor integrated Graphics
Resolution
LVDS: 1920 x 1080@60Hz
2 x HDMI: 3840 x 2160@24Hz
Multiple Display
Triple display
HDMI
HDMI 1.4b
LCD
Interface
Dual channel 18/24-bit LVDS (via 7511B)
Audio
AC97 Codec
Realtek ALC233 HD codec Supports 2.1-CH Audio
Audio Amp
Internal AMP, Class-D amplifier has 2 Watt (rms)/4Ω per channel output
Line in, Line-Out, Mic in
Ethernet
LAN Chip
1 x Intel I210AT GbE controller
1 x Intel I219LM Gigabit Ethernet PHY
1.5 System Specifications
User’s Manual
ECM-SKLH User’s Manual
Page 12
ECM-SKLH User’s Manual
Ethernet
Interface
10/100/1000 Base-Tx compatible
Internal I/O
Connectors
Fan
2 x Fan 4P-Wafer
Buzzer
On board Buzzer
CMOS Battery
Wire CR2032
Power On
2 x 4-pin header
Audio
2 x 8-pin header
COM
1 x RS232/422/485 (COM2)
USB
2 x 5-pin header
Rear I/O
Connectors
USB
4 x USB3.0
LAN
2 x Ethernet
HDMI
2 x HDMI
LED
Front Panel LED Connector (for system use)
COM
1 x RS232
Mechanical &
Environmental
Power
Requirement
+12V
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Type
AT / ATX
Operating
Temp.
0°C ~ 60°C
Storage Temp.
-40°C ~ 75°C
Operating
Humidity
0% ~ 90% relative humidity, non-condensing
Size (L x W)
5.7" x 4" (146mm x 101mm)
Weight
0.44lbs (0.2kg)
Note: Specifications are subject to change without notice.
12 ECM-SKLH User’s Manual
Page 13
User’s Manual
13
1.6 Architecture Overview—Block Diagram
The following block diagram shows the architecture and main components of ECM-SKLH.
ECM-SKLH User’s Manual
Page 14
ECM-SKLH User’s Manual
2. Hardware
Configuration
14 ECM-SKLH User’s Manual
Page 15
15

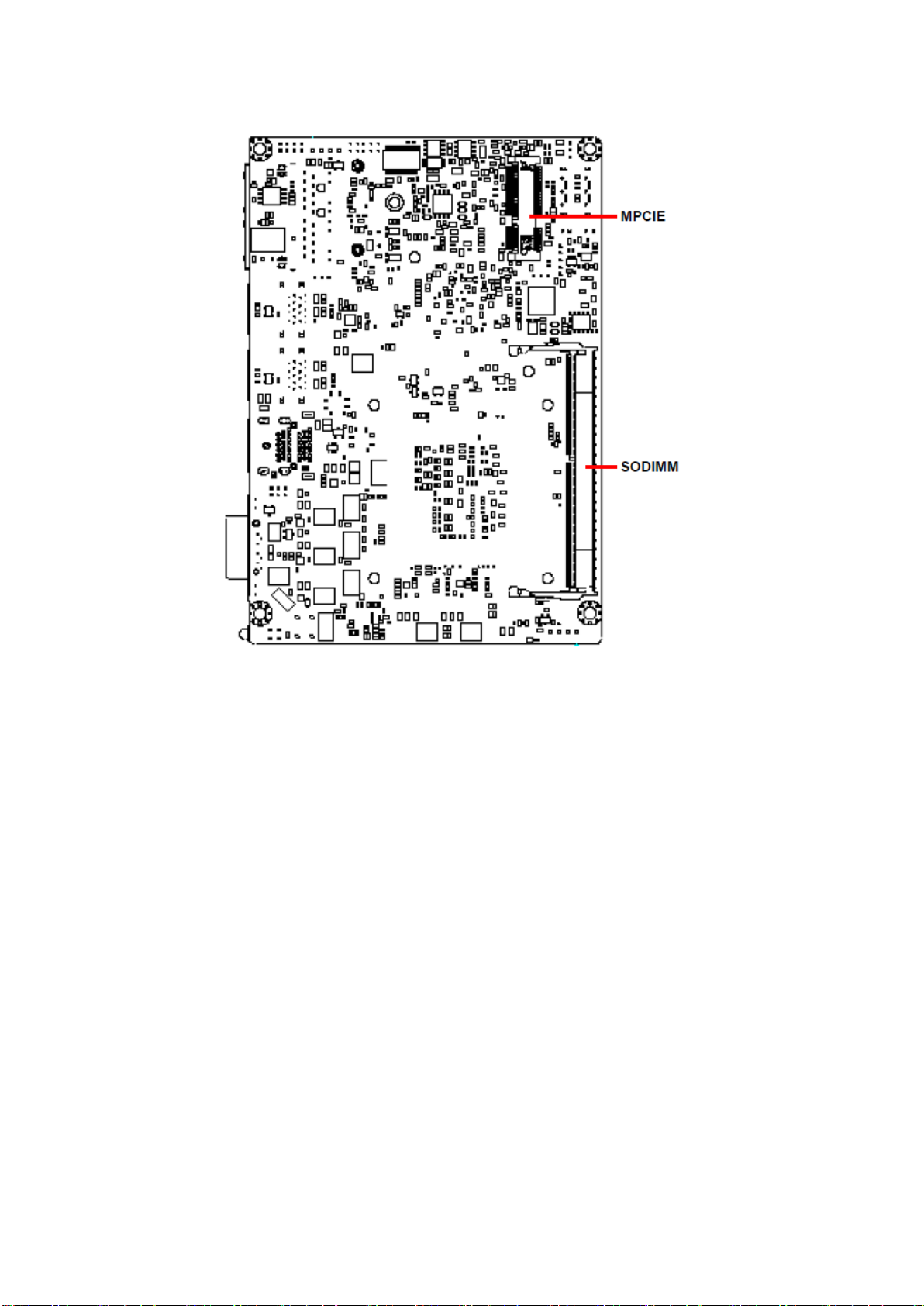

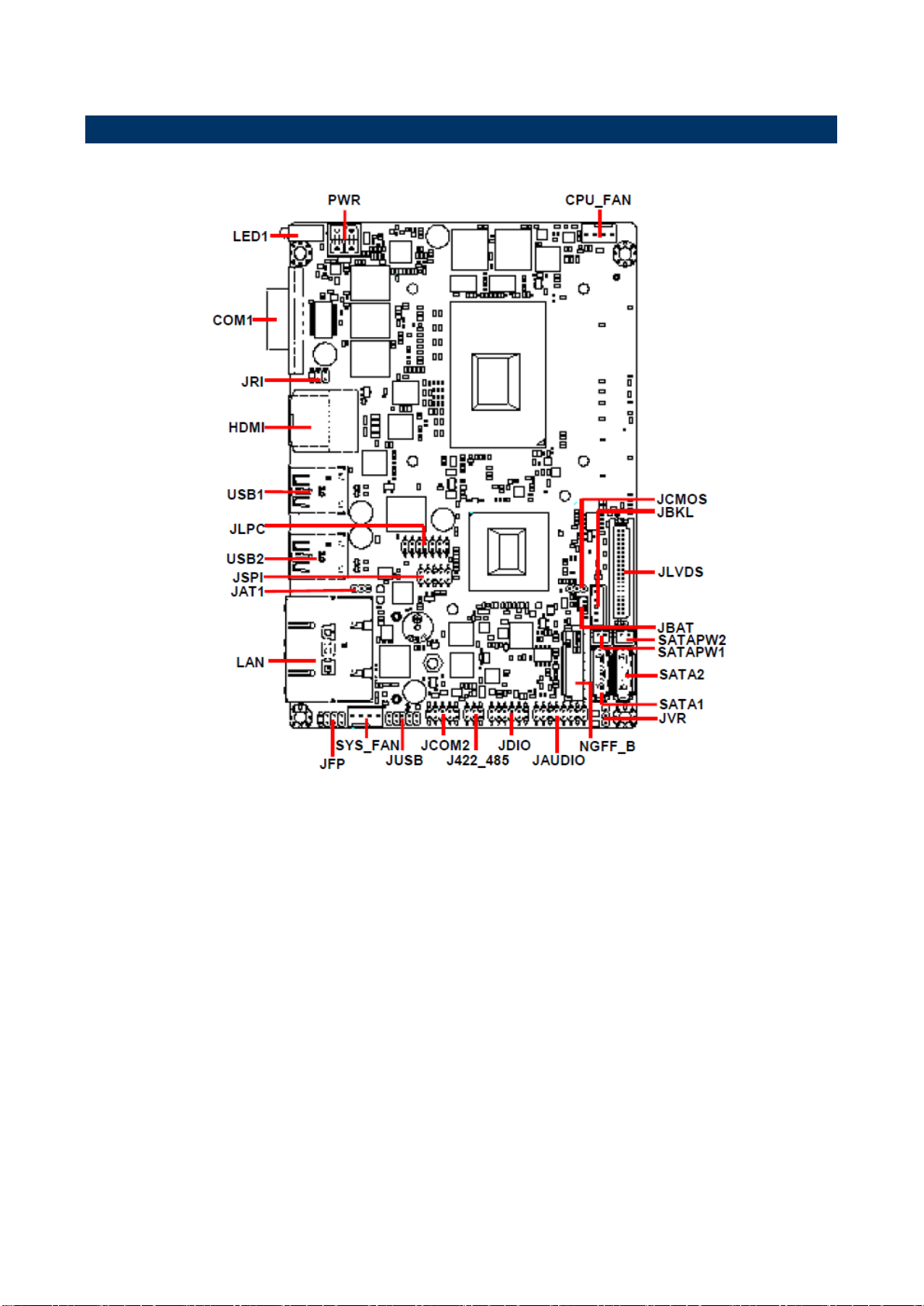

2.1 Product Overview
User’s Manual
ECM-SKLH User’s Manual
Page 16
ECM-SKLH User’s Manual
16 ECM-SKLH User’s Manual
Page 17
User’s Manual
17
Jumpers
Label
Function
Note
JCMOS
Clear CMOS
3 x 1 header, pitch 2.00 mm
JRI
Serial port 1 pin9 signal select
3 x 2 header, pitch 2.00 mm
JAT1
AT/ ATX Input power select
3 x 1 header, pitch 2.00 mm
JVR
LCD backlight brightness adjustment
3 x 1 header, pitch 2.00 mm
Connectors
Label
Function
Note
JBAT
Battery connector
2 x 1 wafer, pitch 1.25 mm
CPU_FAN
CPU fan connector
4 x 1 wafer, pitch 2.54 mm
SYS_FAN
System fan connector
4 x 1 wafer, pitch 2.54mm
JAUDIO
Audio connector
8 x 2 header, pitch 2.00 mm

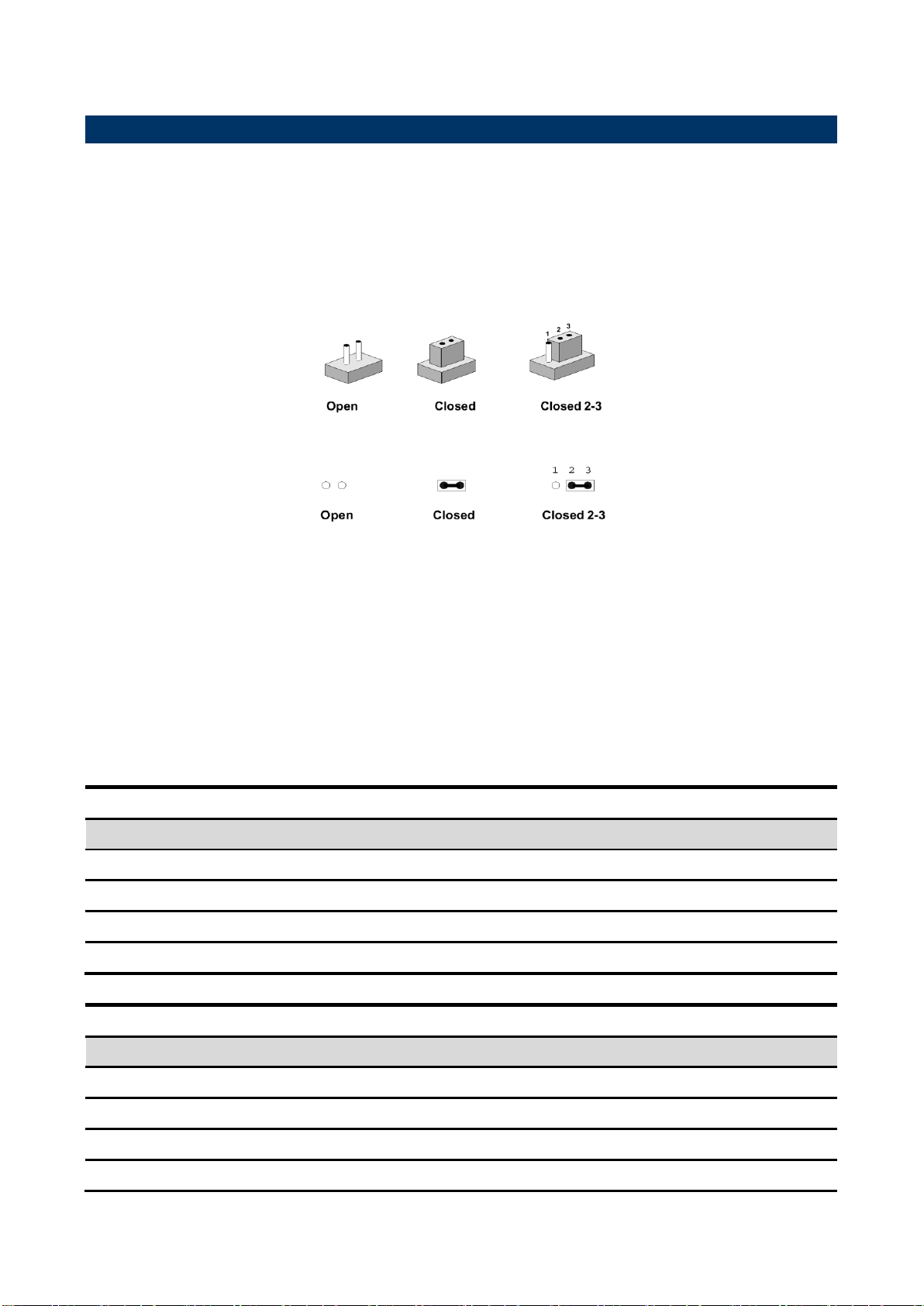

2.2 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board’s jumpers and connectors.
ECM-SKLH User’s Manual
Page 18
ECM-SKLH User’s Manual
JBKL
LCD inverter connector
5 x 1 wafer, pitch 2.00 mm
J422_485
Serial port 2 in RS-422/485 mode
3 x 2 header, pitch 2.00 mm
COM1
Serial port 1 connector
D-sub 9-pin, male
JCOM2
Serial port 2 connector
5 x 2 header, pitch 2.00 mm
JDIO
General purpose I/O connector
6 x 2 header, pitch 2.00 mm
JFP
Miscellaneous setting connector
4 x 2 header, pitch 2.00 mm
JLPC
Low pin count interface
7 x 2 header, pitch 2.00 mm

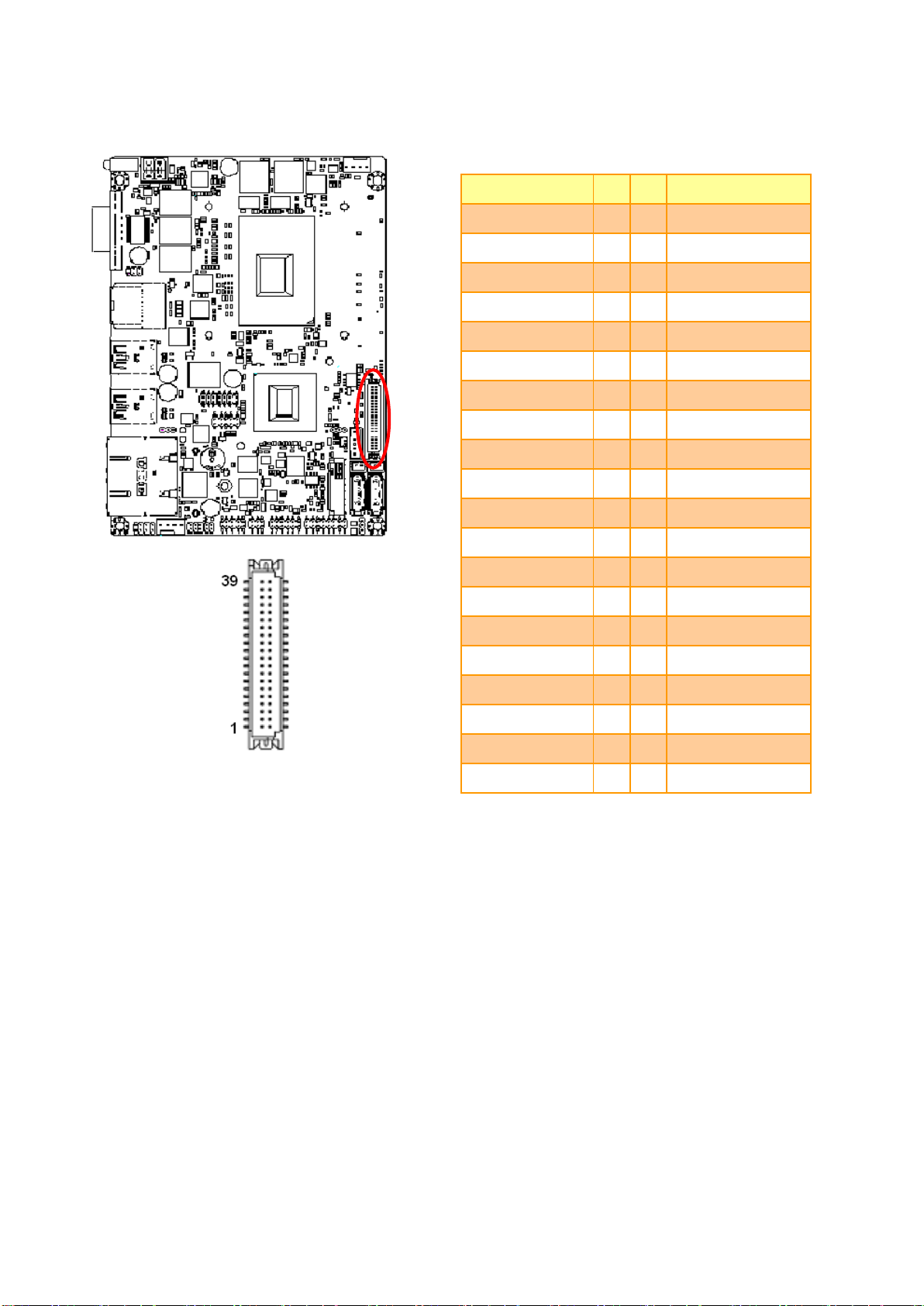

JLVDS
LVDS connector
20 x 2 header, pitch 1.25 mm
JSPI
SPI connector
5 x 2 header, pitch 2.00mm
USB1/2
On-board connector for USB3.0 x 4
JUSB
On-board header for USB2.0
5 x 2 header, pitch 2.00 mm
HDMI1
DUAL HDMI connector
LAN
RJ-45 Ethernet connector x 2
LED1
HDD/Power LED indicator
PWR
Power connector
2 x 2 wafer, pitch 4.20 mm
SATAPW1/2
SATA power header 1/2
2 x 1 wafer, pitch 2.00 mm
SATA1/2
Serial ATA connector 1/2
NGFF_B
M.2 KEY-B 2242 connector
MPCIE
Full size Mini-PCI-e connector
SODIMM
DDR4 SODIMM socket
18 ECM-SKLH User’s Manual
Page 19
19
2.3 Setting Jumpers & Connectors
AT*
ATX
* Default
Ring*
+5V
+12V

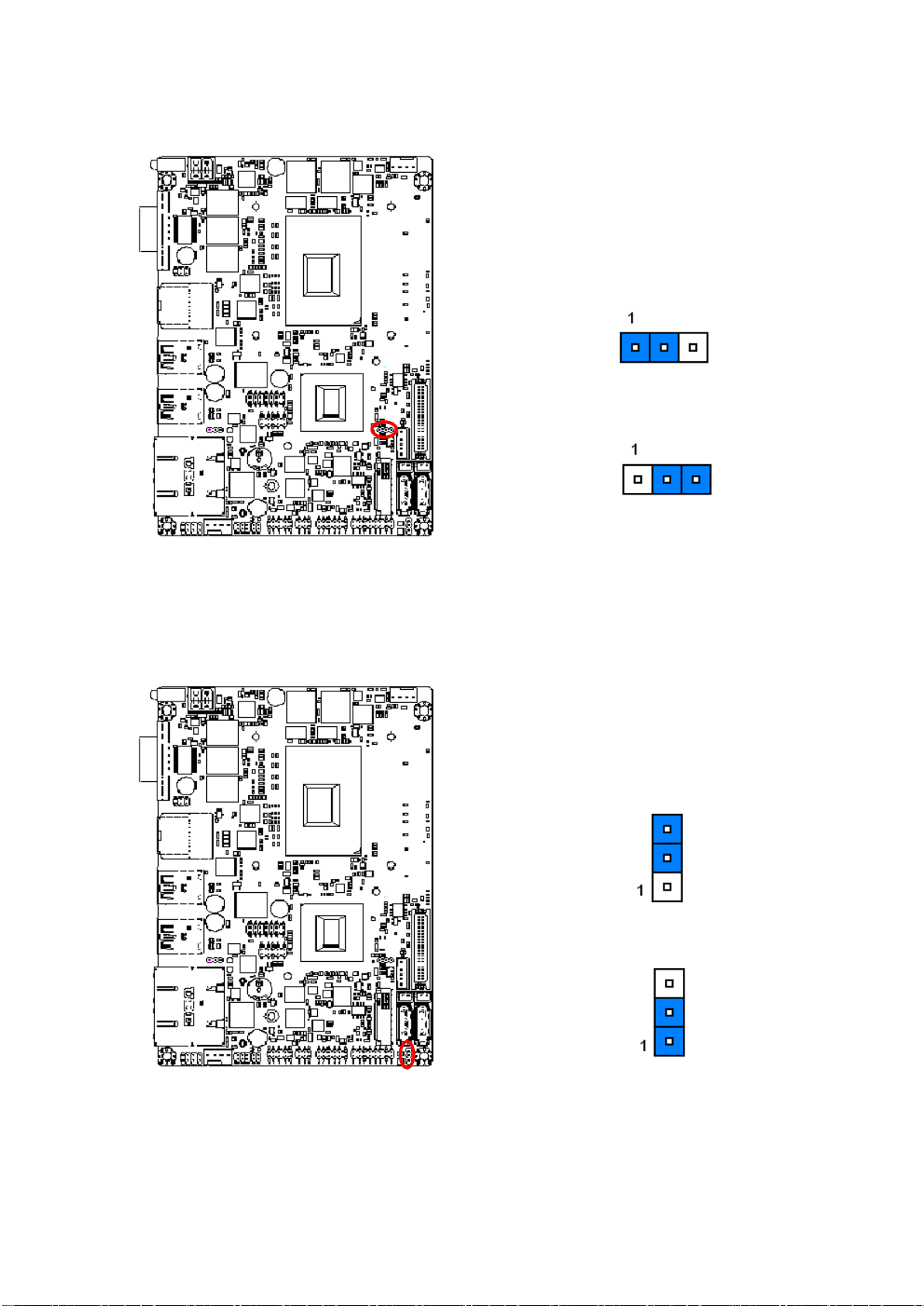

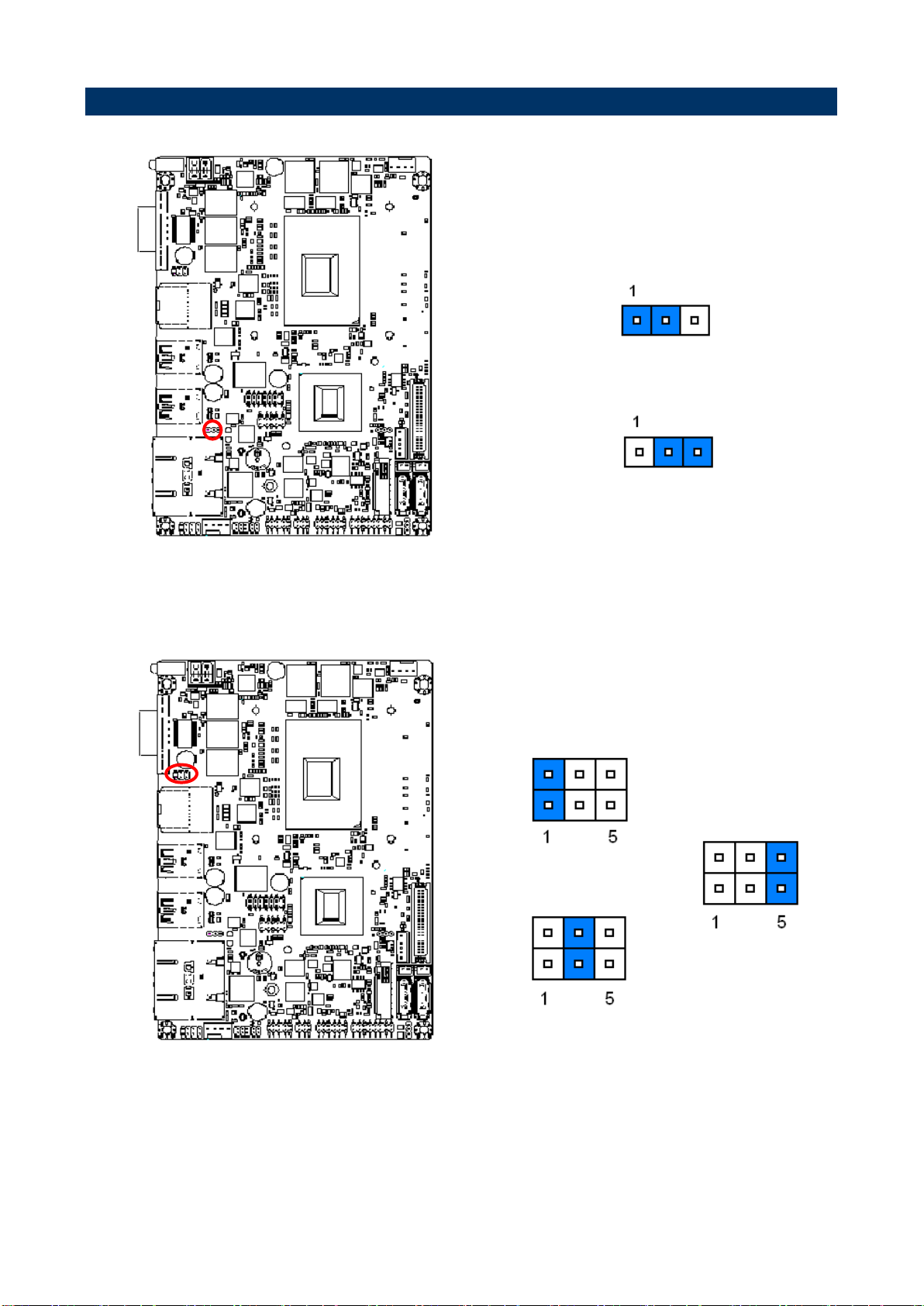

2.3.1 AT/ ATX Input power select (JAT1)
User’s Manual
2.3.2 Serial port 1 pin9 signal select (JRI)
ECM-SKLH User’s Manual
Page 20
ECM-SKLH User’s Manual
* Default
Protect*
Clear CMOS
* Default
DC Mode*
PWM Mode
2.3.3 Clear CMOS (JCMOS)
2.3.4 LCD backlight brightness adjustment (JVR)
20 ECM-SKLH User’s Manual
Page 21
21
Signal
PIN
+5V
5
VBRIGHT
4
BKLEN
3
GND
2
+12V
1
Signal
PIN
GND
1
+12V
2
EC_TACH0
3
FAN_PWM0
4

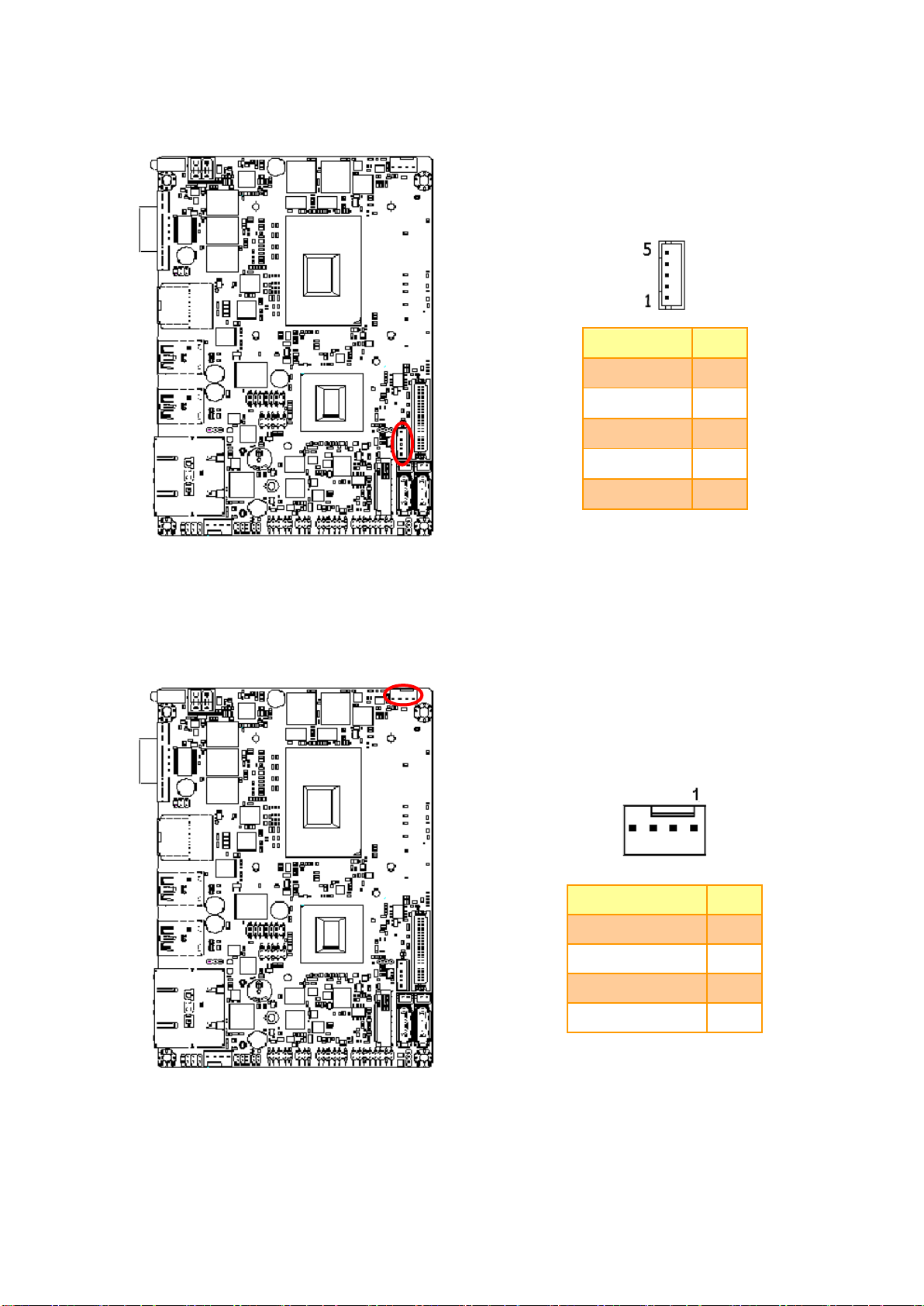

2.3.5 LCD Inverter connector (JBKL)
User’s Manual

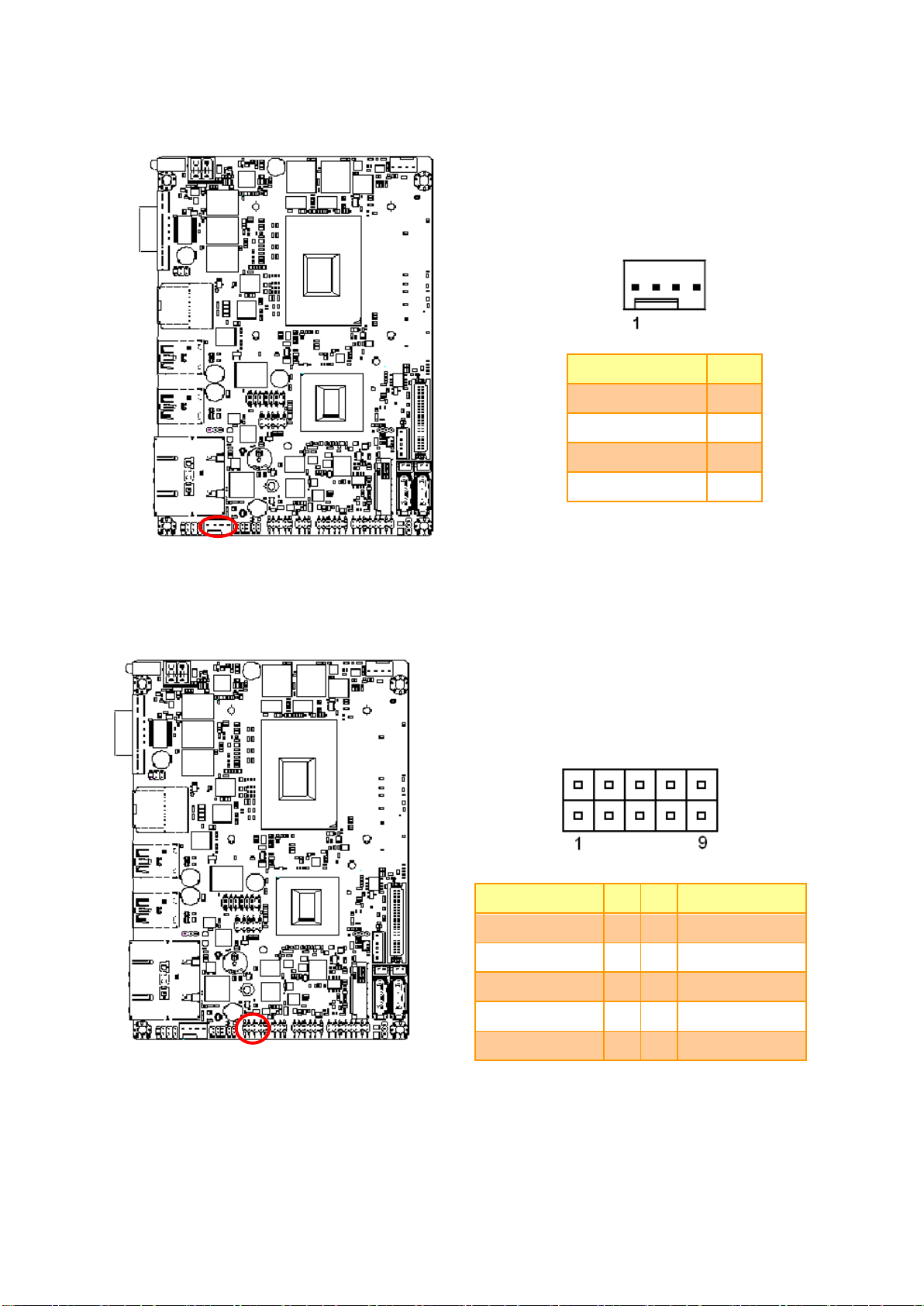

2.3.6 CPU fan connector (CPU_FAN)
ECM-SKLH User’s Manual
Page 22
ECM-SKLH User’s Manual
Signal
PIN
GND
1
+12V
2
EC_TACH1
3
FAN_PWM1
4
Signal
PIN
PIN
Signal
COM_DCD#
1 2 COM_RXD#
COM_TXD
3 4 COM_DTR#
GND
5 6 COM_DSR#
COM_RTS#
7 8 COM_CTS#
COM_RI#
9
10
NC
2.3.7 System fan connector (SYS_FAN)
2.3.8 Serial port 2 connector (JCOM2)
22 ECM-SKLH User’s Manual
Page 23
23
Signal
PIN
PIN
Signal
485-422_TXDN
1 2 422_RXDN
485-422_TXDP
3 4 422_RXDP
+5V
5 6 GND
Signal
PIN
PIN
Signal
DIO_GP10
1 2 DIO_GP20
DIO_GP11
3 4 DIO_GP21
DIO_GP12
5 6 DIO_GP22
DIO_GP13
7 8 DIO_GP23
SMB_CLK_VCC
9
10
SMB_DATA_VCC
GND
11
12
+5V

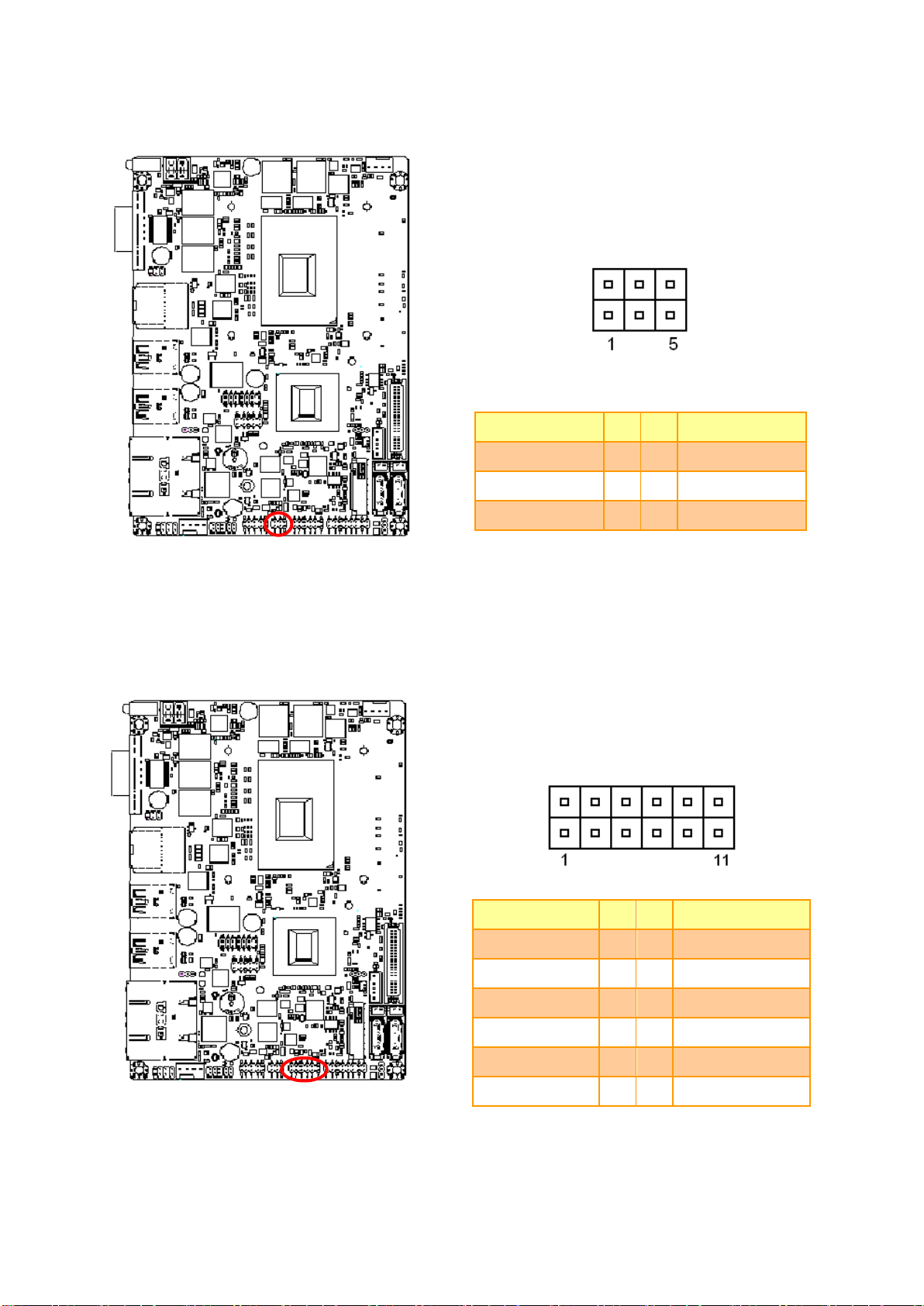

2.3.9 Serial port 2 in RS-422/485 mode (J422_485)
User’s Manual
2.3.10 General purpose I/O connector (JDIO)
ECM-SKLH User’s Manual
Page 24
ECM-SKLH User’s Manual
Signal
PIN
GND
1
+5V
2
Signal
PIN
PIN
Signal
GND
1
2
GND
+12V
3 4 +12V
SATAPW1
SATAPW2

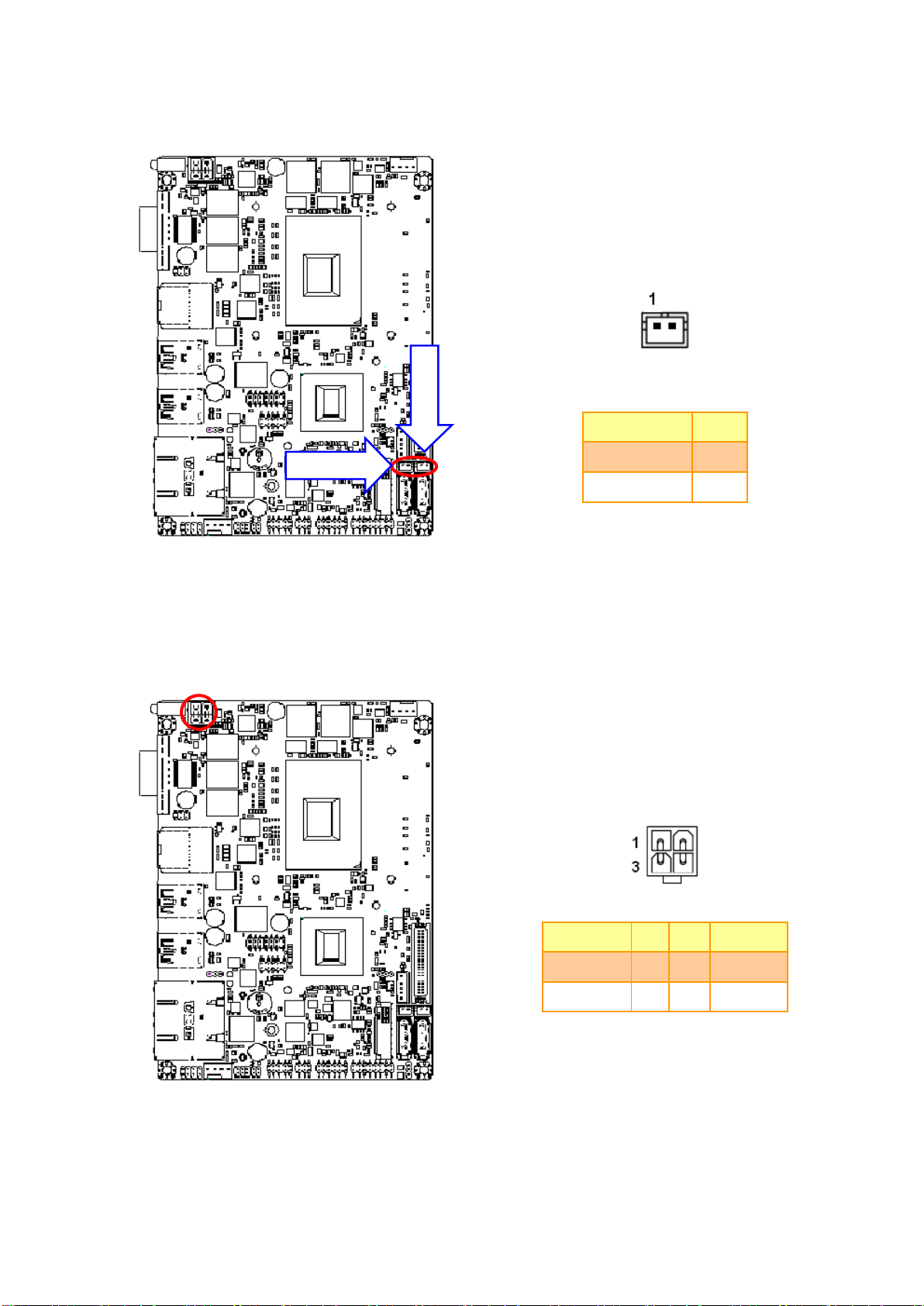

2.3.11 SATA Power header 1/2 (SATAPW1/2)
2.3.12 Power connector (PWR)
24 ECM-SKLH User’s Manual
Page 25
25
Signal
PIN
PIN
Signal
+5VSB
1
2
GND
USB_DN4
3 4 GND
USB_DP4
5 6 USB_DP5
GND
7 8 USB_DN5
GND
9
10
+5VSB
Signal
PIN
PIN
Signal
LPC_AD0
1
2
+3.3V
LPC_AD1
3 4 PLTRST#
LPC_AD
5 6 LPC_LFRAME#
LPC_AD03
7 8 CLK_PCI_JLPC
SERIRQ
9
10
GND
+5V
11
12
GND
+5VSB
13
14
GND

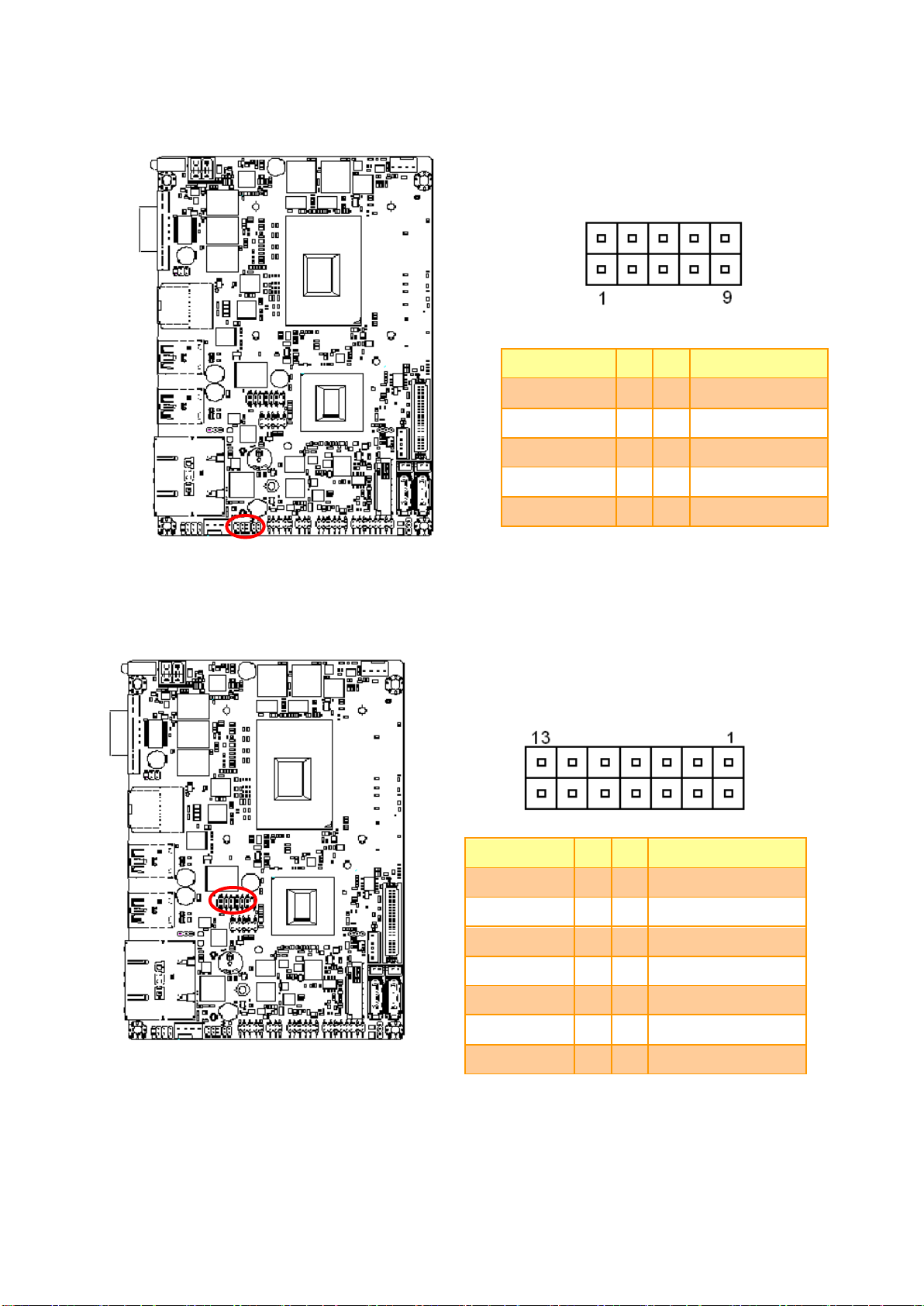

2.3.13 On-board header for USB2.0 (JUSB)
User’s Manual
2.3.14 LPC connector (JLPC)
ECM-SKLH User’s Manual
Page 26
ECM-SKLH User’s Manual
Signal
PIN
PIN
Signal
+12V
39
40
+12V
GND
37
38
GND
LVDS_CLK2_N
35
36
LVDS_CLK1_N
LVDS_CLK2_P
33
34
LVDS_CLK1_P
GND
31
32
GND
LVDS_DATA7_N
29
30
LVDS_DATA6_N
LVDS_DATA7_P
27
28
LVDS_DATA6_P
GND
25
26
GND
LVDS_DATA5_N
23
24
LVDS_DATA4_N
LVDS_DATA5_P
21
22
LVDS_DATA4_P
GND
19
20
GND
LVDS_DATA3_N
17
18
LVDS_DATA2_N
LVDS_DATA3_P
15
16
LVDS_DATA2_P
GND
13
14
GND
LVDS_DATA1_N
11
12
LVDS_DATA0_N
LVDS_DATA1_P
9
10
LVDS_DATA0_P
GND
7 8 GND
LVDS_DDC_CLK
5 6 LVDS_DDC_DATA
+3.3V
3 4 +5V
+3.3V
1 2 +5V
2.3.15 LVDS connector (JLVDS)
26 ECM-SKLH User’s Manual
Page 27
27
Signal
PIN
PIN
Signal
PWR_BTN_IN_EC#
1 2 GND
RESET_BT
3 4 GND
+5VSB
5 6 PWR_LED-
HDD_LED#
7 8 +5V
Signal
PIN
PIN
Signal
+3.3VSB
1
2
GND
SPI_CS0#
3 4 SPI_CLK
SPI_SO
5 6 SPI_SI
HOLD#
7
8
NC
EC_SMCLK_DEBUG
9
10
EC_SMDAT_DEBUG

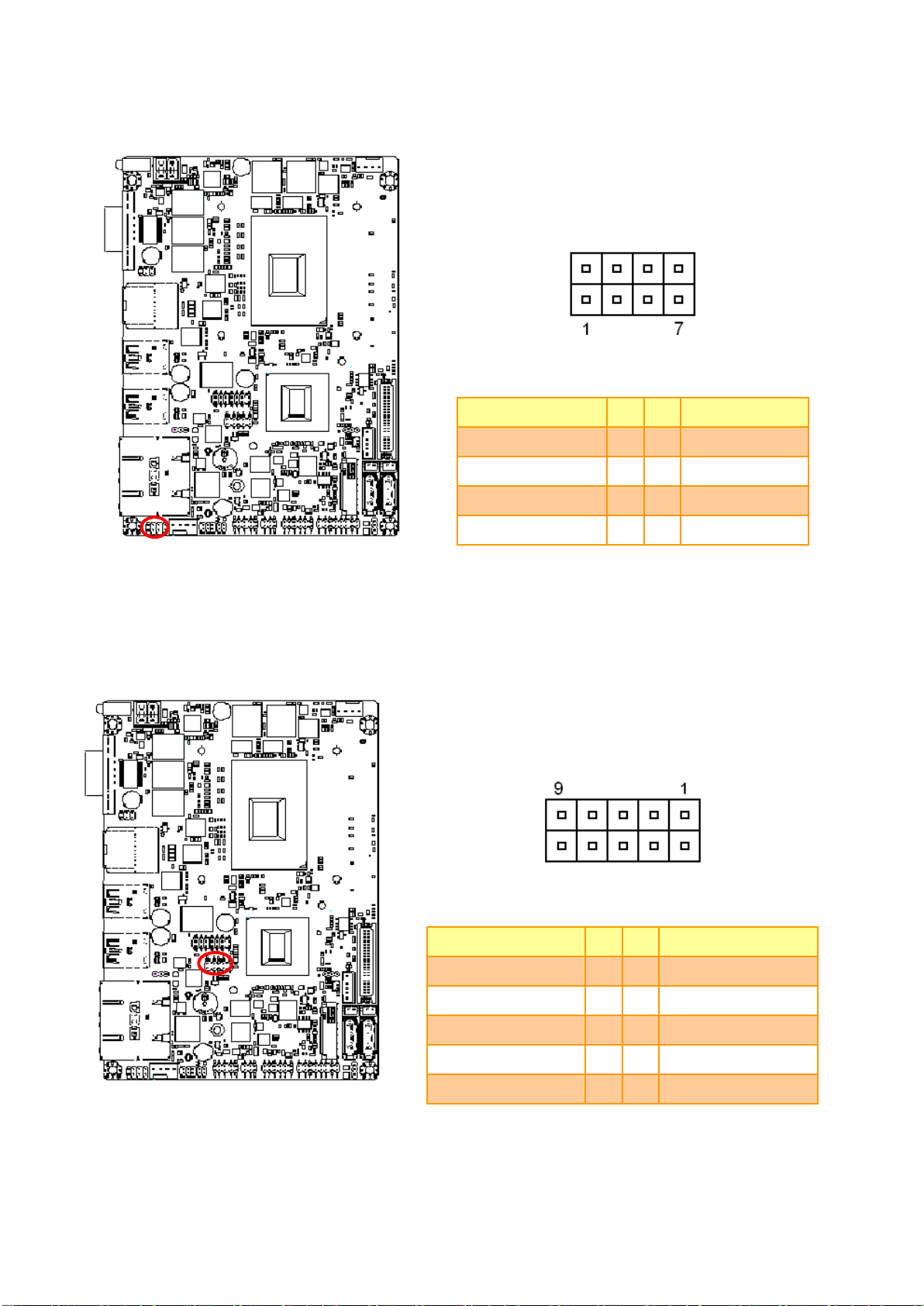

2.3.16 Miscellaneous setting connector (JFP)
User’s Manual
2.3.17 SPI header (JSPI)
ECM-SKLH User’s Manual
Page 28
ECM-SKLH User’s Manual
Signal
PIN
GND
2
+3.3V
1
Signal
PIN
PIN
Signal
FRONT-R-OUT
1 2 FRONT-L-OUT
HD_AGND
3 4 HD_AGND
LINE1-R-IN
5 6 LIN1E-L-IN
MIC1-R-IN
7 8 MIC1-L-IN
FRONT-JD
9
10
LINE1-JD
MIC1-JD
11
12
HD_AGND
SPK_L+
13
14
SPK_R+
SPK_L-
15
16
SPK_R-
Signal
Signal Description
LINE1-JD
AUDIO IN (LINE_RIN/LIN)sense pin
FRONT-JD
AUDIO Out(ROUT/LOUT) sense pin
MIC1-JD
MIC IN (MIC_RIN/LIN) sense pin

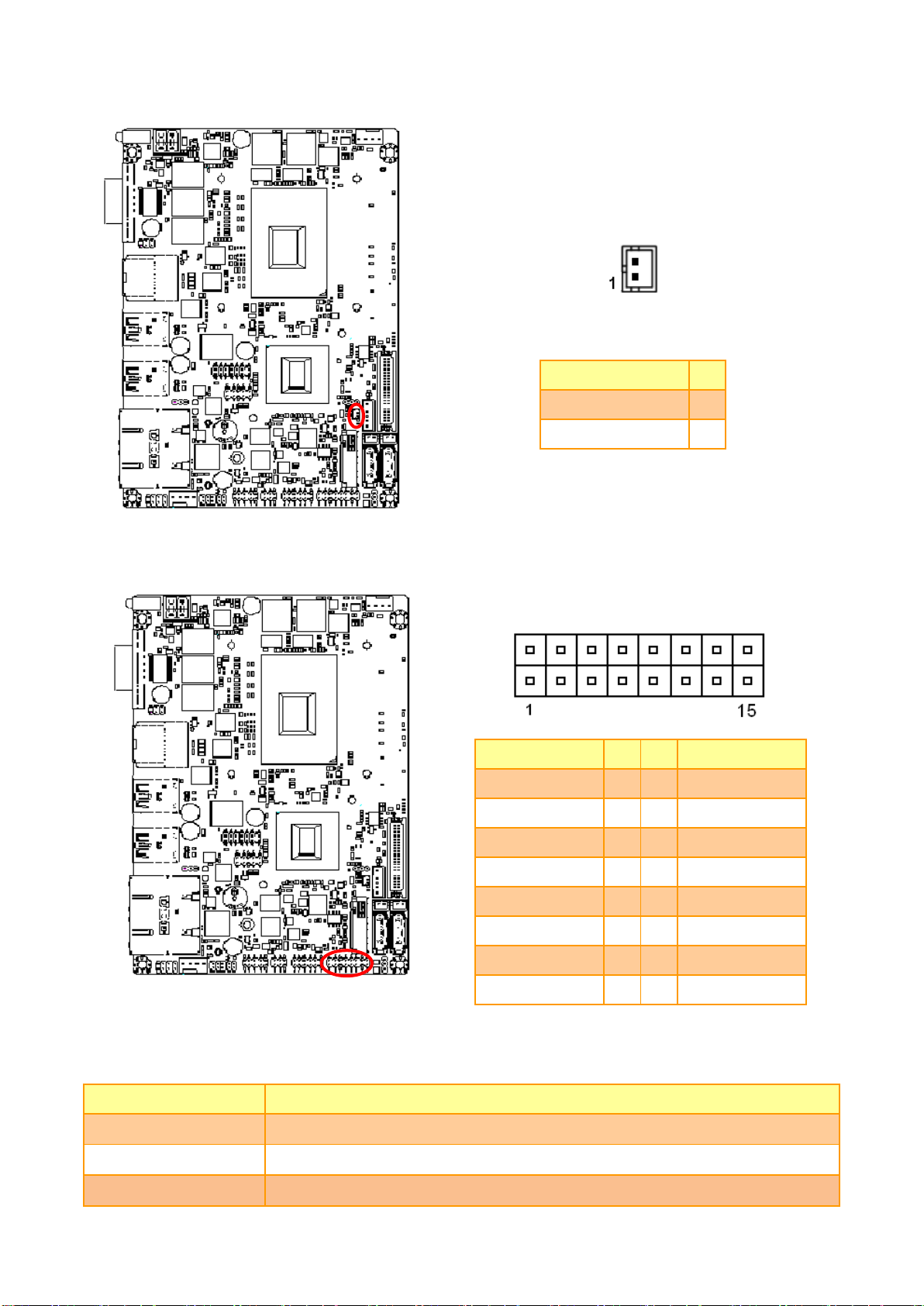

2.3.18 Battery connector (JBAT)
2.3.19 Audio connector (JAUDIO)
2.3.19.1 Signal Description – Audio connector (JAUDIO)
28 ECM-SKLH User’s Manual
Page 29
User’s Manual
29
3.BIOS Setup
ECM-SKLH User’s Manual
Page 30
ECM-SKLH User’s Manual
3.1 Introduction
The BIOS setup program allows users to modify the basic system configuration. In this
following chapter will describe how to access the BIOS setup program and the
configuration options that may be changed.
3.2 Starting Setup
AMI BIOS™ is immediately activated when you first power on the computer. The BIOS
reads the system information contained in the NVRAM and begins the process of checking
out the system and configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <F2> or <Del> immediately after switching the system on, or
By pressing the <F2> or <Del> key when the following message appears briefly at the
left-top of the screen during the POST (Power On Self Test).
Press <F2> or <Del> to enter SETUP
If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys.
30 ECM-SKLH User’s Manual
Page 31
User’s Manual
31
Button
Description
↑
Move to previous item
↓
Move to next item
←
Move to the item in the left hand
→
Move to the item in the right hand
Esc key
Main Menu -- Quit and not save changes into NVRAM
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and
return to Main Menu
+ key
Increase the numeric value or make changes
- key
Decrease the numeric value or make changes
F1 key
General help, only for Status Page Setup Menu and Option Page Setup Menu
F2 key
Previous Values
F3 key
Optimized defaults
F4 key
Save & Exit Setup
3.3 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.
Navigating Through The Menu Bar
Use the left and right arrow keys to choose the menu you want to be in.
Note: Some of the navigation keys differ from one screen to another.
To Display a Sub Menu
Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A “” pointer marks all sub menus.
ECM-SKLH User’s Manual
Page 32
ECM-SKLH User’s Manual
3.4 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1
key again.
3.5 In Case of Problems
If, after making and saving system changes with Setup, you discover that your computer no
longer is able to boot, the Insyde BIOS supports an override to the NVRAM settings which
resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both your systems manufacturer to provide the
absolute maximum performance and reliability. Even a seemingly small change to the
chipset setup has the potential for causing you to use the override.
32 ECM-SKLH User’s Manual
Page 33
User’s Manual
33
3.6 BIOS setup
Once you enter the Aptio Setup Utility, the Main Menu will appear on the screen. The Main
Menu allows you to select from several setup functions and exit choices. Use the arrow
keys to select among the items and press <Enter> to accept and enter the sub-menu.

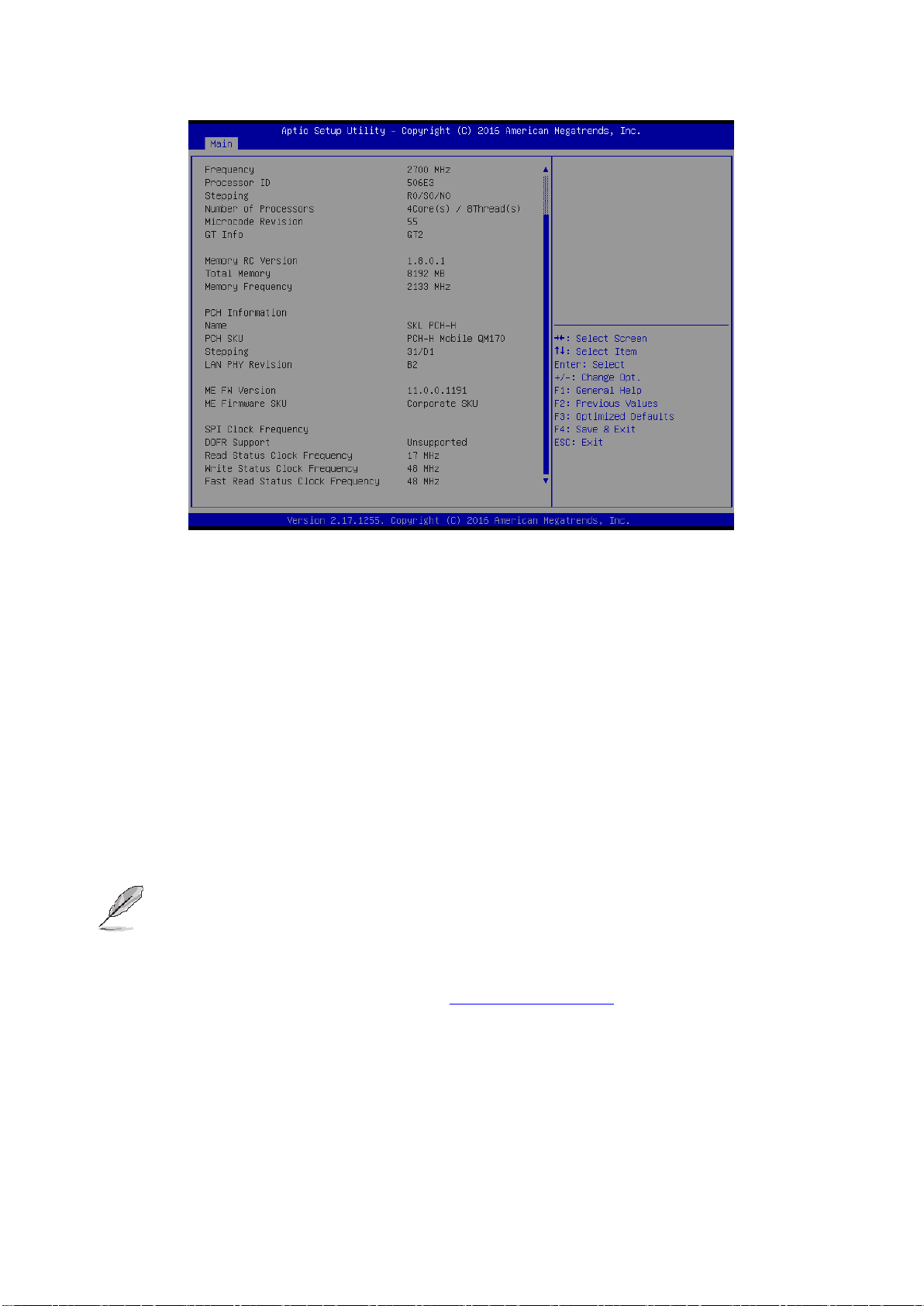

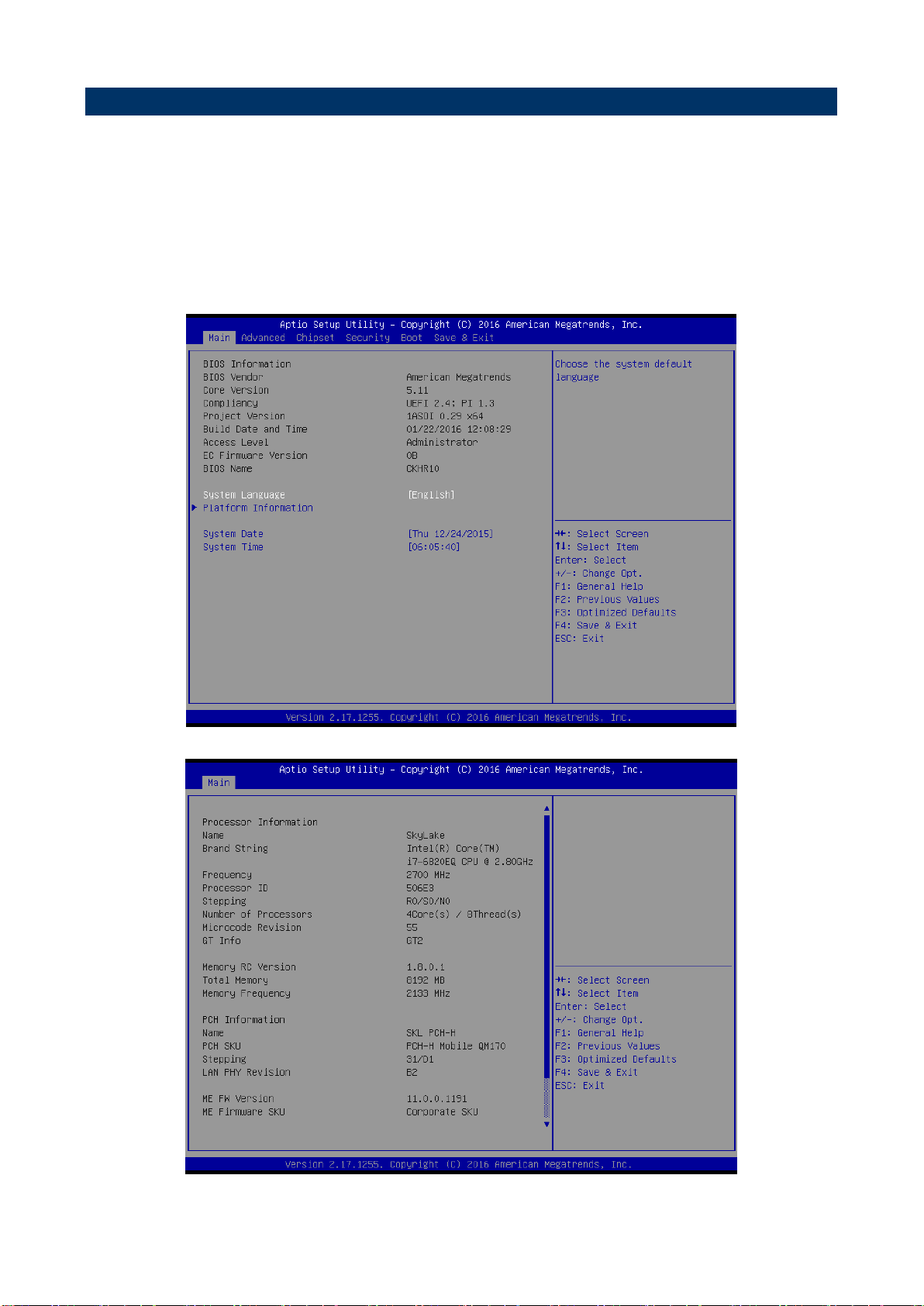

3.6.1 Main Menu
This section allows you to record some basic hardware configurations in your computer and
set the system clock.
ECM-SKLH User’s Manual
Page 34
ECM-SKLH User’s Manual
3.6.1.1 System Language
This option allows choosing the system default language.
3.6.1.2 System Date
Use the system date option to set the system date. Manually enter the day, month and
year.
3.6.1.3 System Time
Use the system time option to set the system time. Manually enter the hours, minutes and
seconds.
Note: The BIOS setup screens shown in this chapter are for reference purposes
only, and may not exactly match what you see on your screen.
Visit the Avalue website (www.avalue.com.tw) to download the latest
product and BIOS information.
34 ECM-SKLH User’s Manual
Page 35
User’s Manual
35

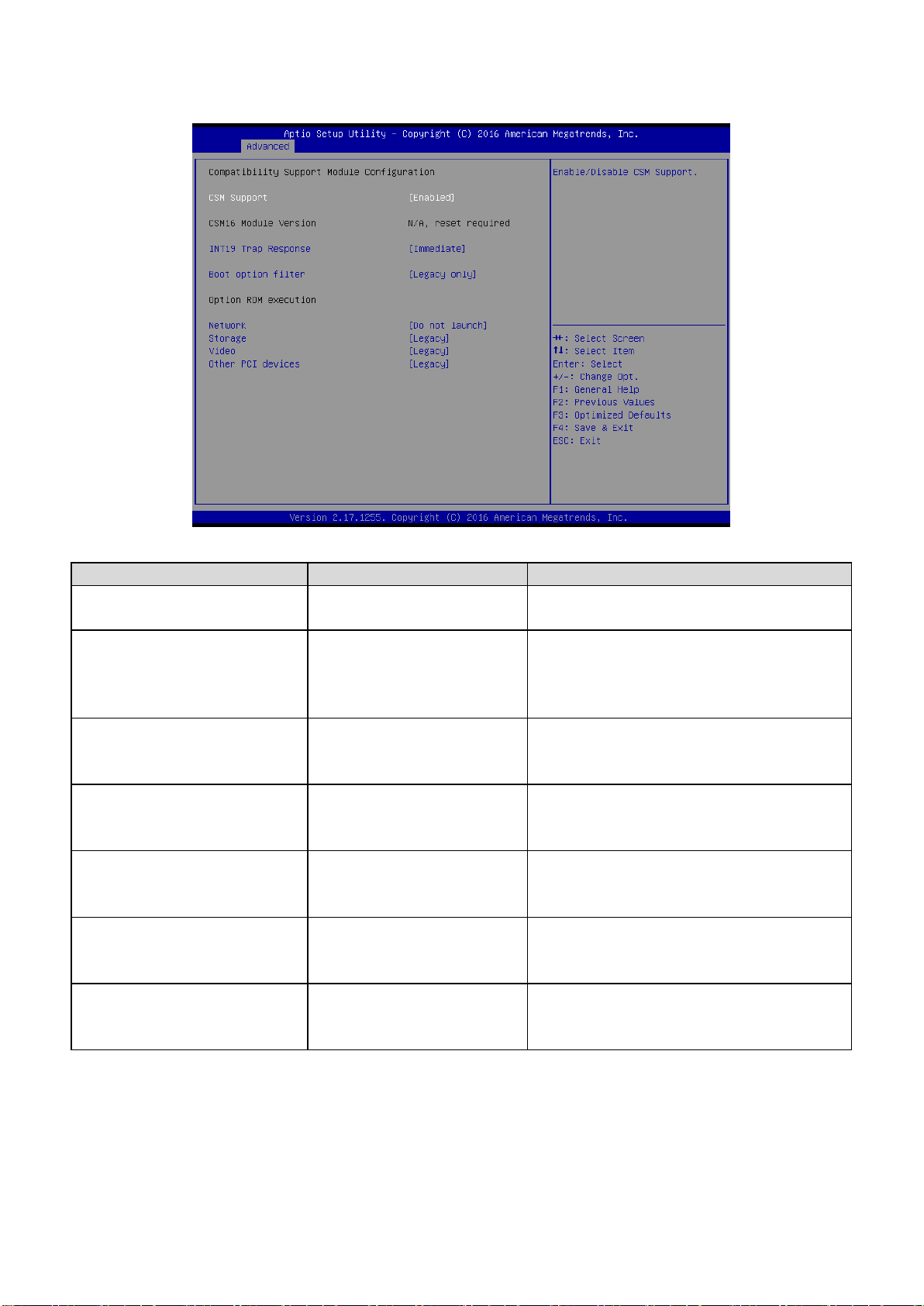

Item
Options
Description
Security Device Support
Disable,
Enable[Default]
Enables or Disables BIOS support for security
device. O.S. will not show Security Device. TCG
EFI protocol and INT1A interface will not be

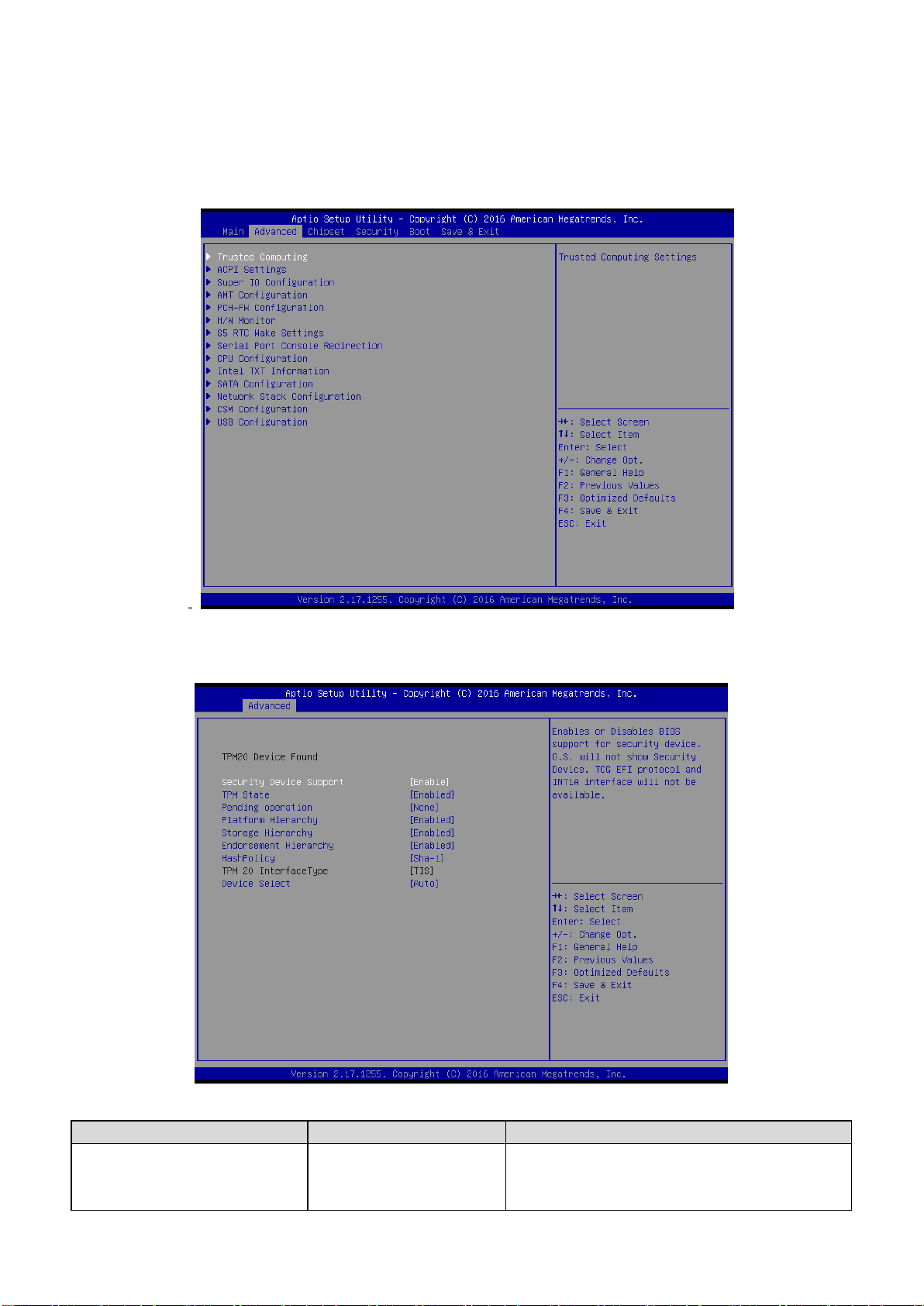

3.6.2 Advanced Menu
This section allows you to configure your CPU and other system devices for basic operation
through the following sub-menus.
3.6.2.1 Trusted Computing
ECM-SKLH User’s Manual
Page 36
ECM-SKLH User’s Manual
available.
TPM State
Disabled
Enabled[Default],
Enable/Disable Security Device. NOTE: Your
Computer will reboot during restart in order to
change State of the Device.
Pending operation
None[Default],
TPM Clear
Schedule an Operation for the Security Device.
NOTE: Your Computer will reboot during restart
in order to change State of Security Device.
Platform Hierarchy
Disabled
Enabled[Default],
Enable or Disable Platform Hierarchy.
Storage Hierarchy
Disabled
Enabled[Default],
Enable or Disable Storage Hierarchy.
Endorsement Hierarchy
Disabled
Enabled[Default],
Enable or Disable Endorsement Hierarchy.
Device Select
Auto[Default],
TPM 1.2 will restrict support to TPM 1.2 devices,
TPM 2.0 will restrict support to TPM 2.0 devices,
Auto will support both with the default set to
TPM 2.0 devices if not found, TPM 1.2 devices
will be enumerated.
Item
Options
Description
Enable ACPI Auto
Configuration
Disabled[Default],
Enabled
Enables or Disables BIOS ACPI Auto
Configuration.
Enable Hibernation
Disabled
Enabled[Default],
Enables or Disables System ability to
Hibernate (OS/S4 Sleep State). This
option may be not effective with some
OS.

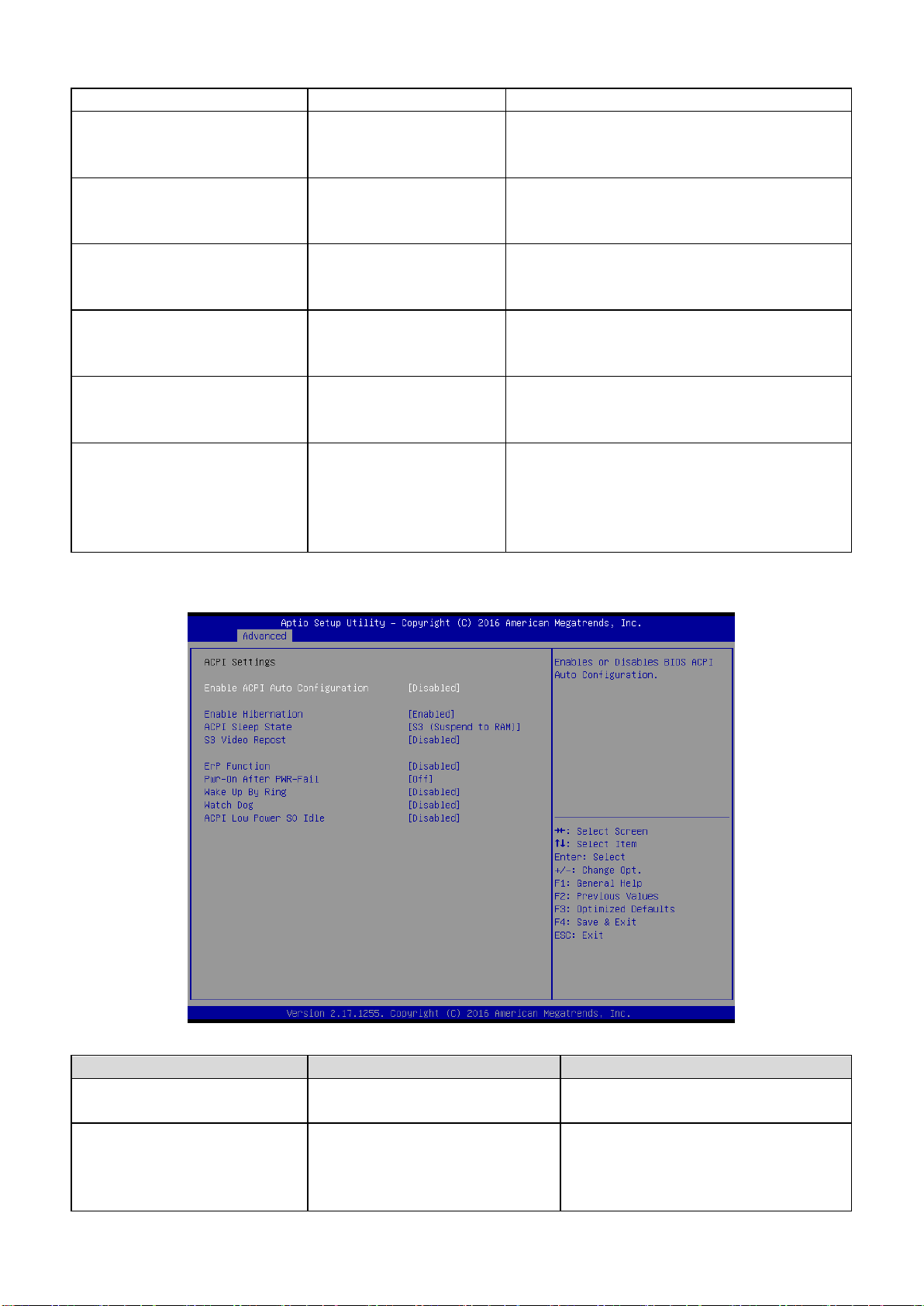

3.6.2.2 APCI Settings
36 ECM-SKLH User’s Manual
Page 37
User’s Manual
37
ACPI Sleep State
Suspend Disabled,
S3 (Suspend to RAM) [Default]
Select the highest ACPI sleep state the
system will enter when the SUSPEND
button is pressed.
S3 Video Repost
Disabled[Default],
Enabled
Enable or Disable S3 Video Repost.
ErP Function
Disabled[Default],
Enabled
ErP Function (Deep S5).
Pwr-On After PWR-Fail
Off[Default]
On
Last state
Select the power station after power
failure.
Wake Up By Ring
Disabled[Default],
Enabled
System wake up by ring (from S3~S5).
Watch Dog
Disabled[Default],
30 sec
40 sec
50 sec
1 min
2 min
10 min
30 min
Select Watch Dog Timer (WDT) Mode.
ACPI Low Power S0 Idle
Disabled[Default],
Enabled
Enable or Disable ACPI Low Power S0
Idle Support.

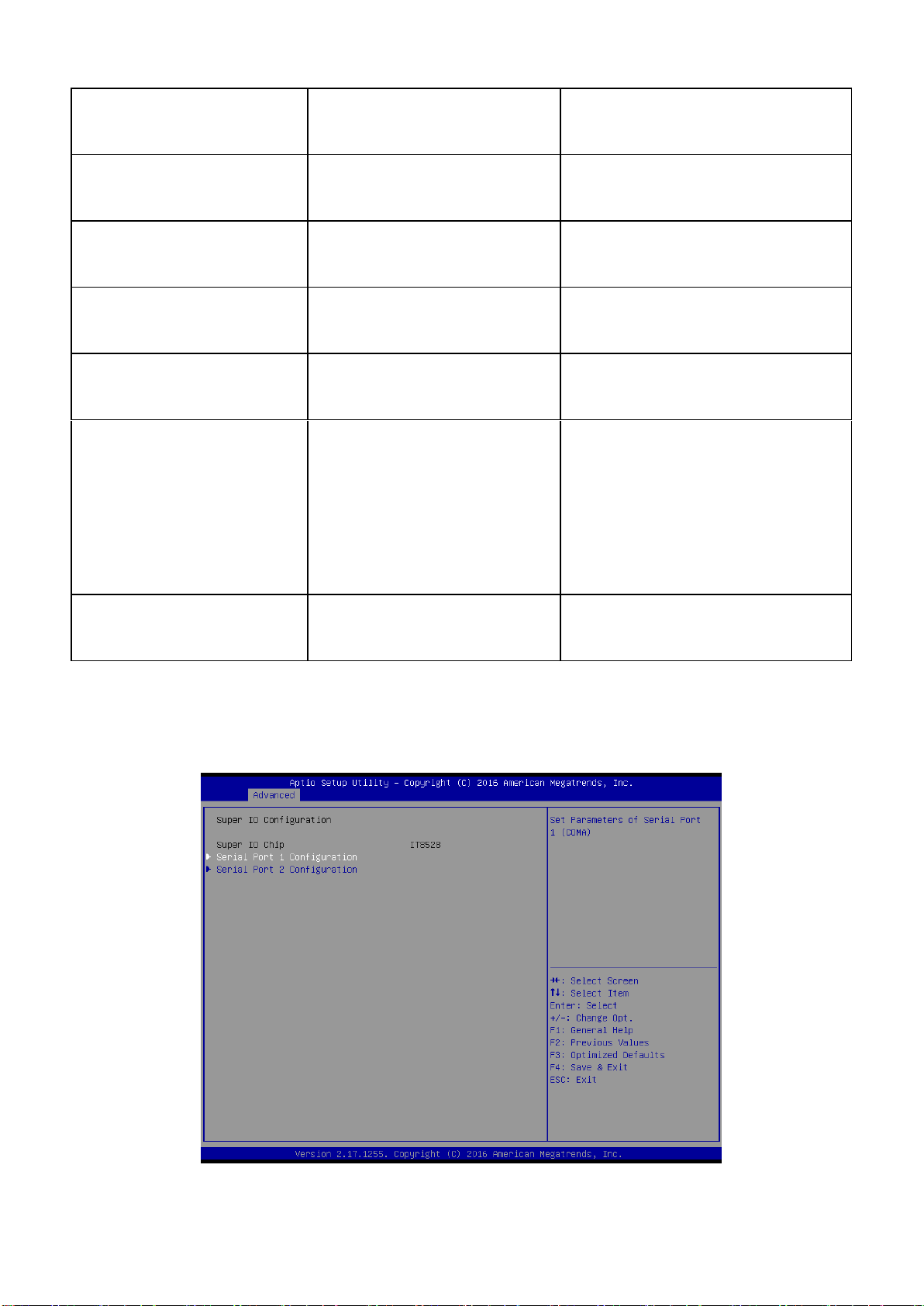

3.6.2.3 IT8528 Super IO Configuration
You can use this item to set up or change the IT8528 Super IO configuration for serial ports.
Please refer to 3.6.2.3.1~ 3.6.2.3.2 for more information.
ECM-SKLH User’s Manual
Page 38
ECM-SKLH User’s Manual
Item
Description
Serial Port 1 Configuration
Set Parameters of Serial Port 1 (COMA).
Serial Port 2 Configuration
Set Parameters of Serial Port 2 (COMB).
Item
Option
Description
Serial Port
Enabled[Default],
Disabled
Enable or Disable Serial Port (COM).

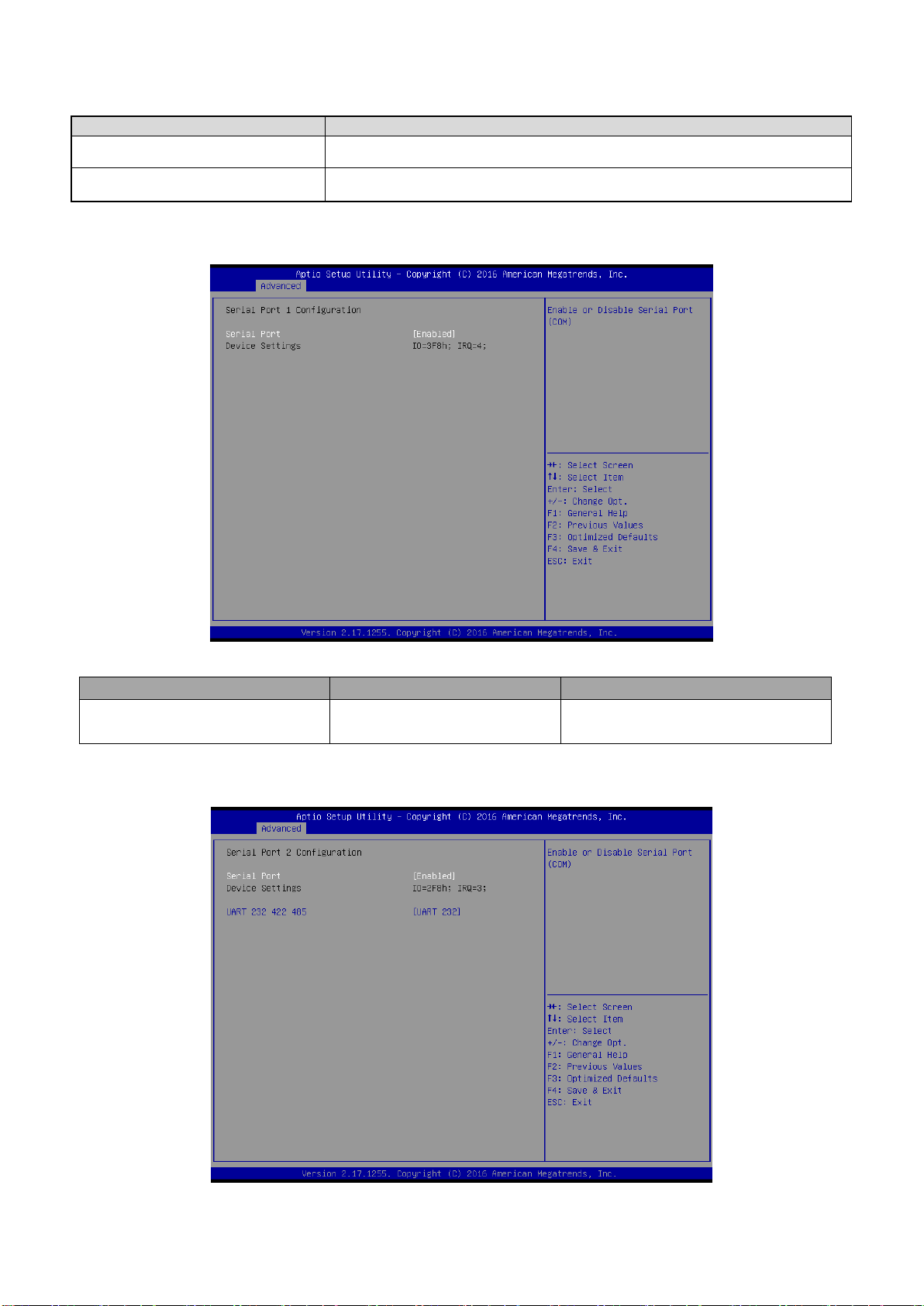

3.6.2.3.1 Serial Port 1 Configuration
3.6.2.3.2 Serial Port 2 Configuration
38 ECM-SKLH User’s Manual
Page 39
39
Item
Option
Description
Serial Port
Enabled[Default],
Disabled
Enable or Disable Serial Port (COM).
UART 232 422 485
UART 232[Default]
UART 422
UART 485
Change the Serial Port as
RS232/422/485.
Item
Options
Description
Intel AMT
Disabled
Enabled[Default],
Enable/Disable Intel® Active Management
Technology BIOS Extension. Note: iAMT
H/W is always enabled. This option just
controls the BIOS extension execution. If
enabled, this requires additional firmware in
the SPI device.
BIOS Hotkey Pressed
Disabled[Default]
Enabled,
OEMFLag Bit 1: Enable/Disable BIOS
hotkey press.
MEBx Selection Screen
Disabled[Default]
Enabled,
OEMFLag Bit 2: Enable/Disable MEBx
selection screen.
Un-Configure ME
Disabled[Default]
Enabled,
OEMFlag Bit 15: Un-Configure ME without
password.

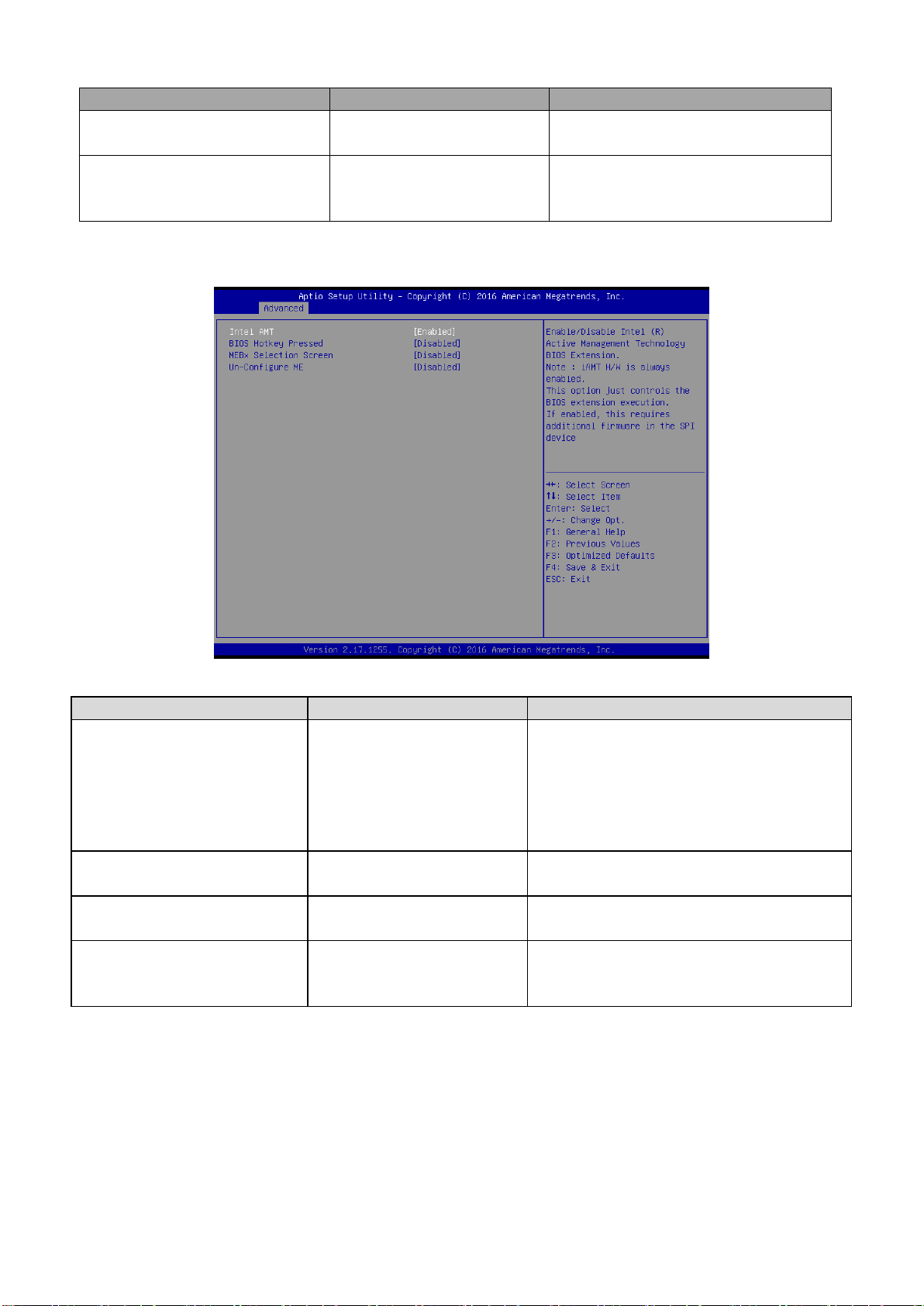

3.6.2.4 AMT Configuration
User’s Manual
ECM-SKLH User’s Manual
Page 40
ECM-SKLH User’s Manual
Item
Options
Description
ME State
Disabled
Enabled[Default],
Set ME to Soft Temporary Disabled.
fTPM Switch Selection
GPDMA Work-Around[Default],
MSFT QFE Solution
Select the desired fTPM solution to be used.
TPM Device Selection
dTPM 1.2[Default],
PTT
Selects TPM device: PTT or dTPM. PTT –
Enables PTT in SkuMgr dTPM 1.2 –
Disables PTT in SkuMgr Warning!
PTT/dTPM will be disabled and all data
saved on it will be lost.

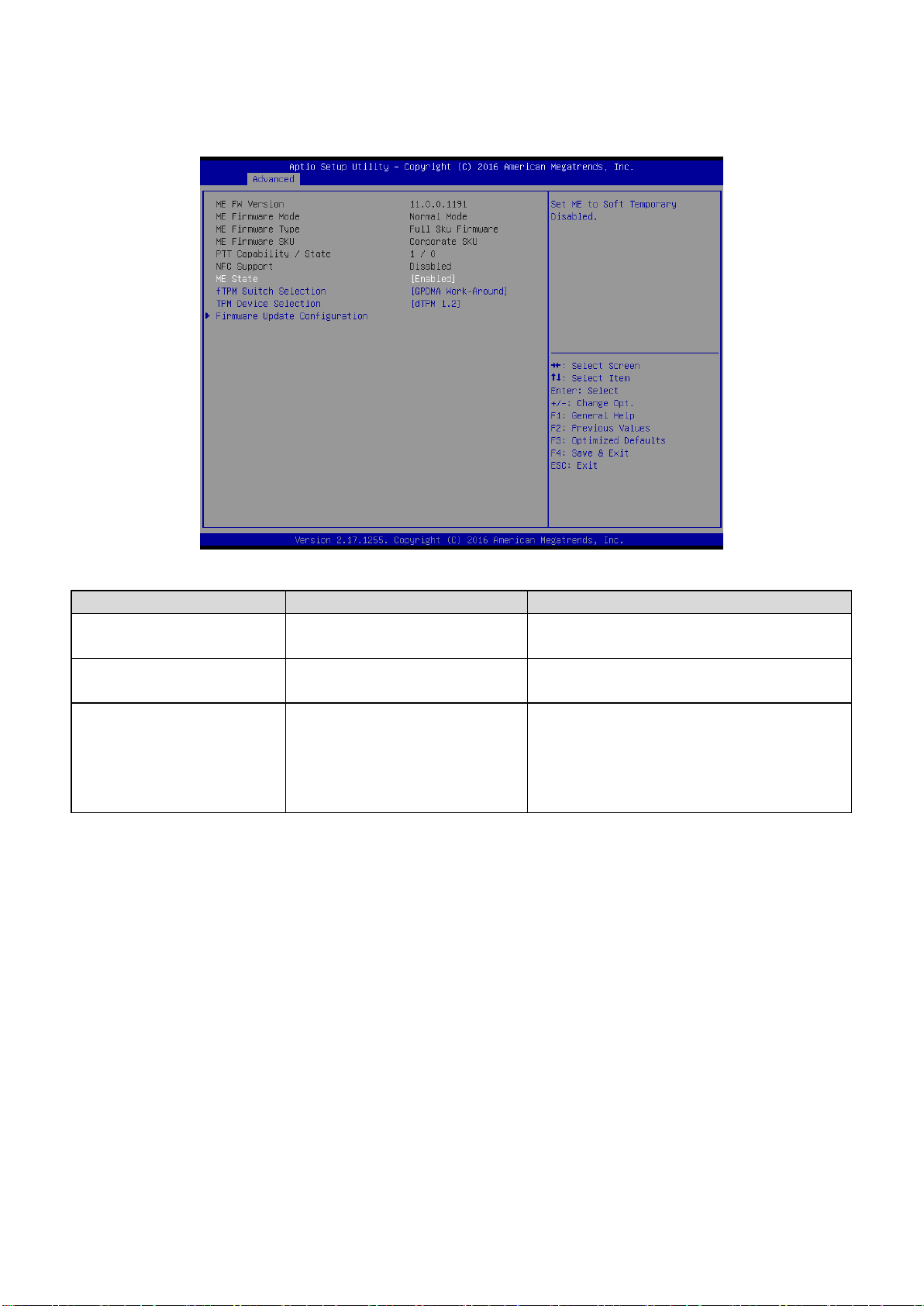

3.6.2.5 PCH-FW Configuration
40 ECM-SKLH User’s Manual
Page 41
41

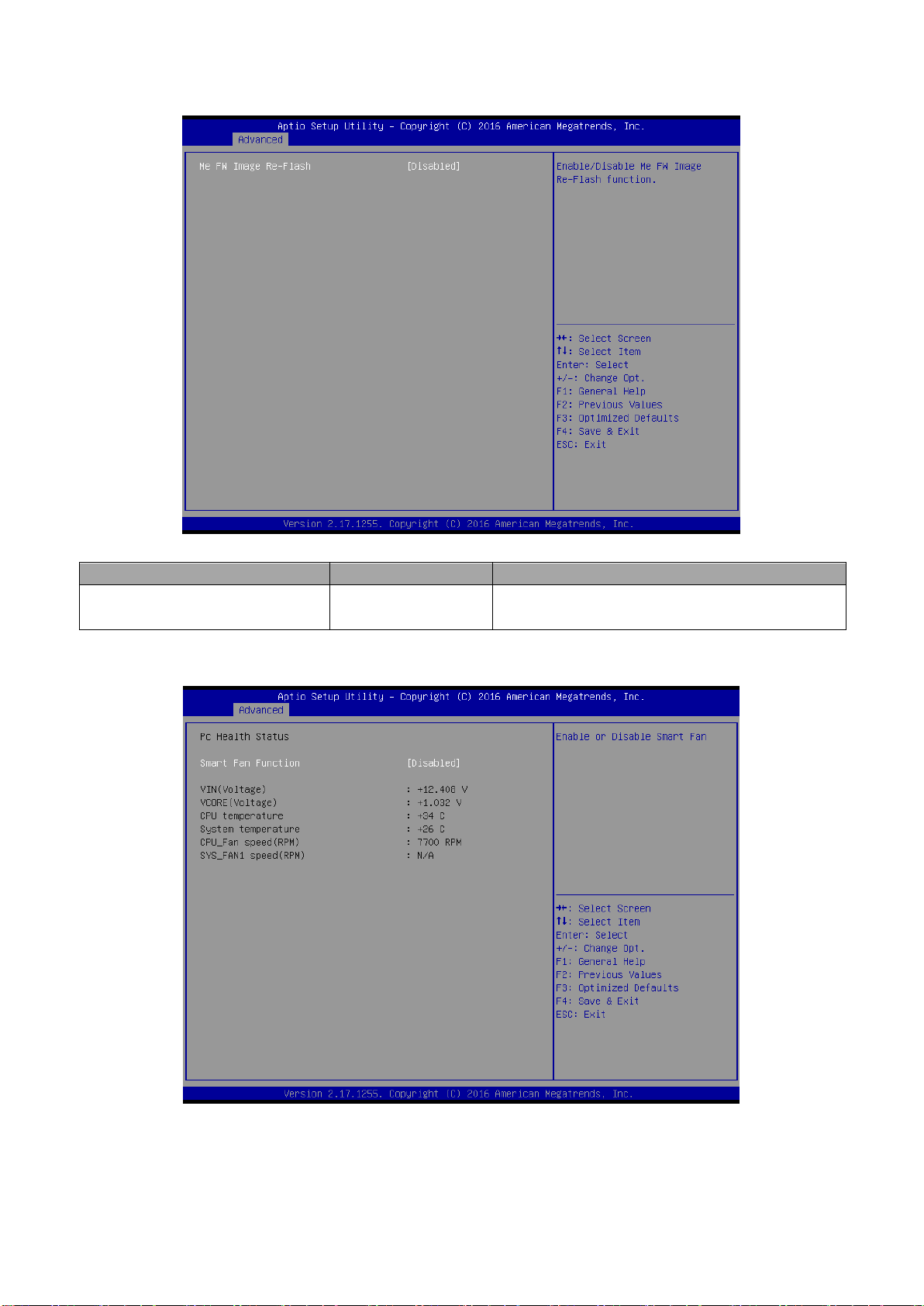

3.6.2.5.1 Firmware Update Configuration
Item
Option
Description
ME FW Image Re-Flash
Disabled [Default],
Enabled
Enable/Disable Me FW Image Re-Flash function.
User’s Manual

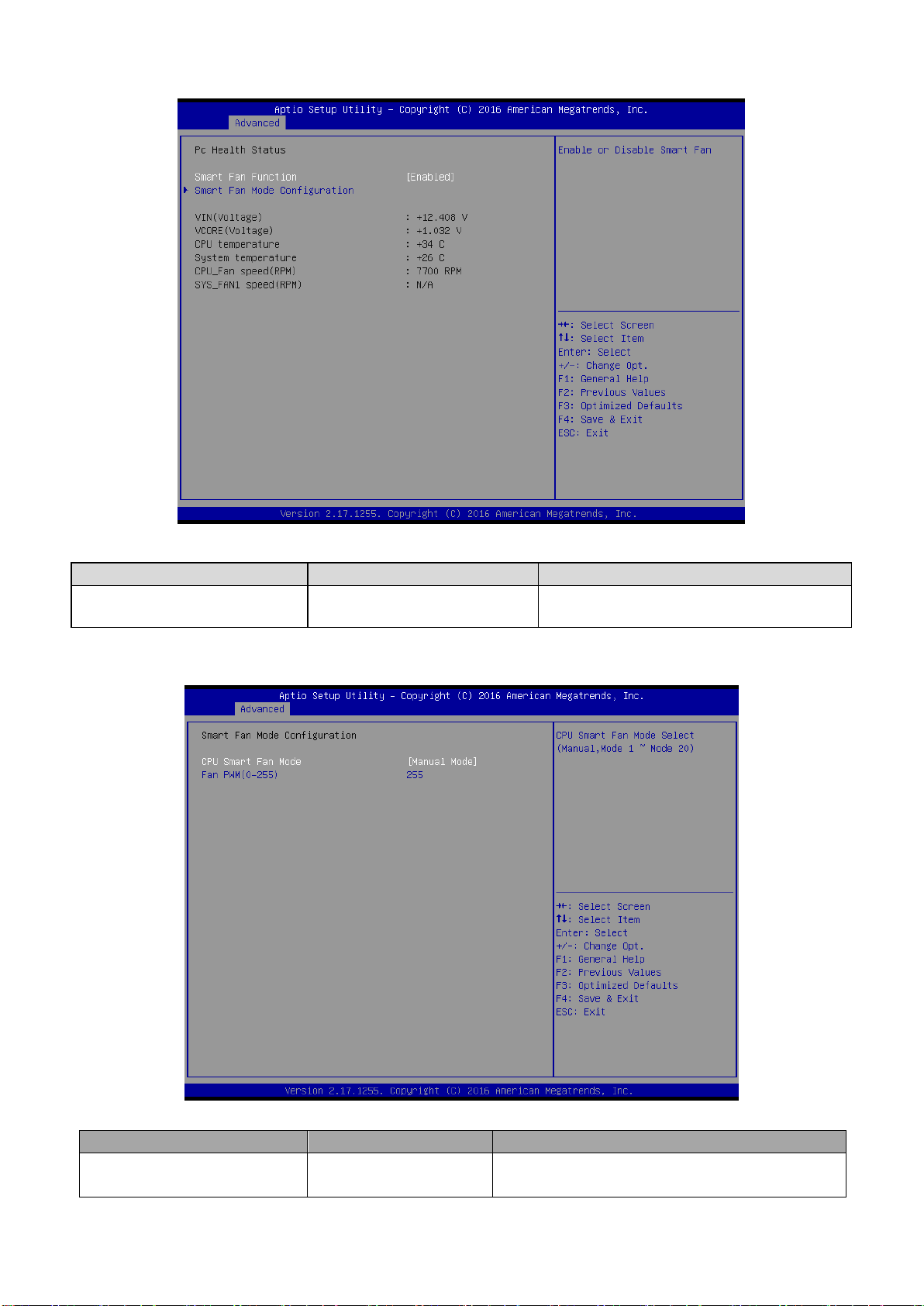

3.6.2.6 H/W Monitor
ECM-SKLH User’s Manual
Page 42
ECM-SKLH User’s Manual
Item
Options
Description
Smart Fan Function
Enabled,
Disabled[Default]
Enables or Disables Smart Fan.
Item
Option
Description
CPU Smart Fan Mode
Manual Mode[Default]/,
Mode 01/02/03/04/05
CPU Smart Fan Mode Select (Manual, Mode
1~Mode 20).
3.6.2.6.1 Smart Fan Mode Configuration
42 ECM-SKLH User’s Manual
Page 43
43
/06/07/08/09/10
/11/12/13/14/15
/16/17/18/19/20
Fan PWM (0-255)
0-255[Default]
Fan PWM duty (0-255).
Item
Options
Description
Wake system from S5
Disabled[Default],
Fixed Time
Dynamic Time
Enable or disable System wake on alarm event. Select
Fixed Time, system will wake on the hr::min::sec specified.
Select Dynamic Time, System will wake on the current time
+ Increase minute(s).

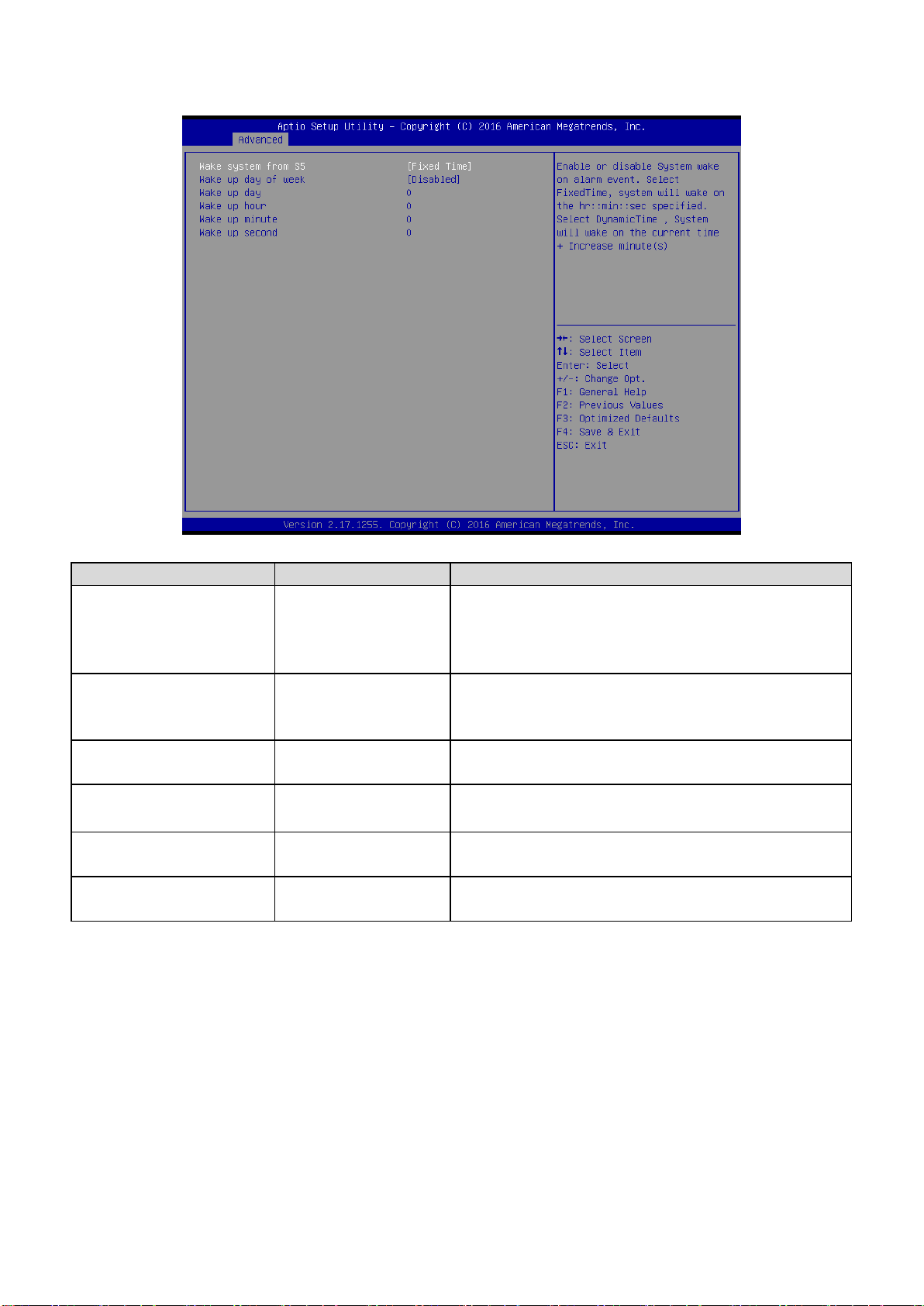

3.6.2.7 S5 RTC Wake Settings
User’s Manual
ECM-SKLH User’s Manual
Page 44
ECM-SKLH User’s Manual
Item
Options
Description

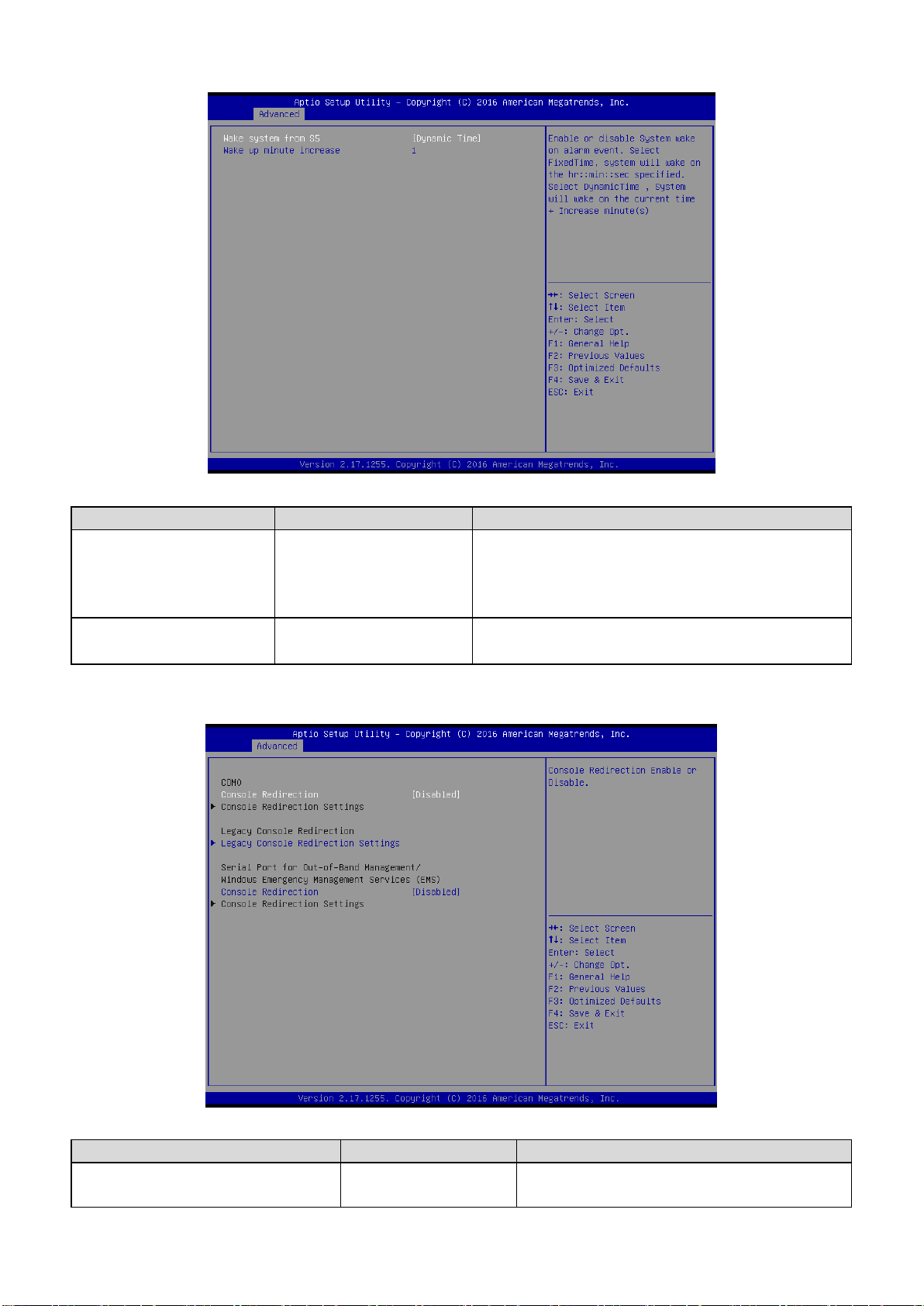

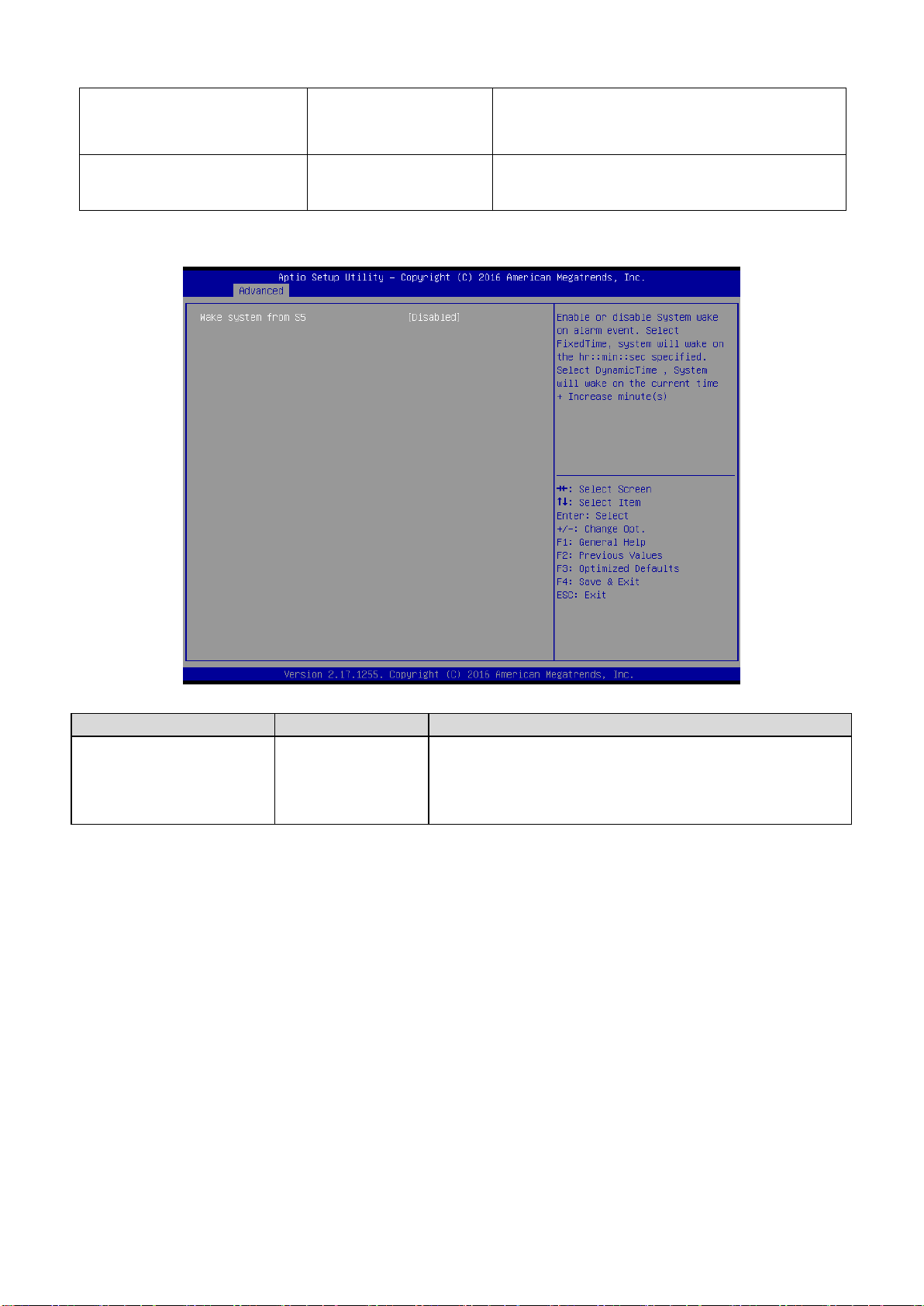

Wake system from S5
Disabled,
Fixed Time[Default]
Dynamic Time
Enable or disable System wake on alarm event. Select
Fixed Time, system will wake on the hr::min::sec
specified. Select Dynamic Time, System will wake on
the current time + Increase minute(s).
Wake up day of week
Disabled[Default]
Monday-Friday
Monday-Saturday
Wake up day of week. (Monday-Friday) or
(Monday-Saturday).
Wake up day
1-31
Select 0 for daily system wake up 1-31 for which day of
the month that you would like the system to wake up.
Wake up hour
0-23
Select 0-23 For example enter 3 for 3am and 15 for
3pm.
Wake up minute
0-23
Select 0-23 For example enter 3 for 3am and 15 for
3pm.
Wake up second
0-23
Select 0-23 For example enter 3 for 3am and 15 for
3pm.
44 ECM-SKLH User’s Manual
Page 45
User’s Manual
45
Item
Options
Description
Wake system from S5
Disabled,
Fixed Time
Dynamic Time[Default]
Enable or disable System wake on alarm event.
Select Fixed Time, system will wake on the
hr::min::sec specified. Select Dynamic Time, System
will wake on the current time + Increase minute(s).
Wake up minute increase
1-5
1-5.
Item
Options
Description
Console Redirection
Disabled[Default],
Enabled
Console Redirection Enable or Disable.
3.6.2.8 Serial Port Console Redirection
ECM-SKLH User’s Manual
Page 46
ECM-SKLH User’s Manual
Item
Options
Description
Hyper-threading
Disabled,
Enabled[Default]
Enabled for Windows XP and Linux (OS
optimized for Hyper- Threading
Technology) and Disabled for other OS
(OS not optimized for Hyper- Threading

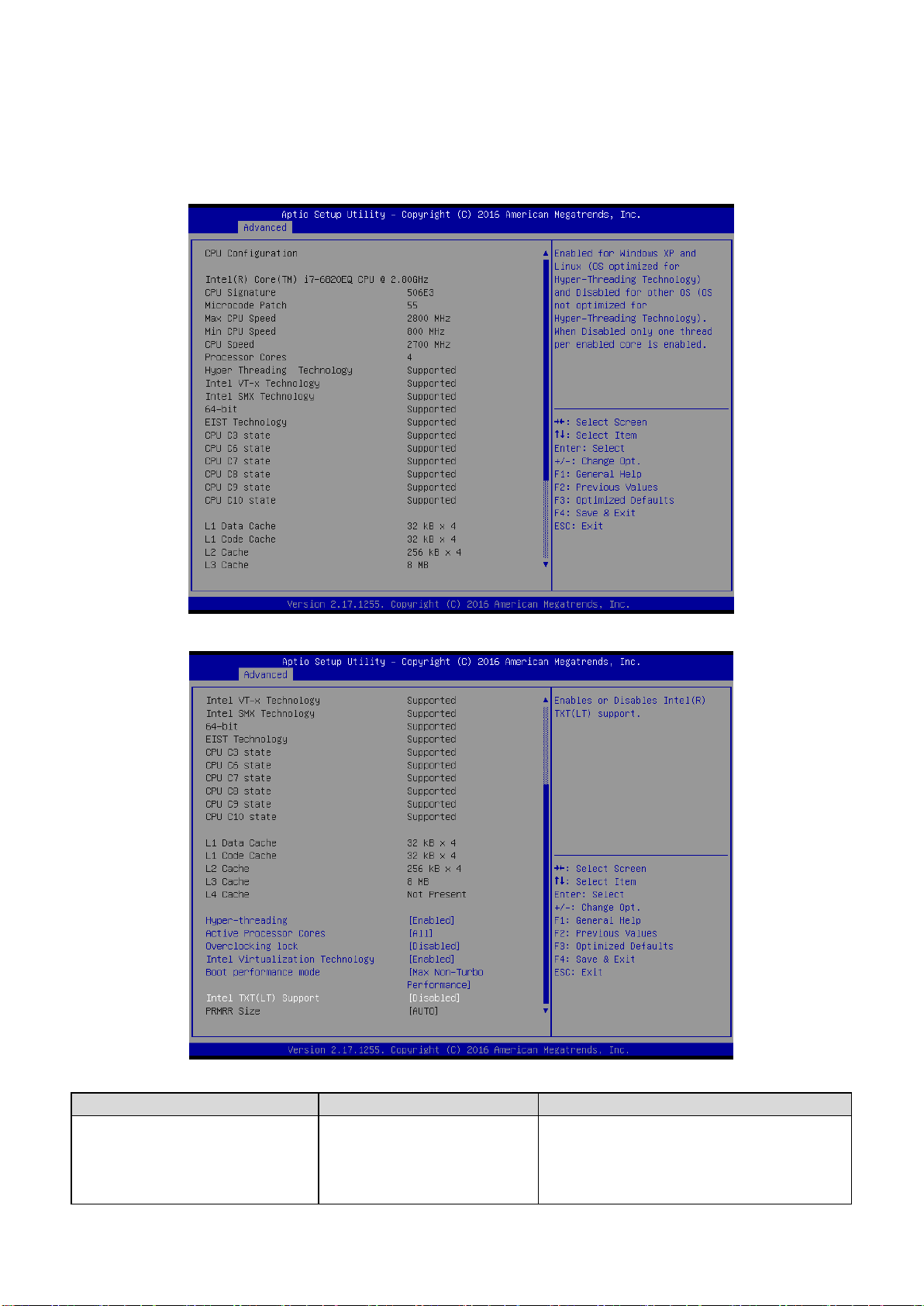

3.6.2.9 CPU Configuration
Use the CPU configuration menu to view detailed CPU specification and configure the
CPU.
46 ECM-SKLH User’s Manual
Page 47
47
Technology). When Disabled only one
thread per enabled core is enabled.
Active Processor Cores
All[Default]
1
2
3
Number of cores to enable in each
processor package.
Overclocking lock
Disabled[Default],
Enabled
FLEX_RATIO (194) MSR.
Intel Virtualization Technology
Disabled
Enabled[Default]
When enabled, a VMM can utilize the
additional hardware capabilities provided
by Vanderpool Technology.
Boot performance mode
Max Battery
Max Non-Turbo
Performance[Default]
Turbo Performance
Select the performance state that the BIOS
will set before OS handoff.
Intel TXT(LT) Support
Disabled[Default],
Enabled
Enables or Disables Intel® TXT(LT)
support.

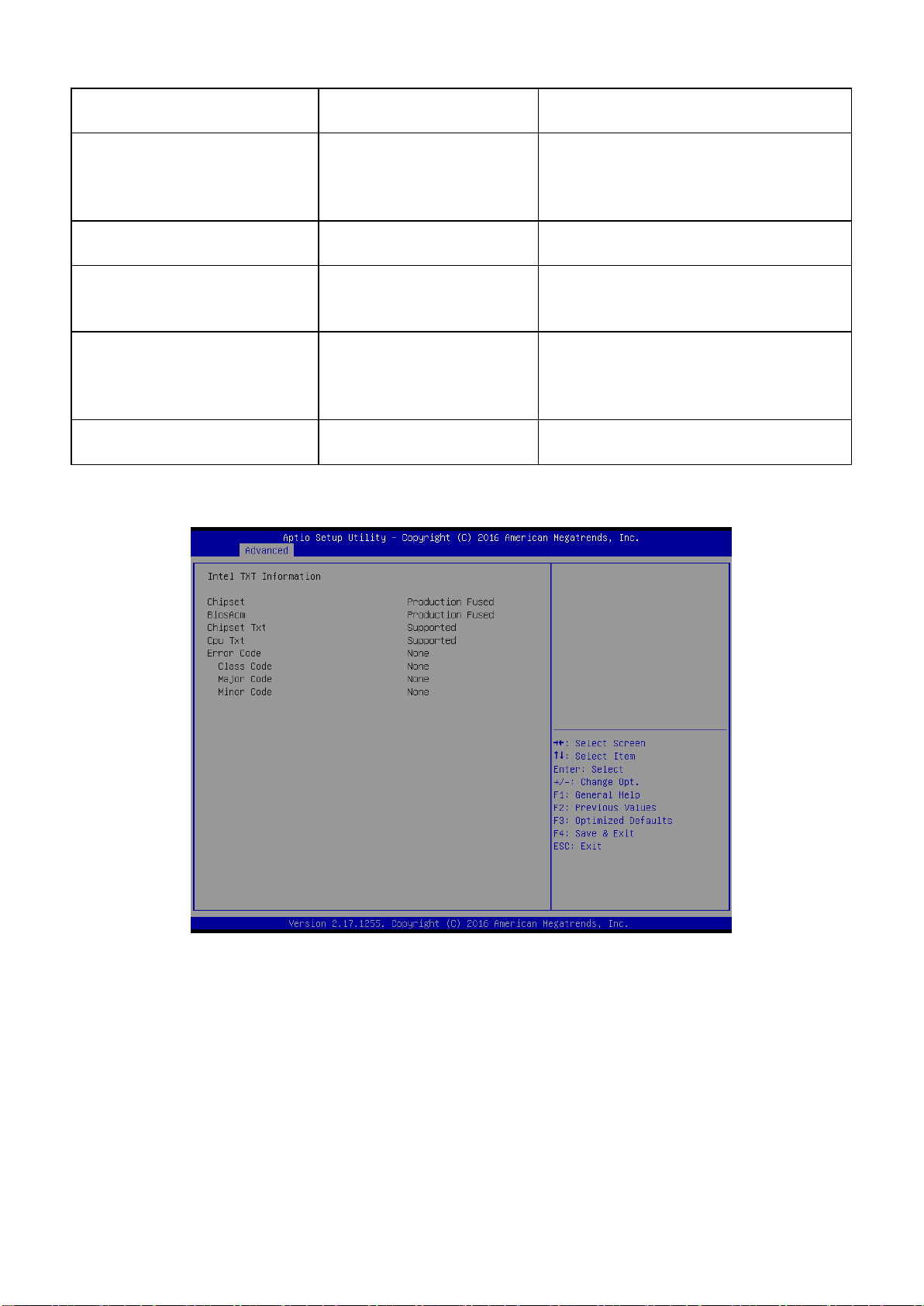

3.6.2.10 Intel TXT Configuration
User’s Manual
ECM-SKLH User’s Manual
Page 48
ECM-SKLH User’s Manual
Item
Options
Description
SATA Controller(s)
Enabled[Default]
Disabled,
Enable or disable SATA Device.
SATA Mode Selection
AHCI[Default],
RAID
Determines how SATA controller(s) operate.
Aggressive LPM Support
Enabled[Default]
Disabled
Enable PCH to aggressively enter link power
state.
Port 0/1/2/3
Enabled[Default]
Disabled,
Enable or Disable SATA Port.
SATA Device Type
Hard Disk Drive [Default]
Solid State Drive
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.

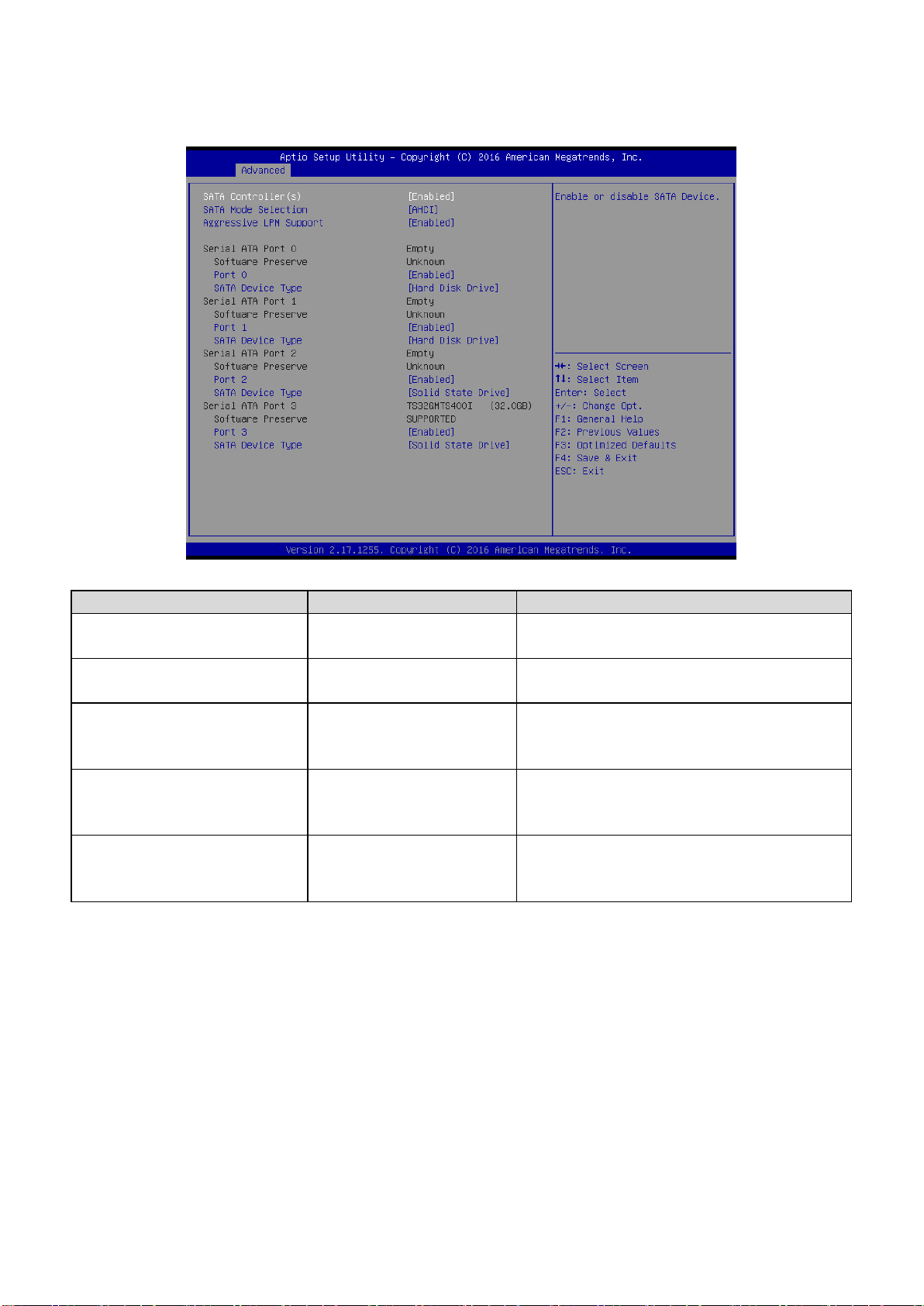

3.6.2.11 SATA Configuration
48 ECM-SKLH User’s Manual
Page 49
49
Item
Options
Description

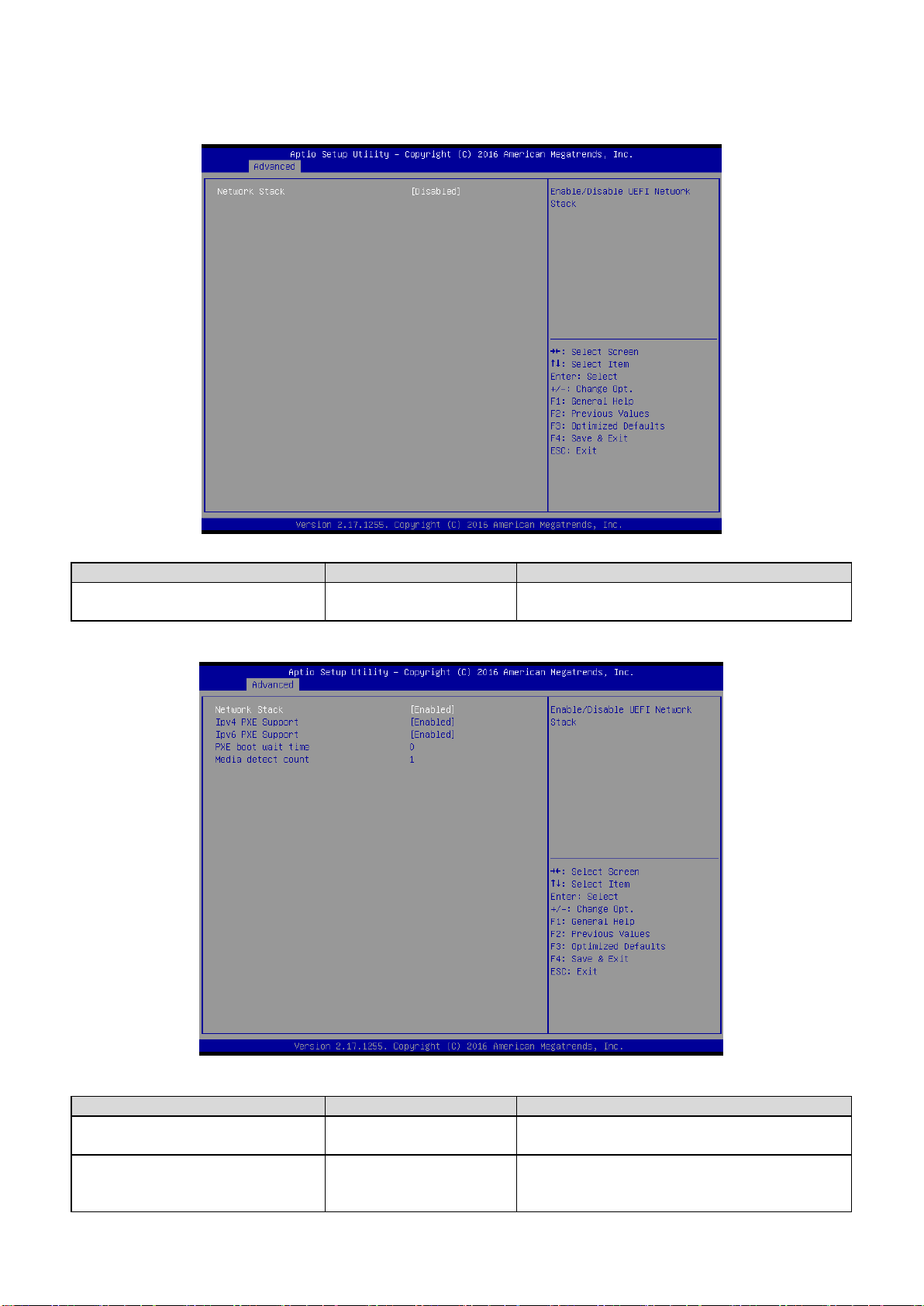

Network Stack
Enabled
Disabled[Default]
Enable/Disable UEFI Network Stack.
Item
Options
Description
Network Stack
Enabled[Default]
Disabled
Enable/Disable UEFI Network Stack.
Ipv4 PXE Support
Enabled[Default]
Disabled
Enable Ipv4 PXE Boot Support. If disabled
IPV4 PXE boot option will not be created.
3.6.2.12 Network Stack Configuration
User’s Manual
ECM-SKLH User’s Manual
Page 50
ECM-SKLH User’s Manual
Ipv6 PXE Support
Enabled[Default]
Disabled
Enable Ipv6 PXE Boot Support. If disabled
IPV6 PXE boot option will not be created.
PXE boot wait time
0
Wait time to press ESC key to abort the PXE
boot.
Media detect count
1
Number of times presence of media will be
checked.
Item
Options
Description
CSM Support
Enabled
Disabled[Default]
Enable/Disable CSM Support.

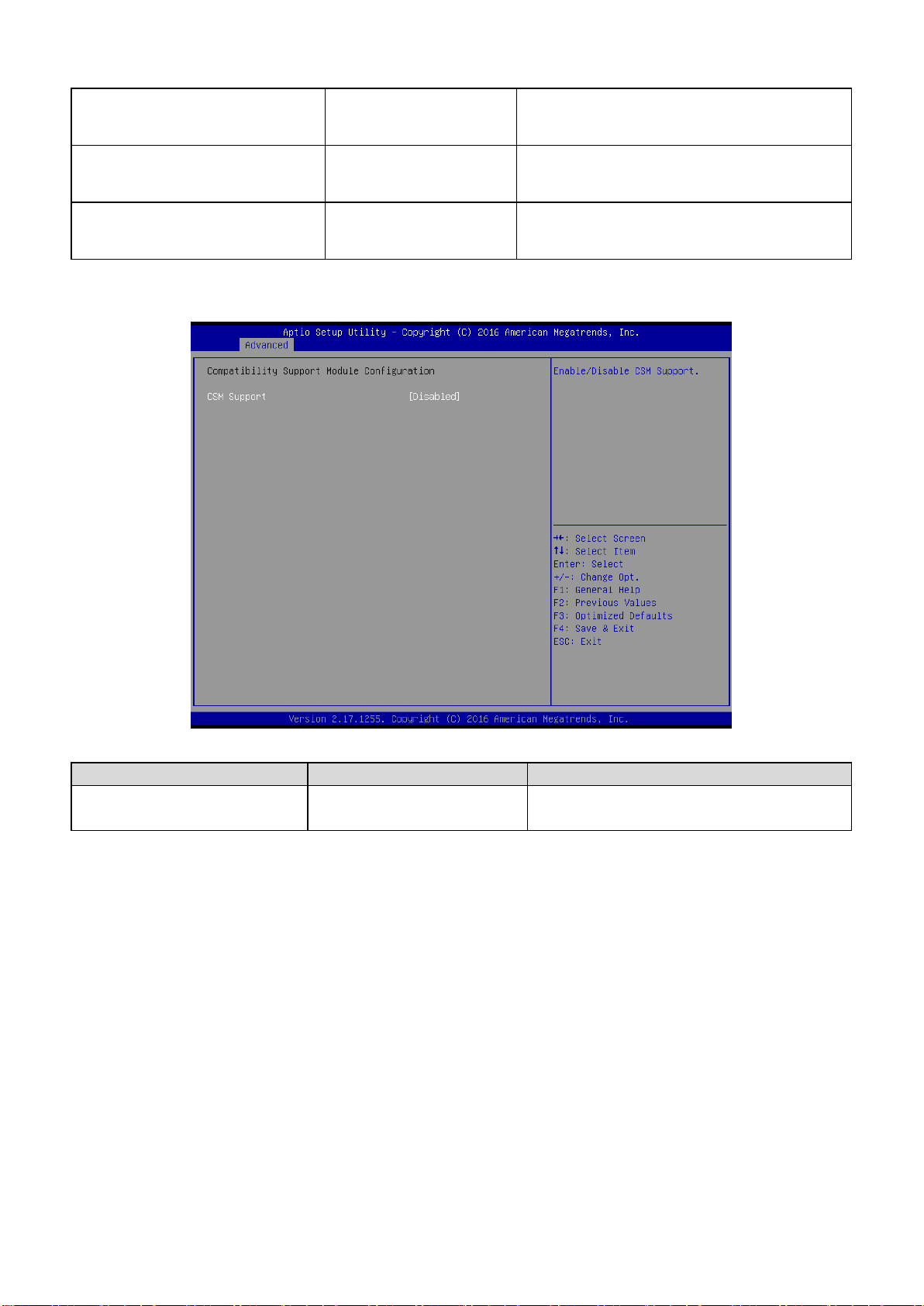

3.6.2.13 CSM Configuration
50 ECM-SKLH User’s Manual
Page 51
User’s Manual
51
Item
Options
Description
CSM Support
Enabled[Default]
Disabled
Enable/Disable CSM Support.
INT19 Trap Response
Immediate[Default]
Postponed
BIOS reaction on INT19 trapping by Option
ROM: IMMEDIATE – execute the trap right
away; POSTPONED – execute the trap
during legacy boot.
Boot Option filter
UEFI and Legacy
Legacy only[Default]
UEFI only
This option controls Legacy/UEFI ROMs
priority.
Network
Do not launch[Default]
UEFI
Legacy
Controls the execution of UEFI and Legacy
PXE OpROM.
Storage
Do not launch
UEFI
Legacy[Default]
Controls the execution of UEFI and Legacy
Storage OpROM.
Video
Do not launch
UEFI
Legacy[Default]
Controls the execution of UEFI and Legacy
Video OpROM.
Other PCI devices
Do not launch
UEFI
Legacy[Default]
Determines OpROM execution policy for
devices other than Network, Storage, or
Vide.
ECM-SKLH User’s Manual
Page 52
ECM-SKLH User’s Manual
Item
Options
Description
XHCI Hand-off
Enabled
Disabled[Default]
This is a workaround for OSew without XHCI
hand-off support. The XHCI ownership change
should be claimed by XHCI driver.
Port 60/64 Emulation
Enabled
Disabled[Default]
Enable I/O port 60h/64h emulation support.
This should be enabled for the complete USB
keyboard legacy support for non-USB aware
OSes.
USB transfer time-out
1 sec
5 sec
10 sec
20 sec[Default]
The time-out value for Control, Bulk, and
Interrupt transfers.
Device reset time-out
10 sec
20 sec[Default]
30 sec
40 sec
USB mass storage device Start Unit command
time-out.
Device power-up delay
Auto[Default]
Manual
Maximum time the device will take before it
properly reports itself to the Host Controller.
‘Auto’ uses default value: for a Root port it is
100ms, for a Hub port the delay is taken form
Hub descriptor.
Mass Storage Devices
Auto[Default]
Floppy
Forced FDD
Hard Disk
CD-ROM
Mass storage device emulation type. ‘AUTO’
enumerates devices according to their media
format. Optical drives are emulated as
‘CDROM’, drives with no media will be
emulated according to a drive type.

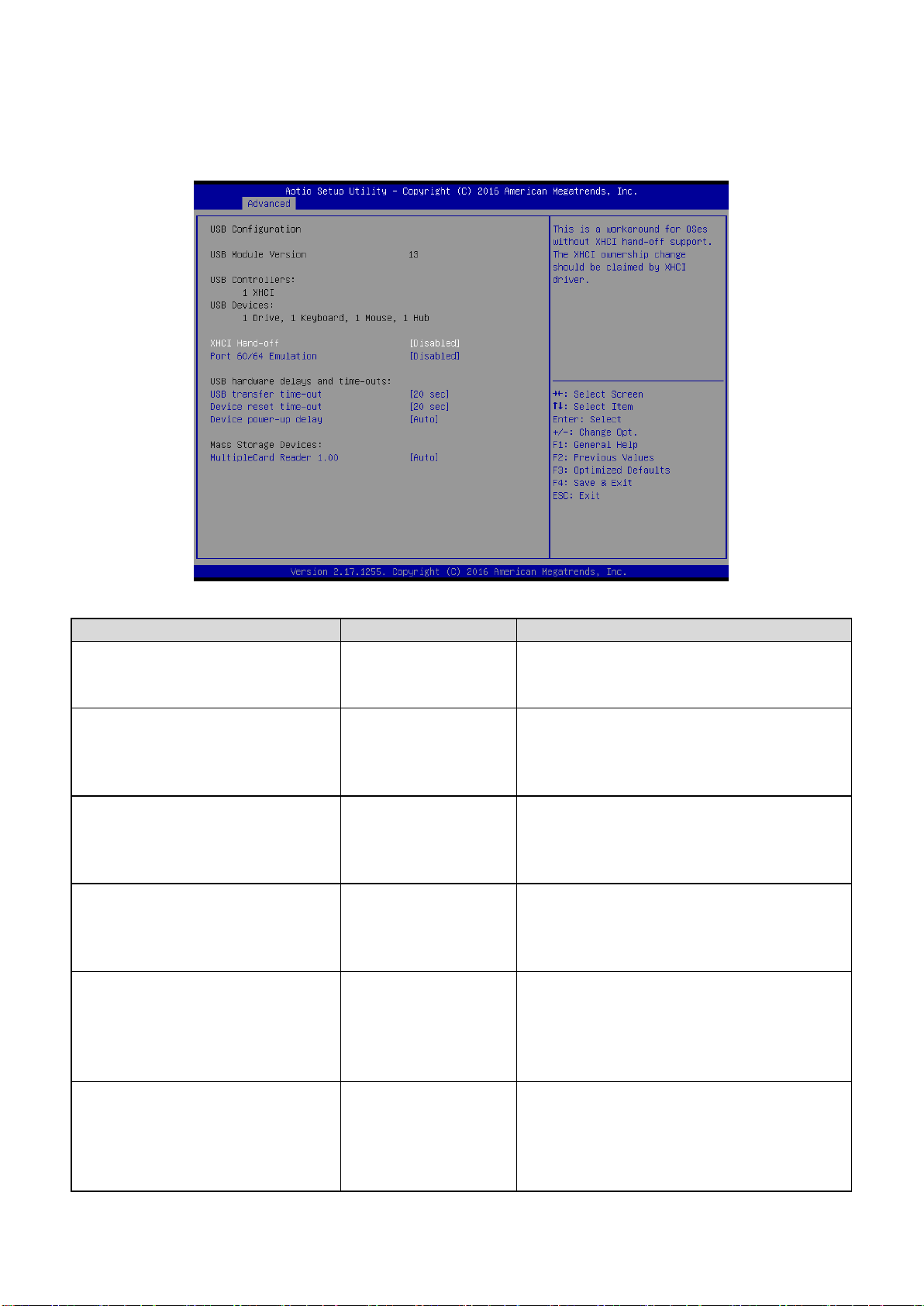

3.6.2.14 USB Configuration
The USB Configuration menu helps read USB information and configures USB settings.
52 ECM-SKLH User’s Manual
Page 53
53

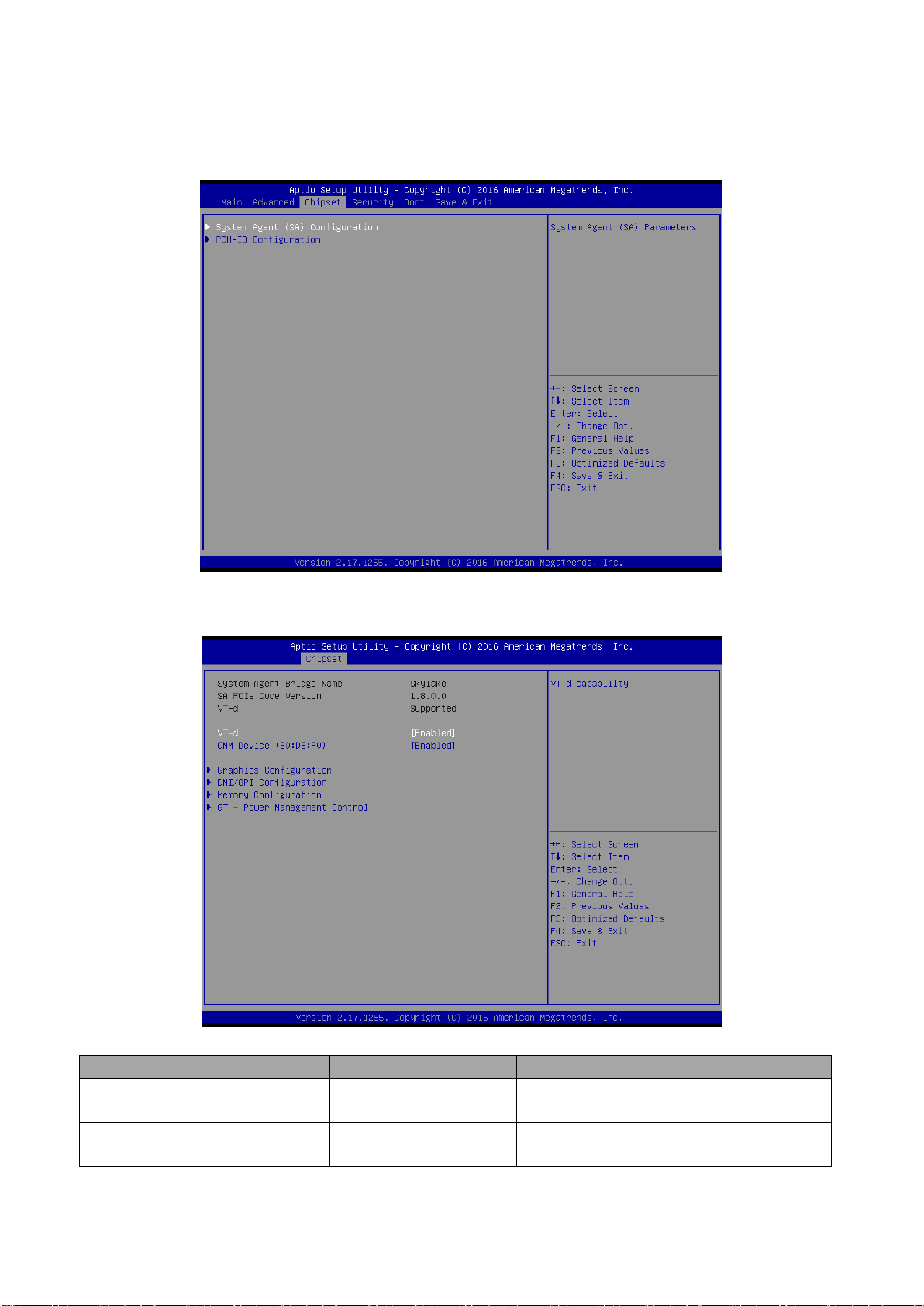

3.6.3 Chipset
Item
Option
Description
VT-d
Enabled[Default]
Disabled
VT-d capability.
GMM Device (B0:D8:F0)
Enabled[Default]
Disabled
Enable/Disable SA GMM Device.
User’s Manual
3.6.3.1 System Agent (SA) Configuration
ECM-SKLH User’s Manual
Page 54
ECM-SKLH User’s Manual
Item
Option
Description
Graphics Turbo IMON Current
14-31
Graphics turbo IMON current values
supported (14-31).
Primary Display
Auto[Default]
IGFX
PCIE
Select which of IGFX/PEG/PCI
Graphics device should be Primary
Display Or select SG for Swithchable
Gfx.
Active LFP
No LVDS
eDP Port-A[Default]
Configuring LFP usage.
CH7511 EDID Panel Option
1024x768 24/1[Default]
800x600 18/1
1024x768 18/1
1366x768 18/1
1024x600 18/1
1280x800 18/1
1920x1200 24/2
640x480 18/1
800x480 18/1
1920x1080 18/2
1280x1024 24/2
1440x900 18/2
1600x1200 24/2
1366x768 24/1
1920x1080 24/2
1680x1050 24/2
Port1-EDP to LVDS (Chrotel 7511)
Panel EDID Option.
Backlight brightness (%)
00%
25%
50%[Default]
Select LVDS back light PWM duty.

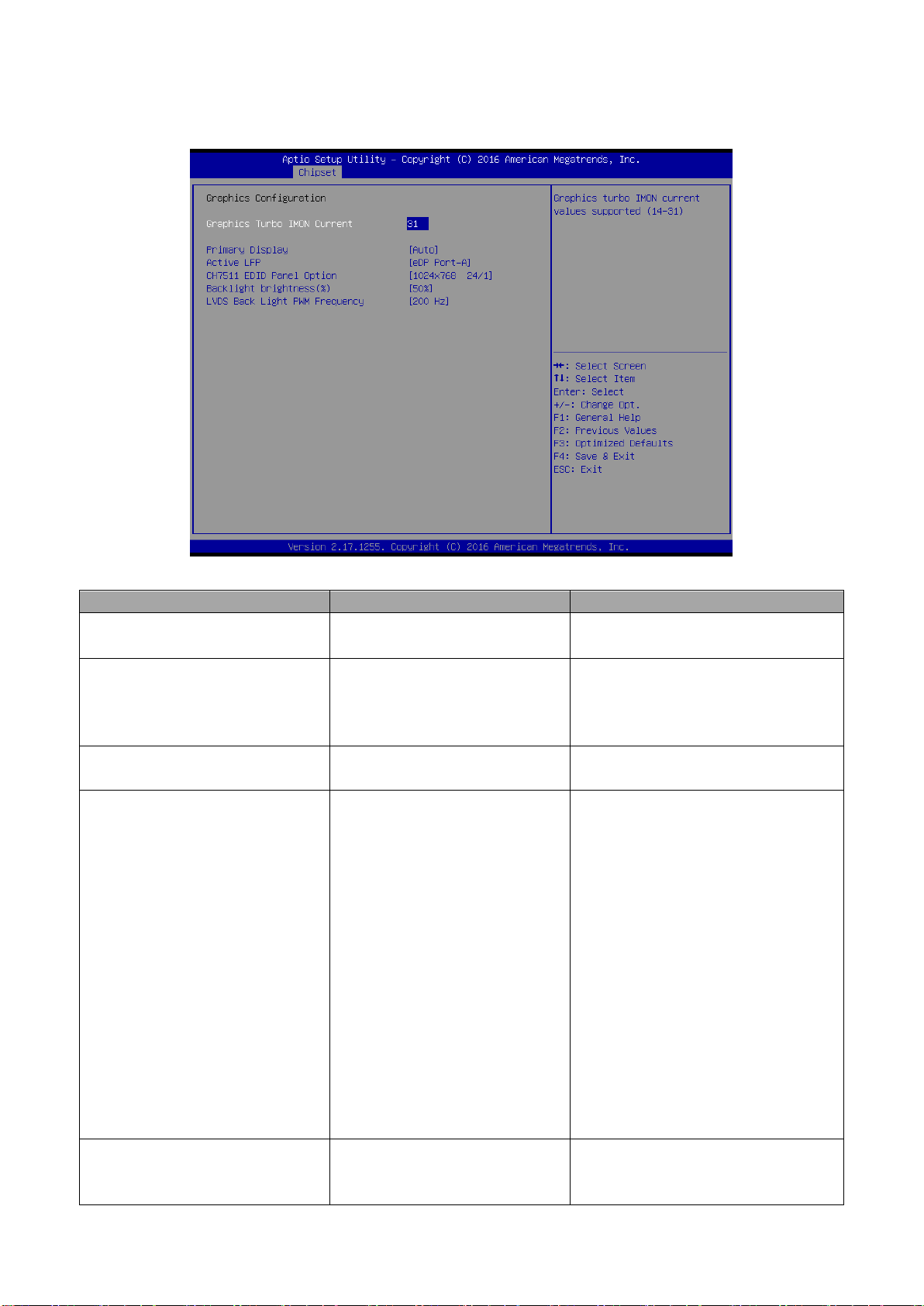

3.6.3.1.1 Graphics Configuration
54 ECM-SKLH User’s Manual
Page 55
55
75%
100%
LVDS Back Light PWM
Frequency
200 Hz[Default]
300 Hz
400 Hz
500 Hz
700 Hz
1k
2k
3k
5k
10k
20k
Select LVDS back light PWM
Frequency.
Item
Option
Description
DMI Max Link Speed
Auto[Default]
Gen1
Gen2
Gen3
Set DMI Speed Gen1/Gen2/Gen3.

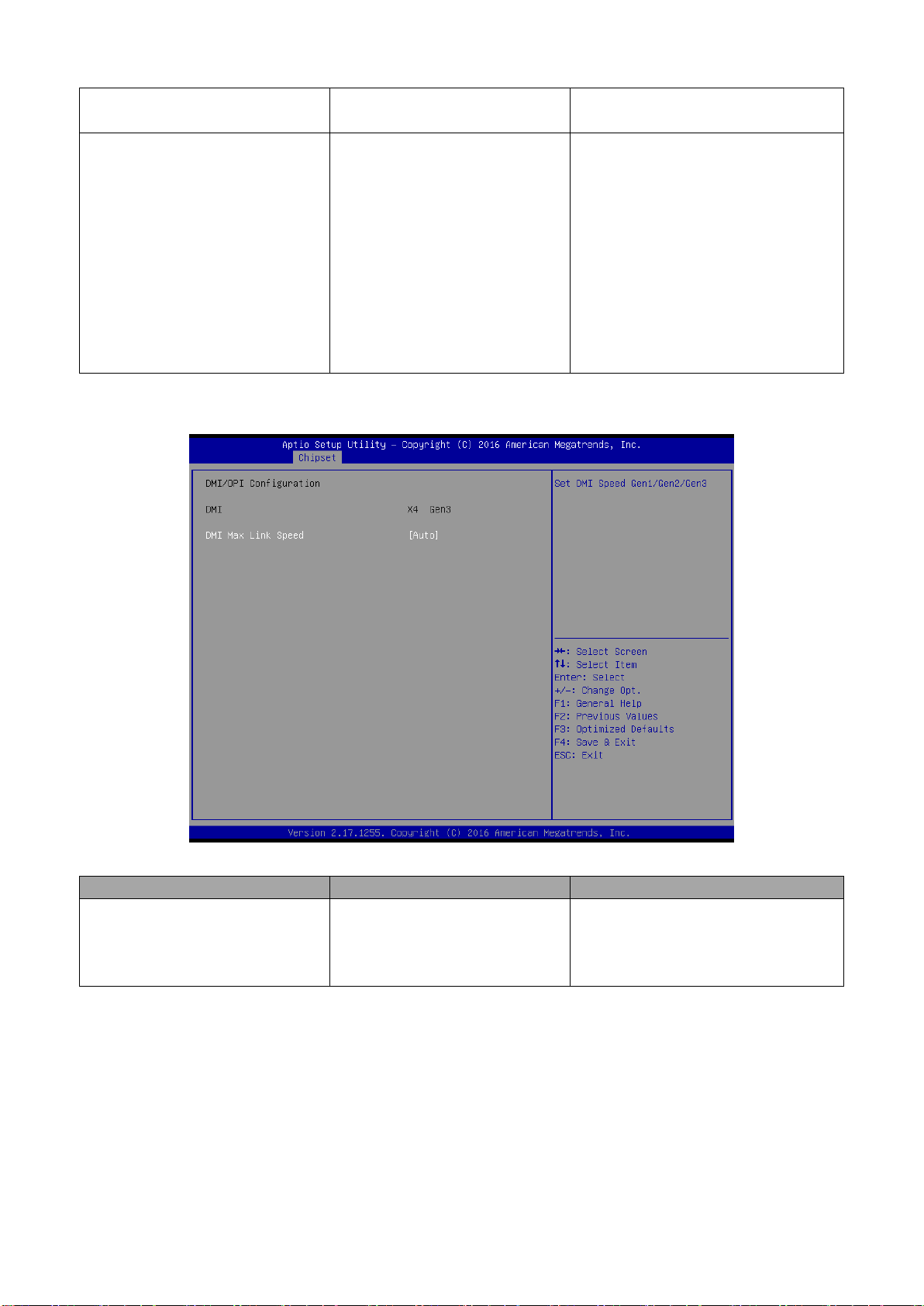

3.6.3.1.2 DMI/OPI Configuration
User’s Manual
ECM-SKLH User’s Manual
Page 56
ECM-SKLH User’s Manual
Item
Option
Description

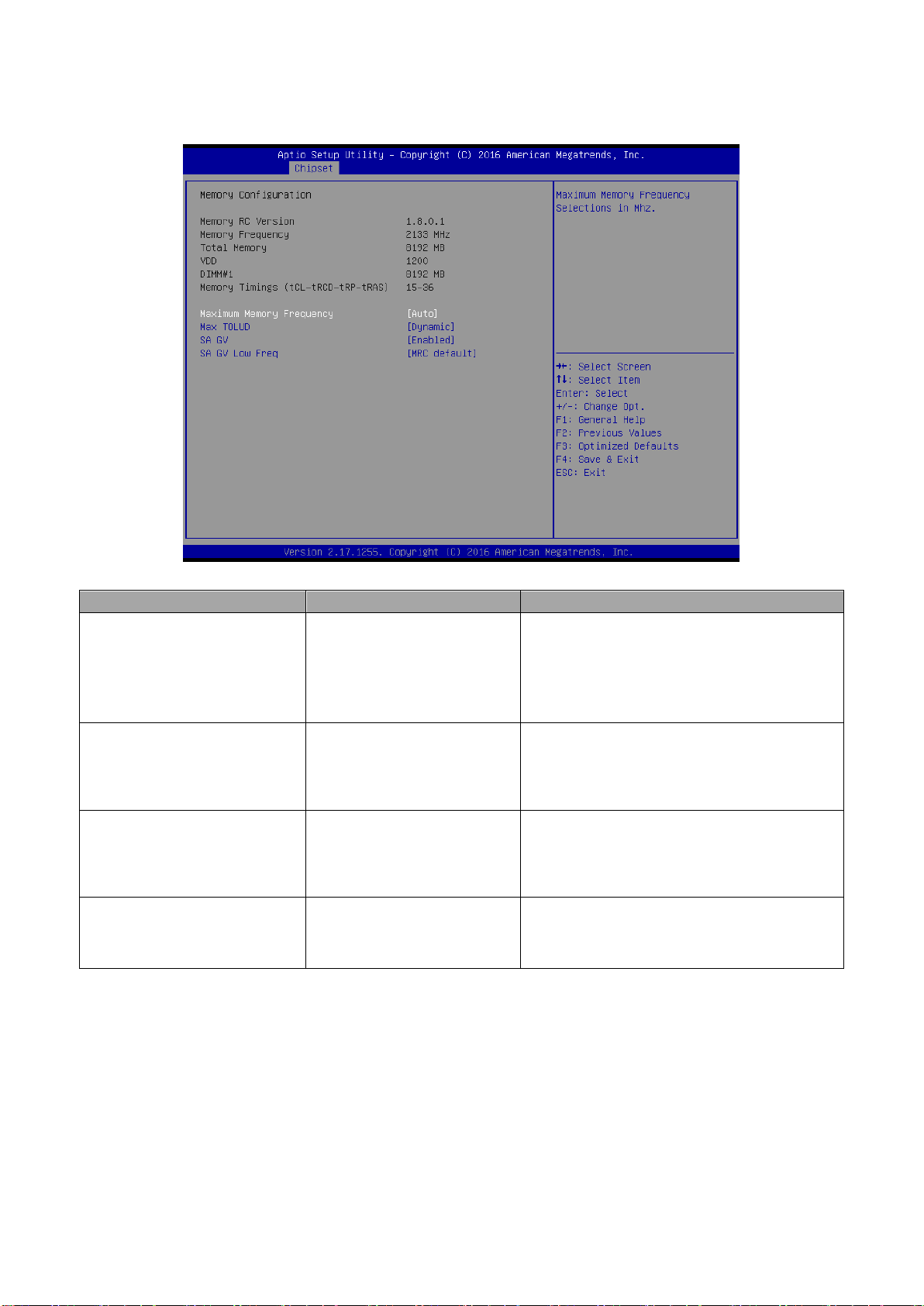

Maximum Memory
Frequency
Auto[Default]
/1067/1200/1333/1400/1600
/1800/1867/2000/2133/2200
/2400/2600/2667/2800/2933
/3000/3200
Maximum Memory Frequency Selections in
Mhz.
Max TOLUD
Dynamic[Default]
/1GB/1.25GB/1.5GB/1.75GB
/2GB/2.25GB/2.5GB/2.75GB
/3GB/3.25GB/3.5GB
Maximum Value of TOLUD. Dynamic
assignment would adjust TOLUD
automatically based on largest MMIO length
of installed graphic controller.
SA GV
Disabled
Fixed Low
Fixed High
Enabled[Default]
System Agent Geyserville. Fixed Low/High:
SA GV disabled, MR only runs tasks from
Low or High point.
SA GV Low Freq
MRC default[Default]
/1067/1200/1333/1400/1600
/1800/1867
System Agent Geyserville. Set frequency for
low point. Default 1067 for LPDDR3/DDR3,
1333 for DDR4.
3.6.3.1.3 Memory Configuration
56 ECM-SKLH User’s Manual
Page 57
57
Item
Option
Description
RC6 (Render Standby)
Enabled[Default]
Disabled
Check to enable render standby support.

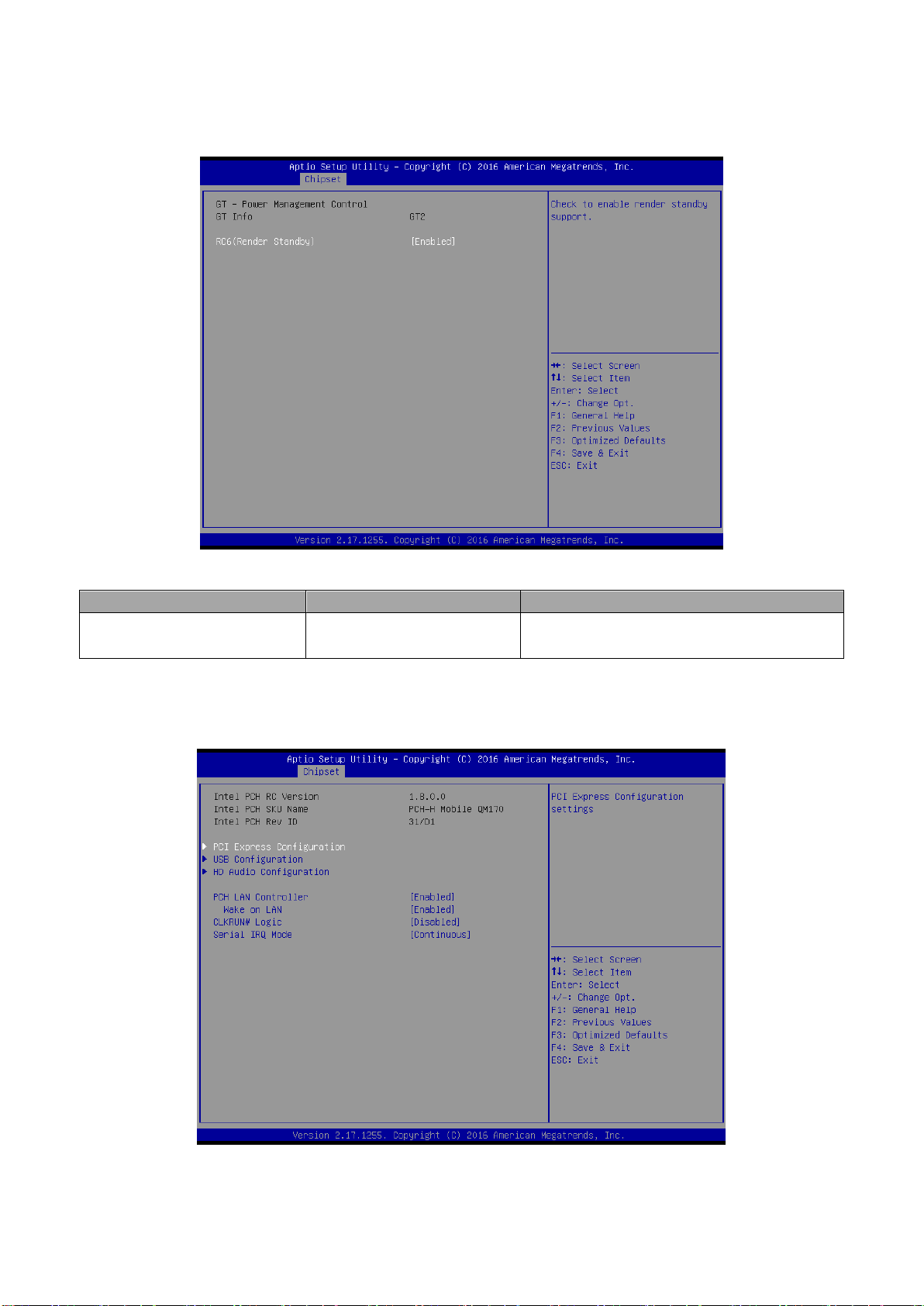

3.6.3.1.4 GT- Power Management Control
User’s Manual
3.6.3.2 PCH-IO Configuration
ECM-SKLH User’s Manual
Page 58
ECM-SKLH User’s Manual
Item
Option
Description
PCH LAN Controller
Disabled
Enabled[Default]
Enable or disable onboard NIC.
Wake on LAN
Disabled
Enabled[Default]
Enable or disable integrated LAN
to wake the system.
CLKRUN# Logic
Disabled[Default]
Enabled
Enable the CLKRUN# logic to
stop the PCI clocks.
Serial IRQ Mode
Quiet
Continuous[Default]
Configure Serial IRQ Mode.
Item
Option
Description

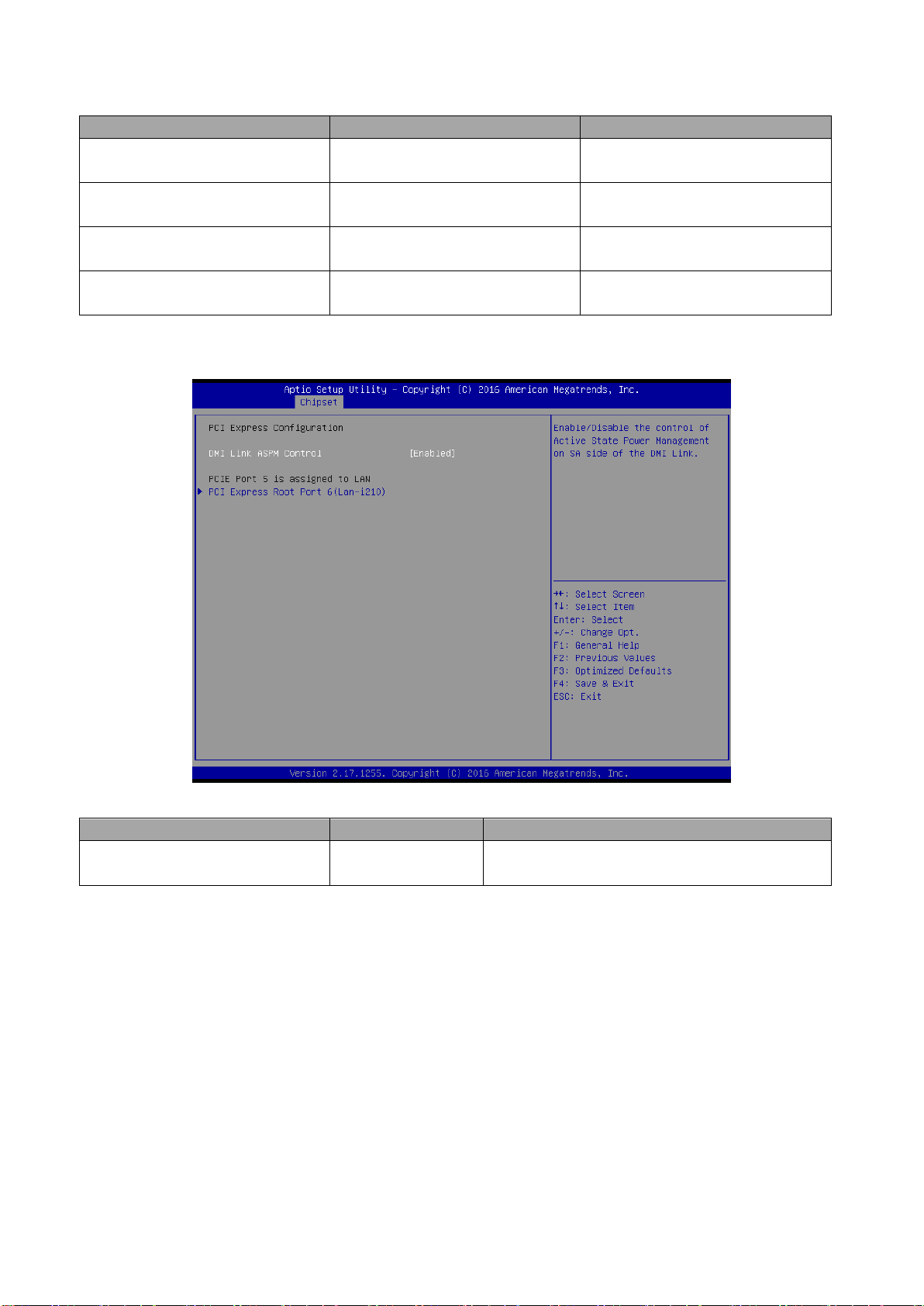

DMI Link ASPM Control
Disabled
Enabled[Default]
Enable/Disable the control of Active State
Power Management on SA side of the DMI Link.
3.6.3.2.1 PCI Express Configuration
58 ECM-SKLH User’s Manual
Page 59
59
Item
Option
Description

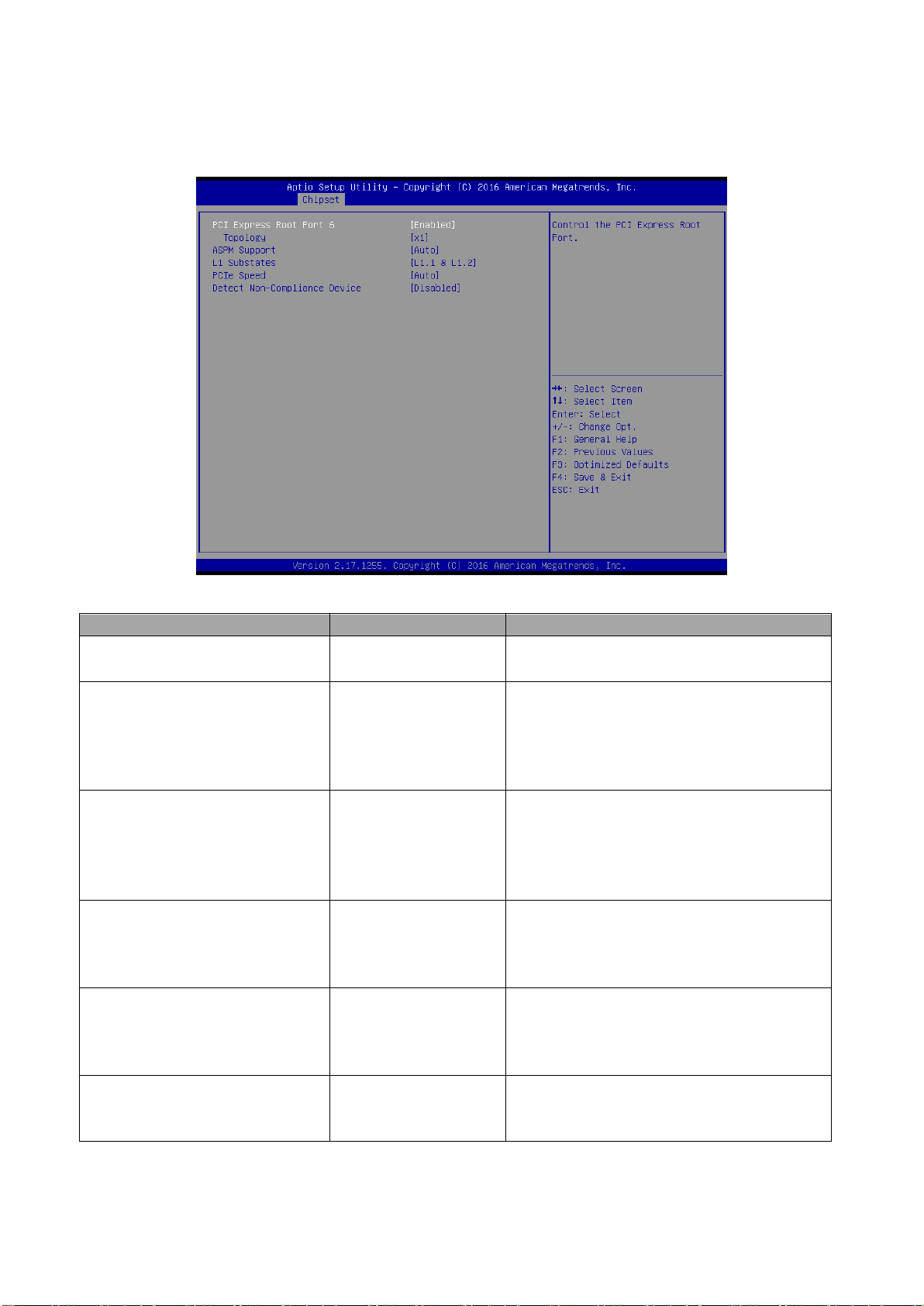

PCI Express Root Port 6
Enabled[Default],
Disabled
Control the PCI Express Root Port.
Topology
Unknown
x1[Default],
x4
Sata Express
M2
Identify the SATA Topology if it is Default or
ISATA or Flex or DirectConnect or M2.
ASPM Support
Disabled
L0s
L1
L0sL1
Auto[Default],
Set the ASPM Level: Force L0s – Force all
links to L0s State AUTO – BIOS auto
configure DISABLE – Disables ASPM.
L1 Substates
Disabled
L1.1
L1.2
L1.1 & L1.2[Default],
PCI Express L1 Substates settings.
PCIe Speed
Auto[Default]
Gen1
Gen2
Gen3
Select PCI Express port speed.
Detect Non-Compliance Device
Disabled[Default],
Enabled
Detect Non-Compliance PCI Express
Device. If enable, it will take more time at
POST time.
3.6.3.2.1.1 PCI Express Root Port6 (Lan-i210)
User’s Manual
ECM-SKLH User’s Manual
Page 60
ECM-SKLH User’s Manual
Item
Option
Description

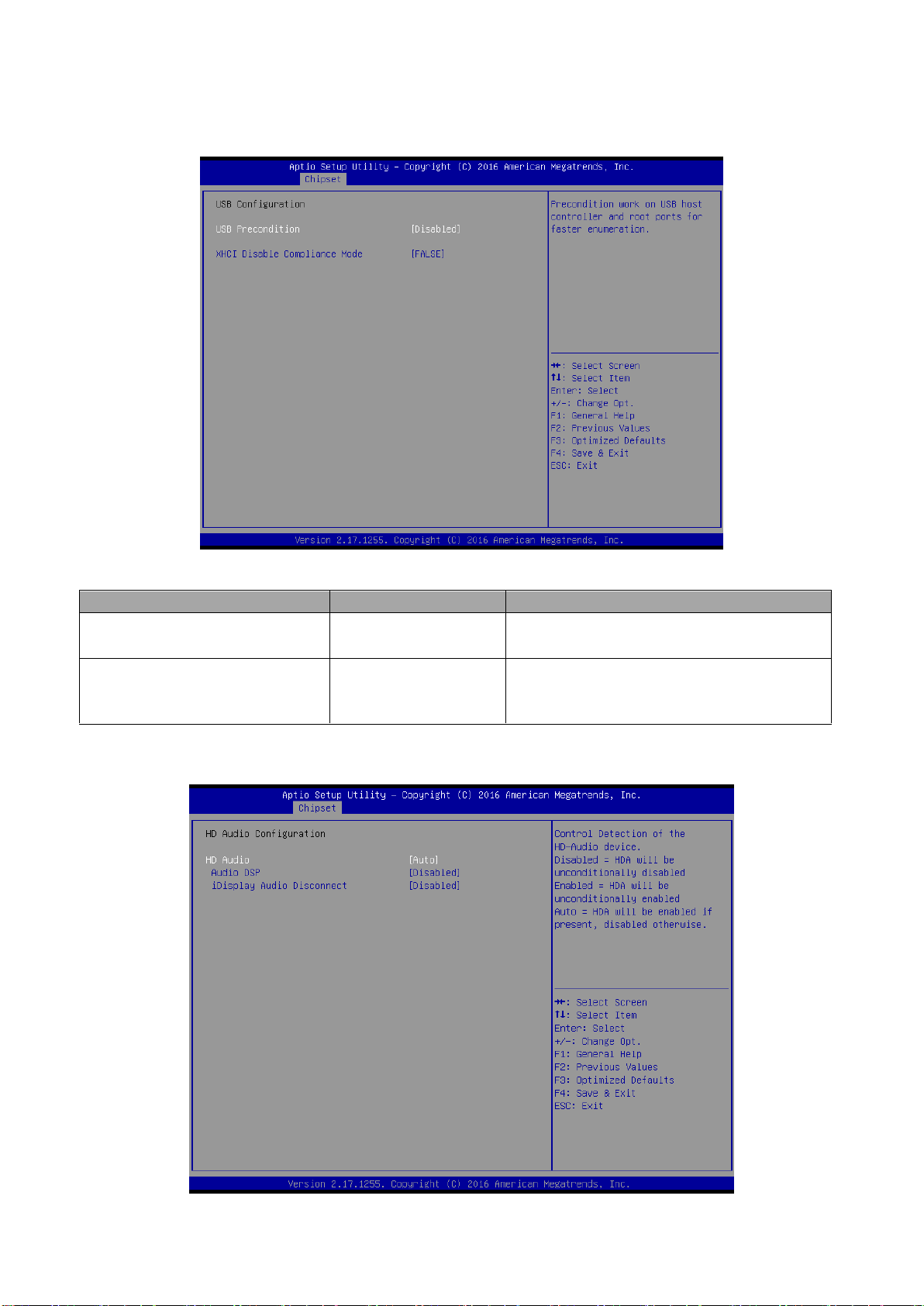

USB Precondition
Enabled
Disabled[Default],
Precondition work on USB host controller
and root ports for faster enumeration.
XHCI Disable Compliance Mode
FALSE[Default],
TRUE
Option to disable Compliance Mode. Default
is FALSE to not disable Compliance Mode.
Set TRUE to disable Compliance Mode.
3.6.3.2.2 USB Configuration
3.6.3.2.3 HD Audio Configuration
60 ECM-SKLH User’s Manual
Page 61
61
Item
Option
Description
HD Audio
Disabled
Enabled
Auto[Default],
Control Detection of the HD-Audio device.
Disable = HDA will be unconditionally
disabled Enabled = HDA will be
unconditionally enabled Auto = HDA will be
enabled if present, disabled otherwise.
Audio DSP
Disabled[Default]
Enabled
Enable/Disable Audio DSP.
iDisplay Audio Disconnect
Disabled[Default]
Enabled
Disconnects SDI2 signal to hide/disable
iDisplay Audio Code.
3.6.4 Security
User’s Manual

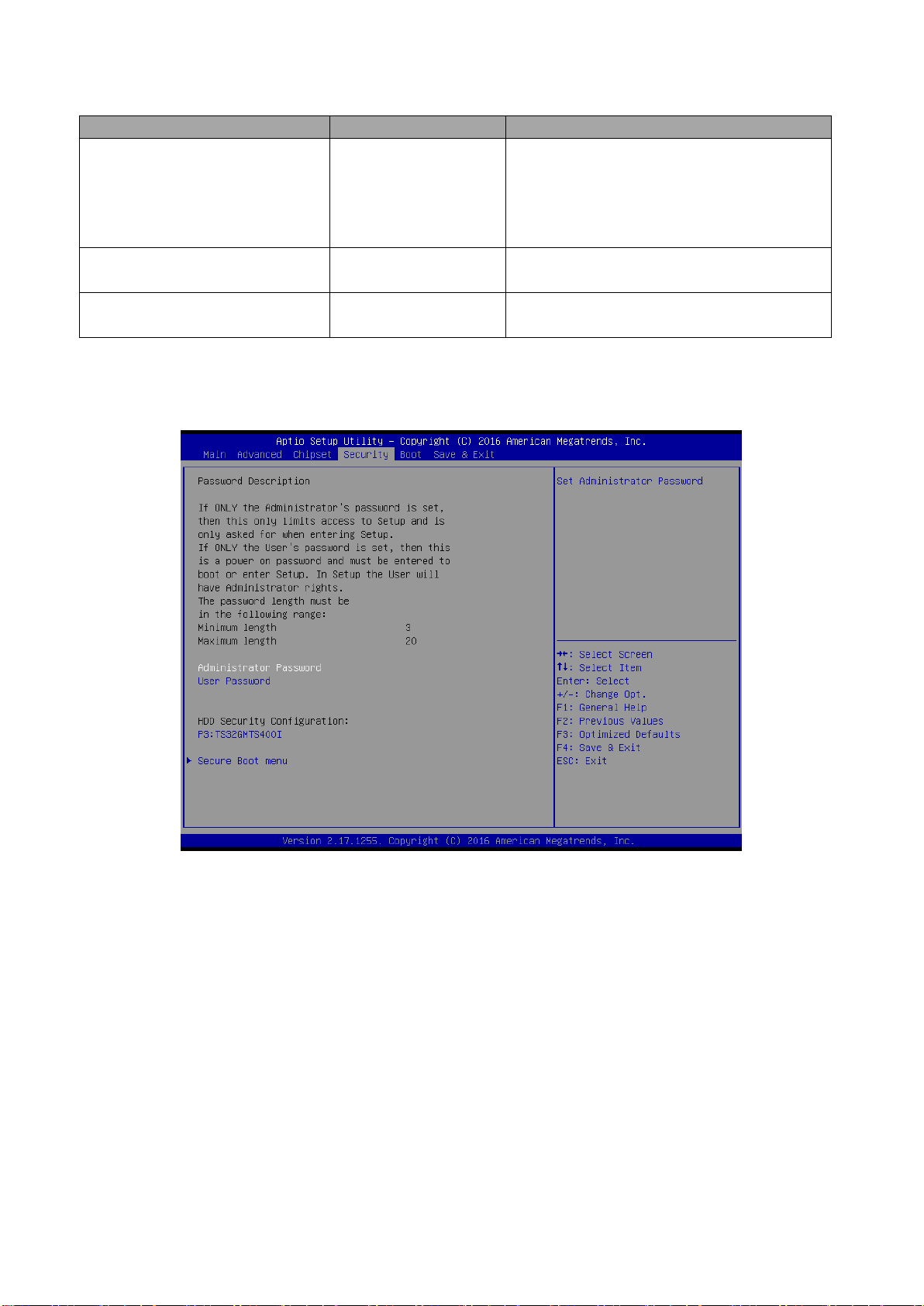

Administrator Password
Set setup Administrator Password
User Password
Set User Password
ECM-SKLH User’s Manual
Page 62
ECM-SKLH User’s Manual
Item
Option
Description

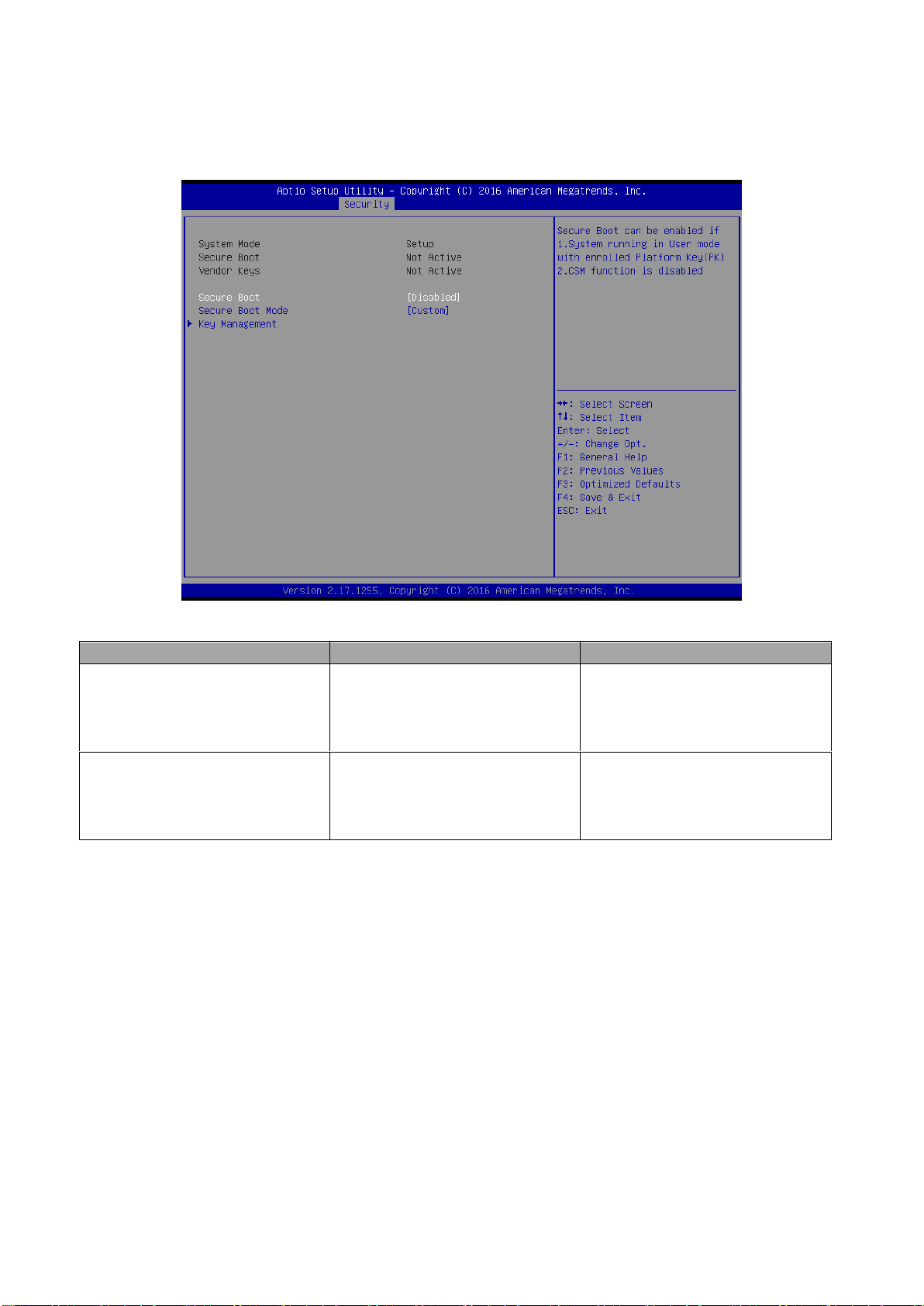

Secure Boot
Disabled[Default]
Enabled
Secure Boot can be enabled if
1.System running in User mode
with enrolled Platform Key(PK)
2.CSM function is disabled.
Secure Boot Mode
Standard
Custom[Default]
Secure Boot mode selector.
‘Custom’ Mode enables users to
change Image Execution policy
and manage Secure Boot Keys.
3.6.4.1 Secure Boot menu
62 ECM-SKLH User’s Manual
Page 63
63
Item
Option
Description

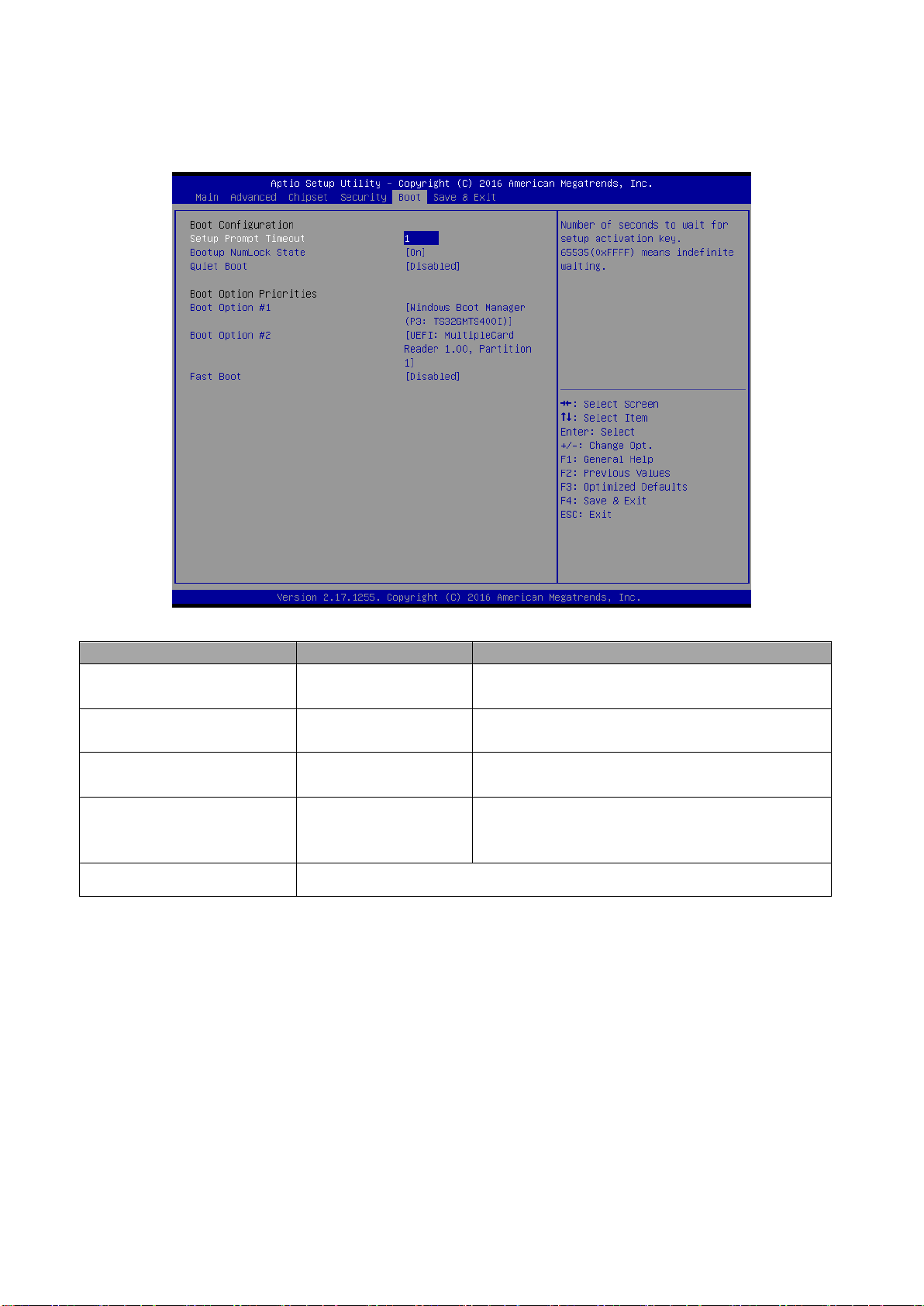

Setup Prompt Timeout
1~ 65535
Number of seconds to wait for setup activation
key. 65535(0xFFFF) means indefinite waiting.
Bootup NumLock State
On[Default]
Off
Select the Keyboard NumLock state
Quiet Boot
Disabled[Default]
Enabled
Enables or disables Quiet Boot option
Fast Boot
Disabled[Default]
Enabled
Enables or disables boot with initialization of a
minimal set of devices required to launch active
boot option. Has no effect for BBS boot options.
Boot Option #1/2
Set the system boot order.
3.6.5 Boot
User’s Manual
ECM-SKLH User’s Manual
Page 64
ECM-SKLH User’s Manual
3.6.6 Save and exit
3.6.6.1 Save Changes and Reset
Reset the system after saving the changes.
3.6.6.2 Discard Changes and Reset
Any changes made to BIOS settings during this session of the BIOS setup program are
discarded. The setup program then exits and reboots the controller.
3.6.6.3 Restore Defaults
This option restores all BIOS settings to the factory default. This option is useful if the
controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting.
3.6.6.4 Launch EFI Shell from filesystem device
Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem
devices.
64 ECM-SKLH User’s Manual
Page 65
User’s Manual
65
4. Drivers Installation
Note: Installation procedures and screen shots in this section are
for your reference and may not be exactly the same as
shown on your screen.
ECM-SKLH User’s Manual
Page 66
ECM-SKLH User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Chipset\Intel\ECM-SKLH.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system. If the warning message
appears while the installation
process, click Continue to go on.
Step 3. Click Install.
Step1. Click Next.
Step 4. Setup completed.
Step 2. Click Accept.
4.1 Install Chipset Driver
66 ECM-SKLH User’s Manual
Page 67
67
4.2 Install ME Driver
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Utility\ECM-SKLH_ME.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system. If the warning message
appears while the installation
process, click Continue to go on.
Step 3. Click Next to continue installation.
Step1. Click Next to start installation.
Step 4. Click Finish to complete setup.
Step 2. Click Next.
User’s Manual
ECM-SKLH User’s Manual
Page 68
ECM-SKLH User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \VGA\ECM-SKLH.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system.
Step 3. Click Next.
Step 1. Click Next to continue installation.
Step 4. Click Next.
Step 2.
Click Yes to accept license agreement.
Step 5. Click Finish to complete setup.
4.3 Install VGA Driver
68 ECM-SKLH User’s Manual
Page 69
69
Insert the Supporting CD-ROM to CD-ROM drive,
and it should show the index page of Avalue’s
products automatically. If not, locate Index.htm and
choose the product from the menu left, or link to
\Driver_Audio\Realtek\ALC233\ECM-SKLH_Audio.
Note: The installation procedures and screen shots in
this section are based on Windows 10 operation
system.
Step 1. Click Next to continue setup.
Step 2. Click Finish to complete the setup.
4.4 Install Audio Driver (For Realtek ALC233)
User’s Manual
ECM-SKLH User’s Manual
Page 70
ECM-SKLH User’s Manual
Insert the Supporting DVD-ROM to DVD-ROM
drive, and it should show the index page of
Avalue’s products automatically. If not, locate
Index.htm and choose the product from the
menu left, or link to
\Driver_Gigabit\Intel\I210AT_I219LM\ECM-SKLH_LAN.
Note: The installation procedures and screen
shots in this section are based on
Windows 10 operation system.
Step 3. Click Next.
Step 1. Click Next.
Step 4. Click Next.
Step 2. Click Next to proceed.
Step 5. Click Yes.
4.5 Install Ethernet Driver
70 ECM-SKLH User’s Manual
Page 71
User’s Manual
71
Step 6. Click Install.
Step 7. Click Finish to complete the setup.
ECM-SKLH User’s Manual
Page 72
ECM-SKLH User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Utility\ECM-SKLH_RST.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system.
Step 3. Click Next.
Step 1. Click Next to continue installation.
Step 4. Click Next.
Step 2. Click Next.
Step 5. Click Next.
4.6 Install RST Driver
72 ECM-SKLH User’s Manual
Page 73
User’s Manual
73
Step 6. Click Next.
Step 7. Click Finish to complete the setup.
ECM-SKLH User’s Manual
Page 74
ECM-SKLH User’s Manual
5. Mechanical Drawing
74 ECM-SKLH User’s Manual
Page 75
User’s Manual
75
Unit: mm
ECM-SKLH User’s Manual
