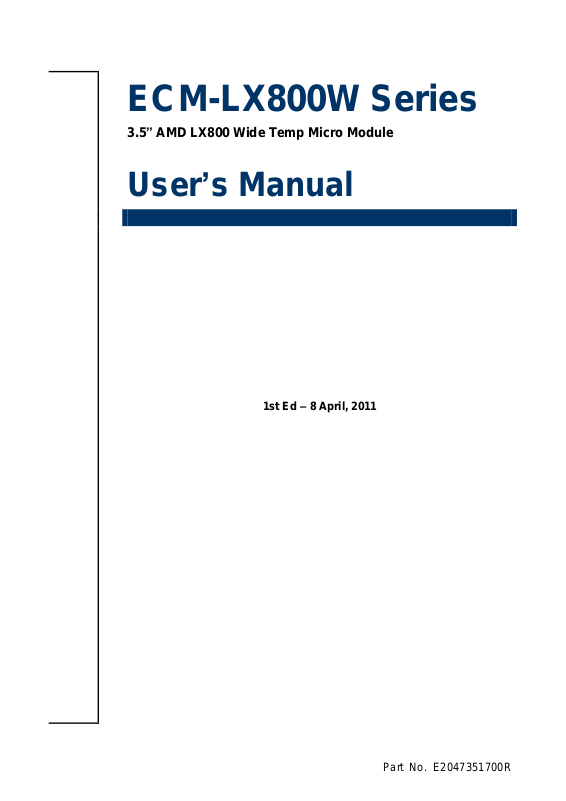

Avalue ECM-LX800W User Manual

ECM-LX800W Series

3.5” AMD LX800 Wide Temp Micro Module

User’s Manual

1st Ed – 8 April, 2011

Part No. E2047351700R

ECM-LX800W Series

FCC Statement

Notice

Copyright Notice

Trademark Acknowledgement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.

Copyright  2011 Avalue Technology Inc., ALL RIGHTS RESERVED.

No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.

Brand and product names are trademarks or registered trademarks of their respective
owners.

2 ECM-LX800W Series User‘s Manual

User’s Manual

Disclaimer

Life Support Policy

A Message to the Customer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.

Avalue Technology‘s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to

perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.

Avalue Customer Services

Each and every Avalue product is built to the most exacting specifications to ensure reliable
performance in the harsh and demanding conditions typical of industrial environments.
Whether your new Avalue device is destined for the laboratory or the factory floor, you can
be assured that your product will provide the reliability and ease of operation for which the
name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.

ECM-LX800W Series User‘s Manual 3

ECM-LX800W Series

Technical Support

We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user‘s manual
first.

To receive the latest version of the user‘s manual; please visit our Web site at:

http://www.Avalue.com.tw/

If you still cannot find the answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our dealers are well trained
and ready to give you the support you need to get the most from your Avalue products. In
fact, most problems reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from Avalue engineers every business day.
We are always ready to give advice on application requirements or specific information on
the installation and operation of any of our products. Please do not hesitate to call or e-mail
us.

4 ECM-LX800W Series User‘s Manual

User’s Manual

Headquarters and Branch

Avalue USA

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City,
Taipei, Taiwan
Tel:[phone]
Fax: [phone]
Information:[e-mail]
Service: [e-mail]

Avalue Technology Inc.

9 Timber Lane Marlboro, NJ 07746
Tel: [phone]
Fax: [phone]

Information: [e-mail]
Service: [e-mail]

BCM Advanced Research

Avalue Europe

BCM Advanced Research
an Avalue Company

7 Marconi, Irvine, CA92618
Tel: [phone]
Fax: [phone]
Information: [e-mail]
Web: www.bcmcom.com

Avalue Europe A/S

Moelledalen 22C, 3140
Aalsgaarde, Denmark
Tel: [phone]
Fax:[phone]
Information: [e-mail]
Service: [e-mail]

Avalue China

Avalue Japan

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,
Caohejing Development Area,
Xuhui District, Shanghai
Tel: [phone]
Fax:[phone]
Information: [e-mail]
Service: [e-mail]

Avalue Technology Inc.

2F keduka-Bldg, 2-27-3 Taito,
Taito-Ku, Tokyo 110-0016 Japan
Tel: [phone]
Fax: [phone]
Information: [e-mail]

Service: [e-mail]

ECM-LX800W Series User‘s Manual 5

ECM-LX800W Series

Product Warranty

Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Avalue, or which have been subject to
misuse, abuse, accident or improper installation. Avalue assumes no liability under the
terms of this warranty as a consequence of such events. Because of Avalue high
quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Avalue products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU type and

speed, Avalue products model name, hardware & BIOS revision number, other
hardware and software used, etc.) Note anything abnormal and list any on-screen
messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any

helpful information available.

3. If your product is diagnosed as defective, obtain an RMA (return material authorization)

number from your dealer. This allows us to process your good return more quickly.

4. Carefully pack the defective product, a complete Repair and Replacement Order Card

and a photocopy proof of purchase date (such as your sales receipt) in a shippable
container. A product returned without proof of the purchase date is not eligible for
warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your

dealer.

6 ECM-LX800W Series User‘s Manual

User’s Manual

Contents

1. Getting Started .......................................................................................................... 11

1.1 Safety Precautions .............................................................................................. 11

1.2 Packing List ......................................................................................................... 11

1.3 Document Amendment History ............................................................................ 12

1.4 Manual Objectives ............................................................................................... 13

1.5 System Specifications ......................................................................................... 14

1.6 Architecture Overview—Block Diagram ............................................................... 16

2. Hardware Configuration ........................................................................................... 17

2.1 Product Overview ................................................................ ................................ 18

2.2 Installation Procedure .......................................................................................... 19

2.2.1 Main Memory ............................................................................................................................. 20

2.3 Jumper and Connector List.................................................................................. 22

2.4 Setting Jumpers & Connectors ............................................................................ 24

2.4.1 Clear CMOS (JBAT) .................................................................................................................. 24

2.4.2 COM1－Ring, +5V, +12V power select(JRI1) ........................................................................... 24

2.4.3 Front Panel Power selector (JFP) .............................................................................................. 25

2.4.4 AT/ATX Power selector (PWR2) ................................................................................................ 25

2.3.4.1 Signal Description –AT/ ATX mode & Input power type ........................................................ 26

2.4.5 SATA Power connector (SATA_PWR1/ SATA_PWR2) ............................................................ 27

2.4.6 LPC connector (LPC1) ............................................................................................................... 27

2.4.7 Audio Connector (JAUDIO) ........................................................................................................ 28

2.4.8 CD-ROM audio input connector (JCDIN) ................................................................................... 28

2.4.9 LCD inverter connector (JBKL) .................................................................................................. 29

2.4.9.1 Signal Description – LCD Inverter Connector (JBKL) ........................................................... 29

2.4.10 Serial port 2 connector in RS-232 Mode (JCOM2) ................................................................ 30

2.4.11 Serial port 2 in RS-422/485 mode (JRS422/485) .................................................................. 30

2.4.12 Serial port 3, 4 connector (JCOM3, JCOM4) ........................................................................ 31

2.4.13 General purpose I/O connector (JDIO).................................................................................. 31

2.4.14 IrDA Connector (JIR) ............................................................................................................. 32

2.4.15 LVDS Connector (JLVDS) ..................................................................................................... 33

2.4.15.1 Signal Description – LVDS Connector (JLVDS) .................................................................... 33

2.4.16 TFT Panel Connector (JTFT) ................................................................................................ 34

2.4.16.1 Signal Description – TFT Panel Connector (JTFT) ............................................................... 35

2.4.16.2 Signal Description – TFT Panel Display (JTFT) .................................................................... 35

2.4.17 USB Connector 0 & 1 (JUSB1) .............................................................................................. 36

2.4.18 USB Connector 2 & 3 (JUSB2) .............................................................................................. 36

2.4.19 LCD Backlight Brightness Adjustment Connector (JVR) ....................................................... 37

ECM-LX800W Series User‘s Manual 7

ECM-LX800W Series

2.5 Audio / USB Daughter Board User‘s Guide ......................................................... 38

2.5.1 Jumper and Connector Layout................................................................................................... 38

2.5.2 Jumper and Connector List ........................................................................................................ 38

2.5.3 Setting Jumper and Connector .................................................................................................. 39

3. BIOS Setup ................................................................................................................ 40

3.1 Starting Setup ...................................................................................................... 41

3.2 Using Setup ......................................................................................................... 42

3.3 Getting Help......................................................................................................... 43

3.4 In Case of Problems ............................................................................................ 43

3.5 Main Menu ........................................................................................................... 44

3.5.1 Standard CMOS Features ......................................................................................................... 45

3.5.1.1 Main Menu Selection ............................................................................................................. 45

3.5.1.2 IDE Adapter Setup ................................................................................................................. 46

3.5.2 Advanced BIOS Features .......................................................................................................... 47

3.5.2.1 Hard Disk Boot Priority .......................................................................................................... 48

3.5.2.2 USB Boot Priority ................................................................................................................... 49

3.5.2.3 Virus Warning ........................................................................................................................ 49

3.5.2.4 CPU Internal Cache ............................................................................................................... 49

3.5.2.5 Quick Power On Self Test ..................................................................................................... 50

3.5.2.6 First/Second/Third/Other Boot Device ................................................................................... 50

3.5.2.7 Swap Floppy Drive................................................................................................................. 50

3.5.2.8 Boot up Floppy Seek ............................................................................................................. 50

3.5.2.9 Boot Up NumLock Status ...................................................................................................... 50

3.5.2.10 Gate A20 Option .................................................................................................................... 50

3.5.2.11 Typematic Rate Setting ......................................................................................................... 50

3.5.2.12 Typematic Rate (Chars/Sec) ................................................................................................. 51

3.5.2.13 Typematic Delay (Msec) ........................................................................................................ 51

3.5.2.14 Security Option ...................................................................................................................... 51

3.5.2.15 OS Select for DRAM > 64MB ................................................................................................ 51

3.5.2.16 Full Screen LOGO Show ....................................................................................................... 51

3.5.2.17 Small Logo (EPA) Show ........................................................................................................ 51

3.5.2.18 Onboard Lan Boot ROM ........................................................................................................ 51

3.5.3 Advanced Chipset Features....................................................................................................... 52

3.5.3.1 Flat Panel Configuration ........................................................................................................ 54

3.5.4 Integrated Peripherals ................................................................................................................ 55

3.5.5 IT8888 ISA Decode IO ............................................................................................................... 57

3.5.6 IT8888 ISA Decode Memory...................................................................................................... 58

3.5.7 Power Management Setup ........................................................................................................ 60

3.5.7.1 ACPI Suspend Type .............................................................................................................. 60

3.5.7.2 Power Management .............................................................................................................. 60

8 ECM-LX800W Series User‘s Manual

User’s Manual

3.5.7.3 MODEM Use IRQ .................................................................................................................. 60

3.5.7.4 PME Event Function .............................................................................................................. 60

3.5.7.5 Soft-Off by PWR-BTTN ......................................................................................................... 61

3.5.7.6 PWRON after PWR-Fail ........................................................................................................ 61

3.5.7.7 Advanced Power Control ....................................................................................................... 61

3.5.7.8 Power On By Alarm ............................................................................................................... 61

3.5.7.9 IRQ Wakeup Events .............................................................................................................. 62

3.5.8 PnP / PCI Configuration ............................................................................................................. 63

3.5.8.1 PNP OS Installed ................................................................................................................... 63

3.5.8.2 Init Display First ..................................................................................................................... 63

3.5.8.3 Resources Controlled By ....................................................................................................... 63

3.5.8.4 PCI/VGA Palette Snoop ........................................................................................................ 64

3.5.9 PC Health Status ....................................................................................................................... 64

3.5.10 Load Fail-Safe Defaults ......................................................................................................... 65

3.5.11 Load Optimized Defaults ....................................................................................................... 66

3.5.12 Set Supervisor / User Password ............................................................................................ 67

3.5.13 Save & Exit Setup .................................................................................................................. 69

3.5.14 Exit Without Save .................................................................................................................. 70

4 Drivers Installation ................................................................................................... 71

4.1 Install Audio Driver (For AMD GX3) ..................................................................... 72

4.2 Install Chipset Driver (For AMD GX3) .................................................................. 74

4.3 Install PCI to ISA Bridge Driver (For ITE IT8888G) ............................................. 76

4.4 Install Display Driver (For AMD GX3) .................................................................. 78

4.5 Install Ethernet Driver (For Realtek RTL810x, RTL813x Family) ......................... 80

Appendix A: Chipset Introduction .................................................................................. 84

— AMD LX800 & CS5536 .................................................................................................................. 85

— Realtek ALC203 Audio Codec ....................................................................................................... 87

— Ethernet ......................................................................................................................................... 87

Realtek RTL8101L Ethernet Controller ................................................................................................... 87

— ITE IT8888 PCI to ISA Bridge........................................................................................................ 88

— Compact Flash Interface ............................................................................................................... 88

Appendix B: AWARD BIOS POST Messages ................................................................. 90

Overview ........................................................................................................................ 91

Post Beep ....................................................................................................................... 91

Error Messages .............................................................................................................. 91

1. CMOS BATTERY HAS FAILED .................................................................................................... 91

2. CMOS CHECKSUM ERROR ........................................................................................................ 91

3. DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER ....................................... 91

4. DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP ......................................... 91

5. DISPLAY SWITCH IS SET INCORRECTLY ................................................................................. 92

ECM-LX800W Series User‘s Manual 9

ECM-LX800W Series

6. DISPLAY TYPE HAS CHANGED SINCE LAST BOOT ................................................................ 92

7. EISA Configuration Checksum Error PLEASE RUN EISA CONFIGURATION UTILITY .............. 92

8. EISA Configuration Is Not Complete PLEASE RUN EISA CONFIGURATION UTILITY .............. 92

9. ERROR ENCOUNTERED INITIALIZING HARD DRIVE .............................................................. 92

10. ERROR INITIALIZING HARD DISK CONTROLLER .................................................................... 92

11. FLOPPY DISK CNTRLR ERROR OR NO CNTRLR PRESENT ................................................... 92

12. Invalid EISA Configuration PLEASE RUN EISA CONFIGURATION UTILITY ............................. 93

13. KEYBOARD ERROR OR NO KEYBOARD PRESENT ................................................................ 93

14. Memory Address Error at ... .......................................................................................................... 93

15. Memory parity Error at ... ............................................................................................................... 93

16. MEMORY SIZE HAS CHANGED SINCE LAST BOOT ................................................................ 93

17. Memory Verify Error at ... .............................................................................................................. 93

18. OFFENDING ADDRESS NOT FOUND ........................................................................................ 93

19. OFFENDING SEGMENT: .............................................................................................................. 93

20. PRESS A KEY TO REBOOT ......................................................................................................... 94

21. PRESS F1 TO DISABLE NMI, F2 TO REBOOT ........................................................................... 94

22. RAM PARITY ERROR - CHECKING FOR SEGMENT ... ............................................................. 94

23. Should Be Empty But EISA Board Found PLEASE RUN EISA CONFIGURATION UTILITY ...... 94

24. Should Have EISA Board But Not Found PLEASE RUN EISA CONFIGURATION UTILITY ....... 94

25. Slot Not Empty ............................................................................................................................... 94

26. SYSTEM HALTED, (CTRL-ALT-DEL) TO REBOOT ... ................................................................ 94

27. Wrong Board In Slot PLEASE RUN EISA CONFIGURATION UTILITY ....................................... 95

28. FLOPPY DISK(S) fail (80)  Unable to reset floppy subsystem. ................................................. 95

29. FLOPPY DISK(S) fail (40)  Floppy Type dismatch. ................................................................... 95

30. Hard Disk(s) fail (80)  HDD reset failed. .................................................................................. 95

31. Hard Disk(s) fail (40)  HDD controller diagnostics failed. ........................................................ 95

32. Hard Disk(s) fail (20)  HDD initialization error. ........................................................................ 95

33. Hard Disk(s) fail (10)  Unable to recalibrate fixed disk. ........................................................... 95

34. Hard Disk(s) fail (08)  Sector Verify failed. .............................................................................. 95

35. Keyboard is locked out - Unlock the key. ...................................................................................... 95

36. Keyboard error or no keyboard present. ....................................................................................... 95

37. Manufacturing POST loop. ............................................................................................................ 95

38. BIOS ROM checksum error - System halted. ................................................................................ 95

39. Memory test fail. ............................................................................................................................ 95

40. POST Codes.................................................................................................................................. 96

40.1 Normal POST Code ............................................................................................................... 96

40.2 Quick POST Codes ............................................................................................................. 102

40.3 S4 POST Codes .................................................................................................................. 104

40.4 BootBlock POST Codes ...................................................................................................... 105

10 ECM-LX800W Series User‘s Manual

User’s Manual

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.

Caution!

Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.

1.2 Packing List

Before you begin installing your single board, please make sure that the
following materials have been shipped:

 1 x 3.5‖ AMD LX800 Wide Temp LX800W Micro Module
 1 x Quick Installation Guide for ECM-LX800W
 1 x DVD-ROM contains the followings:

— User‘s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities

 1 x Cable set contains the followings:

— 1 x Daughter board support Audio/2 x USB (P/N:9697000105R)
— 1 x IDE HDD cable (44-pin, pitch 2.0mm)
— 1 x Audio cable (10pin, 2.0mm pitch)
— 1 x USB cable (10P/2.54mm-10P/2.0mm)
— 1 x Bracket with serial and printer cable (2.0mm pitch)
— 1 x Serial ATA cables (7-pin, standard)
— 1 x PS/2 Keyboard & mouse Y cable (6-pin, Mini-DIN)

ECM-LX800W Series User‘s Manual 11

ECM-LX800W Series

Revision

Date

By

Comment

1st

April 2011

Makalou

Initial Release

1.3 Document Amendment History

12 ECM-LX800W Series User‘s Manual

User’s Manual

1.4 Manual Objectives

This manual describes in details Avalue Technology ECM-LX800W Single Board.

We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.

We strongly recommend that you study this manual carefully before attempting to set up
ECM-LX800W series or change the standard configurations. Whilst all the necessary
information is available in this manual we would recommend that unless you are confident,
you contact your supplier for guidance.

Please be aware that it is possible to create configurations within the CMOS RAM that
make booting impossible. If this should happen, clear the CMOS settings, (see the
description of the Jumper Settings for details).

If you have any suggestions or find any errors regarding this manual and want to inform us
of these, please contact our Customer Service department with the relevant details.

ECM-LX800W Series User‘s Manual 13

ECM-LX800W Series

System

CPU

Onboard AMD Geode LX800@0.9W 500 MHz

BIOS

Award 4Mbit Flash BIOS

System Chipset

AMD Geode CS5536

I/O Chip

Winbond W83627DHG-PT

PCI to ISA Bridge Chip

ITE IT8888G

System Memory

One 200-pin SODIMM socket supports up to 1GB DDR 333/400 SDRAM

SSD

1 x CF Type I/II

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

H/W Status
Monitor

Monitoring system temperature, voltage, and cooling fan status. Auto
trotting control when CPU overheats

Expansion

1 x PC/104

I/O

MIO

1 x EIDE (Ultra DMA 100, 44pin pitch 2.0mm)
4 x Serial (COM1 with DB-9 & COM2-4 with 5 x 2, pitch 2.0 pin header.
COM2 can be set as RS-232/422/485)
1 x K/B & Mouse
1 x LPT (Supports SPP, ECP, and EPP modes, 26pin, 2.0mm)
2 x Serial ATA ports (7-pin with +5V power for SATADOM),
2 x SATA power connector (+5V)

USB

2 x USB 2.0 ports (5 x 2, pitch 2.0mm pin header)

IrDA

115k bps 1.0 compliant

DIO

8-bit GPIO

Internal I/O Connector

Front Panel LED Connector (for system use)

Display

Chipset

AMD Geode™ LX 800 Integrated

Display Memory

8~254 MB frame buffer using system memory

Resolution

CRT mode: 1920 x 1440 @ 32 bpp (85 Hz)

TFT: 1600 x 1200 @ 16 bpp (60 Hz)

Multiple Display

CRT + LVDS

VGA/LCD Interface

PCI Bus VGA/LCD interface, Support 18/24-bit TFT panel

LVDS Interface

Chipset: NS DS90C363A (18-bit); (NS DS90C385A(24-bit)) [Co-lay]

Support 18-bit LVDS Panel (24-bit is optional)

1.5 System Specifications

14 ECM-LX800W Series User‘s Manual

User’s Manual

Audio

AC97 Codec

Realtek ALC203 2 Channel AC97 2.3 Audio Codec

Audio Interface

Mic in, Line in, Audio in, Line out

Ethernet

LAN Chip

Dual Realtek RTL 8101L

Ethernet Interface

100 Base-Tx Fast Ethernet compatible

Mechanical & Environmental

Power Requirement

+5V, +12V (for inverter)

Power Type

AT/ATX

Operating Temp.

-40~85°C

Operating Humidity

0%~90% relative humidity, non-condensing

Size (L x W)

5.7" x 4" (146 mm x 101 mm)

Weight

0.44 lbs (0.2 Kg)

ECM-LX800W Series User‘s Manual 15

ECM-LX800W Series

1.6 Architecture Overview—Block Diagram

The following block diagram shows the architecture and main components of ECM-LX800W.

16 ECM-LX800W Series User‘s Manual

User’s Manual

2. Hardware
Configuration

ECM-LX800W Series User‘s Manual 17

ECM-LX800W Series

2.1 Product Overview

18 ECM-LX800W Series User‘s Manual

User’s Manual

2.2 Installation Procedure

This chapter explains you the instructions of how to setup your system.

1. Turn off the power supply.

2. Insert the DIMM module (be careful with the orientation).

3. Insert all external cables for hard disk, floppy, keyboard, mouse, USB etc. except for flat
panel. A CRT monitor must be connected in order to change CMOS settings to support
flat panel.

4. Connect power supply to the board via the ATXPWR.

5. Turn on the power.

6. Enter the BIOS setup by pressing the delete key during boot up. Use the ―LOAD BIOS
DEFAULTS‖ feature. The Integrated Peripheral Setup and the Standard CMOS Setup
Window must be entered and configured correctly to match the particular system
configuration.

7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before
connecting the display cable and turning on the power.

ECM-LX800W Series User‘s Manual 19

ECM-LX800W Series

SODIMM

2.2.1 Main Memory

ECM-LX800 provides one 200-pin SODIMM socket that supports up to 1GB DDR 333/400
SDRAM

20 ECM-LX800W Series User‘s Manual

(Rear side)

Make sure to unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so may cause severe damage to
both the board and the components.

User’s Manual

Mounting Notch

Notch Key

Ejector

200-pin DDR DIMM

 Locate the DIMM socket on the board.
 Hold two edges of the DIMM module carefully. Keep away of touching its connectors.
 Align the notch key on the module with the rib on the slot.
 Firmly press the modules into the socket automatically snaps into the mounting notch.

Do not force the DIMM module in with extra force as the DIMM module only fit in one
direction.

 To remove the DIMM modules, push the two ejector tabs on the slot outward

simultaneously, and then pull out the DIMM module.

Note:

(1) Please do not change any DDR SDRAM parameter in BIOS setup to increase

your system‘s performance without acquiring technical information in advance.

(2) Static electricity can damage the electronic components of the computer or

optional boards. Before starting these procedures, ensure that you are
discharged of static electricity by touching a grounded metal object briefly.

ECM-LX800W Series User‘s Manual 21

ECM-LX800W Series

Jumpers

Label

Function

Note

JBAT

Clear CMOS

3 x 1 header, pitch 2.54mm

JRI1

COM1－Ring, +5V, +12V power select

3 x 2 header, pitch 2.0mm

JFP

Front Panel Power selector

5 x 2 header, pitch 2.0mm

PWR2

Power AT/ATX selector

3 x 2 header, pitch 2.54mm

2.3 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To ―close‖ a jumper you connect the pins with the clip.

To ―open‖ a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board's jumpers and connectors.

22 ECM-LX800W Series User‘s Manual

User’s Manual

Connectors

Label

Function

Note

COM1

Serial port 1 connector

D-sub 9-pin, male

CF Card

CompactFlash card connector

Type I/II x 1

IDE

Primary IDE connector

22 x 2 header, pitch 2.0mm

JAUDIO

Audio connector

5 x 2 header, pitch 2.0mm

JBKL

LCD inverter connector

5 x 1 wafer, pitch 2.0mm

JCDIN

CD-ROM audio input connector

4 x 1 wafer, pitch 2.0mm

JCOM2
JCOM3
JCOM4

Serial port 2 connector
Serial port 3 connector
Serial port 4 connector

5 x 2 header, pitch 2.0mm

JDIO

General purpose I/O connector

10 x 2 header, pitch 2.0mm

JIR

IrDA connector

5 x 1 header, pitch 2.54mm

JLVDS

20pin LVDS connector

JSATA1

Serial ATA connector 1

Wafer 7P pitch 1.27mm

JSATA2

Serial ATA connector 2

Wafer 7P pitch 1.27mm

JTFT

40pin TFT panel connector

JRS-422/485

Serial port 2 in RS-422/485 mode

5 x 2 header, pitch 2.0mm

JUSB1

USB connector 0 & 1

5 x 2 header, pitch 2.0mm

JUSB2

USB connector 2 & 3

5 x 2 header, pitch 2.0mm

JVR

LCD backlight brightness adjustment connector

3 x 1 header, pitch 2.54mm

KB/MS

PS/2 keyboard & mouse connector

6-pin Mini-DIN

LAN1

RJ-45 Ethernet 1

LAN2

RJ-45 Ethernet 2

LED1

Power & HDD indicator

LPC1

LPC connector

7 x 2 header, pitch 2.0mm

LPT

Parallel port connector

13 x 2 header, pitch 2.0mm

P1, P2

PC-104 connector

PWR1

Power connector

Wafer box 4P 5.08mm

PWRAUX

Auxiliary power connector

2 x 2 header, pitch 2.54mm

RSTBTN

Reset button

Button

SATA_PWR1

SATA power connector

2 x 1 wafer, pitch 2.0mm

SATA_PWR2

SATA power connector

2 x 1 wafer, pitch 2.0mm

SODIMM

200-pin DDR SODIMM socket

VGA

VGA connector

D-sub 15-pin, female

ECM-LX800W Series User‘s Manual 23

ECM-LX800W Series

* Default

Protect*

Clear CMOS

* Default

Ring*

+5V

+12V

2.4 Setting Jumpers & Connectors

2.4.1 Clear CMOS (JBAT)

2.4.2 COM1－Ring, +5V, +12V power select(JRI1)

24 ECM-LX800W Series User‘s Manual

2.4.3 Front Panel Power selector (JFP)

* Default

Signal

PIN

PWBT

+ 1 -

2

PWR MSEL

3

4

PWR-LED

+ 5 -

6

HDD-LED

- 7 +

8

CASE OPEN#

+ 9 -

10

* Default

AT*

Signal

PIN

PSON#

1

+5V

2

+5VSB

3

ATX

Note: For ATX

Connect pin 1 & 3 to power supply

User’s Manual

2.4.4 AT/ATX Power selector (PWR2)

ECM-LX800W Series User‘s Manual 25

ECM-LX800W Series

Input power type

Power-ON Mode

Description

AT Type

1) Connect to power

supply

2) JUMP

AT Mode

(PWR MSEL)

Use AT type power input, and

set the board in AT mode.

ATX Mode

(PWR MSEL)

Use AT type power input, and

set the board in ATX mode.

ATX Type

1) Connect to power

supply

2) Connect pin 1 & 3 to
power supply

AT Mode

(PWR MSEL)

Use ATX type power input,

and set the board in AT mode.

ATX Mode

(PWR MSEL)

Use ATX type power input,

and set the board in ATX

mode.

2.3.4.1 Signal Description –AT/ ATX mode & Input power type

26 ECM-LX800W Series User‘s Manual

* Default

Signal

PIN

+5V

1

GND

2

* Default

Signal

PIN

PIN

Signal

LAD0

1 2 +3.3V

LAD1

3 4 PCI_RST#

LAD2

5 6 LFRAME#

LAD3

7 8 ENE_PCICLK

SERIRQ

9

10

GND

+5V

11

12

GND

VCCSB

13

14

GND

SATA_PWR1

SATA_PWR2

2.4.5 SATA Power connector (SATA_PWR1/ SATA_PWR2)

User’s Manual

2.4.6 LPC connector (LPC1)

ECM-LX800W Series User‘s Manual 27

ECM-LX800W Series

Signal

PIN

PIN

Signal

NC

10 9 NC

MIC-REF

8 7 MIC-IN

LIN_L

6 5 LIN_R

GND

4 3 GND

LINEOUT _L

2 1 LINEOUT _R

Signal

PIN

NC

1

CD_L

2

GND

3

CD_R

4

2.4.7 Audio Connector (JAUDIO)

2.4.8 CD-ROM audio input connector (JCDIN)

28 ECM-LX800W Series User‘s Manual

2.4.9 LCD inverter connector (JBKL)

Signal

PIN

+12V

1

GND

2

ENBKL

3

VR

4

+5V

5

Signal

Signal Description

VR

Vadj = 0.75V ~ 4.25V (Recommended: 4.7KΩ, >1/16W)

ENBKL

LCD backlight ON/OFF control signal

User’s Manual

Note:

For inverters with adjustable Backlight function, it is possible to control the
LCD brightness through the VR signal controlled by JVR. Please see the

JVR section for detailed circuitry information.

2.4.9.1 Signal Description – LCD Inverter Connector (JBKL)

ECM-LX800W Series User‘s Manual 29

ECM-LX800W Series

Signal

PIN

PIN

Signal

DCD

1 2 RxD

TxD

3 4 DTR

GND

5 6 DSR

RTS

7 8 CTS

RI

9

10

NC

* Default

In 422 mode

Signal

PIN

PIN

Signal

TX-

1 2 RX-

TX+

3 4 RX+

+5V

5 6 GND

In 485 mode

Signal

PIN

PIN

Signal

DATA-

1 2 NC

DATA+

3 4 NC

+5V

5 6 GND

2.4.10 Serial port 2 connector in RS-232 Mode (JCOM2)

2.4.11 Serial port 2 in RS-422/485 mode (JRS422/485)

30 ECM-LX800W Series User‘s Manual

Signal

PIN

PIN

Signal

DCD

1 2 RxD

TxD

3 4 DTR

GND

5 6 DSR

RTS

7 8 CTS

RI

9

10

NC

Signal

PIN

PIN

Signal

+5V

20

19

GND

SMB_SDA

18

17

SMB_SCL

GP17

16

15

GP27

GP16

14

13

GP26

GP15

12

11

GP25

GP14

10 9 GP24

GP13

8 7 GP23

GP12

6 5 GP22

GP11

4 3 GP21

GP10

2 1 GP20

JCOM3

JCOM4

2.4.12 Serial port 3, 4 connector (JCOM3, JCOM4)

User’s Manual

2.4.13 General purpose I/O connector (JDIO)

ECM-LX800W Series User‘s Manual 31

ECM-LX800W Series

Signal

PIN

+5V 1 NC

2

IRRX

3

GND

4

IRTX

5

2.4.14 IrDA Connector (JIR)

32 ECM-LX800W Series User‘s Manual

Signal

PIN

PIN

Signal

+3.3V

19

20

+5V

+3.3V

17

18

+5V

I2C_DAT

15

16

I2C_CLK

GND

13

14

GND

TxCLK

11

12

TxCLK#

Txout3

9

10

Txout3#

Txout2

7 8 Txout2#

Txout1

5 6 Txout1#

Txout0

3 4 Txout0#

GND

1 2 GND

Signal

Description

I2C_DAT, I2C_CLK

I2C interface for panel parameter EEPROM. This EERPOM is mounted on the
LVDS receiver. The data in the EEPROM allows the EXT module to automatically
set the proper timing parameters for a specific LCD panel.

2.4.15 LVDS Connector (JLVDS)

User’s Manual

2.4.15.1 Signal Description – LVDS Connector (JLVDS)

ECM-LX800W Series User‘s Manual 33

ECM-LX800W Series

Signal

PIN

PIN

Signal

ENBKL

39

40

NC

LDEMOD

37

38

HSYNC

SHCLK

35

36

VSYNC

GND

33

34

GND

R6

31

32

R7

R4

29

30

R5

R2

27

28

R3

R0

25

26

R1

G6

23

24

G7

G4

21

22

G5

G2

19

20

G3

G0

17

18

G1

B6

15

16

B7

B4

13

14

B5

B2

11

12

B3

B0

9

10

B1

NC

7 8 GND

+3.3V

5 6 +3.3V

GND

3 4 GND

+5V

1 2 +5V

2.4.16 TFT Panel Connector (JTFT)

34 ECM-LX800W Series User‘s Manual

Signal

Description

P [0:23]

Flat panel data output for 18/24 bit TFT flat panels. Refer to table below for
configurations for various panel types. The flat panel data and control outputs are
all on-board controlled for secure power-on/off sequencing

SHFCLK

Shift Clock. Pixel clock for flat panel data

LP

Flat panel equivalent of HSYNC (horizontal synchronization)

FLM

Flat panel equivalent of VSYNC (vertical synchronization)

M

Multipurpose signal, function depends on panel type. May be used as AC drive
control signal or as BLANK# or Display Enable signal

ENBKL

Enable backlight signal. This signal is controlled as a part of the panel power
sequencing

Signal

18-bit TFT

24-bit TFT

P0

-

B0

P1

-

B1

P2

B0

B2

P3

B1

B3

P4

B2

B4

P5

B3

B5

P6

B4

B6

P7

B5

B7

P8

-

G0

P9

-

G1

P10

G0

G2

P11

G1

G3

P12

G2

G4

P13

G3

G5

P14

G4

G6

P15

G5

G7

P16

-

R0

P17

-

R1

P18

R0

R2

P19

R1

R3

P20

R2

R4

P21

R3

R5

P22

R4

R6

P23

R5

R7

2.4.16.1 Signal Description – TFT Panel Connector (JTFT)

2.4.16.2 Signal Description – TFT Panel Display (JTFT)

User’s Manual

ECM-LX800W Series User‘s Manual 35

ECM-LX800W Series

Signal

PIN

PIN

Signal

GND

9

10

+5V

GND

7 8 D1-

D0+

5 6 D1+

D0-

3 4 GND

+5V

1 2 GND

Signal

PIN

PIN

Signal

GND

9

10

+5V

GND

7 8 D3-

D2+

5 6 D3+

D2-

3 4 GND

+5V

1 2 GND

2.4.17 USB Connector 0 & 1 (JUSB1)

2.4.18 USB Connector 2 & 3 (JUSB2)

36 ECM-LX800W Series User‘s Manual

PIN

Signal

1

GND

2

ENBKL

3

+5V

2.4.19 LCD Backlight Brightness Adjustment Connector (JVR)

User’s Manual

ECM-LX800W Series User‘s Manual 37

ECM-LX800W Series

Jumpers

Label

Function

Note

JP6

Line out / Speaker out select (The speaker

out function is only available in combined
use of main board)

1-3, 2-4 Speaker out
3-5, 4-6 Line out (Default)

Connectors

Label

Function

Note

CN1, CN2

USB 1.1/2.0 connector

CN3

TV out connector (Optional)

RCA connector

CN4

Line out connector

Phone Jack

CN5

Line in connector

Phone Jack

CN6

Mic in connector

Phone Jack

JP1

2.54mm USB 1.1/2.0 connector 1

5 x 2 header, pitch 2.54mm

JP2

2.0mm Connector for S-Video (Optional)

3 x 2 header, pitch 2.0mm

JP3

Audio connector

5 x 2 header, pitch 2.0mm

JP4

2.54mm USB 1.1/2.0 connector 2

5 x 2 header, pitch 2.54mm

JP5

2.0mm USB 1.1/2.0 connector

5 x 2 header, pitch 2.0mm

JP7

TV / Audio connector

8 x 2 header, pitch 2.54mm

2.5 Audio / USB Daughter Board User’s Guide

2.5.1 Jumper and Connector Layout

2.5.2 Jumper and Connector List

38 ECM-LX800W Series User‘s Manual

2.5.3 Setting Jumper and Connector

Line out / Speaker out Select (JP6)

2.54mm USB 1.1/2.0 Connector 1 (JP1)

Line Out*

Speaker Out

Signal

PIN

PIN

Signal

+5V

1 2 GND

D1-

3 4 GND

D1+

5 6 D2+

GND

7 8 D2-

GND

9

10

+5V

Note: Wrong USB cable

configuration with your

USB devices might

damage your USB devices.

2.0mm Connector for S-Video Signal (JP2)

Audio Connector (JP3)

Signal

PIN

PIN

Signal

GND

1 2 GND

Cout

3 4 Yout

GND

5 6 GND

Signal

PIN

PIN

Signal

Line out R

1 2 Line out L

GND

3 4 GND

Line in R

5 6 Line in L

Mic In

7 8 Mic Bais

SPK R

9

10

SPK L

2.54mm USB 1.1/2.0

Connector 2 (JP4)

2.0mm USB 1.1/2.0

Connector (JP5)

TV / Audio Connector

(JP7)

Signal

PIN

PIN

Signal

+5V

1 2 +5V

D1-

3 4 D2-

D1+

5 6 D2+

GND

7 8 GND

NC

9

10

NC

Signal

PIN

PIN

Signal

+5V

1 2 GND

D1-

3 4 GND

D1+

5 6 D2+

GND

7 8 D2-

GND

9

10

+5V

Signal

PIN

PIN

Signal

Mic In

1 2 Mic Bais

GND

3 4 GND

Line out L

5 6 Line out R

SPK L

7 8 SPK R

Line in L

9

10

Line in R

GND

11

12

Yout

TVGND

13

14

Cout

TVGND

15

16

COMP

User’s Manual

ECM-LX800W Series User‘s Manual 39

ECM-LX800W Series

3. BIOS Setup

40 ECM-LX800W Series User‘s Manual

User’s Manual

3.1 Starting Setup

The AwardBIOS™ is immediately activated when you first power on the computer. The

BIOS reads the system information contained in the CMOS and begins the process of
checking out the system and configuring it. When it finishes, the BIOS will seek an
operating system on one of the disks and then launch and turn control over to the operating
system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <Del> immediately after switching the system on, or
By pressing the <Del> key when the following message appears briefly at the bottom of the
screen during the POST (Power On Self Test).

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys. If you do not press the keys at the correct time and the system does not boot, an error
message will be displayed and you will again be asked to.

Press F1 to Continue, DEL to enter SETUP

ECM-LX800W Series User‘s Manual 41

ECM-LX800W Series

Button

Description

↑

Move to previous item

↓

Move to next item

←

Move to the item in the left hand

→

Move to the item in the right hand

Esc key

Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and
return to Main Menu

PgUp key

Increase the numeric value or make changes

PgDn key

Decrease the numeric value or make changes

+ key

Increase the numeric value or make changes

- key

Decrease the numeric value or make changes

F1 key

General help, only for Status Page Setup Menu and Option Page Setup Menu

(Shift) F2 key

Change color from total 16 colors. F2 to select color forward, (Shift) F2 to select
color backward

F3 key

Calendar, only for Status Page Setup Menu

F4 key

Reserved

F5 key

Restore the previous CMOS value from CMOS, only for Option Page Setup Menu

F6 key

Load the default CMOS value from BIOS default table, only for Option Page Setup
Menu

F7 key

Load the default

F8 key

Reserved

F9 key

Reserved

F10 key

Save all the CMOS changes, only for Main Menu

3.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.

 Navigating Through The Menu Bar

Use the left and right arrow keys to choose the menu you want to be in.

Note: Some of the navigation keys differ from one screen to another.

42 ECM-LX800W Series User‘s Manual

User’s Manual

 To Display a Sub Menu

Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A ―‖ pointer marks all sub menus.

3.3 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1
key again.

3.4 In Case of Problems

If, after making and saving system changes with Setup, you discover that your computer no

longer is able to boot, the AwardBIOS™ supports an override to the CMOS settings which

resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both Award and your systems manufacturer to
provide the absolute maximum performance and reliability. Even a seemingly small change
to the chipset setup has the potential for causing you to use the override.

ECM-LX800W Series User‘s Manual 43

ECM-LX800W Series

3.5 Main Menu

Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu will appear on the
screen. The Main Menu allows you to select from several setup functions and two exit
choices. Use the arrow keys to select among the items and press <Enter> to accept and
enter the sub-menu.
Note that a brief description of each highlighted selection appears at the bottom of the
screen.

Note: The BIOS setup screens shown in this chapter are for reference purposes

only, and may not exactly match what you see on your screen.
Visit the Avalue website (www.avalue.com.tw) download the latest product
and BIOS information.

44 ECM-LX800W Series User‘s Manual

User’s Manual

Item

Options

Description

Date

MM DD YYYY

Set the system date. Note that the ‗Day‘

automatically changes when you set the date

Time

HH : MM : SS

Set the system time

IDE Primary Master

Options are in 3.5.1.2

Press <Enter> to enter the sub menu of
detailed options

Drive A
Drive B

None

360K, 5.25 in

1.2M, 5.25 in
720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

Select the type of floppy disk drive installed in
your system

Video

EGA/VGA

CGA 40
CGA 80

MONO

Select the default video device

Halt On

All Errors

No Errors

All, but Keyboard

All, but Diskette

All, but Disk/Key

Select the situation in which you want the BIOS
to stop the POST process and notify you

3.5.1 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into few categories. Each category
includes no, one or more than one setup items. Use the arrow keys to highlight the item and
then use the <PgUp> or <PgDn> keys to select the value you want in each item.

3.5.1.1 Main Menu Selection

This reference table shows the selections that you may make on the Main Menu.

ECM-LX800W Series User‘s Manual 45

ECM-LX800W Series

Item

Options

Description

IDE HDD Auto-detection

Press Enter

Press Enter to auto-detect the HDD on
this channel. If detection is successful,
it fills the remaining fields on this
menu.

IDE Primary Master

IDE Primary Slave,

None

Auto

Manual

Selecting ‗manual‘ lets you set the

remaining fields on this screen.
Selects the type of fixed disk. "User
Type" will let you select the number of
cylinders, heads, etc. Note:
PRECOMP=65535 means NONE !

Access Mode

CHS

LBA

Large

Auto

Choose the access mode for this hard
disk

The following options are selectable only if the ‗IDE Channel …‘ item is set to ‗Manual‘

Cylinder

Min = 0

Max = 65535

Set the number of cylinders for this
hard disk.

Head

Min = 0

Max = 255

Set the number of read/write heads

Precomp

Min = 0

Max = 65535

**** Warning: Setting a value of 65535
means no hard disk

Landing zone

Min = 0

Max = 65535

****

Sector

Min = 0

Max = 255

Number of sectors per track

3.5.1.2 IDE Adapter Setup

The IDE adapters control the hard disk drive. Use a separate sub menu to configure each
hard disk drive. The below Figure will shows the IDE primary master sub menu.

46 ECM-LX800W Series User‘s Manual

User’s Manual

3.5.2 Advanced BIOS Features

This section allows you to configure your system for basic operation. You have the
opportunity to select the system‘s default speed, boot-up sequence, keyboard operation,
shadowing and security.

ECM-LX800W Series User‘s Manual 47

ECM-LX800W Series

Item

Description

Pri./Sec.
Master/Slave

Boot up from IDE Primary/Secondary Master/Slave Hard Disk

USBHDD
0/1/2

Boot up from 1st/2nd/3rd USB Hard Disk

Bootable
Add-in Cards

Boot up from other Add-In Card Hard Disk Device.

3.5.2.1 Hard Disk Boot Priority

This item allows you to set the boot priority of the hard drives installed in the system.

48 ECM-LX800W Series User‘s Manual

User’s Manual

Item

Description

USB DEV
0/1/2/3/4/5/6/
7

Boot up from 1st/2nd/3rd/4th/5th/6

th /7th

USB

Item

Description

Enabled

Activates automatically when the system boots up causing a warning message to
appear when anything attempts to access the boot sector or hard disk partition table.

Disabled

No warning message will appear when anything attempts to access the boot sector or
hard disk partition table.

Item

Description

Enabled

Enable cache

Disabled

Disable cache

3.5.2.2 USB Boot Priority

This section allows you to set the boot priority of the USB drives plugged in the system.

3.5.2.3 Virus Warning

This item allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector
protection. If this function is enabled and someone attempt to write data into this area,
BIOS will show a warning message on screen and alarm beep.

3.5.2.4 CPU Internal Cache

This category speeds up memory access. However, it depends on CPU/chipset design.
The default value is en able.

ECM-LX800W Series User‘s Manual 49

ECM-LX800W Series

Item

Description

Enabled

Enable quick POST

Disabled

Normal POST

Item

Description

Floppy

Floppy Device

LS120

LS120 Device

Hard Disk

Hard Disk Device

CDROM

CDROM Device

USB-FDD

USB Floppy Device

USB-ZIP

USB ZIP Device

USB-CDROM

USB CDROM Device

Legacy LAN

Network Device

Disabled

Disabled any boot device

Item

Description

Enabled

Assign physical drive B to logical drive A

Disabled

No change

Item

Description

Enabled

Enable the detection for floppy drive

Disabled

Disable the detection for floppy drive

Item

Description

Enabled

Enable NumLock

Disabled

Disable NumLock

Item

Description

Normal

A pin in the keyboard controller controls Gate A20

Fast

Lets chipset control Gate A20

Item

Description

Enabled

Enable typematic rate/delay setting

Disabled

Disable typematic rate/delay setting

3.5.2.5 Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power up the computer. If it
is set to Enable, BIOS will shorten or skip some check items during POST.

3.5.2.6 First/Second/Third/Other Boot Device

The BIOS attempts to load the operating system from the devices in the sequence selected
in these items.

3.5.2.7 Swap Floppy Drive

While system has two floppy drivers installed, this item will be affected. This function is to
assign physical drive B to logical drive A.

3.5.2.8 Boot up Floppy Seek

The system will detect and verify operation of the floppy drive type.

3.5.2.9 Boot Up NumLock Status

Select power on state for NumLock.

3.5.2.10 Gate A20 Option

Select if chipset or keyboard controller should control Gate A20.

3.5.2.11 Typematic Rate Setting

Key strokes repeat at a rate determined by the keyboard controller. When enabled, the
typematic rate and typematic delay can be selected.

50 ECM-LX800W Series User‘s Manual

User’s Manual

Item

Description

Setup

Require password when entering the main CMOS Setup Utility Screen only.

System

Require password every time the system boots

Item

Description

Non-OS2

Disable OS for over 64 MB DRAM

OS2

Enable OS for over 64 MB DRAM

Item

Description

Enable

Enable full screen logo show

Disable

Disable full screen logo show

Item

Description

Enabled

EPA Logo show is enabled

Disabled

EPA Logo show is disabled

Item

Description

Enabled

Enable Onboard LAN boot.

Disabled

Disabled Onboard LAN boot.

3.5.2.12 Typematic Rate (Chars/Sec)

Select ―Enabled‖ of Typematic Rate then set the rate at which a character keeps repeating
while holding down a key.
The choices: 6,8,10,12,15,20,24,30

3.5.2.13 Typematic Delay (Msec)

Select ―Enabled‖ of Typematic Rate then set the length of delay before keying strokes to
repeat.
The choices: 250, 500, 750, 1000

3.5.2.14 Security Option

To allow selecting whether the password is required every time the system boots or only
when you enter the Setup.

Note: To disable security, select PASSWORD SETTING at Main Menu and then

you will be asked to enter password. Do not type anything and just press
<Enter>, it will disable security. Once the security is disabled, the system
will boot and you can enter Setup freely.

3.5.2.15 OS Select for DRAM > 64MB

Select the operating system that is running with greater than 64MB of RAM on the system.

3.5.2.16 Full Screen LOGO Show

If the BIOS had the full screen logo in it, this item could allow enable/ disable the full screen
logo show on display.

3.5.2.17 Small Logo (EPA) Show

This item allows you enabled/disabled the small EPA logo show on screen at the POST
step.

3.5.2.18 Onboard Lan Boot ROM

This item allows to boot over the network when system POST and shorten the booting time
by set disabled

ECM-LX800W Series User‘s Manual 51

ECM-LX800W Series

3.5.3 Advanced Chipset Features

This section allows you to configure the system based on the specific features of the
installed chipset. This chipset manages bus speeds and access to system memory
resources, such as DRAM and the external cache. It also coordinates communications
between the conventional ISA bus and the PCI bus. It must be stated that these items
should never need to be altered. The default settings have been chosen because they
provide the best operating conditions for your system. The only time you might consider
making any changes would be if you discovered that data was being lost while using your
system.
The first chipset settings deal with CPU access to dynamic random access memory
(DRAM). The default timings have been carefully chosen and should only be altered if data
is being lost. Such a scenario might well occur if your system had mixed speed DRAM
chips installed so that greater delays may be required to preserve the integrity of the data
held in the slower memory chips.

52 ECM-LX800W Series User‘s Manual

User’s Manual

Item

Options

Description

Clock determined by

H/W strapping

Manual settings.

Allows the clock speed to either be determined
by the hardware strapping or manual settings.

CPU Multiplier

1 to 33

measures the ratio of an internal CPU clock rate
to the externally supplied clock

GeodeLink Multiplier

1 to 33

measures the ratio of an DDR RAM clock rate to
the externally supplied clock

CAS Latency

Auto, 1.5CLK, 2CLK,

2.5CLK, 3CLK,3.5CLK

Allows the configuration Column Address
Select latency.

Refresh rate

Auto, 15us, 3us, 7us,

31us, 62us 125us

Allows the setting of the memory refresh rate.
Options include:

Memory latencies

Manual

Auto

Allows the manual or auto configuration of the
memory latencies

ACT2PRE (tRAS)

Minimum number of clocks from the ACT to PRE commands on the
same component bank

PREZACT (tRP)

Minimum number of SDROM clocks between PRE and ACT commands

ACT2CMD (tRCD)

Minimum number of SDRAM clocks between ACT and Read/Write
Commands

ACTZACT (tPRD)

Minimum number of SDRAM clocks between ACT and ACT commands
to two different component banks within the same module bank.

ACTZACTREF (tRC)

May be set from 0 to 15.

REFZACT (tRFC)

Minimum number of SDCLKS 90-31) between refresh and next
command, usually an activate

Video Memory Size

Disable,

8 M, 16 M, 32 M, 64 M,

128 M, 254 M.

This item allows to select video memory size.

Output Display

Flat Panel,

CRT Monitor,

Panel & CRT.

This item allows to select video memory size

Onboard Audio

Enabled

Disabled

This item allows you to enable the onboard
audio function.

Onboard USB 1.1

Enabled

Disabled

This item allows you to enable the onboard
USB1.1 function.

Onboard USB 2.1

Enabled

Disabled

This item allows you to enable the onboard
USB2.0 function.

Onboard IDE

Enabled

Disabled

This item allows you to enable the onboard
IDE function.
The choices: Enabled, Disabled.

Memory Hole at 15M-16M

Enabled

Disabled

This item allows you to reserve the memory
area for some specific ISA card‘s use.

ECM-LX800W Series User‘s Manual 53

ECM-LX800W Series

Item

Options

Description

Resolution

320x240, 640x480, 800x600,

1024x768, 1152x864,

1280x1024, 1600x1200

This item allows to select the
resolution.

Refresh Rate

60Hz, 70Hz, 72Hz, 75Hz,

85Hz, 90Hz, 100Hz

This refresh rate is only the number of
time the image is being refreshed on
the monitor screen.

HSYNC Polarity

Normal High, Normal Low

Select polarity of HSYNC signals.

VSYNC Polarity Active

Normal High, Normal Low

Set the polarity of VSYNC signals
active.

SHFCLK Active Period

Active only,

Free running

Shift clock or pixel clock for the flat
panel data.

LP Active Period

Free running

Active running

Latch Pulse is the line pulse or latch
pulse for the flat panel data.

3.5.3.1 Flat Panel Configuration

54 ECM-LX800W Series User‘s Manual

Item

Options

Description

On-Chip IDE Channel 1

Enabled

Disabled

This item allows to enable On-chip IDE channel.

Master Drive PIO Mode

Auto
Mode 0
Mode 1
Mode 2
Mode 3
Mode 4

The IDE PIO (Programmed Input/Output) fields
let you set a PIO mode (0-4) for each of the four
IDE devices that the onboard IDE interface
supports. Modes 0 through 4 provide
successively increased performance. In Auto
mode, the system automatically determines the
best mode for each device.

IDE Primary Master UDMA

Auto

Disabled

Ultra DMA implementation is possible only if
your IDE hard drive supports it and the
operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus
master driver). If the hard drive and the system
software both support Ultra DMA, select Auto to
enable BIOS support.

IDE DMA Transfer Access

Enabled

Disabled

This item allows enabling or disabling DMA
(Direct Memory Access) support for all IDE
devices.

3.5.4 Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

User’s Manual

ECM-LX800W Series User‘s Manual 55

ECM-LX800W Series

IDE HDD Block Mode

Enabled
Disabled

Block mode is also called block transfer,
multiple commands, or multiple section
read/write. If the IDE hard drive supports block
mode (most new drives do), select Enabled for
automatic detection of the optimal number of
block read/writes per sector the drive can
support.

Onboard FDC controller

Enabled
Disabled

This function allows you to enable or disable
the onboard Floppy Disk Controller function.

Onboard Serial Port 1
Onboard Serial Port 2

Disable
3F8/IRQ4
2F8/IRQ3
3E8/IRQ4
2E8/IRQ3

Auto

Select an address and corresponding interrupt
for the first serial ports.

UART Mode Select

IrDA

ASKIR

Normal

Select UART2 mode as standard serial port or
IR port.

RxD , TxD Active

Hi,Hi
Hi,Lo
Lo,Hi
Lo,Lo

This item allows you to determine the active of
RxD, TxD level.

IR Transmission Delay

Enabled

Disabled

This item allows you to enable/disable the IR
Transmission Delay.

UR2 Duplex Mode

Half

Full

Select the value required by the IR device
connected to the IR port.
Full-duplex mode permits simultaneous
two-direction transmission. Half-duplex mode
permits transmission in one direction only at a
time.

Use IR Pins

RxD2,TxD2

IR-Rx2Tx2

This item allows you to determine the pin

definition.

Onboard Parallel Port

Disabled
378/IRQ7
278/IRQ5

3BC/IRQ7

FDD Mode

Select a matching address and interrupt for
the physical parallel (printer) port.

Parallel Port Mode

SPP
EPP
ECP

ECP+EPP

Normal

Select an operating mode for the onboard
parallel port. Select Compatible or Extended
unless you are certain both your hardware and
software support EPP or ECP mode.

EPP Mode Select

EPP1.9

EPP1.7

Select EPP port type 1.7 or 1.9.

ECP Mode Use DMA

1, 3

Select a DMA channel for the port.

Watch Dog Timer Select

Disabled,

10, 20, 30, 40 Sec.

1, 2, 4 Min.

This option will determine watch dog timer

56 ECM-LX800W Series User‘s Manual

Item

Options

Description

I/O Space 0
I/O Space 1
I/O Space 2
I/O Space 3
I/O Space 4

Enabled

Disabled

It allows you to allocate system resources to the ISA
bridge and to enable

I/O Speed 0

I/O Speed1
I/O Speed2
I/O Speed3
I/O Speed4

Subtractive Speed

Slow Speed

Medium Speed

Fast Speed

It allows you to specify the speed of the ISA bus.

I/O Addr. 0
I/O Addr. 1

I/O Addr. 2

I/O Addr. 3
I/O Addr. 4

1~4095

It allows you to allocate an address to the ISA bus.

I/O Size0
I/O Size1
I/O Size2
I/O Size3
I/O Size4

1,2,4,8,16,32,64,128 bytes

It allows you to specify the size of the ISA bus.

3.5.5 IT8888 ISA Decode IO

The decode I/O spaces can be programmed to claim PCI I/O cycle with
Fast/Medium/Slow/Subtractive DEVSEL# (Device Select) timing speed.

User’s Manual

ECM-LX800W Series User‘s Manual 57

ECM-LX800W Series

Item

Options

Description

IDE HDD Block Mode

Enabled

Disabled

Block mode is also called block transfer,
multiple commands, or multiple section
read/write. If the IDE hard drive supports block
mode (most new drives do), select Enabled for
automatic detection of the optimal number of
block read/writes per sector the drive can
support.

Onboard FDC Controller

Enabled

Disabled

Select Enabled if your system has a floppy
disk controller (FDC) installed on the system
board and you wish to use it. If you are not
going to use FDC or the system has no floppy
drive, select Disabled in this field.

Onboard Serial Port 1
Onboard Serial Port 2

Disable
3F8/IRQ4
2F8/IRQ3

3E8/IRQ4
2E8/IRQ3

Auto

Select an address and corresponding interrupt
for the first and second serial ports.

UART Mode Select

IrDA

ASKIR

Normal

Select UART2 mode as standard serial port or
IR port.

3.5.6 IT8888 ISA Decode Memory

The decode Memory spaces can be programmed to claim PCI Memory cycle with
Fast/Medium/Slow/Subtractive DEVSEL# (Device Select) timing speed.

58 ECM-LX800W Series User‘s Manual

User’s Manual

RxD , TxD Active

Hi,Hi

Hi,Lo
Lo,Hi
Lo,Lo

This item allows you to determine the active of
RxD, TxD level.

IR Transmission Delay

Enabled

Disabled

This item allows you to enable/disable the IR
Transmission Delay.

UR2 Duplex Mode

Half

Full

Select the value required by the IR device
connected to the IR port. Full-duplex mode
permits simultaneous two-direction
transmission. Half-duplex mode permits
transmission in one direction only at a time.

Use IR Pins

RxD2,TxD2

IR-Rx2Tx2

This item allows you to determine the pin

definition.

Onboard Parallel Port

Disabled
378/IRQ7
278/IRQ5

3BC/IRQ7

FDD Mode

Select a matching address and interrupt for
the physical parallel (printer) port.

Parallel Port Mode

SPP
EPP
ECP

ECP+EPP

Normal

Select an operating mode for the onboard
parallel port. Select Compatible or Extended
unless you are certain both your hardware and
software support EPP or ECP mode.

EPP Mode Select

EPP1.9
EPP1.7

Select EPP port type 1.7 or 1.9.

ECP Mode Use DMA

1
3

Select a DMA channel for the port.

Watch Dog Timer Select

Disabled,

10, 20, 30, 40 Sec.

1, 2, 4 Min.

This option will determine watch dog timer

Onboard Serial Port 3
Onboard Serial Port 4

Disable

3F8
2F8
3E8
2E8

Select an address for the third and fourth
serial ports.

Serial Port 3 Use IRQ
Serial Port4 Use IRQ

IRQ5

IRQ7
IRQ10
IRQ11

This determines the IRQ in which the third and
fourth serial ports can use.

ECM-LX800W Series User‘s Manual 59

ECM-LX800W Series

3.5.7 Power Management Setup

The Power Management Setup allows you to configure you system to most effectively save
energy while operating in a manner consistent with your own style of computer use.

3.5.7.1 ACPI Suspend Type

This determines the ACPI suspend type.
Options: S1 (POS), S3 (STR)

3.5.7.2 Power Management

This category allows you to select the type (or degree) of power saving.
Options: Disabled, Legacy, APM, ACPI.

3.5.7.3 MODEM Use IRQ

This determines the IRQ in which the MODEM can use.
Options: N/A, 3, 4, 5, 7, 9, 10, 11.

3.5.7.4 PME Event Function

This determines whether to enable the PME Event wake up function or not.
Options: Disabled, Enabled.

60 ECM-LX800W Series User‘s Manual

User’s Manual

3.5.7.5 Soft-Off by PWR-BTTN

This determines to use power saving mode or not. When set to Delay 4 Sec, this function
allows the power button to put the system in suspend, a power saving mode; otherwise, the
computer turns completely off when the power button is pressed by setting as Instant-Off.
Options: Instant-Off, Delay 4 Sec.

3.5.7.6 PWRON after PWR-Fail

This item sets how the system would react to a power failure circumstance.
If ON is selected, system will attempt to power back on automatically after a power failure. If
OFF is selected the system will remain turned off after a power failure.

3.5.7.7 Advanced Power Control

This function helps to Enable or disable Advanced Power Control
Options: Disabled, Enabled.

3.5.7.8 Power On By Alarm

This determines whether to set the time the system boot up. When this function is enabled,
you need to set the time (hh:mm:ss) to wake up your system.
Options: Disabled, Enabled.

ECM-LX800W Series User‘s Manual 61

ECM-LX800W Series

3.5.7.9 IRQ Wakeup Events

The VGA, LPT & COM, HDD & FDD, and PCI master are I/O events which can prevent the
system from entering a power saving mode or can awaken the system from such a mode.
When an I/O device wants to gain the attention of the operating system, it makes a signal
by causing an IRQ to occur. When the operating system is ready to respond to the request,
it interrupts itself and performs the service.

62 ECM-LX800W Series User‘s Manual

User’s Manual

3.5.8 PnP / PCI Configuration
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed

the CPU itself uses when communicating with its own special components. This section
covers some very technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.

3.5.8.1 PNP OS Installed

The operation system environment is Plug-and-Play aware sets ―YES‖
Options are: No, Yes.

3.5.8.2 Init Display First

This item allows you to decide to active whether PCI Slot or AGP first.
Options are: PCI Slot, Onboard.

3.5.8.3 Resources Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot
and Plug and Play compatible devices. However, this capability means absolutely nothing
unless you are using a Plug and Play operating system such as Windows95. If you set

this field to ―manual‖ choose specific resources by going into each of the sub menu that
follows this field (a sub menu is preceded by a ―‖).

Options are: Auto(ESCD), Manual.

ECM-LX800W Series User‘s Manual 63

ECM-LX800W Series

3.5.8.4 PCI/VGA Palette Snoop

This item allows you to decide if your graphics card should allow VGA palete snooping by a
fixed function display card. It is only useful if your use a fixed function display card that
requires a VGA-compatible graphics card to be present (i.e. MPEG decoder card).
Options are: Enabled, Disabled.

3.5.9 PC Health Status

This section shows the status of your CPU, Fan & System.

64 ECM-LX800W Series User‘s Manual

User’s Manual

3.5.10 Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable performance for your
system to operate. Press <Y> to load the BIOS default values for the most stable,
minimal-performance system operations.

ECM-LX800W Series User‘s Manual 65

ECM-LX800W Series

3.5.11 Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings for optimal
performance system operations. While Award has designed the custom BIOS to maximize
performance, the factory has the right to change these defaults to meet their needs.
Press <Y> to load the default values setting for optimal performance system operations.

66 ECM-LX800W Series User‘s Manual

3.5.12 Set Supervisor / User Password

You can set either supervisor or user password, or both of them.
Supervisor Password: able to enter/change the options of setup menus.

User’s Manual

User Password: able to enter but no right to change the options of setup menus.

ECM-LX800W Series User‘s Manual 67

ECM-LX800W Series

Type the password, up to eight characters in length, and press <Enter>. The password
typed now will clear any previously entered password from CMOS memory. You will be
asked to confirm the password. Type the password again and press <Enter>. You may also
press <Esc> to abort the selection and not enter a password. To disable a password, just
press <Enter> when you are prompted to enter the password. A message will confirm the
password will be disabled. Once the password is disabled, the system will boot and you can
freely enter Setup.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to
enter Setup. This prevents an unauthorized person from changing any part of your system
configuration. Additionally, when a password is enabled, you can also require the BIOS to
request a password every time your system is rebooted. This would prevent unauthorized
use of your computer. You determine when the password is required within the BIOS
Features Setup Menu and its Security option (see Section 3). If the Security option is set to
―System‖, the password will be required both at boot and at entry to Setup. If set to ―Setup‖,
prompting only occurs when trying to enter Setup

68 ECM-LX800W Series User‘s Manual

User’s Manual

3.5.13 Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.
Enter <Y> to store the selection made in the menus in CMOS, a special section in memory
that stays on after turning the system off. The BIOS configures the system according to the
Setup selection stored in CMOS when boot the computer next time.
The system is restarted after saving the values.

ECM-LX800W Series User‘s Manual 69

ECM-LX800W Series

3.5.14 Exit Without Save

Abandon all CMOS value changes and exit setup, and the system is restarted after exiting.

70 ECM-LX800W Series User‘s Manual

User’s Manual

4 Drivers Installation

Note: Installation procedures and screen shots in this section are

for your reference and may not be exactly the same as
shown on your screen.

ECM-LX800W Series User‘s Manual 71

ECM-LX800W Series

Insert the Supporting CD-ROM to

CD-ROM drive, and it should show the

index page of Evalue‘s products

automatically. If not, locate Index.htm and

choose the product from the menu left, or

link to \Driver_Audio\AMD\GX3.

Note: The installation procedures and

screen shots in this section are

based on Windows XP operation

system.

Step 3. Select Multimedia Audio

Controller to Reinstall Driver.

Step1. Click Start of the task bar, then the

System of Performance and

Maintenance in Control Panel.

Step 4. Select the Advanced item and

click Next.

Step 2. Click Device Manager of

Hardware.

Step 5. Select the specific location to

Next.

4.1 Install Audio Driver (For AMD GX3)

72 ECM-LX800W Series User‘s Manual

User’s Manual

Step6. Click Continue Anyway to run the

installation.

Step7. Click Finish to complete the setup.

ECM-LX800W Series User‘s Manual 73

ECM-LX800W Series

Insert the Supporting CD-ROM to

CD-ROM drive, and it should show the

index page of Evalue‘s products

automatically. If not, locate Index.htm and

choose the product from the menu left, or

link to \Driver_Chipset\AMD\GX3.

Note: The installation procedures and

screen shots in this section are

based on Windows XP operation

system.

Step 3. Select Entertainment… to

Reinstall Driver.

Step1. Click Start of the task bar, then the

System of Performance and

Maintenance in Control Panel.

Step 4. Select the Advanced item and

click Next.

Step 2. Click Device Manager of

Hardware.

Step 5. Select the specific location to

Next.

4.2 Install Chipset Driver (For AMD GX3)

74 ECM-LX800W Series User‘s Manual

User’s Manual

Step6. The setup will install automatically.

Step7. Click Finish to complete the setup.

ECM-LX800W Series User‘s Manual 75

ECM-LX800W Series

Insert the Supporting CD-ROM to

CD-ROM drive, and it should show the

index page of Evalue‘s products

automatically. If not, locate Index.htm and

choose the product from the menu left, or
link to \Driver_Chipset\AMD\GX3\PCI to

ISA Bridge.

Note: The installation procedures and

screen shots in this section are

based on Windows XP operation

system.

Step 3. Select Other PCI Bridge Device

to Reinstall Driver.

Step1. Click Start of the task bar, then the

System of Performance and

Maintenance in Control Panel.

Step 4. Select the Advanced item and

click Next.

Step 2. Click Device Manager of

Hardware.

Step 5. Select the specific location to

Next.

4.3 Install PCI to ISA Bridge Driver (For ITE IT8888G)

76 ECM-LX800W Series User‘s Manual

User’s Manual

Step6. The setup will install automatically.

Step7. Click Finish to complete the setup.

ECM-LX800W Series User‘s Manual 77

ECM-LX800W Series

Insert the Supporting CD-ROM to

CD-ROM drive, and it should show the

index page of Evalue‘s products

automatically. If not, locate Index.htm and

choose the product from the menu left, or

link to \Driver_Video\AMD\GX3.

Note: The installation procedures and

screen shots in this section are

based on Windows XP operation

system.

Step 3. Select Video Controller (VGA

Compatible to Reinstall Driver.

Step1. Click Start of the task bar, then the

System of Performance and

Maintenance in Control Panel.

Step 4. Select the Advanced item and

click Next.

Step 2. Click Device Manager of

Hardware.

Step 5. Select the specific location to

Next.

4.4 Install Display Driver (For AMD GX3)

78 ECM-LX800W Series User‘s Manual

User’s Manual

Step6. Click Continue Anyway to run the

installation.

Step7. Click Finish to complete the setup.

ECM-LX800W Series User‘s Manual 79

ECM-LX800W Series

Insert the Supporting CD-ROM to

CD-ROM drive, and it should show the

index page of Avalue‘s products

automatically. If not, locate Index.htm and

choose the product from the menu left, or

link to \Driver_Network\Realtek\

RTL810x_813X Family.

Note: The installation procedures and

screen shots in this section are

based on Windows XP operation

system.

Step 3. Click Yes to continue the

installation.

Step 1. Locate 「\Driver_Network\Realtek\

RTL810x_813X Family\Setup.exe」.

Step 4. Click Finish to complete the

setup.

Step 2. Setup executing.

4.5 Install Ethernet Driver (For Realtek RTL810x, RTL813x Family)

80 ECM-LX800W Series User‘s Manual

User’s Manual

5 Mechanical Drawing

ECM-LX800W Series User‘s Manual 81

ECM-LX800W Series

82 ECM-LX800W Series User‘s Manual

User’s Manual

ECM-LX800W Series User‘s Manual 83

ECM-LX800W Series

Appendix A:

Chipset Introduction

AMD LX800 & CS5536

Realtek ALC203 Audio Codec

Realtek RTL8101L Ethernet Controller

ITE IT8888 PCI to ISA Bridge

Compact Flash Interface

84 ECM-LX800W Series User‘s Manual

User’s Manual

— AMD LX800 & CS5536

The AMD Geode™ LX 800@0.9W processor brings x86 power and versatility to
applications for entertainment, business, education, and embedded markets. The AMD
Geode LX processors‘ integrated, innovative architecture delivers the most performance
per watt available in the industry today, and can lead to longer battery life and enable small
form-factor designs.
The AMD Geode LX processor family offers new levels of performance and power
versatility in an x86-based embedded processor. The AMD Geode LX 800@0.9W
processor operates at a maximum power of 3.9W (TDP) and 1.8W typical at 500MHz. The
device are exceptional for such applications as thin clients, interactive set-top boxes, single
board computers, Personal Access Devices (PADs),mobile Internet, and entertainment.
Designers can now focus on developing end products that efficiently meet consumer needs
with far fewer limits imposed by software porting or compatibility.
The AMD Geode LX processors deliver the low-power x86performance to design
innovative and creative new products without compromise. Coupled with the AMD Geode™
CS5536companion device, the combined chipset, which operates at1.9W typical at
433MHz and at 2.4W typical at 500MHz,offersdesigners a complete set of features that can
deliver full desktop functionality to embedded and portable devices.

Capabilities include:

 Natively run all Windows® and Linux based applications
 Full Internet browser experience on portable devices
 High-performance patented GeodeLink™ architecture
 No software porting needed – programs run without modification
 Access to the full universe of 32-bit x86 software
 Support for any type of connectivity

The AMD commitment to the x86 marketplace, with a range of high-performance products
like AMD Geode™ LX processors, gives OEMs an easy and effective way to achieve
product differentiation and shorten time-to-market cycles. The AMD Geode LX processors
are the next step in helping AMD redefine the way x86 processors address the growing
need for versatile power and performance for a variety of consumer devices. It is the latest
example of AMD‘s commitment to make x86-based technology available for a variety of
applications –from high-end servers to low-power embedded applications.

Processor functional blocks

 CPU Core
 GeodeLink™ Control Processor
 GeodeLink Interface Units

ECM-LX800W Series User‘s Manual 85

ECM-LX800W Series

 GeodeLink Memory Controller
 Graphics Processor
 Display Controller
 Video Processor
 Video Input Port
 GeodeLink PCI Bridge
 Security Block

The AMD Geode™ CS5536 companion device works with both AMD Geode™ LX and
AMD Geode™ GX processor families to create today's leading high-performance,

low-power x86 solution for embedded applications, ranging from thin clients and digital
set-top boxes to single-board computers and Personal Access Devices (PADs).
The AMD Geode CS5536 companion device leverages a single, high-performance modular

structure based on AMD GeodeLink™ architecture. This configuration provides internal

data speeds above 1 GB/second, and highly versatile internal power management.
Together with the AMD Geode LX and GX processor, the AMD Geode CS5536 companion
device designers a complete processing solution for developing a variety of end-user
devices that require high-performance x86-based processing and low power usage. The
companion device complements the features built into the AMD Geode LX and GX
processors, and includes integrated controllers for audio, hard disk drive (ATA-6) USB 2.0,
power management, and more – all based on the innovative GeodeLink architecture.
The AMD AMD Geode™ CS5536 companion device incorporates a full suite of advanced
features to enable designers to achieve new levels of performance and creativity with
x86-based devices. The companion device contains:

 Versatile I/O functions
 82xx devices to provide true PC functionality

— 2 PICs (Programmable Interrupt Controllers)
— PIT (Programmable Interval Timer) with 3 channels
— DMA (Direct Memory Access) functions

 Flexible MFGPTs (Multi-Function General Purpose Timers)

General features

 Designed for use with the AMD Geode LX and GX processor families
 208-Terminal PBGA (Plastic Ball Grid Array) package with internal heatspreader
 1.2V or 1.25V (nominal) core operation
 Working and Standby power domains
 IEEE 1149.1-compliant TAP and boundary scan

86 ECM-LX800W Series User‘s Manual

User’s Manual

— Realtek ALC203 Audio Codec
The ALC203 is a 20-bit DAC and 18-bit ADC full-duplex AC'97 2.3 compatible stereo audio
CODEC designed for PC multimedia systems, including host/soft audio, and AMR/CNR
based designs.
The ALC203 incorporates proprietary converter technology to achieve a high SNR (greater
than 100 dB), sensing logics for device reporting, and a Universal Audio Jack® for
improved user convenience. The ALC203 AC'97 CODEC supports multiple CODEC
extensions with independent variable sampling rates and built-in 3D effects. The ALC203
CODEC provides two pairs of stereo outputs with independent volume controls, a mono
output, multiple stereo and mono inputs, along with flexible mixing, gain, and mute
functions to provide a complete integrated audio solution for PCs.

— Ethernet
Realtek RTL8101L Ethernet Controller

The Realtek RTL8101L is a single-chip Fast Ethernet controller that provides 32-bit
performance, PCI bus master capability, and full compliance with IEEE 802.3u 100Base-TX
specifications and IEEE 802.3x Full Duplex Flow Control. It also supports the Advanced
Configuration Power management Interface (ACPI), PCI power management for modern
operating systems that are capable of Operating System Directed Power Management
(OSPM) to achieve the most efficient power management possible. The RTL8101L no
longer supports CardBus mode as RTL8139C does.
In addition to the ACPI feature, the RTL8101L also supports remote wake-up (including
AMD Magic Packet, LinkChg, and Microsoft® wake-up frame) in both ACPI and APM
environments. The RTL8101L is capable of performing an internal reset through the
application of auxiliary power. When auxiliary power is applied and the main power remains
off, the RTL8101L is ready and waiting for the Magic Packet or Link Change to wake the
system up. Also, the LWAKE pin provides 4 different output signals including active high,
active low, positive pulse, and negative pulse. The versatility of the RTL8101L LWAKE pin
provides motherboards with Wake-On-LAN (WOL) functionality.
The RTL8101L also supports Analog Auto-Power-down, that is, the analog part of the
RTL8101L can be shut down temporarily according to user requirements or when the
RTL8101L is in a power down state with the wakeup function disabled. In addition, when
the analog part is shut down and the IsolateB pin is low (i.e. the main power is off), then
both the analog and digital parts stop functioning and the power consumption of the
RTL8101L will be negligible. The RTL8101L also supports an auxiliary power auto-detect
function, and will auto-configure related bits of their own PCI power management registers
in PCI configuration space.

ECM-LX800W Series User‘s Manual 87

ECM-LX800W Series

PCI Vital Product Data (VPD) is also supported to provide the information that uniquely
identifies hardware (i.e., the OEM brand name of RTL8101L LAN card). The information
may consist of part number, serial number, and other detailed information.
To provide cost down support, the RTL8101L is capable of using a 25MHz crystal or OSC
as its internal clock source. The RTL8101L keeps network maintenance costs low and
eliminates usage barriers. It is the easiest way to upgrade a network from 10 to 100Mbps. It
also supports full-duplex operation, making 200Mbps bandwidth possible at no additional
cost. To improve compatibility with other brands‘ products, the RTL8101L is also capable of
receiving packets with InterFrameGap no less than 40 Bit-Time. The RTL8101L is highly
integrated and requires no ―glue‖ logic or external memory.
The RTL8101L includes a PCI and Expansion Memory Share Interface (Realtek patent) for
a boot ROM and can be used in diskless workstations, providing maximum network security
and ease of management.
— ITE IT8888 PCI to ISA Bridge
The IT8888F/G is a PCI to ISA bridge single function device. The IT8888F/G serves as a
bridge between the PCI bus and ISA bus. The IT8888F/G‘s 32-bit PCI bus interface is
compliant with PCI Specification V2.1 and supports both PCI Bus Master & Slave. The PCI
interface supports both programmable positive and full subtractive decoding schemes.
The IT8888F/G also integrates two enhanced DMA Slave controllers for achieving PCI
DMA cycles: PC/PCI DMA Slave Controller & Distributed DMA Slave Controllers.
The device also contains one SM bus (single master mode) which can be connected to a
Serial E2PROM for automatic power-on configuration. ITE‘s proprietary (USA & Taiwan
patent pending) power-on auto-configuration through SM bus can provide customer with
maximum design flexibility. The IT8888F/G also implements the optional fast positive
decode of F, E, D, C memory segments. This special feature can provide a direct
connection to an FALSH boot ROM.
The NOGO function, which is also implemented in the IT8888F/G for enabling or disabling
subtractive decode of PCI interface could be a software controlled output pin from other
host controlled devices. The Serial IRQ is also implemented in the device for sending and
receiving ISA IRQs & IOCHCK#. The device includes an ISA interface which supports full
ISA compatible functions.
— Compact Flash Interface
A Compact Flash type II connector is connected to the secondary IDE controller. The
Compact Flash storage card is IDE compatible. It is an ideal replacement for standard IDE
hard drives. The solid-state design offers no seek errors even under extreme shock and
vibration conditions. The Compact Flash storage card is extremely small and highly suitable
for rugged environments, thus providing an excellent solution for mobile applications with
space limitations. It is fully compatible with all consumer applications designed for data
storage PC card, PDA, and Smart Cellular Phones, allowing simple use for the end user.

88 ECM-LX800W Series User‘s Manual

User’s Manual

The Compact Flash storage card is O/S independent, thus offering an optimal solution for
embedded systems operating in non-standard computing environments. The Compact
Flash storage card is IDE compatible and offers various capacities.

ECM-LX800W Series User‘s Manual 89

ECM-LX800W Series

Appendix B:

AWARD BIOS POST

Messages

90 ECM-LX800W Series User‘s Manual

User’s Manual

Overview

During the Power On Self-Test (POST), if the BIOS detects an error requiring you to do
something to fix, it will either sound a beep code or display a message.
If a message is displayed, it will be accompanied by:
PRESS F1 TO CONTINUE OR PRESS DEL TO ENTER SETUP

Post Beep

Currently there are two kinds of beep codes in BIOS. This code indicates that a video error
has occurred and the BIOS cannot initialize the video screen to display any additional
information. This beep code consists of a single long beep followed by two short beeps.
The other code indicates that your DRAM error has occurred. This beep code consists of a
single long beep repeatedly.

Error Messages

The following messages are examples of messages including errors detected by the BIOS
during POST and a description of what they mean and/or what you may do to correct the
error.

1. CMOS BATTERY HAS FAILED

CMOS battery is no longer functional. It should be replaced.

2. CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This
error may have been caused by a weak battery. Check the battery and replace if
necessary.

3. DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER

No boot device was found. This could mean that either a boot drive was not detected or the
drive does not contain proper system boot files. Insert a system disk into Drive A: and
press <Enter>. If you assumed the system would boot from the hard drive, make sure the
controller is inserted correctly and all cables are properly attached. Also be sure the disk
is formatted as a boot device. Then reboot the system.

4. DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP

Type of diskette drive installed in the system is different from the CMOS definition. Run
Setup to reconfigure the drive type correctly.

ECM-LX800W Series User‘s Manual 91

ECM-LX800W Series

5. DISPLAY SWITCH IS SET INCORRECTLY

Display switch on the motherboard can be set to either monochrome or color. This indicates
the switch is set to a different setting than indicated in Setup. Determine which setting is
correct, and then either turn off the system and change the jumper, or enter Setup and
change the VIDEO selection.

6. DISPLAY TYPE HAS CHANGED SINCE LAST BOOT

Since last powering off the system, the display adapter has been changed. You must
configure the system for the new display type.

7. EISA Configuration Checksum Error
PLEASE RUN EISA CONFIGURATION UTILITY

The EISA non-volatile RAM checksum is incorrect or cannot correctly read the EISA slot.
This can indicate either the EISA non-volatile memory has become corrupt or the slot has
been configured incorrectly. Also be sure the card is installed firmly in the slot.

8. EISA Configuration Is Not Complete
PLEASE RUN EISA CONFIGURATION UTILITY

The slot configuration information stored in the EISA non-volatile memory is incomplete.

Note: When either of these errors appears, the system will boot in ISA mode,

which allows you to run the EISA Configuration Utility.

9. ERROR ENCOUNTERED INITIALIZING HARD DRIVE

Hard drive cannot be initialized. Be sure the adapter is installed correctly and all cables are
correctly and firmly attached. Also be sure the correct hard drive type is selected in Setup.

10. ERROR INITIALIZING HARD DISK CONTROLLER

Cannot initialize controller. Make sure the cord is correctly and firmly installed in the bus.
Be sure the correct hard drive type is selected in Setup. Also check to see if any jumper
needs to be set correctly on the hard drive.

11. FLOPPY DISK CNTRLR ERROR OR NO CNTRLR PRESENT

Cannot find or initialize the floppy drive controller. Make sure the controller is installed
correctly and firmly. If there are no floppy drives installed, be sure the Diskette Drive
selection in Setup is set to NONE.

92 ECM-LX800W Series User‘s Manual

User’s Manual

12. Invalid EISA Configuration
PLEASE RUN EISA CONFIGURATION UTILITY

The non-volatile memory containing EISA configuration information was programmed
incorrectly or has become corrupt. Re-run EISA configuration utility to correctly program the
memory.

Note: When either of these errors appears, the system will boot in ISA mode,

which allows you to run the EISA Configuration Utility.

13. KEYBOARD ERROR OR NO KEYBOARD PRESENT

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys
are being pressed during the boot.
If you are purposely configuring the system without a keyboard, set the error halt condition
in Setup to HALT ON ALL, BUT KEYBOARD. This will cause the BIOS to ignore the
missing keyboard and continue the boot.

14. Memory Address Error at ...

Indicates a memory address error at a specific location. You can use this location along
with the memory map for your system to find and replace the bad memory chips.

15. Memory parity Error at ...

Indicates a memory parity error at a specific location. You can use this location along with
the memory map for your system to find and replace the bad memory chips.

16. MEMORY SIZE HAS CHANGED SINCE LAST BOOT

Memory has been added or removed since the last boot. In EISA mode use Configuration
Utility to reconfigure the memory configuration. In ISA mode enter Setup and enter the new
memory size in the memory fields.

17. Memory Verify Error at ...

Indicates an error verifying a value already written to memory. Use the location along with
your system's memory map to locate the bad chip.

18. OFFENDING ADDRESS NOT FOUND

This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY
ERROR messages when the segment that has caused the problem cannot be isolated.

19. OFFENDING SEGMENT:

This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY
ERROR messages when the segment that has caused the problem has been isolated.

ECM-LX800W Series User‘s Manual 93

ECM-LX800W Series

20. PRESS A KEY TO REBOOT

This will be displayed at the bottom screen when an error occurs that requires you to reboot.
Press any key and the system will reboot.

21. PRESS F1 TO DISABLE NMI, F2 TO REBOOT

When BIOS detects a Non-maskable Interrupt condition during boot, this will allow you to
disable the NMI and continue to boot, or you can reboot the system with the NMI enabled.

22. RAM PARITY ERROR - CHECKING FOR SEGMENT ...

Indicates a parity error in Random Access Memory.

23. Should Be Empty But EISA Board Found
PLEASE RUN EISA CONFIGURATION UTILITY

A valid board ID was found in a slot that was configured as having no board ID.

Note: When either of these errors appears, the system will boot in ISA mode,

which allows you to run the EISA Configuration Utility.

24. Should Have EISA Board But Not Found
PLEASE RUN EISA CONFIGURATION UTILITY

The board installed is not responding to the ID request, or no board ID has been found in
the indicated slot.

Note: When either of these errors appears, the system will boot in ISA mode,

which allows you to run the EISA Configuration Utility.

25. Slot Not Empty

Indicates that a slot designated as empty by the EISA Configuration Utility actually contains
a board.

Note: When either of these errors appears, the system will boot in ISA mode,

which allows you to run the EISA Configuration Utility.

26. SYSTEM HALTED, (CTRL-ALT-DEL) TO REBOOT ...

Indicates the present boot attempt has been aborted and the system must be rebooted.
Press and hold down the CTRL and ALT keys and press DEL.

94 ECM-LX800W Series User‘s Manual

User’s Manual

27. Wrong Board In Slot
PLEASE RUN EISA CONFIGURATION UTILITY

The board ID does not match the ID stored in the EISA non-volatile memory.

Note: When either of these errors appears, the system will boot in ISA mode,

which allows you to run the EISA Configuration Utility.

28. FLOPPY DISK(S) fail (80)  Unable to reset floppy subsystem.

29. FLOPPY DISK(S) fail (40)  Floppy Type dismatch.

30. Hard Disk(s) fail (80)  HDD reset failed.

31. Hard Disk(s) fail (40)  HDD controller diagnostics failed.

32. Hard Disk(s) fail (20)  HDD initialization error.

33. Hard Disk(s) fail (10)  Unable to recalibrate fixed disk.

34. Hard Disk(s) fail (08)  Sector Verify failed.

35. Keyboard is locked out - Unlock the key.

BIOS detect the keyboard is locked. P17 of keyboard controller is pulled low.

36. Keyboard error or no keyboard present.

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys
are being pressed during the boot.

37. Manufacturing POST loop.

System will repeat POST procedure infinitely while the P15 of keyboard controller is pull
low. This is also used for M/B burn in test.

38. BIOS ROM checksum error - System halted.

The checksum of ROM address F0000H-FFFFFH is bad.

39. Memory test fail.

BIOS reports the memory test fail if the onboard memory is tested error.

ECM-LX800W Series User‘s Manual 95

ECM-LX800W Series

Code (hex)

Name

Description

C0

Turn Off Chipset and

CPU test

OEM Specific-Cache control cache
Processor Status (1FLAGS) Verification. Tests the following
processor status flags: Carry, zero, sign, overflow, the BIOS sets
each flag, verifies They are set, then turns each flag off and
verifies it is off.
Read/Write/Verify all CPU registers except SS, SP, and BP with
data pattern FF and 00. RAM must be periodically refreshed to
keep the memory from decaying. This function ensures that the
memory refresh function is working properly.

C1

Memory Presence

First block memory detect OEM Specific-Test to size on-board
memory. Early chip set initialization Memory presence test OEM
chip set routines clear low 64K of memory Test first 64K memory.

C2

Early Memory

Initialization

OEM Specific- Board Initialization

C3

Extend Memory DRAM

select

OEM Specific- Turn on extended memory Initialization
Cyrix CPU initialization, Cache initialization

C4

Special Display

Handling

OEM Specific- Display/Video Switch handling so that switch
handling display switch errors never occurs

C5

Early Shadow

OEM specific- Early shadow enable for fast boot

C6

Cache presence test

External cache size detection

CF

CMOS Check

CMOS checkup

B0

Spurious

If interrupt occurs in protected mode.

B1

Unclaimed NMI

If unmasked NMI occurs, display Press F1 to disable NMI, F2
reboot.

BF

Program Chip Set

To program chipset from defaults values

E1-EF

Setup Pages

E1- Page 1, E2 - Page 2, etc.

1

Force load Default to

chipset

Chipset defaults program
2

Reserved

40. POST Codes

Please take reference to Phoenix-Award website for the latest post codes.

http://www.phoenix.com/NR/rdonlyres/0835996A-6694-4F6D-8243-1030EE040D92/0/post
code.pdf

40.1 Normal POST Code

Note: EISA POST codes are typically output to port address 300h. ISA POST codes are output to

port address 80h.

96 ECM-LX800W Series User‘s Manual

User’s Manual

Code (hex)

Name

Description

3

Early Superio Init

Early Initialized the super IO

4

Reserved

5

Blank video

Reset Video controller

6

Reserved

7

Init KBC

Keyboard controller init

8

KB test

Test the Keyboard

9

Reserved

A

Mouse Init

Initialized the mouse

B

Onboard Audio init

Onboard audio controller initialize if exist

C

Reserved

D

Reserved

E CheckSum Check

Check the intergraty of the ROM, BIOS and message

F

Reserved

10

Auto detec EEPROM

Check Flash type and copy flash write/erase routines to 0F000h
segments

11

Reserved

12

Cmos Check

Check Cmos Circuitry and reset CMOS

13

Reserved

14

Chipset Default load

Program the chipset registers with CMOS values

15

Reserved

16

Clock Init

Init onboard clock generator

17

Reserved

18

Identify the CPU

Check the CPU ID and init L1/L2 cache

19

Reserved

1A

Reserved

1B

Setup Interrupt Vector

Table

Initialize first 120 interrupt vectors with SPURIOUS_INT_HDLR
and initialize INT 00h-1Fh according to INT_TBL

1C

Reserved

1D

Early PM Init

First step initialize if single CPU onboard

1E

Reserved

1F

Re-initial KB

Re-init KB

20

Reserved

21

HPM init

If support HPM, HPM get initialized here

22

Reserved

23

Test CMOS Interface

and battery Status

Verifies CMOS is working correctly, detects bad battery. If failed,
load CMOS defaults and load into chipset

24

Reserved

ECM-LX800W Series User‘s Manual 97

ECM-LX800W Series

Code (hex)

Name

Description

25

Reserved

26

Reserved

27

KBC final Init

Final Initial KBC and setup BIOS data area

28

Reserved

29

Initialize Video Interface

Read CMOS location 14h to find out type of video in use. Detect
and Initialize Video Adapter.

2A

Reserved

2B

Reserved

2C

Reserved

2D

Video memory test

Test video memory, write sign-on message to screen. Setup
shadow RAM - Enable shadow according to Setup.

2E

Reserved

2F

Reserved

30

Reserved

31

Reserved

32

Reserved

33

PS2 Mouse setup

Setup PS2 Mouse and reset KB

34

Reserved

35

Test DMA Controller 0

Test DMA Controller 0

36

Reserved

37

Test DMA Controller 1

Test DMA Controller 1

38

Reserved

39

Test DMA Page

Registers

Test DMA Page Registers.
3A

Reserved

3B

Reserved

3C

Test Timer Counter 2

Test 8254 Timer 0 Counter 2.

3D

Reserved

3E

Test 8259-1 Mask Bits

Verify 8259 Channel 1 masked interrupts by alternately turning off
and on the interrupt lines.

3F

Reserved

40

Test 8259-2 Mask Bits

Verify 8259 Channel 2 masked interrupts by alternately turning off
and on the interrupt lines.

41

Reserved

42

Reserved

98 ECM-LX800W Series User‘s Manual

User’s Manual

Code (hex)

Name

Description

43

Test Stuck 8259's

Interrupt Bits

Test 8259 Interrupt

Functionality

Turn off interrupts then verify no interrupt mask register is on.

Force an interrupt and verify the interrupt occurred.
44

Reserved

45

Reserved

46

Reserved

47

Set EISA Mode

If EISA non-volatile memory checksum is good, execute EISA

initialization. If not, execute ISA tests an clear EISA mode flag.

48

Reserved

49

Size Base and

Extended Memory

Size base memory from 256K to 640K and extended memory
above 1MB.

4A

Reserved

4B

Reserved

4C

Reserved

4D

Reserved

4E

Test Base and

Extended Memory

Test base memory from 256K to 640K and extended memory
above 1MB using various patterns.
NOTE: This test is skipped in EISA mode and can be skipped
with ESC key in ISA mode.

4F

Reserved

50

USB init

Initialize USB controller

51

Reserved

52

Memory Test

Test all memory of memory above 1MB using Virtual 8086 mode,
page mode and clear the memory

53

Reserved

54

Reserved

55

CPU display

Detect CPU speed and display CPU vendor specific version
string and turn on all necessary CPU features

56

Reserved

57

PnP Init

Display PnP logo and PnP early init

58

Reserved

59

Setup Virus Protect

Setup virus protect according to Setup

5A

Reserved

5B

Awdflash Load

If required, will auto load Awdflash.exe in POST

5C

Reserved

5D

Onboard I/O Init

Initializing onboard superIO

ECM-LX800W Series User‘s Manual 99

ECM-LX800W Series

Code (hex)

Name

Description

5E

Reserved

5F

Reserved

60

Setup enable

Display setup message and enable setup functions

61

Reserved

62

Reserved

63

Initialize & Install

Mouse

Detect if mouse is present, initialize mouse, install interrupt
vectors.

64

Reserved

65

PS2 Mouse special

Special treatment to PS2 Mouse port

66

Reserved

67

ACPI init

ACPI sub-system initializing

68

Reserved

69

Setup Cache Controller

Initialize cache controller.

6A

Reserved

6B

Setup Entering

Enter setup check and auto- configuration check up

6C

Reserved

6D

Initialize Floppy Drive &

Controller

Initialize floppy disk drive controller and any drives.
6E

Reserved

6F

FDD install

Install FDD and setup BIOS data area parameters

70

Reserved

71

Reserved

72

Reserved

73

Initialize Hard Drive &

Controller

Initialize hard drive controller and any drives.
74

Reserved

75

Install HDD

IDE device detection and install

76

Reserved

77

Detect & Initialize

Serial/Parallel Port

Initialize any serial and parallel ports (also game port).
78

Reserved

79

Reserved

7A

Detect & Initialize Math

Coprocessor

Initialize math coprocessor.
7B

Reserved

7C

HDD Check for Write

protection

HDD check out

100 ECM-LX800W Series User‘s Manual
