Avalue Technology ECM-BSW User Manual

Part No. E2047392602R

ECM-BSW

Intel® Pentium® /Celeron® Processor 3.5” Micro Module

User’s Manual

3rd Ed – 22 September 2016

ECM-BSW User’s Manual

2 ECM-BSW User’s Manual

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.

Copyright Notice

Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED.

No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective
owners.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that

User’s Manual

ECM-BSW User’s Manual

3

these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose
failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

ECM-BSW User’s Manual

4 ECM-BSW User’s Manual

Product Warranty

Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Avalue, or which have been subject to
misuse, abuse, accident or improper installation. Avalue assumes no liability under the

terms of this warranty as a consequence of such events. Because of Avalue’s high

quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Avalue’s products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example,

CPU type and speed, Avalue’s products model name, hardware & BIOS

revision number, other hardware and software used, etc.) Note anything
abnormal and list any on-screen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product,

and any helpful information available.

3. If your product is diagnosed as defective, obtain an RMA (return material

authorization) number from your dealer. This allows us to process your good
return more quickly.

4. Carefully pack the defective product, a complete Repair and Replacement

Order Card and a photocopy proof of purchase date (such as your sales
receipt) in a shippable container. A product returned without proof of the
purchase date is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it

prepaid to your dealer.

User’s Manual

ECM-BSW User’s Manual

5

Content

1. Getting Started ............................................................................................................ 8

1.1 Safety Precautions .................................................................................................... 8

1.2 Packing List ............................................................................................................... 8

1.3 Document Amendment History ................................................................................. 9

1.4 Manual Objectives ................................................................................................... 10

1.5 System Specifications ............................................................................................. 11

1.6 Architecture Overview—Block Diagram .................................................................. 13

2. Hardware Configuration ........................................................................................... 14

2.1 Product Overview .................................................................................................... 15

2.2 Jumper and Connector List ..................................................................................... 17

2.3 Setting Jumpers & Connectors ............................................................................... 19

2.3.1 AT/ ATX Input power select (JAT1) ................................................................................................ 19

2.3.2 Serial port 1 pin9 signal select (JRI1) ............................................................................................ 19

2.3.3 Clear CMOS (JBAT1) ..................................................................................................................... 20

2.3.4 LCD backlight brightness adjustment (JBKL_SEL1) ...................................................................... 20

2.3.5 LCD Inverter connector (JBKL1) .................................................................................................... 21

2.3.6 LCD Backlight VR/Push Up/Push Down header (JBLKCTL) ......................................................... 21

2.3.7 CPU fan connector (CPU_FAN1) ................................................................................................... 22

2.3.8 Serial port 2 connector (JCOM2) ................................................................................................... 22

2.3.9 Serial port 3/4/5 connector (JCOM3/JCOM4/JCOM5) ................................................................... 23

2.3.10 General purpose I/O connector (JDIO1) .................................................................................... 23

2.3.11 Touch panel connector (JTOUCH1) .......................................................................................... 24

2.3.12 SATA Power header (SATA_PWR1) ......................................................................................... 24

2.3.13 Power connector (PWR1) .......................................................................................................... 25

2.3.14 LPC connector (JLPC1) ............................................................................................................. 25

2.3.15 LVDS connector (JLVDS) .......................................................................................................... 26

2.3.16 On-board header for USB2.0 (H_JUSB1) .................................................................................. 27

2.3.17 EC Debug connector (JECDBUG) ............................................................................................. 27

2.3.18 PS/2 keyboard & mouse header (JKBMS1) .............................................................................. 28

2.3.19 Serial port 1 in RS-422/485 mode (J422_485) .......................................................................... 28

2.3.20 Miscellaneous setting connector (JFP1) .................................................................................... 29

2.3.21 BIOS SPI header (BIOS_SPI1).................................................................................................. 29

2.3.22 PC Buzzer header (JBZ1) .......................................................................................................... 30

2.3.23 Battery connector (BT1) ............................................................................................................. 30

2.3.24 Audio connector (JAUDIO1) ...................................................................................................... 31

2.3.24.1 Signal Description – Audio connector (JAUDIO1) ................................................................. 31

ECM-BSW User’s Manual

6 ECM-BSW User’s Manual

2.3.25 VGA header (JVGA1) ................................................................................................................ 32

3.BIOS Setup .................................................................................................................... 33

3.1 Introduction ............................................................................................................. 34

3.2 Starting Setup ......................................................................................................... 34

3.3 Using Setup ............................................................................................................ 35

3.4 Getting Help ............................................................................................................ 36

3.5 In Case of Problems ................................................................................................ 36

3.6 BIOS setup .............................................................................................................. 37

3.6.1 Main Menu ...................................................................................................................................... 37

3.6.1.1 System Time .......................................................................................................................... 37

3.6.1.2 System Date .......................................................................................................................... 37

3.6.2 Advanced Menu ............................................................................................................................. 38

3.6.2.1 SATA Configuration ............................................................................................................... 39

3.6.2.2 PCI Express Configuration .................................................................................................... 39

3.6.2.3 RTC S5 Wake ........................................................................................................................ 40

3.6.2.4 Hardware Monitor .................................................................................................................. 41

3.6.2.5 SIO NUVOTON5104D ........................................................................................................... 41

3.6.2.6 Brightness Control ................................................................................................................. 42

3.6.2.7 Device function Control ......................................................................................................... 43

3.6.3 Security ......................................................................................................................................... 43

3.6.4 Power............................................................................................................................................ 44

3.6.5 Boot .............................................................................................................................................. 45

3.6.6 Exit ................................................................................................................................................ 46

3.6.6.1 Exit Saving Changes ............................................................................................................. 46

3.6.6.2 Save Change Without Exit ..................................................................................................... 46

3.6.6.3 Exit Discarding Changes ....................................................................................................... 46

3.6.6.4 Load Optimal Defaults ........................................................................................................... 46

3.6.6.5 Load Custom Defaults ........................................................................................................... 46

3.6.6.6 Save Custom Defaults ........................................................................................................... 46

3.6.6.7 Discard Changes ................................................................................................................... 46

4. Drivers Installation....................................................................................................... 47

4.1 Install Chipset Driver ............................................................................................... 48

4.2 Install Nuvoton Driver .............................................................................................. 49

4.3 Install TXE Driver .................................................................................................... 50

4.4 Install VGA Driver .................................................................................................... 51

4.5 Install Audio Driver (For Realtek ALC233) .............................................................. 52

4.6 Install USB3.0 Driver ............................................................................................... 53

4.7 Install Ethernet Driver .............................................................................................. 54

4.8 Install Serial IO Driver ............................................................................................. 55

4.9 Install SMSC Hub Driver ......................................................................................... 56

User’s Manual

ECM-BSW User’s Manual

7

4.10 Install Touch Driver ................................................................................................. 57

5. Mechanical Drawing .................................................................................................... 59

ECM-BSW User’s Manual

8 ECM-BSW User’s Manual

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.

Caution!

Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.

1.2 Packing List

Before you begin installing your single board, please make sure that the
following materials have been shipped:

 1 x 3.5” ECM-BSW Micro Module
 1 x DVD-ROM contains the followings:

— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities

 1 x Cable set contains the followings:

— 1 x Serial ATA cable (7-pin, standard)
— 1 x Wire SATA power cable (15-pin, 2P/2.0mm)
— 1 x Flat Cable 9P(M)-PHD (10P/2.0mm)

 3M foam (VHB-4622 10mm*20mm*1.1mm)

User’s Manual

ECM-BSW User’s Manual

9

1.3 Document Amendment History

Revision

Date

By

Comment

1st

August 2015

Avalue

Initial Release

2nd

March 2016

Avalue

Update JFP1 Pin Signal

3rd

September 2016

Avalue

Update 2.3.4 JBKL_SEL1/ 2.3.6 JBLKCTL

ECM-BSW User’s Manual

10 ECM-BSW User’s Manual

1.4 Manual Objectives

This manual describes in details Avalue Technology ECM-BSW Single Board.

We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.

We strongly recommend that you study this manual carefully before attempting to set up
ECM-BSW or change the standard configurations. Whilst all the necessary information is
available in this manual we would recommend that unless you are confident, you contact
your supplier for guidance.

Please be aware that it is possible to create configurations within the CMOS RAM that
make booting impossible. If this should happen, clear the CMOS settings, (see the
description of the Jumper Settings for details).

If you have any suggestions or find any errors regarding this manual and want to inform us
of these, please contact our Customer Service department with the relevant details.

User’s Manual

ECM-BSW User’s Manual

11

1.5 System Specifications

System

CPU

Intel® Pentium® /Celeron® processor N3000 series for mobile

BIOS

Insyde BIOS, 64 Mbit SPI Flash ROM

System Chipset

Braswell SoC integrated

I/O Chip

Nuvoton NPCE388N

System Memory

1 x 204-pin DDR3L 1600 SODIMM up to 8G (non ECC)
(If 1333 MHz DIMM is installed, it will run at 1066 MHz)

SSD

mSATA (from MiniPCIe)

Watchdog

Timer

H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

H/W Status

Monitor

CPU & system temperature monitoring
Voltages monitoring

Expansion

1 x Full-Size Mini PCI Express Mini Card with mSATA supported
1 x Half-size Mini PCIe

Built-in Touch

screen

(optional)

EETI ETP-CP-MER4485XRU
With 5-pin 2.0mm Box Header (Can be Selected to Support 4/ 5Wire Touch Screen)

I/O

MIO

1 x SATA III
1 x DB-9 male connector for COM1 supports RS232/422/485 (selectable by BIOS,
w/ Auto Flow)

USB

4 x USB3.0 (Edge connectors), 2 x USB 2.0 (Pin header)

GPIO

8-bit

Others

LPC, SPI

Display

Chipset

Braswell SoC integrated Graphics

Resolution

HDMI mode: 1920x1080@60Hz
LVDS mode:1920x1080@60Hz
VGA by pin header (optional)

Multiple Display

HDMI + LVDS

HDMI

HDMI x1.4b

LCD

Interface

Dual channel 18/24-bit LVDS
LVDS via Realtek RTD2136N

Audio

AC97 Codec

Realtek ALC233 HD Audio support 2.1-CH

Audio Amp

2W

Ethernet

ECM-BSW User’s Manual

12 ECM-BSW User’s Manual

LAN Chip

2 x RealTek RTL8119I

Ethernet
Interface

10/100/1000 Base-Tx compatible

Internal I/O

Connectors

Fan

CPU_FAN1 4pin 2.5mm wafer header

Buzzer

With Pin header

CMOS Battery

CR2032

Power On

AX / ATX selectable by jumper

Audio

8 x 2 pin header w/2.0mm pitch
With AMP_L+/-, AMP_R+/-

COM

4 x RS232 (Pin header) for COM2/3/4/5

Rear I/O

Connectors

USB

4 x USB3.0

LAN

2 x RJ-45

HDMI

1 x HDMI (HDMI 19P 90D(F) STD w/Flange BLK)

LED

Stack LED indicator for power / HDD

Mechanical &

Environmental

Power

Requirement

+11.4V ~ +26V

ACPI

Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant

Power Type

AT / ATX

Operating

Temp.

0°C ~ 60°C

Storage Temp.

-40°C ~ 75°C

Operating

Humidity

0% ~ 90% relative humidity, non-condensing

Size (L x W)

5.7" x 4" (146mm x 101mm)

Weight

0.44lbs (0.2kg)

OS support

Windows 10/ 8.1 / Windows 7 / Linux

Note: Specifications are subject to change without notice.

User’s Manual

ECM-BSW User’s Manual

13

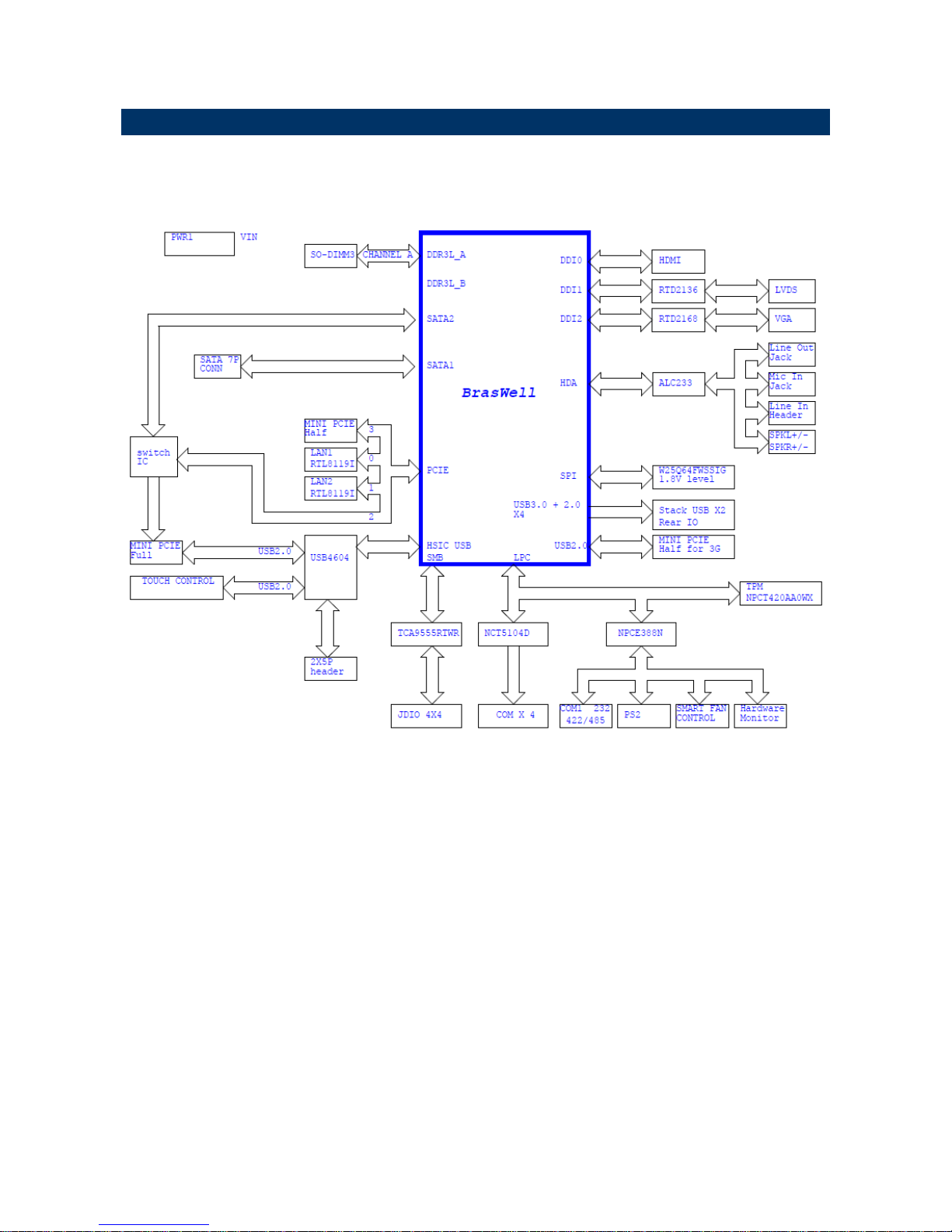

1.6 Architecture Overview—Block Diagram

The following block diagram shows the architecture and main components of ECM-BSW.

ECM-BSW User’s Manual

14 ECM-BSW User’s Manual

2. Hardware
Configuration

User’s Manual

ECM-BSW User’s Manual

15

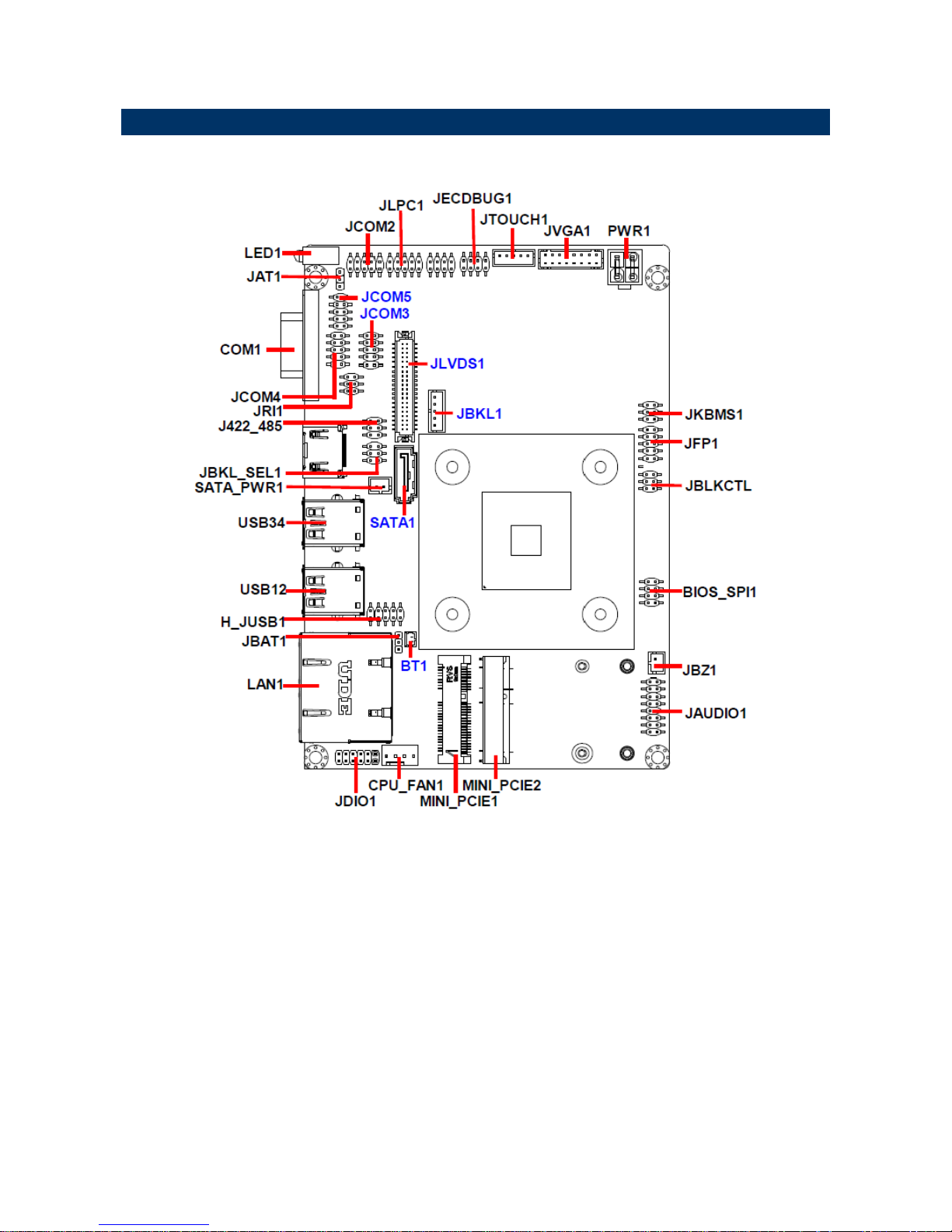

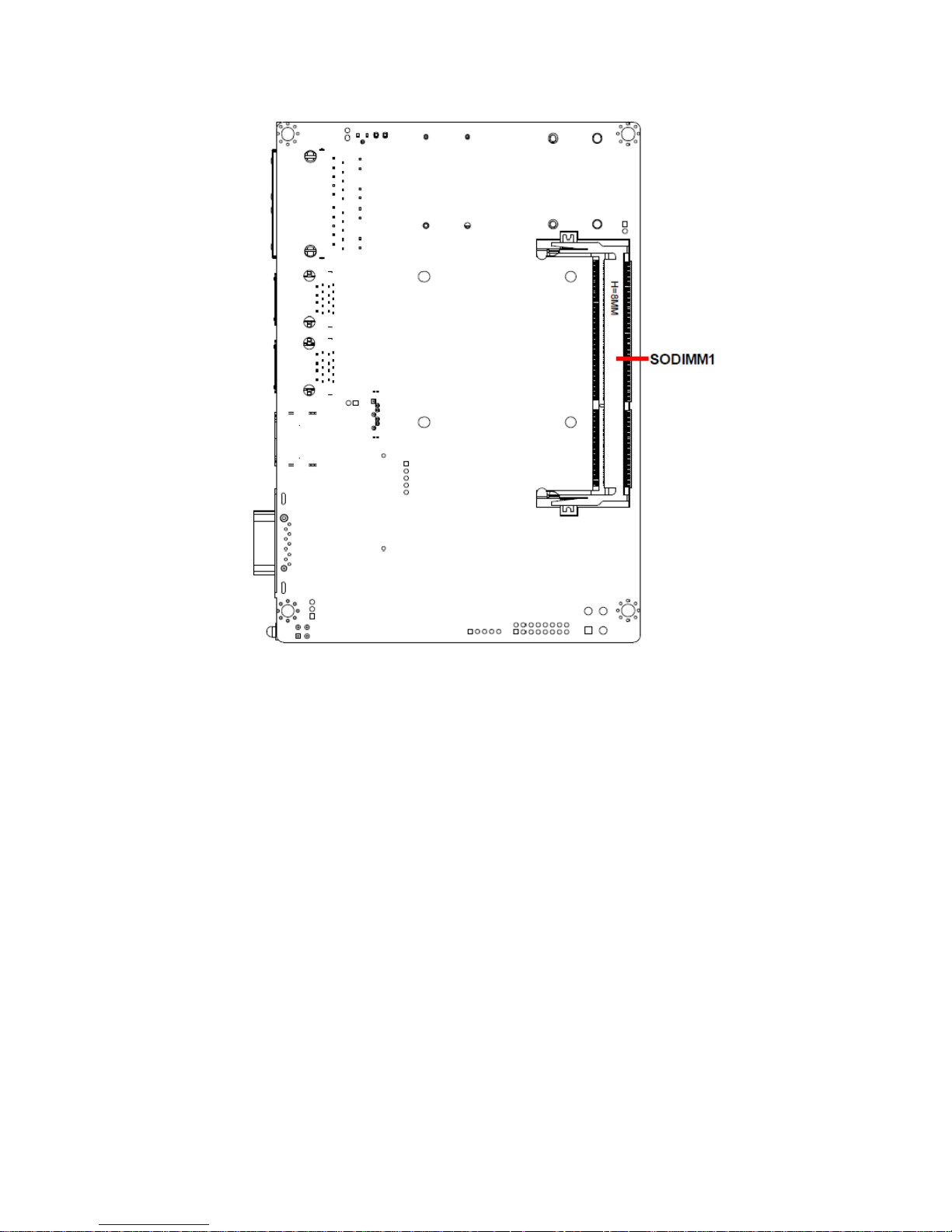

2.1 Product Overview

ECM-BSW User’s Manual

16 ECM-BSW User’s Manual

User’s Manual

ECM-BSW User’s Manual

17

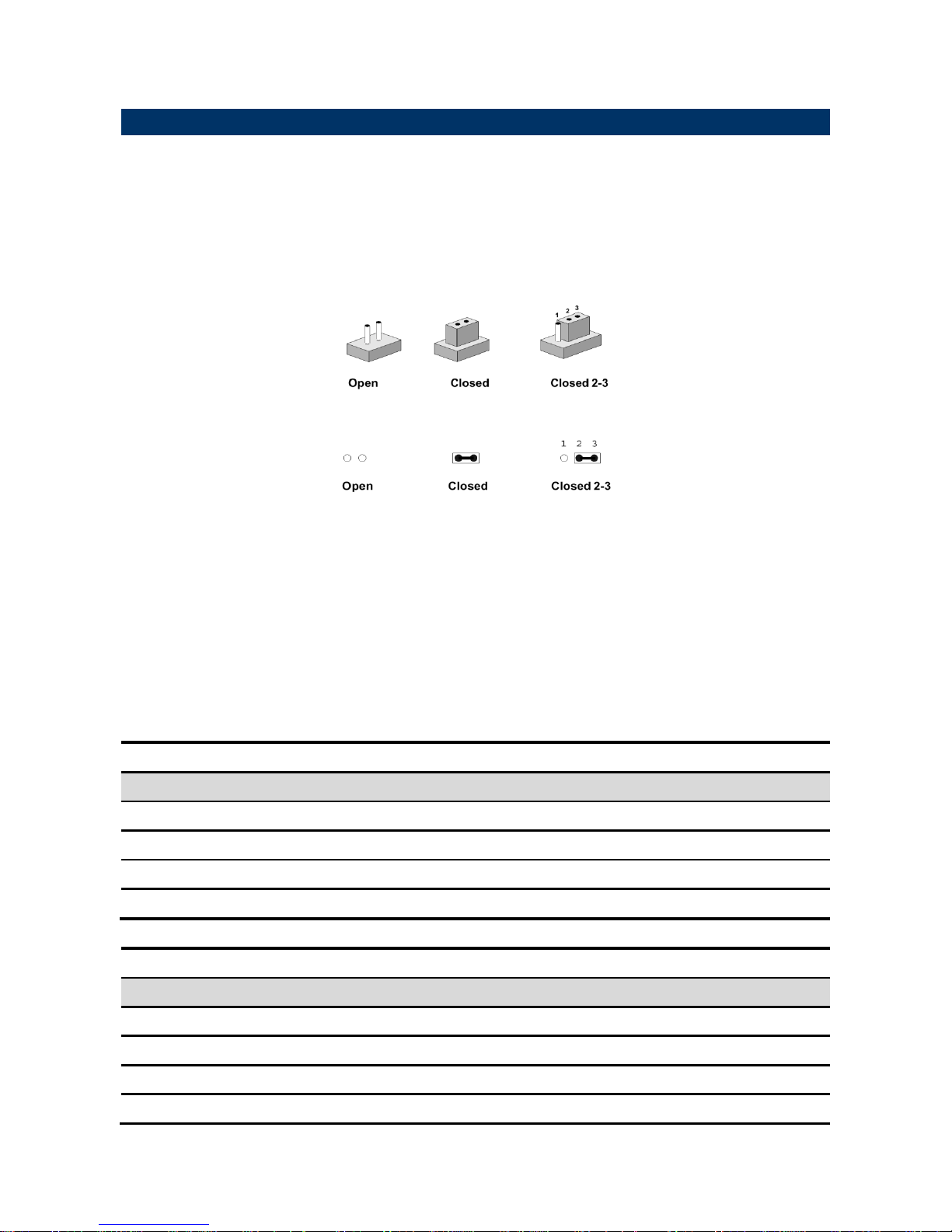

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label

Function

Note

JBAT1

Clear CMOS

3 x 1 header, pitch 2.00 mm

JRI1

Serial port 1 pin9 signal select

3 x 2 header, pitch 2.00 mm

JAT1

AT/ ATX Input power select

3 x 1 header, pitch 2.00 mm

JBKL_SEL1

LCD backlight brightness adjustment

3 x 2 header, pitch 2.00 mm

Connectors

Label

Function

Note

BT1

Battery connector

2 x 1 wafer, pitch 1.25 mm

CPU_FAN1

CPU fan connector

4 x 1 wafer, pitch 2.54 mm

JAUDIO1

Audio connector

8 x 2 header, pitch 2.00 mm

JBKL1

LCD inverter connector

5 x 1 wafer, pitch 2.00 mm

ECM-BSW User’s Manual

18 ECM-BSW User’s Manual

J422_485

Serial port 1 in RS-422/485 mode

3 x 2 header, pitch 2.00 mm

COM1

Serial port 1 connector

D-sub 9-pin, male
Note：COM1 support

RS422/485 by BIOS setting

JCOM2/3/4/5

Serial port 2/3/4/5 connector

5 x 2 header, pitch 2.00 mm

JDIO1

General purpose I/O connector

6 x 2 header, pitch 2.00 mm

JFP1

Miscellaneous setting connector

5 x 2 header, pitch 2.00 mm

JLPC1

Low pin count interface

5 x 2 header, pitch 2.00 mm

JLVDS1

LVDS connector

20 x 2 header, pitch 1.25 mm

JTOUCH1

Touch Panel connector

5 x 1 wafer, pitch 2.00 mm

USB12/34

On-board connector for USB3.0 x 4

H_JUSB1

On-board header for USB2.0

5 x 2 header, pitch 2.00 mm

JECDBUG1

EC Debug connector

4 x 2 header, pitch 2.00 mm

LAN1

RJ-45 Ethernet connector x 2

LED1

HDD/Power LED indicator

PWR1

Power connector

2 x 2 wafer, pitch 4.20 mm

JKBMS1

PS/2 keyboard & mouse header

3 x 2 header, pitch 2.00 mm

SATA_PWR1

SATA power header

2 x 1 wafer, pitch 2.00 mm

SATA1

Serial ATA connector 1

JVGA1

VGA header (optional)

8 x 2 wafer, pitch 2.00 mm

BIOS_SPI1

BIOS SPI header

4 x 2 header, pitch 2.00 mm

MINI_PCIE1/2

Mini-PCI connector 1/2

SO_DIMM1

DDR3 SODIMM connector

JBZ1

PC Buzzer header

2 x 1 wafer, pitch 2.00 mm

JBLKCTL

LCD Backlight VR/Push Up/Push Down
header

3 x 2 header, pitch 2.00mm

User’s Manual

ECM-BSW User’s Manual

19

2.3 Setting Jumpers & Connectors

2.3.1 AT/ ATX Input power select (JAT1)

AT*

ATX

2.3.2 Serial port 1 pin9 signal select (JRI1)

* Default

Ring*

+5V

+12V

ECM-BSW User’s Manual

20 ECM-BSW User’s Manual

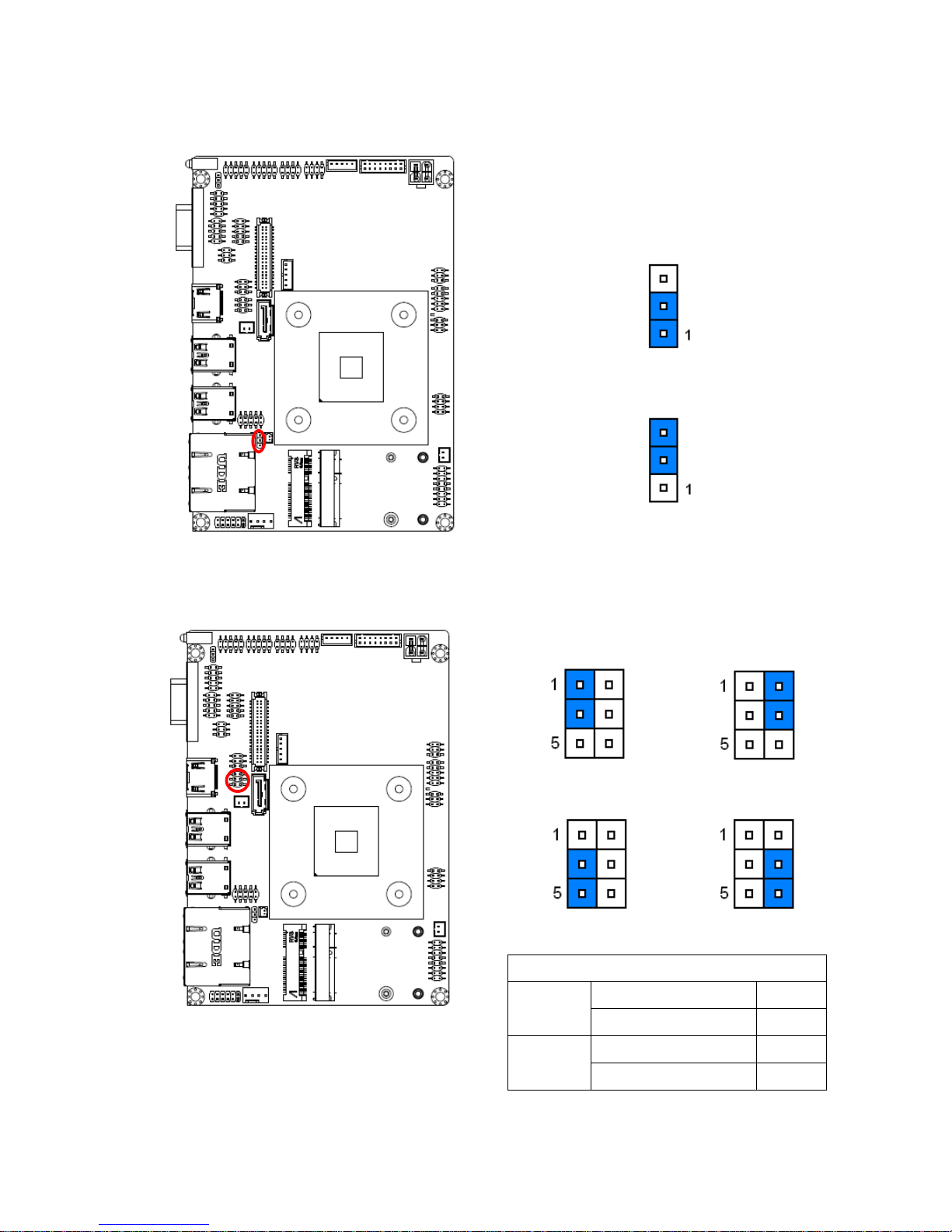

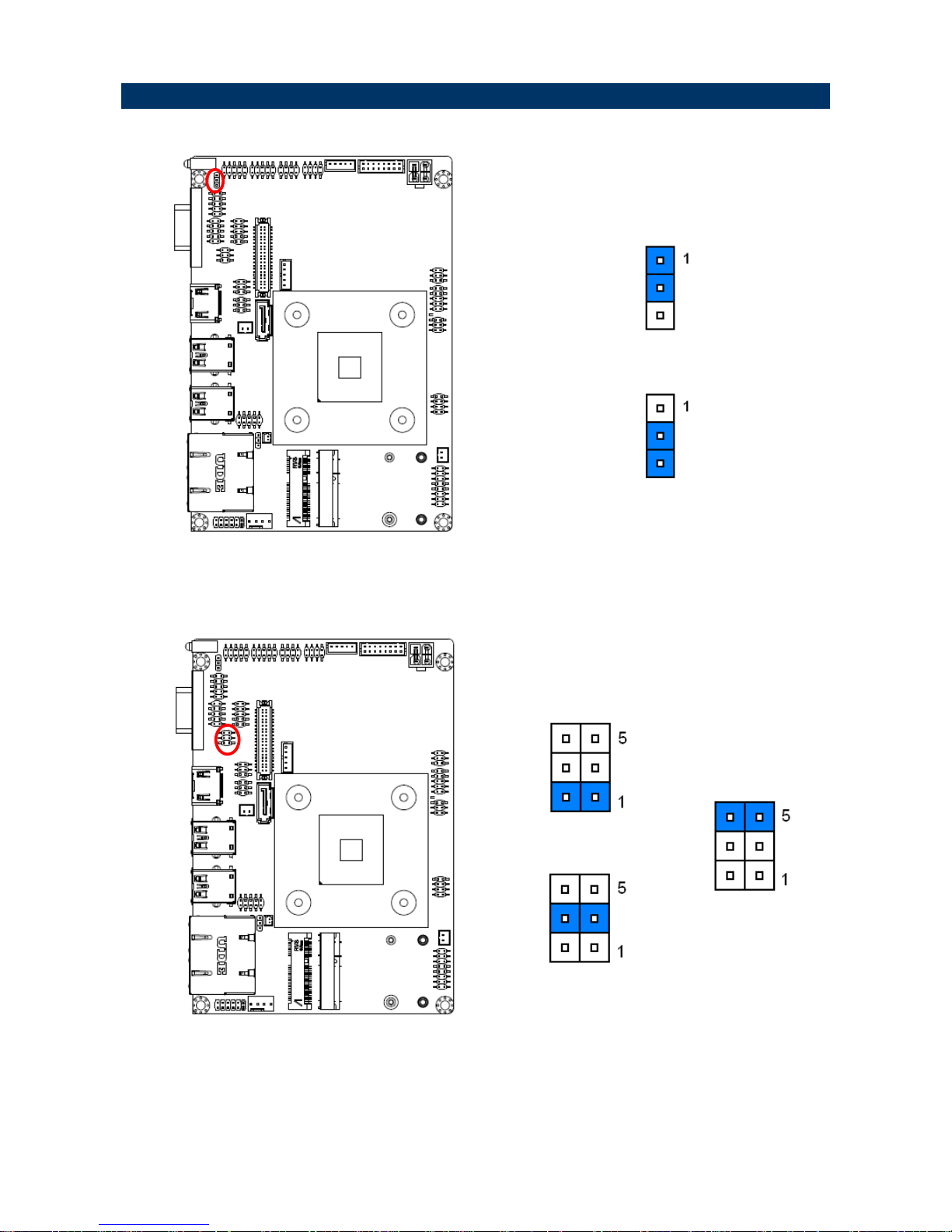

2.3.3 Clear CMOS (JBAT1)

* Default

Protect*

Clear CMOS

2.3.4 LCD backlight brightness adjustment (JBKL_SEL1)

* Default

PWM Mode*

DC Mode

OS Driver Control

VR Control*

For OS Driver Control, Brightness Control in the
BIOS setting must set “VR”.

JBKL_SEL1

Type

PWM

1-3

DC

3-5

Level

OS Driver Control

2-4

VR

4-6

User’s Manual

ECM-BSW User’s Manual

21

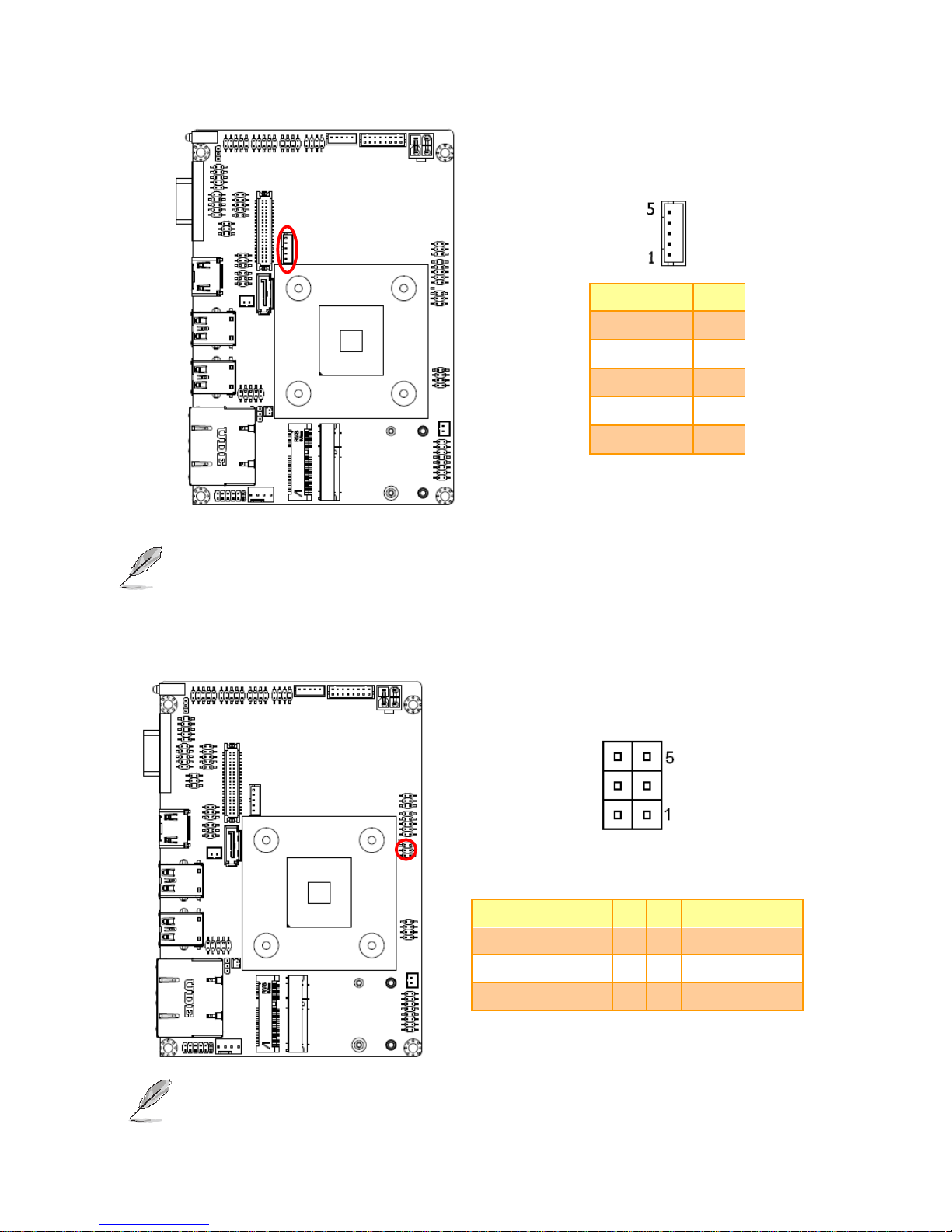

2.3.5 LCD Inverter connector (JBKL1)

Signal

PIN

+5V

5

VBRIGHT

4

BKLEN

3

GND

2

+12V

1

Note:

For inverters with adjustable Backlight function, it is possible to control the LCD brightness through
the VR signal controlled by JBLKCTL. Please see the JBLKCTL section for detailed circuitry
information.

2.3.6 LCD Backlight VR/Push Up/Push Down header (JBLKCTL)

Signal

PIN

PIN

Signal

GND

6 5 BLK_BRI_DN

GND

4 3 BLK_BRI_UP

GND

2 1 BLK_VR_MOD

Note:

For Button down/up control (BLK_BRI_DN/ BLK_BRI_UP), Brightness Control in the BIOS setting
must set “BIOS”.

ECM-BSW User’s Manual

22 ECM-BSW User’s Manual

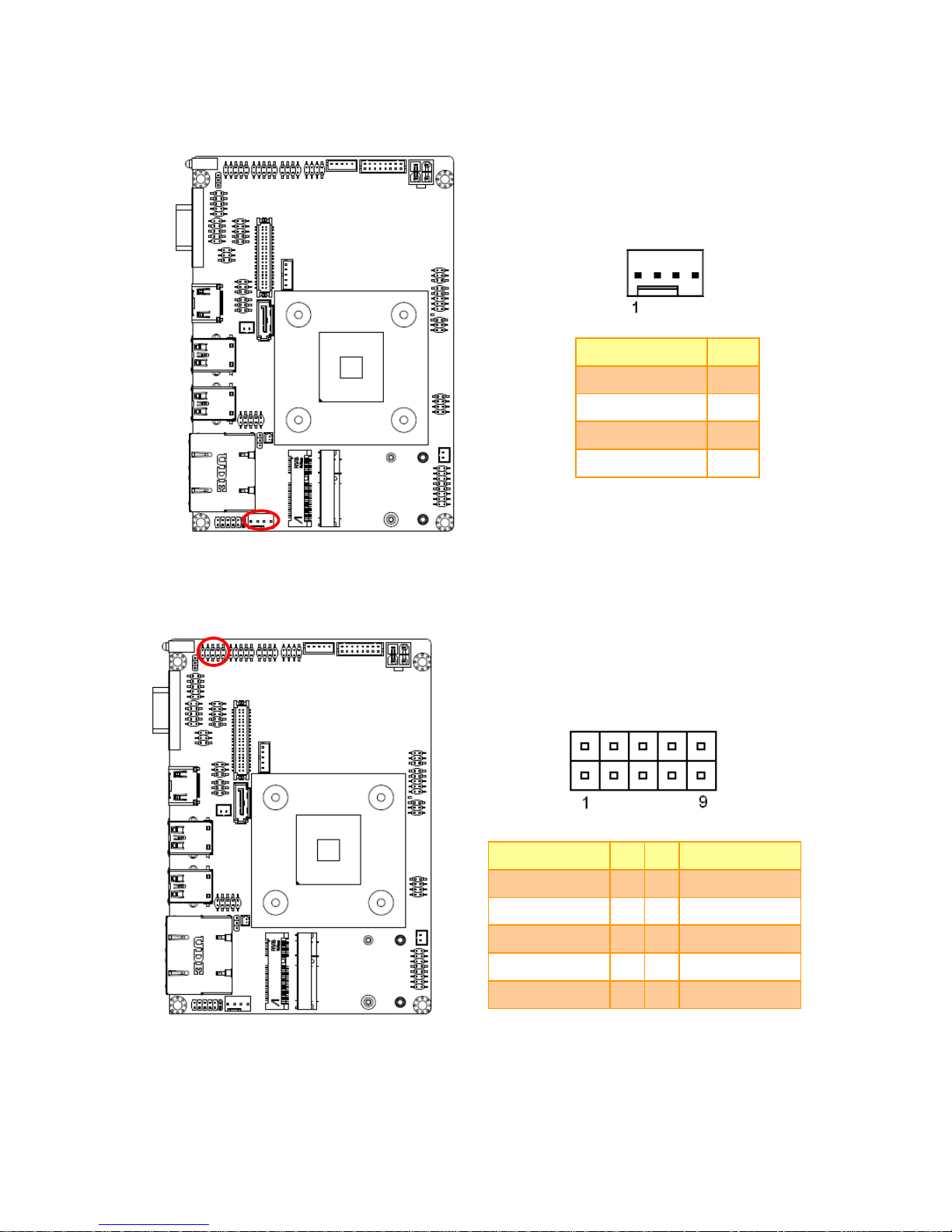

2.3.7 CPU fan connector (CPU_FAN1)

Signal

PIN

GND

1

+12V

2

EC_TACH0

3

FAN_PWM1

4

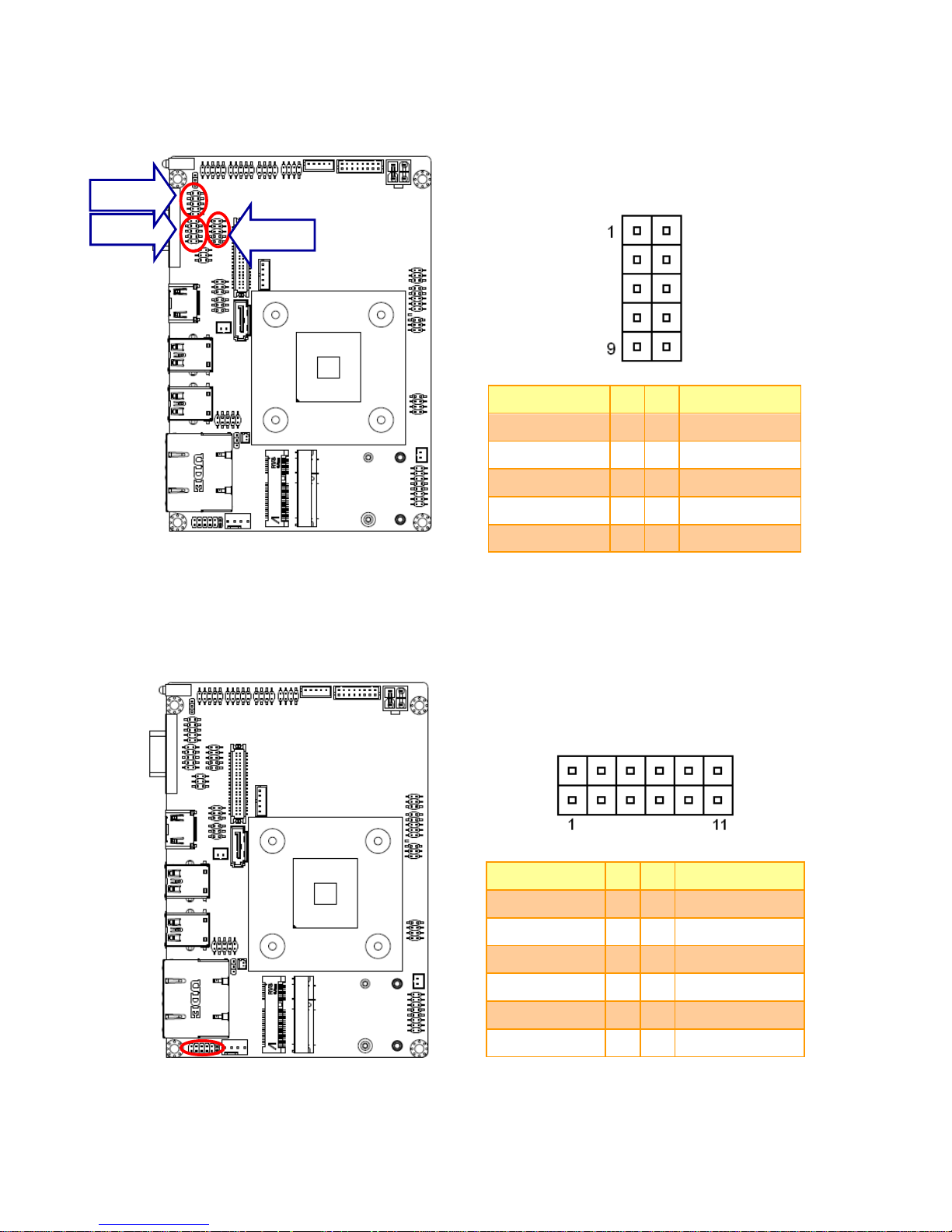

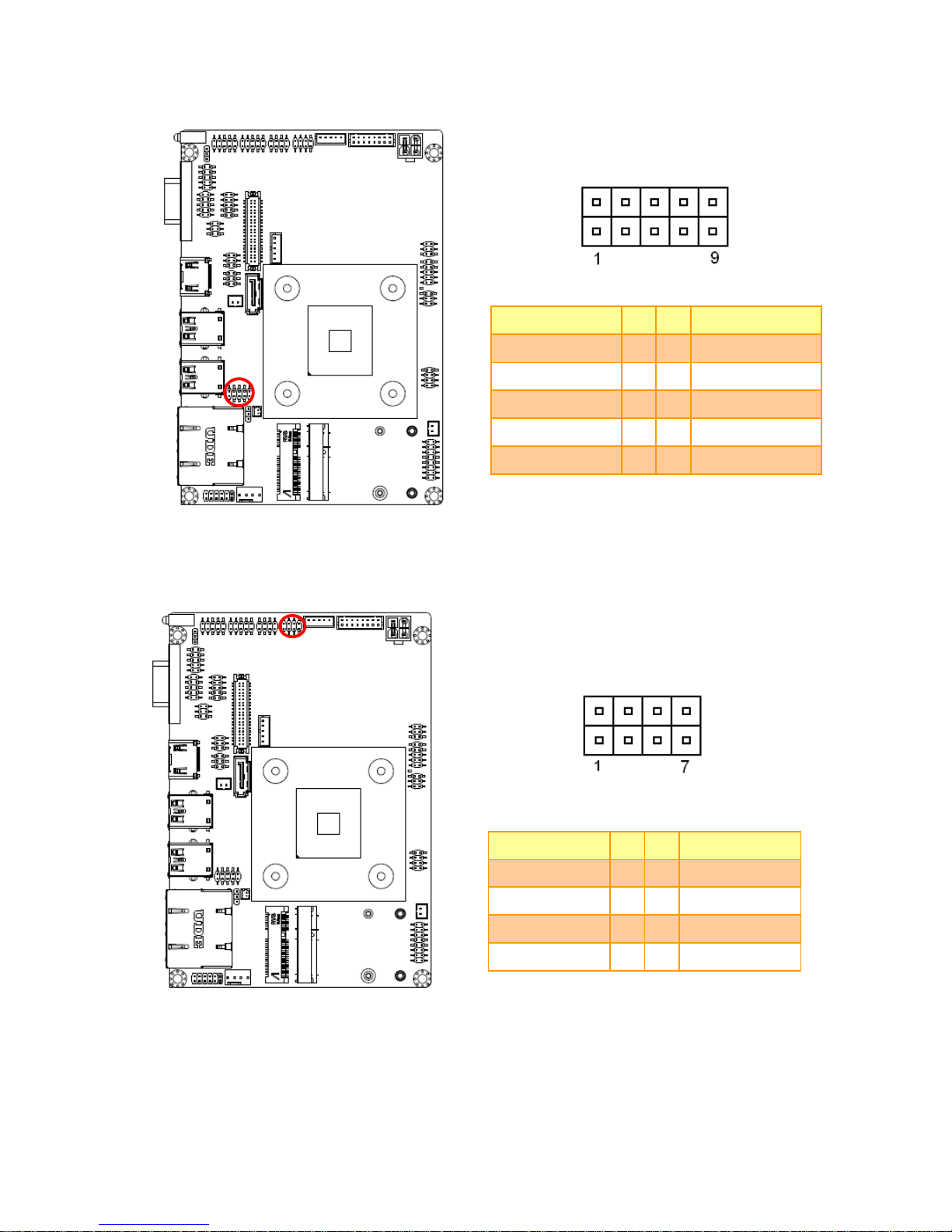

2.3.8 Serial port 2 connector (JCOM2)

Signal

PIN

PIN

Signal

COM_RXD#

2 1 COM_DCD#

COM_DTR#

4 3 COM_TXD

COM_DSR#

6 5 GND

COM_CTS#

8 7 COM_RTS#

NC

10 9 COM_RI#

User’s Manual

ECM-BSW User’s Manual

23

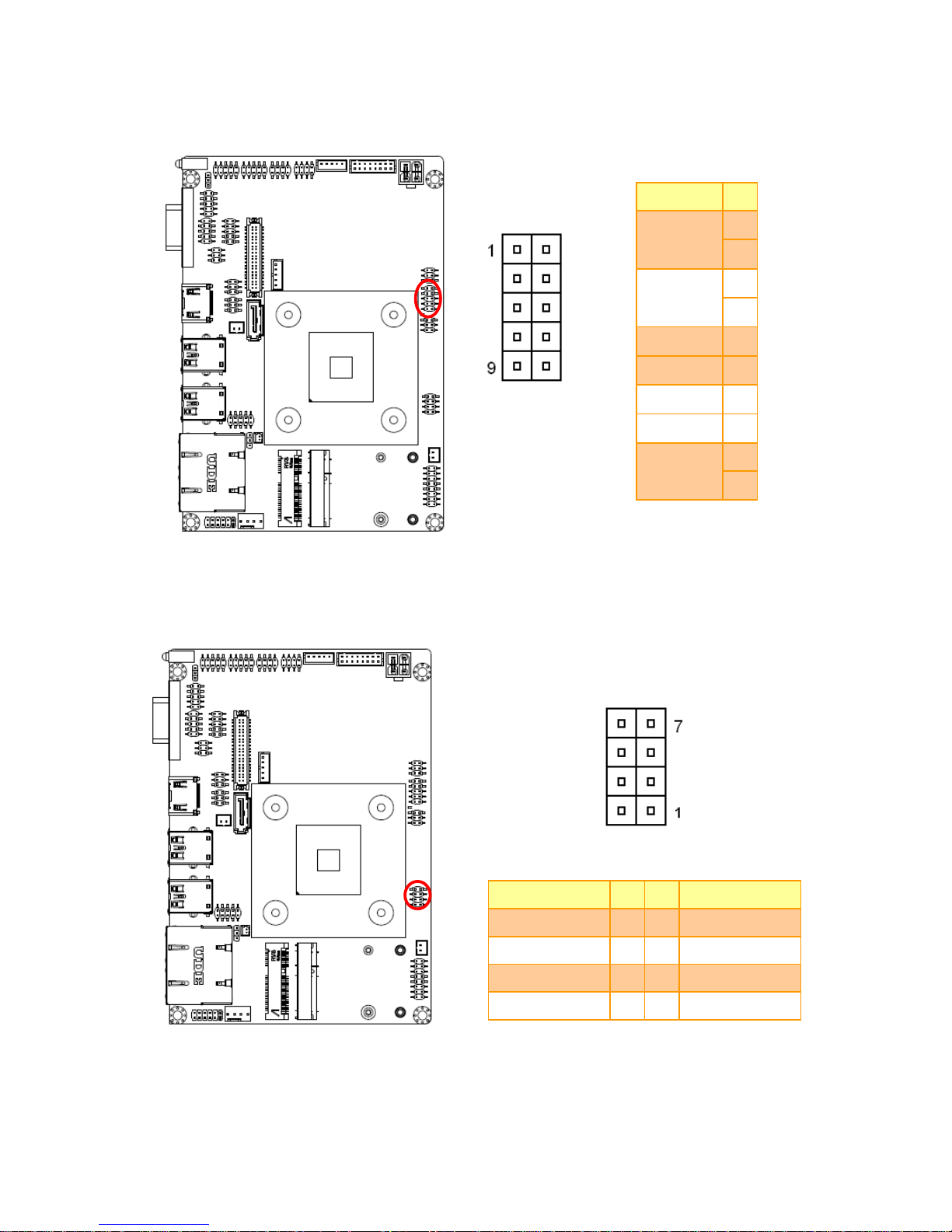

2.3.9 Serial port 3/4/5 connector (JCOM3/JCOM4/JCOM5)

Signal

PIN

PIN

Signal

COM_DCD#

1 2 COM_RXD#

COM_TXD

3 4 COM_DTR#

GND

5 6 COM_DSR#

COM_RTS#

7 8 COM_CTS#

COM_RI#

9

10

NC

2.3.10 General purpose I/O connector (JDIO1)

Signal

PIN

PIN

Signal

DIO_GP20

1 2 DIO_GP10

DIO_GP21

3 4 DIO_GP11

DIO_GP22

5 6 DIO_GP12

DIO_GP23

7 8 DIO_GP13

SMB_CLK_9555

9

10

SMB_DATA_9555

GND

11

12

+5V

JCOM3

JCOM4

JCOM5

ECM-BSW User’s Manual

24 ECM-BSW User’s Manual

2.3.11 Touch panel connector (JTOUCH1)

Signal

PIN

THX+

1

THX-

2

THPROBE_R

3

THY+

4

THY-

5

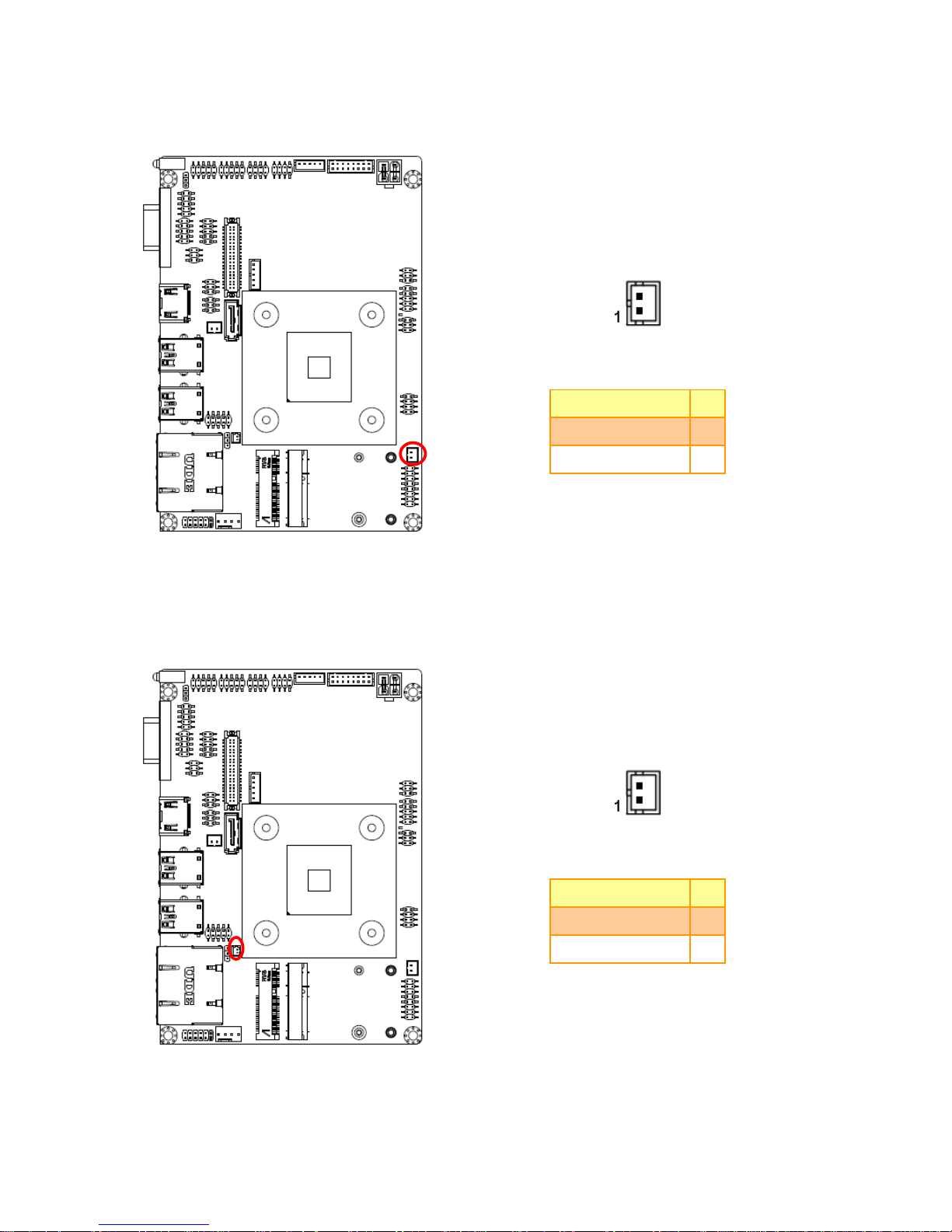

2.3.12 SATA Power header (SATA_PWR1)

Signal

PIN

GND

1

+5V

2

User’s Manual

ECM-BSW User’s Manual

25

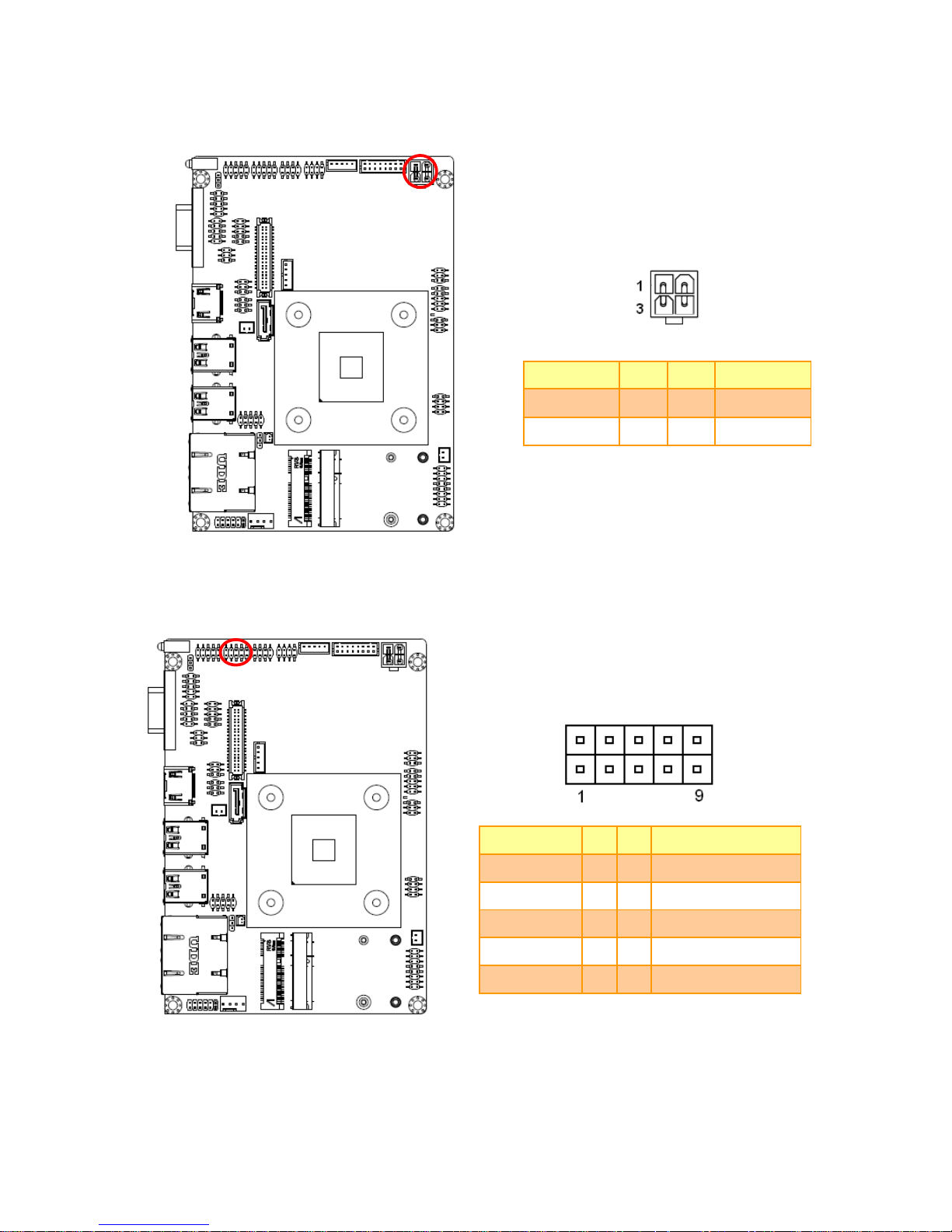

2.3.13 Power connector (PWR1)

Signal

PIN

PIN

Signal

GND

1

2

GND

+26V

3 4 +26V

2.3.14 LPC connector (JLPC1)

Signal

PIN

PIN

Signal

LPC_AD0

1 2 +3.3V

LPC_AD1

3 4 LPC_PORT80_RST#

LPC_AD

5 6 LPC_FRAME#

LPC_AD03

7 8 LPC_PORT80_CLK

LPC_SERIRQ

9

10

GND

ECM-BSW User’s Manual

26 ECM-BSW User’s Manual

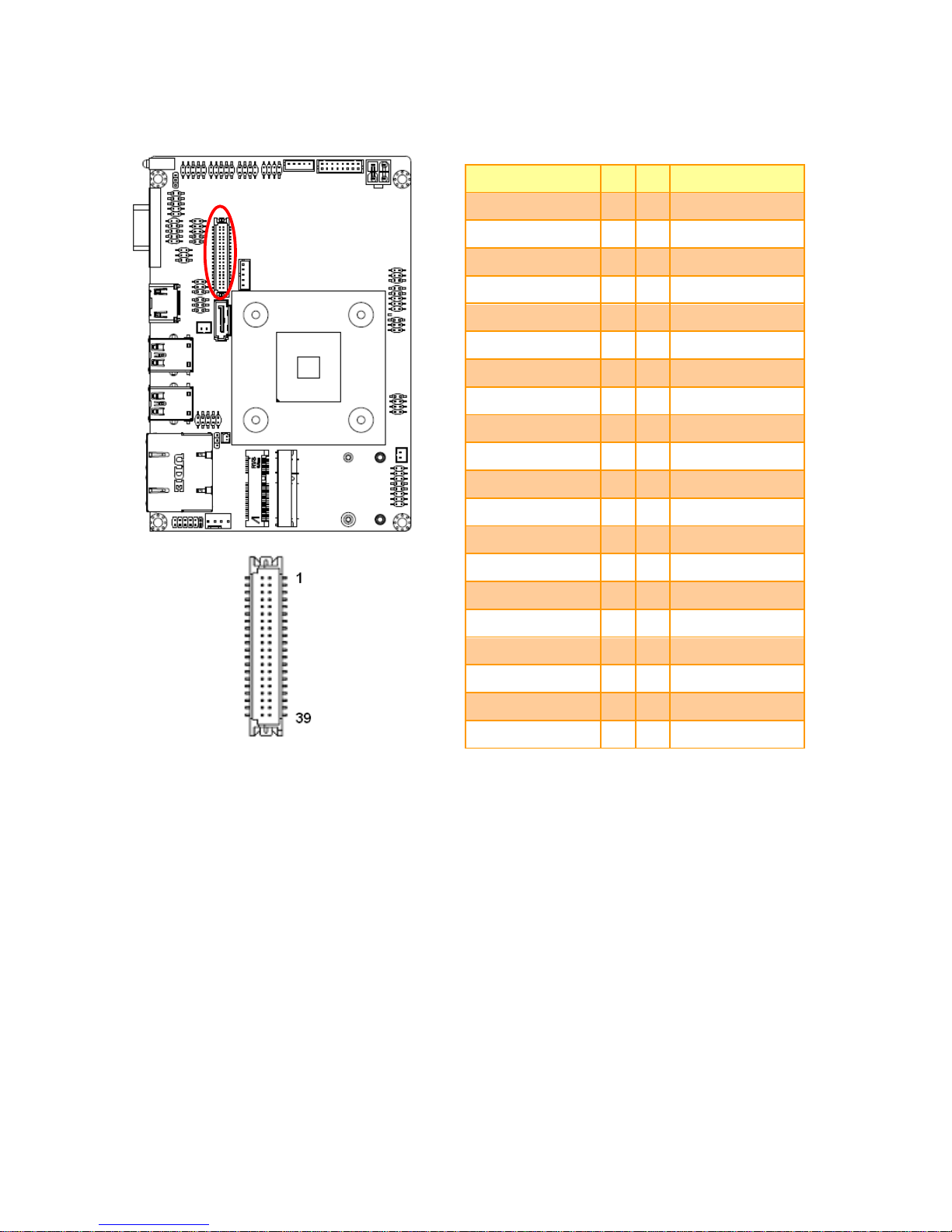

2.3.15 LVDS connector (JLVDS)

Signal

PIN

PIN

Signal

+5V

2 1 +3.3V

+5V

4 3 +3.3V

PANEL_DDC_DAT

6 5 PANEL_DDC_CLK

GND

8 7 GND

LVDS_DATA0_P

10 9 LVDS_DATA1_P

LVDS_DATA0_N

12

11

LVDS_DATA1_N

GND

14

13

GND

LVDS_DATA2_P

16

15

LVDS_DATA3_P

LVDS_DATA2_N

18

17

LVDS_DATA3_N

GND

20

19

GND

LVDS_DATA4_P

22

21

LVDS_DATA5_P

LVDS_DATA4_N

24

23

LVDS_DATA5_N

GND

26

25

GND

LVDS_DATA6_P

28

27

LVDS_DATA7_P

LVDS_DATA6_N

30

29

LVDS_DATA7_N

GND

32

31

GND

LVDS_CLK1_P

34

33

LVDS_CLK2_P

LVDS_CLK1_N

36

35

LVDS_CLK2_N

GND

38

37

GND

+12V

40

39

+12V

User’s Manual

ECM-BSW User’s Manual

27

2.3.16 On-board header for USB2.0 (H_JUSB1)

Signal

PIN

PIN

Signal

USBVCC_HSIC12

1

2

GND

HSIC_DN_2

3 4 GND

HSIC_DP_2

5 6 HSIC_DP_1

GND

7 8 HSIC_DN_1

GND

9

10

USBVCC_HSIC12

2.3.17 EC Debug connector (JECDBUG)

Signal

PIN

PIN

Signal

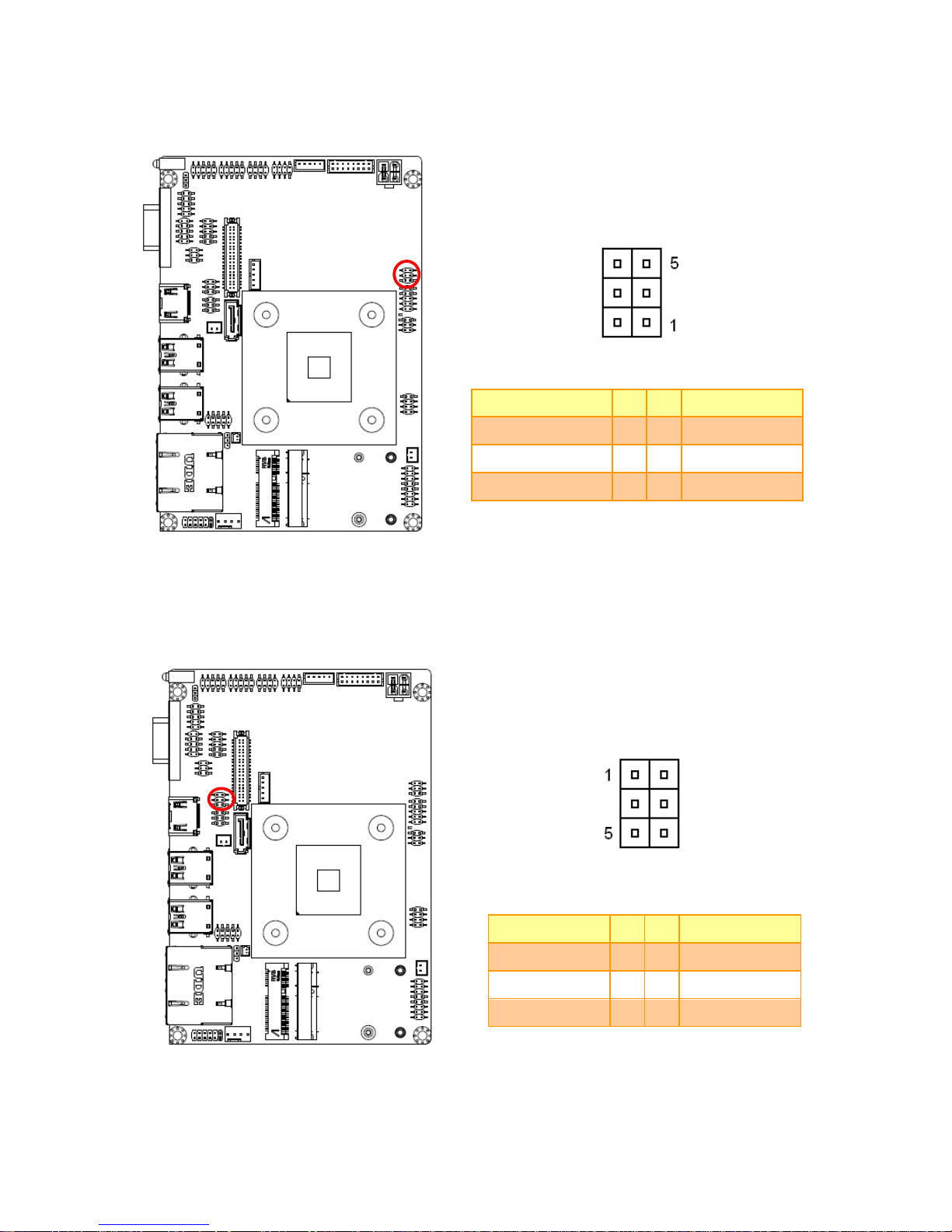

KSO0

1 2 KSO12

KSO13

3 4 KSO14

KSO5

5 6 KSO6

GND

7 8 NC

ECM-BSW User’s Manual

28 ECM-BSW User’s Manual

2.3.18 PS/2 keyboard & mouse header (JKBMS1)

Signal

PIN

PIN

Signal

MSCK

6 5 MSDT

KBVCC

4 3 GND

KBCK

2 1 KBDT

2.3.19 Serial port 1 in RS-422/485 mode (J422_485)

Signal

PIN

PIN

Signal

485TX2-

1 2 485RX2-

485TX2+

3 4 485RX2+

+5V

5 6 GND

User’s Manual

ECM-BSW User’s Manual

29

2.3.20 Miscellaneous setting connector (JFP1)

Signal

PIN

PWBT

1

2

RST#

3

4

PWR-LED+

5

PWR-LED-

6

HDD-LED-

7

HDD-LED+

8

NC

9

10

2.3.21 BIOS SPI header (BIOS_SPI1)

Signal

PIN

PIN

Signal

NC

8 7 SPI_HOLD#

SPI_MOSI

6 5 SPI_MISO

CPI_CLK

4 3 SPI_CS#0

GND

2 1 +1.8VSB

ECM-BSW User’s Manual

30 ECM-BSW User’s Manual

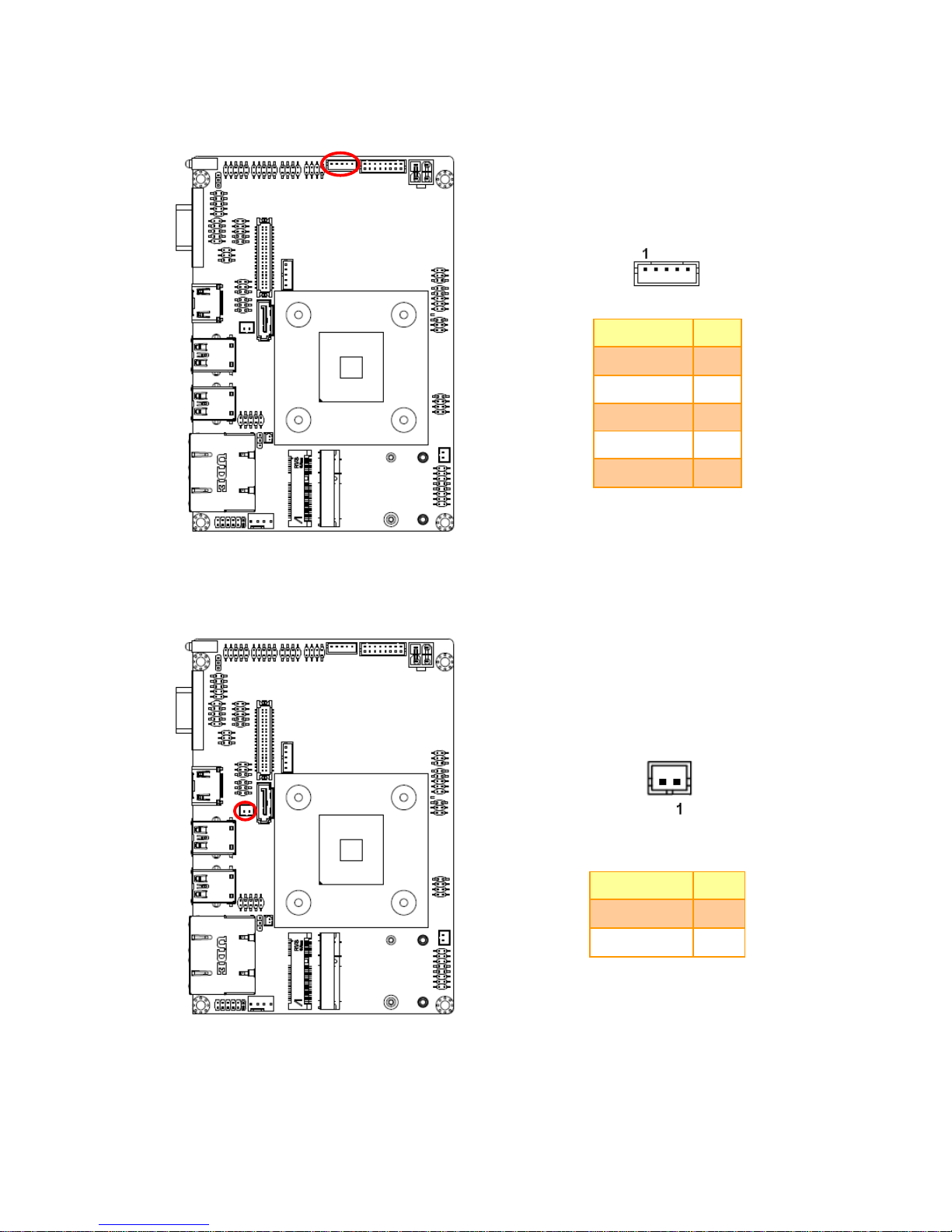

2.3.22 PC Buzzer header (JBZ1)

Signal

PIN

+5V

2

SOC_SPKR_R

1

2.3.23 Battery connector (BT1)

Signal

PIN

+RTCBATT

2

GND

1

User’s Manual

ECM-BSW User’s Manual

31

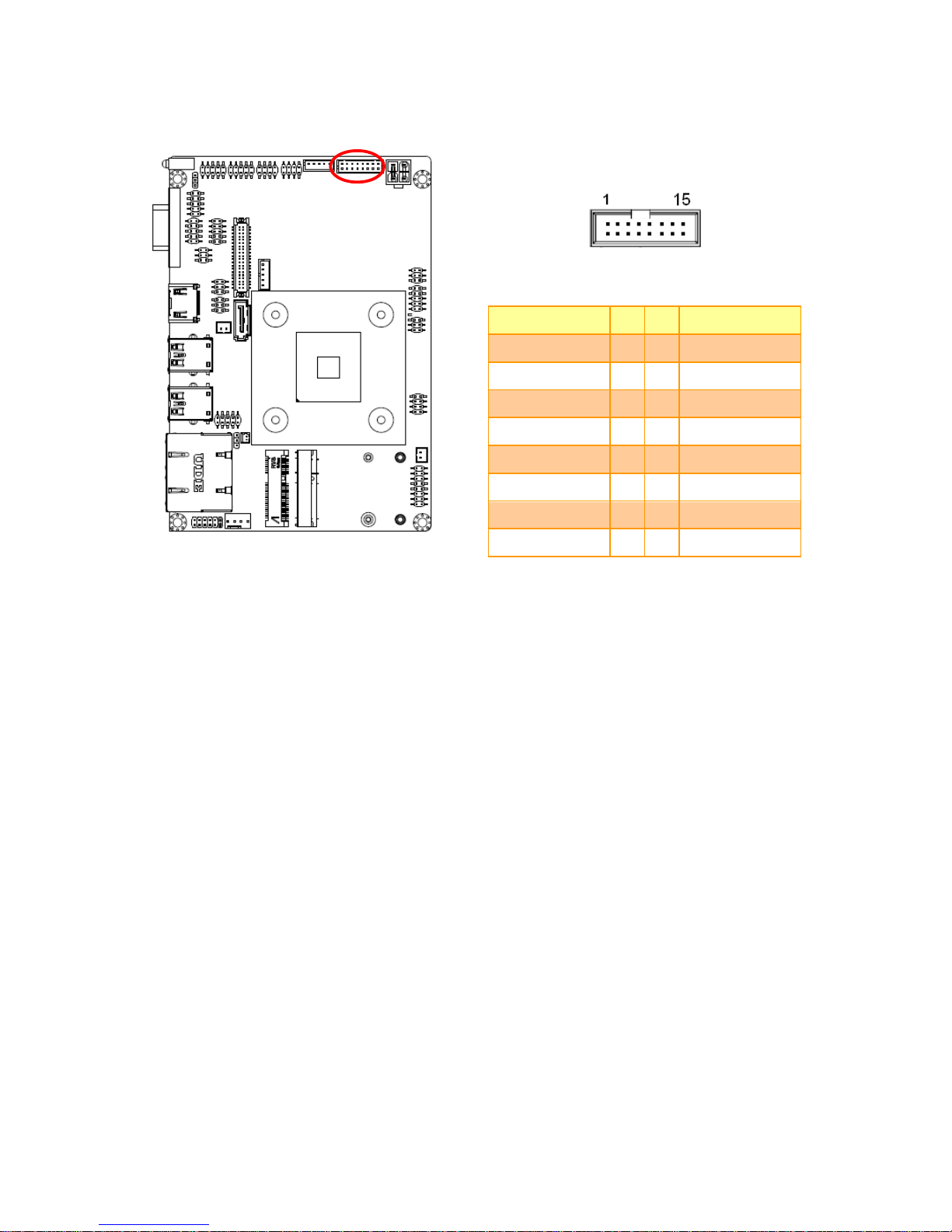

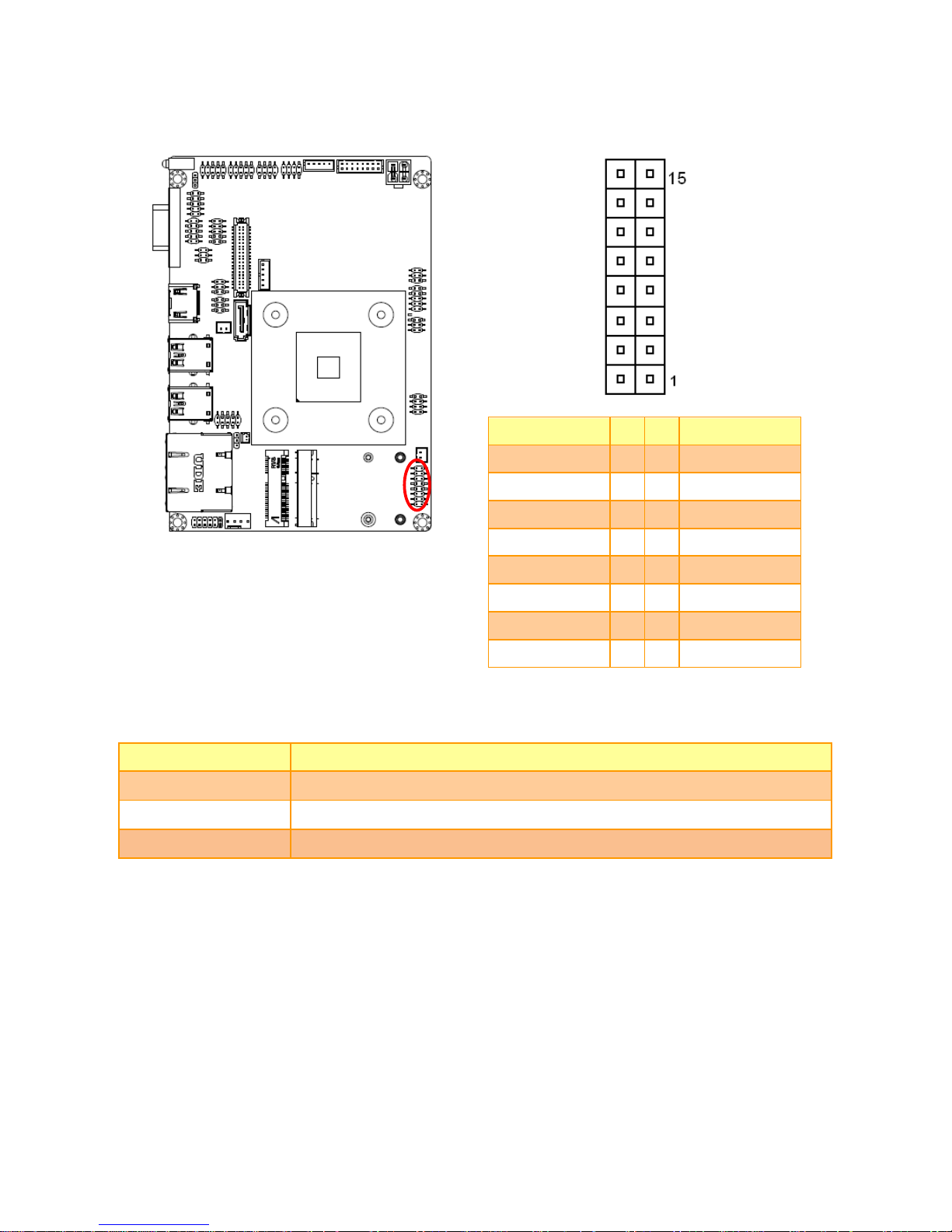

2.3.24 Audio connector (JAUDIO1)

Signal

PIN

PIN

Signal

SPK_R-

16

15

SPK_L-

SPK_R+

14

13

SPK_L+

HD_AGND

12

11

MIC1-JD

LINE1-JD

10 9 FRONT-JD

MIC1-L-IN

8 7 MIC1-R-IN

LIN1-L-IN

6 5 LINE1-R-IN

HD_AGND

4 3 HD_AGND

FRONT-L-OUT

2 1 FRONT-R-OUT

2.3.24.1 Signal Description – Audio connector (JAUDIO1)

Signal

Signal Description

LINE1-JD

AUDIO IN (LINE_RIN/LIN)sense pin

FRONT-JD

AUDIO Out(ROUT/LOUT) sense pin

MIC1-JD

MIC IN (MIC_RIN/LIN) sense pin

ECM-BSW User’s Manual

32 ECM-BSW User’s Manual

2.3.25 VGA header (JVGA1)

Signal

PIN

PIN

Signal

+5V

1 2 VGA_RED

GND

3 4 VGA_GREEN

NC

5 6 VGA_BLUE

VGA_DDCDAT

7 8 NC

VGA_HSYNC_R

9

10

GND

VGA_VSYNC_R

11

12

GND

VGA_DDCCLK

13

14

GND

GND

15

16

GND

User’s Manual

ECM-BSW User’s Manual

33

3.BIOS Setup

ECM-BSW User’s Manual

34 ECM-BSW User’s Manual

3.1 Introduction

The BIOS setup program allows users to modify the basic system configuration. In this
following chapter will describe how to access the BIOS setup program and the
configuration options that may be changed.

3.2 Starting Setup

Insyde BIOS™ is immediately activated when you first power on the computer. The BIOS
reads the system information contained in the NVRAM and begins the process of checking
out the system and configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <F2> immediately after switching the system on, or
By pressing the <F2> key when the following message appears briefly at the left-top of the
screen during the POST (Power On Self Test).

Press <F2> to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys.

User’s Manual

ECM-BSW User’s Manual

35

3.3 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.

Button

Description

↑

Move to previous item

↓

Move to next item

←

Move to the item in the left hand

→

Move to the item in the right hand

Esc key

Main Menu -- Quit and not save changes into NVRAM
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and
return to Main Menu

+ key

Increase the numeric value or make changes

- key

Decrease the numeric value or make changes

F1 key

General help, only for Status Page Setup Menu and Option Page Setup Menu
F9 key

Optimized defaults

F10 key

Save & Exit Setup

 Navigating Through The Menu Bar

Use the left and right arrow keys to choose the menu you want to be in.

Note: Some of the navigation keys differ from one screen to another.

 To Display a Sub Menu

Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A “” pointer marks all sub menus.

ECM-BSW User’s Manual

36 ECM-BSW User’s Manual

3.4 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1
key again.

3.5 In Case of Problems

If, after making and saving system changes with Setup, you discover that your computer no
longer is able to boot, the Insyde BIOS supports an override to the NVRAM settings which
resets your system to its defaults.

The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both BIOS Vendor and your systems manufacturer
to provide the absolute maximum performance and reliability. Even a seemingly small
change to the chipset setup has the potential for causing you to use the override.

User’s Manual

ECM-BSW User’s Manual

37

3.6 BIOS setup

Once you enter the InsydeH2O Setup Utility, the Main Menu will appear on the screen. The
Main Menu allows you to select from several setup functions and exit choices. Use the
arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.

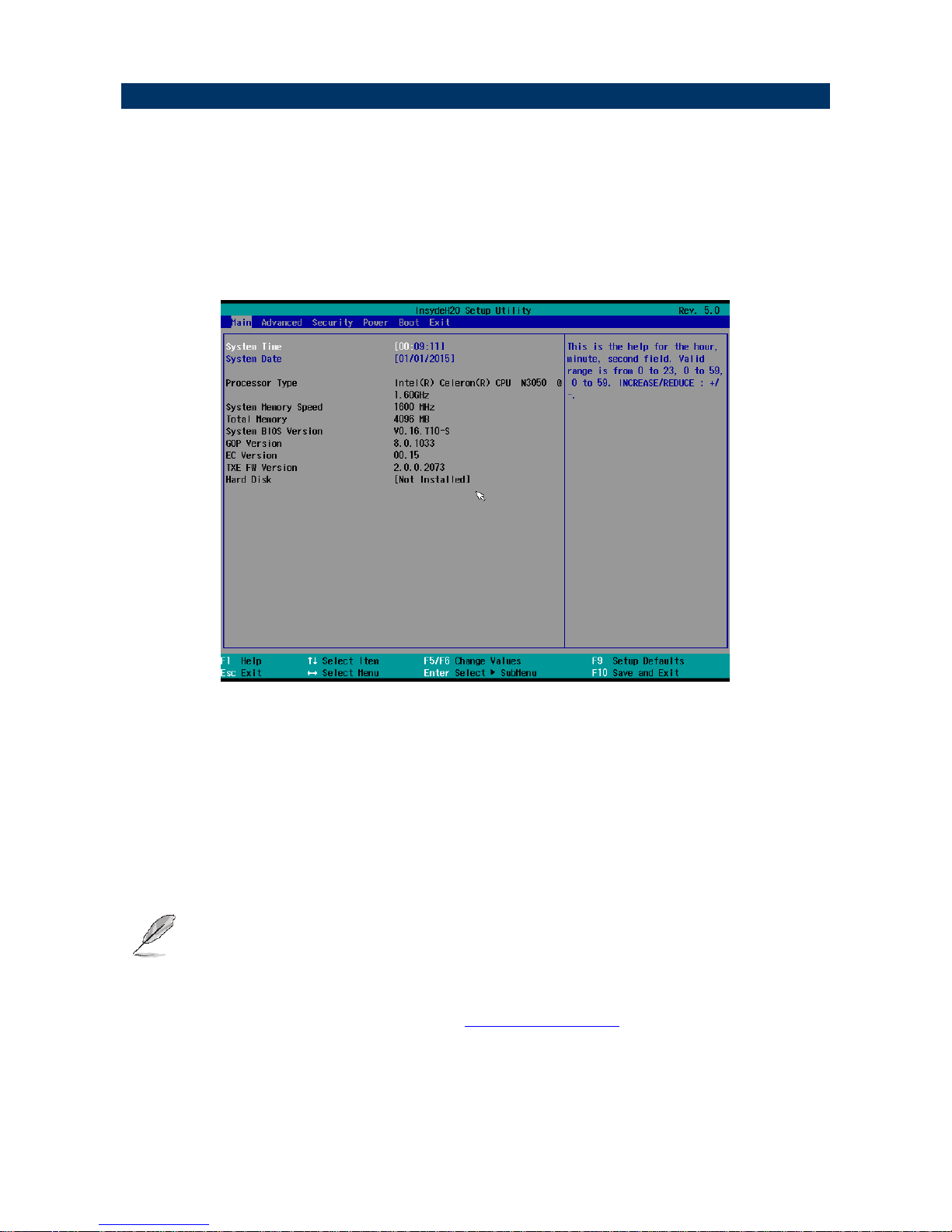

3.6.1 Main Menu

This section allows you to record some basic hardware configurations in your computer and
set the system clock.

3.6.1.1 System Time

Use the system time option to set the system time. Manually enter the hours, minutes and
seconds.

3.6.1.2 System Date

Use the system date option to set the system date. Manually enter the day, month and
year.

Note: The BIOS setup screens shown in this chapter are for reference purposes

only, and may not exactly match what you see on your screen.
Visit the Avalue website (www.avalue.com.tw) to download the latest
product and BIOS information.

ECM-BSW User’s Manual

38 ECM-BSW User’s Manual

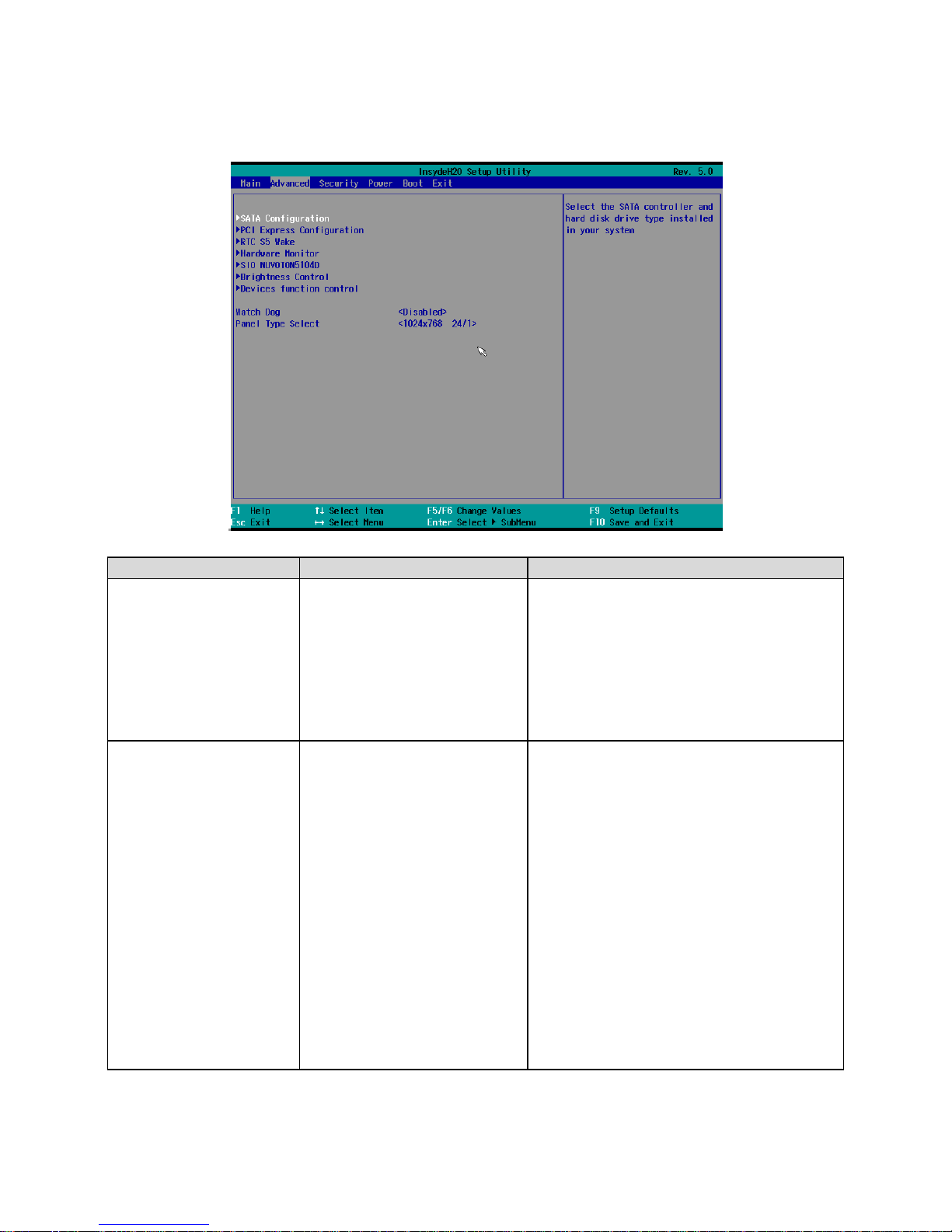

3.6.2 Advanced Menu

This section allows you to configure your CPU and other system devices for basic operation
through the following sub-menus.

Item

Options

Description

Watch Dog

Disabled[Default],

30 sec
40 sec
50 sec

1 min

2 min
10 min
30 min

Select WatchDog items.

Panel Type Select

1024x768 24/1[Default]

800x600 18/1
1024x768 18/1
1366x768 18/1
1024x600 18/1
1280x800 18/1

1920x1200 24/2

640x480 18/1

800x480 18/1

1920x1080 18/2
1280x1024 24/2

1440x900 18/2

1600x1200 24/2

1366x768 24/1

1920x1080 24/2
1680x1050 24/2

Select Panel Type for display.

User’s Manual

ECM-BSW User’s Manual

39

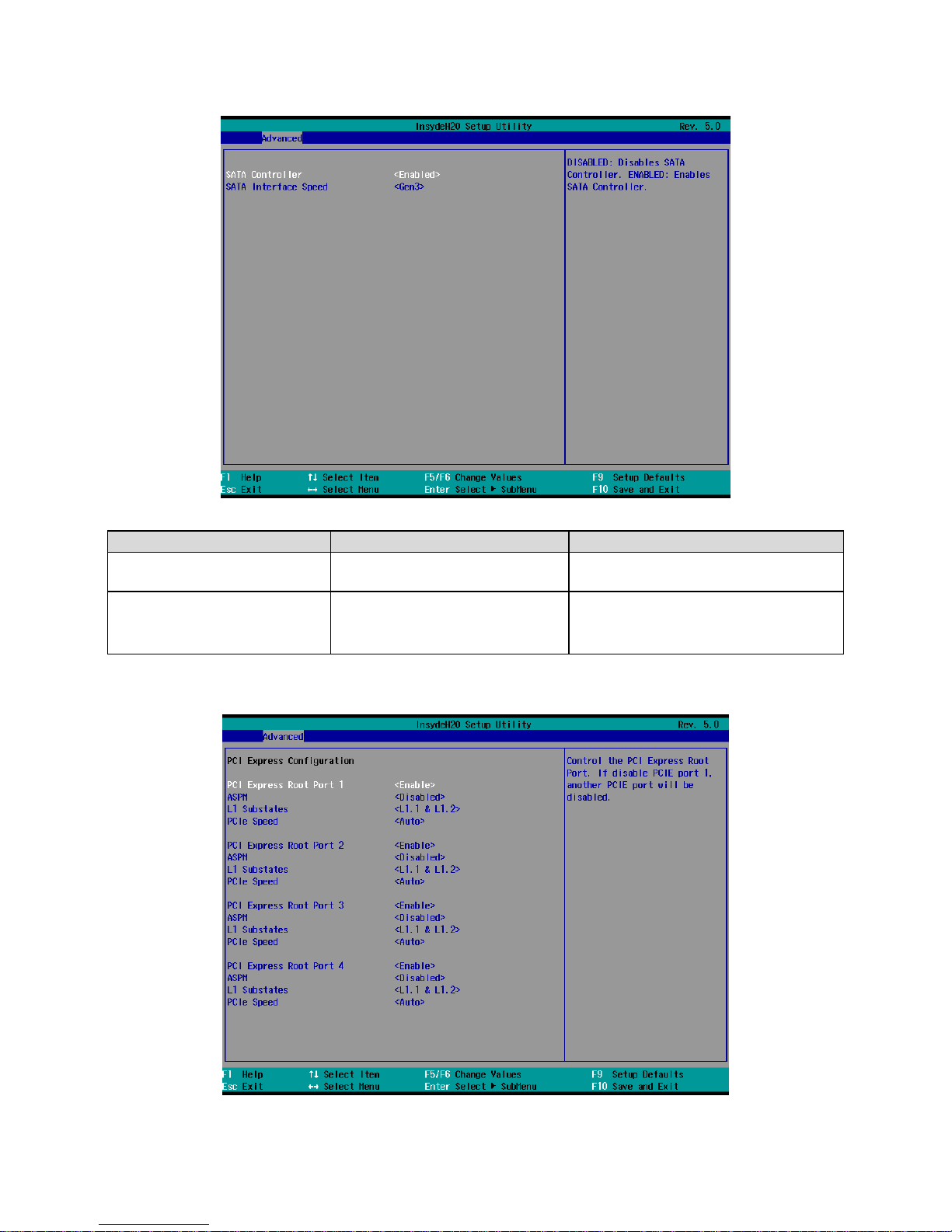

3.6.2.1 SATA Configuration

Item

Options

Description

SATA Controller

Disabled,

Enabled[Default]

SATA Controller.

SATA Interface Speed

Gen1
Gen2

Gen3[Default]

Select SATA Interface Speed.

3.6.2.2 PCI Express Configuration

ECM-BSW User’s Manual

40 ECM-BSW User’s Manual

Item

Options

Description

PCI Express Root Port 1/2/3/4

Disabled

Enabled[Default],

Control the PCI Express Root Port. If disable
PCIE port 1, another PCIE port will be
disabled.

ASPM

Disabled[Default]

L0s

L1

L0sL1

PCI Express Active State Power Management
settings.

L1 Substates

Disabled[Default]

L1.1 & L1.2

L1.1
L1.2

PCI Express L1 Substates settings.

PCIe Speed

Auto[Default]

Gen 1
Gen 2

Configure PCIe Speed.

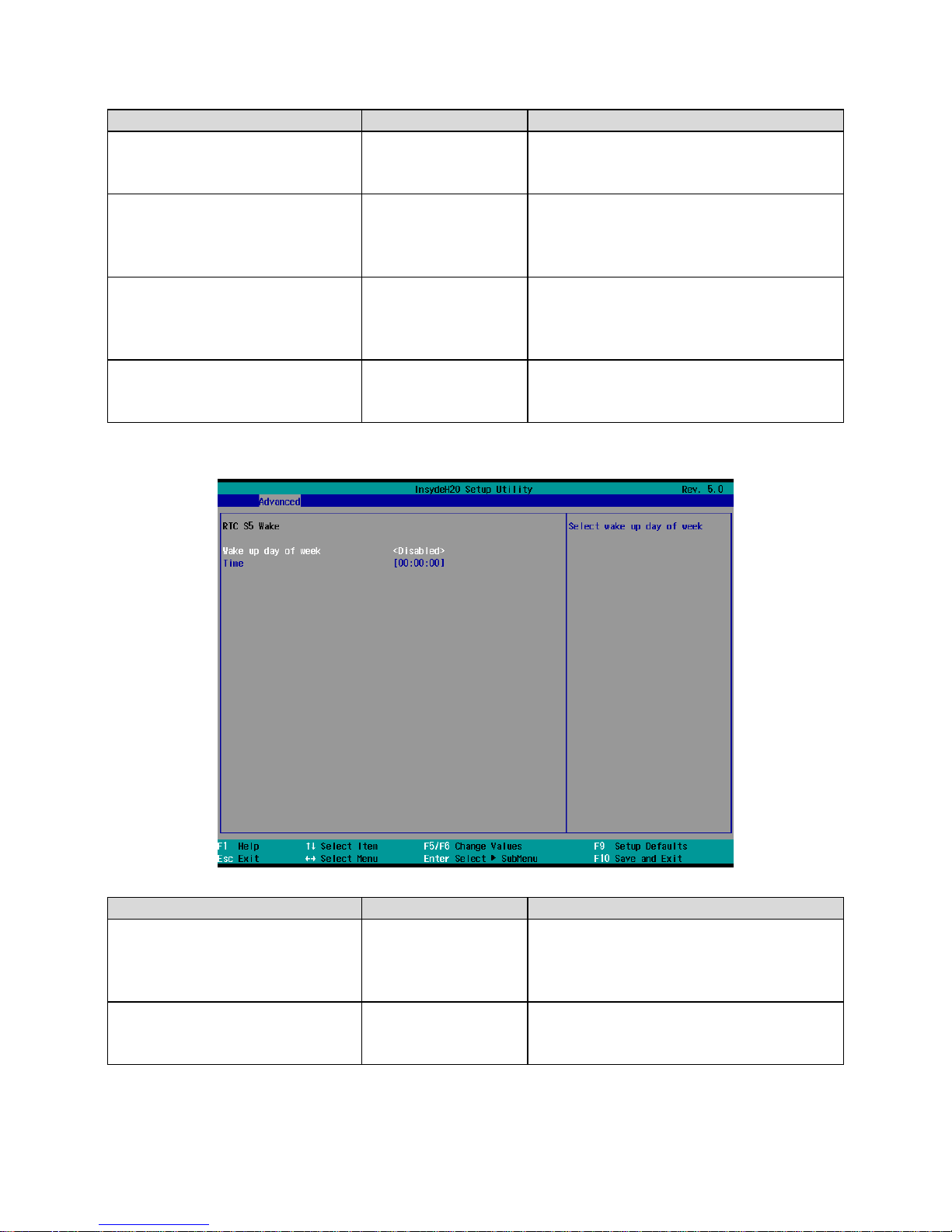

3.6.2.3 RTC S5 Wake

Item

Options

Description

Wake up day of week

Monday-Friday

Monday-Saturday

Every Day

Disabled[Default]

Select wake up day of week.

Time

[00:00:00][Default]

This is the help for the hour, minute second
field. Valid range is from 0 to 23, 0 to 59, 0 to

59. INCREASE/REDUCE : +/-.

User’s Manual

ECM-BSW User’s Manual

41

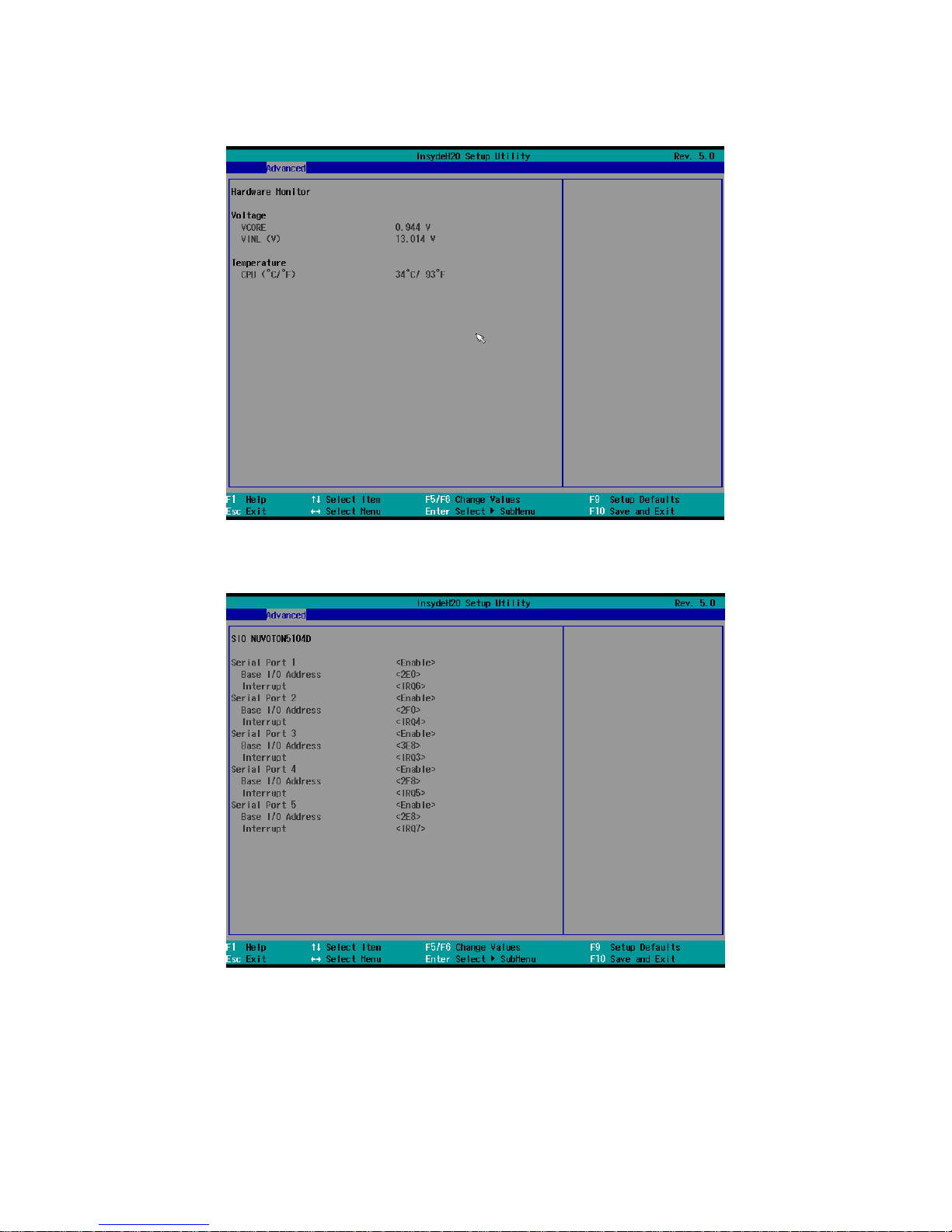

3.6.2.4 Hardware Monitor

3.6.2.5 SIO NUVOTON5104D

ECM-BSW User’s Manual

42 ECM-BSW User’s Manual

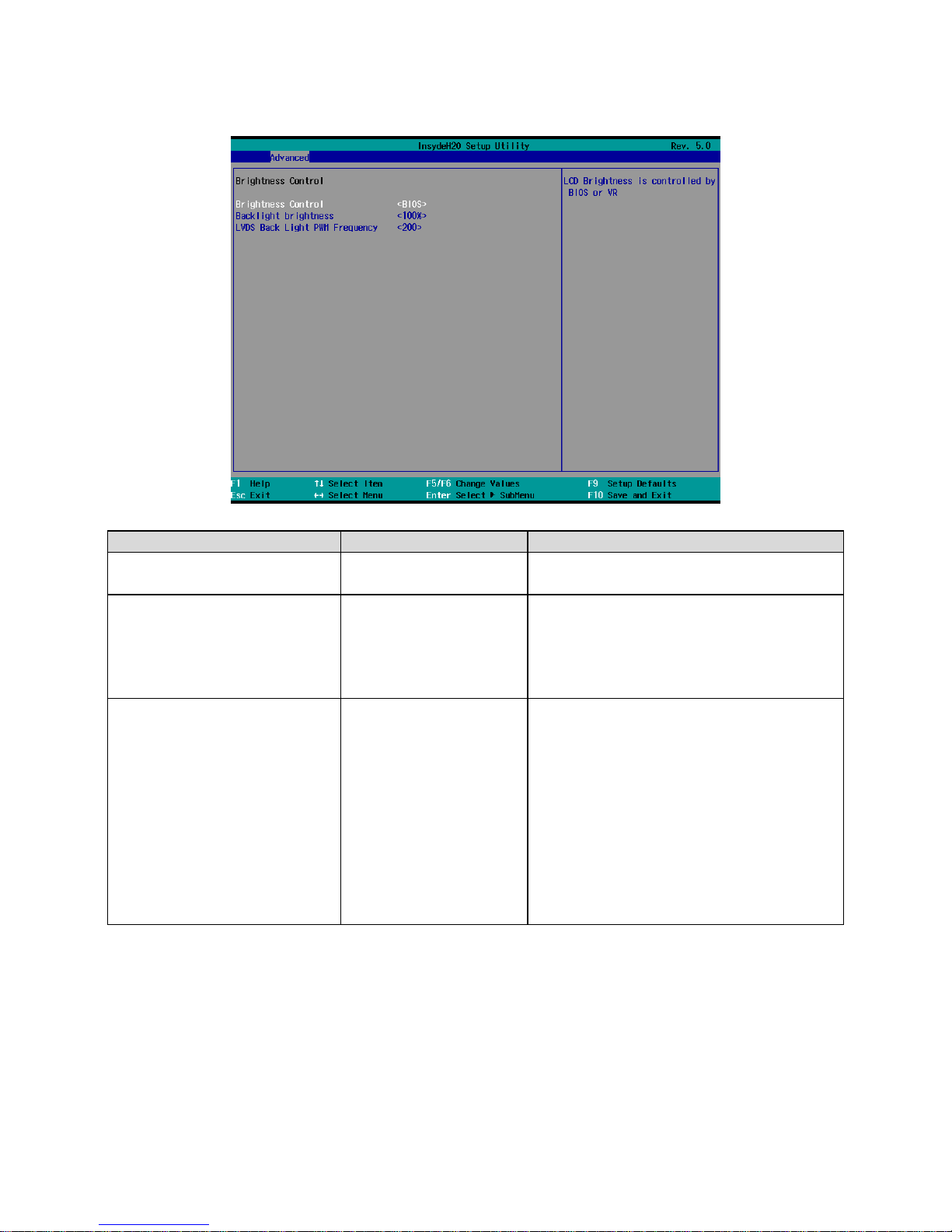

3.6.2.6 Brightness Control

Item

Options

Description

Brightness Control

VR

BIOS[Default]

LCD Brightness is controlled by BIOS or VR.

Backlight brightness

0%
25%
50%
75%

100%[Default]

Backlight brightness percentage.

LVDS Back Light PWM

Frequency

200[Default]

300
400
500
700

1k
2k
3k

5k
10k
20k

LVDS Back Light PWM Frequency.

User’s Manual

ECM-BSW User’s Manual

43

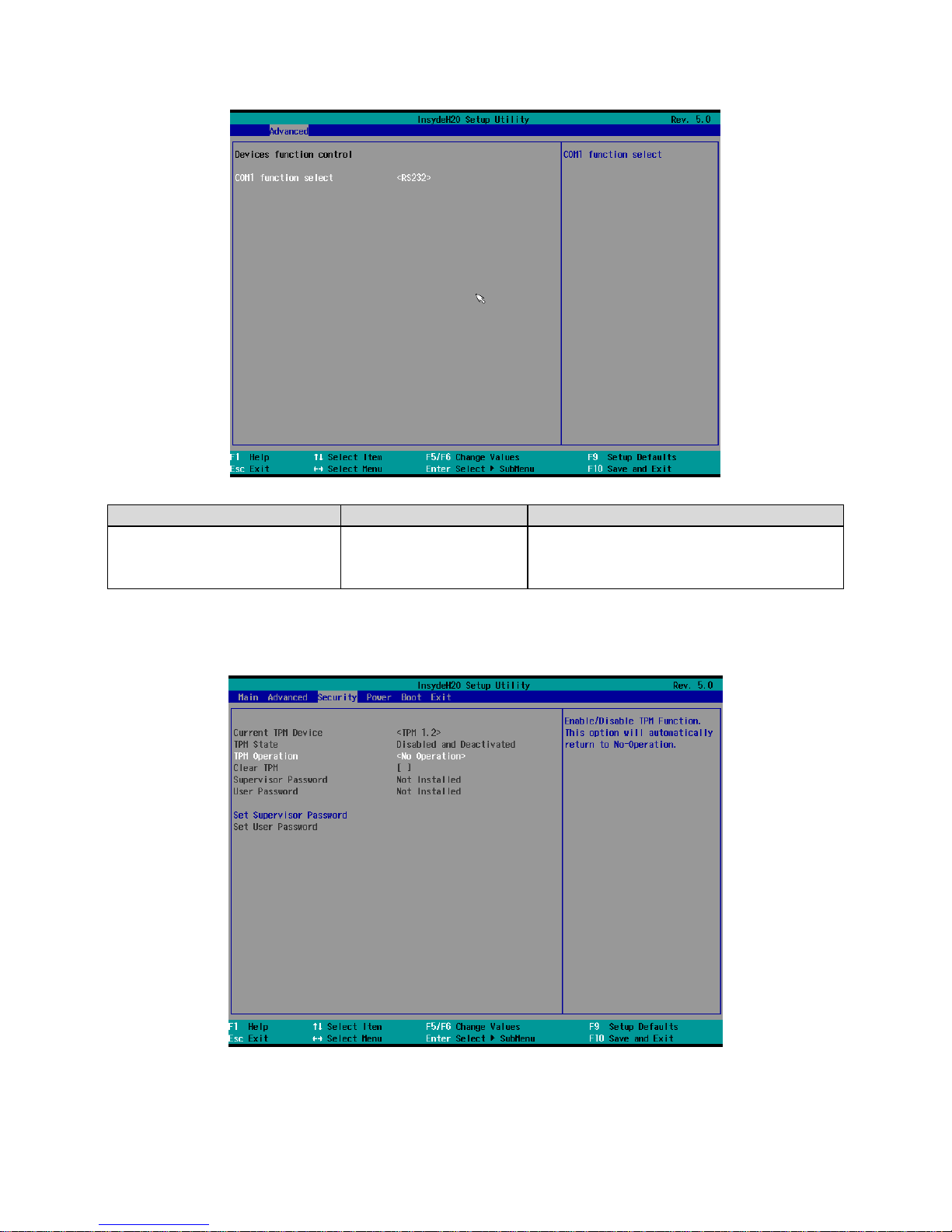

3.6.2.7 Device function Control

Item

Options

Description

COM1 function select

RS232[Default]

RS422
RS485

Select COM1 function as RS232/422/485.

3.6.3 Security

ECM-BSW User’s Manual

44 ECM-BSW User’s Manual

Item

Options

Description

TPM Operation

No Operation[Default]

Disable and Deactivate

Enable and Activate

Enable/Disable TPM Function. This option will
automatically return to No-Operation.

Set Supervisor Password

Set Supervisor Password. Install or Change the password and the length of
password must be greater than on character

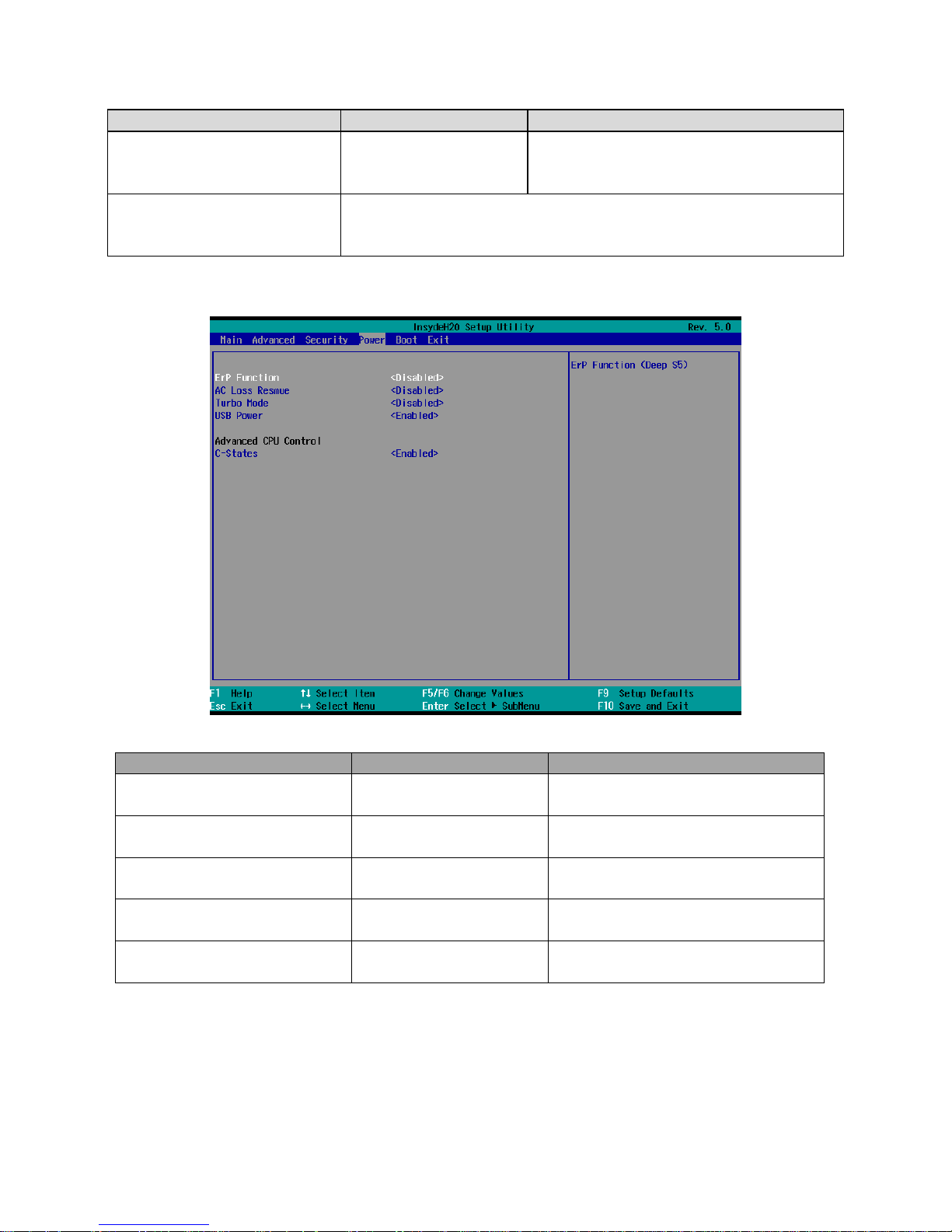

3.6.4 Power

Item

Option

Description

Erp Function

Disabled[Default]

Enabled

ErP Function (Deep S5).

AC Loss Resume

Disabled[Default]

Enabled

AC Loss Resume setting.

Turbo Mode

Disabled

Enabled[Default]

Enable processor Turbo Mode(requires
EMTTM enabled too).

USB Power

Disabled

Enabled[Default]

USB Power on standby.

C-States

Disabled

Enabled[Default]

Enable processor idle power saving
states (C-States).

User’s Manual

ECM-BSW User’s Manual

45

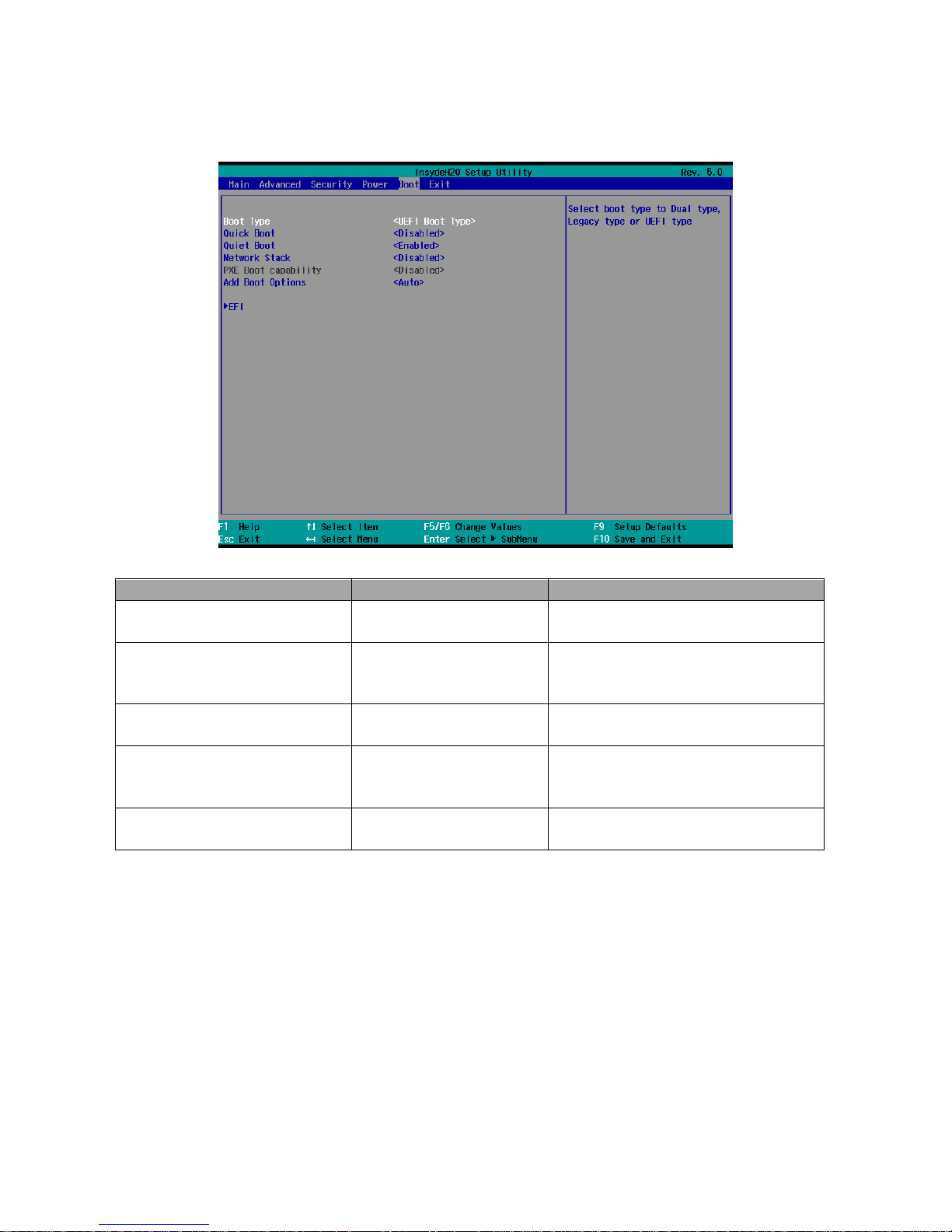

3.6.5 Boot

Item

Option

Description

Boot Type

Legacy Boot Type

UEFI Boot Type[Default]

Select boot type to Legacy type or UEFI
type.

Quick Boot

Disabled[Default]

Enabled

Allows InsydeH20 to skip certain tests
while booting. This will decrease the
time needed to boot the system.

Quiet Boot

Disabled

Enabled[Default]

Disables or enables booting in Text
Mode.

Network Stack

Disabled[Default]

Enabled

Network Stack Support: Windows 8
BitLocker Unlock UEFI IPv4/ IPv6 PXE
Legacy PXE OPROM.

Add Boot Options

First

Auto[Default]

Position in Boot Order for Shell, Network
and Removables.

ECM-BSW User’s Manual

46 ECM-BSW User’s Manual

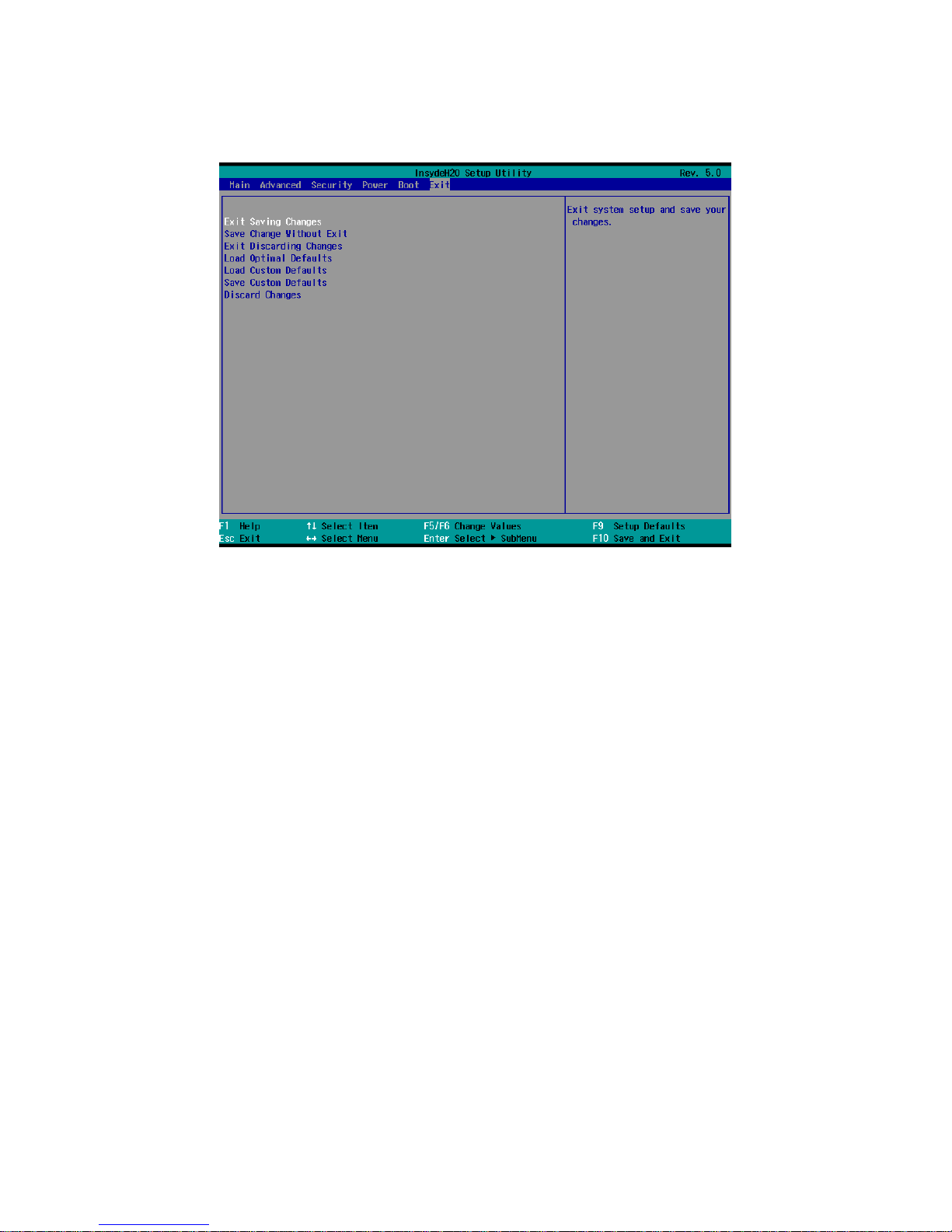

3.6.6 Exit

3.6.6.1 Exit Saving Changes

Exit system setup and save your changers.

3.6.6.2 Save Change Without Exit

Save your changes and without exiting system.

3.6.6.3 Exit Discarding Changes

Exit system setup and without saving your changes.

3.6.6.4 Load Optimal Defaults

Load Optimal Defaults.

3.6.6.5 Load Custom Defaults

Load Custom Defaults.

3.6.6.6 Save Custom Defaults

Save Custom Defaults.

3.6.6.7 Discard Changes

Discard Changes.

User’s Manual

ECM-BSW User’s Manual

47

4. Drivers Installation

Note: Installation procedures and screen shots in this section are

for your reference and may not be exactly the same as
shown on your screen.

ECM-BSW User’s Manual

48 ECM-BSW User’s Manual

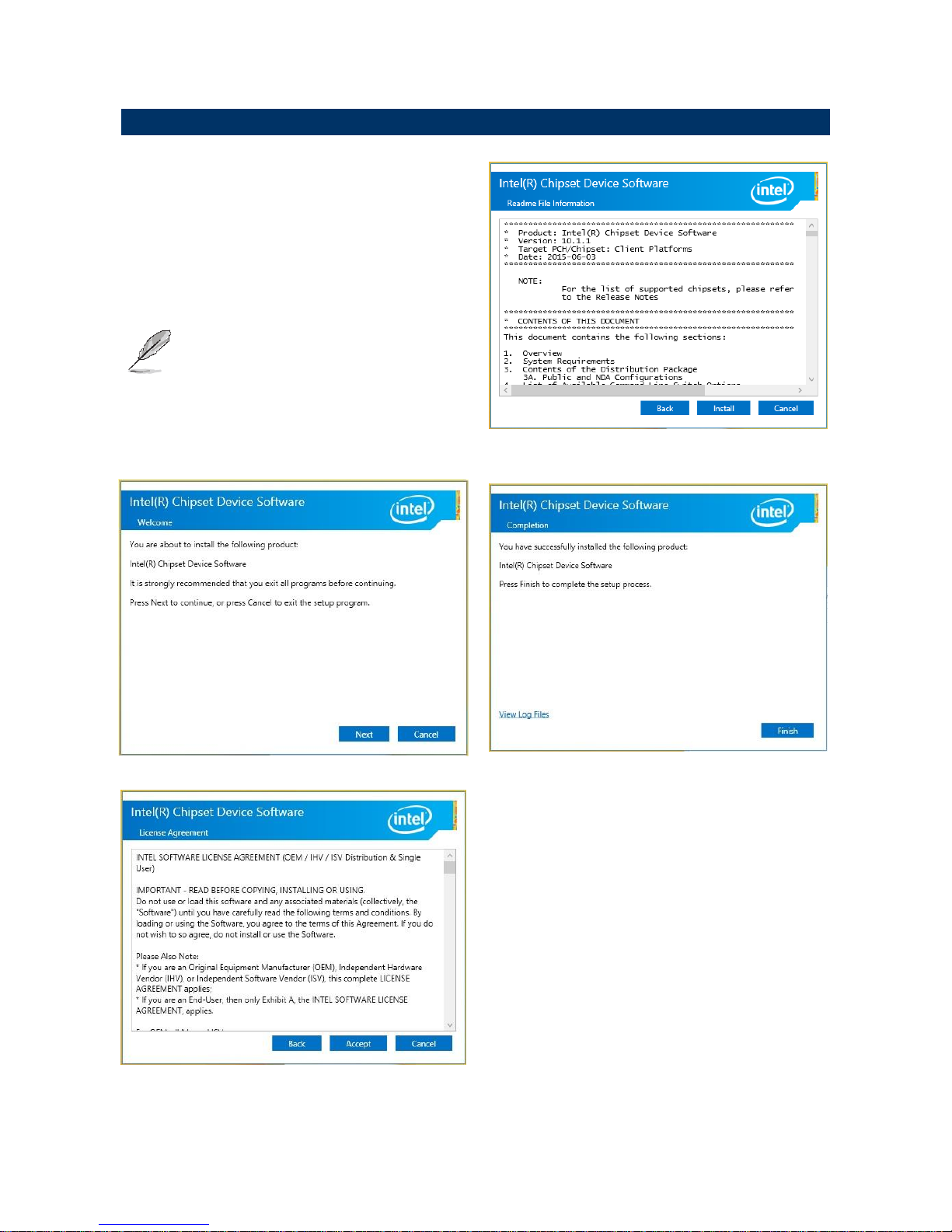

4.1 Install Chipset Driver

Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the

index page of Avalue’s products

automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Chipset\Intel\ECM-BSW.

Note: The installation procedures and

screen shots in this section are
based on Windows 8.1 operation
system. If the warning message
appears while the installation
process, click Continue to go on.

Step 3. Click Install.

Step1. Click Next.

Step 4. Click Finish to complete setup.

Step 2. Click Accept.

User’s Manual

ECM-BSW User’s Manual

49

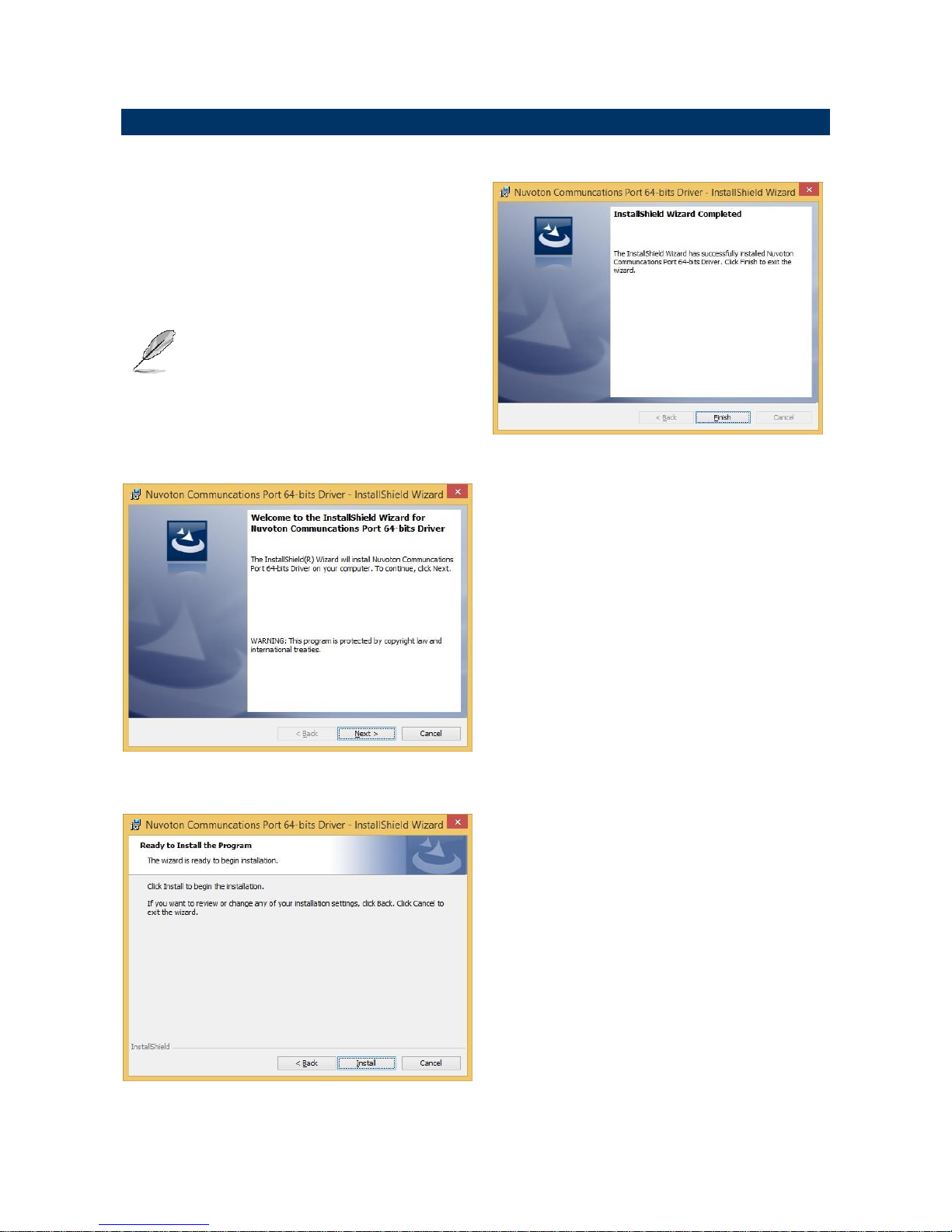

4.2 Install Nuvoton Driver

Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the

index page of Avalue’s products

automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Utility\ECM-BSW_Nuvoton.

Note: The installation procedures and

screen shots in this section are
based on Windows 8.1 operation
system. If the warning message
appears while the installation
process, click Continue to go on.

Step 3. Click Finish to complete setup.

Step1. Click Next to start installation.
Step 2. Click Install to proceed setup.

ECM-BSW User’s Manual

50 ECM-BSW User’s Manual

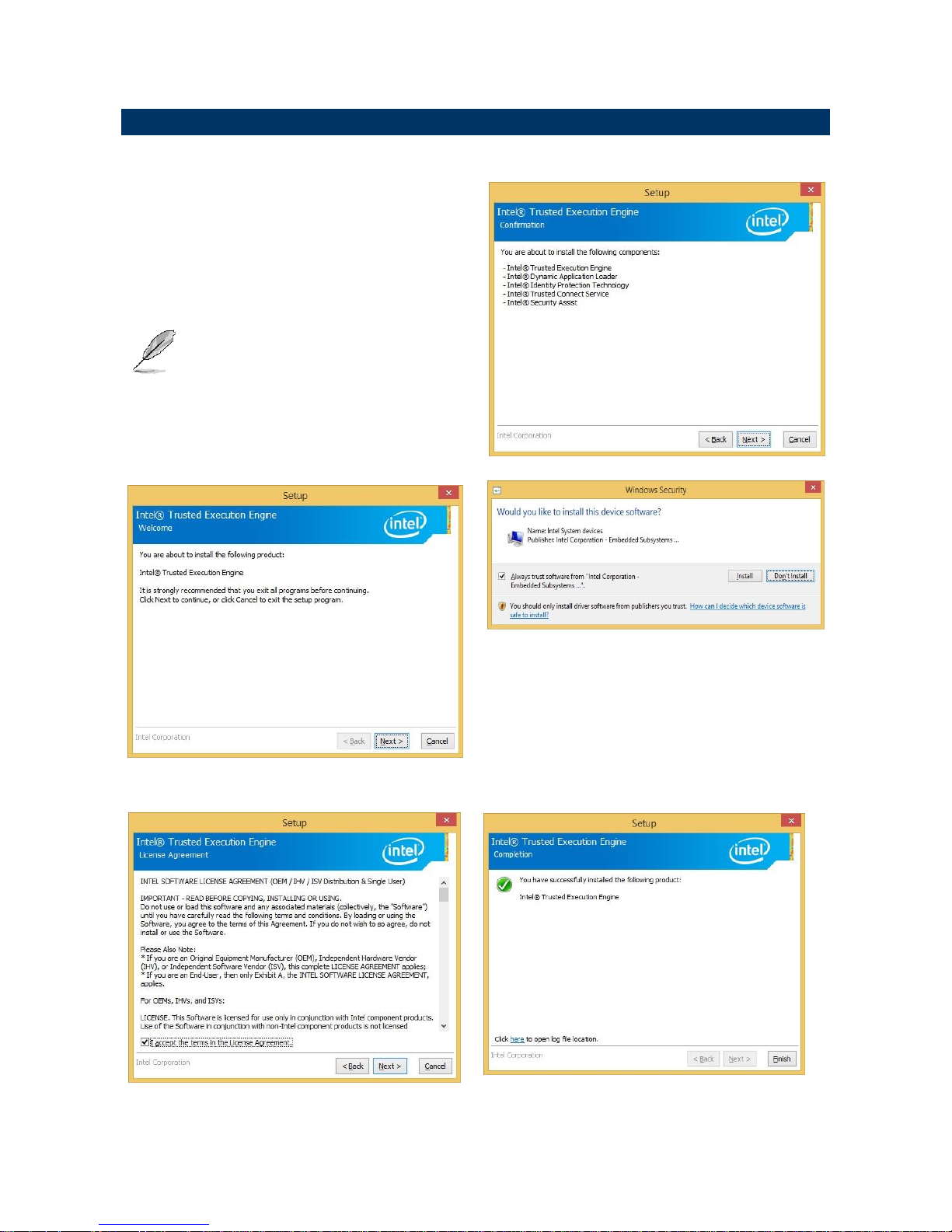

4.3 Install TXE Driver

Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the

index page of Avalue’s products

automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Utility\ECM-BSW_TXE.

Note: The installation procedures and

screen shots in this section are
based on Windows 8.1 operation
system. If the warning message
appears while the installation
process, click Continue to go on.

Step 3. Click Next to continue installation.

Step1. Click Next to start installation.

Step 4. Click Install to complete setup.

Step 2. Click Next.

Step 5. Click Finish to complete setup.

User’s Manual

ECM-BSW User’s Manual

51

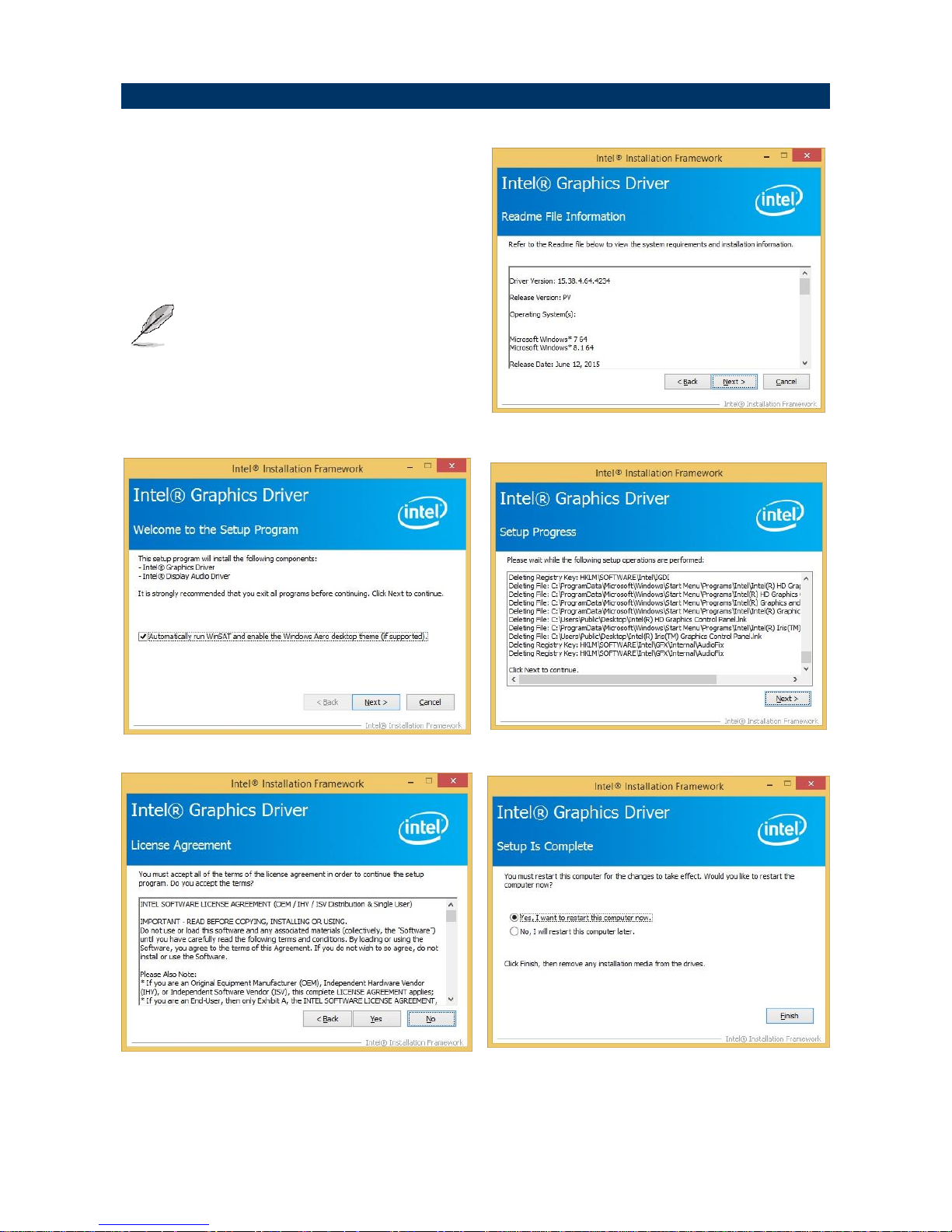

4.4 Install VGA Driver

Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the

index page of Avalue’s products

automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \VGA\ECM-BSW.

Note: The installation procedures and

screen shots in this section are
based on Windows 8.1 operation
system.

Step 3. Click Next.

Step 1. Click Next to continue installation.

Step 4. Click Next.

Step 2.
Click Yes to accept license agreement.

Step 5. Click Finish to complete setup.

ECM-BSW User’s Manual

52 ECM-BSW User’s Manual

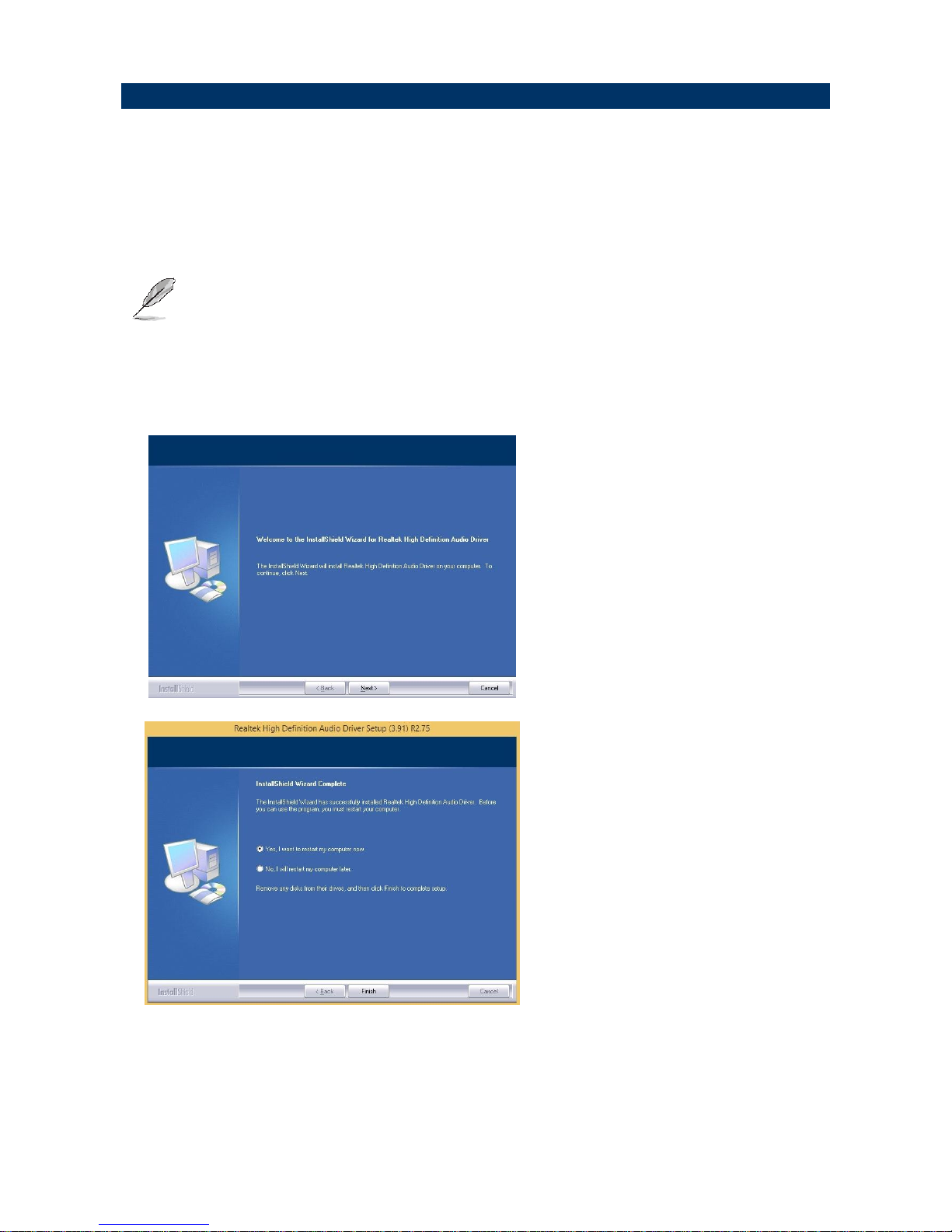

4.5 Install Audio Driver (For Realtek ALC233)

Insert the Supporting CD-ROM to CD-ROM drive,

and it should show the index page of Avalue’s

products automatically. If not, locate Index.htm and
choose the product from the menu left, or link to

\Driver_Audio\Realtek\ALC233\ECM-BSW_Audio.

Note: The installation procedures and screen shots in

this section are based on Windows 8.1
operation system.

Step 1. Click Next to continue setup.

Step 2. Click Finish to complete the setup.

User’s Manual

ECM-BSW User’s Manual

53

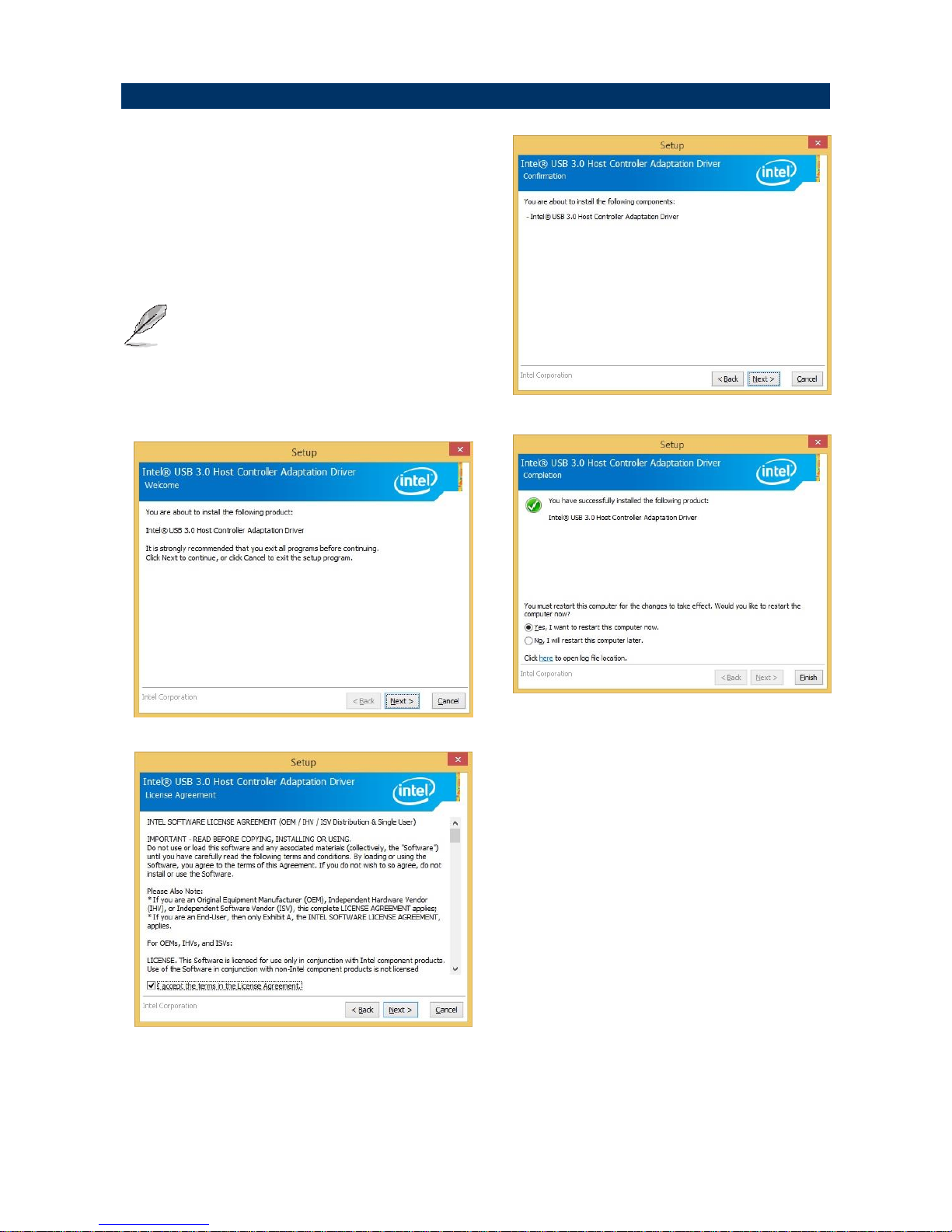

4.6 Install USB3.0 Driver

Insert the Supporting CD-ROM to CD-ROM
drive, and it should show the index page of

Avalue’s products automatically. If not, locate

Index.htm and choose the product from the
menu left, or link to

\Utility\ECM-BSW_USB3.0.

Note: The installation procedures and screen

shots in this section are based on
Windows 8.1 operation system.

Step 3. Click Next

Step 1. Click Next to continue setup.

Step 4. Click Finish to complete the

setup

Step 2. Click Next.

ECM-BSW User’s Manual

54 ECM-BSW User’s Manual

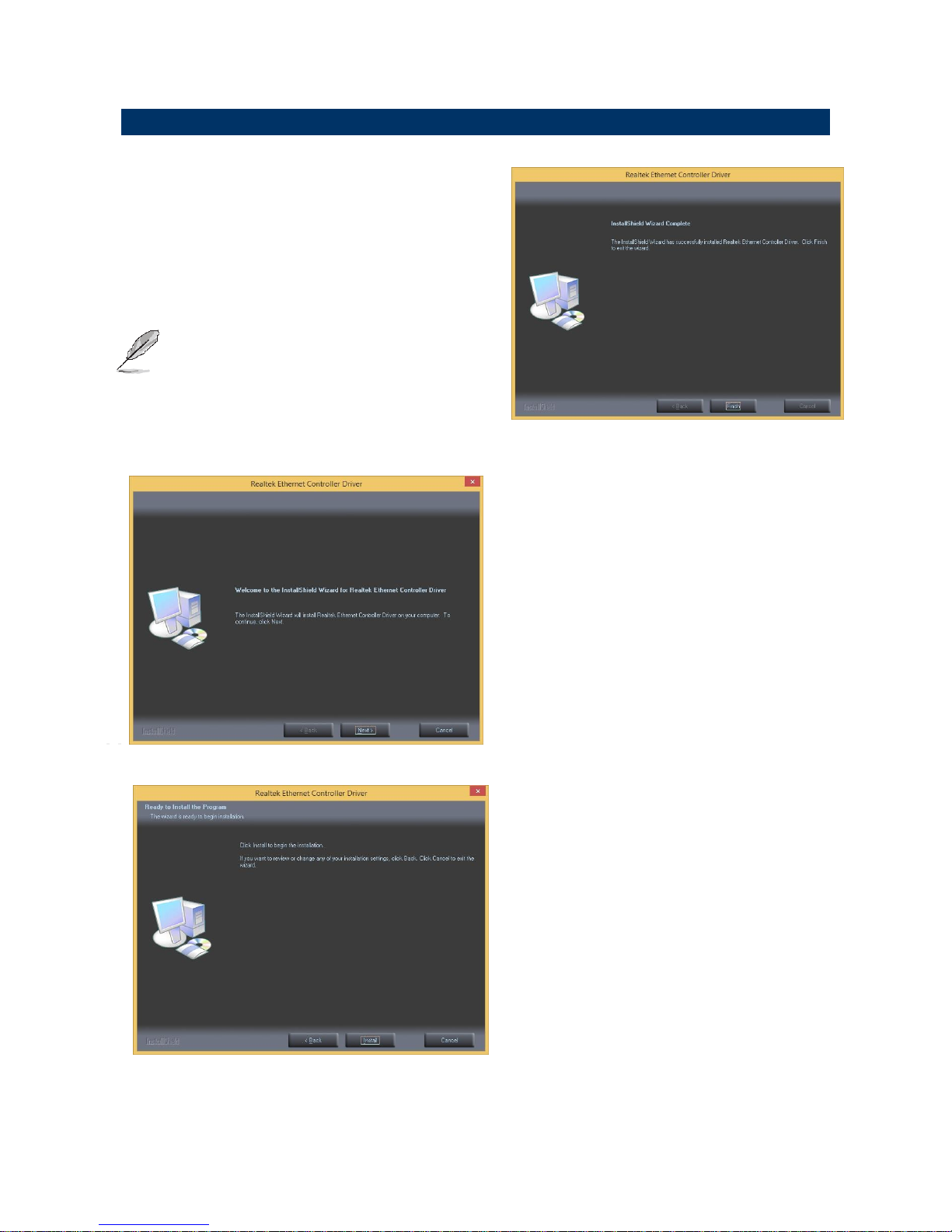

4.7 Install Ethernet Driver

Insert the Supporting DVD-ROM to DVD-ROM
drive, and it should show the index page of

Avalue’s products automatically. If not, locate

Index.htm and choose the product from the
menu left, or link to

\Driver_Gigabit\Realtek\RTL8119\ECM-BSW_LAN.

Note: The installation procedures and screen

shots in this section are based on
Windows 8.1 operation system.

Step 3. Click Finish to complete the
setup.

Step 1. Click Next.

Step 2. Click Install to proceed.

User’s Manual

ECM-BSW User’s Manual

55

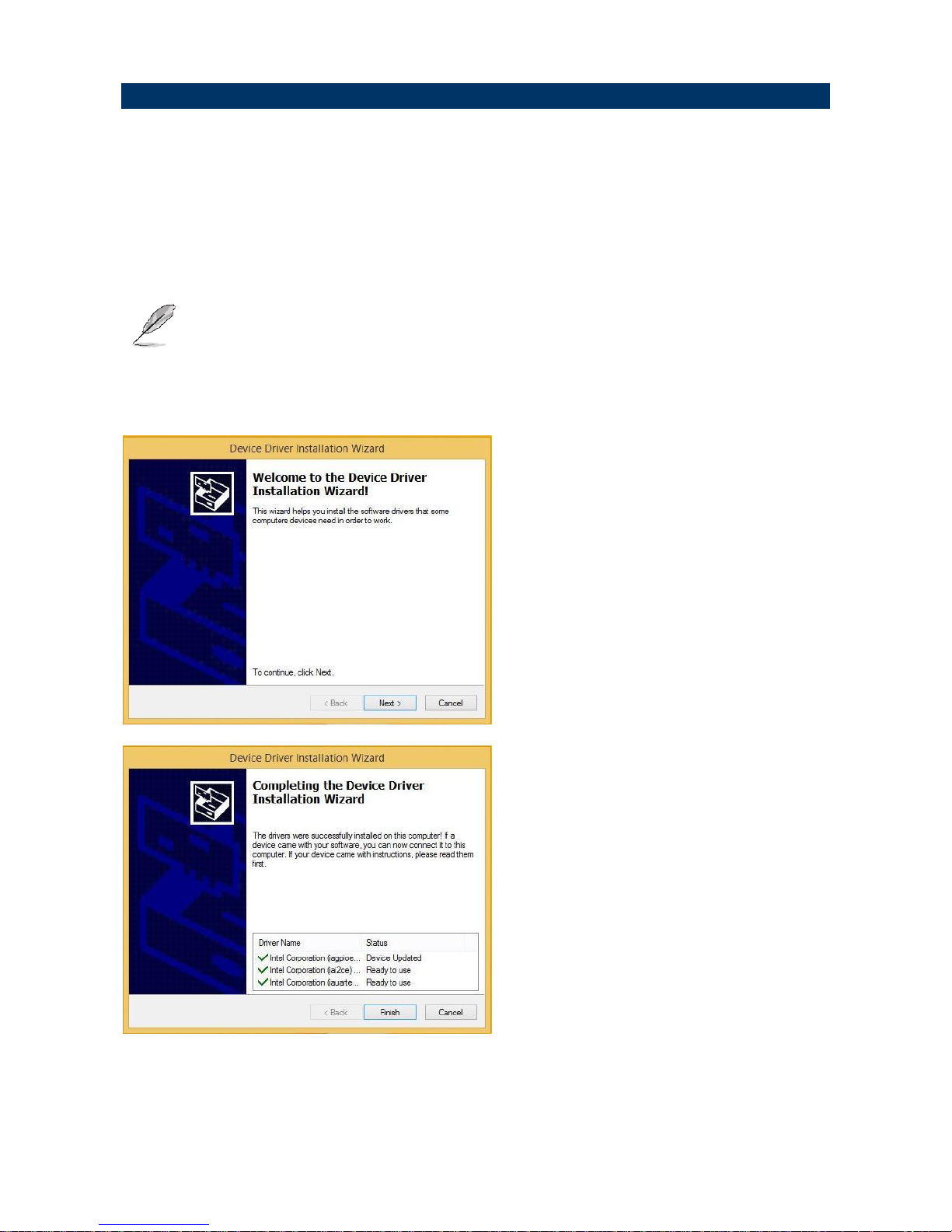

4.8 Install Serial IO Driver

Insert the Supporting CD-ROM to CD-ROM
drive, and it should show the index page of

Avalue’s products automatically. If not, locate

Index.htm and choose the product from the
menu left, or link to

\Utility\ECM-BSW_Serial IO.

Note: The installation procedures and screen

shots in this section are based on
Windows 8.1 operation system.

Step 1. Click Next to continue setup.

Step 2. Click Finish to complete the setup.

ECM-BSW User’s Manual

56 ECM-BSW User’s Manual

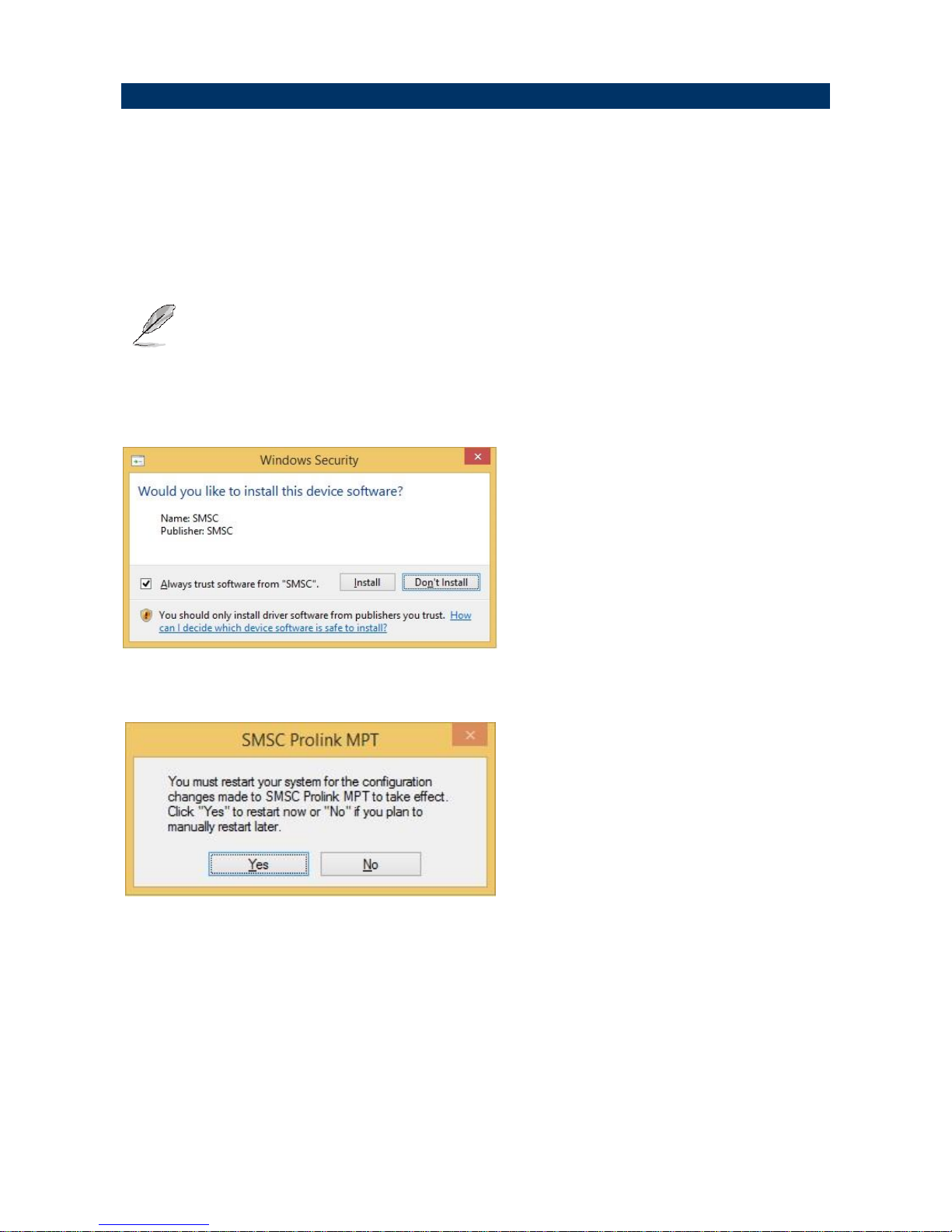

4.9 Install SMSC Hub Driver

Insert the Supporting CD-ROM to CD-ROM
drive, and it should show the index page of
Avalue’s products automatically. If not, locate
Index.htm and choose the product from the
menu left, or link to

\Utility\ECM-BSW_SMSC hub.

Note: The installation procedures and screen

shots in this section are based on
Windows 8.1 operation system.

Step 1. Click Install to continue setup.

Step 2. Click Yes to complete the setup.

User’s Manual

ECM-BSW User’s Manual

57

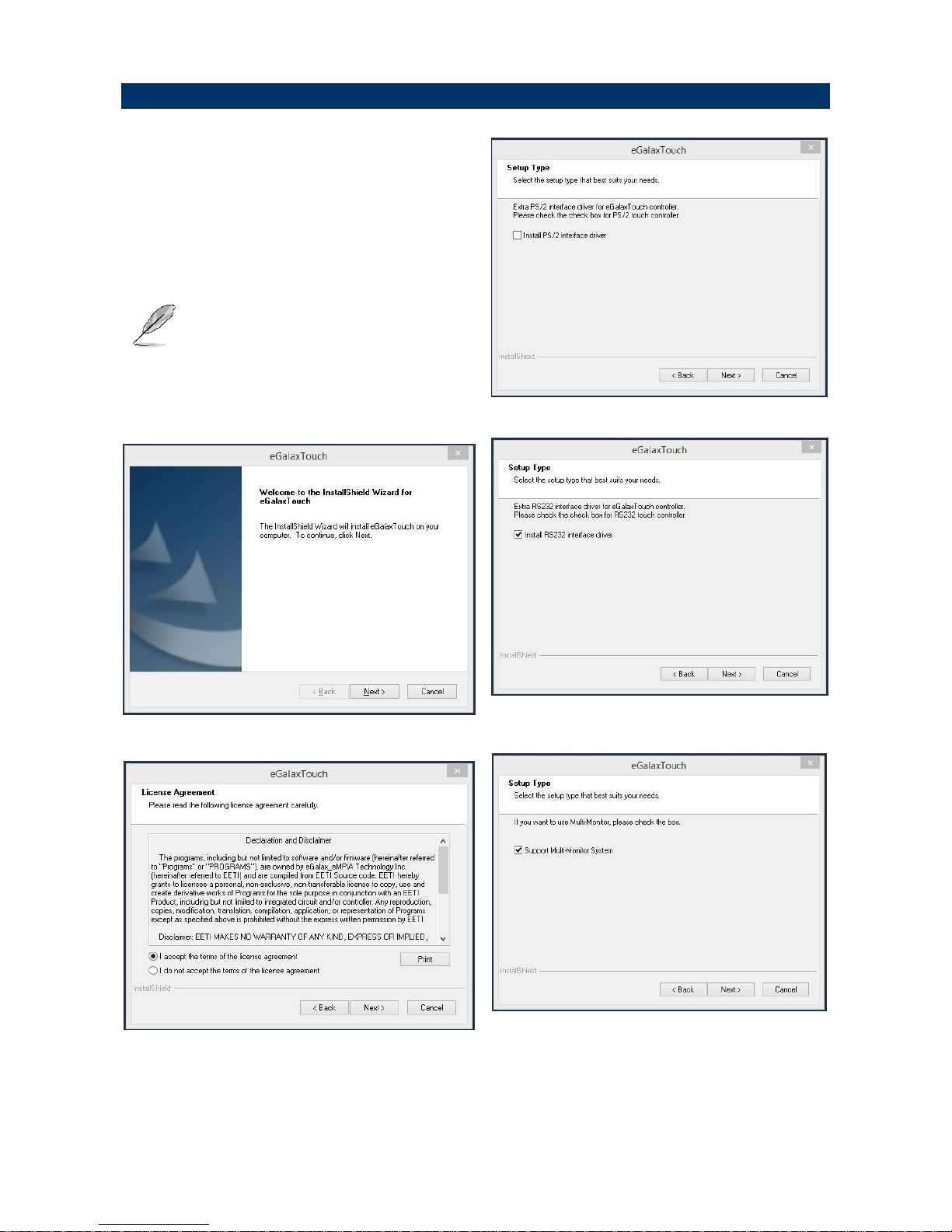

4.10 Install Touch Driver

Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the

index page of Avalue’s products

automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Utility\ECM-BSW_Touch.

Note: The installation procedures and

screen shots in this section are
based on Windows 8.1 operation
system.

Step 3. Click Next.

Step 1. Click Next to continue installation.

Step 4. Click Next.

Step 2. Click Next.

Step 5. Click Next.

ECM-BSW User’s Manual

58 ECM-BSW User’s Manual

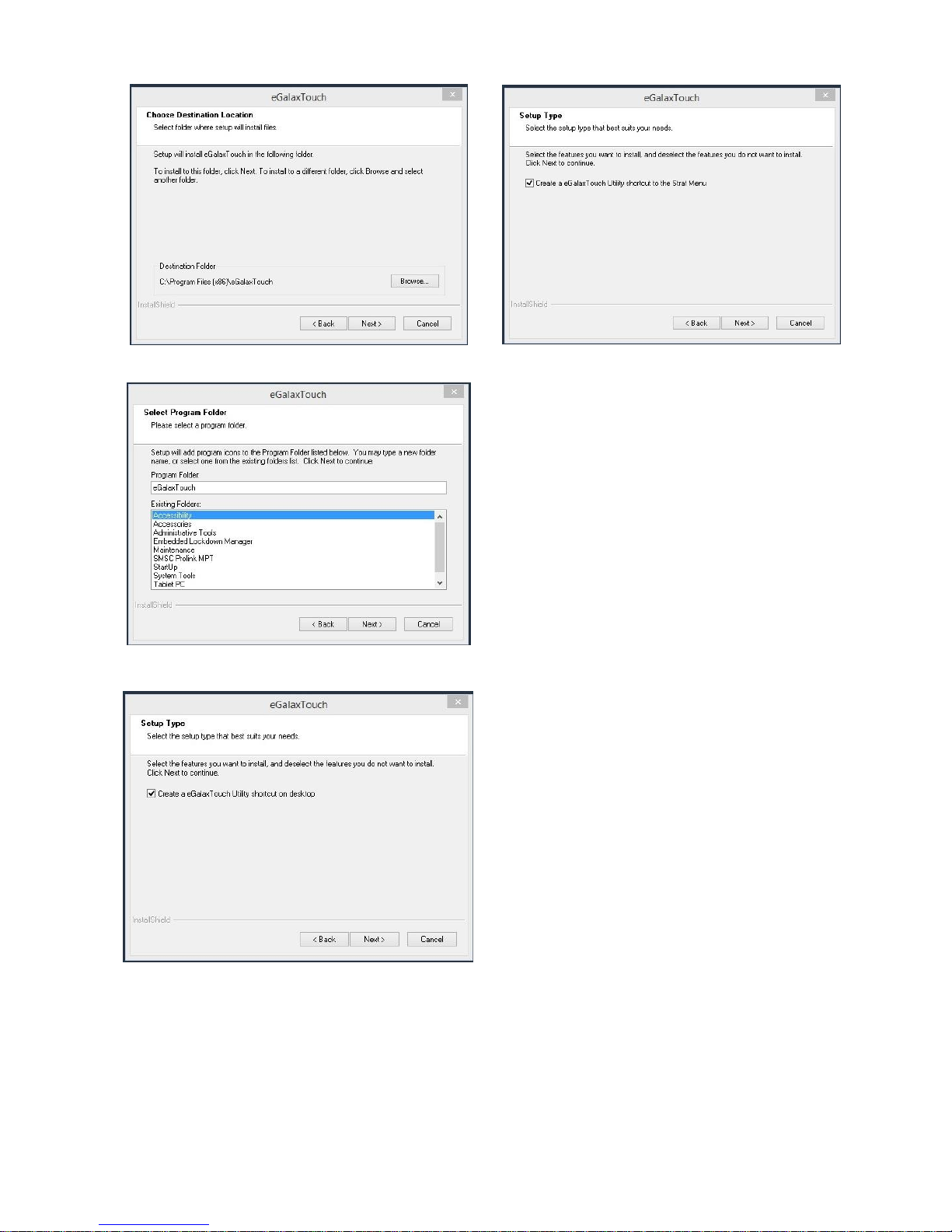

Step 6. Click Next.

Step 9. Click Next.

Step 7. Click Next.

Step 8. Click Next.

User’s Manual

ECM-BSW User’s Manual

59

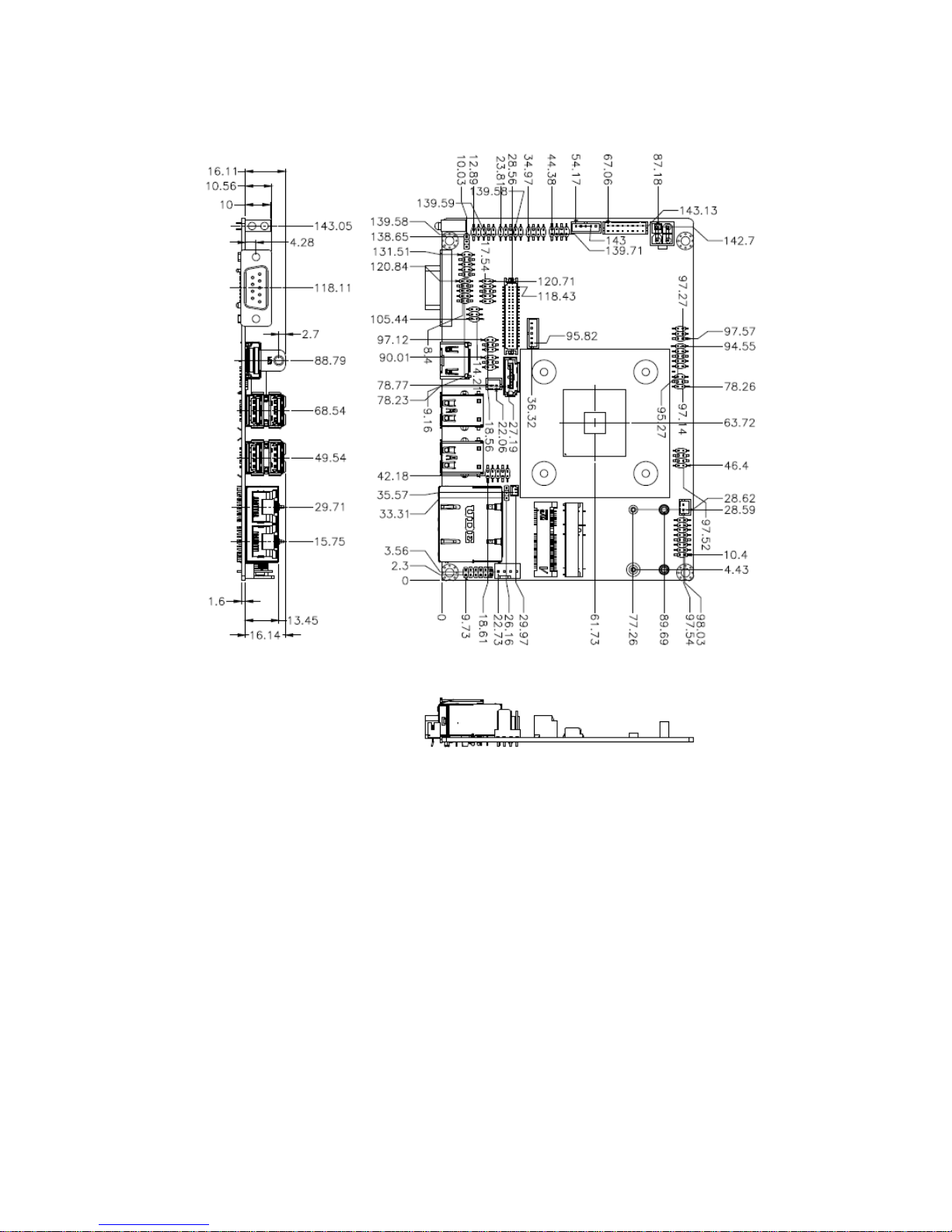

5. Mechanical Drawing

ECM-BSW User’s Manual

60 ECM-BSW User’s Manual

Unit: mm

User’s Manual

ECM-BSW User’s Manual

61

Unit: mm
