Avalue BFC-10W7 User Manual

BFC-10W7
10.1" Multifunctional Bezel Free Multi-Touch Panel Computer
Quick Reference Guide
3rd Ed –05 September 2013
Copyright Notice
Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E201710W7A2R
BFC-10W7
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.
1.2 Packing List
1 x BFC-10W7 10.1" Multifunctional Bezel Free Multi-Touch Panel
Computer
1 x DVD-ROM contains the followings:
User’s Manual (this manual in PDF file) Ethernet driver and utilities VGA drivers and utilities Audio drivers and utilities Chipset drivers
Other major components include the followings:
60W adapter and power cord
2 BFC-10W7 Quick Reference Guide
3
System
Board
ECM-CDV
CPU
Intel® Atom™ Dual-Core D2550 1.86GHz CPU
BIOS
AMI 8M-bit SPI BIOS
System Chipset
Intel® NM10 Express Chipset
I/O Chip
Nuvoton W83627DHG-P
System Memory
One SODIMM socket supports up to 4GB DDR3 800/1066 SDRAM
SSD
One CompactFlash Type I/II socket
Hard Driver Bay
Optional One 2.5”HDD or SSD (Total height: 66.05mm )
WiFi
Optional Mini PCIe WiFi 802.11b/g/n
Watchdog Timer
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
H/W Status Monitor
Monitoring system temperature and voltage. Auto throttling control when CPU overheats
Expansion
1 x Mini-PCIe (mSATA supported)
Panel
LCD size
10.1", 16:9
Display type
LED
Resolution
1024 x 600
Pixel pitch
0.2175 (H) x 0.2088 (V)
Luminance
200 cd/m²
Contrast ratio
500
Viewing angle
20(U), 45(D), 45(L), 45(R )
Response time
25 ms
Backlight
LED Backlight
Touch Type
Projected Capacitive Touch
Touch Light Transmission
86%
Touch Interface
USB
Rear I/O
Serial Port
1 x RS232, 1x RS232/422/485 (selected by jumper)
Ethernet
2 x RJ-45 (Dual Intel 82574L Gigabit Ethernet)
VGA
1 x HDMI & 1 x VGA
Audio port
1 x Mic in
USB
3 x USB
Speaker
2 x 2W (or optional Line out x 1)
1.3 System Specifications
Quick Reference Guide
BFC-10W7 Quick Reference Guide
BFC-10W7
Display
Chipset
Intel NM10 Express Chipset
Resolution
CRT: up to 2048x1536@ 60 Hz
Dual Display
CRT + LVDS with clone mode
LVDS
Dual 18/24-bit LVDS
Audio
AC97 Codec
Realtek ALC892 supports 5.1CH Audio
Audio Interface
Line out (audio jack), AMP Line-in, Line-out, Mic-in (in header)
Mechanical & Environmental
Mounting
Wall/Stand/VESA 75 mm x 75 mm
Power Input
Wall/Stand/VESA 75 mm x 75 mm
Power Output
100~250 Vdc/ 47~63 Hz
Power Type
AT/ATX
Operating Temp.
32 to 104°F (0 to 40°C)
Storage Temp.
-14 to 140°F (-10 to 60°C)
Operating Humidity
5%~90% relative humidity, non-condensing
Dimensions
251.94mm x 154.5mm x 45.25mm
Weight
251.94mm x 154.5mm x 66.05mm (w/ HDD)
Reliability
EMI Test
CE/FCC Class B
Dust and Rain Test
Front side IP65
Operating Temperature
0°C ~ 40°C
Operating Humidity
0%~90% relative humidity, non-condensing
Storage Temperature
-10°C ~ 60°C
4 BFC-10W7 Quick Reference Guide
5
Connectors
Label
Function
Note
COM1~2
Serial port connector1~2
DB-9 male connector
HDMI
HDMI connector
VGA
VGA connector
HDD
HDD Indicator
1.4 System Overview
1.4.1 Front & Top View
Quick Reference Guide
1.4.2 Rear View
BFC-10W7 Quick Reference Guide
BFC-10W7
LAN
RJ-45 Ethernet
LINE OUT
Line-out audio jack
(optional)
Power
System power switch
USB
USB connector
PWR
Power Indicator
DC-IN
DC power-in connector
MIC IN
Microphone-in audio jack
6 BFC-10W7 Quick Reference Guide
7
2. Hardware Configuration
For advanced information, please refer to:
1- BFC-10W7 Quick Reference Guide or Users Manual 2- ECM-CDV included in this manual.
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
Quick Reference Guide
BFC-10W7 Quick Reference Guide
BFC-10W7
Signal
PIN
PIN
Signal
DCDA#
1 2 RxDA
TxDA
3 4 DTRA#
GND
5 6 DSRA#
RTSA#
7 8 CTSA#
RIA#
9
10
NC
Signal
PIN
PIN
Signal
DCDB#
1 2 RxDB
TxDB
3 4 DTRB#
GND
5 6 DSRB#
RTSB#
7 8 CTSB#
RIB#
9
10
NC
2.1 BFC-10W7 connector mapping
2.1.1 External Serial Port 1 connector (COM1)
2.1.2 External Serial Port 2 connector (COM2)
8 BFC-10W7 Quick Reference Guide
9
PIN
Signal
PIN
Signal
PIN
Signal
1 R 6
GND
11
NC 2 G 7 GND
12
DATA 3 B 8 GND
13
HSYNC
4
NC 9 +5V
14
VSYNC
5
GND
10
GND
15
CLK

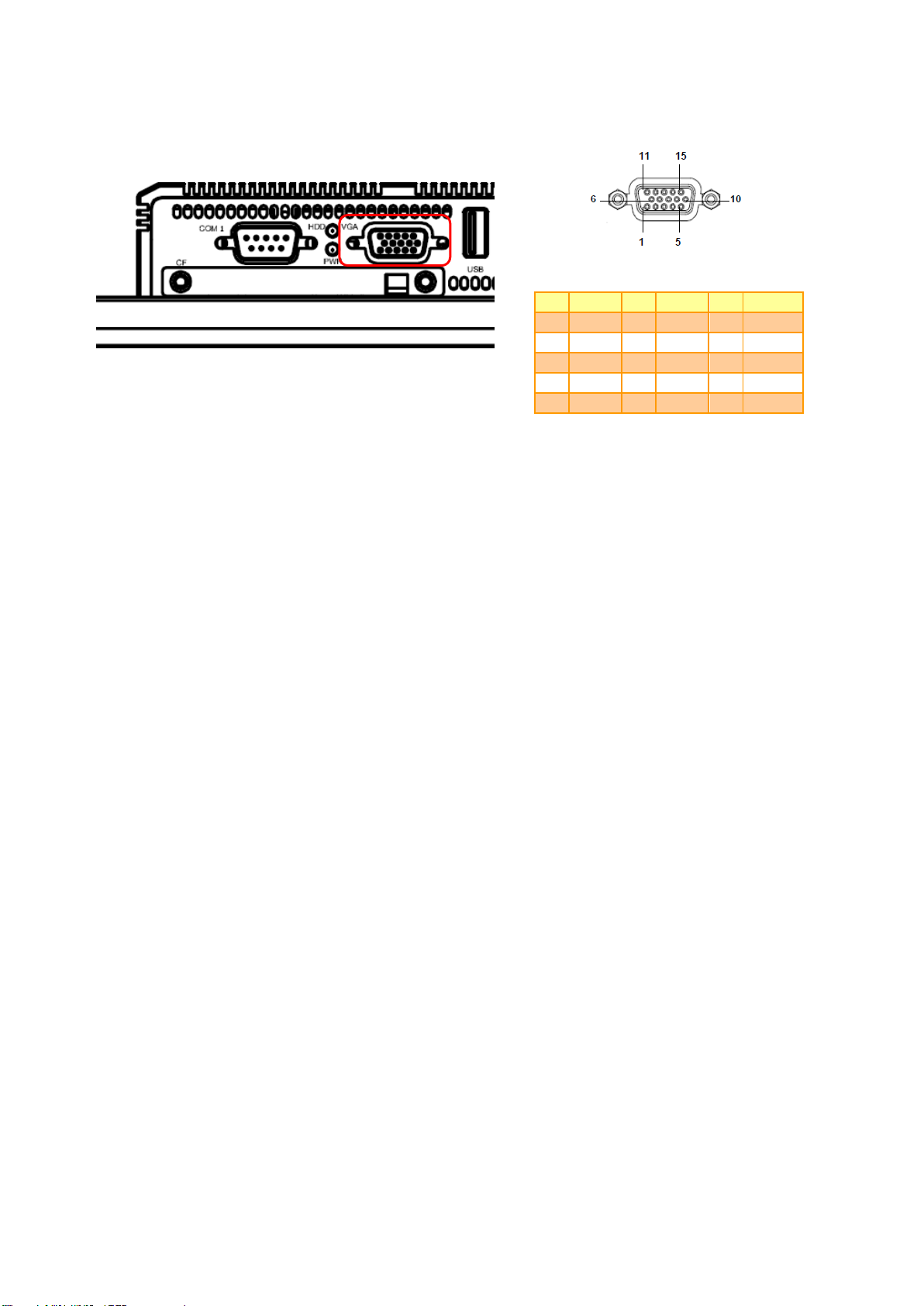

2.1.3 VGA connector (VGA)
Quick Reference Guide
BFC-10W7 Quick Reference Guide
BFC-10W7

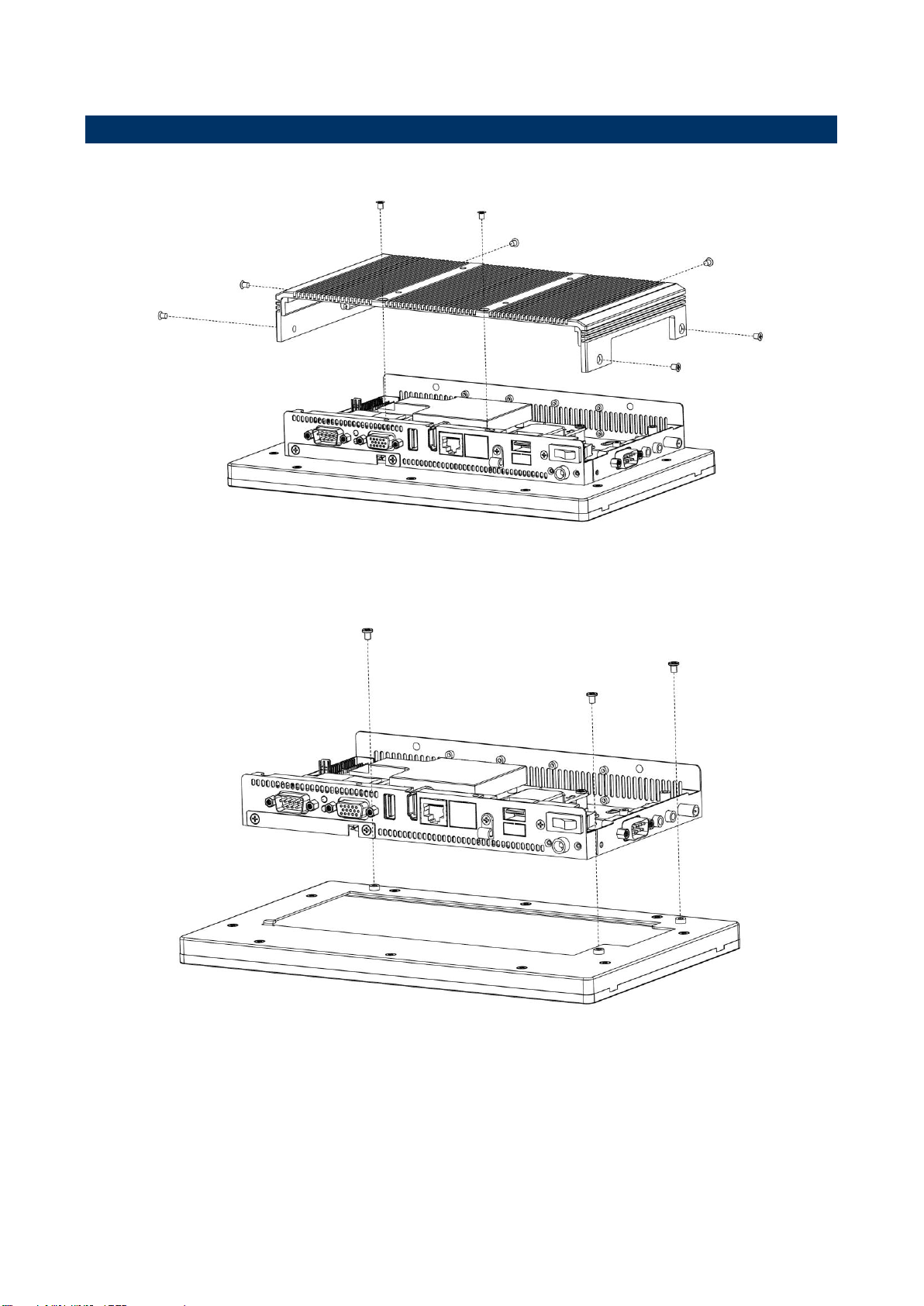

Step 1. Remove the 8 screws to disassemble your system back cover.
Step 2. Remove the 3 screws to disassemble your panel pc bezel.
2.2 Installing Memory (BFC-10W7)
10 BFC-10W7 Quick Reference Guide
11
Step 3. Insert DDR3 SO-DIMM memory into the memory socket.
Quick Reference Guide
BFC-10W7 Quick Reference Guide
BFC-10W7

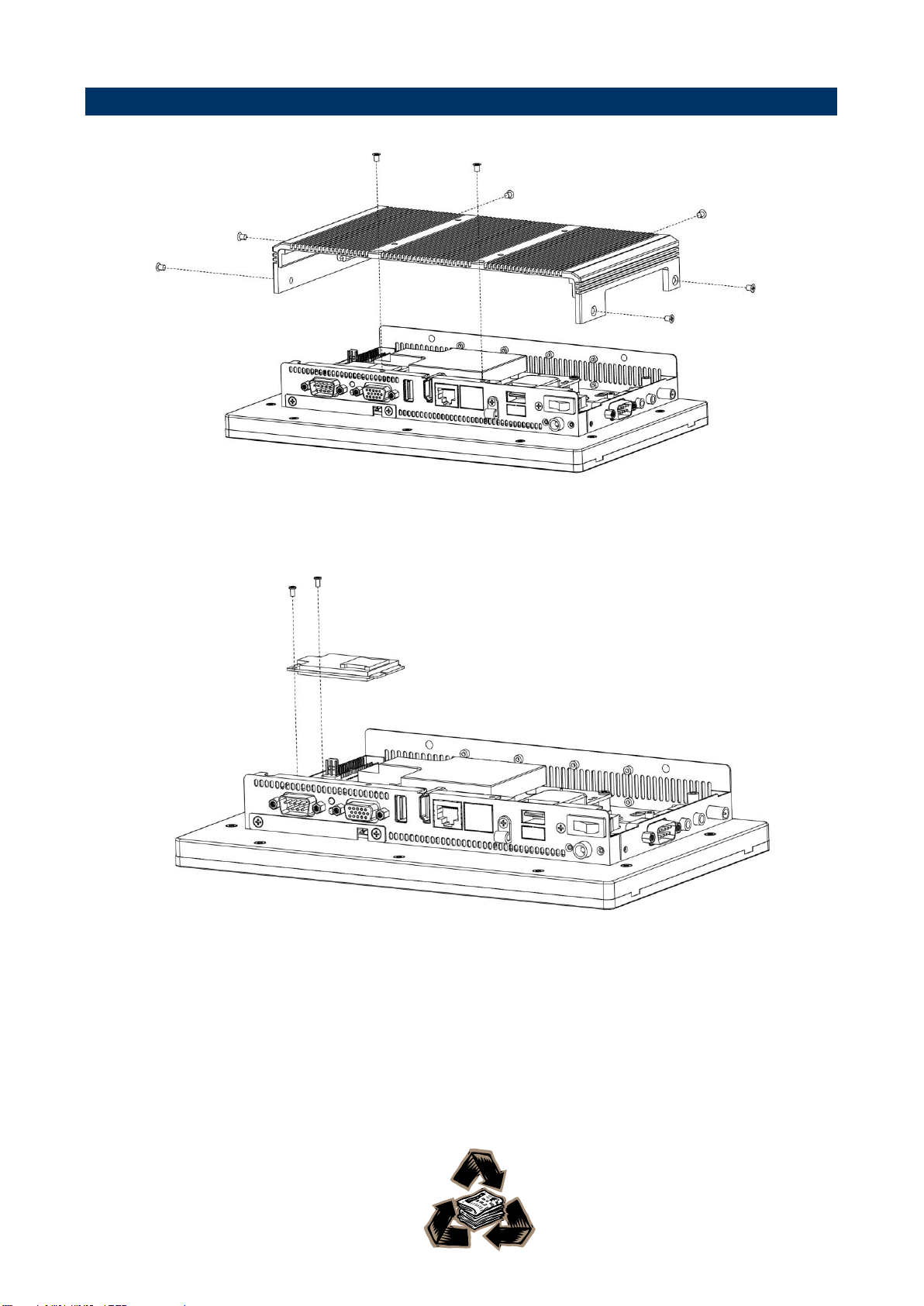

Step1. Remove the 8 screws to disassemble your system back cover.
2.3 Installing PCIE device (BFC-10W7)
Step2. Please install mini PCIe device, and fasten with 2 screws
12 BFC-10W7 Quick Reference Guide
