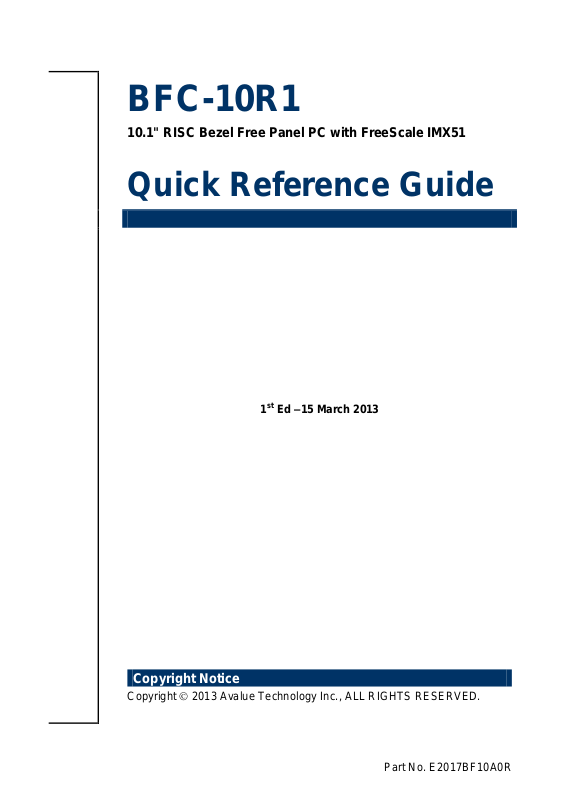

BFC-10R1
10.1" RISC Bezel Free Panel PC with FreeScale IMX51
Quick Reference Guide
1st Ed –15 March 2013
Copyright Notice
Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017BF10A0R
BFC-10R1
FCC Statement
A Message to the Customer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
2 BFC-10R1 Quick Reference Guide
Quick Reference Guide
3
CONTENT
1. Getting Started ............................................................................................................ 4
1.1 Safety Precautions ................................................................................................ 4
1.2 Packing List ........................................................................................................... 4
1.3 System Specifications ........................................................................................... 5
1.4 System Overview ................................................................................................... 6
1.4.1 Front & Top View ......................................................................................................................... 6
1.4.2 Right Side View ............................................................................................................................ 6
1.4.3 Left Side View .............................................................................................................................. 7
1.4.4 Rear View ..................................................................................................................................... 7
2. Hardware Configuration ............................................................................................. 8
2.1 Jumper & connector list ......................................................................................... 9
2.2 Jumper & connector settings ................................................................................. 9
2.2.1 COM1 & COM2 connector ........................................................................................................... 9
2.2.2 Boot Mode selector (SW2) ......................................................................................................... 10
2.2.3 DC power-in connector .............................................................................................................. 10
2.3 Installing PCIE device (BFC-10R1) ..................................................................... 11
2.4 Installing SD Card (BFC-10R1) ........................................................................... 12
BFC-10R1 Quick Reference Guide
BFC-10R1
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x 10.1” RISC Bezel Free Panel PC System.
1 x Quick Reference Guide
Other major components include the following:
— 1 x Power Adapter(12V/5A)
4 BFC-10R1 Quick Reference Guide
5
Panel
Model
BFC-10R1-M51
BFC-10R1-M51W
BFC-10R1-M51P
LCD size
10.1”
Display type
WSVGA TFT
Resolution
1024 x 600
Color
262K
Pixel pitch
0.1905mm(H) x 0.189mm(V)
Luminance
180cd/m²
Contrast ratio
300
Viewing angle
15(U), 35(D), 45(L), 45(R)
Response time
30 ms
Backlight
LED
Touch Type
Projective capacitive touch
Touch Light Transmission
93%
Integrated Module
n/a
w/ WiFi Module
w/ POE Module
System
Board
RSC-IMX51
CPU
Freescale i.MX515 ARM Cortex-A8 800MHz
PMIC
Freescale MC13892AJVL
Flash
Onboard 4GB eMMC
Memory
Onboard 512MB DDR2 SDRAM
SSD
SD or SDHC
Rear Panel I/O
Serial Port
1 x RS-232, 1 x RS-232/ 422/ 485
USB
2 x USB 2.0
Mini USB
1 x Mini-USB
Ethernet
1 x RJ-45
Mechanical & Environmental
Color
Front & Rear panel Black
Power Requirement
+12 VDC Input
Operating Temperature
0°C to 40°C (32°F to 140°F)
Relative Humidity
0%~90% relative humidity, non-condensing
Storage Temperature
-20°C to 60°C
Mounting
Wall/Stand/VESA 100 mm X 100 mm
Dimensions
251.9mm x 154.5mm x 42.7mm
Weight
1Kgs
1.3 System Specifications
Quick Reference Guide
BFC-10R1 Quick Reference Guide
BFC-10R1
Connectors
Label
Function
Note
SD Card Slot
SD/SDHC card socket
Right side
Mini USB
USB client connector
Right side

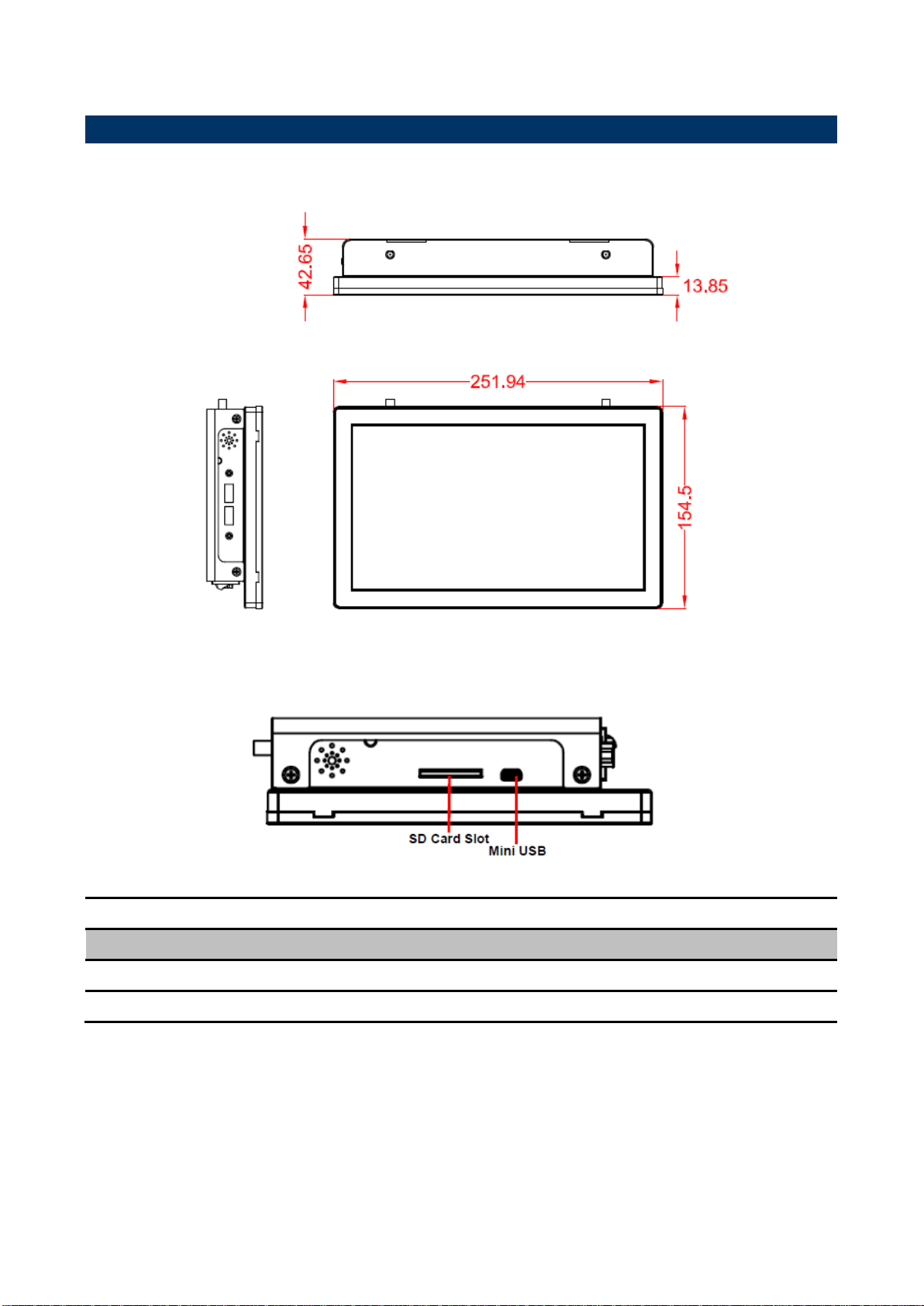

1.4 System Overview
1.4.1 Front & Top View
1.4.2 Right Side View
6 BFC-10R1 Quick Reference Guide
7
Connectors
Label
Function
Note
USB1~2
USB 2.0 connector 1~2
Left side
Connectors
Label
Function
Note
COM1~2
Serial port connector1~2
DB-9 male connector
DC-IN
+12V DC power-in connector
LAN
RJ-45 Fast Ethernet connector
MODE SWITCH
Boot Mode selector
POE
RJ-45 POE connector
For BFC-10R1-M51P
Power S/W
System power switch
RESET
Reset button
1.4.3 Left Side View
1.4.4 Rear View
Quick Reference Guide
BFC-10R1 Quick Reference Guide
BFC-10R1
2. Hardware
Configuration
Jumper and Connector Setting, Driver and BIOS Installing
For advanced information, please refer to:
1- RSC-IMX51 Installation Guide or User’s Manual
2- EPM-POE and AUX-MPCIE (Optional) Installation Guide.
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
8 BFC-10R1 Quick Reference Guide
9
Connectors
Label
Function
Note
COM1~2
Serial port connector1~2
DB-9 male connector
DC-IN
+12V DC power-in connector
LAN
RJ-45 Fast Ethernet connector
MODE SWITCH
Boot Mode selector
POE
RJ-45 POE connector
For BFC-10R1-M51P
Power S/W
System power switch
RESET
Reset button
SD Card Slot
SD/SDHC card socket
Right side
Mini USB
USB client connector
Right side
USB
USB 2.0 connector 1&2
Left side
Signal
PIN
PIN
Signal
NC
1 2 RX1
TX1
3 4 NC
GND
5 6 NC
RTS
7 8 CTS
NC
9
2.1 Jumper & connector list
Quick Reference Guide
2.2 Jumper & connector settings
2.2.1 COM1 & COM2 connector
BFC-10R1 Quick Reference Guide
BFC-10R1
Signal
PIN
PIN
Signal
BMOD1
1
5
+V2D775_BOOT
BMOD0
2 6 BT_SRC[1]
3
7
+V1D8_DIG1
BT_SRC[0]
4
8
Boot from onboard SD
Boot from SD socket
USB OTG mode (Reflash onboard SD only)
Please note:
DIP Switch setting:
0=Off, 1=On
When Position4 is switched On, the system is forced to power On as soon as power is applied. Switch to Off
mode for normal operation.
DC-IN 12V

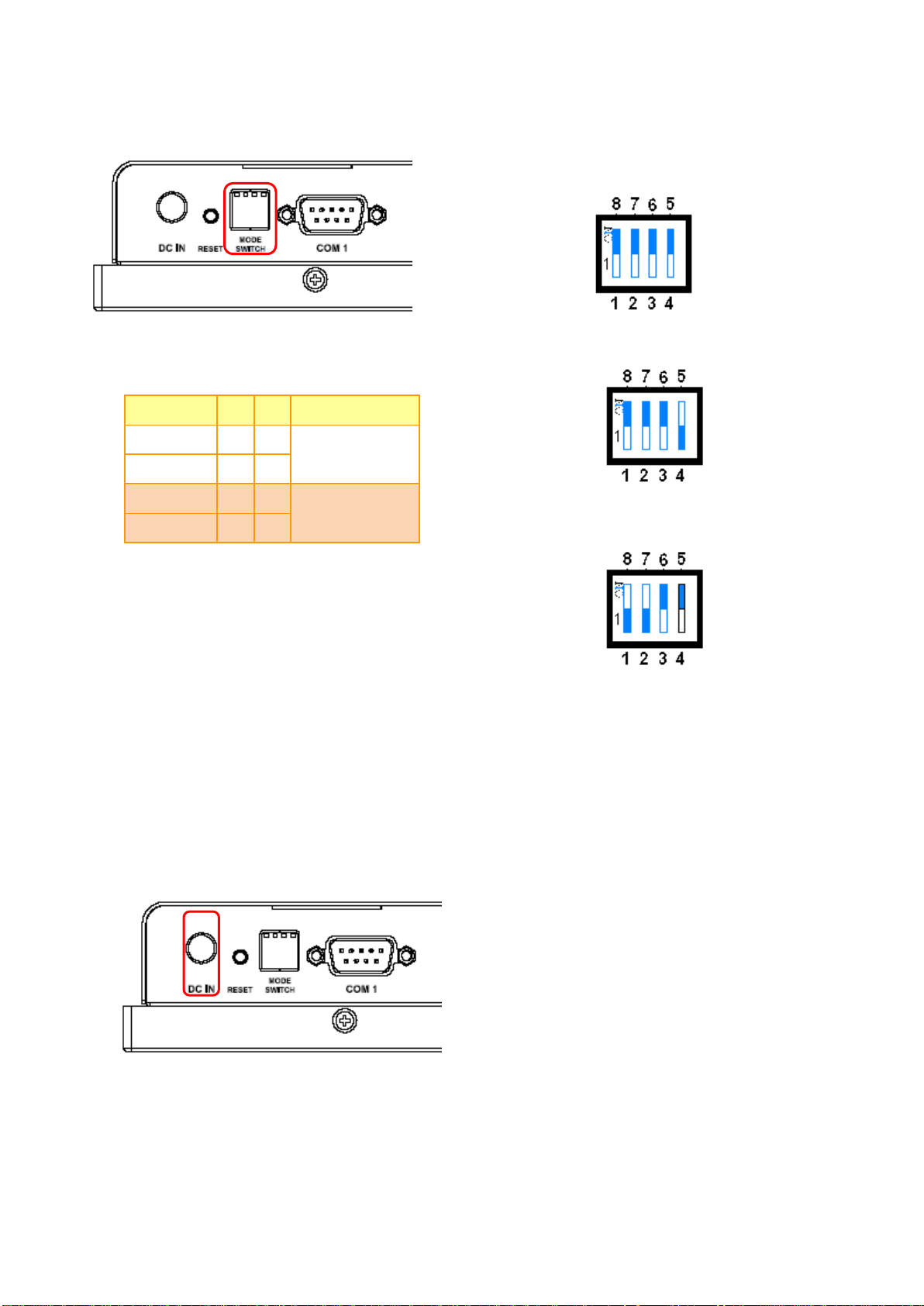

2.2.2 Boot Mode selector (SW2)
2.2.3 DC power-in connector
10 BFC-10R1 Quick Reference Guide
11

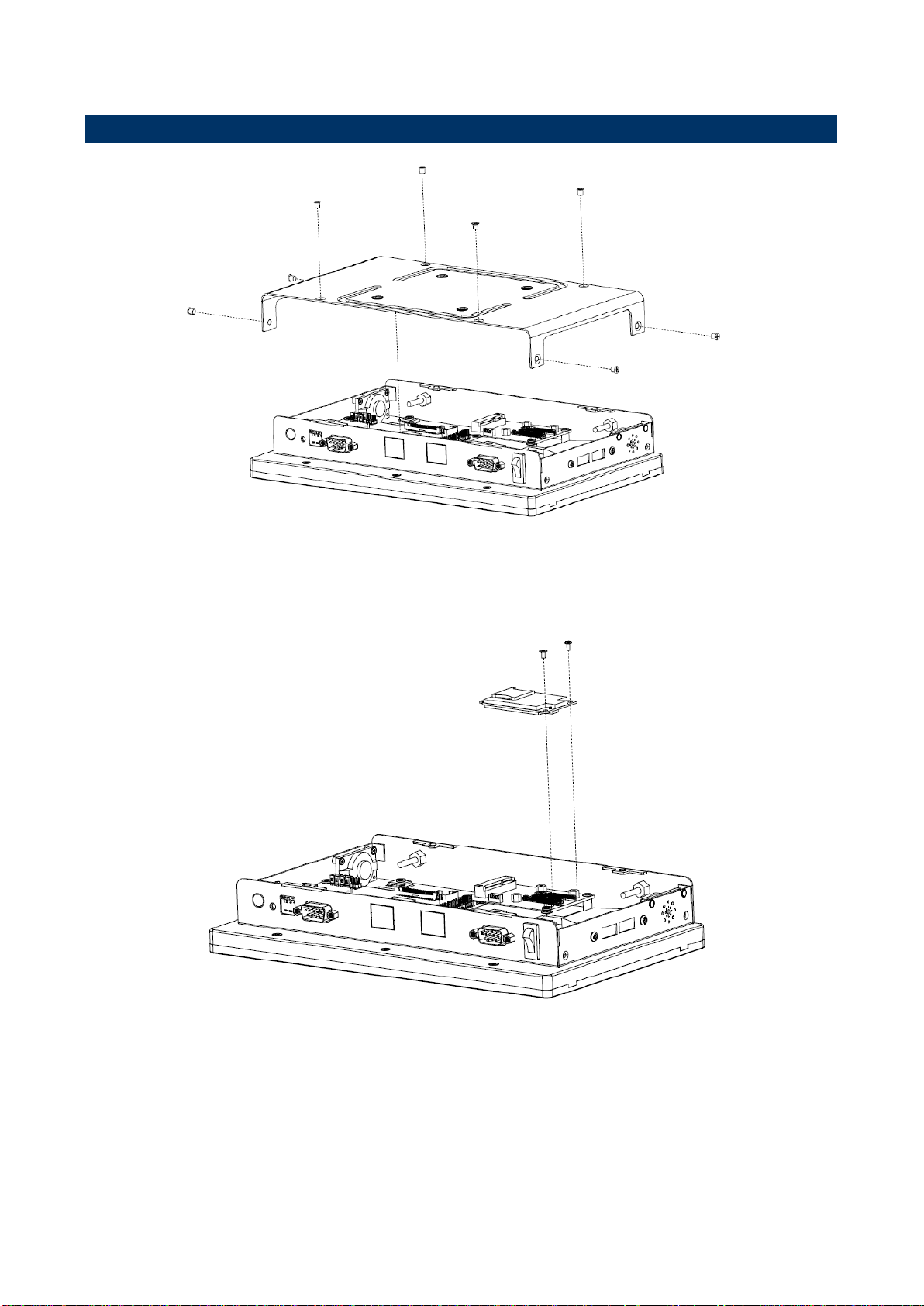

Step1. Remove the 8 screws to disassemble your system back cover.
2.3 Installing PCIE device (BFC-10R1)
Quick Reference Guide
Step2. Please install mini PCIe device, and fasten with 2 screws
BFC-10R1 Quick Reference Guide
BFC-10R1
Step1. Put SD Card into the SD Card Slot.
2.4 Installing SD Card (BFC-10R1)
12 BFC-10R1 Quick Reference Guide
