ASM-BYT
Fanless Intel® Celeron® SoC Ultra Slim PC
Quick Reference Guide
1st Ed – 28 August 2014
Copyright Notice
Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017BA90A0R
ASM-BYT
FCC Statement
A Message to the Customer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
2 ASM-BYT Quick Reference Guide
Quick Reference Guide
3
Content
1. Getting Started ............................................................................................................ 4
1.1 Safety Precautions ................................................................................................ 4
1.2 Packing List ........................................................................................................... 4
1.3 System Specifications ........................................................................................... 5
1.4 System Overview ................................................................................................... 7
1.4.1 Front View ................................................................................................................................ 7
1.4.2 Side & Rear View..................................................................................................................... 7
1.5 System Dimensions ............................................................................................... 9
1.5.1 Front & Top View ......................................................................................................................... 9
2. Hardware Configuration ........................................................................................... 10
2.1 ASM-BYT connector mapping ............................................................................. 11
2.1.1 VGA connector (VGA) ................................................................................................................ 11
2.1.2 Serial port 1 connector (COM1) ................................................................................................. 11
2.1.3 Serial port 2 connector (COM2) ................................................................................................. 12
2.2 Remove the Memory (ASM-BYT) ........................................................................ 13
ASM-BYT Quick Reference Guide
ASM-BYT
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x ASM-BYT Fanless Intel® Celeron® SoC Ultra Slim PC
1 x DVD-ROM contains the followings:
— QRG in PDF file
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— Chipset drivers and utilities
Other major components include the followings:
— Screw kit
— Adapter
— Power Cord
4 ASM-BYT Quick Reference Guide
5
System
Board
EBM-BYT
CPU
Intel® Celeron® Processor J1900 Family
BIOS
AMI uEFI BIOS, 64/128Mbit SPI Flash ROM
System Chipset
Valleyview D SoC Integrated
I/O Chipset
EC (IT8528E)
System Memory
One 204-pin SODIMM Socket Up to 8GB DDR3L 1333 SDRAM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec./1sec.step
H/W Status
Monitor
Monitoring System Temperature, Voltage with Auto Throttling Control
Storage
Solid State Drive
1 x CF, 1 x SATA, 1 x mSATA
External I/O
COM Port
2 x COM Port supports RS-232/422/485
COM1 can be set as RS-422/485 via BIOS
COM2 can be set as RS-422/485 via DIP Switch
USB Port
4 x USB (2 on front side; 2 on rear side)
Video Port
1 x VGA, 1 X HDMI
Audio Port
Mic-In, Line-Out, Line-In
LAN Port
2 x RJ45
Switch
1 x Power on/off
Indicator Light
1 x Power on/off LED on the rear side
1 x Storage LED on the rear side
CF
1 x CompactFlash Type I/II Socket w/ Cover
Antenna
1 x Knockouts for antenna mounting
Expansion Slots
1 x Mini PCIe with SIM CArd
1 x Mini PCIe supports mSATA
Display
Chipset
Intel® Celeron® SoC Integrated Graphics
Multiple Display
Dual Display, HDMI + LVDS
Resolution
VGA Mode: 2560 x 1600 @ 60Hz
HDMI Mode: 1920 x 1200 @ 60Hz
Audio
HD Codec
Realtek ALC892 Supports 5.1-CH Audio
Audio Interface
Mic-in, Line-in, Line-out
Ethernet
1.3 System Specifications
Quick Reference Guide
ASM-BYT Quick Reference Guide
ASM-BYT
Chipset
2 x Intel® I211AT Gigabit Ethernet Controller
Ethernet Interface
10/100/1000 Base-Tx Gigabit Ethernet Compatible
Mechanical
Power Type
+12 ~ 26Vdc (Lockable DC Jack)
ACPI
Single Power ATX Support S0, S3, S4, S5
ACPI 3.0 Compliant
Power Mode
AT/ATX (ATX is the default setting)
Operating
Temperature
0 ~ 50°C (32 ~ 122°F) (w/CF & SSD), Ambient w/Air Flow
0 ~ 40°C (32 ~ 104°F) (w/HDD), Ambient w/Air Flow
Storage
Temperature
-40 ~ 75°C (-40 ~ 167°F)
Relative Humidity
0% ~ 90% Relative Humidity, Non-condensing
Vibration
Protection
With CF/SSD: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Protection
With CF/SSD: 10G, IEC 60068-2-27, Half Sine,11ms
Certification
CE, FCC Class B
Dimension (W x H x
D)
182mm x 257mm x 25mm
Weight
1.2kgs
Color
Silver and Black
Fanless
YES
Reliability
IP Rating
IP 30
6 ASM-BYT Quick Reference Guide
7
Connectors
Label
Function
Note
POWER
Power on button
USB
USB 2.0 connector
MIC IN
Mic-in audio jack
LINE IN
Line-in audio jack
LINE OUT
Line-out audio jack
Connectors
Label
Function
Note
COM1
Serial port 1 connector
D-sub 9-pin, male
CF/DVI/COM2
Compact Flash card connector
DVI connector
Serial port 2 connector
HDD
HDD indicator
LAN1
RJ-45 Ethernet 1
KB/MS/LAN2
RJ-45 Ethernet connector 2
Power
1.4 System Overview
1.4.1 Front View
Quick Reference Guide
1.4.2 Side & Rear View
ASM-BYT Quick Reference Guide
ASM-BYT
Optional PS/2
PWR
System power indicator
USB
USB 2.0 connector x 1
USB 3.0 connector x 1
VGA
VGA connector
DB-15 female connector
HDMI
HDMI connector
DC IN
DC Power-in connector
RESET
Reset button
LINE OUT
Line-out audio jack
8 ASM-BYT Quick Reference Guide
9
1.5 System Dimensions
(Unit: mm)
1.5.1 Front & Top View
Quick Reference Guide
ASM-BYT Quick Reference Guide
ASM-BYT
2. Hardware
Configuration
For advanced information, please refer to:
1- EBM-BYT User’s Manual
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
10 ASM-BYT Quick Reference Guide
11
PIN
Signal
PIN
Signal
PIN
Signal
1 R 6
GND
11
NC 2 G 7 GND
12
DATA 3 B 8 GND
13
HSYNC
4
NC 9 +5V
14
VSYNC
5
GND
10
GND
15
CLK
Signal
PIN
PIN
Signal
NDCDA#_485TXN
1 6 NDSRA#
NRXDA_485TXP
2 7 NRTSA#
NTXDA_485RXP
3 8 NCTSA#
NDTRA#_485RXN
4 9 NRIA#
GND
5
10
NC
Note:
COM1 can be set as RS-422/485 vis BIOS.
2.1 ASM-BYT connector mapping
2.1.1 VGA connector (VGA)
Quick Reference Guide
2.1.2 Serial port 1 connector (COM1)
ASM-BYT Quick Reference Guide
ASM-BYT
Signal
PIN
PIN
Signal
NDCDA#_485TXN
1 6 NDSRA#
NRXDA_485TXP
2 7 NRTSA#
NTXDA_485RXP
3 8 NCTSA#
NDTRA#_485RXN
4 9 NRIA#
GND
5
10
NC
Note:
COM2 can be set as RS-422-485 vis DIP Switch.

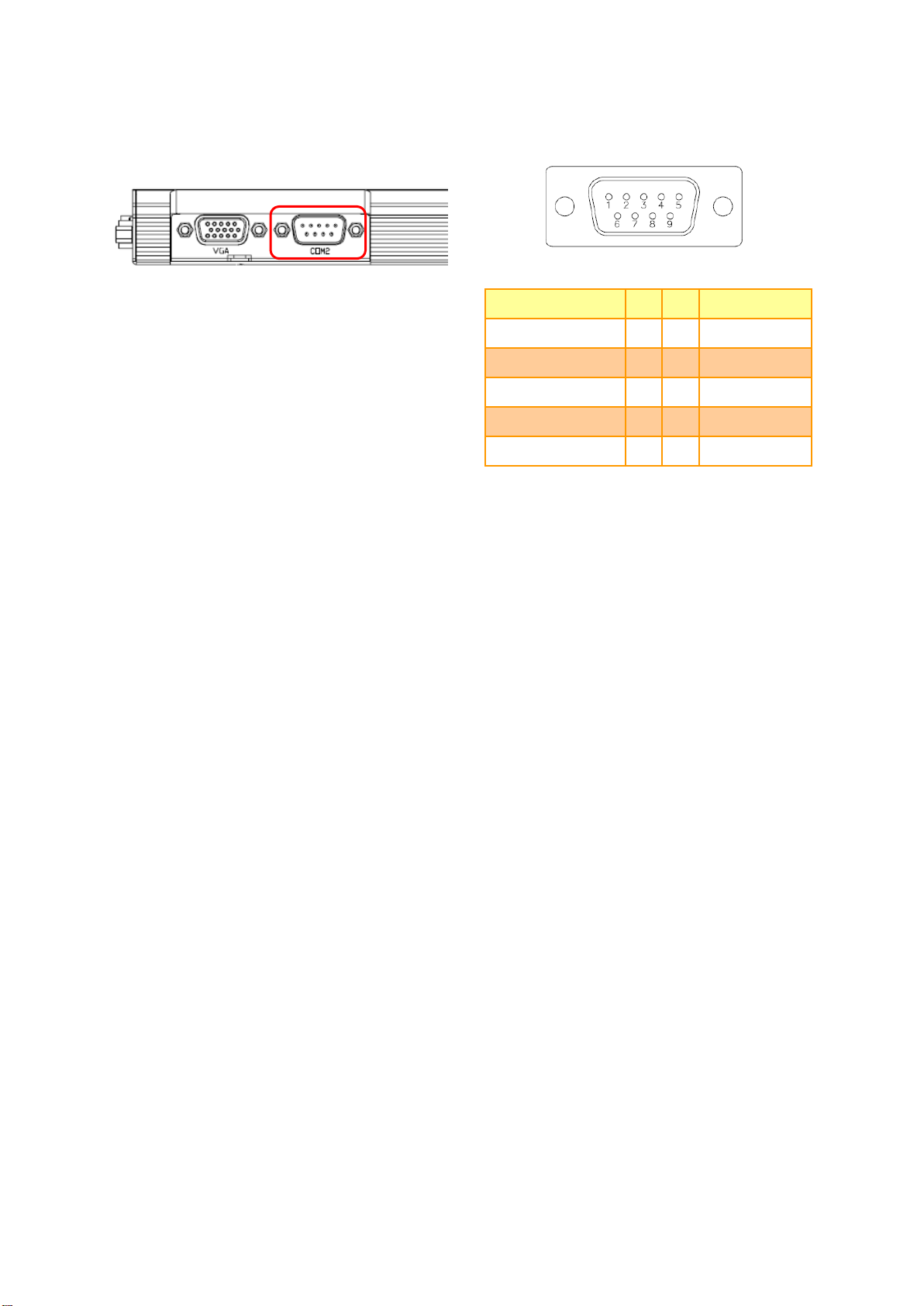

2.1.3 Serial port 2 connector (COM2)
12 ASM-BYT Quick Reference Guide
Quick Reference Guide
13

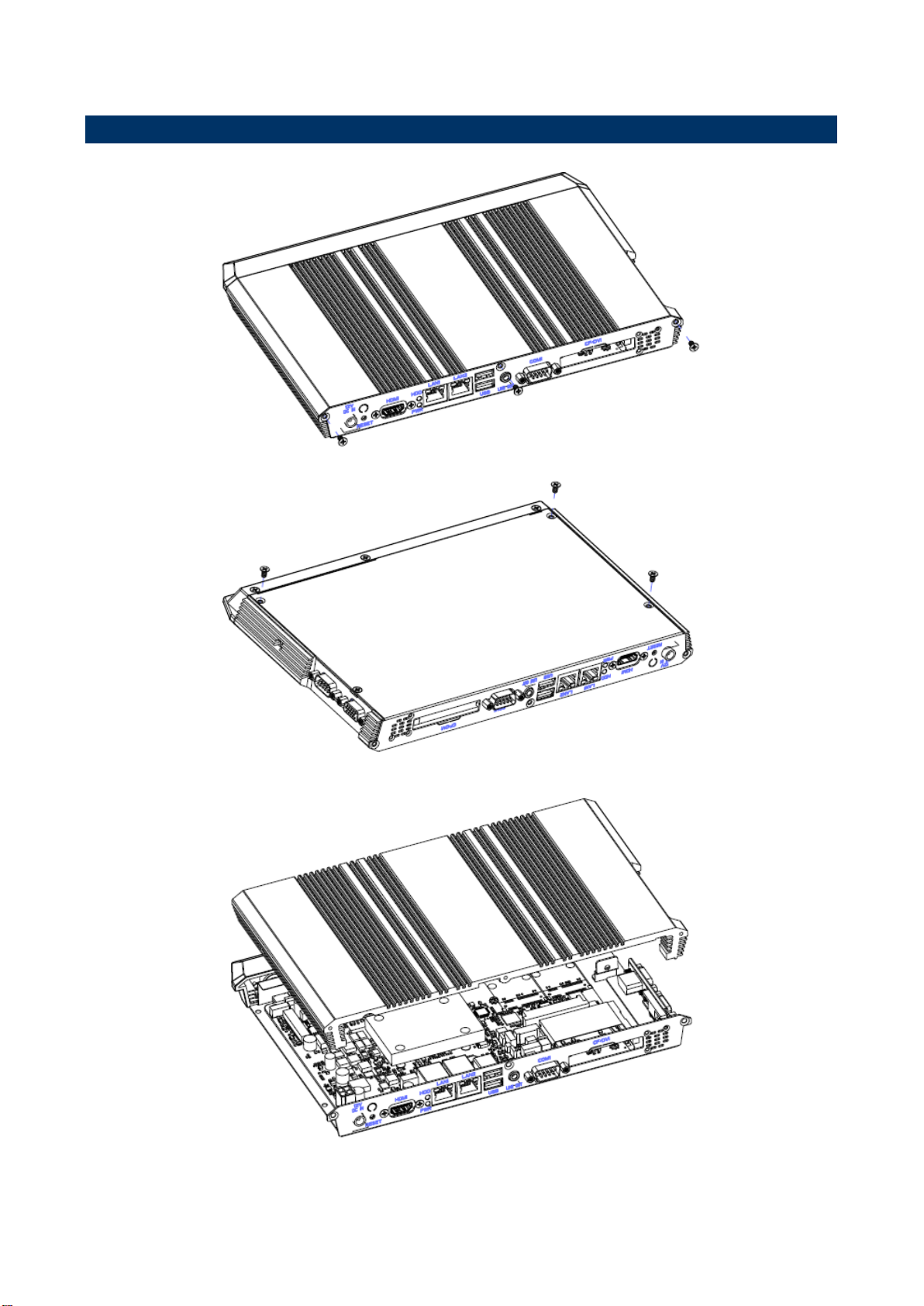

Step2. Remove 3 screws from the bottom of your system.
Step3. Remove the top chassis.
2.2 Remove the Memory (ASM-BYT)
Step1. Remove 3 screws from the rear side before removing back cover.
ASM-BYT Quick Reference Guide
ASM-BYT

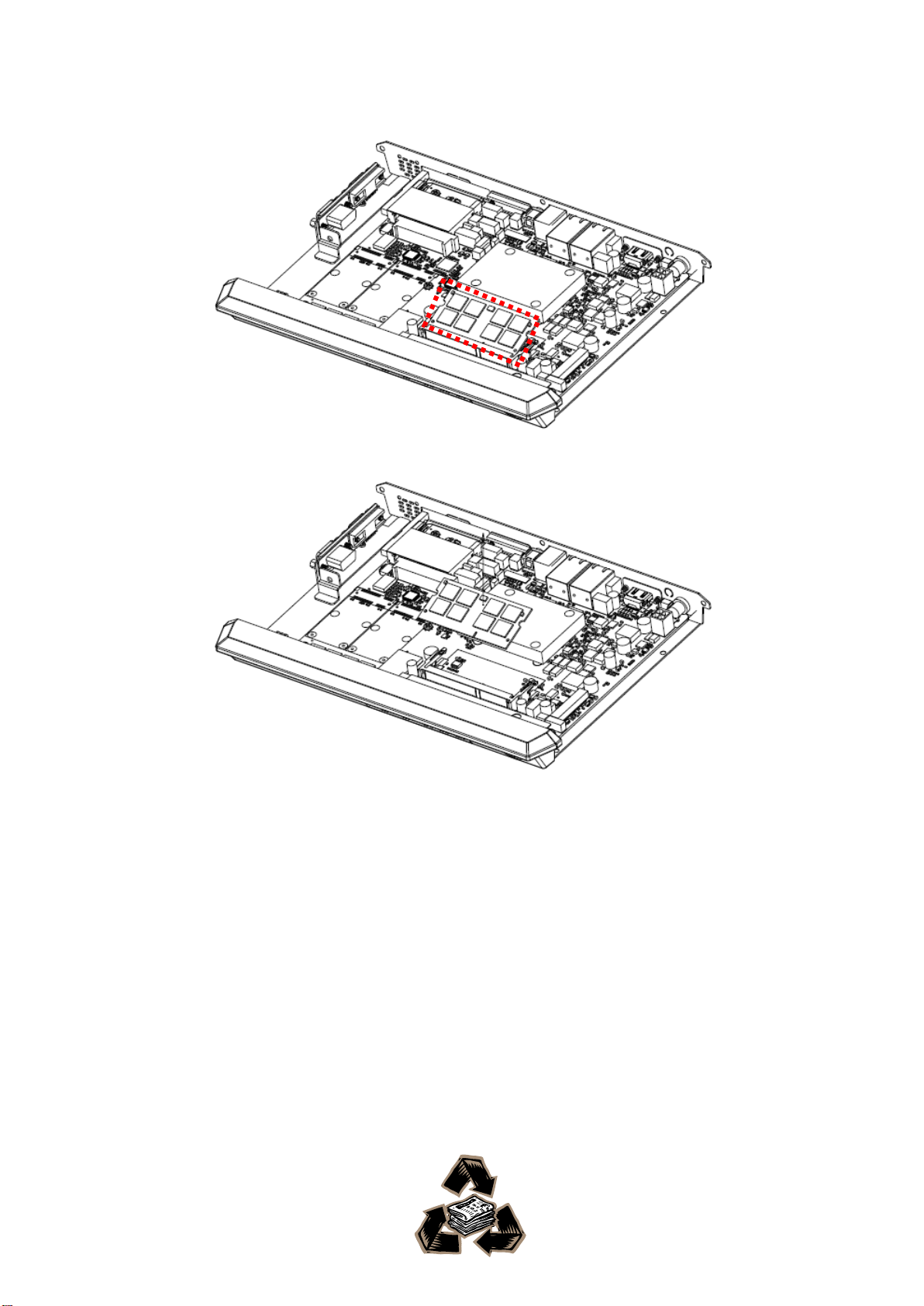

Step4.1 Remove the memory module.
Step4.2 Re-assemble your system back through previous steps to complete the
installation.
14 ASM-BYT Quick Reference Guide
