APC-18W5
18" WXGA TFT Fanless Plastic Multi-Touch Full Flat Panel
PC with ATOM Dual Core Solution
Quick Reference Guide
2nd– 18 November, 2013
Copyright Notice
Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E201718W5A2R
APC-18W5
Contents
1. Getting Started ............................................................................................................ 3
1.1 Safety Precautions ................................................................................................ 3
1.2 Packing List ........................................................................................................... 3
1.3 System Specifications ........................................................................................... 4
1.4 System Overview ................................................................................................... 6
1.4.1 Front View .................................................................................................................................... 6
1.4.2 Rear View ..................................................................................................................................... 7
1.5 System Dimensions ............................................................................................... 8
2. Hardware Configuration ........................................................................................... 10
2.1 Jumper and Connector Settings, Driver and BIOS Installation ............................ 10
2.2 Stand Installation ................................................................................................. 11
2 APC-18W5 Quick Reference Guide
Quick Reference Guide
3
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x 18" WXGA TFT Fanless Plastic Multi-Touch Full Flat Panel PC with
ATOM Dual Core Solution
1 x CD/DVD-ROM containing the following:
— Quick Reference Guide (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— Wi-Fi drivers and utilities
— Touch controller drivers and utilities
1 x Power Adapter
1 x Stand for Panel PC (with 6 screws & 5 rubber feet)
APC-18W5 Quick Reference Guide
APC-18W5
Panel
Specifications
APC-18W05
LCD size
18.5", 16 : 9
Display type
WSGA TFT
Resolution
1366 x 768
Color
16.7M
Pixel pitch
0.300mm(H) x 0.300mm(V)
Luminance
300 cd/m²
Contrast ratio
300
Viewing angle
80(U), 80(D), 85(L), 85(R)
Response time
5 ms
Backlight
2 x CCFL
Touch Type
5 Wire resistive
Touch Light Transmission
80%
Touch Interface
USB
System
Board
EBM-PNV
CPU
Onboard Intel® Atom™ D525 Dual-Core 1.8 GHz CPU
System Chipset
Intel ICH8-M
I/O Chip
Winbond W83627DHG-P
Memory
Onboard 1 GB up to 2GB & one 204-pin SODIMM support up to 4 GB DDR3
800 SDRAM
SSD
One CF socket supports Type I / II Compact Flash Card
HDD Drive Bay
One 2.5" SATA HDD/SSD
WiFi
Optional USB or Mini PCIe WiFi module
Watchdog Timer
Reset: 1 ~ 255min. and 1sec. or 1min./step
H/W Status Monitor
Monitoring system temperature and voltage. Auto throttling control when
CPU overheats
Expansion Slot
One Mini PCIe slot
1.3 System Specifications
4 APC-18W5 Quick Reference Guide
Quick Reference Guide
5
Rear Panel I/O
Serial Port
1 x RS-232
Ethernet
1 x RJ-45
VGA
1 x DB-15
Audio port
1 x Line out
USB
2 x USB 2.0
KB/MS
1 x PS/2 KB & MS
Speaker
2W x 2
Mechanical & Environmental
System Fan
Passive Heat Sink
Color
Front & Rear panel Black (Plastics)
Mounting
Wall/Stand/VESA 100 mm X 100 mm
Power
Requirement
+12V ~ +26V DC Power Input
Power Adapter
Input: 100~250 Vdc/ 47~63 Hz
Output: +12 Vdc / 5 A (60W)
Operating Temperature
0 to 40°C (32 to 140°F )
Storage Temperature
-10°C to 50°C
Relative Humidity
0%~90% relative humidity, non-condensing
Dimensions
443 x 290 x 59.8 mm
Weight
4.54Kgs
APC-18W5 Quick Reference Guide
APC-18W5
1.4 System Overview

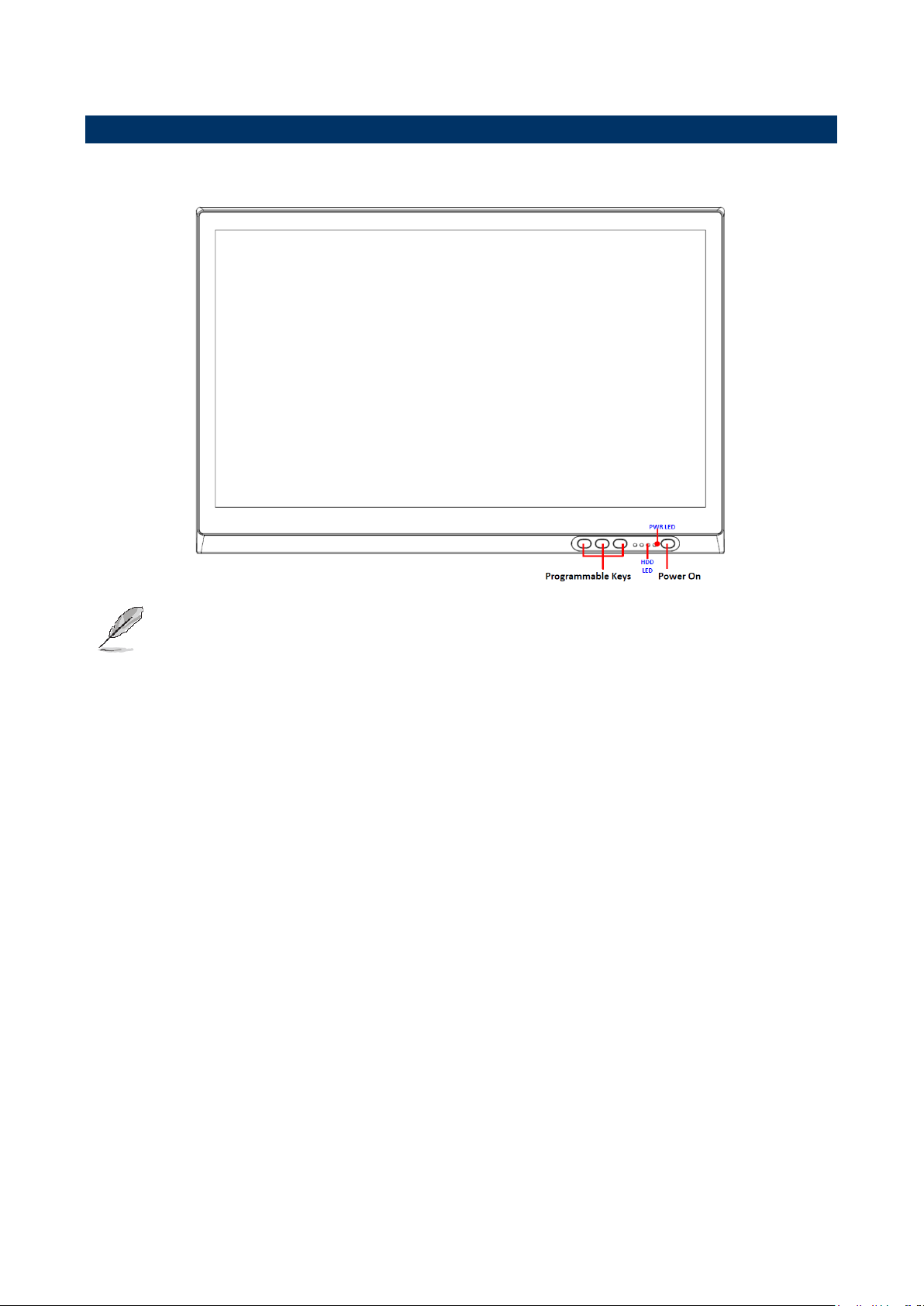

1.4.1 Front View
Note: Programmable keys are available to be programmed by the user; they are
unable to work unless programmed.
6 APC-18W5 Quick Reference Guide
7
Connectors
Label
Function
Note
COM
Serial port
DB-9 male connector
DC in
DC-in power connector
HDD
HDD LED
LAN
10/100/1000Base-Tx Ethernet connector
RJ-45
KBMS
PS/2 keyboard & mouse
6-pin Mini DIN
LINE OUT
Line-out audio jack
PWR
Power LED
Reset
Rest button
USB
USB 2.0 connector
VGA
CRT connector
DB-15 female connector

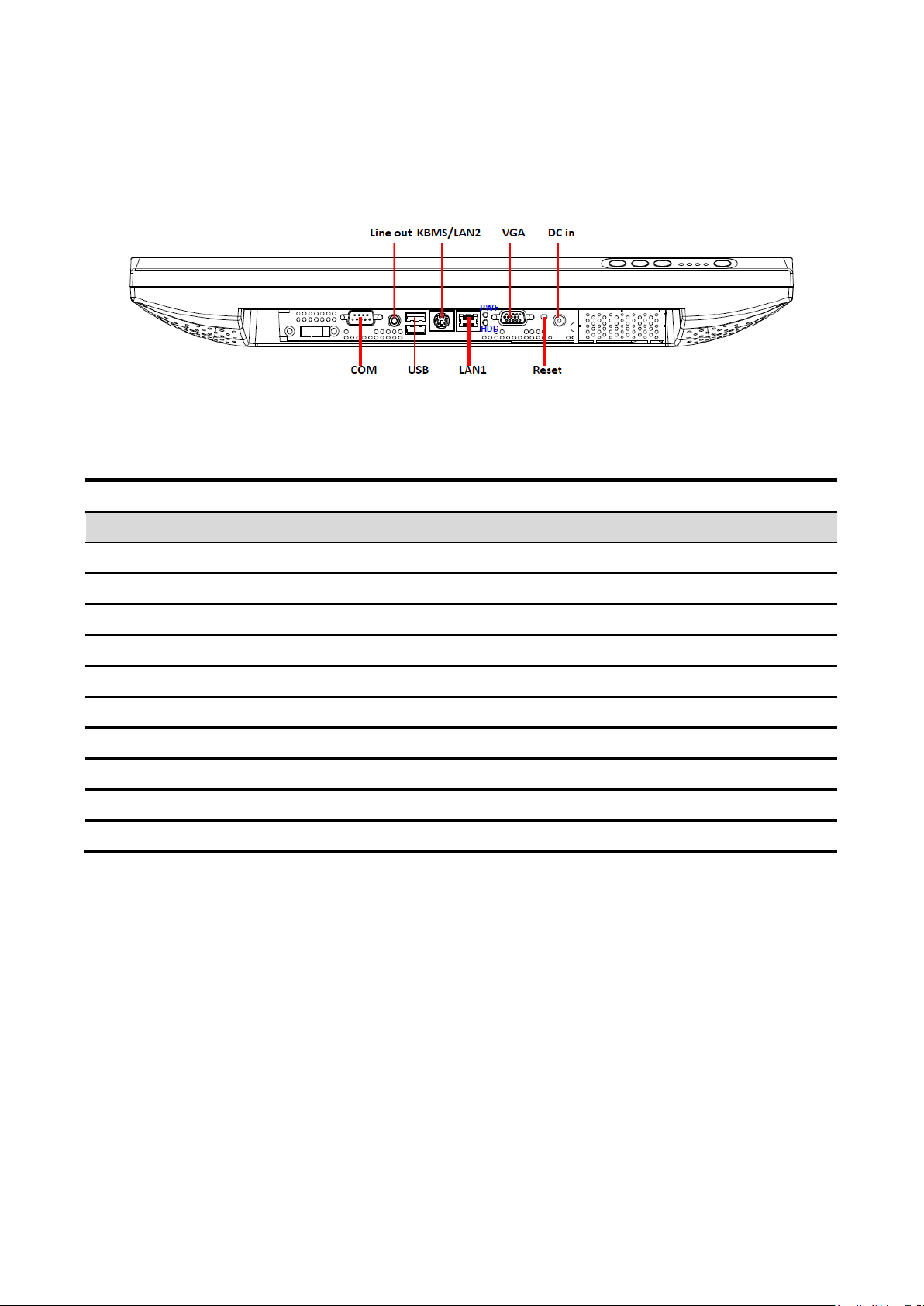

1.4.2 Rear View
Quick Reference Guide
APC-18W5 Quick Reference Guide
APC-18W5
(Unit: mm)

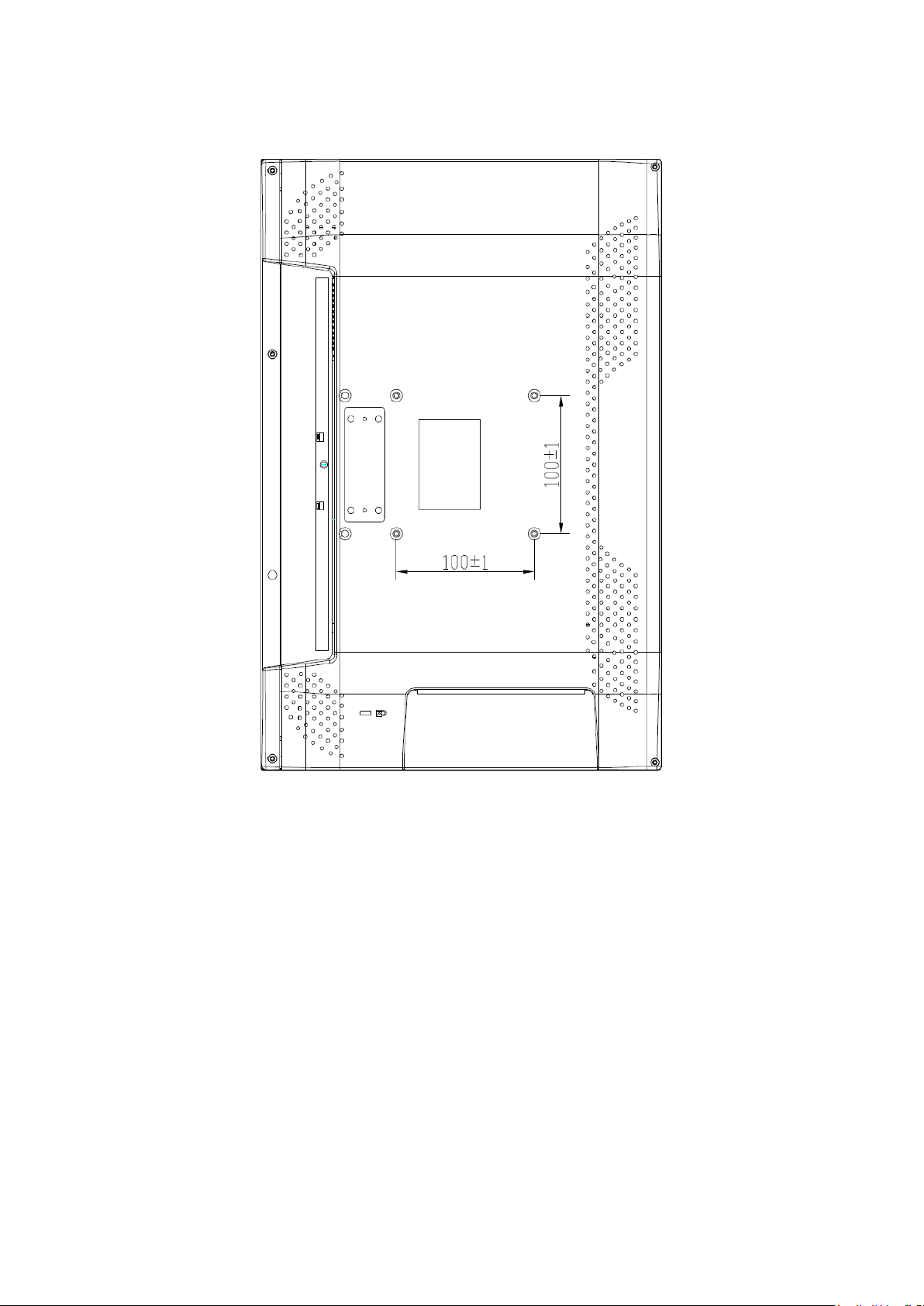

1.5 System Dimensions
8 APC-18W5 Quick Reference Guide
Quick Reference Guide
9
APC-18W5 Quick Reference Guide
APC-18W5
2. Hardware
Configuration
2.1 Jumper and Connector Settings, Driver and BIOS Installation
Please refer to EBM-PNV Quick Installation Guide or User’s Manual.
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
10 APC-18W5 Quick Reference Guide
11
Step 1. Attach one side of the mounting to your system by means of 4 screws as indicated
Step 2. Properly seat the other side of the stand into the plastic plate.
Step 3. Attach the stand to the plate by means of 2 screws and Install rubber feet onto the
bottom of the plate.
2.2 Stand Installation
Quick Reference Guide
APC-18W5 Quick Reference Guide
