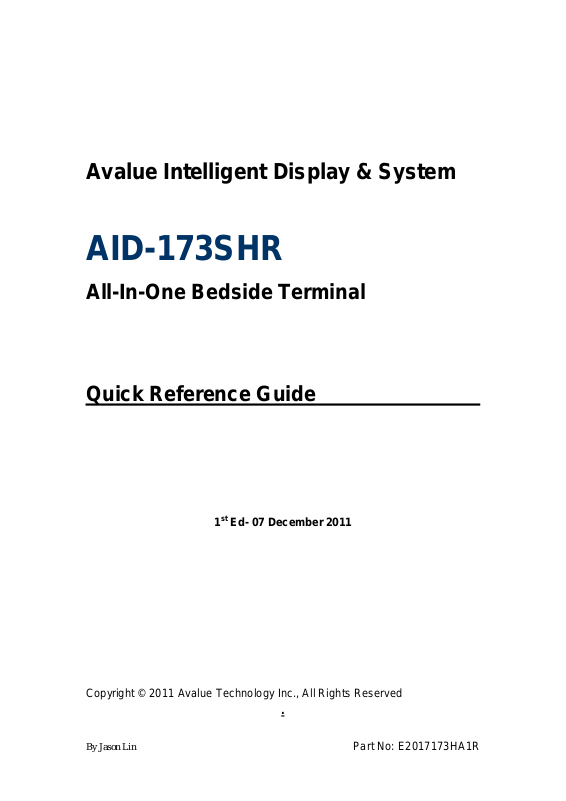

Avalue AID-173SHR User Manual

Avalue Intelligent Display & System

AID-173SHR

All-In-One Bedside Terminal

Quick Reference Guide

1st Ed- 07 December 2011

Copyright © 2011 Avalue Technology Inc., All Rights Reserved

.

By Jason Lin Part No: E2017173HA1R

AID-173SHR Quick Reference Guide

2

Federal Communication Commission Interference Statement

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from the one the receiver is

connected to.
 Consult the dealer or an experienced radio/TV technician for help.

Notice:
(1) A Unshielded-type power cord is required in order to meet FCC emission limits and

also to prevent interference to the nearby radio and television reception. It is

essential that only the supplied power cord by used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

AID-173S Quick Reference Guide

AID-173SHR Quick Reference Guide

3

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
For product available in the USA/Canada market, only channel 1~11 can
be operated. Selection of other channels is not possible. The antenna(s)
used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. Shielded interface
cables must be used in order to comply with emission limits.

AID-173S Quick Reference Guide

AID-173SHR Quick Reference Guide

4

CONTENT

1. AID-173SHR Bedside Terminal Features ....................................................... 5

1.1 Front view .......................................................................................... 6

1.2 Rear & Bottom view .......................................................................... 7

1.3 Handset .............................................................................................. 8

2. Setting-up AID-173SHR Bedside Terminals .................................................. 9

2.1 Mounting .......................................................................................... 10

2.2 Cabling ............................................................................................. 11

Please follow below steps to connect power cable to system. ........ 11

2.3 System Activation & Registration ................................................. 12

2.4 Connecting to the Internet ............................................................. 13

3. Using AID-173SHR Bedside Terminals ......................................................... 14

3.1. Turn ON/OFF the System .............................................................. 15

3.1.1 Turn ON the System ..................................................................... 15

3.1.2 Turn OFF the System ................................................................... 15

3.2 Using LCD Display and Touch Screen .......................................... 16

3.2.1 Adjust System Volume ................................................................. 16

3.2.2 Adjust LCD Display Brightness ................................................. 16

3.2.3 Using Touch Screen ..................................................................... 16

3.3 Using Earphone and Microphone .................................................. 17

3.4 Using the Smart Card Reader ........................................................ 18

3.5 Using Magnetic Stripe Reader ....................................................... 19

3.6 Using RFID Reader/Writer .............................................................. 20

3.7 Using Handset ................................................................................. 21

3.8 Using Barcode Scanner ................................................................. 23

4. Upgrading AID-173S Bedside Terminals .................................................. 24

4.1 Adding/Removing/Replacing Memory .......................................... 25

4.2 Adding/Removing/Replacing TV Tuner ......................................... 26

4.3 Removing and Replacing the Wireless Card ................................ 27

4.4 Adding 3rd Party Mini-PCIe Cards ................................................ 28

4.5 Removing and Replacing the Hard Disk Drive ............................. 29

.

AID-173S Quick Reference Guide

AID-173SHR Quick Reference Guide

5

1. AID-173SHR Bedside Terminal Features

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

In this chapter, you will get to know all features of our AID-173SHR
bedside terminal.

1.1 Front view

1.2 Rear & Bottom view

1.3 Handset

AID-173S Quick Reference Guide

AID-173SHR Quick Reference Guide

6

Camera

Handset

Magnetic Stripe Reader

Smart Card Reader

RFID Reader/Writer

17.3” TFT-LCD & Touch Screen

Cord

3 x USB

Volume
Up/down

Brightness
Up/down

Reserved

Power on/off

1.1 Front view

AID-173S Quick Reference Guide

AID-173SHR Quick Reference Guide

7

Microphone

Service Door

COM1

Speaker

Speaker

DP Output

HDMI Output

TV Antenna Input (optional)

USB Port

DC in

LAN

COM2

Nursing Call Input

BNC Video Input (Optional)

Service Door

1.2 Rear & Bottom view

AID-173S Quick Reference Guide

AID-173SHR Quick Reference Guide

8

Key

Descriptions

Activate the phone software (i.e. Skype)

Nurse Call

Answer

Hang Up

Contact List (Up)

Contact List (Down)

~

Numeric Keys

* Key

# Key

Barcode Scanner

Scan button

Volume

Volume

Scan button

1.3 Handset

AID-173S Quick Reference Guide

AID-173SHR Quick Reference Guide

9

2. Setting-up AID-173SHR Bedside Terminals

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

This chapter gives instructions on how to set up AID-173SHR
bedside terminal hardware and how to connect different cables.
Furthermore, with provided Internet ISP setting information, you will
be able to connect AID-173SHR bedside terminal to the Internet.

2.1 Mounting

2.2 Cabling

2.3 System Activation & Registration

2.4 Connecting to the Internet

AID-173S Quick Reference Guide

AID-173SHR Quick Reference Guide

10

VESA 75 Mounting

2.1 Mounting

Suggested Screw type for mounting
Note: 4 pieces of M6x10 screws

AID-173S Quick Reference Guide
