Avalon Firestyles Tree of Life User Manual

Download

• Direct Vent Freestanding Stove

• Natural Gas or Propane

• Vent Horizontally or Vertically

• Standard Residential

• Mobile Home Approved

Tested and Listed by

Featuring the

WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result

causing property damage, personal injury or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, se rvice agen cy or the gas suppli er.

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.

This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the appliance.

Burner

ANSI Z21.88 CSA 2.33

· Tree of Life

2 ·

Owner’s Manual

Installer: After installation give this manual to the homeowner and

explain the operation of this heater.

www.travisproducts.com

4800 Harbour Pointe Blvd. SW

Mukilteo, WA 98275

2 Introduction

No other Tree of Life Stove has the same serial number as yours. The serial number is on the listing plate chained to the gas control valve.

This serial number will be needed in case you require service of any type.

Model: Avalon Tree of Life GS2 Serial Number: Purchase Date: Purchased From:

Mail your Warranty Card Today, and Save Your Bill of Sale.

To receive full warranty coverage, you will need to show evidence of the date you purchased your heater. Do not mail your Bill of Sale to us.

We suggest that you attach your Bill of Sale to this page so that you will have all the information you need in one place should the need for service or information occur.

Introduction

We welcome you as a new owner of an Avalon Tree of Life stove. In purchasing a Tree of Life you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. The Tree of Life is one of the finest home heaters the world over. This manual will explain the installation, operation, and maintenance of this stove. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference. Included are helpful hints and suggestions that will make the operation and maintenance of your new stove an easier and more enjoyable experience. We offer our continual support and guidance to help you achieve the maximum benefit and enjoyment from your heater.

Important Information

Listing Details

Massachusetts Approval

This manual has been submitted to the Massachusetts Board of State Examiners of Plumbers and Gas Fitters.

National Fireplace Institute

Table of Contents 3

Introduction .................................................. 2

Important Information ................................... 2

Listing Details ............................................... 2

IAS (ICBO) ApprovalError! Bookmark not defined.

Features: ..................................................................6

Installation Options: .................................................6

Heating Specifications .................................. 6

Dimensions & Weight ................................... 6

Electrical Specifications (for optional blower)6

Fuel ............................................................... 6

Packing List .................................................. 7

Additional Items Required ............................ 7

Installation Overview .................................... 7

Stove Clearances ................................ .......... 8

Mobile Home Requirements .......................... 8

Heater Placement Requirements .................. 9

Floor Protection Requirements ..................... 9

Electrical Requirements................................ 9

Optional Wall Switch or Thermostat

Installation .................................................. 10

Gas Line Installation ................................... 11

Gas Inlet Pressure .................................................11

Vent Requirements ..................................... 12

Altitude Considerations..........................................12

Approved Vent .......................................................12

Vent Installation .....................................................12

Approved Vent Configurations ................... 13

Restrictor Position..................................................13

Measuring Vent Lengths .......................................13

Vertical Terminations with Zero, Two, or Four

45° Elbows .................................................. 14

Horizontal Termination with One 90° Elbow 15 Horizontal Termination with Two Elbows

(one 90° vertical and one 90° or 45°

horizontal elbow) ........................................ 16

Horizontal Termination with Three 90°

Elbows (all vertical) .................................... 17

Vertical Terminations with Two 90° Elbows 18 Vertical Terminations with Three 90° Elbows

(Two 90° Vertical and One 45° or 90°

Horizontal Elbow) ....................................... 19

Vent Termination Requirements (see

illustration below) ....................................... 20

Class A Chimney Conversion Kit ................ 21

Interior Masonry Chimney Conversions ..... 22

Steps for Finalizing the Installation ............ 23

Air Shutter Adjustment...........................................24

Face and Glass Removal ............................ 25

Log Installation ................................ ........... 27

Ember Placement ..................................................27

Rear Log Placement ..............................................27

Left Log Placement ................................................28

Right Log Placement .............................................28

Right Twig Placement............................................29

Left Twig Placement ..............................................29

Front Ember Chunk Placement.............................30

Rockwool Installation .............................................30

Before You Begin........................................ 31

Location of Controls - See explanation below31

Starting the Stove for the First Time ........... 32

Turning the Stove On and Off ..................... 32

Comfort Control .......................................... 32

Adjusting the Flame Height ........................ 32

Accent Light ............................................... 33

Adjusting the Optional Blower Speed ......... 33

Continuous Pilot / GreenSmart™ Pilot Switch33

Normal Operating Sounds .......................... 34

Normal Operating Odors ............................. 34

Maintaining Your Stove's Appearance ........ 35

Painted Surfaces....................................................35

Enamel Surfaces....................................................35

Patina Surfaces......................................................35

Glass.......................................................................35

Battery Replacement .................................. 35

Power Backup Batteries ........................................35

Control Panel Light Battery ...................................35

Accent Light Replacement .......................... 36

Yearly Service Procedure ........................... 36

Troubleshooting Table................................ 37

Replacement Parts List ............................... 37

Safety Label ................................................ 38

CONDITIONS & EXCLUSIONS ..................... 39

IF WARRANTY SERVICE IS NEEDED: ......... 39

LP Conversion Instructions ........................ 40

GS2 Remote Installation ............................. 43

Packing List ............................................................43

Warnings ................................................................43

Remote Control / Pilot Warnings........................... 43

Base Wiring Diagram.............................................44

GS2 Remote Wiring Diagram................................45

Installation ..............................................................46

Order of Installation ............................................. 51

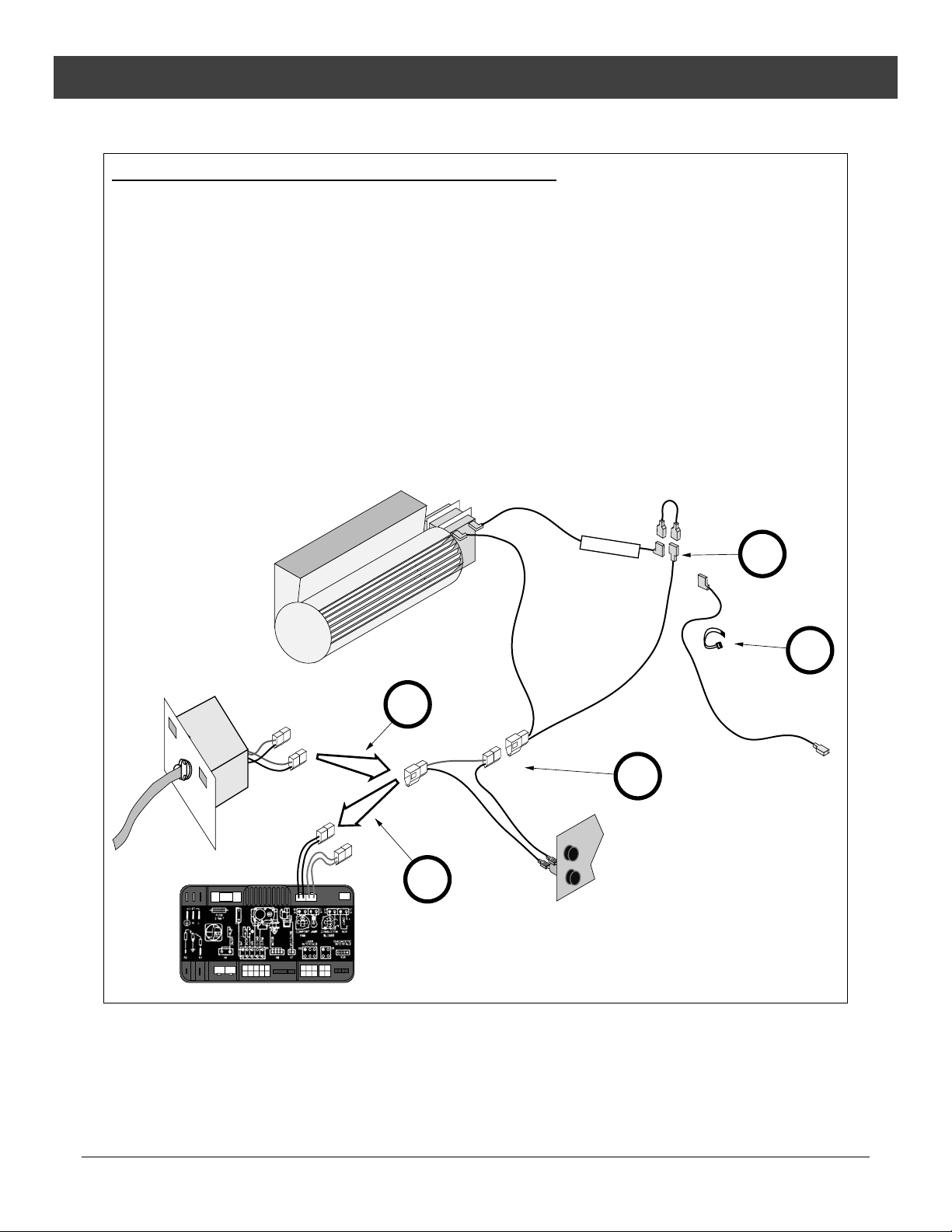

Wiring the Blower to the GSR2 IFC (Bypassing the

Rheostat)............................................................ 51

4 Safety Precautions

• IF YOU SMELL GAS:

* Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department

• This unit must be installed by a qualified installer to prevent the possibility of an explosion. Your dealer will know the requirements in your area and can inform you of those people considered qualified. The room heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.

• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or compromise in the installation. Improper installation will void the warranty and safety listing.

This heater is either approved for natural gas (NG) or for propane (LP). Burning the incorrect fuel will void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about the type of fuel used to your dealer. Check for a label on the flame adjust knob on the gas control valve (this is the best place to check). You may also check for a label on the gas control valve body.

• Contact your local building officials to obtain a permit and information on any installation restrictions or inspection requirements in your area. Notify your insurance company of this heater as well.

• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your dealer and arrange for proper servicing.

• It is imperative that control compartments, screens, or circulating air passageways of the heater be kept clean and free of obstructions. These areas provide the air necessary for safe operation.

• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your dealer for a full explanation of your heater and what to expect.

• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.

• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Safety Precautions 5

• Do not place clothing or other flammable items on or near the heater. Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near it.

• Light the heater using the built-in igniter. Do not use matches or any other external device to light your heater.

• Allow the heater to cool before carrying out any maintenance or cleaning.

• The viewing glass should be opened only for lighting the pilot or conducting service.

• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

• Do not operate with the glass removed or damaged.

• Never remove, replace, modify or substitute any part of the heater unless instructions are given in this manual. All other work must be done by a trained technician. Don't modify or replace orifices.

• Operate the heater according to the instructions included in this manual.

• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for service.

• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve. The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off.

• This unit is not for use with solid fuel

• Do not place anything inside the firebox (except the included fiber logs).

• If the fiber logs become damaged, replace with Travis Industries log set.

• Do not throw this manual away. This manual has important operating and maintenance instructions that you will need at a later time. Always follow the instructions in this manual.

• Travis Industries, Inc.

grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility of any consequential damage(s).

• Plug the heater into a 120V grounded electrical outlet. Do not remove the grounding plug.

• Don’t route the electrical cord in front of, over, or under the heater

 Young children should be carefully supervised when they are in the same room as the

appliance. Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.

Features:

- Ember Fyre™ Burner for "Wood Fire" Look

- Works During Power Outages (battery backup system)

- High Efficiency

- Optional Thermostat or Remote Control

- Optional Blower for Quicker Heat Distribution

- Convenient Operating Controls

- Variable-Rate Heat Output

- Accent Light

Installation Options:

- Freestanding Stove

- Horizontal or Vertical Vent

- Residential or Mobile Home

- Straight or Corner Placement

- Bedroom Approved

Specifications

Heating Specifications

Approximate Heating Capacity (in square feet)* ...........500 - 1,500 with Blower, 500 to 1,200 Without

Maximum Input ........................................................................................31,000

• Heating capacity will vary depending on the home’s floor plan, degree of ins ulation, and the outside temperature.

Dimensions & Weight

Electrical Specifications (for optional blower)

Electrical Rating .........................................................115 Volts, 1.5 Amps, 60 Hz (180 watt)

Fuel

This heater is shipped in natural gas (NG) configuration but may be converted to propane (LP) using the included LP conversion kit. The sticker on top of the gas control valve will verify the correct fuel.

Installation (for qualified installers only) 7

Installation Warnings

Packing List

• Propane Conversion Kit

• Log Set

• Touch-Up Paint

Additional Items Required

• Vent (see “Venting Requirements” for details)

• Gas Line Equipment (shutoff valve, pipe, etc.)

! Failure to follow all of the requirements may result in property damage, bodily injury, or even

death.

! This heater must be installed by a qualified installer who has gone through a training program

for the installation of direct vent gas appliances.

! This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A.

follow ANSI Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.

! In Manufactured or Mobile Homes must conform with: In USA, Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280; In Canada, CSA Z240.4 and GasEquipped Recreational Vehicles and Mobile Housing. This appliance may be installed in

Manufactured Housing only after the home is site located. ! This stove is designed to operate on natural gas or propane (LP). ! All exhaust gases must be vented outside the structure of the living area. Combustion air is

drawn from outside the living area structure. ! Notify your insurance company before hooking up this stove. ! The requirements listed below are divided into sections. All requirements must be met

simultaneously. The order of installation is not rigid – the qualified installer should follow the

procedure best suited for the installation.

Installation Overview

Installation Hints

Installation (for qualified installers only)

 If converting to LP, convert the appliance prior to installation.  Install the logs last - they are fragile.  When determining the location of the stove, locate the wall studs (for horizontal penetrations) and

ceiling trusses (for vertical penetrations). You may wish to adjust the stove position slightly to ensure

the vent does not intersect with a framing member.  Fumes and smoke from the paint curing and oil burning off the steel may occur the first time you start

this heater. This is normal. We recommend you open windows to vent the room.

Stove Clearances

Mobile Home Requirements

• When the stove is installed in a mobile home, it must be bolted to the floor and the appliance

grounded (use the optional blower with a grounded circuit or other suitable grounding method -

current ANSI/NFPA 70 or CSA C22.1).

Installation (for qualified installers only) 9

Heater Placement Requirements

• Heater must be installed on a level surface capable of supporting the heater and vent

• Due to the high temperature, the heater should be located out of traffic and away from furniture

and draperies.

• When placed in a location where the floor to ceiling height is under 7 feet, the installation is considered an alcove and must meet the following requirements:

- The alcove floor to ceiling height must be at least 58” tall

- The alcove must not be more than 45” deep before the ceiling returns to 7’

- The alcove must be at least 46-3/4” wide

• The heater must not be placed so the vents below or above the door, along the sides of heater, or along the back of the heater can become blocked.

• This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance produces when determining a location.

Floor Protection Requirements

• When the stove is installed directly on carpeting, vinyl or other combustible material other than wood flooring or a high pressure laminate wood floor, the stove must be installed on a metal or wood protection panel extending the full width and depth of the heater (Minimum 26-3/4” wide by 19” deep).

Electrical Requirements

 Plug the stove into a grounded receptacle supplying a minimum 1.5 amps (115 Volts, 60 Hz, 180

watts).

 The appliance, when installed, must be electrically grounded in accordance with local codes or, in

the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

Do not connect 110-120 VAC to the gas control valve or wiring system of this stove. The switch must be installed by a qualified installer.

On / Off Switch

OFF

On / Off Switch

OFF

Thermostat / External

Switch ON

Heater is ON

Thermostat /

External Switch ON

Heater is ON

Heater is OFF

Thermostat / External

Switch OFF

Heater is ON

Heater is OFF

Thermostat /

External Switch OFF

Heater is OFF

To wire the heater in parallel, follow the directions below:

To wire the heater in series, follow the directions below:

Installation (for qualified installers only)

Optional Wall Switch or Thermostat Installation

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause

improper and dangerous operation.

Note: When using a GreenSmart™ remote, use the receiver for on/off operation (do not use a wall

switch or thermostat).

Warning: Make sure all wiring is secure and does not contact hot or moving components.

The wall switch (or thermostat) may bypass the fireplace on/off switch or be installed in parallel or series configuration (see below).

Parallel Connection Series Connection

Installation (for qualified installers only) 11

Standard Input Pressure

Natural Gas

7” W.C. (1.74 Kpa)

Propane

13” W.C. (3.23 Kpa)

Gas Line Installation

! The gas line must be installed in accordance with all local codes, if any; if not, follow current ANSI

Z223.1 or NFPA 54 in the USA and the current CSA B149.1 in Canada.

! The heater and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig (3.45 kPA). For pressures under 1/2 psig (3.45 kPA), isolate the gas supply piping by closing the manual shutoff valve.

• This heater is designed for natural gas but can be converted to propane. Check the sticker on top of the gas control valve to verify the correct fuel is used (see page 4).

• Leak-test all gas line joints and the gas control valve prior to and after starting the heater.

• The location of the gas inlet is shown below.

• A manual shutoff valve is required for installation (it must be located within 3’ of the heater).

T-Handle gas cocks are required in Massachusetts in compliance with code 248CMR.

• This stove is shipped with a 24” long, 3/8” diameter flex gas line attached to an elbow on the gas control valve (see illustration below for location). The flex accepts a 3/8” flare fitting.

Gas Inlet Pressure

• With the heater off, the inlet pressure must meet the requirements listed in the table below.

• If the pressure is not sufficient, make sure the piping used is large enough and the total gas load

for the residence does not exceed the amount supplied.

• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed below. Contact the local gas supplier if the regulator is at an improper pressure.

Altitude Considerations

• Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard. Consult your dealer or installer if you suspect an improperly adjusted air shutter.

• This heater has been tested at

altitudes ranging from sea level to 6,000 feet (1,800 M). In this testing we have found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.

Vent Installation

• Slide the vent sections together and turn 1/4 turn until the sections lock in place.

• Screws are not required to secure the vent. However, three screws may be used to

secure vent sections together if desired.

• High temperature sealant is recommended at the appliance starter section connection (use high-temperature silicone or Mill-Pac®).

• If disassembly is required, at time of re-assembly check to see if the vent creates a tight fit. If it does not, apply high temperature sealant to the joints of the affected sections.

• Horizontal sections require a 1/4" rise every 12" of travel

• Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)

Installation (for qualified installers only)

Vent Requirements

• The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use its own separate vent system.

 In addition to the requirements listed here, follow the requirements provided with the vent.  When the vent passes through a wall a wall thimble is required. When the vent passes through a

ceiling a support box or firestop is required. When the vent passes through the roof, a roof flashing and storm collar are required. Follow the instructions provided with the vent for installing these items. NOTE: Wall thimbles may have different dimensions than what is required by this heater.

• The vent must maintain the required 1" clearance to combustible materials to prevent a fire. Do not fill air spaces with insulation.

Approved Vent

 Use 6-5/8" (168mm) diameter Simpson Dura-Vent Direct-Vent Pro (or GS)*.

* Other vent may be approved with this stove. Check with the vent manufacturer for details.

 Always use the high-wind cap (or high-wind sconce cap, part # 46DVA-HSCH).  Installation instructions for Simpson Dura-Vent may be found at www.duravent.com

Installation (for qualified installers only) 13

Approved Vent Configurations

Restrictor Position

• A restrictor is built into the appliance to control the flow rate of exhaust gases. This ensures proper flames for the wide variety of vent configurations. Depending upon the vent configuration, you may be required to adjust the restrictor position. The charts for approved vent configurations describe which position the vent restrictor must be in.

Measuring Vent Lengths

• 10’ Minimum System Height (with or without offsets)

• 40’ Maximum System Height

• 24’ Maximum Offset

• The termination must fall

within the shaded area shown in the chart. Use the indicated restrictor position.

Installation (for qualified installers only)

Vertical Terminations with Zero, Two, or Four 45° Elbows

Installation (for qualified installers only) 15

Horizontal Termination with One 90° Elbow

• If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations).

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

Installation (for qualified installers only)

Horizontal Termination with Two Elbows (one 90° vertical and one 90° or 45° horizontal elbow)

• If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations).

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

Installation (for qualified installers only) 17

Horizontal Termination with Three 90° Elbows (all vertical)

• If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations).

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

Installation (for qualified installers only)

Vertical Terminations with Two 90° Elbows

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

Installation (for qualified installers only) 19

Vertical Terminations with Three 90° Elbows

(Two 90° Vertical and One 45° or 90° Horizontal Elbow)

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

A Minimum 9" (229mm) clearance from any door or window B Minimum 12" (305mm) above any grade, veranda, porch, deck or balcony C Minimum 1" (25mm) from outside corner walls

NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

D Minimum 12" (305mm) from inside corner walls

NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

Installation (for qualified installers only)

Vent Termination Requirements (see illustration below)

! Venting terminals shall not be recessed into a wall or siding.

E Minimum 11" (279mm) clearance below unventilated soffits or roof surfaces

Minimum 18" (457mm) clearance below ventilated soffits Minimum 6" (152mm) clearance below roof eaves

NOTE: Vinyl surfaces require 24" (610mm) NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

F Minimum 12" (305mm) clearance below a veranda, porch, deck or balcony

NOTE: Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor. NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

G Minimum 48" (1219mm) clearance from any adjacent building H Minimum 84" (2134mm) clearance above any grade when adjacent to public walkways or driveways

NOTE: may not be used over a walkway or driveway shared by an adjacent building

I Minimum 9" (229mm) clearance to any non-mechanical air supply inlet to the building or the combustion air inlet

to any other appliance.

J Minimum 36" (914mm) clearance above any mechanical air supply inlet if within 10’ (3M) horizontally K Minimum 36" (914mm) from the area above the meter/regulator (vent outlet) - this extends 15’ (4.5M) above the regulator

NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

L Minimum 36" (914mm) from the meter/regulator (vent outlet)

NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

M Minimum 12” (305mm) above the roof line (for vertical terminations) N Minimum 24” (610mm) horizontal clearance to any surface (such as an exterior wall) – for vertical terminations

• Use the vinyl siding standoff when installing on an exterior with vinyl siding.

• Vent termination must not be located where it will become plugged by snow or other material

Installation (for qualified installers only) 21

Chimney Conversion Kit A (# 931)

Metalbestos 6" I.D. Security Chimneys 6" I.D. Jackes-Evans 6" I.D. Hart & Cooley 6" I.D. Pro-Jet 6" I.D.

Chimney Conversion Kit B (# 932)

Simpson Dura-Vent 6" I.D. Air-Jet 6" I.D. Metal-Fab 6" and 7" I.D. Amer. Metals 6" & 7" I.D. Metalbestos 7" and 8" I.D. Jackes-Evans 7" and 8" I.D. Hart & Cooley 7" and 8" I.D. Pro-Jet 7" and 8" I.D. Security Chimneys 8" I.D.

Chimney Conversion Kit C (# 933)

Simpson Dura-Vent 7" and 8" I.D. American Metals 8" I.D. Air-Jet 8" I.D. Metal-Fab 8" I.D. American Metals 8" I.D.

Each Kit Contains:

Retro Connector Retro Vertical Top

Additional Required Equipment:

4" Flex (#711 or U.L. 1777) Termination (#991) Co-Axial Sections

Class A Chimney Conversion Kit

Simpson Duravent provides a conversion kit for those wishing to use an existing wood stove chimney to vent this direct vent stove. The illustration below gives an overview of this type of installation. See the instructions included with the kit for details.

! Do not exceed the maximum vertical rise (see the section "Approved Vent Configurations" starting on page 13)

allowable. Remember to set the restrictor position to the correct position (based upon the vertical rise height see the chart on page 14).

! The conversion kit does not work on interior masonry chimneys.

Installation (for qualified installers only)

Interior Masonry Chimney Conversions

• Follow the requirements and use the equipment listed in the illustration below to install this appliance into an interior masonry chimney.

• Maximum vertical rise is 40'

• Minimum vertical rise is 10'

• See the chart on page 18 for determining the correct restrictor position.

NOTE: these restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly.

Installation (for qualified installers only) 23

Steps for Finalizing the Installation

1. Remove the glass (see page 25).

NOTE: If using propane (LP) convert the appliance prior to installing the logs.

2. We recommend you purge the gas line at this time (with the glass removed). This allows gas to be detected once it enters the firebox, ensuring gas does not build up.

3. Make sure the accent light bulb is in place. NOTE: Take care to not touch the bulb with your fingers – use a cloth or paper towel).

4. Install the four AA batteries (included in the owner’s pack) into battery holder (see the illustration below). The AA batteries act as a power backup in case the household (AC) power goes out. Install the 9v battery (included in the owner’s pack) into control panel light assembly (see the illustration below). Velcro is provided to secure the 9v battery.

Air Shutter Adjustment

Let the heater burn for fifteen minutes (make sure the logs and glass are in place). The flames should be yellow with no sooting. Adjust the air shutter, if necessary, to achieve the correct looking flame.

Installation (for qualified installers only)

5. Install the logs (see page 27).

6. Replace the glass.

7. Start the heater.

8. Leak test all gas joints.

9. Check the air shutter following the directions below.

10. Turn the flame adjust knob to its highest position - the flames should not contact the top of the firebox. Check the flame on low position. The flames should burn off of each burner hole. If the heater does not work correctly, contact your Travis dealer for a remedy.

11. Give this manual to the home owner for future reference and fully explain operation of this heater.

Finalizing the Installation (for qualified installers only) 25

Face and Glass Removal

! Make sure the gas control valve is “OFF” and the heater is cool prior to conducting service.

26 Finalizing the Installation (for qualified installers only)

Glass Frame Removal and Installation (continued)

The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose.

Finalizing the Installation (for qualified installers only) 27

Log Installation

! The logs are fragile, especially after being exposed to heat.

• Make sure the gas control valve is “OFF ” and the he ater is cool prior to conducting service.

• Failure to position the parts in accordance with these diagrams or failure to use only parts

specifically approved with this appliance may result in property damage or personal injury.

• If using propane (LP), convert the appliance before installing the logs (see page 40).

• The burner must be correctly positioned before installing the logs. Make sure the burner is fully

seated and the pilot is properly aligned. See page 40 for details on burner removal.

Ember Placement

Place a layer of embers along the any visible edges of the burner. Also place an ember over the screw on the left side of the burner (see photos below).

Rear Log Placement

The rear log has two holes on the bottom. Place the log so the pins on the burner insert into the holes on the log (see photos below).

28 Finalizing the Installation (for qualified installers only)

Left Log Placement

The left log has two holes on the bottom. Place the log so the pin on the burner and the metal bracket insert into the holes on the log (see photos below).

Right Log Placement

The right log has two holes on the bottom. Place the log so the pin on the burner and the metal bracket insert into the holes on the log (see photos below).

Finalizing the Installation (for qualified installers only) 29

Right Twig Placement

The right twig has a single hole in the bottom that fits over the right pin on the back log (see photos below). The lower side of the twig rests on the right log. Place the twig as shown below.

Left Twig Placement

The left twig has two holes in the bottom of it – for this model, place the log so the left pin on the rear log inserts into the lower hole (see photo below). The bottom of the log rests on the left log.

Place the log as shown below.

Finalizing the Installation (for qualified installers only)

Front Ember Chunk Placement

Left Ember Chunk Center Ember Chunk Right Ember Chunk

Place the ember chunks as shown in the photos below. Make sure the ember chunks do not cover any burner holes.

Right Side Ember Chunk

Center Ember Chunk

Left Side Ember Chunk

Rockwool Installation

The included rock wool is placed on top of the burner to enhance the glow from the burner. The rock wool works best when it is applied in a very thin, porous layer. The best method for applying the

rock wool is to brush it on to the burner. Compress a clump of rockwool between your thumb and forefinger. Use a stiff brush to apply a thin layer of rockwool fibers onto the burner. Do not use the entire bag of rockwool. Use only a small amount and save the remainder. Over-use of rockwool will diminish the glow and may cause sooting or other adverse conditions.

Operation 31

Optional Blower Control

This knob controls the speed of the optional internal convection blower that pushes heated air into the room.

Accent Light

This knob controls the accent lights located behind the logs.

Flame Adjust Knob

This knob controls the flame height from low ("LO") to high ("HI").

Continuous Pilot -GreenSmart Pilot

This switch controls how the pilot flame works. See the section

“Continuous Pilot / GreenSmart Pilot” for details.

Comfort Control

This switch turns the rear burner on and off.

AA Battery Holder

This holder contains 4 AA batteries that allow the stove to operate during power outages.

Main Burner

This switch turns the stove burners on and off.

Before You Begin

Warning: Read this entire manual before you use your new stove (especially the section "Safety

Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death.

Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement of

the glass should be done by a licensed or qualified service person.

Location of Controls - See explanation below

32 Operation

The rear portion of the burner may be shut off to lower the heat output and flame size from the burner (this is called the comfort control). Use the comfort control switch to adjust this as desired.

This stove has an adjustable flame to tailor the look and heat output to your specific needs. It is adjusted by turning the flame adjust knob.

Starting the Stove for the First Time

 Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will

cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is normal. We recommend opening a window to vent the room.

 Condensation may appear on the glass each time you start the stove - this is normal.  Blue Flames will occur on the stove when it first comes on. After fifteen minutes the flames will turn

a more realistic yellow and orange color.

 Certain installations use a remote, thermostat, or wall switch to turn the stove on and off. If this is the

case, leave the ON/OFF switch "ON".

 Verify the power backup and control light batteries are installed (see page 35).

Turning the Stove On and Off

Use the main burner switch to turn the main burner on and off.

NOTE FOR REMOTES, THERMOSTATS, OR WALL SWITCHES: The on/off switch on the stove may be required to be left in the ON or OFF position for the stove to operate. Consult your installer or dealer for details.

 Do not place any combustible items on top of or directly in front of the stove, even temporarily.

An optional thermostat may start the stove causing a combustible item to ignite.

 If the stove turns on and off frequently while using a standard thermostat, you may want to adjust

the flame height down until it produces just enough heat needed.

Comfort Control

Adjusting the Flame Height

Operation 33

This stove has a built-in accent light that may be turned on and off and dimmed to your preference. Turn the knob to achieve the desired light output.

This stove may run with the pilot continuously running or in GreenSmart (intermittent) mode. For most homeowners, the GreenSmart mode is preferred (this saves fuel, doesn’t give off un-needed heat). However, in some situations the homeowner may prefer to switch the stove to continuous pilot. The most typical reasons for switching to continuous pilot are:

Accent Light

Adjusting the Optional Blower Speed

The blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 15 minutes after starting). See the illustration below for instructions on adjusting the blower speed. NOTE: With the rear burner off (comfort control), the heater may not become hot enough for the

blower to turn on.

Continuous Pilot / GreenSmart™ Pilot Switch

 Very Cold Conditions – in very cold conditions you may notice that the burner does not light quickly,

and the flames lift off the burner. If this is situation, we recommend you switch to continuous pilot. This will create a slight draft in the vent, allowing for the burner to light quickly and draft correctly.

 Excessive Condensation on Glass After Startup – certain installations may encounter excessive

fogging on the window after startup (not just the first time the stove was started). This is an aesthetic condition that may be remedied by switching the stove to continuous pilot.

 Cold Glass or Stove Front – in very cold conditions you may notice that the stove front and glass

become very cold. To remedy this, switch the stove to continuous pilot.

 Frequent On / Off Operation – if you are frequently turning the stove on and off, you may wish to

leave it in continuous pilot. This allows the burner to turn on more quickly, without pilot ignition delay.

34 Operation

Normal Operating Sounds

Normal Operating Odors

This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create a burnt-paper smell. This is normal during startup. You may notice the smell is more acute if the appliance was left idle for a long period.

Maintenance (for qualified service personnel only) 35

Maintaining Your Stove's Appearance

Painted Surfaces

• Painted surfaces should be cleaned with a duster. If scratches occur, lightly sand the area with fine sandpaper. Clean the area and, with the stove cool, apply one or two thin coats of stove paint to the area (mask the area to avoid overspray). Allow the stove to dry, then turn the stove on to cure the paint (1 hour on medium).

Enamel Surfaces

• Use only soft cloth and water to clean enamel surfaces. To fix chips in the enamel, follow the directions below:

1) Let the stove cool. Clean the area thoroughly.

2) Shake the Travis Enamel Touch-Up thoroughly. Apply to the damaged area.

Patina Surfaces

• The patina finish is a “living” color and will age and antique over time. Some portions of the finish may become

slightly dull in appearance, especially over the top where it becomes hot. This is normal. The only cleaning we recommend is a light dusting when the appliance is cool.

DO NOT USE ANY LIQUID, CLEANER, OR ABRASIVES ON THIS FINISH.

Glass

• Clean the glass with soap and water (do not use abrasive cleaners). Glass removal instructions are on page 25.

Battery Replacement

Power Backup Batteries

Four AA batteries are used as a power backup for the stove in case the household (AC) power goes out. They also power the comfort control feature. These batteries must be inserted into battery holder (make sure they contact the terminals - see the illustration below). The fireplace controller will beep once these batteries start to go dead. Replace batteries before each heating season to insure proper operation.

Control Panel Light Battery

LED lights and a 9v battery are used to illuminate the control panel when the concealment cover is lifted. If the LED lights do not operate, replace the 9v battery (see the illustration below). Velcro is provided to secure the 9v battery.

36 Maintenance (for qualified service personnel only)

Accent Light Replacement

An accent light is included in your stove to provide additional lighting. This bulb will burn out over time. To replace, follow the directions below:

• Shut off gas to the stove and let it cool for 15 minutes.

• Remove the glass (see page 25) and lo gs (see page 27).

• Replace the halogen bulb with the following bulb:

(NOTE the bulb):

35 Watt 120 Volt T4 Halogen Bulb (G6.35 Base)

: .Take care to not touch the bulb with your fingers – use foam packing or paper towel to hold

Yearly Service Procedure

• Failure to inspect and maintain the stove may lead to impro per combustion and a potentially dangerous situation. We recommend the following procedures be done by a qualified technician.

1. Turn the pilot flame to continuous. It should touch approximately 3/8" of the top of the flame sensor. If it does not, contact your dealer for service.

2. Shut off gas to the stove and let it cool for 15 minutes. Remove the glass (see page 25).

3. Remove the log set (NOTE: The logs are very fragile - see page 27). If severely deteriorated, replace. Check the logs for sooting. A small amount of soot along the bottom of the logs is normal. If excessive sooting is found, the stove will require adjustment. Contact your dealer.

4. Inspect the burner and remove any debris.

• Make sure the burner is not warped, cracked, or damaged.

• Check the firebox and area aroun d the pilot to make sure there is no warping or damage.

• If any problem is found, discontinue use and contact your dealer for service.

5. Replace the log set. Clean and replace the glass. If the glass is damaged, replace. Make sure the ga sket along the perimeter of the glass contacts the face of the firebox and forms an air-tight seal. If it does not, re-align or replace the gasket to ensure an air-tight seal.

6. Inspect the area behind the access door. Clean if necessary. Check the gas control valve and the gas lines. If damage is found, discontinue use and contact your dealer for service. Clean the air channels, ducts, and blower (if applicable).

7. Start the main burner. Inspect the main burner and pilot flame. After 15 minutes the flames should be orange/yellow and not touch the top of the firebox. If the pilot or main burners do not burn correctly, contact your dealer for service. Monitor blower operation.

8. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is found near the vent termination. Venting system should be examined by a qualified agency.

Maintenance (for qualified service personnel only) 37

Problem:

Possible Cause:

Don't Call for Service Until You:

Main Burners Will

Not Start

The ON/OFF switch is turned to "OFF" The remote control is not working correctly The thermostat is disconnected or set too low No Propane in Tank

Turn the ON/OFF switch to "ON" See the remote control instructions See "Thermostat Operation" Check Tank Level

Heater Beeps

The power backup batteries are dead (heater will beep once repeatedly)

The heater encountered an error when trying to start (heater beeps 3 times repeatedly)

The heater encountered a pilot error (heater beeps 2 times repeatedly)

Replace the batteries (see page 35)

Make sure gas is turned on. Turn heater off for 5 seconds (make sure standing pilot is off) – then turn back on.

Contact your dealer if this occurs.

Thermostat Does

Not Work

The ON/OFF switch is turned to "OFF" The thermostat is set too low

Turn the ON/OFF switch to "ON" Check thermostat

Stove Will Not

Distribute Heat

The stove is not getting electricity The stove is not up to temperature

The blower fuse may be blown

Check the breaker switch Let the stove burn for at least 15 minutes Replace the blower fuse. See fuse location

below.

Flames Are Too

Blue

The stove has just been started

Improper air shutter adjustment

This is normal - see "Starting the Stove for the First Time"

Adjust Air Shutter - contact your dealer

Flames Are Too Short (Under 6")

The flame height may be turned too low

Turn the flame height to "HI" - See "Adjusting the Flame Height"

Comfort Control

Does not Work

The AA batteries may be dead

Replace the AA batteries (see page 35)

Thin Layer of Soot

Covers the Glass

The logs or coals are placed incorrectly Improper air shutter adjustment

See "Log Set Installation" Adjust Air Shutter - contact your dealer

Accent Light Does

Not Work

The bulb may be burned out. ..................................

The accent light fuse may be blown. ......................

See “Accent Light Replacement” on page 36 Replace the fuse. See fuse location below.

Light Fuse

Fan (Blower) Fuse

Troubleshooting Table

Location of fuses (2.5 amps):

Replacement Parts List

Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of

the glass should be done by a licensed or qualified service person.

Contact your local Travis Industries Dealer for a Replacement Parts List

38 Safety Label

Safety Label

The safety (listing) label is on the back of the stove. A copy is shown below.

Report No. B0490PRT-001

Tested to: ANSI Z21.88-2009/CSA 2.33-2009 “V ented Gas Fireplace Heater”, CGA 2.17-M91 (R2009) “Gas Burning

Heating Appliances for Manufactured Homes”, and CSA P.4.1-09 Testing method for measuring annual fireplace

efficiency.

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1.

This appliance must be installed in accordance with the current Standard CAN/CSA Z240 MH, Mobile Housing,

in Canada or with the Manufactured Home Constructions and Safety Standard, Title 24 CFR, Part 3280, in the

United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home

Installation Standard.

This vented gas fireplace heater is equipped at the factory for use with natural gas. If conversion to propane (LP)

is desired, the optional factory conversion kit must be used. Part No. 250-01427 (SIT) or 225-20233 (PSE) register

kit may be used.

This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an

aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local

codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a

certified kit is used.

This vented gas fireplace heater is not for use with air filters.

Keep burner and control compartment clean. See installation and operating instructions accompanying

appliance.

This appliance must be properly connected to a venting system in accordance with the manufacturer’s

installation instructions. Use only approved coaxial direct vent system to vent this appliance to the exterior. See

owner’s manual for approved brands of venting.

If the vent-air intake system is disconnected for servicing or any other reason, it must be resealed and / or

reinstalled.

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property

damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional

information consult a qualified installer, service agency or the gas supplier.

VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL

CAUTION:

Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done

by a licensed or qualified service person.

Control No. 4000515

Tree Of Life GS2

Fireplace Heater

Vented Gas

0935

WARNING: Failure to install this appliance per the manufacturer’s instructions or failure to use only parts

specifically approved with this appliance may result in property damage or personal injury.

2014

2015

2013

Feb.

Mar.

Jan.

May

Jun.

Apr.

Aug.

Sep.

Jul.

Nov.

Dec.

Oct.

4800 Harbour Pointe Blvd. SW

www.travisproducts.com

Mukilteo, WA 98275

See owner’s manual for information on making these changes.

MANUFACTURE DATE:

Manufactured by:

This appliance is equipped for use only at altitudes 0-2,000 feet (0-610m) in the USA. In Canada, 0-4,500 feet (0-1370m).

For altitudes above 2,000 feet, the vent configuration, orifice, or combination of both may need to be changed.

Input Rate on “HI” (BTU/Hr)

Input Rate on “LO” (BTU/Hr)

Orifice Size - Front (DMS)

Orifice Size - Rear (DMS)

DANGER! Risk of Electric Shock. Disconnect power before servicing unit.

31,000

12,600

L.P.

#58

#56

31,000

10,700

N.G.

#50

#47

Minimum Inlet Pressure (inches W.C.)

Maximum Inlet Pressure (inches W.C.)

Manifold Pressure on “HI” (inches W.C.)

L.P.

13”

10”

11”

N.G.

5.5”

3.5”

7”

Stove Top to Sidewall

Stove Top to Backwall

Stove Top to Cornerwall

Glass Front of Unit

Blower Electrical Rating: 115V., 60 Hz, 1.5 Amps. Part No. 9900159 fan or blower assembly may be used

Minimum Clearances to Combustibles

10” (254mm)

36” (914mm)

5” (127mm)

FAN TYPE VENTED CIRCULATOR

Alcove Minimum Height

Alcove Maximum Height

Alcove Minimum Width

46.75” (1187mm) 58” (1473mm)

45” (1143mm)

Warranty 39

Component

Years 1 & 2

Parts & Labor

Years 3 Through 5

Parts & Labor

Years 6 & 7

Parts Only

Burner Assembly

Burner Pan Assembly, Air Shutter Assembly, Main Burner Orifice

Electrical Assembly (within heater structure):

Wiring harness, snap discs, rheostat speed control

Gas Control Assembly

Adjustable control valve, fireplace controller, pilot assembly and pilot wiring

Glass

Glass (breakage from thermal shock)

Ceramic Logs

Log Set, Embers

Gold, Nickel & Copper Plating

Face & Door (se e “Con di tions and Exclusions” # 9)

Enamel Finish

Warranted against peeling or fading, excluding chipping, mechanical abrasion, or crazing.

Accessories

Firebacks, Power Heat Ducts, Andi ro ns, etc…

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at factory is covered.

Convection Heat Exchanger

Convection heat exchanger assembly

Firebox Assembly

Adjustable Air Restrictor, Pressure Relief Mechanisms, Glass Attachment Mechanism

Register your TRAVIS INDUSTRIES, INC. Limited 7 Year Warranty online at traviswarranty.com, or complete the enclosed Warranty card and mail it within ten (10) days of the appliance

purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows:

Check with your dealer in adv ance for any costs to you when arranging a warranty call.

Mileage or service charges are not covered by this warranty. This charge can v ary from store to store.

EXCLUDED COMPONENTS:

Paint, Gasketing, and Accent Light Bulbs

CONDITIONS & EXCLUSIONS

1. This new gas appliance must be installed by a qualified gas appliance technician. It must be installed, operated, and maintain ed at all times in accordance with the instructions in the Owner’s Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized TRAVIS dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered under warranty. The installer must ensure the appliance is burning as per the rating tag at the time of installation. Over-firing (operation above the listed BTU rate) of this appliance can cause serious damage and will nullify this warranty.

4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the installation of this product. If in doubt as to the extent of this warranty, contact your authorized TRAVIS retailer before installation.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or mountains or negative pressure or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.

6. This Warranty is void if:

a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals. b. The unit is subject to submersion in water or prolonged periods of dampness or condensation. c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not limited to, improper chimney/venting installation.

7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, mi suse, improper installation, alteration or adjustment of the manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or act of God.

8. This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, corroded or cracked logs, embers, etc. Also excluded is damage to the unit caused by abuse, improper installation, modification of the unit, drilling of the orifices, or the use of fuel other than that for which the unit is configured. Units are shipped for natural gas and must be converted to propane using the included conversion kit. Confirm fuel configuration with your installer.

9. Damage to gold or nickel surfaces caused by fingerprints, scratches, melted items , or other external sources left on the gold or nickel from the use of cleaners other than denatured alcohol is not covered in this warranty.

10.TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.

11.This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the gas appliance without the express written permission of TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

12.Any statement or representation of TRAVIS products and their performance contained in TRAVIS advertising, packaging literature, or printed material is not part of this 7 year warranty.

13.Thi s warranty is autom atically voided i f th e appliance’s seri al number has bee n rem oved or altered in any way. If the appliance is used for commercial purposes, it is excluded from this warranty.

14.No dealer, distributor, or similar person has the authority to represent or warrant TRAVIS products beyond the terms contained within this warranty. TRAVIS INDUSTRIES, INC. assumes no liability for such warranties or representations.

15.Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.

16.If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17.THIS 7 YEAR WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE APPLIANCE. ALL OTHER WARRANTIES, WHETHER EXPRES S OR IMPLIED, ARE HE REBY EXPRESSLY DISCLAIMED AND PURCHASER’S RECOURSE IS E XPRES SLY LIMITED TO THE WARRANTIES SET FO RTH HEREIN.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your TRAVIS dealer WITHIN 30 DAYS, giving them proof of purchase, the purchase date, and the model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your d eal er i s u nab le to repair your appliance’s de fect, he may process a warranty clai m through TRAVIS INDUS TRIES, INC., including the name of the dealership where you purchased the appliance, a copy of your receipt showing the date of the app liance’s pu rchase, and the seri al num ber on your a pp liance. A t that time, yo u may be aske d to sh ip your appl iance, f reigh t charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership.

4. Check with your dealer in advance for any costs to you when arranging a warranty call. Mileage or service charges are not covered by this warranty. This charge can vary from store to store.

40 Optional Equipment (for qualified installers only)

WARNING

This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s

instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. The qualified service agency is responsible for the proper installation of this kit. The installation is not proper and complete until

the operation of the converted appliance is checked as specified in the manufacturer’s instructions

supplied with the kit.

LP Conversion Instructions

Install the conversion kit prior to installing the gas line to ensure proper gas use. 1 Remove the glass (see page 25). Remove the logs and embers (if installed - page 27) 2 Remove the burner (see below). Grasp the burner with both hands and lift it straight up and out of

the firebox.

3 Remove the manifold cover to access the burner orifices (see below).

Optional Equipment (for qualified installers only) 41

4 Follow the directions below to replace the orifices.

Rear Burner Orifice

Front Burner Orifice

Thread Sealant

1/2" Wrench

Orifice ID

ORIFICE SIZE

Front Burner Orifice #50 DMS #58 DMS

Rear Burner Orifice #47 DMS #56 DMS

Natural Gas LP (Propane)

15/16" 24mm

42 Optional Equipment (for qualified installers only)

5 Remove and discard the NG air deflector. Attach the LP air deflector included with the stove. Note how the LP

deflector has a notch along the bottom.

NG Air Deflector LP Air Deflector

6 Install the LP pilot orifice following the instructions below.

(a) Use a 7/16” open-end wrench to remove the pilot hood. (b) Remove and discard the Natural Gas (NG) orifice. Place the LP orifice in the pilot assembly then replace

the pilot hood, tightening the pilot hood until it is snug (do not over-tighten).

Natural Gas Orifice = .020N (3way)

.018N (2way)

LP (Propane) Orifce = .014LP

.020N

.018N

.014LP

7/16" Wrench

7 Replace the firebox components. Install the

logs and embers. Replace the glass.

8 Remove and discard the screws (see “a” below)

holding the stock regulator in place (see “b” below). Remove the stock regulator and gasket (see “c” below). Place the LP regulator in place, making sure the pre-fitted gasket (see “c” below) is in place. NOTE: There is a label on the base of the regulator knob indicating regulator type (NG or LP). Secure the regulator with the screws included with the regulator – tighten to 25 lb-in of torque. Place the included label on the valve body where it can be easily seen to ensure proper identification.

NOTE: Leak-test this area after the heater is installed, gas is connected, and the main

burner is lit.

9 Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly leak-test all gas

connections and the gas control valve.

T-20 Torx or

Slotted Screwdriver

Optional Equipment (for qualified installers only) 43

Turn off power to the heater (unplug or turn off at the breaker).

Shut off gas at the appliance (or at meter).

Installing batteries in the battery holder or connecting the appliance to power may automatically initiate the CPI pilot mode, resulting in a lit pilot flame. Do not place combustibles in the firebox.

KEEP BATTERIES AND COVER

INSTALLED AT ALL TIMES

The remote control system requires the batteries and battery cover to remain in place at all times. Once the batteries or cover are removed, the system may re-start in standing pilot mode. If this occurs when the heater is in Remote Mode, you will not be able to turn the heater off manually from the battery box.

If you need to replace dead batteries, make sure to turn the appliance off before removing the batteries.

NOTE: If the batteries go dead, the system will operate normally as long as household power (120v AC) is present.

GS2 Remote Installation

Packing List

 Transmitter  Battery Box  Remote Wall Mount with Attachment Screws and Anchors  Stepper Motor  Torx Wrench  Remote Control DVD  GSR2 IFC  Split-flow Harness (attached to IFC)  System Jumper (attached to IFC)  Battery Box Harness (attached to IFC)  Fan/Light Harness (attached to IFC)  (2) Jumper Wires  (2) 4” Cable Ties

Warnings

HINT:

If using a blower, make sure to have it on hand while installing the remote.

Remote Control / Pilot Warnings

44 Optional Equipment (for qualified installers only)

Base Wiring Diagram

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause

improper and dangerous operation.

120 VAC Power In

Appliance

Ground

Flame Detect

Spark

Rod

Accessory

Power

White

Green

Pilot Sensor

Blower Hookup

Black

3.15A FUSE

2.5 Amp Fuse

Red

Yellow

Black

Accent

Light

Rheostat

Accent

Light (s)

Base Integrated Fireplace Control (IFC)

Appliance

Ground

Comfort

Control

Valve

Comfort Control

Red

Switch

Blue

Red

Black

Red

Black

AA Battery

Tray

White

IPI/CPI Switch

Green

ON / OFF

Main Burner

Switch

White

Blue

Yellow / Green

Orange

Green

Optional Equipment (for qualified installers only) 45

GS2 Remote Wiring Diagram

120 VAC Power In

Appliance

Ground

Flame Detect

Appliance

Ground

Spark

Rod

Accessory

Power

Black

White

Green

Pilot Sensor

Optional

Blower(s)

3.15A FUSE

System Jumper

IPI/CPI

JUMPER WIRE

Black Black

2.5 Amp Fuse

Red

Yellow

Black

Yellow / Green

White

Orange

Blue

Green

2.5 Amp Fuse

White

Black

Grey

Purple

Yellow

Blue

Pink

Orange

Comfort Control

Valve

White White

Accent Light (s)

Integrated Fireplace Control (IFC)

Orange

Red

Black

Grey

Yellow

Purple

TOP

(4) AA Batteries

Battery Box (Manual

On/Off)

46 Optional Equipment (for qualified installers only)

Installation

1. Remove the Comfort Control–Battery Plate from the control panel (keep the screws).

2. Remove the control panel and place face-down in front of the heater (keep the screws).

3. Disconnect the comfort control and battery backup wires.

4. Remove and place aside the Comfort Control-Battery Plate with harness (the batteries and assembly may be kept for spare parts).

Optional Equipment (for qualified installers only) 47

5. Disconnect input power.

6. Pull the base IFC to the rear of the stove to access the wiring (it is held in place with Velcro).

48 Optional Equipment (for qualified installers only)

7. Disconnect the following:

Power (3 wires)

On/Off wires

Pilot connections (slide silicone tubing up)

8. Remove and place aside the base IFC (it may be kept for spare parts).

9. Remove the on/off switch by prying it out. Disconnect the wires.

10. Push the wires back into the holder to conceal them.

Main harness

Optional Equipment

11. Remove and discard the screws (see “a” below) holding the stock regulator in place (see “b” below). Remove and discard the stock regulator, spring, and gasket (see “c” below).

12. The stepper motor (adjustable regulator) has an installation sheet included with it – make sure to follow all of the directions. Place the stepper motor on the gas control valve (see below) – MAKE SURE IT IS CORRECTLY ORIENTED. Secure using the screws included with the motor – tighten to 25 Lb-inches. Leak-test this area after installation to verify proper installation. Route the stepper motor wire near the IFC location.

(for qualified installers only)

T-20 Torx or Slotted Screwdriver

50 Optional Equipment (for qualified installers only)

Instructions for Using the Optional Blower with GS2 Remote

When using the GreenSmart™ 2 remote, the power for the blower will be routed through the fuse and IFC, bypassing the rheostat and snap disc included with the blower kit.

Order of Installation

Install the blower assemblies with the IFC removed (see instructions included with the blower for details). Connect the wiring as shown below, attaching the power input to the IFC after the IFC is placed in location (see “e” below).

Wiring the Blower to the GSR2 IFC (Bypassing the Rheostat and Snap Disc)

Disconnect the blower power input (see “a” below).Connect the blower wiring harness to the fuse output (see “b” below). Disconnect and discard the electrical line intended to connect the snap disk to the rheostat (carefully remove the wire tie from the wiring harness – see “c”). Attach the jumper wire (included with the remote) to the wires labeled “SNAP DISC” (see “d” below). Attach the blower power input (see “e”) to “FAN” lead on the fuse harness (pre-connected to the IFC). This circuit bypasses the rheostat and snap disc (these components included with the blower kit are not used and may be kept for replacement part purposes).

SNAP DISC

3.15

A FUS



Optional Equipment (for qualified installers only) 51

13. Wire the accent light for remote operation.

When using the GreenSmart™ 2 remote, the power for the accent light(s) will be routed through the fuse and IFC, bypassing the rheostat.

Order of Installation

Connect the wiring with the IFC removed as shown below. Attach the power input to the IFC after the IFC is placed in location (see “d” below).

Wiring the Accent Light to the GSR2 IFC (Bypassing the Rheostat)

(a) Disconnect the accent light power input (see “a” below). (b) Disconnect the quick connects and molex connection leading to the switch box (see “b” below).

NOTE: the switch box and wiring may be removed and discarded (or saved for spare parts).

(see “c” below). Attach the quick-connects from the power lead to the accent light.

(d) Attach the accent light power input (see “d”) to the molex from the IFC labeled “LIGHT” (pre-

connected to the IFC).

Accent

Light (s)

3.15

A FUS

14. Place the GSR2 IFC near the appliance.

52 Optional Equipment (for qualified installers only)

15. Attach the following:

(White)

(Green)

(Black)

Power (3 wires – make sure orientation is correct)

Pilot connections

Comfort Control connection

Make sure silicone tubing is pushed down

Main Harness

Stepper Motor

Optional Equipment (for qualified installers only) 53

16. Disconnect the IPI/CP switch from IPI/CP wires. Attach one of the jumper wires to the two wires. Discard the IPI/CP switch.

17. Remove the IPI/CPI switch and place aside (may be kept for spare parts).

18. Connect the accent light wires to the GSR2 IFC.

NOTE: If using a blower, connect the power input to the GSR2 IFC.

54 Optional Equipment (for qualified installers only)

19. Connect the battery box power molex connector to the main harness molex connector.

20. Route the battery box harness through the control panel and attach to the battery box.

21. Place the IFC in location inside the heater and attach using the supplied velcro tape.

22. Use the two included cable ties to make sure all wiring is secure and does not contact any hot or moving parts.

Optional Equipment (for qualified installers only) 55

23. Re-attach the control panel.

24. Attach the battery box to the control panel using the screws removed in step 2.

56 Optional Equipment (for qualified installers only)

25. Re-connect the input power.

26. Replace the rear panel and restore the stove to the correct configuration (turn on power and gas).

See the instructions included with the remote for synchronizing

the remote and the operating instructions.

Optional Equipment (for qualified installers only) 57

58 Index

Accent Light ..................................................... 33

Accent Light Replacement ............................... 36

Additional Items Required .................................. 7

Adjusting the Flame Height .............................. 32

Adjusting the Optional Blower Speed .............. 33

Approved Vent Configurations ......................... 13

Battery Replacement ........................................ 35

Before You Begin ............................................. 31

Class A Chimney Conversion Kit ..................... 21

Continuous Pilot / GreenSmart™ Pilot Switch . 33

Dimensions & Weight ......................................... 6

Electrical Requirements ..................................... 9

Electrical Specifications (for optional blower) .... 6

Face and Glass Removal ................................. 25

Floor Protection Requirements .......................... 9

Fuel .................................................................... 6

Gas Line Installation ......................................... 11

GS2 Remote Installation .................................. 43

Heater Placement Requirements ....................... 9

Heating Specifications ........................................ 6

Horizontal Termination with One 90° Elbow .... 15

Horizontal Termination with Three 90° Elbows 17

Horizontal Termination with Two Elbows ......... 16

Important Information ......................................... 2

Installation Hints ................................................. 8

Installation Options: ............................................ 6

Installation Overview .......................................... 7

Installation Warnings ......................................... 7

Interior Masonry Chimney Conversions .......... 22

Listing Details ..................................................... 2

Location of Controls ......................................... 31

Log Installation ................................................. 27

LP Conversion Instructions .............................. 40

Maintaining Your Stove's Appearance ............. 35

Mobile Home Requirements .............................. 8

Normal Operating Odors .................................. 34

Normal Operating Sounds ............................... 34

Optional Wall Switch or Thermostat Installation

..................................................................... 10

Packing List ........................................................ 7

Starting the Stove for the First Time ................ 32

Steps for Finalizing the Installation .................. 23

Stove Clearances ............................................... 8

Troubleshooting Table ..................................... 37

Turning the Stove On and Off .......................... 32

Vent Requirements .......................................... 12

Vent Termination Requirements ...................... 20

Vertical Terminations with Three 90° Elbows .. 19

Vertical Terminations with Two 90° Elbows ..... 18

Vertical Terminations with Zero, Two, or Four

45° Elbows................................................... 14

Yearly Service Procedure ................................ 36

Avalon Firestyles Tree of Life User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
