Avalon Firestyles SS Gas User Manual

Download

564 Space Saver

Fireplace

Tested and Listed by

OMNI-Test Laboratories, Inc.

Beaverton, Oregon

Report # 028-F-80-5

ANSI Z21.88b-2003

• Built-In Direct Vent Fireplace

• Natural Gas or Propane

• Residential or Mobile Home

WARNING: If the information in these instructions is not followed exactly, a fire

or explosion may result causing property damage, personal injury or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call gas supplier from a neighbor's phone. Follow the gas

supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

- Insta lla tion and service must be pe rformed by a qua lified insta lle r, service age ncy or the ga s supplier.

This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be installed in accordance with the manufacturer’s instructions and the manufactured home construction and safety standard, Title 24 CFR, Part 3280. This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the appliance.

Installation Manual

Installer: After installation give this manual to the home-

owner and explain operation of this heater.

4800 Harbour Pointe Blvd. SW

Mukilteo, WA 98275

2 Introduction

Overview

This manual details the installation requirements for the 564 SS fireplace. For operating and maintenance instructions, refer to the 564 SS Owner's Manual (part # 100-01189).

Listing Details

This appliance was listed by OMNI Test Labs to ANSI Z21.88 - report # 028-F-80-5. The listing label is attached to the appliance near the gas control valve. A copy is shown to the right.

ICBO Approval

This appliance was listed by OMNI Test Labs - ICBO # TL130.

Massachusetts Approval

This manual has been submitted to the Massachusetts Board of State Examiners of Plumbers and Gas Fitters

National Fireplace Institute

Table of Contents 3

Introduction

Overview................................................................. 2

Listing Details .......................................................... 2

Safety Precautions

Safety Precautions................................................... 4

Features and Specifications

Features ................................................................. 6

Installation Options ................................................... 6

Heating Specifications ...............................................6

Dimensions.............................................................. 6

Installation

Packing List............................................................. 7

Additional Items Required...........................................7

Installation Overview .................................................7

Recommended Installation Procedure...........................7

Top Stand-Off Assembly ............................................ 9

Converting the Fireplace to Top Vent Configuration ....... 10

Fireplace Placement Requirements............................... 12

Clearances...........................................................12

Raised Fireplaces ..................................................12

Min. Framing Dims. - Rear Vent Configuration......................13

Min. Framing Dims. - Top Vent Configuration................14

Nailing Brackets ....................................................15

Corner Installations - Rear Vent Configuration..............16

Corner Installations - Top Vent Configuration...............17

Gas Line Requirements..............................................18

Fuel.....................................................................18

Gas Line Connection ..............................................18

Gas Inlet Pressure .................................................18

Gas Line Location..................................................18

Electrical Connection (required)...................................20

Wall Switch or Thermostat Installation...........................21

Wiring Diagram (Millivolt System)...............................21

Wall Switch Installation ...........................................21

Vent Requirements.................................................... 22

Vent Clearances....................................................22

Altitude Considerations ...........................................22

Approved Vent ......................................................23

Vent Installation ....................................................23

Approved Vent Configurations.....................................24

Restrictor Position .................................................24

Exhaust Restrictor Adjustment .................................24

Intake Restrictor Adjustment....................................25

Diffuser Plate Adjustment ........................................26

Rear Vent Config. W Horizontal Term. (no vertical rise) ..... 27

Rear Vent Config. W Horizontal Term. (w vertical rise)....... 28

Rear Vent Configuration with Vertical Termination............29

Top Vent Configuration with Horizontal Termination..........30

Top Vent Configuration with Vertical Termination ............. 31

Termination Requirements ..........................................32

Installation (continued)

Hearth Requirements................................................. 33

Facing Requirements................................................. 34

Drywall Installation................................................. 34

Facing Overview.................................................... 35

Optional Faceplates – Sizing Chart............................ 35

Thin Facing Installation...........................................36

Thick Facing Installation ......................................... 38

Thick Facing Installation with FPX Arched Faces.......... 39

Mantel Requirements................................................. 41

Install Example - Build-Out (Dog-House) w Hor. Term. ...... 42

Install Example - Build-In w Hor. Term. .......................... 43

Finalizing the Installation

Steps for Finalizing the Installation............................... 44

Starting the Pilot Flame...........................................44

Pilot Flame Inspection ............................................ 44

Air Shutter Adjustment............................................ 45

Glass Frame Removal and Installation .......................... 46

Log Set Installation ................................................... 48

LP Conversion Instructions ........................................ 55

Optional Equipment

Fireback Installation.................................................. 59

Blower (part # 99000156)............................................ 60

Grill Installation ........................................................ 63

Remote Control Receiver Installation (2 Options) ............ 64

Accent Light Installation 94400100............................. 65

Index

Index..................................................................... 70

4 Safety Precautions

Safety Warnings:

• Failure to follow all of the requirements may result in property damage, bodily injury, or even death.

• This unit must be installed by a qualified installer to prevent the possibility of an explosion.

• This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI

Z223.1 and NFPA 54(88).

• A manufactured home (USA onl) or mobile home OEM installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped Recational Vehicles and Mobile Housing, CSA Z240.4. This appliance may be installed in Manufactured Housing only after the home is site located.

• All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn from outside the living-area structure. The venting must not be connected to a chimney flue serving a separate solid-fuel burning appliance.

• Notify your insurance company before hooking up this fireplace.

• The room heater should be inspected before use and at least annually by a qualified service person.

More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.

• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or compromise in the installation. Improper installation will void the warranty and safety listing.

• This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about the type of fuel used to your dealer. Check the label and flame adjust knob on the gas control valve.

• Contact your local building officials to obtain a permit and information on any installation restrictions or inspection requirements in your area.

• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your dealer and arrange for proper servicing.

• It is imperative that control compartments, screens, or circulating air passageways of the heater be kept clean and free of obstructions. These areas provide the air necessary for safe operation.

• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your dealer for a full explanation of your heater and what to expect.

• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.

• Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.

• Do not place clothing or other flammable items on or near the heater. Because this heater can be

controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near it.

• Light the heater using the built-in piezo igniter. Do not use matches or any other external device to light your heater.

• Never remove, replace, modify or substitute any part of the heater unless instructions are given in this manual. All other work must be done by a trained technician. Don't modify or replace orifices.

• The viewing glass should be opened only for lighting the pilot or conducting service.

• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Travis Industries 4070620 100-01188_000

Safety Precautions 5

Safety Warnings (continued):

• Allow the heater to cool before carrying out any maintenance or cleaning.

• Operate the heater according to the instructions included in this manual.

• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for

service.

• The pilot flame must contact the thermopile and thermocouple. If it does not, turn the gas control valve to "OFF" and call your dealer.

• This unit is not for use with solid fuel.

• Do not place anything inside the firebox (except the included fiber logs).

• If the fiber logs become damaged, replace with Travis Industries log set.

• Do not throw this manual away. This manual has important operating and maintenance instructions

that you will need at a later time. Always follow the instructions in this manual.

• Do not touch the hot surfaces of the heater. Educate all children of the danger of a high-temperature heater. Young children should be supervised when they are in the same room as the heater.

• Due to the high temperature, the heater should be located out of traffic and away from furniture and draperies.

• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve. The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off.

• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility of any consequential damage(s).

6 Features and Specifications

Installation Options

• Residential or Mobile Home

• Straight or Corner Placement

• Flush or Recessed Face

• Raised or Floor Placement

• Internal or External Chase

• Horizontal or Vertical Vent

• Bedroom Approved

Heating Specifications

Natural Gas Propane

Approximate Heating Capacity (in square feet)* 950 950 Maximum BTU Input Per Hour 20,500 20,500 Steady State Efficiency** (with optional blowers on)** 76.5 % 74.2 %

* Heating capacity will vary with floor plan, insulation, and outside temperature. ** Efficiency rating is a product thermal efficiency rating determined under continuous operation

independent of installed system.

Dimensions

Top

Vent Configuration

8" Diameter Vent

31-3/4"

4-3/4"

33-1/4"

Rear Vent Configuration

8" Diameter Vent

30"*

16-1/4"*

* Includes the required 1/2" clearance.

32-1/2"

36-1/4"

18-3/4"

Left

28-3/4"

Right

Front

30-1/4"

Back of Fireplace

24-1/4"

Weight: 155 Lbs.

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 7

T C

Packing List

• Propane Conversion Kit

• Log Set

Additional Items Required

• Direct Vent

• Gas Line Equipment (shutoff valve, pipe, etc.)

• Electrical Equipment (min. 14 gauge, grounded line)

Installation Overview

• All requirements below must be met.

op Vent

onfiguration

See the section "Mantel Requirements"

Drywall

Side Wall

1" Min.

• Wall Switch with Wire (see page 21 for details)

• Firestop (sku 250-00747)

See the section "Vent Requirements"

See the section "Approved Vent Configurations"

Insulation must not fill the 1/2" clearance around the back and sides of the fireplace.

Nailing Brackets

Rear Vent Configuration

Required Travis Firestop (sku 250-00747)

See the section "Minimum Framing Dimensions"

See "Optional NonCombustible Facing"

See "Optional NonCombustible Hearth"

See the section "Electrical Connection"

See the section "Gas Line Installation"

Recommended Installation Procedure

1 Frame the opening for the fireplace. Make sure to allow for vent installation. 2 This fireplace is designed to accommodate 1/2" or 5/8" drywall (see "Nailing Brackets" on page 15

for details). Secure the fireplace to the framing. 3 Install the vent, gas line and electrical hook-up. 4 Install the wall switch (see page 21) or thermostat (if applicable). 5 Install the drywall. 6 Install the hearth (if applicable). 7 Install the facing (if applicable). 8 Install the mantel (if applicable).

9 Finalize the installation (see page 44) and install the grill or face.

8 Installation (for qualified installers only)

Massachusetts Requirements

NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.

Requirements for the Commonwealth of Massachusetts

For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

Installation of Carbon Monoxide Detectors

At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.

In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

Approved Carbon Monoxide Detectors

Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

Signage

A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.

Inspection

The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.

Exemptions

The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and

• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

MANUFACTURER REQUIREMENTS

Gas Equipment Venting System Provided

When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

• Detailed instructions for the installation of the venting system design or the venting system components; and

• A complete parts list for the venting system design or venting system.

Gas Equipment Venting System NOT Provided

When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the manufacturer:

• The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 9

Top Stand-Off Assembly

The top stand-offs must be assembled prior to installation.

Warning:

AFTER

You must follow the instructions below to elevate both standoffs. Failure to do so will result in an

BEFORE

extreme fire hazard.

The standoffs are shipped in the flat position. Make sure to follow the instructions below before installing the fireplace.

Standoff

Bend the standoff in the numbered

sequence shown above.

Remove the screw below the standoff.

1/4" Nutdriver

Replace the screw to secure the standoff.

10 Installation (for qualified installers only)

AAAA

Top Vent or Rear Vent Configuration

This appliance is shipped in the rear vent configuration. To change to the top vent configuration, follow the directions below.

NOTE : the vent configuration affects several aspects of installation (framing, maximum vent rise, maximum vent run). Make sure the vent configuration is correct prior to installation. You may wish to

configure the diffuser when changing the vent configuration.

Converting the Fireplace to Top Vent Configuration

Remove and discard the

heat shield. Replace the 4

removed screws.

Remove the 4 screws securing the

intake cover plate. Place the screws

and cover plate aside.

NOTE: Use a magnetic-tipped nutdriver on these screws - take care to prevent the screws from falling into the fireplace.

Top of Fireplace

Remove the 4 screws securing the outer flue assembly. Place the screws and assembly aside.

Back of Fireplace

Remove the 4 screws securing the inner flue assembly. Place the screws and assembly aside.

Remove and discard the insulation found below the large cover plate.

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 11

Converting the Fireplace to Top Vent (continued)

Remove the 4 screws securing the exhaust cover plate. Verify the gasket on the cover plate is in place, then attach it to the rear-facing exhaust port with the same screws.

Verify the gasket on the intake cover plate is in place, then attach it to the rear of the fireplace using the screws removed earlier.

Verify the gasket on the inner flue assembly is in place, then attach it to the upward-facing exhaust port using the screws removed earlier.

Verify the gasket on the outer flue assembly is in place, then attach it to the top of the fireplace using the screws removed earlier.

12 Installation (for qualified installers only)

Fireplace Placement Requirements

• The fireplace requires a 1/2" clearance from the angled sides and back of the fireplace to the framing members. No material (insulation, framing, etc.) may be placed into this area.

• Fireplace must be installed on a level surface capable of supporting the fireplace and vent

• Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)

• This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance

produces when determining a location.

Clearances

• When installed, walls in front of the fireplace must be a minimum 1" to the side of the fireplace.

• Due to the high temperature, the heater should be located out of traffic and away from furniture and

draperies.

• Fireplace must be placed so the vents below and above the glass do not become blocked.

Raised Fireplaces

• The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace (155 Lbs.) and vent.

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 13

AAAAA

Minimum Framing Dimensions - Rear Vent Configuration

HINT: place the fireplace so the center

line is at least 5" from both vertical framing members at the rear (this allows the vent to pass through the framing without modfications)

Minimum 38” Fireplace

Enclosure Height

Included Firestop (required)

Part # 250-00747

Vent Clearances (8" dia. Vent): 1" to the sides, 1" below, and 4" above the vent to combustibles.

Center of Rear Vent

24-1/4"

32-1/2"

Route the electrical line to a position to the left rear of the fireplace.

19-1/4"

33-1/2"

36-1/2"

16-1/2"

The on/off switch/thermostat wire (if used) should be routed to a location near the right front of the fireplace.

14 Installation (for qualified installers only)

Minimum Framing Dimensions - Top Vent Configuration

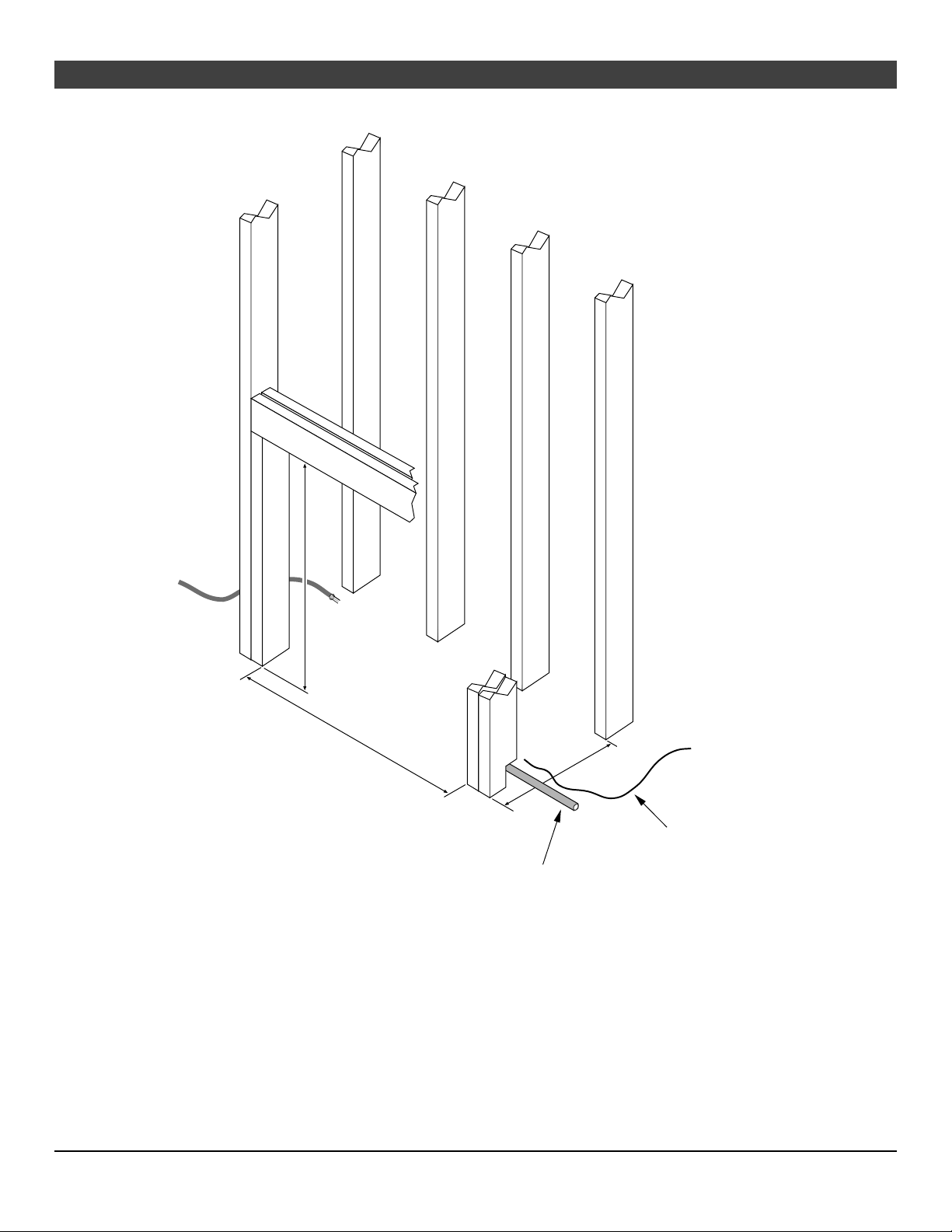

Route the electrical line to a position to the left rear of the fireplace.

Minimum enclosure height = 36-1/4"

33-1/2"

36-1/2"

16-1/2"

WARNING: A cut-out for the gas line may be required on the framing. See the dimensions under "Gas Line Connection" for details.

The on/off switch/thermostat wire (if used) should be routed to a location near the right front of the fireplace.

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 15

Nailing Brackets

There are four nailing brackets on the front of the fireplace. Follow the directions below to prepare the nailing brackets. Once in place, nail or screw the nailing brackets to the framing.

NOTE: Additional nailing brackets are provided along the base of the fireplace. Use these brackets if not using the front brackets.

1/2” Drywall

For installations using 1/2” facing fold the larger tab out 90° (use a

WARNING: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-tocorner, the fireplace should be square (approx. 47-1/8” for each dimension). Use shims to insure the fireplace is square.

TOP VIEW

Framing

Nailing Bracket

Fireplace

Drywall

screwdriver if necessary).

5/8” Drywall

For installations using 5/8” drywall fold the shorter tab out 90° (use a screwdriver if necessary).

TOP VIEW

Fireplace

Framing

Nailing Bracket

Drywall

16 Installation (for qualified installers only)

Corner Installations - Rear Vent Configuration

A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still apply).

7" Approximate

(varies due to vent

installation)

NOTE: Most installations use:

6" Section for 2x6 Walls

Minimum 1" Clearance

564 SS Firestop

Minimum 1/2" Clearance

4" Section for 2x4 Walls

44-1/2" Min.

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 17

Corner Installations - Top Vent Configuration

A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still apply).

Minimum 1/2" Clearance

14-1/4"

44-1/2"

Min.

18 Installation (for qualified installers only)

Gas Line Requirements

MASSACHUSETTS INSTALLATIONS - WARNING:

THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH OF MASSACHUSETTS.

OTHER MASSACHUSETTS CODE REQUIREMENTS:

• Flexible connector must not be longer than 36 inches.

• Shutoff valve must be a “T” handle gas cock.

• Only direct vent sealed combustion products are approved for bedrooms or bathrooms.

• Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.

• A carbon monoxide (CO) detector is required in the same room as the appliance.

• The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and

the requirements listed below.

• The fireplace and gas control valve must be disconnected from the gas supply piping during any pressure testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2 psig, isolate the gas supply piping by closing the manual shutoff valve.

• Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.

Fuel

• This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of the gas control valve to make sure the correct fuel is used (see illustration on page 4).

Gas Line Connection

• Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a licensed plumber/gasfitter).

Gas Inlet Pressure

Natural Gas 7" W.C. (1.74 kPA) Propane 13" W.C. (2.73 kPA)

• If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately adjusted, and the total gas load for the residence does not exceed the amount supplied.

• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure.

Standard Input Pressure

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 19

Gas Line Location

Right Side Gas Inlet (preferred)

A 12" flex tube and shutoff valve is

included with the fireplace. The

shutoff valve accepts a 1/2"MPT.

A 3" high by 2" wide opening is located behind the gas inlet cover plate (it is 1-3/4" above the base of the fireplace).

13-1/2"

You may remove this cover plate to install the gas line. The cover plate has a 7/8" diameter hole (covered with a push plug) in line with the gas inlet on the gas control valve. By rotating the plate 180° the hole may be re-located. You may also secure the plate in a customized location using the selfdrilling screws.

The gas inlet is located 2-1/2" above the base of the fireplace.

Left Side Gas Inlet

A 3" high by 2" wide opening is located behind the gas inlet cover plate (it is 1-3/4" above the base of the fireplace).

You may remove this cover plate to install the gas line. The cover plate has a 7/8" diameter hole (covered with a push plug). By rotating the plate 180° the hole may be re-located. You may also secure the plate in a customized location using the self-drilling screws.

A 12" flex tube and shutoff valve is included with the fireplace (you may wish to use a 24" flex tube). The shutoff valve accepts a 1/2" MPT.

13-1/2"

20 Installation (for qualified installers only)

Electrical Connection (required)

• The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified installer and must meet all local codes.

• Make sure the household breaker is shut off prior to working on any electrical lines.

• The appliance, when installed, must be electrically grounded in accordance with local codes or, in the

absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

• The electrical line must be a min. 14 gauge, and supply 120 Volts at 60 Hz (2 Amps)

Caution : Label all wires prior to disconnection when servicing controls. Wiring errors can cause

improper and dangerous operation.

Left Side of Fireplace

Junction Box Assembly

Grounded 110V

Power Supply

Grounded Receptacle

Receptacle Cover Plate

Strain Relief

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 21

Wall Switch or Thermostat Installation

Wiring Diagram (Millivolt System)

Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace. The switch must

be installed by a qualified installer.

The included wall switch may be installed following the directions below. An optional thermostat may also be installed. It is attached to the gas control valve in the same manner.

Caution : Label all wires prior to disconnection when servicing controls. Wiring errors can cause

improper and dangerous operation.

Thermocouple

On/Off Switch (on fireplace)

Thermopile

Piezo Igniter

Red

Brown

Copper Co-Axial

Wire

Red

White

Orange

Spark Electrode

Pilot Hood

Optional Wall Switch, Thermostat, or Remote Control

Wall Switch Installation

1. Attach the included wire to the gas control valve.

Attach the two wires to the top and bottom posts on the gas control valve (orientation does not matter).

2. Determine a location for the wall switch (the wire is a maximum 25' long). Route the wire through the gas inlet hole (either side) to the junction box and attach following the directions below. Set the on/off switch on the appliance to "OFF" to control the appliance with the wall switch.

Insert the wire

through the back of the mounted junction box (your junction box may look different). Expose 1/2" of each wire. Secure the wires to the posts on the side of the on/off switch (orientation does not matter).

From Appliance

Standard Screwdriver

Carefully pack the wires into the

junction box. Attach the switch to the junction box. Attach the switchplate to the switch.

Standard Screwdriver

22 Installation (for qualified installers only)

Vent Requirements

• The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use it's own separate vent system.

• In addition to the requirements listed here, follow the requirements provided with the vent.

• A firestop is required whenever the vent penetrates a wall, floor, or ceiling (passes through framing

members). Horizontal vent less than 48" above the fireplace must use the Travis Firestop (sku 25000747 - it incorporates a 4" clearance above, 1" clearance below and to the sides of the vent). Other penetrations only require a 1" clearance and may use a standard firestop (make sure the required 1" clearance is met).

• Always use the high-wind termination (if available from the vent manufacturer).

Vent Clearances

• The vent must maintain the required clearance to combustible materials to prevent a fire. Do not fill air spaces with insulation.

Before 48" Rise After 48" Rise Sides 1" 1" Above 4" 1 " Below Horizontal or 45° Section 1" 1"

Vertical Termination

Horizontal

Termination

Min. 4" (1" if a minimum 48" above the fireplace)

Min. 1"

Use a roof flashing and storm collar

whenever passing through the roof

Use a firestop whenever

passing through a ceiling

Use a support box

on exposed vent

Required Firestop

Min. 1"

Altitude Considerations

• This heater has been tested at altitudes ranging from sea level to 6,000 feet. In this testing we have found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.

• Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard. Consult your dealer or installer if you suspect an improperly adjusted air shutter.

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 23

Approved Vent

• Rear vent configurations use 8" diameter Simpson Dura-Vent Model GS vent.

• Top vent configurations use 8" or 6-5/8" diameter Simpson Dura-Vent Model GS vent. If using 6-5/8"

diameter vent, attach the 8" to 6-5/8" reducer (Travis part # 98900165) to the fireplace. NOTE: When using 6-5/8” diameter vent, make sure to accommodate the 4” clearance above the vent for the first 48” of rise (see vent clearances on page 22). Standard firestops do not include this clearance.

• Installation instructions for Simpson Dura-Vent may be found at www.duravent.com

6-5/8" Diameter Vent

Reducer - # 98900165

Vent Installation

• Slide the vent sections together and turn 1/4 turn until the sections lock in place.

• Screws are not required to secure the vent. However, three screws may be used to secure vent sections together if desired.

• High temperature sealant is recommended at the appliance starter section connection (use high-temperature silicone or Mill-Pac®).

• If disassembly is required, at time of re-assembly check to see if the vent creates a tight fit. If it does not, apply high temperature sealant to the joints of the affected sections.

• Horizontal sections require a 1/4" rise every 12" of travel

• Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)

24 Installation (for qualified installers only)

Approved Vent Configurations

Restrictor Position

• Intake and exhaust restrictors are built into the appliance to adjust the flow rate of intake air and exhaust gases. Depending upon the vent configuration, you may be required to adjust the restrictor positions. The charts for acceptable vent configurations detail the correct vent restrictor positions.

Exhaust Restrictor Adjustment

If the diffuser is required to be in position # 2, you may wish to adjust the diffuser while the exhaust

restrictor is removed.

Firebox Roof

The exhaust restrictor is shipped

Back Wall of Firebox

in postion # 0. If the restritor is required in a different postion, remove the screws, re-position the restrictor (see the illustration below), and replace the screws.

(closed) #6

# 5

# 4 # 3 # 2

# 1

(open - stock position) # 0

In this example, the restrictor is set in position # 3.

Back of Firebox

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 25

Intake Restrictor Adjustment

Position # 1 (open)

1/4”

Socket

Loosen the two screws holding the intake restrictor in place..

Position # 2 (closed)

Slide the restrictor down to the lower position and tighten the screws.

26 Installation (for qualified installers only)

Diffuser Plate Adjustment

Certain vent configurations require the diffuser plate to be adjusted (refer to the approved vent configuration charts for details). Position # 1 is stock (bent). Position # 2 is flattened. See the directions below to change the diffuser to position #2.

Firebox Roof

Back Wall of Firebox

DIFFUSER SIDE VIEW

Before (Stock - Position # 1)

After (Position # 2)

Remove the exhaust restrictor.

1/4" Nutdriver

Remove the diffuser.

Bend the round portion of the diffuser so it is flat (position # 2).

Secure the flattened diffuser plate with the screws removed earlier.

Replace the exhaust restrictor (see “Exhaust Restrictor Adjustment” for restrictor settings).

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 27

Rear Vent Configuration with Horizontal Termination (no vertical rise)

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions.

See the charts below to determine maximum vent

Optional 45° Elbow

Vent with No 45° Elbow

Termination

3 feet

0 feet

4' (max)

Vent with 1 45° Elbow

3 feet

0 feet

2' (max)

• Exhaust Restrictor # 0 (stock)

• Intake Restrictor # 1 (stock)

• Diffuser Position # 1 (stock)

• Min. 4" Horizontal Section

• Max.48" Horizontal Section(s)

• Exhaust Restrictor # 0 (stock)

• Intake Restrictor # 1 (stock)

• Diffuser Position # 1 (stock)

• Min. 4" Horizontal Section

• Max. 24" Horizontal Section(s)

28 Installation (for qualified installers only)

Rear Vent Configuration with Horizontal Termination (with vertical rise)

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions.

• Up to four elbows (45° or 90°) may be used.

• Only one horizontal elbow may be used.

0 feet

5 feet

10 feet

15 feet

20' (max)

22' (max)22' (max)

20 feet 20 feet

Exhaust Restrictor # 6 Intake Restrictor # 2 Diffuser Position # 2

15 feet

Exhaust Restrictor # 4 Intake Restrictor # 2 Diffuser Position # 2

10 feet

Exhaust Restrictor # 2 Intake Restrictor # 1 (stock) Diffuser Position # 1 (stock)

5 feet

15 feet

10 feet

5 feet

0 feet

5 feet

10 feet

15 feet

0 feet

20' (max)

This is considered a horizontal elbow (it does not matter whether it turns right or left). It may be a 90° or 45° elbow.

Horizontal length is calculated by adding both lengths of horizontal run (Horizontal Length = H1 + H2).

This is considered a vertical elbow

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 29

Rear Vent Configuration with Vertical Termination

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions.

• Up to four elbows (45° or 90°) may be used.

• Only one horizontal elbow may be used.

0 feet

40' (max)

35 feet

5 feet

10 feet

15 feet

20' (max)

40' (max)

35 feet

30 feet

25 feet

20 feet

15 feet

10 feet

5 feet

0 feet

Exhaust Restrictor # 4 Intake Restrictor # 2 Diffuser Position # 2

30 feet

25 feet

20 feet

15 feet

10 feet

5 feet

0 feet

This is considered a horizontal elbow (it does not matter whether it turns right or left). It may be a 90° or 45° elbow.

5 feet

Horizontal length is calculated by adding both lengths of horizontal run (Horizontal Length = H1 + H2).

This is considered a vertical elbow

10 feet

15 feet

20' (max)

30 Installation (for qualified installers only)

Top Vent Configuration with Horizontal Termination

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions.

• Up to four elbows (45° or 90°) may be used.

• May use 8" or 6-5/8" diameter vent (see page for 22 details).

• Only one horizontal elbow may be used.

0 feet

5 feet

10 feet

15 feet

20' (max)

21' (max)21' (max)

20 feet 20 feet

Exhaust Restrictor # 6 Intake Restrictor # 2 Diffuser Position # 2

15 feet

10 feet

5 feet

Exhaust Restrictor # 4 Intake Restrictor # 2 Diffuser Position # 2

Exhaust Restrictor # 2 Intake Restrictor # 1 (stock) Diffuser Position # 1 (stock)

15 feet

10 feet

5 feet

0 feet

5 feet

10 feet

15 feet

0 feet

20' (max)

This is considered a horizontal elbow (it does not matter whether it turns right or left). It may be a 90° or 45° elbow.

Horizontal length is calculated by adding both lengths of horizontal run (Horizontal Length = H1 + H2).

This is considered a vertical elbow

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 31

Top Vent Configuration with Vertical Termination

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions.

• Up to four elbows (45° or 90°) may be used.

• Only one horizontal elbow may be used.

• May use 8" or 6-5/8" diameter vent (see page for 22 details).

0 feet

40' (max)

35 feet

30 feet

25 feet

5 feet

Exhaust Restrictor # 4 Intake Restrictor # 2 Diffuser Position # 2

10 feet

15 feet

20' (max)

40' (max)

35 feet

30 feet

25 feet

This is considered a horizontal elbow (it does not matter whether it turns right or left). It may be a 90° or 45° elbow.

20 feet

15 feet

10 feet

5 feet

0 feet

5 feet

Horizontal length is calculated by adding both lengths of horizontal run (Horizontal Length = H1 + H2).

10 feet

15 feet

20 feet

15 feet

10 feet

5 feet

0 feet

20' (max)

This is considered a vertical elbow

32 Installation (for qualified installers only)

Termination Requirements

NOTE : Measure all clearances from the nearest edge of the exhaust hood. A Minimum 9" clearance from any door or window

Roof Surface

B Minimum 12" above any grade, veranda, porch, deck or balcony C Minimum 0" from outside corner walls

11” Min.

6” Min.

D Minimum 0" from inside corner walls E Minimum 11" clearance below unventilated soffits or roof surfaces

Minimum 18" clearance below ventilated soffits Minimum 6" clearance below roof eaves

NOTE: Vinyl surfaces require 24" F Minimum 18" clearance below a veranda, porch, deck or balcony (must have two open sides) G Minimum 48" clearance from any adjacent building H Minimum 84" clearance above any grade when adjacent to public walkways or driveways

NOTE: may not be used over a walkway or driveway shared by an adjacent building I Minimum 48" clearance from any mechanical air supply inlet J Minimum 36" clearance above and 48” below and to the sides of non-mechanical air supply inlet K Minimum 36" from the area above the meter/regulator (vent outlet) L Minimum 36" from the meter/regulator (vent outlet) M Minimum 24” above the roof line (for vertical terminations) N Minimum 24” horizontal clearance to any surface (such as an exterior wall) – for vertical

terminations

Roof Eaves

NOTE: Measure clearances to the nearest edge of the exhaust hood.

• Use the vinyl siding standoff (#950) when installing on an exterior with vinyl siding.

• Vent termination must not be located where it will become plugged by snow or other material.

• Venting termination shall not be recessed into a wall or siding.

• These clearances meet UMC-1994 code standards.

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 33

Hearth Requirements

Floor Mounted

Fireplaces

Do not build a hearth more than 1” above the baseplate (this area must remain clear for the access door).

If installed near carpet or other combustible flooring, the fireplace must be raised so the base of the unit is above the carpet surface or flooring material.

WARNING: A non-combustible hearth is not required. However, if the heater is installed next to the floor, we recommend a hearth to protect the flooring surface from discoloration or other negative impact from the heater.

Raised

A hearth is not required

Fireplaces

Fireplace Stand

when the fireplace is raised above the flooring surface.

34 Installation (for qualified installers only)

Facing Requirements

• This appliance is designed to allow for drywall (or other combustible facing) to contact the sides and

top of the front of the fireplace.

• Tile or other non-combustible facing may be placed on the front of the fireplace (see "Facing

Overview" on page 35 for further details).

Drywall Installation

Drywall Installation Drywall may be

installed up to the front edge of the fireplace.

If the fireplace is raised, drywall up to the

bottom edge as well.

Drywall

Do not install drywall (or any other combustible) in front of the fireplace.

TOP VIEW

Framing

Fireplace

Travis Industries 4070620 100-01188_000

Nailing Bracket

Drywall

Installation (for qualified installers only) 35

Facing Overview

Upgrade faces are available for this fireplace and may influence facing installation. Consult with your

Travis Dealer if you are using an upgrade face. Optional non-combustible facing may be installed on the fireplace. Use the guidelines below to determine

the location (also see the following pages for detailed diagrams.

Tile Line Any non-combustible facing under 1" thick (see "Thin Facing" on page 36). Masonry Line Any non-combustible over 1" thick (see "Thick Facing" on page 38). Hearth Line Non-combustible hearth/facing should be installed up to this location (1" above the base of the

fireplace). The fireplace may be raised to accommodate thicker hearth materials.

Masonry Line

Tile Line

Masonry Line

Tile Line

Masonry Line

Tile Line

Masonry Line

Tile Line

Hearth Line

Tile Line

Masonry Line

Hearth Line

Tile Line

Masonry Line

NOTE: The hearth or facing can extend no greater than 1” above the base of the fireplace. The fireplace may be raised to accommodate thicker hearth materials.

Optional Faceplates – Sizing Chart

Name Height Width Notes

FPX Artisan, Classic, Fr Ctry 29” 36” 61” Radius – May fit over top of tile facing Wilminton 29” 36” May fit over top of tile facing Victorian Lace 27-1/2” 32-3/8” Optional facing will butte to edge of faceplate (tile line) Bungalow, Tree of Life 27-1/2” 32-3/8” Optional facing will butte to edge of faceplate (tile line)

36 Installation (for qualified installers only)

Thin Facing Installation (tile, marble, or other non-combustible under 1" thick)

Upgrade faces are available for this fireplace and may influence facing installation. Consult with your

Travis Dealer if you are using an upgrade face.

Tile Line

Facing is installed to this edge of the fireplace.

Drywall

Do not install tile (or other material) in front of the glass frame, convection channel, or access panel openings. This area must remain open to access internal components and for convection air.

Hearth Line

TOP VIEW

Framing

Fireplace

NOTE FOR FPX FACES: FPX arched faces require the FPX Face Upgrade Kit (sku 98500683) and a triangular piece of facing in these upper corners. See the instructions included with the face for further details.

Nailing Bracket

Drywall

Tile

7-1/2”

1-5/8”

Floor-Mounted Fireplaces or Raised Hearths: Build the hearth 1” (max.) above the base of the fireplace. The fireplace may be raised to accommodate thicker hearth materials.

Raised Fireplaces: Facing is installed 1” (maximum) above the base of the fireplace.

FRONT VIEW

32-1/2”

Tile Line

1-1/2”

27-3/4”

1”

1-7/8”

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 37

Thin Facing Installation (tile, marble, under 1" thick) - Side View

Raised Fireplace

(with no Hearth)

Drywall

Tile

(or other facing under 1” thick)

Face

SIDE OF FIREPLACE

Note how the facing extends 1”

above the base of the fireplace.

1”

Fireplace Support

Floor

Floor-Mounted Fireplace

with Hearth

SIDE OF FIREPLACE

Drywall

Tile

(or other facing under 1” thick)

Face

Hearth (note how it extends under the

face - max. 1” thick). The fireplace may

be raised to accommodate thicker

hearth materials.

Max. 1”

Floor

38 Installation (for qualified installers only)

AAA

AAAA

AAA

Thick Facing Installation (stone, brick, or other non-combustible over 1" thick)

If using a Fireplace Xtrordinair (FPX) arched face, see "Thick Facing with a Fireplace Xtrordinair Arched

Faces" on page 39.

Masonry Line

Drywall

Do not install masonry (or other material) in front of the fireplace. This area must remain open to install the face.

Hearth Line

TOP

VIEW - Protruding Masonry

Framing

Fireplace

TOP

VIEW - Recessed Masonry

Fireplace

NOTE: The nailing brackets are not used for this type of installation - secure the fireplace to the floor with the brackets along the base of the fireplace.

Nailing Bracket

Drywall

Masonry

Framing

Drywall

(or cement board, etc.)

Masonry

Floor-Mounted Fireplaces

Build the hearth 1” (max.) above the base of the fireplace. The fireplace may be raised to

Raised Fireplaces: Masonry is installed 1” (maximum) above the base of the fireplace.

accommodate thicker hearth materials.

FRONT VIEW

Masonry Line

or Raised Hearths:

29-1/4”

1”

36-1/4”

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 39

AAAA

AAA

AAA AA

AA AAAA

AAAA AAA

AAA

AAAA

AAA

Thick Facing with Fireplace Xtrordinair (FPX) Arched Faces

The following illustration shows facing considerations for those fireplaces utilizing FPX arched faces.

The facing must be non-combustible and over 1" in depth.

Masonry Line

The Fireplace Xtrordinair 564 Masonry Template is recommended for masonry installation (sku 98500674). The template helps locate and support the masonry as it being installed.

Drywall

Hearth Line

Before installing masonry, install the FPX Face Upgrade Kit (98500683). This covers the upper corners.

TOP VIEW

Framing

Fireplace

Face

Nailing Bracket

Drywall

Masonry

Floor-Mounted Fireplaces or Raised Hearths: Build the hearth 1” (max.) above the base of the fireplace. The fireplace may be raised to accommodate thicker hearth materials.

Raised Fireplaces: Masonry is installed 1” (maximum) above the base of the fireplace.

FRONT VIEW

2-3/4”

29”

61” Radius

1”

36-1/4”

40 Installation (for qualified installers only)

Thick Facing Installation - Side View

Drywall

Floor-Mounted Fireplace with Hearth

Masonry

(or other non-combustible

over 1” thick)

SIDE OF FIREPLACE

Face

Hearth (note how it extends under the face -

max. 1” thick). The fireplace may be raised to

accommodate thicker hearth materials.

Max. 1”

Raised Fireplace (with no Hearth)

SIDE OF FIREPLACE

Floor

Drywall

Masonry

(or other non-combustible

over 1” thick)

Face (Behind Masonry)

The masonry extends 1” above

the base of the fireplace.

1”

Fireplace Support

Floor

Travis Industries 4070620 100-01188_000

Installation (for qualified installers only) 41

Mantel Requirements

• The illustration below details mantel clearances and maximum mantel depth.

• Any material that protrudes more than 3/4” from the non-combustible facing is considered a mantel

and must meet the mantel requirements.

Mantel (combustilbe or non-combustible)

38-1/2”

12” Maximum

Combustible mantel columns (legs) that protrude more than 3/4” from the glass frame must meet the sidewall clearance (1”). If they protrude 3/4” or less, they may be placed directly to the side (but not in front) of the fireplace.

Non-combustible mantel columns do not have a minimum clearance.

42 Installation (for qualified installers only)

Installation Example - Build-Out (Dog-House) with Hor. Termination

• The framing, facing, and other building materials depicted below are for example only. Refer to local

building codes for framing, facing, and insulating requirements in your area.

Side View

Drywall

See “Vent Termination”

for full requirements.

The cap overlaps the exterior

siding by 1/16” - you may wish to

make a flashing for this area.

Optional Tile

Horizontal Termination*

* Travis Ind. MIn. Vent Kit (SKU 98900168)

Includes a 4” section and horizontal termination.

NOTE FOR 2 x 4 EXTERIOR WALLS:

When installed with a 2x4 exterior wall, the

termination may not fit flush against the exterior

wall. You may wish to place framing around the

termination to fill the gap.

4” Section*

Firestop

SIDE OF FIREPLACE

Top View

NOTE:

1/2” Clearance to sides

and back of fireplace.

Drywall

Travis Industries 4070620 100-01188_000

Insulation

NOTE:

In colder climates the fireplace may

require an insulated enclosure.

NOTE: If required to use drywall inside

the firebox enclosure, make sure to alter

the framing accordingly.

Vapor

Barrier

Optional Tile

Installation (for qualified installers only) 43

Installation Example - Build-In with Horizontal Termination

• The framing, facing, and other building materials depicted below are for example only. Refer to local

building codes for framing, facing, and insulating requirements in your area.

Side View

Drywall

See “Vent Termination”

for full requirements.

The cap overlaps the exterior

siding by 1/16” - you may wish to

make a flashing for this area.

Optional Tile

Horizontal Termination*

* Travis Ind. MIn. Vent Kit (SKU 98900168)

Includes a 4” section and horizontal termination.

NOTE FOR 2 x 4 EXTERIOR WALLS:

When installed with a 2x4 exterior wall, the

termination may not fit flush against the exterior

wall. You may wish to place framing around the

termination to fill the gap.

Top View

NOTE:

1/2” Clearance to sides

and back of fireplace.

4” Section*

Firestop

SIDE OF FIREPLACE

Insulation

NOTE: If required to use drywall inside

the firebox enclosure, make sure to alter

the framing accordingly.

Drywall

Optional Tile

44 Finalizing the Installation (for qualified installers only)

Steps for Finalizing the Installation

1. Remove the glass (see page 46).

NOTE : If using propane (LP) convert the appliance prior to installing the logs.

2. We recommend you purge the gas line at this time (with the glass removed). This allows gas to be

detected once it enters the firebox, ensuring gas does not build up.

3. Install the logs (see page 48).

4. Turn on the gas to the fireplace. Turn on gas to the heater. Leak test all gas joints prior to starting the

appliance. Start the pilot.

Starting the Pilot Flame

WARNING : When lighting or re-lighting the pilot, the glass must be removed (see page 44).

a Remove the glass (see page 44 for details). b Push the gas control knob in slightly and turn it to the "OFF" position. The knob will not turn from

"ON" to "OFF" unless the knob is depressed slightly. Wait five minutes to let any gas that may have accumulated inside the firebox escape. If you smell leaking gas, follow the directions on the cover "IF YOU SMELL GAS".

c Turn the gas control knob to the "PILOT" position and press the knob in, this will allow gas to flow to

the pilot light. Press the button on the pilot igniter repeatedly until you see the pilot light.

WARNING: If the pilot does not light after 15 seconds, release the knob and call

your dealer for service. Do not attempt to light pilot until service has been performed.

NOTE: You may wish to remove the log set to gain a better view of the pilot (see page 48).

d Keep the gas control knob depressed for 30 seconds once it is lit. e Release the gas control knob. If the pilot goes out, repeat step C. If the pilot refuses to stay lit, call

your dealer for service. With the pilot lit, proceed to step “f”.

f Replace the glass. g Turn the gas control knob counter-clockwise to "ON". The pilot is now lit and the heater can be turned

on and off.

5. Check the pilot flame following the directions below.

Pilot Flame Inspection

The pilot flame should look like the illustration below. Adjust the pilot flame if necessary.

To adjust the pilot flame, turn this screw. Clockwise lowers the flame while counter-clockwise raises it.

Standard Screwdriver

6. Replace the glass.

7. Start the main burner (the main burner circuit is detailed on page 21). Leak test all gas joints again.

Travis Industries 4070620 100-01188_000

The pilot flame must contact the thermocouple and thermopile (see the illustration below). Adjust the pilot up or down as necessary.

Finalizing the Installation (for qualified installers only) 45

8. Check the air shutter following the directions below.

Air Shutter Adjustment

Let the heater burn for fifteen minutes (make sure the logs and glass are in place). The flames should be yellow with no sooting. Adjust the air shutter, if necessary, to achieve the correct looking flame.

Correct

Flames should be blue at the base, yellow-orange on the top.

If the flames are over 14" tall or sooty on the ends, open the air shutter.

Not Enough Air

Too Much Air

If the flames are all blue and short, close the air shutter.

Front Air Shutter Adjustment

The front burner air shutter may be adjusted while the burner is on (take care to prevent contacting the burner area).

Front Burner Air Shutter Control

Left = Less Air

Right = More Air

NOTE: you may wish to use pliers to adjust the front air shutter. Typically, the front air shutter is fully

Rear Burner Air Shutter Control

Left = Less Air

Right = More Air

closed (left) on NG, fully open (right) on LP

9. Turn the flame adjust knob to its highest position - the flames should not contact the top of the

firebox. Check the flame on low position. The flames should burn off of each burner hole. If the heater does not work correctly, contact your Travis dealer for a remedy.

10. Give this manual to the home owner for future reference and fully explain operation of this heater. For

comprehensive operating and maintenance instructions, refer to the Owner's Manual (part # 100-

01189).

ACID WASH WARNING: Before installing the faceplate, make sure any masonry that has been treated with acid wash has been properly neutralized (this is used primarily with brick faces). Acid wash (muriatic

acid) is used to remove excess mortar. If not properly neutralized with an ammonia solution, the plated face may develop a permanent tarnish when the acid evaporates over time. Contact your dealer if uncertain your facing has been properly neutralized.

46 Finalizing the Installation (for qualified installers only)

AAA

Glass Frame Removal and Installation

Warning: The appliance must be completely cool before removing the glass. Warning: Do not strike or slam the glass.

Based upon the face being used, either:

(a) swing the access door down and remove the top grill, (b) remove the face (unscrew or lift off - see the instructions included with the face for details).

Open the four latches holding the glass frame in place (start with the bottom three) - follow the directions shown to the right.

Latch

Top of Firebox

Glass

Lift the glass frame up and

pull it forward to remove.

NOTE: You may need to lift the glass frame while re-attaching.

Re-Attaching the Glass Frame:

a) Hang the glass frame on the firebox.

b) While holding in place, attach the upper latches

(follow the instructions to the right in reverse).

c) Lift the glass frame slightly and attach the lower latches.

Travis Industries 4070620 100-01188_000

Catch (on glass frame)

Finalizing the Installation (for qualified installers only) 47

Glass Frame Removal and Installation (continued)

The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose.

Hold the latch at an angle and insert it into the slot on the glass frame anchor.

Latch

Top of Firebox

Glass Frame Anchor

Note how the washer on the latch fits behind the flange on the glass frame anchor.

NOTE: this slot may be at a different angle than illustrated.

Once fully inserted, turn the latch until it is upright.

48 Finalizing the Installation (for qualified installers only)

Log Set Installation

Log Set Overview

When installed, the logs should appear as shown below.

Rear Log

Right Twig

Left Log

Travis Industries 4070620 100-01188_000

Left Twig Right Log

Finalizing the Installation (for qualified installers only) 49

Rear Log Installation

The rear log has a flat notch

on both sides that center it

on the grate.

Place the rear log on the grate

and slide it all the way back until

the log contacts the end-brackets

on the grate.

50 Finalizing the Installation (for qualified installers only)

Right Log Installation

The right log has a groove

that fits over the grate.

Note how the right side of the log

rests on the burner but does not

cover any burner holes.

Travis Industries 4070620 100-01188_000

Finalizing the Installation (for qualified installers only) 51

Left Log Installation

The left log has a groove that

fits over the grate.

Note how the right side of the log

rests on the burner but does not

cover any burner holes.

52 Finalizing the Installation (for qualified installers only)

Left Twig Installation

This hole fits over the pin

on the rear log.

The left twig should be positioned so the

front edge contacts the grate as shown.

Travis Industries 4070620 100-01188_000

Finalizing the Installation (for qualified installers only) 53

Right Twig Installation

The right twig has two

holes for the pins on the

rear and right log.

When in place the right twig will appear as shown above.

54 Finalizing the Installation (for qualified installers only)

Ember Installation

A bag of embers is provided to further enhance the firebox. Place the embers on the firebox floor and on the burner. Do not place embers oer any of the burner holes or air channels.

Travis Industries 4070620 100-01188_000

Finalizing the Installation (for qualified installers only) 55

LP Conversion Instructions

Install the conversion kit prior to installing the gas line to ensure proper gas use. 1 Remove the glass (see page 44). Remove the logs and coals (if installed - page 48)

2 Remove the burner (see illustration below).

1/4" Nutdriver

Remove the grate.

1/4" Nutdriver

Remove the front burner.

Remove the rear burner.

1/4" Nutdriver

56 Finalizing the Installation (for qualified installers only)

3 Follow the directions below to replace the orifice.

Slide the air shutters all

the way to the right.

Remove and discard the front burner

gasket (used only for NG installations)

Front Burner

Orifice

Use a 1/2” open end wrench

to unscrew the two orifices.

Screw each LP orifice in so the orifice protrudes 15/16”

1/2" Wrench

Rear Burner Orifice

15/16”

Apply thread sealant to the LP orifices prior to installation. Use the chart below to identify the correct orifices.

Look here for the orifice identification

Front Rear

NG #56 #50

#67

1.1

(indicating full insertion).

Travis Industries 4070620 100-01188_000

Finalizing the Installation (for qualified installers only) 57

4 Remove the pilot orifice following the instructions below. Replace with the propane pilot orifice

Lift the pilot hood

off the pilot assembly.

Use a hex wrench to

unscrew the orifice.

5/32" Hex

Remove the orifice and replace with the LP orifice. Screw the

orifice all the way in and replace the pilot hood.

Orifice Identification:

NOTE: when re-attaching, this pin lines up with the notch in the pilot hood.

LP (Propane) Orifice

NG (Natural Gas) Orifice

5 Replace the firebox

components. Install

the logs and embers. Replace the glass.

6 Remove the regulator

from the front of the gas control valve. Replace with the propane regulator, using the new gasket and screws included with the regulator. NOTE: Leak

test this area after the heater is installed, gas is connected, and the main burner is lit.

Remove and discard the three screws using a slotted screwdriver of Torx T-20.

Slotted Screwdriver (or T-20 Torx)

Install the LP regulator. Use the screws included with the LP regulator. Tighten to approximately 25 Lbs. torque.

Slotted Screwdriver (or T-20 Torx)

Remove and discard the regulator, diaphram, spring and center post.

NOTE: Make sure the regulator gasket is correctly aligned before installation.

Place the LP label on the base of the fireplace near the gas control valve.

58 Finalizing the Installation (for qualified installers only)

7 Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly leak-

test all gas connections and the gas control valve. Check the pilot. Adjust if necessary.

WARNING : When lighting or re-lighting the pilot, the glass must be removed (see page 44).

To adjust the pilot flame, turn this screw (NOTE: if totally unscrewed gas will come out of this port). Clockwise lowers the flame while counter-clockwise raises it.

Standard Screwdriver

The pilot flame must contact the thermocouple and thermopile (see the illustration below). Adjust the pilot up or down as necessary.

Travis Industries 4070620 100-01188_000

Optional Equipment (for qualified installers only) 59

Fireback Installation

WARNING

Turn off gas to the appliance and make sure it has fully cooled prior to conducting service.

1 Remove the

glass frame and logs.

1/4" Nutdriver

2 Remove the

grate (replace after fireback installation). Remove and discard the hearth plate.

3 Install the

firebacks following the directions below. Select either the straight brick or herringbone brick pattern to face outwards.

NOTE:

Due to the construction of the ceramic firebacks, you may need to reposition the firebacks to achieve the correct alignment.

4 Restore the

fireplace to the correct configuration.

Remove the grate (replace after fireback installation).

Loosen this screw and slide the bracket up.

Remove the clip and screw located on the

firebox ceiling near the front (both sides).

1/4" Nutdriver

NOTE: Place the fireback so the vertical grout line on the edge of the fireback is facing the rear.

Remove and discard the hearth plate

Place the rear fireback in place. The side fireback holds the rear fireback in place hold the rear fireback while installing the side fireback.

Place the side firebacks

in place.

Loosen this screw and slide the bracket up. Place the floor firebacks in place (under the bracket). Slide the bracket down and tighten the screw to secure the firebacks.

Replace the clips and screws

removed in step “a” to secure the side firebacks..

60 Optional Equipment (for qualified installers only)

Blower (part # 99000156)

Make sure power to the fireplace has been turned off prior to installation (disable the service breaker).

Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace.

It is easier to install the blower prior to connecting the gas line.

Wiring Diagram - Blower Wiring Harness

Power Supply

Gas Control

Hot

(black)

Common

(white)

Ground (green)

Optional Blowers

Power In

Molex

Connector

Black

White

Green

Ground

(attached to stove)

White

Black

Brown

Remote

Control

Molex

Connector

Black

Rheostat

Valve

Optional Regulator

Solenoid

Blue

Red

Blue

Black

Blower Snap Disk

Blower Installation

1. Attach the right side blower to a blower bracket following the directions below (note: newer blower kits are pre-assembled). Repeat for the left side blower.

Make sure these two grommets and bushings are in place.

Side View

Bushing

Grommet

Blower Bracket

Install the brackets to the blower with two #8 x 3/8” (shorter, silver) screws.

Make sure these two grommets are in place (they insulate the fireplace from blower vibration)

Travis Industries 4070620 100-01188_000

Optional Equipment (for qualified installers only) 61

2. Attach the blowers (use the #8 x 3/4" silver screws) and snap disc (see the directions below). NOTE : Make sure the grommets (and bushings) stay in place while installing. The rubber grommets

insulate the fireplace from any blower vibration (reducing noise).

62 Optional Equipment (for qualified installers only)

3. Attach the wiring and rheostat assembly following the directions below.

NOTE : You may need to cut or adjust some of the lock ties on the wiring harness. NOTE : Make sure wiring does not contact blower impellers or any hot surfaces. Use lock-ties if

necessary.

Attach one black and white wire to each blower (orientation does not matter).

Attach the wires labeled

SNAP DISC to the snap disc (orientation does not matter).

SNAP DISC

BLOWER

VALVE-RED/BRN

SOLENOID-BLU

These wires are for the optional remote control. Place them behind the gas control valve.

Plug the power cord into the receptacle at the rear of the fireplace.

Attach the rheostat assembly to the fireplace with the two black screws.

4. Turn on power to the fireplace. NOTE : To test the blower without turning on the fireplace, use a jumper wire to connect the two snap

wires together (turn off power prior to connecting the jumper wire).

Travis Industries 4070620 100-01188_000

Optional Equipment (for qualified installers only) 63

Grill Installation

Certain faces allow for installation of an upper and lower grill. Follow the directions below to install.

Upper Grill Installation (FPX and Avalon)

Hold the grill at an angle and insert the lower slot over the lower bushing on the fireplace (both sides)

Swing the grill upwards to engage the upper slot. You will need to lift the grill slightly to get it over the bushing. Once in place the grill is held in place by gravity.

Upper Grill Installation (Lopi)

NOTE: The upper grill is difficult to install the first time - be patient, after you install it, you will know how it installs and it will be much easier the second time.

SIDE VIEW

Heat Shields (on fireplace)

Position the grill so the slots on the grill align with the mounting studs.

Mounting Stud

Upper Grill

You may need to push in and upwards on the grill as it inserts.

The grill, when fully inserted, will slide down and “click” into place.

Lower Grill Installation

Hold the grill at an angle and insert the lower slot over the bushing on the fireplace (both sides). You may need press on the grill to get the tab over the bushing (this prevents the grill from accidentally falling off).

Bend the tab outward on both sides. This is the end-stop for the lower grill, it allows the grill to swing forward.

Swing the grill upwards to engage the upper slot. You will need to lift the grill slightly to get it over the bushing. Once in place the grill is held in place by gravity.

64 Optional Equipment (for qualified installers only)

Remote Control Receiver Installation (2 Options)

The instructions below detail installation of the optional remote control receiver. For operating instructions, refer to the instructions included with the remote.

OPTION # 1 - Remote Thermostat (99300653)

WARNING: Make sure the power cord does

Attach the power cord to the electrical receptacle on the inside of the fireplace.

Use lock-ties or wire ties to shorten the power cord to approximately 12” length.

not contact the blower (if applicable) or the bottom of firebox (or other hot surface).

Place the receiver in a location to the left of the gas control valve (near the front of the fireplae).

Attach the two reciever wires to the top and bottom posts on the gas control valve (orientation does not matter).

OPTION # 2 - Remote Thermostat (99300677) - Requires the Optional Blower

Remove and discard this molex connector attached to the blower wiring harness.

Connect the receiver to the molex connector on the wiring harness.

Place the receiver in a location to the left of the gas control valve (near the front of the fireplae).

Travis Industries 4070620 100-01188_000

Optional Equipment (for qualified installers only) 65

Accent Light Installation 94400100

Make sure power to the fireplace has been turned off prior to installation (disable the service breaker).

Do not connect 110-120 VAC to the gas control valve or the on/off circuit on this fireplace.

The accent light must be removed to install the rear fireback. The remaining firebacks are installed after

the accent light is in place.

1 Remove the glass and logs from the fireplace. 2 Remove the accent light cover plates and gaskets.

66 Optional Equipment (for qualified installers only)

If using the optional fireback, install the rear fireback at this time.

3 Insert the wires from the accent light through the gasket and firebox floor (both sides). Attach the

accent light assembly to the firebox floor (both sides).

Accent Light Assembly

Magnetic Nutdriver

4 Restore the firebox to the correct configuration (replace the logs, glass, etc.).

If using the optional fireback, install the side and floor firebacks at this time.

Travis Industries 4070620 100-01188_000

Optional Equipment (for qualified installers only) 67

If using the optional wall-mounted rheostat, follow the directions on the following page "Wall Mounted

Rheostat".

5 Install the rheostat assembly following the directions below.

Attach the quick-connects from the rheostat to the quick-connects from

the accent light assemblies (orientation does not matter). Plug the rheostat into the receptacle.

Attach the rheostat assembly to the

fireplace with the included screws.

68 Optional Equipment (for qualified installers only)

Optional Wall-Mounted Rheostat

NOTE: Many areas require all wiring to be installed by a qualified electrician. Check with your local

building official for any requirements in your area. 1 Remove the rheostat from the rheostat assembly. 2 Detach the three wires leading from the rheostat (secured with wire nuts). Attach the rheostat

assembly to the fireplace (see the illustration on the previous page). Attach the quick connects from the rheostat to the quick connects from the accent light assemblies (see the illustration on the previous page).

3 Attach three suitable wires (insulated & sheathed) to the rheostat. Install the rheostat into a junction

box at the remote location. Run the wire from the junction box to the fireplace. Use the included wire clamp to secure the wiring as it passes through the fireplace (see the illustration below).

4 Connect the three wires from the rheostat to the three wires on the wiring harness disconnected in

step 2 (use the included wire nuts). Plug the rheostat assembly into the receptacle inside the fireplace.

Rheostat (removed from rheostat assembly)

Junction Box

Knob (included)

Wire Clamp (included)

Rheostat Assembly

A 7/8” diameter hole is provided on this cover plate (both sides). If this hole is already used for a gas inlet, you can drill an additional 7/8” hole in this cover plate.

Travis Industries 4070620 100-01188_000

Optional Equipment (for qualified installers only) 69

Accent Light Operation

OFF

Turn the dial all the way counter-clockwise until it clicks off.

LOW

Turn the dial 180° clockwise until the light begins to glow.

HIGH

The high position is all the way clockwise.

NOTE : The accent light responds best when turned to high, then turned down to the desired light level.

70 Index

Index

Additional Items Required .....................................7

Air Shutter Adjustment .........................................45

Altitude Considerations ........................................22

Approved Vent Configurations ...............................24

Approved Vent....................................................23

Clearances ........................................................12

Converting the Fireplace to Top Vent Configuration ....10

Corner Installations - Rear Vent Configuration...........16

Corner Installations - Top Vent Configuration ............17

Diffuser Plate Adjustment .....................................26

Dimensions........................................................6

Drywall Installation ..............................................34

Electrical Connection (required) .............................20

Exhaust Restrictor Adjustment ..............................24

Facing Overview .................................................35

Facing Requirements ...........................................34

Features............................................................6

Fireback Installation ............................................59

Fireplace Placement Requirements.........................12

Fuel..................................................................18

Gas Inlet Pressure ..............................................18

Gas Line Connection............................................18

Gas Line Location ...............................................18

Gas Line Requirements ........................................18

Glass Frame Removal and Installation.....................46

Grill Installation...................................................63

Hearth Requirements ...........................................33

Heating Specifications .........................................6

Index ................................................................70

I n st a l l a t i o n E xa mp l e - B u i l d - I n w i t h H o r i z o n t a l T e r m i n a t i o n ...............43

Installation Options.............................................6

Installation Overview ...........................................7

Intake Restrictor Adjustment .................................25

Listing Details.....................................................2

Log Set Installation..............................................48

LP Conversion Instructions ...................................48

Mantel Requirements ...........................................41

M ini mu m F ra mi ng D im en sion s - R ear Ven t Co nfig ura tion.......................13

M ini mu m F ra mi ng D im en sion s - T op V ent C on figu rati on.........................1 4

Nailing Brackets..................................................15

Overview...........................................................2

Packing List .......................................................7

Pilot Flame Inspection..........................................44

Raised Fireplaces................................................12

R e a r V e n t C o n f i g u r a t i o n w i t h H o r i z o n ta l Te r mi n a t i o n ( n o ve r ti ca l r i se ) ....27

R e a r V e n t C o n f i g u r a t i o n w i t h H o r i z o n ta l Te r mi n a t i o n ( w i t h ve r ti ca l r i se ) ...2 8

Rear Vent Configuration with Vertical Termination ......29

Recommended Installation Procedure .....................7

Remote Control Receiver Installation (2 Options).......64

Restrictor Position...............................................24

Safety Precautions..............................................4

Starting the Pilot Flame.........................................44

Steps for Finalizing the Installation .........................44

Termination Requirements.....................................32

Thick Facing Installation with FPX Arched Faces .......39

Thick Facing Installation .......................................38

Thin Facing Installation.........................................36

Top Vent Configuration with Horizontal Termination ....30

Top Vent Configuration with Vertical Termination........31

Top Stand-Off Assembly.......................................9

Vent Clearances .................................................22

Vent Installation..................................................23

Vent Requirements..............................................22

Wall Switch Installation.........................................21

Wall Switch or Thermostat Installation .....................21

Wiring Diagram (Millivolt System)............................21

Travis Industries 4070620 100-01188_000

Avalon Firestyles SS Gas User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
