Avalon Firestyles Salish EF-2000 User Manual

Download

• Direct Vent Freestanding Stove

• Natural Gas or Propane

• Vent Horizontally or Vertically

• Standard Residential

• Mobile Home Approved

Tested and Listed by

Omni-Test Laboratories, Inc.

Beaverton, Oregon

Report # 028–S–14-1

Featuring the

WARNING: If the information in these instructions is not followed exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Burner

ANSI Z21.88, C SA 2.33 M9 8, CAN/CG A 2.17-M 91

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

- Ins tallation and ser v ic e m us t be per form ed by a qualified ins taller , ser v ic e agenc y or the gas supplier.

This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be installed in accordance with the manufacturer’s instructions and the manufactured home construction and safety standard, Title 24 CFR, Part 3280 or Standard for Installation in Mobile Homes, CAN/CSA Z240 MH.

This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the appliance.

Salish Owner’s Manual

Installer: After installation give this manual to the home-

owner and explain operation of this stove.

10850 117th Place N.E. Kirkland, WA 98033

Introduction 1

Introduction

We welcome you as a new owner of a Salish Stove (DVL FS). In purchasing this heater you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. The Salish is one of the finest home heaters the world over. This manual will explain the installation, operation, and maintenance of this gas-burning heater. Please familiarize yourself with the Owner’s Manual before operating your heater and save the manual for future reference. Included are helpful hints and suggestions which will make the installation and operation of your new heater an easier and more enjoyable experience. We offer our continual support and guidance to help you achieve the maximum benefit and enjoyment from your heater.

Important Information

No other Salish 2000 has the same serial number as yours. It can be found inside the right side panel.

This serial number will be needed in case you require service of any type.

Model: Salish 2000 Serial Number: Purchase Date: Purchased From:

Mail your Warranty Card Today, and Save Your Bill of Sale.

To receive full warranty coverage, you will need to show evidence of the date you purchased your heater. Do not mail your Bill of Sale to us.

We suggest that you attach your Bill of Sale to this page so that you will have all the information you need in one place should the need for service or information occur.

Travis Industries 93508122 141100

2 Safety Precautions

• IF YOU SMELL GAS:

* Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor’s house, if not reached, call fire department

• This unit must be installed by a qualified installer to prevent the possibility of an explosion. Your dealer will know the requirements in your area and can inform you of those people considered qualified. The room heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.

• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or compromise in the installation. Improper installation will void the warranty and safety listing.

Look for this label:

For LPG only | Pout 11” W.C.

If the label is present, the heater is equipped for LP (propane). If the label is absent, the heater is equipped for NG (natural gas).

• Contact your local building officials to obtain a permit and information on any installation restrictions or inspection requirements in your area. Notify your insurance company of this heater as well.

• It is imperative that control compartments, screens, or circulating air passageways of the heater be kept clean and free of obstructions. These areas provide the air necessary for safe operation.

• This heater is either approved for

natural gas (NG) or propane (LP). Burning the incorrect fuel will void the warranty and safety listing and may cause an extreme safety hazard. Check the label above the gas control valve to make sure it matches the fuel being used. Direct questions about the type of fuel used to your dealer.

• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your dealer and arrange for proper servicing.

• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your dealer for a full explanation of your heater and what to expect.

Gas

• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.

• Keep all furniture or other combustible items at least 36” away from the front of the heater.

• Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.

Travis Industries 93508122 141100

Safety Precautions 3

• Do not place clothing or other flammable items on or near the heater. Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near it.

• The door (glass) should only be opened while lighting the pilot or conducting service. Damaged glass must be replaced.

• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

• Operate the heater according to the instructions included in this manual.

• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for service.

• Light the heater using the built-in piezo igniter. Do not use matches or any other external device to light your heater.

• Never remove, replace, modify or substitute any part of the heater unless instructions are given in this

manual. All other work must be done by a trained technician. Don’t modify or replace orifices.

• Allow the heater to cool before carrying out any maintenance or cleaning.

• The pilot flame must contact the thermopile and thermocouple (see the illustration to the left). If it does not, turn the gas control valve to “OFF” and call your dealer.

• This unit is not for use with solid fuel

• Do not place anything inside the firebox (except the included fiber logs).

• If the fiber logs become damaged, replace with Travis Industries log set.

• Do not touch the hot surfaces of the heater. Educate all children of the danger of a hightemperature heater. Young children should be supervised when they are in the same room as the heater.

• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve. The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off.

This Manual

• Do not throw this manual away. This manual has important operating and maintenance instructions that you will need at a later time. Always follow the instructions in this manual.

• Plug the heater into a 120V grounded electrical outlet. Do not remove the grounding plug.

• Don’t route the electrical cord in front of, over, or under the heater

• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility of any consequential damage(s).

Travis Industries 93508122 141100

4 Table of Contents

Introduction

Introduction ......................................................1

Important Information .........................................1

Safety Precautions

Safety Precautions............................................2

Specifications

Installation Options ............................................5

Features ..........................................................5

Heating Specifications ........................................5

Dimensions.......................................................5

Electrical Specifications......................................5

Fuel.................................................................5

Installation

Installation Warnings ..........................................6

Packing List......................................................6

Installation Preparation .......................................6

Stove Clearances ..............................................6

Mobile Home Requirements..................................6

Heater Placement Requirements...........................7

Floor Protection Requirements..............................7

Gas Line Installation...........................................7

Gas Inlet Pressure ........................................7

Vent Requirements.............................................8

Altitude Considerations ..................................8

Approved Vent Configurations..............................9

Restrictor Position.........................................9

Elbows........................................................9

Measuring Vent Lengths.................................9

Vertical Term’s with (or without) 2 45° Elbows......10

Horizontal Terminations..................................11

Vertical Term’s with Two 90° Elbows..................12

Termination Requirements ...................................13

Finalizing the Installation .....................................14

Opening the Door...............................................16

Log Set and Coal Installation................................17

Operation

Safety Notice ....................................................20

Location of Controls ...........................................20

Starting the Pilot Flame .......................................21

Starting the Heater for the First Time......................22

Turning the Heater On and Off ..............................22

Adjusting the Flame Height...................................22

Adjusting the Blower Speed..................................23

Normal Operating Sounds....................................23

Maintenance

Cleaning Your Heater..........................................24

Yearly Service Procedure....................................24

Troubleshooting Steps ........................................25

How this Heater Works........................................26

Wiring Diagram ..................................................27

Replacement Parts.............................................27

Safety Label

Safety Label .....................................................28

Warranty

Warranty..........................................................29

Optional Equipment & Addenda

LP Conversion Instructions..................................30

Fireback...........................................................33

Wall Thermostat.................................................34

Remote Thermostat............................................35

Gold Door.........................................................35

Gold Grill..........................................................35

Gold Trivet........................................................36

Installation Addenda

Class A Chimney Conversion Kit ...........................37

Interior Masonry Chimney Conversions ..................37

Index

Index...............................................................38

Travis Industries 93508122 141100

Specifications 5

Installation Options:

• Freestanding Stove

• Residential or Mobile Home

• Horizontal or Vertical Vent

Features:

• Ember Fyre ™ Burner for "Wood Fire" Look

• Works During Power Outages

• Optional Thermostat or Remote Control

• Variable-Rate Heat Output

• Blower Standard

Heating Specifications:

Approximate Heating Capacity (in square feet)*......1,200 to 2,000 With Blower, 800 to 1,600 Without

Maximum BTU Input Per Hour...............................43,000 (NG & LP)

Minimum BTU Output on Low (with blowers on).....23,384 (NG) 20,800 (LP)

Steady State Efficiency ............................................................................up to 78% (NG), 81% (LP)

AFUE......................................................................................................71% (NG), 73.7% (LP)

* Heating capacity will vary depending on the home’s floor plan, degree of insulation, and the outside

temperature.

** Efficiency rating is a product of thermal efficiency rating determined under continuous operation independent

of installed system. To measure the net BTU’s, multiply the BTU input by the efficiency percentage.

Dimensions:

Measure Clearances from the Stove Top

The starter section is 1/4" above the top.

Weight: 240 Lbs

Fuel:

This heater is shipped in natural gas (NG) configuration but may be converted to propane (LP) using the included LP conversion kit. The sticker on top of the gas control valve will verify the correct fuel.

28"

33"

21-1/2"

Electrical Specifications

Electrical Rating.........................................................115 Volts, 0.8 Amps, 60 Hz (92 watts on high)

Travis Industries 93508122 141100

6 Installation (for qualified installers only)

Installation Warnings

! Failure to follow all of the requirements may result in property damage, bodily injury, or even death. ! This heater must be installed by a qualified installer who has gone through a training program for the

installation of direct vent gas appliances.

! This appliance must be installed in accordance with all local codes, if any; if not, follow current ANSI

Z223.1 or NFPA 54 in the USA or the current CGA B149 in Canada.

! In Manufactured or Mobile Homes this appliance must be installed to the applicable Mobile Home

Standards: CAN/CSA Z240 MH, the Manufactured Home Construction and Safety Standard, Title 24

CFR, Criteria for Manufactured Home Installations, Sites and Communities, and/or ANSI/NFPA 501A.

This appliance may be installed in Manufactured Housing only after the home is site located.

! This appliance is designed for natural gas or propane (LP). Check the sticker on top of the gas control

valve.

! All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn from

outside the living-area structure.

! Notify your insurance company before hooking up this appliance. ! The requirements below are divided into sections - all requirements must be met simultaneously.

Packing List

• Log Set with Coals • Log Pins • Propane Conversion Kit • Latch Tool

Installation Preparation

HINT: If converting to LP, convert the appliance prior to installation. HINT: Install the logs last - they are fragile. HINT: When determining the location of the stove, locate the wall studs (for horizontal penetrations)

and ceiling trusses (for vertical penetrations). You may wish to adjust the stove position slightly to ensure the vent does not intersect with a framing member.

HINT: Fumes and smoke from the paint curing and oil burning off the steel may occur the first time

you start this heater. This is normal. We recommend you open windows to vent the room.

Straight Installations Corner Installations

With this clearance the

Stove Clearances

10" Min.

vent is 9" from the back wall, 20-1/2" from the side wall.

4" Min.

With this clearance, the vent is 12" from the wall.

4" Min.

45°

Mobile Home Requirements

• When the stove is installed in a mobile home, it must be bolted to the floor and the appliance grounded (use the blower with a grounded circuit or other suitable grounding method - current ANSI/NFPA 70 or CSA C22.1).

Travis Industries 93508122 141100

Installation (for qualified installers only) 7

Heater Placement Requirements

• Heater must be installed on a level surface capable of supporting the heater and vent

• Due to the high temperature of the heater, it should be located out of traffic and away from

furniture and draperies. Heater must be placed so no combustibles are within, or can swing within 36” of the front of the heater (e.g. drapes, doors)

? When placed in a location where the floor to ceiling height is under 7 feet, the installation is

considered an alcove and must meet the following requirements:

• The alcove floor to ceiling height must be at least 60” tall

• The alcove must not be more than 48” deep before the ceiling returns to 7’

• The alcove must be at least 48” wide

• The heater must not be placed so the vents below or above the door, along the sides of heater, or

along the back of the heater can become blocked.

• This heater may be placed in a bedroom. Please be aware of the large amount of heat this

appliance produces when determining a location.

Floor Protection Requirements

• When the stove is installed directly on carpeting, vinyl or other combustible material other than

wood flooring or a high pressure laminate wood floor, the stove must be installed on a metal or wood protection panel extending the full width and depth of the heater (Minimum 27-3/8” wide by 20-3/8” deep).

Gas Line Installation

! The gas line must be installed in accordance with all local codes, if any; if not, follow current ANSI

Z223.1 or NFPA 54 in the USA and the current CGA B149 in Canada.

! The heater and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig (3.45 kPA). For pressures under 1/2 psig (3.45 kPA), isolate the gas supply piping by closing the manual shutoff valve.

• This heater is designed for natural gas but can be converted to

propane. Check the sticker on the top of the gas control valve to make sure the correct fuel is used.

• Leak test all gas line joints and the gas control valve prior to and

after starting the heater.

• The gas inlet accepts a 3/8” F.P.T. Fitting

• The location of the gas inlet is shown below

• A manual shutoff valve is required for installation (it must be

located within 3’ of the heater). T-Handle gas cocks are required in Massachusetts in compliance with code 248CMR.

• Installation must be performed by a qualified installer, service

agency or the gas supplier (In Massachusetts a licensed plumber/gasfitter).

Gas Inlet Pressure

• With the heater off, the inlet pressure must meet the requirements listed in the table below

? If the pressure is not sufficient, make sure the piping used is large enough and the total gas load

for the residence does not exceed the amount supplied.

? The supply regulator (the regulator that attaches directly to the residence inlet or to the propane

tank) should supply gas at the suggested input pressure listed below. Contact the local gas supplier if the regulator is at an improper pressure.

Standard Input Pressure

Natural Gas 7” W.C. (1.74 Kpa) Propane 13” W.C. (3.23 Kpa)

Center Heater

From

Front of

Heater

9-3/8”

3”

18-3/8"

Travis Industries 93508122 141100

8 Installation (for qualified installers only)

Vent Requirements

! Always maintain the required 1” clearance (air space) to combustible materials to prevent a fire hazard.

Do not fill air spaces with insulation.

! The gas appliance and vent system must be vented directly to the outside of the building, and never

be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use it’s own separate vent system.

• This appliance is equipped only for altitudes 0-2000 feet. However, our in-house testing has shown that the unit operated at altitudes to 8000 ft.

! Failure to adjust the air shutter

properly may lead to improper combustion which can create a safety hazard. Consult your dealer or installer if you suspect an improperly adjusted air shutter.

• When the vent passes through a wall, a wall thimble is required. When the vent passes through a ceiling, a support box or firestop is required. When the vent passes through the roof, a roof flashing and storm collar are required. Follow the instructions provided with the vent (from Duravent®) for installing these items.

Use a roof flashing and storm collar whenever passing through the roof (Duravent Part #953 & #943 or #943S)

Use a firestop spacer whenever passing through a ceiling (Duravent Part #963)

Maintain a minimum 1" clearance from vent to any combustible (vent is 6 5/8" diameter)

Vertical Termination (Duravent Part # 991)

8-5/8"

Minimum framing for fire stop

Minimum Framing for wall thimble

Use a support box on exposed vent

Use a wall thimble whenever passing through a wall (Duravent Part #942)

Vertical Vent

Requirements

Maintain a minimum 1" clearance from vent to any combustible (vent is 6 5/8" diameter)

Horizontal Vent

Requirements

Horizontal Termination (Duravent Part #984)

• Use Model GS Direct Vent manufactured by Simpson Dura-Vent only (or the Chimney Conversion Kit

- see Addendum #2). Follow the installation instructions included with the vent. For the nearest Simpson Dura-Vent supplier, call (800) 835-4429. Part numbers and descriptions are listed below.

Straight Lengths

908B 6” Pipe Length, Black (interior) 907B 9” Pipe Length, Black (interior) 906 12” Pipe Length, Galvanized 906B 12” Pipe Length, Black (interior) 904 24” Pipe Length, Galvanized 904B 24” Pipe Length, Black (interior) 903 36” Pipe Length, Galvanized 903B 36” Pipe Length, Black (interior) 902 48” Pipe Length, Galvanized 902B 48” Pipe Length, Black (interior) 911B 11” to 14 5/8” Pipe, Adjustable, Black (interior)

Vent Terminations

981 Snorkel Termination (36” rise) (for basement installations) 982 Snorkel Termination (14” rise) (for basement installations) 984 Horizontal Square Termination 950 Vinyl Siding Standoff 991 Vertical Termination

Elbows

990 90• Elbow 990B 90• Elbow, Black (interior) 945 45° Elbow 945B 45° Elbow, Black (interior)

Penetration, Support Parts

942 Wall Thimble 940 Optional Wall Thimble Cover 941 Cathedral Ceiling Support Box 943 Flashing, 0/12 to 6/12 Roof Pitch 943S Flashing, 7/12 to 12/12 Roof Pitch 953 Storm Collar 963 Ceiling Firestop 988 Wall Strap

• Apply a 1/8" bead of high-temperature silicone or Mill-Pac® to the inner and outer pipe before assembling the sections (on the male, upper section). This seals the inner pipe from the outer pipe. Slide the sections together and turn 1/4 turn until the sections lock in place. Install three metal screws through each joint to lock the outer section in place (see the instructions included with the vent for further details).

NOTE: You may screw the first section of vent to the appliance.

• Horizontal sections require a 1/4” rise every 12” of travel

+ Exterior Vent Diameter = 6-5/8” , Inner Vent Diameter = 4”

• Horizontal sections require non-combustible support every 36” (e.g.: use plumbing tape)

Travis Industries 93508122 141100

Installation (for qualified installers only) 9

Approved Vent Configurations

Restrictor Position

• A vent restrictor is built into the appliance to control the flow rate of exhaust gases. This ensures proper flames for the wide variety of vent configurations. Depending upon the vent configuration, you may be required to adjust the restrictor position. The charts for approved vent configurations describe which position the vent restrictor must be in.

To Access the Restrictor:

Adjustment Plate

The restrictor is located directly above the door, behind the grill.

To Adjust the Restrictor:

Determine the correct restrictor position (see the charts under "Approved Vent Configurations" - the factory position is #1).

Lift up the adjustment plate and move it so the correct notch falls into the slot on the adjustment bracket.

# 2

etc.

# 7

# 8

WARNING: Use a glove to protect your hand from burns.

This restrictor is in position 1 (factory setting).

Measuring Vent Lengths

Adjustment Bracket

Elbows add 3" (75 mm) to the length of the vent system.

Side View

3" (75 mm)

1-1/2" (37 mm)

Vent sections overlap each other by 1-1/2" (37 mm)

Vent Length (3', 4', etc.) (910, 1210 mm)

To adjust, lift up on the adjustment plate and push it back.

Vent Height is calculated to the top of the vent on horizontal

9-5/8" (245 mm)

1-1/2" (37 mm)

terminations and to the top of the termination on vertical terminations.

Vent

Height

This restrictor is in position 7.

Vent Horizontal Run (measure from the closest edge of the starter section to the end of the termination)

12-3/8" (310 mm) tall with 1-1/2" (37 mm) of overlap

8-3/4" (220 mm) wide with 1-1/2" (37 mm) to 3-3/8" (85 mm) of overlap

The starter section is 1/4"" above the top

Travis Industries 93508122 141100

10 Installation (for qualified installers only)

Vertical Terminations with 0, 2, or 4 45° Offsets

Offset Length Hor. Offset Vert. Rise

None 5" 1' 1' Section 1' 1' 7" 2' Section 1' 9" 2' 4" 3' Section 2' 5" 3' 4' Section 3' 2" 3' 8"

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

Zero or Two 45° Offsets

38' (max)

30 feet

0 feet

5 feet

Restrictor

Position # 7

10 feet

12' 8"

(max)

38' (max)

35 feet35 feet

30 feet

38' (max)

30 feet

Horizontal Offset

Vertical

Rise

Offset Length

Four 45° Offsets

0 feet

5 feet

Restrictor

Position # 7

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly, especially when the termination is near the demarkation line.

10 feet

12' 8"

(max)

38' (max)

35 feet35 feet

30 feet

10 feet

(min.)

0 feet

25 feet

20 feet

15 feet

5 feet

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly, especially when the termination is near the demarkation line.

Restrictor

Position # 1

NOTE: The maximum offset lengths, combined, is four 4' sections.

25 feet

20 feet

15 feet

10 feet (min.)

5 feet

0 feet

10 feet

0 feet

25 feet

20 feet

15 feet

(min.)

5 feet

Restrictor

Position # 1

NOTE: The maximum offset lengths, combined, is four 4' sections.

25 feet

20 feet

15 feet

10 feet (min.)

5 feet

0 feet

5 feet

10 feet

12' 8"

(max)

0 feet

5 feet

10 feet

12' 8"

(max)

Travis Industries 93508122 141100

Installation (for qualified installers only) 11

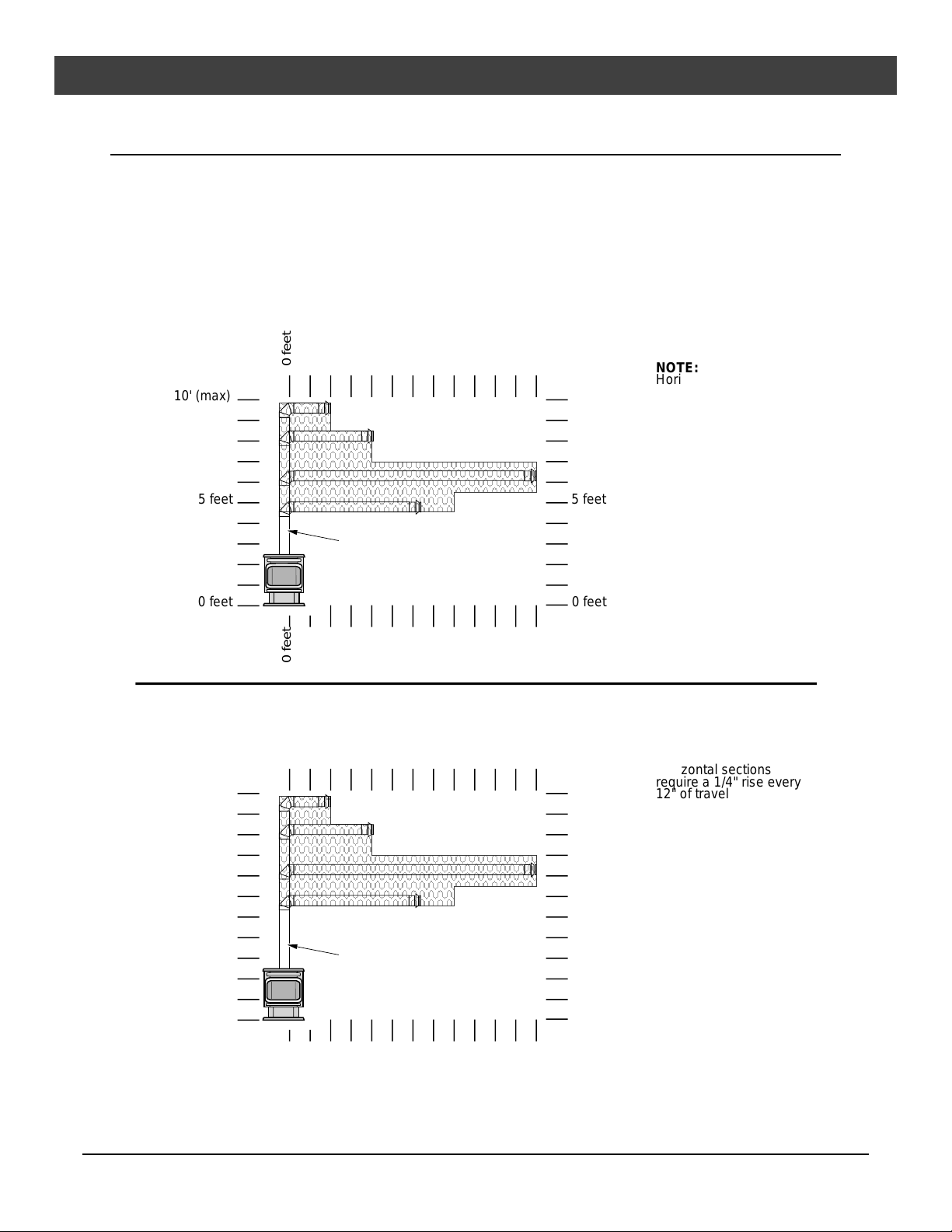

Approved Venting Configurations with a Horizontal Termination

• If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations).

• The termination must fall within the shaded area shown in the chart. Use restrictor position #1.

Natural Gas (NG) Installations

10' (max)

5 feet

0 feet

Propane (LP) Installations

11' (max)

0 feet

5 feet

Use Restrictor Position # 1

(all shaded areas)

NOTE:

A minimum 2 foot rise is required directly off of the stove.

5 feet

Use Restrictor Position # 1

(all shaded areas)

12 feet

(max)

10' (max)

5 feet

0 feet

(max)

12 feet

(max)

11' (max)

NOTE:

Horizontal sections require a 1/4" rise every 12" of travel.

NOTE:

Horizontal sections require a 1/4" rise every 12" of travel.

5 feet

0 feet

NOTE:

A minimum 3 foot rise is required directly off of the stove.

5 feet

(max)

12 feet

5 feet

0 feet

Travis Industries 93508122 141100

12 Installation (for qualified installers only)

Vertical Terminations with Two or Three 90° Elbows

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

0 feet

38' (max)

35 feet 35 feet

30 feet

25 feet

20 feet

15 feet

5 feet

10 feet

Restrictor Position # 7

Restrictor Position # 1

15 feet

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly, especially when the termination is near a demarkation line.

20 feet

25'(max)

38' (max)

30 feet

25 feet

20 feet

15 feet

10 feet

(min.)

5 feet

0 feet

NOTE:

• Horizontal sections require a 1/4" rise every 12" of travel.

• The maximum vertical height is 38'.

• The maximum horizontal length is 25'.

• One horizontal elbow is allowed. The

horizontal vent length is calculated by adding the length before and after the elbow (H1 + H2 = horizontal vent length).

NOTE:

Horizontal sections require a 1/4" rise every 12" of travel.

5 feet

10 feet

This is considered a horizontal elbow (it does not matter whether it turns right or left). It may be a 45° or 90° elbow.

15 feet

20 feet

10 feet

(min.)

5 feet

0 feet

25'(max)

This is considered a vertical elbow

Horizontal length is calculated by adding both lengths of horizontal run (Horizontal Length = H1 + H2).

This is considered a vertical elbow

Travis Industries 93508122 141100

Installation (for qualified installers only) 13

Termination Requirements (see the illustration below)

A Minimum 9" clearance from any door or window B Minimum 12" above any grade, veranda, porch, deck or balcony

Roof Surface

C Minimum 12" from outside corner walls D Minimum 12" from inside corner walls

11” Min.

6” Min.

E Minimum 11" clearance below unventilated soffits or roof surfaces

Minimum 18" clearance below ventilated soffits Minimum 6" clearance from roof eaves

NOTE: Vinyl surfaces require 24" F Minimum 18" clearance below a veranda, porch, deck or balcony (must have two open sides) G Minimum 48" clearance from any adjacent building H Minimum 84" clearance above any grade when adjacent to public walkways or driveways

NOTE: may not be used over a walkway or driveway shared by an adjacent building I Minimum 48" clearance from any mechanical air supply inlet, 72" for Canada J Minimum 36" clearance above and 48” below and to the sides of non-mechanical air supply inlet K Minimum 36" from the area above the meter/regulator (vent outlet) L Minimum 36" from the meter/regulator (vent outlet) M Minimum 12” above the roof line (for vertical terminations) N Minimum 24” horizontal clearance to any surface (such as an exterior wall) – for vertical terminations

Roof Eaves

NOTE: Measure clearances to the nearest edge of the exhaust hood.

• Use the vinyl siding standoff (#950) when installing on an exterior with vinyl siding.

• Vent termination must not be located where it will become plugged by snow or other material

• These clearances meet UMC-1994 and the CNA/CGA-B149 code standards.

Travis Industries 93508122 141100

14 Installation (for qualified installers only)

Finalizing the Installation

! Turn the gas control valve to “OFF” prior to conducting any service. 1 Open the door (see page 16). 2 Install the log set and coals (see page 17). ! We recommend you purge the gas line at this time (with the door open). This allows gas to be

detected once it enters the firebox, ensuring gas does not build up.

3 Close and secure the door (see page 16). 4 Turn on gas to the heater. Leak test all gas joints prior to starting the appliance. Start the pilot. Start

the main burner. Leak test all gas joints again. 5 Check the pilot flame to make sure it looks like the illustration below. Adjust the pilot flame if

necessary.

To adjust the pilot flame, turn this screw (NOTE: if totally unscrewed gas will come out of this port). Clockwise lowers the flame while counter-clockwise raises it.

6 Let the heater burn

for fifteen minutes.

Adjust the air

shutters, if

necessary, to

achieve the correct

looking flame (see

the illustration

below).

• The air shutter

ADJUSTING THE AIR SHUTTERS

Follow the directions below to adjust the front and rear air shutter independently.

Front Air Shutter Control

CLOSED (less air)

OPEN (more air)

adjusts the amount

of air that mixes with

the gas before it

exits the burner

Rear Air Shutter Control

holes.

NOTE: If the air control is all the way in, yet the flames remain sooty, shut off gas to the fireplace and contact a qualified gas service technician.

NOTE: The logs must be installed correctly to monitor the flame while adjusting the air shutter.

Standard Screwdriver

Loosen the nut two turns.

3/8" Nutdriver

OPEN

CLOSED (less air)

(more air)

The pilot flame must contact the thermocouple and thermopile (see the illustration below). Adjust the pilot up or down as necessary.

Slide the air shutter rod in or out.

Tighten the nut to

secure the shutter.

Swing the left side door open.

Correct

Flames should be blue at the base, yellow-orange on the top.

Not Enough Air Too Much Air

If the flames are over 12" tall or sooty on the ends, push the air control in.

If the flames are all blue and short, pull the air control out.

Travis Industries 93508122 141100

Installation (for qualified installers only) 15

FINE TUNING THE EMBER-FYRE™ BURNER

Each installation is affected by altitude, vent configuration, and fuel quality. Because of this, the restrictor and air shutter may need to be fine tuned to each installation. Follow the hints below to fine-tune the burner for optimum performance and aesthetics.

Restrictor Hints:

Set the restrictor to the position suggested in the vent configuration table (pages 10-12). Turn the heater on and allow it to reach full temperature (15 min.). If the flames indicate there is excessive draft due to altitude or climate, you may wish to adjust the restrictor to a more restrictive position (higher number). Active, flickering short flames are an indication of excessive draft. If the flames lift off of the burner holes, this indicates not enough draft (restrictor is set too high). After adjustments are made the unit must be cooled down to room temperature and restarted to make sure that the restriction is not so severe that the pilot will drop out when it is restarted. If the pilot does drop out reduce the restriction until it will operate continuously.

Air Shutter Hints:

• For more glow, open the air shutter, however, this will make the flames more blue.

• For yellow flames, close the air shutter, however, this may create less glow.

The flames should burn right off the top of the burner ports (if they are too blue, adjust the air control).

Lifting FlamesCorrect Flames

Burner

Lifting flames indicate insufficient draft (restrictor is set too high).

Burner Ports

(holes)

Ghosting Flames Flickering Flames

Ghosting flames indicate insufficient air (restrictor set too high, air shutter shut down, or other venting error).

Flickering, short flames indicate excessive draft (move air shutter to a higher position).

Warning: If the vent configuration is installed incorrectly the vent may cause the flames inside the heater to lift or

“ghost” – a dangerous situation. Inspect the flames after installation to insure proper performance. If the vent configuration is correct, yet the flames are lifting or ghosting, shut off gas to the heater and contact the dealer for information on remedying the problem.

7 Turn the flame adjust knob to its highest position - the flames should be a maximum 10” to 12” tall.

Check the flame on low position. The flames should burn off of each burner hole. If the heater does

not work correctly, contact your dealer for a remedy.

8 Give this manual to the home owner and fully explain the operation of this heater.

Travis Industries 93508122 141100

16 Installation (for qualified installers only)

Opening the Door

Swing the left

panel back.

Open both the top and bottom latch.

Pawl

Strike

NOTE: Do not overtighten the pawl by screwing it in. This will permanently damage the latch.

With the pawl free of the strike, the door may be

swung open.

Door Frame

When securing the door, make sure the

pawl fits over the strike before tightening.

Travis Industries 93508122 141100

Installation (for qualified installers only) 17

Log Set and Coal Installation

Step 1 Before installing the log set, make sure the burner is seated correctly.

Remove the burner and check the items below (see page 30).

Replace the

burner, making sure the burner tubes line up with the mixing tubes.

NOTE:

Make sure the “O” rings seal the burner tubes to the mixing tubes.

O-Ring

Burner Tube

Mixing Tube

Make sure the burner is

fully seated. When in place, the pilot flame must align directly above the burner holes.

Step 2

Place the rear log on the two platforms at the rear of the firebox.

Place the two pins, included in the hardware pack, into the burner.

HINT:

If the burner does not insert easily, make sure the screws holding the rear mixing tube in place are slightly loose. This allows the mixing tube to move slightly and align with the burner tube.

These pins insert into the holes in the log.

Place the front left log

stand over this pin.

Travis Industries 93508122 141100

18 Installation (for qualified installers only)

Step 3 Install the front logs.

Place the left log on

top of the stand.

These pins insert into the holes in the log.

Place the right front

log here.

Do not place logs over burner holes.

Top View

1” to 1-1/2”

space

Note how the front left log is spaced 1/4” to 3/8” off of the burner holes.

Travis Industries 93508122 141100

Installation (for qualified installers only) 19

When in place the logs should look like this:

Step 4 Install the embers along the front of the burner (see the illustrations below).

Do not place the embers over the burner holes.

Front View

Side View

Travis Industries 93508122 141100

20 Operation

Safety Notice

Read this entire manual (especially the “Safety Precautions” on pages 2 and 3)

before using this stove. Failure to follow the instructions may result in property

damage, bodily injury, or even death.

Location of Controls

The pilot flame is located below the rear log.

PILOT

IGNITER

Gas Control Valve

Gas Control Knob

Flame Adjust Knob

ON/OFF Switch

The on/off switch is located on the back of the heater.

Blower

Control

On/Off Switch This control is used to turn the main burner on and off.

Gas Control Knob This knob is used to control gas to the heater and for starting the pilot.

There are three positions, ON, OFF, & PILOT. The pointer to the left of the knob indicates the position this knob is in.

Flame Adjust Knob This knob controls the flame height from low (“LO”) to high (“HI”). The

pointer above the knob points to the position this knob is in.

Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an

electrical charge to the pilot assembly. This creates a blue spark directly next to the pilot, igniting the pilot flame.

Blower Control This knob controls the speed of the internal convection blower that

pushes the heated air into the room.

? If using a remote control or thermostat, the On/Off Switch must be left “ON”. Turning the On/Off

Switch “OFF” will keep the heater off always.

Travis Industries 93508122 141100

Starting The Pilot Flame

Operation 21

The pilot flame is required to ignite the main burners (it also plays a safety role). It should be left on once lit. It will stay lit unless the gas control valve is turned to "OFF". However, the pilot will go out if the gas is shut off, the propane tank runs out (or low) or if the stove malfunctions. If the pilot turns off frequently, call your dealer for information. To start the pilot follow the directions below:

WARNING :

When lighting or re-lighting the

pilot, the door must be opened (see

page 16). a Open the door (see page 16 for details). b Push the gas control knob in slightly and turn

it to the "OFF" position. The knob will not

turn from "ON" to "OFF" unless the knob is

depressed slightly. Wait five minutes to let

any gas that may have accumulated inside

the firebox escape. If you smell leaking gas,

follow the directions on the cover "IF YOU

SMELL GAS". c Turn the gas control knob to the "PILOT"

position and press the knob in, this will allow

gas to flow to the pilot light. Press the

button on the pilot igniter repeatedly until

you see the pilot light.

5 minutes

PILOT

IGNITER

30 seconds

WARNING:

If the pilot does not light after 15

seconds, release the knob and call

your dealer for service. Do not

attempt to light pilot until service

has been performed.

NOTE:

You may wish to remove the log set

to gain a better view of the pilot (see

page 17). d Keep the gas control knob depressed for 30

seconds once it is lit. e Release the gas control knob. If the pilot

goes out, repeat step C. If the pilot refuses

to stay lit, call your dealer for service. With

the pilot lit, proceed to step “f”.

f Close and latch the door. g Turn the gas control knob counter-clockwise

to "ON". The pilot is now lit and the heater

can be turned on and off.

Travis Industries 93508122 141100

22 Operation

Starting the Heater for the First Time

Cleaning Gold Surfaces

Fingerprints or other marks left on gold surfaces may become etched in place if they are not wiped

clean prior to turning the stove on. With the heater cool, clean gold surfaces with denatured alcohol

and a soft cloth.

Fumes from the Painted Surfaces Curing

Burn the heater at a medium setting for approximately one hour the first time. This will cure the

painted surfaces. Fumes from the paint curing and oil burning off the steel may occur. This is

normal. We recommend you open the window to vent the room.

Condensation

Water may appear on the glass each time you start the heater - this is normal.

Blue Flames

The flames will be blue when first started. After fifteen minutes the flames will turn a more realistic

yellow and orange color.

Turning the Heater On and Off

After the pilot has been started...

For systems with wall thermostats, use this switch to control the temperature (right is hotter, left cooler). Some systems require the on/off switch to be on.

Use this switch to turn the main burner on and off manually.

See the instructions included with the remote for details on operation.

See the instructions included with the remote for changing the battery.

ROOM TEMP

°F

SET TEMP

TIMER

MIN

°F

Time

OFF

Set

Time Cancel

Warning: Do not place combustible items on top or directly in front of the heater, even temporarily.

The optional thermostat may start the heater causing a combustible item to ignite.

Note: If the heater turns on and off frequently while using the thermostat, you may want to

adjust the flame height down until it produces just enough heat needed.

Adjusting the Flame Height

Your heater has an adjustable flame to tailor the look and heat output to your specific needs. It is

adjusted by turning the middle dial on the gas control valve.

Flame Height Adjustment Knob

Index Mark

Turn counter-clockwise to adjust the flame higher, clockwise to lower.

Travis Industries 93508122 141100

Operation 23

Adjusting the Blower Speed

The blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to

temperature (approximately 10 minutes after starting). See the illustration below for instructions on

adjusting the blower speed.

OFF

Turn the dial all the way counter-clockwise until it clicks off.

Normal Operating Sounds

Pilot Flame

The pilot flame, which remains on, makes a very slight "whisper" sound.

HIGH

The high position is all the way counter-clockwise, without clicking off.

LOW

Turn the dial all the way clockwise.

Blower This heater uses a blower to push heated air into the room. You will hear the sound of air movement that increases as the speed is increased.

The appliance may creak with change of temperature.

Blower Snap Disk This part can produce a clicking sound as it turns the

Gas Control Valve

As the gas control valve is turned on and off you will hear a dull clicking sound. This is the valve opening up and shutting down.

blower on and off.

Travis Industries 93508122 141100

24 Maintenance

Cleaning Your Heater

Warning: Fingerprints or other marks left on the optional gold surface may become etched in place if they are not

wiped clean prior to turning the stove on.

With the heater cool, use denatured alcohol and a soft cloth to clean gold surfaces. Other cleaners may leave a

film that may become etched into the gold.

Yearly Service Procedure

Warning: Failure to inspect and maintain the heater may lead to improper combustion and a potentially dangerous

1 Check the pilot flame. It should engulf approximately 3/8” of the top of the thermocouple (see illustration below).

If it does not, contact your dealer for service. 2 Shut off gas to the heater by turning the gas control knob to “OFF” (see step A under “Starting the Pilot” on page

21). Let the heater cool for 15 minutes. Open the door (see page 16).

3 Remove the log set and embers (see page 17 - NOTE: the log set is fragile). If any log is cracked or

deteriorated, replace it when re-installing. Check the logs for sooting. If excessive sooting is found, the heater

will require adjustment. Contact your dealer. 4 Clean the burner pan (especially the burner holes) and inspect the following:

• Check for burner for cracks, warps, or other damage.

• Check the firebox and area around the pilot to make sure there is no warping or damage.

If any problem is found, discontinue use and contact your dealer for service.

situation. We recommend the following procedures be done by a qualified technician.

Check the walls and ceiling of the firebox for deterioration.

Before Disassembly -

Check the pilot flame. It should touch the thermocouple and thermopile.

Make sure the burner is not warped or damaged.

Thermopile

Pilot Hood

Check the

Thermocouple

burner holes.

5 Replace the log set. Inspect the glass gasket. If it is deteriorated, replace. If the glass is damaged, replace it. 6 Check the gas control valve and all of the gas lines. If any damage is found, discontinue use and contact your

dealer for service. 7 To check the door seal, place a dollar bill along the door perimeter then close and latch the door. If the dollar bill

is held in place securely, the door seal is adequate. However, it the dollar bill slides out easily, you should adjust

the door. Contact your dealer to obtain directions on tightening the door seal. 8 Start the pilot and turn on the main burner. The flames should be orange/yellow and not touch the top of the

firebox. If the pilot or main burners do not burn correctly, contact your dealer for service. Monitor the blower

operation. 9 Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is

found near the vent termination.

Travis Industries 93508122 141100

Maintenance 25

Troubleshooting Steps

Problem: Possible Cause: Remedy:

Pilot Will Not Flame

Main Burners Will Not Start

Remote Control Does Not Work

Thermostat Does Not Work

Blower Does Not Operate

Flames Are Too Blue

A gas shut off valve is turned off......................

The gas control knob isn’t turned to “PILOT”.......

The valve control knob isn’t pushed in...............

The igniter wasn’t pressed repeatedly ...............

No spark from igniter......................................

The pilot flame has gone out............................

The gas control valve is turned to “PILOT” or “OFF”

The ON/OFF switch is turned to “OFF”...............

The remote control is not working correctly.........

The thermostat is disconnected or set too high ...

The pilot light has gone out..............................

The gas control valve is turned to “PILOT” or “OFF”

The ON/OFF switch is turned to “OFF”...............

The remote is too far away from the heater .........

The remote control receiver is turned “OFF”........

One of the two remote control batteries is dead...

The pilot flame has gone out............................

The gas control valve is turned to “PILOT” or “OFF”

The ON/OFF switch is turned to “OFF”...............

The thermostat is set too high..........................

Make sure blower control is turned “ON”

The heater is not getting electricity...................

The heater is not up to temperature...................

The heater has just been started...................... This is normal - see “Starting the

Check all gas shut off valves See “Starting the Pilot Flame” Pg 19 See “Starting the Pilot Flame” Pg 19 See “Starting the Pilot Flame” Pg 19 Igniter Faulty - Contact your Dealer

See “Starting the Pilot Flame” Pg 19 See “Starting the Pilot Flame” Pg 19 Turn the ON/OFF switch to “ON” Replace the batteries Set the thermostat to a lower

temperature See “Starting the Pilot Flame” Pg 19

See “Starting the Pilot Flame” Pg 19 Turn the ON/OFF switch to “ON” Use the remote closer to the heater See the remote control instructions See the remote control instructions

See “Starting the Pilot Flame” Pg 19 See “Starting the Pilot Flame” Pg 19 Turn the ON/OFF switch to “ON” Set the thermostat to a lower

temperature See “Adjusting Blower Speed” Pg. 21

Make sure it is plugged in and the outlet is providing electricity

See “Operating Your Heater”

Heater for the First Time”

Flames Are Too Short (Under 6”)

The flame height may be turned too low.............. Turn the flame height to “HI” -

See “Adjusting the Flame Height”

Travis Industries 93508122 141100

26 Maintenance

How this Heater Works

Warning This heater was designed with safety as the primary concern. Many of the components

inside this heater are for safety purposes. Therefore, only certified gas service technicians should service this heater.

What Turns the Main Burners On and Off

This heater uses a millivolt system to control its operation (a millivolt is a very small amount of

electricity). The thermopile and thermocouple generate electricity when heated by the pilot flame.

This electricity is used to operate the gas valve. Without enough electricity, the gas valve will not turn

on. That is why when starting the pilot the gas control knob has to be pressed in long enough for the

thermocouple to heat up and generate enough electricity. The thermopile provides power for the

ON/OFF switch, remote control, or thermostat (see the illustration below). Because the thermopile

generates the electricity needed to turn the heater on and off, this heater can be operated when the

power is out (although the blower will not run).

When heated, the thermopile generates electricity (a very small amount measured in "Millivolts").

This electricity is used to operate the main burners.

The main burners are switched on and off using the electricity generated by the thermopile. The ON/OFF switch, remote control, or thermostat control the circuit to the main burner.

MAIN BURNER

OFF

What Prevents Gas Buildup

• This appliance utilizes a high-technology gas valve in conjunction with a pilot flame to ensure no gas

builds up inside the firebox.

• The thermocouple (next to the pilot) senses when the pilot flame is lit. If the pilot flame goes out, this

thermocouple no longer generates electricity, causing the gas valve to automatically shut off all gas to

the heater, preventing the pilot or burner from spilling gas into the firebox.

Pilot Flame

The pilot flame is a time-proven component that eliminates the possibility of gas buildup inside the firebox.

Gas Valve

This high-technology valve automatically shuts off all gas if it does not receive a signal from the thermocouple. If any component is damaged or sensing a malfunction, or if the wiring is damaged, it will shut off all gas.

External Shut Off Valve

This valve is placed on the gas line to shut off gas to the appliance during maintenance procedures.

Thermocouple

The thermocouple generates a small amount of electricity. If the pilot flame goes out, the gas valve automatically shuts off all gas.

Ceramic Glass

The glass in your heater is the most durable glass available. It has been tested to be extremely resistant to breakage from temperature changes.

Travis Industries 93508122 141100

Wiring Diagram

Maintenance 27

Millivolt Wiring (for gas control valve)

120 Volt Wiring

Ground (green)

(white)

Hot

(black)

Solenoid

Power In

Molex

Connector

Power Supply

Optional

Gas Control

Common

Blower

Valve

Optional Regulator

Red

Black White

Green

Ground

(attached to stove)

White

Black

Blue

On/Off Switch

Brown

Red

Blue

Brown

Copper Co-Axial

Wire

Black

Thermocouple

Red

White

Black

Thermopile

Optional

Thermostat

Rheostat

Blower Snap Disk

Remote

Control

Molex

Connector

Piezo Igniter

Spark Electrode

Pilot Hood

Optional Remote

Control

Orange

Replacement Parts:

93006080 Blower 93006855 Orifice, Burner, #43 93006815 Burner Assembly 93006857 Orifice, Burner, #46 93006702 Burner, O-Ring 98900751 Piezo Igniter 93006506 Control Valve, Natural Gas 93006516 Pilot Assembly, LP (S.I.T.) 93006507 Control Valve, Propane 93006515 Pilot Assembly, NG (S.I.T.) 99900402 Door Gasket 93006523 Pilot Electrode, S.I.T. 99900409 Door Gasket Cement - 4 oz. 93006509 Pilot Injector, LP (#35) 93006813 Ember Coals 93006508 Pilot Injector, NG (#62) 91002561 Flex-pipe, 3/8" x 24" 93006522 Pilot Tube, S.I.T. 99900404 Glass Gasket 99300656 Power Cord, With Molex Connector 99400116 Glass, Side 93006504 Rheostat 98900525 Hardware Pack, LP Conversion Kit 99300657 Rheostat Knob 93006802 Log, Left 98900720 Snap Disk, 120 Degree 93006803 Log, Rear 93006518 Thermocouple, S.I.T. 93006804 Log, Right 93006920 Threaded Pipe Adapter - 5/8 x 1/2 93006800 Log Set 93006505 Wiring Harness 98900747 On/Off Switch

Travis Industries 93508122 141100

28 Safety Label

L.P. N.G. L.P. N.G.

Input Rate on “HI” (BTU/Hr) . . . . . . . 43,000 43,000 Minimum Inlet Pressure (inches W.C.) . . . . . . . . 11.5” 5.5”

Input Rate on “LO” (BTU/Hr) . . . . . . 26,000 29,600 Maximum Inlet Pressure (inches W.C.) . . . . . . . . 13” 7”

Manifold Pressure on “HI” (inches W.C.) . . . . . . 11” 3.5”

In USA, this appliance is equipped for installation from 0-2000 ft. (0-610 m). For altitudes above 2,000 feet, the vent configuration, orifice, or combination of both may need to be changed. See owner’s manual for information on making these changes.

FAN TYPE VENTED CIRCULATOR

Blower Electrical Rating: 115V., 1.5 Amps, 60 Hz, 150 Watts

Salish DVL Stove

Listed Vented

Gas Fireplace Heater

Tested and certified by OMNI-Test Laboratories, Inc. to the combustion performance and construction requirements of ANSI Z21.88b-1999, and applicable sections of UL307b.

The DVL FS is equipped from the factory only for use with Natural Gas. For conversion to LP (Propane) use kit supplied by the manufacturer. This appliance must be installed in accordance with all local codes, if any; if not, in USA follow ANSI Z223.1-1992 and NFPA 54(88). Installation in Manufactured or Mobile Homes must conform with: In USA, Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a certified kit supplied by the manufacturer is used. See owner’s manual for information on making these changes. This appliance uses a millivolttype control system consisting of a gas control valve/regulator, a standing pilot burner assembly, a thermopile, a thermocouple, a piezo ignitor, and the ON/OFF switch. THIS UNIT DOES NOT REQUIRE 110 VOLT POWER TO OPERATE. All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn from outside the living-area structure.

This appliance is a V ented Gas Fireplace Heater. Not for use with Solid Fuel.

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’ s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.

WARNING: Operation of this appliance when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death.

Installation and repair should be performed by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required where excessive lint from material like carpeting and bedding is present. The control compartment, the burner compartment and all circulating air passageways of the appliance must be kept clean and clear at all times.

This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. This vented gas fireplace heater is not for use with air filters. Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies. Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid flesh burns or clothing ignition. Young children should be carefully supervised at all times when they are in the same room as the appliance. CAUTION:Hot while in operation. Do not touch. Keep children, clothing, furniture, gasoline and other liquids having flammable vapors away. CAUTION: Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or

qualified service person. Use direct vent systems listed in owner’s manual to vent this appliance to the exterior.

10850 117th Pl. N.E. Kirkland, WA 98033

Minimum Clearances to Combustibles

Unit to Sidewall ..................... 10” / 255mm Alcove Min. Height ................ 60” / 1520mm

Unit to Backwall .................... 4” / 100mm Alcove Max. Depth................. 48” / 1220mm

Unit to Cornerwall................. 4” / 100mm Alcove Min Width................... 48” / 1220mm

Front of Unit........................... 36” / 910mm

Manufacture 2000 Jan. Apr. Jul. Oct. Date: 2001 Feb. May Aug. Nov.

2002 Mar. Jun. Sep. Dec.

0332

Report No. 028-S-14-1

The listing label is shown below for your records. It can be found inside the right side panel.

Travis Industries 93508122 141100

Warranty 29

To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance

purchase date to: TRAVIS INDUSTRIES, INC., 10850 117th Place N.E., Kirkland, Washington 98033. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows:

Years 1 & 2 - COVERAGE: PARTS & LABOR

Burner Assembly:

Burner Pan, Mixing Tube, Air Shutter Assembly, Main Burner Orifice

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms (direct vents only), Glass Attachment Mechanism

Gas Control Assembly

Adjustable control valve, millivolt wiring and connectors (located within the metal heater structure), thermopile, thermocouple, pilot hood, orifices, pilot gas line, piezo ignitor

Exclusions: Paint, Gasketing

Years 3 THROUGH 5 - COVERAGE: PARTS & LABOR

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms (direct vents only), Glass Attachment Mechanism

Exclusions: Paint, Gasketing, Burner Assembly, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold & Nickel

Plating, Accessories, Re-Installation Allowance

Years 6 & 7 - COVERAGE: PARTS ONLY

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms (direct vents only), Glass Attachment Mechanism

Exclusions: Paint, Gasketing, Burner Assembly, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold & Nickel

Plating, Accessories, Convection Heat Exchanger, Re-Installation Allowance, One-Way Freight Allowance, Labor

Ceramic Glass

Glass (breakage from thermal shock)

Ceramic Logs

Log Set, Coals, Ember Strip (Steel Fiber)

Gold Plating

Gold or Nickel Door, Optional Grill (see “Conditions and Exclusions” # 9)

Electrical Assembly :

Blower, wiring harness, snap discs, rheostat speed control

Convection Heat Exchanger

Accessories

Legs, Pedestal, Panels, Cast Firebacks, Shell Assembly

Convection Heat Exchanger Re-Installation Allowance

In cases where heater must be removed from home for repairs, a partial cost of re-installation is covered (preauthorization required)

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at factory is covered.

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at factory is covered.

CONDITIONS & EXCLUSIONS

1. This new gas appliance must be installed by a qualified gas appliance technician. It must be installed, operated, and maintained at all times in accordance with the instructions in the Owner’s Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized TRAVIS dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered under warranty. The installer must ensure the appliance is burning as per the rating tag at the time of installation. Over-firing (operation above the listed BTU rate) of this appliance can cause serious damage and will nullify this warranty.

4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the installation of this product. If in doubt as to the extent of this warranty, contact your authorized TRAVIS retailer before installation.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or mountains or negative pressure or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.

6. This Warranty is void if: a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals. b. The unit is subject to submersion in water or prolonged periods of dampness or condensation. c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not limited to, improper

7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation, alteration or adjustment of

8. This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, corroded or cracked logs, embers, etc.

9. Damage to gold, nickel, or brass surfaces caused by fingerprints, scratches, melted items, or other external sources left on the surface is not covered in this warranty. Damage

10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages

11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the gas appliance without the express written

12. Any statement or representation of TRAVIS products and their performance contained in TRAVIS advertising, packaging literature, or printed material is not part of this 7 year

13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way. If the appliance is used for commercial purposes, it is excluded from

14. No dealer, distributor, or similar person has the authority to represent or warrant TRAVIS products beyond the terms contained within this warranty. TRAVIS INDUSTRIES, INC.

15. Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.

16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17. THIS 7 YEAR WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE APPLIANCE. ALL OTHER

chimney/venting installation. the manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or act of God. Also excluded is damage to the unit caused by abuse, improper installation, modification of the unit, drilling of the orifices, or the use of fuel other than that for which the unit is

configured. Units are shipped for natural gas and must be converted to propane using the included conversion kit. Confirm fuel configuration with your installer. from the use of cleaners other than denatured alcohol on gold or nickel is not covered in this warranty. Damage from the use of abrasive cleaners on brass is not covered in this

warranty. are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply. permission of TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval. warranty. this warranty. assumes no liability for such warranties or representations.

WARRANTIES, WHETHER EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED AND PURCHASER’S RECOURSE IS EXPRESSLY LIMITED TO THE WARRANTIES SET FORTH HEREIN.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your TRAVIS dealer WITHIN 30 DAYS, giving them proof of purchase, the purchase date, and the model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you purchased the appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance. At that time, you may be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership.

4. Check with your dealer in advance for any costs to you, when arranging a warranty call. Dealers may require you to pay a service or trip charges for any warranty work. This charge can vary from store to store.

Travis Industries 93508122 141100

30 Optional Equipment

AAAAA

AAA

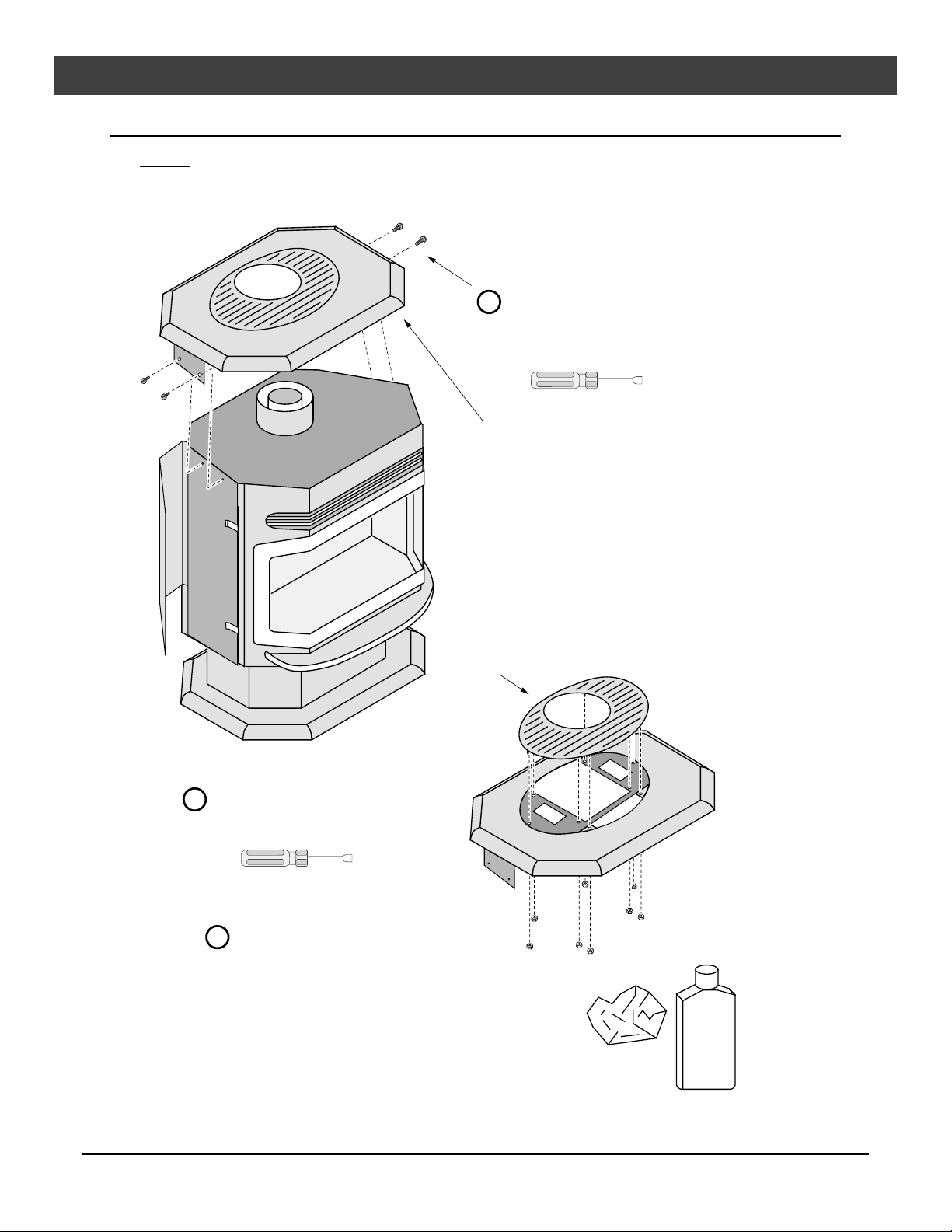

LP Conversion Instructions

Install the conversion kit prior to installing the gas line to ensure proper gas use.

1 Open the door (see page 16). Remove the logs and coals (if installed - page 17) 2 Remove the burner (see illustration below).

Remove the cast floor.

WARNING:

The burner is fragile - handle it with care.

Reach into the firebox and lift the

burner upwards (lift the burner from below).

Do not lift burner out by the pins.

Pull the burner forward, out of the firebox.

NOTE:

After replacing the burner, make sure this “O” ring seals the burner tube to the mixing tube.

Mixing Tube

The tubes on the burner insert into the tubes on the mixing tube.

Burner Tube

Burner Replacement:

If the burner does not insert easily, make sure the screws holding the rear mixing tube in place are slightly loose. This allows the mixing tube to move slightly and align with the burner tube.

Make sure the burner is fully seated. When in place, the pilot flame must align directly above the burner holes.

Travis Industries 93508122 141100

Optional Equipment 31

3 Follow the directions below to remove the natural gas orifices. Apply thread sealant to the LP orifices

(Rear #53, Front #56) and tighten in place with a 1/2" open end wrench. Slide the adjustable shutter back in place over the orifice. Replace the mixing tubes and secure in place with the screws.

Remove the four screws

holding the front and rear mixing tubes in place.

1/4" Nutdriver

Slide the mixing tubes away

from the air shutters and place aside.

Slide both air shutters to the fully open position (to the left - see page 29).

Use a 1/2” open end wrench to unscrew both orifices.

Burner Orifices

Manifold

Apply thread sealant to the LP orifices prior to installation. Use the chart below to identify the correct orifices.

Screw the LP orifice in so the orifice shoulder protrudes 5/16” (indicating full insertion).

Front Burner Orifice

1/2" Wrench

Rear Burner Orifice

Look here for the orifice identification

NG #56 #53

#46

#43

Front Rear

5/16”

Travis Industries 93508122 141100

32 Optional Equipment

4 Remove the pilot orifice following the instructions below. Replace with the propane pilot orifice

Lift the pilot hood

off the pilot assembly.

5 Install the logs and

embers.

6 Close door.

7 Remove the regulator

from the front of the gas control valve. Replace with the propane regulator, using the new gasket and screws included with the regulator.

NOTE: Leak test this area after the heater is installed, gas is connected, and the main burner is lit.

Use a hex wrench to

unscrew the orifice.

5/32" Hex

NOTE: when re-attaching, this pin lines up with the notch in the pilot hood.

Remove and discard the three screws using a slotted screwdriver of Torx T-20.

Slotted Screwdriver (or T-20 Torx)

Install the LP regulator. Use the screws included with the LP regulator. Tighten to approximately 25 Lbs. torque.

Slotted Screwdriver (or T-20 Torx)

Remove the orifice and replace with the LP orifice. Screw the orifice all the way in and replace the pilot hood.

Orifice Identification:

LP (Propane) Orifice

NG (Natural Gas) Orifice

Remove and discard the regulator, diaphram, spring and center post.

NOTE: Make sure the regulator gasket is correctly aligned before installation.

Place the LP label on the plate near the gas control valve.

Travis Industries 93508122 141100

Optional Equipment 33

8 Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly leak-

test all gas connections and the gas control valve. Check the pilot. Adjust if necessary.

WARNING: When lighting or re-lighting the pilot, the door must be opened (see

page 17).

To adjust the pilot flame, turn this screw (NOTE: if totally unscrewed gas will come out of this port). Clockwise lowers the flame while counter-clockwise raises it.

Standard Screwdriver

The pilot flame must contact the thermocouple and thermopile (see the illustration below). Adjust the pilot up or down as necessary.

Fireback (part # 98500754)

Follow the directions below to install the optional firebrick. Remove the log set prior to installation.

Remove the two screws on

the back wall of the firebox. Use these screws to secure two fireback clips.

Remove the two screws on the sides of the firebox and the single screw on the back wall.

5/16" Nutdriver

Place the side firebacks along the sides of the firebox. Secure with the fireback clips and the screws removed in step “b”.

Place the rear fireback on the clips installed in step “a”. Secure the fireback with the screw removed in step “b”.

Travis Industries 93508122 141100

34 Optional Equipment

Wall Thermostat (Part # 99300650)

WARNING: Turn the gas control valve to off and make sure the appliance has fully cooled prior to

conducting service.

NOTE: Do not connect 120 VAC to the gas control valve or wiring of this unit. 1 Cut the quick-connects off of the thermostat wire. Expose approximately 1/4” of wire from the wires

and attach to the upper and lower terminals on the gas control valve (see the illustration below).

Thermostat

Wire

Standard Screwdriver

Attach the thermostat wires to the top and bottom posts on the gas control valve.

2 Route the wire to the rear of the stove. Determine a location for the thermostat that is within range of

the 50' length of thermostat wire. It should be centralized in the room and away from the heater. The wire may be routed externally on the wall or behind the wall (preferred).

3 Cut the thermostat wire so there is approximately 6" of slack (NOTE: Do not splice thermostat wires

together–this leads to too much electrical resistance). Follow the directions below to install the thermostat.

Attach the thermostat to the wall through these two holes.

Re-attach the cover removed in step “a”.

50 60 70 80 90

Robertshaw

50 60 70 80 90

Pull the cover off the thermostat

Run the thermostat wires through the wall (cut off excess wire, leaving 6” of slack).

Expose 1/2” of wire and attach to these two posts.

Standard Screwdriver

4 Set the on/off switch on the stove to “Off”. If turned to “On” the stove will remain on always.

Travis Industries 93508122 141100

Optional Equipment 35

Remote Thermostat

! Do not connect 110-120 VAC to the gas control valve or wiring system of this unit.

• Follow the instructions included with the remote thermostat for installation and operation.

Gold Door (Part # 99300528)

Follow the directions to the right to install the optional gold door.

Warning: Clean the gold surface prior to

starting the stove. Any marks left on the gold may become

Door

etched-in by the heat of the stove. Use denatured alcohol and a soft cloth to clean.

Door Frame

Denatured

Alcohol

Soft Cloth

Gold Grill (Part # 93005046)

Follow the directions to the right to install the optional gold grill.

Warning: Clean the gold surface prior to

starting the stove. Any marks left on the gold may become etched-in by the heat of the stove. Use denatured alcohol and a soft cloth to clean.

With the door open, unscrew the two nuts holding the grill in place.

Remove the black door by sliding it up and off the door frame.

Slide the gold door onto the door frame.

HINT: align the bottom joggle clips over the brackets on the door and slide into place. Then lift up slightly on the door to attach the upper clips.

The door is held in place with six joggle clips.

3/8" Nutdriver

Denatured

Alcohol

Soft Cloth

Place the gold grill in place and secure with the nuts.

Travis Industries 93508122 141100

36 Optional Equipment

Gold Trivet (part # 93005045)

NOTE : The vent must be detached before installing the trivet – install this

component before installing the vent.

Follow the directions below to install the optional gold trivet.

Open both side doors. Remove the

four screws holding the cast top assembly in place.

5/16" Nutdriver

Cast Top Assembly

Remove the eight nuts holding the

trivet in place. Install the gold trivet and re-attach the nuts.

11/32" Nutdriver

Replace the cast top assembly.

Warning: Clean the gold surface prior to starting

the stove. Any marks left on the gold may become etched-in by the heat of the stove. Use denatured alcohol and a soft cloth to clean.

Trivet

Soft Cloth

Denatured

Alcohol

Travis Industries 93508122 141100

Installation Addenda 37

ADDENDUM #1 Class A Chimney Conversion Kit

Simpson Duravent provides a conversion kit for those wishing to use an existing wood stove chimney to vent this direct vent stove. The illustration below gives an overview of this type of installation. See the instructions included with the kit for details.

! Do not exceed the maximum vertical rise (see the section "Approved

Vent Configurations" starting on page 9) allowable. Remember to set the restrictor position to the correct position (based upon the vertical rise height - see the chart on page 10).

! The conversion kit does not work on interior masonry chimneys.

Chimney Conversion Kit A (# 931)

Metalbestos 6" I.D. Security Chimneys 6" I.D. Jackes-Evans 6" I.D. Hart & Cooley 6" I.D. Pro-Jet 6" I.D.

Chimney Conversion Kit B (# 932)

Simpson Dura-Vent 6" I.D. Air-Jet 6" I.D. Metal-Fab 6" and 7" I.D. Amer. Metals 6" & 7" I.D. Metalbestos 7" and 8" I.D. Jackes-Evans 7" and 8" I.D. Hart & Cooley 7" and 8" I.D. Pro-Jet 7" and 8" I.D. Security Chimneys 8" I.D.

Chimney Conversion Kit C (# 933)

Simpson Dura-Vent 7" and 8" I.D. American Metals 8" I.D. Air-Jet 8" I.D. Metal-Fab 8" I.D. American Metals 8" I.D.

Each Kit Contains:

Retro Connector Retro Vertical Top

Additional Required Equipment:

4" Flex (#711 or U.L. 1777) Termination (#991) Co-Axial Sections

Interior Masonry Chimney

ADDENDUM #2 Interior Masonry Chimney Conversions

• Follow the requirements and use the equipment listed in the illustration to the right to install this appliance into an interior masonry chimney.

• Maximum vertical rise is 40'

• Minimum vertical rise is 10'

• See the chart on page 12 for

determining the correct restrictor position. NOTE: these restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly.

Standard Masonry Fireplace

Screw the Retro Vertical Top to the Flex Pipe

Type A Chimney

4" (100 mm) Aluminum Flex Pipe

Retro Connector (screw to chimney)

Simpson Duravent Direct Vent Pipe Sections (use adjustable section)

The entire chimney system must be air-tight. Make sure to seal the flashing, clean-out, and thimble connection, and to inspect the chimney.

Make sure the coaxial pipe maintains a 1” clearance to any combustible. The vent must be sealed air-tight.

#990 90° Elbow

Co-Axial Straight Lengths

The entire chimney system must be air-tight. Seal the connector cover and inspect the chimney.

High-Temp.

Silicone

Make sure the coaxial pipe maintains a 1” clearance to any combustible. The vent must be sealed air-tight.

Retro Vertical Top (screw to chimney)

Cut the Flex Pipe to the chimney height plus 3" (75 mm)

Screw the Retro Connector to the Flex Pipe

#991 High Wind Termination

Flashing (included in #934 Masonry Conversion Kit

High-Temp.

Silicone

#711 Flex Liner (4” dia.) (or other UL 1777 Gas Liner)

Connector with Cover (included in #934 Masonry Conversion Kit)

#991 High Wind Termination

Flashing (included in #934 Masonry Conversion Kit)

#711 Flex Liner (4” dia.) (or other UL 1777 Gas Liner)

Connector (included in #934 Masonry Conversion Kit) secured and sealed to block-off plate.

Travis Industries 93508122 141100

38 Index

Adjusting the Blower Speed........................23

Adjusting the Flame Height.........................2 2

AFUE.........................................................5

Air Shutter Adjustment................................14

Alcoves (see “Heater Placement Req.”).......7

Altitude Considerations...............................8

Amperage (of blower)..................................5

Blower Speed............................................23

BTU Output................................................5

Burn Rate...................................................5

Burner Installation.......................................30

Cap (vent termination).................................13

Cleaning Your Heater..................................24

Clearances.................................................6

Condensation............................................22

Controls.....................................................18

Dimensions................................................5

Door Opening ............................................16

Efficiency ...................................................5

Elbows.......................................................9

Electrical Specifications...............................5

Emissions..................................................5

Flame Height..............................................15

Floor Protection Requirements....................7

Fuel ...........................................................5

Fumes ..................................See Inst. On Cover

Gas Control Valve (Location)........................2 0

Gas Inlet Installation ....................................7

Gas Leak...............................See Inst. on Cover

Gas Line Connection..................................7

Gas Smell..............................See Inst. on Cover

Heating Capacity.........................................5

High Wind Vertical Terminations...................8

Horizontal Vent Termination Requirements..13

How to Measure Vent Lengths....................9

Installation Options.....................................5

Installation Preparation................................6

Leaking Gas.......................See Inst. on Cover

Lifting Flames.............................................15

Listing Label (Safety Label).........................2 8

Log Installation...........................................1 7

Maintaining Your Stove’s Appearance..........24

Natural Gas Verses Propane........................2

On/Off Operation........................................22

On/Off Switch (Location) .............................20

Operating Sounds ......................................23

Order of Installation.....................................6

Packing Lists..............................................6

Paint Curing...............................................2 2

Pilot (starting).............................................2 1

Pilot Flame (Location)..................................2 0

Pressure (of gas)........................................7

Purging Gas Line (with door open)...............14

Restrictor Adjustment.................................9

Safety Label...............................................28

Safety Precautions.....................................2

Silicone Vent Sections................................8

Snorkel Terminations..................................8

Sounds......................................................23

Starting The Pilot Flame..............................2 1

Starting the Heater for the First Time............2 2

Stove Placement Requirements ..................7

Table of Contents .......................................4

Thermostat Installation................................3 3

Troubleshooting Table................................25

Vent Configurations....................................9

Vent Part #’s...............................................8

Vent Requirements....................................8

Vertical Vent Termination Requirements......1 3

Warranty.....................................................2 9

Water (on glass - see starting the heater)......2 2

Wiring Diagram............................................2 7

Yearly Service Procedure............................24

Travis Industries 93508122 141100

Avalon Firestyles Salish EF-2000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
