Avalon Firestyles EF-I Surround Panel User Manual

564 EF-I Surround Panel

Installation Instructions (96100298)

Packing List

 Left Side Panel
 Right Side Panel
 Top Panel

Sizing

Height Width

Size 34-3/8” (874mm) 44-1/4” (1124mm)

Installation

1 Attach the side panels following the directions below.

a

Loosen these
screws 2 turns
(both sides).

`

b

Place the panels into position. Key-hole slots
allow the panels to be installed without removing
the screws. Tighten the screws to secure.

Page 1 of 2 17601858 - 6/18/14 © Travis Industries, Inc.

564 EF-I Surround Panel

Installation Instructions (96100298)

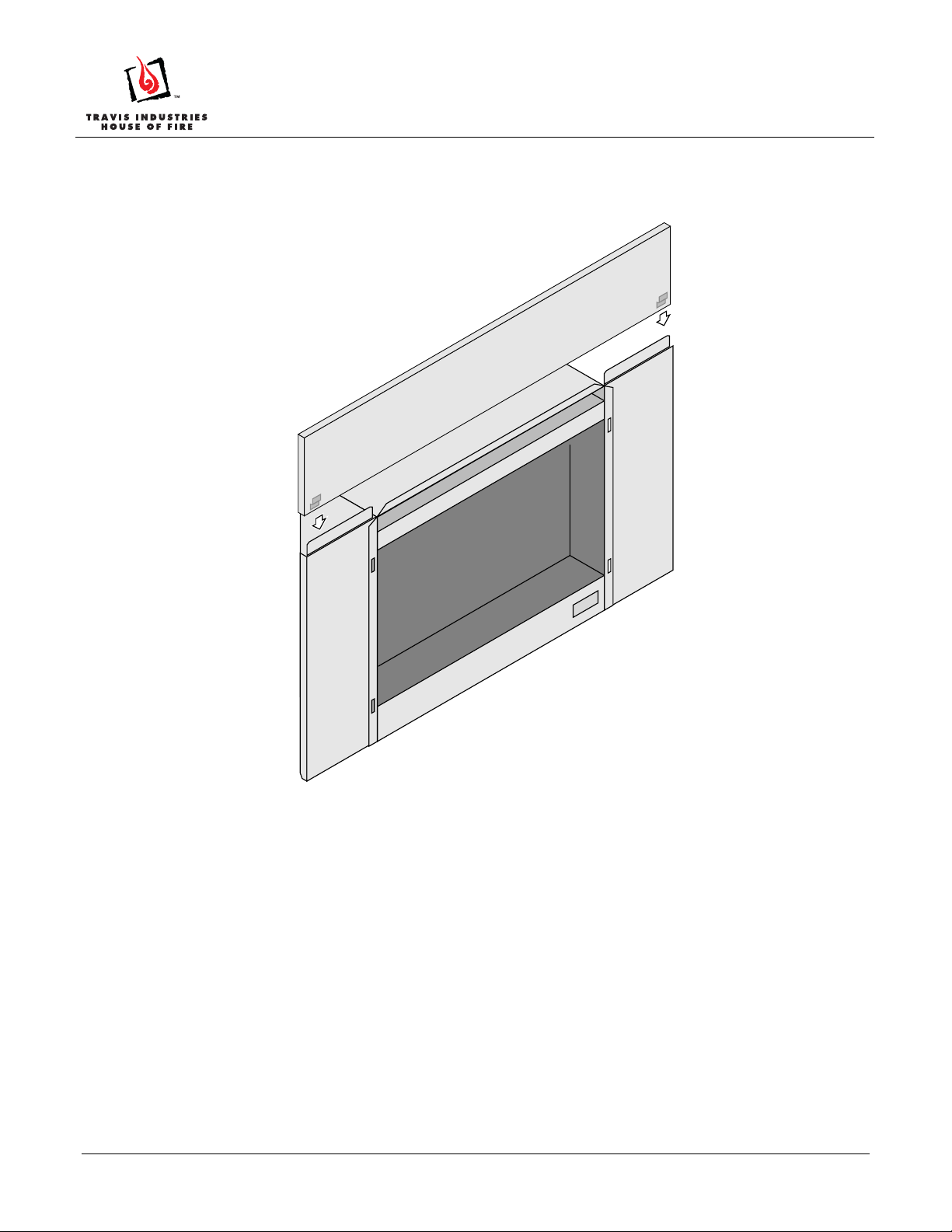

2 The top panel has joggles on the back of the panel that slide over the flanges on the panels

(see illustration below). Attach the top panel, making sure the ends are square with the side
panels.

3 Slide the fireplace into position. The side panels have an angled snipe at each bottom corner to

allow the power cord to exit the side panels.

Page 2 of 2 17601858 - 6/18/14 © Travis Industries, Inc.
