Avalon Firestyles DVL Fireplace-1999 User Manual

Download

• Direct Vent Fireplace

• Natural Gas or Propane

• Rear Vent or Top Vent

• Standard Residential

• Mobile Home Approved

Tested and Listed by

Omni-Test Laboratories, Inc.

Beaverton, Oregon

Report # 028-S-23-5

ANSI Z21.88, C SA 2.33 M9 8, CAN/CG A 2.17-M 91

WARNING: If the information in these instructions is not followed exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

- Ins tallation and ser v ic e m us t be per form ed by a qualified ins taller , ser v ic e agenc y or the gas supplier.

This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be installed in accordance with the manufacturer’s instructions and the manufactured home construction and safety standard, Title 24 CFR, Part 3280 or Standard for Installation in Mobile Homes, CAN/CSA Z240 MH.

This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the appliance.

DVL Fireplace Owner’s Manual

Installer: After installation give this manual to the homeowner and explain operation of this fireplace. $10.00 4020812 Part # 93508110

Introduction 1

Introduction

We welcome you as a new owner of a Travis Industries DVL gas fireplace. In purchasing a Travis DVL fireplace you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. The Travis DVL fireplace is one of the finest home heaters the world over. This manual will explain the installation, operation, and maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference. Included are helpful hints and suggestions that will make the operation and maintenance of your new fireplace an easier and more enjoyable experience. We offer our continual support and guidance to help you achieve the maximum benefit and enjoyment from your heater.

Important Information

No other Travis DVL Fireplace has the same serial number as yours. The serial number is below and to the left of the gas control valve.

This serial number will be needed in case you require service of any type.

Model: Travis DVL Fireplace Serial Number: Purchase Date: Purchased From:

Mail your Warranty Card Today, and Save Your Bill of Sale.

To receive full warranty coverage, you will need to show evidence of the date you purchased your heater. Do not mail your Bill of Sale to us.

We suggest that you attach your Bill of Sale to this page so that you will have all the information you need in one place should the need for service or information occur.

Travis Industries 4020812 93508110

2 Safety Precautions

• IF YOU SMELL GAS:

* Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire

department

• This unit must be installed by a qualified installer to prevent the possibility of an explosion. Your dealer will know the requirements in your area and can inform you of those people considered qualified. The room heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.

• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or compromise in the installation. Improper installation will void the warranty and safety listing.

THIS CONTROL

HAS BEEN

CONVERTED FOR

NATURAL GAS

THIS CONTROL

HAS BEEN

CONVERTED TO

• This heater is either approved for natural gas (NG) or for propane (LP). Burning the incorrect fuel will void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about the type of fuel used to your dealer. Check the label and flame adjust knob on the gas control valve.

Gas

• Contact your local building officials to obtain a permit and information on any installation restrictions or inspection requirements in your area. Notify your insurance company of this heater as well.

• It is imperative that control compartments, screens, or circulating air passageways of the heater be kept clean and free of obstructions. These areas provide the air necessary for safe operation.

• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.

• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your dealer and arrange for proper servicing.

• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your dealer for a full explanation of your heater and what to expect.

• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Travis Industries 4020812 93508110

Safety Precautions 3

• Do not place clothing or other flammable items on or near the heater. Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near it.

• The viewing glass should be opened only for lighting the pilot or conducting service.

• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

• Do not operate with the glass removed or damaged.

• Operate the heater according to the instructions included in this manual.

• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for service.

• Light the heater using the built-in piezo igniter. Do not use matches or any other external device to light your heater.

• Never remove, replace, modify or substitute any part of the heater unless

instructions are given in this manual. All other work must be done by a trained technician. Don't modify or replace orifices.

• Allow the heater to cool before carrying out any maintenance or cleaning.

• The pilot flame must contact the thermopile and thermocouple (see the illustration to the left). If it does not, turn the gas control valve to "OFF" and call your dealer.

• This unit is not for use with solid fuel

• Do not place anything inside the firebox (except the included fiber logs).

• If the fiber logs become damaged, replace with Travis Industries log set.

• Do not touch the hot surfaces of the heater. Educate all children of the danger of a hightemperature heater. Young children should be supervised when they are in the same room as the heater.

• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve. The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off.

This Manual

36"

• Do not throw this manual away. This manual has important operating and maintenance instructions that you will need at a later time. Always follow the instructions in this manual.

• Keep all furniture or other combustible items at least 36" away from the front of the fireplace (this includes drapes or doors that may swing within 36" of the front of the fireplace).

• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility of any consequential damage(s).

Travis Industries 4020812 93508110

4 Table of Contents

Introduction

Introduction & Important Information................1

Safety Precautions

Safety Precautions......................................2

Features & Specifications

Features ....................................................5

Installation Options ......................................5

Heating Specifications ..................................5

Dimensions.................................................5

Installation

Installation Warning......................................6

Packing List................................................6

Additional Items Required for Installation..........6

Installation Overview ....................................6

Fireplace Placement Requirements..................7

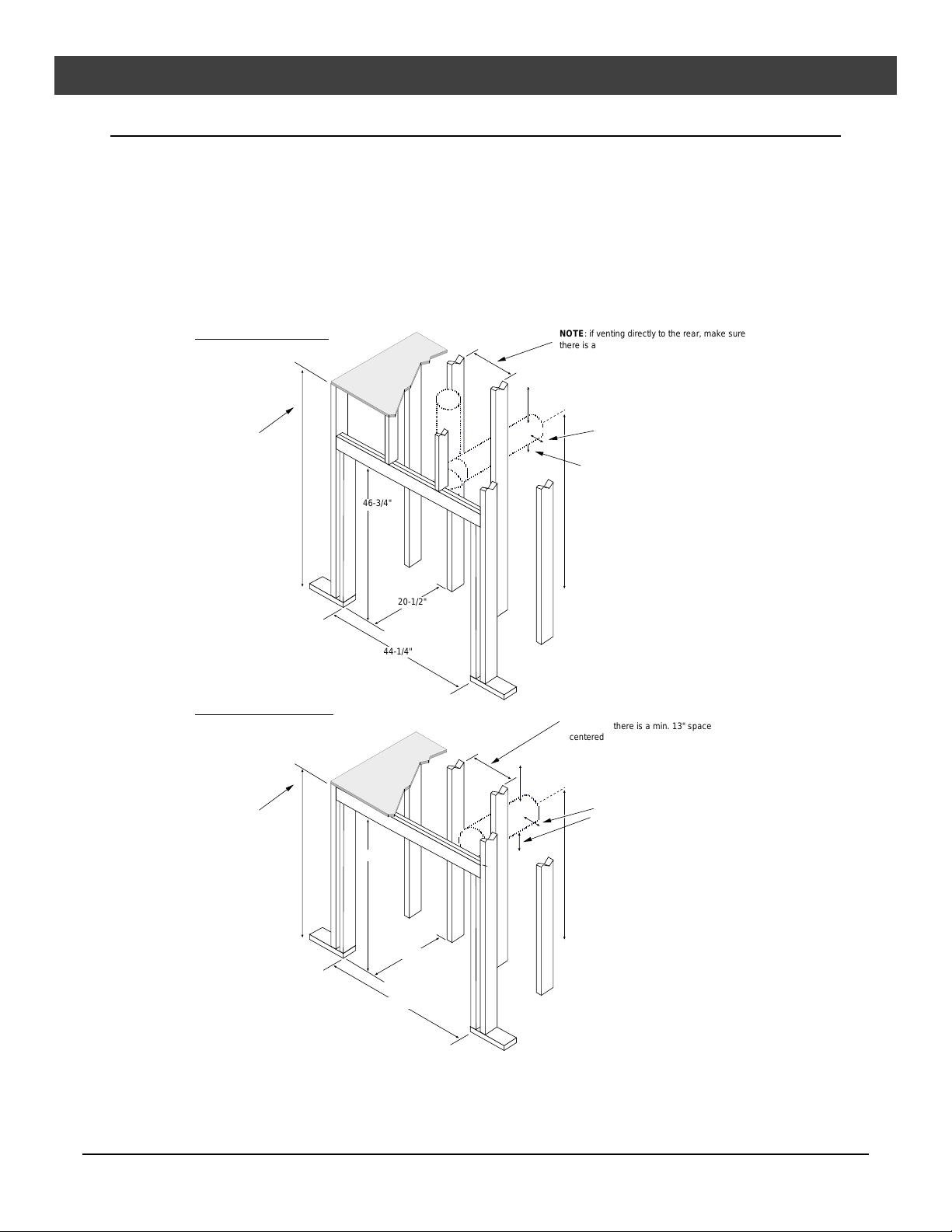

Minimum Framing Dimensions ....................7

Clearances ............................................8

Corner Installations .................................8

Raised Fireplaces....................................8

Hearth Requirements....................................9

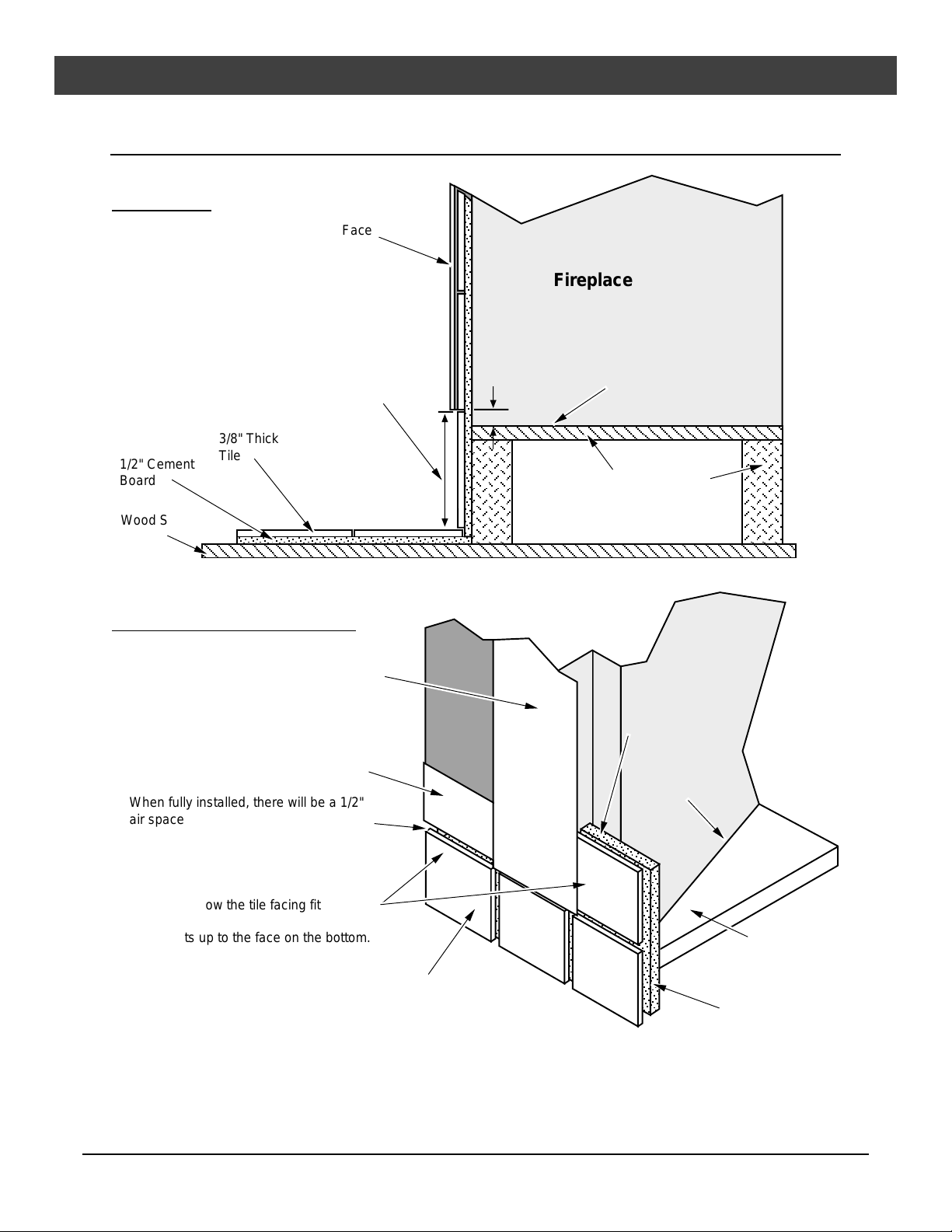

Facing Requirements....................................10

Facing Over 1" Thick.....................................10

Facing Detail...............................................11

Face Dimensions .........................................12

Modifying the Face Angle for Rectangular Faces 13

Facing and Hearth Examples..........................14

Mantel Requirements....................................16

Rear Vent Configuration ................................17

Installing the Rear Vent Adapter.................17

Altitude Considerations ............................18

Approved Vent Configurations ...................18

Approved Vent Components......................18

Clearances And Installation Requirements ...19

Restrictor Position...................................19

Corner Installations .................................20

Straight Installations................................20

Top Vent Configuration..................................21

Installing the Top Vent Adapter ..................21

Altitude Considerations ............................22

Clearances ............................................22

Approved Vent Components......................22

Vent Installation......................................23

Restrictor Position...................................24

Elbows..................................................24

Measuring Vent Lengths...........................24

Vertical Term. 0,2 or 4 45° Offsets ..............25

Horizontal Term. with One Vert. Elbow .........26

Horizontal Term. with Three Vert. Elbows......27

Vertical Term. with Two Elbows...................28

Vent Termination Requirements ......................29

Gas Line Requirements.................................30

Fuel......................................................30

Gas Line Connection................................30

Gas Inlet Pressure ..................................30

Electrical Connection....................................31

Finalizing the Installation

1 Glass Removal (& installation)......................32

2 Log Installation .........................................33

3 Replace the Glass .....................................34

4 Faceplate Installation .................................34

5 Leak Test.................................................34

6 Pilot Adjustment (if necessary).....................34

7 Air Shutter Adjustment (if necessary)............35

8 Check Flame.............................................35

9 Explain Operation to Home-Owner.................35

Operation

Before You Begin.........................................36

Location of Controls .....................................36

Starting The Pilot .........................................37

Starting the Fireplace for the First Time.............38

Turning the Fireplace On and Off.....................38

Adjusting the Flame Height.............................38

Adjusting the Blower Speed............................39

Normal Operating Sounds..............................39

Maintenance

Maintaining Your Fireplace’s Appearance..........40

Yearly Service Procedure..............................40

Troubleshooting Table...................................41

How this Fireplace Works...............................42

What Turns the Main Burners On and Off......42

What Prevents Gas Buildup.......................42

Wiring Diagram ............................................43

Replacement Parts List.................................43

Safety Label

Safety (Listing) Label....................................44

Warranty

Warranty....................................................45

Optional Equipment

LP Conversion Kit ........................................46

Remote Control Thermostat............................49

Thermostat.................................................50

Decorative Firebacks (Classic & Brick).............51

Index

Index.........................................................52

Travis Industries 4020812 93508110

Features and Specifications 5

Features:

- Works During Power Outages (millivolt system)

- High Efficiency

- Optional Thermostat or Remote Control

- Realistic "Wood Fire" Look

- Quiet Blower for Effective Heat Distribution

- Convenient Operating Controls

- Variable-Rate Heat Output

- Low Maintenance

Installation Options:

- Top or Rear Vent

- Residential or Mobile Home

- Straight or Corner Placement

- Flush or Recessed Face

- Raised or Floor Hearth

- Internal or External Chase

- Horizontal or Vertical Vent

Heating Specifications: Natural Gas Propane

Approximate Heating Capacity (in square feet)* Up to 2,000 Up to 2,000 BTU Input Per Hour (from high to low) 19,000 – 40,000 19,000 – 40,000 BTU Output on High (with blowers on) 28,800 29,200 Efficiency** (with blowers on) Up to 82% Up to 82% AFUE (Annual Fuel Utilization Efficiency) 68% 68%

* Heating capacity will vary with floor plan, insulation, use of Power Heat Duct, and outside temperature. ** Efficiency rating is a product thermal efficiency rating determined under continuous operation independent of

installed system.

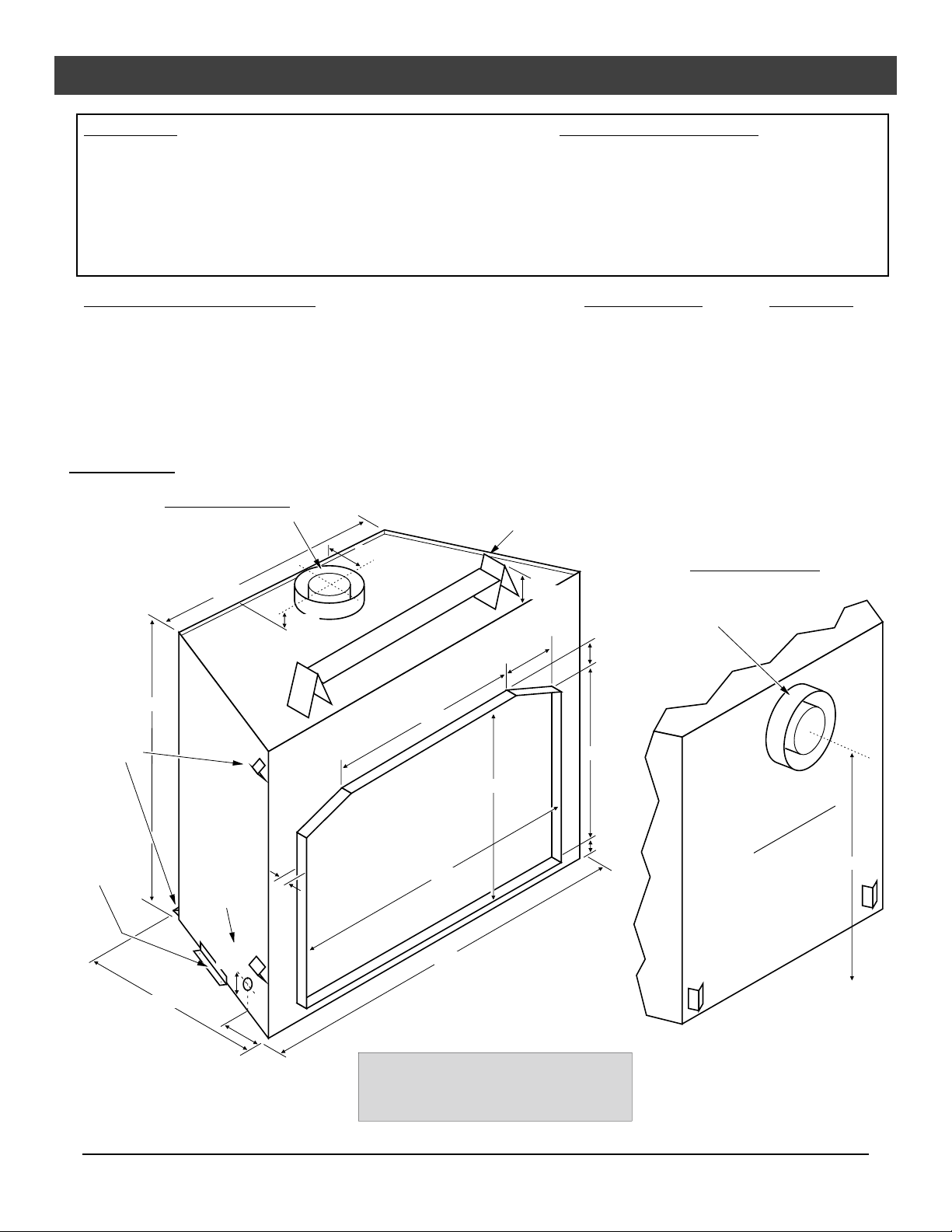

Dimensions:

Top Vent Configuration

When installed as a top vent the vent has an external diameter of 8"

25-1/4"

1-3/8"

Weight: 250 Lbs.

7-1/8"

The electrical connection is made in the lower right rear corner.

6-1/2"

Rear Vent Configuration

When installed as a rear vent the vent has an external diameter of 10"

1" Stand-offs

Nail Down Plate (used to secure the fireplace to the floor)

40-1/8"

Gas Inlet (both sides)

2-5/8"

20-1/4"*

* Includes the 1" stand-offs

6-5/8"

8-1/4"

16-3/8"

25-1/8"

32-7/8"

43-7/8"*

WARNING:

A 1" clearance from the fireplace enclosure is required along the sides and back of the fireplace.

2-5/8"

22-3/4"

Back of Fireplace

34-1/4"

Travis Industries 4020812 93508110

6 Installation (for qualified installers only)

Installation Warnings:

! Failure to follow all of the requirements may result in property damage, bodily

injury, or even death.

! This heater must be installed by a qualified installer who has gone through a

training program for the installation of direct vent gas appliances.

! This appliance must be installed in accordance with all local codes, if any; if not, in

U.S.A. follow ANSI Z223.1 and NFPA 54(88), in Canada follow B-149.

! In Manufactured or Mobile Homes must conform with: In USA, Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280; In Canada, CSA Z240.4 and Gas-Equipped Recreational Vehicles and Mobile Housing. This appliance may

be installed in Manufactured Housing only after the home is site located. ! This fireplace is designed to operate on natural gas or propane (LP). ! All exhaust gases must be vented outside the structure of the living-area.

Combustion air is drawn from outside the living-area structure. ! Notify your insurance company before hooking up this fireplace. ! The requirements listed below are divided into sections. All requirements must be

met simultaneously. The order of installation is not rigid – the qualified installer

should follow the procedure best suited for the installation.

Packing List

• Propane Conversion Kit

• Log Set (Log Set, Coals, & Embers)

• Top Vent Starter Section

• Flex Tube with Pipe Adapter

• Glass Latch Tool (to un-latch glass frame)

• Top Vent Firestop (vertical or horizontal)

Installation Overview

Top Vent Configuration

6" Min.

Drywall

Non-combustible facing (see the section "Facing Requirements")

See the section "Mantel Requirements"

See the section "Hearth Requirements"

See the section "Fireplace Placement Requirements"

See the section "Vent Requirements"

Nail Down Plate

See the section "Gas Line Installation"

Additional Items Required

• Faceplate - Includes attachment screws

• Vent (see “Venting Requirements” for details)

• Gas Line Equipment (shutoff valve, pipe, etc.)

• Electrical Hook-Up Equipment

See the section "Horizontal Termination Requirements"

See the section "Acceptable Vent Lengths"

Insulation must not fill the 1" clearance around the back and sides of the fireplace.

See the section "Electrical Connection"

This grommet and hole is for thermostat wire (on both sides)

See the section "Minimum Framing Dimensions"

Rear Vent Configuration

See the section "Rear Vent Configuration"

10" Diameter Vent (available from Travis Industries)

Travis Industries 4020812 93508110

Installation (for qualified installers only) 7

AA AA

Fireplace Placement Requirements

Minimum Framing Dimensions

The 1” stand-offs along the sides and rear, the 1” clearance requirement around the sides and back,

and the 7-1/4” stand-offs on the top of the fireplace separate the fireplace from combustible materials

(e.g.: combustible framing members, plywood, sheetrock, paper-backed insulation). The stand-offs

may contact the framing members but no material may be placed between the stand-offs or into the

required 1” clearance to the sides and back.

This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance

produces when determining a location.

Top Vent Configuration

84-1/2" Min.

The fireplace enclosure must not be less than 84-1/2" above the base of the fireplace.

Rear Vent Configuration

46-3/4" Min.

46-3/4"

20-1/2"

44-1/4"

NOTE: if venting directly to the rear, make sure there is a min. 12" space centered behind the fireplace. The firestop included with this fireplace requires a 14" tall by 12" wide opening.

3" Clearance Min. Above Vent

2" Clearance Min. to the Sides of Vent

1" Clearance Min. Below Vent

The center of the vent is a minimum 70-1/2" above the base of the fireplace (includes 24" min. rise before elbow - see the section "Horizontal Termination Requirements")

NOTE: if venting directly to the rear, make sure there is a min. 13" space centered behind the fireplace.

3" Clearance Min. Above Vent

1-1/2" Clearance Min.

The fireplace enclosure may be framed over the top stand-offs (applies to the Rear Vent Configuration only).

46-3/4"

20-1/2"

44-1/4"

to the Sides of Vent and Below Vent

The center of the vent is 341/4" above the base of the fireplace (see the "Rear Vent Configuration")

• Fireplace must be installed on a level surface capable of supporting the fireplace and vent

• Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)

• Due to the high temperature of the fireplace, it should be located out of traffic and away from furniture

and draperies.

Travis Industries 4020812 93508110

8 Installation (for qualified installers only)

Clearances

• When installed, walls in front of the fireplace must be a minimum 6" to the side of the faceplate.

• Fireplace must be placed so that no combustibles are within, or can swing within 36" of the front of

the fireplace (e.g. drapes, doors)

• Fireplace must be placed so the vents below and above the glass do not become blocked

Corner Installations

A typical 45° installation uses the minimum framing dimensions shown in the illustration below.

14-3/4"

47-5/8"

Top Vent Configuration Rear Vent Configuration

13-3/4"

19-3/8"

Min. 1" Clearance to Fireplace Enclosure

1" Standoffs

NOTE: the fireplace may require a larger enclosure to allow for the vent to pass through the framing.

10" Diameter Pipe (7" Length)

Termination

Thimble (opening is 14-1/2" high x 13" wide)

1-1/2" (min. clearance)

DVL Fireplace

45° Elbow

MinimumClearances from Pipe To Combustibles:

• 1-1/2" to the Sides & Below

• 3" Above

Raised Fireplaces

• The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace

(approximately 300 Lbs.) and vent.

• The fireplace may not be raised so as to place the ceiling within 24” of the top of the faceplate.

Raised fireplace

Raised fireplace with raised hearth.

50-1/2"

Raised Platform

Raised Hearth

Hearth

Raised Platform

Nail the nail down plates to the floor (or raised platform)

Travis Industries 4020812 93508110

Installation (for qualified installers only) 9

Hearth Requirements

6-1/4"

Min. 3/4”

Max. 15/16”

12” Min.

Cement Board

Floor Mounted

Fireplaces

Do not build the hearth above this ledge.

Tile, Marble, Brick, or other Non-Combustible

Min. Hearth Width

Discovery, Rosario Heritage Bay Salish Bay Cambridge FPX Arched or Rect.

Width 35-3/4” 35-3/8” 33-1/2” 36-1/4” 34-3/4”

Decorative Trim (may be combustible)

6-1/4"

Raised

Fireplaces

Fireplace Stand

When raised a minimum of 3” off of the floor surface, no hearth is required.

Make sure to accomodate the floor covering (carpet, linoleum, flooring, etc.) when determining the height of the fireplace stand (i.e. the thicker the carpet, the taller the fireplace stand).

Travis Industries 4020812 93508110

10 Installation (for qualified installers only)

Facing Requirements

NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it

does, it is considered a mantel and must meet the mantel requirements listed in this manual.

The fireplace requires a concrete board (or other non-combustible) extending from the header to the floor and to the framing members on both sides. Do not use sheetrock, plywood or other combustible material.

Facing Requirements:

Mantel

Depth

Minimum Facing

Above Faceplate

Header

8” 10” 12”

18"”

18-1/2”

19”

Bottom of

Faceplate

Base of

Fireplace

Facing Over 1" Thick

• If the facing material is over 1" thick (e.g. brick, river rock), install the facing around the perimeter of the face. You may wish to make a facing support (see the illustration to the right). If using an arch face, you may wish to order the optional set-up face:

Arch Face

Face Size

Discovery, Rosario Heritage Bay Salish Bay Cambridge FPX Arched or Rect.

Face Sizing

Discovery, Rosario Heritage Bay Salish Bay Cambridge FPX Arched or Rect.

Rectangular Face

Width

35-3/4” 35-3/8” 33-1/2” 36-1/4” 34-3/4”

The brick facing must meet the same requirements listed in “Facing Requirements” above.

Width

35-3/4” 35-3/8” 33-1/2” 36-1/4” 34-3/4”

Height

26" 25-5/8" 26-3/8" 25-7/8" 26-1/2"

Height

26" 25-5/8" 26-3/8" 25-7/8" 26-1/2"

Center

Line

Non-combustible Facing

6" Min. (both sides)

Rectangular Faces

Arch Set-Up Face Part # 98500694

NOTE: Artisan faces vary in size. Use the face being installed to

Arch Faces

Use the optional Arch Set-Up Face available

1”

from Travis Industries.

Make a facing support using 2x4’s. It should be 1/8” larger than the finished face. NOTE: The bottom of the face is 1” above the base of the fireplace.

create a template.

Note: if using a brick hearth, the fireplace will need to be raised to accommodate the 1” gap betwen the face and the base of the fireplace. For 2-1/2” thick brick this works out to approximately 1-1/2”.

Travis Industries 4020812 93508110

Installation (for qualified installers only) 11

Facing Detail

Detail of Faceplate

NOTE: The approximate overlap along the top of the face is:

Discovery, Rosario Heritage Bay Salish Bay Cambridge FPX Arched or Rect.

5/8" 1/4"

1/2"

1-1/8"

Face

Glass

Access Door

Do not tuck tile underneath the faceplate on the bottom (there will be a 1/8" air space below the access door). You may do this on the sides and top, but not on the bottom.

Air Space

Discovery, Rosario Heritage Bay Salish Bay Cambridge FPX Arched or Rect.

1/8"

1-3/8" 1-1/4"

1/4"

1-5/8"

7/8"

• To achieve a facing that is flush with the drywall to the side of the fireplace, recess the framing directly next to the fireplace. See the illustration below.

TOP VIEW

Faceplate

Fireplace

3/8" Tile

This 2x4 is recessed 3/8" to make a flush facing

1/2" Drywall

1/2" Concrete Board

Fireplace

3/8" Tile

1/2" Concrete Board

1/2" Drywall

The tile overlaps the drywall for an overlap facingFaceplate

Travis Industries 4020812 93508110

12 Installation (for qualified installers only)

Face Dimensions

Lopi Discovery DVL

26”

Avalon Rosario DVL

35-3/4”

Lopi Heritage Bay

35-3/8”

25-3/4”

5-3/8”

Avalon Salish Bay

33-1/2”

Avalon Craftsman

27-1/2”

16-1/2”

36”

* The decorative braces protrude 1/4”

Avalon Cambridge DVL

37-5/8”

2-3/8”

2-1/4”

27-1/2”

26”

FPX Arched FPX Artisan

NOTE: Artisan faces vary in size.

3-1/2"

26-1/2”

35-3/4”

Radius = 45”

34-3/4”

Access Door

26-1/2”

5-3/8”

FPX 34 Rectangular Bevel

26-1/2”

34-3/4”

Access Door

25-7/8”

2”

27-7/8”

FPX 34 Architectural Faces

33-5/8”

36-3/4”

Access Door

Travis Industries 93508110 041001

Installation (for qualified installers only) 13

Modifying the Face Angle for Rectangular Faces

If using a rectangular face (faces other than the Craftsman or FPX Arched), adjust the face angles at the top corners of the glass (see the illustration below).

Remove these four

screws from the face angle.

Front of Fireplace

Glass

Straighten the face angle.

Phillips Screwdriver

Bend the face angle up and replace

the two screws on the upper section.

Re-bend the face angle at the

inward location and re-attach the lower portion with one screw.

Travis Industries 4020812 93508110

14 Installation (for qualified installers only)

Facing and Hearth Examples

Side View

Face

Fireplace

SUGGESTION:

If using a hearth, make your platform height a dimension that will accommodate the size tiles you are using and the 1" between the base of the fireplace and the bottom of the face.

3/8" Thick

1/2" Cement Board

Wood Sub Floor

Tile

2x4 and Plywood Platform

Base of Fireplace

Three-Dimensional View

Access Door

NOTE:

When fully installed, there will be a 1/2" air space below the access door on the face. Do not block this space (it is required for access door opening and air flow).

Note how the tile facing fits behind the face on the side and top and butts up to the face on the bottom.

Face

Side of Fireplace

1/2" Cement Board & 3/8" Tile (tucked behind the face)

Base of Fireplace

2x4 and Plywood Platform

Tile

Cement Board

Travis Industries 4020812 93508110

Installation (for qualified installers only) 15

Facing and Hearth Examples (continued)

Side View

Face

1/2" Cement Board & 3/8" thick tile (tucked behind the face)

3/8" Thick

1/2" Cement Board

Wood Sub Floor

Tile

Fireplace

Base of Fireplace

Three-Dimensional View

Face

NOTE:

When hearth installation is correctly completed, there will be a 1/2" air space below the access door on the face. Do not block this air space (it is required for access door opening and proper air flow).

Access Door

1/2" Cement Board

3/8" Tile

Side of Fireplace

Base of Fireplace

Note how the tile facing fits behind the face on the side and top.

Wood Sub Floor

WARNING:

Do not install cement board underneath the fireplace. To do so would leave a large gap underneath the finish faceplate sides.

Travis Industries 4020812 93508110

16 Installation (for qualified installers only)

Mantel Requirements

• The combustible area above the facing must not protrude more than 3/4" from the facing. If it does, it is considered a mantel and must meet the mantel requirements listed in this manual.

Combustible or Non-Combustible Mantels

Mantel Depth

Mantel Height

Face

Combustible or Non-Combustible Mantel

Bottom of Faceplate

Base of Fireplace

Minimum Mantel Height

Mantel Clearances:

(above face)

24” 25” 26”

Face Height

Discovery, Rosario Heritage Bay Salish Bay Cambridge FPX Arched or Rect.

1”

Maximum

Mantel Depth

8” 10” 12”

26" 25-5/8" 26-3/8" 25-7/8" 26-1/2"

Travis Industries 4020812 93508110

Installation (for qualified installers only) 17

Rear Vent Configuration

! The vent must maintain the required clearance to combustible materials to prevent a fire (see

“Clearances and Installation Requirements” below). Do not fill air spaces with insulation.

! The gas appliance and vent system must be vented directly to the outside of the building, and never

be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use it's own separate vent system.

! When using the rear vent configuration, you must use the vent components listed under “Approved

Vent Components” below. No substitutions, modifications, or alterations to the vent kit are allowed.

Installing the Rear Vent Adapter (included with the rear vent kits)

Remove the rear vent cover.

1/4" Nutdriver

Remove the rear vent exhaust cover (and gasket).

Silicone

NOTE: use a 1/8" drill, if necessary, to

make holes for the mounting screws.

7/16" Wrench

Apply a 1/8" thick bead of hightemperature (600° F.) silicone to the inside of the exhaust vent.

NOTE: the upper edge of the adapter is shorter than the sides and bottom edges.

Install the rear vent adapter.

1/4" Nutdriver

Travis Industries 4020812 93508110

18 Installation (for qualified installers only)

Altitude Considerations (Rear Vent Configuration)

This heater has been tested at altitudes ranging from sea level to 8,000 feet (2,400 M). In this testing we have found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.

! Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.

Consult your dealer or installer if you suspect an improperly adjusted air shutter.

Approved Vent Configurations (Rear Vent Configuration)

• The vent must terminate horizontally.

• Maximum 6’ of Vent Length (not including elbow and termination)

• 1 Elbow Maximum (45° or 90°)

Maximum 6' Length

DVL Fireplace

Maximum 6' Length (determined by adding H1 + H2)

One Elbow Maximum

(90° or 45°)

Approved Vent Components for Rear Vent Configuration

Description Part # Packing List

Straight Installation Kit 98900170 Rear Vent Adapter

Wall Thimble Horizontal Vent Termination (Cap)

Corner Installation Kit 98900171 Rear Vent Adapter

45° Elbow 7” Adjustable Vent Length Wall Thimble

Horizontal Vent Termination (Cap) 7” Adjustable Vent Length 98900172 7” Adjustable Vent Length 24” Vent Length 98900173 24” Vent Length 36” Vent Length 98900174 36” Vent Length 12” Adjustable Vent Length 98900175 11-9/16” to 15-3/8” Adjustable Length Horizontal Termination Cap 98900176 Cap 45° Elbow 98900177 45° Elbow 90° Elbow 98900178 90° Elbow Wall Thimble 98900179 Wall Thimble (two mating pieces) Vinyl Siding Standoff 98900180 10” Vinyl Siding Standoff Rear Vent Adapter 98900181 Rear Vent Adapter

Travis Industries 4020812 93508110

Installation (for qualified installers only) 19

Clearances and Installation Requirements (Rear Vent Configuration)

• 3” Clearance above the pipe to combustibles.

• 1-1/2” Clearance below and to the sides of the pipe to combustibles.

• When vent passes through a wall, the wall thimble is required (included with Kit A or Kit B).

Use the DVL FP Rear Vent thimble when passing through a wall. NOTE: make sure the firestop is postitioned correctly so the 3" clearance is allowed above the vent.

Minimum framing

for fire stop

Minimum

14-1/2" tall

Minimum

13" wide

• Apply high-temperature silicone to the inner and outer pipe before assembling the sections (on the male section). This seals the inner pipe from the outer pipe. Slide the sections together and turn 1/4 turn until the sections lock in place. Install three metal screws through each joint to lock the outer section in place (see the instructions included with the vent for further details).

• Horizontal sections require a 1/4" rise every 12" of travel

• Horizontal sections require non-combustible support every

three feet (e.g.: plumbing tape)

Restrictor Position (Rear Vent Configuration)

1-1/2" Min.

Silicone

Combustible Surfaces

3" Min.

1-1/2" Min.

Silicone

Apply a 1/8" (3 mm) bead of hightemperature silicone to the inner and outer pipe. The silicone must seal the inner pipe from the outer pipe.

• In 99% of DVL Fireplace installations, restrictor adjustment is not necessary. Only those installations determined to be over-drafting require this adjustment. The best indication of over-drafting is a hyperactive flame pattern (flames that move too quickly). If the air shutter is constricted, the flames become short and yellow, yet still very active. If over-drafting is determined, follow the directions below to adjust the restrictor. Try position two first. If still over-drafting, try position three.

WARNING: Use a glove to protect your hand from burns.

NOTE: The fireplace is shipped with the restrictor in position #1 (fully open).

Position #3 is this notch.

This restrictor is in position 2.

Adjustment Bracket

This restrictor is in position 1 (fully open - factory setting).

Adjustment Plate

To Access the Restrictor:

With the fireplace cool, reach behind the gas control valve.

To adjust, lift up on the adjustment plate and push it back.

Travis Industries 4020812 93508110

20 Installation (for qualified installers only)

Corner Installations (Rear Vent Configuration)

10" Diameter Pipe (7" Length)

Termination

1-1/2" (min. clearance)

45° Elbow

Thimble (opening is 14-1/2" high x 13" wide)

NOTE: the fireplace may require a

larger enclosure to allow for the vent to pass through the

framing.

DVL Fireplace

MinimumClearances from Pipe To Combustibles:

• 1-1/2" to the Sides & Below

• 3" Above

Straight Installations (Rear Vent Configuration)

MinimumClearances from Pipe To Combustibles:

• 1-1/2" to the Sides & Below

• 3" Above

Thimble (opening is 14-1/2" high x 13" wide)

Termination

50-1/2"

DVL Fireplace

Travis Industries 4020812 93508110

Installation (for qualified installers only) 21

Top Vent Configuration

! The vent must maintain the required clearance to combustible materials to prevent a fire (see

“Clearances” below). Do not fill air spaces with insulation.

! The gas appliance and vent system must be vented directly to the outside of the building, and never

be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use it's own separate vent system.

Installing the Top Vent Adapter (shipped with the fireplace)

Remove the top vent

seal plate.

Remove the top vent

1/4" Nutdriver

cover and discard.

Remove the top vent

convection cover.

7/16" Wrench

Remove the top vent exhaust cover with gasket and discard

Install the top

vent seal plate.

Apply a 1/8" thick bead of high-

temperature (600° F.) silicone to the inside of the exhaust vent.

Silicone

1/4" Nutdriver

Install the top

vent adapter.

Travis Industries 4020812 93508110

22 Installation (for qualified installers only)

Altitude Considerations (Top Vent Configuration)

! Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.

Consult your dealer or installer if you suspect an improperly adjusted air shutter.

Clearances (Top Vent Configuration)

Horizontal Runs

The DVL FP Top-Vent Firestop is required (part # 93006096) when passing through any wall.

Min. 24" rise before first elbow.

Min. 84-1/2" (from base of fireplace)

Min. 3" Clearance Above 45° Sloping Vent

Min. 3" Clearance Above the Vent

Min. 2" Clearance to the Sides

Min. 1" Clearance Below the Vent

Vertical Sections

Min. 2" Clearance to the Sides of the Vent

Min. 1" Clearance Below the Vent

The DVL FP Top-Vent Firestop is required (part #

93006096) whenever passing through a ceiling (or enclosure) and at every floor penetration.

Min. 75" (from base of fireplace)

Approved Vent Components for Top Vent Configuration

• Use 8” diameter Model GS Direct Vent manufactured by Simpson Dura-Vent only . Follow the installation instructions included with the vent. For the nearest Simpson Dura-Vent supplier, call (800)

835-4429. Vent part numbers and descriptions are listed below.

Straight Lengths

1208B 6" Pipe Length, Black 1207B 9" Pipe Length, Black 1206B 12" Pipe Length, Black 1204B 24" Pipe Length, Black 1203B 36" Pipe Length, Black 1202B 48" Pipe Length, Black 1211B 11” to 14-5/8" Adjustable, Black

Terminations

1284 Horizontal Square Termination 1285 Hor. High Wind Termination

1250 Vinyl Siding Stand-off 1291 Travis Vertical Termination

Elbows

1245B 45° Elbow, Black 1290B 90° Elbow, Black

Firestops & Support

93006096 DVL FP Top-Vent Firestop (Horizontal or Vertical) 1288 Wall Strap

Travis Industries 4020812 93508110

Installation (for qualified installers only) 23

Vent Installation (Top Vent Configuration)

• In addition to the requirements below, follow the requirements provided with the vent.

Vertical Vent

Requirements

Use a roof flashing and storm collar whenever passing through the roof

Use the Travis DVL FP Top-Vent Firestop (part #

93006096) whenever passing through a ceiling (or enclosure and at every floor penetration.

12"

14"

Framing for Firestop (these dimensions are not the minimum clearances)

Horizontal Vent

Requirements

Framing for Firestop (these dimensions are not the minimum clearances)

Vertical Termination (part # 1291)

Combustible Framing

Min. 2" Clearance on Vertical Sections to combustible surfaces.

Use the Travis DVL FP Top-Vent Firestop (part # 93006096) when passing through a wall. NOTE: make sure the firestop is postitioned correctly so the 3" clearance is allowed above the vent.

2" Min.

Combustible Surfaces

14" Tall

3" Min.

12" Wide

1" Min. (3" for firestop)

• Apply high-temperature silicone to the inner and outer pipe before assembling the sections. This seals the inner pipe from the outer pipe. Slide the sections together and turn 1/4 turn until the sections lock in place. Install three metal screws through each joint to lock the outer section in place (see the instructions included with the vent for further details).

Apply a 1/8" (3 mm) bead of hightemperature silicone to the inner and outer pipe. The silicone must seal the inner pipe from the outer pipe.

Silicone

• Horizontal sections require a 1/4" rise every 12" of travel

• Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)

Travis Industries 4020812 93508110

24 Installation (for qualified installers only)

Restrictor Position (Top Vent Configuration)

WARNING: Use a glove to protect your hand from burns.

NOTE: The fireplace is shipped with the restrictor in position #1 (fully open).

This restrictor is in position 2.

Adjustment Bracket

This restrictor is in position 1 (fully open - factory setting).

Adjustment Plate

To Access the Restrictor:

With the fireplace cool, reach behind the gas control valve.

To adjust, lift up on the adjustment plate and push it back.

Elbows (Top Vent Configuration)

• See the vent configurations for details on the maximum number of elbows.

Measuring Vent Lengths (Top Vent Configuration)

Elbows add 3-1/2" to the length of the vent system.

3-1/2"

Side View

Vent

Horizontal

Run

Position #3 is this notch.

3-1/2"

1-3/4"

Vent sections overlap each other by 1-1/2"

Vent Length (2', 3', etc.)

EXAMPLE: Two 4' lengths are 7' 10-1/2" long, but when attached to the vent system add 7' 9" to the vent height.

1-1/2"

Starter Section

Vent

Height

12-3/8" tall with 1-1/2" of overlap

10-3/4" wide with

1-1/2" to

3-3/8" of overlap

42-1/8"

NOTE:

All measurements are for 8" diameter vent.

Travis Industries 4020812 93508110

Installation (for qualified installers only) 25

Vertical Terminations with 0, 2, or 4 45° Offsets (Top Vent Configuration)

• Use 8” diameter co-axial vent

Horizontal Offset

• A Maximum of Four 45° Elbows May be Used

Vertical

• 8’ Minimum System Height (without offsets)

• 40 Maximum System Height

Rise

Offset Length

• 12’ Maximum Horizontal Offset (6’ 6” for 4 Offsets)

Offset Length Hor. Offset Vert. Rise

None 5" 1' 1' Section 1' 1' 7" 2' Section 1' 9" 2' 4" 3' Section 2' 5" 3' 4' Section 3' 2" 3' 8"

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

Zero or Two 45° Offsets

0 feet

40' (max)

35 feet 35 feet

5 feet

10 feet

12'

(max)

40' (max) 40' (max) 40' (max)

Four 45° Offsets

0 feet

Restrictor

Position # 1

35 feet

5 feet

6' 6"

(max)

35 feet

10 feet

0 feet

30 feet

25 feet

20 feet

15 feet

5 feet

Restrictor

Position # 1

30 feet

25 feet

20 feet

15 feet

10 feet

5 feet

0 feet

10 feet

0 feet

30 feet

25 feet

20 feet

15 feet

(min.)

5 feet

30 feet

25 feet

20 feet

15 feet

10 feet (min.)

5 feet

0 feet

5 feet

10 feet

12'

(max)

0 feet

5 feet

6' 6"

(max)

Travis Industries 4020812 93508110

26 Installation (for qualified installers only)

Horizontal Terminations with 1 Vertical Elbow (Top Vent Configuration)

The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

NOTE:

• One horizontal elbow (45° or 90°) is allowed. The horizontal vent length is calculated by adding the length before and after the elbow (H1 + H2 = horizontal vent length).

• Horizontal sections require a 1/4" rise every 12" of travel.

• The maximum vertical height is 20'.

• The maximum horizontal length is 24'.

0 feet

20' (max) 20' (max)

5 feet

10 feet

Horizontal Elbow

(45° or 90°)

15 feet

20 feet

Vertical Elbow

24' (max)

15 feet

10 feet

5 feet

0 feet

Min. 24" Rise

Before First Elbow

5 feet

Restrictor

Position #1

10 feet

15 feet

20 feet

15 feet

10 feet

5 feet

0 feet

24' (max)

Travis Industries 4020812 93508110

Installation (for qualified installers only) 27

Horizontal Terminations with 3 Vertical Elbows (Top Vent Configuration)

The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

NOTE:

• A total of three elbows must be used.

• No horizontal elbows may be used (a horizontal elbow is

defined as an elbow that directs the vent from a horizontal direction to another horizontal direction).

• Two 45° elbows may be substituted for two of the 90° elbows.

• Horizontal sections require a 1/4" rise every 12" of travel.

• The maximum vertical height is 19'.

• The maximum horizontal length is 20'.

Horizontal Elbows are

NOT ALLOWED

0 feet

19' (max) 19' (max)

15 feet

10 feet

5 feet

10 feet

Restrictor

Position #1

15 feet

20' (max)

15 feet

10 feet

5 feet

Min. 24" Rise

Before First Elbow

0 feet

5 feet

10 feet

15 feet

0 feet

20' (max)

Travis Industries 4020812 93508110

28 Installation (for qualified installers only)

Ver t ical Term inations with 2 Vertic al 90° Elbows (Top Vent Configur ation)

The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

40' (max)

30 feet

25 feet

20 feet

0 feet

5 feet

10 feet

Restrictor Position # 1

15 feet

20 feet

24'(max)

40' (max)

35 feet35 feet

30 feet

25 feet

20 feet

15 feet

10 feet

(min.)

5 feet

0 feet

NOTE:

2' minimum before first elbow.

5 feet

NOTE:

One 45° or 90° elbow may be used between horizontal sections. Horizontal length is calculated by adding each horizontal run together.

NOTE:

Horizontal sections require a 1/4" rise every 12" of travel.

10 feet

15 feet

20 feet

15 feet

10 feet

(min.)

5 feet

0 feet

24'(max)

Travis Industries 4020812 93508110

Installation (for qualified installers only) 29

Termination Requirements (see the illustration below)

! Venting terminals shall not be recessed into a wall or siding.

A Minimum 9" clearance from any door or window B Minimum 12" above any grade, veranda, porch, deck or balcony C Minimum 3" from outside corner walls D Minimum 12" from inside corner walls E Minimum 11" clearance below unventilated soffits or roof surfaces

Minimum 18" clearance below ventilated soffits Minimum 6" clearance from roof eaves

NOTE: Vinyl surfaces require 24" F Minimum 18" clearance below a veranda, porch, deck or balcony (must have two open sides) G Minimum 48" clearance from any adjacent building H Minimum 84" clearance above any grade when adjacent to public walkways or driveways

NOTE: may not be used over a walkway or driveway shared by an adjacent building I Minimum 48" clearance from any mechanical air supply inlet, 72" for Canada J Minimum 36" clearance above and 48” below and to the sides of non-mechanical air supply inlet K Minimum 36" from the area above the meter/regulator (vent outlet) L Minimum 36" from the meter/regulator (vent outlet) M Minimum 12” above the roof line (for vertical terminations)

*Note: In Canada the vent termination must be a minimum 2' (.6 M) tall and 2' (.6 M)

above any portion of the roof within 10' (3 M) of the vent.

N Minimum 24” horizontal clearance to any surface (such as an exterior wall) – for vertical terminations

Roof Surface

11” Min.

6” Min.

Roof Eaves

NOTE: Measure clearances to the nearest edge of the exhaust hood.

• Use the vinyl siding standoff (#1250) when installing on an exterior with vinyl siding.

• Vent termination must not be located where it will become plugged by snow or other material

• These clearances meet UMC-1994 and the CNA/CGA-B149 code standards.

Travis Industries 4020812 93508110

30 Installation (for qualified installers only)

Gas Line Requirements

! The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and

the requirements listed below. ! The fireplace and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2 psig,

isolate the gas supply piping by closing the manual shutoff valve.

! Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.

Fuel

• This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on

the top of the gas control valve to make sure the correct fuel is used.

Gas Line Connection

• A manual shutoff valve is required within 3’ of the fireplace. It should be placed upstream of the flex

line (if used) and may be installed behind the access door inside the fireplace.

The 1" diameter access hole is located 2-5/8" above the base of the fireplace. Cut an "X" in the gasket covering the inlet and insert the gas line through the gasket.

A shutoff valve may be placed within the fireplace

14-5/8"

6-5/8"

-- OR --

3-7/8"

Gas Inlet Pressure:

The included

fitting accepts a

3/8" M.P.T. or

1/2" F.P.T.

Natural Gas 7" W.C. (1.74 kPA) Propane 11" W.C. (2.73 kPA)

If the gas line is routed from the right side, bend the flex tube 180°.

3/8" M.P.T to 1/2" O.D. Fitting (Factory installed)

Gas Control Valve

OFF

PILOT ADJ

10" Flex Tube (shipped with the fireplace - min. bending radius is 3/4")

VENT

Standard Input Pressure

• If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is

adequately adjusted, and the total gas load for the residence does not exceed the amount supplied.

• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank)

should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the

regulator is at an improper pressure.

Travis Industries 4020812 93508110

Installation (for qualified installers only) 31

Electrical Connection

! Make sure the household breaker is shut off prior to working on any electrical lines. ! The appliance, when installed, must be electrically grounded in accordance with local codes or, in the

absence of local codes, with the National Electrical Code, ANSI NFPA 70, or the Canadian Electrical

Code, CSA C22.1.

• The electrical line must comply with all applicable codes and supply 120 Volts at 60 Hz (2 Amps).

• Follow the directions below to connect power to the fireplace.

Remove the cover from the

fireplace junction box.

WARNING: Make sure power is off from the power lead before conducting any wiring.

Insert the sheathed cable from the power source through this cable clamp. Once the wires are attached, tighten

the clamp to secure the cable.

1/4" Nutdriver

Electrical Connector

Attach the common (white), ground (exposed or green) wires, and hot (black) wires from the power source to the electrical connector (attached

to the fireplace).

Standard Screwdriver

Replace the cover removed in step "a".

Travis Industries 4020812 93508110

32 Finalizing the Installation (for qualified installers only)

1 Remove the glass following the directions below.

Warning: The appliance must be completely cool before removing the glass.

Warning: To prevent damage, do not abuse, strike, or slam the glass shut.

Insert the included glass latch tool into

the hole on the glass frame latch.

Glass Frame

Glass

Glass Latch Tool

Glass Frame Latch

Pull the latch out then up to detach it from

the glass frame.

Hold the glass in place and repeat steps "a" and "b" for the opposite side latch.

Hold the bottom of the glass while swinging the top outwards. At approximately 45° the glass, with frame, can be pulled up and away. Set the glass aside to prevent damage.

Glass Replacement

Make sure both bottom latches are facing upwards

Position the glass at a 45° angle and lay it on the two tabs below the firebox. When correctly positioned, the tabs on the frame should insert into the bottom latches.

Swing the glass into place (make sure the bottom latches are engaged.

Re-attach the top latches (see steps "a" and "b" above).

Travis Industries 4020812 93508110

Finalizing the Installation (for qualified installers only) 33

? If converting this unit to propane, do so now (see the instructions on page 46). 2 Install the rock wool, log set, kibbles, and embers (if using the decorative fireback, install it prior to the

log set - page 51).

Warning: Failure to position the parts in accordance with these diagrams or failure to use only parts

specifically approved with this appliance may result in property damage or personal injury.

Preparing the Metallic Wool Ember Strips (Optional):

The metallic wool comes in a single piece. Stretch the wool

thin as possible (nearly transparent) to form three strips

as of the following sizes:

One Strip Approximately

7-1/2” by 1-1/2”

There may be extra material save it for future use.

Embedding Embers into the Front Log (optional)

Pull off a thin mat of metallic wool. Place it in front of the front log directly above the front burner. Use a small pocket knife or micro screwdriver to pierce the log and “embed” the metallic wool fibers into the log material (pierce the log approximately 1/8”). Pull the material away to leave a few strands embedded into the log.

Repeat this process to embed several fibers into the log material.

Metallic Wool Fibers

Two Strips Approximately

3” by 1-1/2”

Front Log Directly Above Front Burner

Place the ember strips on the grate as shown in this illustration. The front strip should hang half way over the burner.

Place the log set on the grate. Position the logs so the rear corners rest against the log stops.

Grate

Tuck the front of the ember strip down, behind the burner with a screwdriver. Make sure the mat of ember wool is not over the burner holes. Tuck it behind the burner tube if necessary.

Note how only a few “whiskers” are over the burner holes.

Side View

Place the optional kibbles in front of the firebox. Do not place the kibbles directly over the burner holes.

Travis Industries 4020812 93508110

34 Finalizing the Installation (for qualified installers only)

! We recommend you purge the gas line at this time (with the glass removed). This allows gas to be

detected once it enters the firebox, ensuring gas does not build up.

3 Replace the glass. 4 Install the faceplate. ! ACID WASH WARNING : Before installing the faceplate, make sure any masonry that has been

treated with acid wash has been properly neutralized (this is used primarily with brick faces). Acid wash

(muriatic acid) is used to remove excess mortar. If not properly neutralized with an ammonia solution,

the gold face may develop a permanent tarnish when the acid evaporates over time. Contact your

dealer if uncertain your facing has been properly neutralized. 5 Turn on the gas to the fireplace. Turn on gas to the heater. Leak test all gas joints prior to starting the

appliance. Start the pilot (see page 37). Start the main burner. Leak test all gas joints again. 6 Check the pilot flame to make sure it looks like the illustration below. Adjust the pilot flame if

necessary.

To adjust the pilot flame, remove the cover screw and gasket and turn the needle valve (NOTE: if the needle valve is totally unscrewed, gas will come out of this port). Clockwise lowers the flame while counterclockwise raises it. Replace the cover screw and gasket.

Cover Screw Gasket

Standard Screwdriver

PILOT ADJ

OFF

The pilot flame must contact the thermocouple and thermopile (see the illustration below). Adjust the pilot up or down as necessary.

Needle Valve

Micro (1/16”) Standard Screwdriver

Cover Screw

Travis Industries 4020812 93508110

Finalizing the Installation (for qualified installers only) 35

7 Let the heater burn for fifteen minutes. Adjust the air shutter, if necessary, to achieve the correct

looking flame (see the illustration below).

• The air shutter adjusts the amount of air that mixes with the gas before it exits the burner holes. It is

used to fine-tune the flame for differences in altitude and vent configuration.

Loosen the nut on the air shutter control. Move the control left or right until the flame looks correct. Pushing to the right gives the flame more air (making it bluer). Pushing to the left cuts air down, making it more orange.

3/8" Nutdriver

NOTE: If the air control is all the way open, yet the flames remain sooty, shut off gas to the appliance and contact the Travis Dealer for instructions

Air Shutter Control

NOTE: The logs must be installed correctly to monitor the flame while adjusting the air shutter.

Gas Control Valve

OFF

PILOT ADJ

VENT

Correct

Flames should be blue at the base, yellow-orange on the top.

If the flames are over 12" tall or sooty on the ends, push the lever to the right.

Not Enough Air Too Much Air

If the flames are all blue and short, push the lever to the left.

! If the air shutter is in its fully open position, yet the flames remain sooty, shut off gas to the heater and

contact your Travis Industries Dealer for a remedy. ! If the vent configuration is installed incorrectly the vent may cause the flames inside the fireplace to lift

or "ghost" – a dangerous situation. Inspect the flames after installation to insure proper performance.

If the vent configuration is correct, yet the flames are lifting or ghosting, shut off gas to the fireplace

and contact the dealer for information on remedying the problem. ! This fireplace has been tested at altitudes up to 8,000 feet. In this testing we have found that the

fireplace, with its standard orifice, burns correctly with just an air shutter adjust. If local codes require

resizing the orifice, in the U.S.A. refer to ANSI 223.1, Appendix P, in Canada B-149.1 or B-149.2

! Failure to properly adjust the air shutter may lead to improper combustion and a

safety hazard. Consult your dealer or installer if you suspect an improperly

adjusted air shutter.

Burner Ports (holes)

Burner Tube

The flames should burn right off the top of the burner ports (if they are too blue, adjust the air control).

If the flames are lifting, yet the vent configuration is correct, contact your dealer.

If the flames are ghosting, yet the vent configuration is correct, contact your dealer.

8 Turn the flame adjust knob to its highest position - the flames should be approximately 12" tall. Check

the flame on low position. The flames should burn off of each burner hole. If the heater does not work

correctly, contact your dealer for a remedy.

9 Give this manual to the home owner and fully explain the operation of this heater.

Travis Industries 4020812 93508110

36 Operation

Before You Begin

Warning: Read this entire manual before you use your new fireplace (especially the section "Safety

Precautions" on pages 2 & 3). Failure to follow the instructions may result in property damage, bodily injury, or even death.

Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement of

the glass should be done by a licensed or qualified service person.

Location of Controls - See explanation below

The Pilot Flame can be found below the back log on the left side.

ON/OFF Switch

Swing the control cover down to access the gas control valve,

Gas Control Valve

igniter, and blower control.

PILOT

IGNITER

OFF

PILOT ADJ

Gas Control

Knob

VENT

Flame Adjust

Knob

OFF

MAIN BURNER

Pilot Igniter

Blower Knob

Blower Knob This knob controls the speed of the internal convection blower that pushes

the heated air into the room.

On/Off Switch This control is used to turn the fireplace on and off.

Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an

electrical charge to the pilot assembly. This creates a blue spark directly next to the pilot, igniting the pilot flame.

Gas Control Knob This knob is used to control gas to the fireplace and for starting the pilot.

There are three positions, ON, OFF, & PILOT. The pointer directly below the knob indicates the position this knob is in.

Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The pointer

to the upper left of the knob points to the position this knob is in.

? If using a remote control or thermostat, the On/Off Switch must be left "ON". Turning the On/Off

Switch "OFF" will keep the fireplace off always.

BLOWER

Travis Industries 4020812 93508110

Operation 37

Starting The Pilot Flame

The pilot flame is required to ignite the main burners (it also plays a safety role). It should be left on once lit. It will stay lit unless the gas control valve is turned to "OFF". However, the pilot will go out if the gas is shut off, the propane tank runs out (or low) or if the stove malfunctions. If the pilot turns off frequently, call your dealer for information. To start the pilot follow the directions below:

WARNING :

When lighting or re-lighting the

pilot, the glass must be removed

(see page 32). a Remove the glass (see page 32 for details). b Push the gas control knob in slightly and turn

it to the "OFF" position. The knob will not

turn from "ON" to "OFF" unless the knob is

depressed slightly. Wait five minutes to let

any gas that may have accumulated inside

the firebox escape. If you smell leaking gas,

follow the directions on the cover "IF YOU

SMELL GAS". c Turn the gas control knob to the "PILOT"

position and press the knob in, this will allow

gas to flow to the pilot light. Press the

button on the pilot igniter repeatedly until

you see the pilot light.

WARNING:

If the pilot does not light after 15

seconds, release the knob and call

your dealer for service. Do not

attempt to light pilot until service

has been performed.

OFF

PILOT ADJ

OFF

5 minutes

PILOT

IGNITER

30 seconds

OFF

NOTE:

PILOT ADJ

You may wish to remove the log set

to gain a better view of the pilot (see

page 33). d Keep the gas control knob depressed for 30

seconds once it is lit.

e Release the gas control knob. If the pilot

goes out, repeat step C. If the pilot refuses

to stay lit, call your dealer for service. With

the pilot lit, proceed to step “f”.

OFF

f Replace the glass. g Turn the gas control knob counter-clockwise

to "ON". The pilot is now lit and the heater

can be turned on and off.

PILOT ADJ

Travis Industries 4020812 93508110

38 Operation

Starting the Fireplace for the First Time

! Fingerprints or other marks left on the optional gold surface may become etched in place if they are not wiped

clean prior to turning the heater on. Clean gold with denatured alcohol and a soft cloth (make sure the fireplace is

cool). Other cleaners may leave a film that may become etched into the gold.

+ Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will

cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is

normal. We recommend opening a window to vent the room. + Dust may accumulate inside the convection area of the heater when left idle. Once the heater is re-

started, a “smoky” smell may be created (similar to a baseboard heater when it is re-started).

+ Condensation may appear on the glass each time you start the fireplace - this is normal. + Blue Flames will occur on the fireplace when it first comes on. After fifteen minutes the flames will

turn a more realistic yellow and orange color. ? Certain installations use a remote "wall switch" to turn the fireplace on and off. If this is the case, leave

the ON/OFF switch "ON".

Turning the Fireplace On and Off

After the pilot has been started...

For systems with wall thermostats, use this switch to control the temperature (right is hotter, left cooler). Some systems require the on/off switch to be on.

Use this switch to turn the main burner on and off manually.

See the instructions included with the remote for details on operation.

See the instructions included with the remote for changing the battery.

ROOM TEMP

°F

SET TEMP

TIMER

MIN

°F

Time

OFF

Set

Time Cancel

! Do not place any combustible items on top of or directly in front of the fireplace, even temporarily. The

optional thermostat may start the fireplace causing a combustible item to ignite. ? If the fireplace turns on and off frequently while using the thermostat, you may want to adjust the flame

height down until it produces just enough heat needed.

Adjusting the Flame Height

+ Your fireplace has an adjustable flame to tailor the look and heat output to your specific needs. It is

adjusted by turning the middle dial on the gas control valve.

Flame Height Adjustment Knob

Index Mark

VENT

PILOT ADJ

VENT

OFF

Turn clockwise to adjust the flame higher, counter-clockwise to lower.

Travis Industries 4020812 93508110

Operation 39

Adjusting the Blower Speed

The internal blower helps transfer

the heat from the fireplace into the

room. It will not turn on until the

fireplace is up to temperature

(approximately 10 minutes after

starting). See the illustration below

for instructions on adjusting the

blower speed.

Normal Operating Sounds

Pilot Flame

The pilot flame, which remains on, makes a very slight "whisper" sound.

OFF

BLOWER CONTROL

Blower Knob

Turn the knob all the way counter-clockwise to turn the blower off. One click clockwise turns the blower to high speed. Turning the knob clockwise from the high position decreases the speed of the blower.

Blower This heater uses a blower to push heated air into the room. You will hear the sound of air movement that increases as the speed is increased.

The appliance will creak with change of temperature.

Gas Control Valve

As the gas control valve is turned on and off you will hear a dull clicking sound. This is the valve opening up and shutting down.

Blower Snap Disk This part can produce a clicking sound as it turns the blower on and off.

Travis Industries 4020812 93508110

40 Maintenance (for qualified service personnel only)

Maintaining Your Fireplace's Appearance

! Fingerprints or other marks left on the optional gold surface may become etched in place if they are not wiped

clean prior to turning the heater on. Clean gold with denatured alcohol and a soft cloth (make sure the fireplace is

cool). Other cleaners may leave a film that may become etched into the gold.

• Clean the glass with soap and water (do not use abrasive cleaners). To remove the glass, follow the instructions

on page 32.

Yearly Service Procedure

! Failure to inspect and maintain the fireplace may lead to improper combustion and a potentially dangerous

situation. The following procedures must be done by a qualified technician. 1 Check the pilot flame. It should touch approximately 3/8" of the top of the thermopile and touch the top of the

thermocouple (see illustration below). If it does not, contact your dealer for service. 2 Shut off gas to the fireplace by turning the gas control knob to "OFF" (see step A under "Starting the Pilot" on

page 37). Let the fireplace cool for 15 minutes. Remove the faceplate (see instructions included with face) and

glass (see page 32). 3 Remove the log set (NOTE: the logs are very fragile - see page 33). If severely deteriorated, replace.

Check the logs for sooting. A small amount of soot along the bottom of the logs is normal. If excessive sooting

is found, the fireplace will require adjustment. Contact your dealer. 4 Clean the burner tube (especially the burner holes) and inspect the following:

• Check the burner for cracked holes, warpage, or corrosion.

• Check the firebox and area around the pilot to make sure there is no warping or damage.

• If any problem is found, discontinue use and contact your dealer for service.

Check the walls and ceiling of the firebox for

Before Disassembly - Check the pilot

deterioration.

flame. It should touch the thermocouple and thermopile.

Thermopile

Make sure the burner pan is not warped or damaged.

Pilot Hood

Thermocouple

Check the burner holes.

5 Replace the log set. Replace the glass (if the glass is damaged, replace it). Make sure the gasket along the

perimeter of the glass contacts the face of the firebox and forms an air-tight seal. If it does not, re-align or

replace the gasket to insure an air-tight seal. Replace the faceplate. 6 Inspect the area behind the access door. Clean if necessary. Check the gas control valve and all of the gas

lines. If any damage is found, discontinue use and contact your dealer for service. 7 Start the pilot and turn on the main burner. The flames should be orange/yellow and not touch the top of the

firebox. If the pilot or main burners do not burn correctly, contact your dealer for service. Monitor the blower

operation. 8 Inspect the glass. If damage is found, replace the glass (with frame) with Travis Industries glass assembly

(glass installation is on page 32). 9 Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is

found near the vent termination. 10 Inspect the vent sections. If any sections are disconnected or require replacement, make sure to seal both

inner and outer sections of pipe and secure the sections together with three sheet metal screws.

Travis Industries 4020812 93508110

Maintenance (for qualified service personnel only) 41

Troubleshooting Table

Problem: Possible Cause: Don't Call for Service

Until You:

Pilot Will Not Light

A gas shut off valve is turned off The gas control knob isn't turned to "PILOT" The valve control knob isn't pushed in The igniter wasn't pressed repeatedly No Propane in Tank

Check all gas shut off valves See "Starting the Pilot Light" Step C See "Starting the Pilot Light" Step C See "Starting the Pilot Light" Step C Check Tank Level

Main Burners Will Not

Start

Remote Control Does

Not Work

Thermostat Does Not

Work

Fireplace Will Not

Distribute Heat

The pilot light has gone out The gas control valve is turned to "PILOT" or "OFF" The ON/OFF switch is turned to "OFF" The remote control is not working correctly The thermostat is disconnected or set too low

The pilot light has gone out The gas control valve is turned to "PILOT" or "OFF" The ON/OFF switch is turned to "OFF" The remote is too far away from the fireplace The remote control receiver is turned "Off" One of the two remote control batteries is dead

The pilot light has gone out The gas control valve is turned to "PILOT" or "OFF" The ON/OFF switch is turned to "OFF" The thermostat is set too low

The fireplace is not getting electricity The fireplace is not up to temperature

See "Starting the Pilot Light" See "Starting the Pilot Light" Turn the ON/OFF switch to "ON" See the remote control instructions See "Thermostat Operation"

See "Starting the Pilot Light" See "Starting the Pilot Light" Turn the ON/OFF switch to "ON" Use the remote closer to the fireplace See the remote control instructions See the remote control instructions

See "Starting the Pilot Light" See "Starting the Pilot Light" Turn the ON/OFF switch to "ON" See "Thermostat Operation"

Check the breaker switch See "Operating Your Fireplace"

Pilot Goes Out Once A

The gas supply has been shut off Keep the gas supply turned on

Month Or More

Flames Are Too Blue

Flames Are Too Short

(Under 6") Thin Layer of Soot

Covers the Glass

The fireplace has just been started

Improper air shutter adjustment

The flame height may be turned too low Turn the flame height to "HI" -

The logs or coals are placed incorrectly Improper air shutter adjustment

This is normal - see "Starting the

Fireplace for the First Time"

Adjust Air Shutter - contact your

dealer

See "Adjusting the Flame Height"

See "Log Set Installation & Removal" Adjust Air Shutter - contact your

dealer

Travis Industries 4020812 93508110

42 Maintenance (for qualified service personnel only)

How this Fireplace Works

! This fireplace was designed with safety as the primary concern. Many of the components inside this

fireplace are for safety purposes. Therefore, only certified gas service technicians should service this

fireplace.

What Turns the Main Burners On and Off

This fireplace uses a millivolt system to control its operation (a millivolt is a very small amount of

electricity). The thermopile and thermocouple generate electricity when heated by the pilot flame.

This electricity is used to operate the gas valve. Without enough electricity, the gas valve will not turn

on. That is why when starting the pilot the gas control knob has to be pressed in long enough for the

thermocouple to heat up and generate enough electricity. The thermopile provides power for the

ON/OFF switch, remote control, or thermostat (see the illustration below). Because the thermopile

generates the electricity needed to turn the fireplace on and off, this fireplace can be operated when

the power is out (although the blower will not run).

When heated, the thermopile generates electricity (a very small amount measured in "Millivolts").

This electricity is used to operate the main burners.

The main burners are switched on and off using the electricity generated by the thermopile. The ON/OFF switch, remote control, or thermostat control the circuit to the main burner.

MAIN BURNER

OFF

What Prevents Gas Buildup

+ This appliance utilizes a high-technology gas valve in conjunction with a pilot flame to ensure no gas

builds up inside the firebox. + The thermocouple (next to the pilot) senses when the pilot flame is lit. If the pilot flame goes out, this

thermocouple no longer generates electricity, causing the gas valve to automatically shut off all gas to

the heater, preventing the pilot from spilling gas into the firebox.

Pilot Flame

The pilot flame is a time-proven component that eliminates the possibility of gas buildup inside the firebox.

Gas Valve

This high-technology valve automatically shuts off all gas if it does not receive a signal from the thermocouple. If any component is damaged or sensing a malfunction, or if the wiring is damaged, it will shut off all gas.

External Shut Off Valve

This valve is placed on the gas line to shut off gas to the appliance during maintenance procedures.

Thermocouple

The thermocouple generates a small amount of electricity. If the pilot flame goes out, the gas valve automatically shuts off all gas.

Ceramic Glass

The glass in your heater is the most durable glass available. It has been tested to be extremely resistant to breakage from temperature changes.

Travis Industries 4020812 93508110

Maintenance (for qualified service personnel only) 43

Wiring Diagram

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause

improper and dangerous operation.

Brown

Jumper Wire

(Manual

Operation)

Optional Thermostat

EPU

terminal

Gas Control Valve

Green

Optional Remote Control

Red

On/Off Switch

Blower

Motor

Black

Blower Thermodisk

Black

White

Thermopile

Red

White

Chassis Ground

White

Blower Rheostat

Thermocouple

Copper Co-Axial Wire

Green

White

Black

Piezo Igniter

Orange

120 Volt Grounded A.C. Power Supply

Black

120 V.

Blower

Circuit

Replacement Parts List

Caution: Use only Travis Industries replacement parts. Do not use substitute materials.

Brick Floor Plate 93006073 Pilot Tube 91001508 Burner Tube 93006000 Regulator, Natural Gas 98900733 Control Valve, LP 97300130 Regulator, Propane (LP) 98900734 Control Valve, NG 97300120 Rheostat, w/ Off Position 98900758 Embers, Metal Alloy 93006052 Screws, FPX, Long (1-1/2"), Gold, Pack of 6 91001648 Glass and Frame Assembly 93006045 Screws, FPX, Black, Pack of 6 91001643 Knob for Blower 99300657 Screws, FPX, Nickel, Pack of 6 91001655 Latch Tool for Glass Frame 93006041 Screws, FPX, Long (1-1/2"), Black, Pack of 6 91001649 Log Set 93006050 Screws, FPX, Long(1-1/2"), Nickel, Pack of 6 91001657 Log, Ember Coals 99300114 Screws, FPX, Gold, Pack of 6 91001642 Orifice, #49 98900607 Snap Disk, 120 Degree 98900720 Orifice, #31 98900605 Switch, On/Off 98900747 Orifice, Pilot, .011 (LP) 91001510 Template, 34 DVL Arched Fireplace 98500694 Orifice, Pilot, .018 (Natural Gas) 91001509 Thermocouple 98900748 Piezo Igniter 98900751 Thermopile 98900752 Pilot Assembly, LP 93006021 Thermostat, Wall Mounted 99300650 Pilot Assembly, NG 93006020 Top Vent Adapter 8" dia. 98900182

Travis Industries 4020812 93508110

44 Safety Label

Travis Industries, Inc.

DVL Z.C. Fireplace

Vented Gas Fireplace Heater (Direct Vent)

Tested and certified by OMNI-Test Laboratories, Inc. to the combustion performance and construction requirements of ANSI Z21.88/CSA2.33-1998, applicable sections of UL307b and

CAN/CGA2.17-M91.

Must be installed in accordance with all local codes, if any; if not, in USA follow ANSI Z223.1-1992 and NFPA 54(88), in Canada CAN/CGA B-149. Installation in Manufactured or

Mobile Homes must conform with: In USA, Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280; In Canada, CSA Z240.4 and Gas-Equipped

Recreational Vehicles and Mobile Housing. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently

located, manufactured (mobile) home where not prohibited by local codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a

certified kit is used. This appliance uses a millivolt-type control system consisting of a gas control valve/regulator, a standing pilot burner assembly, a thermopile, a piezo ignitor,

and the ON/OFF switch. THIS UNIT DOES NOT REQUIRE 110 VOLT POWER TO OPERATE. All exhaust gases must be vented outside the structure of the living-area. Combustion

air is drawn from outside the living-area structure. The DVL Z.C. is designed to operate on natural gas, or propane (LPG). This appliance is factory set for use with Natural Gas.

For conversion to Propane (LPG) use factory supplied kit. See owner’s manual for information on making these changes.

WARNINGS:

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the information in the owner’s and installation manual

provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.

Installation and repair should be performed by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person.

More frequent cleaning may be required where excessive lint from material like carpeting and bedding is present. The control compartment, the burner compartment and all

circulating air passageways of the appliance must be kept clean and clear at all times.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

This appliance must not be connected to a chimney flue servicing a separate solid fuel burning appliance.

This vented gas fireplace heater is not for use with air filters.

Operation of this appliance when not connected to a properly installed and maintained venting system can result in carbon monoxide(CO) poisoning and possible death.

Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid flesh burns or clothing ignition.

Young children should be carefully supervised at all times when they are in the same room as the appliance.

This appliance is a Vented Gas Fireplace Heater. Not for use with Solid Fuel.

CAUTION: Hot while in operation. Do not touch. Keep children, clothing, furniture, gasoline and other liquids having flammable vapors away.

Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.

All safety screen or guard components removed for servicing, must be replaced prior to operating the appliance.

Clothing or other flammable material should not be placed on or near the appliance.

Risk of electrical shock. Switch the household breaker off or remove fuse before servicing unit.

Use Simpson DURA-VENT direct vent system (Model GS), or Travis direct vent system (Model 10-DV), to vent this appliance to the exterior (direct discharge only without duct connection).

10850 117th Pl. N.E. Kirkland, WA 98033

Minimum Clearances to Combustibles

Faceplate to Adjacent Wall . . . . . . . . . . . 6” (155mm) Hearth Extension in Front - 12” (305mm), 0” (0mm) if Fireplace Raised 3” (76mm)

Wood Floor Beneath Fireplace . . . . . . . . 0” (0mm) Hearth Extension to Sides of Faceplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0” (0mm)

Back to enclosure . . . . . . . . . . . . . . . . . . . 1” (25mm) Sides to enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1” (25mm)

Top to enclosure (from stand-offs) Faceplate to Mantel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24” (610mm)

with Vertical Vent, . . . . . . . . . . . . . . . 37 7/8” (960mm) Faceplate Top Facing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18”(456mm)

with Horizontal Vent . . . . . . . . . . . . . 0” (0mm) Flue Vent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Owner’s Manual

* See Owner’s Manual For Additional Mantel Clearances and Options.

FAN TYPE VENTED CIRCULATOR

Blower Electrical Rating:

115 V., 1.5 Amps, 60 Hz, 150 watts

Output Capacity Rating . . . . . . . Up to 28,800 29,200 (blower on)

L.P .

N.G.

L.P . N.G.

Input Rate on “HI” (BTU/Hr)............ 40,000 40,000 Minimum Inlet Pressure (inches W.C.)............... 11.5” 5.5”

Input Rate on “LO” (BTU/Hr)........... 19,000 19,000 Maximum Inlet Pressure (inches W.C.).............. 13” 7”

Maximum Output (BTU/Hr).............. 29,200 28,800 Manifold Pressure on “HI” (inches W.C.).......... 11” 3.5”

Main Burner Orifice (DMS).............. #49 #31 Manifold Pressure on “LO” (inches W.C.)......... 2.7” 1”

This appliance is equipped for installation in Canada at 0-4500 ft. (0-1370 m); in USA, 0-2000 ft. (0-610 m).

In USA, for altitudes above 2,000 feet, the vent configuration, orifice, or combination of both may need to be changed.

See the owner’s manual for information on making these changes.

Manufacture 1999 Jan. Apr. Jul. Oct.

Date: 2000 Feb. May Aug. Nov.

2001 Mar. Jun. Sep. Dec.

IGN

Report No. 028-S-23-5

The safety (listing) label is on a

plate chained to the gas

control valve. A copy of the

safety label is shown to the

right.

Travis Industries 4020812 93508110

Warranty 45

To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance

purchase date to: TRAVIS INDUSTRIES, INC., 10850 117th Place N.E., Kirkland, Washington 98033. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows:

Years 1 & 2 - COVERAGE: PARTS & LABOR

Burner Assembly:

Burner, Burner Pan, Air Shutter Assembly, Main Burner Orifice

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms, Barometric Control Mechanism (for models with Remote Heat Ducts), Glass Attachment Mechanism

Electrical Assembly (within heater structure):

Blower, wiring harness, snap discs, rheostat speed control

Gold & Nickel Plating

Face & Door (see “Conditions and Exclusions” # 9)

Exclusions: Paint, Gasketing

Years 3 THROUGH 5 - COVERAGE: PARTS & LABOR

Burner Assembly:

Burner, Burner Pan, Air Shutter Assembly, Main Burner Orifice

Convection Heat Exchanger

Gas Control Assembly

Adjustable control valve, millivolt wiring and connectors (located within the metal heater structure), thermopile, thermocouple, pilot hood, orifices, pilot gas line, piezo ignitor

Ceramic Glass

Glass (breakage from thermal shock)

Ceramic Logs

Log Set, Coals, Ember Strip (Steel Fiber)

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms, Barometric Control Mechanism (for models with Remote Heat Ducts), Glass Attachment Mechanism

Accessories

Cast Brick, Cast Firebacks, Power Heat Ducts, Andirons

Convection Heat Exchanger Re-Installation Allowance

In cases where heater must be removed from home for repairs, a partial cost of re-installation is covered (preauthorization required)

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at factory is covered.

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at factory is covered.

Exclusions: Paint, Gasketing, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold & Nickel Plating, Accessories,

Re-Installation Allowance

Years 6 & 7 - COVERAGE: PARTS ONLY

Burner Assembly:

Burner Tubes, Burner Pan, Air Shutter Assembly, Main Burner Orifice

Exclusions: Paint, Gasketing, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold & Nickel Plating, Accessories,

Convection Heat Exchanger, Re-Installation Allowance, One-Way Freight Allowance, Labor

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms, Barometric Control Mechanism (for models with Remote Heat Ducts), Glass Attachment Mechanism

CONDITIONS & EXCLUSIONS

1. This new gas appliance must be installed by a qualified gas appliance technician. It must be installed, operated, and maintained at all times in accordance with the instructions in the Owner’s Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized TRAVIS dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered under warranty. The installer must ensure the appliance is burning as per the rating tag at the time of installation. Over-firing (operation above the listed BTU rate) of this appliance can cause serious damage and will nullify this warranty.

4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the installation of this product. If in doubt as to the extent of this warranty, contact your authorized TRAVIS retailer before installation.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or mountains or negative pressure or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.

6. This Warranty is void if: a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals. b. The unit is subject to submersion in water or prolonged periods of dampness or condensation. c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not limited to, improper chimney/venting

7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation, alteration or adjustment of the

8. This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, corroded or cracked logs, embers, etc. Also excluded is

9. Damage to gold or nickel surfaces caused by fingerprints, scratches, melted items , or other external sources left on the gold or nickel from the use of cleaners other than denatured alcohol is

10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages are not covered

11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the gas appliance without the express written permission of TRAVIS

12. Any statement or representation of TRAVIS products and their performance contained in TRAVIS advertising, packaging literature, or printed material is not part of this 7 year warranty.

13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way. If the appliance is used for commercial purposes, it is excluded from this warranty.

14. No dealer, distributor, or similar person has the authority to represent or warrant TRAVIS products beyond the terms contained within this warranty. TRAVIS INDUSTRIES, INC. assumes no

15. Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.

16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17. THIS 7 YEAR WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE APPLIANCE. ALL OTHER WARRANTIES,

installation. manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or act of God. damage to the unit caused by abuse, improper installation, modification of the unit, drilling of the orifices, or the use of fuel other than that for which the unit is configured. Units are shipped for

natural gas and must be converted to propane using the included conversion kit. Confirm fuel configuration with your installer. not covered in this warranty. by this warranty. In some states, the exclusion of incidental or consequential damage may not apply. INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

liability for such warranties or representations.

WHETHER EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED AND PURCHASER’S RECOURSE IS EXPRESSLY LIMITED TO THE WARRANTIES SET FORTH HEREIN.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your TRAVIS dealer WITHIN 30 DAYS, giving them proof of purchase, the purchase date, and the model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you purchased the appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance. At that time, you may be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership.

4. Check with your dealer in advance for any costs to you, when arranging a warranty call. Dealers may require you to pay a service or trip charges for any warranty work. This charge can vary from store to store.

Travis Industries 4020812 93508110

46 Optional Equipment (for qualified installers only)

LP Conversion Instructions

Install the conversion kit prior to installing the gas line to ensure proper gas use.

1 Remove the glass

(see page 32). Remove the logs and rock wool (if installed - page 33)

2 Remove the burner

(see illustration to the right).

Remove the grate

and cast brick floor.

Cast Brick Floor

Remove the screw holding

the burner in place.

Grate

1/4" Nutdriver

Slide the burner to the right

and up to remove the burner.

NOTE: When replacing the burner, make sure the burner inserts all the way up against the orifice shoulder.

Orifice Shoulder

1/4" Nutdriver

Burner

Orifice

Burner

Travis Industries 4020812 93508110

Optional Equipment (for qualified installers only) 47

3 Follow the directions below to remove the natural gas orifice. Apply thread sealant to the LP orifice

(#49 - it has "49" stamped on it) and tighten in place with a 1/2" open end wrench. Slide the adjustable shutter back in place over the orifice.

Loosen the air control shutter (see page 19).

Orifice

Use a 1/2” open end wrench to unscrew the orifice.

5/16”

Air Control Shutter

1/2" Wrench

NOTE:

Screw the LP orifice in so the orifice shoulder protrudes 5/16” (indicating full insertion).

Rotate the air control shutter away from the orifice.

The LP orifice has “49” stamped on it.

Apply thread

sealant to the new orifice prior to installation.

The NG orifice has “31” stamped on it.

Travis Industries 4020812 93508110

48 Optional Equipment (for qualified installers only)

4 Remove the pilot orifice following the instructions below. Replace with the propane pilot orifice

Lift the pilot hood

off the pilot assembly.

Use a hex wrench to

unscrew the orifice.

Remove the orifice and replace with the LP orifice. Screw the

orifice all the way in and replace the pilot hood.

Orifice Identification:

LP (Propane) Orifice

NG (Natural Gas) Orifice

5/32" Hex

NOTE: when re-attaching, this pin lines up with the notch in the pilot hood.

5 Install the logs and embers.

6 Remove the regulator from the front of the gas control valve. Replace with the propane regulator,

using the new gasket and screws included with the regulator. NOTE: Leak test this area after the heater is installed, gas is connected, and the main burner is lit.

Align the regulator gasket so it is flat and the two tabs fit through the two

NOTE: These holes strip easily. Use a hand screwdriver and tighten each screw evenly.

holes on the gasket.

OFF

PILOT ADJ

9 Install the logs and embers.

10Replace glass and face.

These screws hold the

VENT

regulator in place.

NOTE: use the new screws included with the regulator.

Phillips Screwdriver

Regulator Gasket

NOTE: use the new gasket included with the regulator.

VENT

LP (propane) regulators have a

11.0 2.7 stamped here.

Travis Industries 4020812 93508110

Optional Equipment (for qualified installers only) 49

7 Place the included propane label over the natural gas

label on top of the gas control valve.

THIS CONTROL

HAS BEEN

CONVERTED TO

8 With the glass removed, bleed the gas line (if applicable) and start the pilot (see the directions on page

37). Leak-test all gas connections and the regulator. Check the pilot. Adjust if necessary. Replace the glass and face.

WARNING: When lighting or re-lighting the pilot, the glass must be removed (see

page 37).

Cover Screw Gasket

Standard Screwdriver

PILOT ADJ

OFF

Needle Valve

Micro (1/16”) Standard Screwdriver

Cover Screw

The pilot flame must contact the thermocouple and thermopile (see the illustration below). Adjust the pilot up or down as necessary.

Remote Thermostat (Part # 99300651)

! Do not connect 110-120 VAC to the gas control valve or wiring system of this unit.

• Follow the instructions included with the remote thermostat for installation.

IMPORTANT OPERATIONAL NOTE FOR REMOTE THERMOSTAT USE:

Included with the remote thermostat is a set of instructions that should be given to the homeowner. Please be aware that the remote thermostat has a 1 to 2 minute lag time between the time the thermostat is turned up and the heater turns on.

Travis Industries 4020812 93508110

50 Optional Equipment (for qualified installers only)

Thermostat (Part # 99300650)

! Do not connect 120 VAC to the gas control valve or wiring of this unit. + It is easiest to route the remote control wire prior to installing the appliance. Route the wire to a

location near the gas inlet. Allow 3' of wire for hookup inside the heater.

1 Attach the thermostat wire and route through the gas inlet hole (see the illustration below). Pull

through all the slack (you may wish to wrap the wire in electrical tape to prevent damaging the wire).

Remove the jumper wire on the back of the on/off switch and discard.

Red & brown wires leading to the gas control valve.

Jumper Wire

(green wire)

Back of

on/off switch

Connect the thermostat wires to back of the on/off switch (orientation does not matter).

Route the thermostat wire out the grommet-lined thermostat hole (located behind the hole for the gas line on either side).

Gas Line

Thermostat Wire

Hole (with grommet)

2 Determine a location for the thermostat that is within range of the 50' length of thermostat wire. It

should be centralized in the room and away from the heater. The wire may be routed externally on the wall or behind the wall (preferred).

3 Follow the directions below to install the thermostat.

Pull the cover off the thermostat

50 60 70 80 90

Robertshaw

Run the thermostat wires through the wall (cut off excess wire, leaving 6” of slack).

Attach the thermostat to the wall through these two holes.

Expose 1/2” of wire and attach to these two posts.

Re-attach the cover removed in step “a”.

Standard Screwdriver

Travis Industries 4020812 93508110

Optional Equipment (for qualified installers only) 51

Decorative Firebacks (Part # - Brick Pattern 98500734, Classic Pattern 98500744)

! Turn the gas control valve to "OFF" prior to conducting any service.

The decorative cast fireback attaches to the walls of the firebox to enhance aesthetics. Before installing, remove the face, glass, logs, and embers. The directions below detail installation.

Remove the screws on both side walls of the

firebox.

5/16" Nutdriver

Install the side firebacks and secure with the fireback clips and screws removed in step “a”.

Side Fireback Clip

Make sure the notches on the side firebacks fit into the grooves on the firebox floor.

Place the rear fireback on the ledge at the back of the firebox. It is held in place by the side firebacks.

Travis Industries 4020812 93508110

52 Index

Approved Vent Configurations (Top Vent).........25-28

Approved Vent Configurations (Rear Vent)........18

Adjusting the Blower Speed..............................39

Adjusting the Flame Height...............................38

Air Shutter Adjustment......................................35

Altitude Considerations (Top Vent) ....................22

Altitude Considerations (Rear Vent)...................18

Blower Control..................................................39

BTU Input.........................................................5

BTU Output......................................................5

Cap (see vent termination).................................29

Chimney Cap (see vent termination)...................29

Clearances.......................................................8

Condensation on Glass.....................................38

Corner Installation.............................................8

Dimensions......................................................5

Dura-Vent (part numbers – Top Vent Config.).....22

Elbows (Top Vent)............................................24

Elbows (Rear Vent)...........................................18

Electrical Connection ........................................31

Face Dimensions..............................................12

Face Installation................................................34

Facing Requirements........................................10

Finalizing the Installation....................................3 2

Floor Protection (see "Hearth Requirements") ....9

Framing Dimensions.........................................7

Fuel .................................................................30

Gas Control Valve (Location)..............................3 6

Gas Inlet Pressure.............................................3 3

Gas Line Connection........................................30

Gas Line Install..................................................3 0

Gas Smell.................................See Inst. on Cover

Glass Installation and Removal ...........................32

Hearth Requirements........................................9

Heating Specifications......................................5

Horizontal Vent Termination Requirements........29

How this Fireplace Works...................................4 2

Installation Options...........................................5

Items Required for Installation............................6

Leaking Gas.............................See Inst. on Cover

Listing Information............................................44

Location of Controls..........................................36

Log Set Installation and Removal.......................33

Maintenance....................................................40

Mantel Requirements........................................16

Measuring Vent Lengths (Top Vent) ..................24

Measuring Vent Lengths (Rear Vent).................18

Noise (see Normal Operating Sounds)...............39

Normal Operating Sounds.................................39

Packing List......................................................6

Pilot Flame Inspection.......................................34

Piping Installation (see Gas Line Install)...............3 0

Raised Fireplaces.............................................8

Remote Control Installation................................49

Remote Control Operation................................49

Restrictor Position (Top Vent)............................24

Restrictor Position (Rear Vent)...........................19

Safety Label.....................................................44

Safety Precautions...........................................2

Starting The Pilot..............................................37

Starting the Fireplace for the First Time...............38

Thermostat Installation......................................50

Thermostat Operation .......................................38

Turning the Fireplace On and Off.......................38

Vent Length (see “Vent Config.”) (Top Vent).....24

Vent Length (see “Vent Config.”) (Rear Vent)....18

Vent Part Numbers (Top Vent)...........................22

Vent Part Numbers (Rear Vent)..........................1 8

Vent Requirements (Top Vent)..........................23

Vent Requirements (Rear Vent).........................19

Vertical Vent Termination Requirements............29

Warnings..........................................................2

Warranty...........................................................4 5

Water on Glass (see Condensation)...................38

Weight (250 Lbs.) .............................................5

What Prevents Gas Buildup...............................42

What Turns the Main Burners On and Off............4 2

Wiring Diagram..................................................4 3

Yearly Service Procedure..................................40

Travis Industries 4020812 93508110

Avalon Firestyles DVL Fireplace-1999 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
