Owner's Manual

- June, 1994 -

¥ Freestanding Stove ¥ Masonry Fireplace Insert

Listed

¥ Factory-Built (Z.C.) Fireplace Insert

WARNING: If the information in this manual is not followed exactly, a fire or explosion may

result causing property damage, personal injury or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS

¥ Do not try to light any appliance. ¥ Do not touch any electrical switch; do not use any phone in your building. ¥ Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions. ¥ If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency or the gas supplier.

700 - Gas Room Heater

10850 117th Place N.E. Kirkland, WA 98033

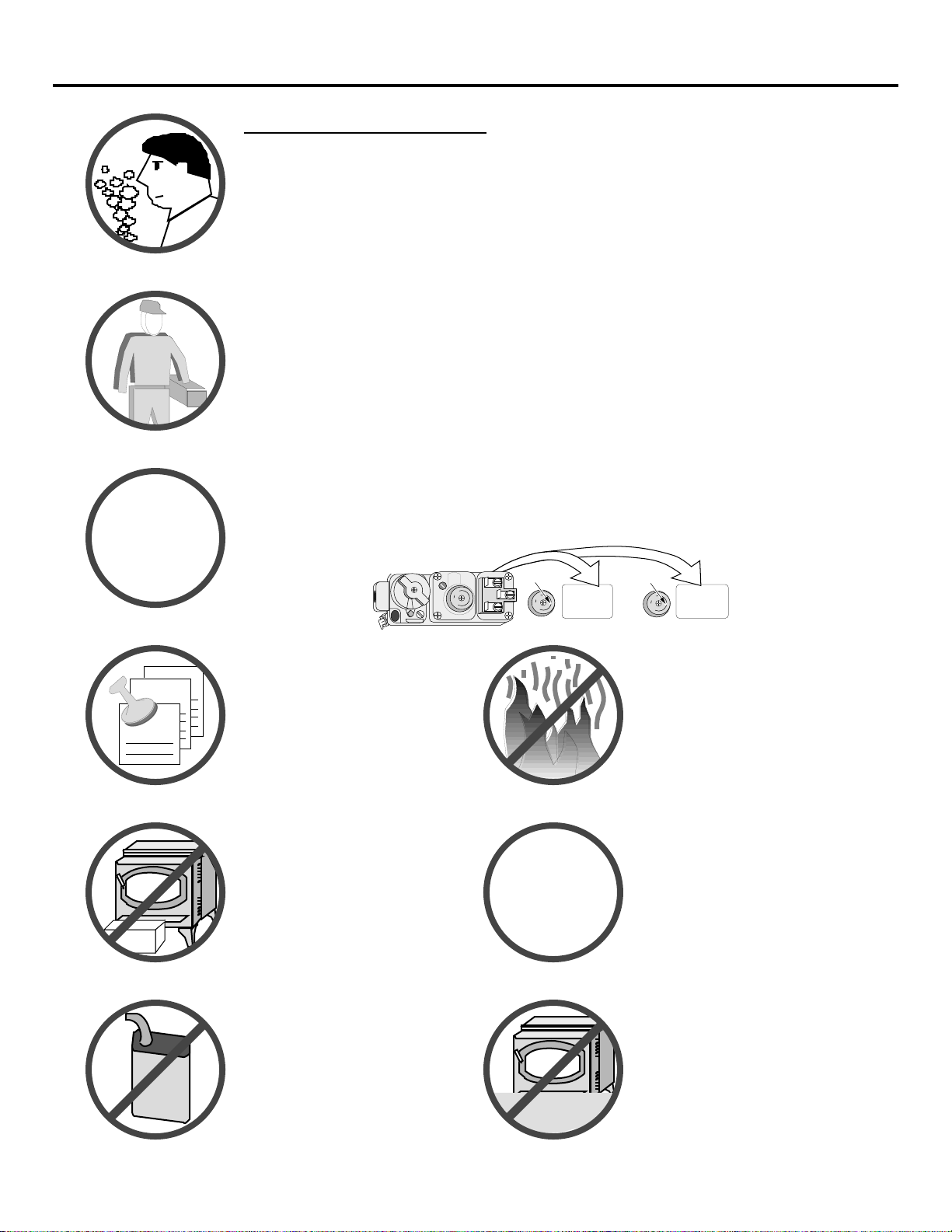

PAGE 2 SAFETY PRECAUTIONS

¥ IF YOU SMELL GAS:

* Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department

¥ This unit must be installed by a qualified installer to prevent the possibility of

an explosion. Your dealer will know the requirements in your area and can inform you of those people considered qualified. The room heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.

¥ The instructions in this manual must be strictly adhered to. Do not use

makeshift methods or compromise in the installation. Improper installation will void the warranty and safety listing.

¥ This stove may be converted to either natural gas (NG) or propane (LP).

- or -

Burning the incorrect fuel will void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about the type of fuel used to your dealer. Check the label and flame adjust knob on the gas control valve.

Gas

VENT

OFF

PILOT ADJ

RED

LP ( Pr opane)

THIS CONTROL

HAS BEEN

CONVERTED TO

¥ Contact your local

building officials to obtain a permit and information on any installation restrictions or inspection requirements in your area. Notify your

BLUE

-o r-

THIS CONTROL

HAS BEEN

CONVERTED FOR

NATURAL GAS

Na tu ral Ga s

¥ If the flame becomes

sooty, dark orange in color, or extremely tall, do not operate the heater. Call your dealer and arrange for proper

servicing. insurance company of this heater as well.

¥ It is imperative that

control compartments, screens, or circulating air passageways of the heater be kept clean and free of obstructions. These areas provide the air necessary

¥ Do not operate the heater

if it is not operating

properly in any fashion or

if you are uncertain. Call

your dealer for a full

explanation of your heater

and what to expect. for safe operation.

¥ Do not store or use

gasoline or other flammable liquids in the vicinity of this heater.

¥ Do not operate if any

portion of the heater was

submerged in water or if

any corrosion occurs.

¥ Keep all furniture or other

combustible items at least 36" away from the front of the stove.

SAFETY PRECAUTIONS (CONTINUED) PAGE 3

¥ Do not place clothing or

other flammable items on or near the heater. Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near it.

¥ The viewing door should

be opened for service only (see the maintenance section of this manual).

¥ Any safety screen or

guard removed for servicing must be replaced prior to operating the room heater.

¥ Operate the heater

according to the instructions included in this manual.

¥ If the main burners do not

start correctly turn the gas off at the gas control valve and call your dealer for service.

¥ Light the heater using the

built-in piezo igniter. Do

not use matches or any

other external device to

light your heater.

¥ Never remove, replace,

modify or substitute any

part of the stove unless

instructions are given in

this manual. All other

work must be done by a

trained technician. Don't

modify or replace orifices.

¥ Allow the stove to cool

before carrying out any

maintenance or cleaning.

¥ The pilot flame must

contact the thermopile,

thermocouple and deflect

off the pilot hood when

turned on. If it does not,

turn the gas control valve

to "OFF" and call your

dealer.

¥ This unit is not for use

with solid fuel

¥ Do not place anything

inside the firebox (except the included fiber logs).

¥ If the fiber logs become

damaged, replace with Travis Industries log set.

¥ Do not touch the hot

surfaces of the heater. Educate all children of the danger of a hightemperature heater. Young children should be supervised when they are in the same room as the heater.

¥ Instruct everyone in the

house how to shut gas off to the appliance and at the gas main shutoff valve. The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off.

This Manual

¥ Do not throw this manual

away. This manual has

important operating and

maintenance instructions

that you will need at a

later time. Always follow

the instructions in this

manual.

¥ Plug the stove into a

115 V. grounded

electrical. Do not use an

adapter plug or remove

the grounding plug.

¥ Don't route the electrical

cord in front of or over

the stove

¥ Travis Industries, Inc.

grants no warranty,

implied or stated, for the

installation or

maintenance of your

heater, and assumes no

responsibility of any

consequential

damage(s).

PAGE 4 TABLE OF CONTENTS

General Information

Introduction & Important Information ................................................................................................... 1

Safety Precautions............................................................................................................................... 2

Features & Specifications.................................................................................................................... 5

Stove Installation

Heater Placement................................................................................................................................ 6

Floor Protection ................................................................................................................................... 7

Vent Requirements.............................................................................................................................. 7

Gas Line Install.................................................................................................................................... 8

Finalizing the Installation ..................................................................................................................... 9

Insert Installation

Heater Placement................................................................................................................................ 10

Fireplace Sizing ................................................................................................................................... 11

Floor Protection ................................................................................................................................... 11

Vent Requirements.............................................................................................................................. 11

Gas Line Install.................................................................................................................................... 12

Finalizing the Installation ..................................................................................................................... 13

Operating Your Heater

Reviewing the Installation.................................................................................................................... 14

Before You Begin................................................................................................................................. 15

Location of Controls............................................................................................................................. 15

Starting The Pilot ................................................................................................................................. 16

Running Your Heater ........................................................................................................................... 17

Starting the Heater for the First Time ........................................................................................... 17

Turning the Heater On and Off ..................................................................................................... 18

Adjusting the Flame Height .......................................................................................................... 19

Adjusting the Blower Speed ......................................................................................................... 19

Normal Operating Sounds ................................................................................................................... 19

Maintaining Your Heater

Inspecting the Firebox ......................................................................................................................... 20

Installing the Logs and Coals............................................................................................................... 21

Inspecting the Door ............................................................................................................................. 22

Replacing the Door Gasket .......................................................................................................... 22

Replacing the Glass or Glass Gasket........................................................................................... 22

Troubleshooting

Troubleshooting Table ......................................................................................................................... 23

How this Heater Works........................................................................................................................ 24

What Turns the Main Burners On and Off.................................................................................... 24

Why Nothing Should Be Placed Against the Heater..................................................................... 24

What Prevents Gas Buildup ......................................................................................................... 25

Wiring Diagram............................................................................................................................. 26

Replacement Parts List ................................................................................................................ 26

Warranty

Warranty .............................................................................................................................................. 27

Listing Information

Listing Information ............................................................................................................................... 28

Optional Equipment

Legs ..................................................................................................................................................... 29

Pedestal............................................................................................................................................... 29

Surround Panels.................................................................................................................................. 30

Telescoping Legs................................................................................................................................. 31

Remote Control ................................................................................................................................... 32

Thermostat........................................................................................................................................... 34

Re-Routing the Power Cord to the Left or Rear of the Heater............................................................. 36

Index

Index.................................................................................................................................................... 38

FEATURES AND SPECIFICATIONS PAGE 5

Installation Options:

¥ Freestanding

¥ Freestanding in an Alcove

¥ Masonry Fireplace Insert

¥ Factory-Built (Z.C.) Fireplace

Insert

Heating Specifications:

Approximate Maximum Heating Capacity (in square feet)* 600 - 1600 600 - 1600 High Burn Input Rate (In BTU's)** 31,000 31,000 Low Burn Input Rate (In BTU's)** 18,000 17,000 AFUE Efficiency 70.0 % 70.0 %

* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside temperature. It is also

affected by the natural gas or LP BTU rating.

** To measure the net BTU's, multiply the BTU input by the efficiency percentage (80% for natural gas, 82% for LP).

Features:

¥ Works During Power Outages

(utilizes millivolt system)

¥ High Efficiency; Up to 80% for Natural

Gas, 82% for LP (Steady State)

¥ Optional Thermostat or Remote Control

¥ Realistic "Wood Fire" Look

¥ Convenient Operating Controls

¥ Variable-Rate Heat Output

¥ Quiet Blower for Effective Heat

Distribution

¥ Low Maintenance

700 Natural

Gas

(propane)

700 LP

700 Dimensions

18 1/2"

Electrical Specifications:

Blower Electrical Rating: 115 Volts, 1.3 Amps, 60 Hz (150 watts on high)

Fuel:

The heater is designed either for natural gas or for propane (but not for both). Check the sticker on the top of the gas control valve.

23 5/8"

HEIGHT*: Without Legs 20 1/8" With Pedestal 31 3/8" With Brass Legs 28" With Cast Legs 28" With Black Legs 26 5/8"

* Subtract 1 1/8" to reach the base of the flue collar

Vent Opening Diameter = 4" (Both)

Weight = 175 Pounds

3 1/4"

Emissions:

This unit has passed the ANSI emission standards for vented room heaters as tested by Warnock Hersey, LTD.

PAGE 6 STOVE INSTALLATION - For qualified installers only!

This appliance must be installed in accordance with all local codes, if any; if not, follow ANSI Z223.1 and the requirements listed in this manual. Failure to follow all of the requirements may result in property damage, bodily injury, or even death.

Check with local building officials for any permits required for installation of this gas heater and notify your insurance company before hooking up this heater. The requirements listed below are divided into sections. All requirements must be met simultaneously. The order of installation is not rigid Ð the qualified installer should follow the procedure best suited for the installation.

Heater Placement

The heater must be placed so the following requirements are met:

¥ Stove must be placed so that no combustibles are within, or can swing within (e.g.

drapes, doors), 36" of the front of the heater ¥ The stove must be placed on a set of Travis Industries legs or pedestal ¥ Heater must be installed on a level, secure floor ¥ The stove must not be placed so the vents below the ashlip, above the door, along

the sides of stove, or along the back of the heater can become blocked

Alcove Installations If the ceiling height is under 7 feet, the following requirements must be met:

¥ Minimum height 58" ¥ Maximum depth 48" ¥ Minimum width 43-5/8"

STRAIGHT INSTALLATION (see the illustration below)

¥ 10" clearance from the top of the heater to the sidewall ¥ 3" clearance from the top of the heater to the backwall

CORNER INSTALLATION (see the illustration below)

¥ 4" clearance from the rear top corner of heater to the cornerwall (at a 45° angle)

HINT: REDUCING CLEARANCES - Clearances may be reduced by

methods specified in NFPA 211, listed wall shields, pipe shields, or other means approved by local building or fire officials.

Straight Insta l l a t i o n

3" MIn. (to top of stove)

Sidewall

10" MIn. (to top of

stove)

When the stove is installed directly on carpeting, vinyl, or other combustible material other than wood flooring, the stove must be installed on a metal or wood protection panel extending the full width and depth of the stove.

Backwall

Corner Insta l l a t i o n

Cornerwall

4" MIn. (to top of

stove)

STOVE INSTALLATION (CONT.) - For qualified installers only! PAGE 7

Floor Protection

When the stove is installed directly on carpeting, vinyl or other combustible material other than wood flooring, the stove must be installed on a metal or wood protection panel extending the full width and depth of the stove.

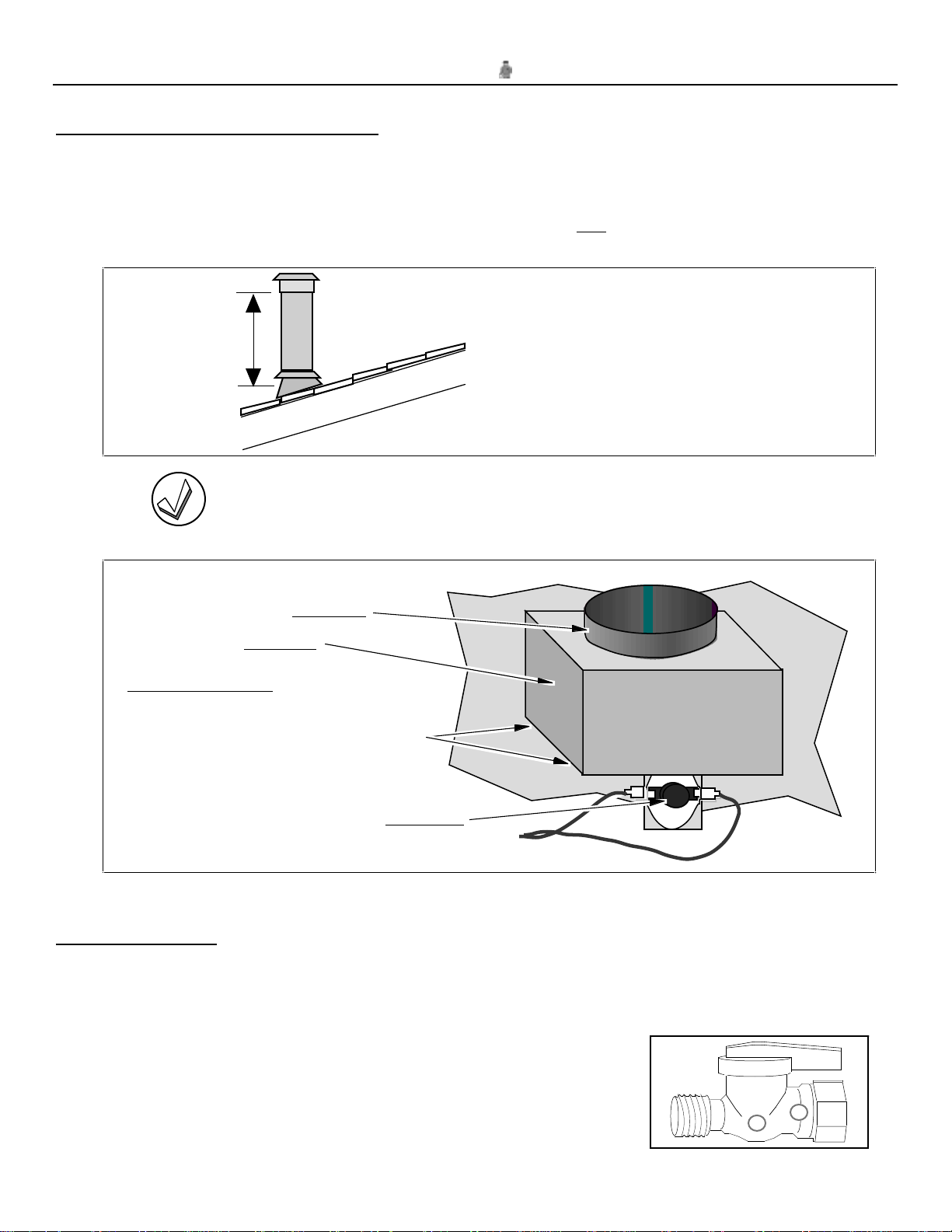

Vent Requirements

The vent must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and the requirements listed below. Furthermore, the vent must be installed to meet the installation requirements of the vent manufacturer.

¥ Minimum 5' vertical rise from top of stove (see the illustration below) ¥ The horizontal run may not exceed 50% of the vertical rise ¥ Use 4" dia. B vent for entire system from one manufacturer (don't mix brands)

¥ The vent must not service another appliance ¥ 1" clearance to all combustibles must be maintained ¥ Must meet all of the vent manufacturer's requirements ¥ Vent termination must be above the roof and not below any eaves or overhangs

- or -

Use high temperature factory built chimney and connector with listed gas

chimney liner running the entire length

Min. 5' Rise

Vent must terminate a minimum 1' above the roof.

Maintain 1" minimum clearance

Provide a 1/4" rise for every 12" run.

Type B Vent

The total horizontal run must not exceed 50% of the vertical rise

Do not block gas vent termination

Min. 5' Rise

High temperature factory built chimney and connector

Listed Gas Chimney Liner

Chimney with LinerStandard Installation Exterior Vent

PAGE 8 STOVE INSTALLATION (CONT.) - For qualified installers only!

Vent Requirements (continued)

¥ Vent termination must have an approved cap (to prevent water from entering) ¥ Vent termination must not be located where it will become plugged by snow or

other material ¥ Vent termination must be 1' above the roof and meet the requirements outlined in

ANSI 223.1, section 7.6.2.

Note: ANSI 223.1, section 7.6.2 outlines

1' Minimum

NOTE: When installed, the vent must provide suitable draft for the

appliance. Other factors, such as exhaust fans, may create negative pressure inside the home and cause down drafts. Additional vent height may be required in these circumstances.

additional requirements for gas vent terminations. If your installation involves a roof with a slope greater than 6/12 or if a wall or other verical obstruction is within 8' of the vent termination, the vent termination will need to be taller. Refer to ANSI 223.1 for full details.

TO TEST THE DRAFT: Remove the back panel. Start the heater and check the perimeter of the draft hood with a gas detector or smoke. If combustion products leak out the draft hood, the vent may need to be taller to improve draft.

Gas Line Install

The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI

223.1 and the requirements listed below.

Gas Line Connection:

¥ The gas inlet is a male 3/8" NPT ¥ This appliance requires a shutoff valve upstream of

Vent Collar

Draft Hood

Spill Switch

the appliance. This valve must be accessible and

within 3 feet of the heater.

STOVE INSTALLATION (CONT.) - For qualified installers only! PAGE 9

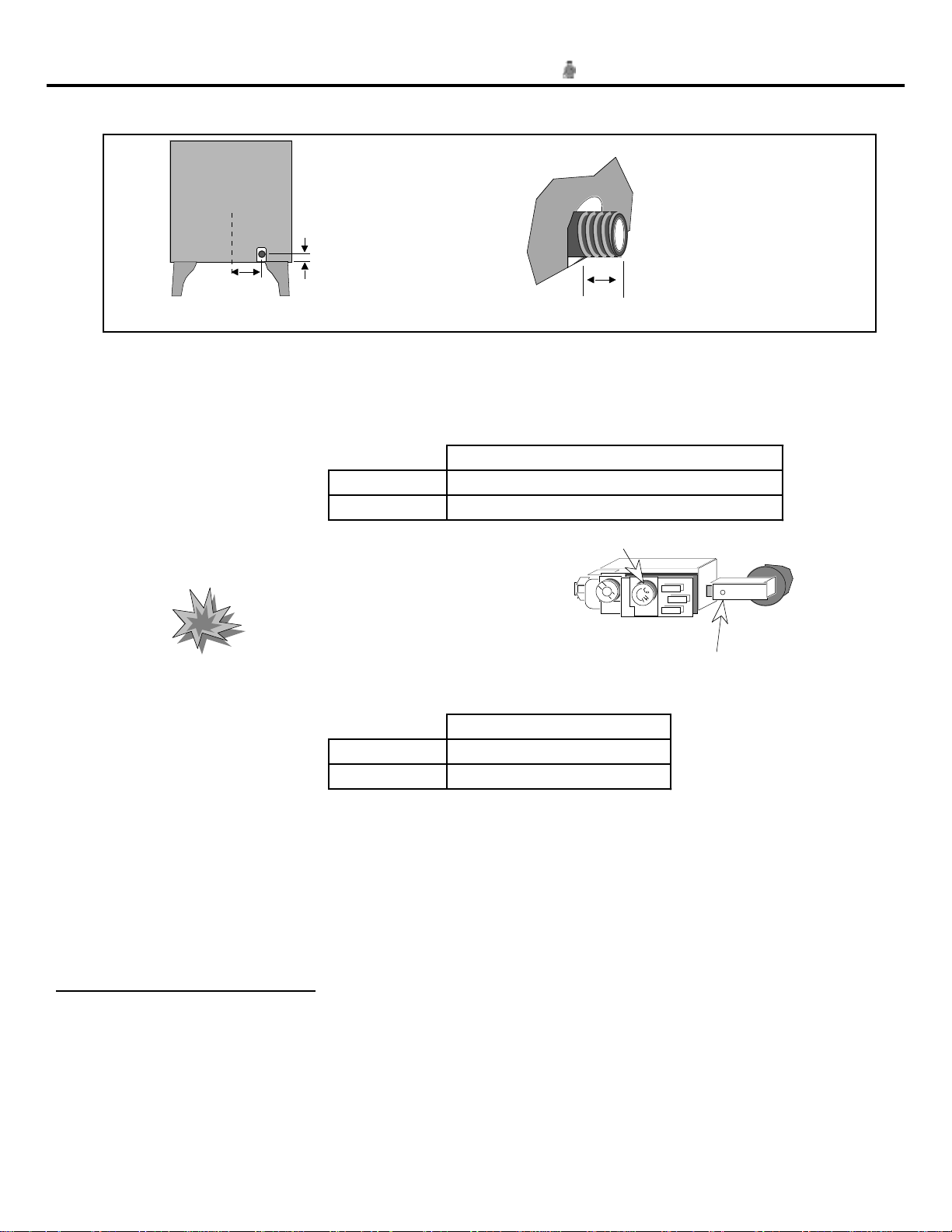

Gas Inlet Location:

7 1/2" (from center of stove)

Manifold Pressure:

¥ Check the pressure of the gas downstream of the valve by removing the manifold

LOCATION OF THE

GAS INLET CENTER:

HEIGHT: From Base of Stove 1 1/2" With Pedestal 12 3/4" With Brass Legs 9 3/8" With Cast Legs 9 3/8" With Black Legs 8"

The 3/8" N.P.T. gas inlet portrudes 1 1/2" from the back edge of the stove.

pressure tap with a 3/16" allen wrench (1/8" N.P.T. plug). If the manifold

pressure does not match the pressure listed in the table below, check the inlet gas

pressure and correct the problem.

Manifold Pressure with Regulator on HI Natural Gas 3.5" W.C. Propane 11" W.C.

HI-LO Regulator

WARNING:

The heater must be turned off while connecting or disconnecting the pressure tap or pressure sensing device. Gas will ignite through the pressure tap hole if the heater is on and the pressure tap hole is open!

Manifold Pressure Tap (1/8" N.P.T. fitting) Use a 3/16" allen wrench to remove.

Gas Pressure:

Minimum Input Pressure Natural Gas 7" W.C. Propane 11" W.C.

¥ If the pressure is not sufficient, make sure the piping used is large enough, the

supply regulator is adequately adjusted, and the total gas load for the residence does not exceed the amount supplied.

¥ The supply regulator (the regulator that attaches directly to the residence inlet or

to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure.

Purging the Gas Line:

The gas line must be properly purged to release all air in the gas line prior to starting the heater.

Finalizing the Installation

¥ Before starting, all gas line joints must be leak tested. ¥ Optional equipment must be installed (instructions are in the rear of this manual). ¥ The ceramic logs must be placed inside the firebox (see the section "Installing the

Logs and Coals" in the maintenance section of this manual).

¥ Start the heater and check for proper performance. Review the operations portion

of this manual to make sure the owner understands the operation of the heater.

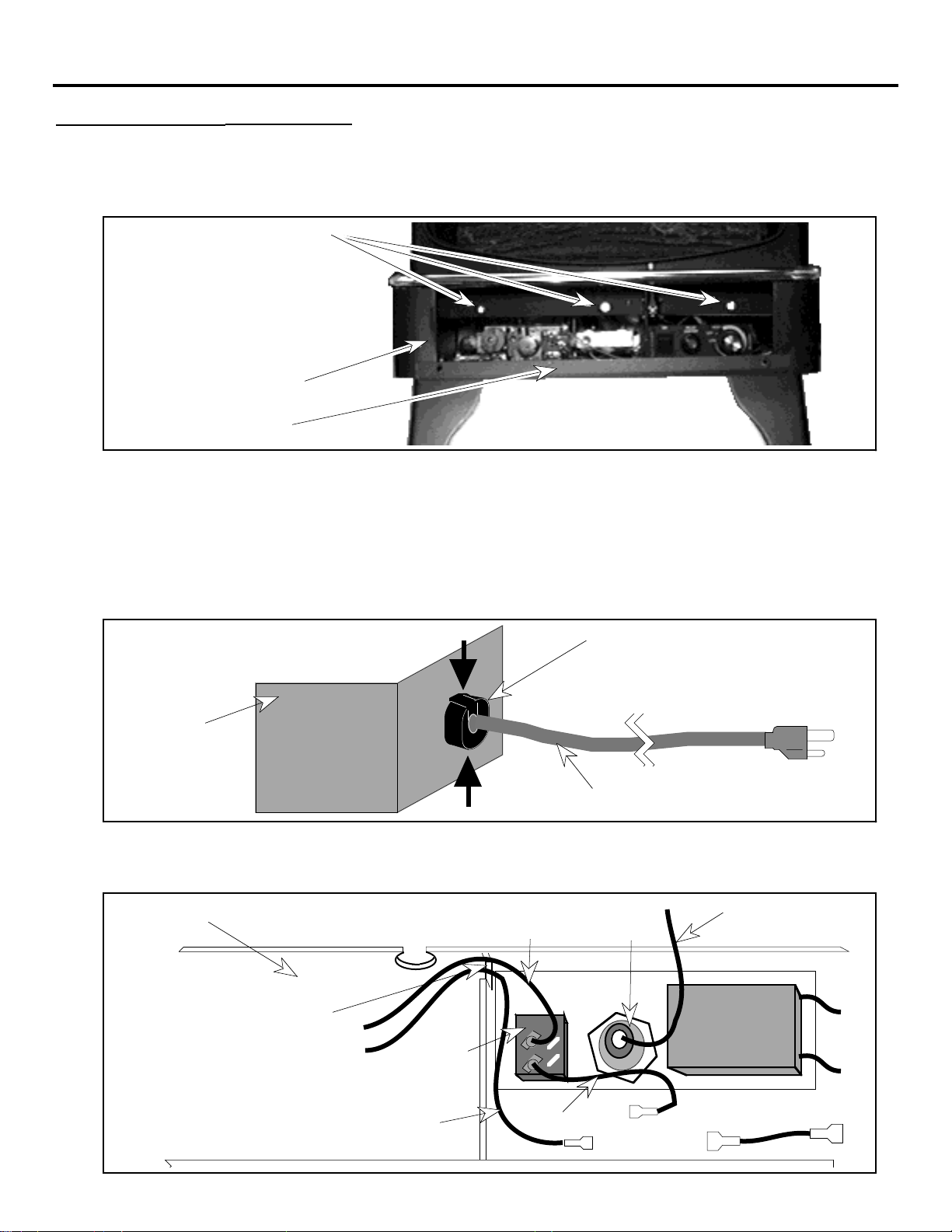

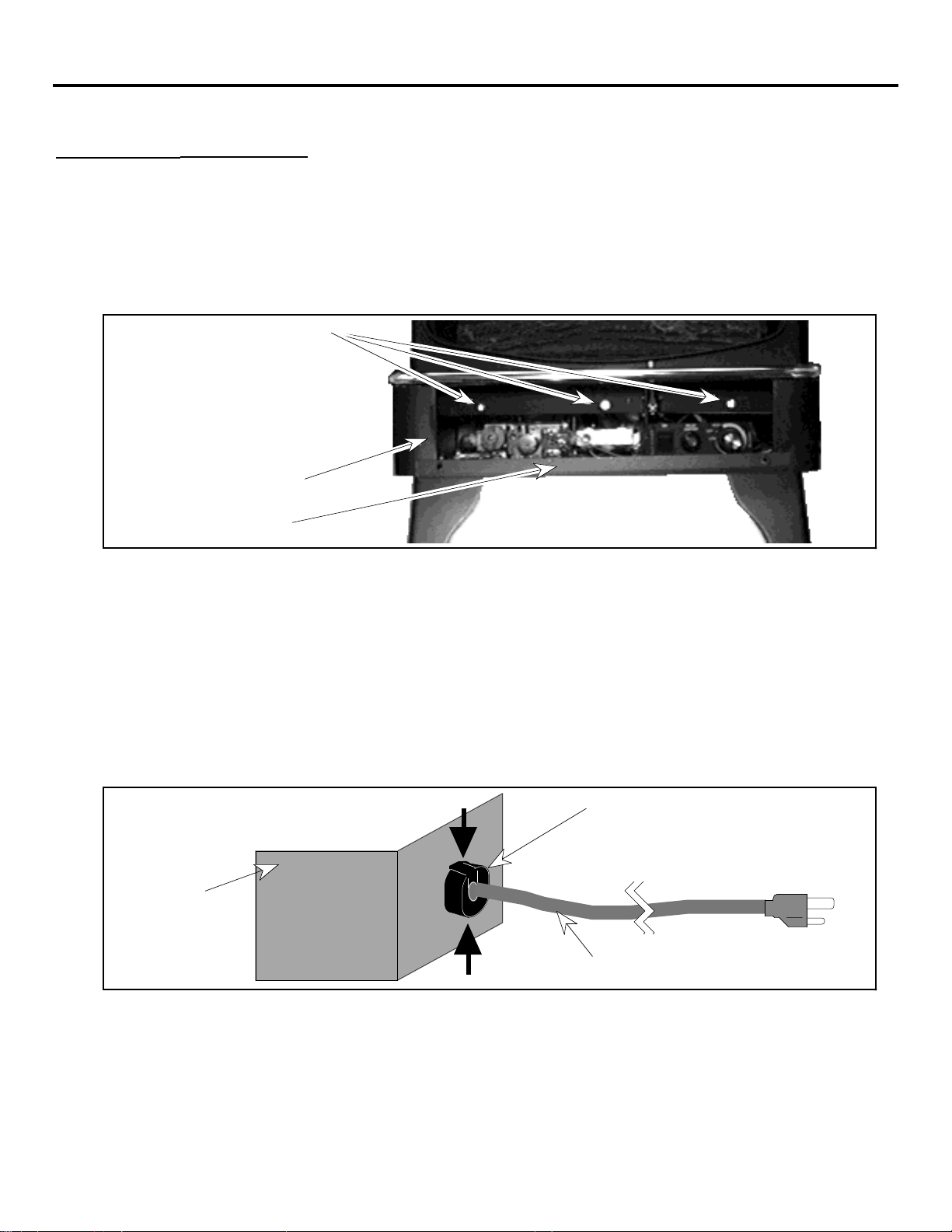

Note: See the instructions "Re-Routing the Power Cord to the Left or Rear of the Heater" in the optional

equipment section of this manual to re-route the power cord.

PAGE 10 INSERT INSTALLATION - For qualified installers only!

Heater Placement

The heater may be installed in a masonry or zero-clearance (metal) fireplace with the following requirements:

¥ The insert must be placed so that no combustibles are within, or can swing within

(e.g. drapes, doors), 36" of the front of the heater

¥ The insert must be installed in a level, undamaged masonry or zero-clearance

(metal) fireplace. Any damage must be repaired prior to installation. The heater

must not extend beyond the hearth. ¥ The insert must maintain a 10" clearance to sidewalls ¥ The non-combustible side facing (e.g. brick, tile, cement board) must extend 8"

from the side of the insert ¥ The non-combustible top facing (e.g. brick, tile, cement board) must extend 8"

above the top of the insert ¥ The combustible mantle must be at least 17" above the top of the insert

HINT: REDUCING CLEARANCES - Clearances may be reduced by

Sidewall

10" Min.

Floor protection must extend underneath insert to the faceplate

23 5/8" Min. (Width of Floor Protection)

methods specified in NFPA 211, listed wall shields, pipe shields, or other means approved by local building or fire officials.

Combustible Mantle

17" Min.

8" Min.

HEIGHT INCLUDING TOP PANEL:

8" Min.

WIDTH INCLUDING

SIDE PANELS:

40" with 8" Panels 44" with 10" Panels 48" with 12" Panels

28" with 8" Panels 30" with 10" Panels 32" with 12" Panels

Floor Protection

The heater must be installed over a non-combustible 3/8" thick hearth that extends to both sides and from the rear edge of the heater to the front edge.

INSERT INSTALLATION (CONT.) - For qualified installers only! PAGE 11

Fireplace Sizing

24" Minimum

* The gas inlet may be located at the rear or on the

left side if the Side Inlet Kit is used. Allow space for

gas hookup.

Vent Requirements

¥ Minimum 5' vertical rise from top of stove (see the illustration below) ¥ 4" listed gas chimney liner or B vent from one manufacturer (don't mix brands) ¥ Vent must reline the entire length of the chimney ¥ The vent must not service another appliance ¥ Must meet all of the vent manufacturer's requirements

NOTE: When using flexible gas vent, do not crimp or rupture the liner when

Zero Clearance Fireplace

Min.

21" Minimum

13" Minimum*

24" Minimum*

21" Minimum**

5 3/4" Minimum

bending it around a chimney offset

Approved Cap

A sealed cover plate is recommended, but not required.

** The extra space above the heater is to allow connection of the flue.

Masonry Fireplace

Min.

Surround

Panel

(Do not seal)

Telescoping Leg

17"

Min.

4" Listed gas chimney liner or B Vent

Z.C. (Metal)

firebox

Gas line with shutoff valve

Hearth and/or hearth pad must extend at least to the faceplate

Leveling bolts for step-up hearths

Surround

(Do not seal)

17"

Min.

Panel

PAGE 12 INSERT INSTALLATION (CONT.) - For qualified installers only!

Vent Requirements (continued)

The vent termination must meet the following requirements:

¥ Vent termination must have an approved cap (to prevent water from entering) ¥ Vent termination must not be located where it will become plugged by snow or

other material

¥ Vent termination must extend a minimum of 6" above the top of the chimney

NOTE: When installed, the vent must provide suitable draft for the

appliance. Other factors, such as exhaust fans, may create negative pressure inside the home and cause down drafts. Additional vent height may be required in these circumstances.

How to tell if you have negative pressure:

The most common indication of a negative pressure situation is the heater (and pilot) turning off between 10 and 25 minutes from the time the main burner was started (this happens most often on cold days). The main burner turns on, but instead of warming the flue and creating draft, it vents out of the draft hood at the rear of the heater. The spill switch then heats up, and in about 5 to 15 minutes shuts off all gas to the heater (shutting off the main burner and pilot). If a thermostat is used on your heater, and the pilot shuts down sporadically, you may have a negative pressure situation.

Gas Line Install

The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI

223.1 and the requirements listed below.

Gas Line Connection:

¥ The gas inlet is a male 3/8" NPT ¥ This appliance requires a shutoff valve upstream of

Gas Inlet Location:

LOCATION OF THE

GAS INLET CENTER:

the appliance. This valve must be accessible and within 3 feet of the heater.

LOCATION OF THE GAS INLET

CENTER WITH THE SIDE INLET KIT:

The 3/8" N.P.T. gas inlet portrudes 1 1/2" from the back edge of the stove.

1 1/2" Above the base of the stove

The 3/8" N.P.T. gas inlet portrudes 1 1/2" from the back edge of the stove.

7 1/2" (from center of stove)

1 1/2" Above the base of the stove

2 1/8" Behind the fireplace opening

INSERT INSTALLATION (CONT.) - For qualified installers only! PAGE 13

Manifold Pressure:

¥ Check the pressure of the gas downstream of the valve by removing the manifold

pressure tap with a 3/16" allen wrench (1/8" N.P.T. plug). If the manifold pressure does not match the pressure listed in the table below, check the inlet gas pressure and correct the problem.

Manifold Pressure with Regulator on HI Natural Gas 3.5" W.C. Propane 11" W.C.

HI-LO Regulator

WARNING:

Gas Pressure:

¥ If the pressure is not sufficient, make sure the piping used is large enough, the

supply regulator is adequately adjusted, and the total gas load for the residence does not exceed the amount supplied.

¥ The supply regulator (the regulator that attaches directly to the residence inlet or

to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure.

Purging the Gas Line:

The gas line must be properly purged to release all air in the gas line prior to starting the heater.

Manifold Pressure Tap (1/8" N.P.T. fitting) Use a 3/16" allen wrench to remove.

Minimum Input Pressure Natural Gas 5.5" W.C. Propane 11" W.C.

Finalizing the Installation

Logs and Coals" in the maintenance section of this manual).

¥ Start the heater and check for proper performance. Review the operations portion

of this manual to make sure the owner understands the operation of the heater.

Note: See the instructions "Re-Routing the Power Cord to the Left or Rear of the Heater" in the optional

equipment section of this manual to re-route the power cord.

PAGE 14 REVIEWING THE INSTALLATION

The check off list below details the installation concerns that you, the consumer, should know prior to starting the heater. This information is very important and must be checked off.

( ) There are no combustible

items placed within 36" of the front of the heater or swing within 36" of the front of heater. This includes furniture, doors, drapes, etc.

( ) No combustibles are within

1" of the exhaust vent. Due too high temperatures, the room heater should be located out of traffic and away from combustibles. This includes drywall, drapes, window sills, etc. If any question exists, call your dealer for a full explanation.

Combustible

Min.1" clearance

36" Minimum

CombustibleGas Vent

( ) The location of the GAS

MAIN SHUTOFF VALVE. It is usually directly next to the gas meter or propane tank and may require a wrench to shut off. Everyone in the house should know where the gas main shutoff valve is and how to turn it off.

( ) All of the necessary permits

and installation information have been obtained for your records. This includes the permits from building officials, receipts, and this manual.

( ) The operation card included

with the heater slides out from behind the access panel. If you can not find it, call your dealer for details. This card includes important operation information that must be kept with the heater at all times.

On most valves this is ON On most valves this is OFF

OWNER'S MANUAL

O k

Permits Receipts This Manual

OPERATING YOUR HEATER PAGE 15

Before You Begin

READ THIS ENTIRE MANUAL BEFORE YOU USE YOUR NEW HEATER. FAILURE TO FOLLOW THE INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

Before starting your heater make sure you have read the section titled Safety Precautions. Any questions should be referred to your dealer.

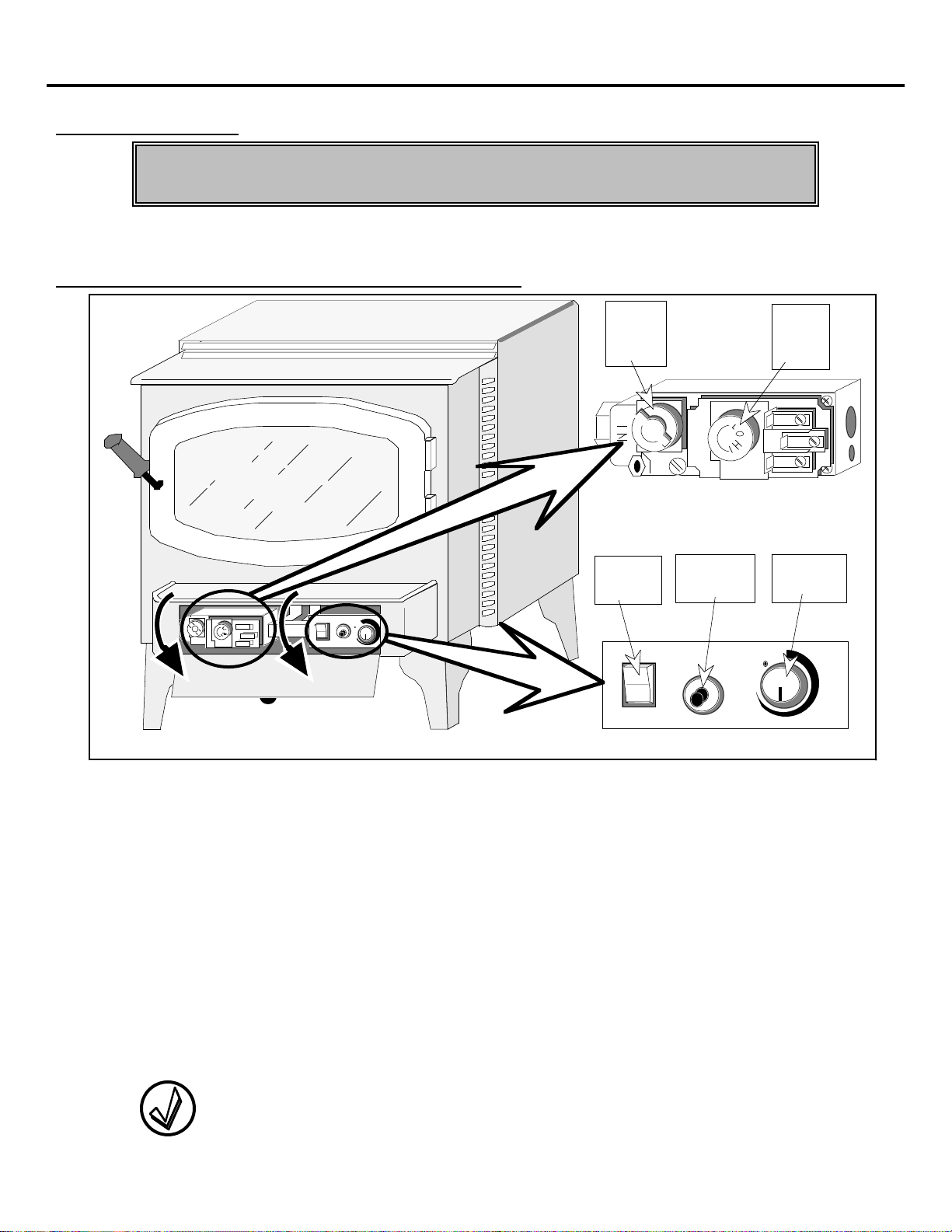

Location of Controls - See explanation below

With the access panel flipped down the controls can be accessed.

Gas Control Knob

ON/OFF Switch

OFF

MAIN BURNER

PILOT IGNITER

PILOT

IGNITER

OFF

Flame Adjust Knob

BLOWER Dial

BLOWER

Gas Control Knob This knob is used for starting the pilot. There are three positions, ON,

OFF, & PILOT. The pointer directly below the knob indicates the position this knob is in.

Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The

pointer to the upper right of the knob points to the position this knob is in.

ON/OFF Switch This control is used to turn the heater on and off.

PILOT IGNITER The pilot igniter is used only while starting the pilot. When pressed, it

sends an electrical charge to the pilot assembly. This creates a blue spark directly next to the pilot light, igniting it.

BLOWER Dial This dial controls the speed of the internal convection blower that pushes

the heated air into the room.

NOTE: The ON/OFF Switch must be left "ON" if using the remote control or

thermostat. Turning the ON/OFF Switch to "OFF" will keep the heater off always.

PAGE 16 OPERATING YOUR HEATER (CONTINUED)

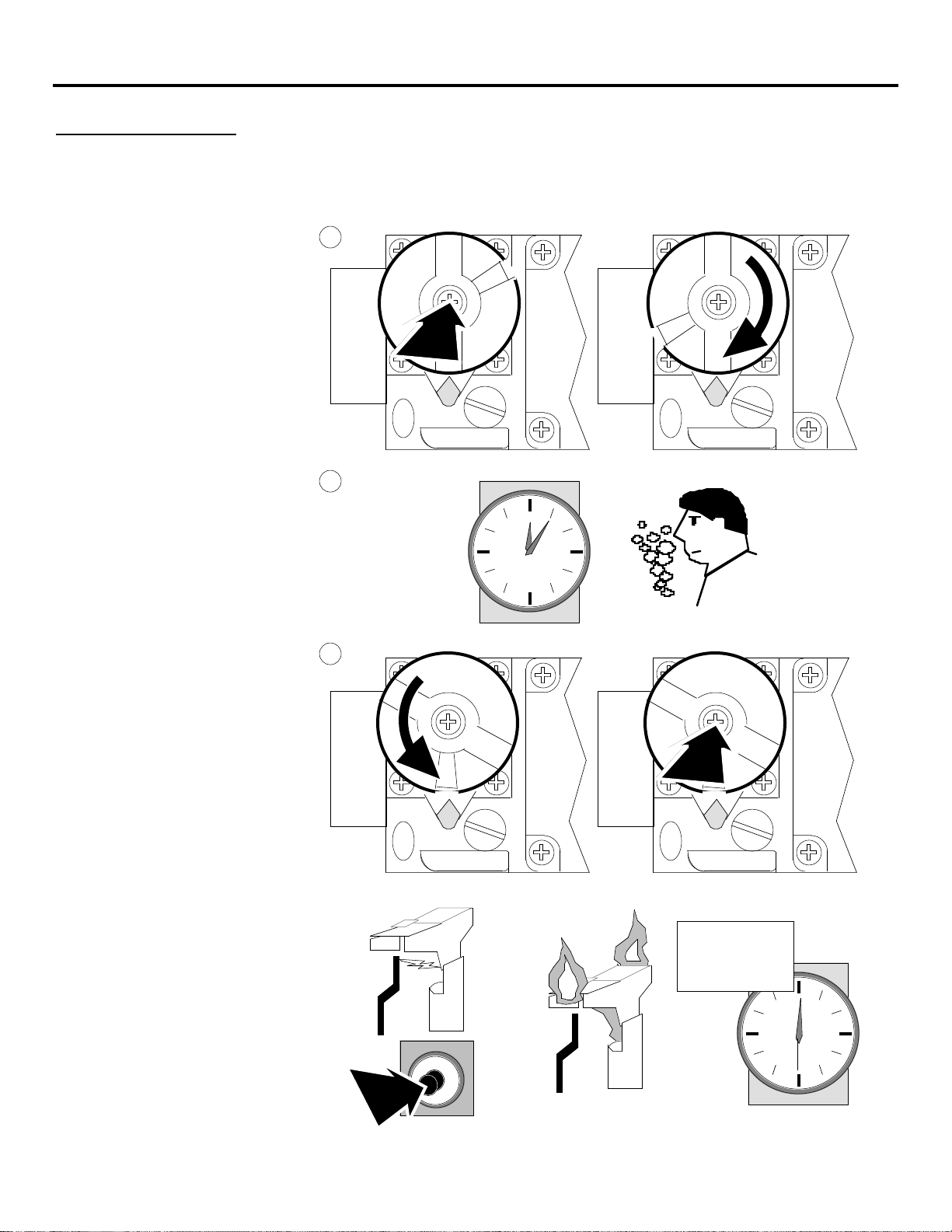

Starting The Pilot

The pilot light is used to ignite the main burners when the stove is turned on and also provides an important safety role. It will stay lit once it is started. However, the gas flowing to the pilot will shut off whenever the pilot goes out. If the pilot turns off frequently, call your dealer for information. To start the pilot follow the directions below:

A. Push the gas control

knob in slightly and turn it to the "OFF" position. The knob will not turn from "ON" to "OFF" unless the knob is depressed slightly.

B. Wait five minutes to

let any gas that may have accumulated inside the firebox escape. If you smell gas, follow the directions on the cover "IF YOU SMELL GAS".

C. Turn the gas control

knob to the "PILOT" position and press the knob in, this will allow gas to flow to the pilot light. Press the red button on the pilot igniter repeatedly until you see the pilot light. KEEP THE GAS CONTROL KNOB DEPRESSED FOR 30 SECONDS ONCE IT IS LIT. Note: If the pilot does not light after several tries, call your dealer for service.

OFF

Keep the knob pressed in for 30 seconds

OFF

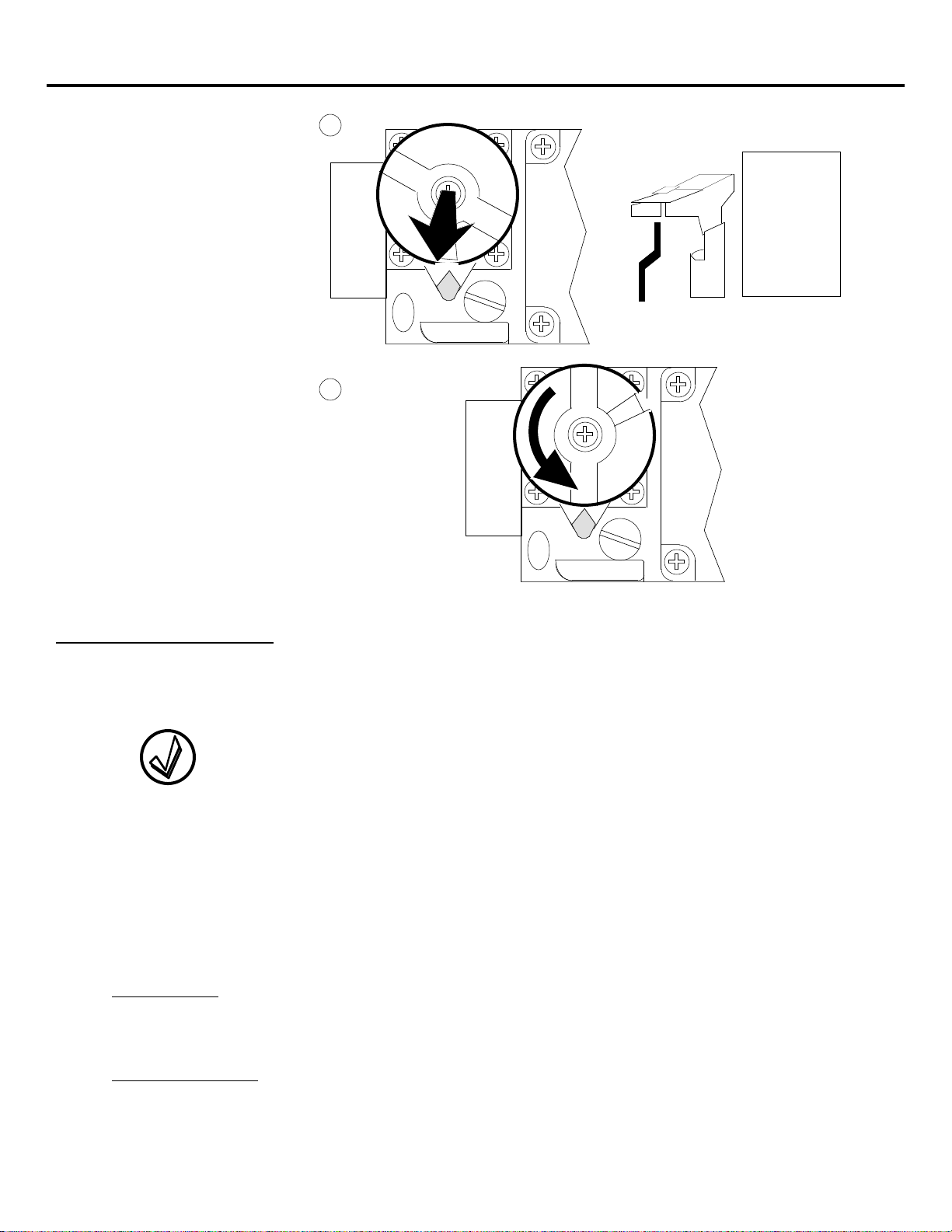

OPERATING YOUR HEATER (CONTINUED) PAGE 17

D. Release the gas

control knob. If the pilot goes out, repeat step C. If the pilot refuses to stay lit, call your dealer for service.

E. Turn the gas control

knob counterclockwise to "ON". The pilot is now lit and the heater can be turned on and off.

OFF

If the pilot light goes out after releasing the knob, repeat step C above.

Running Your Heater

Your heater may be turned on and off manually, with the optional remote control, or by the optional thermostat. The speed of the blower and the height of the flame can also be adjusted manually.

NOTE: When the heater first comes on, the flames will be blue and

somewhat transparent. After fifteen minutes the flames will turn a more realistic yellow and orange color.

NOTE: Certain installations use a remote "wall switch" to turn the heater on

and off. If this is the case, leave the ON/OFF switch on "ON".

NOTE: When this switch is turned to the "OFF" position the main burner

will not operate. However, the pilot flame will stay lit.

Starting the Heater for the First Time

Cure the Paint

To cure the paint, start the heater and turn the flame height to low. Leave it on for 20 minutes then turn it off and let it cool. Repeat this process two more times to fully cure the paint. You will smell the paint curing Ð this is normal.

Ventilate the Room

You may wish to ventilate the room by opening a window. Furthermore, the glass may become obscure during the first 10 hours of burning due to the components inside the firebox curing. Clean the glass with a glass cleaner after the first ten hours of operation.

PAGE 18 OPERATING YOUR HEATER (CONTINUED)

Turning the Heater On and Off

¥ Manual Operation

After the pilot has been on for approximately one minute the heater may be turned on and off by pressing the ON/OFF switch located behind the access panel underneath the ashlip (see the illustration to the right).

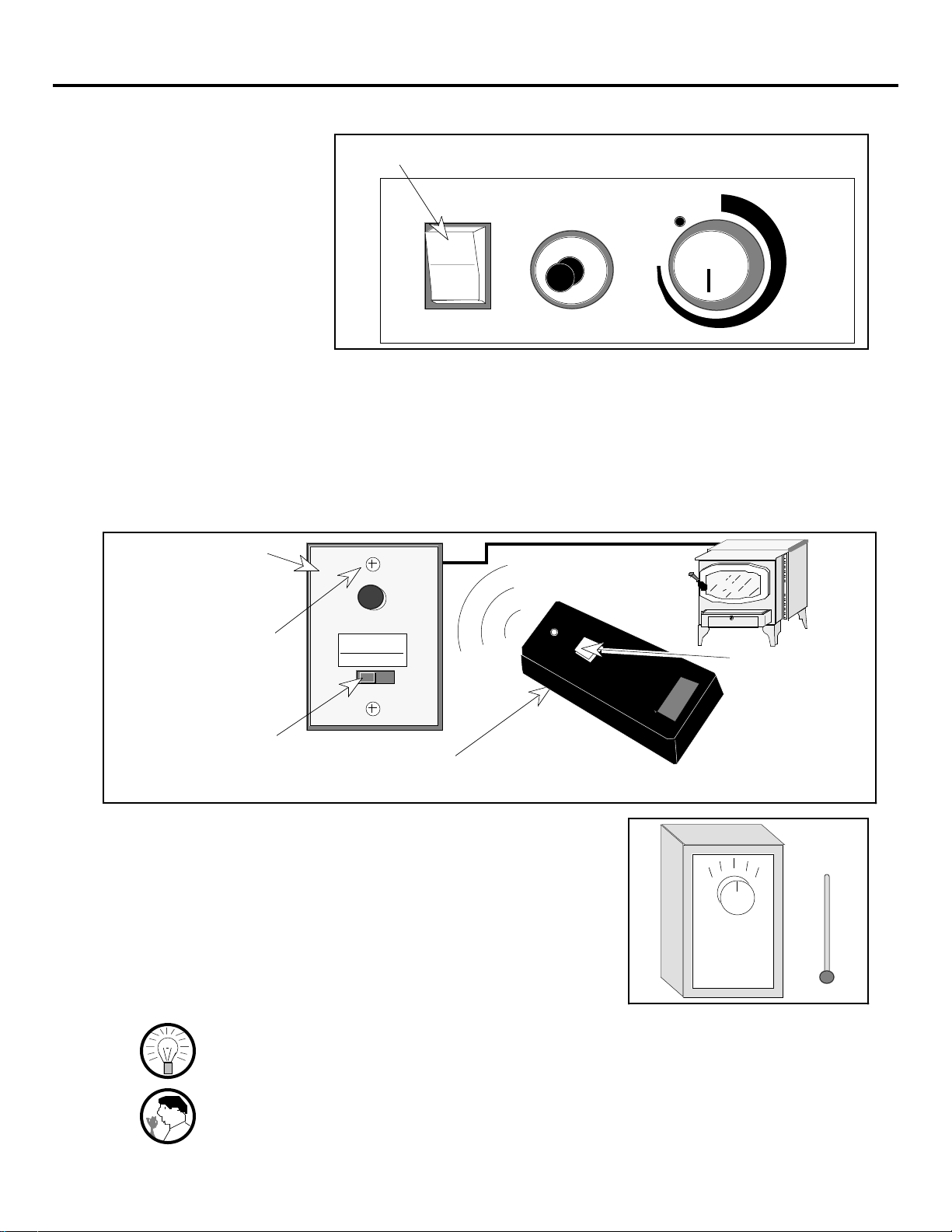

¥ Remote Control Operation (Optional)

The remote control turns the heater on from any location within the room. It utilizes a remote control and a receiver (usually located in the wall near the heater). Make sure the following has been done before trying to use the remote control: 1) The pilot is on; 2) The on/off switch is turned to "ON", and; 3) The switch on the remote control receiver is turned to "REMOTE" (see the illustration below). This switch can also be used to turn the heater on and off manually. The remote control requires two batteries, one in the remote and one in the remote control receiver . Both batteries must be charged for the remote control to work. If the remote control does not work, try replacing the batteries. If this doesn't work, contact your dealer for service.

Use this switch to turn the heater on and off.

OFF

MAIN BURNER

PILOT

IGNITER

OFF

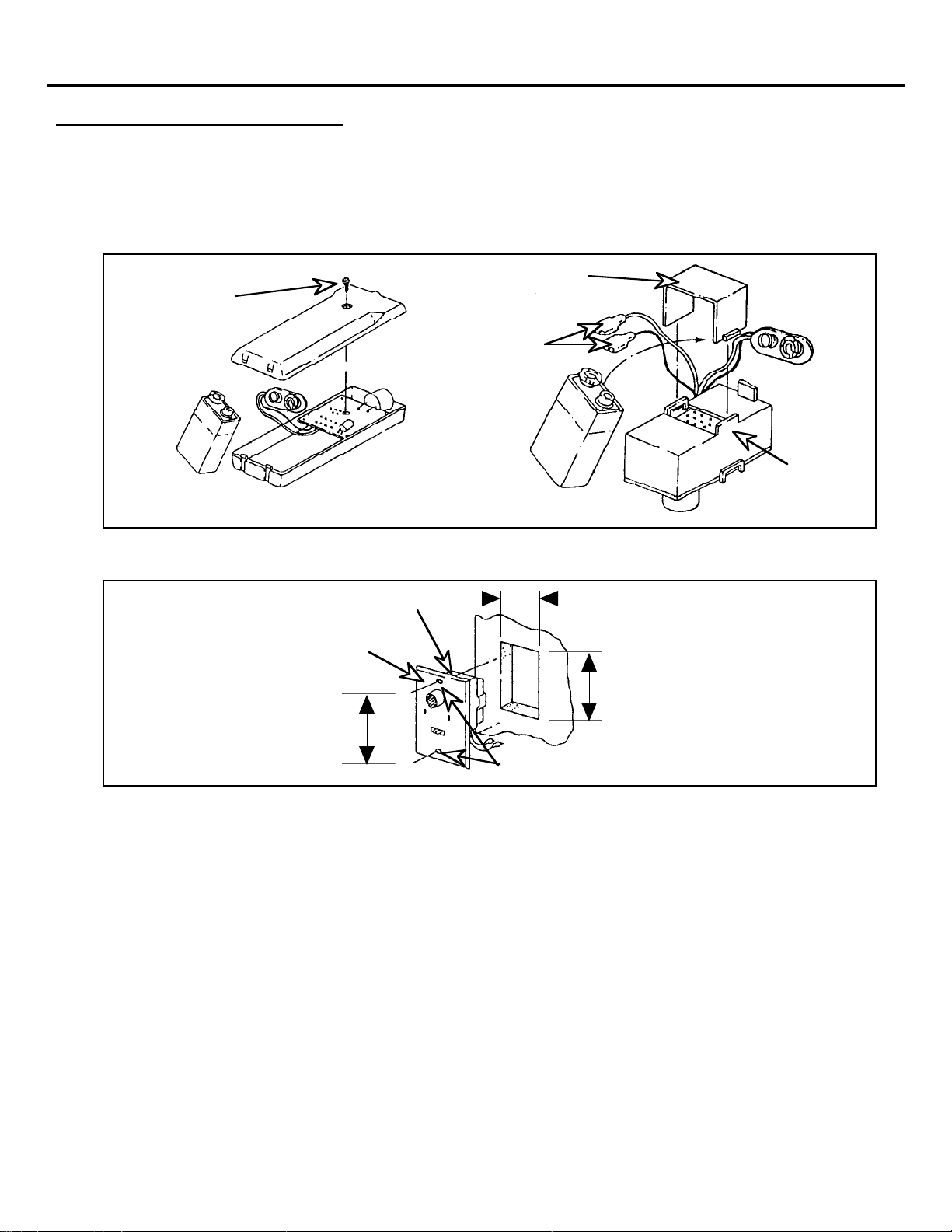

BLOWER

Remote Control

Receiver

(Mounted to Wall)

Remove the upper and lower screws to access the battery

Turn this switch to "REMOTE" to use the remote control

FIRELYTER

REMOTE OFF ON

Remove the screw on the back of the remote control to access the battery

Remote Control

¥ Thermostat Operation (Optional)

After the pilot has been started the heater may be controlled by a thermostat. The on/off switch on the heater must be turned "ON" for the thermostat to operate. The thermostat will automatically turn the heater on and off depending on the temperature. If the thermostat does not turn the heater on, the thermostat may be set too low or the on/off switch may be turned "OFF". If the thermostat does not turn the heater off, the thermostat may be set too high. If the thermostat does not work after making these adjustments, call your dealer for service.

Hookup Wire

This button on the remote control turns the heater on and off

HINT: If the heater turns on and off frequently, you may want to adjust the

flame height down until it produces just enough heat needed. This keeps the thermostat from turning the heater on and off repeatedly.

WARNING: Do not place any combustible items on top of the heater, even

temporarily. The thermostat is automatic and may start the heater causing a combustible item to ignite.

Adjusting the Flame Height

Your heater has an adjustable flame to tailor the look and heat output to your specific needs. It is adjusted by turning the middle dial on the valve assembly.

OPERATING YOUR HEATER (CONTINUED) PAGE 19

The flame height adjustment knob is located under the ashlip behind the access panel

Flame Height Adjustment Knob

Index Mark

Adjusting the Blower Speed

The blower helps transfer the heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 10 minutes after starting). See the illustration below for instructions on adjusting the blower speed.

OFF

MAIN BURNER

Turn clockwise to adjust the flame higher.

OFF

Turn counter-clockwise to adjust the flame lower.

Turn the knob all the way counter-clockwise to turn the blower off. One click clockwise turns the blower to high speed. Turning the knob

BLOWER

clockwise from the high position decreases the speed of the blower.

Normal Operating Sounds

Burner Pan

The burner pan is underneath the logs and is used to mix the proper amount of air with the natural gas to produce a clean and efficient burn. When it is

started you will hear a slight "whoosh" sound. When the main burner is running you will hear the gas flowing through the burner pan and orifices Ð

this sound will decrease as the flame height is lowered.

Gas Control Valve

As the gas control valve is turned on and off you will

hear a dull clicking sound. This is the valve opening up and shutting down.

Stove Body

Due to the heavy steel construction, occasional clicks may come from the

heater, especially during startup.

Pilot Flame

The pilot flame, which remains on, makes a very slight "whisper" sound.

Blower This heater uses a high tech blower to push heated air into the room. It

will make a whirring sound and will increase in volume as the speed is increased.

Blower Thermodisk This part can produce a

clicking sound as it turns the blower on and off.

PAGE 20 MAINTAINING YOUR HEATER

Every year you should inspect the firebox and door to make sure they are clean and functional.

WARNING: Failure to inspect and maintain your heater may lead to improper

burning inside the heater, leading to a dangerous situation.

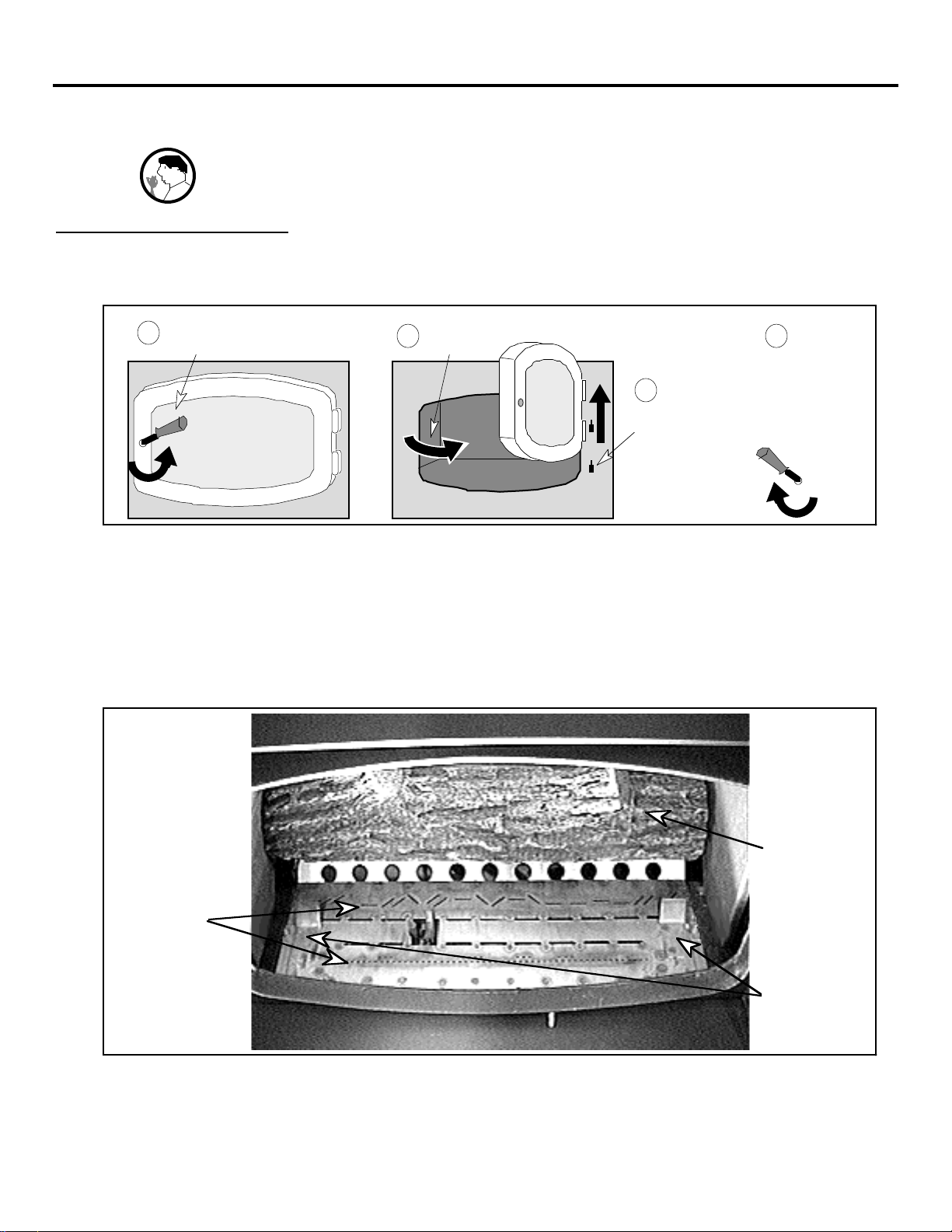

Inspecting the Firebox

The firebox should be inspected and cleaned of any soot or dust that may have been drawn into the heater. To do this, follow the directions below.

1. Remove the door (see the illustration below).

Unscrew the handle

1. until it can be removed.

2. Remove the logs and coals (see the instructions on the following page).

3. Use a vacuum cleaner with a soft brush attachment to vacuum any dirt off the

Swing the

2. door open.

Lift the door off the hinges (use both hands).

When replacing the handle make sure the handle is facing outwards, otherwise it may burn.

burner pan (see the illustration below). The rear log is fragile and should not be vacuumed. Inspect the burner pan and firebox for any deterioration. If it shows signs of deterioration, call your dealer for a full inspection. There should be no soot in the firebox, except for a small amount on the logs where the flames brush up against them. If there is additional soot, the heater may need adjustment. Contact your dealer for information.

Make sure all the burner holes are clean and no dirt has collected

4. To replace the front log and coals follow the directions in the section "Installing

5. Replace the door. Turn the door handle clockwise until the door seals tight.

Rear log

Log clips

the Logs and Coals".

Make sure the handle faces outwards and is not in front of the glass.

MAINTAINING YOUR HEATER (CONTINUED) PAGE 21

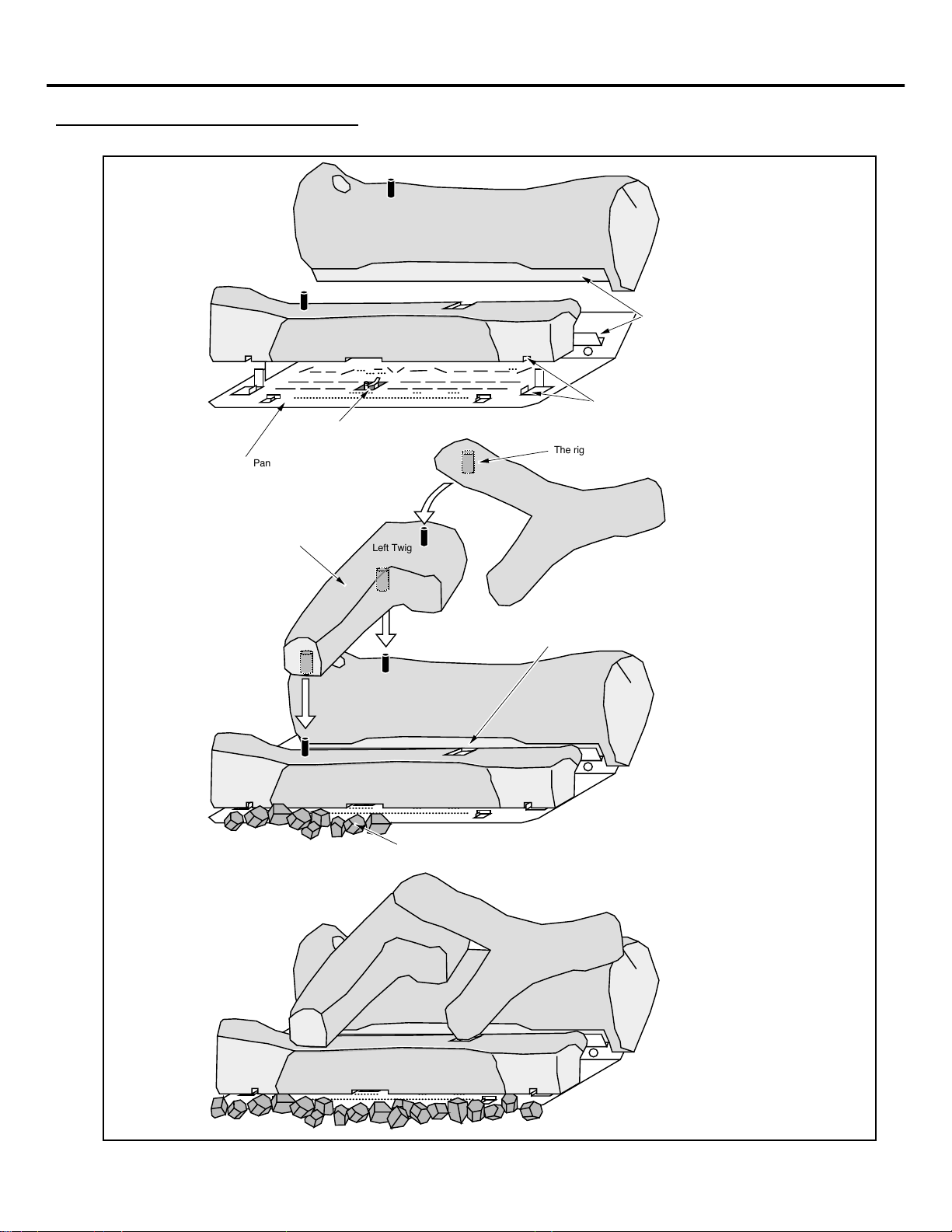

Installing the Logs and Coals

NOTE: If the logs are not installed properly, the heater will not burn properly.

Pilot Assembly

Burner Pan

Front Log

Rear Log (largest)

The rear log has a flat portion that rests on this ledge

The front log has two slots that straddle the clips on both sides (push the log all the way back).

The right twig has a hole for the pin on the left twig.

The left twig has two holes to accept the pins in the front and rear log.

When in place, the logs look like this.

Right Twig

Left Twig

Place the right twig so the lower branch rests inside this channel.

Place the coals on this ledge at the front of the firebox .

Do not place the coals over the burner holes.

PAGE 22 MAINTAINING YOUR HEATER (CONTINUED)

Inspecting the Door

The door must seal against the door seal for your heater to operate correctly.

1. Remove the door (follow the directions under "Inspecting the Firebox").

2. Place the door face down and check the items below. If the gaskets or glass require replacing, follow the instructions below.

The door gasket should be unbroken, have enough

bulge to contact the face of the unit, and be firmly attached to the door frame.

The glass gasket should form an airtight seal between the glass and the door frame.

3. Then replace the door. Turn the door handle clockwise until the door seals tight.

Make sure the handle faces outwards and is not in front of the glass.

Replacing the Door Gasket

Remove the old gasket (use a screwdriver if necessary - see the illustration below). Apply a line of gasket cement (available from your dealer) in the groove that follows the perimeter of the door. Insert the gasket into the groove. Do not stretch the gasket as you place it into the groove. Cut off any excess gasket when done. Allow 2 hours for the cement to dry. When re-installing the door, the gasket may need to be flattened by repeatedly opening and closing the door firmly.

The glass is held in place with the retainer clips and a 5" piece of 3/8" flat white gasketing.

Cross Section

Door Gasket 7/8" rope gasketing is held in place with gasket cement.

Check the glass for any cracking.

The door handle slides out of this hole.

Door Frame

Make sure there is a small space around the edge of the glass

Use a 5/16" nutdriver for the retaining clip screws.

Replacing the Glass or Glass Gasket

Unscrew the eight screws that hold the retaining clips in place with a 5/16" nutdriver (see the illustration above). Carefully remove the glass. Align the 3/8" white rope gasket (new or old) along the ledge that follows the perimeter of the window opening. If using a new gasket, trim off any excess. Place the glass (new or old) in place so there is a small gap between the edge of the glass and the door frame. Make sure the gasket is tucked underneath the glass so the glass does not touch the door frame. Cut four 5" lengths of 3/8" flat white gasket or use the existing undamaged flat gasket. These pieces are placed between the retaining clips and the glass to prevent the glass from cracking or moving when the clips are secured. Place the glass clips in place and secure them with the screws removed earlier. Tighten the retaining clips until the gaskets start to flatten.

Retaining Clip

3/8" flat gasketing behind the retaining clips (prevents the glass

from cracking when being secured.

Glass Gasket 3/8" dia. white rope

gasket

Glass

TROUBLESHOOTING PAGE 23

Problem: Possible Cause: Don't Call for Service

Until You:

Pilot Will Not Light

Main Burners Will Not

Start

Remote Control Does

Not Work

Thermostat Does Not

Work

Heater Will Not

Distribute Heat

Pilot Goes Out Once A

Month Or More

Flame (and Pilot) Goes

Out 10 to 25 Minutes After Starting

Flames Are Too Blue

Flames Are Orange

With Dirty Smoke

Flames Are Too Short

(Under 6")

Thin Layer of Soot

Covers the Glass

A gas shut off valve is turned off

The valve control knob isn't turned to "PILOT"

The valve control knob isn't pushed in

The igniter wasn't pressed repeatedly

The pilot light has gone out

The ON/OFF switch is turned to "OFF"

The remote control is not working correctly

The thermostat is disconnected or set too high

The pilot light has gone out

The ON/OFF switch is turned to "OFF"

The remote is too far away from the heater

The remote control receiver is turned "Off" or "On"

One of the two remote control batteries is dead

The pilot light has gone out

The ON/OFF switch is turned to "OFF"

The thermostat is set too high

The heater is unplugged

The heater is not up to temperature

The gas supply has not been shut off

The vent is experiencing a cold air blockage or a negative pressure situation exists in the home

The heater has just been started This is normal - see "Operating Your

Something may be placed against the heater See "How this Heater Works"

The flame height may be turned too low

Something may be placed against the heater

The logs are placed incorrectly See "Installing the Logs and Coals"

Check all gas shut off valves

See "Starting the Pilot Light" Step C

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

See "Remote Control Operation"

See "Thermostat Operation"

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

Use the remote closer to the heater

See "Remote Control Operation"

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

See "Thermostat Operation"

Plug the heater in.

See "Operating Your Heater"

Keep the gas supply turned on

This is a necessary safety feature that disables the heater if a down draft occurs. If this problem is persistent the vent may need to be improved or changes may need to be done to remove the negative pressure inside the home - see your dealer for details

This is a necessary safety feature. First try restarting the heater. If it works correctly, a cold air blockage occurred and the vent just needed to be heated sufficiently. If this problem is persistent the vent may need to be improved or changes may need to be done to remove the negative pressure inside the home - see your dealer for details

Heater"

Turn the flame height to "HI" See "Operating Your Heater"

See "How this Heater Works"

PAGE 24 TROUBLESHOOTING (CONTINUED)

How this Heater Works

This gas heater is designed with safety as the primary concern. Most of the components inside this heater are used for safety purposes. Therefore, only certified gas service technicians should service this heater. Your dealer can help you find a certified gas service technician.

What Turns the Main Burners On and Off

This heater uses a "millivolt system" to control its operation. A millivolt is a very small measurement of electricity. The thermopile, located directly next to the pilot light, generates electricity when it is heated by the pilot light. If the pilot is not lit, the thermopile does not generate electricity. This electricity is used to keep the gas valve open. Without it, the gas valve shuts off all gas to the heater. That is why when starting the pilot the gas control knob has to be pressed in long enough for the thermopile to heat up and start generating electricity. This current not only keeps the gas valve open but also provides electricity for the ON/OFF switch, remote control, or thermostat (see the illustration below). Because the thermopile generates the electricity needed to turn the heater on and off, this heater can be operated when the power is out (but the blower will not run).

When heated, the thermopile generates electricity (a very small amount, measured in "Millivolts").

This electricity is needed to keep the gas valve open and to operate the main burners.

Why Nothing Should Be Placed Against the Heater

Your heater has a grill below the ashlip and convection air openings on the side and top that must not be blocked. The grill below the ashlip allows air into the firebox. If it is blocked the combustion inside the firebox will not burn normally. This will result in reduced efficiency and the exhaust gases will become dirty. The convection air openings on the side and top are used to draw room air over the hottest parts of the heater and distribute the warmed air into the room. If they are blocked, the heater will not heat as well and may become too hot internally.

The main burners are switched on and off using the electricity generated by the thermopile. The ON/OFF switch, remote control, or thermostat control the circuit to the main burner.

Do not block the air openings on the side or top.

They are used to pull convection air over the hottest parts of the stove.

Do not block this grill. It provides air for combustion.

What Prevents Gas Buildup

Your heater has a high technology gas valve in combination with safety sensors which prevent any gas from building up. It also has a pilot light inside the firebox, which is a proven method for preventing gas buildup.

While the main burner is off

There is a thermopile directly next to the pilot light which can sense if the pilot is still lit. If the pilot goes out, this thermopile will no longer generate electricity which will cause the gas valve to automatically shut off all gas to the unit. This prevents the pilot light from spilling gas into the firebox.

While the main burner is on

The pilot light insures that the gas ignites inside the firebox, and that no gas builds up. In the unlikely case of the vent blocking, there is a sensor which will sense any backdrafts or overheating. This sensor will signal the gas valve to shut off all gas to the unit if the vent is blocked.

TROUBLESHOOTING (CONTINUED) PAGE 25

Spillage Sensor

This device detects if any flue gases spill into the room. If it senses any spillage, the gas valve automatically shuts off all gas (the heater will then need to be restarted).

External Shut Off Valve

This valve is provided to shut off gas to the heater during maintenance procedures.

Ceramic Glass

The glass in your heater is the most durable glass available. It has been tested to be extremely resistant to breakage and temperature changes.

Pilot Light

The pilot light is a time-proven component that eliminates the possibility of gas buildup inside the firebox.

Gas Valve

This high technology valve automatically shuts off all gas if it does not receive a signal from the thermopile, door, or spillage sensor. If any component is damged or sensing a malfunction, or if the wiring is damaged, it will shut off all gas.

Thermopile

The thermopile generates a small amount of electricity. If the pilot does go out, the gas valve automatically shuts off all gas (the heater will then need to be restarted).

PAGE 26 TROUBLESHOOTING (CONTINUED)

Wiring Diagram

Green

Optional On/Off Devices

Jumper for Manual Operation

Optional Thermostat

EPU terminal

Optional Remote Control

On/Off Switch

Blower

Motor

Black

RedGreen

Black

Thermopile

Chassis Ground

White

Red

White

Piezo Igniter

Orange

Red

White

Spill Switch

Red

Green

Molex

Connectors

Black

Blower Thermodisk

Blower Rheostat

120 Volt A.C. Grounded Outlet

Replacement Parts List

Replacement parts are available at your dealer. Contact Travis Industries for information on the closest dealer. The parts listed below are the only parts that the consumer may replace. All other parts must be replaced by a qualified gas service person.

PART Part description

Door Gasket White 7/8" dia. Fiberglass rope 56" long Glass Gasket Black 3/8" dia. Fiberglass rope 62" long Door Glass 5 mm neoceram, 10 1/8" tall @ center, 17.094" wide Glass Clips Four clips used to hold glass in place, includes 4 self-adhesive fiberglass strips & 8 screws Handle for Door Wood handle Door Handle Steel shaft with threaded end (includes wood handle) Log Set (includes coals) Front and back log, left and right twig, and coals (ceramic fiber) Owner's Manual This document

WARRANTY PAGE 27

TRAVIS INDUSTRIES, INC. warrants the AVALON 700 natural gas heater to be defect-free in material and workmanship for five (5) years from the date of purchase, with the exception of the glass, paint, electrical components, switches, piezo igniter, fans, gaskets, logs, moving parts, gas valve, manifold, and burner pan. This does not include service call cost or any other additional charges. Check with your dealer for all costs if arranging a warranty call. The exceptions listed are warranted for one (1) year from the date of purchase to be defect-free in material and workmanship, with the exception of the glass and paint, which are not covered by the warranty.

Exclusions to this limited warranty include: Injury malfunction to the product, loss, damage, defect, failure to function due to accident, negligence, misuse, improper installation, alteration or adjustment of the manufacturers settings of components, lack of proper and regular maintenance, damage incurred while the unit is in transit, alteration, or act of God.

This limited warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, eroded or cracked logs, coals, etc. Also excluded is damage to the unit caused by abuse, improper installation, modification of the unit, drilling of the orifices, or the use of fuel other than natural gas.

TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the unit, as well as inconvenience expenses, material and labor charges incurred by the removal or reinstallation of any AVALON 700 unit. Incidental or consequential damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.

This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the AVALON 700 unit without the express written permission of TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

Any statement or representation of AVALON 700 products and their performance contained in AVALON 700 advertising, packaging literature, or printed material is not part of this limited warranty.

This warranty is automatically voided if the unitÕs serial number has been removed or altered in any way.

Only the original purchaser of an Avalon 700 heater is covered by this warranty. If the unit is used for commercial purposes, it is excluded from this warranty.

No dealer, distributor, or similar person has the authority to represent or warrant AVALON 700 products beyond the terms contained within this warranty. TRAVIS INDUSTRIES, INC. assumes no liability for such warranties or representations.

THIS LIMITED WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE UNITS. ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED AND PURCHASERÕS RECOURSE IS EXPRESSLY LIMITED TO THE WARRANTIES SET FORTH HEREIN.

This warranty is limited to the time frame set forth above. In some states, time limitations on warranties do not apply.

HOW TO USE YOUR AVALON 700 FIVE-YEAR WARRANTY: If you find your unit to be defective in workmanship or material within a 5-year period from the date of purchase contact your local authorized AVALON 700 dealer. If your dealer is unable to repair your unitÕs defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you purchased the unit, a copy of your receipt showing the date of the unitÕs purchase, and the serial number on your unit. At that time, you will be asked to ship your unit, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your AVALON 700 unit if it is found to be defective in material or workmanship within the time frame stated within this limited warranty. TRAVIS INDUSTRIES, INC. will ship your unit, freight charges prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership.

To register your TRAVIS INDUSTRIES, INC. Five-Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the unit purchase date to: TRAVIS INDUSTRIES, INC., 10850 117th Place N.E., Kirkland, Washington 98033.

OTHER RIGHTS:

This warranty provides you with certain legal rights. You may have additional rights, which vary from state to state, in regards to this warranty.

Unit Serial Number

Date of Purchase

Dealer Name and Address

Travis Industries, Inc. reserves the right to change, without notice, product features or specifications described.

Complete and

save for your

10850 117th Place N.E. Kirkland, WA 98033

records

OPTIONAL EQUIPMENT PAGE 29

Stove Legs Installation (Brass # 99200500, Cast Black # 99200800, Black Steel # 99200100)

There are three different stove legs available for your gas stove: cast brass; cast black; and, black steel. The instructions for installing the legs are the same for each type of leg.

Raise the stove by inserting some pieces of lumber in the middle of the stove to a height of about 8". Line up the hole in the top of the leg with the threaded bolt hole in each corner of the stove bottom. Using a 9/16" open end or socket wrench, fasten the leg to the stove with the supplied attachment bolts and washers, making sure the legs are flush with the corners of the stove. Unscrew the leveling bolts enough so the stove will rest on the upper tips, not the metal portion of the legs. Lower the stove down.

Attach each leg to the stove by inserting a bolt and washer through the hole or slot in the leg and into the threaded hole on the stove. Use a 9/16" socket wrench to tighten.

To level the stove, lift the stove up and unscrew each leveling bolt the appropriate amount. The rubber tips of the leveling bolts will tear if they are adjusted while weight is applied to them.

Pedestal (Part # 99200109)

Unpack the box containing the pedestal and check for any damage. Report any damage to your dealer.

Slide the wood trim included with the pedestal on to the front and back edge of the pedestal so it lines up from side to side. Place the pedestal in place and lift the stove on top of it. Line up the threaded bolt holes in the bottom of the stove with the two holes on the tabs on the inside edge of the pedestal (see the illustration below). Using a 9/16" socket wrench, fasten the pedestal to the stove with the supplied bolts and washers.

Holes for attachment bolts

Attachment Bolts and Washers - use a 9/16" socket wrench to attach the pedestal to the stove.

23"

The faceplate of the stove is 11/4" in front of the pedestal

17"

Lag bolts, cover plates, screen, insulation, and staples (used for wood stoves - discard these items)

PAGE 30 OPTIONAL EQUIPMENT (CONTINUED)

Surround Panels (Part number is listed below)

The panels for the 700 are purchased separately from the heater and are available in three sizes. The table below details the finished size of the panels once they are installed. Make sure to purchase the panels that will cover the fireplace opening in both height and width.

Size of Panels Height Width Part #

8" 28" 40" 99300259 10" 30" 44" 99300260 12" 32" 48" 99300261

The panels should be installed after the insert is in place and connected to the vent.

1. Remove the two button plugs from each side of the insert with a screwdriver (see the illustration below).

2. Using a 5/16" nutdriver, screw the thread-cutting screws into the four holes exposed by removing the button plugs. The holes are now pre-threaded, remove the screws.

3. Place one of the side panels against the side of the insert, lining up the slots in the panel with the threaded holes in the side of the insert. Attach the panel with the thread-cutting screws, leaving the screws loose enough to adjust the side panel. Repeat for the other side.

4. Slide the top panel onto the offset on top of the side panels. The top panel has joggle clips that hold the top panel in place against the side panels. The best way to insert the top panel is to hold it at an angle and insert one side first and gradually lower it until the opposite side is inserted. Adjust the top panel so its edges are flush with the side edges of the side panels.

5. Adjust the position of the side panels so they are: 1) flush with the bottom of the insert; 2) both the same distance back from the front of the insert; 3) perpendicular to the floor. Then tighten the screws to secure the panels.

NOTE: Discard the insulation that comes with the surround panels (for wood stoves only).

The panels must not form an air-tight seal against the fireplace.

Side Panel

Top Panel

The joggle clips on the top panel slide over the offset portion on top of the side panels.

Use two thread cutting screws

Side Panel

Remove the button plugs located here. Use the thread cutting screws to attach the side panel.

to attach each side panel.

Surround Panels (Continued)

6. After the panels are in place, the trim can then be installed (the trim is optional). Place the rounded edge of the trim that will be facing outwards when installed face down (see the illustration below). Insert one small and one large "L" bracket

leg into the grooves in the 45 each "L" bracket into the groove in each end of the top piece. With a screwdriver,

tighten the set-screw into the larger "L" brackets, insuring that the 45 butted together to form a neat joint. Pick up the brass trim and slide it over the panels until the bottom of the trim is flush with the bottom edge of the side panels.

OPTIONAL EQUIPMENT (CONTINUED) PAGE 31

cut end of each side piece. Slide the other leg of

cuts are

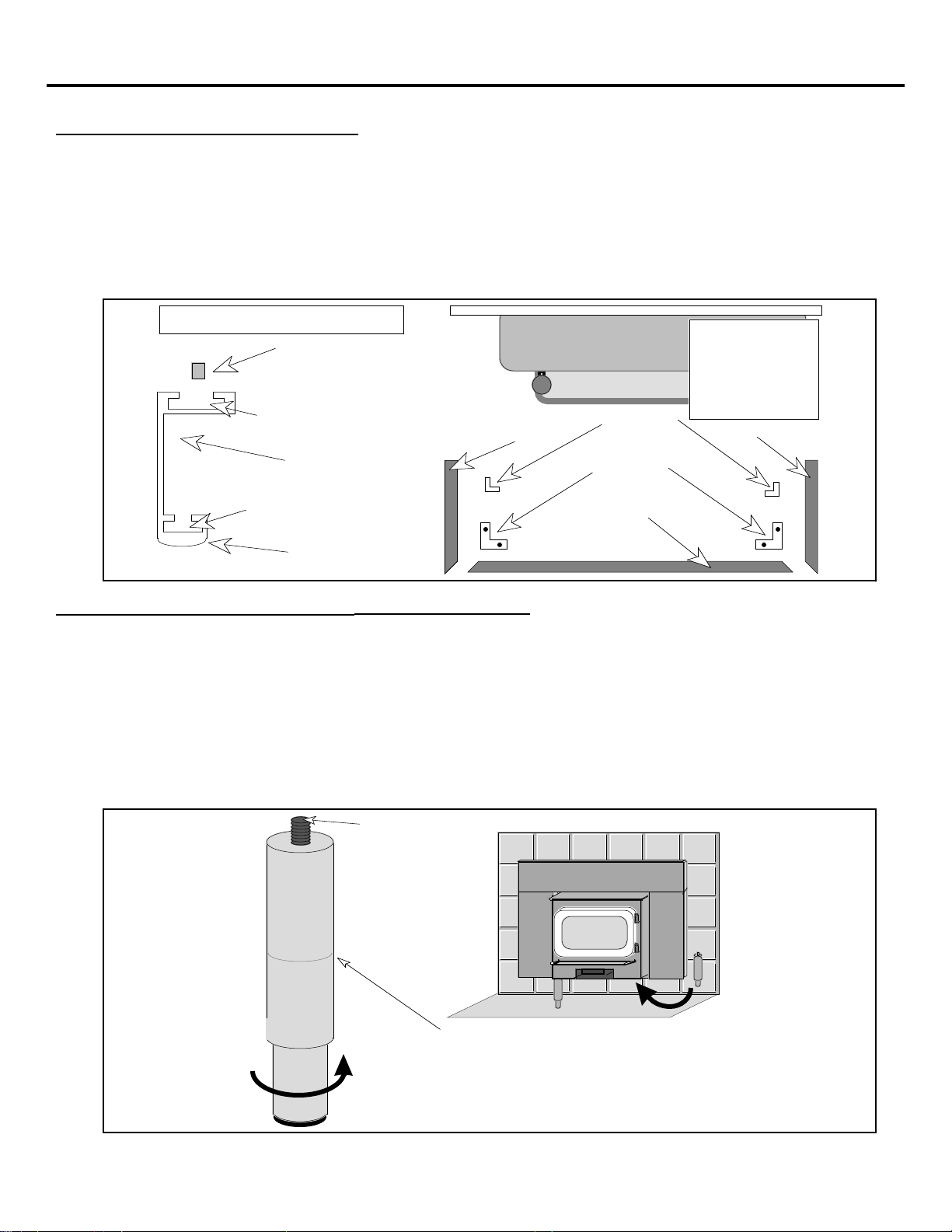

CROSS SECTION OF BRASS TRIM

Set-screw that holds the larger "L" bracket in place

Groove where the larger "L" bracket fits into

Groove Where Top Panel Fits Into

Groove where the smaller "L" bracket fits into

Front Side

Left Trim Right Trim

Telescoping Leg Installation (Part number 99200120)

The telescoping legs are designed to support the front end of fireplace inserts on raised hearths. It is adjustable from 4 5/8" to 7 1/2". It can be cut shorter by using a hacksaw (see the illustration below).

1. Place the end caps into each lower segment of the telescoping legs (see the illustration below).

2. Screw the telescoping legs together so the leg can be screwed into the bottom of the insert. Hand tighten the telescoping leg into position.

3. While grasping the upper segment of the telescoping leg, unscrew the bottom segment until it reaches the floor and supports the insert.

Insert

Smaller "L" Brackets

Larger "L" Brackets

Top Trim

Lay the trim on the floor in front of the insert with the rounded portion facing down.

Install the telescoping leg

by tightening the threaded rod

at the top of the upper segment into the bottom

of the insert.

Adjust the length of the

telescoping leg by rotating the

lower segment.

If the telescoping leg needs to be less than 4 5/8", a hack saw can be used to shorten its length. Seperate the two segments

and shorten both segments by cutting them with a hack saw. The upper segment has a threaded rod inside. Do not damage

this rod while shortening the upper segment.

NOTE: The total length removed will equal the amount cut off of both segments combined.

PAGE 32 OPTIONAL EQUIPMENT (CONTINUED)

Remote Control (Part # 99300651)

The remote control allows remote operation of the main burner. Follow the directions below to install.

1. With the gas shut off and the heater unplugged, remove the ashlip control housing by unscrewing the three attachment screws with a 7/16" nutdriver. Carefully lay the ashlip control housing face down in front of the heater.

Unscrew these three bolts with a 7/16" nutdriver to remove the ashlip control housing

Ashlip Control Housing

Access Panel

2. Locate the 2" long green jumper wire. It can be found near the on/off switch. Remove the jumper wire from the two green wires it attaches to (one leading to the on/off switch, the other to the gas control valve).

3. The remote control receiver wire enters the ashlip control housing in the same location the power cord does. Use a pair of slip joint pliers to remove the strain relief that holds the power cord in place (see the illustration below). Unwind the remote control receiver wire and route the end with quick connects through strain relief and to a location near the on/off switch. Insert the strain relief back in the hole until it snaps into place.

To remove the strain relief, use a pair of slip joint pliers to press from the top and bottom of the relief. Pull the relief

Ashlip Control Housing

out once it becomes loose.

Power Cord

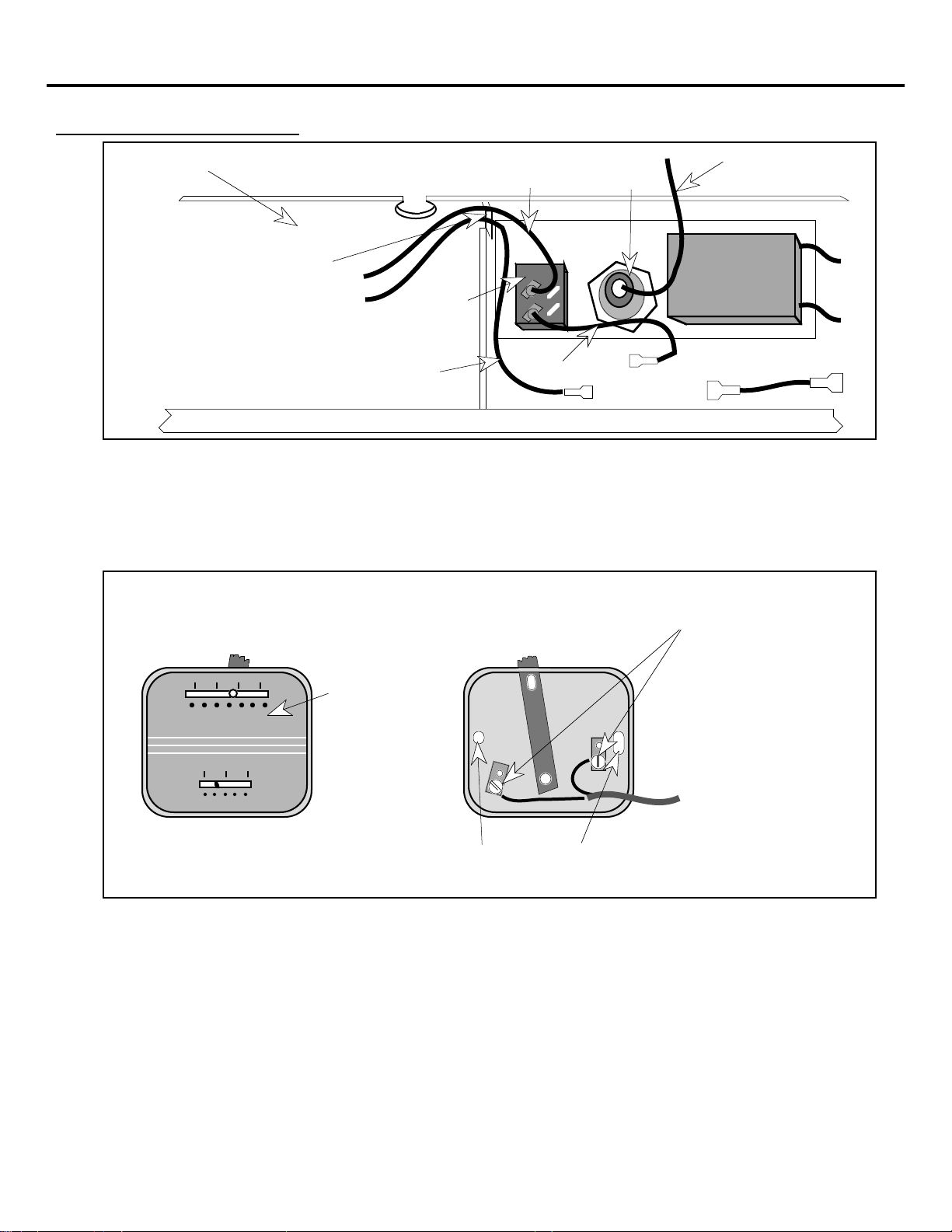

4. Attach the thermostat wire to the two green wires that were detached in step 2. Make sure to route the remote control receiver wire through the notch in the ashlip control housing partition if it entered through the center or left side (see the illustration below).

Ashlip Control Housing

Route the thermostat through the notch in the ashlip control housing partition if it is coming from the center or left side. The thermostat wire attaches to the green wire from the valve and the green wire from the on/off switch.

On/Off switch

Green wire from valve

Red wire from valve

Green wire

Piezo igniter

Orange wire from spark electrode

Blower Rheostat

Green Jumper wire (remove and discard)

Remote Control (continued)

5. Replace the ashlip control housing. Make sure none of the wiring is pinched. Determine the location of the remote control receiver. Find a location that is within reach of 10' of wire. Route the remote control receiver wire to the location and connect it to the remote control receiver by attaching the quick connects (the orientation of the wires does not matter).

6. Place a nine volt battery inside the remote control receiver and remote control (see the illustration below).

Remove this screw with a phillips head screwdriver.

OPTIONAL EQUIPMENT (CONTINUED) PAGE 33

This clip holds the battery in place.

Attach the remote control receiver wire to these two quick connects.

Mount a 9 volt battery in both the remote control and remote control receiver.

Remote Control Receiver

7. Mount the remote control receiver to the wall using two screws (not included). The screws pass through the cover plate and hold the remote control receiver in place.

Remote Control Receiver

Cover Plate

The distance between the mounting holes is 3 1/4".

The screws insert here (screws not included)

The hole must be 1 3/4" wide.

The hole must be 2 1/2" tall.

8. Test the remote control's operation prior to leaving the installation. Start the pilot, let it run five minutes, then turn the on/off switch on the heater to "ON". Switch the remote control receiver to "REMOTE". Press the remote control for one second to turn the heater on and off. If it does not, check all of the electrical connections and re-test. When the remote control receiver is turned to "ON" the heater will stay on, when on "OFF" the heater will stay off, regardless of the remote control.

PAGE 34 OPTIONAL EQUIPMENT (CONTINUED)

Thermostat (Part # 99300650)

The thermostat allows the main burner to turn on and off automatically for consistent room temperature. Follow the directions below to install.

Unscrew these three bolts with a 7/16" nutdriver to remove the ashlip control housing

Ashlip Control Housing

Access Panel

3. The thermostat wire enters the ashlip control housing in the same location the power cord does. Use a pair of slip joint pliers to remove the strain relief that holds the power cord in place (see the illustration below). Unwind the thermostat wire and route the end with quick connects through the strain relief and to a location near the on/off switch. Insert the strain relief back in the hole until it snaps into place.

To remove the strain relief, use a pair of slip joint pliers to press from the top and bottom of the relief. Pull the relief

Ashlip Control Housing

out once it becomes loose.

Power Cord

4. Attach the thermostat wire to the two green wires that were detached in step 2. Make sure to route the thermostat wire through the notch in the ashlip control housing partition if it entered through the center or left side.

Thermostat (continued)

OPTIONAL EQUIPMENT (CONTINUED) PAGE 35

Ashlip Control Housing

On/Off switch

Green wire from valve

Red wire from valve

Green wire

Piezo igniter

Orange wire from spark electrode

Blower Rheostat

Green Jumper wire (remove and discard)

5. Replace the ashlip control housing. Make sure none of the wiring is pinched.

6. Determine the location of the thermostat. Find a location that is centralized in the room and within reach of 50' of wire. Route the thermostat wire to the location and attach the thermostat wire to the thermostat. Cut off any excess length of wire and expose approximately 1/2" of wire for connection to the thermostat. Attach the thermostat wire to the two clips on the thermostat using a standard screwdriver. Make sure the wire makes a good electrical contact.

Thermostat Front Side

Thermostat Back Side

Strip 1/2" off each wire and attach the exposed wire to the

To attach the thermostat, pull the cover off and use the included screws to hold it against the wall.

Holes used to attach the thermostat to the wall.

clips using a standard screwdriver.

Thermostat Wire

7. Remove the cover of the thermostat by pulling it apart carefully. The thermostat has mounting holes on each side of its base. Use the included screws to attach the thermostat to the wall. Tuck any excess wire behind the thermostat and replace the thermostat cover.

8. Test the thermostat's operation prior to leaving the installation. Turn the thermostat to it's highest position (all the way to the right). Start the pilot, let it run five minutes, then turn the on/off switch on. The heater should turn on. If it does not, check all of the electrical connections and re-test. The thermostat should turn the heater on when turned to its highest position, and turn off

when turned to its lowest position. NOTE: if the temperature in the room is not between 50° and 90° this will not work because of the thermostat's range. Wait until a suitable temperature is

achieved in the room before testing the thermostat.

PAGE 36 OPTIONAL EQUIPMENT (CONTINUED)

Re-Routing the Power Cord to the Left or Rear of the Heater

The power cord is normally routed to the right side of the heater. It may be re-routed to the left, or if the heater is installed as a stove, at the rear. The directions below detail this procedure.

1. TURN THE GAS LINE VALVE TO OFF AND UNPLUG THE HEATER (if the heater is connected or plugged in).

2. Use slip joint pliers to remove the strain relief that holds the power cord in place (see the illustration below).

To remove the strain relief, use a pair of slip joint pliers to press from the top and bottom of the relief. Pull the relief

Ashlip Control Housing

3. Open the access panel and with a 7/16" nutdriver loosen the three bolts that hold the control housing in place. When the control housing becomes loose, lift it off the bolts and place it face down in front of the heater. The wires that lead to the control housing can then be accessed.

out once it becomes loose.

Power Cord

Loosen these three bolts with a 7/16" nutdriver

Ashlip Control Housing

Access Panel

4. Disconnect the molex connector that attaches to the power cord. Remove the power cord from the heater by threading the molex plug through the hole in the ashlip control housing (see the illustration below). To route the power cord to the left side, follow step 5A. To route the cord to the rear (stoves only), follow step 5B.

This hole if for routing the power cord to the rear of the heater.

Route the power cord through this notch in the ashlip control housing partition.

Disconnect the molex plug to re-route the power cord.

Blower Rheostat

OPTIONAL EQUIPMENT (CONTINUED) PAGE 37

Re-Routing the Power Cord to the Left or Rear of the Heater (Continued)

5A Pry the button plug from the left side of the ashlip control housing using a screwdriver (see the

illustration below). Insert it in the hole on the right side where the strain relief was removed. Insert the power cord through the hole on the left side. Route the power cord through the notch in the ashlip control housing partition and re-connect the power cord by connecting the molex plugs (see the illustration on the previous page). Place the strain relief over the power cord next to the ashlip control housing. Compress the strain relief by clamping it with a pair of slip nose pliers. Then insert it into the ashlip control housing until it locks into place.

Button Plug

Remove the button plug by prying it loose with a screwdriver

5B Included in the accessory pack are three cord mounts and a button plug. Insert the button plug in

the hole on the right where the strain relief was removed. Insert the power cord through the hole on the bottom of the ashlip control housing. Route the power cord through the notch in the ashlip control housing partition and re-connect the power cord by connecting the molex plugs (see the illustration on the previous page). Place the strain relief over the power cord next to the ashlip control housing. Compress the strain relief by clamping it with a pair of slip nose pliers. Then insert it into the ashlip control housing until it locks into place. The cord is hidden under the heater with the use of cord mounts inserted into the baseplate of the heater. Insert the three cord mounts into the base of the heater (see the illustration below for details). Then insert the power cord into each cord mount until it latches in place. After installation, pull the slack out of the power cord.

Ashlip Control Housing

Baseplate

Front of Stove

FOR STOVES WITH LEGS Insert a cord mount into the hole in the center of the stove and route the cord down the middle of the stove.

FOR STOVES WITH PEDESTALS Insert a cord mount into the hole on the right side of the pedestal and route the cord around the base of the pedestal.

Power Cord Strain Relief

Cord mount

Insert this end in until these barbs expand, locking it in place.

Insert the power cord through these two arms until they lock in place.

6. Replace the ashlip control housing, making sure no wiring becomes pinched, and tighten the three bolts that hold it in place.

PAGE 38 INDEX

B Vent (insert) .............................................................. 11

B vent (stove) ............................................................... 7

Blower Speed............................................................... 19

BTU Input ..................................................................... 5

Cap (vent termination - insert)...................................... 12

Cap (vent termination - stove)...................................... 8

Clearances (insert)....................................................... 10

Clearances (stove) ....................................................... 6

Controls........................................................................ 15

Dimensions................................................................... 5

Door (inspection, removal, replacing components)...... 22

Door Gasket ................................................................. 22

Emissions..................................................................... 5

Fan Speed ................................................................... 19

Firebox (inspection) ..................................................... 20

Fireplace Sizing ........................................................... 11

Flame Height................................................................ 19

Flexible Tube Note (insert)........................................... 12

Flexible Tube Note (stove) ........................................... 8

Floor Protection (insert)................................................ 11

Floor Protection (stove)................................................ 7

Fuel .............................................................................. 5

Gas Inlet Location (insert)............................................ 12

Gas Inlet Location (stove) ............................................ 8

Gas Leak............................................ See Inst. on Cover

Gas Line Install (insert) ................................................ 12

Gas Line Install (stove) ................................................ 8

Gas Pressure (insert) ................................................... 13

Gas Pressure (stove) ................................................... 9

Gas Smell............................................ See Inst. on Cover

Glass, Glass Gasket .................................................... 22

Heater Placement (insert) ............................................ 10

Heater Placement (stove) ............................................ 6

Heating Specifications ................................................. 5

How this Heater Works................................................. 24

Leaking Gas ....................................... See Inst. on Cover

Legs (installation) ......................................................... 29

Listing Information........................................................ 28

Logs and Coals (installation, removal) ......................... 21

Manifold Pressure (insert)............................................ 13

Manifold Pressure (stove) ............................................ 9

Natural Gas Verses Propane Heater ........................... 2

On/Off Operation ......................................................... 18

Operating Sounds ....................................................... 19

Operating the Heater.................................................... 17

Paint Curing................................................................. 17

Parts List ..................................................................... 26

Pedestal (installation)................................................... 29

Pilot (starting) ............................................................... 16

Power Cord (re-routing to rear or left of heater)........... 36

Propane Line Install (gas line install - insert)............... 12

Propane Line Install (gas line install - stove)................ 8

Propane Verses Natural Gas Heater........................... 2

Purging Gas Line (insert) ............................................. 13

Purging Gas Line (stove)............................................. 9

Remote Control (installation)....................................... 32

Remote Control (operation).......................................... 18

Replacement Parts...................................................... 26

Reviewing the Installation ............................................ 14

Running Your Heater................................................... 17

Safety Label ................................................................. 28

Safety Precautions ...................................................... 2

Sounds (normal operating sounds) .............................. 19

Starting The Pilot.......................................................... 16

Starting the Heater for the First Time........................... 17

Stove Clearances......................................................... 6

Surround Panels (installation) ...................................... 30

Table of Contents......................................................... 4

Telescoping Legs (installation).................................... 31

Thermostat (installation)............................................... 34

Thermostat (operation)................................................ 18

Troubleshooting Table................................................. 23

Turning the Heater On and Off.................................... 18

Vent Requirements (insert) ......................................... 11

Vent Requirements (stove) .......................................... 7

Vent termination (insert)............................................... 12

Vent termination (stove) .............................................. 8

Warranty....................................................................... 27

Weight .......................................................................... 5

What Prevents Gas Buildup ........................................ 25

What Turns the Main Burners On and Off.................... 24

Why Nothing Should Be Placed Against the Heater ... 24

Wiring Diagram............................................................ 26

Avalon Firestyles B-Vent-1994 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
