Newport
(Avanti PS)
• Horizontal Or Vertical Vent
• Freestanding Stove
• Mobile Home Approved
• Class A Chimney Retrofit
Tested and Listed by
Omni-Test Laboratories, Inc.
Beaverton, Oregon
ASTME-1509 1995, ULCC 1482
-- Please read this entire manual before installation and use of this
pellet fuel-burning room heater. Failure to follow these instructions
could result in property damage bodily injury or even death.
-- Contact local building or fire officials about restrictions and
installation inspection requirements in your area.
-- Save these instructions
Installer: After installation give this manual to the home-
owner and explain operation of this stove.
$10.00 Copyright 2007, T.I. Part # 93508074
4051012
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Introduction 1
Introduction
We welcome you as a new owner of a Newport (Avanti PS) pellet heater. In purchasing a Newport you
have joined the growing ranks of concerned individuals whose selection of an energy system reflects
both a concern for the environment and aesthetics. The Newport is one of the finest home heaters
the world over. This manual will explain the installation, operation, and maintenance of this pelletburning heater. Please familiarize yourself with the Owner's Manual before operating your heater and
save the manual for future reference. Included are helpful hints and suggestions which will make the
installation and operation of your new heater an easier and more enjoyable experience. We offer our
continual support and guidance to help you achieve the maximum benefit and enjoyment from your
heater.
Important Information
No other Newport (Avanti PS) heater has the same
serial number as yours. On the Newport the serial
number is on the hopper lid.
This serial number will be needed in case you require
service of any type.
Model: Newport (Avanti PS)
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card
Today, and Save Your Bill of
Sale.
To receive full warranty coverage,
you will need to show evidence of
the date you purchased your
heater. Do not mail your Bill of
Sale to us.
We suggest that you attach your
Bill of Sale to this page so that you
will have all the information you
need in one place should the need
for service or information occur.
Travis Industries Newport 290902
2 Safety Precautions
Gas
• Do not operate the
heater if you smell
smoke coming from
the heater. Turn the
POWER switch to
"OFF", monitor your
heater, and call your
dealer.
• Never use gasoline,
gasoline-type lantern fuel,
kerosene, charcoal lighter
fluid, or similar liquids to
start or 'freshen up' a fire in
this heater. Keep all such
liquids well away from the
heater while it is in use.
• Do not unplug the heater
if you suspect a
malfunction. Turn the
MODE SWITCH to "OFF"
and periodically inspect
the heater.
Ok
Sealant
• Contact your local building
officials to obtain a permit
and information on any
installation restrictions or
inspection requirements
in your area. Notify your
insurance company of this
heater as well.
• The exhaust system must
be completely airtight and
properly installed. The
pellet vent joints must be
sealed with RTV 500o F.
(260o C.) silicone sealant.
• This unit must be properly
installed to prevent the
possibility of a house fire.
The instructions must be
strictly adhered to. Do not
use makeshift methods or
compromise in the
installation.
• Never try to repair or
replace any part of the
heater unless instructions
are given in this manual.
All other work should be
done by a trained
technician.
• The viewing door and
ashpan must be closed
and latched during
operation.
• Never block free airflow
through the open vents of
the unit.
• Do not operate the heater
if the flame becomes dark
& sooty of if the firepot
overfills with pellets. Turn
the MODE SWITCH to
"OFF" and periodically
inspect the heater (see
"Running Your Heater").
• Your heater requires
periodic maintenance and
cleaning (see "Maintaining
Your Heater"). Failure to
maintain your heater may
lead to smoke spillage in
your home.
• Allow the heater to cool
before carrying out any
maintenance or cleaning.
Ashes must be disposed
in a metal container with a
tight lid and placed on a
non-combustible surface
well away from the home
or structure.
• This heater is designed
and approved for
pelletized wood fuel only.
Any other type of fuel
burned in this heater will
void the warranty and
safety listing.
Travis Industries Newport 290902
Safety Precautions 3
• The heater will not operate
during a power outage. If
a power outage does
occur, check the heater
for smoke spillage and
open a window if any
smoke spills into the room.
• Keep foreign objects out
?
of the hopper.
Mobile
Home
• Disconnect the power
cord before performing
any maintenance.
NOTE:
Turning the Mode Switch
to "OFF" does not
disconnect all power to
the heater.
• This heater must be
connected to a standard
115 V., 60 Hz grounded
electrical outlet. Do not
use an adapter plug or
sever the grounding plug.
Do not route the electrical
cord underneath, in front
of, or over the heater.
• When installed in a mobile
home, the heater must be
bolted to the floor, have
outside air, and NOT BE
INSTALLED IN THE
BEDROOM (Per H.U.D.
requirements). Check
with local building officials.
• The exhaust system
should be checked twice a
year minimum for any
build-up of soot or
creosote.
This
Manual
• Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this manual.
• Do not place clothing or
other flammable items on
or near the heater.
Because this heater can
be controlled by a
thermostat there is a
possibility of the heater
turning on and igniting any
items placed on or near it.
• Do not touch the hot
surfaces of the heater.
Educate all children of the
danger of a hightemperature heater.
Young children should be
supervised when they are
in the same room as the
heater.
• Travis Industries, Inc.
grants no warranty,
implied or stated, for
the installation or
maintenance of your
heater, and assumes
no responsibility of
any consequential
damage(s).
Travis Industries Newport 290902
4 Table of Contents
Introduction
Introduction ......................................................1
Important Information .........................................1
Safety Precautions
Safety Precautions............................................2
Specifications
Heating Specifications ........................................5
Dimensions.......................................................5
Electrical Specifications......................................5
Fuel.................................................................5
EPA Compliance................................................5
Installation
Before you Begin ...............................................6
Installation Options ............................................6
Planning the Installation ......................................6
Stove Placement ...............................................6
Floor Protection Requirements..............................6
Clearances - Straight Installation ..........................7
Clearances - Corner Installation............................7
Venting the Pellet Stove......................................8
Maximum Venting Distance .............................8
Pellet Vent Type............................................9
Installing the Pellet Vent .................................9
Pellet Vent Termination...................................9
Mobile Home Requirements..................................10
Outside Air .......................................................10
Alcove Installation Requirements ..........................11
Restrictor Adjustment .........................................11
Installation Example: Direct "Through the Wall" ........12
Installation Example: Interior Vertical.....................13
Installation Example: Type A Chimney Retrofit.........14
Installation Example: Hearth Fireplace ...................15
Operation
Safety Notice ....................................................16
Location of Controls ...........................................16
Starting the Heater for the First Time......................16
Curing the Paint ............................................16
Priming the Auger..........................................16
Loading Pellets..................................................17
The Two Modes of Operation ................................17
Operation (continued)
Manual Mode.....................................................18
Auto Mode........................................................19
Restrictor Adjustment .........................................20
Adjusting the Fan Speed......................................20
Start-Up Sequence.............................................21
"AUGER ON" Light..............................................21
"FAULT" Light....................................................21
Power Outages..................................................21
Maintenance
Daily Maintenance (whenever using the stove).........22
Inspect the Burn ...........................................22
Make Sure Pellets are not Piling Up...................22
Check Firepot for Clinkers...............................23
Cleaning the Firepot.......................................23
Bi-Weekly Maintenance (or every 10 bags pellets)....24
Clean the Heat Exchange Tubes.......................24
Vacuum Hopper ............................................24
Clean the Gold Door.......................................24
Opening the Door ..........................................25
Sweep Ash Into Ashpan..................................26
Check Ashpan, Dispose if Necessary................27
Clean the Glass ............................................27
Yearly Maintenance (or every two tons)..................28
Clean the Exhaust Duct..................................28
Clean the Exhaust Blower ...............................29
Clean the Vent..............................................29
Check for Air Leaks - Door, Glass and Ashpan ....30
Normal Operating Sounds
Normal Operating Sounds....................................31
Safety Label
Safety Label .....................................................32
Warranty
Warranty..........................................................33
Optional Equipment
Thermostat.......................................................34
Optional Log .....................................................36
Optional Gold Grill..............................................37
Optional Gold Door.............................................37
Travis Industries Newport 290902
Index
Index...............................................................38
Specifications 5
Heating Specifications:
Approximate Maximum Heating Capacity (in square feet)*.................................800 to 1,600 Sq. Feet
Burn Rate (Pounds per Hour)**.......................................................................1.0 to 3.5
Maximum Burn Time on Low Burn**................................................................15 - 50 Hours
Hopper Capacity............................................................................................55 Pounds
* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside
temperature. It is also affected by the fuel size, quality, and moisture level.
** Small pellets will increase or decrease the stated burn rates and burn times. Differences of plus or minus 20%
depending on fuel quality may occur.
Dimensions:
5-5/8"
7-5/8"
29-1/2"
Air Inlet
(1-3/4"
Outside
Diameter)
10-3/4"
21-5/8"
20-7/8"
Weight: 175 Lbs.
Electrical Specifications:
Electrical Rating.........................................................................................115 Volts, 3.6 Amps, 60 Hz
Watts During Start-Up Sequence...................................................................400 (approximately)
Watts During Operation ...............................................................................180 (approximately)
Fuel:
3" Diameter
Exhaust
16-7/8"
The unit is designed for wood pellets that comply with the standards set by the Association of Pellet Fuel
Industry (density of at least 40 lbs. per cubic foot, 1/4" to 5/16" diameter, length no greater than 1–1/2", 8200
BTU's/lb., moisture under 8% by weight, ash under 1% by weight, and salt under 300 parts per million). If the fuel
does not comply to this standard, the unit may not operate as designed.
EPA Compliance:
This heater is EPA exempt from Phase II requirements, but has been tested for emissions using EPA test
methods by OMNI Test Labs.
Travis Industries Newport 290902
6 Installation
Before You Begin
READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE THIS HEATER.
FAILURE TO FOLLOW THE INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY, OR EVEN DEATH.
Check with local building officials for any permits required for installation of this pellet heater and notify
your insurance company before proceeding with installation.
Packing List
• Newport Stove • Owner's Manual • Door Latch Tool • Fuses (2) • Lag Bolts (2)
Installation Options:
• Residential or Mobile Home (see the section "Mobile Home Requirements")
• Alcove Compatible (see the section "Alcove Installation")
• Horizontal or Vertical Vent
• Outside Air Compatible
• Vent with L-Vent, L-Vent Fireplace Liner, or Type A Chimney (with adapter)
Planning The Installation
HINT: Have an authorized Travis Industries dealer install this heater. If you install the heater
yourself, have your dealer review your installation plans.
HINT: Sketch out a detailed plan of the installation including dimensions. Then verify the
dimensions with the requirements listed in this manual.
HINT: When determining the location of the stove, locate the wall studs (for horizontal
penetrations) and ceiling trusses (for vertical penetrations). You may wish to adjust the
stove position slightly to ensure the vent does not intersect with a framing member.
HINT: Place the heater outside and load 10 pounds of pellets inside the hopper. Plug the
heater in and let it run on HIGH until the pellets run out. This will cure the paint and burn
off any oil on the steel, eliminating any smell inside the home.
Stove Placement
• Stove must be placed so that no combustibles are within, or can swing within (e.g. drapes,
doors), 36" of the front of the heater.
? If the stove is placed in a location where the ceiling height is less than 7', it must follow the
requirements in the section "Alcove Installation Requirements".
HINT: REDUCING CLEARANCES - Clearances may be reduced by methods specified in NFPA
211, listed wall shields, pipe shields, or other means approved by local building or fire
officials.
• Heater and floor protection must be installed on a level, secure floor.
Floor Protection Requirements
• The heater must be installed on a non-combustible floor protector extending the full width
and depth of the heater and extending 6" in front (Minimum 21-5/8" wide by 26-7/8"
deep) (minimum .018" thick - 26 gauge) .
• Must extend under and 2" to each side and rear of a chimney "Tee" (if used).
Travis Industries Newport 290902
Installation 7
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Clearances - Straight Installation
Through the Wall Installations Interior Vertical Vents
Minimum
3” Minimum
3”
AAAAAA
AAAAAA
“Tee”
AAAAAA
2”
Minimum
AAAAAA
AAAAAA
AAAAAA
9” Minimum
AAAAAA
AAAAAA
AAAAAA
AAAAAA
6” Minimum
Floor Protection
AAAAAA
Clearances - Corner Installation
Through the Wall Vents
2” Minimum
45°
45° Elbow
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
6” Minimum
Interior Vertical Vents
2”
Minimum
3” Minimum
9” Minimum
2”
Minimum
“Tee”
6” Minimum
Note: If interior vertical pellet vent is used, the clearance to the backwall is determined by the
Travis Industries Newport 290902
upward-turning elbow or "Tee". It will vary in depth depending on the brand of pellet vent
used (it is approximately 5"). Before placing the heater, connect the elbow or "Tee" and
measure off the 3" clearance.
2” Minimum
Floor Protection
2”
Minimum
6” Minimum
8 Installation
Venting the Pellet Stove
• PELLET VENT MUST MAINTAIN A MINIMUM 3" CLEARANCE TO ANY
COMBUSTIBLE (INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER).
• DO NOT CONNECT THE PELLET VENT TO A VENT SERVING ANY
OTHER APPLIANCE OR STOVE.
• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM
OF THIS UNIT.
• USE AN APPROVED WALL THIMBLE WHEN PASSING THE VENT
THROUGH WALLS AND A CEILING SUPPORT/FIRE STOP SPACER
WHEN PASSING THE VENT THROUGH CEILINGS (MAKE SURE TO
MAINTAIN 3" CLEARANCE TO ANY COMBUSTIBLES.
• No more than 180° of elbows (two 90° elbows, or two 45° & one 90° elbow, etc.).
33 Feet
(max.)
Maximum Venting
Distance:
• Vent must have a
support bracket every
5' of pellet vent when
exterior of structure
• If the heater is
installed at an altitude
over 4,000' use 4"
diameter for all
applications
The vent height and run
must not exceed the
distance shown in the
shaded region shown to the
right.
NOTE: To achieve optimum
performance, we
recommend keeping the
vent as short as possible
(horizontal run especially).
Use 4” diameter
vent if venting
into this shaded
region.
Use 3” or 4”
diameter
vent if
venting into
this shaded
region.
30 Feet
25 Feet
20 Feet
15 Feet
10 Feet
Travis Industries Newport 290902
0 Feet
5 Feet
10 Feet
(max.)
5 Feet
0 Feet
Installation 9
Pellet Vent Type
• Must be Type "L"(except for masonry fireplace installations) - or - connect the vent to a
factory built type "A" chimney (use an adapter and seal all joints).
Installing the Pellet Vent
Seal each vent section by
500° F. RTV
Silicone
• Horizontal sections must have a 1/4" rise every 12" of travel.
• Pellet vent connections must be sealed airtight with 500° F. RTV silicone and screwed
together with at least three sheet metal screws.
Pellet Vent Termination (See the illustration below)
injecting a liberal amount of
500° F. RTV silicone into the
gap between sections.
• Must have an approved cap (to prevent water from entering) or a 45° downturn.
• If the termination is located on a windy side of the house, an approved house shield is
recommended to prevent soot from building up on the side of the house.
• Must not be located where it will become plugged by snow or other material.
• Horizontal terminations must protrude 12" from the wall, verticall terminations require 24".
X
B
C
NOTE: Measure clearances to the nearest edge of the exhaust hood.
H
A
F
E
G
A
F
D
A Minimum 4' clearance below or beside any door or window that opens
B Minimum 1' clearance above any door or window that opens
C Minimum 2' clearance from any adjacent building
D Minimum 7' clearance above any grade when adjacent to public walkways
NOTE: Vent may not terminate in covered walkway or breezeway.
E Minimum 2' clearance above any grass, plants, or other combustible materials
F Minimum 3' clearance from any forced air intake of any other appliance
G Minimum 2' clearance below eaves or overhangs
H Minimum 1' clearance horizontally from combustible wall
X Must be a minimum of 2' above the roof
Travis Industries Newport 290902
10 Installation
Mobile Home Requirements
• Outside air is required (used for
combustion) - see the directions
below.
• The heater must be bolted to the
floor (Some states do not require
this; check with your local building
department). See the illustration
to the right.
• The heater must be grounded to
the steel chassis of the mobile
home (Some states do not require
this; check with your local building
department).
WARNING: DO NOT INSTALL IN
SLEEPING ROOM.
CAUTION: THE STRUCTURAL
INTEGRITY OF THE
MANUFACTURED HOME
FLOOR, WALL, AND
CEILING/ROOF MUST BE
MAINTAINED.
c
Lift the stove off of the
pedestal and place it on a
piece of wood so that the
ash pan trap door does
not become damaged.
d
Use the included lag bolts to screw
the pedestal to the floor. Then
replace the stove and ash pan.
a
Remove the ash pan
(see page 27).
1/2”
Socket
b
Remove the four
bolts holding the
stove to the pedestal.
7/16”
Socket
Outside Air (used for combustion)
• Must not be drawn from an enclosed space (garage, unventilated crawl space).
HINT: Travis Industries strongly suggests outside air for all residential installations, especially for
those that are energy efficient, air tight homes.

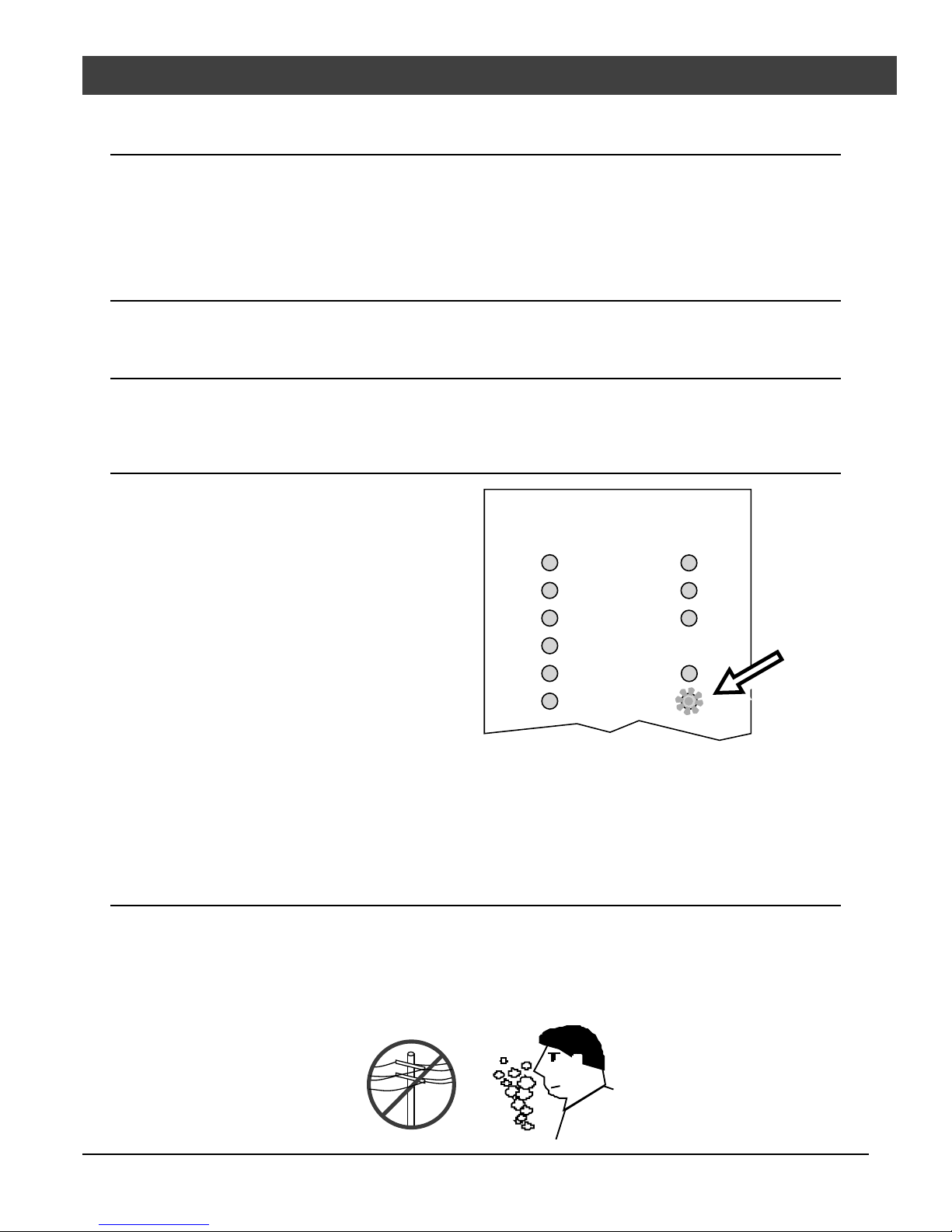

WARNING: During a power outage there is a
possibility of some smoke entering
the room if an outside air
connection is not used.
• Must not be over 15' long.
• Must be made with 1 3/4" diameter
or larger metal or aluminum duct
with a metal screen attached to the
end to keep out rodents (P.V.C. or
other combustible materials may
not be used). Use the Travis
Industries Outside Air Kit (part #
99200136).
• Must not terminate above or within
1' of the chimney termination.
• Must have a rain cap or downturned elbow to prevent water
from entering.
• Must be located so that it will not
become plugged by snow or other
material.
7-5/8"
Silicone
10-3/4"
Cut a minimum 2"
diameter hole in
the wall.
1-3/4" Diameter
Flex Duct
Select a location between
framing members for the
outside air hole.
Wall
Cover
Plate
Silicone
We recommend
the use of the
Travis Industries
Outside Air Kit
(Part # 99200136)
Seal the area around
the tube to prevent air
from entering the
wall.
Silicone
Seal the vent with
silicone.
Silicone
Rain
Hood with
Rodent
Screen
Travis Industries Newport 290902
Installation 11
Alcove Installation Requirements
Whenever the pellet stove is placed in a location where the ceiling height is less than 7' tall, it is
considered an alcove installation. Because of the reduced height, the installation requirements listed
below must be met.
• Minimum height is 60"
• Minimum width is 42"
• Maximum depth is 48"
• Minimum clearance of 9" on each side and 3" on back
Setting the Restrictor
The restrictor “fine tunes” your appliance, ensuring it pulls the correct amount of air through the
firebox. Altitude, vent configuration, and other factors make restrictor adjustment necessary for every
installation.
NOTE : the optimal restrictor position will vary over time as soot builds up inside the exhaust system –
make sure the homeowner knows how to visually inspect the flame and adjust the restrictor.

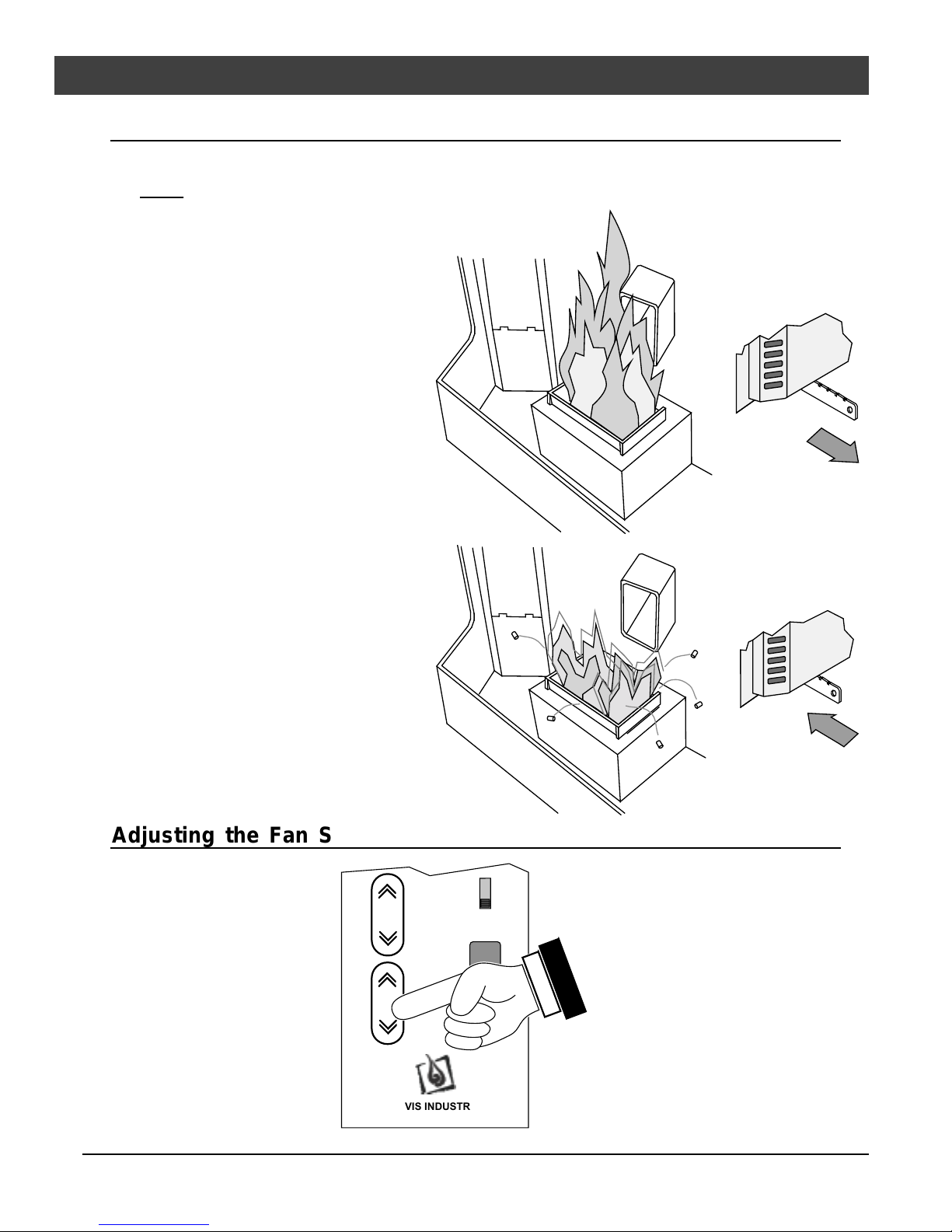

Not Enough Air:
If clinkers develop or the flame appears
lazy and slow to blow the ash out of the
firepot, pull the restrictor outward until
the flame becomes active and the
firepot holes remain clean. NOTE: If the
restrictor is fully out yet the firepot does
not remain clean, the stove needs to be
cleaned and checked for air leaks (see
“Maintenance” section of this manual).

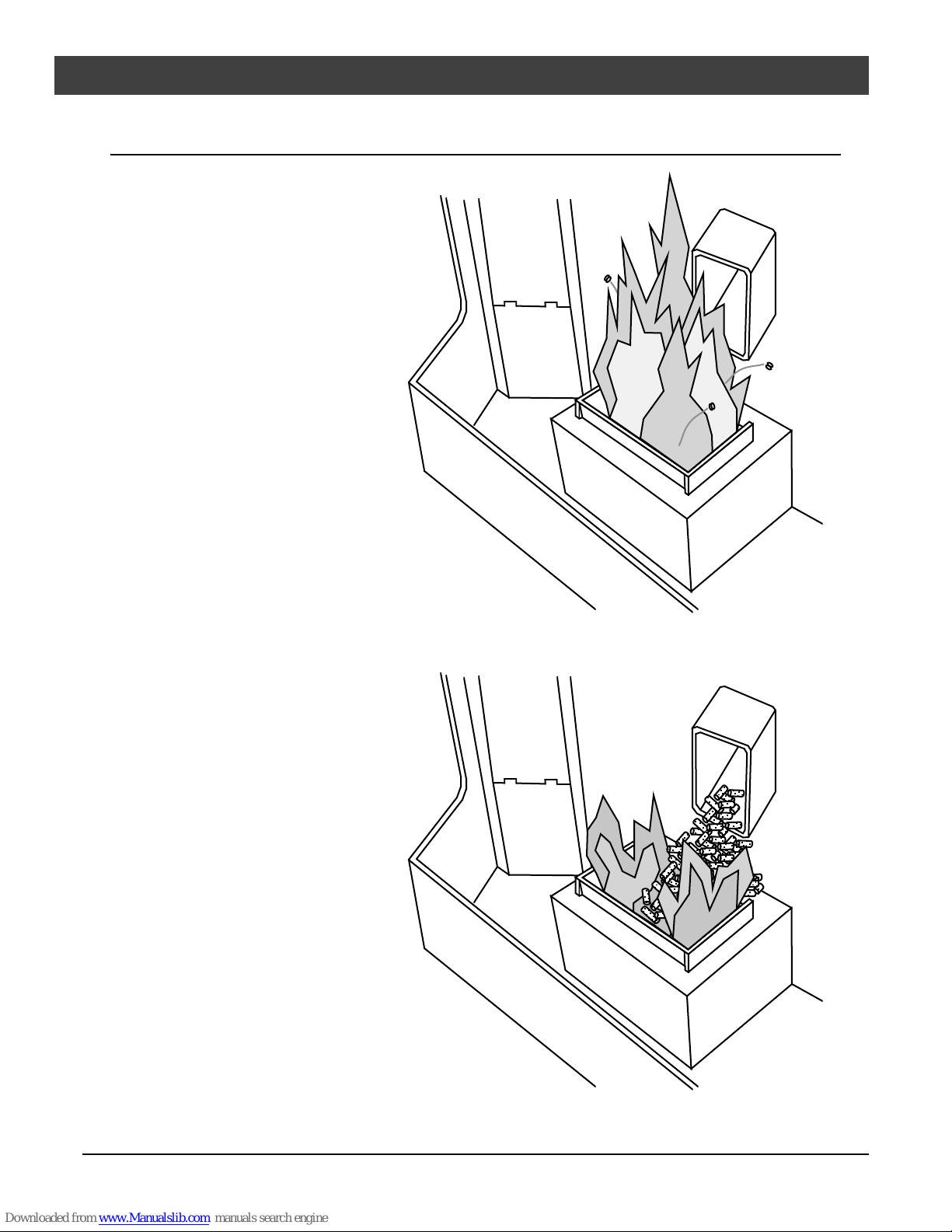

Too Much Air:
If the flames are too active (small,
flickering flames) or if burning pellets are
expelled from the firepot, move the
restrictor rod inwards until the flame
slows down and no burning pellets are
expelled. Another symptom of too
much air is the heater “blowing the fire
out” – a condition in which the pellets
burn faster than they are fed (this is most
common on low).
Travis Industries Newport 290902
12 Installation
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Installation Example: Direct "Through-the-wall" Installation
Horizontal Rain Cap
12” Minimum
Wall Thimble (note
3” clearance
between vent and
combustibles)
Type "L"
Vent
AAAAAA
Outside Air - HIGHLY RECOMMENDED
House Shield (used to protect exterior
wall from soot discoloration)
3” Minimum
AAAAAA
AAAAAA
9” Minimum
12”
Minimum
AAAAAA
AAAAAA
AAAAAA
AAAAAA
6” Minimum
3” Minimum
10-3/4”
16-7/8”
Floor Protection
Floor Protection
Travis Industries Newport 290902
Installation 13
A
A
A
A
A
A
A
A
A
A
A
A
Installation Example: Interior Vertical Installation
Minimum
Type "L" Vent
Floor Protection
Vertical Cap
Storm Collar
Roof Flashing
3”
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
6” Minimum
24” Minimum
A
A
2”
Minimum
“Tee”
Outside
Air
(optional)
9” Minimum
Insulation
must maintain
3” clearance.
Vent must
maintain 3”
clearance to
combustibles.
Travis Industries Newport 290902
Ceiling Support
“L” Vent
3” Min.
2” Min.
Floor Protection
Outside air may be drawn from
a ventilated crawl space.
14 Installation
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Installation Example: Class A Chimney Retrofit
Minimum
Type "L" Vent
Floor Protection
Storm Collar
Roof Flashing
3”
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
6” Minimum
AAAAAA
AAA
AAA
AAA
A
A
A
A
A
A
A
2”
Minimum
“Tee”
Outside
Air
(optional)
9” Minimum
Class A Chimney
Class A Chimney must
maintain clearances outlined
in the chimney’s installation
instructions (usually 2”).
A
A
Travis Industries Newport 290902
Class A Chimney Ceiling Support
“L” Vent to Class A Chimney Adapter
“L” Vent
3” Min.
2” Min.
Floor Protection
Outside air may be drawn from
a ventilated crawl space.
Installation 15
A
A
A
A
A
A
A
A
AAAA
A
A

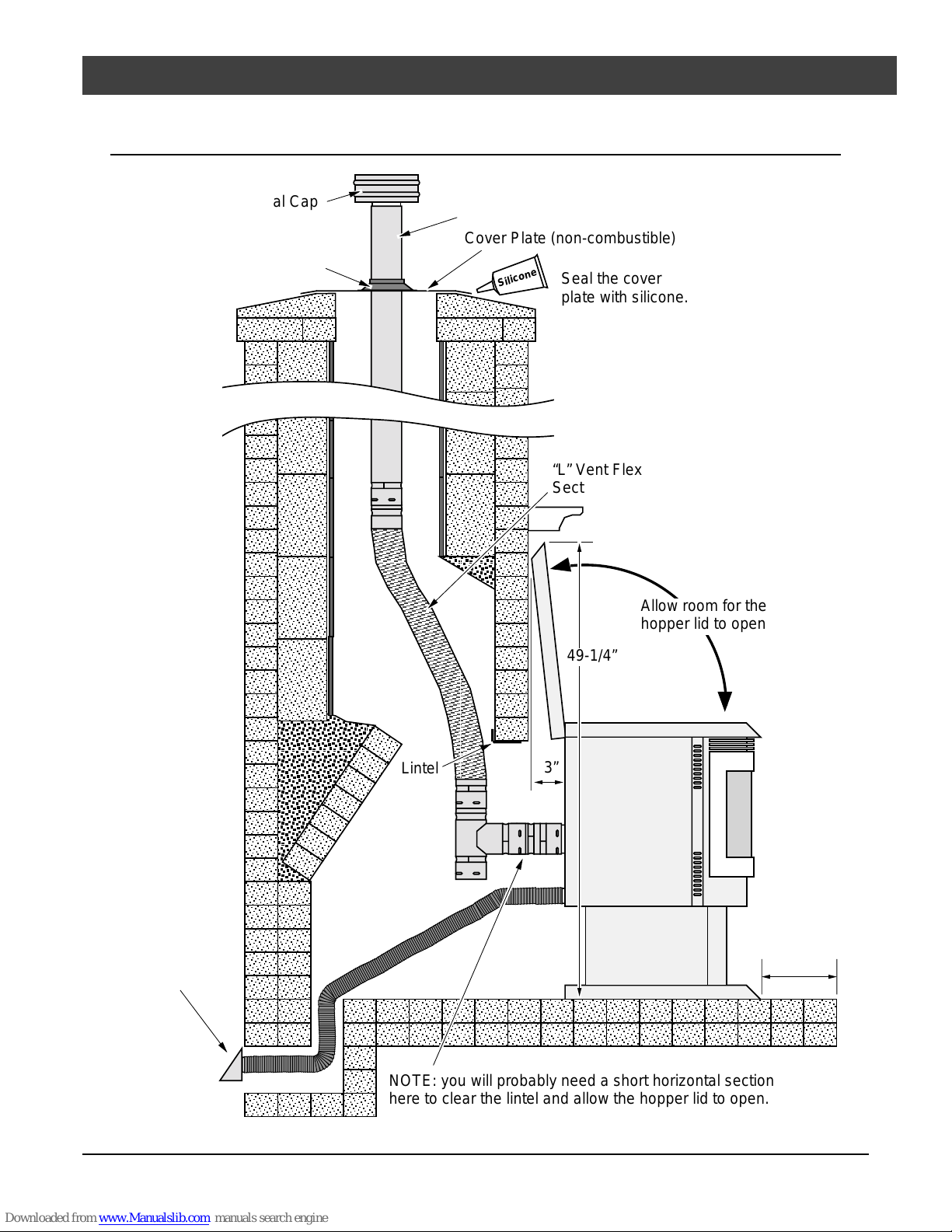

Installation Example: Hearth Fireplace (Masonry or Z.C. (metal) )
AA
AA
Vertical Cap
Storm Collar
“L” Vent
Cover Plate (non-combustible)
Silicone
Seal the cover
plate with silicone.
A
AAA
A
A
AAA
“L” Vent Flex
Section
A
Allow room for the
hopper lid to open
Outside air
may be
drawn from
the ash
cleanout.
49-1/4”
Lintel
NOTE: you will probably need a short horizontal section
here to clear the lintel and allow the hopper lid to open.
3”
6” Min.
Travis Industries Newport 290902
16 Operation
Safety Notice
Read this entire manual (especially the "Safety Precautions" on pages 2 and 3)
before using this stove. Failure to follow the instructions may result in property
damage, bodily injury, or even death.
! Do not unplug the stove to turn it off. This stove relies upon electricity to push the flue
gases out the pellet vent – unplugging it may lead to smoke entering your room.
! Failure to maintain your heater will lead to a restricted combustion air system, leading to
poor performance and in some cases, smoke spillage into the room. See the
"Maintenance" section for details.
Location of Controls
Thermostat
(required for
Auto Operation)
Starting the Heater for the First Time
Curing the Paint
This stove uses a heat-activated paint that will
emit some fumes while starting the first fire.
Open doors and windows to the room to vent
these fumes. You may also notice oil burning
off of the interior of the stove. This ruststopping agent will soon dissipate.
Priming the Auger
Control Panel
Restrictor
2 to 4 hours
Because of its electronic control panel, this stove does not require priming. If you run out of pellets
you may notice it will take approximately 5 minutes longer for the stove to start.
Travis Industries Newport 290902
Operation 17

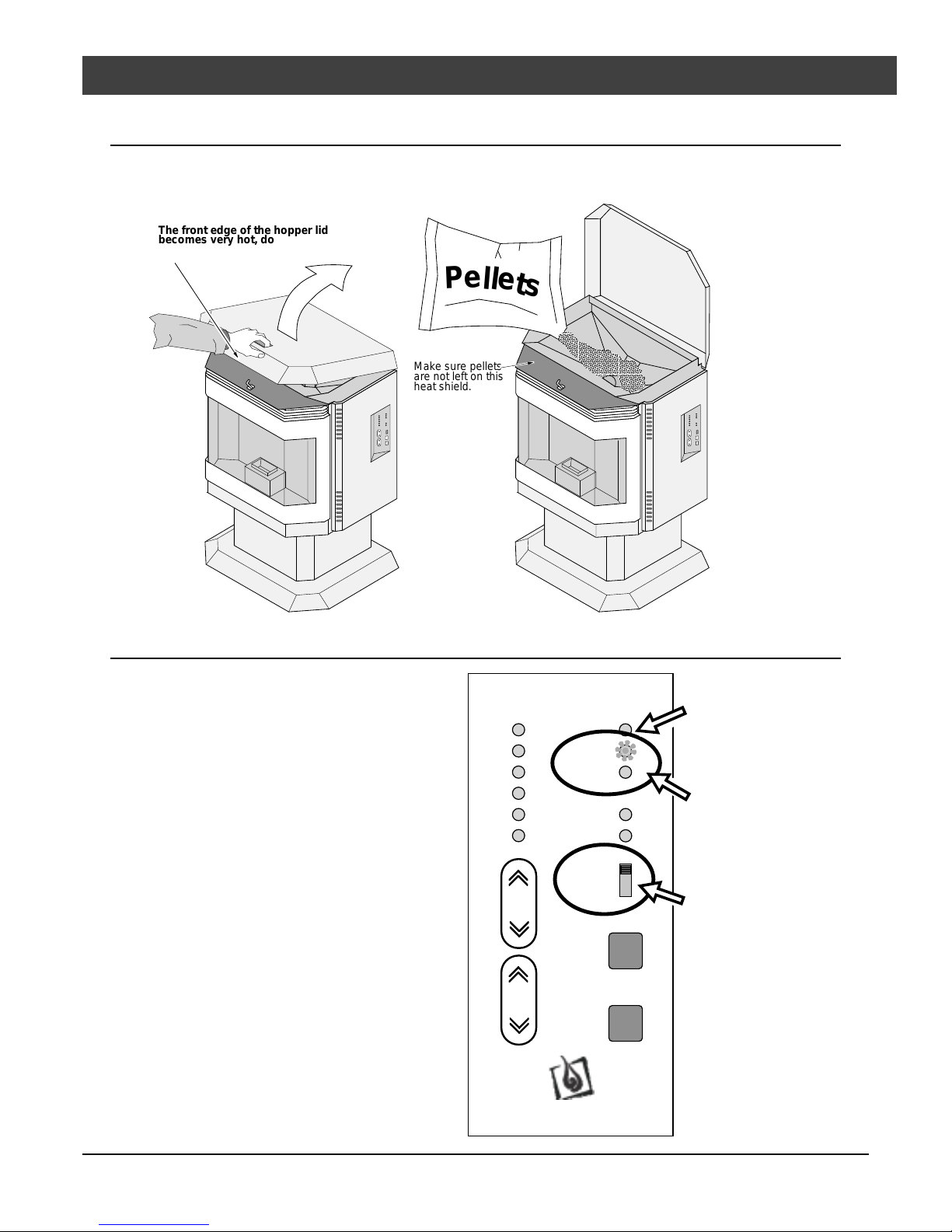

Loading Pellets
Lift the hopper lid to its vertical position. Pour pellets into the hopper until full. NOTE: The hopper
holds approximately 55 pounds of pellets.
WARNING:
The front edge of the hopper lid
becomes very hot, do not touch the
area below the handle.
e
e
l
l
P
Make sure pellets
are not left on this
heat shield.
t
s
The Two Modes of Operation:
Manual
Manual mode requires the user to turn
the heater on and off manually.
Auto (requires a thermostat)
Auto mode allows you to use a
thermostat to control room
temperature. The stove automatically
turns on when the temperature drops
below the thermostat setting. Once the
stove reaches operating temperature,
the stove then runs at the heat output
setting selected.
Switching Modes While in
Operation
Whenever the stove is switched from
one mode to another while in
operation, the stove will enter the "startup" sequence for a minimum of 20
minutes.
DISCONNECT POWER BEFORE SERVICE
H
E
A
T
O
U
T
P
U
T
H
E
A
T
F
A
N
TRAVIS INDUSTRIES
REMOTE
HIGH
MED
LOW
HOUSE OF FIRE
UP
DOWN
UP
DOWN
AUTO
MANUAL
AUGER
FAULT
AUTO
OFF
MANUAL
MANUAL
START
MANUAL
AUGER
TM
NOTE: if using a
modulating remote, this
light will come on to
indicate the remote is
controlling the heater.
These indicator lights
are used to determine
which mode you are in.
Use the mode
switch to
determine the
mode.
Travis Industries Newport 290902
18 Operation
Manual Mode
Manual mode requires the user to turn the
heater on and off manually.
To Start
Press the "Manual Start" button. That's it. The
stove automatically goes to a medium burn rate
and high fan while the igniter starts the fire
burning within 10 minutes. During this period
the lowest “HEAT OUTPUT” light will flash. If
the stove does not start in 30 minutes, the
stove turns off.
Once up to temperature, the stove will then
run at the heat output setting selected on the
control panel (see “To Adjust the Heat” below).
To Shut Down
Move the mode switch to "OFF". The exhaust
blower will still run until the heater cools down.
H
E
A
T
F
A
N
H
E
A
T
F
A
N
UP
DOWN
UP
DOWN
TRAVIS INDUSTRIES
HOUSE OF FIRE
UP
MANUAL
DOWN
UP
DOWN
AUTO
OFF
MANUAL
MANUAL
MANUAL
TM
AUTO
OFF
MANUAL
START
MANUAL
AUGER
START
AUGER

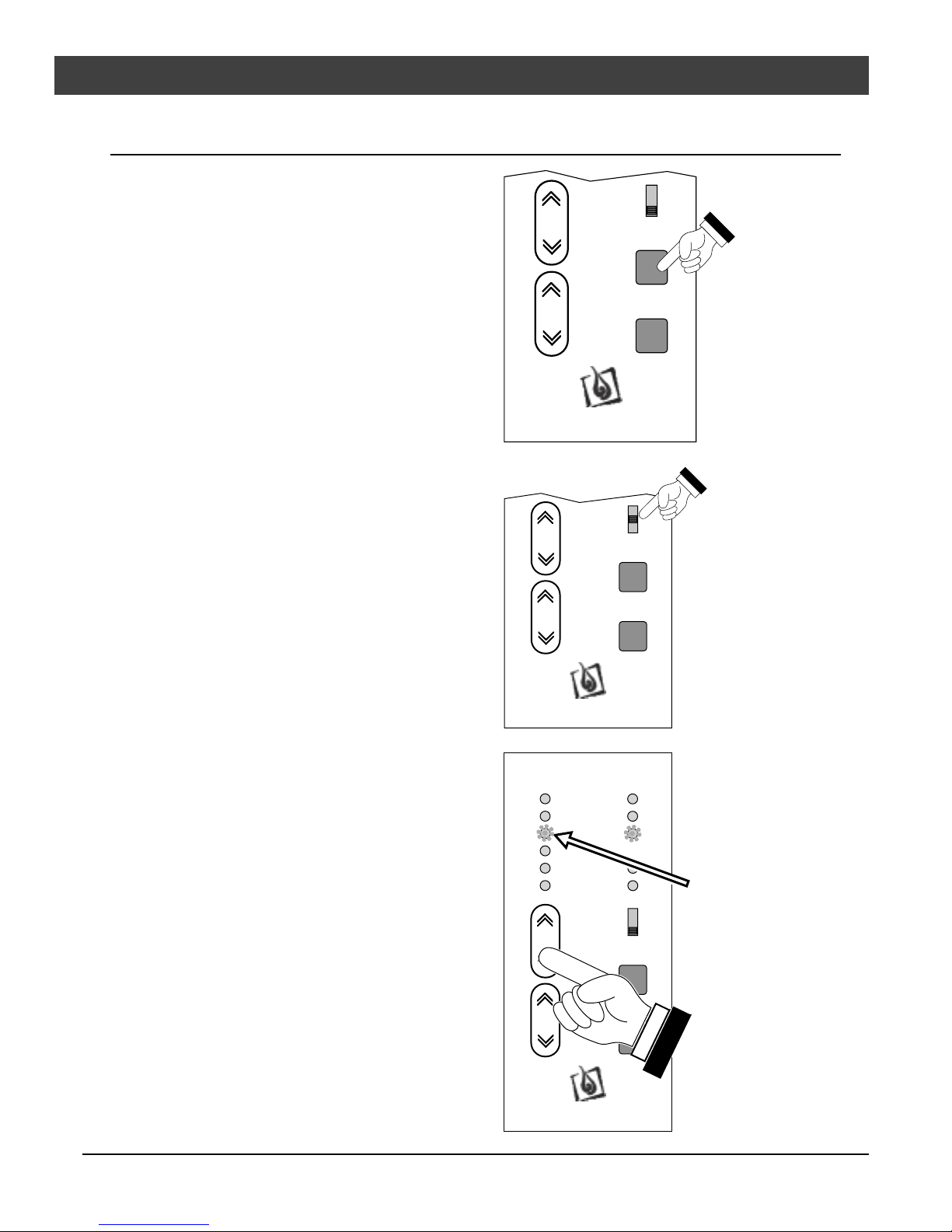

To Adjust the Heat
Press the "Heat” buttons to adjust the heat
output.
NOTE: During start-up you may adjust the heat
setting. This heat setting will take affect once
the start-up sequence is complete.
TRAVIS INDUSTRIES
HOUSE OF FIRE
DISCONNECT POWER BEFORE SERVICE
H
E
A
T
O
U
T
P
U
T
H
E
A
T
F
A
N
REMOTE
HIGH
AUTO
MANUAL
MED
AUGER
LOW
FAULT
AUTO
UP
MANUAL
DOWN
UP
DOWN
TRAVIS INDUSTRIES
HOUSE OF FIRE
TM
OFF
MANUAL
START
MANUAL
AUGER
TM
These lights
indicate the
heat output
setting.
NOTE: the
lights may
be difficult to
see from an
angle.
Press the
“up” or
“down”
button to
adjust the
heat output.
Travis Industries Newport 290902
Operation 19
Auto Mode
Auto mode allows you to use a thermostat to control room temperature. The stove automatically turns
on when the temperature drops below the thermostat setting. Once the stove reaches operating
temperature, the stove then runs at the heat output setting selected.

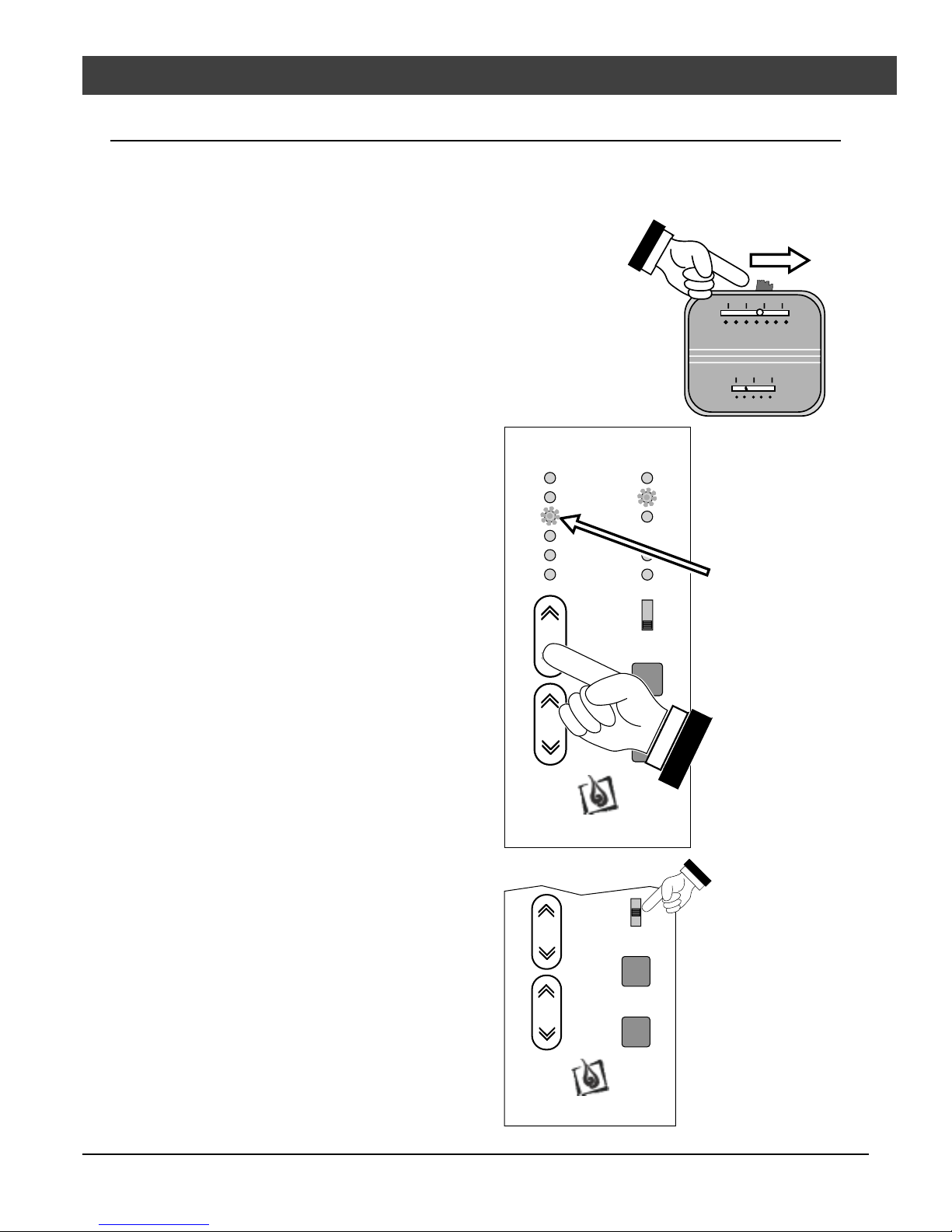

To Adjust Room Temperature (or Start the Stove)
Move the thermostat to the heat setting desired. If the room is
cooler than the setting, the stove will go through the start-up
sequence for approximately 10 minutes. During this period the
lowest “HEAT OUTPUT” light will flash. Once up to temperature,
the stove will then run at the heat output setting selected on the
control panel. If the room is too hot, move the thermostat to a
lesser setting.
DISCONNECT POWER BEFORE SERVICE
H
To Adjust the Heat
Press the "Heat” buttons to adjust the heat
output.
HINT:
If you find that the stove turns on and off
repeatedly, you may wish to turn the heat
output to a lesser setting. The lower setting
will provide a more consistent heat output over
time, eliminating the need for the thermostat to
repeatedly turn the stove off.
NOTE:
If the thermostat calls for heat while the stove is
still cooling down, the stove will go through the
start-up sequence (for a minimum of 20
minutes).
E
A
T
O
U
T
P
U
T
H
E
A
T
F
A
N
TRAVIS INDUSTRIES
REMOTE
HIGH
MED
LOW
HOUSE OF FIRE
UP
DOWN
UP
DOWN
AUTO
MANUAL
AUGER
FAULT
AUTO
OFF
MANUAL
MANUAL
MANUAL
TM
START
AUGER
These lights
indicate the
heat output
setting.
NOTE: the
lights may
be difficult to
see from an
angle.
Press the
“up” or
“down”
button to
adjust the
heat output.
To Shut Down
Move the mode switch to "OFF". The exhaust
blower will still run until the heater cools down.
Travis Industries Newport 290902
UP
H
E
A
T
DOWN
UP
F
A
N
DOWN
TRAVIS INDUSTRIES
HOUSE OF FIRE
AUTO
OFF
MANUAL
TM
MANUAL
START
MANUAL
AUGER
20 Operation
Restrictor Adjustment
The restrictor “fine tunes” your appliance, adjusting the amount of air flowing to the flame.
NOTE : the optimal restrictor position will vary over time as soot builds up inside the exhaust system.
Not Enough Air:
If clinkers develop or the flame appears
lazy and slow to blow the ash out of the
firepot, pull the restrictor outward until
the flame becomes active and the
firepot holes remain clean. NOTE: If the
restrictor is fully out yet the firepot does
not remain clean, the stove needs to be
cleaned and checked for air leaks (see
“Maintenance” section of this manual).
Too Much Air:
If the flames are too active (small,
flickering flames) or if burning pellets are
expelled from the firepot, move the
restrictor rod inwards until the flame
slows down and no burning pellets are
expelled. Another symptom of too
much air is the heater “blowing the fire
out” – a condition in which the pellets
burn faster than they are fed (this is most
common on low).
Adjusting the Fan Speed
H
E
A
T
F
A
N
AUTO
OFF
UP
MANUAL
DOWN
UP
DOWN
TRAVIS INDUSTRIES
HOUSE OF FIRE
MANUAL
START
MANUAL
AUGER
TM
Press the
“up” or
“down”
button to
adjust the
fan speed.
Travis Industries Newport 290902
Operation 21
Start-Up Sequence
This stove utilizes a start-up sequence whenever the mode switch is changed or the heater is started
when cold. This is to ensure proper operation through all possible settings and operational states (hot
or cold, pellets burning or not burning, etc.). This sequence over-rides all user settings (except the
"OFF" position) to set the auger feed rate to medium, the exhaust blower to high, and the igniter on.
During this period the lowest “HEAT OUTPUT” light will flash.
"MANUAL AUGER" Button
This button turns the auger on. It is used to “prime” the auger after the hopper has run out of pellets.
"AUGER ON" Light
This light comes on when the auger is turning. This allows the operator to determine when the auger
is turning.
"FAULT" Light
This light comes on when an error occurs:
• The stove runs out of pellets
• During initial start-up (for a split
second) or for improper electrical
frequency
• A start-up sequence that does not
result in the heater coming up to
temperature
To reset the fault light, turn the mode switch to
off and re-start the stove.
DISCONNECT POWER BEFORE SERVICE
H
E
HIGH
A
T
MED
O
U
T
P
LOW
U
T
REMOTE
AUTO
MANUAL
AUGER
FAULT
Fault Codes (for qualified service personnel only)
Fault and #2 (LOW) Light Flash = Flow Switch Fault
Fault and # 4 (MID) Light Flash = System Snap Disk Fault (pellets run out & stove goes cold)
Fault and # 6 (HIGH) Light Flash = Safety Snap Disk Fault
Power Outages
If a sustained power outage occurs while in "Manual", the stove will go to a "cool down" mode to
vacate smoke once power returns. If the power outage was short, the heater will go to the start-up
sequence. If in "Auto", the stove will re-start (if the room is cool).
! Because this stove relies upon a blower to evacuate the smoke, some smoke may enter
the home during a power outage. To keep to a minimum, leave the door closed.
Travis Industries Newport 290902
22 Maintenance
A
A
A
Daily Maintenance (whenever using the stove)
Inspect the Burn
When burning, the flames should
be bright orange with an occasional
ember jumping from the firepot.
Make Sure Pellets are Not
Piling Up
If the pellets pile up over the burn
pot, turn the mode switch to "OFF".
The most likely causes are:
• The door, glass, or ashpan is
open or has an air leak
• The firepot requires cleaning
• The exhaust system requires
cleaning
• The stove requires adjustment
Travis Industries Newport 290902
Maintenance 23
A
Daily Maintenance (whenever using the stove) - Continued
Check Firepot for Clinkers
If the flames seem to be coming
only from the sides, or are
orange/black, turn the stove off and
check for clinkers.
The most likely causes are:
• Poor pellet quality
• The door or glass has an air leak
• The exhaust system requires
cleaning
• The stove requires adjustment

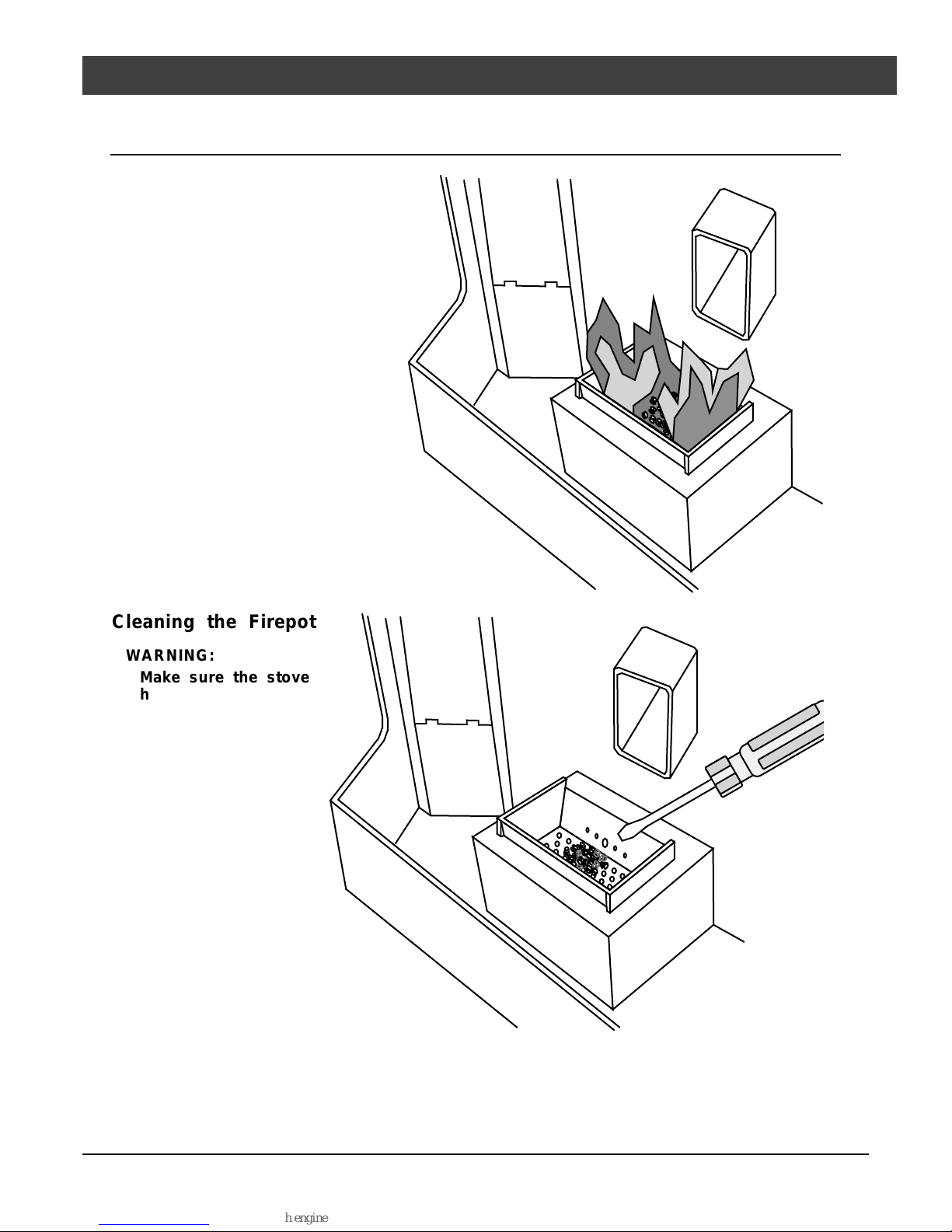

Cleaning the Firepot
WARNING:
Make sure the stove
has fully cooled
(approximately 25
minutes) before
opening the door
and conducting
service.
To clean the firepot,
open the door (see page
25) and knock away any
debris on the firepot with
a screwdriver. If severely
clogged, remove the
firepot to gain better
access.
Travis Industries Newport 290902
24 Maintenance
Bi-Weekly Maintenance (or every 10 bags of pellets)
Clean the Heat Exchange Tubes
Open the hopper lid.
WARNING:
The front edge of the hopper lid
becomes very hot, do not touch the
area below the handle.
WARNING:
This rod becomes very hot during
operation. Use the door latch tool or
other device to move the cleaner.
With the stove cool (or using the door
latch tool), move the heat exchange
cleaner up and down several times.
Keep the door closed so the
flyash does not enter the room.
Vacuum Hopper
Run the stove until the pellets run out. Open the hopper and vacuum out the entire hopper. The
dust and any other debris near the bottom should be removed to prevent excessive build-up.
Cleaning the Optional Gold Surfaces (Door and optional Grill)
Fingerprints or other marks left on gold surfaces may become etched in place if they are not wiped
clean prior to turning the stove on. Clean the gold with denatured alcohol and a soft cloth (make sure
the heater is cool). Other cleaners may leave a film that may become etched into the gold.
Travis Industries Newport 290902
Maintenance 25
Bi-Weekly Maintenance (or every 10 bags of pellets) - Continued
Opening The Door
WARNING:
The front of the stove becomes very hot during operation.
Let the stove cool completely before conducting service.
Use the door latch tool to open the
a
latch. The tool can be hung in one of
the holes on the back side of the stove.
Door Latch Tool
Latch
b
Swing the
door open
Door Frame
Door
Latch
Tool
Twist
CounterClockwise to
Open.
Travis Industries Newport 290902
26 Maintenance
Bi-Weekly Maintenance (or every 10 bags of pellets) - Continued
Sweep Ash Into Ashpan
HINT: The more often you clean out the flyash, the more efficient your heater will burn.
WARNING:
The firebox becomes very hot during operation. Let the
stove cool completely before conducting service.
Swing the side ash trap door up.
a
Lift it up and away from the firebox.
b
Repeat for the opposite side.
Lift the firepot out of its holder.
c
Brush all flyash into the ash dumps, including
e
the flyash inside the firepot holder.
Slide the ash pan trap door forward
d
to expose the ash dumps.
Replace the ash trap doors and firepot.
f
Slide the ash pan trap door forward.
Travis Industries Newport 290902
Maintenance 27
AA
AA
Bi-Weekly Maintenance (or every 10 bags of pellets) - Continued
Check Ashpan, Dispose if necessary
The ash pan has a built in handle
to ease transportation of the
ashes.
NOTE: When replacing the ashpan
make sure it is pushed all the way in.
Disposal of Ashes – Ashes should be placed in a metal container with a tight fitting lid. The closed
container of ashes should be placed on a noncombustible floor or on the ground, well
away from all combustible materials, pending final disposal. If the ashes are disposed of
by burial in soil or otherwise locally dispersed, they should be retained in the closed
container until all cinders have been thoroughly cooled.
Clean the Glass
Open the door and clean the glass with a non-abrasive glass cleaner and rag. This will increase the
amount of light and heat given off by the heater.
Travis Industries Newport 290902
28 Maintenance
Yearly Maintenance (or every two tons)
WARNING: Disconnect the power cord prior to conducting service.
The following section details extensive maintenance procedures. We strongly suggest these items
be carried out by a trained service technician, possibly by a service agreement set up with your dealer.
Soot and Flyash: Formation and Need for Removal – The products of combustion will
contain small particles of flyash. The flyash will collect in the exhaust venting system and restrict the
flow of the flue gases. Incomplete combustion, such as occurs during startup, shutdown, or incorrect
operation of the room heater will lead to some soot formation which will collect in the exhaust venting
system. The exhaust venting system should be inspected at least once every year to determine if
cleaning is necessary.
Clean the Vertical Exhaust Duct (the stove must be cool and unplugged)
Remove both
refractory side clips.
Clean this area
behind where the
refractory rests
(both sides).
Remove the
refractory.
Remove these doors to
remove fallen flyash and
soot (see “Bi-Weekly
Maintenance for details”)

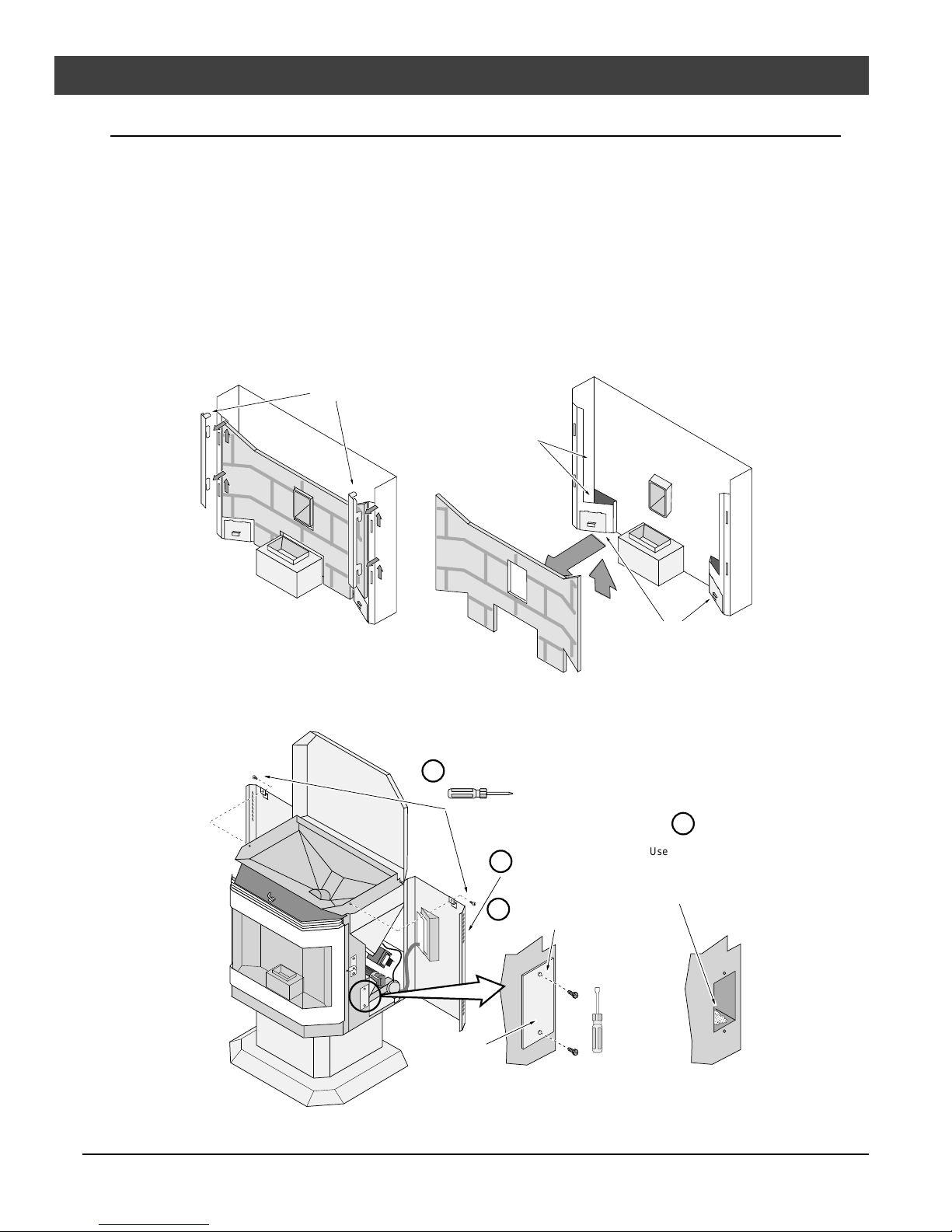

Clean the Horizontal Exhaust Duct (the stove must be cool and unplugged)
Open the hopper lid and remove the two
a
screws holding the side doors in place.
Phillips
Screwdriver
d
Use a vacuum or
bottle brush to
remove all flyash
from the exhaust
duct.
5/16" Nutdriver
Cover
Plate
Swing the side
panels open.
b
Remove the cover
plates over the exhaust
c
duct (both sides)
Travis Industries Newport 290902
Maintenance 29
Yearly Maintenance (or every two tons) - Continued
Clean the Exhaust Blower (make sure the stove is cool and unplugged)
a
Open the hopper
lid and remove the
screw hlding the
left door in place.
Swing the left side
panel open.
Phillips
Screwdriver
Remove the six screws holding the
b
exhaust blower motor in place.
11/32" Socket
Pull the motor out (be
careful not to
c
damage the wiring).
Blower
Blades
Exhaust
Motor
Clean the blower blades, blower
housing, and exhaust box.
d
Exhaust
Box
Blower
Housing
Clean the Vent (make sure the stove and vent is cool)
Make sure the cap is free of debris
(especially if it has a screen that could
become blocked).
Check the vent sections for creosote
accumulation (indicating a poorly burning
stove). Accumulation over 1/4” must be
removed.
Flyash will deposit along
sections that are horizontal.
Warning: Whenever any portion of the pellet vent is disconnected, the joints must be sealed with
RTV 500° F. silicone sealant.
On vertically vented systems, the dirtiest
portion is often the point where the vent turns
upwards (i.e. the "Tee"). Fortunately, the "Tee"
has a built-in clean out cover. Remove the
cover and vacuum out. While open, use a
flashlight to look up the pellet vent to check for
build-up.
Travis Industries Newport 290902
30 Maintenance
A
A
Yearly Maintenance (or every two tons) - Continued
Check for Air Leaks Around the Door, Glass, and Ashpan
! Air leaks into the firebox will decrease the stove's performance greatly, leading to excessive
sooting, inefficient burning, and perhaps a malfunction.
• Test the door seal by shutting the door on a dollar bill in various locations. If the bill can be easily
slid out, air may be leaking around the door seal – inspect the door gasket and door catch
carefully.
• Inspect the door gasket to make sure it is fully attached. Use stove gasket cement to re-attach if
necessary. If the door gasket is worn or flattened, replace.
• Check the door to make sure it latches correctly. Slight adjustments can be made to the door
catch if necessary (do not over-tighten this catch, an over-tightened catch will damage the door).
The latch should engage with a slight amount of resistance, yet not be difficult to engage.

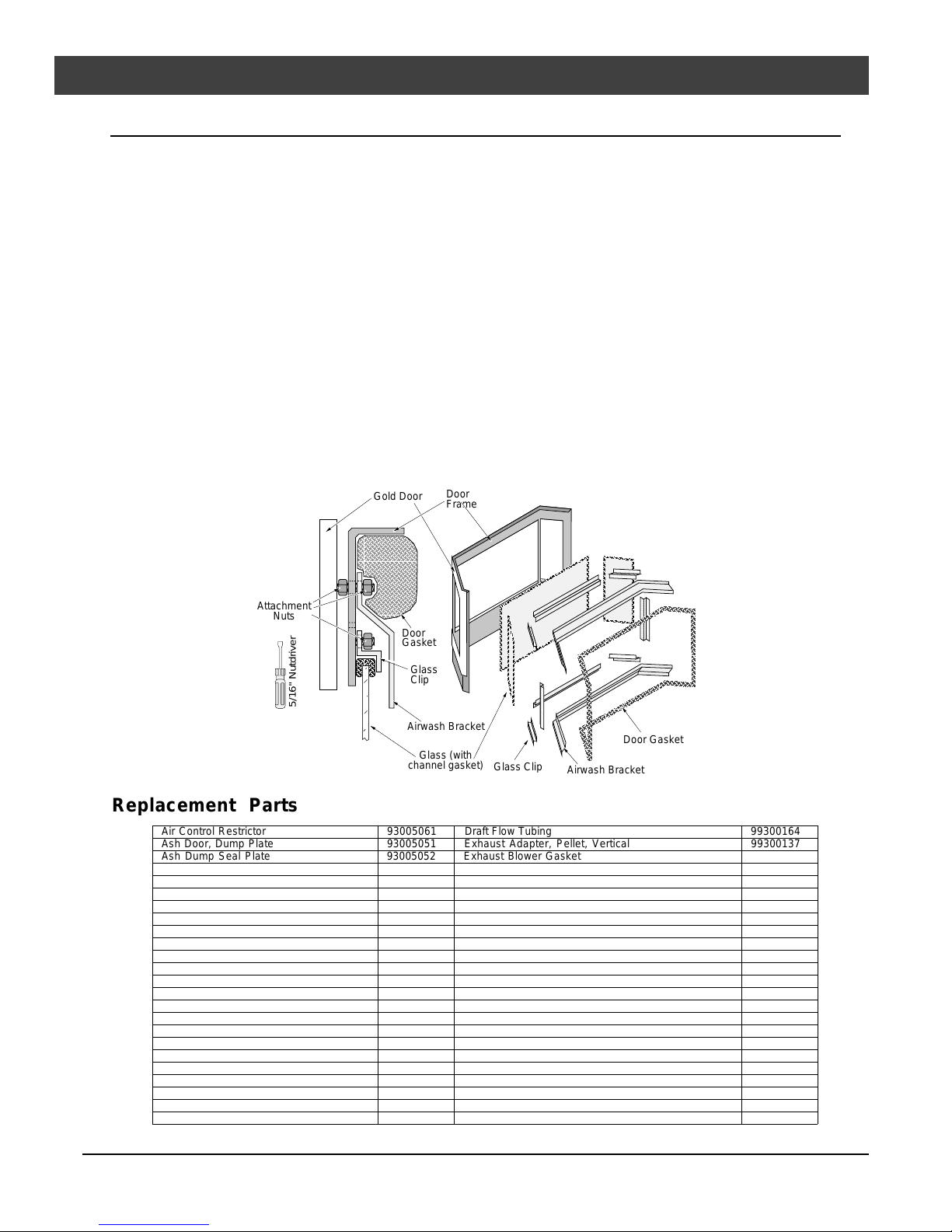

• If the glass is cracked, replace. The glass is held in place by glass clips that are underneath the
airwash brackets. See the illustration below for details.
• Remove the ashpan and inspect the gasket around the perimeter of the ashpan. Re-attach, or
replace the gasket if necessary.
Gold Door
Door
Frame
Attachment
Nuts
Replacement Parts
Air Control Restrictor 93005061 Draft Flow Tubing 99300164
Ash Door, Dump Plate 93005051 Exhaust Adapter, Pellet, Vertical 99300137
Ash Dump Seal Plate 93005052 Exhaust Blower Gasket (Between Blower & Stove) 90-0392
Ashpan, Pellet 93005050 Fuse Holder, Pellet 99300570
Ashtrap Clean Out Doors 93005054 Fuses, Pellet, 5-Amp, Pkg Of 5 93-0695
Auger Assembly, Complete 93005092 Gasket, Exhaust Blower (Between Motor & Housing) 99300135
Auger Bushing, Lower, With Plate 93005094 Glass, Pellet, Front 93005080
Auger Bushing, Upper, With Plate 93005093 Glass, Pellet, Side 93005081
Auger, Flight Only 93005091 Grill, Pellet, Black 93005035
Auger Motor 90-0191 Handle, Hopper Lid 93005040
Blower, Convection 98900755a Hinge Plate Assembly 93005082
Blower Convection, Mounting Grommets 93005017 Hopper Lid, Newport (Avanti) Pellet Stove 93005022
Blower, Convection, Mounting Plate 93005016 Ignitor 99300148
Blower, Exhaust 90-0391 Manual, Newport (Avanti PS) 1997 93508074
Brush, Pellet Stove, Bottle Brush Style 93005531 Motor Stop, 1997 Pellet Stove & Insert 93005095
Brush, Pellet Stove, Broom Style 93005530 Outside Air Kit 99200136
Burn Pot, Pellet, Removable 99300170 Pedestal Assembly 93005023
Control Board, Pellet, Electronic 93005000 Shell, Newport (Avanti) Pellet , Left Side 93005020
Door Gasket, Pellet 93005085 Shell, Newport (Avanti) Pellet, Right Side 93005021
Door, Newport (Avanti) Pellet, Complete 99300522 Snap Disk, 120 Degree - 2 Prong 98900720
Door Key 93005010 Snap Disk, 1997 Pellet, Ceramic, 120 Degree 100-00232
Door Latch Hook 93005011 Snap Disk, Pellet, Hopper, 200 Deg. 91-1791
Door Roller Plate Assembly 93005012 Wiring, Electric Power Cord 93005015
Draft Flow Switch 93005060 Wiring Harness 93005013
5/16" Nutdriver
Door
Gasket
Glass
Clip
Airwash Bracket
Glass (with
channel gasket)
Glass Clip
Door Gasket
Airwash Bracket
Travis Industries Newport 290902

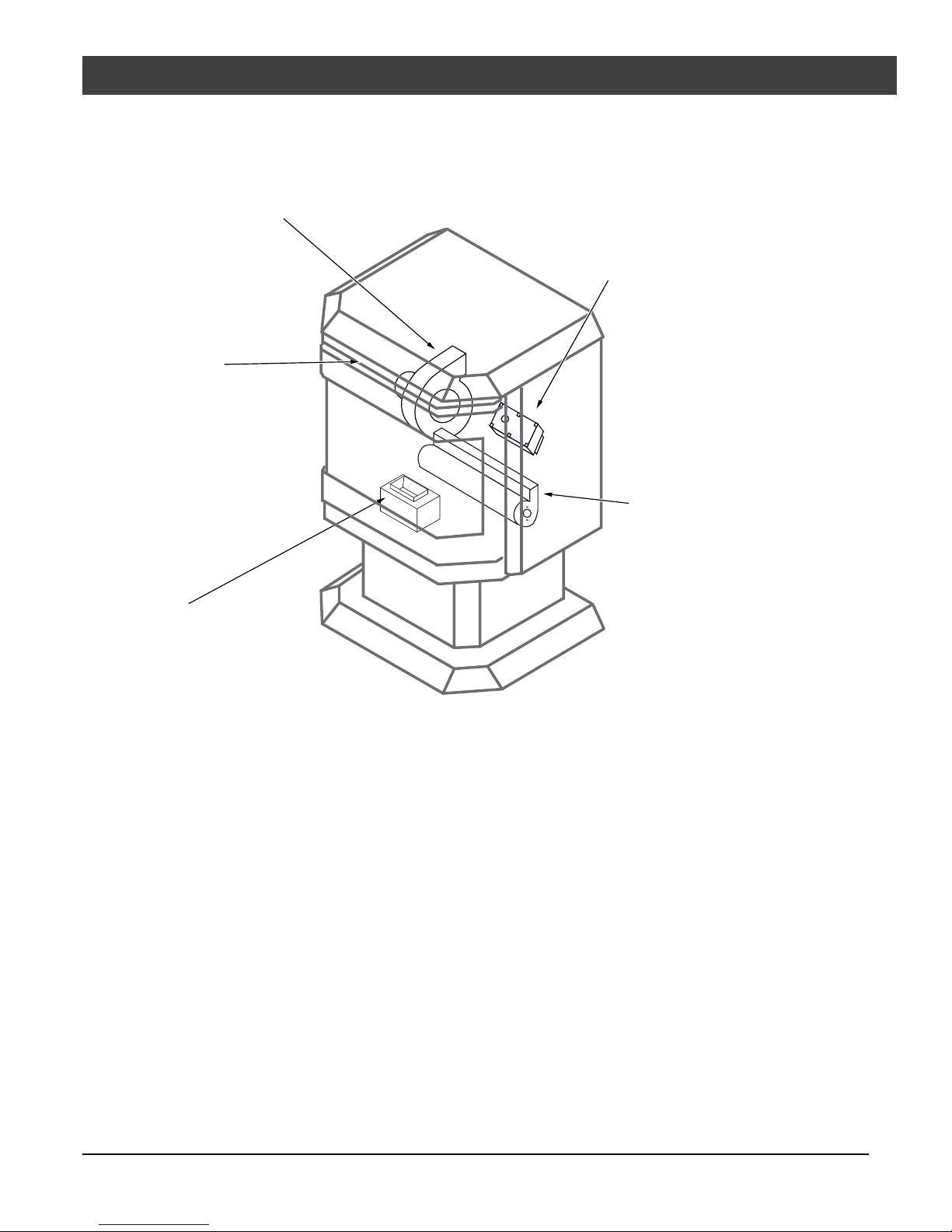

Normal Operating Sounds 31
Exhaust Blower
The flow of exhaust gases
may create a low-pitched
hum. This sound will
change as the FEED RATE
is altered.
Heat Exchanger Tubes
You may hear the heated
air being forced through
these tubes by the
convection fan.
Firepot
As pellets are fed into the
firepot, a light clicking
sound may be heard.
Auger Motor
When feeding pellets, you
may hear the intermittent
buzz of this motor running.
Convection Fan
The modern high efficiency
fan may produce a low
hum, particularly on
"HIGH". This sound will
change as the FAN dial is
turned.
Travis Industries Newport 290902
32 Safety Label
WARNING - DO NOT REMOVE OR COVER THIS LABEL
Listed Pelletized
Solid Fuel Burning Appliance
Also for Use in Mobile Homes
Model: Avanti-PS
Serial No:
Report No. 476-1407-00 (May, 1997) Tested to: UL 1482/ULC S627/CSA B366.2/ASTM E 1509-95
Maximum Input Rating: 3.5 lbs (1.60kg)/hr Electrical Rating: 115V, 60Hz, 3 Amp
This pellet fired appliance has been tested and listed for use in manufactured homes in accordance with
Oregon Administrative Rules 814-23-900 through 814-23-909.
Install and use only in accordance with the manufacturer’s installation and operating instructions. Contact
local building or fire officials about restrictions and installation inspection in your area. Use only listed
3 in./75 mm or 4 in./100 mm diameter listed type “L” Vent complete with components. See manufacturer’s
installation instructions for precautions required for passing a vent through a combustible wall or ceiling.
Do not connect this appliance to a vent serving another appliance.
Minimum Clearance to Combustible Materials (Measured to Stove Top)
BACKWALL
LEFT SIDEWALL
FLOOR PROTECTOR
A
C
HH
B
G
E
ADJACENT WALL
ADJACENT WALL
D
D
RIGHT SIDEWALL
Interior Vertical Horizontal Through
Flue Installation the Wall Installation
Left Sidewall A 9” 9”
Right Sidewall B 9” 9”
Backwall C ** 3”
Corner D 2” 2”
Flue Vent E 3” 3”
Maximum alcove depth 48 in/1220 mm, min ceiling height 60 in/1525 mm.
Combustible floor must be protected by a non-combustible material, extending to the front (G) 6 in/150 mm
and to the sides (H) 0 in/0 mm.
** This dimension will vary depending on brand of listed type “L” vent. See manual for details.
For use with 1/4 in/6 mm to 5/16 in/7 mm diameter pelletized wood fuels only.
Replace glass only with 5 mm ceramic glass.
Do not route power cord beneath heater. The space beneath the heater must not be obstructed. Outside
combustion air is mandatory for mobile home installation. Do not obstruct combustion air openings. Operate
only with viewing door and ash removal tray tightly closed. Keep all furnishings well away from heater.
Mfg. by TRAVIS INDUSTRIES, INC.
10850 117th Pl N.E.
Kirkland, WA98033
TM
HOT WHILE IN OPERATION. DO NOT TOUCH. CONTACT MAY CAUSE
CAUTION:SKIN BURNS. KEEP FURNISHINGS AND COMBUSTIBLE MATERIAL
A CONSIDERABLE DISTANCE AWAY. SEE NAMEPLATE AND INSTRUCTIONS. DO NOT
OVERFIRE. IF HEATER OR CHIMNEY CONNECTOR GLOWS, YOU ARE OVERFIRING. INSPECT
AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF
USE, CREOSOTE BUILDUP MAY OCCUR RAPIDLY. DO NOT OVERFIRE. IF UNIT SHUTS DOWN
OFTEN YOU ARE OVERFIRING. TYPE OF FUEL:PELLETIZED WOOD FUEL ONLY.
R
Travis Industries Newport 290902
Limited 7 Year Warranty 33
To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance
purchase date to: TRAVIS INDUSTRIES, INC., 10850 117th Place N.E., Kirkland, Washington 98033. TRAVIS INDUSTRIES, INC. warrants this
appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original
purchaser from the date of purchase as follows:
Years 1 & 2 - COVERAGE: PARTS & LABOR
Firebox Assembly:
Firepot, Firepot Holder, Ash Cleanout Doors, Ashbox or Ash
Dump, Cast Fireback, Heat Exchanger Tubes, Exhaust
Manifold, Exhaust Box
Door Assembly:
Door Frame, Latch Assembly, Glass Retainers
Auger Assembly
Auger Flight, Auger Tube, Auger Bushings
Exclusions: Paint, Gasketing
Years 3 Through 5 - COVERAGE: PARTS & LABOR
Firebox Assembly:
Firepot, Firepot Holder, Ash Cleanout Doors, Ashbox or Ash
Dump, Cast Fireback, Heat Exchanger Tubes, Exhaust
Manifold, Exhaust Box
Exclusions: Paint, Gasketing, Ceramic Glass, Igniter System, Electrical System, Accessories (panels, legs, pedestal, gold trim, ceramic log, gold
door), Re-Installation Allowance
Years 6 & 7 - COVERAGE: PARTS ONLY
Firebox Assembly:
Firepot, Firepot Holder, Ash Cleanout Doors, Ashbox or Ash Dump, Cast
Fireback, Heat Exchanger Tubes, Exhaust Manifold, Exhaust Box
Exclusions: Paint, Gasketing, Ceramic Glass, Igniter System, Electrical System, Accessories (panels, legs, pedestal, gold trim, ceramic log, gold
door), Auger Assembly, Re-Installation Allowance, One-Way Freight Allowance, Labor
CONDITIONS & EXCLUSIONS
1. This new appliance must be installed by a qualified installer. It must be installed, operated, and maintained at all times in accordance with the instructions in
the Owner’s Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.
2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized Travis dealer.
3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered
under warranty.
4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the
installation of this product. If in doubt as to the extent of this warranty, contact your authorized Travis retailer before installation.
5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills
or mountains or negative pressure or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.
6. This Warranty is void if:
a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals.
b. The unit is subject to submersion in water or prolonged periods of dampness or condensation.
c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not limited
7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation,
3 This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, chipped
4 Damage to gold or nickel surfaces caused by fingerprints, scratches, melted items, or other external sources left on the gold or nickel from the
10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or
11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the Travis appliance without the
12. Any statement or representation of Travis products and their performance contained in Travis advertising, packaging literature, or printed material is not part of
13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way. If the appliance is used for commercial
14. No dealer, distributor, or similar person has the authority to represent or warrant Travis products beyond the terms contained within this warranty. TRAVIS
15. Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.
17. This 7 year warranty is the only warranty supplied by Travis Industries, Inc., the manufacturer of the appliance. All other warranties, whether express or
to, improper chimney/venting installation.
alteration or adjustment of the manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in
transit, alteration, or act of God.
or cracked firebrick, etc. Also excluded is damage to the unit caused by abuse, improper installation, modification of the unit, or the use of fuel other than that
for which the unit is configured.
use of cleaners other than denatured alcohol is not covered in this warranty.
consequential damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.
express written permission of TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.
this 7 year warranty.
purposes, it is excluded from this warranty.
INDUSTRIES, INC. assumes no liability for such warranties or representations.
1 If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain
in effect.
implied, are hereby expressly disclaimed and purchaser’s recourse is expressly limited to the warranties set forth herein.
IF WARRANTY SERVICE IS NEEDED:
1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your Travis dealer WITHIN 30 DAYS, giving them proof of
purchase, the purchase date, and the model name and serial number.
2. Travis Industries has the option of either repairing or replacing the defective component.
3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the
dealership where you purchased the appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance.
At that time, you may be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will
repair or replace, free of charge, your appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty.
TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or
dealership.
4. Check with your dealer in advance for any costs to you when arranging a warranty call. Dealers may require you to pay a service or trip charges for any
warranty work. This charge can vary from store to store.
Ceramic Glass
Glass (breakage from thermal shock)
Igniter System
Igniter, Igniter Leads
Electrical System
Auger Motor, Convection Blower, Exhaust Blower, Circuit
Board, Snap Disks, Wiring Harness, Vacuum Switch
Door Assembly:
Door Frame, Latch Assembly, Glass Retainers
Auger Assembly
Auger Flight, Auger Tube, Auger Bushings
Door Assembly:
Door Frame, Latch Assembly, Glass Retainers
Accessories
Panels, Legs, Pedestal, Gold Trim, Ceramic Log with Log Shelf,
Gold Door (See # 9 below)
Re-Installation Allowance
In cases where heater must be removed from home for repairs, a
partial cost of re-installation is covered (pre-authorization required)
One-Way Freight Allowance
One-way freight allowance on pre-authorized repair done at factory
is covered.
One-Way Freight Allowance
One-way freight allowance on pre-authorized repair done at
factory is covered.
Travis Industries Newport 290902
34 Optional Equipment

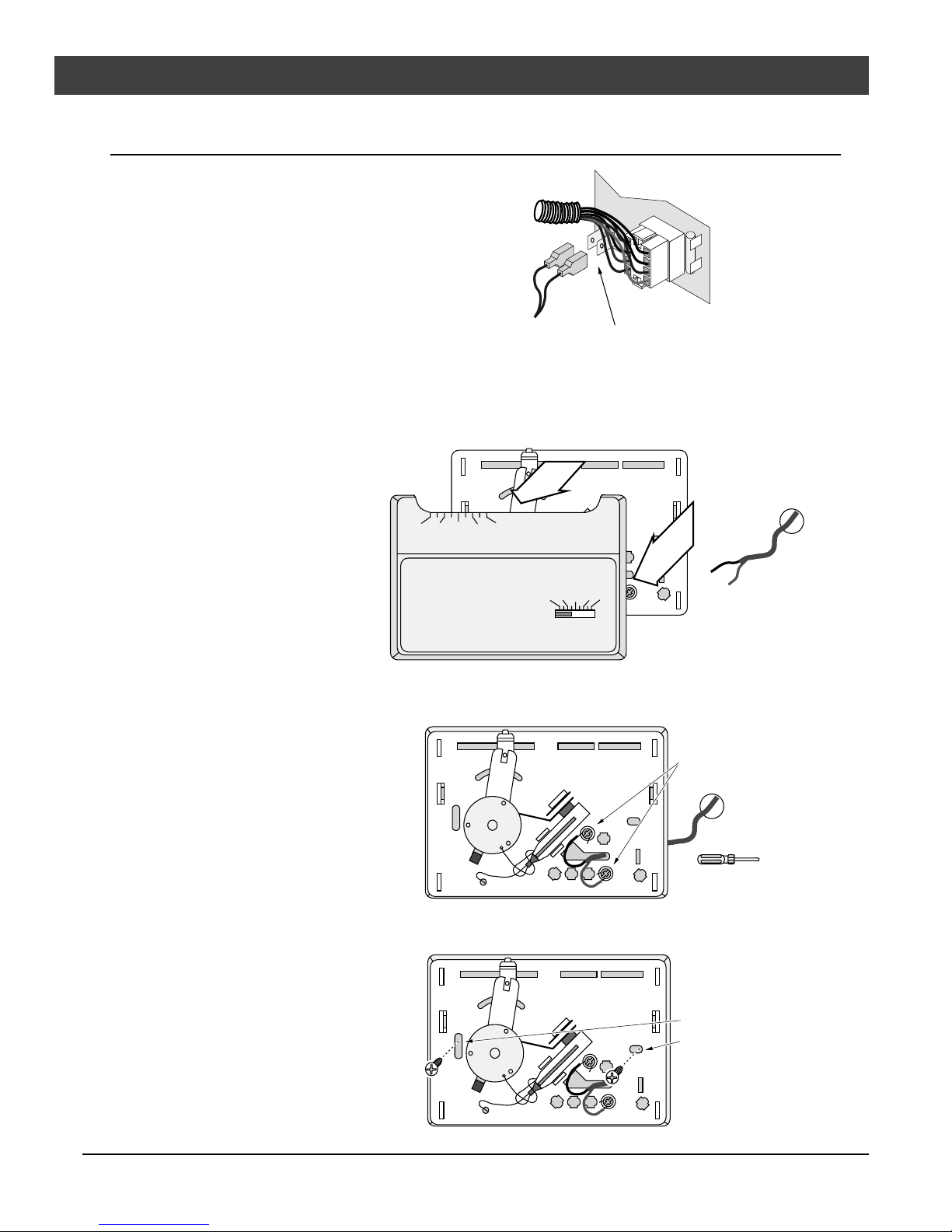

Thermostat (Part # 99300650)
! Do not connect 120 VAC
to the thermostat circuit of
this heater (do not use a
household thermostat
used for a wall-board or
other electical heater).
1 Attach the thermostat wire to
the circuit board (see the
illustration to the right). Route
the wire through the back of the
heater (away from any hot or
moving components).
2 Determine a location for the
thermostat that is within range of
the 20' length of thermostat
wire. It should be centralized in
the room and away from the
heater. The wire may be routed
externally on the wall or behind
the wall (preferred).
3 Follow the directions to the right
to attach the thermostat and
thermostat wires.
50 60 70 80 90
Robertshaw
Attach the quick-connects
to the two posts near the
molex connector on the
circuit board (orientation
does not mater).
50 60 70 80 90
Pull the cover off the thermostat
Run the thermostat wires
through the wall (cut off excess
wire, leaving 6” of slack).
Expose 1/2” of wire and
attach to these two posts.
Standard
Screwdriver
Attach the thermostat to
the wall through these
two holes.
Travis Industries Newport 290902
Optional Equipment 35
Remote Thermostat
• Follow the instructions included with the remote thermostat for installation.
Using the Remote Thermostat
The remote thermostat has a 1 to 2 minute lag time between the time the thermostat is turned up and
the heater turns on. Included with the remote thermostat is a set of instructions that details the
operating characteristics of this optional component.
Travis Industries Newport 290902
36 Optional Equipment
Optional Log (Part # 98900126)
! Make sure the heater has
fully cooled before
Left Log Shelf Leg
installation.
1 Open the door (see the
instructions included with
the owner’s manual.
2 Attach the two log shelf
Nuts
legs to the cross brace with
the four included nuts.
Make sure to use the
correct leg for each side.
Log Shelf Cross Brace
3 Install the log shelf assembly and log following the directions below.
Center the log on the log shelf and
b
push it back so it rests against
these two tabs.
Right Log Shelf Leg
3/8" Nutdriver
Place the log shelf assembly so the
a
back edge contacts the cast firebrick
in the rear of the firebox. Note how
the taper on the assembly matches
the taper on the cast firebrick.
NOTE:
On inserts, the ash box must be
installed before placing the log shelf
assembly.
When in place, the log should appear as
shown in the photograph to the right.
Travis Industries Newport 290902
Optional Equipment 37

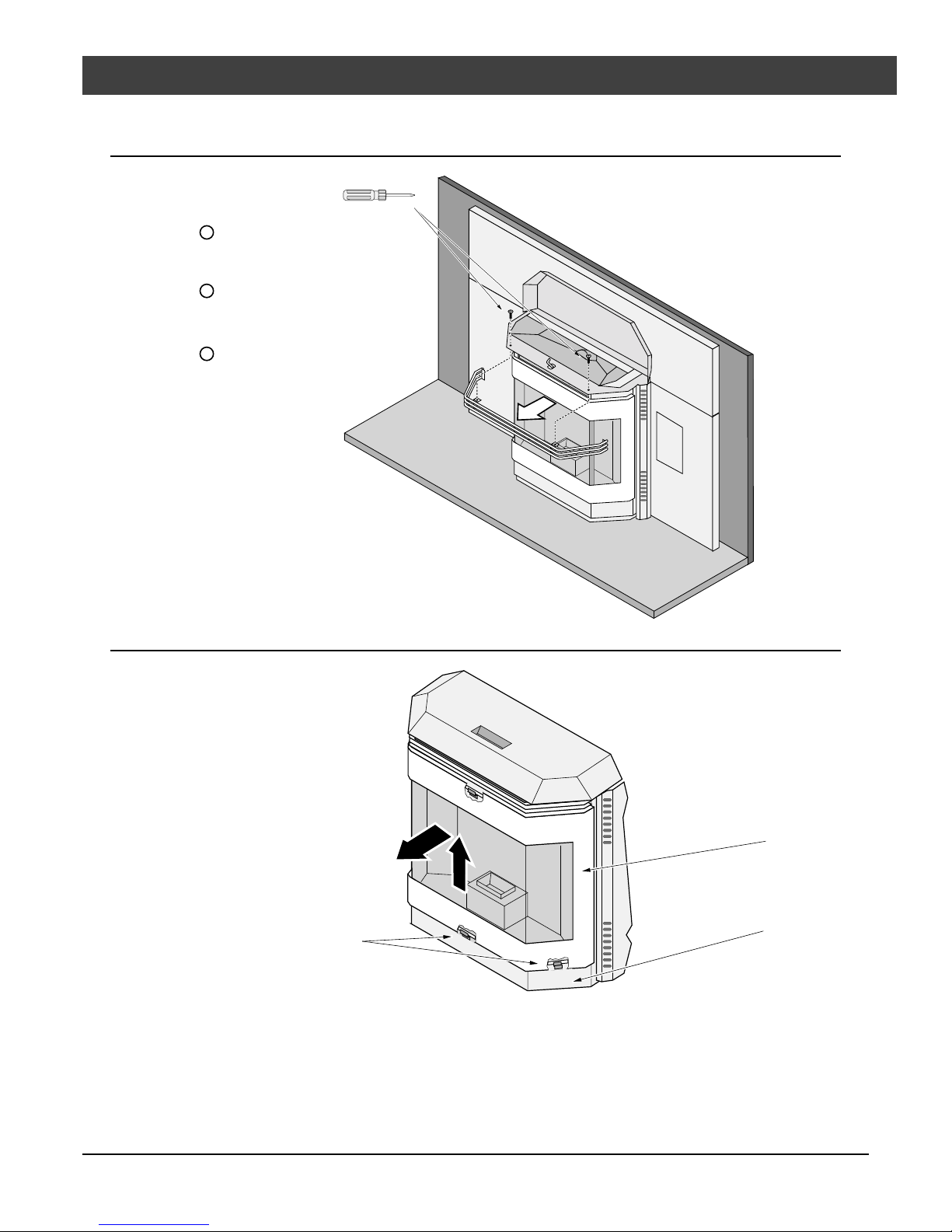

Optional Gold Grill (part # 93005034)
Phillips
a
Open the hopper lid.
Use a phillips screwdriver to
remove the two screws holding
b
the black trim in place.
Use the same screws to
c
attach the gold trim.
Screwdriver
Optional Gold Door (part # 99300531)
Remove the door by sliding it up
and off the door frame.
Slide the new door onto the door
frame.
HINT: align the bottom joggle
clips over the brackets on the
door and slide into place. Then
lift up slightly on the door to
attach the upper clip.
The door is held in place with 4
joggle clips.
Door
Door
Frame
Travis Industries Newport 290902
38 Index
Adjusting the Fan Speed......................................20
Air Leaks..........................................................30
Alcove Installation Requirements..........................11
Ashpan (Opening and Disposing Ashes).................27
AUGER ON Light................................................20
Auto Mode........................................................19
Bi-Weekly Maintenance (or every 10 bags pellets)....24
Blower (Exhaust Blower Cleaning).........................29
Blower Speed Adjustment....................................20
Cap (Pellet Vent Termination)...............................9
Check for Air Leaks - Door, Glass and Ashpan.........30
Chimney Retrofit (wood stove)..............................14
Clean the Exhaust Blower....................................29
Clean the Exhaust Duct.......................................28
Clean the Glass.................................................27
Clean the Heat Exchange Tubes...........................24
Clean the Vent...................................................29
Cleaning Ashpan (Opening and Disposing Ashes).....27
Cleaning the Firebox (Sweep Ash Into Ashpan)........26
Cleaning the Firepot...........................................23
Cleaning the Hopper (Vacuum Hopper)...................24
Clearances - Corner Installation............................7
Clearances - Straight Installation..........................7
Clinkers (Check Firepot for Clinkers)......................23
Controls...........................................................16
Curing the Paint.................................................16
Daily Maintenance (whenever using the stove).........22
Dimensions.......................................................5
Direct "Through the Wall" Installation......................12
Door (cleaning the gold).......................................24
Door (Opening)..................................................25
Door Gasket (inspection, removal)........................30
Electrical Specifications......................................5
Emissions (EPA Compliance)...............................5
EPA Compliance................................................5
Exhaust Blower (Cleaning)...................................29
Exhaust Duct (Cleaning)......................................28
Fan (Adjusting the Fan Speed)..............................20
FAULT Light......................................................21
Firebox (Cleaning)..............................................26
Fireplace Installation..........................................15
Firepot Cleaning.................................................23
Firepot Inspection (Inspect the Burn).....................22
Flames (Inspect the Burn)....................................22
Floor Protection Requirements..............................6
Fuel.................................................................5
Gasket (door, glass - inspection & removal)............30
Glass (Cleaning)................................................27
Glass Removal..................................................30
Gold (cleaning)..................................................24
Hearth (Floor Protection Requirements)..................6
Hearth Fireplace................................................15
Heat Exchange Tubes (cleaning)..........................24
Heating Specifications........................................5
Hopper Cleaning (Vacuum Hopper)........................24
Important Information.........................................1
Installation Options............................................6
Installation Warnings (Before you Begin)................6
Interior Vertical Vent Installation...........................13
Introduction......................................................1
Listing Label.....................................................32
Loading Pellets.................................................17
Manual Mode....................................................18
Masonry Fireplace.............................................15
Mobile Home Requirements..................................10
Modes of Operation............................................17
Noise (Normal Operating Sounds).........................31
Normal Operating Sounds....................................31
Opening the Door...............................................25
Outside Air.......................................................10
Parts List.........................................................30
Pellet Vent Termination.......................................9
Pellets (Fuel)....................................................5
Pellets (loading)................................................17
Pellets Piling Up................................................22
Placing the Stove..............................................6
Planning the Installation......................................6
Power Outages.................................................21
Priming the Auger..............................................16
Restrictor.........................................................11
Safety Label.....................................................32
Safety Precautions............................................2, 3
Serial Number Label...........................................32
Smell in Home (Starting Heater for the First Time).....16
Start-Up Sequence............................................20
Stove Placement...............................................6
Thermostat Operation (Auto Mode)........................19
Type A Chimney Retrofit......................................14
Vent (Cleaning).................................................29
Vent Type........................................................9
Venting Distance...............................................8
Venting the Pellet Stove......................................8
Warnings.........................................................2, 3
Warranty..........................................................33
Yearly Maintenance (or every two tons)..................28
Zero-Clearance (metal) Fireplace..........................15
Travis Industries Newport 290902
Loading...
