Contents
About Your Water Cooler
Meet Your Avalon Product
Part Names
Indicator Lights
Tech Specs
Getting Started
Unpacking
Operation instructions
Cleaning
Rinsing, Cleaning and Draining
Cleaning
Troubleshooting
Safety
1
2
3
4
6
7-9
11-13
14-15
17-18
20-21
Meet Your Avalon Product
About Your Water Cooler
Attractive Design
Attractive design with
press-paddle spouts
UL Listed
We design & manufacture
with your safety in mind
Custom Temperature
Piping hot,
or crisp cold water
Energy Star Approved
Saves the environment
and your wallet
Top Loading
Suitable for 3 or
5 gallon bottles
Child Safety Feature
Ensures safe hot water
flows for the entire family
1
About Your Water Cooler
Part Names
2. Heating Indicator Light
4. Power Indicator Light
7. Child Safety Lock
8. Hot Water Spout
9. Hot Water Press Paddle
1. Bottle Supporter
3. Cooling Indicator Light
5. Cold Water Spout
6. Cold Water Press Paddle
10. Drip Tray
11. Cooling Switch
12. Heating Switch
13. Power Cord
14. Drain Outlet
15. Condenser
2
Indicator Lights
Power Indicator Light
This light will remain on as long as the water cooler is plugged in to indicate that
the cooler is on.
Heating Indicator Light
This light will indicate when the water is heating. The light will remain on while the
water is heating and will turn o when it has reached the correct temperature of
185°F. As the water is dispensed the hot tank will refill and the water will heat. As
the water reheats this indicator light will turn on.
Cooling Indicator Light
This light will indicate when the water is cooling. The light will remain on while the
water is cooling and will turn o when it has reach the correct temperature of 47°F.
As the water is dispensed the cold tank will refill and the water will cool. As the
water cools this indicator light will turn on.
About Your Water Cooler
3
About Your Water Cooler
Tech Specs
Model
Hot/Cold Temp Output
Hot Water Capacity
Hot Tank Volume
Cold Water Capacity
Cold Tank Volume
Product Size
Packing Size
Net Weight/Gross Weight
Voltage/Frequency
Cooling Method
Heating Method
Heating Watts / Cooling Watts
Power Consumption
A1TL • A2TL
1.2L/min / 1.2L/min
4 L/H ( ≥ 185°F)
1.02 Liters
2 L/H ( ≤ 47°F)
3 Liters
11.25”(L)x10.75”(W)x42”(H)
15.5”(L)x14.3”(W)x46.5”(H)
30.65 lb /34.8 lb
115 V 60Hz
Compressor
Internal Element
420W / 100 W
520 W
4
Getting Started
5
Getting Started
Unpacking Your Avalon Water Cooler
The unit has been cleaned prior to departing from the factory. To remove any
dust and debris that may collect during shipping we recommend cleaning the
unit prior to installation. For cleaning instructions, see pages 11-15.
Locating Dispenser
Do NOT plug in the power cord yet.
Place dispenser upright on a hard and level surface in a cool and shaded
location near a grounded wall outlet. Position the dispenser so there is about
four inches of clearance from the wall on the back and both sides.
6
Getting Started
Operation Instructions
Do not plug in the machine or turn on the heating (#12) and cooling (#11) switches until
water has begun to dispense from the cold (#5) and hot (#8) water spout.

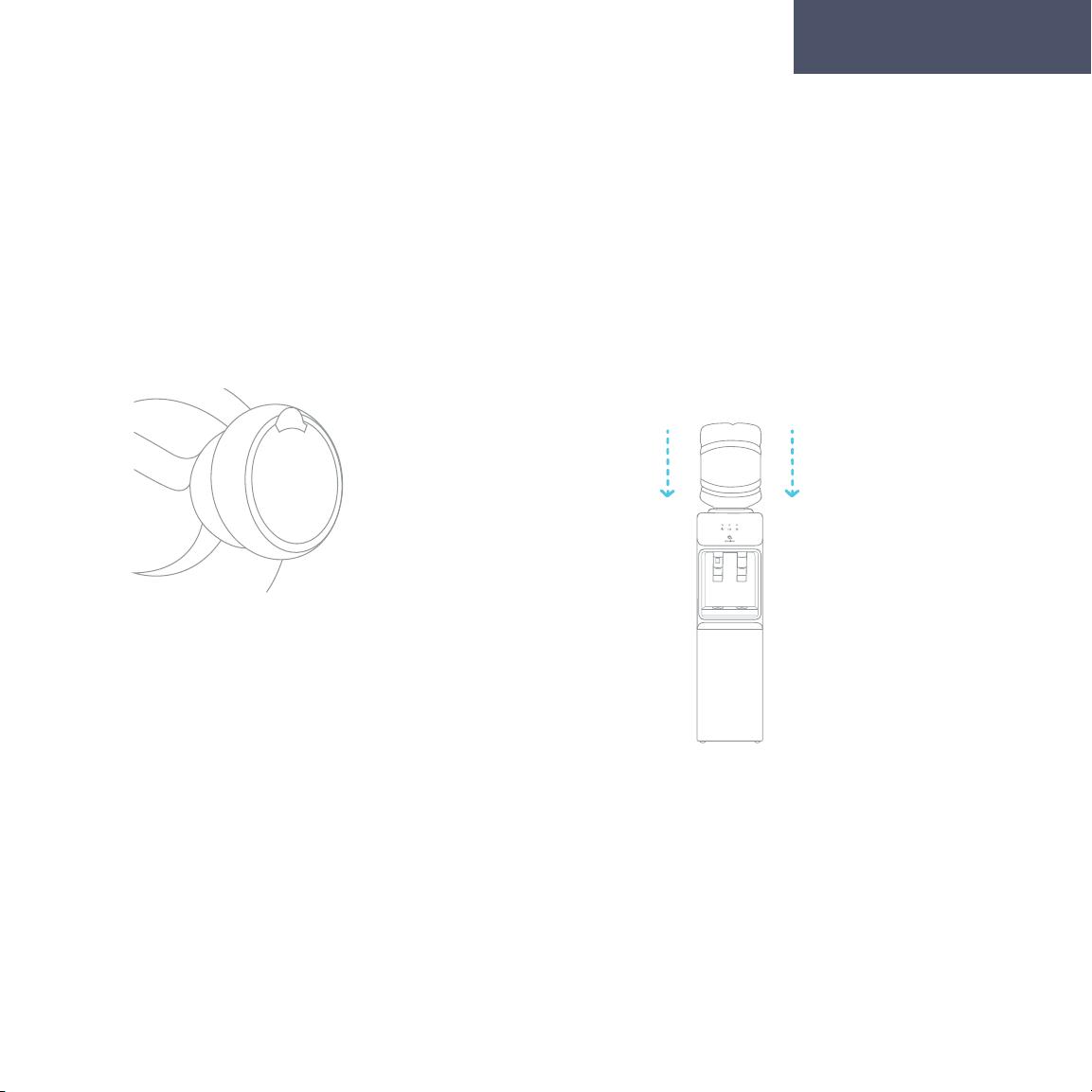

1. Remove any label or sticker from
the mouth of the bottle.
2. Vertically insert the bottle into the
bottle supporter (#1) on the top of
the machine. The bottle supporter
has a built-in puncturing rod to allow
you to use spill proof caps without
opening the plastic bottle seals.
7
Getting Started
Operation Instructions
3. Press the hot (#9) and cold (#6)
water press paddles for the hot
(#8) and the cold (#5) water spout
to dispense a drop of water. To
dispense water from the hot water
spout (#8), please press and hold
the red child safety lock button
(#7) and press the hot water press
paddle (#9) simultaneously.
For hot waterFor cold water
4. Once water is dispensing from both
spouts insert the power plug into a
power socket. Turn on (I) the heating
switch (#12) and the cooling switch (#11).
(If you do not wish to have hot water,
please leave the heating switch (#12) in
the o (O) position. If you do not wish to
have cold water, please leave the cooling
switch (#11) in the o (O) position.)
8
Operation Instructions
Getting Started
5. Once the switches are in the on position
the heating indicator light (#2) and the
cooling indicator light (#3) will turn on (I). It
will take about 15 – 20 minutes for the hot
water to heat to the appropriate temperature.
It will take about 1 hour for the cold water to
cool to the appropriate temperature.
1 hr
Cold
15-20
min
Hot
7. To replace the bottle, vertically pull
out the empty bottle with two hands.
Using two hands place the new bottle
of water vertically into the bottle
supporter (#1).
6. When the water has reached the
appropriate temperatures for hot and
cold the indicator lights will turn o
and the water is ready for use. The
indicator lights will turn back on
automatically when the machine
needs to reheat or cool again.
9
Cleaning
10
Rinsing, Cleaning, and Draining
To prolong the lifetime of the machine, it is recommended that the unit be cleaned
and sanitized manually about every six months.
To clean the outside of the unit
Use a disinfectant of your choice to wipe down the outside of the machine.
Disinfectant does not come with this unit. It can be purchased separately from
a local store.
To rinse the inside of the unit
The machine has been disinfected prior to departing from the factory. However, it
is recommended to rinse and drain the unit prior to installation.
Cleaning
1. Before cleaning, make sure that the
cooling switch (#11) and heating switch
(#12) are in the o (O) position and
unplug the machine.
2. Once the machine is o, pour
water into the top of the unit
where the bottle would be placed.
11
Cleaning
Rinsing, Cleaning, and Draining
3. Dispense about 2 liters of
water from the unit into a bucket
by pressing the hot water press
paddle (#9) and the cold water
press paddle (#6) into a bucket.
4. Place a large bucket beneath the drain
outlet (#14) located on the back of the unit.
Remove the drain cover and allow the water
to drain from the unit. Water will start flowing
as soon as the drain cover is removed.
Caution: The dispenser will heat water to a temperature of approximately 185°F.
It can cause severe burns if not handled carefully. Please use caution while operating
and cleaning. Please allow ample time for any hot water inside the machine to cool
down before draining it.
12
Rinsing, Cleaning, and Draining
Cleaning
5. Remove any remaining water in
the tanks by dispensing water from
the hot water spout (#8) and the cold
water spout (#5) into a bucket.
6. After draining is complete,
replace the drain cover and
use the machine as normal.
13
Cleaning
Cleaning
To remove mineral deposits that may have built up inside the the cold tank, mix 4 L of water
with 200 g of citric acid crystals (not included) or cleaning solution of your choice.
1. Twist o the bottle supporter.2. Put the mixture into the machine's cold
tank and make sure the water can flow
out of the hot water spout (#8).
14
Cleaning
Cleaning
3. Plug in the power cord and turn on
(I) the heating switch (#12). Allow the
water to heat for 15 minutes.
15 min20 min
5. Drain the liquid from the drain outlet (#14),
then flush with water two or three times
by following the rinsing instructions above.
Only disassemble parts mentioned to avoid
damaging the machine.
4. Turn o (O) the heating switch
(#12) and allow the liquid mixture to
cool down for 20 minutes.
15
Troubleshooting
16
Troubleshooting
If you are having trouble with your water cooler please see the following
solutions. You can also view our trouble shooting videos at the website below.
Please feel free to contact us with any questions.
1-800-256-0695
support@avalonh2o.com
www.avalonh2o.com
Troubleshooting
17
Troubleshooting
Troubleshooting
No water dispensing from spouts
This could be caused by the water bottle being empty. Please replace the bottle and
allow 5-10 minutes for the water cooler tanks to fill up. Allow the proper time for the
water to heat and cool.
This could be the result of the bottle supporter (#1) being blocked. Please lift the
bottle from the bottle supporter with two hands. Check to ensure that the seal or
possible paper from the bottle is not causing a blockage. Install the bottle again.
Water is leaking from the bottle supporter (#1)
This could be the cause of a broken bottle. Please check to make sure that the bottle
is not broken and if so please replace it.
This could also be caused by a misaligned seal. Using two hands please remove the
bottle. Please remove the bottle supporter (#1) and ensure that the seal is aligned
correctly around the edge.
Noisy operation
This could be caused by the machine not sitting flat. Please make sure
that the machine is placed on a placid and solid surface.
Water not dispensing at a hot or cold temperature
This could be caused by an over consumption of water in a short period of time causing
the tanks to empty. Please allow 5 to 10 minutes for the water cooler tanks to refill. Allow
the proper time for the water to heat and cool.
This could be caused by an interruption in the power supply. Please ensure that the
power cord is connected to an outlet. Please make sure that the heating (#12) and
cooling (#11) switches are in the on (I) position.
18
Safety
19
Safety
Safety
To reduce risk of injury and property damage, user must read this entire guide
before assembling, installing and operating the dispenser.
Failure to execute the instructions in this manual can cause personal injury or
property damage.
This product dispenses water at very high temperatures. Failure to use this properly can
cause personal injury.
When operating this dispenser, always exercise basic safety precautions, including the
following:
• Prior to use, this dispenser much be properly assembles and installed in
• accordance with this manual.
• This dispenser is intended for water dispensing only. Do NOT use other liquids. Do NOT
use for other purposes. Never use any other liquid in the dispenser other than known
microbiologically safe tap water.
• For indoor use only. Keep water dispenser in a dry place away from direct sunlight. Do
NOT use outdoors.
• Install and use only on a hard, flat and level surface.
• Do NOT place dispenser in an enclosed space or cabinet.
• Do NOT operate the dispenser in the presence of explosive fumes.
• Position back of dispenser no closer than 20 cm from wall and permit free airflow
between wall and dispenser. There must be at least 20 cm clearance on the sides of the
dispenser to permit airflow.
• Use only properly grounded outlets.
• Do not use and extension cord with your water dispenser.
• Always grasp plug and pull straight out from outlet. Never unplug by pulling on power
cord.
• To protect against electric shock, do NOT immerse cord, plug or any other part of the
dispenser in water or other liquid.
20
Safety
Safety
• Ensure dispenser is unplugged prior to cleaning.
• Never allow children to dispense hot water without proper and direct supervision.
Unplug unit to prevent unsupervised use by children.
• Service should be performed only by a certified technician.
• Warning: Do not damage the refrigerant circuit.
• This appliance can be used my children aged from 8 years and above if they have
been given supervision or instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and user maintenance shall not
be made by children unless they are older than 8 and supervised. Keep the appliance
and its cord out of reach of children less than 8 years.
• Appliances can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
• This appliance is intended to be used in a household and similar applications such as:
kitchen area in shops, oces and other working environments, bed and breakfast type
environments, catering and similar non-retail applications.
• Do not store explosive substances such as aerosol cans with flammable propellant in
this appliance.
• If the supply cord is damaged, it must be replaced by a special cord assembly
available from the manufacturer or its service agent.
• Never turn the machine upside down or lean it more than 45°.
• Thermostat has been adjusted. There is no need to adjust it by yourself. When the
matching is below the freezing point and blocked by ice, the cooling switch should be
turned o for 4 hours before turning it on again to continue its operation.
• This machine should not be plugged back in until 3 minutes after it has been
unplugged.
21
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
