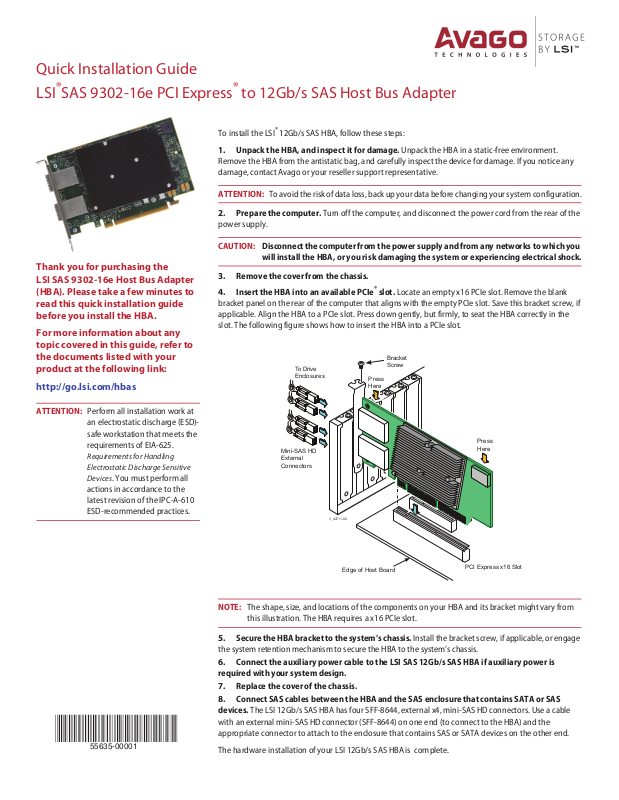

Avago SAS 9302-16e quick start Guide

Quick Installation Guide

55635-00001

?

%DGEOF(OST"OARD

0#)%XPRESSX3LOT

"RACKET 3CREW

0RESS (ERE

4O$RIVE %NCLOSURES

-INI3!3($ %XTERNAL #ONNECTORS

SAS 9302-16e PCI Express® to 12Gb/s SAS Host Bus Adapter

LSI

To install the LSI® 12Gb/s SAS HBA, follow these steps:

1. Unpack the HBA, and inspect it for damage. Unpack the HBA in a static-free environment. Remove the HBA from the antistatic bag, and carefully inspect the device for damage. If you notice any damage, contact Avago or your reseller support representative.

ATTENTION: To a void the ri sk of d ata loss , bac k up yo ur dat a before changing your sy stem con figu ratio n.

2. Prepare the computer. Turn off the computer, and disconnect the power cord from the rear of the power supply.

CAUTION: Disconnect the computer from the power supply and from any networks to which you

will install the HBA, or you risk damaging the system or experiencing electrical shock.

Thank you for purchasing the LSI SAS 9302-16e Host Bus Adapter (HBA). Please take a few minutes to read this quick installation guide before you install the HBA.

For more information about any topic covered in this guide, refer to the documents listed with your product at the following link:

3. Remove the cover from the chassis.

4. Insert the HBA into an available PCIe

slot. Locate an empty x16 PCIe slot. Remove the blank

bracket panel on the rear of the computer that aligns with the empty PCIe slot. Save this bracket screw, if applicable. Align the HBA to a PCIe slot. Press down gently, but firmly, to seat the HBA correctly in the slot. The following figure shows how to insert the HBA into a PCIe slot.

http://go.lsi.com/hbas

ATTENTION: Perform all installation work at

an electrostatic discharge (ESD)safe workstation that meets the requirements of EIA-625.

Requirements for Handling Electrostatic Discharge Sensitive

. You must perform all

Devices

actions in accordance to the latest revision of the IPC-A-610 ESD-recommended practices.

NOTE: The shape, size, and locations of the components on your HBA and its bracket might vary from

this illustration. The HBA requires a x16 PCIe slot.

5. Secure the HBA bracket to the system’s chassis. Install the bracket screw, if applicable, or engage the system retention mechanism to secure the HBA to the system’s chassis.

6. Connect the auxiliary power cable to the LSI SAS 12Gb/s SAS HBA if auxiliary power is required with your system design.

7. Replace the cover of the chassis.

8. Connect SAS cables between the HBA and the SAS enclosure that contains SATA or SAS

devices. The LSI 12Gb/s SAS HBA has four SFF-8644, external x4, mini-SAS HD connectors. Use a cable with an external mini-SAS HD connector (SFF-8644) on one end (to connect to the HBA) and the appropriate connector to attach to the enclosure that contains SAS or SATA devices on the other end.

The hardware installation of your LSI 12Gb/s SAS HBA is complete.

Driver Installation

All driver installation instructions are available at http://go.lsi.com/hbas. Select 12Gb/s SAS HBAs > Product Name > Software Downloads.

TECHNICAL SUPPORT

For assistance installing, configuring, or running the LSI SAS 9302-16e HBA, contact Technical Support:

E-mail: globalsupport.pld@avagotech.com

Web Site: http://www.lsi.com/support/email/

pages/sashba.aspx

WARRANTY NOTICE

1. Warranty does not cover the return of parts

damaged by changing the bracket.

2. Warranty does not cover ESD damage to the HBA. HBAs returned without a bracket mounted on the board will be returned without return merchandise authorization (RMA) processing.
