AuviTran StageBox Kit Instruction Manual

Installation Manual SatgeBox Kit V1.0

1

Installation Manual SatgeBox Kit V1.0

2

PRECAUTIONS

Do not apply excessive pressure on connectors or

any other part of the board. Do not touch the metallic
sharp parts (pins) of the product.

This product is electrostatic sensitive; make sure you

check this before touching or using it.

The disconnect devices of the unit are the appliance

inlet of the auxiliary power supply and the appliance
inlet on the rear side of the unit. These must be easily
reachable.

To prevent electric shock, unplug the unit before

handling. The achievement of other operations not
mentioned in this document is prohibited. Repairs
can be performed only by a technician trained and
qualified.

Each connection must be Safety Extra Low Voltage

kind (SELV), and must stay inside buildings.

This product is designed to be rack-mounted. Be sure
to observe following installation rules of this kind of
equipment.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from
electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited
to, the following:

Installation Manual SatgeBox Kit V1.0

3

LIMITATION OF LIABILITY

In no case and in no way, the provider of this Product
(AuviTran, the distributor or reseller, or any other party
acting as provider) shall be liable and sued to court for
damage, either direct or indirect, caused by and to the
user of the board and which would result from an

improper installation or misuse of the Product. “Misuse”
and “improper installation” mean installation and use not

corresponding to the instructions of this manual.

Please note that graphics given in this manual (drawings
and schemes) are only examples and shall not be taken
for a real vision of your own equipment configuration.

AuviTran is constantly working on the improvement of the
products. For that purpose, the products functionalities
are bound to change and be upgraded without notice.

Please read carefully the User’s manual as the new

functionalities will be described therein.

TRADEMARKS

All trademarks listed in this manual are the exclusive property of their respective owners. They are respected “as is” by
AuviTran. Any use of these trademarks must receive prior approval of their respective owners. For any question, please
contact the trademark’s owner directly.

COPYRIGHT

The information in this manual is protected by copyright. Therefore, reproduction, distribution of whole or part of this manual
is strictly forbidden without the prior written agreement of AuviTran.

AUVITRAN WEBSITE / MORE INFORMATION

Please visit our website for any question of further inquiry concerning our product range. Updates will also be posted when
available.

http://www.auvitran.com

PACKAGE CONTAINS

1 Stagebox Led front panel (Audio Toolbox AVBx3)
1 dummy front panel (raw stainless panel)
1 power cable
4 cable clamps (Rilsans)
1 shrink tube 12 cm long
1 shrink tube 4cm long
2 M3x4 stainless screws
2 M3x6 black screws
1 lock kit (option)

Installation Manual
SatgeBox Kit V1.0 AuviTran 2011

4

TTAABBLLEE OOFF CCOONNTTEENNTTSS

PRECAUTIONS ................................................................................................................... 2

LIMITATION OF LIABILITY ................................................................................................ 3

TRADEMARKS .................................................................................................................... 3

COPYRIGHT ........................................................................................................................ 3

AUVITRAN WEBSITE / MORE INFORMATION ................................................................ 3

PACKAGE CONTAINS ....................................................................................................... 3

1 WELCOME ! ................................................................................................................ 5

2 OPENING THE BOX ................................................................................................... 6

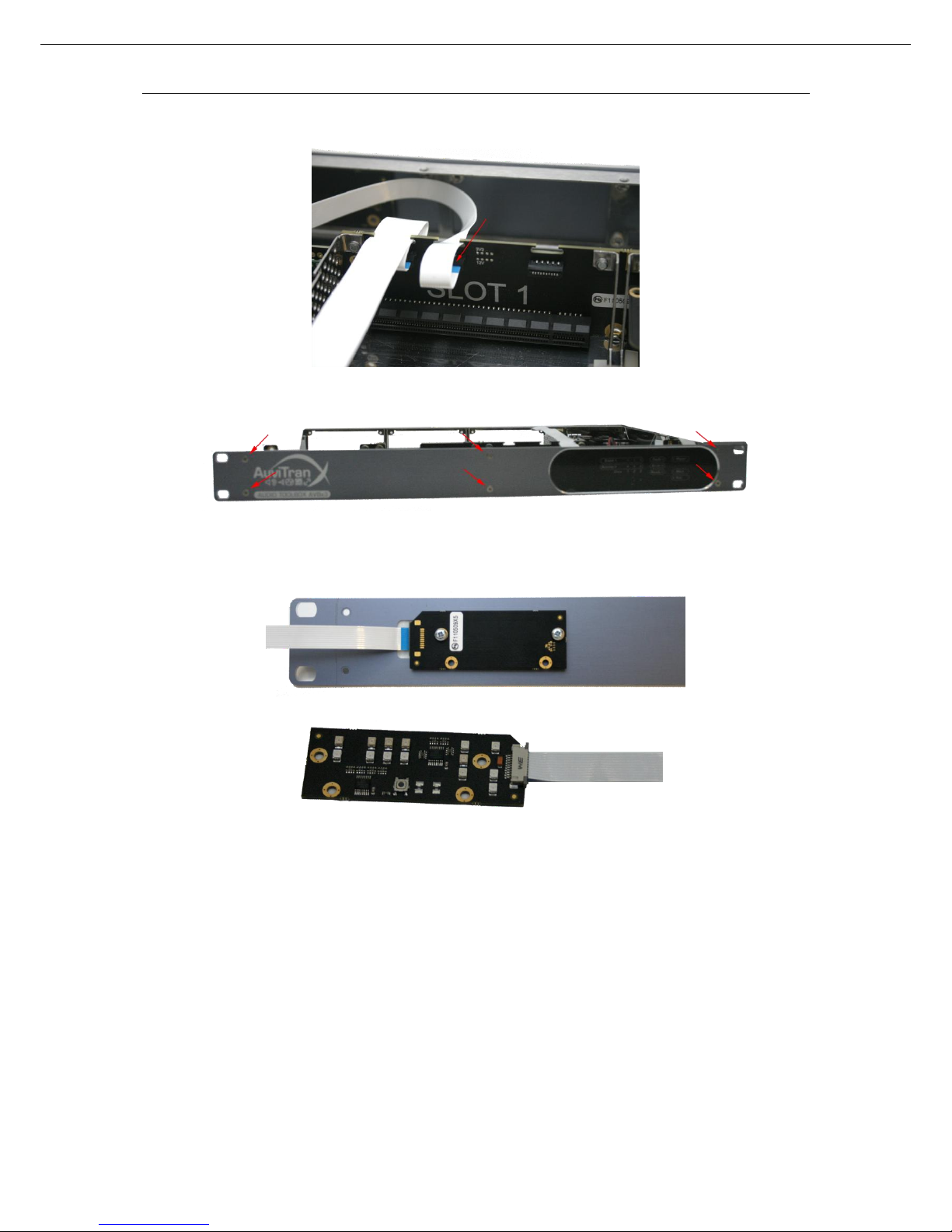

3 FRONT PANEL DISASSEMBLY ............................................................................... 7

4 GPIO_WCLK CARD DISASSEMBLY ........................................................................ 8

5 GPIO_WCLK CARD REASSEMBLY ......................................................................... 9

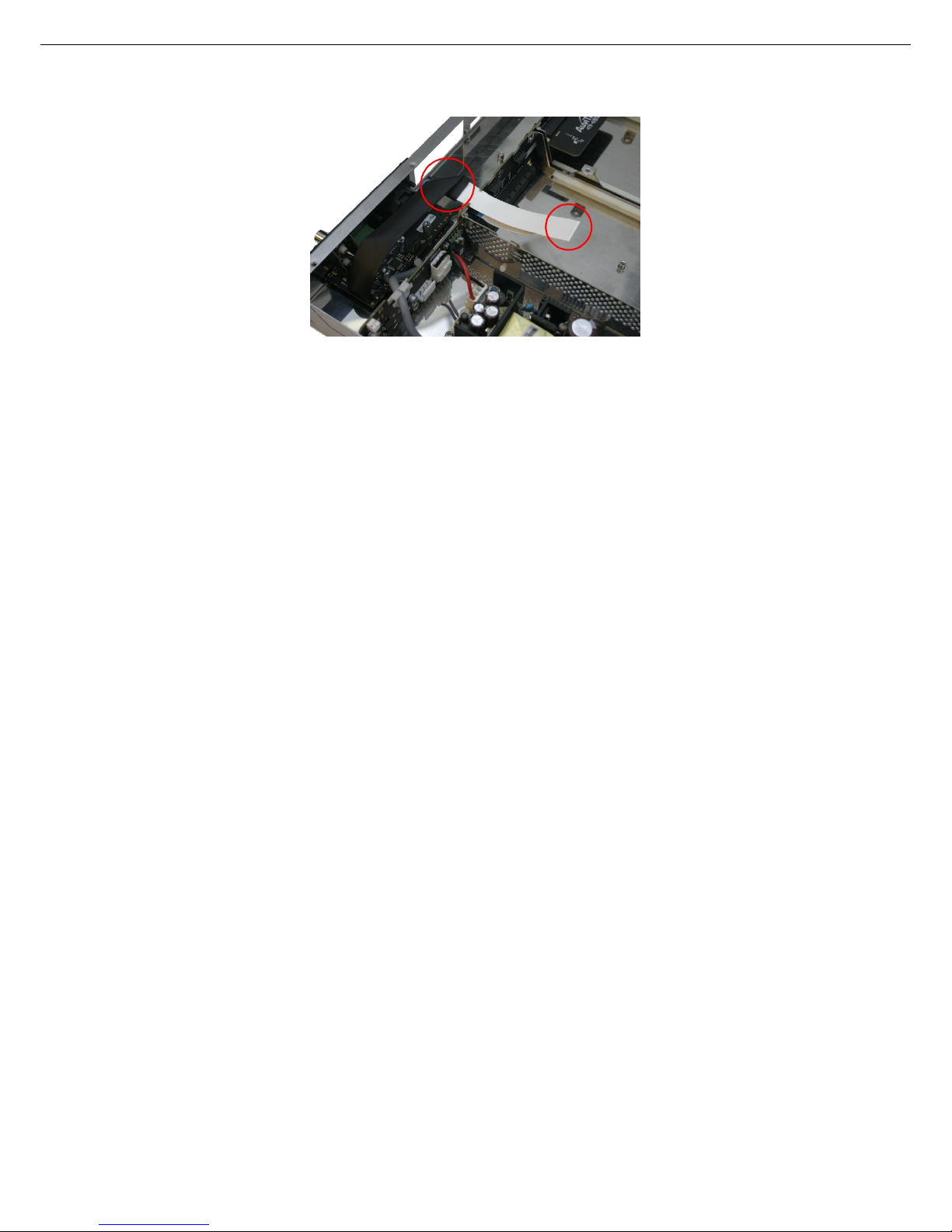

6 CONNECTING THE GPIO_WCLK CARD ............................................................... 10

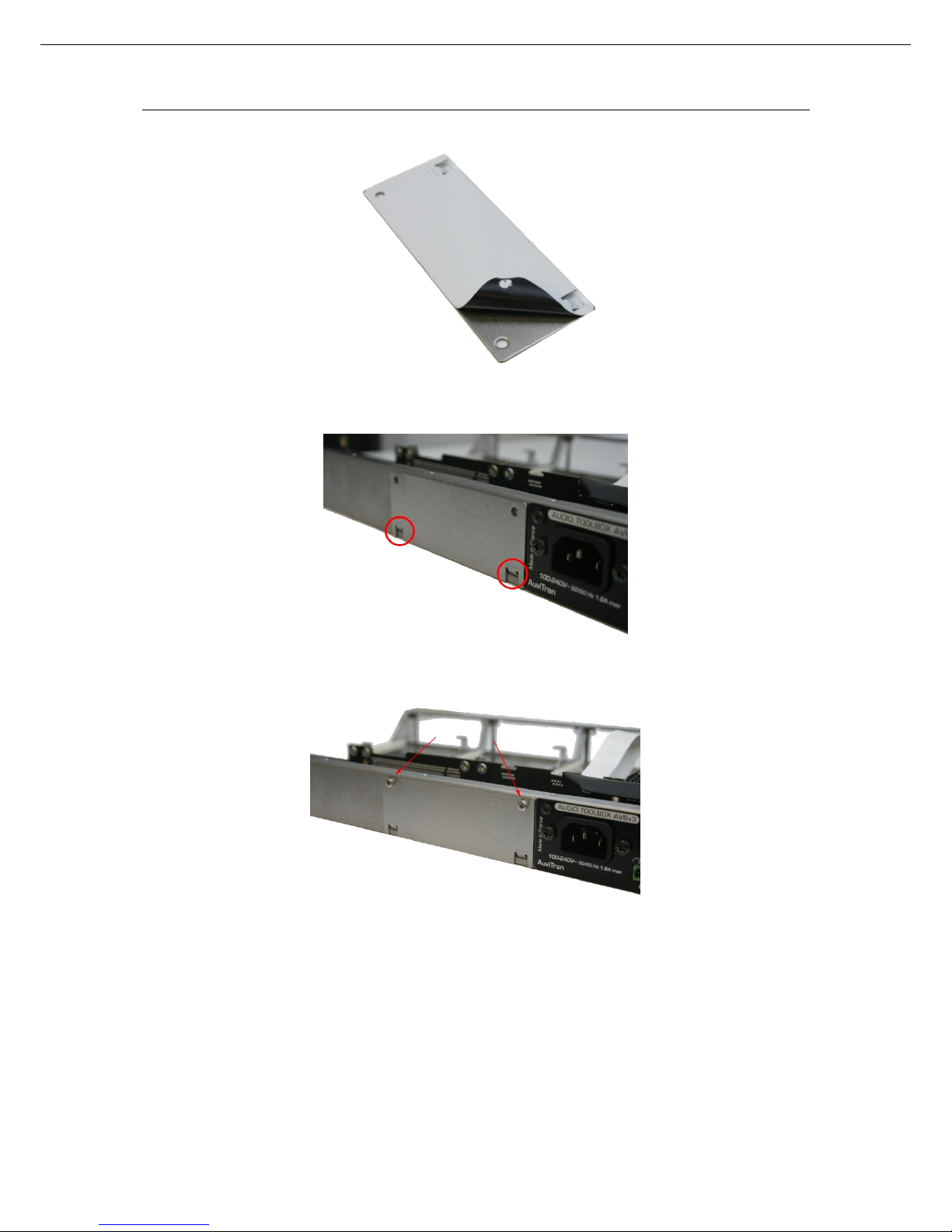

7 DUMMY FRONT PANEL ASSEMBLY ..................................................................... 14

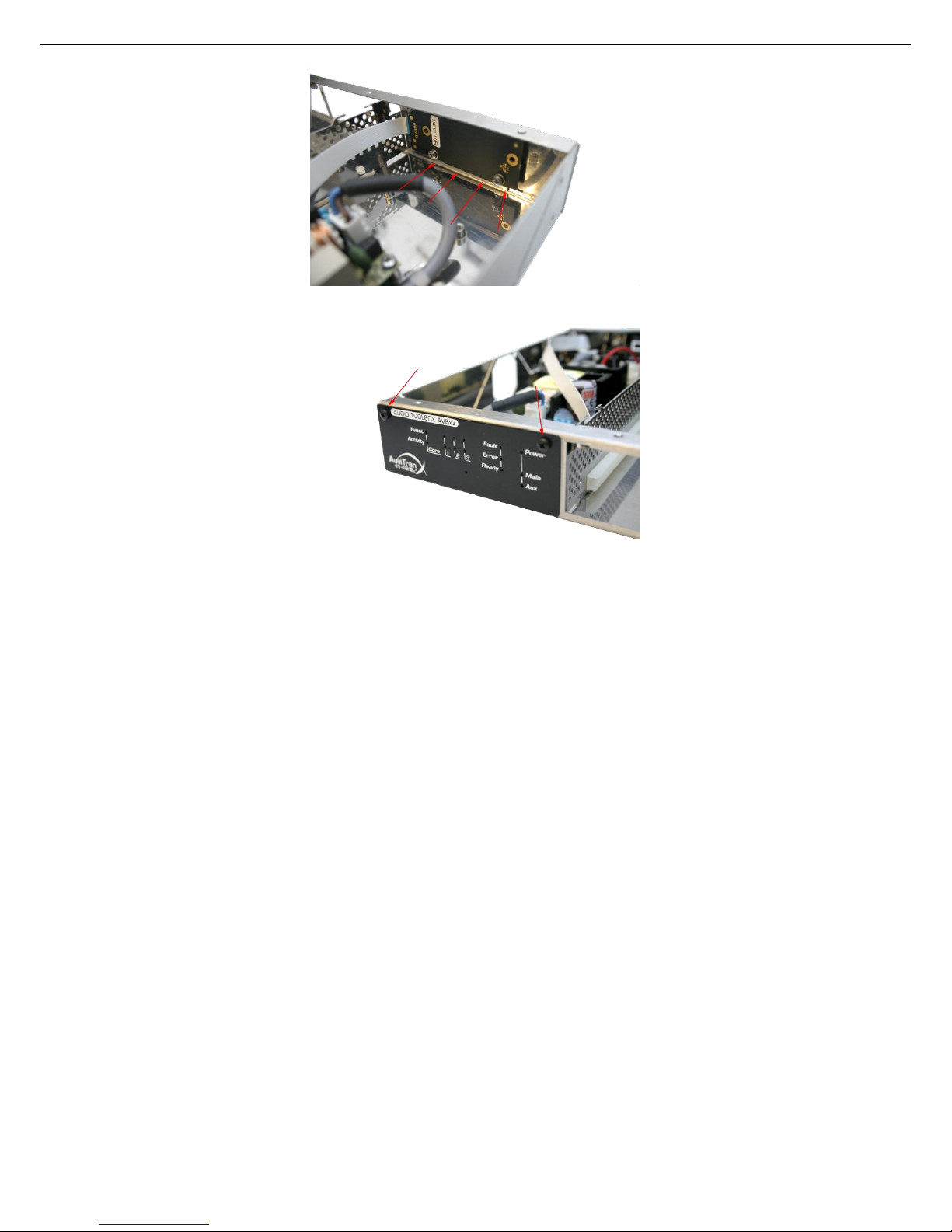

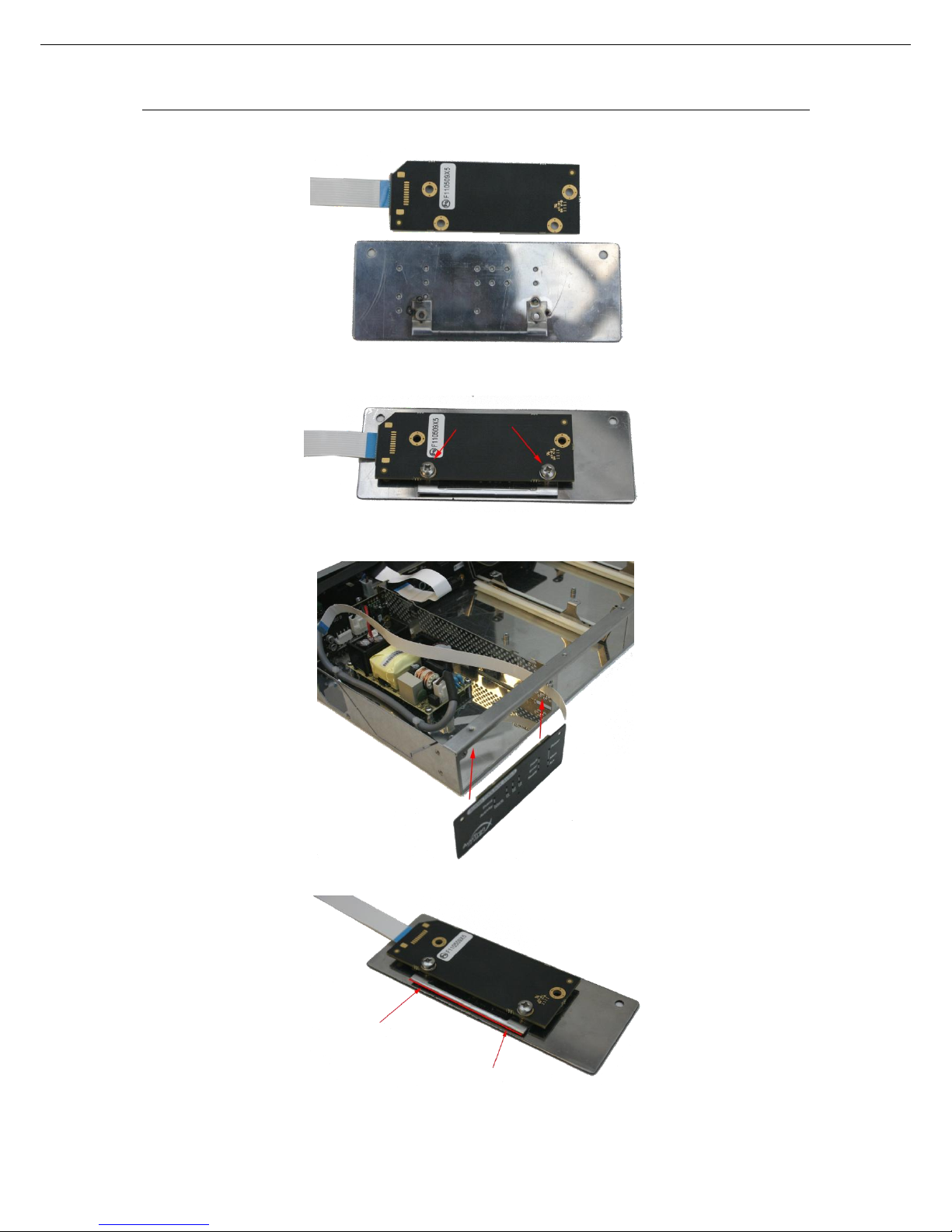

8 UI LED CARD ASSEMBLY ...................................................................................... 15

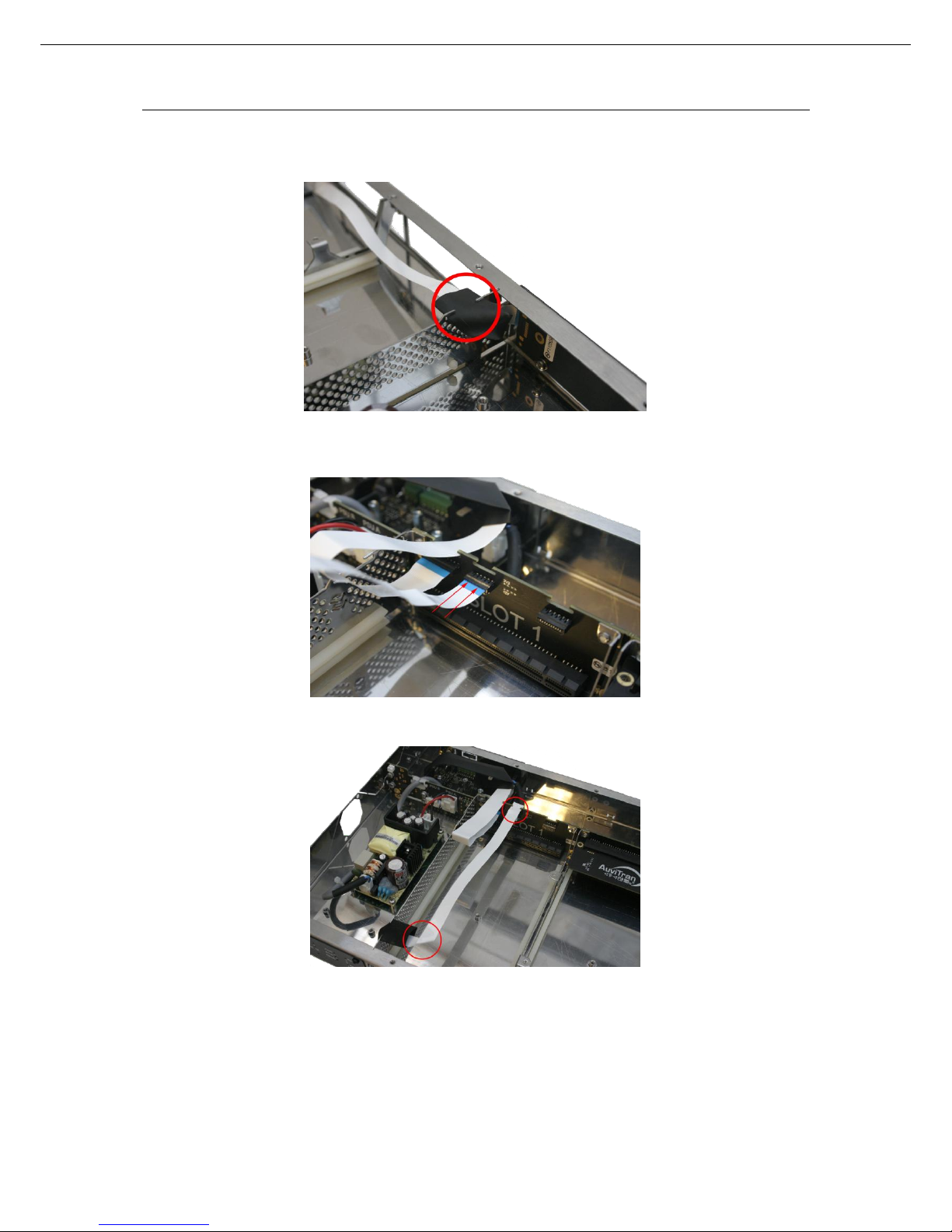

9 CONNECTING UI LED CARD .................................................................................. 17

10 CLOSING THE BOX ................................................................................................. 18

11 LOCK KIT INSTALLATION ...................................................................................... 19

12 END OF THE OPERATION ...................................................................................... 20

Installation Manual
SatgeBox Kit V1.0 AuviTran 2011

5

1 WELCOME !

Thank you for purchasing AuviTran’s Audio Toolbox AVBx3 Stagebox Kit. We hope you will enjoy using it. This kit will allow
you to transform your Audio Toolbox from installation mode to Stagebox mode.

You will find herewith the necessary instructions to use your product. Please read them carefully as misuse of this device
might cause serious damage to you and your environment.

Opening The Box

Installation Manual
SatgeBox Kit V1.0 AuviTran 2011

6

2 OPENING THE BOX

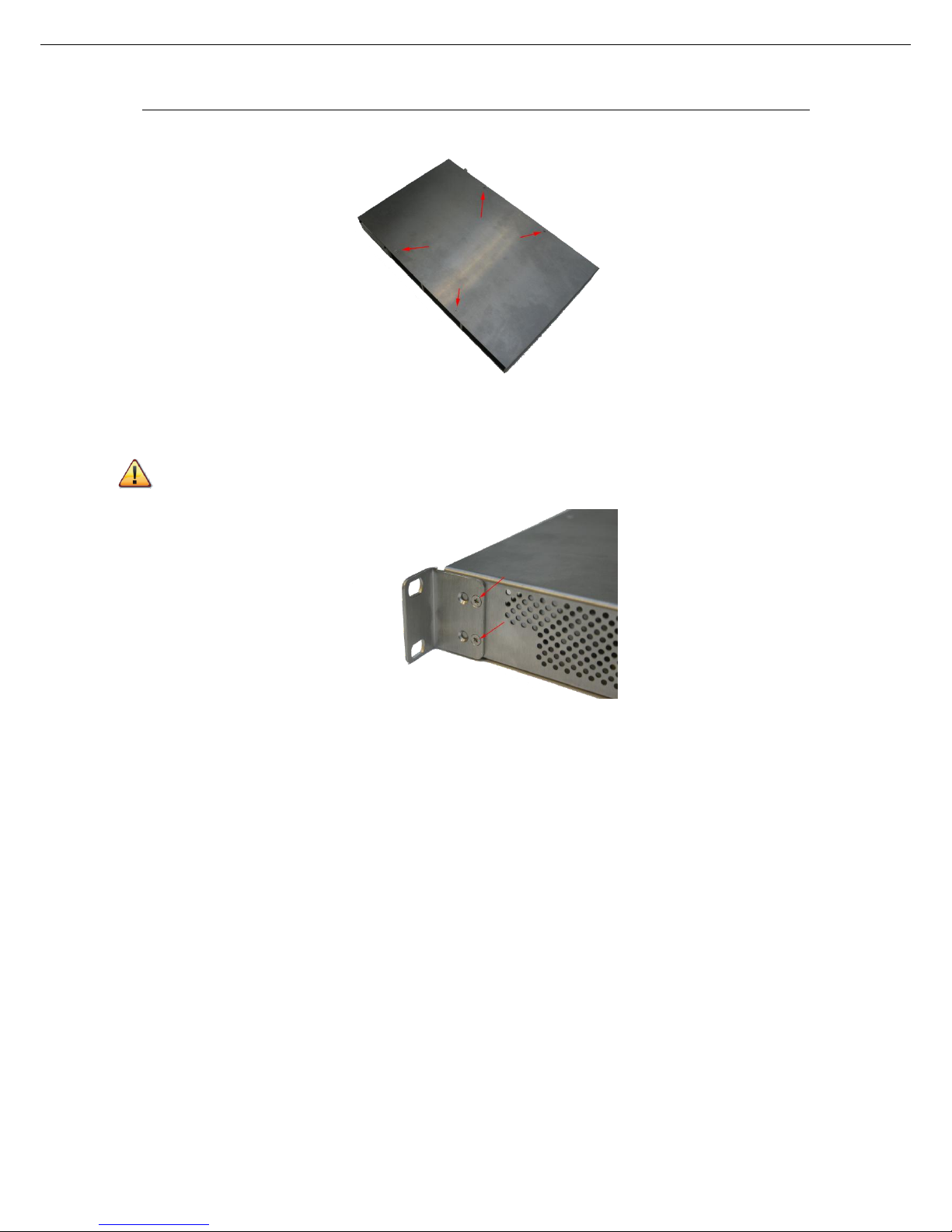

Unscrew the four M3x6 countersunk screws of the cover.

Then, unscrew the two M3x6 countersunk screws that hold ears on each side of the box.

Finally, unscrew the four M3x6 countersunk screws remaining on each side of the box.

Remove the cover and keep all screws in a safe place.
