Interactive Fire Detection Systems
Connecting Loop Units
Protecting life, environment and property...
116-P-CONNECTLOOPUNIT/DGB 2007-10-10
COPYRIGHT ©
This publication, or parts thereof, may not
be reproduced in any form, by any
method, for any purpose.
Autronica Fire and Security AS and its
subsidaries assume no responsibility for
any errors that may appear in the
publication, or for damages arising from
the information in it. No information in this
publication should be regarded as a
warranty made by Autronica Fire and
Security. The information in this
publication may be updated without
notice.
Product names mentioned in this
publication may be trademarks. They are
used only for identification.
Table of Contents
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 1
Table of Contents
1. Introduction.......................................................................3
1.1 About the Handbook .........................................................................3
1.2 The Reader .......................................................................................3
2. Connections to Detectors................................................4
2.1 Connecting Detectors........................................................................4
2.2 LED Connection on Detector ............................................................4
2.3 Connection of Branch-off ..................................................................5
2.4 Detector Head / Base Alignment.......................................................6
2.5 Detector Label...................................................................................6
2.6 Detector Locking Mechanism............................................................7
2.6.1 Detector Base .........................................................................7
2.6.2 Detector head .........................................................................7
2.6.3 Removing a locked detector head ..........................................8
2.7 Detector Dust Covers........................................................................9
3. Connections to Other Loop Units ...................................10
3.1 Introduction........................................................................................10
3.2 Manual Call Points ............................................................................10
3.3 AutroSense Micra 25 High Sensitivity Aspirating Detector...............11
3.4 AutroSense Micra 100 High Sensitivity Aspirating Detector.............12
3.5 AutroSense 75 Aspirating Smoke Detector ......................................13
3.6 AutroSense 200 High Sensitivity Aspirating Detector.......................14
3.7 AutroFlame X33AF Multispectrum Infrared Flame Detector.............15
3.8 AutroBeam 100 Infrared Beamdetector System...............................16
3.9 AutroBeam 25 Infrared Beamdetector ..............................................17
3.10 Programmable Electronic Sounders (BBR-200)...............................18
3.11 Addressable Socket Sounder (BBR-110) .........................................19
3.12 Ex ia-Approved Detectors.................................................................20
3.13 Disable Input with Pushbuttons (BW-200)........................................21
3.14 Door Control Unit (BN-320/2)............................................................22
3.15 Monitoring and Control Unit (BN-320/4)............................................23
3.16 Sprinkler Control Unit (BN-320/5) .....................................................24
3.17 Monitoring Input Unit (BN-201) .........................................................25
3.18 Input Unit with SelfVerify (BN-300) ...................................................26
3.19 Single Relay Output Unit (BN-310)...................................................27
3.20 Day/Night Control Unit with Pushbuttons (BW-202) .........................28
3.21 Disable Input with Timer Input (BW-201)..........................................29
3.22 Day/Night Control Unit with Timer Input (BW-203)...........................30
3.23 Remote Alarm Control Unit (BU-200) ...............................................31
3.24 Interface Unit for Conventional Loops (BN-330)...............................32
Table of Contents
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 2
4. Reader’s Comments.........................................................33
Introduction
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 3
1. Introduction
1.1 About the Handbook
This document provides information on how to connect detectors and
other loop units to the Interactive Fire Detection Systems Autroprime
and AutroSafe.
Note that some loop units can be connected to AutroSafe only (the
indication “AutroSafe only” is written in the beginning of these
chapters).
For more detailed information on loop units, refer to the datasheet for
each specific unit.
1.2 The Reader
This handbook is intended for technical personnel.
Connections to Detectors
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 4
2. Connections to Detectors

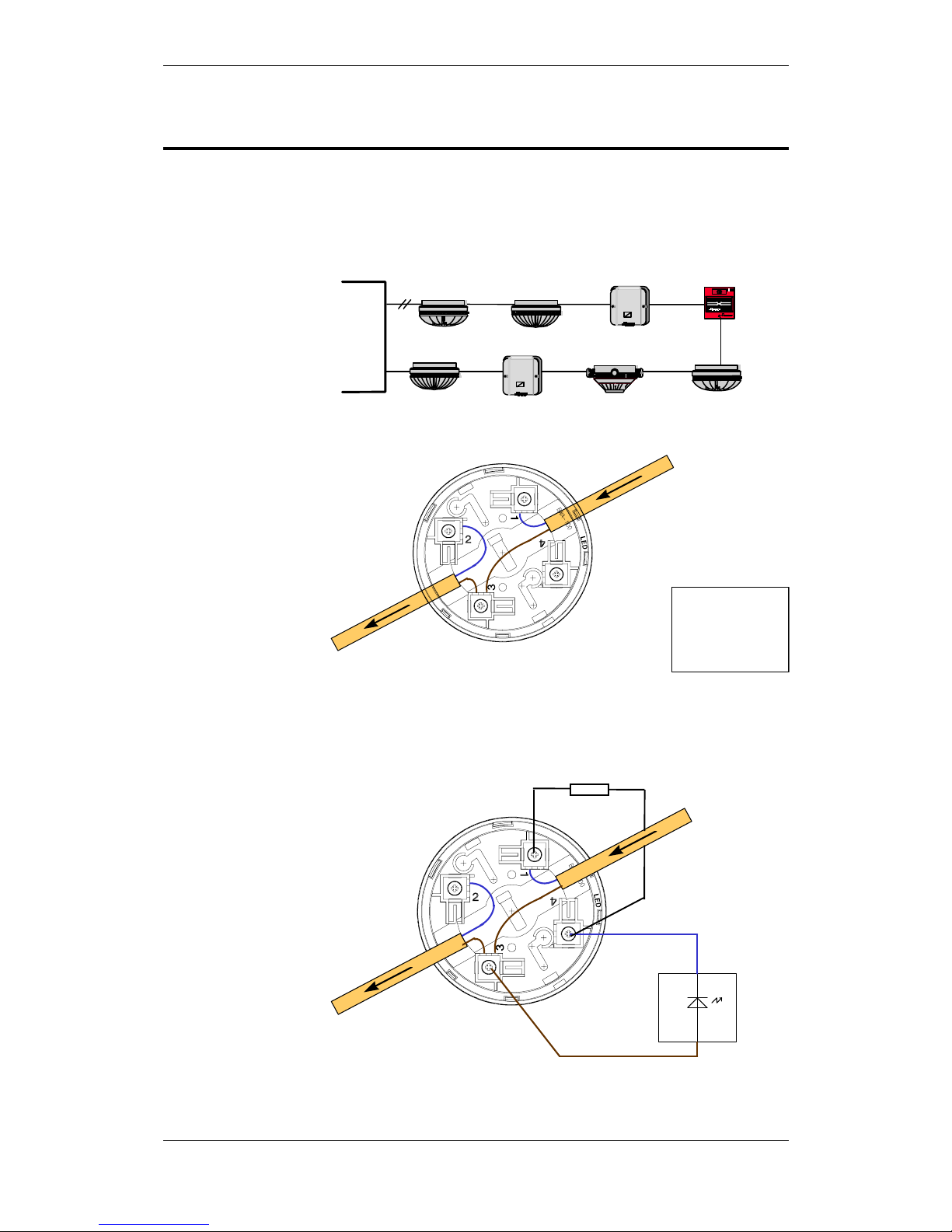

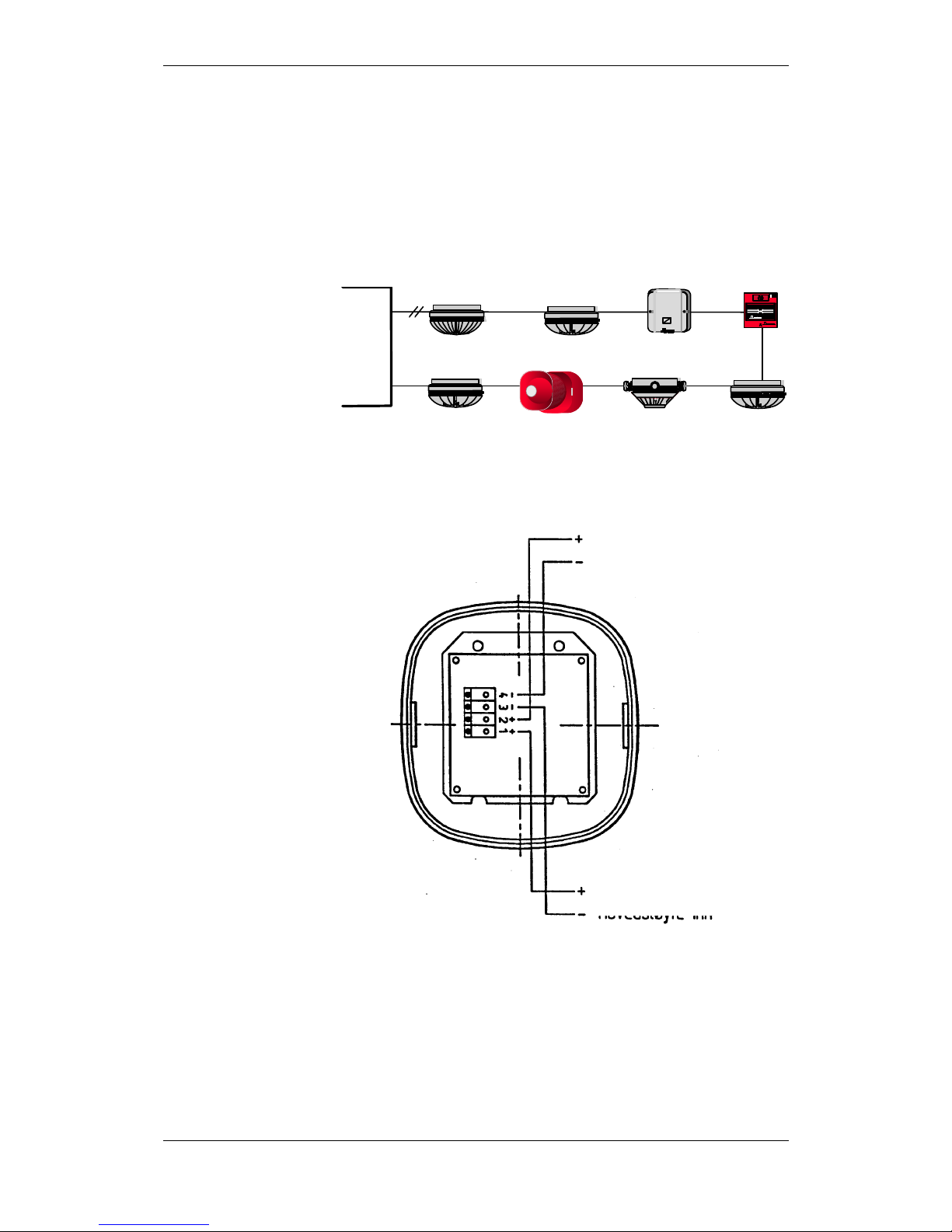

2.1 Connecting Detectors
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Loop
Driver
Module
Detector
I/O Unit
Manual Call Point
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Input
Output
2.2 LED Connection on Detector
+
-
BU-46
Input
Output
1 - IN
2 - OUT
3 + COMMON
4 - LED
LED
Varistor SIOV-S07K25
Connections to Detectors
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 5

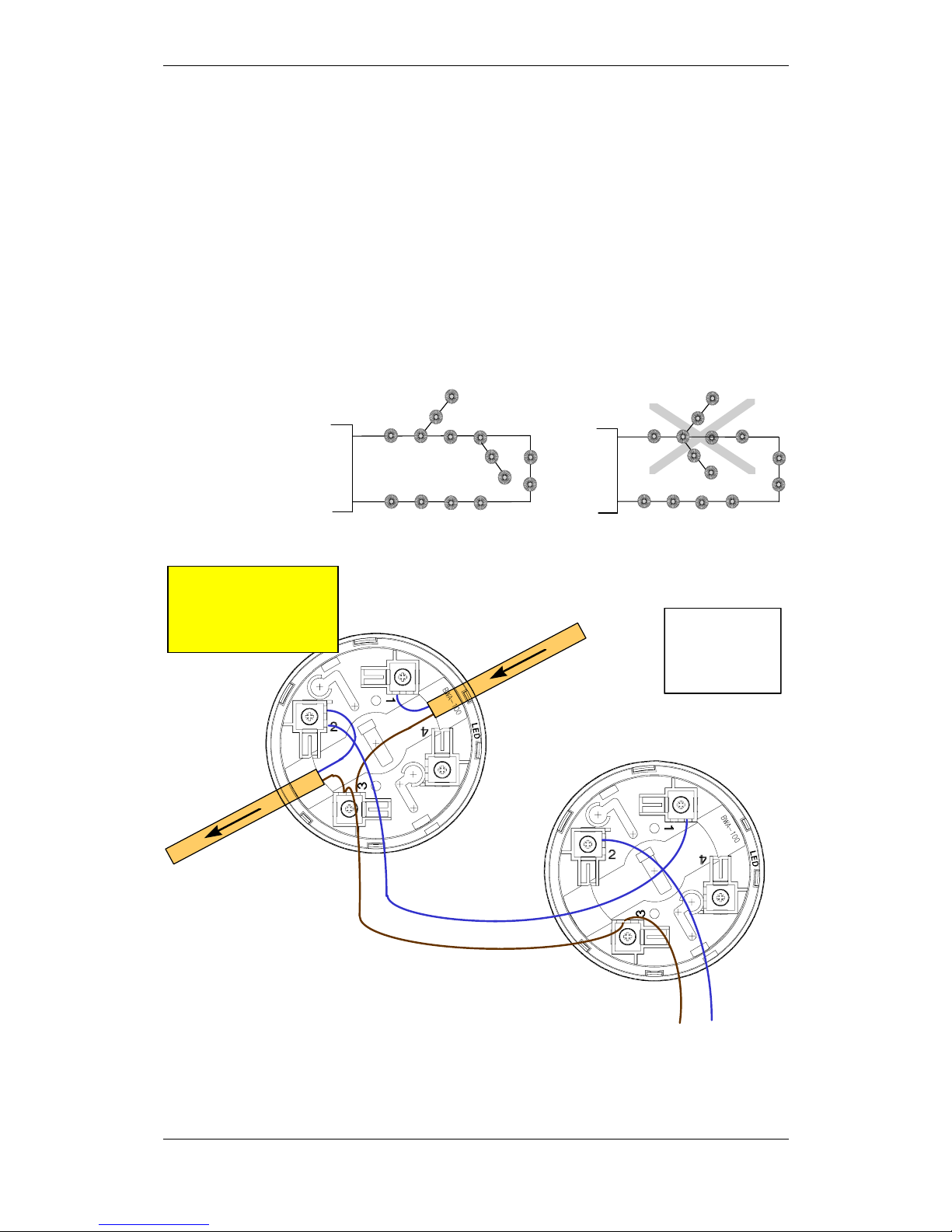

2.3 Connection of Branch-off
If necessary, a branch-off can be connected to a detection loop if the
existing cable layout requires this, but this is not recommended, as the
safety will be reduced.
To ensure a correct addressing of the detectors on a branch-off when
configuring the system, there can not be more than one branch-off per
detector. For safety reasons, the number of detectors on each branchoff must be kept to a minimum, as the detectors on a branch-off will
not operate in case of a break or shortcircuit on the branch-off. The
absolute maximum number of detectors on a branch-off (or an open
loop) is 32.
Accepted
NOT Accepted!
Loop Loop
Branch-off
Branch-off
Branch-off
Input
Output
+
-
+
-
1 - IN
2 - OUT
3 + COMMON
4 - LED
Main Loop
Branch-off
Next detector on
branch-off
NOTE:
Always connect a
branch-off to terminal
2 (-) and 3 (+).
Connections to Detectors
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 6
2.4 Detector Head / Base Alignment
Alignment
L
E
D
LED
2.5 Detector Label
AUTRON ICA
FI RE & SECURITY
INSPECTION SERTIFICATE
REF AFSOPTI CAL DETECTO R BHH 320
ID
ID
EN54/7
CE
001 1998 239 0001
0842
001 1998 239 0001
Location for
tagname sticker
Connections to Detectors
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 7
2.6 Detector Locking Mechanism
2.6.1 Detector Base
In the detector base a small locking nub will keep the springloaded
tongue in an open position to prevent the detector head from being
locked. If the locking nub is removed before mounting with a pair of
cutting nippers or similar, the detector head will enter a locked
position.
I
Detector base with locking nub
2.6.2 Detector head
The new springloaded tongue (figure 3) on the detector head will lock
the head in a correct position if the locking nub has been removed
before mounting.
Detector head with springloaded tongue
Springloaded tongue
Locking nub
Connections to Detectors
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 8
2.6.3 Removing a locked detector head
• To remove a locked detector head, use a suitable tool
(for example a paper clip or similar) to push the
springloaded tongue in, and simply turn the detector
head counter-clockwise.
Use this hole to
access and release
the locking
mechanism.
Connections to Detectors
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 9

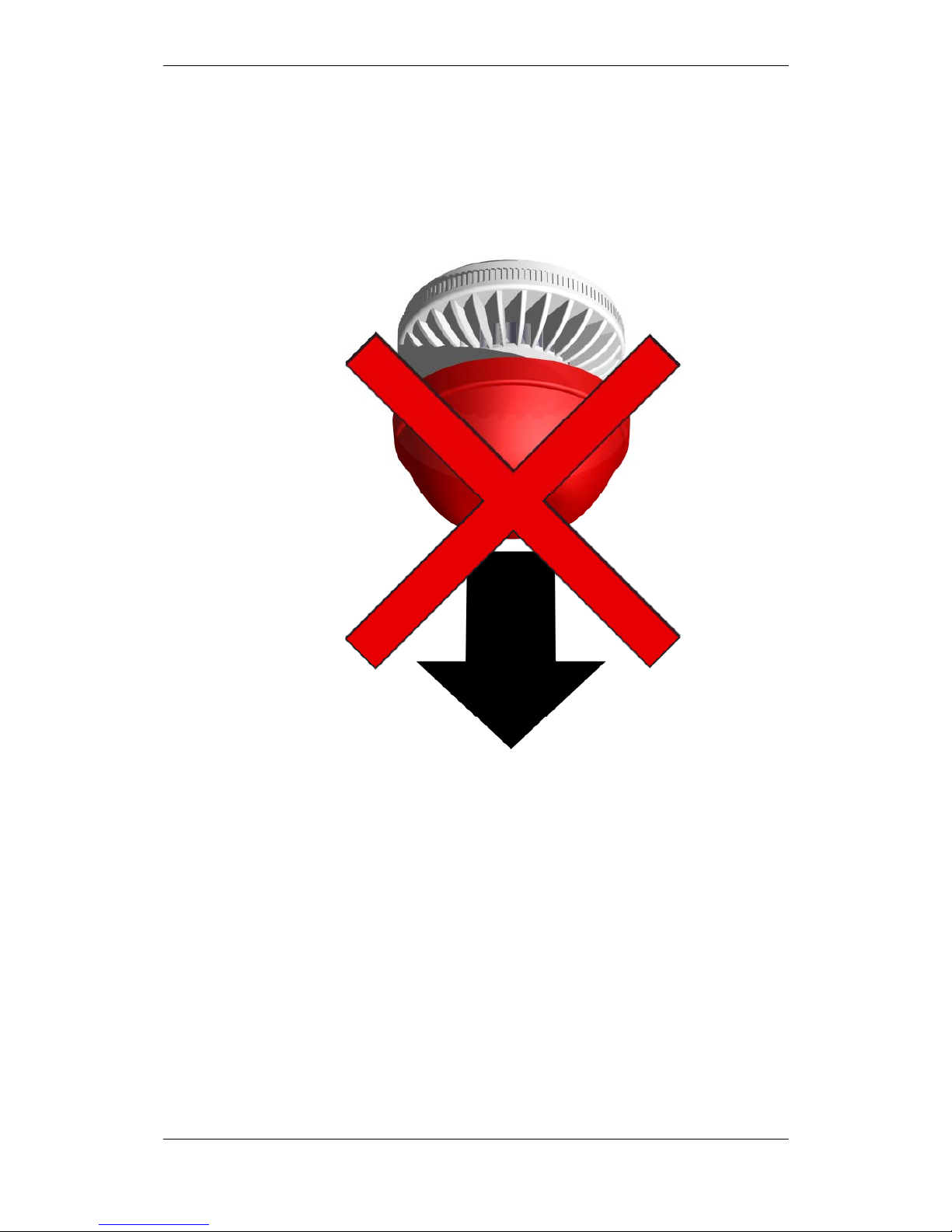

2.7 Detector Dust Covers
Autronica detectors are supplied with a dust cover. To avoid possible
contamination of the detector chamber during installation, these
should remain in place on the detector until commissioning is started.
IMPORTANT:
LEAVE DETECTOR DUST
COVERS ON UNTIL
COMMISSIONING IS
STARTED
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 10
3. Connections to Other Loop Units
3.1 Introduction
The following subsections show the connection of various Loop Units.
For more detailed information on the Loop Units described in this
chapter, please refer to data sheets and other relevant user
documentation from Autronica Fire and Security AS.
3.2 Manual Call Points
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Loop
Driver
Module
Detector
I/O Unit
Manual Call Point
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Connector on
Manual Call
Point
Wires on
Detection Loop
1 Pos (+) in
2 Pos (+) out
3 Neg (-) in
4 Neg (-) out
5 Internal connection
6 Internal connection
1 2 3 4 5 6
Manual Call Point
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 11
3.3 AutroSense Micra 25 High Sensitivity
Aspirating Detector
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
AutroSense Micra 25
24 V DC
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-300
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
AutroSense Micra 25
24 V DC
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-300
6 5 4 3 2 1
910
2K
Detection
loop
in
Detection
loop
out
_
-
+
+
AutroSense
Micra 25
1 2 3 4
+ + - -
BN-300
-
24V
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 12
3.4 AutroSense Micra 100 High Sensitivity
Aspirating Detector
AutroSense Micra 100
24 V DC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-300
AutroSense Micra 100
24 V DC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-300
6 5 4 3 2 1
910
2K
Detection
loop
in
Detection
loop
out
_
-
+
+
AutroSense
Micra 100
1 2 3 4
+ + - -
BN-300
-
24V
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 13

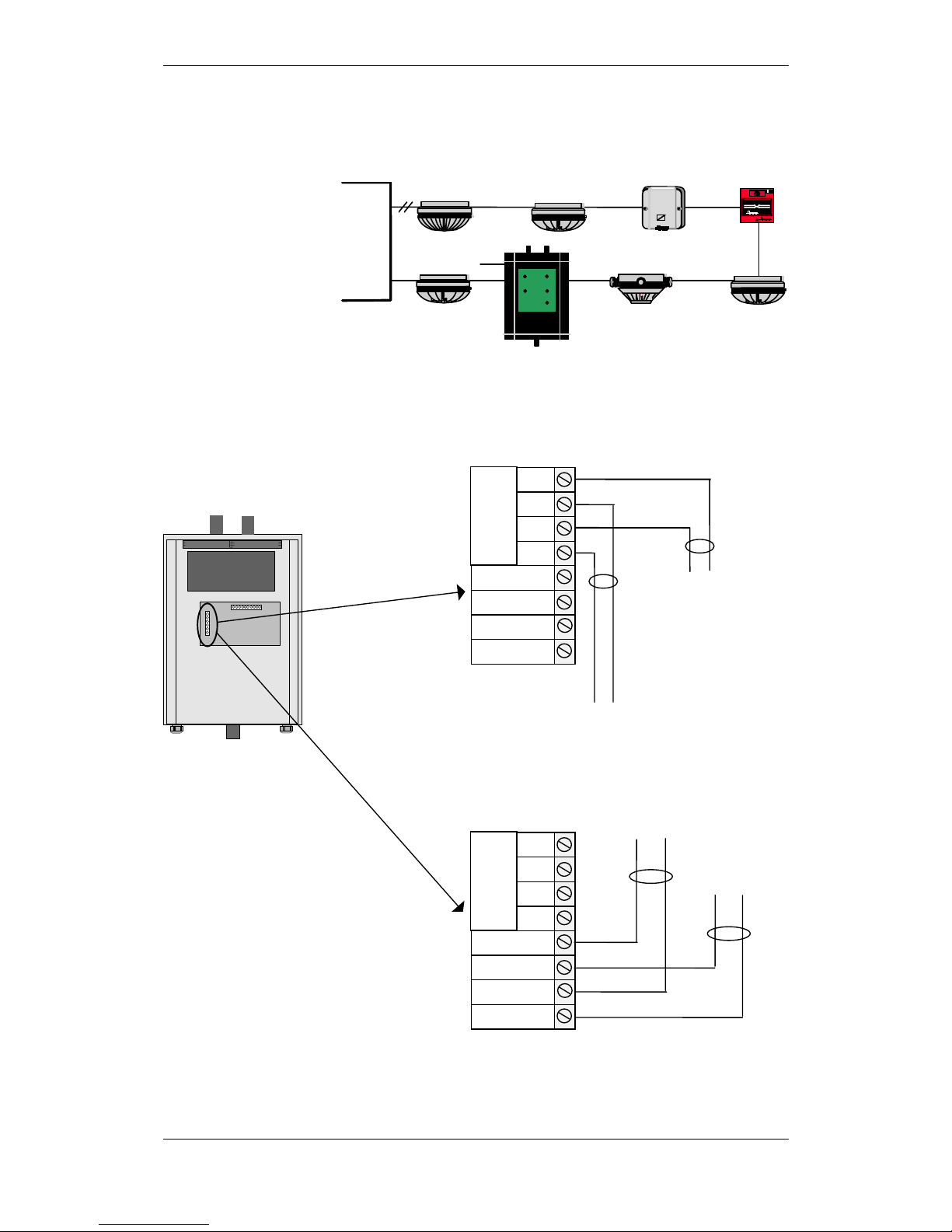

3.5 AutroSense 75 Aspirating Smoke Detector
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
AutroSense 75
(BW-75/AUT)
24 VDC
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
1 +
2 +
3 4 -
+ 24 V DC
+ 24 V DC
0 V
0 V
1 +
2 +
3 4 -
+ 24 V DC
+ 24 V DC
0 V
0 V
Loop
Loop
(to next detector)
24V DC out
+ -
24V DC in
+ -
- +
Loop in
Loop Connection
Connection to 24V DC
AutroSense 75
(BW-75/AUT)
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 14
3.6 AutroSense 200 High Sensitivity Aspirating
Detector
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
AutroSense 200
24 V DC
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-320
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
AutroSense 200
24 V DC
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-320
1 2 3 4
11 10 9 8 7 6 5
C NC NO - + - +
+ + - -
2k 2k
910 910
Input A Input B
Fault contact N.O.
Aux. contact N.O.
Prewarn. contact N.O.
Alarm-contact N.O.
AutroSense 100
standard interfaceboard
Main loop in
Main loop out
BNA-320
+
_
+
_
A
utroSense 200
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 15

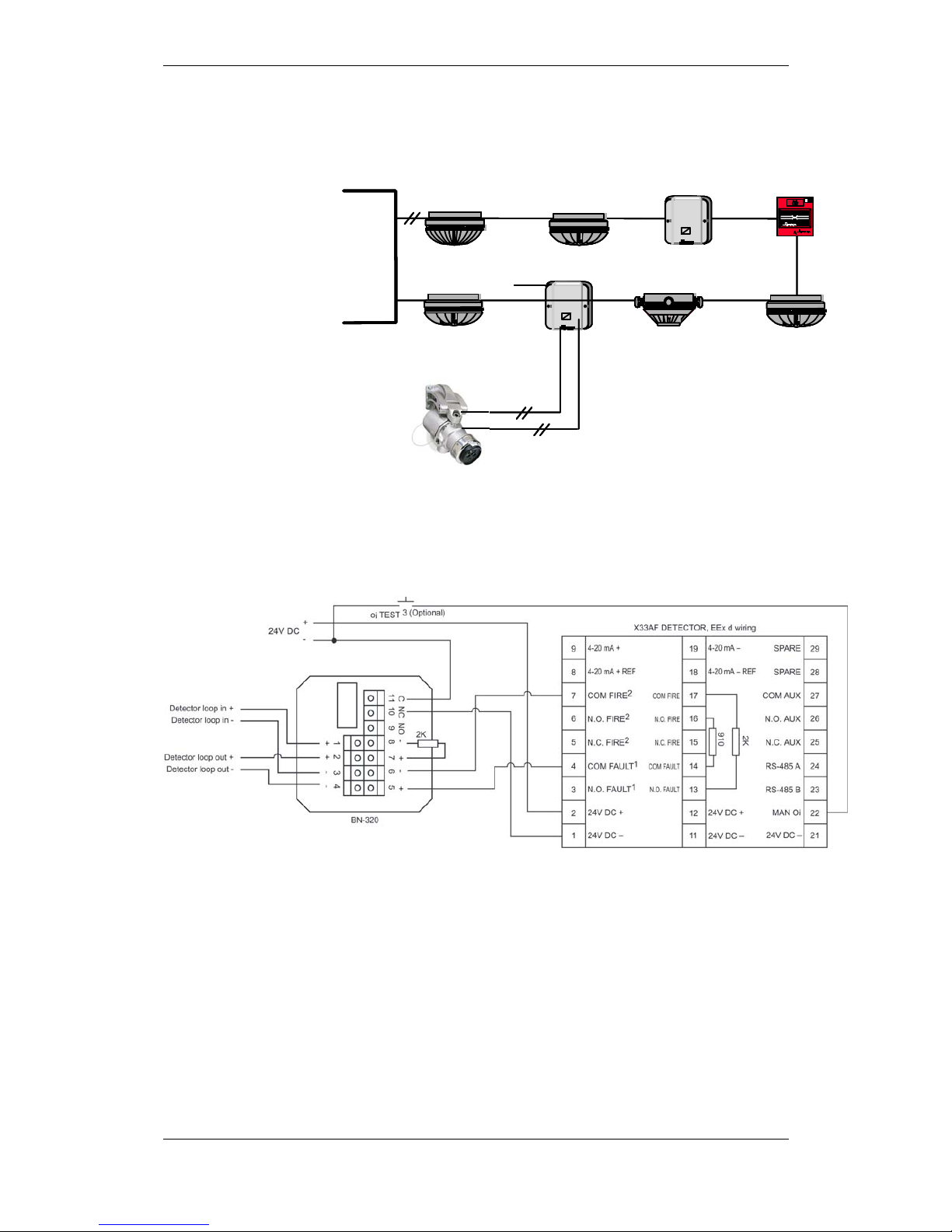

3.7 AutroFlame X33AF Multispectrum Infrared
Flame Detector
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
24 VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320
AutroFlame X33/1
Alarm
signal
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
Power
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
24 VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320
AutroFlame X33/1
Alarm
signal
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
Power
24 VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320
AutroFlame X33/1
Alarm
signal
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
Power
AutroFlame X33AF
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 16

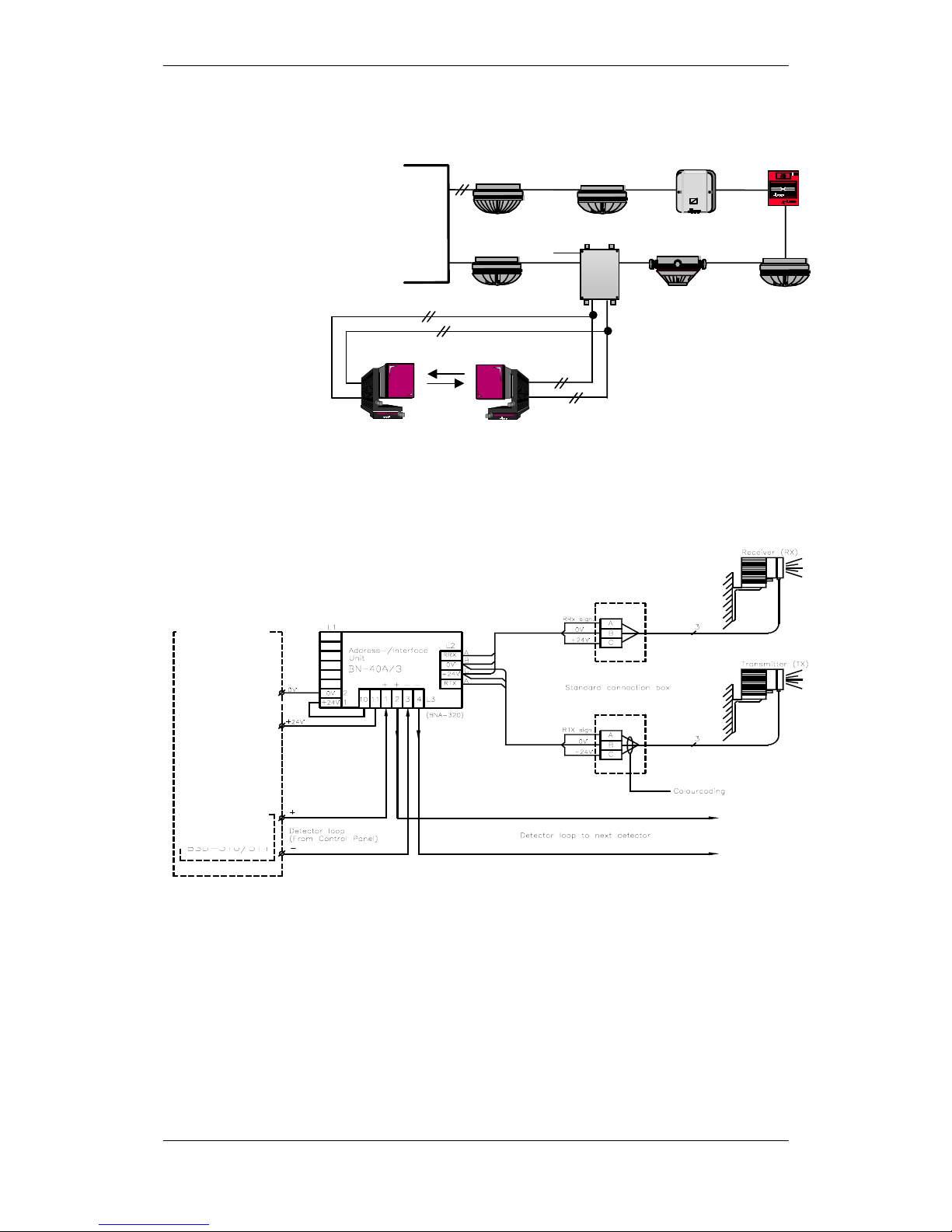

3.8 AutroBeam 100 Infrared Beamdetector System
24 VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-40A/3
Alarm
signal
AutroBeam 100
Receiver
AutroBeam 100
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
Loop
Driver
Module
AutroBeam 100
Transmitter
AutroBeam100AutroBeam100
(Drawing No. bs-1160)
Power
Fire Alarm
Control
Panel
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 17
3.9 AutroBeam 25 Infrared Beamdetector
24 VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320
AutroBeam 25
Alarm
signal
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
Reflector
1 2 3 4
11 10 9 8 7 6 5
C NC NO - + - +
+ + - -
Main loop in +
-
2k
+
-
24VDC
1
2
3
4
5
6
7
8
2k
910
+
-
24V
5
3
7
4
8
6
AutroBeam 25
ALARM
RELAY
FAULT
RELAY
+
Main loop out
-
BN-320
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 18
3.10 Programmable Electronic Sounders (BBR-200)
The Electronic Sounder (BBR-200) has its own address / interface
board and can be connected directly to a detection loop. The unit is
powered from the detection loop. No external power supply is
required.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Electronic Sounder
w/address/interface board
BBR-200
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
Detection loop out
Detection loop in
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 19

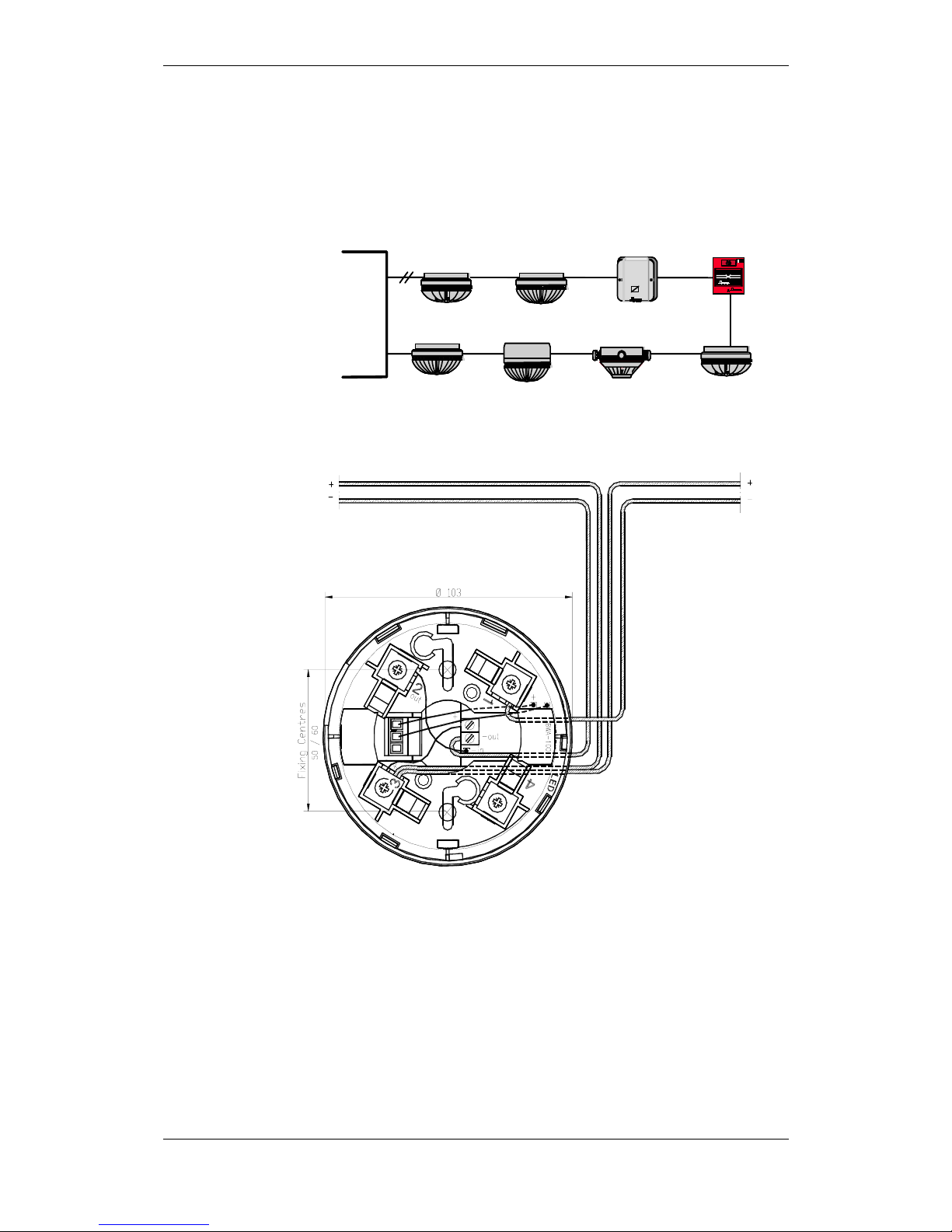

3.11 Addressable Socket Sounder (BBR-110)
The Socket Sounder (BBR-110) is a combined detector base and
addressable sounder. The unit is powered from the detection loop. No
external power supply is required.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Loop
Driver
Module
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Socket Sounder
BBR-110
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Loop
Driver
Module
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Socket Sounder
BBR-110
Detector loop in
Detector loop out
- In: Terminal connection 1
- Out: Terminal connection - out on circuit board
Common (+ In and + Out): Terminal connection 3
External LED: Terminal connection 4
Detection loop in
Detection loop out
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 20
3.12 Ex ia-Approved Detectors
Ex ia-approved detectors can be connected to the system. The
Ex-Barrier Unit (BZ-500) is used to separate the safe area from the
hazardous (Ex) area. A maximum of 20 Ex ia-approved detectors can
be mounted as a branch-off from the Ex-Interface Unit on the loop.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Detector
2
Ex ia-approved
detectors
Hazardous Area
Safe Area
Ex-Interface
Unit
Ex
24VDC
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
EX TERMINALS
NON EX TERMINALS
BARRIER
P&F 1.54
24 V
DIN RAIL
BZB-500
+
-
65
123
4
9
101112
87
+
-
3
2
1
+
-
12 11 10
Output
+
-
Detector on
main loop
Branch-off
-
-
+
Ex-Branch for Ex ia-approved
Detectors
+
Input
BZ-500
Safe Area
Ex-Area
Note: The Ex-Barrier
Unit BZ-500 is shown
upside down on the drawing.
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 21
3.13 Disable Input with Pushbuttons (BW-200)
The Disable unit is used to disable one or a number of detection
zones. The unit is connected to and powered from the detection loop.
The disablement time is configurable.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-200
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-200
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
* 1 or 2 units on each loop: Connect detector loop + (1), and detector loop – (3) to 24V input.
More than 2 units on each loop: Use external 24V supply
Separate 24V DC must always be used when if more than 2 units are connected to the loop, or if the 24V output is
used.
LED
Steady light when disabled
Flashing the last 5 min. of disablement
Disable detection zones
Enable detection zones
Detection
Loop
24V Input
24V Output
+
+
-
-
*
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 22
3.14 Door Control Unit (BN-320/2)
The Door Control unit controls and monitors fire doors. The unit is
connected to the detection loop, and powered from an external 24V
DC power supply.
Switch 1
Closed Open Open Closed
Switch 2
Open Open Closed Closed
Status
Door
Open
Door in
transition
Door Closed Illegal
(fault)
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320/2
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
F
I
R
E
D
O
O
R
Trigging of
electromagnetic
doorholder
Normally
closed
output.
CLOSING OF
FIRE DOORS
Output
Input A
Input B
24 VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320/2
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
F
I
R
E
D
O
O
R
Trigging of
electromagnetic
doorholder
Normally
closed
output.
CLOSING OF
FIRE DOORS
Output
Input A
Input B
24 VDC
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 23
3.15 Monitoring and Control Unit (BN-320/4)
The Monitoring and Control Unit monitors and/or controls various
external equipment such as control of fire dampers, ventilation valves,
fans, lifts, plus fire and smoke hatches. The unit is connected to and
powered from the detection loop. External equipment must have
separate power supply.
PRESS HERE TRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320/4
BN- 320
BRANNALAR
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
Output
Input A
Input B
PRESS HERE TRYKK HER
KNUS GLASSET
BREAK GLASS
-
BN- 320
BRANNALAR
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
External
Equipment
External
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 24
3.16 Sprinkler Control Unit (BN-320/5)
The Sprinkler Control Unit is used for monitoring and control of
sprinkler systems The unit is connected to and powered from the
detection loop.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320/5
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
Input A
Sprinkler
Flow
Switch
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320/5
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
Input A
Sprinkler
Flow
Switch
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 25
5
6
N.O.
910
Ohm
2KOhm
Class 1
6
5
910
Ohm
N.C.
2KOhm
Class 2
6
5
N.O.
2KOhm
Class 3
5
2KOhm
6
Class 4
N.C.

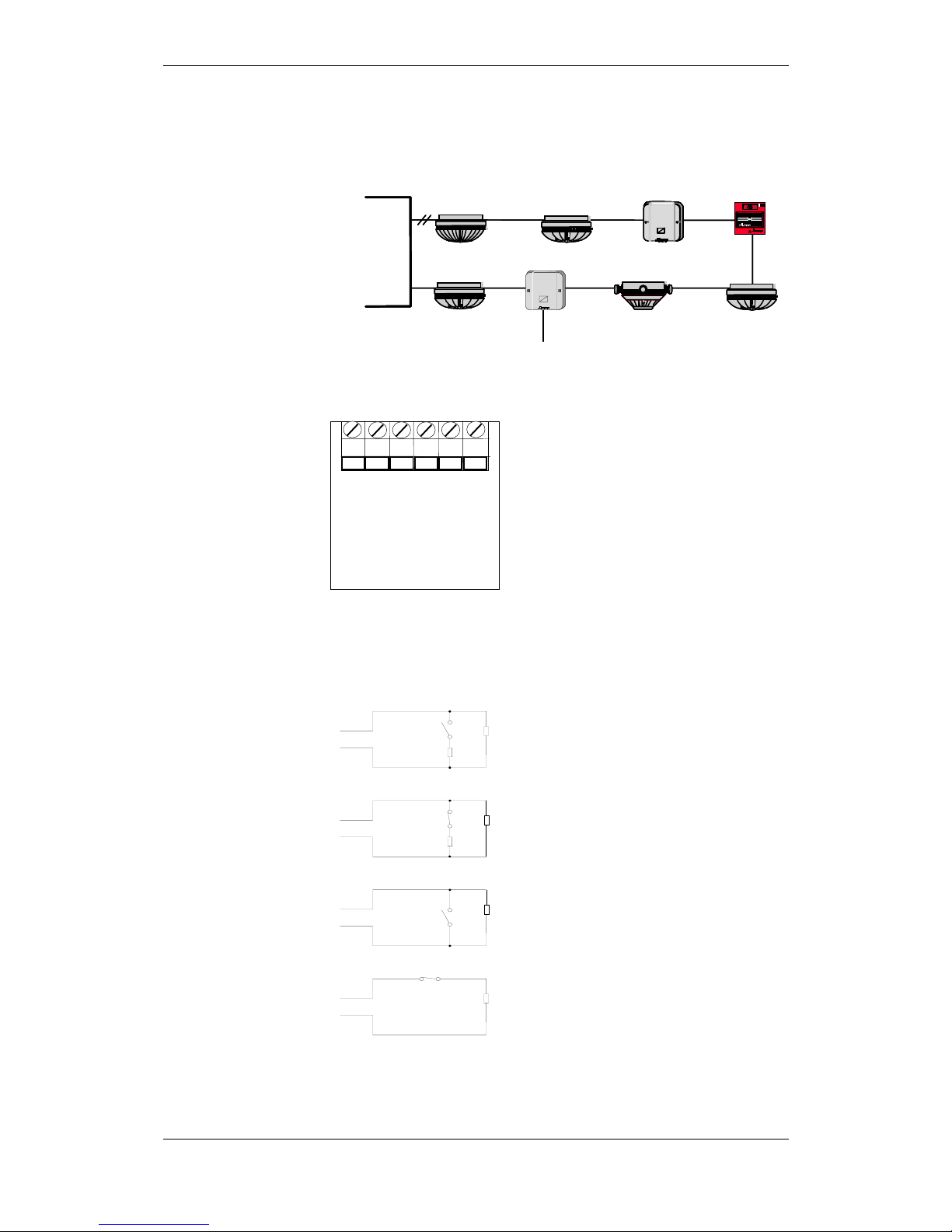

3.17 Monitoring Input Unit (BN-201)
The Monitoring Input Unit is used for monitoring of fault or other signal
contacts from external equipment (technical alarms).
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-201
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-201
Four different classes can be configured in order to be able to monitor
different setups of the fault contact (s). Each class can be set to latching or
non-latching operation.
• Class 1: Normal
Open contact with
‘activate’ resistor,
fault monitored for
open and short
circuit.
• Class 2: Normal
Closed contact with
‘activate’ resistor,
fault monitored for
open and short
circuit.
• Class 3: Normal
Open contact
without ‘activate’
resistor, fault
monitored for open
circuit.
• Class 4: Normal
Closed contact
without ‘activate’
resistor, fault
monitored for short
circuit.
1. Pos (+) in
2. Pos (+) out
3. Neg (-) in
4. Neg (-) out
5. (-) Input
6.
(+)
Input
1 1 2 3 4 5 6
BNB-200/01
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 26
3.18 Input Unit with SelfVerify (BN-300)
BN-300 input unit is used to interface different types of signal devices of
ON/OFF-type (for fire alarms) onto the detection loop.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN- 320
BRANNALARM
Tilpasning senhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-300
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN- 320
BRANNALARM
Tilpasning senhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasning senhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-300
1. Pos (+) in
2. Pos (+) out
3. Neg (-) in
4. Neg (-) out
5. (-) Input
6.
(+)
Input
1 2 3 4 5 6
BNB-300/32
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 27
3.19 Single Relay Output Unit (BN-310)
BN-310 single relay output unit contains a potential free change-over
contact which can be activated from a detector or a combination of
several detectors in alarm.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-310
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
BN- 35
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN-310
5. N.A
6. N.A
7. N.A
8. N.A
9. Normally open
10. Normally closed
11. Common
1.Pos (+) in
2. Pos (+) out
3. Neg (-) in
4. Neg (-) out
Loop
Relay
c
ontact
1 2 3 4
11 10 9 8 7 6 5
Not
f
or use.
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 28
3.20 Day/Night Control Unit with Pushbuttons
(BW-202)
Applies to AutroSafe only.
The Day/Night Control Unit is used for remote operation of the
Disable/Enable ‘Immediate Output Action’ commands. The unit is
connected to and powered from the detection loop.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-202
BN-320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
Loop
Driver
Module
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-202
BN-320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
BN-320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
Loop
Driver
Module
24V Input
Night Mode
Day Mode
Detection
Loop
+
+
-
-
24V Output
LED
*
* 1 or 2 units on each loop: Connect detector loop + (1), and detector loop – (3) to 24V input.
More than 2 units on each loop: Use external 24V supply
Separate 24V DC must always be used when if more than 2 units are connected to the loop, or if the 24V output is
used.
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 29

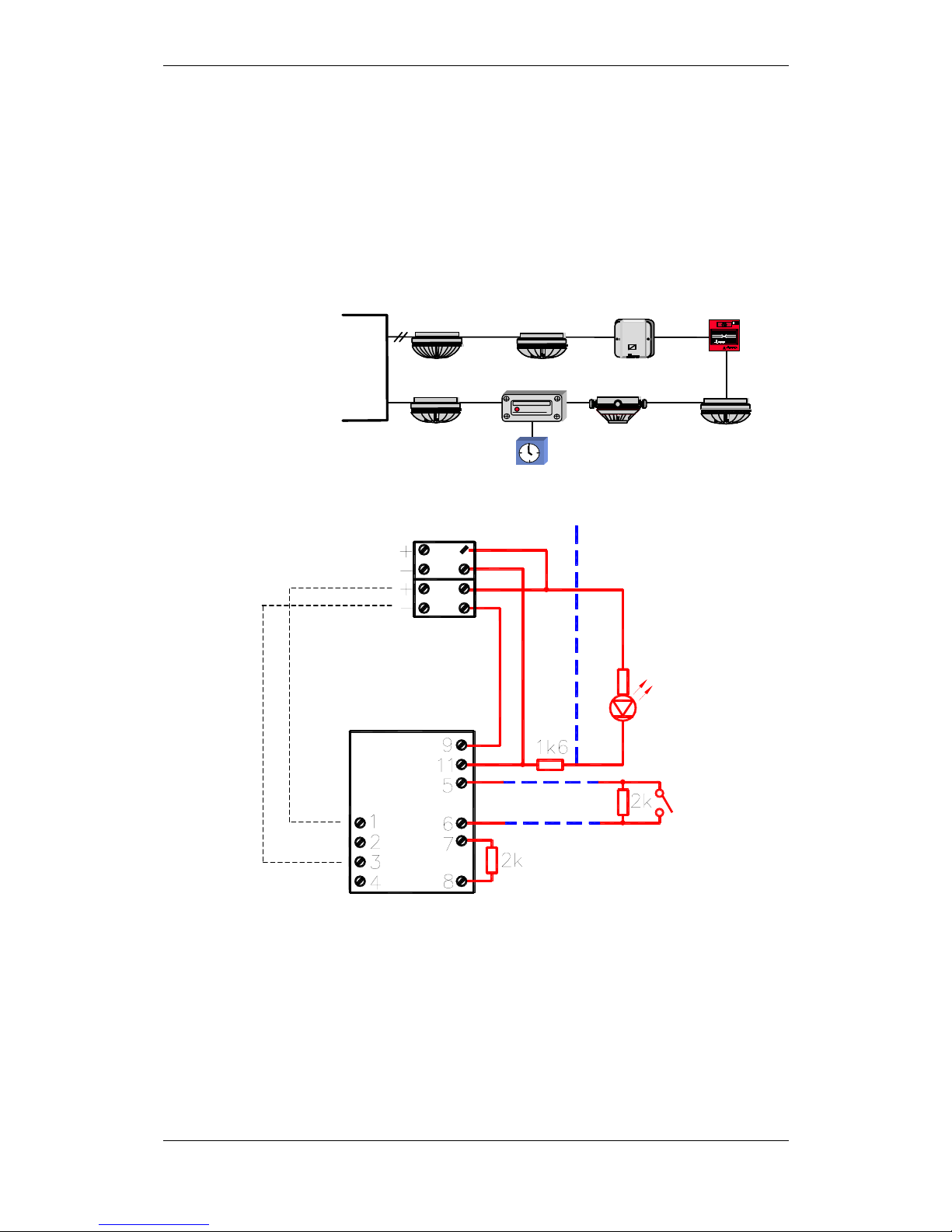

3.21 Disable Input with Timer Input (BW-201)
Applies to AutroSafe only.
The Disable unit is used to disable one or a number of detection
zones. The unit is connected to and powered from the detection loop.
An external timer controls the disablement time.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-201
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
ExternalTimer
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-201
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
ExternalTimer
Connection to
External timer
24V Output
24V Input
* 1 or 2 units on each loop: Connect detector loop + (1), and detector loop – (3) to 24V input.
More than 2 units on each loop: Use external 24V supply
Separate 24V DC must always be used when if more than 2 units are connected to the loop, or if the 24V
output is used.
LED
Detection
Loop
+
+
-
-
*
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 30

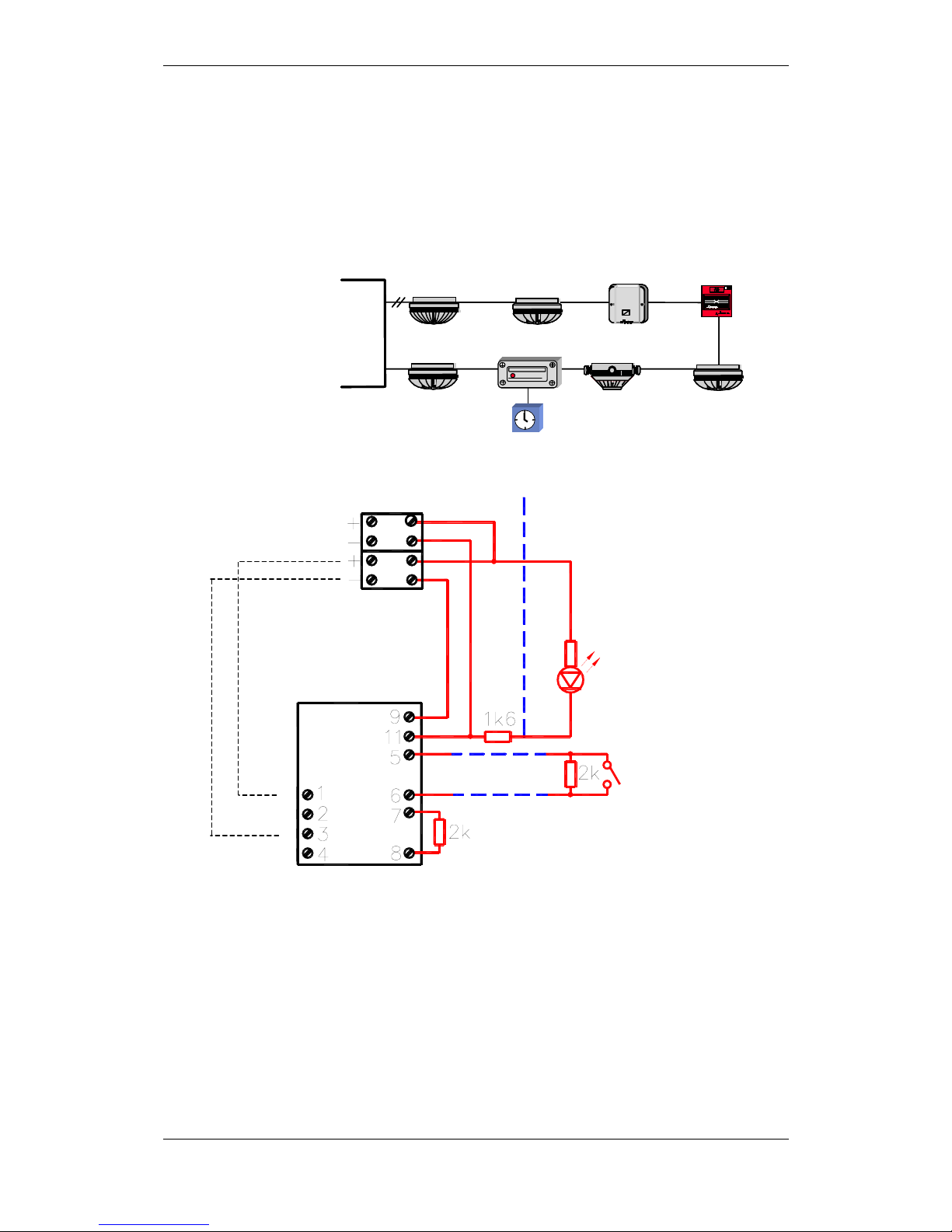

3.22 Day/Night Control Unit with Timer Input (BW-203)
Applies to AutroSafe only.
The Day/Night Control Unit is used for remote operation of the
Disable/Enable ‘Immediate Output Action’ commands. The unit is
connected to and powered from the detection loop. An external timer
controls the monitored input.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-203
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
External Timer
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-203
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
External Timer
* 1 or 2 units on each loop: Connect detector loop + (1), and detector loop – (3) to 24V input.
More than 2 units on each loop: Use external 24V supply
Separate 24V DC must always be used when if more than 2 units are connected to the loop, or if the 24V
output is used.
Detection
Loop
Connection to
External timer
24V Output
LED
24V Input
*
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 31

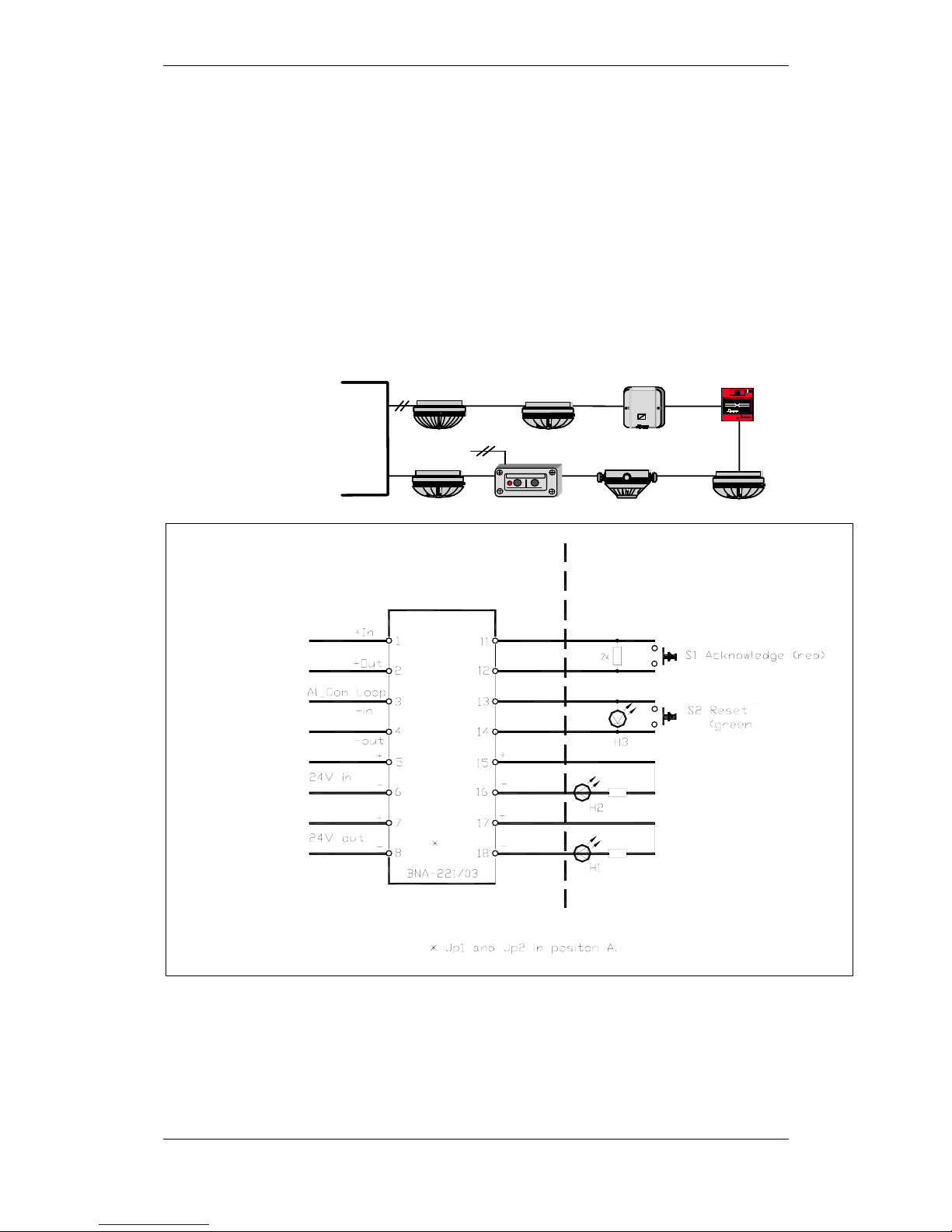

3.23 Remote Alarm Control Unit (BU-200)
Applies to AutroSafe only.
The Remote Alarm Control Unit is used for remote / local alarm
handling from predefined areas / zones. The main purpose of the unit
is to facilitate alarm handling without disturbance of people and
unnecessary calls to rescue services, for example, the fire brigade.
The unit can send acknowledgement and reset to the Control Panel
(BS-310/320/330). The Remote Alarm Unit is connected to the
detection loop. Each loop unit can be connected to one Operation
Zone. An Operation Zone can have one or more units, but requires
separate 24V DC power.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-200
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
24VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BW-200
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
24VDC
BU-200
Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 32

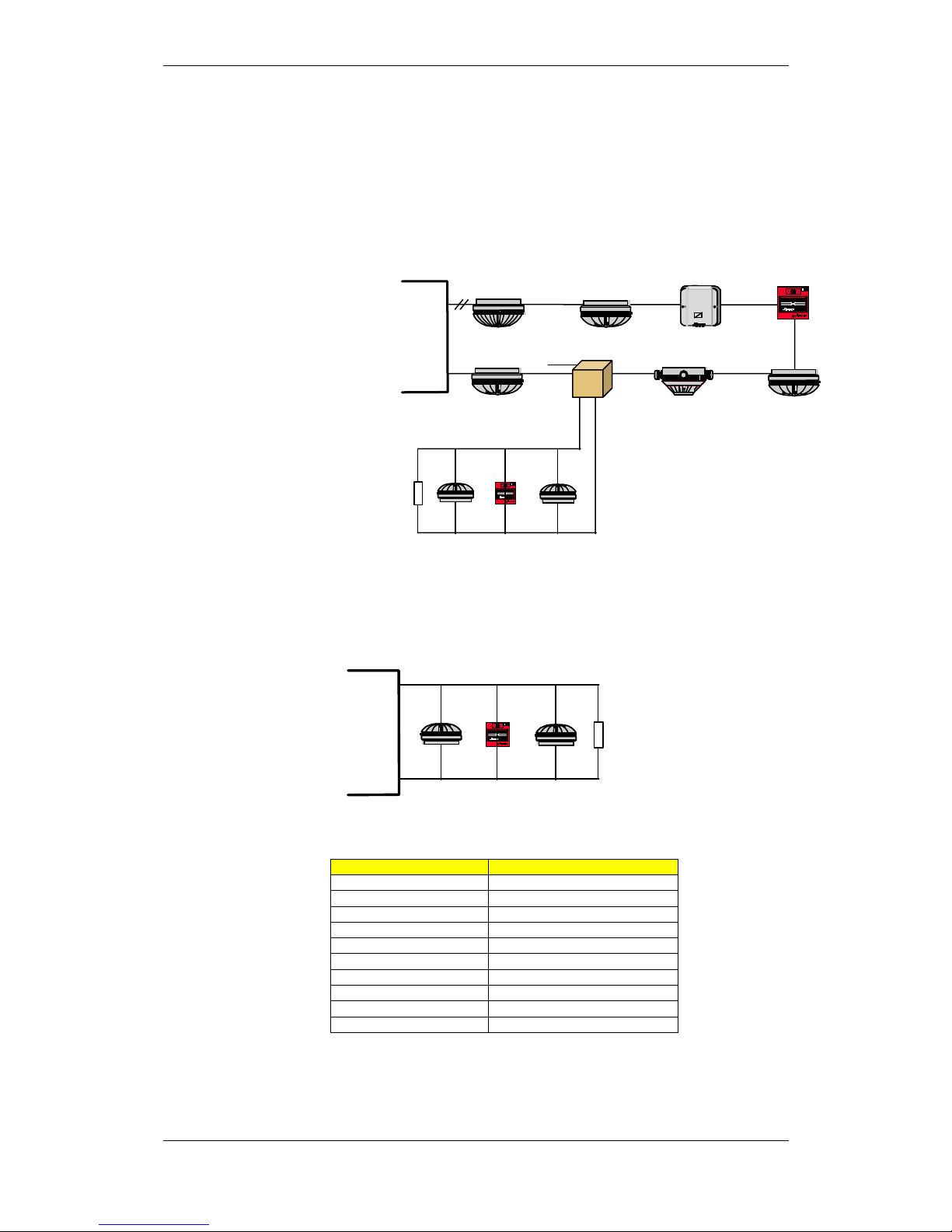

3.24 Interface Unit for Conventional Loops (BN-330)
Applies to AutroSafe only.
The Interface Unit for Conventional Loops BN-330 consists of a
BNB-330 module* mounted on a DIN-rail inside a PCM-box. The
conventional detectors are connected to a two-wire sub loop. The sub
loop is monitored for broken line by an end-of line unit BNY-330. The
interface unit must have a separate 24V supply.
PRESS HERETRYKK HE R
KNUS GLASSET
BREAK GLASS
BN-330
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Loop
Driver
Module
+
-
Conventional Loop
24VDC
End-of line
unit BNY-330
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
* Variant:
The internal Conventional Loop Interface Module BNB-330 is
mounted on a DIN-rail onto other internal modules inside the Fire
Alarm Control Panel / Controller where it is powered with 24VDC.
BNB-330
Module
+
-
Conventional Loop
End-of line
unit BNY-330
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Screw Terminal no. Signal
1 + AL-Com in
2 - AL_Com in
3 + AL-Com out
4 - AL_Com out
5 + 24V Input
6 0V
7 Conventional loop 15V/24V select
8 T-output / Open collector
9 + conventional loop
10 - conventional loop
Reader’s Comments
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
4. Reader’s Comments
Please help us to improve the quality of our documentation by returning your comments on this
manual:
Title: Connecting Loop Units, Interactive Fire Detection Systems,
Ref. No.: 116-P-CONNECTLOOPUNIT/DGB 2007-10-10
Your information on any inaccuracies or omissions (with page reference):
Please turn the page
Reader’s Comments
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Suggestions for improvements
Thank you! We will investigate your comments promptly.
Would you like a written reply? θ Yes θ No
Name: -----------------------------------------------------------------------------------------------Title: -----------------------------------------------------------------------------------------------Company: -----------------------------------------------------------------------------------------------Address: ------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------Telephone: -----------------------------------------------------------------------------------------------Fax: -----------------------------------------------------------------------------------------------Date: ------------------------------------------------------------------------------------------------
Please send this form to: Autronica Fire and Security AS
N-7483 Trondheim
Norway
Tel: + 47 73 58 25 00
Fax: + 47 73 58 25 01
www.autronicafire.com
Reader’s Comments
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Autronica Fire and Security is an international company, headquartered in Trondheim, one of the largest cities in Norway.
The company is owned by United Technologies Corporation and employs more than 319 persons with experience in
developing, manufacturing and marketing of fire safety equipment. Our products cover a broad range of systems for integrated
solutions, including fire detection systems, integrated fire and gas detection systems, control and presentation systems, voice
alarm systems, public address systems, emergency light systems, plus suppression systems.
All products are easily adaptable to a wide variety of applications, among others, hospitals, airports, churches and schools, as
well as to heavy industry and high-risk applications such as power plants, computer sites and offshore installations, world wide.
The company's strategy and philosophy is plainly manifested in the business idea:
Protecting life, environment and property.
Quality Assurance
Stringent control throughout Autronica Fire and Security assures the excellence of our products and services. Our products are
CE marked and developed for worldwide standards and regulations, and conform with the CEN regulation EN54. Our quality
system conforms to the Quality System Standard NS-EN ISO 9001:2000 and is valid for the following product and service
ranges: marketing, sales, development, engineering, manufacture, installation, commissioning and servicing of suppression,
integrated fire and gas detection and alarm systems, plus petrochemical, oil and gas instrumentation systems for monitoring
and control.
Autronica Fire and Security AS
Headquarters, Trondheim, Norway. Phone: + 47 73 58 25 00, fax: + 47 73 58 25 01.
Head Office Oil & Gas, Stavanger, Norway. Phone: + 47 51 84 09 00, fax: + 47 51 84 09 99.
Division Oil & Gas, Oslo, Norway. Phone: + 47 23 17 50 50, Fax: + 47 23 17 50 51
Division Oil & Gas, PO Box 416, Farnborough GU14 4AT, UK. Phone: + 47 51 84 09 00, Fax: + 44 84 52 80 20 55
Division Maritime, Suppression/New Build Detection & Alarm. Norway. Phone: + 47 31 29 55 00, Fax: + 47 31 29 55 01
Division Maritime, After Sales/Service Detection & Alarm, Norway. Phone: +47-73 58 25 00, Fax: +47-73 58 25 01
Visit Autronica Fire and Security's Web site: www.autronicafire.com
Loading...
