Interactive Fire Alarm System
Release 3
Installation Handbook
Fire Alarm Control Panel, BS-310/320
Controller, BC-320
Protecting life, environment and property...
116-P-ASAFE-FA/DE, Rev. J, 2011-12-06
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE, Rev. J, 2011-12-06,
Autronica Fire and Security AS
COPYRIGHT ©
This publication, or parts thereof, may not
be reproduced in any form, by any
method, for any purpose.
Autronica Fire and Security AS and its
subsidaries assume no reponsibility for
any errors that may appear in the
publication, or for damages arising from
the information in it. No information in this
publication should be regarded as a
warranty made by Autronica Fire and
Security. The information in this
publication may be updated without
notice.
Product names mentioned in this
publication may be trademarks. They are
used only for identification.
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Table of Contents
1. Introduction ....................................................................... 6
1.1 About the Handbook .......................................................................... 6
1.2 The Reader ....................................................................................... 6
1.3 Reference Documentation................................................................. 7
1.4 Environmental Requirements ............................................................ 8
1.5 Equipment List ................................................................................... 8
1.6 Assembly Drawing ............................................................................. 9
Mounting ................................................................................. 10
1.7 Introduction ........................................................................................ 10
1.8 Location ............................................................................................. 10
1.9 Mounting Height / Space Requirement ............................................. 10
1.10 Cabinet Dimensions .......................................................................... 11
1.11 Surface Mounting .............................................................................. 12
1.11.1Removing the Front Panel ...................................................... 12
1.11.2Mounting the Cabinet .............................................................. 14
1.11.3Cable Inlets / Outlets ............................................................... 15
1.11.4Cable Connections .................................................................. 15
1.11.5Mounting the Batteries ............................................................ 16
1.11.6Reassembling the Front Panel ................................................ 16
1.12 Flush Mounting in a Wall ................................................................... 18
1.12.1Removing the Front Panel ...................................................... 18
1.12.2Removing the Mounting Plate ................................................. 18
1.12.3Flush Mounting Before Construction of t he Wall .................... 19
1.12.4Cut Out Dimensions ................................................................ 20
1.12.5Mounting the Cabinet .............................................................. 20
1.12.6Reassembling the Mounting Plate .......................................... 20
1.12.7Cable Inlets / Outlets ............................................................... 21
1.12.8Cable Connections .................................................................. 21
1.12.9Mounting the Batteries ............................................................ 21
1.12.10Reassembling the Front Panel ............................................. 21
1.12.11Mounting Several Panels in a 19'' Rack ............................... 21
2. Internal Cable Connections ............................................. 22
2.1 Introduction ........................................................................................ 22
2.2 Before Connecting Cables ................................................................ 22
2.3 Location of Fuses .............................................................................. 23
2.3.1 Fuses on Power Supply, BSS-103A/02 .................................. 23
2.3.2 Fuses on Connection Module, BSF-310B .............................. 24
2.4 Shielding and Earthing ...................................................................... 25
2.4.1 Introduction ............................................................................. 25
2.4.2 Definitions ............................................................................... 25
2.5 Power Supply and Battery Connections ............................................ 25
2.5.1 Connecting 230 VAC to Power Supply BSS-103A/02 ............ 25
2.5.2 Connecting the Batteries to Connection Module and
Power Supply .......................................................................... 27
2.6 Connecting the Network Cables (AUTROLON) ................................ 29
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.6.1 External AUTROLON Cables .................................................. 29
2.6.2 Internal AUTROLON Cable ..................................................... 29
2.7 Internal Cable Connections - Overview ............................................. 30
2.8 Connections for Temperature Compensated Battery Charging
Voltage .............................................................................................. 32
2.8.1 Introduction ............................................................................. 32
2.8.2 Connecting the Cable to External Temperature Sensor ......... 33
3. Installing I/O Modules ....................................................... 34
3.1 Introduction ........................................................................................ 34
3.2 Front View of I/O Module ................................................................... 35

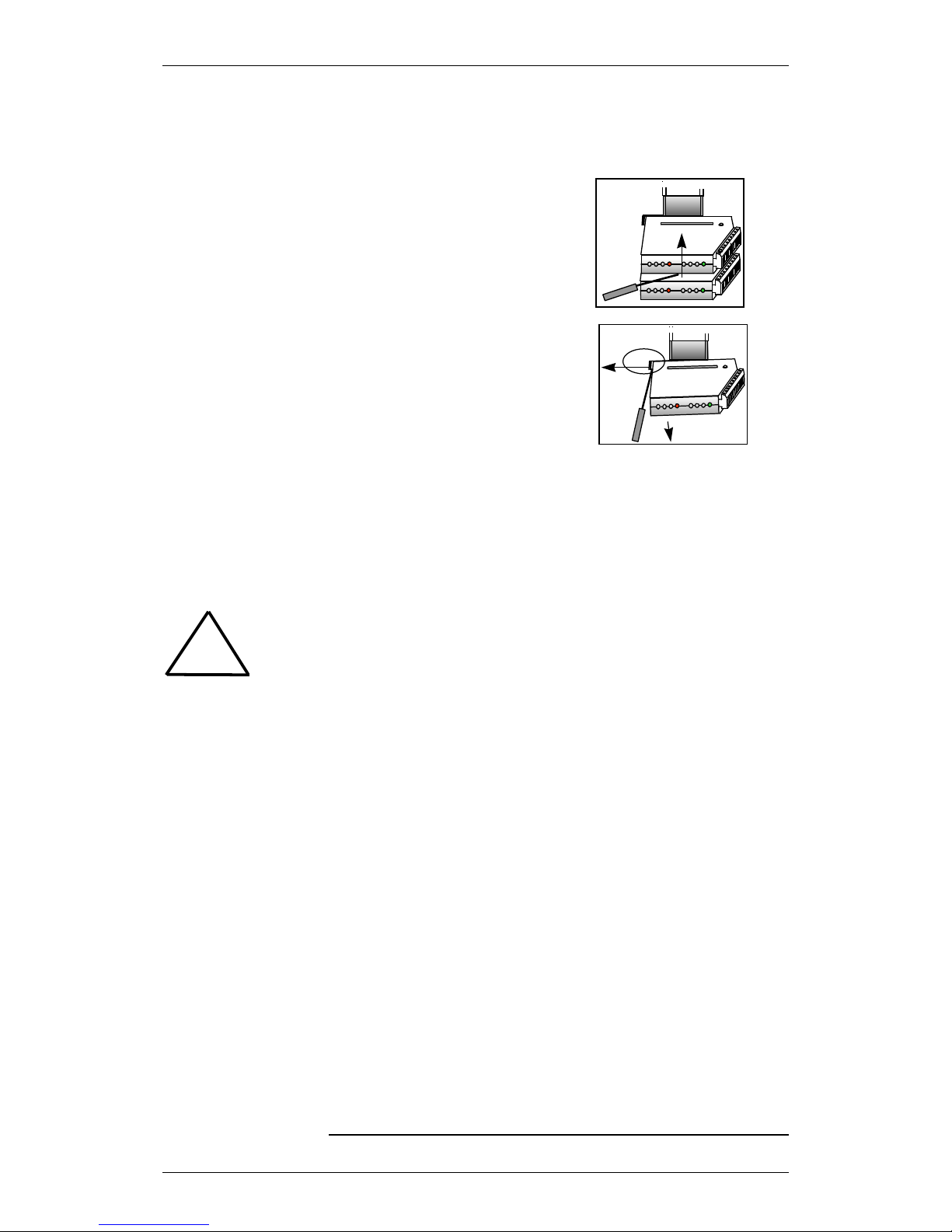

3.3 Mounting / Removing I/O Modules .................................................... 36
3.3.1 General ................................................................................... 36
3.3.2 Mounting ................................................................................. 36
3.3.3 Removing ................................................................................ 37
3.3.4 Before Connecting Cables ...................................................... 37
3.4 Data Sheets - I/O Modules ................................................................ 37
3.5 Power Module, BSS-310 ................................................................... 38
3.6 Communication Module, BSL-310 .................................................... 39
3.7 Loop Driver Module, BSD-310 / BSD-311 ......................................... 40
3.8 Output Module, Monitored, BSB-310 ................................................ 41
3.9 Output Module, BSJ-310 ................................................................... 42
3.10 Input Module, Monitored, BSE-310 ................................................... 43
3.11 Input Module, BSE-320 ..................................................................... 44
Larger Distributed Systems ............................................. 45
4.1 AUTROLON Rings with Cable Lengths >1km .................................. 45
4.2 Limitations when using AUTROLON Boosters.................................. 45
4.3 Overview - Cable Connections .......................................................... 46
4.4 Connections to the AUTROLON Booster BSL-325 ........................... 47
5. Interfacing AutroMaster_5000 ......................................... 48
5.1 General .............................................................................................. 48
5.2 Connections - Overview .................................................................... 49
5.3 Application with several AUTROLON rings ....................................... 50
5.3.1 General ................................................................................... 50
5.3.2 Application with Twisted Pair Cabling ..................................... 52
5.3.3 Application with Fibre Optic Cabling ....................................... 53
6. Guidelines for the Installation and Addressing of
Loop Units ............................................................................... 54
6.1 Introduction ........................................................................................ 54
6.2 Parameters Used During Configuration ............................................ 54
6.3 Which Parameters are Known? ........................................................ 55
6.4 Guidelines - Known Cable Layout ..................................................... 55
6.5 Guidelines - Unknown Cable Layout ................................................. 56
7. Service and Maintenance ................................................. 57
7.1 Introduction ........................................................................................ 57
7.2 Monthly Maintenance ........................................................................ 57
7.3 Annual Service and Maintenance ..................................................... 57
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
8. Reader’s Comments ......................................................... 61
Introduction
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1. Introduction
1.1 About the Handbook
This handbook is intended to provide all necessary information for the
installation of the AutroSafe Fire Alarm Control Panel (BS-310/320)
and the Controller BC-320. It also gives detailed information on
connections to the network (AUTROLON) and guidelines for the
installation and addressing of loop units.
Information on the connection of detectors and other loop units to the
detection loop is found in a separate handbook, Connecting Loop
Units, 116-P-CONNECTLOOPUNIT/GBD (pdf filname
connectloopunit_gbd).
The Fire Alarm Control Panel and the Controller are identical as far as
installation procedures are concerned. Note that all illustrations
throughout this handbook shows the Fire Alarm Control Panel with
buttons, indicators and display. The Controller has a front blackplate,
and the Display Board BSR-310, Operator Board BZ-310 and
Processor Board EAC-300 are not integrated parts of the system unit.
The chapter «Service and Maintenance» outlines the recommended
monthly and annual service and maintenance procedures.
1.2 The Reader
The handbook is intended to be used by Autronica Fire and Security
trained service and technical personnel who are responsible for the
installation of the AutroSafe Interactive Fire Alarm System.
Note that this handbook deals with the mechanical and electrical
installation only. All tasks described in the handbook are to be
performed without applying power to the system.
Power must not be applied before commissioning, refer to
Commissioning Handbook.
!
POWER OFF!
Introduction
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.3 Reference Documentation
In addition to this handbook, Autronica Fire and Security offers the
following documentation:
Handbook Item Number
System Specification P-ASAFE/XE
Installation Handbook, Fire Alarm Control Panel (BS-310/320) / Controller (BC-320) P-ASAFE-FA/DE
Installation Handbook, Operator Panel (BS-330) P-ASAFE-OP/DE
Installation Handbook, Repeater Panel (BU-320) / Information Panel (BV-320) P-ASAFE-RI/DE
Installation Handbook, Battery Cabinet (SY-310) P-ASAFE-BC/DE
Connecting Loop Units P-CONNECTLOOPUNIT/DGB
Commissioning Handbook P-ASAFE/EE
Operator’s Handbook, Fire Alarm Control Panel (BS-310/320) / Operator Panel (BS-
330)
P-ASAFE-FO/FE
Operator's Handbook, Repeater Panel (BU-320) P-ASAFE-FB/FE
Operator's Handbook, Information Panel (BV-320) P-ASAFE-IN/FE
Shortform User Guide P-ASAFE-SH/LE
Shortform Configuration Guide (for the AutroSafe Demo Board) P-ASAFE-SH/VE
Wall Chart P-ASAFE-WE/LX
Wall Chart P-ASAFE-CH/LX
Menu Structure P-ASAFE/MX
User Guide, Loop Diagnostic Tool, AS-2000 P-ASAFE-AS/FE
User Guide, Loop Simulator Tool P-ASAFE-LS/FE
User Guide, Loop Calculator Tool P-ASAFE-LC/FE
User Guide, Merge Tool P-ASAFE-MT/FE
User Guide, Power Calculator Sheet P-ASAFE-PC/FE
Introduction
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.4 Environmental Requirements
The equipment complies to environmental conditions of IEC-721-3-3
class 3k5.
Ambient temperature:-5 to +40 C
Degree of protection:IEC-529/IP30
1.5 Equipment List
The AutroSafe Fire Alarm Control Panel consists of the following:
BS-310/01: Operator front panel *, complete with:
BSR-310:Display Board with LCD
BSZ-310Operator Board
EAC-300Processor Board
Option:
BUP-310Printer
EAU-310LON Interface (BS-320 type)
EAU-321Serial Port Communication Board
EAU-330Ethernet Communication Board
BC-310/01:Controller rear cabinet
UEA-323:Cabinet (H=321 mm, W=315 mm, D=139 mm)
BSL-310:Communication Module
BSF-310:Connection Module
BSS-310:Power Module
BSS-103A/02: Power Supply
Options:
Batteries2 x 12V / 12Ah (maximum)
Modules:
BSD-310Loop Driver Module (127 addresses)
BSD-311High-power Loop Driver Module
BSB-310Output Module (4 relays, monitored)
BSJ-310Output Module (8 open collector outputs)
BSE-310Input Module (4 inputs, monitored)
BSE-320Input Module (8 inputs, galvanic isolated)
*
The Controller serves as a connection unit for Loop Driver
Modules, I/O modules and power supply only. The cabinet is thus
delivered with a black panel in front instead of the Operator Front
Panel.
Introduction
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.6 Assembly Drawing
Front Panel
Cabinet
LON Interface
EAU-310
Display Board
BSR-310
Processor Board
EAC-300
Operator Board
BSZ-310
Connection
Module BSF-310B
Loop Driver or I/O
Modules (on top of
Power and Comm.
Module)
Communication
Module BSL-310
Power Module
BSS-310A/02
Power Supply
BSS-103/01
Battery Cover
Battery Shelf
Printer
BUP-310
(Not included in
Controller, BC-320)
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Mounting
1.7 Introduction
This chapter deals with the following mounting alternatives:
Surface mounting
Flush mounting in a wall
For surface mounting and flush mounting in a wall, a stand-alone
cabinet is used.
1.8 Location
The Fire Alarm aControl Panel must be located in, or near by, the
entrance. Both the Fire Alarm Control Panel and the Controller must
be placed according to local regulations and in consultation with the
fire brigade.
1.9 Mounting Height / Space Requirement
To ensure optimal readability of the Fire Alarm Control Panel's
display, the recommended mounting height of this cabinet top is
approximately 175 cm above the floor.
For surface mounting and flush mounting in a wall, there must be a
free space of minimum 50 mm from the cabinet top to the ceiling in
order to fasten the top screw on the front panel door after the
installation. A crosshead screwdriver can be used for this purpose.
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.10 Cabinet Dimensions
The cabinet (Fire Alarm Control Panel / Controller) has the following
dimensions:
(Ref. BS-1109)
(cabinet)
(front)
(cabinet)
(front)
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.11 Surface Mounting
1.11.1 Removing the Front Panel
All the internal units within the rear cabinet are fastened to a mounting
plate. The cabinet is delivered with the front panel fastened to the
cabinet.
Unscrew the 2 screws on the top and the bottom on the right hand
side of the front panel.
Open the front panel.
Lock screw
Lock screw
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Disconnect the ribbon cable(s) between the front panel and the
cabinet by removing the connector on the BSF-310B board.
Unscrew the 4 wing nuts on the right and left hand side of the
cabinet, then close the front panel, and remove the front panel from
the cabinet .
Ribbon cable
connection
Front Panel
wing nuts
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.11.2 Mounting the Cabinet
The cabinet has 5 moun7ting holes located at the rear. The upper
holes are of key-hole-type.
Consult the illustration above, and do the following:
Mark and drill all the holes according to the illustation.
Partly fasten the upper screws.
Hang the cabinet onto the upper screws.
Partly fasten the bottom screws.
Tighten all screws.
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.11.3 Cable Inlets / Outlets
Note that two gland plates are fitted to the cabinet, one with predrilled
holes and one blank. When feeding the cables, use whichever is
appropriate. Entry should always be from top as bottom entry is
restricted, particularly if batteries are fitted.
The illustration above shows the positioning and dimensions of the
cable inlets.
Feed all the cables into the cabinet from the top through the
suitable cable inlets.
Make sure that the cables are fastened properly.
1.11.4 Cable Connections
For detailed information on cable connections, refer to chapter 3 in
this handbook.
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.11.5 Mounting the Batteries
Unscrew the screw as shown on the illustration below.
Lift the lower part of the cover off the bottom slot and remove the
battery cover.
Place the batteries in their position as shown, then reassemble the
battery cover.
1.11.6 Reassembling the Front Panel
When all the necessary cable connections are done, reassemble
the front panel.
Open the front panel.
Tighten the 4 wing nuts on the right and left side inside the cabinet.
Interconnect the ribbon cable(s) between the front panel and the
cabinet.
Close the front panel, and tighten the two lock screws on the top
and the bottom on the right hand side.
Battery Cover
Screw
Batteries;
2x12V / 12Ah
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Ribbon cable
connection
Wing nuts
Lock screw
(front door)
Lock screw
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.12 Flush Mounting in a Wall
1.12.1 Removing the Front Panel
All the inside units in the cabinet are fastened to a mounting plate. The
cabinet is delivered with the front panels fastened to the cabinet.
Follow the procedure described in chapter 2.5.1;
unscrew the 2 screws on the top and the bottom on the right
hand side of the front panel and open it.
disconnect the ribbon cables between the front panel and the
cabinet by removing the connector on the BSF-310B board.
unscrew the 4 wing nuts on the right and left side inside the
cabinet and remove the front panel from the cabinet.
1.12.2 Removing the Mounting Plate
To avoid damaging the electronics, the mounting plate inside the
cabinet should be removed.
Unscrew the 5 screws on the mounting plate inside the cabinet and
carefully lift it out of the cabinet.
Mounting
screws
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.12.3 Flush Mounting Before Construction of the Wall
If a flush mounting is planned before construction of the wall, the
cabinet - without the inside units and front panel - can be used as a
casting frame.
WARNING:
To avoid deformation, make sure that the cabinet is supported inside
before concreting.
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.12.4 Cut Out Dimensions
The illustration below shows the cabinet’s cut out dimensions. The
dimensions given include space for the cover frame, but not for the
required free space of minimum 50 mm on the top / bottom of the
cabinet.
1.12.5 Mounting the Cabinet
The cabinet has 4 mounting holes located on the left and right flange.
Consult the illustration above, and do the following:
Mark and drill all the holes according to the illustration.
Place the cabinet into the wall and fasten the 4 screws.
1.12.6 Reassembling the Mounting Plate
Reassemble the mounting plate carefully into its position inside the
cabinet.
Tighten the screws.
Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.12.7 Cable Inlets / Outlets
Feed all the cables into the cabinet from the rear through the
suitable cable inlets (refer to chapter 2.5.3).
1.12.8 Cable Connections
For detailed information on cable connections, refer to chapter 3 in
this manual.
1.12.9 Mounting the Batteries
Follow the instructions in chapter 2.5.5.
1.12.10 Reassembling the Front Panel
Follow the instructions in chapter 2.5.6.
1.12.11 Mounting Several Panels in a 19'' Rack
Rack mounting requires a free space of minimum 50 mm on the top /
bottom of the cabinet to be able to open and close the front panel.
For this purpose, a 19'' mounting plate can be used (UW-1459).
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2. Internal Cable Connections
2.1 Introduction
The Fire Alarm Control Panel / Controller is customized according to each
specific delivery. Most of the internal cabling is already done (see Cable
Connections - Overview), as the control panel will always be delivered from
the factory with the mandatory internal I/O modules; Power Module BSS-310
and the Communication Module BSL-310 installed.
In addition to a description of the location of the fuses and internal cable
connections overview, this chapter covers the following:
Connecting the Power Supply & Battery Charger
Connecting the Battery
Connecting the network cables (AUTROLON)
Connections for Temperature Compensated Battery Charging
Voltage (when external battery connection is used)
2.2 Before Connecting Cables
Before connecting cables, make sure that the mains power is not
connected.
Remove the fuses F1 and F2 on the Power Supply (refer to
illustration in the subsequent chapter).
Do not replace the fuses until commissioning of the system.
POWER OFF!
!
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.3 Location of Fuses
2.3.1 Fuses on Power Supply, BSS-103A/02
Remove the fuses F1 and F2 on the Power Supply.
Do not replace the fuses until commissioning of the system.
POWER OFF!
Fuse No. Size Type Slow/Fast Protecting
F1 2 A T2AH/250V AC Slow (T) Mains
F2 6,3 A F6,3AH/250V AC Fast (F) Battery
F3 1 A T1AL/250V AC Slow (T) External 24V DC
!
Remove fuses
F1 and F2.
Do not replace
the fuses until
commissioning
of the system.
F3 F2 F1
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.3.2 Fuses on Connection Module, BSF-310B
Fuse No. Size Type Slow/Fast Protecting
F1 3,15 A T3,15AL/250V AC Slow (T)
Charger Circuit
F2 4,0 A T4AL/250V AC Slow (T)
Battery
F3 2 A F2AL/250V AC Fast (F)
I/O Power
F4 2,5 A T2,5AL/250V AC Slow (T)
Battery / External 24V
F1
F2
F4
F3
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.4 Shielding and Earthing
2.4.1 Introduction
Due to requirements in EN54 and generic EMC-requirements, it is
very important to keep in mind how to make earthing and shielding of
cables when installing.
2.4.2 Definitions
Protective Earth
Termination point to the external protective earth. In AutroSafe this
is the connection at the BSS-103A/02 block terminal (terminal 1).
Protective Earth to
Cabinet
Main earth connection which ensures that the cabinet always is
connected to earth.
Note: Must not be removed or unscrewed.
Chassis
Electrical connection to the steel cabinet. A screw on the rear
mounting plate (up left to the Power Supply) is provided for this.
This is in turn connected to the Protective Earth for human
protection and earthing.
Shield
Termination point for the shielding of cables, where provided.
0V_BAT
Reference point for the battery circuit (isolated from earth/chassis).
2.5 Power Supply and Battery Connections
2.5.1 Connecting 230 VAC to Power Supply BSS-103A/02
NOTE!
The illustration below shows an overview of the mains connection (230 VAC) to the Power
Supply BSS-103A/02. The connection of mains power is done during commissioning. Until then,
do not
connect the mains power .
Chassis
Power
Supply
BSS-
103A/02
Protective Earth
(terminal)
Schematic outline inside cabinet - Front view
Protective
Earth to
Cabinet
Protective
Earth
230 V AC
Detail drawing of Power
Supply / upper part of Fire
Alarm Control Panel /
Controller
Live Neutral
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Power Supply
Protective Earth
In the fixed mains wiring to the panel a
two-pole disconnect device must be
provided to disconnect the equipment
from the power supply when servicing
is required. Normally, this switch is a
two-pole automatic fuse located in the
fuse terminal box at the premises. This
fuse location must be marked "Fire
Alarm System".
!
The isolation of the mains wiring must
be of either:
inflammability class V2
or
the wiring has to be fixed to the
cabinet separated from all other
cables.
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.5.2 Connecting the Batteries to Connection Module and Power Supply
Power
Supply
BSS-
103A/02
Schematic outline inside cabinet - Front view
Connection
Module
BSF-310B
Connection Module
BSF-310B
Batteries
24V/12Ah
NOTE!
The illustration below gives an overview of the
connections from the Connection Module to the
Power Supply and to the batteries.
The connection of the batteries is done during
commissioning. Until then, do not
connect the
batteries.
If the cabinet is to be placed in an environment
with high humidity, an appropriate type of
grease should be applied on the battery poles to
avoid possible development of verdigris.
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Power Supply
+
-
+
-
-
24V / 12Ah
Battery
- --
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.6 Connecting the Network Cables (AUTROLON)
2.6.1 External AUTROLON Cables
Note that the polarity of the external AUTROLON cables has no
importance. Likewise, incoming and outgoing external AUTROLON
cables can be freely connected to either LON-A or LON-B (see
drawing on next page). For documentation purposes, however, we
recommend that output is connected to A and input is connected to B.
In high-current environments (power plants, electrical machinery etc.)
it is recommended that shielded cable is used. In this case, the
shielding of the cable stubs between each cabinet should only be
connected at one end to avoid ground loops. If high-frequency noise is
expected (>10MHz), then both ends should be connected. This may
be present close to radio transmitting equipment or similar.
2.6.2 Internal AUTROLON Cable
The internal AUTROLON cable is connected between the Connection
Module BSF-310B and the LON Interface Board EAU-310 (see
drawings below and on next page).
BSF-310 board
Connector
Wires pointing
downwards
4-pin termin al
4-pin
terminal
EAU-310
board
Connector
Wires
pointing
inwards
NOTE:
Make sure that the connector on each side is mated correct and
is connected to all
pins on the 4-pin terminal, and that the wires
point downwards on the BSF-310B board, and inwards on the
EAU-310 board.
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.7 Internal Cable Connections - Overview
External AUTROLON cables
To Front Panel
Operator Board BSZ-310
Connection Module
BSF-310B
To Communication
Module BSL-310
LON A
LON A
LON A
LON B
LON B
LON B
External 24V +
Shield
LON A
LON A
Shield
LON B
LON B
External 24V +
Input connection 1 -
External 24V +
Input connection 2 -
X4-1
X4-2
X4-3
X3-1
X3-2
X2-1
X2-2
X1-1
X1-2
X1-3
X7-3
X7-2
X7-1
X6-3
X6-2
X6-1
X5-4
X5-3
X5-2
X5-1
Shield
+12V
Signal 0V
Battery +24V
Battery 0V
I/O Power +24V
I/O Power 0 V
Charger +24V
Charger 0V
To Chassis connection
(connection above
BSS-103A/02)
LON
LON
LON
LON
+24V
0V
+24V
0V
Internal AUTROLON
cable to LON Interface
board EAU-310
Watchdog
output
Watchdog output
(X4-2 / X4-3):
Normal open.
Watchdog failure:
break
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
NOTE:
The following internal cable connections are already
done when the product leaves the factory:
Power Module BSS-310: A small ribbon cable is
used between the Power Module and the Power Supply
BSS-103A/02.
Communication Module BSL-310: Two small ribbon
cables are used.
One cable is used to interconnect the Communication
Module and the Connection Module BSF-310B.
The other cable is used to interconnect the Communication
Module and the Power Supply BSS-103A/02.
Screw Terminals on Power Supply BSS-103A/02
8 7 6 5 4 3 2 1
- + T - + 230V
10 9 8 7 6 5 4 3 2 1
10 9 8 7 6 5 4 3 2 1
Protective Earth
Neutral
230V
+24V DC to battery
0V
Test
External 24V Output
Connector
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.8 Connections for Temperature Compensated
Battery Charging Voltage
2.8.1 Introduction
The Power Supply BSS-103A/02 in the Fire Alarm Control Panel BS310/320 / Controller BC-320 is provided with a temperature sensor for
temperature compensated battery charging voltage.
The internal connections to the sensor is already done when the
product leaves the factory. The cable with the sensor has to be taped
to the battery cover bracket. If a solution with external battery
connection is used, the temperature sensor must be removed and a
longer cable from an external battery cabinet must be attached to this
connection (refer to next chapter).
AutroSafe cabinet
Fix the temperature sensor to the battery cover bracket with electrical
tape.
Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
2.8.2 Connecting the Cable to External Temperature Sensor
When a solution with external battery connection is used, the sensor
must be removed from the Power Supply BSS-103A/02. A 3m cable
must then be connected between the Power Supply BSS-103A/02 in
the Fire Alarm Control Panel / Controller and the external temperature
sensor mounted on a connector in the Battery Cabinet SY-310.
The cable for this purpose is delivered with the battery cabinet. For
information on cable connections, consult the illustrations below.
Remove the front cover on the Power Supply BSS-103A/02 (in the
Fire Alarm Control Panel / Controller).
Remove the temperature sensor.
Connect the cable from the Battery Cabinet to the connector on the
Power Supply BSS-103A/02.
Reassemble the front cover on the Power Supply BS-103/01.
Battery Cabinet
Power Supply
BSS-103A/02 in
Fire Alarm Control
Panel or Controller
Power Supply
BSS-103A/02 in
Fire Alarm
Control Panel
or Controller
Fasten
cable
with
strips
Temperature
Sensor
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3. Installing I/O Modules
3.1 Introduction
This chapter provides information on the mounting and removal of I/O
modules.
Note that the internal Power Module (BSS-310) and the
Communication Module (BSL-310) are already mounted in a fixed
position when the product leaves the factory (refer to 1.5).
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.2 Front View of I/O Module
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.3 Mounting / Removing I/O Modules
3.3.1 General
Note: The Power Module (BSS-310)
must always be mounted first on the
rail - at the bottom - before any other
modules. The Communication Module
(BSL-310) is then mounted on top of
the Power Module.
All other modules can be mounted in
arbitrary order on top of these two
modules.
3.3.2 Mounting
The connection block on the I/O module must be pointing to the right
when the module is to be inserted.
Snap the right side of the
fastener onto the mounting
rail (1), then press the module
slightly inwards (2) until the
left side fastens.
Then, carefully press the
module downwards as far
as possible. Make sure that the module is properly connected to the
module below.
Note! Make sure the mains power is OFF!
Fixed Position
BSL-310
BSS-310
1
2
When the system is to be configured at a later point, note that the
AutroSafe Configuration Tool graphically shows the first module
on the top of the figure and the following in descending order.
This is opposite to the physical mounting, and must be taken into
consideration when configuring the system. Also note that the
configuration tool does not show the BSS-310 and BSL-310.
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.3.3 Removing
Unplug the connection block.
Use a screwdriver to carefully
lift the topmost module upwards
(1) until the connector between the
modules is free.
Use the screwdriver to slightly
bend the left side of the
fastener towards left (2) until
it loosens, then remove (3) the
module.
If necessary, continue removing
the next one in the same way.
3.3.4 Before Connecting Cables
Before connecting cables, make sure that the mains power is not
connected.
Remove the fuses F1 and F2 on the Power Supply (refer to
illustration in chapter 3.3.1). Do not replace the fuses until
commissioning of the system.
POWER OFF!
3.4 Data Sheets - I/O Modules
The AutroSafe User Documentation provides data sheets for I/O
modules, including a short description of the I/O module, its
application, plus technical specifications and cabling. The subsequent
chapters in this handbook provide necessary information on
connections, screw terminals and signals.
Power Module, BSS-310
Communication Module, BSL-310
Loop Driver Module, BSD-310 / BSD-311
Output Module, monitored, BSB-310
Output Module, BSJ-310
Input Module, monitored, BSE-310
Input Module, BSE-320
2
3
!
1
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.5 Power Module, BSS-310
The I/O module has the following connections:
Screw Terminal no. Signal
1 +24 V Input
2 +24 V Input
3 0 V Input
4 0 V Input
5 Chassis
6 Chassis
7 Not in use
8 Not in use
9 Not in use
10 Not in use
The module has two green indicators;
Right green indicator (H1) - the presence of 24V DC
Left green indicator (H2) - the presence of 5V DC
Schematics
Screw
terminal 1
Green
indicator
H1 (24V)
Green
indicator
H2 (5V)
Front view when mounted on rail
Screw
terminal 10
Plug-in
Connection
Block
4
BSS-310
Chassis
5
+
BSF-310B
-
I/O M odules
3
1
5
2
4
6
+
-
+ 24V reg
+ 5V reg
BSS-310
0V
Internal
Intern a l
Internal
24V DC input
Chassis
0V
1
5
3
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.6 Communication Module, BSL-310
Connector on ribbon Cable 1
To Connection Module BSF-310B
Signal
1 INT
2 RS_GND
3 TX
4 RS_GND
5 N.C. (GND)
6 RS_GND
7 RX
8 RS_GND
9 CTS
10 RS_GND
Connector on ribbon Cable 2
To Power Module BSS-103A/02
Signal
1 TEST
2 N.C.
3 N.C. GND
4 MAINS_OK
5 N.C.
6 APPLY_LOAD
Schematics
BSF-310B
Connection
Module
BSL-310
BSS-103A/02
Power Supply
Cable 1
Cable 2
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.7 Loop Driver Module, BSD-310 / BSD-311
Screw Terminal no. Signal
1 OUT + (+24V)
2 OUT - (0V)
3 Shield
4 IN +
5 IN 6 Shield
7 F/S +
8 F/S 9 Chassis
10 Chassis
Green indicator, H5. Communication indicator that gives a pulsing
green light during traffic.
Red indicator, H1. Fail_Safe indicator that gives a steady red light if
a communication failure occurs, i.e. the system does not respond to
an alarm.
Schematics
24V DC Out
In
1
2
4
5
6
3
+
-
+
-
Detector
3
1
2
3
2
1
3
1
2
BSD-310
8
7
-
+
F/S Signal
From previous Loop Drive r Module
To next Loop Driver Module
Loop
Driver
Module
Screw
terminal 1
Red
indicator
H1
Green
indicator
H5
Front view when mounted on rail
Screw
terminal 10
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.8 Output Module, Monitored, BSB-310
Screw Terminal no. Signal
1 Output AK1 - (0V)
2 Output AK1 + (+24V)
3 Output AK2 - (0V)
4 Output AK2 + (+24V)
5 Output AK3 - (0V)
6 Output AK3 + (+24V)
7 Output AK4 - (0V)
8 Output AK4 + (+24V)
9 Input 24 VBAT
10 Input 0 VBAT
Schematics - Monitored Output
Schematics - Fault Warning Routing Equipment (FWRE) Output
Output 4 only.
Screw
terminal 1
Front view when mounted on rail
Screw
terminal 10
24V_BAT
Sense
Terminal point 2, 4, 6, 8
Terminal point 1, 3, 5, 7
+
-
24V_BAT
Sense
8
7
(Not connected)
0V_BAT
FWRE
Ext FW Routing Eq
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.9 Output Module, BSJ-310
Screw Terminal no. Signal
1 OC1
2 OC2
3 OC3
4 OC4
5 OC5
6 OC6
7 OC7
8 OC8
9 24 VBAT Output
10 Chassis
Schematics
Screw
terminal 1
Front view when mounted on rail
Screw
terminal 10
Outpu t 1
+24V
Extern a l terminal list
Outpu t 8
Maximum 100 mA
Terminal 9
+
Output
0V_BAT
Output 1-8
Output 9
+ 24V
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.10 Input Module, Monitored, BSE-310
Screw Terminal no. Signal
1 IN1 +
2 IN1 - (0V)
3 IN2 +
4 IN2 - (0V)
5 IN3 +
6 IN3 - (0V)
7 IN4 +
8 IN4 - (0V)
9 24 VBAT
10 0 VBAT
Schematics
Screw
Front view when mounted on rail
Screw
terminal 1
0
Input
2
1
2K
250-2000 Ohm
(Recommended value
is 470 Ohm)
Monitoring resistor
Signal resistor
V+
Sense
Signal
Terminal point 1, 3, 5, 7
0V
Terminal point 2, 4, 6, 8
0V
R
Installing I/O Modules
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
3.11 Input Module, BSE-320
Screw Terminal nr. Signal
1 IN1
2 IN2
3 IN3
4 IN4
5 IN5
6 IN6
7 IN7
8 IN8
9 n.c.
10 INx-power supply
Common source to all inputs (+)
Schematics
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
4. Larger Distributed Systems
4.1 AUTROLON Rings with Cable Lengths >1km
4.2 Limitations when using AUTROLON Boosters
The maximum length of a total AUTROLON ring with Boosters is 2,8
km. Boosters must be evenly spread round the AUTROLON ring.
Maximum 1000 metres between any two Boosters.
Maximum 8 panels between any two Boosters.
Maximum 6 Boosters per AUTROLON ring.
Maximum 32 panels per AUTROLON ring.
Maximum length 2,8 km (the total AUTROLON ring with Boosters).
The maximum length of the AUTROLON ring without AUTROLON
Boosters is 1km.
AUTROLON Boosters (BSL-325) are required if the AUTROLON
cable is more than 1km in length.
The maximum length of a total AUTROLON ring with Boosters is
2,8 km.
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
4.3 Overview - Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
4.4 Connections to the AUTROLON Booster BSL-325
The BSL-325 module has the following connections:
Screw Terminal no. Signal
1 LON A (polarity independent)
2 LON A (polarity independent)
3 Shield LON A
4 LON B (polarity independent)
5 LON B (polarity independent)
6 Shield LON B
7 Do NOT connect
8 Do NOT connect
9 +24 VDC Supply
10 0 VDC Supply
Screw
terminal 1
Front view when mounted on rail
Screw
terminal 10
H8 H7 H6 H5 H4 H3 H2 H1
Indicators
Interfacing AutroMaster_5000
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
5. Interfacing AutroMaster_5000
5.1 General
The example below shows part of a larger AutroSafe system
connected to an AutroMaster 5000 Colour Graphic System on the top
level. The Local Operating Network (AUTROLON) is installed as a ring
loop.
A high-level bus based ethernet, LAN, can be used between the
different work stations in the AutroMaster 5000 system. The
AUTROLON is connected to the workstations. The operator panels
can be installed in different buildings, operation zones, etc.
Autronica
Autronica
Autronica
Local Operating Network (AUTROLON)
LAN
I/O
LAN
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
I/O
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
I/O
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
I/O
Work station
Work station
Autronica
Autronica
Autronica
Power
Fire Brig. recvd.
Fire vent. activ.
Fire ext.. acktivated
0
ALARM
?
C
987
6
54
321
Silence buzzer
Silence sounders
Reset
More Alarms
Prewarning
Early warning
System fault
Function disabled
Test
Fault
Self Ver ify
INFORMASJONSPANEL
More Alarms
Silence buzzer
Power
Fire vent. activ.
Fire ext. aktivated
Fire Brig. recvd.
ALARM
Local Operating Network (AUTROLON)
Autronica
Autronica
Autronica
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
I/O
AutroMaster 5000 System
Power
Fire Brig. recvd.
Fire vent. acti v.
Fire ext.. acktivated
0
ALARM
?
C
987
6
54
321
Silence buzzer
Silence sounders
Reset
More Alarms
Prewarning
Early warning
System fault
Function disabled
Test
Fault
Self Verify
Interfacing AutroMaster_5000
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
5.2 Connections - Overview
The interface of the AutroMaster 5000 requires the use of the Ethernet
Communication Board, EAU-330. The Ethernet Communication
Board, EAU-330 is mounted onto the Processor Board EAC-300
inside the Fire Alarm Control Panel BS-310, or on the top of the LON
Interface Board (EAU-310/B) inside the Fire Alarm Control Panel BS320 or Controller BC-320.
The connection can be done via a HUB, or directly to an AutroMaster.
Connection to a HUB requires a patchcable with internal one-to-one
pin connection (straight-through).
Power
Fire Brig. Signalled
Function Delayed
Function Disabled
0
ALARM
i
C
987
6
54
3
21
Mute Panel
Silence Alarms
Reset
More Events
Testing
Fire Brig. Disabled
System Fault
Alarms Disabled
Fire Brig. Fault
Fault
Alarms Fault
AUTROSAFE
SelfVerify
19:23
HUB
Patchcable with internal
one-to-one connection.
Connection directly to an AutroMaster requires a patchcable with
internal crossing of the TX and RX signals (crossover cable). A
convenient way to accomplish this is to do the crossing in a junction
box.
Power
Fire Brig. Signalled
Function Delayed
Function Disabled
0
ALARM
i
C
987
6
54
3
21
Mute Panel
Silence Alarms
Reset
More Events
Testing
Fire Brig. Disabled
System Fault
Alarms Disabled
Fire Brig. Fault
Fault
Alarms Fault
AUTROSAFE
SelfVerify
19:23
Patchcable with internal
crossing of the TX and
RX signals.
Interfacing AutroMaster_5000
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
5.3 Application with several AUTROLON rings
5.3.1 General
AutroMaster 5000 is used as the top level system. AutroMaster 5000
enables a two-way communication with both AUTROLON rings and
monitors the entire system.
NOTE:
The communication is not possible through AUTROLON rings by use
of AutroMaster 5000. The connection from the panels on each
AUTROLON ring is done via TP or optical fibre and a HUB to
AutroMaster 5000.
The units BN-300 (Fire Alarm Interface Unit) and BN-310 (Relay
Output Unit) are used to identify a limited number of alarms between
the AUTROLON rings. For this purpose a detection loop on
AUTROLON ring 1 is connected to a detection loop on AUTROLON
ring 2.
Output (FPE; Fire Protection Equipment) on the BN-310 unit on
AUTROLON ring 2 is connected to input (FAI; Fire Alarm Interface) on
AUTROLON ring 1 (or opposite). By means of the AutroSafe
Configuration Tool, FPE on AUTROLON ring 2 is connected to
detection zones (DZ's), which enables alarm transfer to FAI on
AUTROLON ring 1. FAI on AUTROLON ring 1 is connected to a
Patchcable
The Ethernet Communication
Board, EAU-330 with a
Patchcable connected.
Interfacing AutroMaster_5000
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
detection zone with an appropriate text (for example, Fire, block A2,
third floor).
The transfer of control functions is done similarly. By means of the
configuration tool, the DZ for FAI on AUTROLON ring 1 must be
connected to FPE or alarm output for AUTROLON ring 1.
Note that if the system is configured to, for example, control one
output, the current software version does not allow this unless an
alarm is shown on panels on AUTROLON ring 1.
The configuration of outputs allows large flexibility. The activation of
alarm sounders and control outputs are configurable and the system
can be configured to give display texts that will be shown when inputs
are activated.
Interfacing AutroMaster_5000
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
5.3.2 Application with Twisted Pair Cabling
AutroMaster 5000
(master)
AutroMaster 5000
(slave)
BS-320
BC-320
HUB
AUTROLON
RING 1
Detection
Loop
BN-300
BN-310
Alarm, Fault Warning
BSD-310
2K End Resistance
Note:
Make sure that connections are galvanically isolated.
BS-320
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
BS-320
A
UTROLON
RING 2
BS-320
BC-320
BS-320
2K End Resistance
Detection
Loop
BN-310
BN-300
BSD-310
Alternative 2
Twisted Pair Cable
Maximum 90m
Twisted
Pair
Cable
Power
Fault
Self Verify
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fault
Self Verify
BS-320
Alternative 2
Twisted Pair Cable
Maximum 90m
Alternative 2
Twisted Pair Cable
Maximum 90m
Interfacing AutroMaster_5000
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
5.3.3 Application with Fibre Optic Cabling
Detail connection drawing
RX
TX
Converter
Fibre Optic
Maximum
1000-2000m
HUB
Twisted
Pair
Cable
RX
TX
Converter
Twisted
Pair
Cable
Twisted
Pair
Cable
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
987
6
54
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
RX
TX
Converter
Fibre Optic
Maximum
1000-2000m
HUB
Twisted
Pair
Cable
RX
TX
Converter
Twisted
Pair
Cable
Twisted
Pair
Cable
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
987
6
54
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
AutroMaster 5000
(master)
AutroMaster 5000
(slave)
BS-320
BC-320
HUB
A
UTROLON
RING 1
Detection
Loop
BN-300
BN-310
Alarm, Fault Warning
BSD-310
2K End Resistance
Note:
Make sure that connections are galvanically isolated.
Twisted
Pair
Cable
BS-320
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
BS-320
A
UTROLON
RING 2
BS-320
BC-320
BS-320
2K End Resistance
Detection
Loop
BN-310
BN-300
BSD-310
Twisted
Pair
Cable
Alternative 1
Fibre Optic
Maximum
1000-2000m
Alternative 1
Fibre Optic
Maximum
1000-2000m
Twisted
Pair
Cable
Converter
Converter
Converter
Twisted
Pair
Cable
Twisted
Pair
Cable
Converter
Alternative 1
Fibre Optic
Maximum
1000-2000m
Power
Fault
Self Verify
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fire Brigade Msg
Fire Vent Activated
Fire Ext Activated
0
ALARM
?
C
98
7
654
3
21
Silence Buzzer
Silence Sounders
Reset
More Alarms
Prewarning
Early Warning
System Fault
Function Disabled
Test
Fault
Self Verify
General Alarm
Power
Fault
Self Verify
BS-320
Converter
Converter
Guidelines for the Installation
and Addressing of Loop Units
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
6. Guidelines for the Installation
and Addressing of Loop Units
6.1 Introduction
The guidelines in this chapter describe the practical tasks which are
required during installation and configuration. Note that the order of
the different tasks may vary from installation to installation, as well as
the technical personnel who are responsible performing the tasks.
The tables for the guidelines (see next pages) are divided into two
colums; one for Installation and one for Configuration. To configure
the AutroSafe System, a computer with the AutroSafe Configuration
Tool is required.
All information regarding configuration is described in detail in the
«AutroSafe Configuration Tool Handbook».
6.2 Parameters Used During Configuration
Tag Name (TN), Production Number (PN) and Loop Sequence Index
(LSI) are parameters used during configuration. To be able to fully
understand the addressing and configuration of the system during
installation and commissioning, you should get familiarized with these
terms.
Parameter Description Illustration (example)
Tag Name (TN)
A short system unique
description assigned to the Loop
Unit location.
The Tag Name is a unique, but
freely selected name/number
(maximum 8 characters)
assigned to, for example, a
detector socket.
A01057
Office 2
Corridor
Power
Fire Brig. Signalled
Function Delayed
Function Disabled
0
ALARM
i
C
987
6
5
4
3
21
Mute Panel
Silence Alarms
Reset System
More Events
Testing
Fire Brig. Disabled
System Fault
Alarms Disabled
Fire Brig. Fault
Fault
Alarms Fault
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Autronica
Autronica
A01059
A01058 A01061
A01060
A01061
Office 1
Stair
Copy
Room
Canteen 1Canteen 2
Canteen 3
Production
Number (PN)
A Loop Unit unique number (the
kind of unit / when and where it
was produced).
The number is electronically
stored in each Loop Unit and
presented in readable numbers
on a removable sticker.
(Example)
Manufacturer Code + LoopUnit Type + Serial Number
00 - 06 - 00 1A AB 87
Loop Sequence
Index (LSI)
A loop specific index telling the
exact Loop Unit order on the loop
(sequencially numbered).
12 34
5
678910
11
2.1 2.2
Power
Fire Brig. Signalled
Function Delayed
Function Disabled
0
ALARM
i
C
987
6
5
4
3
21
Mute Panel
Silence Alarms
Reset System
More Events
Testing
Fire Brig. Disabled
System Fault
Alarms Disabled
Fire Brig. Fault
Fault
Alarms Fault
FARE
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Autronica
Autronica
Guidelines for the Installation
and Addressing of Loop Units
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
6.3 Which Parameters are Known?
The guidelines to be followed will depend on whether the cable layout
is known or unknown. The current situation will determine which
parameters are known or not.
If you have a known cable layout, the Tag Names and Loop
Sequence Indexes will be available. Based on this information, the
system will be able to automatically find the Production Numbers,
and connect each Production Number to the corresponding Tag
Name.
If you have an unknown cable layout, the Tag Names and
corresponding Production Numbers will be available. Based on this
information, the system will be able to automatically find the Loop
Sequence Indexes.
6.4 Guidelines - Known Cable Layout
Step Installation Configuration Known Parameters
1
Make a detailed drawing of the
building premises, showing the
cable layout with the location
of all the different loop units.
2
Mark all Tag Names on the
drawing (at each loop unit
location).
3
Enter the cable layout (loop
topology), all loop units and all
Tag Names into the AutroSafe
Configuration Tool.
At this point the system
knows both the Tag
Names and Loop
Sequence Indexes.
4
Print out the list of all Tag Names.
5
Do the installation according to
the drawings.
6
Mount each loop unit at its
respective location.
For verification only: remove
and paste the sticker with the
Production Number in its
correct position on the list,
beside the corresponding Tag
Name.
When all loop units are
mounted, the system
will know all three
parameters.
Regardless of whether the cable layout is known or not, the
Tag Names that are to be used for each Loop Unit location
should always be marked on the drawings and entered into
the Configuration Tool.
Guidelines for the Installation
and Addressing of Loop Units
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
6.5 Guidelines - Unknown Cable Layout
Step Installation Configuration Known Parameters
1
Obtain a detailed drawing of
the building premises.
(The cable layout is not shown,
as it is unknown).
2
Mark all Tag Names on the
drawing (at each loop unit
location).
3
Enter all Tag Names into the
AutroSafe Configuration Tool.
At this point the system
knows the Tag Names.
4
Print out the list of all Tag Names.
5
Install the sockets at all loop
unit locations according to the
drawings.
Mount each loop unit at its
respective location.
Remove and paste the sticker
with the Production Number in
its correct position on the list,
beside the corresponding Tag
Name.
6
Enter each Production Number
into the AutroSafe Configuration
Tool beside its corresponding Tag
Name.
When all Production
Numbers are entered
into the Configuration
Tool, the system will
know all three
parameters.
Service and Maintenance
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
7. Service and Maintenance
7.1 Introduction
The AutroSafe Interactive Fire Alarm System provides a Log Menu,
which records all system events, i.e. fire alarms, prealarms, faults,
restorations/disablements, user operations and tests.
The owner of the system / authorized personnel has a duty to register
all events in a Control Journal.
7.2 Monthly Maintenance
Step Description
1
Look through the log journal to find any possible irregularities.
2
Make sure that possible changes in the building structure or storage environment have not
affected the detectors’ capability to detect a potential fire.
3
Make sure that the detectors are not covered with paint or contami nated with dust or dirt.
4
Perform a visual inspection of the Fire Alarm Control Panel.
5
Perform a simple test of display and panel functions
6
Test the sounders.
7.3 Annual Service and Maintenance
IMPORTANT
To ensure optimal reliability and stability of system operation
and performance, a system restart shall always be carried out at
least once a year at each annual system service.
We also recommend that the system is restarted if the system
enters System Fault Condition (according to standard
procedures).
For SIL2 approved systems, service and maintenance shall
be carried out according to the proof test interval in
chapter 4; Reliability Accessments in RAMS report 2053
Rev A.
Service and Maintenance
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
The whole system (control panel, detectors, control functions) should
be inspected annually. In addition to a system restart, an annual
service inspection comprises the following:
Step Description
1
Test the panel indicator lights and internal buzzer by pushing the Mute button more than 5
seconds.
2
Test all operating keys by pressing each key:
The following buttons will give a short "Beep" when pressed:
All the alphanumeric buttons, plus;
the red Silence Alarms
, Cancel C, Enter , Help i , Close
The green Reset button
should reset the system (requires access level 3).
The Menu button
should allow you to switch between Menu Mode and Operation Mode.
3
Perform a visual and functional inspection of manual call-points and automatic detectors.
4
Activate the alarm system. Test all sounders by activating an alarm from a corresponding
manual call-point.
5
Test all control functions.
6
Disable any alarm transference to the Fire Alarm Routing Equipment -FARE output.
7
Activate alarms from at least one detector/manual call-point in each zone and a check that all
respective outputs are activated.
8
Test the action of any auxiliary operating functions (disabling, cancelling and resetting
buttons).
9
Check the alarm transference outputs by connecting from outgoing outputs (potential free
relay and 24V output) activated by alarm in a zone.
10
Check the fault warning function from detector zones by removing a detector in each zone.
Activate a fault (remove battery fuse) and observe:
- the Fault indicator starts to blink
- a fault warning is displayed
- the internal buzzer is turned on
- the Fault Warning Routing Equipment (FWRE) output is activated (if any)
11
Verify all conditions, i.e.:
- Fire Alarm condition
- Fire Warning condition
- Fault Warning condition
- Disablement condition
- Test condition
12
Check the battery voltage by disconnecting the charger and measure the voltage across the
battery after approx. 1-2 minutes (depending on the load). The voltage should be >24.5V.
13
On completion of checks, ensure that only the green "Power" indicator is on when the panel
is in its idle state (normal operation).
14
Complete a service report and service log.
The battery should be changed every 4 years. If a fault arises on the
panel that cannot be rectified, contact your nearest Autronica Fire and
Security office for qualified assistance.
Service and Maintenance
Installation Handbook, AutroSafe Interactive Fire Alarm Sy stem, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Reader’s Comments
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE, Rev. J, 2011-12-06,
Autronica Fire and Security AS
8. Reader’s Comments
Please help us to improve the quality of our documentation by returning your comments on this
manual:
Title: Installation Handbook, Fire Alarm Control Panel BS-310/320 / Controller BC-320 -,
AutroSafe Interactive Fire Alarm System, Release 3,
Ref. No.: 116-P-ASAFE-FA/DE, Rev. J, 2011-12-06
Your information on any inaccuracies or omissions (with page reference):
Please turn the page
Reader’s Comments
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE, Rev. J, 2011-12-06,
Autronica Fire and Security AS
Suggestions for improvements
Thank you! We will investigate your comments promptly.
Would you like a written reply? Yes No
Name: ------------------------------------------------------------------------------------------------
Title: ------------------------------------------------------------------------------------------------
Company: ------------------------------------------------------------------------------------------------
Address: ------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------
Telephone: ------------------------------------------------------------------------------------------------
Fax: ------------------------------------------------------------------------------------------------
Date: ------------------------------------------------------------------------------------------------
Please send this form to: Autronica Fire and Security AS
N-7483 Trondheim
Norway
Tel: + 47 73 58 25 00
Fax: + 47 73 58 25 01
www.autronicafire.com/
Reader’s Comments
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE, Rev. J, 2011-12-06,
Autronica Fire and Security AS
Autronica Fire and Security AS is an international company, based in Trondheim, Norway and has
a world-wide sales and service network. For more than 40 years Autronica’s monitoring systems
have been saving lives and preventing catastrophes on land and at sea. Autronica Fire and
Security’s most important business area is fire detection & security. Autronica Fire and Security
stands for preservation of environment, life and property.
Quality Assurance
Stringent control throughout Autronica Fire and Security assures the excellence of our products
and services. Our quality system conforms to the Quality System Standard NS-EN ISO 9001, and
is valid for the following product and service ranges: mark eting, sales, design, development,
manufacturing, installation and servicing of:
fire alarm and security systems
petrochemical, oil and gas instrumentation systems for monitoring and control
In the interest of product improvement, Autronica Fire and Security reserves the right to alter
specifications according to current rules and regulations.
Autronica Fire and Security AS
Fire and Security, Trondheim, Norway. Phone: + 47 73 58 25 00, fax: + 47 73 58 25 01.
Oil & Gas, Stavanger, Norway. Phone: + 47 51 84 09 00, fax: + 47 51 84 09 99.
Autronica Industrial Ltd., Watfor d, United Kingdom. Phone: 1923 23 37 68, fax: 1923 22 55 77.
Visit Autronica Fire and Security's Web site: http://www.autronicafire.com/
Loading...
