Battery Analyzer
User’s Manual Version 1.1
- 2 -
Caution
This analyzer is used to test 12 volt automotive batteries.
A freshly charged battery will show a higher than normal
voltage. If this is the case, turn on headlights for a few minutes to
allow the voltage to stabilise.
Always connect directly to the leads of the battery terminals,
as connection to a remote post or vehicle ground will affect
test results.
This analyzer has four functions:
• Battery test
• Charging system test
• Start system test
• Maximum load test.
The battery test results can be printed off using the inbuilt printer.
The date and time of the test are recorded on the print-off.
- 3 -
Contents
Introduction
Specifications
Battery Suitability
Product Features
Installation and Testing
Installation
Battery Test
State of Health (Battery Condition)
Testing
Charging System Test
Start System Test
Maximum System Test
Maintenance
Adjusting Date and Time
Replacing Thermal Paper Roll
Appendix: Conversion Tables of Battery
Size Range
EN and DIN Conversion Tables
JIS Specification Conversion Tables
4
4
6
6
7
9
9
10
10
10
11
13
Page 4
5
6
8
10
11
- 4 -
Introduction
DC Voltage: 9V-18V
Working Temperature: 0°C℃to + 50°C℃
Accuracy: ± 0.5mΩ
Frequency Of Testing Range: 100Hz
Packing Dimensions: 320 x 240 x 55mm
Product Dimensions: 207 x 103 x 37mm
Battery Analyzer Specifications
Note: This information is normally found on a sticker on
top of the battery.
Battery Suitability
This battery analyzer is suitable for batteries using the following
capacity rating standards and ranges:
• CCA: 100-1700
• IEC: 100-1000
• EN: 100-1700
• JIS: refer to the conversion table for CCA figures
• DIN: 100-1000
• Unknown: If rating standard and range is unknown, the tester
will show state of change (SOC), internal resistance and the
measured voltage, but not the state of health (SOH).
- 5 -
Product Features
1
2
3
5
6
4
7
1. Thermal paper roll holder and slot
2. Display shows options and data output
3. Right key for selecting functions and data
4. Left key for selecting functions and data
5. Exit key for clearing memory and exiting functions
6. Enter key for confirming functions and data
7. Protective outer body.
- 6 -
Installation and Testing
Connect the clips to the appropriate battery terminal or post;
red to positive, black to negative. Once the battery analyzer
initialises, it will display the Language Selection screen. Select
your language and press Enter to enter the main menu. To select
one of the four test functions, use the L and R keys. Use the
Enter key to select the test function required.
1. Select Battery Test, then press Enter.
2. If the battery voltage capacity is too
low, the tester will display a warning;
it is recommended to charge the
battery for an accurate assessment
of the battery condition. Press Enter
to continue.
3. Select the battery capacity rating
standard; there is a choice of five
capacity rating standards - refer to
Battery Suitability on page 4. Press
Enter to continue.
4. Select the battery capacity rating
(e.g. 500CCA), and use the L and
R keys to increase or decrease the
capacity rating in steps of five at a
time. Press Enter to start the test.
Installation
Battery Test
Caution: Ensure the vehicle’s ignition and all electrical
equipment is switched off.
- 7 -
5. The results of the test will be shown
on the display:
• SOC: State of change
• SOH: State of health
• CCA/IEC/EN/JIS/DIN: Cold
cranking as measured on the test
• V: Battery voltage as measured on
the test.
• r: internal resistance.
6. Select of you wish to print the results. Press Y to confirm,
or N to exit.
State of Health (Battery Condition)
Battery Condition Results Displayed Advice
SOH > 80% Great
Battery in peak
condition
SOH 60%-80% Good Serviceable/good
SOH 45%-60% Caution
Poor condition/
replace soon
SOH < 44%
Suggest
Replacement
Replace battery
Note: If the voltage is low, a charge and retest message
will be displayed with the test results.
- 8 -

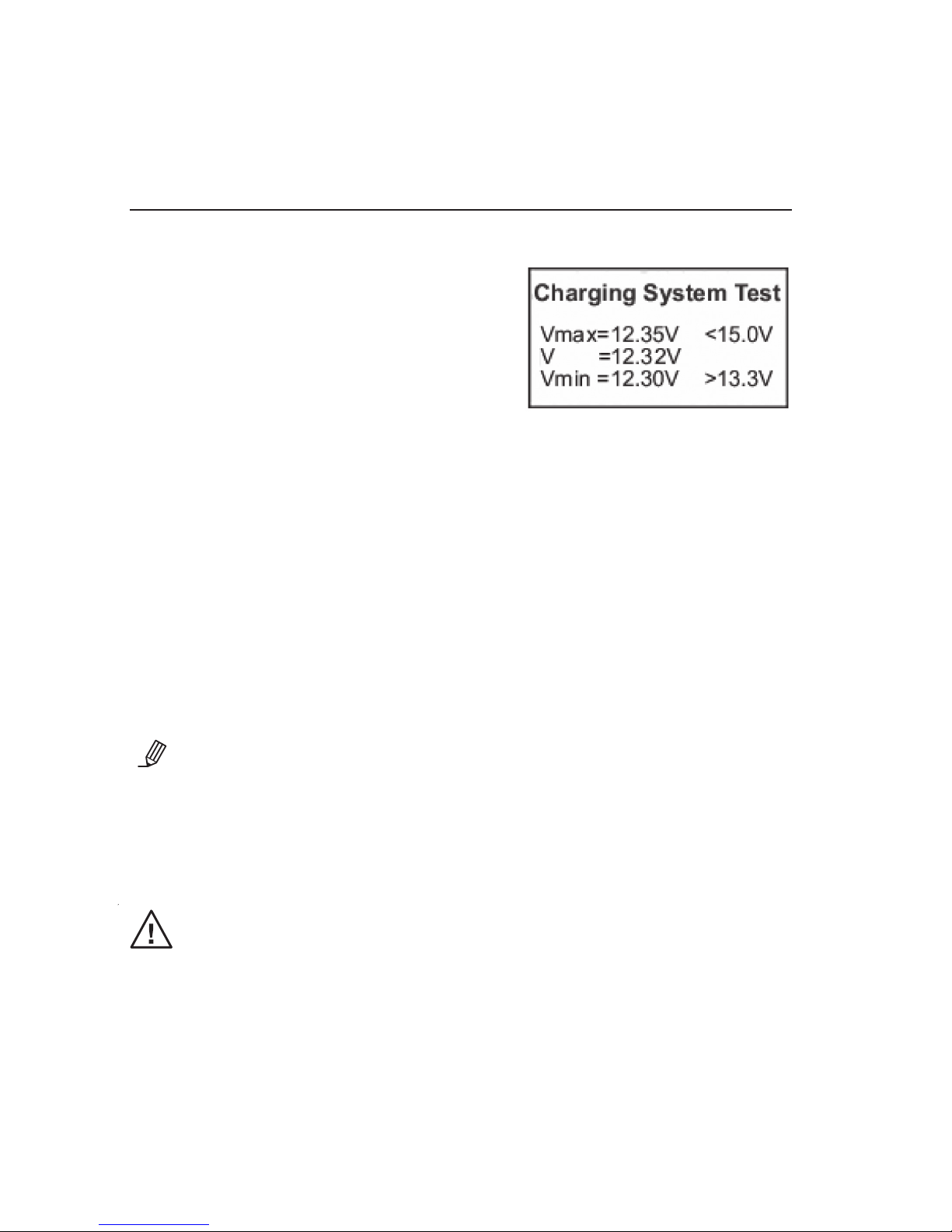

Testing
1. Connect analyzer to
battery terminals.
2. Select Charging System Test.
3. Start the engine and bring it to
2000RPM for about 15 seconds.
4. Analyzer displaying a countdown to 00.
5. Continue to idle engine whilst test results are being displayed.
6. After testing, three kinds of results will be displayed.
• Overcharging: if the test result of maximum voltage is above 15.0V
this indicates overcharging. Check and/or test the voltage regulator.
• Low Charging rate: if the test result is below 13.3V this indicates
a low charge rate. Check the connections, wiring and alternator.
• Charging system is OK: the charging system is normal.
7. Continue to idle the engine whilst printing test results.
Press Y to confirm, or N to exit.
1. Select Start System Test and press Enter.
2. Follow the instructions as they appear on the display.
Charging System Test
Start System Test
Note: If the test commences before engine is started,
then the Vmin (minimum voltage recorded) will show an
artificially low reading because of the starter motor load.
Caution: Ensure the vehicle’s ignition and all electrical
equipment is switched off before starting this test.
3. Start the vehicle’s engine.
4. The start voltage will be displayed.
If the figure is above 8.0V then the
starter system is OK. Below 8.0V
indicates a faulty starter system.
If this is the case, check all
connections, including the main
battery and grounds connnections, wiring and the
starter motor.
5. Select of you wish to print the results. Press Y to confirm,
or N to exit.
- 9 -
1. Select Max. Load Test and then
press Enter.
2. Follow the instructions as they
appear on the screen.
3. Switch on all the vehicles
electrical equipment (i.e. lights,
heated rear screen, heater fans etc), then start the engine
and bring is to 2000rpm for 15 seconds.
4. The Max.load voltage will be displayed. If the figure is below
12.8V, then check the circuit connections, including the main
battery and grounds connnections, wiring, the alternator and
also check the alternator belt is not slipping.
5. Select of you wish to print the results. Press Y to confirm,
or N to exit.
Maximum Load Test
- 10 -
Maintenance
1. Press and hold the Exit key, then connect the analyzer to a
suitable battery.
2. Use the Exit key to select the parameter, then use the L and
R keys to change the selection. Press the Exit key again to go
to the next parameter to be changed.
3. Press the Enter key when finished to finalise changes.
1. To access the paper roll, slide the access cover up and away
from the battery analyzer.
2. Connect the analyzer to a suitable battery. Place the cut edge
of the new paper roll under the black rubber roller.
3. Press the Enter key to feed the paper through the rollers.
4. Replace the cover and tear off any excess paper.
Adjusting Date and Time
Replacing the Thermal Paper Roll
- 11 -
Appendix
Conversions Tables of Battery Size Range
EN and DIN Conversion Tables
Specification CCA Specification CCA
Type Same Type DIN EN Type Same Type DIN EN
52805 52815 180 240 56420 56322 88066 300 510
53517 175 300 56530 56618 56638 300 510
53520 53521 53522 150 240 56618 56619 56620 300 510
53625 53638 53836 175 300 56633 56647 56641 300 510
53646 53621 88038 175 300 56820 56821 315 540
53653 53624 53890 175 300 57024 57029 315 540
54038 54039 175 300 57113 57539 400 680
54232 175 300 57114 56821 88074 400 680
54313 54324 54464 220 330 57218 57219 420 720
54317 54312 88146 210 360 57220 57217 420 720
54437 54466 54459L 210 360 57230 380 640
54459 54434 88046 210 360 57412 57413 57412L 400 680
54469 54449 54465 210 360 57512 57513 57513 350 570
54519 54533 54612 210 360 58515 58424 450 760
54523 54524 220 300 57521 58513 320 540
54537 54545 54801 190 300 58522 58514 320 540
54551 54580 220 300 58815 58821 395 640
54533 54577 54579 220 300 58820 58515 58521 395 640
54584 54578 220 300 58827 400 640
- 12 -
EN and DIN Conversion Tables Continued
Specification CCA Specification CCA
Type Same Type DIN EN Type Same Type DIN EN
54590 210 330 58838 58833 88092 400 640
54827 240 360 59040 59017 59018 360 600
55040 88056 265 450 59218 59219 290 480
55041 55042 220 360 59226 59215 450 760
55044 55414 88056 265 450 59514 320 540
55046 300 510 59518 59519 395 640
55056 320 540 59615 59616 360 600
55057 54827 88156 320 540 60018 30019 250 410
55068 55069 55548 220 390 66026 58811 440 720
55218 255 420 60044 60038 500 760
55414 55415 55421 265 450 60527 60528 410 680
55422 55566 55040 265 450 61017 61018 400 680
55428 55423 55427 300 510 61023 62529 450 760
55457 265 450 61047 61048 450 760
55529 220 360 62034 62038 62045 420 680
55531 55545 55559L 255 420 63013 470 680
55559 55530 88056 255 420 63545 63549 420 680
55564 55552 55563 255 420 64020 64317 64318 325 550
55564 55565 55548 255 420 64028 64035 520 760
55570 55567 55565L 255 420 64036 460 760
56012 230 390 64317 64318 64323 540 900
56048 56068 56090 250 390 65513 540 900
56049 56069 56070 250 390 65514 65515 570 900
- 13 -
EN and DIN Conversion Tables Continued
Specification CCA Specification CCA
Type Same Type DIN EN Type Same Type DIN EN
56077 56530 300 510 67043 67045 600 1000
56091 55800 360 540 68032 38034 600 1000
56111 55048 300 540 70029 70038 70027 630 1050
56218 55092 300 510 70036 68040 68021 570 950
56219 56216 300 510 71014 71015 700 1150
56220 280 510 72515 680 1150
56225 56323 300 510 73011 740 1200
56318 56312 56311 300 510
JIS Specification Conversion Tables
Specification CCA Specification CCA
JIS (New) JIS (Old) MF CMF JIS (New) JIS (Old) MF CMF
26A17R 200 55B24RS NT80-S6S 430 420 500
26A17L 200 55B24LS NT80-S6LS 430 420 500
26A19R 12N24-4 200 220 264 55D26R N50Z 350 440 525
26A19L 12N24-3 200 220 264 55D26L N50ZL 350 440 525
28A19R NT50-N24 250 60D23R 520
28A19L NT50-N24L 250 60D23L 520
32A19R NX60-N24 270 295 65D23R 420 540 580
32A19L NX60-N24L 270 295 65D23L 420 540 580
26B17R 200 65D26R NS70 415 520 625
26B17L 200 65D26L NS70L 415 520 625
28B17R 245 65D31R N70 390 520 630
28B17L 245 65D31L N70L 390 520 630
- 14 -
JIS Specification Conversion Tables Continued
Specification CCA Specification CCA
JIS (New) JIS (Old) MF CMF JIS (New) JIS (Old) MF CMF
28B19R NS40S 245 70D23R 35-60 490 540 580
28B19L NS40LS 245 70D23L 25-60 490 540 580
32B20R NS40 270 75D23R 500 520 580
32B20L NS40LS 270 75D23L 500 520 580
32C24R N40 240 325 400 75D26R F100-5 490
32C24L N40L 240 325 400 75D26L F100-5L 490
34B17R 280 75D31R N70Z 450 540 735
34B17L 280 75D31L N70ZL 450 540 735
34B19R NS40ZA 270 325 400 80D23R 580
34B19L NS40ZAL 270 325 400 80D26L 580
36B20R NS40Z 275 300 360 85B60K 500
36B20L NS40ZL 275 300 360 85BR60K 500
36B20RS NS40ZS 275 300 360 95D31R NX120-7 620 660 850
36B20LS NS40ZLS 275 300 360 95D31L NX120-7L 620 660 850
38B20R NX60-N24 330 340 410 95E41R N100 515 640 770
38B20RS NT60-N24S 330 340 410 95E41L N100L 515 640 770
38B20L NX60-24L 330 340 410 105E41R N100Z 580 720 880
38B20LS NX60-24LS 330 340 410 105E41L N100ZL 580 720 880
40B20L 330 105F51R N100Z 580
40B20R 330 105F51L N100ZL 580
42B20R 330 115E41R NS120 650 800 960
42B20L 330 115E41L NS120L 650 800 960
40B20RS 330 115F51R N120 650 800 960
40B20LS 330 115F51L N120L 650 800 960
46B24R NS60 325 360 420 130E41R NX200-10 800
- 15 -
JIS Specification Conversion Tables Continued
Specification CCA Specification CCA
JIS (New) JIS (Old) MF CMF JIS (New) JIS (Old) MF CMF
46B24L NS60L 325 360 420 130E41L NX200-10L 800
46B24RS NS60S 325 360 420 130F51R 800
46B24LS NS60LS 325 360 420 130F51L 800
46B26R 360 145F51R NS150 780 920
46B26L 360 145F51L NS150L 780 920
46B26RS 360 145G51R N150 780 900 1100
34B19RS NS40ZAS 270 325 400 80D26R NX-110-5 580 280 630
34B19LS NS40ZALS 270 325 400 80D26L NX110-5L 580 280 630
46B26LS 360 145G51L N150L 780 900 1100
48D26R N50 280 360 420 150F51R NT200-12 640
48D26L N50L 280 360 420 150F51L NT200-12L 640
50D20R 310 380 480 165G51R NS200 935 980
50D20L 310 380 480 165G51L NS200L 935 980
50D23R 85BR60K 500 170F51R NX250-12 1045
50D23L 85B60K 500 170F51L NX250-12L 1045
50B24R NT80-S6 390 180G51R NT250-15 1090
50B24L NT80-S6L 390 180G51L NT250-15L 1090
50D26R 50D20R 370 195G51R NX300-51 1145
50D26L 50D20L 370 195G51L NX300-51L 1145
55D26R 355 480 500 190H52R N200 925 1100 1300
55D23L 355 480 500 190H52L N200L 925 1100 1300
55B24R NX100-S6 435 420 500 245H52R NX400-20 1530 1250
55B24L NX100-S6L 435 420 500 245H52L NX400-20L 1530 1250
279 Normanby Road, Port Melbourne VIC 3207
tel +613 9647 9797 fax +613 9646 3427
sales@autotest.net.au www.autotest.net.au
Loading...
