STREET MACHINE SERIES
FULL RANGE
CAR AUDIO SPEAKERS
Congratulations on your purchase of the new Autotek Street Machine
Series speaker system.
The SM speaker series offer superior sonic accuracy, intense high
power sound quality with exotic build materials and outstanding
good looks.
Impact Resistant Tweeter Elements
Neo Mylar Soft Dome Tweeter
Installation hardware Included
External 12dB Passive In-Line Crossover
Raised T-Yoke
Silver Alpha-Cellulose Cones
Tight-Fit Insert Speaker Terminals
Moisture Resistant Rubber Surround
High Mid-Bass Impact
Anti-Resonant Stamped Steel Basket
Wide Nominal Power Range
As with all high quality car audio products, we recommend
professional installation by an authorised Autotek dealer.
Your dealers knowledge and experience can ensure a problem free
and cosmetically integrated installation.
If you choose to install the speakers yourself, please read the entire
manual very carefully.
1
SPEAKER LOCATION AND MOUNTING TIPS
THE FIRST STEP IS THOROUGH PLANNING BEFORE THE
INSTALLATION BEGINS.
THE SPEAKER SCREW HOLE CONFIGURATION WILL WORK WITH
MOST DOMESTIC AND FOREIGN VEHICLES.
FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE PROPER
IMAGING AND MAXXIMUM PERFORMANCE.
Factory Speaker Replacement Location and Installation
1. Before you alter the vehicles interior materials, be sure there is
adequate room and clearance for the speaker depth to clear the
windows and other moving parts. (See speaker measurement page).
2. If you are using the speaker wires provided in this kit, be sure
to route wires through the factory door grommet as shown in the
speaker mounting diagram.
3. After securing the speaker and checking clearances, connect
the red/black speaker audio wires to the correct speaker + and push-pin terminals.
Custom Speaker Location and Installation
1. Follow steps 1-3 above.
2. Use the speaker mounting diagrams and speaker hole cut-out
dimensions on the following pages.
3. Always mount the left and right side speakers on the same plane.
This means that each speaker should be the same height from
the floor and same distance from the firewall. Do not mount one
speaker higher, lower, further forward or further behind the other.
3. It is always best to keep the tweeter (component speakers) as close
to the mid range driver as possible. Typically with-in 12”.
The tweeters sound best when swivelled up, towards the rear center of
the vehicle.
2
Inner Metal Door Panel
Door Mount
COMPONENT MOUNTING & WIRING PROCEDURES
Interior Door Panel
Tweeter
Speaker
Speaker Grill
Speaker Screws
Inner Metal Door Panel
Wire Routing
Wire Connections
To amplifier
+
+ & - output
BLACK
RED
MID BASS
a
utotek
street machine
INPUT
Passive In-Line Crossover
Factory Grommet
Speaker Wires
+
OUTPUT
TWEETER
3
COAX & 3-WAY MOUNTING & WIRING PROCEDURES
Rear Deck Mount
Door Mount
Wire Routing
Speaker Grill
Mounting Screws
Spacer Ring
Speaker
Inner Metal Door Panel
Interior Door Panel
Speaker
Speaker Grill
Speaker Screws
Factory Grommet
Speaker Wires
Inner Metal Door Panel
Wire Connections
Amplifier
+
-
Red
Black
+
4

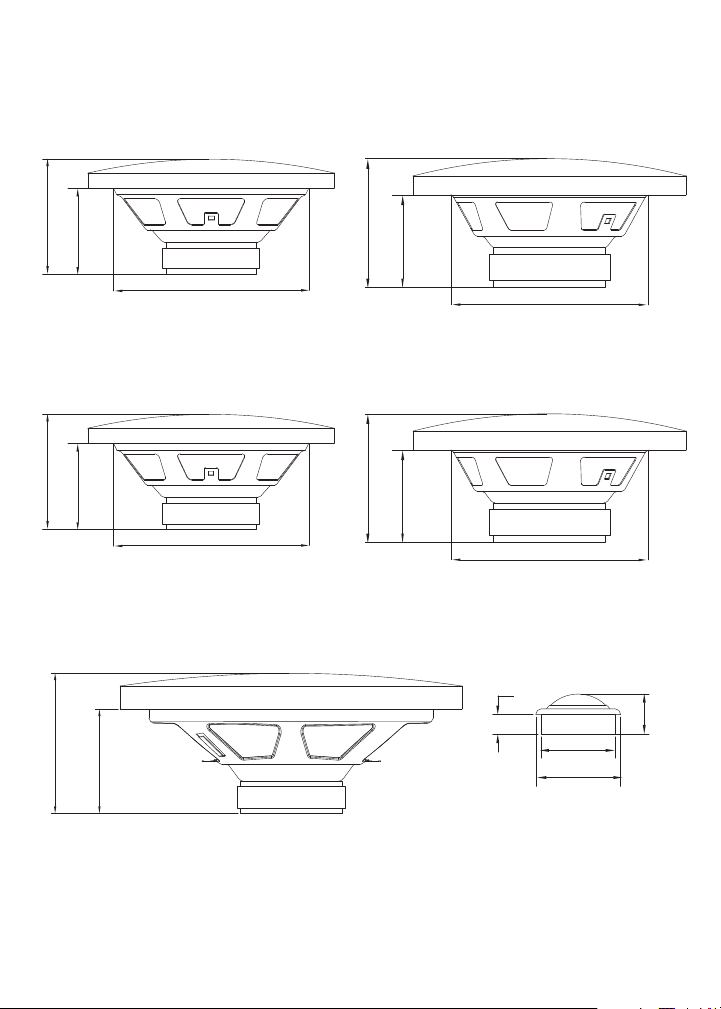

SPEAKER DIMENSIONS
SM 52 CX
2. 83”
2. 19”
4. 53”
3. 26 ”
2. 5”
SM 5. 2C
2. 91”
2. 26”
4. 53”
3. 39 ”
2. 6”
SM 62 CX
5. 6”
SM 6. 2C
5. 59”
SM 69 3
SM 5. 2C / SM 6. 2C Twe et er
.4 7”
4.2 4”
3.2 9”
1. 79 ”
2. 03 ”
.9 6”
5
AUTOTEK STREET MACHINE FULL RANGE SPEAKER SPECIFICATIONS
SIZE / TYPE 5.25” Coax 6.5” Coax 6 x 9” 3-Way 5.25” Component 6.5” Component
IMPEDANCE 4-Ohms 4-Ohms 4-Ohms 4-Ohms 4-Ohms
SPECIFICATIONS SM52CX SM62CX SM693 SM5.2C SM6.5C
FREQ. RESPONSE 64Hz-20kHz 58Hz-20kHz 46Hz-20kHz 64Hz-21kHz 59Hz-21kHz
MOUNTING DEPTH 2.19”/ 55mm 2.5”/ 63.5mm 3.29”/ 83.5mm 2.26”/ 57.5mm 2.6”/ 66mm
SENSITIVITY / SPL 88dB 89dB 89dB 89dB 89dB
NOMINAL POWER 2 to 60W 2 to 70W 2 to 100W 2 to 70W 2 to 80W
NOTICE: All features subject to change with out notice.
6
Maxxsonics Limited Warranty
As the manufacturer of Maxxsonics, Autotek, MB Quart, Cr unch and Hifonics car audio
products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier
to be free from defects in material and workmanship for one (1) Year from date of purchase.
All other parts and accessories of the system are war rantied to be free from defects in
material and workmanship for one (1) year from date of purchase. Maxxsonics will
repair or replace at it’s option and free of charge during the warranty period, any system
component that proves defective in materials and workmanship under normal installation,
use and service provided that the product is returned to the authorized Maxxsonics dealer
from where it was purchased. A photo copy of the original receipt must accompany the
product being returned.
Valid purchase receipts will contain the name and address of the authorized reseller.
Any damage to the product as a result of misuse, abuse, accident, incor rect wiring,
improper installation, alteration of date code or bar code labels, revolution, natural
disaster, or any sneaky stuff because someone messed up, repair or alteration out side
of our factory or authorized ser vice centers and any thing else you have done that you
should not have done is not covered.
This warranty is limited to defective parts and specifically excludes any incidental
or consequential damages connected therewith. This warranty is not to be constr ued
as an insurance policy.
Warranty on installation labor, removal, re-installation and freight charges are not the
responsibility of Maxxsonics USA Inc.
Warranty products damaged as a result of insufficient or improper packing materials
are not covered by this limited warranty and such damaged product will be returned
“as is” at the expense of the owner.
