Page 1
LED 8 Inch TFT
On-Camera Prompter
On-Camera Prompters
LED 8 Inch TFT
Part No. LED8TFT-ME
EN
www.autoscript.tv
Page 2
Copyright © 2014
All rights reserved.
Original Instructions: English
All rights reserved throughout the world. No part of this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph,
magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
Disclaimer
The information contained in this manual is believed to be correct at the time of printing. Vitec Videocom
Ltd reserves the right to make changes to the information or specifications without obligation to notify any
person of such revision or changes. Changes will be incorporated in new versions of the publication.
We are making every effort to ensure that our manuals are updated on a regular basis to reflect changes
to product specifications and features. Should this manual not contain information on the core functionality
of your product, please let us know. You may be able to access the latest revision of this manual from our
website.
Vitec Videocom Ltd reserves the right to make changes to product design and functionality without
notification.
Trademarks
All product trademarks and registered trademarks are the property of The Vitec Group Plc.
All other trademarks and registered trademarks are the property of their respective companies.
Published by:
Vitec Videocom Ltd
Supports Technical Publications Department
Western Way, Bury St Edmunds
Suffolk IP33 3TB
United Kingdom
Email: [email protected]
Page 3
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About this User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting the Prompter Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting the Prompter Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the Vertical Hood Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting the Prompter Assembly Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fitting the Reflective Glass Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fitting the Light Shield Cloth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting the Prompter Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Powering Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Control Panel Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Menu Display and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Main Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setup Menu Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
General Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Contents
1
Page 4
Safety
Important information on the safe installation and operation of
this product. Read this information before operating the product.
For your personal safety, read these instructions. Do not operate
the product if you do not understand how to use it safely. Save
these instructions for future reference.
Warning Symbols Used in these Instructions
Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury and
avoid possible damage to the product.
WARNING!
Where there is a risk of personal injury or injury to others,
comments appear supported by the warning triangle symbol.
Where there is a risk of damage to the product, associated
equipment, process or surroundings, comments appear
supported by the word ‘Caution’.
ELECTRIC SHOCK
Where there is a risk of electric shock, comments appear
supported by the hazardous voltage warning triangle.
Intended Use
The LED 8 inch TFT high brightness on-camera prompter has been
designed to provide a high quality teleprompting facility for television
broadcasting.
The prompter is intended for use by television camera operators, and
because of its light weight design it is particularly suitable for small jib
applications within a TV studio environment, or on outside broadcasts
(OB) when protected from weather by a suitable waterproof cover.
Health and Safety
WARNING! Risk of personal injury or injury to others. All
personnel must be fully trained and adhere to correct manual
handling techniques and Healthy & Safety regulations. It is
the responsibility of the local organisation to enforce safe
working practices at all times.
WARNING! Risk of personal injury or injury to others.
Care must be taken when handling and installing the
reflective glass panels. Always store spare glass panels in
the original packaging.
Electrical Connection
WARNING! Risk of electric shock. Always check cables for
signs of damage. Damaged cables can cause personal injury
and/or damage the equipment.
CAUTION! This product must be connected to a power
supply of the same voltage (V) and current (A) as indicated
on the product. Refer to the technical specifications for the
product.
CAUTION! Only use the power cable specified for this
product and certified for the country of use.
CAUTION! Using alternative power sources will invalidate
the system EMC liability.
CAUTION! Always use a fuse of the correct type and rating
for the product. Refer to the Technical Specifications for the
product
2
Page 5
Safety and About this Manual
Mounting and Installation
WARNING! Before attempting to install or adjust the
prompter assembly, the tilt axis of the head support must be
securely locked horizontally.
WARNING! Do not install this product onto a camera
support or other equipment that is not designed to support
the weight of the product and its payload.
WARNING! Always ensure that all power and auxiliary
communications cables are routed so that they do not
present any danger to personnel. Take care when routing
cables in areas where robotic equipment is in use.
Water, Moisture and Dust
WARNING! Protect the product from water, moisture and
dust. The presence of electricity near water can be
dangerous.
WARNING! When using this product outside, protect from
rain using a suitable waterproof cover.
Ventilation
WARNING! Slots and openings are intended for ventilation
purposes to ensure reliable operation of the product, and
protect it from overheating. Do not block or cover any slots
and openings.
Operating Environment
CAUTION! The product should not be used outside the
operating temperature limits. Refer to the product technical
specifications for the operating limits for the product.
Cleaning
WARNING! Risk of electric shock. Always disconnect and
isolate the product from the power supply before cleaning.
CAUTION! Do not use solvent or oil-based cleaners,
abrasives or wire brushes.
Maintenance
WARNING! Servicing or repair of this product must only be
performed by qualified and trained electrical engineers.
WARNING! The fitting of non-approved parts and
accessories, or the carrying out of non-approved alterations
or servicing can be dangerous and could affect the safety of
the product. It may also invalidate the terms and conditions
of the product warranty.
About this User Guide
This user guide describes the installation of the LED 8 inch TFT onto a
suitable camera support as part of a full prompting system, using the
range of compatible mounting equipment available for various camera
configurations.
3
Page 6
Components and Connections

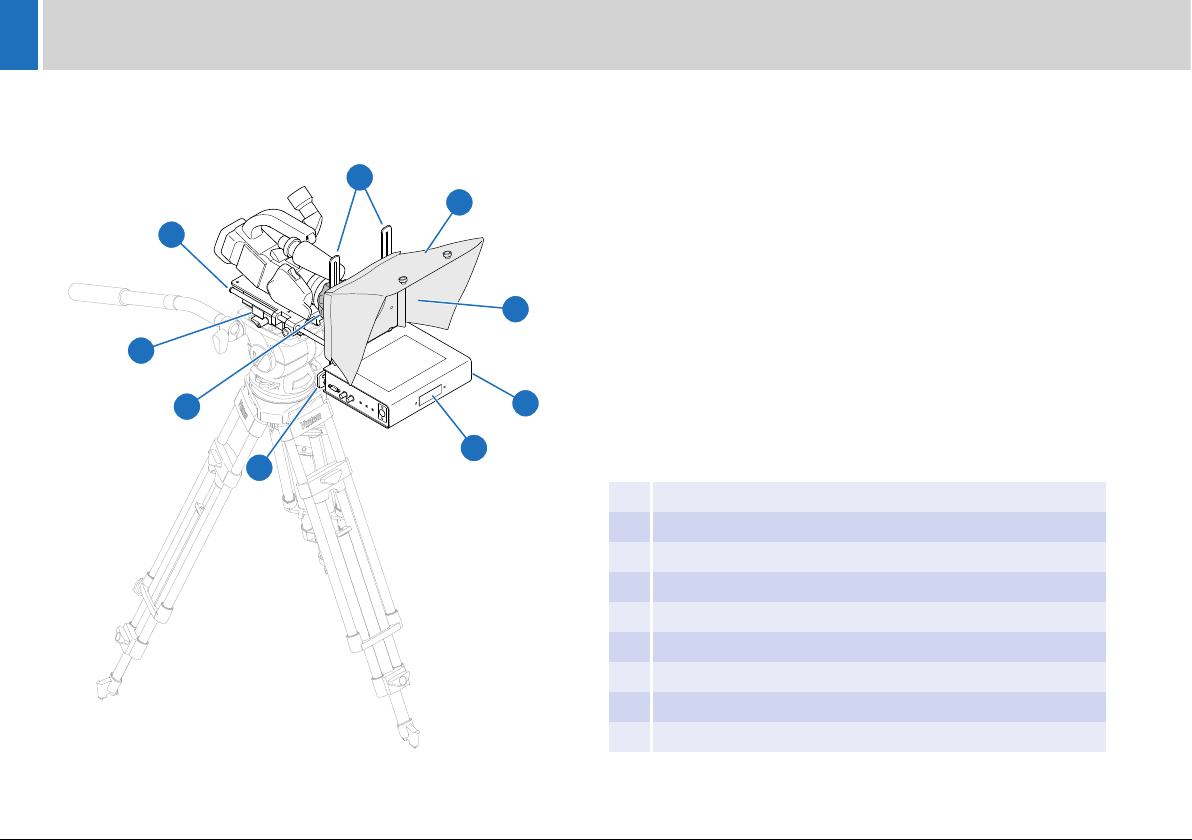

On-Camera Prompter Key Components
The illustration below highlights the key components used in a full
prompter installation.
3
4
2
1
5
9
6
7
8
1 Camera mounting plate
2 Prompter support sliding rods
3 Hood and prompter mounting angle brackets
4 Folding hood
5 Reflective glass
6 LED TFT monitor display
7 Built-in tally light
8 Prompter assembly support bar
9 Light shield cloth
4
Page 7
Components and Connections

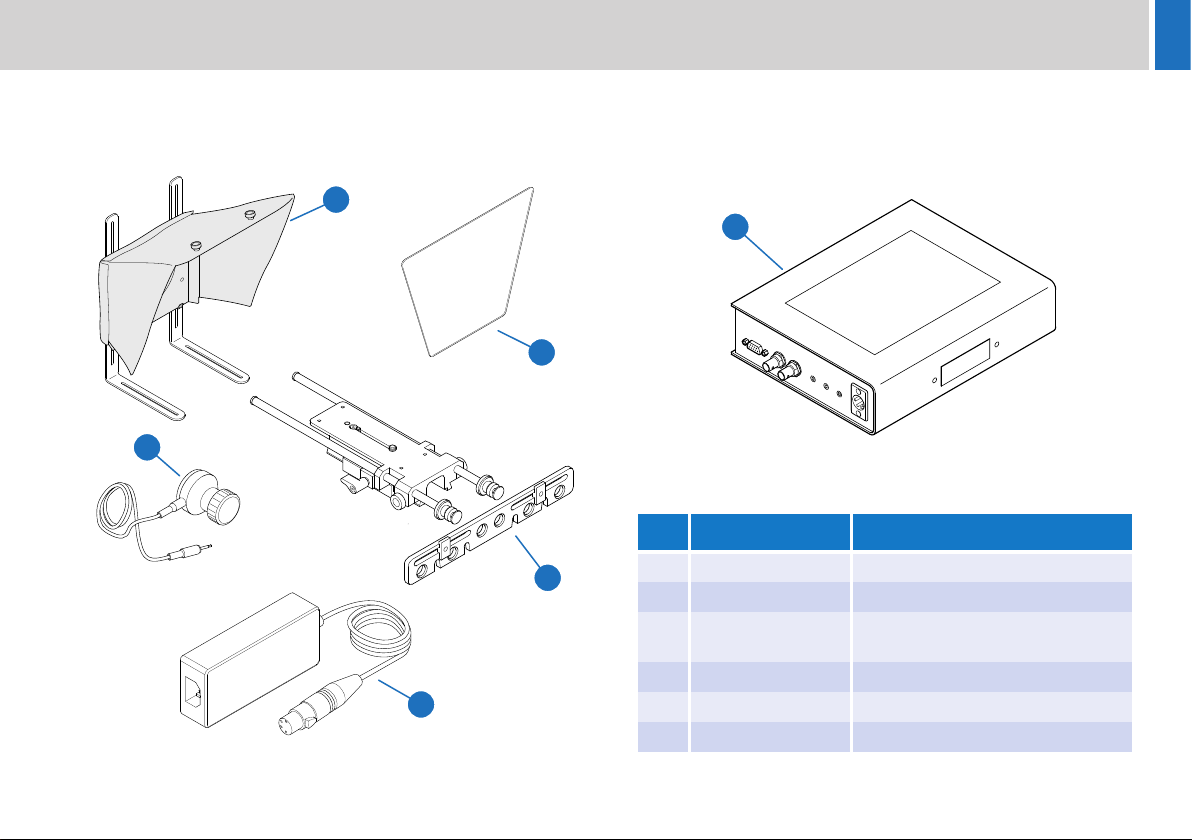

Prompter Installation Components
The following section describes the range of component parts available
for a complete prompter installation using the LED 8” TFT monitor.
1
2
5
3
4
Box Contents
6
No. Part Description
1 FH-8E Folding hood (unassembled)
2 RGFH-8 Reflective glass panel
3 MT-BLUE Small mounting plate for tripod and
jib applications with 8" prompters
4 PSU-XLR 12V DC power supply unit
5 SNSR Tally light opto sensor
6 LED8TFT-M 8 inch LED TFT prompter monitor
5
Page 8
Components and Connections

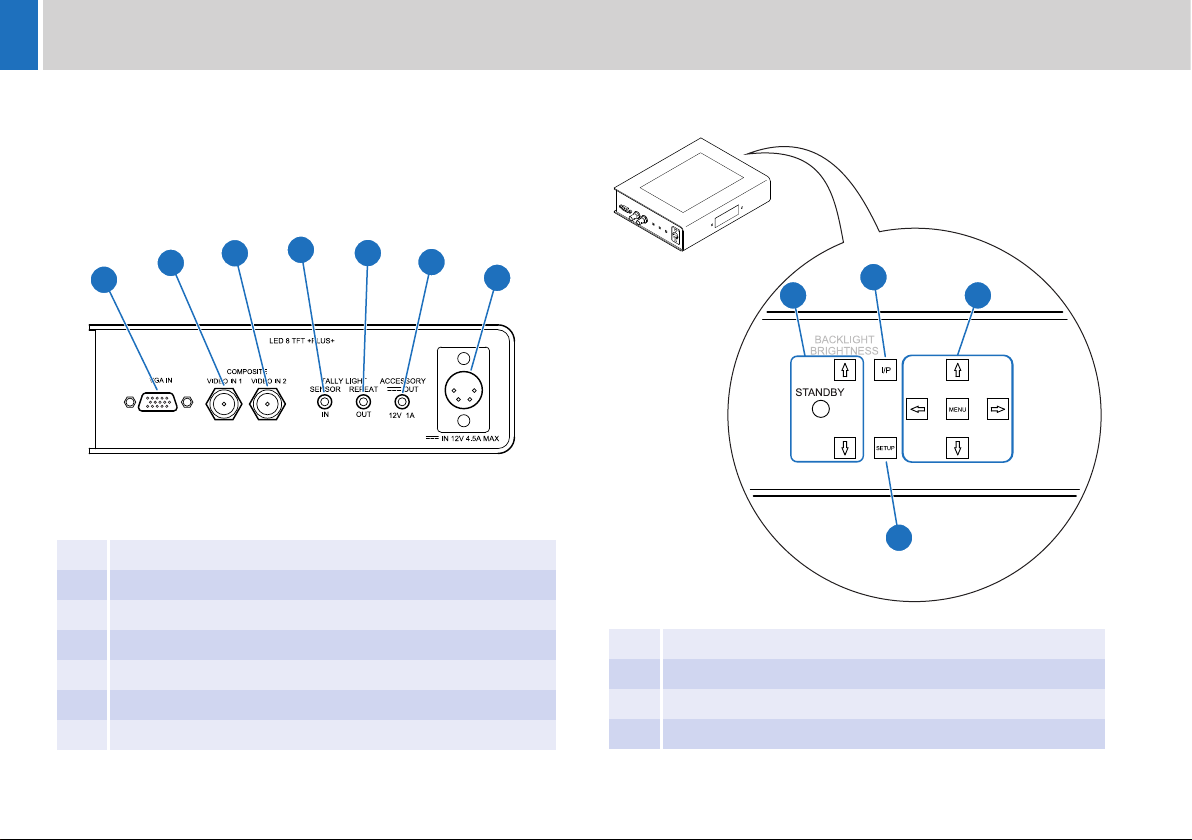

Prompter Monitor Connections
2
3
4
1
1 VGA IN socket
2 Composite video IN1 socket
3 Composite video IN2 socket
4 Tally light sensor IN socket
5 Tally light repeat OUT socket
6 12V DC OUT accessory socket
7 12V DC IN power socket
5
Prompter Monitor Control Panel
6
7
1
1 Backlight setting buttons and standby indicator
2 Video input selection button
3 Onscreen menu navigation buttons
4 AUTO VGA button
2
3
4
6
Page 9
Installation
Mounting the Prompter Components
WARNING! Before attempting to install or adjust the
prompter assembly, the tilt axis of the head support must be
securely locked horizontally.

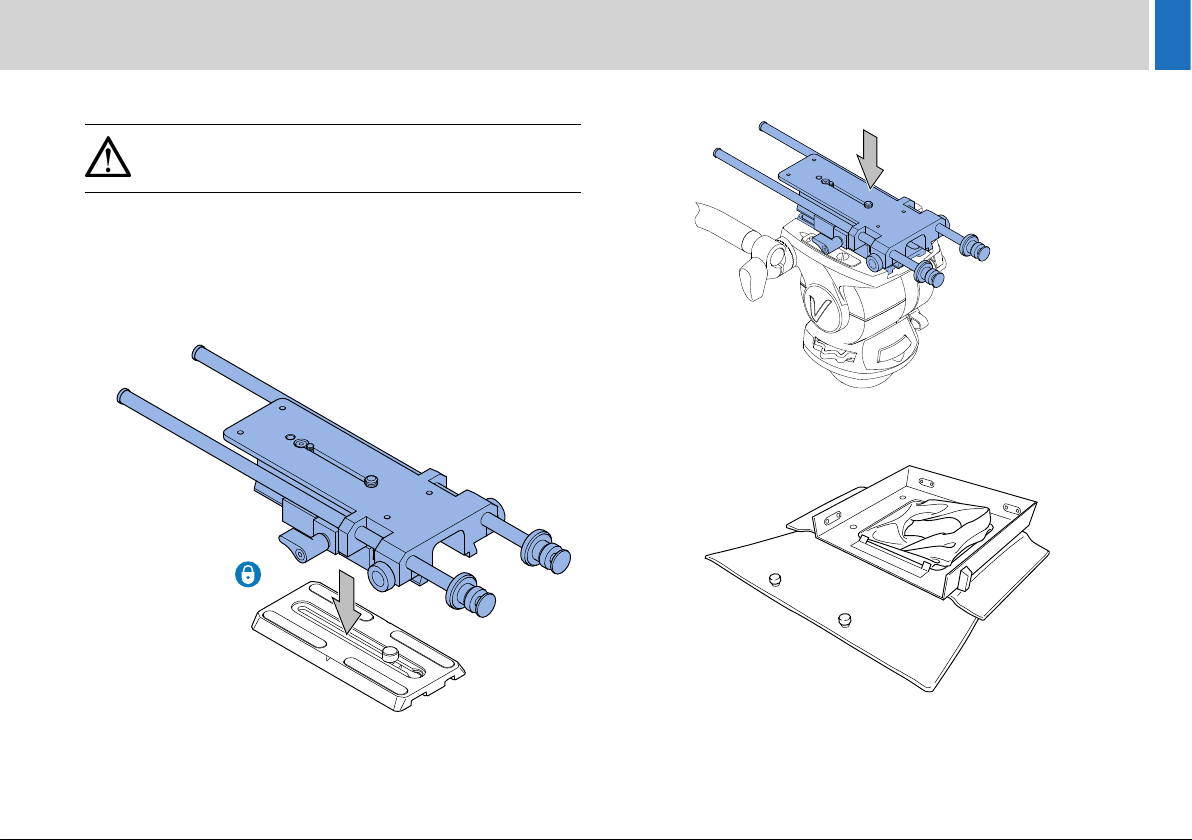

Fitting the Camera Mounting Plate
The MT-BLUE camera mounting plate must be fitted between the head
support and the camera body to allow installation of the prompter
system.
1. Fit the wedge plate adaptor to the MT-BLUE mounting plate.
2. Fit the MT-BLUE mounting plate to the camera support.
Assembling the Folding Hood
The hoods are supplied flat-packed and require some basic assembly.
When used for outside broadcasts and other portable applications, the
hoods can easily be folded flat again for transportation.
7
Page 10
Installation

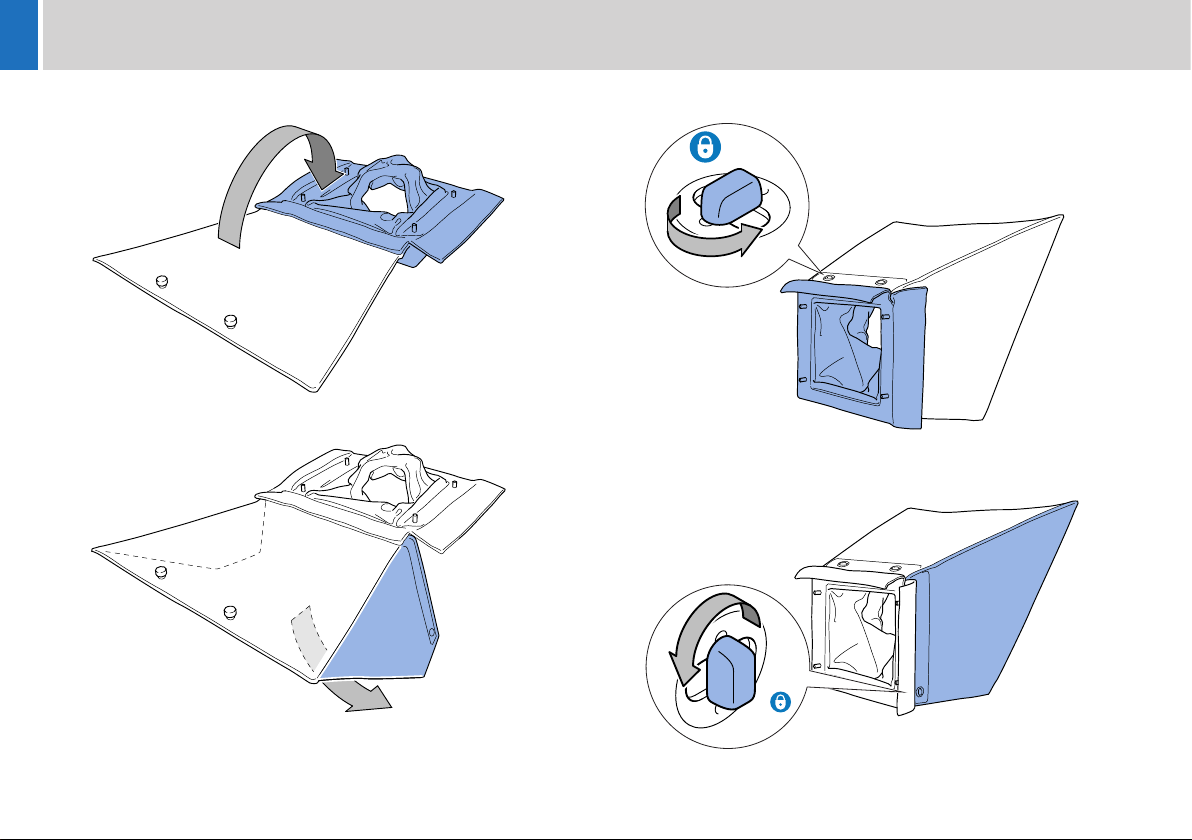

1. Fold the back plate of the hood out away from the top flag.
2. Fold the side flags outwards.
3. Align the two eyelets in the top flag with the tabs and twist to lock.
4. Align the single eyelets in both the side flags with the tabs and
twist to lock.
8
Page 11
Installation

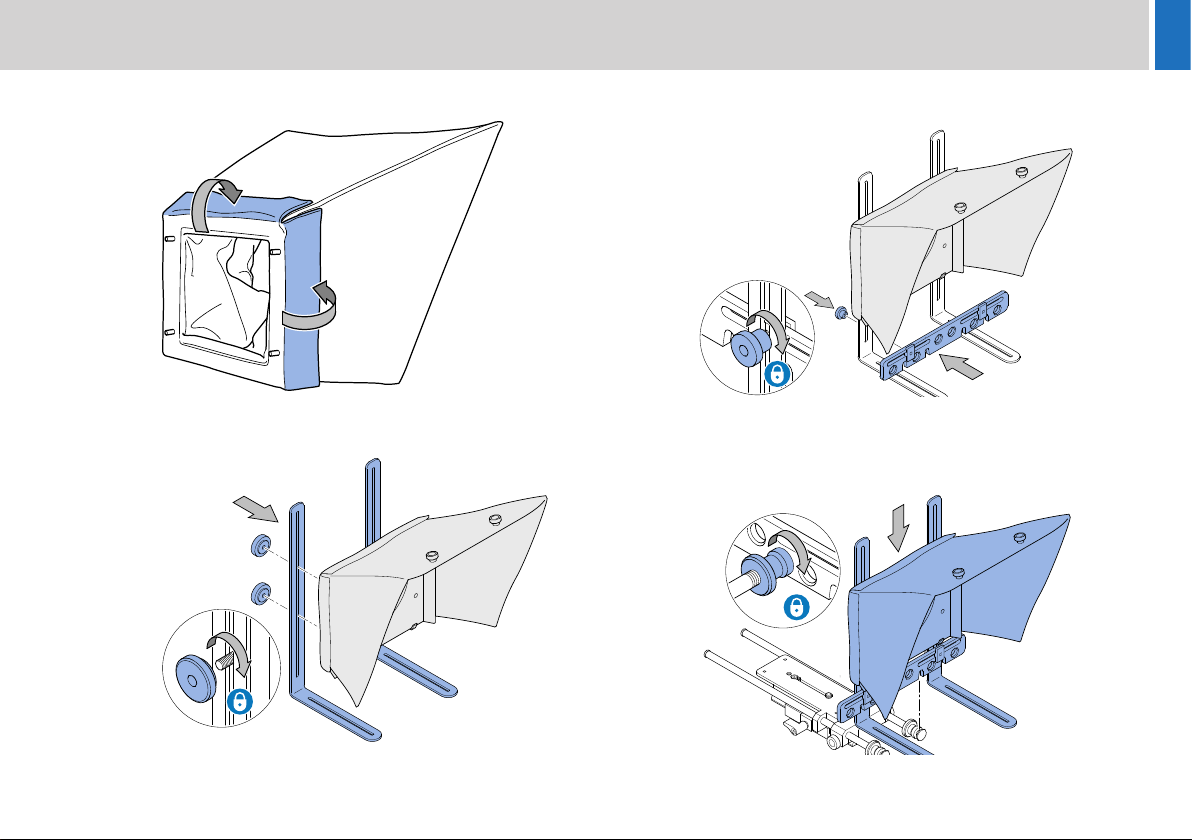

5. Fold the Velcro flaps down over the top and side flags.
6. Fit the two angle brackets to the rear, securing in position with the
four locking knobs.
7. Fit the support bar onto the brackets and secure with the two
locking knobs ensuring the bar is in a central position.
Mounting the Hood and Camera
1.
Lower the hood assembly into the slots at the end of the mounting
rods. Secure in place with the clamping knobs on the rods.
9
Page 12
Installation

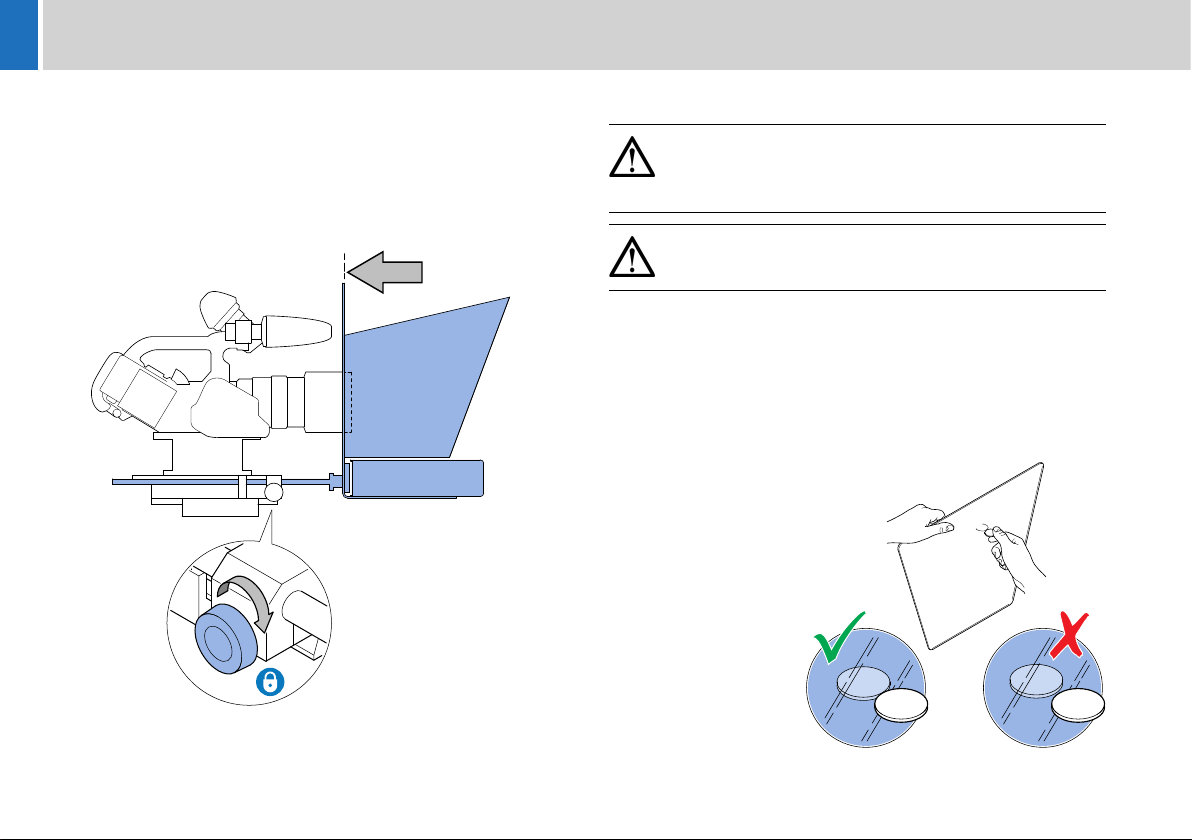

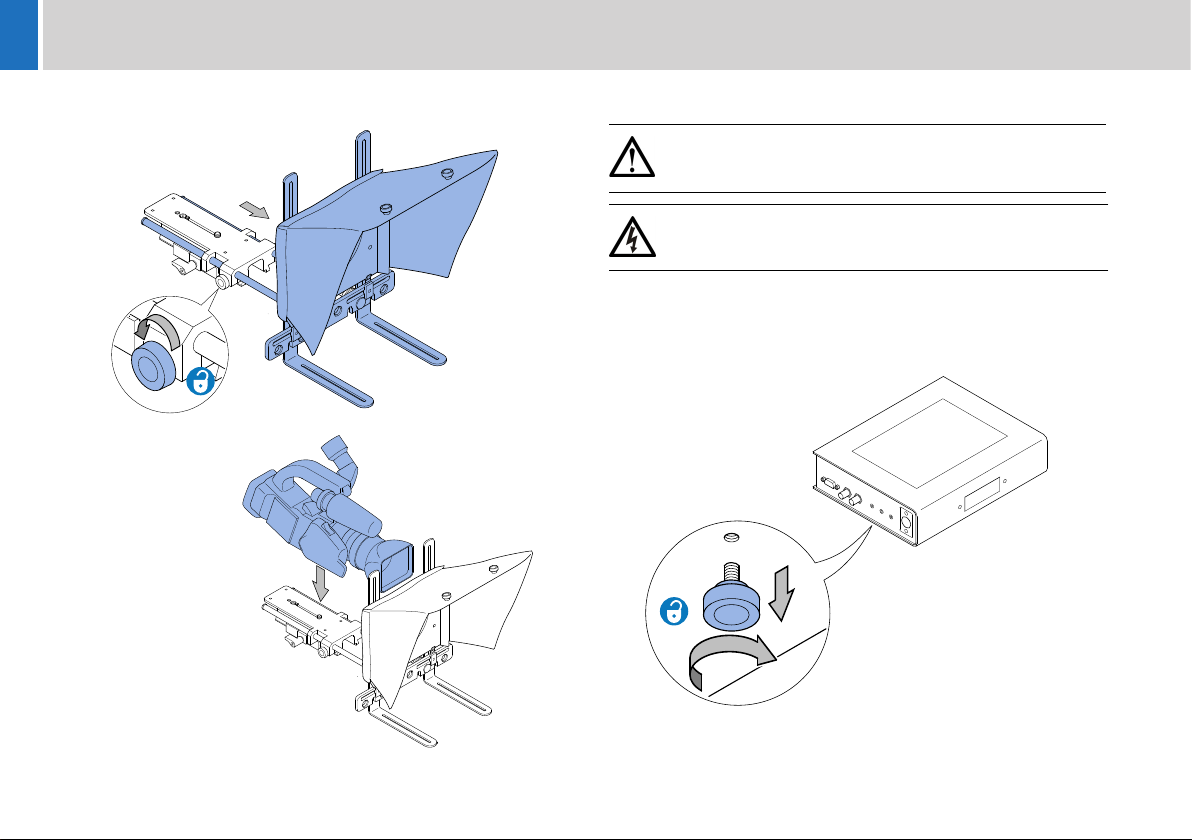

2. Loosen the rod clamps on the MT-BLUE mounting plate and slide
the hood assembly fully forwards.
3. Fit the camera
securely to the top
of the MT-BLUE
mounting plate.
Mounting the Prompter Monitor
WARNING! Before attempting to install or adjust the
prompter monitor assembly, the tilt axis of the head support
must remain securely locked horizontally.
WARNING! The prompter monitor must be isolated from the
AC power supply during installation or adjustment.
When the hood assembly and camera are correctly secured to the
camera mount, the prompter monitor can be fitted.
1. Remove the two fixing screws from the base of the monitor.
10
Page 13
Installation
2. Align the two guide pins in the base of the monitor with the slots in
the support brackets. Refit the two fixing screws to secure the
monitor in position.

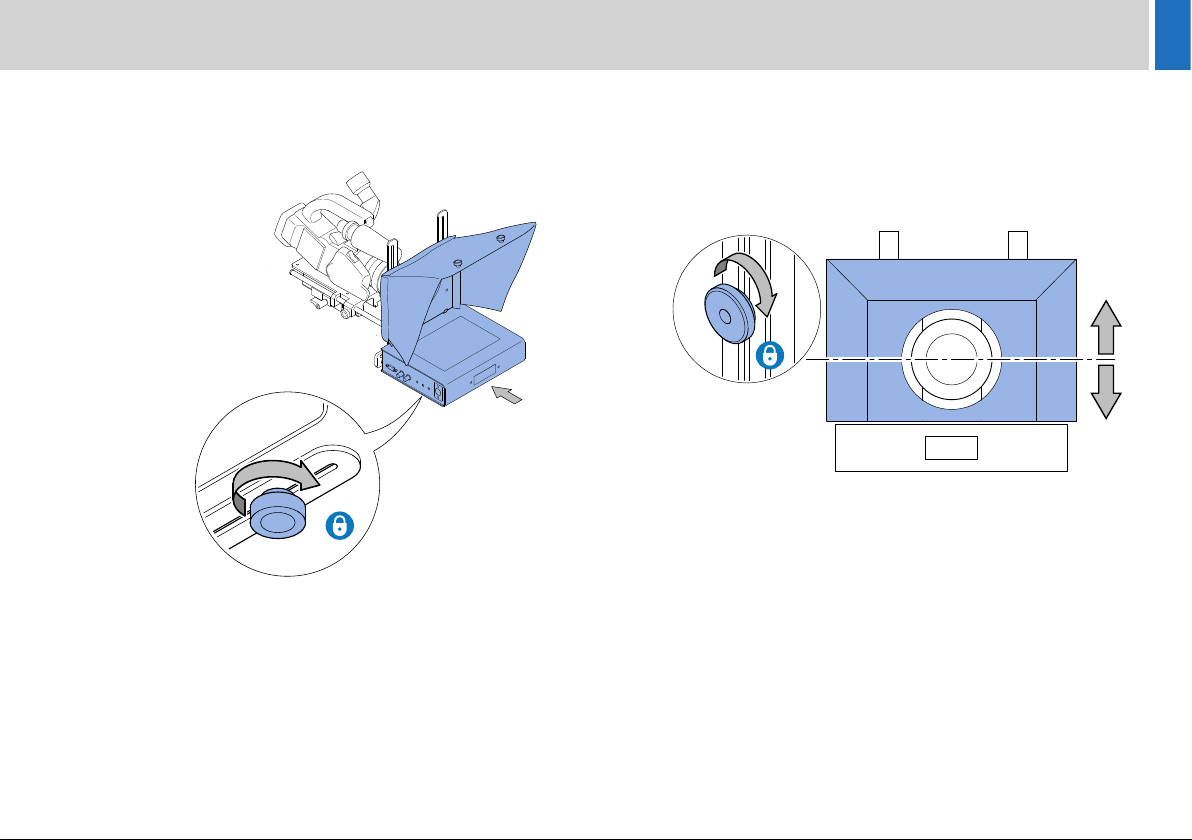

Adjusting the Vertical Hood Position
The vertical position of the hood must be adjusted to centralise it with
the camera lens.
1. Loosen the four fixing screws on the rear of the hood to adjust the
position of the hood on the brackets.
2. Adjust the vertical position of the hood to centralise it with the
camera lens and fully re-tighten the fixing screws.
11
Page 14
Installation
Adjusting the Prompter Assembly Position
The horizontal position of the prompter assembly must be adjusted to
optimise its position relative to the camera lens.
1. Loosen the rod clamps on the MT-BLUE mounting plate and move
the prompter assembly back until the hood overlaps the camera
lens.
2. Tighten the rod clamps to secure the assembly in position.
Fitting the Reflective Glass Panel
WARNING! Risk of personal injury or injury to others.
Care must be taken when handling and installing the
reflective glass panels. Always store spare glass panels in
the original packaging.
WARNING! Only use the correct size glass panel designed
for the installed hood.
When the prompter assembly has been installed, the reflective glass
panel can be fitted to the prompter assembly.
Panel Orientation
For the prompter to display images, it is essential that the reflective side
of the glass is installed facing outwards. The reflective side of the glass
can be established as follows:
Carefully hold a blunt
object such as a coin
against the surface of the
glass.
If the object is being held
against the reflective side,
there will be no gap (depth
of the glass) before the
reflection.
12
Page 15
Installation

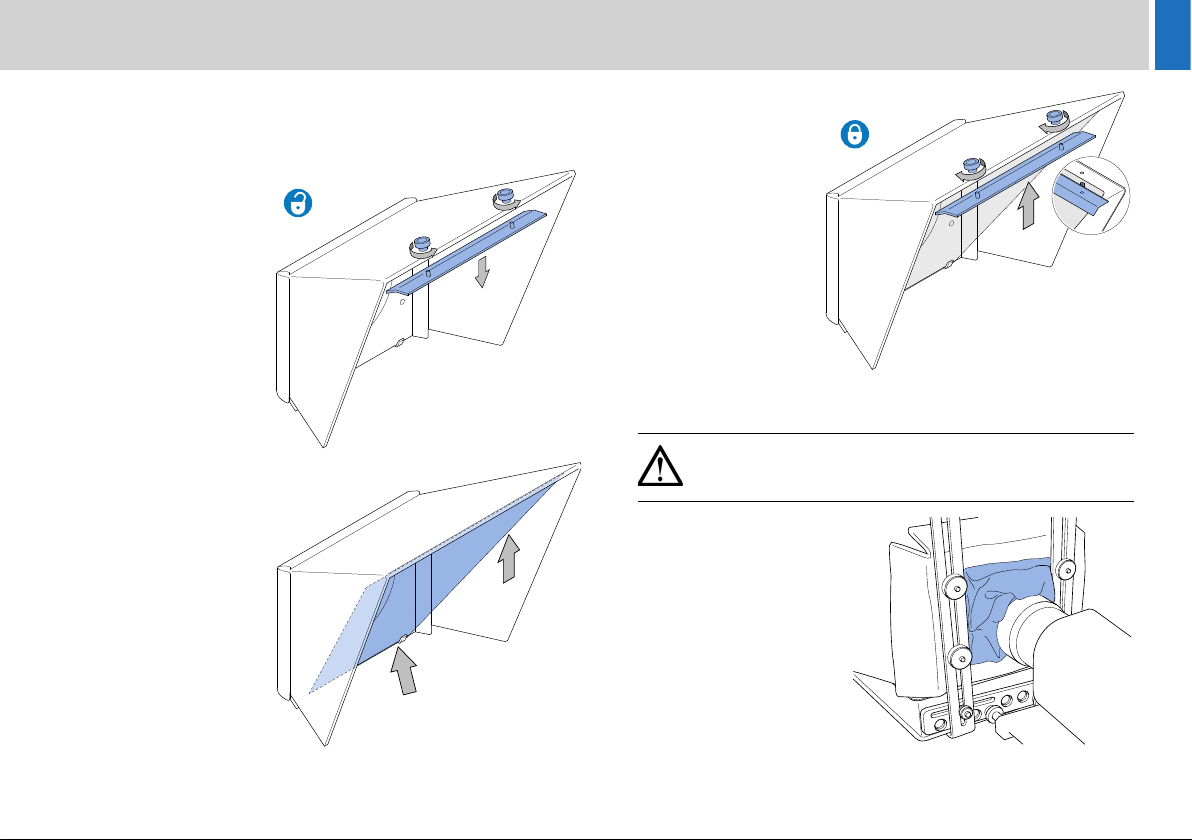

Fitting the Glass Panel
The installation procedure for the glass panel is the same on all types
of hood, although there are more fixing screws on the larger hoods.
1. Remove the two
screw fixings from
the top of the hood
to release the top
glazing bar.
2. Carefully position
the glass panel on
the bottom glazing
bar inside the hood.
3. With the glass
supported at all
times, replace the
top glazing bar and
secure with the two
screw fixings.
Fitting the Light Shield Cloth
CAUTION! Ensure that the light shield cloth is only loosely
fitted around the body of the servo lens to allow it to
continue operating freely.
The light shield cloth is built
in to the hood and must be
fitted around the camera
lens to prevent light entering
behind the glass. This is
essential for the prompter to
display text clearly.
Fit the light shield cloth
around the camera lens and
pull the drawstring to fully
exclude incidental light.
13
Page 16
Installation

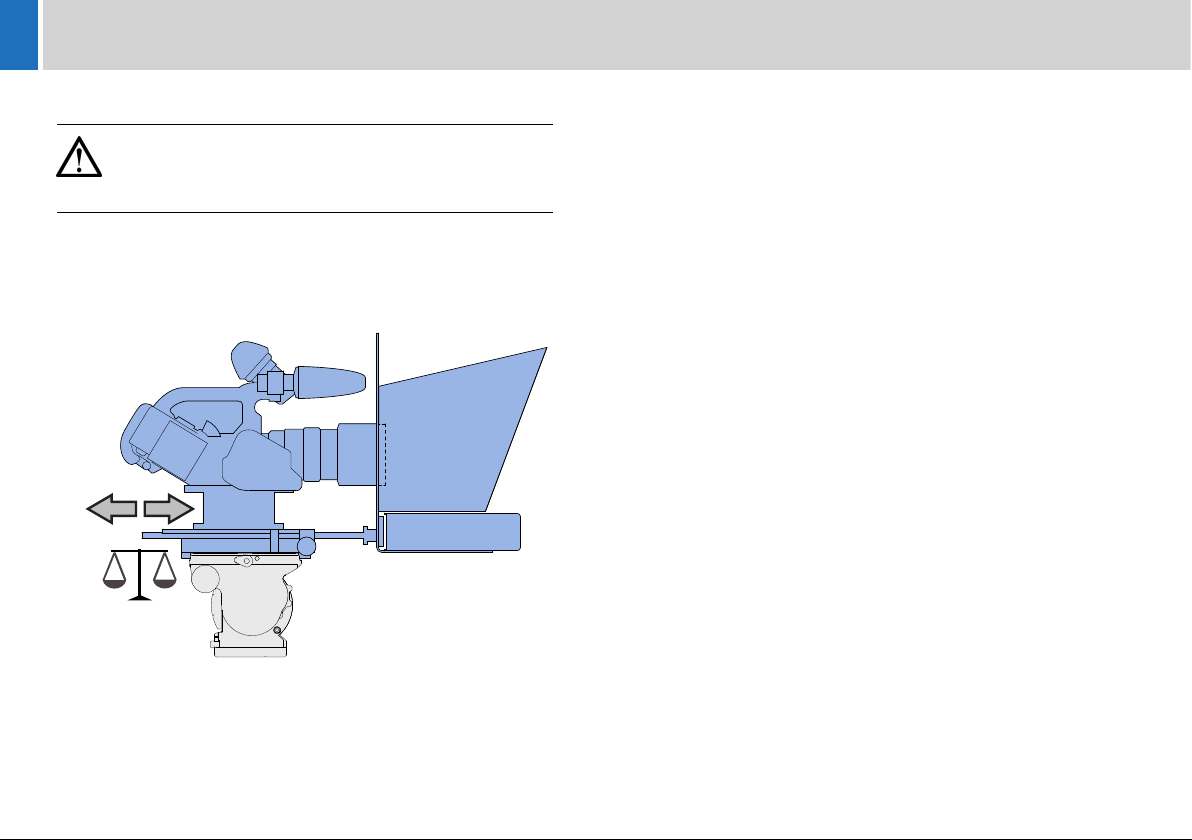

Balancing
WARNING! After fitting or adjusting the prompter assembly
and any accessories, the payload must be correctly rebalanced. When checking the balance, support the camera
at all times to prevent it from falling away suddenly.
Balancing is achieved by correctly positioning the combined camera
and prompter payload on the camera support.
1. Unlock the tilt axis and with the payload supported at all times
check the fore and aft balance.
b) If the payload is falling backwards (rear heavy), slide it further
forward on the head support.
3. Secure the payload on the camera support and re-check the
balance
Camera Support Adjustments
If necessary, further balancing and positional adjustments should be
made to the camera head support itself.
2. If the payload is not correctly balanced, lock the tilt axis and:
a) If the payload is falling forward (front heavy), slide it further
back on the head support.
14
Page 17
Installation

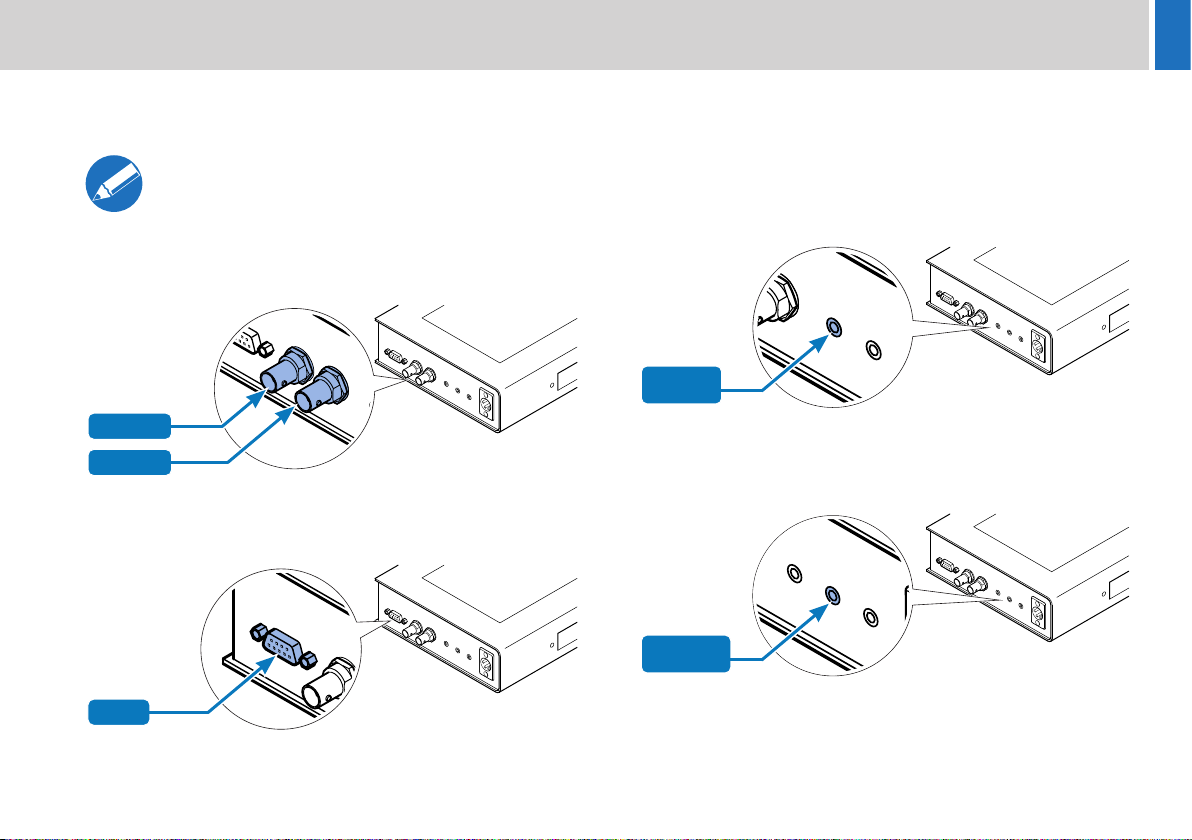

Connecting the Prompter Monitor
Video Connections
Connection to the prompter monitor using composite video
should always be made with screened 75Ω coaxial
cable.The video cable screen should be connected to
earth (ground) at both ends.
Composite Video Connection
Two composite video inputs are available on the monitor.
Video In1
Video In2
VGA Connection
This connection allows a PC VGA signal to be displayed on the monitor.
Additional Accessory Connections
Autoscript accessories such as tally sensors or the ClockPlus can also
be connected to the monitor.
Tally Light Sensor Connection
Provides connection for an Autoscript external opto sensor attached to
a camera tally light to activate the built-in tally light on the monitor.
Tally
sensor In
Tally Light Repeat Connection
Provides connection for an Autoscript tally device to relay the tally
indication signal being used by the monitor.
Tally
repeat Out
VGA In
15
Page 18
Installation

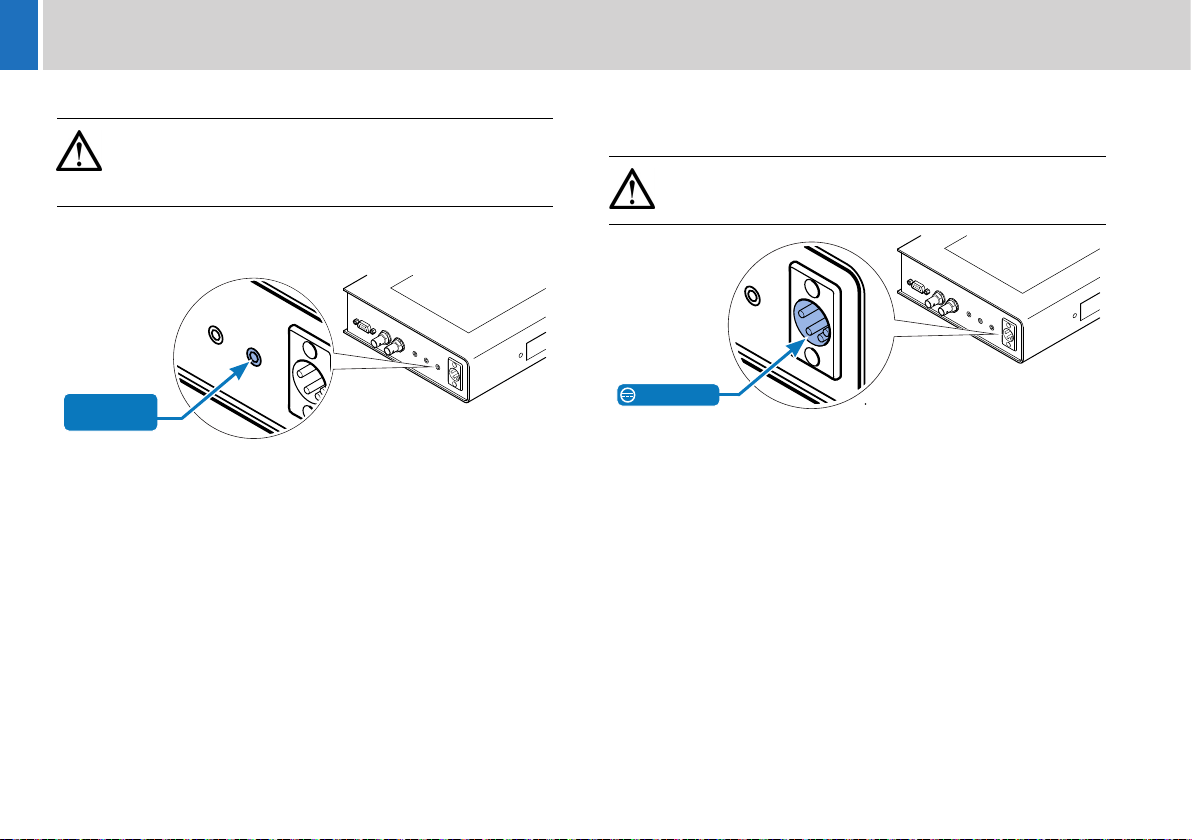

Accessory DC Connection
CAUTION! The accessory DC out socket is intended for
use with approved Autoscript accessories only. Do not
exceed the current output limit of the product when
powering auxiliary devices.
Provides a 12V DC supply to operate external accessories such as the
Autoscript TallyPlus.
Accessory
12V DC Out
For more information on the specifications of the accessory sockets,
see the section Connections Data on page 22.
Power Connection
DC Power Connection
CAUTION! When powering the product on DC power, use a
regulated 12V DC power source capable of supplying at
least 3A.
12V DC IN
Powering Up
Before powering up, ensure that all external cable connections have
been secured correctly.
To power up, apply power to the 12V DC IN socket. If power is present,
the prompter monitor and tally light will illuminate.
16
Page 19
Configuration
Control Panel Buttons
The buttons on the control panel are used to configure the setup of the
prompter monitor screen. The buttons have legends to indicate their
function, and are back-illuminated.
Backlight Control Buttons
Button Button Function
Increases the normal backlight operating brightness.
Decreases the normal backlight operating brightness.
Standby LED
The standby LED provides an indication of the current status of the
monitor backlight. The LED illuminates if the monitor has entered
standby mode due to a period of inactivity.
Input Selection Button.
Button Button Function
INPUT SELECTION button steps to the next available
I/P
video input in the sequence CVBS1, CVBS2, VGA.
Press the button repeatedly until the desired input
appears.
Setup Button
Button Button Function
.
This button is only operative for VGA inputs. Pressing it
will automatically adjust the image position, phase and
size.
Menu Buttons
This group of five buttons are for on-screen menu navigation.
Button Button Function
MENU button:
Turns on screen display (OSD) menus ON or OFF.
UP arrow button:
Moves the selector to the next item in the menu.
DOWN arrow button:
Moves the selector to the previous item in the menu.
RIGHT and LEFT arrow buttons:
Use the buttons to adjust the parameter or options of the
selected menu item.
17
Page 20
Configuration

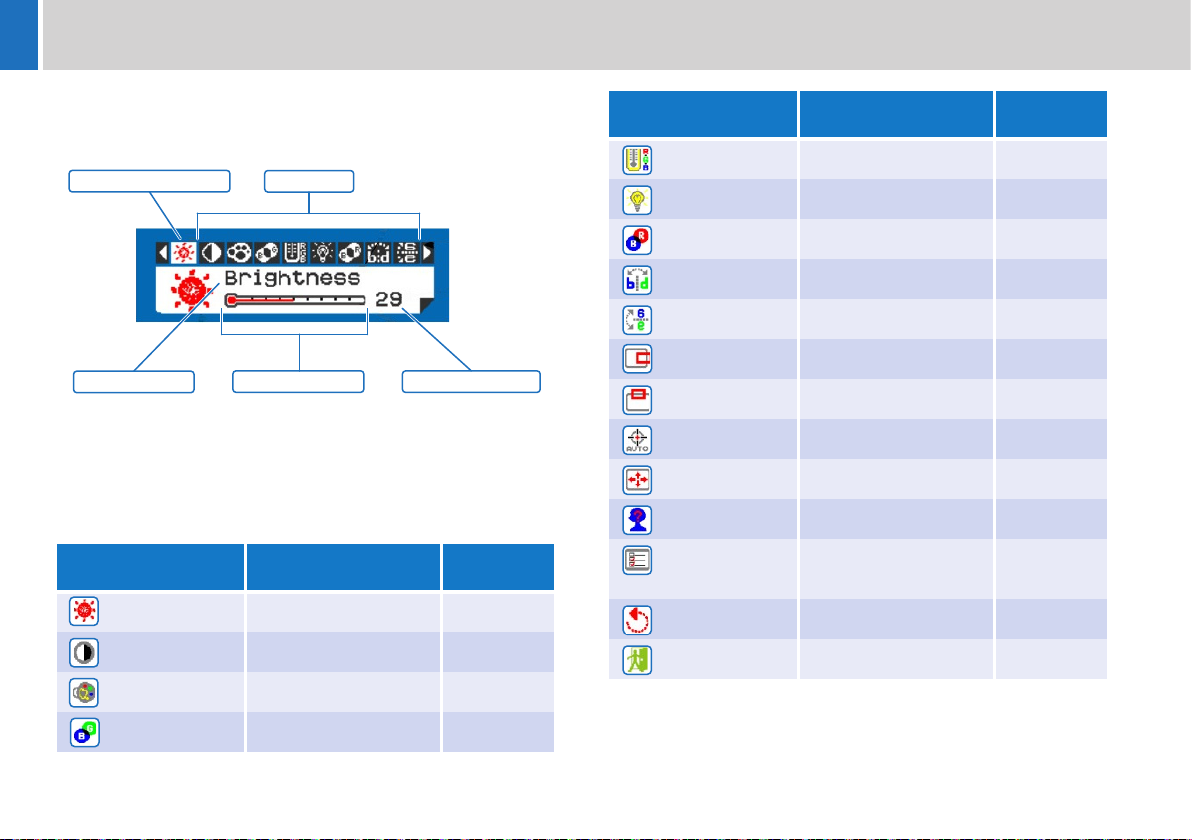

Menu Display and Operation
The setup menu is navigated and configured using the menu buttons,
with the following display interface:
Current selected item
Item description
Other items
Adjustable range
Current item value
Main Menu Items
All the available main menu items are shown in the following tables,
with any values that can be changed by the user, together with the
video input(s) applicable. Where there is a variable parameter the
maximum and minimum limits or options are shown.
Item Adjustable range Video Input
Brightness 0 - 64 AV / VGA
Contrast 0 - 64 AV / VGA
Color 0 - 64 AV
Tint 0 - 32 AV
Item Adjustable range Video Input
Sharpness 0 - 16 AV
Dimmer* See note See note
Color Tone Normal / Warm / Cool AV / VGA
Mirror OFF/ON AV / VGA
Flip OFF/ON AV / VGA
H Position -25 - +25 AV / VGA
V Position -10 - +10 AV / VGA
Auto VGA
Scan Over Scan / Under Scan AV
Information AV / VGA
Setup See the section Setup
Menu Items on page 19
Factory Set AV / VGA
Exit AV / VGA
*The menu item Dimmer does not function. To adjust the backlight see
the section Backlight Control Buttons on page 17.
AV / VGA
18
Page 21
Setup Menu Items
If the item Setup is selected from the main menu, the following options
are available:
Configuration
Item
Show Status ON / OFF Show signal status
Blue Screen
Auto Power On ON / OFF Power input module
Auto Saving OFF / 3s / 5s
Detect Source ON / OFF Auto detection and
Return Exit to main menu
Adjustable
range
ON / OFF Blue screen displayed
/ 15s / 30s
Function
when no signal is
present
turns on automatically
When no signal is
present the monitor will
power down at the predetermined time
switching of input signal
source
19
Page 22
Maintenance
Routine Maintenance
The LED 8 inch TFT on-camera prompter requires minimal routine
maintenance, apart from checking the connections and overall
operation periodically.
Routine checks
During use, check the following:
• Check cables for signs of wear or damage. Replace as necessary.
• Check that all cables are connected properly.
Cleaning
WARNING! Risk of electric shock. Disconnect and isolate
the product from the power supply before cleaning.
Prompter Assembly Cleaning
During normal use the only cleaning required should be a regular wipe
over with a dry, lint-free cloth. Dirt accumulated during storage or
periods of disuse may be removed with a vacuum cleaner. Particular
attention should be paid to all connection ports on the monitor.
Reflective Glass Cleaning
WARNING! Risk of personal injury or injury to others.
Care must be taken when handling or cleaning the reflective
glass panels. Always store spare glass panels in the
original packaging.
Care and cleaning of the reflective glass panel is essential for
increased life and prompting display performance.
No solvents or glass cleaners should be used. Only use clean water
and a damp lens cloth when cleaning. Do not apply excessive pressure
to the reflective glass panel during the cleaning process.
20
Page 23
Fault Check Comments
The monitor is not
powering up.
No prompting text
or video display on
the monitor screen.
The prompting text
display is ‘noisy’
(poor quality
imaging)
Check that the DC power source is connected and secured. See the section Power Connection on
Check that AC power is being supplied to the DC adaptor.
Check that the video cable is connected and the video source is active. See the section Video Connections on
Use the INPUT SELECTION button to step through to the correct video
input channel.
Ensure that quality screened cables have been used for the video signal
and that the screen is earthed at both ends.
page 16
page 15
See the section Input Selection Button. on
page 17
Troubleshooting
21
Page 24
Technical Specification
Physical Data
Width* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .240 mm (9.5 in)
Height* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180 mm (7.1 in)
Length* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 mm (2.1 in)
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 kg (2.6 lb)
*Excluding controls/connectors.
Environmental Data
Operating temperature range . . . . . . . .5°C to +40°C (41°F to +104°F)
Storage temperature range. . . . . . . . -20°C to +60°C (-4°F to +140°F)
Electrical Data
Video inputs . . . . . . . . . . . . . . . . . . Auto-sensing PAL/NTSC (2), VGA
DC Power input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12V DC
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18W (1.5A)
Display Data
Backlight technology. . . . . . . . . . . . . . . . . . . . . . . High brightness LED
Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1700 nits
Contrast ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500:1
Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800 x 600 (XGA)
Viewing angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160°(H), 130°(V)
Diagonal screen size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203.2 (8 in)
Display area . . . . . . . . . . . . . . . . . . . . . . 162 x 121.5 mm (6.4 x 4.8 in)
Reading range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 m (9 ft, 10 in)
Connections Data
DC Power Socket
Connector type: 4 pin XLR plug.
Pin Signal
1 GROUND (connected to monitor chassis)
2 TALLY LOGIC INPUT (>2.5V DC in = Tally light ON, <2V
DC in = Tally light OFF)
4 +12V DC
Composite Video In (1 and 2)
Connector type: 75Ω BNC socket.
Pin Signal
Centre Composite Video In (PAL or NTSC)
Outer GROUND (Cable screen)
Opto Sensor Input
Connector type: 3.5 mm mono jack socket.
Pin Signal
Tip HOT
Sleeve GROUND
Connection for an external Autoscript opto sensor to activate the builtin tally light on the monitor. The sensor is attached to the camera tally
light and allows the monitor to mimic the operation of the camera tally.
22
Page 25
Technical Specification
Alternatively, the tally light can be triggered by connecting a contact
closure (ground loop) to the opto sensor socket, or applying a positive
logic voltage to the TALLY LOGIC input on pin 2 of the XLR socket.
Sensor/Grounding Loop Specification:
• Light Dependent resistor, 20kΩ at 10 Lux, 5KΩ at 100 Lux or
(grounding) contact closure
• High illumination or contact closure = Tally light ON
• Low illumination or contact open = Tally light OFF
Tally Repeat Output
Connector type: 3.5 mm mono jack socket.
Pin Signal
Tip HOT
Sleeve GROUND
Open collector output giving contact closure to ground when the builtin monitor tally light is ON. Intended to be used to operate an external
tally device such as the Autoscript +Clock-Plus+.
Accessory DC Output
Connector type: 3.5 mm mono jack socket.
Pin Signal
Tip +12V DC
Sleeve GROUND
Provides a 12V DC supply to operate external accessories such as the
Autoscript +Tally-Plus+. Fused internally with a resettable fuse.
Pin connections conform to the VESA VGA standard.
Technical specifications are subject to change without notice.
VGA Input
Connector type: 15 pin High Density D socket.
23
Page 26
General Notices

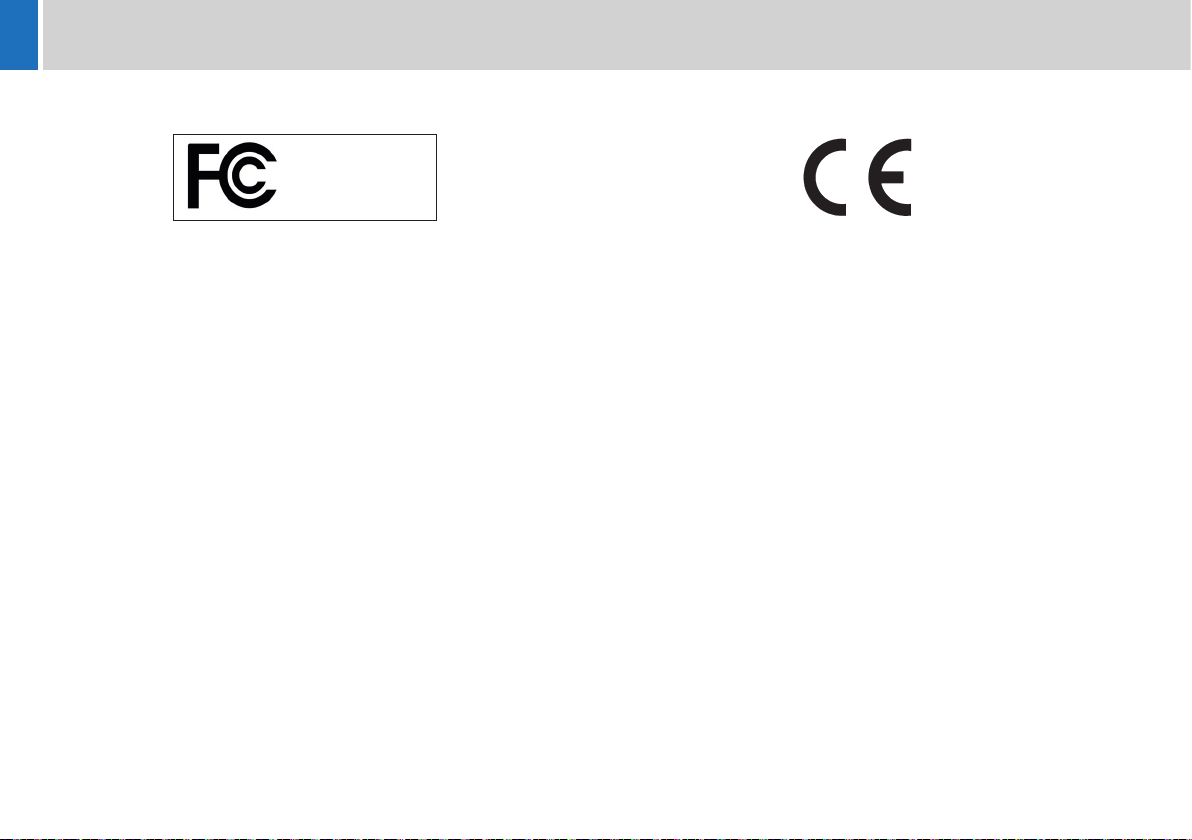

FCC Certification
LED 8 TFT Prompter
LED8TFT-ME
FCC Notice
This product complies with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference with radio communications. Operation of this
product in a residential area is likely to cause harmful interference,in
which case you will be required to correct the interference at your own
expense.
FCC Warning
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
FCC Declaration of Conformity
This product complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1.This product may not cause harmful interference.
2.This product must accept any interference received, including
interference that may cause undesired operations.
Declaration of Conformity
Vitec Videocom Limited declares that this product has been
manufactured in accordance with BS EN ISO 9001:2008 (Note: this
applies only to EPIC monitors and LEDXX series monitors).
This product complies with the following EU Directives:
● Low Voltage Directive 2006/95/EC
● EMC Directive 2004/108/EC
Compliance with these directives implies conformity to applicable
harmonized European standards
(European Norms) which are listed on the EU Declaration of Conformity
for this product or product family. A copy of the Declaration of
Conformity is available upon request.
Environmental considerations
ROHS Compliance Statement
Vitec Videocom Limited is compliant with the European Union Directive
2002/95/EC Restrictions of Hazardous Substances (RoHS) that
restricts the use of hazardous substances in Electrical and Electronic
Equipment.
24
Page 27
European Union Waste of Electrical and Electronic
Equipment (WEEE) Directive (2002/96/EC)
This symbol marked on the product or its packaging indicates that this
product must not be disposed of with general household waste. In
some countries or European Community regions separate collection
systems have been set up to handle the recycling of electrical and
electronic waste products. By ensuring this product is disposed of
correctly, you will help prevent potentially negative consequences for
the environment and human health. The recycling of materials helps
conserve natural resources.
Visit our website for information on how to safely dispose of this product
and its packaging.
In countries outside the EU:
Dispose of this product at a collection point for the recycling of electrical
and electronic equipment according to your local government
regulations.
General Notices
Pollution statement
This equipment is designed for operation in Pollution Degree 2
environments.
25
Page 28
Autoscript
AV
itec Group brand
Publication part No. LED8TFT-4980/1
www.autoscript.tv
Loading...
