AutoPets Litter-Robot Open-Air Instruction Manual

Instruction Manual

The Self-Cleaning Litter Box

that Really Works!

[phone]

2

Table of Contents

Important – Read This First ............................................ 3

Introduction .................................................................. 4

Unpacking Your Litter-Robot ........................................... 5

Getting Your Cat to Use the Litter-Robot .......................... 8

Components and Features ............................................ 11

Control Panel - Button Functions ................................... 11

Power Button ................................................................................ 11

Cycle Button ................................................................................. 12

Empty Button ................................................................................ 13

Reset Button ................................................................................. 14

Control Panel - Indicator Lights ..................................... 15

Cat Sensor .................................................................. 16

Drawer Full Indicator.................................................... 17

Automatic Night Light ................................................... 17

Bonnet ........................................................................ 18

Internal Shield and Key ................................................ 19

Step Mat ..................................................................... 19

8 Hour Sleep Mode ...................................................... 19

Wait Time Setting ........................................................ 20

Control Panel Lockout .................................................. 21

Battery Backup ............................................................ 21

Use & Care .................................................................. 23

Safety Features ........................................................... 28

Money-Back Guarantee and Warranty ............................ 30

Contact Customer Service ............................................. 31

Frequently Asked Questions .......................................... 32

Troubleshooting ........................................................... 36

http://www.robotshop.com/eu/en/litter-robot-en.html

3

Important – Read This First

• The Litter-Robot is not recommended for kittens, or small
cats that weigh less than 2,5 kg.

• Always be sure that each cat in your household is heavy
enough to activate the Cat Sensor before you let the
Litter-Robot operate in automatic mode.

• Make sure the Litter-Robot is placed on a level firm
surface. Placing the Litter-Robot on deep carpet may
affect the sensitivity of the unit.

• Do not put anything in the Globe other than clumping cat
litter. You can use water and soap to clean the Globe.

• Do not force your cat into the Litter-Robot.

• Do not sit on, or place anything on the Litter-Robot.

• Do not remove the Globe or Bonnet while unit is rotating.

• Do not turn power on if Globe is removed as hair or

fingers can get caught or pinched in the turning gear.

• Do not wet or submerge the Base and/or Bonnet.

[phone]

4

Introduction

Thank you for purchasing Litter-Robot™

Open Air

, the self-

cleaning litter box

that really works!

At AutoPets (Automated Pet Care Produ c ts, Inc.) we aim to
develop products that keep your pets happy and make your
life easier. This manual will help you get the most out of
your Litter-Robot

Open Air

. We will guide you through the
setup process, as well as provide you with useful tips and
advice for getting your cat acclimated to its new, automatic
self-cleaning litter box.

Along with its larger capacity and ergonomically shaped litter
chamber, there are many new features to explore with the

Open Air

unit, so keep this manual handy and in a safe place
for future reference. You can also download it from our web
site.

Try the Litter-Robot

Open Air

in your home for 90 days. If
you or your cats are not completely satisfied, for any reason,
simply return it within 90 days for a full refund. Please note
that you are responsible for return shipping costs. If you
need assistance during your trial period, or a little extra time,
please call us at [phone] or e-mail us at
[e-mail].

Enjoy your Litter-Robot, and

Enjoy your Freedom!

Brad Baxter
President
AutoPets

(Automated Pet Care Product s, I nc.)

http://www.robotshop.com/eu/en/litter-robot-en.html

5

Unpacking and Setting Up Your Litter-Robot

Your Litter-Robot comes completely assembled and ready to
use.

Make sure box is right side up. Find and set aside the power
supply in the pocket of the top cardboard insert.

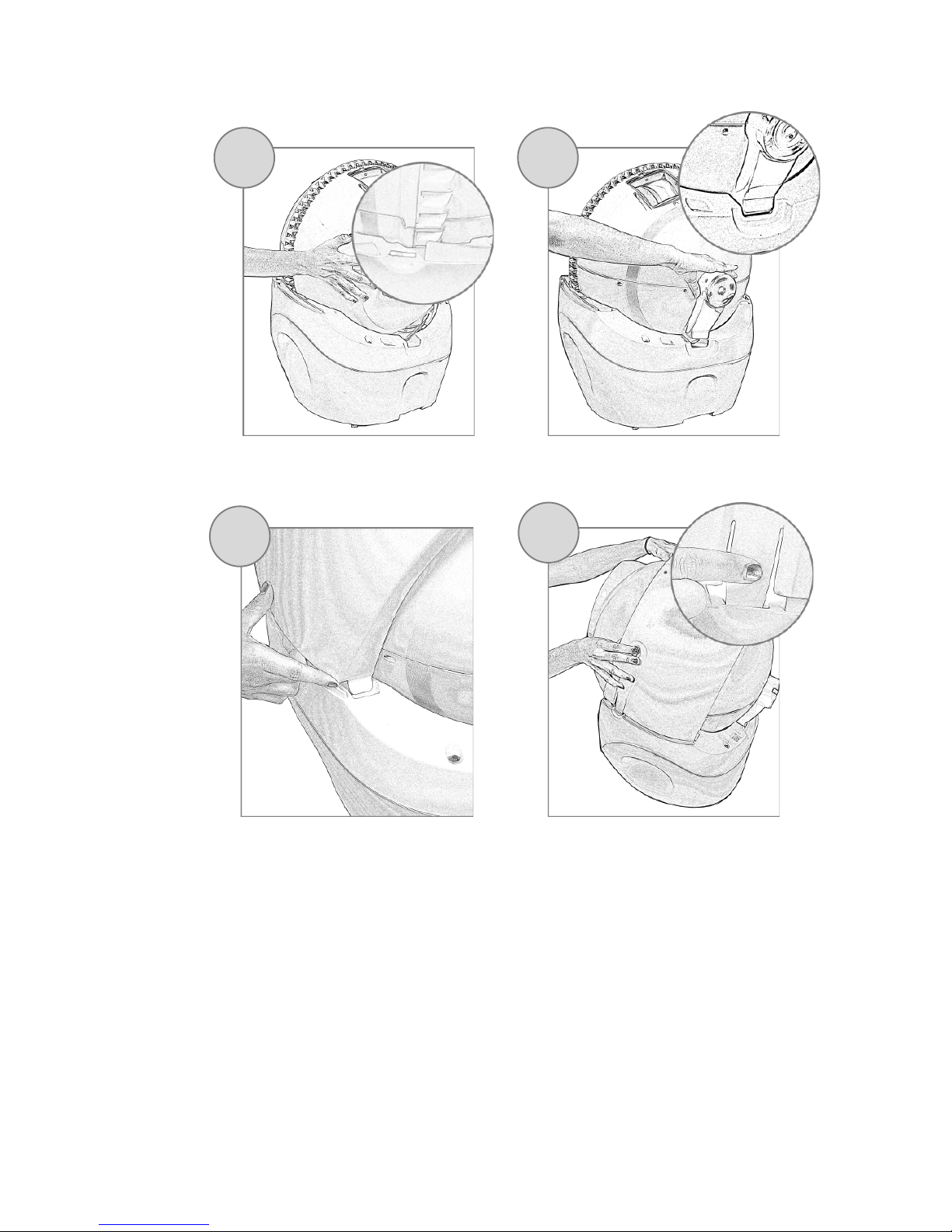

Remove and set aside the top cardboard insert.

Remove and set aside the cardboard corner braces.



[phone]

6

Reach down along the sides of the unit and find the hand
holds on the base unit and lift the whole unit out of the box.
The unit weighs 12 kg. Try to avoid cutting open or
damaging the outer box as you may need it later.

Remove cardboard spacers between the Bonnet and Globe.

If possible, place the Litter-Robot in the same location as the
old litter box. Make sure the Litter-Robot is on a level, firm
surface.

1. Fill the Globe with litter. The Litter-Robot litter sifting

system requires a clumping type litter to work
properly. We recommend a high quality clay-based
clumping litter such as Litter-Robot™ Premium Clumping
litter. Litter beads, and crystals may also be used with
the Litter-Robot as long as the beads and crystals are
small enough to pass through the screen – periodic
changing of this type of litter is required. Litters that DO
NOT work in the Litter-Robot are the strictly absorbent,

http://www.robotshop.com/eu/en/litter-robot-en.html

7

non-clumping litters, newspaper based litters, loose
clumping litters, and absorbent wood-based pellets. If
you are using a litter alternative not listed here, please
contact us at [e-mail] to make sure you
are using a compatible litter.

If you are filling the Litter-Robot with litter for the first
time, we recommend that you do not switch litter brands
at this time. Your cat/s need to get used to this new
litter box and introducing a new litter may increase their
level of apprehension and anxiety. However, if you are
currently using a non-clumping litter you will need to
switch to a clumping type litter.

For the initial charge of litter, we recommend starting
with 4,5 to 5 kg, or approximately 5 L (volume) of
clumping litter.

Fill with clumping litter through the Entryway. Once
litter has been added, spread litter in bottom of globe
and note the raised fill line. Litter should be at or below
Fill Line.

Tip

You can use one of the corner braces from the original
packaging as a temporary funnel for the initial charge of
litter.

Fill litter to raised Fill Line on

black rubber liner.

[phone]

8

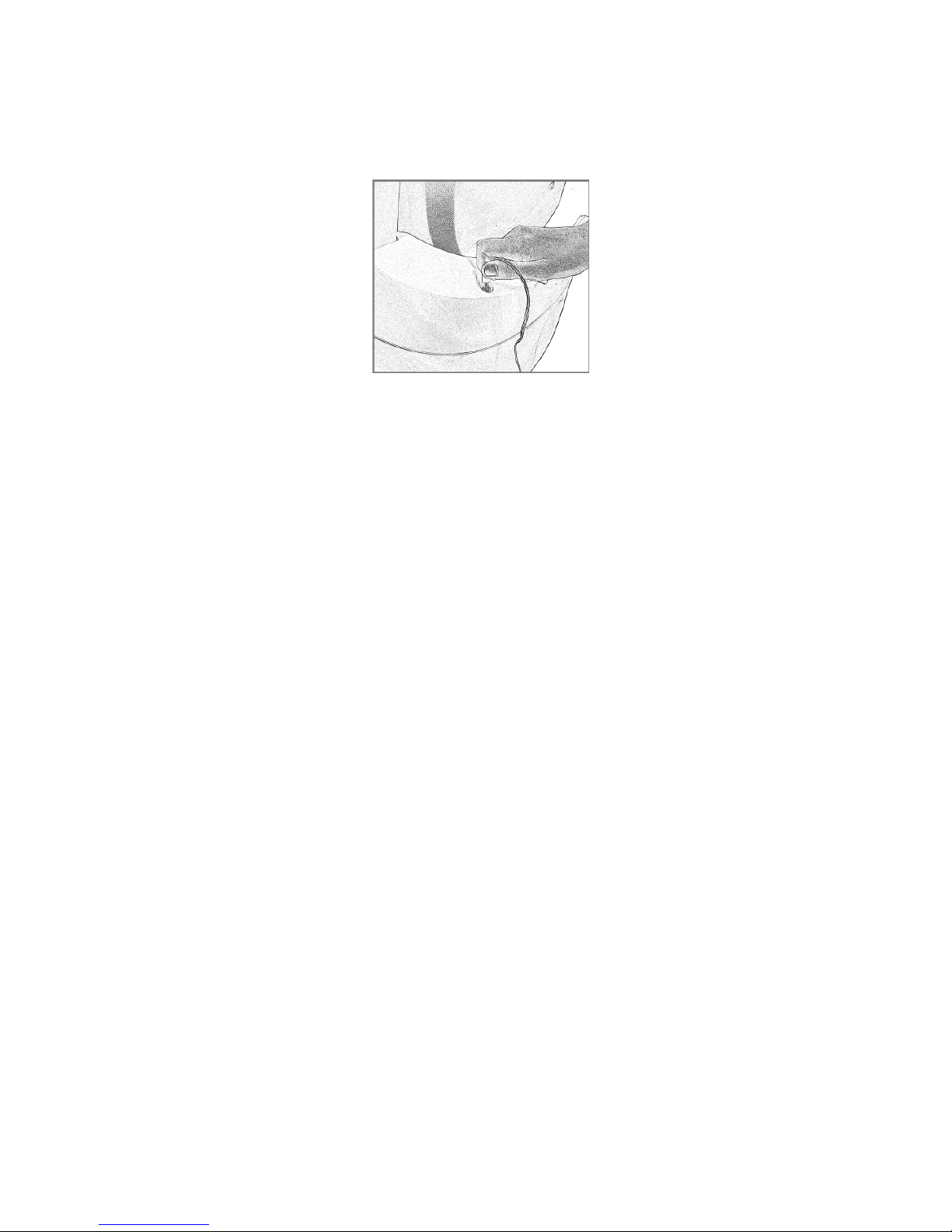

2. Insert the small plug end of the AC/DC adapter cord into

socket located in back of the Base unit.

3. Next, plug the AC/DC adapter into a wall outlet.

4. Locate and press the Power Button. The Litter-Robot will

now perform an initialization cycle which will last
approximately 2 ½ minutes. After completing the cycle,
the Globe should be in the Home position with the blue
LED on. Your Litter-Robot is now ready to use,
however, we recommend powering off the unit until your
cat/s become familiar with and begin to use the Litter­Robot.

Tip

If this is the first time you have filled the Litter-Robot
with litter and you are trying to get your cats acclimated,
you can pour a cup of used litter from the old litter box
on top of the new litter in the Litter-Robot. This will
provide a familiar scent for your cat. See the next
section “Getting Your Cat to Use the Litter-Robot” for
more tips.

Getting Your Cat to Use the Litter-Robot

Most likely, your cat will quickly adapt to the Litter-Robot.
We recommend the following steps:

• Place the Litter-Robot in the same location as the current

litter pan. Set up the Litter-Robot according to the
instructions (make sure you add litter to the Globe) and

http://www.robotshop.com/eu/en/litter-robot-en.html

9

make sure it is turned OFF. Give your cats a day or two
to explore the Litter-Robot. If your cats show no
interest, you can entice them to ap proach the Litter­Robot by using some catnip or their favorite treat.

• Add a scoop of litter from the old litter pan. This
provides a familiar scent for your cat.

• Place treats on the ledge or around the Litter-Robot so
that the cat associates rewards with the unit.

• Since cats are curious and love to go into boxes, you can
try putting the original packaging over the Litter-Robot
with a hole cut out for the entry and the drawer.

• Once you notice that your cats have used the Litter­Robot, you can cycle the unit manually by turning the
unit ON. If the cats are present, it will give them a
chance to observe the motion and become familiar with
the sound of the Litter-Robot while you are present to
reassure them. Turn the unit OFF again after the
cleaning cycle has completed (the Litter-Robot should be
in the home position). We recommend that you no
longer clean the old litter pan once the Litter-Robot has
been used by your cats.

• If your cats are not using the Litter-Robot within a few
days, continue using the old brand of litter in the old
litter box, and let it go as long as possible without
cleaning it. Cats prefer a clean litter box and a dirty litter
pan might persuade them to use the clean Litter-Robot.
Also, consider replacing the litter in the Litter-Robot with
a type specifically formulated for litter box training.

• Once your cats are consistently using the Litter-Robot,
you can turn the unit ON and leave it ON letting it
operate in automatic mode. You can now remove the old
litter box.

Congratulations, you have successfully introduced your cats
to the Litter-Robot. Enjoy your freedom from litter box
scooping!

[phone]

10

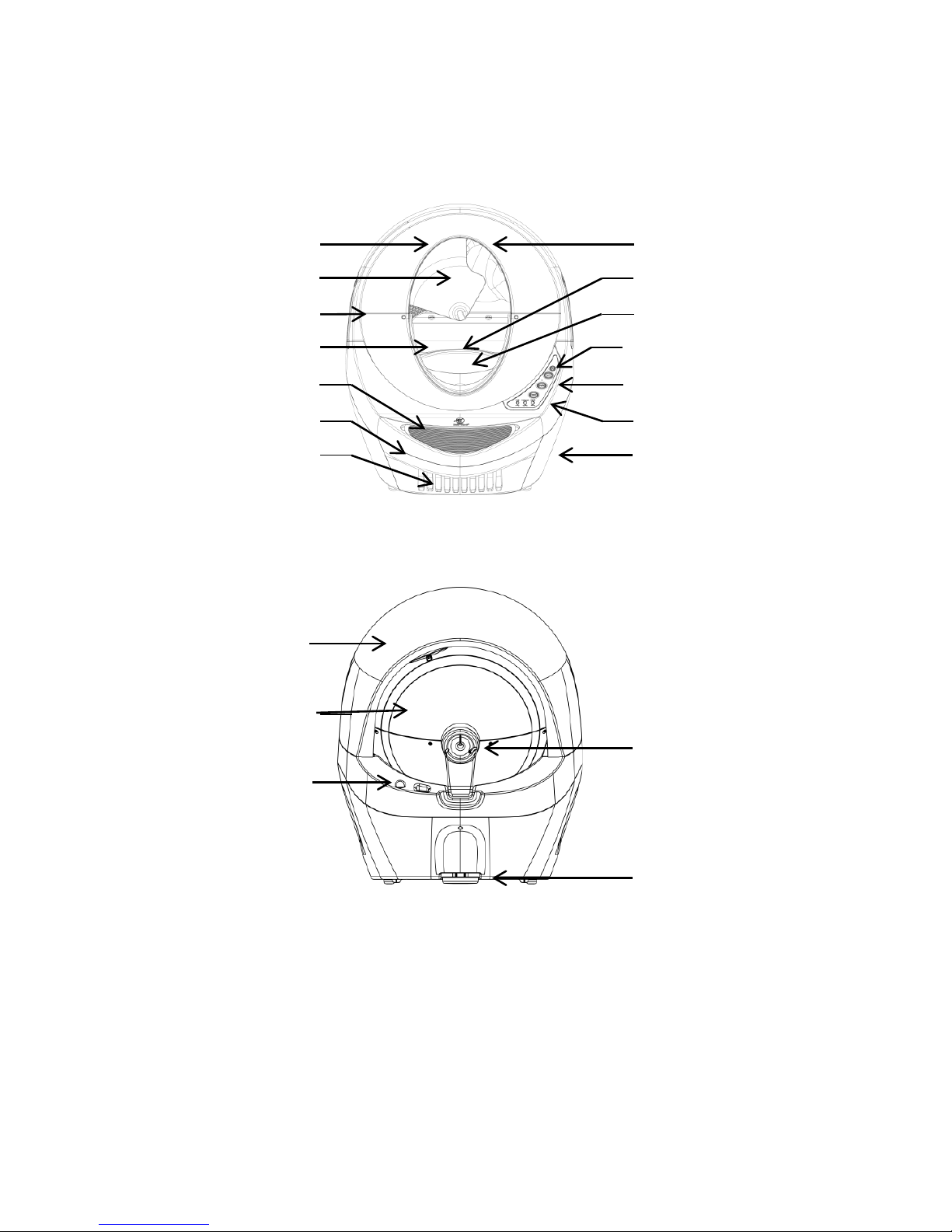

Components and Features

Night Light

Fill Line
Flexible Liner
Power Button
Control Panel
Indicator Lights
Base

Globe

Internal Shield

Bonnet

Cat Entry/Exit

Step Mat

Waste Drawer

Carbon Filter

Front View

Shown in Home Position

Key

Cat Sensor

Bonnet

Globe

Power Input

Rear View

Shown in Home Position

http://www.robotshop.com/eu/en/litter-robot-en.html

11

Control Panel - Button Functions

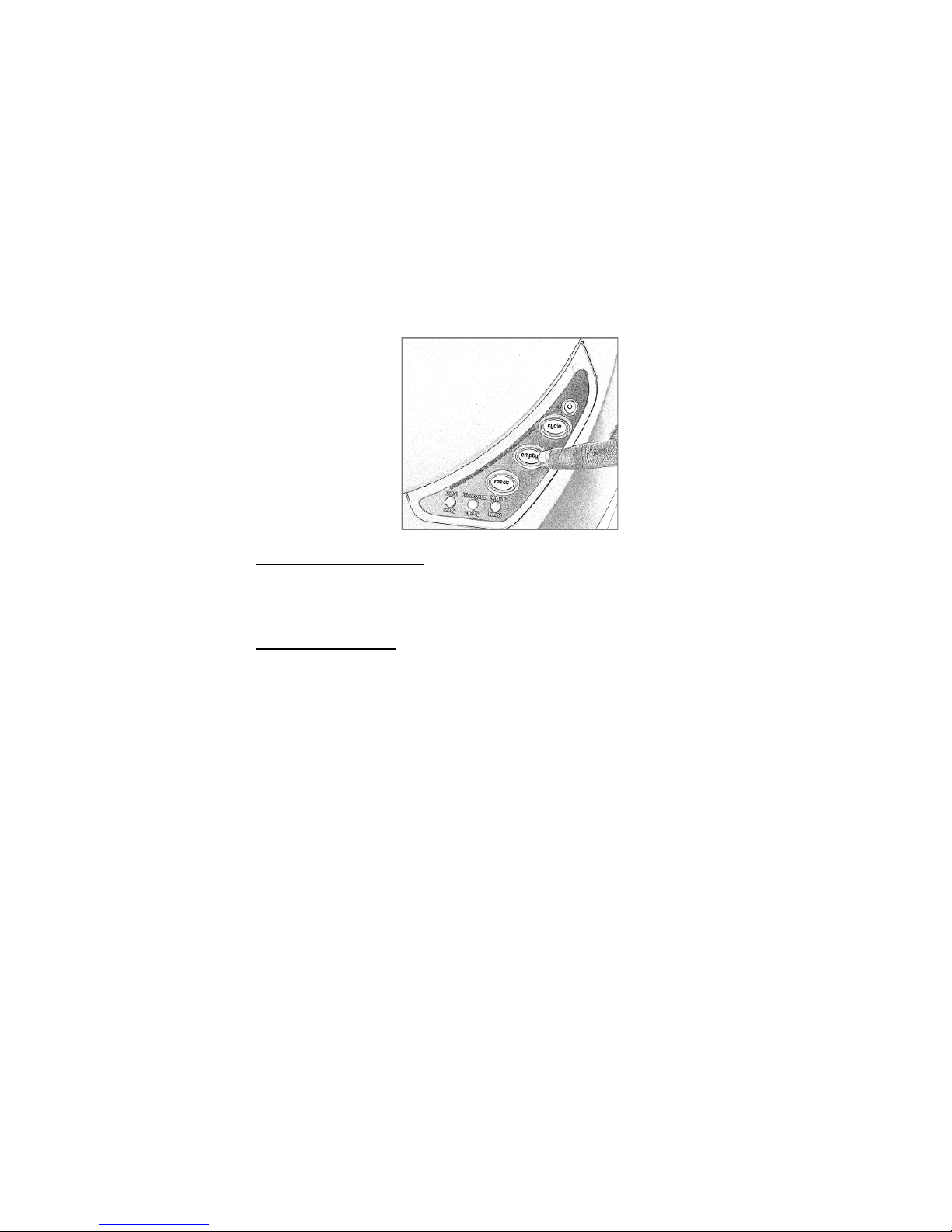

1. Power Button + [Night Light Function]

Press and Release: This turns the system power On and
Off.

Press and Hold: Holding the Power Button toggles the
LED Night Light On and Off.

1. If the Night Light function is already activated and
light is on, light will turn off, and if light is off (ambient
light levels too high), light will flash on then off
indicating Night Light function has been deactivated.

Cat Sensor

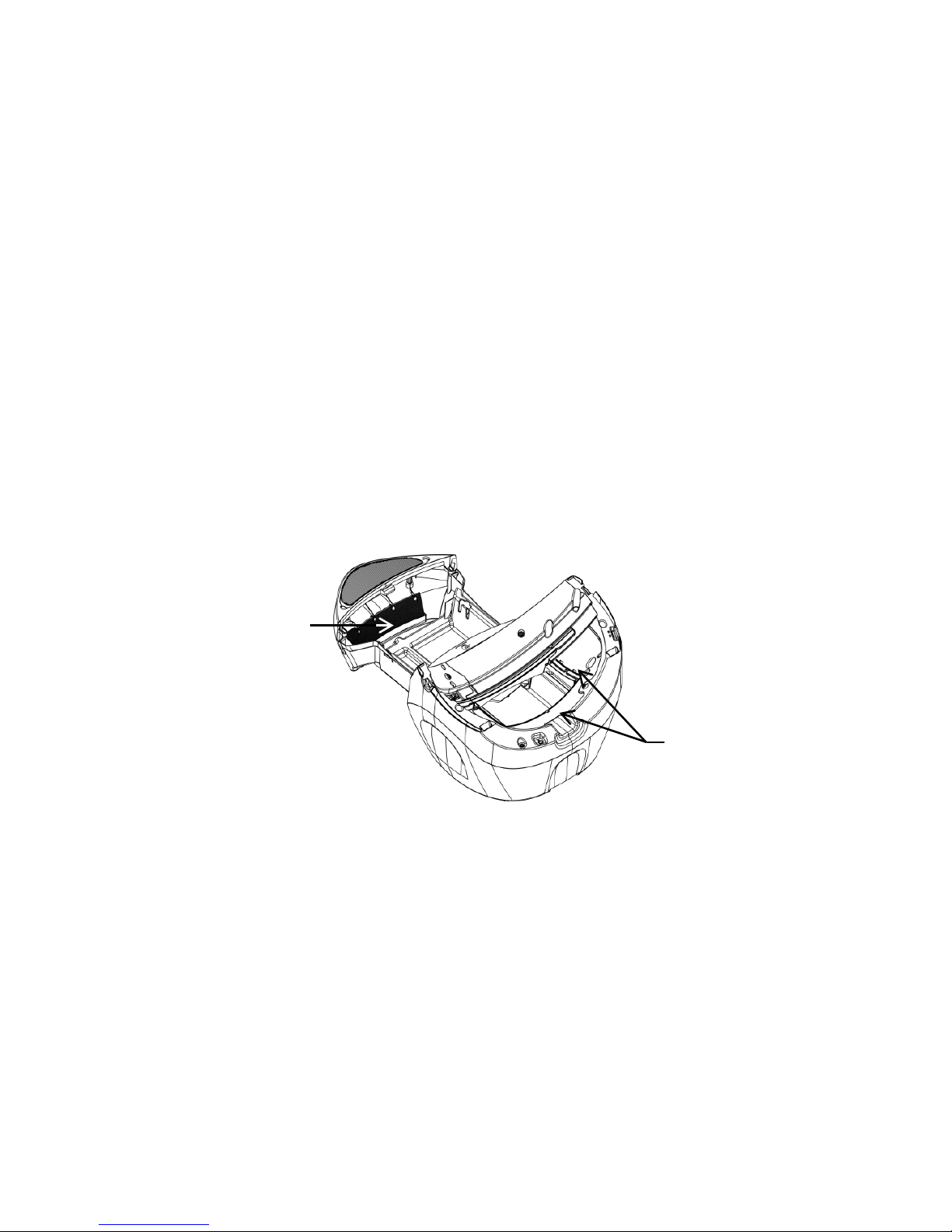

Base
Handles

Waste Drawer
Handle

Key

Battery Pocket

(Battery Backup Optional)

Carbon Filter

Waste Drawer

Bottom View

Night Light

Sensor

[phone]

12

2. If the Night Light function is deactivated and the
ambient light levels are high (day light) the light will
flash on then off indicating Night Light function has been
activated. In low ambient light (dark room) the light will
come on and stay on.

The status of the Night Light function can be checked at
any time by covering the light sensor, located above the
Cycle button on the Control Panel, to see if the Night
Light comes on or not.

Night Light settings are remembered when the unit is
powered Off and back On again.

2. Cycle Button + [8 Hour Sleep Mode]

Press and Release: Press Cycle to start the Litter-Robot
cleaning cycle. To pause the cycle, press any button on
the Control Panel during the cleaning cycle. Press Cycle
once again to resume the cleaning cycle.

To stop and abort the cleaning cycle, press any button
to pause the cycle, then press either Empty or Reset to
return the Globe to the home position.

Press and Hold: Hold Cycle to activate the 8 Hour Sleep
Mode. When activated, the yellow LED will light up in
addition to blue LED. The Cat Sensor will be de­activated for the next 8 hours and unit will only cycle if
Cycle is manually pressed during this 8-hour window.
Immediately after 8 hours, the unit will perform a
cleaning cycle and then return to the home position with

http://www.robotshop.com/eu/en/litter-robot-en.html

13

only the blue LED on and the Cat Sensor will be active.
The 8 Hour Sleep Mode period (Cat Sensor deactivated)
will be repeated every 24 hours at the time of initial
setting. Press and hold Cycle to exit this mode - note
that if not within 8 Hour Sleep Mode period, yellow LED
will flash on then off indicating you have exited this
mode.

3. Empty Button + [Wait Time Setting]

Press and Release: Empties all litter from Globe into the
Waste Drawer. Press any button to return the Globe to
home position.

Press and Hold: Hold Empty to enter Wait Time Setting
mode. One of the LEDs will flash to indicate you’ve
entered the mode. Use the Reset button to toggle
between the different wait times:

Blue flashing= 3 minute wait time
Yellow flashing = 7 minute wait time

Red flashing = 15 minute wait time
Press and hold the Empty button to save this setting.
The Wait Time is the elapsed time starting from when

your cat exits the unit to when the unit runs a clean
cycle.

It may be useful to reduce the wait time to minimize
odor and/or the time that the waste is available to other
pets - such as dogs. However, reducing the wait time
may reduce the cleaning effectiveness (clumps do not

[phone]

14

have enough time to set up). Extending the wait time
may be desirable when using a lower quality clumping
litter that needs more time to set up.

4. Reset Button + [Control Panel Lockout]

Press and Release: Press Reset to pause the unit
during cycling or reset the Cat Sensor’s baseline when
pushed at home position with blue LED on.

Press and Hold: Holding the Reset button will activate
the Control Panel Lockout feature indicated by the blue
LED blinking temporarily when this setting is activated.
This setting will lock out all button functions on the
Control Panel while still allowing unit to function in
automatic mode. Note that the unit may still be
Powered Off by pressing and holding the Power button
for 3 seconds. Press and hold Reset to turn off Control
Panel Lockout feature. Blue LED will blink temporarily to
indicate lockout function has been turned off.

http://www.robotshop.com/eu/en/litter-robot-en.html

15

Control Panel - Indicator Lig h ts

Blue LED On (OK/Waiting)

Indicates that the unit is OK and that the Litter-Robot is
ready for your cat.

Blue LED Flashing (Waste Drawer is Full)

Indicates that the Waste Drawer is almost full. Empty the
waste drawer and press Reset to cancel the indicator light.

Yellow LED On (Cycling/In Use)

The Litter-Robot is cycling (Cleaning cycle or Empty cycle).

Yellow LED Flashing Once per Second (Cycle
Interrupted by Cat Sensor or Bonnet Removal)

1. While cycling, if the Cat Sensor is activated by your cat
entering the Globe, the unit will stop and the yellow LED will
flash once per second. 15 seconds after your cat has left the
Globe, the unit will start to cycle again.

2. If Bonnet is removed during a cycle or while Globe is at
home position, the unit will stop (if previously cycling) and
the yellow LED will flash once per second.

3. Unit will resume previous function 5 seconds after
replacing Bonnet.

Yellow LED Flashing Twice per Second (Cycle
Interrupted by Anti-Pinch Safety Feature)

While cycling, if the Anti-Pinch Safety feature is activated, the
Globe will stop and reverse direction for 2 seconds and then
stop. The yellow LED will then flash twice per second for 1
minute. After this 1-minute period the yellow LED will stop
flashing and Globe will attempt to rotate toward Home
position again.

Red LED (Sensor/Timing)
The red LED indicates that the Cat Sensor has been

activated. The Litter-Robot will begin cycling with yellow LED

[phone]

16

on after three, seven or fifteen minutes depending on the
setting. Default setting is seven minutes.

Note

If the Cat Sensor is tripped again within the set count-down
period, the count-down timer resets. The Globe will not
rotate until another three, seven or fifteen minutes have
elapsed, depending on the setting. You can cancel the
count-down timer (red LED is on) at any time by pressing the
Reset Button.

Red LED Flashing (Cat Sensor Fault)

A red LED flashing indicates that the Cat Sensor has been
continuously activated for 2 minutes or more either from a
cat that won't leave the Globe, or from too much weight in
the unit caused by overfilling with litter.

Cat Sensor

The Litter-Robot Cat Sensor is a weight sensitive switch that
detects your cat entering or exiting the Globe.

Your cat must be at least five 2,5 kg for the sensor to work.
Do not use the Litter-Robot with kittens or cats that weigh
less than 2,5 kg.

Always be sure that each cat in your household is heavy
enough to activate the Cat Sensor before you let the Litter­Robot operate in automatic mode.

Make sure the Litter-Robot is placed on a level firm surface.
Placing the Litter-Robot on deep carpet may affect the
sensitivity of the unit.

Note that the Cat Sensor does not detect weight on
the Step Mat and this is intentional. The Cat Sensor
only detects weight inside the Globe.

The standard setting is for a seven-minute count-down to be
started when the cat leaves the Globe. At the end of the

http://www.robotshop.com/eu/en/litter-robot-en.html

17

count-down the Litter-Robot will start its cleaning cycle. Any
subsequent tripping of the Cat Sensor starts a new seven­minute count-down, preventing the Globe from rotating with
your cat inside. You can adjust this time setting by pressing
and holding the Empty button for 5 seconds and then
pressing the Reset button to toggle through the settings.

(Blue: 3 minutes, Yellow: 7 Minutes, Red: 15 Minutes)

Caution:
Make sure that your smallest cat weighs at least 2,5

kg before operating the Litter-Robot in the
unattended automatic mode. Your cat must weigh at
least 2,5 kg to trip the Cat Sensor.

Drawer Full Indicator (DFI)

Your Litter-Robot is equipped with
infrared emitters and sensors
located above the waste drawer that
detect when the drawer is full. The
Control Panel displays a blue
flashing LED when the DFI is
activated. The Waste Drawer is
checked every time the Globe
returns to home position. Upon the
first activation of the DFI, the blue LED flashes, and the Cat
Sensor remains active. Upon the 3rd activation of the DFI
(after 2 more clean cycles), the Cat Sensor becomes inactive
and the unit will no longer cycle automatically. Check or
empty Waste Drawer and push the Reset button to cancel
mode.

Automatic Night Light

Although cats in general have excellent vision in low light
conditions, as they get older their vision can diminish and the
Automatic Night Light (located in the upper Bonnet) is there
to assist elderly cats find the litter box in extreme low light

[phone]

18

conditions such as a basement room without any windows. A
light sensor located below and to the left of the Power Button
turns the Night Light On and Off automatically. The Night
Light function can be turned On and Off by pressing and
holding the Power Button (see Control Panel - Buttons section

-> Power Button, page 11).

Bonnet

The Bonnet functions as a cover and guard for the waste port
as the Globe (and waste port)
rotate from the top of the unit into
the Base. The Bonnet also
provides a mount location for the
Automatic Night Light, wires, and
electrical terminals that provide a
low and safe 5VDC to the Night
Light. The Globe will not rotate
without the Bonnet installed (see
Control Panel - Indicator Lights
section -> Yellow LED Flashing,
page 15). The Bonnet is
assembled to the Base by inserting the tabs at the bottom
and rear of the Bonnet into the small holes in the Base, and
rotating the Bonnet downward such
that the snaps located at the bottom
and front of the Bonnet are inserted
into the matching slots and latched.
Holes above the snaps provide a
convenient finger hold while
removing or installing the Bonnet.
(See page 26-27 for bonnet
assembly instructions.)

Underside of Bonnet

showing Night Light

Bonnet

http://www.robotshop.com/eu/en/litter-robot-en.html

19

Internal Shield and Key

The Internal Shield is located near the top, left side of the
litter chamber or Globe. It provides a barrier between the
working surfaces of the interior Globe and the space used by
your cat. The position of the Internal Shield during cycling is
controlled by the 'Key' located at the back of the Globe. Make
sure the Key is positioned properly within the Base pocket.
Note that the Internal Shield and Key are not required for the
unit to function and may be removed if so desired.

Step Mat

The flexible and removable Step Mat
provides a soft and gripping surface
for entry/exit as well as acts as a
litter catch for tracked litter. The
Step Mat can be cleared of litter by
simply removing, turning upside
down and flexing within the Globe.

8 Hour Sleep Mode

This mode allows you to deactivate the Cat Sensor for 8
hours such that the unit will not cycle automatically. This
mode is useful for units located in bedrooms or areas where
you may not want the unit to cycle for a period of 8 hours.

Key

Rear view of Litter-Robot

Globe Front View

Internal
Shield

[phone]

20

The 8-hour period is repeated every 24 hours. The start of
the 8-hour period is determined by when the mode was
initially set.

To start this mode, at the desired time, press and hold the
Cycle button until the yellow LED lights up. Both yellow and
blue LEDs will be lit now, and during the next 8 hours
indicating the unit is in 8 Hour Sleep Mode.

When the 8-hour period has expired, the unit will run a clean
cycle. Once the Globe has returned to home position, only
the blue LED will be on. Once the 8-hour sleep period begins
again automatically, both yellow and blue LEDs will be on
again.

To exit this mode press and hold the Cycle button until the
yellow LED turns off, or if only the blue LED is on (not within
the 8-hour sleep period), the yellow LED will flash and then
turn off indicating you have exited from this mode.

Wait Time Setting

The elapsed time starting from your cat exiting the unit to
when the unit runs a clean cycle can be set for three, seven,
and fifteen minutes. Seven minutes is the default setting.

It may be useful to reduce the wait time if it is important to
minimize odor and/or the time that the waste is available to
other pets - such as dogs. However, reducing the wait time
may reduce the cleaning effectiveness (clumps do not have
enough time to set up).

Extending the wait time may be desirable when using a lower
quality clumping litter that needs more time to set up.

Press and hold the Empty button to enter the Wait Time
Setting mode. One of the LEDs will be flashing indicating the
current Wait Time Setting. Use the Reset button to toggle to
the next setting/s. Press and hol d the Empty button to save
the setting.

http://www.robotshop.com/eu/en/litter-robot-en.html

21

Control Panel Lockout

The Control Panel Lockout feature prevents children (or your
pet) from pressing the buttons and cycling the unit
unnecessarily. However, the Litter-Robot will continue to
function normally in the automatic mode.

Press and hold the Reset button until the blue LED flashes
indicating you have entered this mode.

Press and hold the Reset button to exit this mode. The blue
LED will flash indicating you have exited this mode.

Note that you can turn the unit Off by pressing and holding
the Power button for 3 seconds while in Control Panel
Lockout mode.

Battery Backup

The Litter-Robot has the option of Battery Backup. Using a
sealed 12VDC, 1,2 Amp Hour battery allows the unit to
continue working during power outages. The battery pocket
and connectors are located in the bottom of the Base.

NOTE: Battery Backup kits can be purchased from our
website.

(Contact Customer Service at [phone]
or visit http://www.robotshop.com/eu/en/litter-robot­en.html)

.



12VDC, 1,2 Amp Hour Battery

[phone]

22

When power to the Litter-Robot is int errupted, the unit
automatically switches to Battery Backup mode and is
indicated by the Power button backlit with a yellow LED.

Note that the Night Light function is disabled when in Battery
Backup mode to conserve energy.

Also note that the 8 Hour Sleep Mode timer will stop when
power to the unit is interrupted and in Battery Backup mode.

Base Bottom View

Connectors

Battery Pocket

Cat Sensor

http://www.robotshop.com/eu/en/litter-robot-en.html

23

Use and Care

Installing Waste Drawer Liners

Your Litter-Robot is shipped with a Waste Drawer Liner
already installed - two extra Drawer Liners have been
provided. The supplied Drawer Liners are made specifically
for the Litter-Robot, however, any 30-50L trash bag will also
work well.

To install a Drawer Liner or trash bag in the Waste Drawer,
open the bag, roll down the edge and push the rolled edge of
the bag into the four tabs starting with the back and working
your way toward the front of the Waste Drawer.

Push rolled

edge of bag

into tabs.

Bag Installed

[phone]

24

Carbon Filter

The Litter-Robot comes equipped with a flexible carbon
filter pad for absorbing odors in the drawer. The carbon
filter can be easily removed and replaced when cleaning
the drawer. The carbon filter is not required for the unit
to function and replacement frequency is based on
personal preference, however one filter should last a few
months under normal use. Replacement filter kits (3
filters per kit) can be ordered from Customer Service at
[phone] or
http://www.robotshop.com/eu/en/litter-robot-en.html.

Base Seal

The Litter-Robot also comes equipped with a brush-type
seal which helps to contain odors within the Waste
Drawer and Base. Replacement seals can be ordered
from Customer Service if needed.

Emptying the Litter-Robot

Press the Empty button to rotate the globe clockwise to
the discharge position. After the litter has dumped into
the Waste Drawer, you can press any button on the
Control Panel to return the Globe to the home position.

If some litter remains in the Globe, you may want to
sweep the remainder out with a brush.

Base Seals

Carbon Filter

http://www.robotshop.com/eu/en/litter-robot-en.html

25

Cleaning the Globe

Before you clean the Litter-Robot pl ease make sure that
you remove all litter from the Globe - wet litter turns into
messy clay.

After removing all litter from the Globe, remove the
Bonnet by pressing and releasing the latches on both
sides of the Bonnet, then lift and rotate the Bonnet off of
the globe and carefully set aside. Then simply lift and
remove the Globe. You can use the waste port area as a
handle. Clean the Globe with water and a mild soap.
There are no electronic components in the Globe which
can be damaged by soap and water. If the Globe has
become extremely dirty, it can be soaked and cleaned
with a water hose or power washer. Be sure that the
Globe is completely dry before returning it to the Base.

Cleaning the Waste Drawer

The drawer can easily be removed and cleaned with soap
and water. Always remove and rinse the Carbon Filter
when cleaning the Waste Drawer. Make sure Carbon
Filter is dry before reinstalling.

Cleaning the Base

Never submerge or soak the Base. The Base contains
the Cat Sensor and electronics. You can wipe the
surfaces of the Base with a cloth dampened with a
disinfectant. Do not use Bleach.

For a quick touchup, you can use a disposable towelette
to wipe the inside and upper half of the Globe. This can
be done without removing the litter. The Litter-Robot
can be used immediately after this touch-up because
drying is almost instantaneous.

[phone]

26

Reinstalling Globe and Bonnet

1. Place the Globe on the Base in th e approximate
home position (lip of opening at bottom) with the
gear track lined up with the groove in the Base. Note
that the Globe rotational axis is positioned at a 20­degree angle relative to the floor, therefore, Globe is
installed slightly tilted in the Base.

2. Rotate Key at back of Globe into pocket of Base. The
Key controls the motion of the internal Shield and
needs to be in the Base pocket to function properly.

3. Find tabs at bottom and rear of Bonnet and
align/insert tabs into small holes in Base.

4. Rotate Bonnet downward with light pressure on the

sides such that Bonnet hugs the Globe. This will help
to ensure proper alignment of Bonnet snaps with the
slot openings in the Base. Once Bonnet snaps have
entered the slots, push down on the Bonnet from the
top and make sure that the Bonnet snaps have
latched into place and Bonnet is secure. Note that
the unit will not run without the Bonnet installed.

(See next page for diagram)

http://www.robotshop.com/eu/en/litter-robot-en.html

27

With Bonnet removed, make sure Globe

gear track is aligned in groove of Base
Unit.

Rotate Key into pocket in Base Unit.

Align and slide rear facing Tabs located

on each side of the Bonn et into holes in
Base Unit.

Rotate Bonnet downward aligning Snap

Tabs with corresponding slots in Base
Unit. Continue sliding Bonnet downward
into place, assuring Snap Tabs latch and
Bonnet is secure.

3

4

1

2

[phone]

28

Safety Features

Globe Bonnet

The Bonnet functions as a cover and guard for the waste
port as the Globe (and waste port) rotates from the top
of the unit into the Base. The Bonnet also provides a
mount location for the Automatic Night Light, wires, and
electrical terminals that provide a low and safe 5VDC to
the Night Light. The Globe will not rotate without the
Bonnet installed (see Control Panel - Indicator Lights
section -> Yellow LED Flashing, page 16).

Cat Re-Entry Protection

If the Cat Sensor detects your cat trying to enter the
Litter-Robot during a cleaning cycle, the Globe will stop
rotating. The Litter-Robot will wait for 15 seconds before
attempting to resume the clean cycle. Note that weight
applied on the Step and/or Step Mat will not trip the Cat
Sensor and stop the Gl obe rotation. This is intentional

as we do not want to invite a cat to enter by
stopping the Globe rotation. If, however, the cat
steps inside, the Globe will immediately stop.

Anti-Pinch Safety Feature

The Litter-Robot comes equipped with an anti-pinch
feature to make the Litter-Robot extra safe for your cat.
If a potential pinch condition is detected, the Globe
automatically stops and then reverses direction for
approximately 2 seconds. The Yellow LED will then flash
twice per second for 1 minute.

http://www.robotshop.com/eu/en/litter-robot-en.html

29

Internal Shield

The Internal Shield provides a barrier between interior
working surfaces of Globe and interior area used by your
cat preventing waste and litter residue from coming into
contact with your cat.

Automatic Shut Off
If the Globe becomes jammed or overloaded, the motor

will stop and the Control Panel will display a yellow, then
red LED blinking sequence. To reset the unit, follow
these steps:

1. Turn off and unplug the unit

2. Remove the obstruction or excessive litter

3. Reposition the Globe in the home position

4. Plug the power cord back in and turn on. The Litter­Robot will then perform a clean cycle and return to
Home position with blue LED On.

If this condition persists, please email Customer Service at
[e-mail].

[phone]

30

Money-Back Guarantee and Warranty

90-Day Trial Period

If you or your cats are not completely satisfied with the
Litter-Robot, just return the unit to us within 90 days for
a full refund of purchase price. Please note that you are
responsible for return shipping cost.

Please note that if you have purchased your Litter-Robot
through a source other than AutoPets you must
coordinate the return with that source and according to
their product return policy.

If you have purchased from RobotShop, please email us
at [e-mail] to obtain an RMA number.
Shipments without an RMA number cannot be accepted.
Please also refer to the Return Instructions insert.

Please make sure the Litter-Robot is cleaned and
carefully packaged (the original packing materials are
best) in order to avoid damage in shipment. The Return
Instructions insert shows a packaging diagram for the
Litter-Robot.

24-Month Full Warranty

Your Litter-Robot is covered by a full warranty for 24
months, starting from the date of shipment regardless of
where purchased. The warranty covers all parts and
labor. Shipping costs will vary by region.

http://www.robotshop.com/eu/en/litter-robot-en.html

31

Contact Customer Service

If you have any questions, concerns, or need assistance,
contact RobotShop and we’ll be glad to help.

[e-mail]

[phone]

M – F: 3 PM – 10 PM CET

If repairs are necessary, call or email us to obtain an RMA
number prior to sending your Litter-Robot in for service.

[phone]

32

Frequently Asked Questions

Will my cat actually go inside the Globe?

Cats are generally curious and will investigate any new
object. Cats that are already used to a covered litter box
may be quicker to investigate. We recommend that the
Litter-Robot be placed in the same location where the old
litter box used to be. The old litter box can be left near
the Litter-Robot for a short time. Take a cup of litter
from the old litter box and add it to the clean litter in the
Litter-Robot. The scent will be familiar, and the cat will
be inclined to investigate. Once your cat has ventured
inside and feels the litter under its paws, it will know
what to do.

Can kittens use the Litter-Robot?

We do not recommend that kittens or cats weighing 2,5
kg or less use the Litter-Robot in the unattended
automatic mode. Their low weight may not activate the
Cat Sensor. Cats should be at least 2,5 kg before using
the Litter-Robot in the automatic mode.

CAUTION: Leave the Litter-Robot turned off and
only start the cleaning cycle manually until you
are sure that all cats in the household are heavy
enough to activate the Cat Sensor.

What if my cat won't use the Litter-Robot?

If you and your cat are not completely satisfied, just
return your Litter-Robot within 90 days of purchase for a
full refund of the purchase price. Please note that you
are responsible for return shipping costs. Please contact
Customer Service to request a Return Authorization
(RMA) number. Return shipments without an RMA
number cannot be accepted.

http://www.robotshop.com/eu/en/litter-robot-en.html

33

What happens if my cat tries to enter the Globe
while it is rotating?

The Cat Sensor will detect the presence of your cat once
it enters the Globe and the motor will stop. The Litter­Robot pauses 15 seconds before resuming the clean
cycle - assuming the cat has left the Globe.

Are there any rakes, or wires inside the Globe?

No, the Globe does not contain any rakes or wires that
could hurt or harm your cat. The Litter-Robot was
designed with your cat’s safety in mind.

Are the electronics or power source dangerous to
my cat?

No, the Litter-Robot operates on a safe 15 Volts DC using
an adapter very similar to the ones you may have at
home for a clock radio, or for charging your cell phone.
All electrical components are located in the Base, away
from where the cat could reach them. There are no
electrical components inside the Globe.

Will the Globe turn while my cat is inside?

No, the Globe will not turn while your cat is inside. The
Cat Sensor is tripped each time a cat enters, or re-enters
the Globe, resetting the count-down timer to prevent the
cleaning cycle from starting for another seven minutes.

What happens if the Globe jams?

If the Globe jams or an excessive load condition occurs,
the motor is turned off automatically. In addition, the
Litter-Robot is equipped with an anti-pinch safety device.

[phone]

34

Does the Litter-Robot require special litter?

No, the Litter-Robot does not require special litter. In
fact, the Litter-Robot works just fine with any clay-based
clumping type litter. Some silica gel litter beads and
crystals can also be used with the Litter Robot. Litters
that do not work in the Litter-Robot are the strictly
absorbent, loose clumping or non-clumping litters,
newspaper based litters and absorbent wood pellet litter.

How much litter do I put in the Litter-Robot?

Start with approximately 4,5 to 5 kg of litter. Check that
the litter does not exceed the Fill Line, however if there is
too much litter in the globe it will be expelled into the
drawer during the first few clean cycles. Since the waste
clumps are removed during every cycle, there is no need
to put excessive litter in the Globe.

How often do I need to add litter?
Experience shows that with two small cats (approx. 4 kg

each), litter needs to be added about once a week, and
sometimes it will last longer than that. The Litter-Robot
uses litter very efficiently since the patented sifting
mechanism only removes the clumps.

Is dust a problem with the frequent rotation of the
Globe and the movement of the litter?

No, any dust is negligible since the Globe rotates very
slowly.

How often do I need to empty the drawer?

This depends on the number and size of your cats. For
two average-sized cats, twice per week is typical. For a
single cat, once per week is usually sufficient.

http://www.robotshop.com/eu/en/litter-robot-en.html

35

How often do I have to clean the inside of the
Litter-Robot Globe?

This depends on your personal preference and your cat’s
behavior. However, we recommend that you clean the
inside of the Globe every one to three months.

How do I clean the Litter-Robot exterior?

Cleaning the Litter-Robot exterior is easy. Just remove
the Globe and the Drawer and give them a sponge bath,
or take them outside for deep cleaning with the garden
hose. All other surfaces can be wiped clean but should
not be submerged.

CAUTION: The Base and Bonnet of the Litter­Robot contain electrical components and are not
meant to be submerged. See the Use and Care

section for more details.

What are the dimensions of the Litter-Robot?

• The fully assembled Litter Robot is 73 cm high, 60 cm

wide and 67 cm deep.

• The waste drawer is 31 cm wide, 40 cm long and 12,5
cm deep.

• The oval shaped entry for the cat is 39 cm high and 25

cm wide.

• The litter bed area measures 35 cm across at maximum

litter capacity.

• There are 37,5 to 42,5 cm of head room for the cat

inside the Globe depending on the level of litter. The
inside width is 50 cm across at the widest point, and
depth is 50 cm front to back.

[phone]

36

Troubleshooting

Yellow-> Red LEDs flashing sequentially:

Motor has detected an obstruction or jammed condition.
Turn unit OFF then back ON to reset.

Red LED Flashing:

Cat Sensor has been activated continuously for more
than 2 minutes. Check for excess weight, such as too
much litter or waste. Press the Reset button or turn unit
OFF then back ON to reset Cat Sensor.

Yellow LED Flashing:

Once per second: The cycle has been interrupted. This
happens when the Cat Sensor is activated during the
clean cycle or if the Bonnet is removed. Globe will stop
cycling for 15 seconds. If after 15 seconds, interruption
is no longer present, Globe will resume cycling with
yellow LED on.

Twice per second: Pinch Detection has been activated.
Unit will stop, reverse and after 1 minute will attempt to
complete cycle again.

Blue LED Flashing:

The Blue LED will flash to indicate the Waste Drawer is
full. Check or empty the Waste Drawer and press the
Reset button.

Blue and Yellow LEDs On:

Litter-Robot is in 8 Hour Lockout Mode. Cat sensor will
be de-activated and unit will only cycle if Cycle button is
manually pressed. This will happen every 24 hours
based on the time of initial setting.

http://www.robotshop.com/eu/en/litter-robot-en.html

37

Blue-> Yellow-> Red Flashing Sequentially: Litter­Robot cannot find the dump position. Turn off then back
on to reset unit. If condition persists, please contact
customer service to discuss repair options.

Red-> Yellow-> Blue Flashing Sequentially:

Litter-Robot cannot find the home position. Turn off then
back on to reset unit. If condition persists, please
contact customer service to discuss repair options.

Blue-Yellow-Red Flashing Simultaneously:

Litter-Robot cannot find both home and dump position.
Turn off then back on to reset unit. If condition persists,
please contact customer service to discuss repair option.
