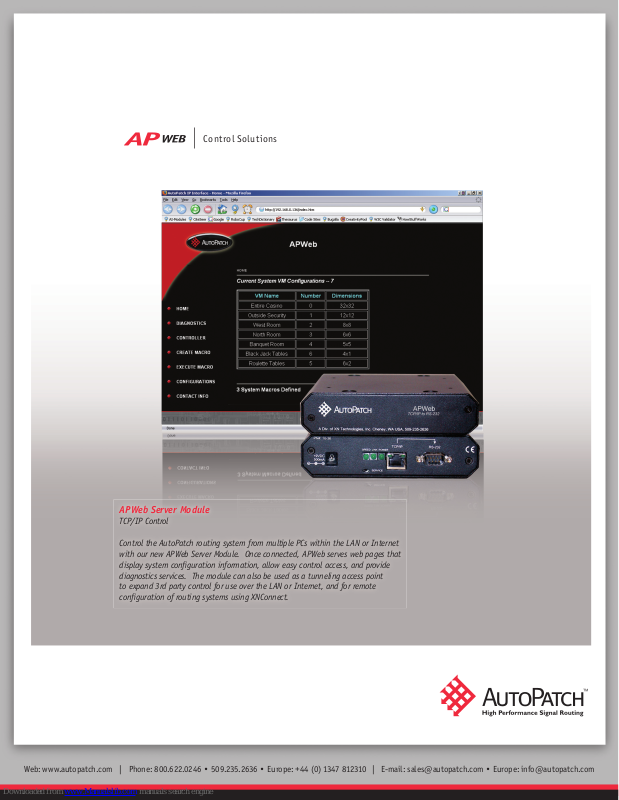

Page 1
Control Solutions
APWeb Server Module
TCP/IP Control
Control the AutoPatch routing system from multiple PCs within the LAN or Internet
with our new APWeb Server Module. Once connected, APWeb serves web pages that
display system confi guration information, allow easy control access, and provide
diagnostics services. The module can also be used as a tunneling access point
to expand 3rd party control for use over the LAN or Internet, and for remote
confi guration of routing systems using XNConnect.
Web: www.autopatch.com | Phone: 800.622.0246 • 509.235.2636 • Europe: +44 (0) 1347 812310 | E-mail: [email protected] • Europe: [email protected]

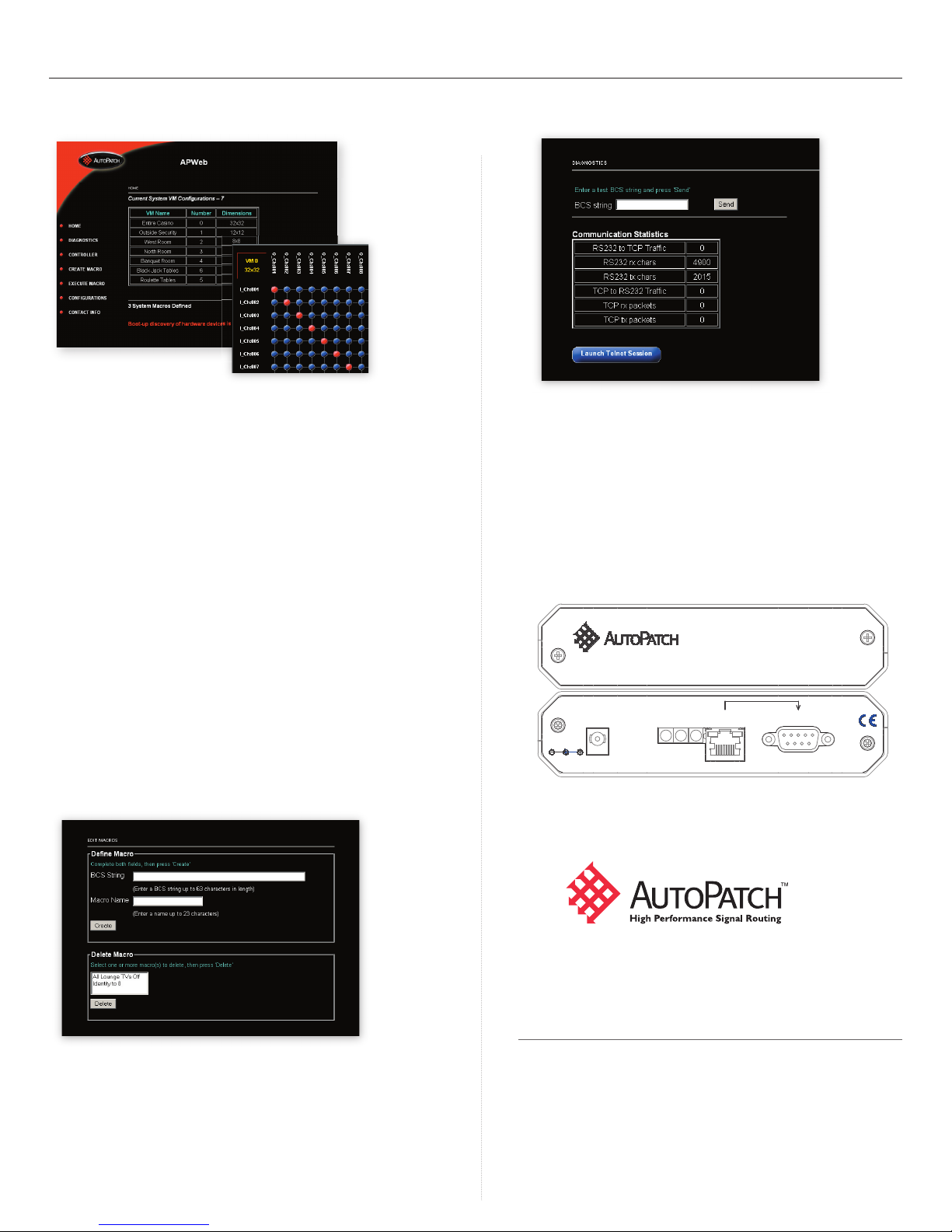

Page 2
RJ45 to DB9
TCP/IP RS-232
+9VDC
500mA
PN#: 10-36
APWeb
TCP/IP to RS-232
A Div. of XN Technologies, Inc. Cheney, WA USA, 509-235-2636
LINK POWERSPEED
WEB
AP
SPECIFICATIONS
• Connects to the routing system via RS-232
• Prevent unwanted access to attached routing system by enabling
the built-in security protection
• Serves a web page containing the routing system’s current virtual
matrix and I/O configurations
• Supports up to 25 virtual matrix configurations each with an I/O
range up to 512x512
• Features an intuitive XBar control view, using Java Applet
TM
technology, which allows for control of the connected
routing system
• A diagnostics page allows for local and remote
diagnostics, and provides a place to launch a
Telnet session for sending AutoPatch BCS serial
control protocol
• XBar Applet can be embedded into a custom web page for
extended access control
• Provides a tunneling access point to expand 3rd party control for
use over the LAN or Internet
• Allows for local or remote diagnostics and firmware upgrades
• A single APWeb Module can control multiple linked AutoPatch
matrix switchers
• Supports dynamic IP address configuration via DHCP
• Includes a security page for login and password protection
• APWeb Module is compatible with all Optima, Modula, Modula
Series4, 8Y-3000, Epica, and Precis 3 RU models
2416 Cheney-Spokane Rd.
P.O. Box 350 Cheney, WA 99004-0350
phone: 800.622.0246 US & Canada
fa x: 509.235.2646
web: w ww.autopatch.com
• Macro creation and execution pages provide for creation,
modification and execution of macros
• The program supports up to 50 user-defined macros, with
custom names up to 23 characters
0806
Unit 3 Green Park Business Centre
Goose Lane
Sutton- on-the-Forest
York
Y061 1ET
phone: +44 (0) 1347 812310
fa x: +44 (0) 1347 812322
