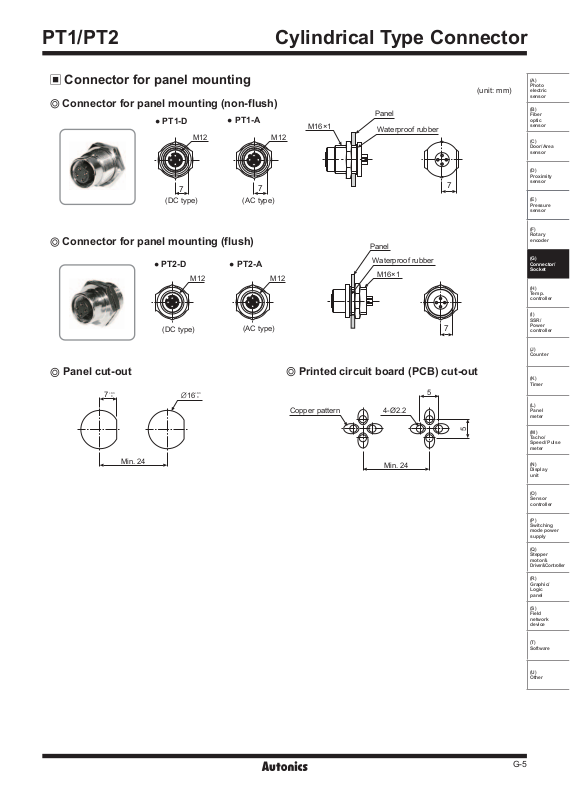

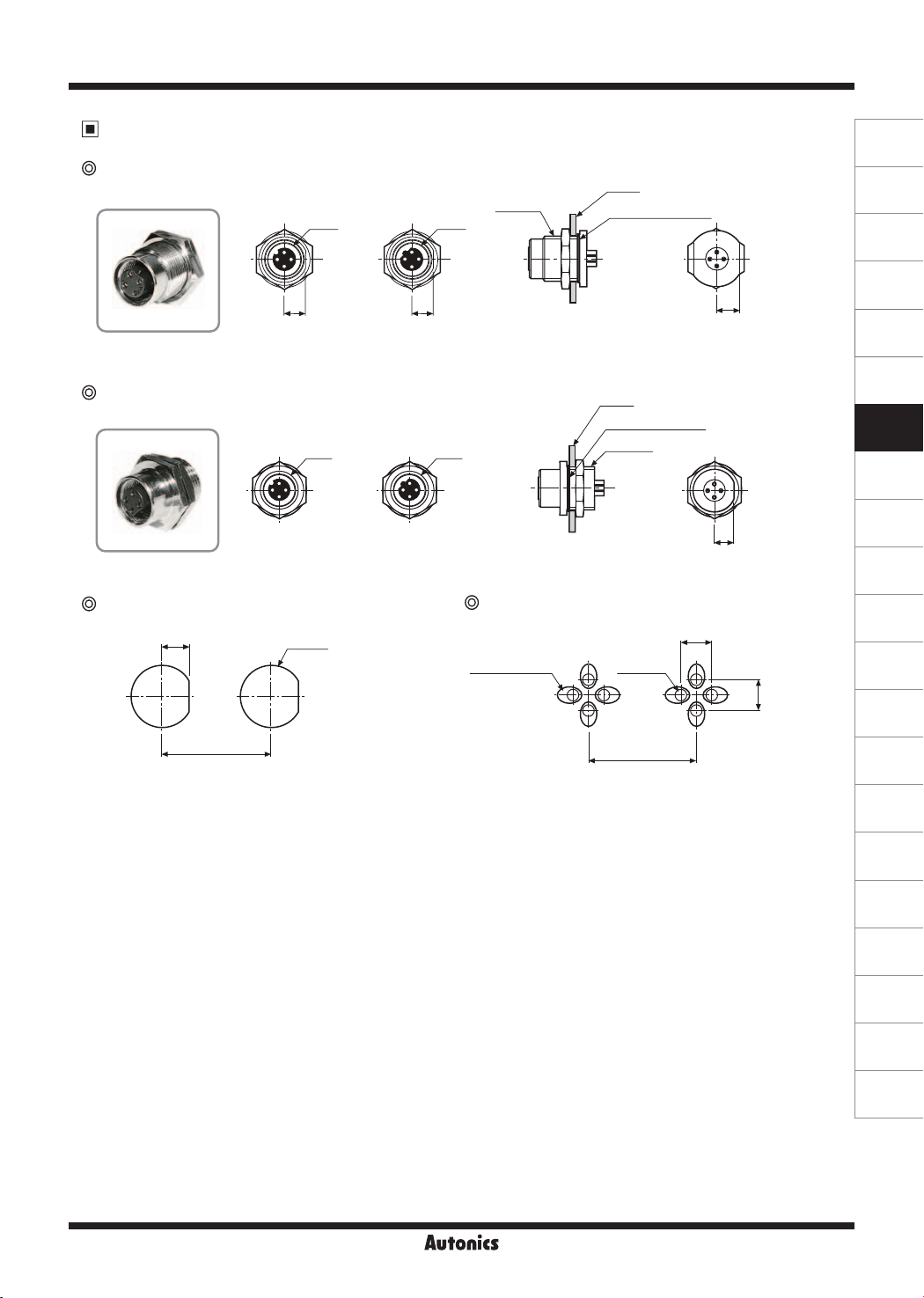

PT1/PT2 Cylindrical Type Connector
Connector for panel mounting
Connector for panel mounting (non-flush)
● PT1-D
M12
7
(DC type) (AC type)
Connector for panel mounting (flush)
M12 M12
(DC type)
Panel cut-out
+0.3
0
7
Min. 24
Ø16
● PT1-A
7
● PT2-A● PT2-D
(AC type)
+0.3
0
Panel
M12
M16×1
Waterproof rubber
Panel
Waterproof rubber
M16×1
Printed circuit board (PCB) cut-out
Copper pattern
4-Ø2.2
Min. 24
(A)
(unit: mm)
