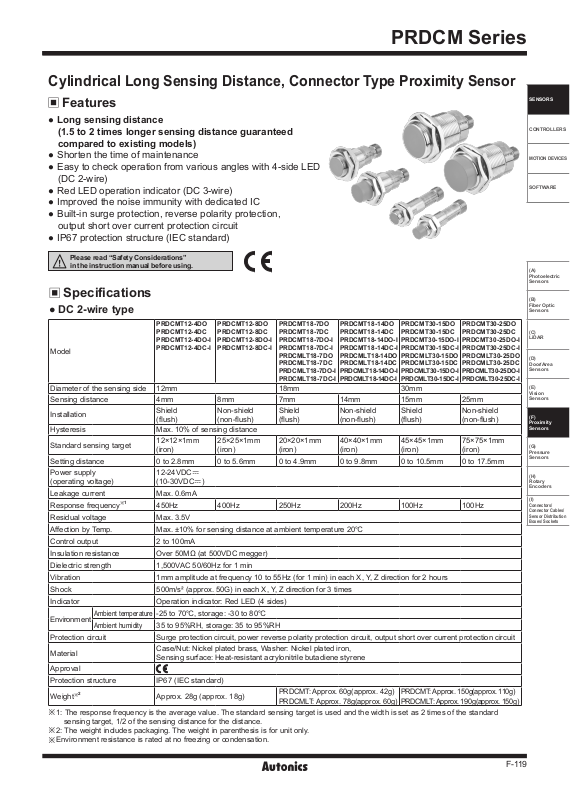

PRDCM Series
Cylindrical Long Sensing Distance, Connector Type Proximity Sensor
Features
● Long sensing distance
(1.5 to 2 times longer sensing distance guaranteed
compared to existing models)
● Shorten the time of maintenance
● Easy to check operation from various angles with 4-side LED
(DC 2-wire)
● Red LED operation indicator (DC 3-wire)
● Improved the noise immunity with dedicated IC
● Built-in surge protection, reverse polarity protection,
output short over current protection circuit
● IP67 protection structure (IEC standard)
Please read “Safety Considerations”
in the instruction manual before using.
Specifications
● DC 2-wire type
PRDCMT12-4DO
PRDCMT12-4DC
PRDCMT12-4DO-I
Model
PRDCMT12-4DC-I
Diameter of the sensing side 12mm 18mm 30mm
Sensing distance 4mm 8mm 7mm 14mm 15mm 25mm
Installation
Shield
(ush)
Hysteresis Max. 10% of sensing distance
Standard sensing target
12×12×1mm
(iron)
Setting distance 0 to 2.8mm 0 to 5.6mm 0 to 4.9mm 0 to 9.8mm 0 to 10.5mm 0 to 17.5mm
Power supply
(operating voltage)
Leakage current Max. 0.6mA
Response frequency
※
12-24VDCᜡ
(10-30VDCᜡ)
1
450Hz 400Hz 250Hz 200Hz 100Hz 100Hz
Residual voltage Max. 3.5V
Aection by Temp.
Max. ±10% for sensing distance at ambient temperature 20℃
Control output 2 to 100mA
Insulation resistance Over 50MΩ (at 500VDC megger)
Dielectric strength 1,500VAC 50/60Hz for 1 min
Vibration 1mm amplitude at frequency 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock 500m/s² (approx. 50G) in each X, Y, Z direction for 3 times
Indicator Operation indicator: Red LED (4 sides)
Environment
Ambient temperature
Ambient humidity
-25 to 70℃, storage: -30 to 80
35 to 95%RH, storage: 35 to 95%RH
Protection circuit Surge protection circuit, power reverse polarity protection circuit, output short over current protection circuit
Material
Case/Nut: Nickel plated brass, Washer: Nickel plated iron,
Sensing surface: Heat-resistant acrylonitrile butadiene styrene
Approval
Protection structure IP67 (IEC standard)
2
※
Weight
※
1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard
sensing target, 1/2 of the sensing distance for the distance.
※
2: The weight includes packaging. The weight in parenthesis is for unit only.
※
Environment resistance is rated at no freezing or condensation.
Approx. 28g (approx. 18g)
PRDCMT12-8DO
PRDCMT12-8DC
PRDCMT12-8DO-I
PRDCMT12-8DC-I
Non-shield
(non-ush)
25×25×1mm
(iron)
℃
PRDCMT18-7DO
PRDCMT18-7DC
PRDCMT18-7DO-I
PRDCMT18-7DC-I
PRDCMLT18-7DO
PRDCMLT18-7DC
PRDCMLT18-7DO-I
PRDCMLT18-7DC-I
Shield
(ush)
20×20×1mm
(iron)
PRDCMT18-14DO
PRDCMT18-14DC
PRDCMT18-14DO-I
PRDCMT18-14DC-I
PRDCMLT18-14DO
PRDCMLT18-14DC
PRDCMLT18-14DO-I
PRDCMLT18-14DC-I
Non-shield
(non-ush)
40×40×1mm
(iron)
PRDCMT: Approx. 60g(approx. 42g)
PRDCMLT: Approx. 78g(approx. 60g)
PRDCMT30-15DO
PRDCMT30-15DC
PRDCMT30-15DO-I
PRDCMT30-15DC-I
PRDCMLT30-15DO
PRDCMLT30-15DC
PRDCMLT30-15DO-I
PRDCMLT30-15DC-I
Shield
(ush)
45×45×1mm
(iron)
PRDCMT30-25DO
PRDCMT30-25DC
PRDCMT30-25DO-I
PRDCMT30-25DC-I
PRDCMLT30-25DO
PRDCMLT30-25DC
PRDCMLT30-25DO-I
PRDCMLT30-25DC-I
Non-shield
(non-ush)
75×75×1mm
(iron)
PRDCMT: Approx. 150g(approx. 110g)
PRDCMLT: Approx. 190g(approx. 150g)
SENSORS
CONTROLLERS
MOTION DEVICES
SOFTWARE
(A)
Photoelectric
Sensors
(B)
Fiber Optic
Sensors
(C)
LiDAR
(D)
Door/Area
Sensors
(E)
Vision
Sensors
(F)
Proximity
Sensors
(G)
Pressure
Sensors
(H)
Rotary
Encoders
(I)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/ Sockets
PRDCM Series
Specifications
● DC 3-wire type
PRDCM12-4DN
PRDCM12-4DP
PRDCM12-4DN2
Model
Diameter of the sensing side 12mm 18mm 30mm
Sensing distance 4mm 8mm 7mm 14mm 15mm 25mm
Installation
Hysteresis Max. 10% of sensing distance
Standard sensing target
Setting distance 0 to 2.8mm 0 to 5.6mm 0 to 4.9mm 0 to 9.8mm 0 to 10.5mm 0 to 17.5mm
Power supply
(operating voltage)
Current consumption Max. 10mA
Response frequency
Residual voltage Max. 1.5V
Aection by Temp.
Control output Max. 200mA
Insulation resistance Over 50MΩ (at 500VDC megger)
Dielectric strength 1,500VAC 50/60Hz for 1 min
Vibration 1mm amplitude at frequency 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock 500m/s² (approx. 50G) in each X, Y, Z direction for 3 times
Indicator Operation indicator: Red LED
Ambient temperature
Environment
Ambient humidity
Protection circuit Surge protection circuit, power reverse polarity protection circuit, output short over current protection circuit
Protection structure IP67 (IEC standard)
Material
Approval
Unit Weight
※
1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard
sensing target, 1/2 of the sensing distance for the distance.
※
Environment resistance is rated at no freezing or condensation.
1
※
PRDCM12-4DP2
PRDCML12-4DN
PRDCML12-4DP
PRDCML12-4DN2
PRDCML12-4DP2
Shield
(ush)
12×12×1mm
(iron)
12-24VDCᜡ
(10-30VDCᜡ)
500Hz 400Hz 300Hz 200Hz 100Hz 100Hz
Max. ±10% for sensing distance at ambient temperature 20℃
-25 to 70℃, storage: -30 to 80
35 to 95%RH, storage: 35 to 95%RH
Case/Nut: nickel plated brass, washer: nickel plated iron,
Sensing surface: heat-resistant acrylonitrile butadiene styrene
PRDCM: Approx. 26g
PRDCML: Approx. 34g
PRDCM12-8DN
PRDCM12-8DP
PRDCM12-8DN2
PRDCM12-8DP2
PRDCML12-8DN
PRDCML12-8DP
PRDCML12-8DN2
PRDCML12-8DP2
Non-shield
(non-ush)
25×25×1mm
(iron)
℃
PRDCM18-7DN
PRDCM18-7DP
PRDCM18-7DN2
PRDCM18-7DP2
PRDCML18-7DN
PRDCML18-7DP
PRDCML18-7DN2
PRDCML18-7DP2
Shield
(ush)
20×20×1mm
(iron)
PRDCM: Approx. 48g
PRDCML: Approx. 66g
PRDCM18-14DN
PRDCM18-14DP
PRDCM18-14DN2
PRDCM18-14DP2
PRDCML18-14DN
PRDCML18-14DP
PRDCML18-14DN2
PRDCML18-14DP2
Non-shield
(non-ush)
40×40×1mm
(iron)
PRDCM30-15DN
PRDCM30-15DP
PRDCM30-15DN2
PRDCM30-15DP2
PRDCML30-15DN
PRDCML30-15DP
PRDCML30-15DN2
PRDCML30-15DP2
Shield
(ush)
45×45×1mm
(iron)
PRDCM: Approx. 142g
PRDCML: Approx. 182g
PRDCM30-25DN
PRDCM30-25DP
PRDCM30-25DN2
PRDCM30-25DP2
PRDCML30-25DN
PRDCML30-25DP
PRDCML30-25DN2
PRDCML30-25DP2
Non-shield
(non-ush)
75×75×1mm
(iron)
F-120 F-121
Cylindrical Long Sensing Distance, Connector Type
Dimensions
PRDCMT12-4D - PRDCMT12-8D -
Ø21
17
PRDCMT18-7D -
Ø29
24
56.5
31.5 25
4
M12×1 M12×1
58
33 25
M18×1 M12×1
4
Operation
indicator(red)
Operation
indicator(red)
PRDCMT18-14D -
PRDCMT30-15D - PRDCMT30-25D -
Ø42
35
63
38 25
Operation
indicator(red)
Ø21
17
Ø29
24
Ø42
35
7
9.5
10
56.5
24.5 25
M12×1 M12×1
4
58
23.5 25
M18×1 M12×1
4
63
28 25
(unit: mm)
Operation
indicator(red)
Operation
indicator(red)
Operation
indicator(red)
SENSORS
CONTROLLERS
MOTION DEVICES
SOFTWARE
(A)
Photoelectric
Sensors
(B)
Fiber Optic
Sensors
(C)
LiDAR
(D)
Door/Area
Sensors
(E)
Vision
Sensors
5
PRDCMLT18-7D -
Ø29
24
PRDCMLT30-15D -
Ø42
35
M30×1.5 M12×1
87
62
4
M18×1
85
60
5
M30×1.5
Operation
indicator(red)
M12×1
Operation
indicator(red)
M12×1
PRDCMLT18-14D -
Ø29
24
10
PRDCMLT30-25D -
Ø42
35
10
M30×1.5 M12×1
5
87
52
4
85
50
5
M18×1
M30×1.5
Operation
indicator(red)
M12×1
Operation
indicator(red)
M12×1
(F)
Proximity
Sensors
(G)
Pressure
Sensors
(H)
Rotary
Encoders
(I)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/ Sockets
PRDCM Series
Dimensions
PRDCM12-4D PRDCM12-8D
Ø21
17
55.8
31.5
4
M12×1
Operation
indicator(red)
M12×1
PRDCM18-7D PRDCM18-14D
Ø29
24
PRDCM30-15D
Ø42
35
54.3
29.5
4
M18×1 M12×1
Operation
indicator(red)
PRDCM30-25D
63.8
38
5
M30×1.5
Operation
indicator(red)
M12×1
Ø21
17
Ø29
24
Ø42
35
(unit: mm)
55.8
M18×1
M30×1.5
Operation
indicator(red)
M12×1
Operation
indicator(red)
M12×1
Operation
indicator(red)
M12×1
24.57
4
10
4
10
M12×1
53.8
19
63.8
28
5
PRDCML12-4D
Ø21
17
PRDCML18-7D
Ø29
24
PRDCML30-15D
Ø42
35
PRDCML12-8D
68.3
44
4
M12×1
Operation
indicator(red)
M12×1
Ø21
17
7
68.3
37
M12×1
Operation
indicator(red)
M12×14
PRDCML18-14D
87.3
62.5
4
60
5
M18×1
85.8
M30×1.5
Operation
indicator(red)
M12×1
Operation
indicator(red)
M12×1
Ø29
24
PRDCML30-25D
Ø42
35
10
10
86.8
52
4
50
5
M18×1
85.8
M30×1.5
Operation
indicator(red)
M12×1
Operation
indicator(red)
M12×1
F-122 F-123
Cylindrical Long Sensing Distance, Connector Type
Control Output Diagram and Load Operation
DC 2-wire type
Main circuit
Brown
4
4
Blue
3
3
Load
+V
0V
Sensing
target
Load
Operation
Indicator
(red LED)
Presence
None
Operation
Return
ON
OFF
DC 3-wire type
NPN output type
Brown
1
10
kΩ
Black
4
Main circuit
Blue
3
※
The number in a circle is pin no. of connector.
Load
+V
(brown-black)
0V
Sensing
target
Load
Output
voltage
(black-blue)
Operation
Indicator
(red LED)
Presence
None
Operation
Return
H
L
ON
OFF
N.O.
N.O.
N.C.
N.C.
PNP output type
10kΩ
Main circuit
Brown
1
4
3
Black
Blue
Load
+V
(brown-black)
(black-blue)
Operation
0V
Sensing
target
Load
Output
voltage
Indicator
(red LED)
Presence
None
Operation
Return
H
L
ON
OFF
N.O. N.C.
SENSORS
CONTROLLERS
MOTION DEVICES
SOFTWARE
(A)
Photoelectric
Sensors
(B)
Fiber Optic
Sensors
(C)
LiDAR
Wiring Diagram
DC 2-wire type (standard type)
Normally Open (N.O.) / Normally Closed (N.C.)
231
Brown
4
※
Pin ①, ② are not used terminals.
※
For DC 3-wire type connector cable, it is available to use
Load
Blue
+V
0V
with black wire (12-24V DC) and blue wire (0V).
DC 3-wire type
NPN output type PNP output type
Brown
231
4
Load
Black
Blue
※
Please fasten the cleat of connector not to shown the
thread. (0.39 to 0.49N.m)
+V
0V
231
231
Brown
4
Blue
Load
Brown
Black
4
Load
Blue
(D)
Door/Area
+V
0V
Sensors
(E)
Vision
Sensors
(F)
Proximity
Sensors
(G)
Pressure
Sensors
(H)
Rotary
Encoders
(I)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/ Sockets
DC 2-wire type (IEC standard type)
Normally Open (N.O.) Normally Closed (N.C.)
231
4
Brown
Blue
Load
Brown
Load
+V
0V
231
Blue
4
※
of N.O. type and ③,④ of N.C. type are not used
②,③
+V
0V
terminals.
※
The pin arrangement of connector applying IEC standard
is being developed.
※
Please attach "I" at the end of the name of standard type
for purchasing the IEC standard product.
E.g.)PRDCMT12-4DO-I
※
+V
The connector cable for IEC standard is being developed.
Please attach "I' at the end of the name of standard type.
E.g.)CID2-2-I, CLD2-5-I
0V
※
Please fasten the vibration part with PEFE tape.
※
For more information about cable and specication,
refer to the
(I) Connectors/Cable Connectors/Sensor
Distribution Boxes/Sockets
PRDCM Series
Sensing Distance Feature Data by
Target Material and Size
PRDCMT12-4D -
4.00
3.50
3.00
2.50
2.00
1.50
Sensing distance X (mm)
1.00
0.50
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
PRDCM(L)T18-7D -
8.00
7.00
6.00
5.00
4.00
3.00
Sensing distance X (mm)
2.00
1.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
One side length of sensing target d (mm)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
Detecting
Method
PRDCMT12-8D -
9.00
8.00
7.00
6.00
5.00
4.00
3.00
Sensing distance X (mm)
2.00
1.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
PRDCM(L)T18-14D -
16.00
14.00
12.00
10.00
8.00
6.00
Sensing distance X (mm)
4.00
2.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
One side length of sensing target d (mm)
Sensing
distance (X)
d
target
Sensing
One side
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
length
PRDCM(L)T30-15D -
18.00
16.00
14.00
12.00
10.00
8.00
6.00
Sensing distance X (mm)
4.00
2.00
0.00
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1 9
One side length of sensing target d (mm)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
PRDCM(L)T30-25D -
30.00
25.00
20.00
15.00
10.00
Sensing distance X (mm)
5.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
F-124 F-125
Cylindrical Long Sensing Distance, Connector Type
Sensing Distance Feature Data by
Target Material and Size
PRDCM(L)12-4D
4.50
4.00
3.50
3.00
2.50
2.00
1.50
Sensing distance X (mm)
1.00
0.50
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
PRDCM(L)18-7D
8.00
7.00
6.00
5.00
4.00
3.00
Sensing distance X (mm)
2.00
1.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
PRDCM(L)30-15D
18.00
16.00
14.00
12.00
10.00
8.00
6.00
Sensing distance X (mm)
4.00
2.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
Detecting
Method
PRDCM(L)12-8D
9.00
8.00
7.00
6.00
5.00
4.00
3.00
Sensing distance X (mm)
2.00
1.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
PRDCM(L)18-14D
16.00
14.00
12.00
10.00
8.00
6.00
Sensing distance X (mm)
4.00
2.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
PRDCM(L)30-25D
30.00
25.00
20.00
15.00
10.00
Sensing distance X (mm)
5.00
0.00
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
One side length of sensing target d (mm)
Sensing
distance (X)
d
target
Sensing
One side
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
Iron (SS401)
Stainless steel 364
(SUS364)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
length
SENSORS
CONTROLLERS
MOTION DEVICES
SOFTWARE
(A)
Photoelectric
Sensors
(B)
Fiber Optic
Sensors
(C)
LiDAR
(D)
Door/Area
Sensors
(E)
Vision
Sensors
(F)
Proximity
Sensors
(G)
Pressure
Sensors
(H)
Rotary
Encoders
(I)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/ Sockets
PRDCM Series
Sensing Distance Feature Data by
Parallel (Left/Right) Movement
Detecting
Method
Sensing
area (Y)
Sensing
target
Sensing
distance (X)
PRDCMT12-4D - /
PRDCMT12-8D -
8.0
7.0
6.0
5.0
4.0
3.5
3.0
2.5
Sensing distance X (mm)
2.0
1.5
1.0
0.5
6.0 4.0 2.0 0.0 2.0 4.0 6.0
Left ← Center → Right
Sensing area Y (mm)
PRDCMT12-4D PRDCMT12-8D -
PRDCM(L)12-4D /8D
8.0
7.0
6.0
5.0
4.0
3.5
3.0
2.5
Sensing distance X (mm)
2.0
1.5
1.0
0.5
6.0 4.0 2.0 0.0 2.0 4.0 6.0
Left ← Center → Right
Sensing area Y (mm)
PRDCM(L)12-4D
PRDCM(L)12-8D
PRDCM(L)T18-7D - /
PRDCM(L)T18-14D -
14.0
13.0
11.0
9.0
7.0
6.0
5.0
Sensing distance X (mm)
4.0
3.0
2.0
1.0
15.0 10.0 5.0 0.0 5.0 10.0 15.0
Left ← Center → Right
Sensing area Y (mm)
PRDCM(L)T18-7D PRDCM(L)T18-14D -
PRDCM(L)18-7D /14D
14.0
13.0
11.0
9.0
7.0
6.0
5.0
Sensing distance X (mm)
4.0
3.0
2.0
1.0
15.0 10.0 5.0 0.0 5.0 10.0 15.0
Left ← Center → Right
Sensing area Y (mm)
PRDCM(L)18-7D
PRDCM(L)18-14D
PRDCM(L)T30-15D - /
PRDCM(L)T30-25D -
25.0
23.0
20.0
17.0
15.0
14.0
12.0
11.0
10.0
8.0
Sensing distance X (mm)
6.0
5.0
4.0
2.0
20.0 15.0 10.0 5.0 0.0 5.0 10.0 15.0 20.0
Left ← Center → Right
Sensing area Y (mm)
PRDCM(L)T30-15D PRDCM(L)T30-25D -
PRDCM(L)30-15D /25D
25.0
23.0
20.0
17.0
15.0
14.0
12.0
11.0
10.0
8.0
Sensing distance X (mm)
6.0
5.0
4.0
2.0
20.0 15.0 10.0 5.0 0.0 5.0 10.0 15.0 20.0
Left ← Center → Right
Sensing area Y (mm)
PRDCM(L)30-15D
PRDCM(L)30-25D
F-126 F-127
Cylindrical Long Sensing Distance, Connector Type
Proper Usage
Load connections
R ≤
Brown
Load
+
24VDC
Load
(kΩ)
-
V
P >
R
Blue
V
s
Io-Ioff
Io: Min. action current of proximity sensor,
P: Number of Bleeder resistance watt
s
2
(W)
Brown
+
-
Blue
< DC 2-wire type >
< DC 2-wire type >
When using DC 2-wire type proximity sensor, the load must be connected otherwise internal components may be damaged.
The load can be connected to either wire.
In case of the load current is small
● DC 2-wire type
Please make the current on proximity sensor smaller than the return current of load by connecting a bleeder resistor
in parallel.
※
W value of Bleeder resistor should be bigger for proper heat dissipation.
Brown
Blue
Load
Bleeder resistor (R)
+
Vs
-
Vs: Power supply,
[ ]
Ioff: Return current of load,
SENSORS
CONTROLLERS
MOTION DEVICES
SOFTWARE
(A)
Photoelectric
Sensors
(B)
Fiber Optic
Sensors
(C)
LiDAR
Mutual-interference & Influence by surrounding metals
When several proximity sensors are mounted close to one another a malfunction of the may be caused due to mutual
interference. Therefore, be sure to provide a minimum distance between the two sensors as below chart indicates.
Parallel B
A
Face to Face
When sensors are mounted on metallic panel, you must prevent the sensors from being aected by any metallic object
except target. Therefore, be sure to provide a minimum distance as below chart indicates.
m
Ød
ℓ
ℓ
Model
Item
PRDCM(L)12-4D
A 24 48 42 84 90 150
B 24 36 36 54 60 90
PRDCMT12-4D -
ℓ
0 11 0 14 0 15
Ød 12 36 18 54 30 90
m 12 24 21 42 45 75
n 18 36 27 54 45 90
PRDCMT12-8D -
PRDCM(L)12-8D
PRDCM(L)T18-7D PRDCM(L)18-7D
PRDCM(L)T18-14D PRDCM(L)18-14D
PRDCM(L)T30-15D PRDCM(L)30-15D
n
ℓ
(unit: mm)
PRDCM(L)T30-25D PRDCM(L)30-25D
(D)
Door/Area
Sensors
(E)
Vision
Sensors
(F)
Proximity
Sensors
(G)
Pressure
Sensors
(H)
Rotary
Encoders
(I)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/ Sockets
Loading...
