Adjusting the limit switches
The Auton lift utilizes limit switches to control your preferred positioning of the unit.
The limit switches are located on the motor. Depending on the model you may have either a red or blue
limit switch motor head.
MOTOR
# 1 screw
(up travel)

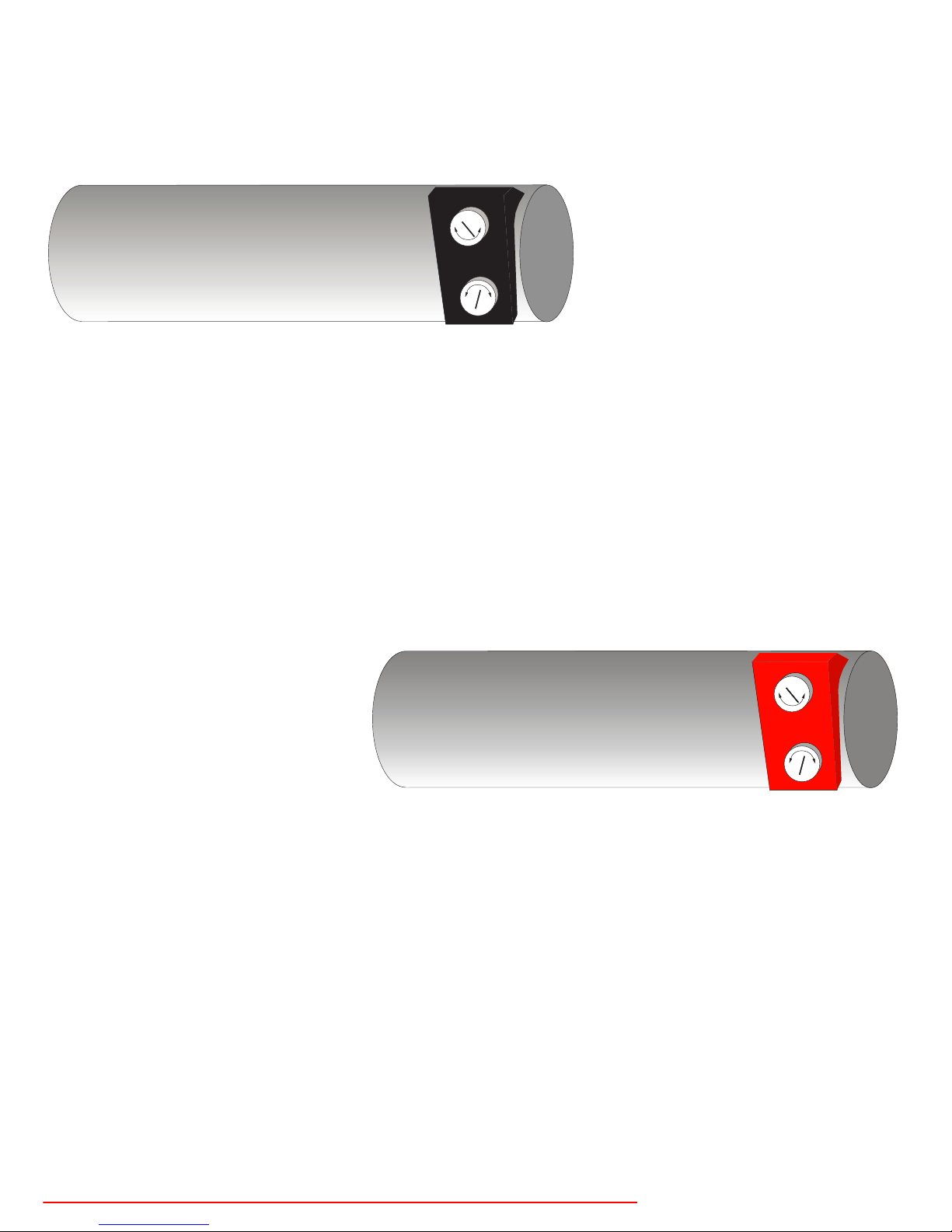

Black Motor Head (Models PL-1 - PL-2)
MOTOR
+
#2 screw
(down travel)
-
# 2 screw
(DOWN
travel)
-
+
Limit switches are preset at factory
but may be changed.
Two (2) adjusting screws for the limit switches
are located at the right hand end of the motor
while facing the front of the unit.
Using a power tool to adjust the limits will void the warranty.
The #1 screw controls the up travel.
The #2 screw controls the down travel.
Turn the #1 screw clockwise (-) to decrease the up travel. Turn counterclockwise (+) to increase the up travel. Turn
the #2 screw clockwise (-) to decrease the down travel. Turn counterclockwise (+) to increase the down travel.
Before decreasing "up" or "down" travel, run the lift in opposite direction for approximately 6" and stop.
* If positioning requires more than 5 cycles of the lift, the built-in thermal overload protector will disable the
overheating and possible damage. The unit will automatically re-set itself within 10-15 minutes.
MOTOR
Red Motor Head (Model PL-3)
motor to prevent
# 1 screw
(down travel)
MOTOR
Limit switches are preset at factory
but may be changed.
Two (2) adjusting screws for the limit switches
are located at the right hand end of the motor
while facing the front of the unit.
(up travel)
Using a power tool to adjust the limits will void the warranty.
The #1 screw controls the down travel.
The #2 screw controls the up travel.
Turn the #1 screw clockwise (+) to increase the down travel. Turn counterclockwise (-) to decrease the down travel.
-
+
-
+
#2 screw
Turn the #2 screw clockwise (+) to increase the up travel. Turn counterclockwise (-) to decrease the up travel.
Before decreasing "up" or "down" travel, run the lift in opposite direction for approximately 6" and stop.
* If positioning requires more than 5 cycles of the lift, the built-in thermal overload protector will disable the
overheating and possible damage. The unit will automatically re-set itself within 10-15 minutes.
Installation support:
We take great pride in manufacturing the best lift systems in the world. Our design and production techniques enable simple installation.
n the event that you require assistance, do not hesitate to contact one of our technicians. We will be happy to answer your questions and resolve
any problems you encounter during the installation process. Phone Support: 661-257-9282, ext. 104 • Email Support: [email protected]
Keep unit free of debris, keep covered prior to installation
motor to prevent
Page 3
Operation Instructions

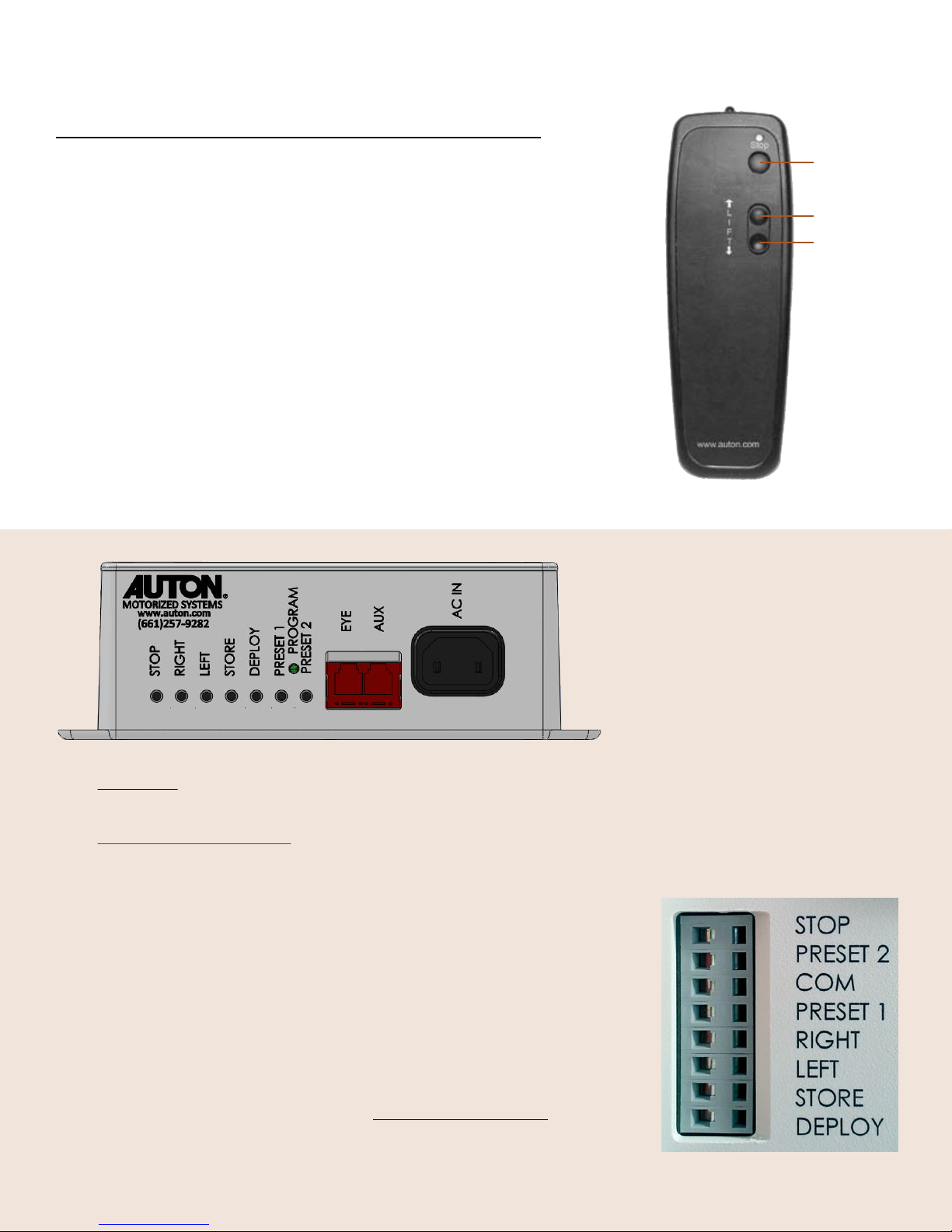

Multi-Function Controller
The multi-function remote operates with RF (Radio Frequency)
and IR (Infrared) simultaneously.
1)
Stop - Press and release for stop motion
2)
Up – Press and release for up motion
3)
Down – Press and release for down motion
Additional Button Functions:
A) When in motion, press the opposite direction.
The lift will pause for 1 second and then reverse direction.
B) When in motion, press the same button direction.
The lift will stop.
1) Stop
2)Up
3) Down
IR Control
Connect the IR eye to the EYE port
Optional Control Method
Connect optional control accessory
to AUX port
Dry Contact Operation:
Short desired operation with COM
