Automotive Data Solutions Inc.
INSTALL GUIDE
TL5
BLADE-AL(DL)-TL5-EN
AvAiLABLE for : ADS-BLADE AL
Rev. Date: December 05, 2012
Doc. No.: ##10213##
20121130
VERSION FRANÇAISE DISPONIBLE EN LIGNE AU www.BLADEUPTADE.com
PLEASE VISIT www.BLADEUPDATE.com FOR COMPLETE PRODUCT DETAILS
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2012
NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
review the Installation Guide carefully before beginning any work.
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 2 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
INSTALL TYPE SELECTION
FEATURES
MAKE
MODEL
iQ Regular key (80 bit) 12-13 3 • • • • • • • • • •
tC Regular key (80 bit) 11-13 3 • • • • • • • • • • • •
xB Regular key (80 bit) 11-13 1 • • • • • • • • • • • •
SCION
xD Regular key (80 bit) 11-13 9 • • • • • • • • • • •
4Runner Regular key (80 bit) 10-13 3 • • • • • • • • • • • •
Camry Regular key (80 bit) 10-11 1 • • • • • • • • • • • • •
Camry Regular key (80 bit) 12-13 2 • • • • • • • • • • • •
Corolla Regular key (80 bit) 12-13 1 • • • • • • • • • • • • •
Highlander Regular key (80 bit) 11-13 5 • • • • • • • • • • • •
Highlander Hybrid Regular key (80 bit) 12-13 5 • • • • • • • • • • • •
Matrix Regular key (80 bit) 12-13 1 • • • • • • • • • • • •
Prius C Regular key (80 bit) 12-13 10 • • • • • • • • • •
RAV4 Regular key (80 bit) 11-13 1 • • • • • • • • • • • •
TOYOTA
Sequoia Regular key (80 bit) 11-13 8 • • • • • • • • • • • •
Sienna Regular key (80 bit) 11-13 6 • • • • • • • • • • • • • •
Tundra Regular key (80 bit) 11-13 7 • • • • • • • • • • •
Venza Regular key (80 bit) 10-13 4 • • • • • • • • • • • •
Yaris Hatchback Regular key (80 bit) 11 9 • • • • • • • • • • •
Yaris Hatchback Regular key (80 bit) 12-13 3 • • • • • • • • • •
Yaris Sedan Regular key (80 bit) 11-12 9 • • • • • • • • • • •
*Available only if vehicle is equipped with factory hood switch.
YEAR
INSTALL TYPE
DATA IMMOBILIZER BYPASS
KEYLESS SYSTEM DURING RS
ARM OEM ALARM
DISARM OEM ALARM
DOOR LOCK
DOOR UNLOCK
POWER SLIDING DOOR (L)
POWER SLIDING DOOR (R)
TRUNK/HATCH RELEASE
TACHOMETER OUTPUT
BRAKE PEDAL STAT OUTPUT
E-BRAKE OUTPUT
DOOR STAT OUTPUT
TRUNK STAT OUTPUT
HOOD STAT OUTPUT*
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 3 of 27 BLADE-AL(DL)-TL5-EN 20121130
COMPONENT LOCATORCOMPONENT LOCATOR
D
Doc. No.: ##10213##
B
A
F
C
E
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
G
G
G
G
G
G
G
G
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 4 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
WARNING: VALET KEYS ARE NOT COMPATIBLE
40 BIT VALET KEY 80 BIT VALET KEY
1
The 40 bit valet key is GRAY and
has a dot or “O” stamped on the
metal part of the key.
This key is NOT compatible with
this fi rmware.
1
G
The 80 bit valet key is GRAY and
has “G” stamped on the metal
part of the key.
This key is NOT compatible with
this fi rmware.
G
Use a regular key and a
compatible fi rmware solution.
2
Use a regular key and a
compatible fi rmware solution.
2
IDENTIFY REGULAR KEY
40 BIT REGULAR KEY 80 BIT REGULAR KEY
1
2
The 40 bit regular key is BLACK
and has a dot or “O” stamped on
the metal part of the key.
This key is NOT compatible with
this fi rmware.
Use a compatible fi rmware
solution.
1
2
The 80 bit regular key is BLACK
and has “G” stamped on the
metal part of the key.
This key is compatible with this
fi rmware.
G
G
Proceed with installation.
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 5 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 1 - WIRE CROSS REFERENCE CHART - 1 OF 2
CONNECTOR
MAKE
MODEL
xB
Regular key
SCION
Camry
Regular key
Corolla
Regular key
TOYOTA
Matrix
Regular key
* With 2.4L engine only.
YEAR
WIRE
DESCRIPTION
CanH OBDII White 16 pin 06 LtGreen (DATA) OBDII F
CanL OBDII White 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII White 16 pin 07 White (DATA) OBDII F
Parking Light C11 White 20 pin 18 White (-) At light switch ~
12V C5 White 08 pin 07 White (+) Ignition connector D
11-13
Ignition 1 C5 White 08 pin 04 White (+) Ignition connector D
Ignition 2 C5 White 08 pin 06 Gray (+) Ignition connector D
Accessory C5 White 08 pin 03 Black (+) Ignition connector D
Starter 1 C5 White 08 pin 08 White (+) Ignition connector D
Starter 2 C5 White 08 pin 01 White (+) Ignition connector D
CanH OBDII ~ 16 pin 06 Black (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Gray (DATA ) OBDII F
Parking Light E21 White 20 pin 18 Black (-) At parking light switch ~
12V E23 White 08 pin 05 Black (+) Ignition connector D
10-11
Ignition 1 E23 White 08 pin 06 Yellow (+) Ignition connector D
Ignition 2 E23 White 08 pin 01 Pink (+) Ignition connector D
Accessory E23 White 08 pin 02 White (+) Ignition connector D
Starter 1 E23 White 08 pin 07 Blue (+) Ignition connector D
Starter 2 E23 White 08 pin 03 Gray (+) Ignition connector D
CanH OBDII ~ 16 pin 06 LtGreen (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 White (DATA) OBDII F
Parking Light E8 White 20 pin 18 White or Brown (-) At parking light switch ~
12V E4 White 08 pin 07 Blue (+) Ignition connector D
12-13
Ignition 1 E4 White 08 pin 06 Brown (+) Ignition connector D
Ignition 2 E4 White 08 pin 04 Green (+) Ignition connector D
Accessory E4 White 08 pin 03 Gray (+) Ignition connector D
Starter 1 E4 White 08 pin 01 White (+) Ignition connector D
Starter 2* E4 White 08 pin 08 Black (+) Ignition connector D
CanH OBDII ~ 16 pin 06 LtGreen (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 White (DATA) OBDII F
Parking Light E8 White 20 pin 18 Brown (-) At parking light switch ~
12V E5 White 08 pin 07 Blue (+) Ignition connector D
12-13
Ignition 1 E5 White 08 pin 06 Brown (+) Ignition connector D
Ignition 2 E5 White 08 pin 04 Green (+) Ignition connector D
Accessory E5 White 08 pin 03 Gray (+) Ignition connector D
Starter 1 E5 White 08 pin 01 White (+) Ignition connector D
Starter 2* E5 White 08 pin 08 Black (+) Ignition connector D
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 6 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 1 - WIRE CROSS REFERENCE CHART - 2 OF 2
CONNECTOR
MAKE
MODEL
RAV4
Regular key
TOYOTA
* With 2.4L engine only.
YEAR
WIRE
DESCRIPTION
CanH OBDII ~ 16 pin 06 Black (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 White (DATA) OBDII F
Parking Light E12 White 20 pin 18 White (-) At parking light switch ~
12V E3 White 08 pin 07 Blue (+) Ignition connector D
11-13
Ignition 1 E3 White 08 pin 06 White (+) Ignition connector D
Ignition 2 E3 White 08 pin 04 Pink (+) Ignition connector D
Accessory E3 White 08 pin 03 Red (+) Ignition connector D
Starter 1 E3 White 08 pin 01 White (+) Ignition connector D
Starter 2 E3 White 08 pin 08 Yellow (+) Ignition connector D
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 7 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 1 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
WHITE CONNECTOR
18
PARKING LIGHT (-)
12345678910
11121314151617181920
REMOTE STARTER
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANH
BROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
(NC)WHITE/BLACK (NC)
(NC)
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
CANH
6 7
14
IMMO DATA
87654321
161514131211109
CANL
WITHOUT
OEM HOOD
STATUS ONLY
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 8 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 2 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
Camry
Regular key
TOYOTA
YEAR
WIRE
DESCRIPTION
CanH OBDII ~ 16 pin 06 Blue ( DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Gray (DATA ) OBDII F
Doorlock Data i13 White 30 pin 16 Blue (DATA ) Main body ECU A
Parking Light i13 White 30 pin 30 White or Black (-) Main body ECU A
12V i36 White 08 pin 05 Green (+) Ignition connector D
12-13
Ignition 1 i36 White 08 pin 01 Pink (+) Ignition connector D
Ignition 2 i36 White 08 pin 06 Black (+) Ignition connector D
Accessory i36 White 08 pin 02 White (+) Ignition connector D
Starter 1 i36 White 08 pin 03 LtGreen (+) Ignition connector D
Starter 2 i36 White 08 pin 07 Blue (+) Ignition connector D
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 9 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##

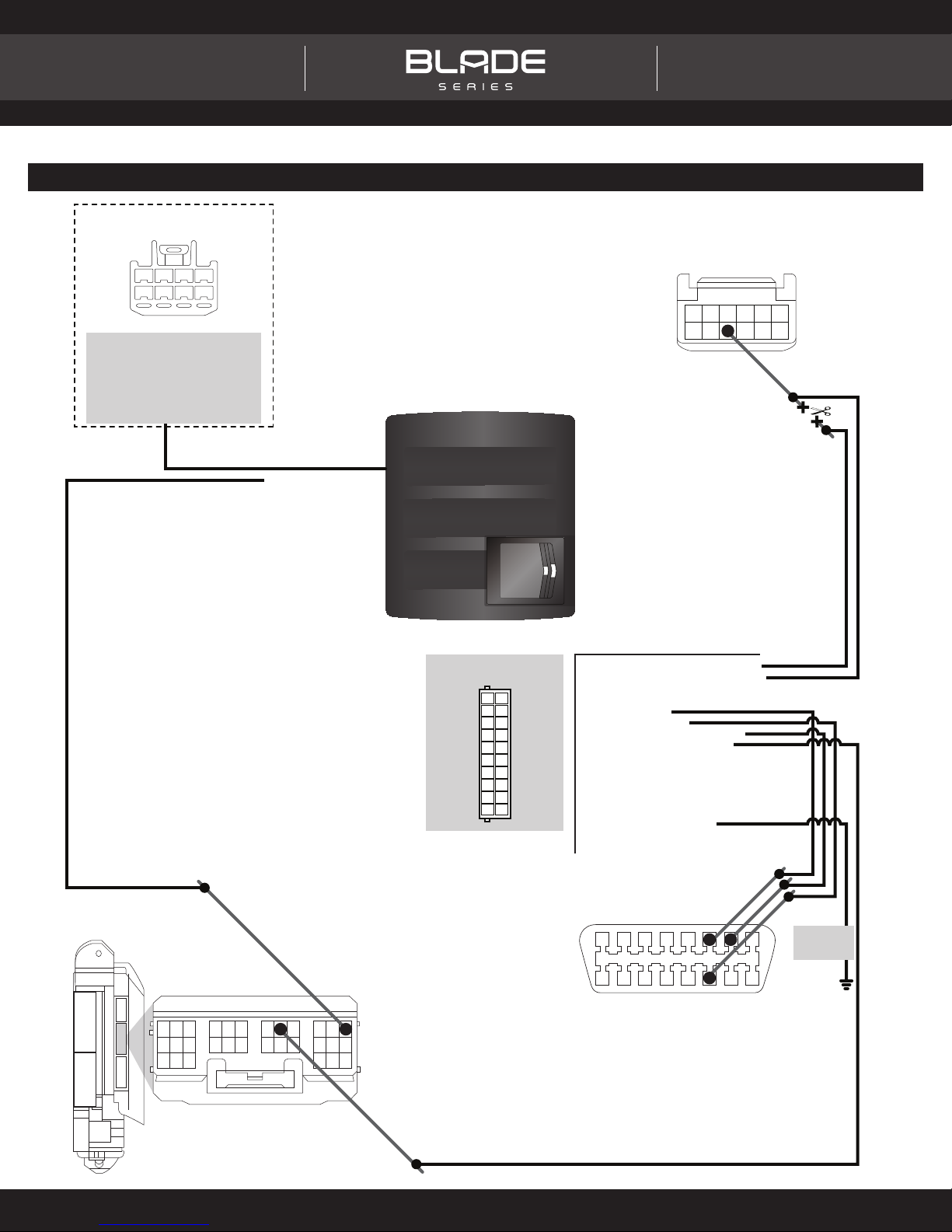

TYPE 2 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
REMOTE STARTER
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
MAIN BODY ECU
PARKING LIGHT (-)
19 20 21 22 23 24 25 26 27 28 29 30
7 8 9
1 2 3 4 5 6
10 11 12 13 14 15 16 17 18
16
30
DOORLOCK DATA
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANH
BROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
(NC)WHITE/BLACK (NC)
(NC)
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
6 7
14
CANH
IMMO DATA
CANL
87654321
WITHOUT
OEM HOOD
STATUS ONLY
161514131211109
WHITE CONNECTOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 10 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 3 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
iQ
Regular key
SCION
tC
Regular key
4Runner
Regular key
TOYOTA
Yaris
Hatchback
Regular key
YEAR
WIRE
DESCRIPTION
CanH ODBII White 16 pin 06 Violet (DATA) ODBII F
CanL ODBII White 16 pin 14 White (DATA) ODBII F
Immobilizer ODBII White 16 pin 07 Red (DATA) ODBII F
Doorlock Data D42 White 30 pin 26 Brown (DATA ) Main body ECU A
Parking Light D42 White 30 pin 30 Yellow (-) Main body ECU A
12V D28 White 08 pin 07 Blue (+) Ignition connector D
12-13
Ignition 1 D28 White 08 pin 04 LtBlue (+) Ignition connector D
Ignition 2 D28 White 08 pin 06 Brown (+) Ignition connector D
Starter 1 D28 White 08 pin 01 LtGreen (+) Ignition connector D
Starter 2 D28 White 08 pin 08 Red (+) Ignition connector D
Accessory D28 White 08 pin 03 Blue (+) Ignition connector D
CanH OBDII White 16 pin 06 LtGreen (DATA) OBDII F
CanL OBDII White 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII White 16 pin 07 White or Purple (DATA) OBDII F
Doorlock Data C56 White 30 pin 26 LtGreen (DATA) Main body ECU A
Parking Light C56 White 30 pin 30 Purple or LtBlue (-) Main body ECU A
12V C5 White 08 pin 07 White (+) Ignition connector D
11-13
Ignition 1 C5 White 08 pin 04 Gray (+) Ignition connector D
Ignition 2 C5 White 08 pin 06 Gray (+) Ignition connector D
Starter 1 C5 White 08 pin 01 Tan (+) Ignition connector D
Starter 2 C5 White 08 pin 08 Green (+) Ignition connector D
Accessory C5 White 08 pin 03 Black (+) Ignition connector D
CanH F13 White 16 pin 06 Violet (DATA) OBDII F
CanL F13 White 16 pin 14 White (DATA) OBDII F
Immobilizer F13 White 16 pin 07 Green (DATA) OBDII F
Doorlock Data F9 White 30 pin 26 Pink (DATA) Main body ECU A
Parking Light F9 White 30 pin 30 Red (-) Main body ECU A
12V F15 White 08 pin 07 Green (+) Ignition connector D
10-13
Ignition 1 F15 White 08 pin 06 Black (+) Ignition connector D
Ignition 2 F15 White 08 pin 04 Purple (+) Ignition connector D
Starter 1 F15 White 08 pin 08 Red (+) Ignition connector D
Starter 2 F15 White 08 pin 01 Black (+) Ignition connector D
Accessory F15 White 08 pin 03 Red (+) Ignition connector D
CanH DLC3 ~ 16 pin 06 Gray (DATA) OBDII F
CanL DLC3 ~ 16 pin 14 White (DATA) OBDII F
Immobilizer DLC3 ~ 16 pin 07 Black (DATA) OBDII F
Doorlock Data D143 White 30 pin 26 Pink ( DATA) Main body ECU A
Parking Light D143 White 30 pin 30 LtBlue (-) Main body ECU A
12V D109 White 08 pin 05 White (+) Ignition connector D
12-13
Ignition 1 D109 White 08 pin 01 LtBlue (+) Ignition connector D
Ignition 2 D109 White 08 pin 06 Pink (+) Ignition connector D
Starter 1 D109 White 08 pin 07 Green (+) Ignition connector D
Starter 2 ~ ~ ~ ~ ~ ~ ~ ~
Accessory D109 White 08 pin 02 Blue (+) Ignition connector D
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 11 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 3 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
REMOTE STARTER
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
MAIN BODY ECU
PARKING LIGHT (-)
19 20 21 22 23 24 25 26 27 28 29 30
7 8 9
1 2 3 4 5 6
10 11 12 13 14 15 16 17 18
WHITE CONNECTOR
26 30
DOORLOCK DATA
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/BLACK (NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANHBROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
(NC)
(NC)
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
6 7
14
CANH
IMMO DATA
CANL
87654321
WITHOUT
OEM HOOD
STATUS ONLY
161514131211109
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 12 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 4 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
Venza
Regular key
TOYOTA
YEAR
WIRE
DESCRIPTION
CanH D1 White 16 pin 06 Yellow (DATA) OBDII F
CanL D1 White 16 pin 14 White (DATA ) OBDII F
Immobilizer D1 White 16 pin 07 Blue (DATA) OBDII F
Doorlock Data D49 White 28 pin 12 LtGreen (DATA) Main body ECU, back side A
Parking Light D50 White 26 pin 23 Red (-) Main body ECU, back side A
12V D12 White 08 pin 07 Blue (+) Ignition connector D
10-13
Ignition 1 D12 White 08 pin 06 Red (+) Ignition connector D
Ignition 2 D12 White 08 pin 04 Green (+) Ignition connector D
Starter 1 D12 White 08 pin 01 Green (+) Ignition connector D
Starter 2 D12 White 08 pin 08 Red (+) Ignition connector D
Accessory D12 White 08 pin 03 Green (+) Ignition connector D
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 13 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 4 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
REMOTE STARTER
MAIN BODY ECU
BACK SIDE
D49 - WHITE
21 22 23 24 25 26 27 28
12
11 12 13 14 15 16 17 18 19 20
1 2 3 4 5 6 7 8 9
PARKING LIGHT (-)
18 19 20 21 22 23 24 25 26
10 11 12 13 14 15 16 17
7 8 9
1 2 3 4 5 6
DOORLOCK DATA
23
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
10
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/BLACK (NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANHBROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
(NC)
(NC)
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
6 7
14
CANH
IMMO DATA
CANL
87654321
WITHOUT
OEM HOOD
STATUS ONLY
161514131211109
D50 - WHITE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 14 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 5 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
Highlander
Regular key
TOYOTA
Highlander
Hybrid
Regular key
YEAR
WIRE
DESCRIPTION
CanH OBDII White 16 pin 06 Blue ( DATA) OBDII F
CanL OBDII White 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII White 16 pin 07 Gray (DATA ) OBDII F
Parking Light D13 White 20 pin 18 LtBlue (-) At light switch ~
12V (10 amp) D24 White 08 pin 05 White/Black (+) Ignition connector D
Ignition 1 D24 White 08 pin 06 LtBlue (+) Ignition connector D
11-13
Ignition 2 D24 White 08 pin 01 Black (+) Ignition connector D
Starter 1 D24 White 08 pin 03 Red (+) Ignition connector D
Starter 2 D24 White 08 pin 07 Yellow (+) Ignition connector D
Accessory D24 White 08 pin 02 Gray (+) Ignition connector D
Power liftgate D42 Blue 05 pin 04 Red (-) At power liftgate switch A
CanH OBDII ~ 16 pin 06 Black (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Gray (DATA ) OBDII F
Parking Light D13 Black 20 pin 18 LtBlue (-) At light switch ~
12V (10 amp) D70 White 08 pin 05 Green (+) Ignition connector D
Ignition 1 D70 White 08 pin 06 LtBlue (+) Ignition connector D
12-13
Ignition 2 D70 White 08 pin 01 Black (+) Ignition connector D
Starter 1 D70 White 08 pin 07 Yellow (+) Ignition connector D
Starter 2 ~ ~ ~ ~ ~ ~ ~ ~
Accessory D70 White 08 pin 02 Gray (+) Ignition connector D
Power liftgate D42 Black 05 pin 04 Red (-) At power liftgate switch A
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 15 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 5 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
WHITE CONNECTOR
18
BLUE CONNECTOR
12345678910
11121314151617181920
4
PARKING LIGHT (-)
POWER LIFTGATE SWITCH (-)
12345
REMOTE STARTER
TRUNK/LIFTGATE (-) OUTPUT
12V (+) INPUT12V (+) INPUT
TRUNK/LIFTGATE (-) OUTPUT
IGNITION (+) OUTPUTPARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
IGNITION (+) OUTPUT
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANH
BROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
(NC)WHITE/BLACK (NC)
(NC)
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
CANH
6 7
14
IMMO DATA
87654321
161514131211109
CANL
WITHOUT
OEM HOOD
STATUS ONLY
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 16 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 6 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
Sienna
Regular key
TOYOTA
YEAR
WIRE
DESCRIPTION
CanH D16 White 16 pin 06 Red (DATA) OBDII F
CanL D16 White 16 pin 14 White (DATA) OBDII F
Immobilizer D16 White 16 pin 07 White (DATA) OBDII F
SIL ~ White 12 pin 10 White ( DATA) TPMS module next to driver side fuse box A
Doorlock Data D13 White 30 pin 26 Pink (DATA) Main body ECU A
Parking Light D13 White 30 pin 30 Yellow (-) Main body ECU A
11-13
12V D27 White 08 pin 07 Red (+) Ignition connector D
Ignition 1 D27 White 08 pin 06 Black (+) Ignition connector D
Ignition 2 D27 White 08 pin 04 Yellow (+) Ignition connector D
Starter 1 D27 White 08 pin 08 Red (+) Ignition connector D
Starter 2 ~ ~ ~ ~ ~ ~ ~ ~
Accessory D27 White 08 pin 03 Blue (+) Ignition connector D
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 17 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 6 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
TPMS CONNECTOR
6 5 4 3 2 1
10
12 11 10 9 8 7
SIL (DATA)
REMOTE STARTER
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
MAIN BODY ECU
PARKING LIGHT (-)
19 20 21 22 23 24 25 26 27 28 29 30
7 8 9
1 2 3 4 5 6
10 11 12 13 14 15 16 17 18
WHITE CONNECTOR
26 30
DOORLOCK DATA
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/BLACK - SIL (DATA) VEHICLE SIDE
WHITE/RED - SIL (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANHBROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
CANH
IMMO DATA
87654321
6 7
14
161514131211109
CANL
WITHOUT
OEM HOOD
STATUS ONLY
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 18 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 7 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
Tundra
Regular key
TOYOTA
YEAR
WIRE
DESCRIPTION
CanH OBDII ~ 16 pin 06 Violet (DATA ) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Beige (DATA) OBDII F
SIL J31 White 12 pin 10 Blue (D ATA) TPMS module behind glove box B
Parking Light J10 White 20 pin 18 Gray (-) At light switch ~
11-13
12V DA White 01 pin 01 Black (+) Fuse box F
Ignition 1 J9 White 08 pin 06 Black (+) Ignition connector D
Ignition 2 J9 White 08 pin 01 LtGreen (+) Ignition connector D
Accessory J9 White 08 pin 02 Gray (+) Ignition connector D
Starter 1 J9 White 08 pin 07 Green (+) Ignition connector D
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 19 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 7 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
J10 - WHITE
18
12345678910
11121314151617181920
PARKING LIGHT (-)
J31 - WHITE
TPMS CONNECTOR
6 5 4 3 2 1
10
12 11 10 9 8 7
SIL (DATA)
REMOTE STARTER
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/BLACK - SIL (DATA) VEHICLE SIDE
WHITE/RED - SIL (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANH
BROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
GRAY/RED
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
CANH
IMMO DATA
CANL
87654321
6 7
14
161514131211109
WITHOUT
OEM HOOD
STATUS ONLY
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 20 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 8 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
Sequoia
Regular key
TOYOTA
YEAR
WIRE
DESCRIPTION
CanH DLC3 White 16 pin 06 Purple (DATA) OBDII F
CanL DLC3 White 16 pin 14 White (DATA) OBDII F
Immobilizer DLC3 White 16 pin 07 Beige (DATA) OBDII F
SIL H40 White 12 pin 10 Blue (DATA) TPMS module behind glove box B
Parking Light H11 White 20 pin 18 Beige (-) At light switch ~
12V ~ White 01 pin 01 White (+) Fuse box D
11-13
Ignition 1 H10 White 08 pin 01 Green (+) Ignition connector D
Ignition 2 H10 White 08 pin 06 Black (+) Ignition connector D
Accessory H10 White 08 pin 02 Gray (+) Ignition connector D
Starter 1 H10 White 08 pin 07 Green (+) Ignition connector D
Liftgate H70 White 08 pin 06 Red (-) At liftgate switch A
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 21 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 8 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
H70 - WHITE
8 7 6 5 4 3 2 1
6
H11 - WHITE
18
12345678910
11121314151617181920
PARKING LIGHT (-)
POWER LIFTGATE SWITCH (-)
H40- WHITE
TPMS CONNECTOR
6 5 4 3 2 1
10
12 11 10 9 8 7
SIL (DATA)
REMOTE STARTER
TRUNK/LIFTGATE (-) OUTPUT
TRUNK/LIFTGATE (-) OUTPUT
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/BLACK - SIL (DATA) VEHICLE SIDE
WHITE/RED - SIL (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANHBROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
CANH
IMMO DATA
CANL
87654321
6 7
14
161514131211109
WITHOUT
OEM HOOD
STATUS ONLY
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 22 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 9 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
xD
Regular key
SCION
Yaris
Hatchback
Regular key
TOYOTA
Yaris
Sedan
Regular key
YEAR
WIRE
DESCRIPTION
CanH DLC3 ~ 16 pin 06 Purple (DATA) OBDII F
CanL DLC3 ~ 16 pin 14 White (DATA) OBDII F
Immobilizer DLC3 ~ 16 pin 07 White or Blue (DATA) OBDII F
Parking Light F6 White 13 pin 13 White (-) At light switch ~
12V A29 White 01 pin 01 White (+) Fuse box D
11-13
Ignition 1 F9 White 08 pin 01 Green (+) Ignition connector D
Ignition 2 F9 White 08 pin 06 Pink (+) Ignition connector D
Accessory F9 White 08 pin 02 White (+) Ignition connector D
Starter 1 F9 White 08 pin 07 Black (+) Ignition connector D
CanH DLC3 ~ 16 pin 06 Purple (DATA) OBDII F
CanL DLC3 ~ 16 pin 14 White (DATA) OBDII F
Immobilizer DLC3 ~ 16 pin 07 Blue or Black (DATA ) OBDII F
Parking Light D4 White 13 pin 13 White (-) At light switch ~
12V D8 White 08 pin 04 Yellow (+) Fuse box D
11
Ignition 1 D8 White 08 pin 01 Green (+) Ignition connector D
Ignition 2 D8 White 08 pin 06 Pink (+) Ignition connector D
Accessory D8 White 08 pin 02 White (+) Ignition connector D
Starter 1 D8 White 08 pin 07 Black (+) Ignition connector D
CanH DLC3 ~ 16 pin 06 Purple (DATA) OBDII F
CanL DLC3 ~ 16 pin 14 White (DATA) OBDII F
Immobilizer DLC3 ~ 16 pin 07 Blue or Black (DATA ) OBDII F
Parking Light D4 White 13 pin 13 White (-) At light switch ~
12V D8 White 08 pin 04 Yellow (+) Fuse box D
11-12
Ignition 1 D8 White 08 pin 01 Green (+) Ignition connector D
Ignition 2 D8 White 08 pin 06 Pink (+) Ignition connector D
Accessory D8 White 08 pin 02 White (+) Ignition connector D
Starter 1 D8 White 08 pin 07 Black (+) Ignition connector D
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 23 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 9 - WIRING DIAGRAM
CONNECTEUR D’ALLUMAGE
IGNITION CONNECTOR
BLANC
WHITE
CONNECTEUR BLANC
1234
5678
NE PAS CONNECTER LE KEYSENSE
(12V, ALLUMAGE, ACCESSOIRE, DÉMARRER)
STANDARD (12V, IGNITION, ACCESSORY,
ATTENTION
WARNING
DO NOT CONNECT KEYSENSE.
LES CONNEXIONS RÉGULIÈRES
DU DÉMARREUR À DISTANCE AU
STARTER) REMOTE STARTER
VÉHICULE SONT REQUISES.
CONNECTIONS TO VEHICLE
CONSULTER LE TABLEAU DES
ARE REQUIRED.
RÉFÉRENCES CROISÉES DE FILS
REFER TO WIRE CHART.
DÉMARREUR À DISTANCE
REMOTE STARTER
PARKING LIGHT (-)
FEU DE STATIONNEMENT (-)
FEU DE STATIONNEMENT (-) SORTIEFEU DE STATIONNEMENT (-) SORTIE
PARKING LIGHT (-) OUTPUTPARKING LIGHT (-) OUTPUT
WHITE CONNECTOR
13
1234
67
5910 81213 11
*CONNECTEUR BLADE
*BLADE CONNECTOR
POSITION ET COULEUR DE FIL
EXACT PIN-OUT
10
10
20
20
BLANC/NOIRBLANC/ROUGE
WHITE/BLACKWHITE/RED
09
09
19
19
PAS DE FILBLANC
NO WIREWHITE
08
08
18
18
ROSEROSE/NOIR
PINKPINK/BLACK
07
07
17
17
NOIRPAS DE FIL
BLACKNO WIRE
06
06
16
16
BRUN/JAUNEBRUN/ROUGE
BROWN/YELLOWBROWN/RED
05
05
15
15
ORANGE/BLANCORANGE/NOIR
ORANGE/WHITEORANGE/BLACK
04
04
PAS DE FILORANGE
14
14
NO WIREORANGE
03
03
13
13
BLEU/JAUNE
BLEU/ROUGE
BLUE/RED
GRIS/ROUGE GRIS/JAUNE
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
02
12
12
JAUNEVERT/ROUGE
YELLOWGREEN/RED
01
01
11
11
BLANC/NOIR (NC)
WHITE/BLACK (NC)
BLANC/ROUGE (NC)
WHITE/RED (NC)
BLANC (NC)
WHITE (NC)
BLANC (NC)
WHITE (NC)
JAUNE (NC)
YELLOW (NC)
BRUN/ROUGE - CANHBRUN/ROUGE - CANH
BROWN/RED - CANHBROWN/RED - CANH
BRUN/JAUNE - CANL
BROWN/YELLOW - CANL
BRUN/JAUNE - CANL
BROWN/YELLOW - CANL
ORANGE/NOIR - IMMOBILISATEUR DATAORANGE/NOIR - IMMOBILISATEUR DATA
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/BLANC (NC)
ORANGE/WHITE (NC)
ORANGE/BLANC (NC)
ORANGE/WHITE (NC)
ORANGE (NC)
ORANGE (NC)
ROSE/NOIR (NC)
PINK/BLACK (NC)
ROSE/NOIR (NC)
PINK/BLACK (NC)
ROSE (NC)
PINK (NC)
BLEU/ROUGE (NC)
BLUE/RED (NC)
BLEU/JAUNE (NC)
BLUE/YELLOW (NC)
VERT/ROUGE (NC)
GREEN/RED (NC)
GRIS/ROUGE (NC)
GRAY/RED (NC)
GRIS/JAUNE (NC)GRIS/JAUNE (NC)
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
NOIR (NC)
BLACK (NC)
NOIR (NC)
BLACK (NC)
(NC)
(NC)
6 7
14
CANH
CANH
IMMO DATA
IMMO DATA
161514131211109
87654321
CANL
CANL
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 24 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 10 - WIRE CROSS REFERENCE CHART
CONNECTOR
MAKE
MODEL
Prius C
Regular key
TOYOTA
YEAR
WIRE
DESCRIPTION
CanH OBDII ~ 16 pin 06 Gray (DATA ) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Black (DATA) OBDII F
Parking Light G10 White 20 pin 18 LtBlue (-) At parking light switch ~
12V G15 White 08 pin 05 Black (+) Ignition connector D
12-13
Ignition 1 G15 White 08 pin 01 LtBlue (+) Ignition connector D
Ignition 2 G15 White 08 pin 06 Pink (+) Ignition connector D
Accessory G15 White 08 pin 02 Blue (+) Ignition connector D
Starter 1 G15 White 08 pin 07 Green (+) Ignition connector D
Starter 2 ~ ~ ~ ~ ~ ~ ~ ~
NAME
COLOR
TYPE
POSITION
WIRE
COLOR
POLARITY
LOCATION
COMPONENT
LOCATOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 25 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
TYPE 10 - WIRING DIAGRAM
IGNITION CONNECTOR
WHITE
1234
5678
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
REMOTE STARTER
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
MAIN BODY ECU
PARKING LIGHT (-)
19 20 21 22 23 24 25 26 27 28 29 30
7 8 9
1 2 3 4 5 6
10 11 12 13 14 15 16 17 18
16
30
DOORLOCK DATA
*BLADE CONNECTOR
EXACT PIN-OUT
10
20
WHITE/BLACKWHITE/RED
09
19
NO WIREWHITE
08
18
PINKPINK/BLACK
07
17
BLACKNO WIRE
06
16
BROWN/YELLOWBROWN/RED
05
15
ORANGE/WHITEORANGE/BLACK
04
14
NO WIREORANGE
03
13
BLUE/RED
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
02
12
YELLOWGREEN/RED
01
11
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/RED - CANH
BROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED - GROUND
GRAY/RED
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
(NC)WHITE/BLACK (NC)
(NC)
- GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
CANH
6 7
14
IMMO DATA
CANL
87654321
161514131211109
WITHOUT
OEM HOOD
STATUS ONLY
WHITE CONNECTOR
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
INSTALL GUIDE
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Page 26 of 27 BLADE-AL(DL)-TL5-EN 20121130
Doc. No.: ##10213##
CARTRIDGE INSTALLATION
1
1
1
2
2
ON
ON
Slide cartridge into unit. Notice
button under LED.
MODULE PROGRAMMING PROCEDURE
MODULE PROGRAMMING PROCEDURE
Insert key into ignition.
Insert key into ignition.
Turn key to ON position.
Turn key to ON position.
2
3
3
4
4
5
5
OFF
OFF
Ready for Module Programming
Procedure.
Wait, LED will turn solid GREEN
Wait, LED will turn solid BLUE
for 2 seconds.
for 2 seconds.
Turn key to OFF position.
Turn key to OFF position.
Module Programming
Module Programming
Procedure completed.
Procedure completed.
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
BLADE-AL PAGE 1-1
XX-XX PAGE X-X
NOTICE
PATENT PAGE X-X
INSTALL GUIDE
Guides Français disponibles au WWW.BLADEUPDATE.COM
ALL IN ONE
Scion/ToyoTa
Page 27 of 27 BLADE-AL(DL)-TL5-EN 20121130
2
L > 1990 S > 1995 Y > 2000 5 > 2005 A > 2010
M > 1991 T > 1996 1 > 2001 6 > 2006 B > 2011
N > 1992 V > 1997 2 > 2002 7 > 2007 C > 2012
P > 1993 W > 1998 3 > 2003 8 > 2008 D > 2013
R > 1994 X > 1999 4 > 2004 9 > 2009 E > 2014
Locate the Vehicle Identifi cation
1
4 Y 1 N53 A 5 T A L 8 D 5 R 0 X
Number (VIN) and identify the
10th character.
IDENTIFY VEHICLE YEAR
Doc. No.: ##10213##
Match the VIN’s 10th character
to its corresponding year.
MODULE DIAGNOSTICS
LED STATUS
Flashing RED
Solid RED Waiting for more vehicle information Incorrectly programmed
Flashing BLUE
DURING PROGRAMMING DURING REMOTE START WITH IGNITION OFF
Missing/wrong information from
fi rmware or vehicle
Additional steps required to complete
programming
Incorrectly programmed Incorrectly programmed or connected
Correctly programmed and
operational
DIAGNOSTICS
Not programmed waiting for more
vehicle information
False ground when running status
from remote starter
Solid BLUE then OFF Correctly programmed Reset in progress Reset in progress
OFF No activity or already programmed
Invalid ground when running status
from remote starter
At rest and ready for a remote start
sequence
FACTORY RESET PROCEDURE
1
2
DISCONNECT cartridge from
remote starter.
PRESS AND HOLD programming
button while re-connecting
cartridge to remote starter.
3
4
5
Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
!
LED will fl ash red. Immediately
RELEASE programming button.
LED will turn solid red for 2
seconds.
RESET COMPLETED.
RECONNECT all connectors.
Repeat programming procedure.
This product is protected by one or more of the following patents: U.S. LETTERS PATENT NO. 5,719,551; 6,011,460; 6,243,004; 6,249,216; 6,275,147; 6,297,731; 6,346,876; 6,392,534; 6,529,124; 6,696,927; 6,756,885; 6,756,886; 6,771,167; 6,812,829; 6,924,750;
7,010,402; 7,031,826; 7,046,126; 7,061,137; 7,068,153; 7,015,830; 7,205,679; 7,224,083; 7,369,936; 7,378,945; 7,489,233; 7,501,937; CANADIAN PATENT NO. 2,320,248; 2,415,023; 2,426,670; 2,414,991; 2,415,011; 2,415,027; 2,415,038; 2,415,041; 2,502,893; 2,451,490;
2,452,296; 2,451,487; EUROPEAN PATENT NO. 1,053,128; DE 69807-941T2; U.S. 20020145535; 20060129282; 20060129284; 20040017284; 20080030316; 20090079552; EP1500565; 1538038; 1538037;
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
Loading...
