1-800-633-0405
WDP Series Definite Purpose
Contactors
Features
• Rated current from 25-60A
• 1-, 2-, and 3-pole configurations at 25A, 30A, and 40A
• 3-pole configurations at 50A and 60A
• Enclosed coil standard for all 3-pole frame sizes
• Open coil standard for all 1- and 2-pole frame sizes
• Industry standard mounting plate provides easily accessible mounting
holes
• Connection terminal box lug connections each with quick
connect/disconnect terminals
• Coil is class B 266°F (130°C) insulation system with a wide range of voltages
and 50/60 Hz ratings
• Double E magnet assembly provides optimal performance with reduced
power consumption
Applications
• Air conditioning • Pumps
• Resistive heating • Power supplies
• Refrigeration equipment • Food service equipment
• Motors • Compressors
• Welding
Certifications
• UL 508 Recognized, File No. E330834
• IEC/EN 60947 Compliant
• Compliance to ARI-780 HVAC standards
• CSA file No. 266851
• Base assembly made from high arc-resistant polyester and
thermoset plastic
• Temperature range -40 to 158 °F (-40 to 70 °C)
• IP20 rating
•5 kA SCCR with Fuse or Circuit Breaker:
• 25A max fuse/CB 60A
• 30A max fuse/CB 80A
• 40A max fuse/CB 90A
• 50A max fuse/CB 100A
• 60A max fuse/CB 125A
Accessories
Multiple optional auxiliary contact blocks with 250 VAC/VDC or 600VAC max
rating available:
• 1NO+1NC screw terminal
• 1NO+1NC quick connect
• 1NO+1NC quick connect microswitch
• 2NO+2NC quick connect microswitch
For the latest prices, please check AutomationDirect.com.
WDP 25 Series Contactor
www.automationdirect.com
WDP 50 Series Contactor
Motor Controls
tMRC-123
1-800-633-0405
WDP Series Definite Purpose
Contactors
Contactor Specifications
WDP Series 25-40 Amp DP Contactor Specifications
Locked Rotor Amps
(A)
Model Price Qty. Poles
FLA (A)
600VAC
max
Resistive
1
@600VAC (A)
Loads
240/
277V
480V 600V
For the latest prices, please check AutomationDirect.com.
Horsepower (hp)
1-Phase 3-Phase
120V 240/277V 240/277V 480V 600V
Weight
(lb)
WDP25-1L-120
WDP25-1L-230
WDP25-2L-120
WDP25-2L-230
WDP25-3L-120
WDP25-3L-230
WDP30-1L-120
WDP30-1L-230
WDP30-1L-24
WDP30-2L-120
WDP30-2L-230
WDP30-2L-24
WDP30-3L-120
WDP30-3L-230
WDP30-3L-24
WDP30-3L-480
WDP40-1L-120
WDP40-1L-230
WDP40-2L-120
WDP40-2L-230
WDP40-3L-120
WDP40-3L-230
WDP40-3L-24
WDP40-3L-480
Notes: 1-Full load amperage applies at 240/277, 480, and 600V.
$9.00
$9.00
$8.00
$8.00
$14.50
$14.50
$9.25
$9.25
$9.25
$8.75
$8.75
$8.75
$14.50
$14.50
$14.50
$14.50
$10.00
$10.00
$11.50
$11.50
$18.00
$18.00
$18.00
$18.00
1NO+Shunt
2NO 2 3 0.64
3NO 2 5 10 15 20 0.97
1NO+Shunt
2NO 2 3 0.64
1 ea.
3NO 2 5 10 15 20 0.97
1NO+Shunt
2NO 0.64
3NO 3 7.5 10 20 25 0.97
25 35 150 125 100
32 40 200 150 120
40 50 240 200 160
1 2
- - -
1 2
- - -
2 3 - - -
0.51
0.51
0.51
WDP Series 50-60 Amp DP Contactor Specifications
Model Price Qty. Poles
WDP50-3L-120
WDP50-3L-230
WDP50-3L-24
WDP60-3L-120
WDP60-3L-230
WDP60-3L-24
Notes: 1-Full load amperage applies at 240/277, 480, and 600V.
$27.50
$27.50
$27.50
$48.50
$48.50
$48.50
1 ea. 3NO
FLA (A)
600VAC
max
www.automationdirect.com
Locked Rotor Amps
240/
277V
(A)
480V 600V
1-Phase 3-Phase
110/
120V
Resis-
tive Loads
1
@600VAC (A)
50 65 300 250 200 3 7.5 10 15 15 25 25
60 75 360 300 240 5 7.5 10 25 25 30 30
200/
208V
277V
Horsepower (hp)
240/
200/
240/
208V
277V
Motor Controls
480V 600V
tMRC-124
Weight
(lb)
1.28
1-800-633-0405
WDP Series Definite Purpose
Contactors
Contactor Specifications, continued
WDP Series 25-60 Amp DP Contactor Specifications
Mechanical Life
Electrical Life
Line and Load Terminals
Mounting
Operating Temperature
Insulation System
Agency Approvals
Notes: Applies to all WDP series contactors.
UL file #E330834, Standard UL 60947-1, CSA file #266851
Terminal Specifications
Copper Cable AWG (mm²) Tightening Torque in-lb (N.m) Quick Connects
WDP Series 25-60 Amp DP Contactor Terminal Specifications
500,000 operations
250,000 operations
#10-32 Screw/Box Lug
Vertical or Horizontal
-40 to 70 °C (-40 to 158 °F)
Class B 266°F (130°C)
For the latest prices, please check AutomationDirect.com.
1
Model
Solid Wire
w/Single Core
Flexible Stranded Wire
Coil
Screw Lug Screw Lug Screw Lug
WDP25-1L Series
WDP25-2L Series
14-10
(2.5-6)
WDP25-3L Series
WDP30-1L Series
WDP30-2L Series
WDP30-3L Series
WDP40-1L Series
WDP40-2L Series
WDP40-3L Series
WDP50 Series
WDP60 Series
Notes: 1-Quick connects (size 6.3mm, female) may be purchased on the web store www.automationdirect.com
2-All coil connections are 0.25 inch quick-connect terminals only.
3-Quad is standard.
12-8
(4-10)
16-8
(1.5-10)
2-8
(4-10)
16-8
(1.5-10)
-
14-8
(2.5-10)
10-6
(6-16)
14-6
(2.5-16)
14-12 (2.5-6)
-
14-8
(2.5-10)
10-8
(4-10)
10-8
(4-10)
See
note 2
Wiring Diagrams
Main Circuit
20
(1.8-2)
-
40
(4-6)
50
(4-7)
50
(4-7)
Power
Terminals
Dual 0.250
QC (2)
Dual 0.250
QC (2)
Dual 0.250
QC (2)
Coil
Terminals
Dual 0.250
QC (2)
0.250 QC (2)
0.250 QC (2)
0.250 Standard
Quad
Dual or Quad
Dual
Quad
Dual or Quad
Dual
Quad
Dual or Quad
Dual
-
3
3
3
Line Side
Load Side
www.automationdirect.com
A1
A2
1/L1
2/T1
3/L2 (N)
4/T2 (N)
A1
A2
1/L1
2/T1
3/L2
4/T2
Motor Controls
06~52PDW04~52PDW
ON3 P3 ...PDWON2 P2 ...PDWtnuhS1+ON1 P1 ...PDW
tMRC-125
1-800-633-0405
WDP Series Definite Purpose
Contactors
Coil Specifications
WDP Series 25-60 Amp DP Contactor Coil Specifications
1
25 6.7
40 8.8
25 6.7
40 8.8
25 6.7
40 8.8
Model Poles
Coil Voltage
(50/60Hz VAC)
In-Rush Sealed In-Rush Sealed
WDP25-1L-120
WDP25-1L-230
WDP25-2L-120
WDP25-2L-230
WDP25-3L-120
WDP25-3L-230
1NO+Shunt
2NO
3NO
WDP30-1L-120
WDP30-1L-230
1NO+Shunt
WDP30-1L-24
WDP30-2L-120
WDP30-2L-230
2NO
WDP30-2L-24
WDP30-3L-120
WDP30-3L-230
3NO
WDP30-3L-24
WDP30-3L-480
WDP40-1L-120
WDP40-1L-230
WDP40-2L-120
WDP40-2L-230
1NO+Shunt
2NO
WDP40-3L-120
WDP40-3L-230
WDP40-3L-24
3NO
WDP40-3L-480
WDP50-3L-120
WDP50-3L-230
WDP50-3L-24
WDP60-3L-120
3NO
WDP60-3L-230
WDP60-3L-24
Notes: 1-Power consumption is the same for 24, 120, 240, 277, and 480 VAC.
2-Us = Rated control supply voltage, per UL 60947-1
120
230
120
230
120
230
120
230
24
120
230
24
120
230
24
480
120
230
120
230
120
230
24
480
120
230
24
120
230
24
Power Consumption
(VA)
50Hz 60Hz
55 13
51 12 47 9.3
55 13
51 12 47 9.3
55 13
51 12 47 9.3
84 14 83 9.3
For the latest prices, please check AutomationDirect.com.
Pick-Up Voltage Drop-Out Voltage
85-110% U
(see note 2)
s
20-65% U
(see note 2)
s
www.automationdirect.com
Motor Controls
tMRC-126
1-800-633-0405
WDP Series Definite Purpose
Contactors Accessories
WDP Series Accessories Selection Guide
Model Type
WDPAXFC11
WDPAXFC11Q
WDPAXFD11
WDPAXFD22
For the latest prices, please check AutomationDirect.com.
Auxiliary Contact
Microswitch (SPDT)
Contact
Arrangement
1NO+1NC Screw
1NO+1NC Quick Connect
1NO+1NC Quick Connect
2NO+2NC Quick Connect
Connection Type
1
WDP Series DP Contactors Accessories Specifications
Break
(A)
120VAC
240VAC
480VAC
600VAC
120VAC
3 1.50 0.75 0.60 30 15 7.5 6 5
UL file #E330834, Standard UL 60947-1
$11.50
$11.50
$11.50
$14.00
For Use
With
WDP25-60
(3-Pole only)
WDP25-40
(3-Pole only)
Mounting Wiring
#6-32 screw
terminal, wire
2
range #14-22
AWG
0.250 Quick
Connection
0.250 Quick
Connection
0.250 Quick
Connection
Side
mounted
One switch
per side
Two switches
per side
Model Price
WDPAXFC11
WDPAXFC11Q
WDPAXFD11
WDPAXFD22
Agency
Approvals
Notes: 1-Quick connects (size 6.3mm, female) may be purchased on the web store www.automationdirect.com
2-Maximum of two may be mounted.
Make
(A)
240VAC
Current Ratings
Continous (A)
480VAC
600VAC
10A,
15A,
120
VAC on
Lamp
125
VDC
Load
4A 1/2 A 1/4 A
250
VDC
125
or 250
VAC
120-600
VAC
1/3 hp
1/3 hp
www.automationdirect.com
Motor Controls
tMRC-127
1-800-633-0405
WDP Series Definite Purpose
Contactors
Dimensions inches [mm]
WDP Series 25-40A One Pole Contactors
For the latest prices, please check AutomationDirect.com.
Side Detail
WDP Series 25-40A Two Pole Contactors
Front Detail
Base Detail
Side Detail
www.automationdirect.com
Front Detail
Base Detail
Motor Controls
tMRC-128
1-800-633-0405
WDP Series Definite Purpose
Contactors
Dimensions inches [mm]
WDP Series 25-40A Three Pole Contactors
For the latest prices, please check AutomationDirect.com.
Side Detail
WDP Series 50-60A Three Pole Contactors
Front Detail
Base Detail
Side Detail
www.automationdirect.com
Front Detail
Base Detail
Motor Controls
tMRC-129
1-800-633-0405
WDP Series Definite Purpose
Contactors Accessories
Dimensions inches [mm]
WDPAXFC11 Accessory
For the latest prices, please check AutomationDirect.com.
WDPAXFC11Q Accessory
www.automationdirect.com
Motor Controls
tMRC-130
1-800-633-0405
WDP Series Definite Purpose
Contactors Accessories

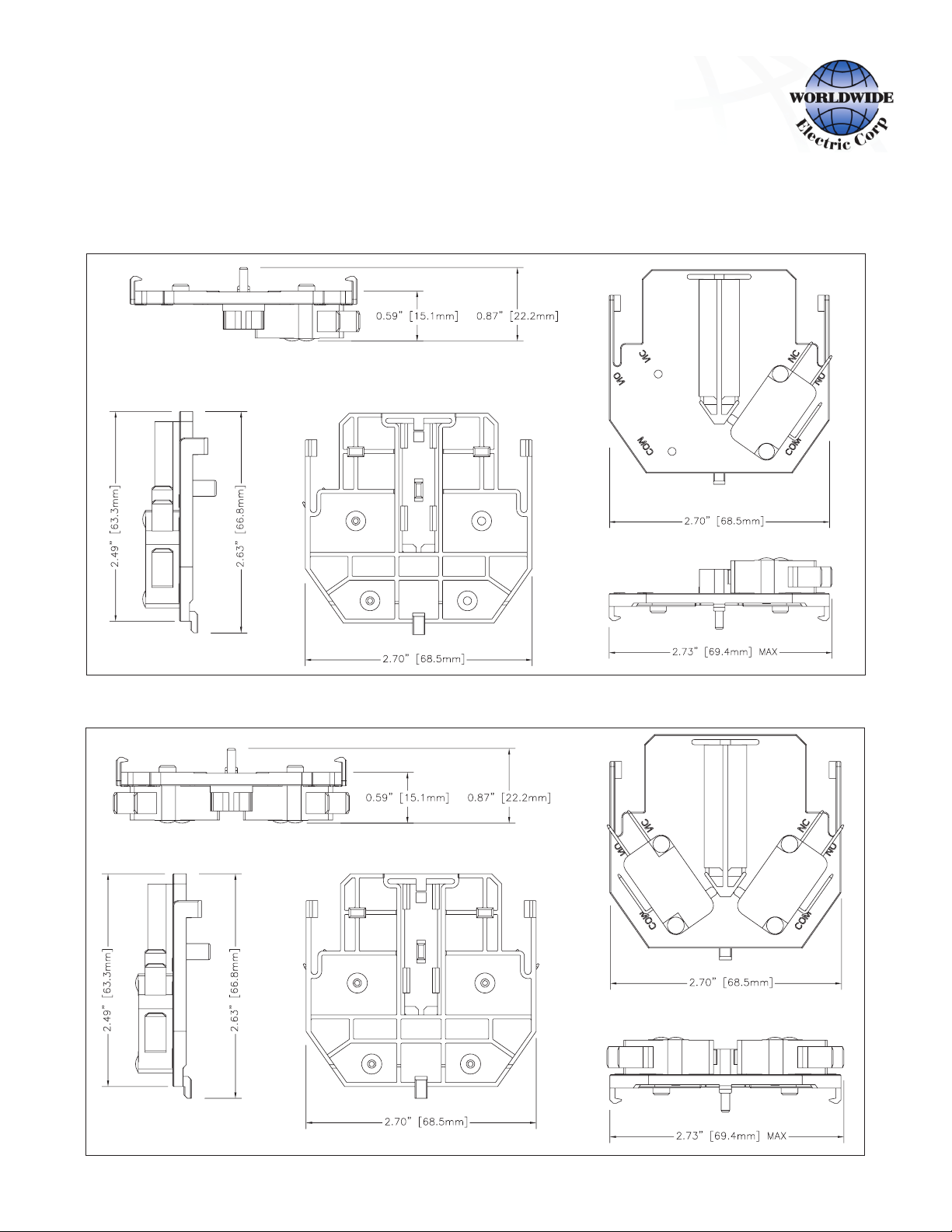

Dimensions inches [mm]
WDPAXFD11 Accessory
For the latest prices, please check AutomationDirect.com.
WDPAXFD22 Accessory
www.automationdirect.com
Motor Controls
tMRC-131
