F0-08ADH-1,
8-CHAnnel
Chapter
Chapter
Chapter
AnAlog Current Input
In This Chapter...
Module Specifications ...............................................................................................4–2
Connecting and Disconnecting the Field Wiring .....................................................4–4
Wiring Diagram .........................................................................................................4–5
Module Operation ..................................................................................................... 4–6
Special V-memory Locations .....................................................................................4–7
Using the Pointer in Your Control Program ............................................................. 4–9
Scale Conversions .................................................................................................... 4–11
Module Resolution ...................................................................................................4–14
Analog Input Ladder Logic Filter ............................................................................4–15
4
4
2
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
Module Specifications
The F0-08ADH-1 Analog Input module offers the following features:
• The DL05 and DL06 will read all eight channels in one scan.
• The removable terminal block simplifies module replacement.
• Analog inputs can be used as process variables for the four (4) PID
loops in the DL05 and the eight (8) PID loops in the DL06 CPUs.
• On-board active analog filtering and RISC-like microcontroller provide
digital signal processing to maintain precise analog measurements in
noisy environments.
• These modules are isolated from the PLC power supply logic side
(1800 Volt).
4–2
NOTE: The DL05 CPU’s analog feature for this module requires DirectSOFT32 Version 3.0c (or later) and
firmware version 5.20 (or later). The DL06 requires DirectSOFT32 version V4.0, build 16 (or later) and
firmware version 2.30 (or later). See our website for more information: www.automationdirect.com.
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
The following tables provide the specifications for the F0–08ADH –1 Analog Input Module.
Review these specifications to make sure the module meets your application requirements.
Input Specifications
Inputs per module
Input Range
Resolution
Input Type
Maximum Continuous Overload
Input Impedance
Filter Characteristics
PLC Data Format
Sample Duration Time
All Channel Update Rate
Open Circuit Detection Time
Conversion Method
Accuracy vs. Temperature
Maximum Inaccuracy
Linearity Error (End to End)
Input Stability and Repeatability
Full Scale Calibration Error (incl offset)
Offset Calibration Error
Maximum Crosstalk at DC, 50 Hz and 60 Hz
Recommended Fuse (external)
External 24VDC Power Required
Base Power Required (5.0 V)
*
Each channel requires 2 words of V-memory irrespective of the format used.
8
0–20 mA
16-bit, 0.305 µA/bit
Single Ended (one common)
±31mA
100 ohms, 1/10W, current input
Low pass, -3dB @ 60Hz
16-bit, Unsigned Integer, 0–FFFF (binary) or 0–65535 (BCD)
10.2 ms (time to 95% of full step change per channel)
81.6 ms
Zero reading within 1s
Successive Approximation
±50 PPM/°C Maximum
0.2% of range (including temperature changes)
±10 count maximum; Monotonic with no missing codes
±10 count maximum
±10 count maximum
±10 count maximum
±10 count maximum
Littlefuse Series 217, 0.032 A fuse
24VDC ±10% @ 25mA
25mA
*
Operating Temperature
Storage Temperature
Humidity
Environmental air
Vibration
Shock
Field to Logic side Isolation
Insulation Resistance
Noise Immunity
Agency Approvals
Module Location
Field Wiring
Weight
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
General Specifications
0 to 55°C (32 to 131°F)
-20 to 70°C (-4 to 158°F)
5 to 95% (non-condensing)
No corrosive gases permitted (EN61131-2 pollution degree 1)
MIL STD 810C 514.2
MIL STD 810C 516.2
1800VAC applied for 1 second (100% tested)
>10M ohms @ 500VDC
NEMA ICS3-304; Impulse 1000V @ 1ms pulse;
RFI, (145MHz, 440Mhz 5W @ 15cm);
Worst case error during noise disturbance is 0.5% of full scale
UL508; UL60079-15 Zone 2
Any slot in a DL05 or DL06 System
Removable Terminal Block
49g (1.7 oz.)
4–3
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
Connecting and Disconnecting the Field Wiring
WARNING: Before removing the analog module or the terminal block on the face of the module,
disconnect power to the PLC and all field devices. Failure to disconnect power can result in damage to
the PLC and/or field devices.
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should check
those before you begin the installation. Here are some general things to consider:
• Use the shortest wiring route whenever possible.
• Use shielded wiring and ground the shield at the transmitter source. Do not ground the shield at both
the module and the source.
• Do not run the signal wiring next to large motors, high current switches, or transformers. This may
cause noise problems.
• Route the wiring through an approved cable housing to minimize the risk of accidental damage.
Check local and national codes to choose the correct method for your application.
The F0–08ADH–1 does not supply power to field devices. You will need to power transmitters
separately from the PLC.
To remove the terminal block, disconnect power to the PLC and the field devices. Pull the
terminal block firmly until the connector separates from the module.
You can remove the analog module from the PLC by folding out the retaining tabs at the top
and bottom of the module. As the retaining tabs pivot upward and outward, the module’s
connector is lifted out of the PLC socket. Once the connector is free, you can lift the module
out of its slot.
4–4
NOTE: The F0–08ADH–1 analog module cannot sense the loss of analog input signals in 0–20 mA loops.
Terminal Block Specifications
Number of Positions
Re-Order Number
Pitch
Wire Range
Screwdriver Size (Slotted)
Screw Size
Screw Torque
13
D0-ACC-4
0.2 inch (5.08 mm)
28–16 AWG Solid or Stranded Conductor;
Wire strip length 5/16” (7–8 mm)
0.4T x 2.5W mm (part number DN-SS1)
M2.5 size
4.5 inch-pounds (0.52 N·m)
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
0V
Wiring Diagram
Use the following diagram to connect the field wiring. If necessary, the F0–08ADH–1 terminal
block can be removed to make removal of the module possible without disturbing field wiring.
2-wire 4–20mA
Transmitter
2-wire 4–20mA
Transmitter
4-wire 4–20mA
Transmitter
3-wire 4–20mA
Transmitter
SHIELD CONNECTED TO SIGNAL
SOURCE COMMON. SEE NOTE 2.
Note 1: A Littelfuse Series 217, 0.032A fast-acting fuse
is recommended for all 4-20mA current loops.
Note 2: Do not connect both ends of shield.
Current Loop Transmitter Impedance
Manufacturers of transmitters and transducers specify a wide variety of power sources for their
products. Follow the manufacturer’s recommendations.
In some cases, manufacturers specify a minimum loop or load resistance that must be used
with the transmitter. The F0-08ADH-1 provides 100 ohm resistance for each channel. If your
transmitter requires a load resistance below 100 ohms, you do not have to make any changes.
However, if your transmitter requires a load resistance higher than 100 ohms, you need to add
a resistor in series with the module.
Consider the following example for a transmitter being operated from a 30VDC supply with a
recommended load resistance of 750 ohms. Since the module has a 100 ohm resistor, you need
to add an additional resistor.
R = Tr–Mr R = Resistor to add
R = 750–100 Tr = Transmitter requirement
R M 650 Mr = Module resistance (internal 100 ohms)
4-20mA Transmitter
4-20mA Transmitter
4-20mA Transmitter
Shield, Ch. 5
+
4-20mA Transmitter
Shield, Ch. 1
SEE NOTE 1.
Shield, Ch. 3
Shield, Ch. 8
.032A
AC or DC
24VDC
Power Supply
CH1
CH3
COM
CH5
CH8
COM
COM
+24VDC
0VDC
Internal Module CircuitryTypical User Wiring
0V
CH1 ADC
CH2 ADC
CH3 ADC
CH4 ADC
CH5 ADC
CH6 ADC
CH7 ADC
CH8 ADC
ISOLATED ANALOG
CIRCUIT POWER
IN
F0-08ADH-1
ANALOG
0–20mA
CH1
CH2
CH3
CH4
COM
CH5
CH6
CH7
CH8
COM
COM
+24V
0V
100 Ω
100 Ω
100 Ω
100 Ω
100 Ω
100 Ω
100 Ω
100 Ω
DC Supply
+30V
0V
Two-wire Transmitter
+–
R
Module Channel 1
CH1
COM
125 ohms
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
4–5
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
Module Operation
Channel Scanning Sequence
The DL05 and DL06 will read all eight channels of input data during each scan. Each CPU
supports special V-memory locations that are used to manage the data transfer. This is discussed
in more detail beginning in the section on “Special V-memory Locations”.
Scan
Read Inputs
Execute Application Program
Read the data
Store data
Write to Outputs
Scan N
Scan N+1
Scan N+2
Scan N+3
Scan N+4
DL05/DL06 PLC
Ch 1, 2, 3, 4, 5, 6, 7, 8
Ch 1, 2, 3, 4, 5, 6, 7, 8
Ch 1, 2, 3, 4, 5, 6, 7, 8
Ch 1, 2, 3, 4, 5, 6, 7, 8
Ch 1, 2, 3, 4, 5, 6, 7, 8
Analog Module Updates
Even though the channel updates to the CPUs are synchronous with the CPU scan, the module
asynchronously monitors the analog transmitter signals and converts each signal into a 16-bit
binary representation. This enables the module to continuously provide accurate measurements
without slowing down the discrete control logic in the RLL program.
The module takes approximately 10.2 milliseconds to sense 95% of the change in the analog
signal per channel. It takes approximately 81.6 ms to sample all channels.
NOTE: If you are comparing other manufacturers’ update times (step responses) with ours, please be aware
that some manufacturers refer to the time it takes to convert the analog signal to a digital value. Our analog
to digital conversion takes only a few microseconds. It is the settling time of the filter that is critical in
determining the full update time. Our update time specification includes the filter settling time.
4–6
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
Special V-memory Locations
Formatting the Analog Module Data
The DL05 and DL06 PLCs have special V-memory locations assigned to their respective
option slots. These V-memory locations allow you to:
• Specify the data format (binary or BCD)
• Specify the number of channels to scan (up to 8 channels for the F0–08ADH–1)
• Specify the V-memory locations to store the input data
DL05 Data Formatting
The table below shows the special V-memory locations used by the DL05 PLC for the
F0–08ADH–1.
Analog Input Module
DL05 Special V-memory Locations
Data Type and Number of Channels V7700
Storage Pointer V7701
Setup Data Type and Number of Active Channels
Special V-memory location 7700 is used to set the data
format to either BCD or binary and to set the number of
channels that will be active.
For example, assume the F0–08ADH–1 is installed in the
option slot. Loading a constant of 800 into V7700 sets
8 channels active and causes the input data value to be read
as a BCD number.
With the F0–08ADH–1 in the option slot, loading a constant
of 8800 into V7700 sets 8 channels active, and the input data
value is read as a binary number.
V7700 BCD setup
MSB LSB
101112131
101112131
78965432
78965432
5
4
V7700 binary setup
MSB LSB
5
4
11
11
0
0
Storage Pointer Setup
V7701 is a system V-memory location used as a pointer to a user V-memory location where
the analog input data is stored. The V-memory location loaded into V7701 is an octal
number identifying the first user V-memory location for reading the analog input data. This
V-memory location is user selectable. For example, loading O2000 causes the pointer to write
Ch 1’s data value to V2000 – 2001, Ch 2’s data value to V2002 – 2003, Ch 3’s data value to
V2004 – 2005, Ch 4’s data value to V2006 – 2007, Ch 5’s data value to V2010 – 2011, Ch
6’s data value to V2012 – 2013, Ch 7’s data value to V2014 – 2015, and Ch 8’s data value to
V2016 – 2017.

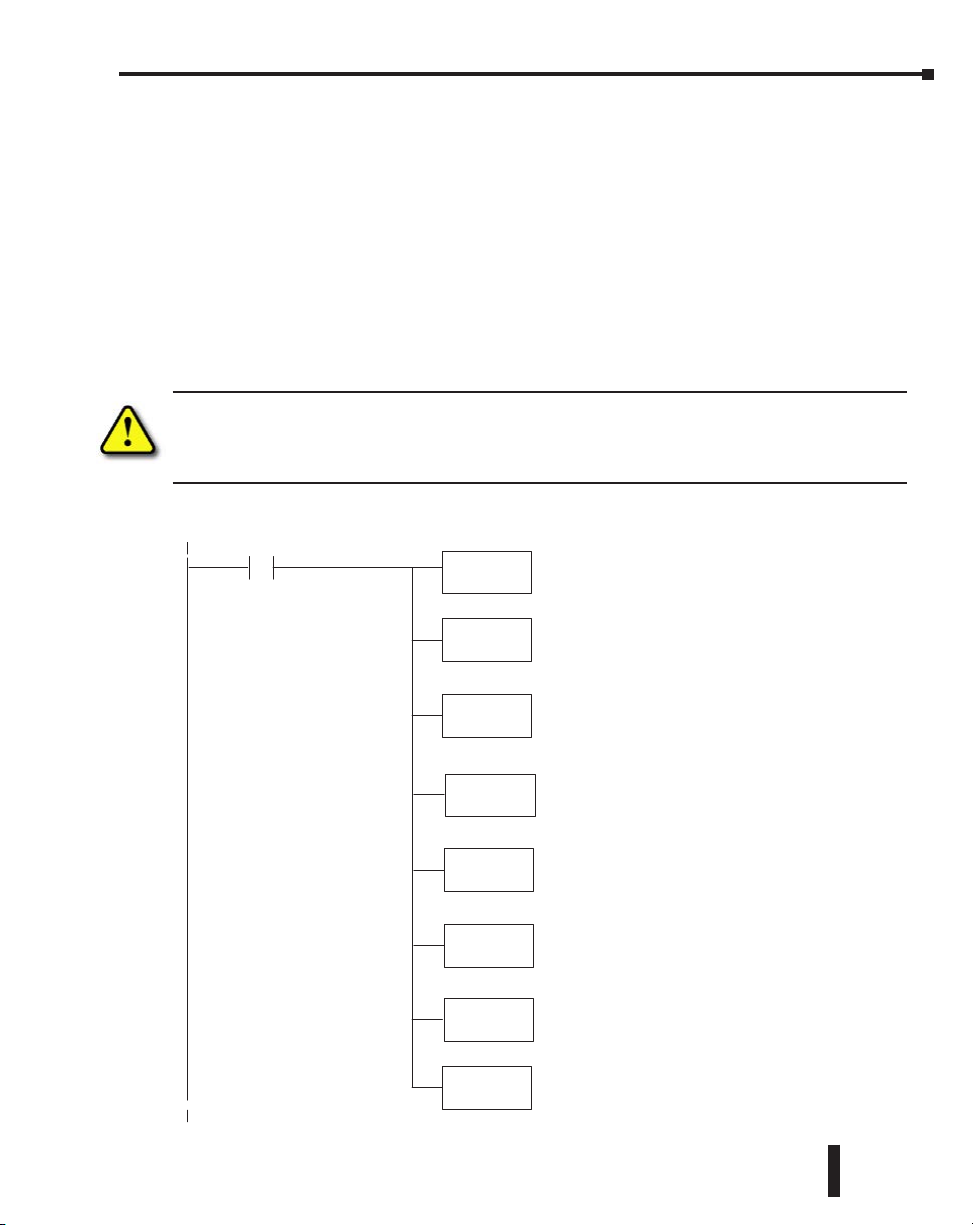

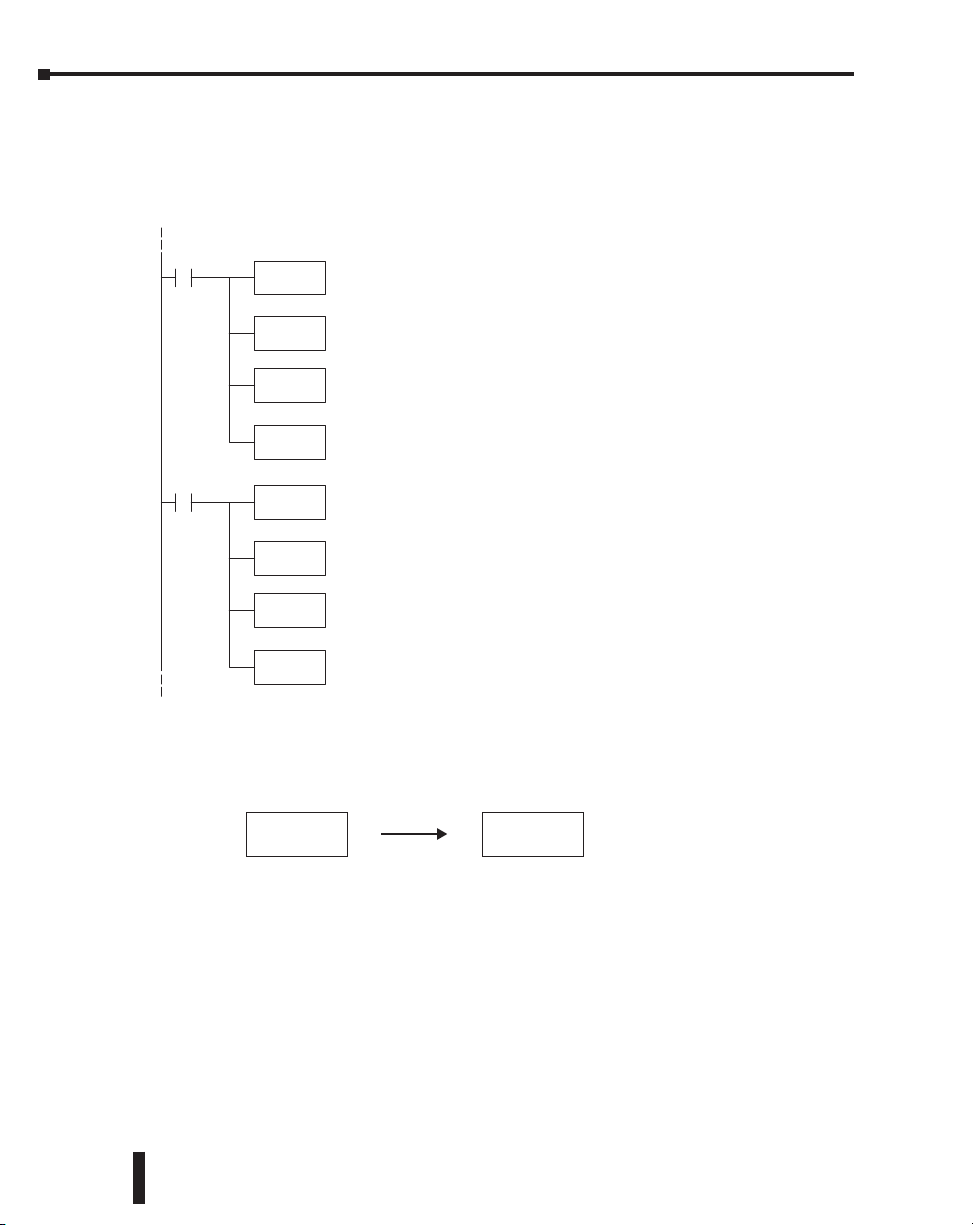

You will find an example program that loads appropriate values to V7700 and V7701 on
page 4–9.
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
4–7
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
5
4
V700 BCD setup
DL06 Data Formatting
Special V-memory locations are assigned to the four option slots of the DL06 PLC. The table
below shows these V-memory locations which can be used to setup the F0–08ADH–1.
Analog Input Module
DL06 Special V-memory Locations
Slot No. 1 2 3 4
Data Type and Number of Channels V700 V710 V720 V730
Storage Pointer V701 V711 V721 V731
Setup Data Type and Number of Active Channels
V-memory locations 700, 710, 720, and 730 are used to
set the data format to either BCD or binary and to set the
number of channels that will be active.
For example, assume the F0–08ADH–1 is installed in slot
1. Loading a constant of 800 into V700 sets 8 channels
active and causes the input data value to be read as a BCD
number.
With the F0–08ADH–1 in slot 1, loading a constant of
8800 into V700 sets 8 channels active, and the input data
value is read as a binary number.
Storage Pointer Setup
V-memory locations 701, 711, 721 and 731 are special locations used as storage pointers. A
V-memory address is loaded into this location as an octal number identifying the first user
V-memory location for the analog input data. This V-memory location is user selectable. For
example, loading O2000 causes the pointer to write Ch 1’s data value to V2000 – 2001, Ch 2’s
data value to V2002 – 2003, Ch 3’s data value to V2004 – 2005, Ch 4’s data value to V2006
– 2007, Ch 5’s data value to V2010 – 2011, Ch 6’s data value to V2012 – 2013, Ch 7’s data
value to V2014 – 2015, and Ch 8’s data value to V2016 – 2017.
You will find an example program that loads appropriate values to V700 and V701 beginning
on page 4–10.
MSB LSB
101112131
101112131
78965432
78965432
5
4
V700 binary setup
MSB LSB
11
11
0
0
4–8
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
Using the Pointer in Your Control Program
DL05 Pointer Method Using Conventional Ladder Logic
NOTE: The proper use of the DL05 pointer requires that the V-memory address be written to the special
memory location on the first scan only. Use the SP0 bit as a permissive contact when using the code shown
below.
The example program below shows how to setup the special V-memory locations. This rung
can be placed anywhere in the ladder program or in the initial stage if you are using stage
programming instructions.
This is all that is required to read the analog input data into V-memory locations. Once the
data is in V-memory you can perform math on the data, compare the data against preset values,
and so forth. V2000 is used in the example but you can use any user V-memory location.
SP0
LD
K800
Loads a constant that specifies the number of channels to scan and the
data format. The upper byte selects the data format (i.e. 0=BCD, 8=Binary)
and the number of channels (up to 8 for the F0-08ADH-1).
- or -
LD
K8800
OUT
V7700
LDA
O2000
OUT
V7701
The binary format is used for displaying data on some operator
interface units. The DL05 PLCs support binary math functions.
Special V-memory location assigned to the option slot contains the
data format and the number of channels to scan.
This loads an octal value for the first V-memory location that will be used
to store the incoming data. For example, the O2000 entered here would
designate the following addresses:
Ch1 – V2000-2001, Ch2 – V2002-V2003, Ch3 – V2004-V2005, Ch 4 – V2006-2007
Ch 5 – V2010-2011, Ch 6 – V2012-V2013, Ch 7 – V2014-V2015, Ch 8 – V2016-V2017.
The octal address (O2000) is stored here. V7701 is assigned to the option slot
and acts as a pointer, which means the CPU will use the octal value in this location
to determine exaclty where to store the incoming data.
DL05 Pointer Method Using the IBox Instruction Available in DirectSOFT5
The following logic accomplishes the same thing as the previous ladder example, but it uses
the IBox instruction ANLGIN.
Analog Input Module Pointer Setup
ANLGIN IB-460
No permissive contact or input logic
is used with this instruction. This instruction
operates on the first scan only.
Base # (K0 - Local)
Slot #
Number of Input Channels
Input Data Format (0 - BCD 1 - BIN)
Input Data Address
K0
K1
K8
K0
V2000
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
4–9
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
DL06 Pointer Method Using Conventional Ladder Logic
NOTE: The proper use of the DL06 pointer requires that the V-memory address be written to the special
memory location on the first scan only. Use the SP0 bit as a permissive contact when using the code
shown below.
Use the special V-memory table below as a guide to setup the storage pointer in the following
example for the DL06. Slot 1 is the left most option slot.
Analog Input Module
DL06 Special V-memory Locations
1 2 3 4
No. of Channels V700 V710 V720 V730
Input Pointer V701 V711 V721 V731
The F0–08ADH–1 can be installed in any available DL06 option slot. The ladder diagram
below shows how to set up these locations with the module installed in slot 1 of the DL06. Use
the above table to determine the pointer values if locating the module in any of the other slot
locations. Place this rung anywhere in the ladder program or in the initial stage if you are using
stage programming instructions.
This logic is all that is required to read the analog input data into V-memory locations. Once
the data is in V-memory you can perform mathematical calculations with the data, compare
the data against preset values, and so forth. In the example, V2000 is used, but you can use
any user V-memory location.
4–10
SP0
LD
K800
Loads a constant that specifies the number of channels to scan and the
data format. The upper byte selects the data format (i.e. 0=BCD, 8=Binary)
and the number of channels (up to 8 for the F0-08ADH-1).
- or -
LD
K8800
OUT
V700
LDA
O2000
OUT
V701
The binary format is used for displaying data on some operator
interface units and the DL06 display. The DL06 PLCs support
binary math functions.
Special V-memory location assigned to the first option slot contains the
data format and the number of channels to scan.
This loads an octal value for the first V-memory location that will be used
to store the incoming data. For example, the O2000 entered here would
designate the following addresses:
Ch1 – V2000-2001, Ch2 – V2002-V2003, Ch3 – V2004-V2005, Ch 4 – V2006-2007
Ch 5 – V2010-2011, Ch 6 – V2012-V2013, Ch 7 – V2014-V2015, Ch 8 – V2016-V2017.
The octal address (O2000) is stored here. V701 is assigned to the first option slot
and acts as a pointer, which means the CPU will use the octal value in this location
to determine exaclty where to store the incoming data.
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
H – L
DL06 Pointer Method Using the IBox Instruction Available in DirectSOFT6
The following logic accomplishes the same thing as the previous ladder example, but it uses
the IBox instruction ANLGIN.
Scale
No permissive contact or input logic
is used with this instruction. This instruction
operates on the first scan only.
Conversions
Scaling the Input Data
Many applications call for measurements in engineering units, which can be more meaningful
than raw data. Convert to engineering units using the
formula shown to the right.
You may have to make adjustments to the formula
depending on the scale you choose for the engineering
units.
For example, if you wanted to measure pressure (PSI)
from 0.0 to 99.9 then you would have to multiply the
analog value by 10 in order to imply a decimal place
when you view the value with the programming software or a handheld programmer. Notice
how the calculations differ when you use the multiplier.
Analog Value of 32375, slightly less than half scale, should yield 49.4 PSI.
Analog Input Module Pointer Setup
ANLGIN IB-460
Base # (K0 - Local)
Slot #
Number of Input Channels
Input Data Format (0 - BCD 1 - BIN)
Input Data Address
Units = A
H = High limit of the engineering
L = Low limit of the engineering
A = Analog value (0 – 65535)
65535
unit range
unit range
K0
K1
K8
K0
V2000
+ L
Example without multiplier Example with multiplier
Units = A
Units=
32375
Units= 49
H – L
65535
+ L
100 – 0
65535
+ 0
Units=10 x A
Units=323750
Units=494
H – L
65535
100 – 0
65535
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
+ L
+ 0
4–11
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
The Conversion Program in Standard Ladder Logic
The following example shows how you would write the program to perform the engineering
unit conversion. This example assumes you have BCD data loaded into the appropriate
V-memory locations using instructions that apply for the model of CPU you are using.
_First Scan
SP0
LDD
K100
Loads the constant 100 to the accumulator.
_On
SP1
OUTD
V3000
LDD
K65535
OUTD
V3002
LDD
V2000
MULD
V3000
DIVD
V3002
OUTD
V2100
V2000/2001
32375
Copies the constant 100 from the accumulator
to the memory location V3000 and V3001.
Loads the constant 65535 to the accumulator.
Copies the content (65535) from the accumulator
to the memory location V3002 and V3003.
Loads data from V2000 and V2001.
Multiplies the accumulator value by 100
(previously loaded into V3000 and V3001).
Divides the accumulator value by 65535
(previously loaded into V3002 and V3003).
Copies the content of the accumulator to the memory
location V2100 and V2101.
V2100/2101
49
4–12
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
A
A
Analog and Digital Value Conversions
Sometimes it is useful to convert between the signal levels and the digital values. This is
especially helpful during machine start-up or troubleshooting. The following table provides
formulas to make this conversion easier.
Range If you know the digital value If you know the analog signal level
20
0 to 20mA
=
65535
.
D
For example, if you have measured the signal as 10mA,
you can use the formula to determine the digital value that
should be stored in the V-memory location that contains
the data.
65535
20
65535
20
65535
20
.
D =
D =
D =
D = 32767
.
A
.
10mA
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
4–13
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
0 – 20mA
065535
e
Module Resolution
Analog Data Bits
Two 16-bit words are reserved for the analog data whether you are using BCD or binary data
formatting. The 16 bits in the low word represent the analog data in binary format.
BCD Example
MSB LSB
MSB LSB
V2000V2001
0
132
Binary Example
MSB LSB
1
5
101112131
4
7896540132
0
0
132
MSB LSB
5
= data bits
101112131
4
132
V2000V2001
78965432
132
0
0
132
0
11
Resolution Details
Since the module has 16-bit resolution, the analog signal is converted into 65,536 counts
ranging from 0 - 65,535 (216). A 0mA signal would be 0 and a 20mA signal would be 65535.
This is equivalent to a binary value of 0000 0000 0000 0000 to 1111 1111 1111 1111, or 000
to FFFF hexadecimal.
Each count can also be expressed in terms of the signal level by using the following equation:
20mA
0mA
Resolution =
H = high limit of the signal rang
L = low limit of the signal range
H – L
65535
4–14
The following table shows the smallest detectable signal change that will result in one LSB
change in the data value for each increment of the signal change.
mA Range
0 to 20mA 20mA 65535 0.3052µA
Signal Span
(H – L)
Divide By
Smallest Detectable
Change
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
SP1
Analog Input Ladder Logic Filter
PID Loops / Filtering
Please refer to the “PID Loop Operation” chapter in the DL06 or DL05 User Manual for
information on the built-in PV filter (DL05/06) and the ladder logic filter (DL06 only) shown
below. A filter must be used to smooth the analog input value when auto tuning PID loops to
prevent giving a false indication of loop characteristics.
Smoothing the Input Signal (DL06 only)
The filter logic can also be used in the same way to smooth the analog input signal to help
stabilize PID loop operation or to stabilize the analog input signal value for use with an operator
interface display, etc.
WARNING: The built-in and logic filters are not intended to smooth or filter noise generated by improper
field device wiring or grounding. Small amounts of electrical noise can cause the input signal to bounce
considerably. Proper field device wiring and grounding must be done before attempting to use the filters
to smooth the analog input signal.
Binary Data Format Filter Using Ladder Logic
LDD
V2000
BTOR
Loads the analog signal, which is in binary format
and has been loaded from V–memory location
V2000 – 2001, into the accumulator. Contact SP1
is always on.
Converts the binary value in the accumulator
to a real number.
Subtracts the real number stored in location
SUBR
V1400
MULR
R0.2
ADDR
V1400
OUTD
V1400
RTOB
OUT
V2100
V1400 from the real number in the accumulator,
and stores the result in the accumulator. V1400
is the designated workspace in this example.
Multiplies the real number in the accumulator by
0.2 (the filter factor), and stores the result in the
accumulator. This is the filtered value. The filter
range is 0.1 to 0.9. Smaller filter factors
increase filtering. (1.0 eliminates filtering.)
Adds the real number stored in location V1400
to the real number filtered value in the
accumulator, and stores the result in the accumulator.
Copies the value in the accumulator to
location V1400.
Converts the real number in the
accumulator to a binary value, and
stores the result in the accumulator.
Loads the binary number filtered value from
the accumulator into location V2100 to use in
your application or PID loop.
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
4–15
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
SP1
NOTE: Be careful not to do a multiple number conversion on a value. For example, if you are using the pointer
method in BCD format to get the analog value, it must be converted to binary (BIN) as shown below. If you
are using the pointer method in Binary format, the conversion to binary (BIN) instruction is not needed.
BCD Data Format Filter Using Ladder Logic
LDD
V2000
BIN
BTOR
SUBR
V1400
MULR
R0.2
ADDR
V1400
OUTD
V1400
RTOB
Loads the analog signal, which is in BCD format
and has been loaded from V–memory location
V2000 – 2001, into the accumulator. Contact SP1
is always on.
Converts the BCD value in the accumulator
to binary.
Converts the binary value in the accumulator
to a real number.
Subtracts the real number stored in location
V1400 from the real number in the accumulator,
and stores the result in the accumulator. V1400
is the designated workspace in this example.
Multiplies the real number in the accumulator by
0.2 (the filter factor), and stores the result in the
accumulator. This is the filtered value. The filter
range is 0.1 to 0.9. Smaller filter factors
increase filtering. (1.0 eliminates filtering.)
Adds the real number stored in location V1400
to the real number filtered value in the
accumulator, and stores the result in the accumulator.
Copies the value in the accumulator to
location V1400.
Converts the real number in the
accumulator to a binary value, and
stores the result in the accumulator.
4–16
Converts the binary value in the accumulator
BCD
OUTD
V2100
to a BCD number. Note: The BCD instruction
is not needed to PID loop PV (loop PV is a
binary number).
Loads the BCD number filtered value from
the accumulator into location V2100 to use in
your application or PID loop.
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
Load V2020 with the maximum engineering value (1000 in this example). Load
Example Code to Scale a 4–20 mA Signal to 0–1000 BCD
(For applications where the field transmitter sends a 4–20 mA signal to the analog input card.)
This example will scale the first input, a double word BCD value located at V2000 and
V2001, as a 4–20 mA input signal from 0–1000. Because the input card ranges from
0–20 mA instead of 4–20 mA, an offset value must be used to deal with the 0–4 mA values.
Any value below a 4mA (13107) value is forced to a 4mA (13107) value.
V2022 with the maximum 16-bit value after the 4mA value (13107) is subtracted.
SP1
LDD
K1000
OUTD
V2020
Determine if the incoming value is below 4mA, or 13107 counts.
V2001 V2000K1
=
V2001
K2
≥
If the incoming value is below 4mA (13107 count) then load the
minimum count value of 13107 into the accumulator.
C0
If the incoming value is between 4mA and 20mA then load the
incoming count value into the accumulator.
C0
Scale the incoming raw count of 13107 to 65535 to a value
between 0 and 1000. Output the value in V3000.
SP1
LDD
K52428
OUTD
V2022
K3107
≥
C0
OUT
LDD
K13107
LDD
V2000
SUBD
K13107
MULD
V2020
DIVD
V2022
OUT
V3000
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
4–17
Chapter 4: F0-08ADH-1, 8-Channel Analog Current Input
Load V2020 with the maximum engineering value (1000 or 3E8h in this example). Load
Example Code to Scale a 4–20 mA Signal to 0–1000 Binary
(For applications where the field transmitter sends a 4–20 mA signal to the analog input card.)
This example will scale the first input, a binary/decimal value located at V2000 (the CPU
reserves two words for each channel so V2000 and V2001 are reserved), as a 4–20 mA input
signal from 0–1000. Because the input card ranges from 0–20 mA instead of 4–20 mA, an
offset value must be used to deal with the 0–4 mA values. Any value below a 4mA (13107 or
3333h) value is forced to a 4mA (13107 or 3333h) value.
V2022 with the maximum 16-bit value after the 4mA value (13107 or 3333h) is subtracted.
SP1
LDD
K1000
If the incoming value is below 4mA (13107 or 3333h) then load the
minimum count value of 13107 (3333h) into the accumulator.
V2000 K3333
<
If the incoming value is between 4mA and 20mA then load the
incoming count value into the accumulator.
V2000 K3333
≥
Scale the incoming raw count of 13107 (3333h) to 65535 (FFFFh) to a value
between 0 and 1000 (3E8h). Output the value in V3000 as a binary/decimal number.
SP1
BIN
OUTD
V2020
LDD
K52428
BIN
OUTD
V2022
LDD
K3333
LDD
V2000
SUBB
K3333
MULB
V2020
DIVB
V2022
4–18
DL05/06 Option Modules User Manual; 7th Ed. Rev. E
OUT
V3000
Loading...
