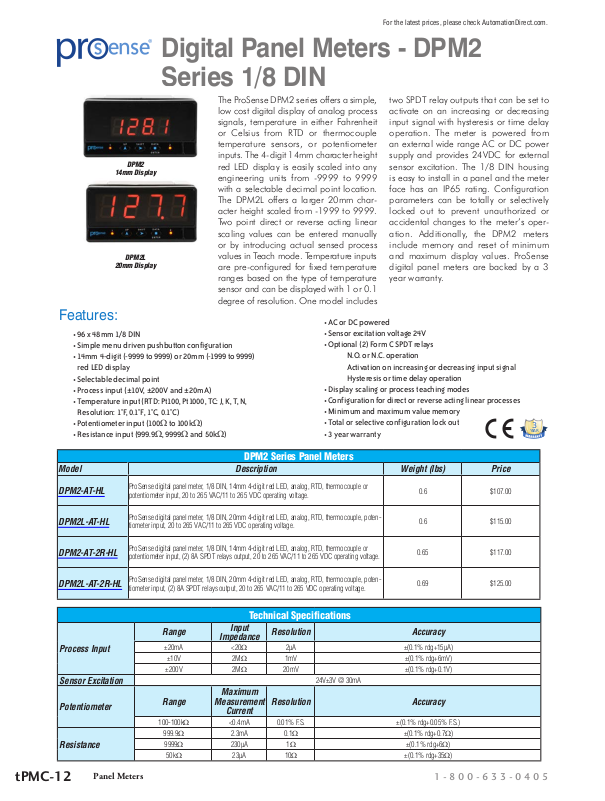

Digital Panel Meters - DPM2
Series 1/8 DIN
The ProSense DPM2 series offers a simple,
low cost digital display of analog process
signals, temperature in either Fahrenheit
or Celsius from RTD or thermocouple
temperature sensors, or potentiometer
DPM2
14mm Display
DPM2L
20mm Display
Features:
• 96 x 48mm 1/8 DIN
• Simple menu driven pushbutton configuration
• 14mm 4-digit (-9999 to 9999) or 20mm (-1999 to 9999)
red LED display
• Selectable decimal point
• Process input (±10V, ±200V and ±20mA)
• Temperature input (RTD: Pt100, Pt1000, TC: J, K, T, N,
Resolution: 1°F, 0.1°F, 1°C, 0.1°C)
• Potentiometer input (100Ω to 100kΩ)
• Resistance input (999.9Ω, 9999Ω and 50kΩ)
inputs. The 4-digit 14mm character height
red LED display is easily scaled into any
engineering units from -9999 to 9999
with a selectable decimal point location.
The DPM2L offers a larger 20mm character height scaled from -1999 to 9999.
Two point direct or reverse acting linear
scaling values can be entered manually
or by introducing actual sensed process
values in Teach mode. Temperature inputs
are pre-configured for fixed temperature
ranges based on the type of temperature
sensor and can be displayed with 1 or 0.1
degree of resolution. One model includes
For the latest prices, please check AutomationDirect.com.
two SPDT relay outputs that can be set to
activate on an increasing or decreasing
input signal with hysteresis or time delay
operation. The meter is powered from
an external wide range AC or DC power
supply and provides 24VDC for external
sensor excitation. The 1/8 DIN housing
is easy to install in a panel and the meter
face has an IP65 rating. Configuration
parameters can be totally or selectively
locked out to prevent unauthorized or
accidental changes to the meter’s operation. Additionally, the DPM2 meters
include memory and reset of minimum
and maximum display values. ProSense
digital panel meters are backed by a 3
year warranty.
• AC or DC powered
• Sensor excitation voltage 24V
• Optional (2) Form C SPDT relays
N.O. or N.C. operation
Activation on increasing or decreasing input signal
Hysteresis or time delay operation
• Display scaling or process teaching modes
• Configuration for direct or reverse acting linear processes
• Minimum and maximum value memory
• Total or selective configuration lock out
• 3 year warranty
YEAR
3
DPM2 Series Panel Meters
Model Description Weight (lbs) Price
DPM2-AT-HL
DPM2L-AT-HL
DPM2-AT-2R-HL
DPM2L-AT-2R-HL
ProSense digital panel meter, 1/8 DIN, 14mm 4-digit red LED, analog, RTD, thermocouple or
potentiometer input, 20 to 265 VAC/11 to 265 VDC operating voltage.
ProSense digital panel meter, 1/8 DIN, 20mm 4-digit red LED, analog, RTD, thermocouple, potentiometer input, 20 to 265 VAC/11 to 265 VDC operating voltage.
ProSense digital panel meter, 1/8 DIN, 14mm 4-digit red LED, analog, RTD, thermocouple or
potentiometer input, (2) 8A SPDT relays output, 20 to 265 VAC/11 to 265 VDC operating voltage.
ProSense digital panel meter, 1/8 DIN, 20mm 4-digit red LED, analog, RTD, thermocouple, potentiometer input, (2) 8A SPDT relays output, 20 to 265 VAC/11 to 265 VDC operating voltage.
0.6 $107.00
0.6 $115.00
0.65 $117.00
0.69 $125.00
Technical Specifications
Input
Impedance
Maximum
Measurement
Current
Resolution Accuracy
24V±3V @ 30mA
Resolution Accuracy
Process Input
Sensor Excitation
Potentiometer
Resistance
Range
±20mA <20Ω 2µA ±(0.1% rdg+15µA)
±10V 2MΩ 1mV ±(0.1% rdg+6mV)
±200V 2MΩ 20mV ±(0.1% rdg+0.1V)
Range
100-100kΩ <0.4mA 0.01% F.S. ±(0.1% rdg+0.05% F.S.)
999.9Ω 2.3mA 0.1Ω ±(0.1% rdg+0.7Ω)
9999Ω 230µA 1Ω ±(0.1% rdg+6Ω)
50kΩ 23µA 10Ω ±(0.1% rdg+35Ω)
tPMC-12
Panel Meters
1-800-633-0405
Temperature
Conversion
Display
Accuracy Conditions
Relays
(DPM2-AT-2RL-HL
only)
Power Supply and
Fuses
Power Consumption
Filter
Environmental
Conditions
Environmental Air
Agency Approval
For the latest prices, please check AutomationDirect.com.
Digital Panel Meters - DPM2
Series 1/8 DIN
Technical Specifications Continued
RTD Pt100 (3 wire) Pt1000 (2 wire)
-200.0°C to 800.0°C / 0.1°C
Fixed Display Range /
Resolution
Measurement current 1mA 100µA
Maximum resistance per
wire
Linearization IEC 60751
Coefficient 0.00385
Accuracy
40Ω (balanced) -
±(0.15% rdg+0.5°C), t<-50°C ±(1% rdg+0.5°C)
Thermocouple J K T N
-150.0°C to 999.9°C / 0.1°C
Fixed Display Range /
Resolution
Cold junction
compensation range
Accuracy
Technique Sigma-Delta
Resolution ±16 bits
Conversion rate 20 times per second
Range -9999 to +9999 (-1999 to +9999 for large display models), selectable decimal point position
Type 4 digit, 14mm (0.55”) or 20mm (0.79”), red
LEDs Relay 1, Relay 2
Display refresh rate 20 times per second
Display / Input overrange
indication
Temperature coefficient 100 ppm/°C
Warm-up time 5 minutes
Temperature 23°C±5°C
2 Relays SPDT
Cutoff frequency (-3dB) 7.3Hz to 0.2Hz
Slope -20dB/Dec.
Operating temperature -10ºC to +60ºC (14ºF to 140ºF)
Storage temperature -25ºC to +85ºC (-13ºF to 185ºF)
Relative humidity
(non-condensing)
Maximum altitude 2000m
Frontal protection degree IP65
-150°C to 1100°C / 1°C
-238.0°F to 999.9°F / 0.1°F
-238°F to 2012°F / 1°F
±(0.1% rdg+0.6°C)
±(0.1% rdg+1.1°F)
Nominal contact rating..................................8A at 250VAC / 24VDC
Maximum switching current (resistive load)..................................8A
Maximum switching power.......................................2000VA / 192W
Maximum switching voltage.................................400VAC / 125VDC
Contact resistance.......................................≤100mΩ at 6VDC @ 1A
Contact type................................................................................SPDT
Operate time.............................................................................≤10ms
(Recommended fusing 3A/250V, 5mm x 20mm glass miniature or DIN 41661 equivalent)
-150.0°C to 999.9°C / 0.1°C
-150°C to 1200°C / 1°C
-238.0°F to 999.9°F / 0.1°F
-238°F to 2192°F / 1°F
20-265VAC 50/60 Hz or 11-265VDC
No corrosive gases permitted
-200°C to 800°C / 1°C
-328.0°F to 999.9°F / 0.1°F
-328°F to 1472°F / 1°F
±(0.15% rdg+0.9°F), t<-58°F ±(1% rdg+0.9°F)
-150.0°C to 400.0°C / 0.1°C
-150°C to 400°C / 1°C
-238.0°F to 752.0°F / 0.1°F
-238°F to 752°F / 1°F
-10°C to 60°C (14°F to 140°F)
±(0.2% rdg+0.8°C)
±(0.2% rdg+1.5°F)
"-OuE” , “OuE”
3W
<95% @ 40ºC (104ºF)
CE
-150.0°C to 999.9°C / 0.1°C
-150°C to 1300°C / 1°C
-238.0°F to 999.9°F / 0.1°F
-238°F to 2372°F / 1°F
±(0.1% rdg+0.6°C)
±(0.1% rdg+1.1°F)
tPMC-13
Panel Meters
1-800-633-0405
Digital Panel Meters - DPM2
Series 1/8 DIN
Wiring
Output relay terminals
(DPM2-AT-2R-HL & DPM2L-AT-2R-HL only)
CN3
CN4
1
4
2
5
6
3
CN1
1 2
Note: For additional wiring information download complete manual
from www.AutomationDirect.com
CN2
1 2 3 4 5 6 7
Terminals
Connector CN1 CN2 CN3 & CN4
Wire cross section
Strip length 8 to 9mm 6 to 7mm 8 to 9mm
Manufacturer Wago 231-202/026-000 Wago 734-107 Wago 231-303/026-000
Cage clamp
connection
0.08 to 2.5mm²
(28 to 12 AWG)
Insertion tool or
screwdriver with 0.5 mm
x 3.0 mm blade
0.08 to 1.5mm²
(28 to 14 AWG)
Insertion tool or
screwdriver with 0.3 mm
x 1.8 mm blade
0.08 to 2.5mm²
(28 to 12 AWG)
Insertion tool or
screwdriver with 0.5 mm
x 3.0 mm blade
For the latest prices, please check AutomationDirect.com.
CN1
AC Supply DC Supply
1 Line 1 VDC
2 Neutral 2 VDC
Polarity insensitive for
DC power
(DPM2-AT-2R-HL &
DPM2L-AT-2R-HL only)
CN4 (Relay 2)
4 NO2
5 CM2
6 NC2
NO: Normally open contact.
CM: Common
NC: Normally closed contact.
CN2
1 Common / RTD B / -TC / Pot. Term. 1
2 RTD A / +TC / 10kΩ res. / Pot. center
3 50kΩ res. / Pot. Term. 2
4 RTD B Pt100
5 +20mA
6 Excitation +24V
7 +10/200VDC
CN3 (Relay 1)
1 NO1
2 CM1
3 NC1
CN2 Terminals
Insertion Tool (included with meter)
Insert wires into the proper terminal
while using the insertion tool to open
the clip inside the connector. Release
the insertion tool to fix wire to the
terminal.
CN1, CN3, CN4 Terminals
Insertion Tool (included with meter)
Insert wires into the proper terminal
while using the insertion tool to open
the clip inside the connector. Release
the insertion tool to fix wire to the
terminal.
tPMC-14
Panel Meters
1-800-633-0405
Digital Panel Meters - DPM2
Series 1/8 DIN

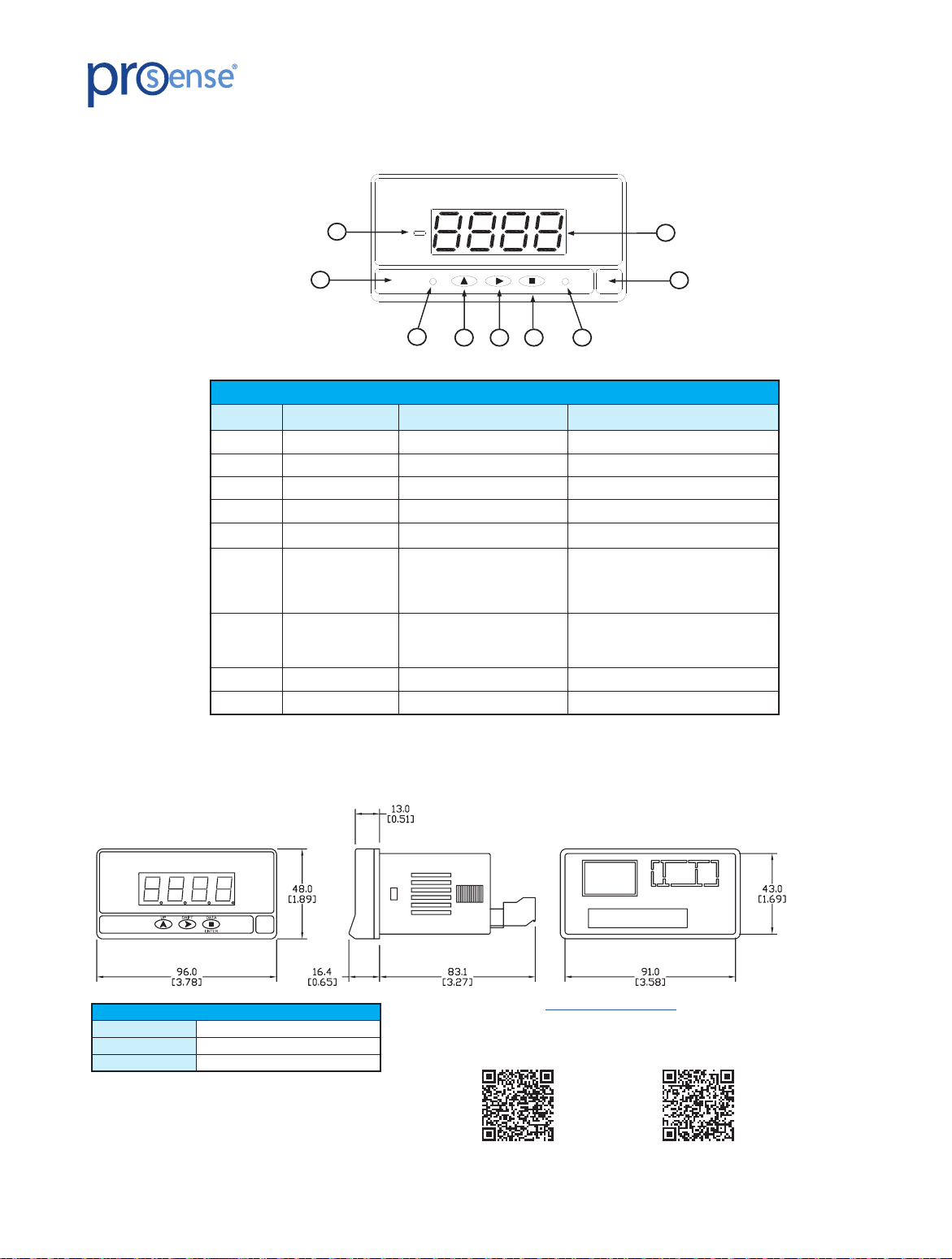

Programming Panel
For the latest prices, please check AutomationDirect.com.
2
1
4
UP SHIFT
5 6 7
3
DATA
ENTER
2
8
1
9
Programming Panel
# Description Run Mode Programming Mode
1 4-digit display Red Shows value according to configuration. Shows steps and data during configuration.
2 Minus sign Illuminates for negative readings. Illuminates for negative values.
3 Keyboard --- ---
4 Setpoint 1 LED Illuminates when setpoint 1 turns active. Illuminates when setpoint 1 turns active.
5 UP key No application
Displays maximum and minimum
6 SHIFT key
7 DATA/ENTER key Changes to PRO mode.
8 Setpoint 2 LED Illuminates when Setpoint 2 turns active. Illuminates when Setpoint 2 turns active.
9 Free space for units label --- ---
stored values. After 3s of pressing, sets
maximum and/or minimum memorized
value to current display value.
Shows setpoint value. Increases value of active
digit.
Shifts active digit to the next right digit.
Validates selected data and parameters.
Moves one step forward in configuration menu.
Changes to RUN mode.
Dimensions
mm [inches]
Dimensions
Panel Cutout
Case Material
tPMC-15
Installation
96 x 48 x 83.1mm (1/8 DIN)
92 x 45mm (Max. panel thickness 10mm)
Polycarbonate UL 94 V-0
Panel Meters
See our website www.AutomationDirect.com for complete Engineering drawings.
Insert Manual
Scan or click the above QR code
to be taken to the DPM2 Series
Quick Start Guide
Scan or click the above QR code
to be taken to the DPM2 Series
Manual
1-800-633-0405
Digital Panel Meters DPM Series
Type DPM1-A-LP Type DPM1-A-2R
Type DPM1-A-T
For the latest prices, please check AutomationDirect.com.
Description
The ProSense DPM family of digital panel meters includes both 1/32
DIN and 1/8 DIN meter sizes with simple menu-driven pushbutton
configuration. A wide variety of input signals can be accepted for
process, temperature, load cell, voltage, current, pulse, frequency,
and other applications. Available output options include alarm
relays, analog signal retransmission, and sensor excitation voltage.
Backed by a 3-year warranty, ProSense digital panel meters offer
outstanding features and performance at an incredible price point.
Type DPM2LType DPM2
Type DPM3
Click on the thumbnail or go to
https://www.automationdirect.com/VID-PS-0007
for a short video on Digital Panel Meters

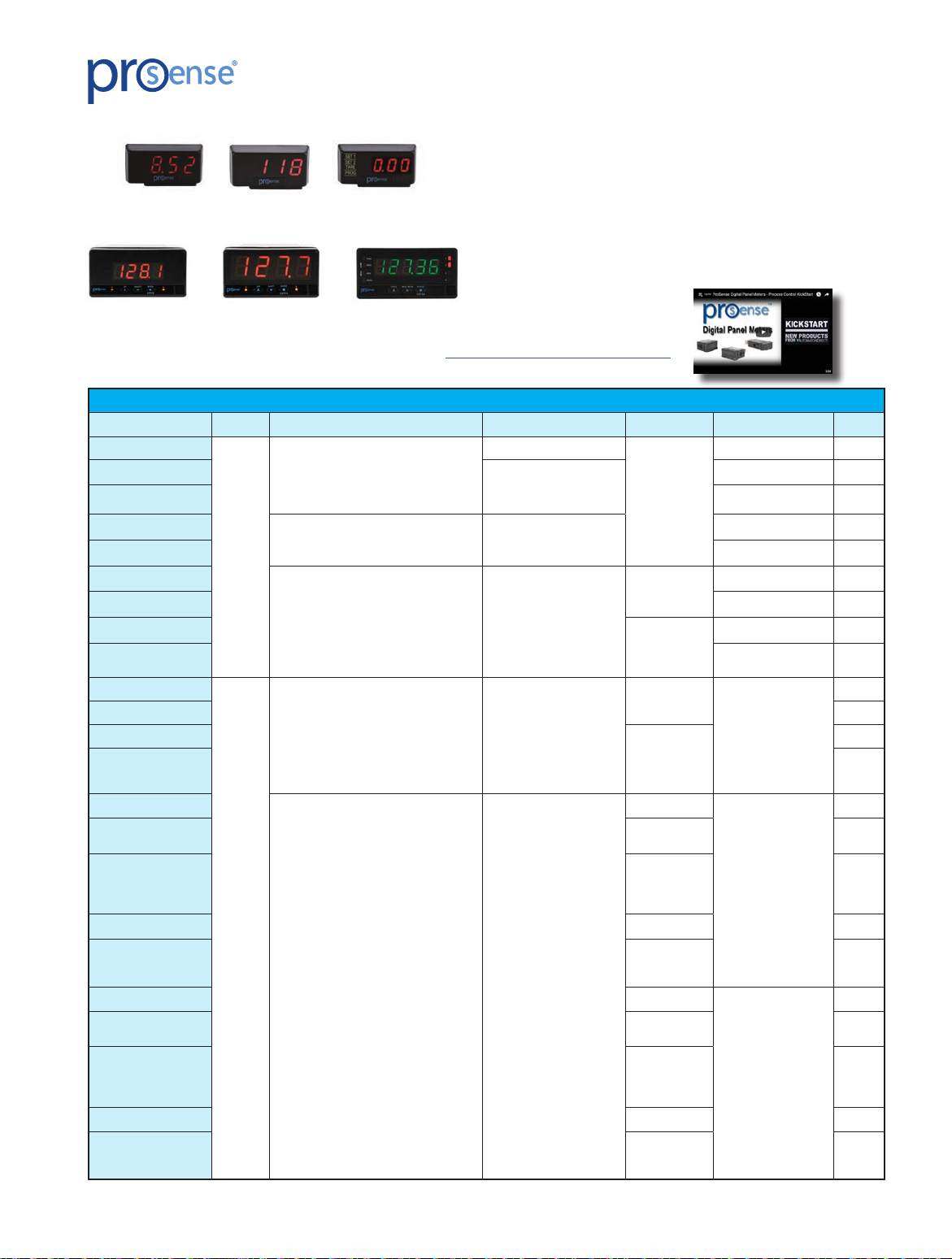

DPM Series Digital Panel Meters Process Input Selection Guide
Model Size Display Inputs Outputs Power Price
DPM1-A-LP
DPM1-A-H
DPM1-A-L
DPM1-T-H
DPM1-T-L
10mm, Red LED*, -1999 to 9999
Selectable decimal point
10mm, Red LED, -1999 to 9999
1/32 DIN
4-20mA
±20mA, ±100mV
±10V, ±20V
±200V
RTD Pt100 (3-wire)
TC Type J, K, T or N
DPM1-A-2R-H
DPM1-A-2R-L
DPM1-A-A2R-H
8mm, Red LED, -1999 to 9999
Selectable decimal point
±20mA, ±100mV
±10V, ±60V
DPM1-A-A2R-L
DPM2-AT-HL
DPM2L-AT-HL
DPM2-AT-2R-HL
DPM2L-AT-2R-HL
DPM2: 14mm, Red LED, -9999 to 9999
DPM2L: 20mm, Red LED, -1999 to 9999
Selectable decimal point
±20mA, ±10V
±200V, 100-100k Ohm
potentiometer,
1k-50k Ohm resistance,
RTD Pt100 (3-wire)
RTD Pt1000 (4-wire)
TC Type J, K, T or N
DPM3-AT-H
DPM3-AT-2R-H
DPM3-AT-4R-H
DPM3-AT-A-H
DPM3-AT-A2R-H
DPM3-AT-L
DPM3-AT-2R-L
1/8 DIN
14mm, Red, Green, Amber LED
-19999 to 39999
Selectable decimal point
±20mA, ±10V
RTD Pt100 (3-wire)
TC Type J, K, T or N
Load Cell ±15mV, ±30mV,
±150mV
Potentiometer
DPM3-AT-4R-L
DPM3-AT-A-L
DPM3-AT-A2R-L
* Illumination based on available loop current and will not be as bright as the powered Digital Panel Meters
None
2 Relays Form A
SPST Normally
Open
2 Relays Form A
SPST Normally
Open
4-20mA
None
2 Relays
Form C SPDT
None
2 Relays
Form C SPDT
4 Relays Form A
Normally Open
with shared
common
4-20mA $149.00
2 Relays
Form C SPDT
4-20mA
None
2 Relays
Form C SPDT
4 Relays Form A
Normally Open
with shared
common
4-20mA $149.00
2 Relays
Form C SPDT
4-20mA
Loop Powered $70.00
85-265 VAC, 50/60 Hz
100-300 VDC
21-53 VAC, 50/60 Hz
10.5-70 VDC
85-265 VAC, 50/60 Hz
100-300 VDC
21-53 VAC, 50/60 Hz
10.5-70 VDC
85-265 VAC, 50/60 Hz
100-300 VDC
21-53VAC 50/60 Hz
10.5-70VDC
85-265 VAC, 50/60 Hz
100-300 VDC
21-53 VAC, 50/60 Hz
10.5-70 VDC
20-265 VAC, 50/60 Hz
11-265 VDC
85-265 VAC, 50/60Hz
100-300 VDC
22-53 VAC, 50/60 Hz
10.5-70 VDC
$91.00
$91.00
$91.00
$91.00
$101.00
$101.00
$107.00
$107.00
$107.00
$115.00
$117.00
$125.00
$133.00
$149.00
$161.00
$166.00
$133.00
$149.00
$161.00
$166.00
tPMC-1
Panel Meters
1-800-633-0405
For the latest prices, please check AutomationDirect.com.
Digital Panel Meters DPM Series
DPM Series Digital Panel Meters Electrical Input Selection Guide
Model Size Display Inputs Outputs Power Price
DPM1-E-H
DPM1-E-L
1/32 DIN
10mm, Red LED, -1999 to 9999
Selectable decimal point
100 / 600 VAC or VDC
1A / 5A AC or DC
None
85-265 VAC, 50/60 Hz
100-300 VDC
21-53 VAC, 50/60Hz
10.5-70 VDC
$91.00
$91.00
DPM2-E-HL
DPM2-E-2R-HL
DPM3-E-H
DPM3-E-A2R-H
DPM3-E-L
DPM3-E-A2R-L
1/8 DIN
14mm, Red LED, -9999 to 9999
14mm, Red, Green, Amber LED
-19999 to 19999
Selectable decimal point
600 / 200 / 20 VAC or VDC
1A / 5A / shunt 60mV / shunt
100mV AC or DC
600 / 200 / 20 / 2 VAC True
RMS or VDC
1A / 5A / shunt 50mV / shunt
60mV / shunt 100mV AC
True RMS or DC
None
2 Relays
Form C SPDT
None
2 Relays
Form C SPDT
4-20mA
None
2 Relays
Form C SPDT
4-20mA
20-265 VAC, 50/60 Hz
11-265 VDC
85-265 VAC
100-300 VDC
22-53 VAC
10.5-70 VDC
$107.00
$117.00
$145.00
$173.00
$145.00
$173.00
DPM Series Digital Panel Meters Pulse, Frequency Input Selection Guide
Model Size Display Inputs Outputs Power Price
DPM1-P-H
DPM1-P-L
DPM1-P-A2R-H
DPM1-P-A2R-L
1/32 DIN
10mm, Red LED, 0 to 9999
Selectable decimal point
8mm, Red LED, 0 to 9999
Selectable decimal point
7kHz (tachometer rpm or rate
modes)
9999Hz (frequency meter
mode)
12kHz (tachometer rpm or rate
modes)
9999Hz (frequency mode)
100Hz (duty/PWM mode)
None
2 Relays Form A
SPST Normally
Open
4-20mA
85-265 VAC
100-300 VDC
1-53 VAC
10.5-70 VDC
85-265 VAC
100-300 VDC
21-53 VAC
10.5-70 VDC
$91.00
$91.00
$107.00
$107.00
DPM2-P-HL
DPM2-P-2R-HL
DPM3-P-H
DPM3-P-A2R-H
DPM3-P-L
DPM3-P-A2R-L
tPMC-2
Panel Meters
1/8 DIN
14mm, Red LED, 0 to 9999, 0 to 999999 Totalizer
Selectable decimal point
14mm Red, Green, Amber LED
-99999 to 99999, -9999999 to 99999999 Totalizer
Programmable decimal point
7.5 kHz (counter mode)
25kHz (tachometer rpm or rate
modes)
19kHz (without totalizer)
9.9 kHz (with totalizer)
None
20-265 VAC
2 Relays
Form C SPDT
4-20mA
None
2 Relays
Form C SPDT
4-20mA
None
2 Relays
Form C SPDT
4-20mA
11-265 VDC
85-265 VAC
100-300 VDC
22-53 VAC
10.5-70 VDC
1-800-633-0405
$107.00
$117.00
$133.00
$166.00
$133.00
$166.00
For the latest prices, please check AutomationDirect.com.
Digital Panel Meter Accessories
Panel Meter Accessories
Model Description Weight (lbs) Price
DPM-BKT1

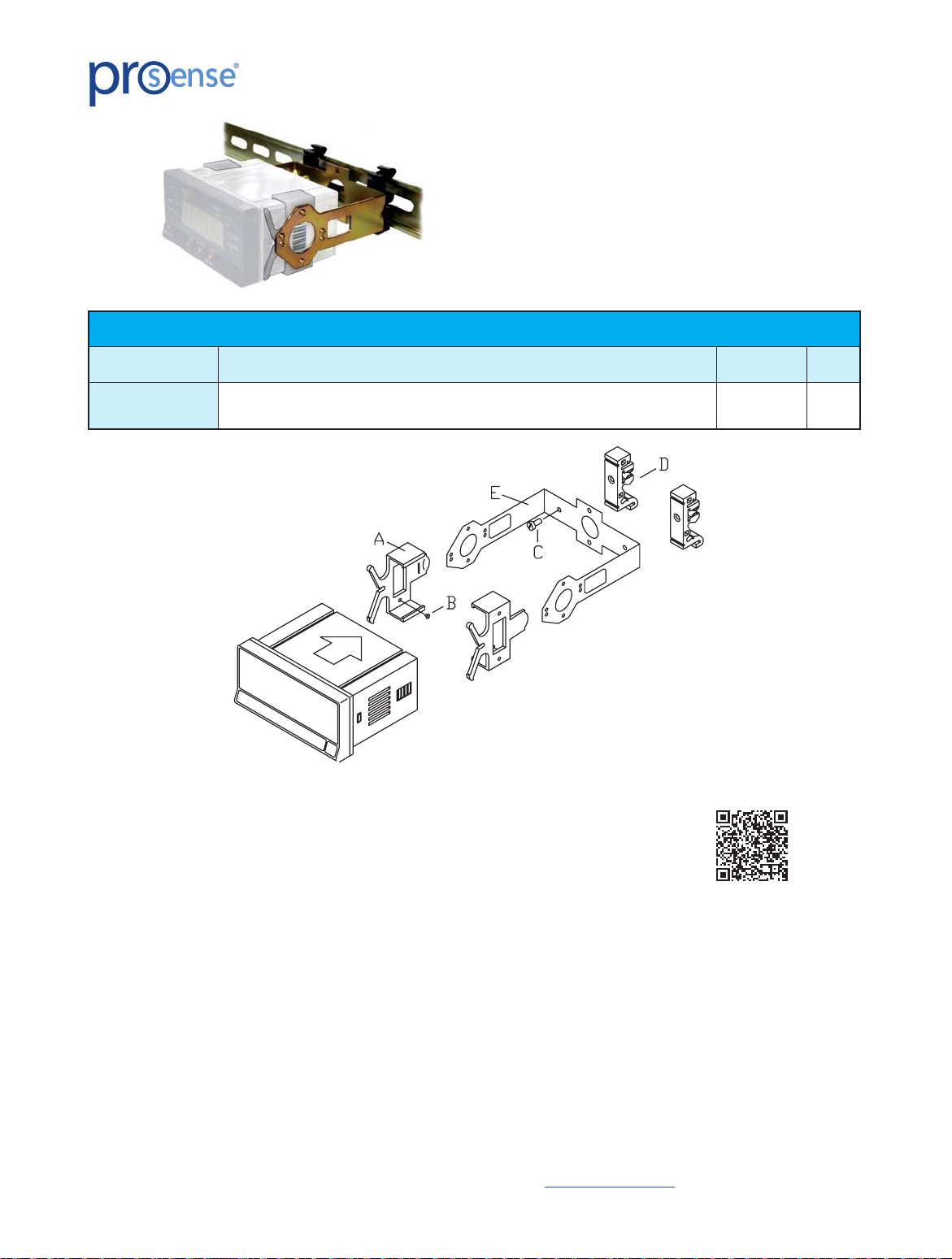

The DPM-BKT1 kit includes:
A. 2 mounting clips.
B. 4 screws M3 x 6 DIN 963 to attach the clips to the inside of the arms of part E.
C. 2 screws M4 x 8 DIN 84 to attach DIN rail clips to part E.
D. 2 DIN rail clips (DIN rail EN50022 or EN50035).
E. 1 metal bracket.
(Panel Meter not included)
ProSense panel mount bracket, for use with DPM2 and DPM3 series 1/8 DIN digital panel meters. Hardware included. 0.3 $20.00
Insert
Scan or click the above QR code
to be taken to the DPM-BKT1
Insert
tPMC-46
Panel Meters
See our website www.AutomationDirect.com for complete Engineering drawings.
1-800-633-0405
Loading...
