These models in the ProSense DPM1-P series offer a simple, low cost digital display for frequency, tachometer, and rate applications. The DPM1-P has a 4-digit 10mm character height red LED display, accepts input from AC voltage, magnetic sensors, NPN/PNP sensors, NAMUR sensors, TTL/24V encoders, or switched contacts, and provides select-
For the latest prices, please check AutomationDirect.com.
Digital Panel Meters - DPM1-P Series 1/32 DIN
able sensor excitation voltages. The meter is powered from an external AC or DC power supply. The 1/32 DIN housing takes up minimal panel space and the meter face has an IP65 rating. Configuration parameters can be locked out to prevent unauthorized or accidental changes to the meter’s operation. ProSense digital panel meters are backed by a 3 year warranty.
Features:
• 48 x 24mm 1/32 DIN
• 4 digit (0 to 9999) red LED display
• Frequency/Tachometer/Rate modes
- AC voltage
- Magnetic sensor
- NAMUR sensor
- TTL/24V encoder
- Switched contact
• Selectable decimal point
• AC or DC powered
• Selectable sensor excitation voltage
• Direct or reverse scaling in Rate Mode
• Total configuration lock out
YEAR
3
DPM1-P Series Panel Meters
Model Description Weight (lbs) Price
DPM1-P-H
DPM1-P-L
ProSense digital panel meter, 1/32 DIN, 10mm 4-digit red LED, pulse and frequency input, 85 to 265 VAC/100 to 300 VDC operating voltage.
ProSense digital panel meter, 1/32 DIN, 10mm 4-digit red LED, pulse and frequency input, 21 to 53 VAC/10.5 to 70 VDC operating voltage.
0.24 $93.00
0.24 $93.00
Technical Specifications
Signal Input
AC Voltage Input
Magnetic Sensor Input
NAMUR* Sensor Input
NPN/PNP Sensors Input
TTL/24V Encoder Input
Switched Contact Input
Accuracy at 23ºC ±5ºC
Maximum Frequency
Minimum Frequency 0.01Hz
Range 10 to 600 VAC
Sensitivity
R
C
I
ON
I
OFF
R
C
Logic level “0” < 2.4 VDC
Logic level “1” > 2.6 VDC
Logic level “0” < 2.4 VDC
Logic level “1” > 2.6 VDC
V
C
R
C
Cutoff frequency (Fc) 20Hz
Maximum error ± (0.01% of reading +1digit)
Temperature coefficient 50ppm / ºC
Warm-up time 5 minutes
DPM1-P-H
Power Supply and Fuses
DPM1-P-L
* For more information about NAMUR sensors see www.namur.net.
(Recommended fusing, 0.1A/250V, 5mm x 20mm glass miniature or DIN 41661 equivalent)
(Recommended fusing, 0.5A/250V, 5mm x 20mm glass miniature or DIN 41661 equivalent)
7kHz (tachometer rpm or rate modes)
9999Hz (frequency meter mode)
Vin min. 30mV for f 120Hz Vin min. 100mV for f 1kHz
1.5 kΩ
< 1mA DC
> 3mA DC
3.9kΩ (NPN) ; 1.5kΩ (PNP)
5V (internal)
3.9kΩ
85-265VAC 50/60Hz or 100-300VDC
21-53VAC 50/60Hz or 10.5-70VDC
www.automationdirect.com
Panel Meters
tPMC-32
10-600 V AC input
1-800-633-0405
Power Consumption
Sensor Excitation
Display
Environmental Conditions
Environmental Air
Agency Certifications
For the latest prices, please check AutomationDirect.com.
Digital Panel Meters - DPM1-P Series 1/32 DIN
Technical Specifications Continued
2.2W
5V@60mA, 8V@60mA and 12V@60mA (Menu selectable)
Range 0 to 9999
Type 4-digit 10mm (0.4”), red
Display refresh rate 10 times per second
Display / input overrange indication “OuE”
Operating temperature -10ºC to +60ºC (14ºF to 140ºF)
Storage temperature -25ºC to +85ºC (-13ºF to 185ºF)
Relative humidity (non-condensing) <95% @ 40ºC (104ºF)
Maximum altitude 2000m
Frontal protection degree IP65
No corrosive gases permitted
CE
Wiring
CN1
1
2
Connector CN1 CN2
Wire cross section
Strip length 8 to 9mm 5 to 6mm
Manufacturer Wago 231-202/026-000 Wago 733-105
Cage clamp con­nection
CN1 Terminals
CN2
1 2 3 4 5
Terminals
0.08 to 2.5mm² (28 to 12 AWG)
Insertion tool or screwdriver with 0.5 mm x 3.0 mm blade
Insertion Tool (included with meter)
Insert wires into the proper terminal while using the insertion tool to open the clip inside the connector. Release the insertion tool to fix wire to the terminal.
0.08 to 0.5mm² (28 to 20 AWG)
Insertion tool or screwdriver with 0.3 mm x 1.8 mm blade
AC Supply DC Supply
1 Phase 1 -VDC 2 Neutral 2 +VDC
1 + IN (10-600V) AC
2 Not used
3 + Excitation
4 + IN (pulses)
5 - IN (common)
CN2 Terminals
CN1
CN2
Signal Input
Insertion Tool (included with meter)
Insert wires into the proper terminal while using the inser­tion tool to open the clip inside the connector. Release the inser­tion tool to fix wire to the ter­minal.
Input Wiring Diagrams
TTL/24VEncoder input
+Exc
OUT (signal)
-
NPN or PNP sensor
+Exc
OUT (signal)
-
Switched contact
NAMUR sensor
+EXC 8 V
OUT (signal)
Magnetic sensor
1 2 3 4 5
1 2 3 4 5
1 2
3 4 5
1 2 3 4 5
1 2 3 4 5
1 2
3 4 5
www.automationdirect.com
Panel Meters
tPMC-33
1-800-633-0405

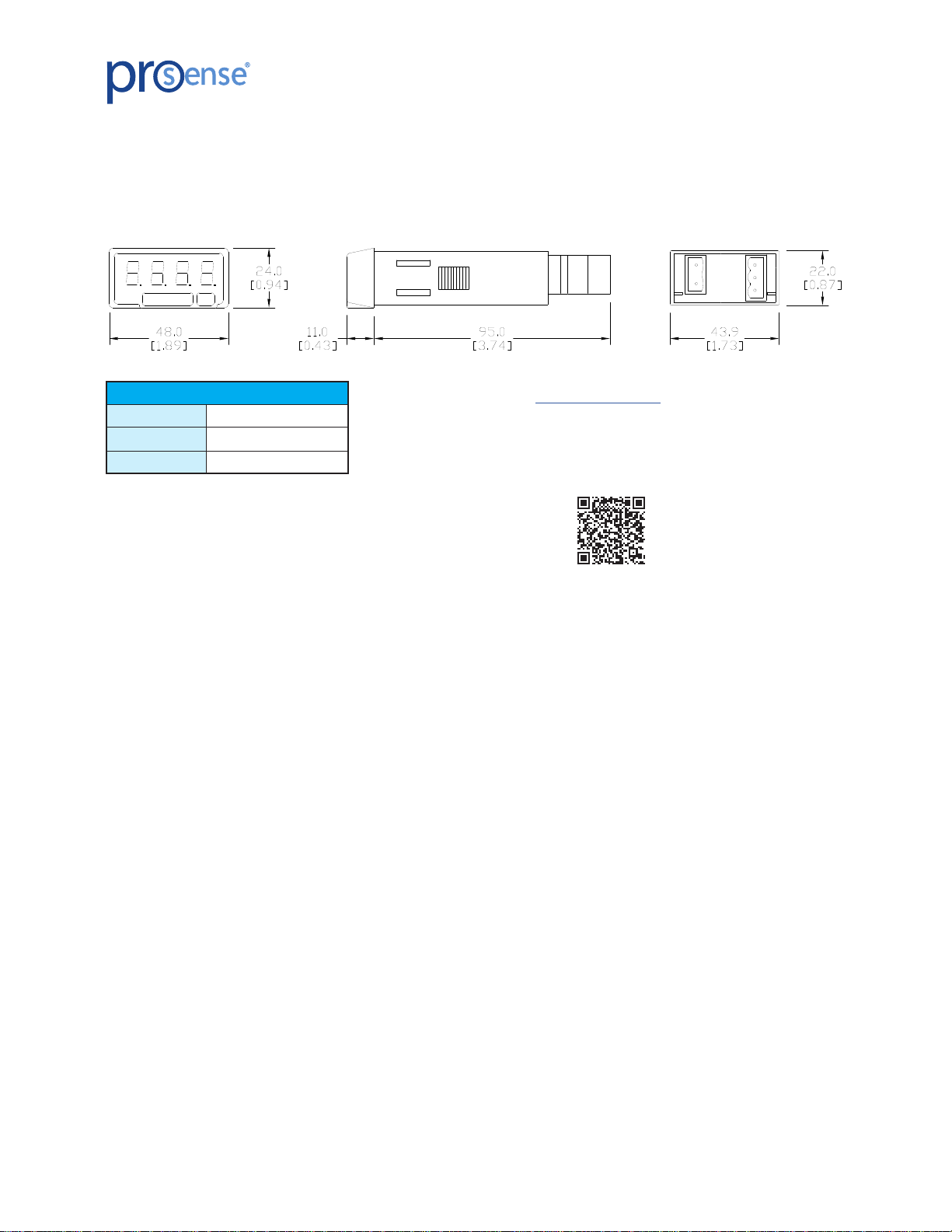

Dimensions
mm [inches]
For the latest prices, please check AutomationDirect.com.
Digital Panel Meters - DPM1-P Series 1/32 DIN
Dimensions
Panel Cutout
Case Material
Installation
48 x 24 x 70mm (1/32 DIN) 45 x 22mm
(Max. panel thickness 7mm) Polycarbonate UL 94 V-0
See our website www.AutomationDirect.com for complete Engineering drawings.
Insert
Scan or click the above QR
code to be taken to the DPM1-P
Series Quick Start Guide
www.automationdirect.com
Panel Meters
tPMC-34
1-800-633-0405
Type DPM1-A-LP Type DPM1-A-2R
Type DPM1-A-T
For the latest prices, please check AutomationDirect.com.
Digital Panel Meters DPM Series
Description
The ProSense DPM family of digital panel meters includes both 1/32 DIN and 1/8 DIN meter sizes with simple menu-driven pushbutton configuration. A wide variety of input signals can be accepted for process, temperature, load cell, voltage, current, pulse, frequency, and other applications. Available output options include alarm relays, analog signal retransmission, and sensor excitation voltage. Backed by a 3-year warranty, ProSense digital panel meters offer outstanding features and performance at an incredible price point.
Type DPM2LType DPM2
Type DPM3
Click on the thumbnail or go to
https://www.automationdirect.com/VID-PS-0007
for a short video on Digital Panel Meters
DPM Series Digital Panel Meters Process Input Selection Guide
Model Size Display Inputs Outputs Power Price
DPM1-A-LP
DPM1-A-H
DPM1-A-L
DPM1-T-H
DPM1-T-L
DPM1-A-2R-H
DPM1-A-2R-L
DPM1-A-A2R-H
DPM1-A-A2R-L
DPM2-AT-HL
DPM2L-AT-HL
DPM2-AT-2R-HL
DPM2L-AT-2R-HL
DPM3-AT-H
DPM3-AT-2R-H
DPM3-AT-4R-H
DPM3-AT-A-H
DPM3-AT-A2R-H
DPM3-AT-L
DPM3-AT-2R-L
DPM3-AT-4R-L
DPM3-AT-A-L
DPM3-AT-A2R-L
1/32 DIN
1/8 DIN
10mm, Red LED*, -1999 to 9999
Selectable decimal point
10mm, Red LED, -1999 to 9999
8mm, Red LED, -1999 to 9999
Selectable decimal point
DPM2: 14mm, Red LED, -9999 to 9999
DPM2L: 20mm, Red LED, -1999 to 9999
Selectable decimal point
14mm, Red, Green, Amber LED
-19999 to 39999
Selectable decimal point
4-20mA
±20mA, ±100mV
±10V, ±20V
±200V
RTD Pt100 (3-wire)
TC Type J, K, T or N
±20mA, ±100mV
±10V, ±60V
±20mA, ±10V
±200V, 100-100k Ohm
potentiometer,
1k-50k Ohm resistance,
RTD Pt100 (3-wire)
RTD Pt1000 (4-wire)
TC Type J, K, T or N
±20mA, ±10V
RTD Pt100 (3-wire)
TC Type J, K, T or N
Load Cell ±15mV, ±30mV,
±150mV
Potentiometer
None
2 Relays Form A
SPST Normally
Open
2 Relays Form A
SPST Normally
Open
4-20mA
None
2 Relays
Form C SPDT
None
2 Relays
Form C SPDT
4 Relays Form A
Normally Open
with shared
common
4-20mA $152.00
2 Relays
Form C SPDT
4-20mA
None
2 Relays
Form C SPDT
4 Relays Form A
Normally Open
with shared
common
4-20mA $152.00
2 Relays
Form C SPDT
4-20mA
Loop Powered $72.00
85-265 VAC, 50/60 Hz
100-300 VDC
21-53 VAC, 50/60 Hz
10.5-70 VDC
85-265 VAC, 50/60 Hz
100-300 VDC
21-53 VAC, 50/60 Hz
10.5-70 VDC
85-265 VAC, 50/60 Hz
100-300 VDC
21-53VAC 50/60 Hz
10.5-70VDC
85-265 VAC, 50/60 Hz
100-300 VDC
21-53 VAC, 50/60 Hz
10.5-70 VDC
20-265 VAC, 50/60 Hz
11-265 VDC
85-265 VAC, 50/60Hz
100-300 VDC
22-53 VAC, 50/60 Hz
10.5-70 VDC
$93.00
$93.00
$93.00
$93.00
$103.00
$103.00
$113.00
$113.00
$109.00
$117.00
$119.00
$127.00
$135.00
$152.00
$164.00
$169.00
$135.00
$152.00
$164.00
$169.00
* Illumination based on available loop current and will not be as bright as the powered Digital Panel Meters
www.automationdirect.com
Panel Meters
tPMC-1
1-800-633-0405
For the latest prices, please check AutomationDirect.com.
Digital Panel Meters DPM Series
DPM Series Digital Panel Meters Electrical Input Selection Guide
Model Size Display Inputs Outputs Power Price
DPM1-E-H
DPM1-E-L
1/32 DIN
10mm, Red LED, -1999 to 9999
Selectable decimal point
100 / 600 VAC or VDC
1A / 5A AC or DC
None
85-265 VAC, 50/60 Hz
100-300 VDC
21-53 VAC, 50/60Hz
10.5-70 VDC
$93.00
$93.00
DPM2-E-HL
DPM2-E-2R-HL
DPM3-E-H
DPM3-E-A2R-H
DPM3-E-L
DPM3-E-A2R-L
1/8 DIN
14mm, Red LED, -9999 to 9999
14mm, Red, Green, Amber LED
-19999 to 19999
Selectable decimal point
600 / 200 / 20 VAC or VDC
1A / 5A / shunt 60mV / shunt
100mV AC or DC
600 / 200 / 20 / 2 VAC True
RMS or VDC
1A / 5A / shunt 50mV / shunt
60mV / shunt 100mV AC
True RMS or DC
None
2 Relays
Form C SPDT
None
2 Relays
Form C SPDT
4-20mA
None
2 Relays
Form C SPDT
4-20mA
20-265 VAC, 50/60 Hz
11-265 VDC
85-265 VAC
100-300 VDC
22-53 VAC
10.5-70 VDC
$109.00
$119.00
$150.00
$178.00
$150.00
$178.00
DPM Series Digital Panel Meters Pulse, Frequency Input Selection Guide
Model Size Display Inputs Outputs Power Price
DPM1-P-H
DPM1-P-L
DPM1-P-A2R-H
DPM1-P-A2R-L
1/32 DIN
10mm, Red LED, 0 to 9999
Selectable decimal point
8mm, Red LED, 0 to 9999
Selectable decimal point
7kHz (tachometer rpm or rate
modes)
9999Hz (frequency meter
mode)
12kHz (tachometer rpm or rate
modes) 9999Hz (frequency mode) 100Hz (duty/PWM mode)
None
2 Relays Form A
SPST Normally
Open
4-20mA
85-265 VAC
100-300 VDC
1-53 VAC
10.5-70 VDC
85-265 VAC
100-300 VDC
21-53 VAC
10.5-70 VDC
$93.00
$93.00
$113.00
$113.00
DPM2-P-HL
14mm, Red LED, 0 to 9999, 0 to 999999 Totalizer
DPM2-P-2R-HL
DPM3-P-H
1/8 DIN
DPM3-P-A2R-H
DPM3-P-L
14mm Red, Green, Amber LED
-99999 to 99999, -9999999 to 99999999 Totalizer Programmable decimal point
DPM3-P-A2R-L
www.automationdirect.com
Selectable decimal point
7.5 kHz (counter mode)
25kHz (tachometer rpm or rate
modes)
19kHz (without totalizer)
9.9 kHz (with totalizer)
None
2 Relays
Form C SPDT
4-20mA
None
2 Relays
Form C SPDT
4-20mA
None
2 Relays
Form C SPDT
4-20mA
20-265 VAC 11-265 VDC
85-265 VAC
100-300 VDC
22-53 VAC
10.5-70 VDC
Panel Meters
$109.00
$119.00
$135.00
$169.00
$135.00
$169.00
tPMC-2
1-800-633-0405
Model Description Weight (lbs) Price
For the latest prices, please check AutomationDirect.com.
Digital Panel Meter Accessories
Panel Meter Accessories
DPM-BKT1

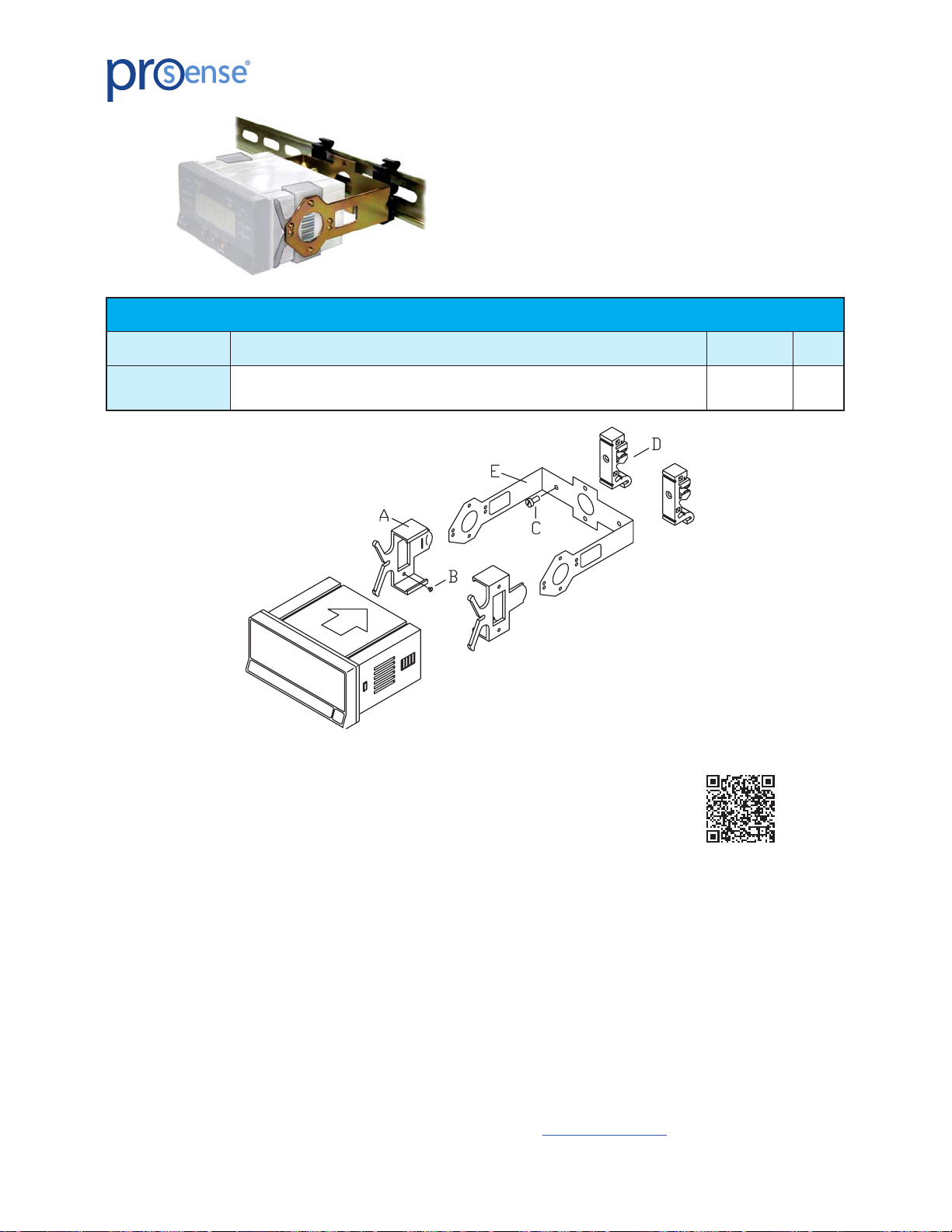

The DPM-BKT1 kit includes: A. 2 mounting clips. B. 4 screws M3 x 6 DIN 963 to attach the clips to the inside of the arms of part E. C. 2 screws M4 x 8 DIN 84 to attach DIN rail clips to part E. D. 2 DIN rail clips (DIN rail EN50022 or EN50035). E. 1 metal bracket. (Panel Meter not included)
ProSense panel mount bracket, for use with DPM2 and DPM3 series 1/8 DIN digital panel meters. Hardware included. 0.3 $20.00
Insert
Scan or click the above QR code
to be taken to the DPM-BKT1
Insert
www.automationdirect.com
See our website www.AutomationDirect.com for complete Engineering drawings.
Panel Meters
tPMC-46
