Automation DC User Manual

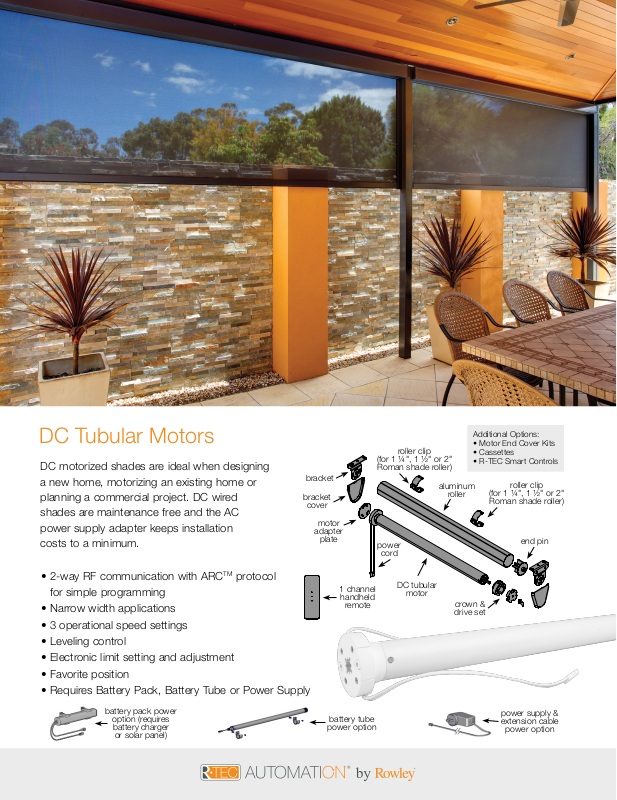

DC Tubular Motors
DC motorized shades are ideal when designing
a new home, motorizing an existing home or
planning a commercial project. DC wired
shades are maintenance free and the AC
power supply adapter keeps installation
costs to a minimum.
TM
• 2-way RF communication with ARC
for simple programming
• Narrow width applications
• 3 operational speed settings
• Leveling control
• Electronic limit setting and adjustment
• Favorite position
• Requires Battery Pack, Battery Tube or Power Supply
protocol
bracket
bracket
cover
motor
adapter
plate
1 channel
handheld
remote
roller clip
(for 1 ¼", 1 ½" or 2"
Roman shade roller)
aluminum
power
cord
DC tubular
motor
Additional Options:
• Motor End Cover Kits
• Cassettes
• R-TEC Smart Controls
roller
crown &
drive set
(for 1 ¼", 1 ½" or 2"
Roman shade roller)
roller clip
end pin
battery pack power
option (requires
battery charger
or solar panel)
battery tube
power option
power supply &
extension cable
power option
FEATURES
2-Way RF
Communication
Adjustable
Speed
APPLICATIONS
Roman
Shade
Roller
Shade
Narrow
Applications
SPECIFICATIONS
Motor
Diameter
Leveling
Control
Preferred
Upper / Lower
Limit Settings
POWER OPTIONS
Battery Pack &
Battery Charger
Motor Length
Battery
Tube
Favorite
Position
SOLAR
Power
Supply
X
Motor Cable Length
Battery Charger
Quiet
Operation
Solar Panel
MOTOR SPECS
Motor
Size
25 mm
28 mm 2.0 Nm 28 RPM (Adj. to 24 or 20) 17.41" 1.13" 6.25" 1.25 A ~44 DB
35 mm 3.0 Nm 28 RPM (Adj. to 24 or 20) 18.07" 1.38" 6" 1.67 A ~53 DB
Voltage Torque
1.1 Nm
12 V DC
Max.
Run Time
10 min.
Speed
40 RPM (Adj. to 30 or 20) 11.77" 0.98"
Motor
Length
Motor
Diameter
X
0.35"
Motor Cable
Length
6.25"
Amps
0.83 A ~46 DB
Sound
Level
SYSTEM SPECS
Item # Motor Size Style Tube Dia. Max. Size Min. Shade Width / Roller Tube Length Max. Load
RTMDC25 25 mm Standard
RTMDCQ28 28 mm Quiet
RTMDC35 35 mm Standard 2" 120" x 120" 22" 26 1/2 lbs.
© 2021 Rowley® Company. All rights reserved. R-TEC Automation® is a registered trademark of the Rowley® Company, LLC.
1 1/4" 84" x 84" 14 1/2" 15 1/2 lbs.
1 1/2" 84" x 84" 14 1/2" 13 lbs.
1 1/2" 120" x 120" 20" 23 1/2 lbs.
2" 120" x 120" 20" 17 1/2 lbs.
Installation
Instructions:
