Automatic Technology GDO-9 Installation Instructions Manual

GDO-9

INSTALLATION INSTRUCTIONS | OWNERS COPY

Overhead Garage Door Opener

Featuring TrioCode

™

Technology

Technical Document

Installation Manual

v

1.01

14 Dec 2011

English

Part # 13214 (Manual)

2

GDO-9 Owner Installation Instructions

WARNING: It is vital for the safety of persons to follow

all instructions. Failure to comply with the installation
instructions and the safety warnings may result in serious
personal injury and/or property damage.
Please save these instructions for future reference.

Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all
conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an
Automatic Technology (Australia) Pty Ltd Garage Door Opener. Automatic Technology (Australia) Pty Ltd hereby further
expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person
as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) Pty Ltd Garage Door
Opener in accordance with these installation instructions.

Owner Installation Instructions GDO-9 3

GDO-9

Overhead Garage Door Opener

Important Safety Instructions 4
Features 6
Enduro™ Controls 8
Dynamo™ Controls 10
Kit Contents 12
Installation 13

C-Rail Attachment 13
Determine Door Type 14
Mounting - Track Type Door 15
Mounting - Spring Loaded Door 16
Mounting Door Bracket & Arms 17

Programming the Opener 18

Setting Travel Limits - Control Panel 18
Setting Travel Limits - Transmitter 19

Safety Obstruction Forces 20

Safety Obstruction Force Test 20
Adjusting Safety Obstruction Forces 21

Coding Transmitters 22

Door 22
Vacation Mode 22
Auxiliary out put 22
Pet Mode 22
Courtesy Light 23
Remotely Coding Transmitters 24
Erasing Transmitter Codes 24

Accessories 25

Photo Electric Beam Installation 25
Auto-Close Setup 25
SmartSolar™ Installation 26
Battery Backup installation 27

Final Setup 28

Courtesy Light Time 28
Pet Mode Door Height 28
Wall Mounted Transmitters 28
Re-Initialising 28
Default Settings & Specifi cations 29
Door Status Indicators 30

Button Functions 30
Troubleshooting Guide 31
Maintenance 32
Parts Listing Enduro™ 33
Parts Listing Dynamo™ 34
Warranty 35

4

GDO-9 Owner Installation Instructions

CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.

This accessory allows manual operation of the garage door from outside in case of power failure.

For ADDITIONAL SAFETY protection we STRONGLY recommend the fi tting of a Photo Electric (PE)
Beam. In most countries PE Beams are mandatory on all garage doors fi tted with automatic openers.
For a small additional outlay Automatic Technology recommends that Photo Electric Beams be
installed with the automatic opener ensuring additional safety and peace of mind.

DO NOT operate the opener unless the garage door is in full view and free from objects such
as cars and children/people. Make sure that the door has fi nished moving before entering or
leaving the garage.

DO NOT operate the opener when children/people are near the door. Children must
be supervised at all times when the Enduro™ or Dynamo™ is in use. Serious personal

injury and/or property damage can result from failure to follow this warning.

DO NOT allow children to operate the opener. Serious personal injury and/or

property damage can result from failure to follow this warning.

Regularly check to make sure that the Safety Obstruction Force is working
correctly, and is tested and set as per page 20 of this manual. Failure to
follow these instructions could result in serious personal injury and/or
property damage. This test must be repeated at regular intervals and the
necessary adjustments made as required.

Photo Electric beams must be installed if the closing force at the
bottom edge of the door exceeds 400N (40kg).

DO NOT disengage the door opener to manual operation with
children/people or any other objects including motor vehicles
within the doorway.

The door opener is not intended for use by young children
or infi rm persons without adequate supervision. Children
should be supervised to ensure that they do not play
with the remote transmitters or the opener.

Keep hands and loose clothing clear of the door
and door opener at all times.

WARNING: It is vital for the safety of persons to follow all
instructions. Failure to comply with the following Safety
instructions may result in serious personal injury and/or
property damage.

Important Safety Instructions

Owner Installation Instructions GDO-9 5

The unit should be installed so that it is protected from the elements. It should not be exposed to water or rain.

It is not to be immersed in water or sprayed directly by a hose or other device.

The garage door must be well balanced. Sticking or binding doors must be repaired by a qualifi ed garage

door installer prior to installation of the opener.

Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage

or imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation or an

incorrectly balanced door may cause injury. DO NOT attempt to repair the door yourself as hardware

is under extreme tension.

Remove or disengage all garage door locks and mechanisms prior to installation of the opener.

Connect the opener to a properly earthed general purpose 240V mains power outlet installed

by a qualifi ed electrical contractor.

Disconnect the power cord from mains power before making any repairs or removing

covers. Only experienced service personnel should remove covers from the opener.

When using auto close mode, a photo electric beam must be fi tted correctly and

tested for operation at regular intervals. Extreme caution is recommended when

using auto close mode. All safety rules must be followed.

In order for the opener to sense an object obstructing the door way, some

force must be exerted on the object. As a result the object, door and/or

person may suffer damage or injury.

If the power supply cord is damaged, it must be replaced by an

Automatic Technology service agent or suitably qualifi ed person.

Make sure that the door is fully open before driving in or out of the

garage and fully closed before leaving the driveway.

Make sure that remote controls are kept out of reach of

children.

Install the wall switch or wall mounted transmitter in

a location where it is out of reach of children and the

garage door is visible.

Important Safety Instructions

6

GDO-9 Owner Installation Instructions

Operation

To open or close the door simply press a button on a TrioCode™ handheld
transmitter, a wall mounted transmitter, or optional wall switch for two seconds.
During open and close cycles the door can be stopped by pressing the button
again. The next actuation will move the reverse the door’s direction.

TrioCode™ Code Hopping Technology

Every time a TrioCode™ transmitter is used a new security code is randomly
generated from over 4.29 billion possibilities. This greatly enhances the security
of the system and makes “code grabbing” a thing of the past

These transmitters also overcome interference issues by simultaneously sending a
signal over three different frequencies. Even if two of the three signals are jammed,
the system will still work.

ALPS (Automatic Limits Positioning System)

ALPS does away with manual adjustment of the door’s limits position using mechanical
parts, such as cams and microswitches. During installation the hand held transmitter
can be programmed to set the door limits positions.

ISS (intelligent safety obstruction system)

While the door is performing a close cycle, should it hit an obstacle or be restricted in some
manner, it will automatically reverse. The amount of force the door should encounter before
reversing is automatically adjusted by the doors control system during the initial installation of the
automatic door opener. The door will also stop if restricted whilst opening. The Safety Obstruction
Force should be checked monthly.

Auto courtesy light

The courtesy light comes on automatically for three minutes whenever the door is activated. The light can also
be operated independently of the door by coding a dedicated button on a transmitter.

Features

Thank you for purchasing the Automatic Technology
GDO-9 Overhead Garage Door Opener. Designed
to suit sectional overhead and one piece tilt up
doors, the components and materials used ensure
this opener will provide years of smart, simple
and secure operation. Listed below are some
of the many features:

Owner Installation Instructions GDO-9 7

SmartSolar™ and Battery Backup Compatibility (optional)

The opener can be fi tted with a SmartSolar™ or Battery Backup kit for operation in the

event of a power outage, or where mains power access is not available. NOTE: If the

door is the only entrance to the garage, and a battery backup kit is not fi tted, a

keyed cable release should be fi tted externally to the garage.

Vacation mode

A hand held transmitter can be programmed to lock and unlock all other

transmitters that have been programmed into the openers’ memory. The vacation
mode can be used when the door is left idle for long periods of time.

Pet/Pedestrian mode

The transmitter can be programmed to open the door to an adjustable partial

height so that the family pet can enter and exit the garage at any time. You may

also wish to open the door to a height suitable only for pedestrian access.

Auto-Close mode

The opener can be programmed to automatically close after an open cycle. The Auto-

Close time is adjustable. It is compulsory to install a PE Beam if this mode is selected,

otherwise the door may cause personal injury or damage to property.

Photo Electric (PE) Beam (optional)

The opener has an input to connect a PE Beam for extra safety and use of the Auto-Close

mode.

Manual operation

The opener is equipped with a unique manual disengaging device. If the power to the opener is disrupted, the
door can be put into manual mode by pulling down on the string handle on an angle towards the door. This
allows for manual operation of the door. To re-engage the opener, pull the string handle away from the door.

8

GDO-9 Owner Installation Instructions

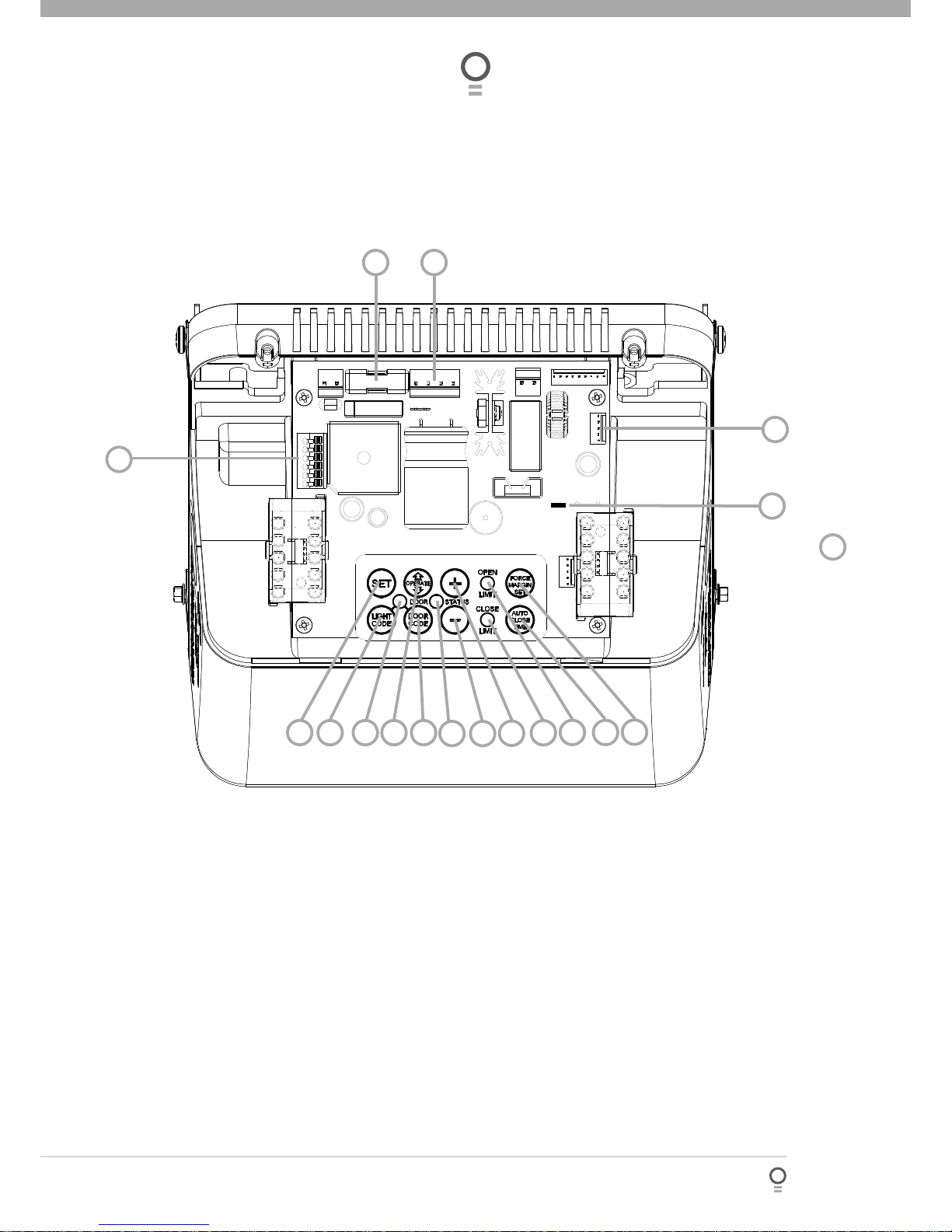

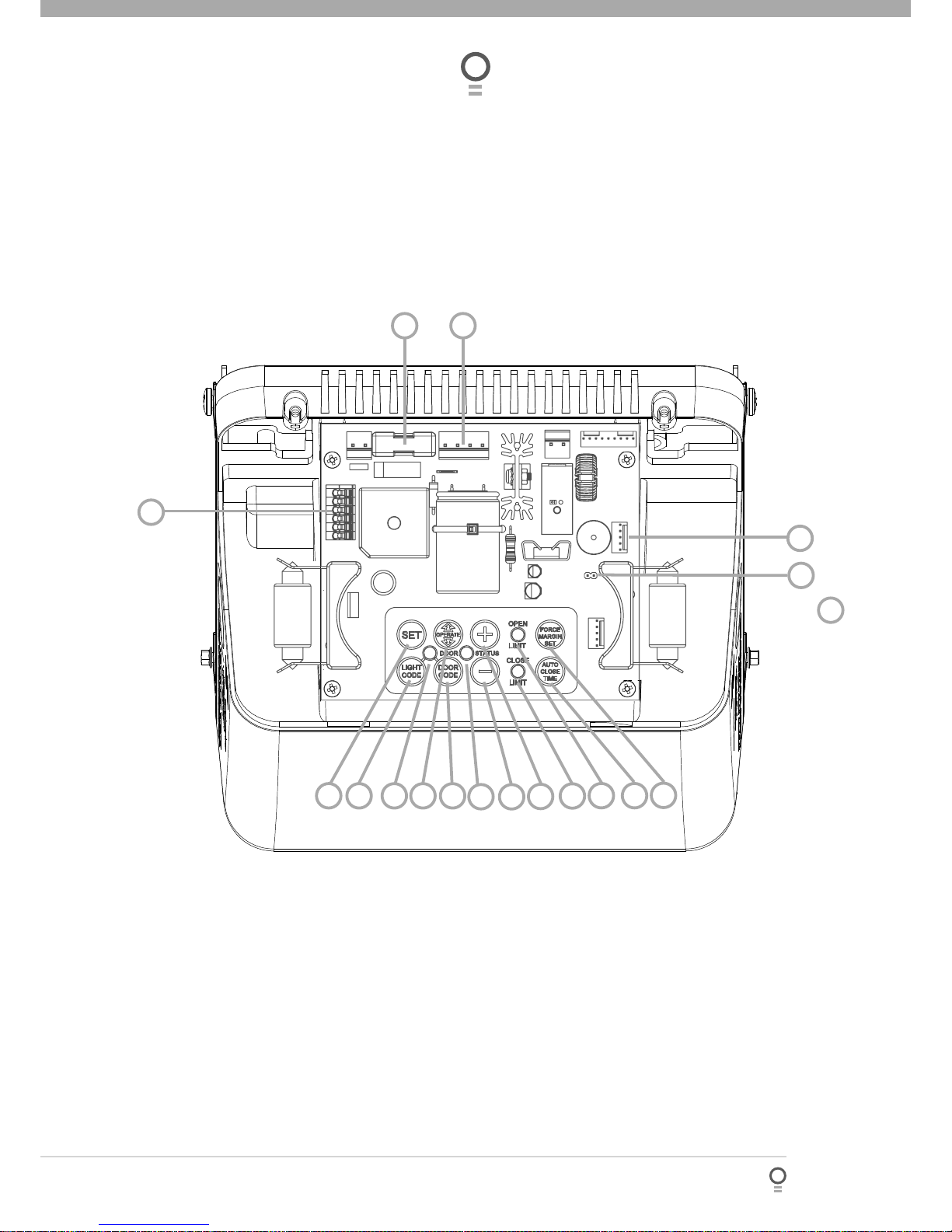

Enduro™ Controls

01

02

03

04

05

06

07

08

09

10

Terminal Block.

24V PWR is used to power devices such as:

PE (Input) for photo electric beam for safety and Auto-Close function.
LGT (Input) allow hard wired external trigger for the opener’s courtesy light.
O/S/C INPUT is used for the connection of a wired switch (momentary contact). This switch
can then be used to open, stop or close the door. Install the wall switch in a location where
the switch is out of reach of children and the garage door is visible.

SET button (orange) is used during the installation phase together with the Open and MINUS (-) buttons to

set the door limit positions. The Set button is also used to re-initialize the Opener.

LIGHT CODE button (white) is used for storing or erasing the transmitter button (code) you wish to use

to switch the courtesy light on the opener on or off.

CODING LED (red) light fl ashes when a code is being stored or when a transmitter button is pressed.

OPERATE button (Yellow) is used during installation to test the open, stop and close cycles for the

opener. The opener has to be initialised by the SET button to make the O/S/C button operable.

DOOR CODE BUTTON (blue) is used for storing or erasing transmitter buttons for door operation

DOOR STATUS LED (Yellow)

MINUS (-) button (red) is used during installation to help set the close limit position. Pressing and holding

this button will move the door in the close direction. Movement stops when the button is released.

NOTE: The safety obstruction detection is inoperable when the CLOSE button is used to move door.

PLUS (+) button (green) is used during installation to help set the open limit position. Pressing and holding

this button will move the door in the open direction, releasing stops the door.

NOTE: The safety obstruction detection is inoperable when the PLUS (+) button is used to move door.

CLOSE LIMIT LED (red) the LED is very helpful during installation. It illuminates and fl ashes when the

door is closing and remains steady on when the close limit position has been reached.

OPEN LIMIT LED (green) the LED is very helpful during installation. It illuminates and fl ashes when the

door is opening and remains steady on when the open limit position has been reached.

AUTO CLOSE TIME button (White) is used to adjust the auto close time. While holding in the AUTO

CLOSE TIME button and then pressing the PLUS (+) button the time is increased. Each press will increase
the time by 1 second. Pressing the MINUS (-) button will decrease the time.

FORCE MARGIN SET Button: The obstruction force margin is set automatically during installation. The

margin can be adjusted manually using the Force Margin Set button (White). Holding the Force Margin Set
button and pressing PLUS (+) or MINUS (-) buttons will increase or decrease the amount of force. The Force
Margin Set should only be used if environmental factors (wind, etc.) affect the door’s operation.

JP1 SOLAR CONNECTOR onto this the shunt must be fi tted for solar operation.

PROG INPUT is used to connect the Automatic Technology Handheld Programmer “PG-3” for editing

control and receiver functions, accessing diagnostic tools, and activating special features and operating
modes.

SBY-3 CONNECTOR is used to connect both Battery Backup Kits and SmartSolar™ kits.

»
»
»

11

12

13

14

15

16

10A FUSE

17

Owner Installation Instructions GDO-9 9

01

17 16

15

14

08

06

02

03 04 05

07

09

10

11

12

13

01

fi g

10

GDO-9 Owner Installation Instructions

Dynamo™ Controls

01

02

03

04

05

06

07

08

09

10

Terminal Block.

24V PWR is used to power devices such as:

PE (Input) for photo electric beam for safety and Auto-Close function.
LGT (Input) allow hard wired external trigger for the opener’s courtesy light.
O/S/C INPUT is used for the connection of a wired switch (momentary contact). This switch
can then be used to open, stop or close the door. Install the wall switch in a location where
the switch is out of reach of children and the garage door is visible.

SET button (orange) is used during the installation phase together with the Open and MINUS (-) buttons to

set the door limit positions. The Set button is also used to re-initialize the Opener.

LIGHT CODE button (white) is used for storing or erasing the transmitter button (code) you wish to use

to switch the courtesy light on the opener on or off.

CODING LED (red) light fl ashes when a code is being stored or when a transmitter button is pressed.

OPERATE button (Yellow) is used during installation to test the open, stop and close cycles for the

opener. The opener has to be initialised by the SET button to make the O/S/C button operable.

DOOR CODE BUTTON (blue) is used for storing or erasing transmitter buttons for door operation

DOOR STATUS LED (Yellow)

MINUS (-) button (red) is used during installation to help set the close limit position. Pressing and holding

this button will move the door in the close direction. Movement stops when the button is released.

NOTE: The safety obstruction detection is inoperable when the CLOSE button is used to move door.

PLUS (+) button (green) is used during installation to help set the open limit position. Pressing and holding

this button will move the door in the open direction, releasing stops the door.

NOTE: The safety obstruction detection is inoperable when the PLUS (+) button is used to move door.

CLOSE LIMIT LED (red) the LED is very helpful during installation. It illuminates and fl ashes when the

door is closing and remains steady on when the close limit position has been reached.

OPEN LIMIT LED (green) the LED is very helpful during installation. It illuminates and fl ashes when the

door is opening and remains steady on when the open limit position has been reached.

AUTO CLOSE TIME button (White) is used to adjust the auto close time. While holding in the AUTO

CLOSE TIME button and then pressing the PLUS (+) button the time is increased. Each press will increase
the time by 1 second. Pressing the MINUS (-) button will decrease the time.

FORCE MARGIN SET Button: The obstruction force margin is set automatically during installation. The

margin can be adjusted manually using the Force Margin Set button (White). Holding the Force Margin Set
button and pressing PLUS (+) or MINUS (-) buttons will increase or decrease the amount of force. The Force
Margin Set should only be used if environmental factors (wind, etc.) affect the door’s operation.

JP1 SOLAR CONNECTOR onto this the shunt must be fi tted for solar operation.

PROG INPUT is used to connect the Automatic Technology Handheld Programmer “PG-3” for editing

control and receiver functions, accessing diagnostic tools, and activating special features and operating
modes.

SBY-3 CONNECTOR is used to connect both Battery Backup Kits and SmartSolar™ kits.

»
»
»

11

12

13

14

15

16

10A FUSE

17

Owner Installation Instructions GDO-9 11

01

17 16

15

14

08

06

02

03 04 05

07

09

10

11

12

13

02

fi g

12

GDO-9 Owner Installation Instructions

Kit Contents

04

fi g

03

fi g

PLUS

Drive Unit

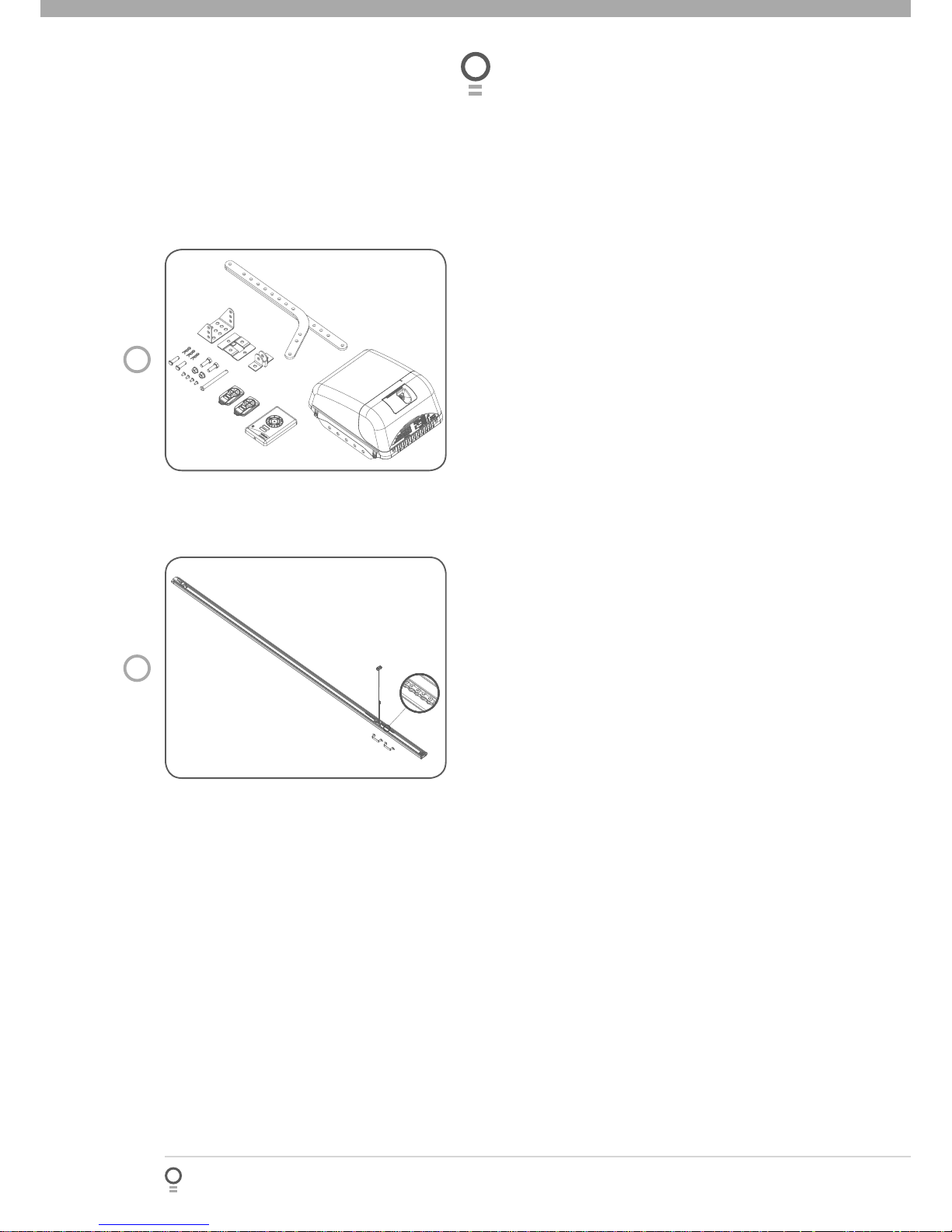

1 x GDO-9 drive unit (Fig. 03)
1 x TrioCode™ Transmitter pack (Fig. 03)
(Pack includes two keyring transmitters and batteries)
1 x Wall mount transmitter with battery (Fig. 03)
2 x Door attachment arms (Fig. 03)
1 x Accessory and hardware pack (Fig. 03)
1 x Installation Manual

Pre-Assembled Single Piece C-Rail

NOTE: The chain or belt in the one piece rail has been
tensioned by the factory.

IMPORTANT NOTE: If a modifi cation to the length of the
track is required, the adjustment must be made from the
drive unit end only.

Owner Installation Instructions GDO-9 13

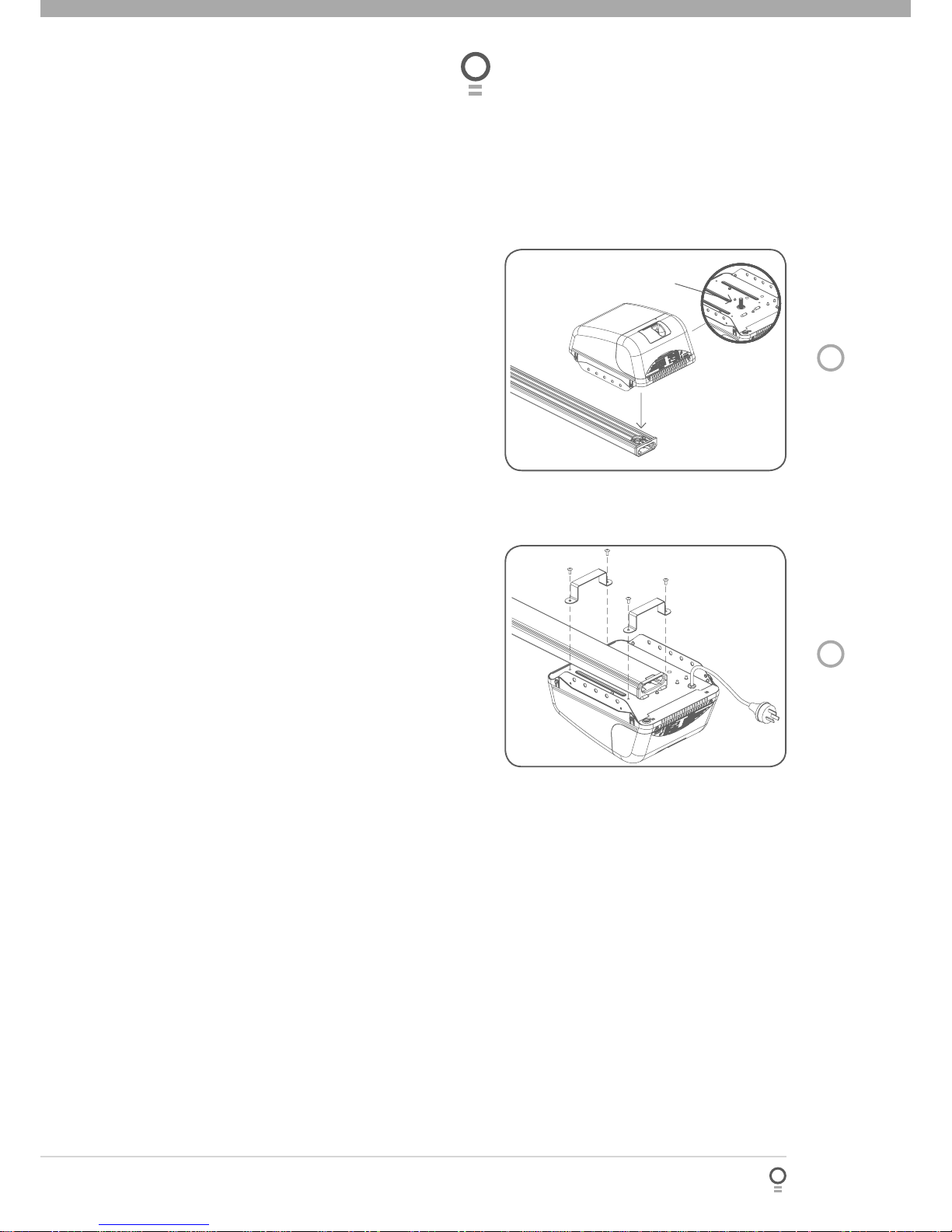

C-Rail Attachment

05

fi g

06

fi g

Locate shaft into sprocket

Shaft

Hex fl ange screw taptite ‘S’ M4 x 10

Track bracket (x2)

Step 1 - Secure C-Rail to Drive Unit

Locate and insert the shaft of drive unit into the C­Rail’s sprocket (Fig. 05).
Fix the two track brackets with four screws supplied
in accessory pack (Fig. 06).

a.

b.

14

GDO-9 Owner Installation Instructions

Determine the Door Type

Step 2 - Determine Door Type

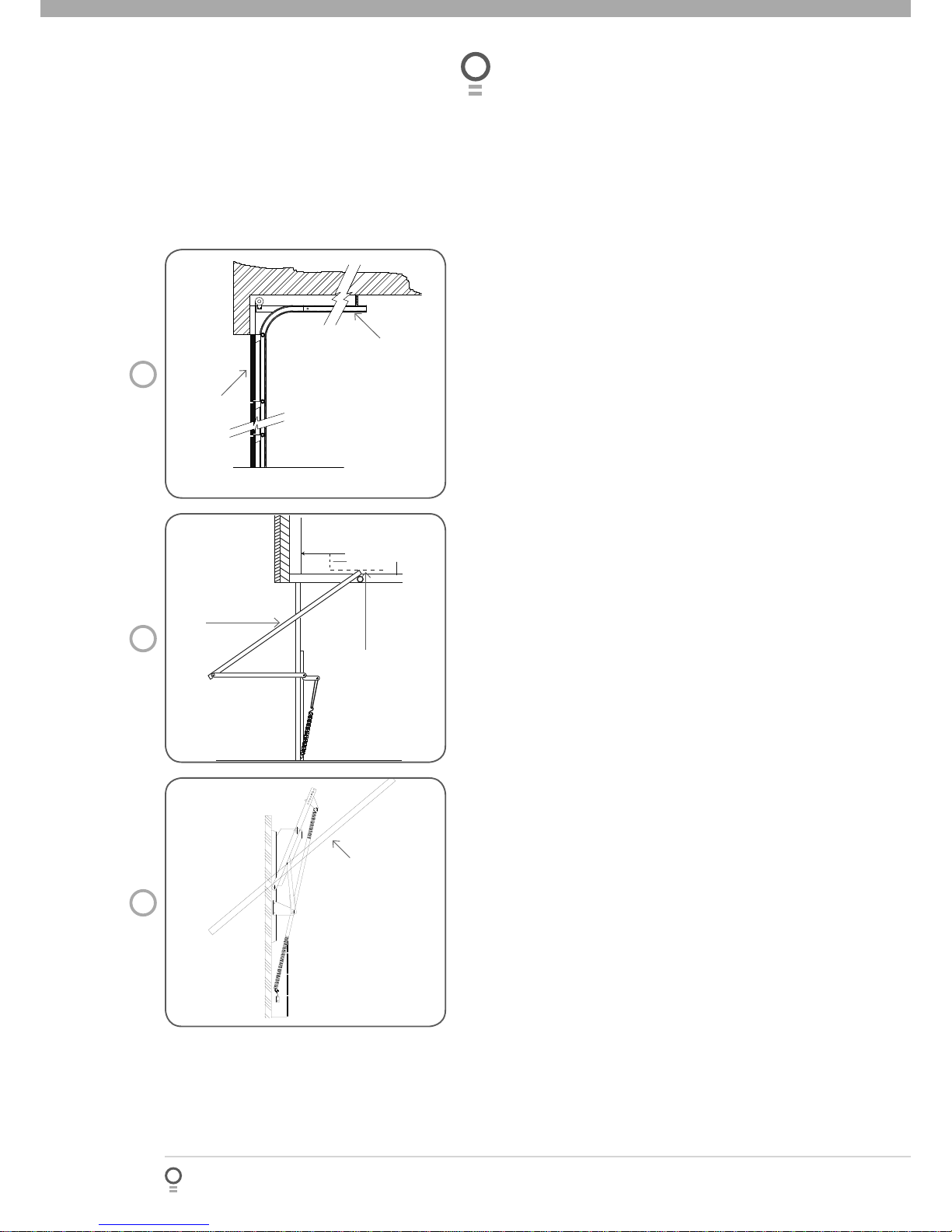

Determine which type of garage door you have as
illustrated below. (Fig. 07 to Fig. 09) .

For a sectional (panel) door on tracks (Fig. 07)
proceed with the installation from Step 3.

For a one-piece door on tracks (Fig. 08)
proceed with the installation from Step 3.

For a one-piece door without tracks (on springs) (Fig. 09)
proceed with the installation from Step 7.

07

fi g

08

fi g

09

fi g

Door

Sectional door with track

Door

Track

One piece door with
track

One piece door
without track

Door

Highest point of travel

Track

Header wall

Owner Installation Instructions GDO-9 15

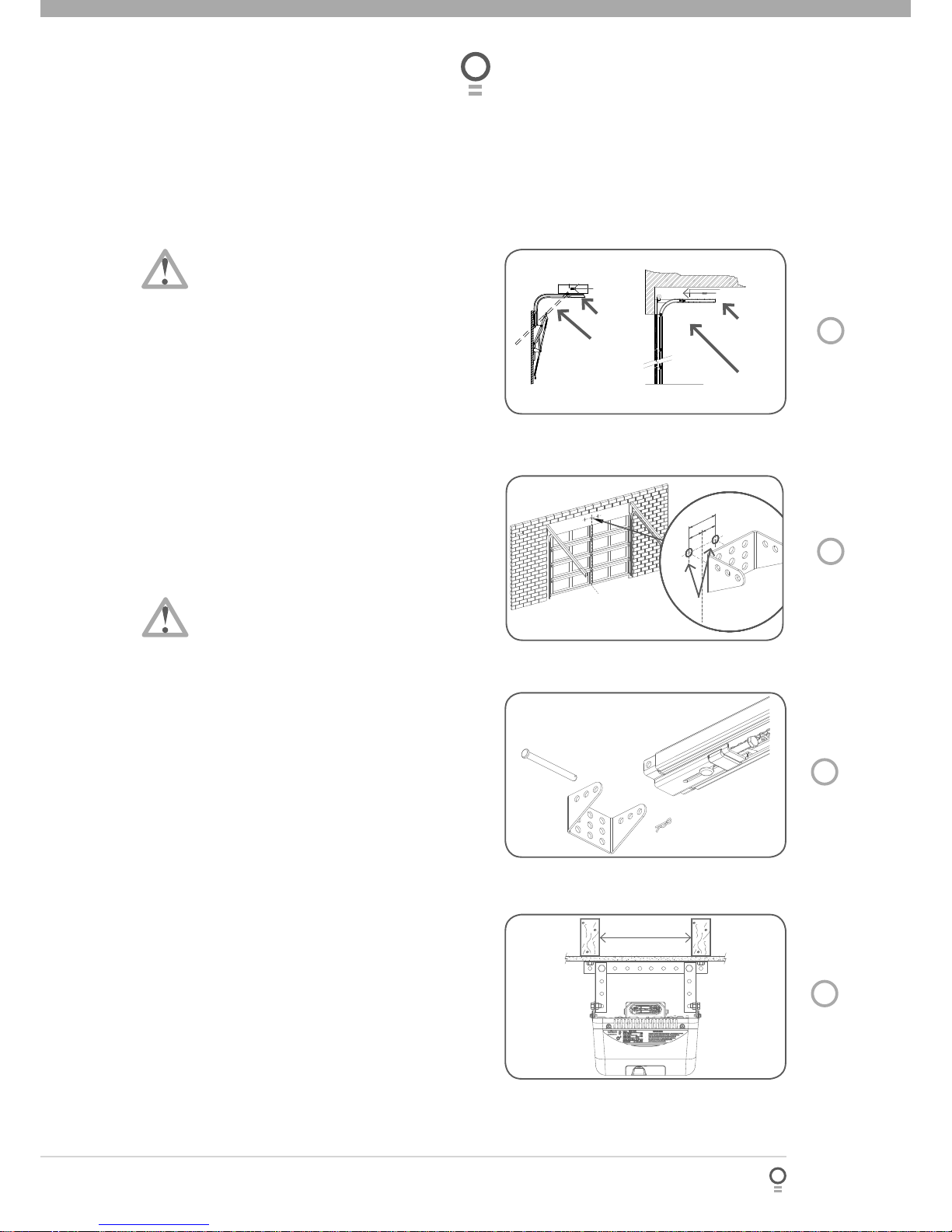

WARNING: The opener must be securely

fastened to structural supports, otherwise opener
failure may ensue causing serious personal injury
and/or property damage.

Step 3 - Determine Bracket Position

Open the door and fi nd the highest point of travel of
the top door panel.
Using a level, transfer this height to the wall above
the door (Fig. 10) and mark a line 60mm above it.
Determine the centre point on the wall above and on
top of the door. Draw two lines extending 21.5mm
from each side of the centre point. (Fig. 11)

Step 4 - Mounting the Wall Bracket

Centre the bracket over the intersection of these two
lines. Mark centres for at least two holes (Fig. 11)
and ensure it is into a solid mounting point.
Drill holes into the wall with an appropriate bit.
Secure to the wall using:
IF CONCRETE OR BRICK - 8mm (5/6”) loxins/dynabolts.
IF TIMBER - wood screw #20 or similar (min. 50mm).

WARNING: Make sure concrete, brick wall or
timber lintels are solid and sound so as to form a
secure mounting platform.

Step 5 - Attach the Rail to the Wall Bracket

Attach the C-Rail assembly to the wall bracket
with the 90mm long clevis pin and secure with the
supplied snap pin (Fig. 12)
Leave the drive unit in its packing box for protection
during installation.

Step 6 - Secure the Drive unit to the Ceiling

Raise the drive unit from the packing box and support
it in the horizontal position with a step ladder.
Open the garage door. Rest the opener on the open
door and use a scrap piece of wood to bring it to
horizontal level.
Line up the track perpendicular to the wall.
Secure the perforated angle (not supplied) to the
ceiling above where drive unit’s mounting holes will
be once fully installed. A representative mounting is
shown (Fig. 13)
Connect the drive unit to the ceiling mounted
perforated angle with M8x20mm screws and nuts.
Strips should not extend more than 18mm below
centre of drive unit mounting holes.

Go to Step 11 on page 17.

a.

b.

c.

a.

b.
c.

a.

b.

a.

b.

c.
d.

e.

10

fi g

11

fi g

Track

Door

Track

Level

Level

Door

Drilled holes

Mounting on a Track Type Door

12

fi g

13

fi g

Structural member

43

21.5

21.5

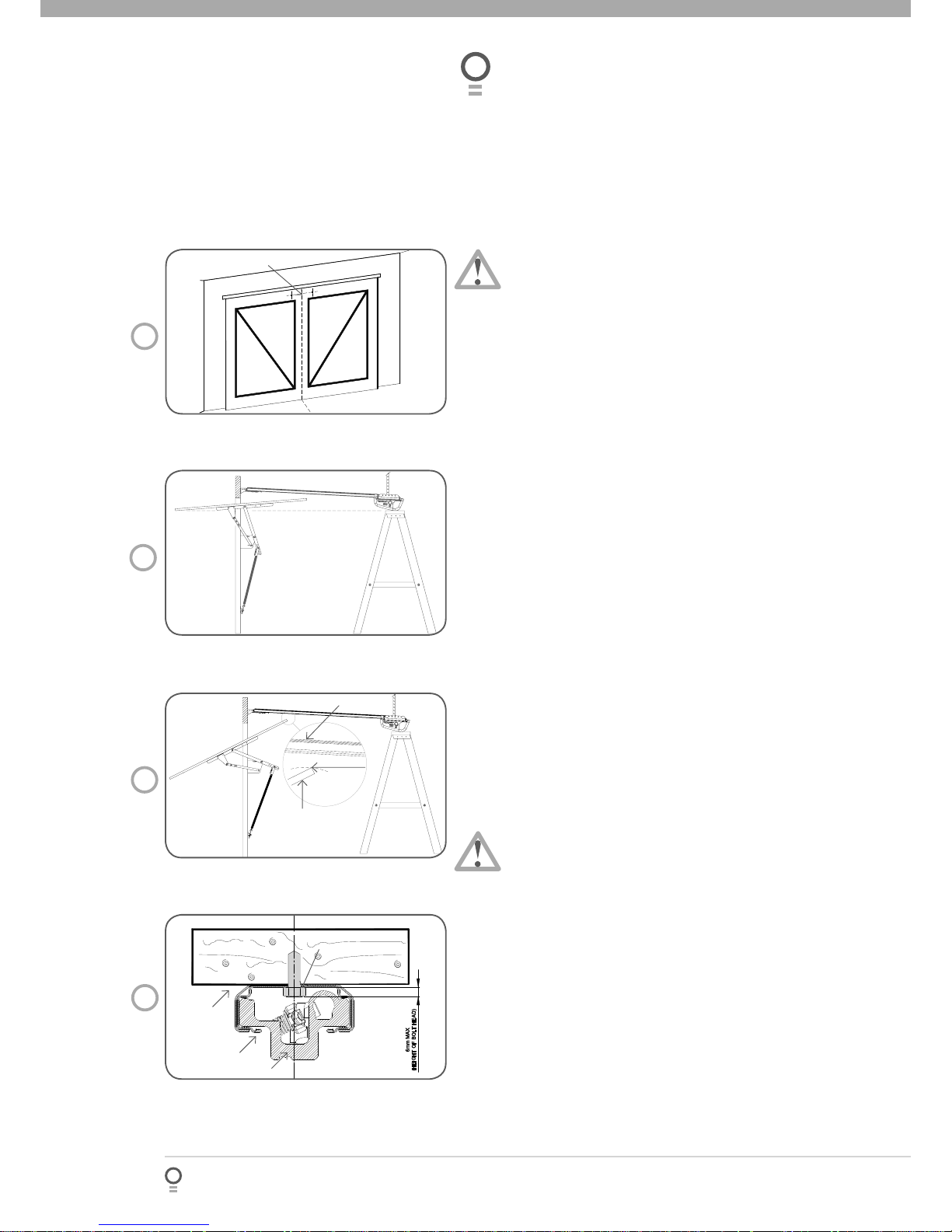

16

GDO-9 Owner Installation Instructions

WARNING: The opener must be securely fastened to

structural supports, otherwise opener failure may ensue
causing serious personal injury and/or property damage.

Step 7 - Determine the Door’s Centre

Find the centre of the door and mark this location
both above the door and on top of the door.
Draw two lines 21.5mm either side of this (Fig. 14).

Step 8 - Prepositioning the Opener

Raise the door to open position.
Rest the opener on the top edge of the door with
end of the rail against the wall (Fig. 15).
Support the drive unit level with the lowest point of
the open door (Fig. 15).

NOTE: Do not slide rail along the face of the door.

Step 9 - Mounting the C-Rail

Close the door slowly. The rail will be elevated by
the top edge of the door as it moves.
Stop the door when it is at its highest point of travel.
Allow 25mm additional height for clearance between
the door and the track (Fig. 16).
Support the Rail in this position and close the door
The height determined in Step 10(b) will be the
height at which to mount the wall bracket.
Centre the bracket along the line determined in Step

8.
Using the bracket as a template, mark a minimum of
two holes and drill with appropriate size bit. For a
more secure fi tting, the wall bracket can be anchored
using more than two holes.
Secure the bracket to the wall using:
IF CONCRETE OR BRICK - 8mm (5/6”) loxins/dynabolts.
IF TIMBER - wood screw #20 or similar (min. 50mm)
Attach the bracket and C-Rail with supplied pins (Fig. 12).

WARNING: Make sure concrete, brick wall or
timber lintels are solid and sound so as to form a
secure mounting platform.

Step 10 - Secure the drive unit to the Ceiling

Secure the perforated angle (not supplied) to the
ceiling above where drive unit’s mounting holes will
be. See (Fig.19) for a representative mounting.
Connect the drive unit to the ceiling mounted
perforated angle with M8x20mm screws and nuts.
Strips should not extend more than 18mm below
centre of drive unit’s mounting holes (Fig. 13).

Step 10.1 - Alternative Mounting Option

The opener can be fastened to the roof by driving a bolt
through the C-Rail into a structural timber support. The
bolt head’s height must not exceed 6mm (Fig. 17).

a.

b.

a.
b.

c.

a.

b.

c.
d.

e.

f.

g.

h.

a.

b.

14

fi g

16

fi g

Centre of Door

Mounting on a Spring Loaded Door

15

fi g

Step

ladder

Step

ladder

C rail

Door

Highest point
of door travel

Drill hole at centre of
track (recommended
bolt size M6 or M8)

Ceiling

Aluminium rail

Shuttle VP2 assembly

17

fi g

Owner Installation Instructions GDO-9 17

10

0

Mounting Door Bracket & Arms

18

fi g

20

fi g

21

fi g

19

fi g

Step 11 - Mounting Door Bracket

The door bracket comes in two parts. The bottom plate
with two mounting holes is used on its own for one piece
doors. For sectional doors, the top plate is placed over
the bottom plate and is fi xed with four (4) screws (Fig.

18).

Mount the door bracket, or bracket assembly,
on the door’s centre line one-third down the top
panel (Fig. 18) using M6 or equivalent screws (not
supplied),
STEEL DOORS ONLY: Bracket can be welded in
place.

NOTE: If in doubt about the door’s strength,
reinforcement may be added to the door’s frame
where necessary. Door damage may occur if the
bracket is installed on a panel with insuffi cient
strength. The opener’s warranty does not cover
damage caused to the door and/or door panels.

Step 12 - Attaching the Arms

FOR SECTIONAL AND ONE PIECE DOORS WITH
TRACK:

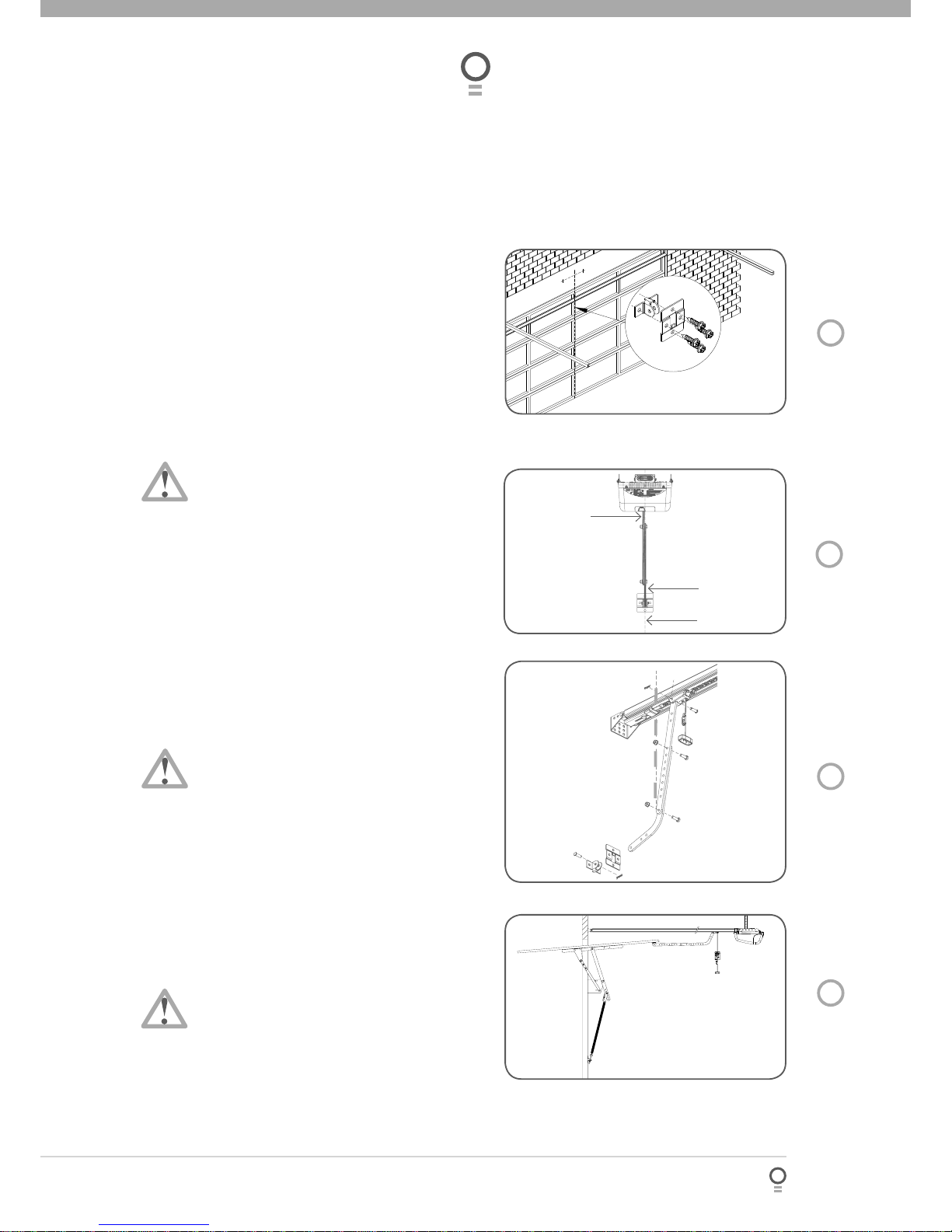

Assemble the bent arm(connecting to the door)
to the right side of the straight arm (connecting to
the shuttle) with bolts and nuts supplied in the ac­cessory pack (Fig. 19). Always use both bent and
straight arms.
Connect the assembled arm to the bracket and the
disengaged trolley with clevis and snap pins. The
angle “A” must be more than 10° (Fig. 20).

WARNING: Connecting the bent arm the other
way around may damage the door. The straight
arm should not protrude beyond the heel of the
bent arm.

FOR ONE PIECE DOORS WITHOUT TRACK

Assemble the bent and straight arms as shown
in (Fig. 21) with bolts and nuts supplied in the
accessory pack. Always use both the bent and
straight arms.
Connect the assembled arm to the bracket and the
disengaged trolley with clevis and snap pins.
If installing on a door with a bad wave action,
lengthening the arm will assist in reducing this
effect.

IMPORTANT NOTE: Adjust the length of the
cord so that its toggle is no more than 1.8m from
the ground.

a.

b.

a.

b.

a.

b.

c.

Arm connected to
the door

Arm connected to
the shuttle

A

Centre of the door

18

GDO-9 Owner Installation Instructions

Programming The Opener

22

fi g

23

fi g

24

fi g

Setting Travel Limits : Via Control Panel
Step 13.1 - Setting Travel Limits

NOTE: If PE Beams are to be used they must be installed

before setting the travel limits.

WARNING! Use caution when operating the manual
release with the door open since it may fall rapidly
due to weak or broken springs, or an improperly
balanced door.

CAUTION! Do not disengage the opener to manual
operation with children, persons or any objects
including motor vehicles within the doorway.

Engage the C-Rail’s trolley (attached to the door via
the arms) with the chain index by moving the door.
If the trolley does not “click” fi rmly onto the chain
index, ensure that the manual release cord is not in
the disengaged position by pulling it backwards.

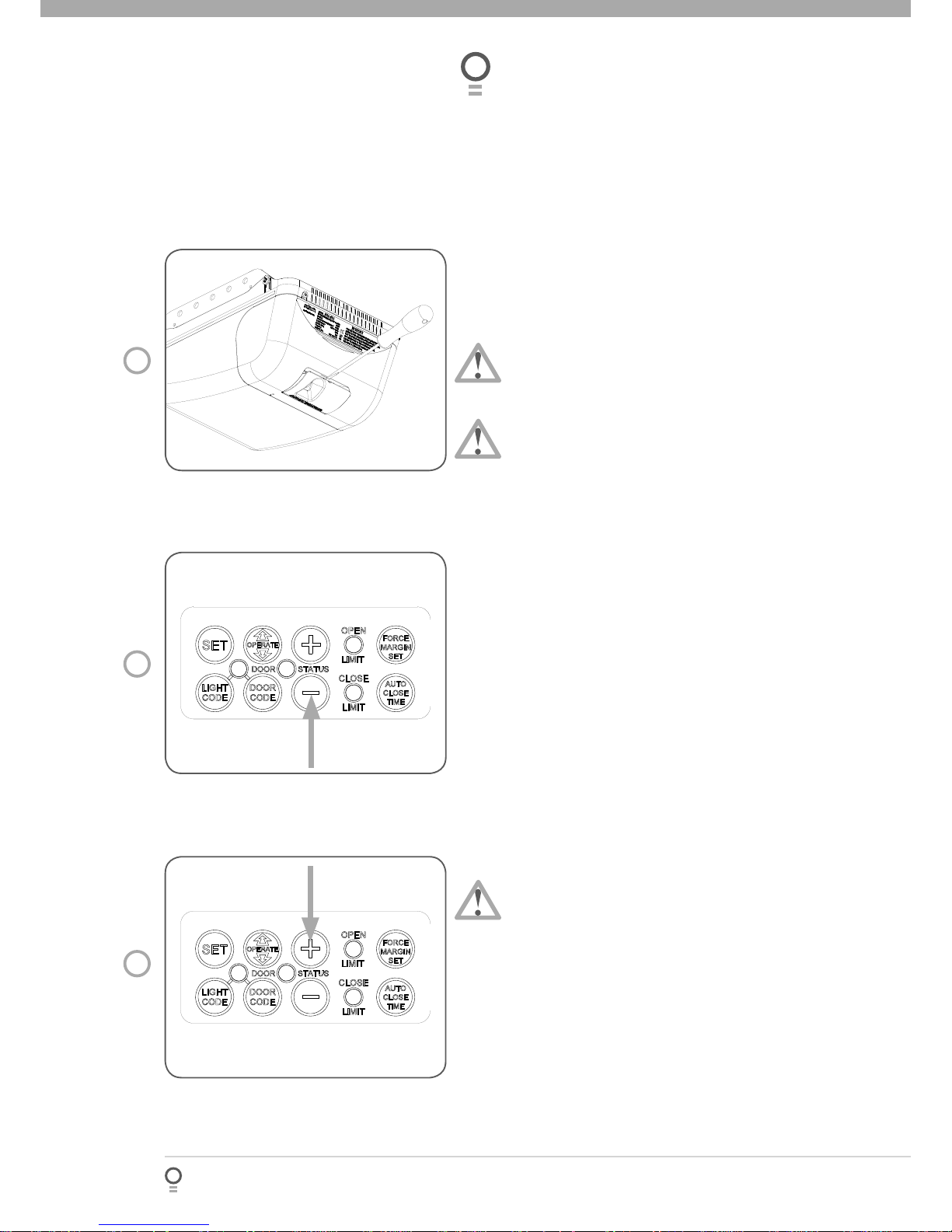

Turn on the power to the opener. The CLOSE LIMIT
LED will be fl ashing.
Remove the button cover with a blade screwdriver

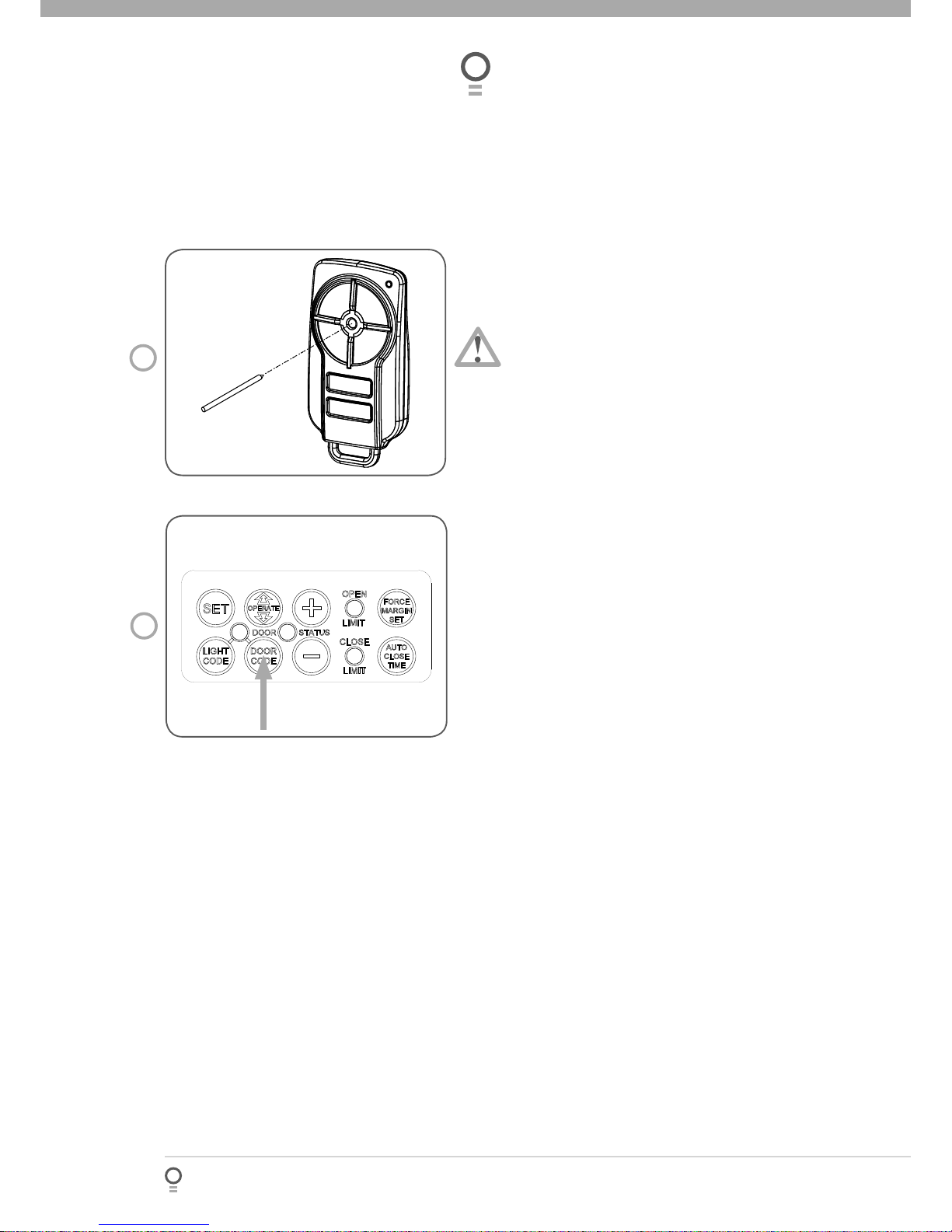

(Fig. 22).
Press and hold the MINUS (-) button - the door will
start closing (Fig. 23).
Release the MINUS (-) button when the door is near
the desired closed position. Single presses of the
MINUS (-) button will “inch” the door closed.
If the door overshoots press the PLUS (+) button to
move the door in the open direction.
When the door is at the desired close position, press
the SET button to record the close limit position. The
OPEN LIMIT LED will now fl ash.
Press and hold the PLUS (+) button to open the door
(Fig. 24).
Release the PLUS (+) button when the door is near the
desired open position. Single presses of the PLUS (+)
button will “inch” the door open.
If the door overshoots press the MINUS (-) button to
move the door in the open direction.

WARNING! Once the next step is performed, the
door will automatically close and open to calculate
force settings. Keep persons and objects clear of the
door until it stops and the opener sounds a beep.

Press the SET button to store the open limit. Please
read the above warning.

Step 13.2 - Resetting Travel Limits

To reset the limits, press and hold the MINUS (-) button for
6 seconds until the CLOSE LIMIT LED fl ashes quickly. If no
action is taken within 30 seconds, the opener will return to
normal operating mode and restore the original settings.

a.

b.

c.

d.

e.

f.

g.

h.

i.

j.

k.

i.

Owner Installation Instructions GDO-9 19

25

fi g

Setting Travel Limits : Via Transmitter

The GDO-9 has the alternate ability to set travel limits
using the transmitter, allowing free movement around
the garage to better assess the desired limit positions.

Step 14.1 - Code a Transmitter for Limit Setting

Ensure the opener is powered up.

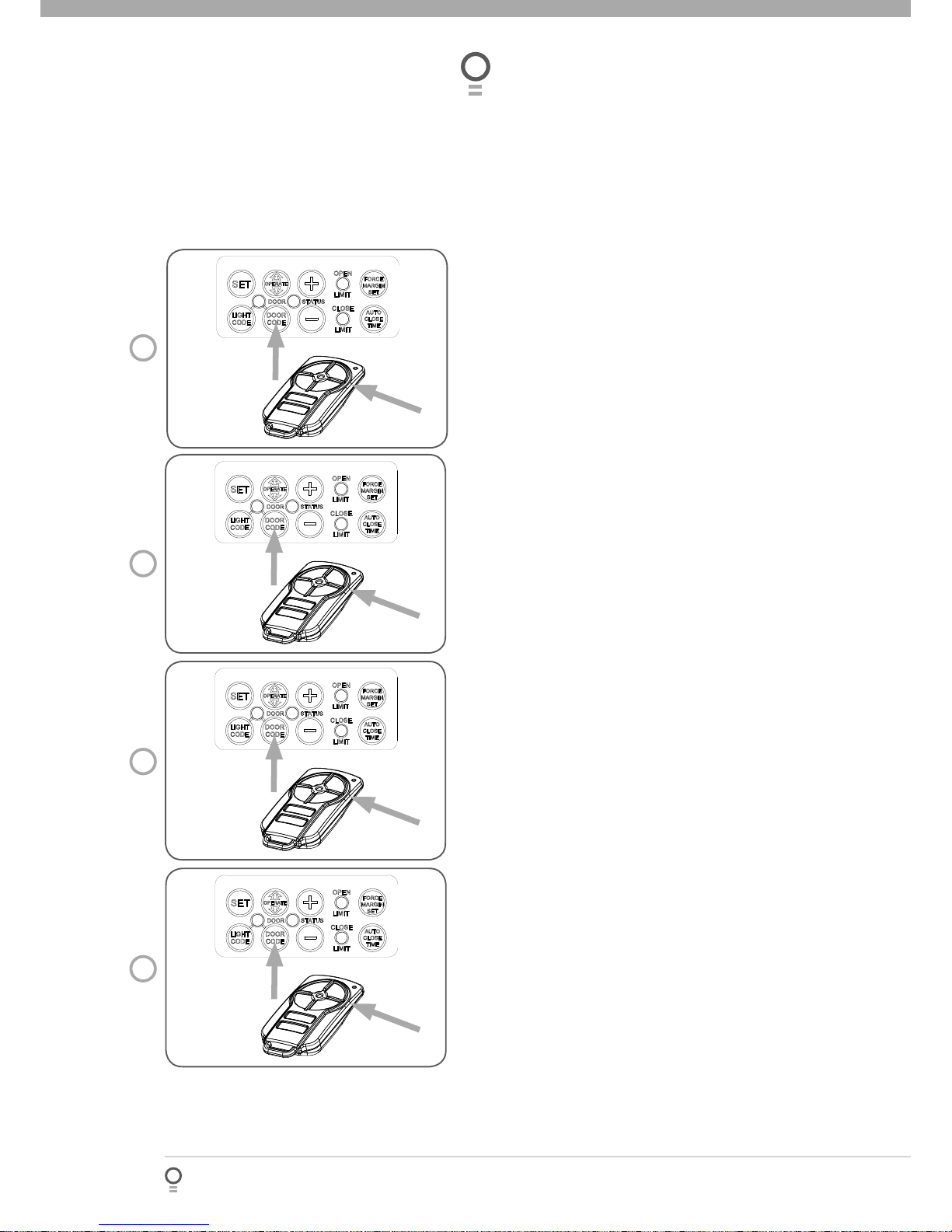

Press and hold the DOOR CODE button (Fig. 25).
Press Button 1 on the transmitter for two seconds
(Fig. 26). Release and pause for two seconds.
Press the Button 1 again for two seconds.
Release the DOOR CODE button.

Step 14.2 - Setting Limits via Transmitter

Engage the C-Rail’s trolley (attached to the door via
the arms) with the chain or belt index by moving the
door.
If the trolley does not “click” fi rmly onto the chain
index, pull the cord backwards until it locks in place,
and try again.
Press and hold Button 4 on the transmitter to close
the door. When the door is approx. 20mm from the
ground, release Button 4 (Fig. 26).
Each press of Button 4 will allow you to “inch” the
door closed. Keep doing this until the door reaches
the desired close limit position.
If the door closes too far, press Button 1 to “inch”
the door towards open
When happy with the close limit position, press
Button 2 to store this in memory.
Press and hold Button 1 to open the door. When
approx. 20mm from the desired open position,
release Button 1.
Each press of Button 1 will allow you to “inch” the
door open. Keep doing this until the door reaches
the desired open limit position.
If the door is opened too far, press Button 4 to “inch”
the door towards closed.

IMPORTANT WARNING: The door will
automatically close, open and close again once
Step 14.2(j) is performed. Ensure that no persons
or objects are in the door’s path.

When happy with the open limit position, press
Button 2 on the transmitter to store into memory.
The door will now automatically close, open and close
to calculate the safety obstruction settings. After
this, the opener can be operated with the OPERATE
button.

Step 14.3 - Resetting the Door Limit Positions

Limit positions can be deleted by the following steps:

Follow Steps 13.2, as outlined previously.
Repeat Steps 14.1 and 14.2 to set new travel limit
positions.
There is no need to re-code the transmitter (Step

14.1) upon resetting travel limits. The transmitter
will still be stored in memory.

a.
b.
c.

d.

a.

b.

c.

d.

e.

f.

g.

h.

i.

j.

k.

a.
b.

c.

Button 1

(Inch Open)

Button 4

(Inch Close)

Button 2

(Set)

26

fi g

Programming The Opener

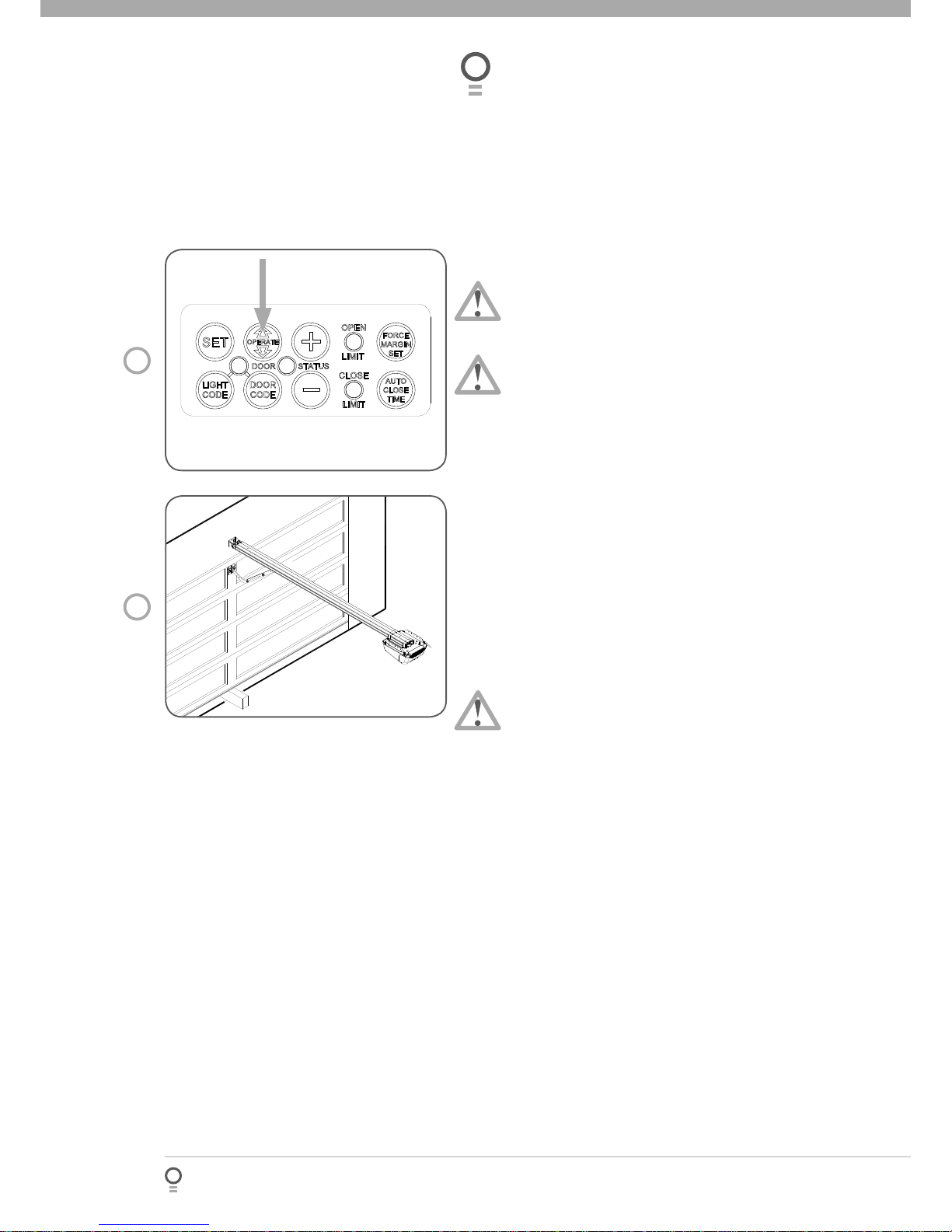

20

GDO-9 Owner Installation Instructions

27

fi g

28

fi g

Safety Obstruction Forces

Safety Obstruction Force Test

WARNING! Take care when testing or adjusting

the Safety Obstruction Force. Excessive force
may cause SERIOUS PERSONAL INJURY and/or
PROPERTY DAMAGE.

WARNING! Photo electric beams must be installed
if the closing force at the bottom edge of the door
exceeds 400N (40kg) force.

Step 15.1 - Testing Close Cycle

Press the OPERATE button to open the door (Fig.

27).

Place a piece of timber approximately 40mm high
on the fl oor directly under the door (Fig. 34).
Press the OPERATE button to close door. The door
should strike the object and start to re-open.

Step 15.2 - Testing Open Cycle

Press the OPERATE button to close the door (Fig.

28).

Press again to open the door. When the door
reaches the half open point, grab the bottom rail of
the door fi rmly and the door should stop.
If the door does not reverse readily when closing,
or stop when opening, the force may be excessive
and need adjusting, refer below.

DANGER! If the door fails these tests, put the
opener into manual mode, only operate the door
by hand and call for service.

a.

b.

c.

a.

b.

c.

Owner Installation Instructions GDO-9 21

Adjusting Safety Obstruction Force

The Safety Obstruction Force is calculated automatically
during setup. Adjusting this is normally only necessitated
by environmental conditions such as windy or dusty areas,
and areas with extreme temperature changes.

WARNING! Photo electric beams must be installed
if the closing force at the bottom edge of the door
exceeds 400N (40kg) force.

Step 16.1 - To Increase Force Pressure

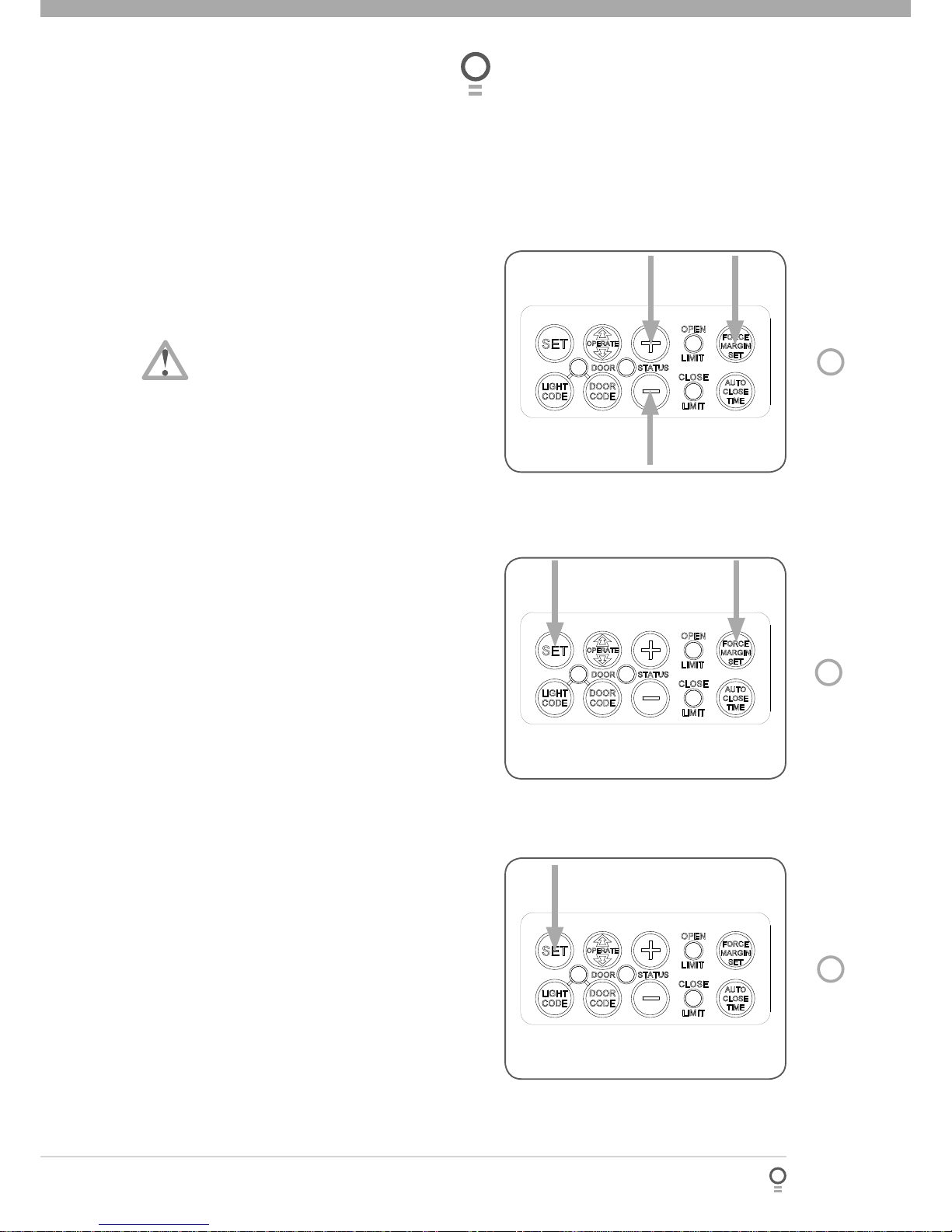

Hold down FORCE MARGIN SET button (Fig. 29)
While holding the FORCE MARGIN SET button,
press the PLUS (+) button. Each press increases the
force margin (Fig. 29).
The OPEN LIMIT LED will fl ash each time the PLUS
(+) button is pressed to indicate a force increase
If the OPEN LIMIT LED is on continuously when
pressing the PLUS (+) button, this indicates that the
maximum setting has been reached.
Test the force again as per Steps 15.1 and 15.2

Step 16.2 - To Decrease Force Pressure

Hold down FORCE MARGIN SET button (Fig. 29)
While holding the FORCE MARGIN SET button,
press the MINUS (-) button. Each press decreases
the force margin (Fig. 29).
The CLOSE LIMIT LED will fl ash each time the MINUS
(-) button is pressed to indicate a force decrease.
If the CLOSE LIMIT LED is on continuously when
pressing the MINUS (-) button this indicates that the
maximum setting has been reached.
Test the force again as per Steps 15.1 and 15.2

Step 16.3 - To Recall Factory Set Force

While holding down the FORCE MARGIN SET
button, press the SET button for two (2) seconds.

(Fig. 30)

Release both buttons. The default setting should
now be recalled.

Step 16.4 - To Recalculate Force Margins

Press and hold the SET Button for two (2) seconds,
the beeper will sound once (Fig. 31).
The door will start to move and re-calculate force
margins. The door can move between the open and
close limit positions up to four (4) times (depending
on the position of the door and the power up
condition).
A single beep will be heard once the process is
complete.
Test the force again as per Steps 15.1 and 15.2.

a.
b.

c.

d.

e.

a.
b.

c.

d.

e.

a.

b.

a.

b.

c.

d.

Safety Obstruction Forces

29

fi g

30

fi g

31

fi g

22

GDO-9 Owner Installation Instructions

Step 17.1 - Code a Transmitter Button for
Door Operation

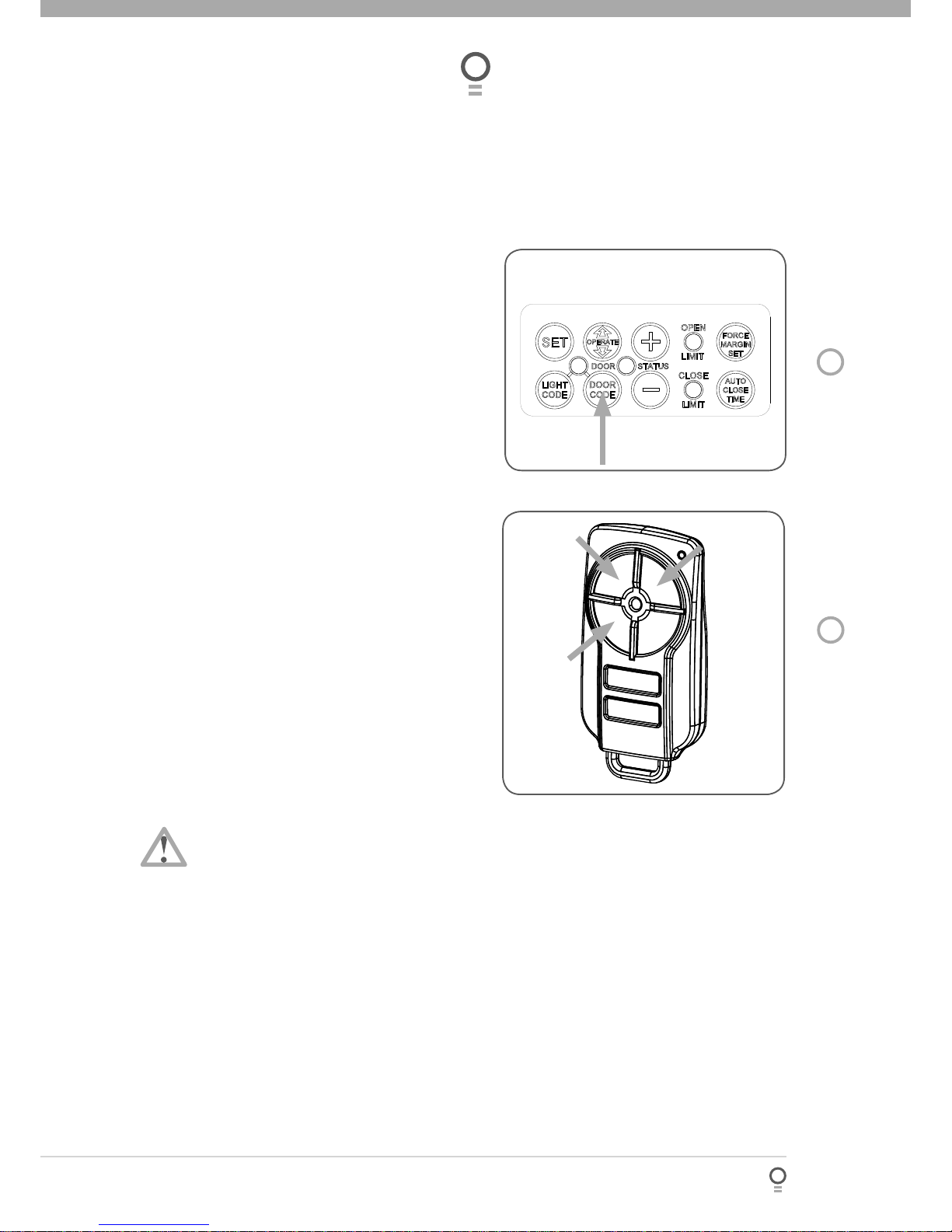

Press and hold the DOOR CODE button (Fig. 32).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the DOOR CODE BUTTON.
Press the transmitter button to test.

Step 17.2 - Code a Transmitter Button to
Enable Vacation mode

The opener can be programmed into a “Vacation
Mode” where the opener will not respond to any
transmitter except the button of the transmitter that was
programmed for vacation mode.

Briefl y press the DOOR CODE button once, then
press it again and hold (will beep two times on
second press (Fig. 33)).
Press one of the four (4) buttons on the transmitter
for two (2) seconds, pause for two (2) seconds,
then press the same button again for two (2)
seconds.
Release DOOR CODE button.
Press and hold the transmitter button for six (6)
seconds to set Vacation Mode. The door code
LED will stay lit while Vacation Mode is active.
To reset Vacation Mode, press the same button
for two seconds.

Step 17.3 - Code a Transmitter Button to
Enable AUX OUTPUT

Briefl y press the DOOR CODE button two (2)
times, then press it again and hold (will beep
three times on third press (Fig. 34)).
Press one of the four buttons on the transmitter
for two (2) seconds, pause for two (2) seconds,
then press the same button again for two (2)
second.
Release the DOOR CODE button.
Press the transmitter button to test.

Step 17.4 - Code a Transmitter Button for Pet
(Pedestrian) Mode

Briefl y press the DOOR CODE button three times,
then press it again and hold (will beep four times on
fourth press (Fig. 35)).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the DOOR CODE button.

Press the transmitter button to test.
To change the default pet (pedestrian) door opening
position, refer Step 24.

a.
b.

c.
d.

a.

b.

c.
d.

e.

a.

b.

c.
d.

a.

b.

c.
d.

Coding Transmitters

32

fi g

33

fi g

34

fi g

35

fi g

Owner Installation Instructions GDO-9 23

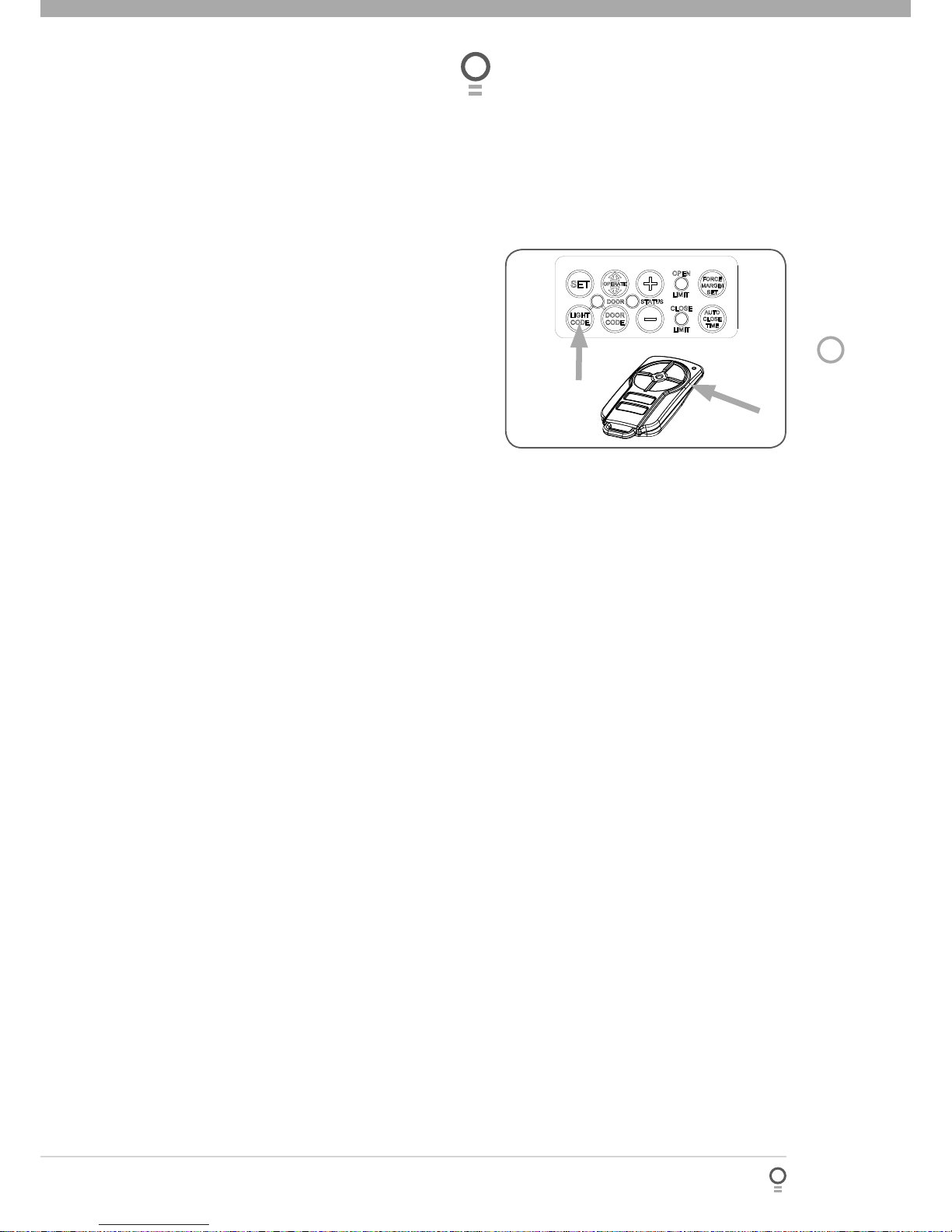

Step 17.5 - Coding a Transmitter Button to
the Courtesy Light

The transmitter can be programmed to operate the
courtesy light on the opener independently of the door
moving.

Press and hold LIGHT CODE button (Fig. 36).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the LIGHT CODE button.
Press the transmitter button to test.

a.
b.

c.
d.

Coding Transmitters

36

fi g

24

GDO-9 Owner Installation Instructions

Step 18 - Remotely Coding Transmitters

Using this method transmitters can be coded without
access to the opener’s control panel as long as a pre­coded transmitter is available.

IMPORTANT NOTE: The door or courtesy light
must activate when the steps below are performed.
This indicates that the pre-coded transmitter is in
range of the opener, and the correct button has
been pressed.

Take any pre-coded transmitter. Press the button
for the function to be duplicated and release.
Using a small needle, press and hold fi rmly for
two seconds through the Coding Hole (Fig. 37).
WITHIN 10 SECONDS take the additional
transmitter you wish to code. Decide which
button that you want to activate the function to
be duplicated (e.g. activate the door, or turn on
the courtesy light)
Hold the new transmitter’s button for two
seconds, pause for two seconds, hold again for
two seconds and then release.
Wait for 10 seconds and then press the new
transmitter’s button to test.

Step 18.1 - Deleting a Stored Transmitter
Code

Select the transmitter you want to delete.
Press and hold the DOOR CODE BUTTON (Fig.

38).

Press the transmitter button you would like to
delete for two seconds, pause for two seconds,
press again for two seconds and then release.
Release the DOOR CODE BUTTON. The code
should now be deleted. Confi rm this by pressing
the transmitter button - the function (e.g. door
opening) should not respond.

Step 18.2 - Deleting All Transmitter Codes

1. Turn off power to the opener.
While switched off, press and hold the DOOR
CODE BUTTON (Fig. 38). Turn on power to the
opener while holding this button.
The OPEN LIMIT, CLOSE LIMIT and DOOR
STATUS LEDs will illuminate for about fi ve
seconds. These LED’s will turn off and the
CODING LED will illuminate.
Release the DOOR CODE BUTTON. All stored
codes will now be deleted. Confi rm this pressing
buttons on any previously coded transmitters ­the opener should not respond.

a.

b.

c.

d.

e.

a.
b.

c.

d.

a.
b.

c.

d.

Coding Transmitters

37

fi g

38

fi g

Owner Installation Instructions GDO-9 25

PE Beam & Auto-Close

WARNING! Photo electric beams must be installed

if the closing force at the bottom edge of the door
exceeds 400N (40kg) force.

Step 19 - Fitting the PE Beams (optional)

Affi x the PE Beams in a strategic location within the
doorway. We recommend 150mm above the fl oor
level and as close as possible to the door opening,
inside the garage.

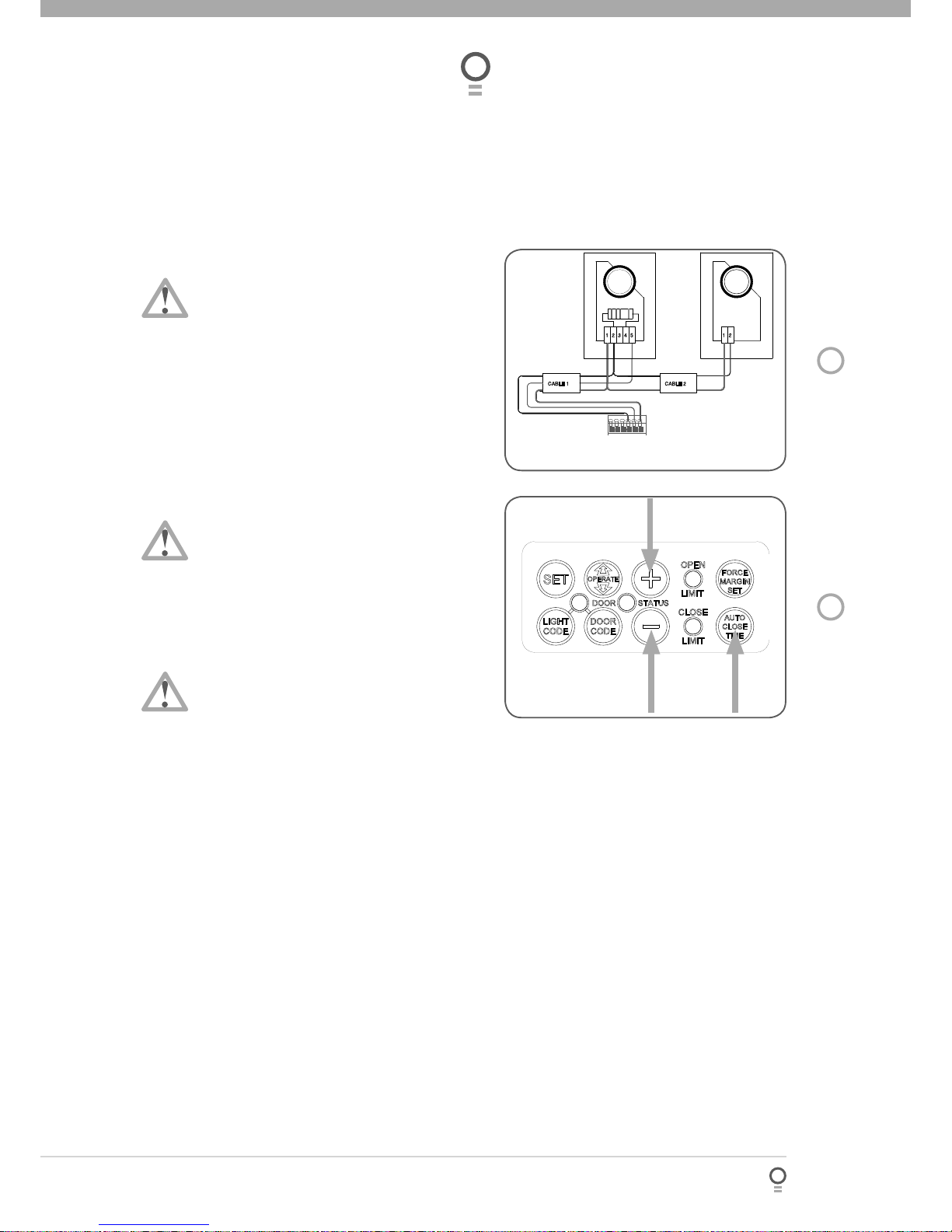

Connect the wires from the PE Beam’s wiring
harness to the terminal block (Fig. 39). The wiring
diagram is for Model PE-2 (Order Code 90214).

Make sure to align the beams correctly. Follow the
manual supplied with the PE Beams.

WARNING: When using Auto-Close Mode and PE
Beams, the doorway must be clear of all obstructions
and persons at all times. The location of the beams
and manner in which it is installed might not give
safety protection at all times. Check to make sure
that the height of the beam and type used give
maximum protection possible.

Step 20 - Setting Up Auto-Close Mode

IMPORTANT NOTICE: It is compulsory to have PE

Beams installed when using Auto-Close mode.

Auto-Close mode is a function that automatically closes
the door a preset time after the PE Beams recognise that
a vehicle has left the garage.

The Auto-Close timer only starts after the PE Beam’s
path is broken the Auto-Close timer has been set. If the
PE Beam’s path is not broken the door will remain open
until the path is broken. If the opener incurs a physical
obstruction (i.e. not from the PE Beams) while closing
the door, it will re-open and not Auto-Close until the PE
Beam’s path is broken again.

Step 20.1 - Setting Auto-Close Time

Hold down the AUTO CLOSE TIME button (Fig. 40).
While holding in the AUTO CLOSE TIME button,
press the PLUS (+) button, - each press will add
one second to the Auto-Close delay.
To decrease the delay time follow Step 20.1(a)
and press the MINUS (-) button - each press will
deduct one second from the Auto-Close delay.
Press the OPERATE button or transmitter to open
the door. When the door is fully opened the
OPEN LIMIT LED will fl ash to indicate that Auto­Close mode is operational.
Break the PE Beam’s path momentarily to
initialise Auto-Close. When the door reaches the
fully opened position, the door will pause for the
set Auto-Close time and then close.

a.

b.

a.
b.

c.

d.

e.

Accessories

RED

RED

RED

GOLD

PWR

AUX OUT

OSC

GND

PE ( 0V )

PE

BLACK

BLACK

BLACK

BLACK

YELLOW

RED

YELLOW

RED

+

+

-

-

RED

Receiver

Transmitter

Model PE-2

39

fi g

40

fi g

26

GDO-9 Owner Installation Instructions

41

Fig

42

Fig

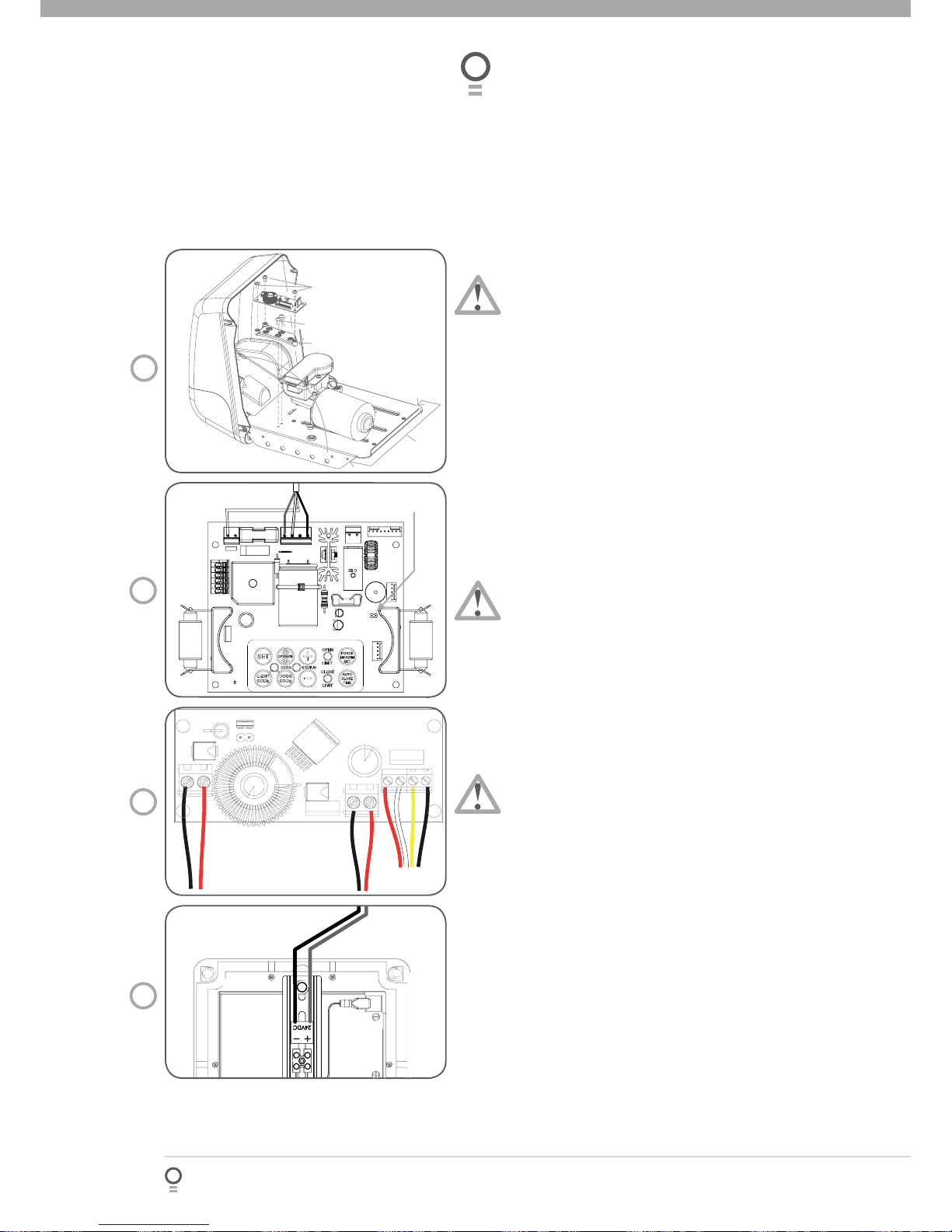

SmartSolar™ Installation

WARNING: Do not connect batteries until Step

21.3

Step 21.1 - Mount the Charger Board

Unplug the drive unit from mains power.

Remove the screws, swing open the main cover. Then

remove the transformer, EMC board (if fi tted) and

mains power cable.

Mount the PCB support with two screws. Secure

the Solar charger board on to the PCB support with

3 screws. (Fig. 41).

Plug the Charger Board’s three wire harness (red/

yellow/black) onto the control board’s “SBY-3”

connector (Fig. 42).

Plug the Charger Board’s white one wire harness

onto the control board’s “24vac in” connector (Fig.

42).

Plug the black solar shunt onto both pins of the

control board’s “JP1 Solar ” connector (Fig. 42)

IMPORTANT WARNING: Do not connect battery
or solar panel polarity incorrectly - this will result in
serious damage to components.

Step 21.2 - Connect the Solar Panel

Mount the solar panel as outlined in the SmartSolar™

Installation Manual.

Feed the Solar Panel’s cable through black grommet

located on the top of the plastic drive unit cover.

Connect the red wire to the Charger Board’s

“SOLAR+” connector, and the black wire to the

“–SOLAR” connector (Fig. 43).

WARNING: During Step 21.3 the opener will
become active.

Step 21.3 - Mount & Connect the Battery

Mount the Battery Box close to the opener.

Feed the 2-core 18awg gauge cable (supplied)

through the Battery Box’s grommet.

Connect the red wire to the Battery Box’s “+” terminal,

and the black wire to the “–” terminal (Fig. 44).

Feed the other end of the battery cable through the

drive unit’s black grommet.

Connect the red wire to the Charger Board’s

“BAT+” connector, and the black wire to the “–

BAT” connector (Fig. 43).

Refi t the light diffuser and main cover.

Step 21.4 - Re-setup and Test the Opener

Setup travel limits and code transmitters as per the

GDO-9 instruction manual.

Press either the OPERATE button or use a transmitter

to operate the opener.

a.
b.

c.

d.

e.

f.

a.

b.

c.

a.
b.

c.

d.

e.

f.

a.

b.

B

l

a

c

k

(

F

r

o

m

B

a

t

t

e

r

y

)

R

e

d

(

F

r

o

m

B

a

t

t

e

r

y

)

R

e

d

W

h

i

t

e

Y

e

l

l

o

w

B

l

a

c

k

B

l

a

c

k

(

F

r

o

m

S

o

l

a

r

P

a

n

e

l

)

R

e

d

(

F

r

o

m

So

l

a

r

P

a

n

e

l

)

43

Fig

Re

d

W

i

r

e

B

lack Wire

44

Fig

Accessories

JP1 Solar
Shunt

Screws

PCB support

Screws taptite ‘S’ M4x8

Solar charger board

Screws taptite ‘P’ M4x8

Owner Installation Instructions GDO-9 27

Battery Backup Installation

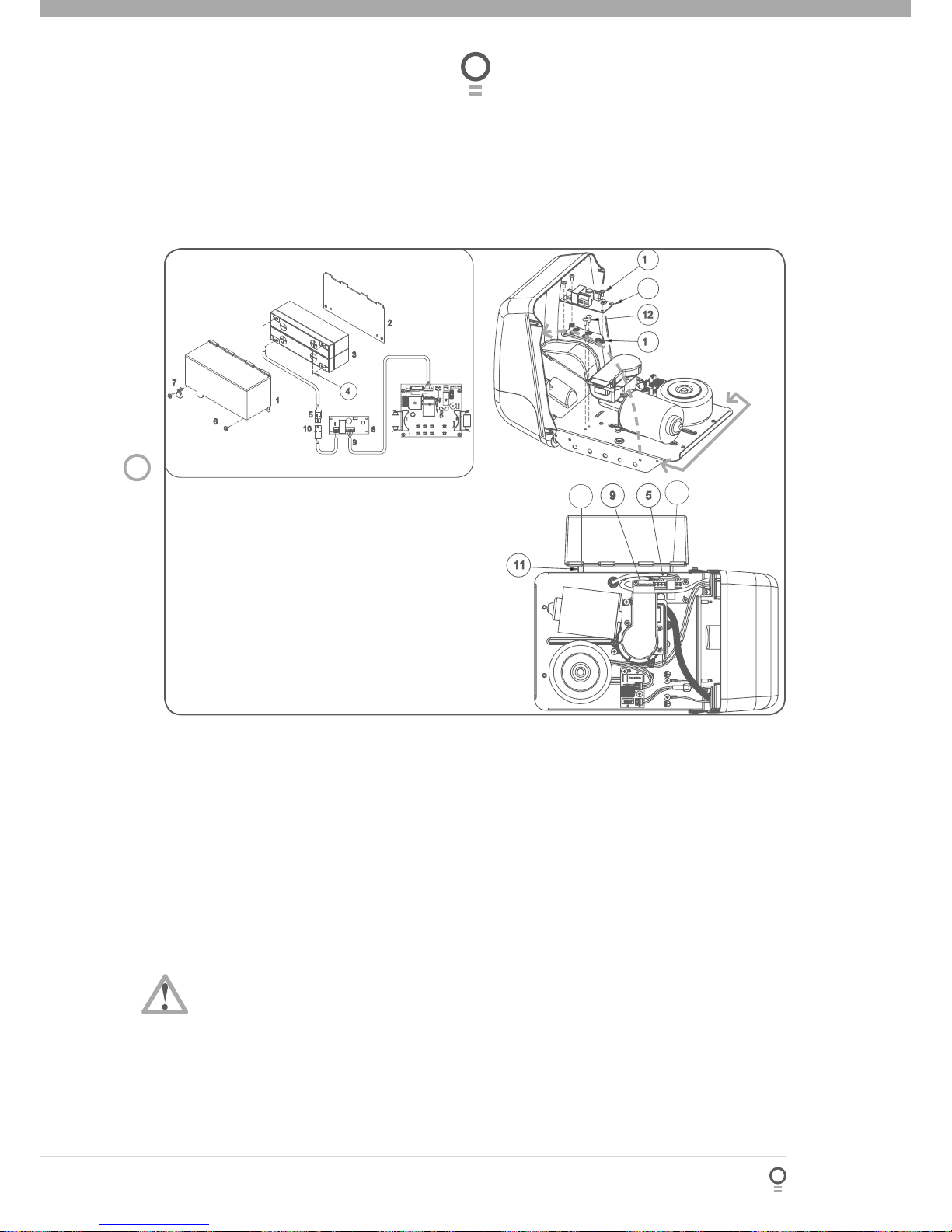

Step 22.1 - Connect the Battery Back Up Kit

Disconnect power to the opener.
Remove screws and swing open the cover (Fig 45).
Mount the PCB support with two screws item #

12. Secure the SBY-3 Charger Board onto the PCB
support with three (3) screws item #14.
Feed the 2-wire battery harness item # 5 through
the grommet on the base plate and connect to
SBY-3.
Feed charger harness from SBY-3 to the control
board and plug into the 4 pin connector marked
“SBY-3” onto the control board.
Mount Battery Backup and secure with item 6 and

11.

WARNING: After Step 22.1(g) the opener may
become active (even when power is off). This is a
result of a residual charge in the batteries.

Connect battery harnesses item 5 and 10 together

(Fig 45).

Reconnect power.

a.
b.
c.

d.

e.

f.

g.

h.

45

fi g

Step 22.2 - Testing Battery Back Up

Press either the OPERATE button or transmitter
to test the opener.
Whilst door is in motion, disconnect mains
power the door should continue to operate as
normal.

NOTE: Wait for the door to complete its travel.

Press the OPERATE button or transmitter to
activate the door.
Whilst door is in motion re-connect power. The
door should complete the cycle as normal.

Step 22.3 - Troubleshooting

If door stops or moves very slowly under battery

power, the batteries may be weak or have no

charge. Connect mains power and allow the

batteries to charge. This may take 24 - 48 hours to

reach maximum charge capacity.

a.

b.

c.

d.

Item Description Qty Order Code

1. Batteries cover 1 16460

2. Batteries support 1 16480

3. Battery 12v sec 12-2.2Agm type 2 15470

4. Battery coupling wire esv 24 1 12005

5. Battery harness 1 15670

6. Pan head screw w/washer m4x8 2 10320

7. Cable clamp acc-1.5(3/16”) 1 11750

8. SBY-3 version 1.00 1 00852

9. SBY-3 esv24 charger harness 1 14115

10. SBY-2 battery harness 1 15560

Battry pack # 1

11. Hex stand off m4 2 11190

12. Thruss separation hd screw 6 10503

13. Pan head screw w/washer m4x8 4 10320

14. Taptite screw ’p’ m4x8 3 10580

15. Bracket ra 31x20x31 2 02508

16. PCB support 76x27 1 16421

17. Cable clamp acc-2.5(5/16”) 1 11760

Remove screws & swing

cover to open

Wiring diagram

6

4

8

13

13

Accessories

28

GDO-9 Owner Installation Instructions

46

fi g

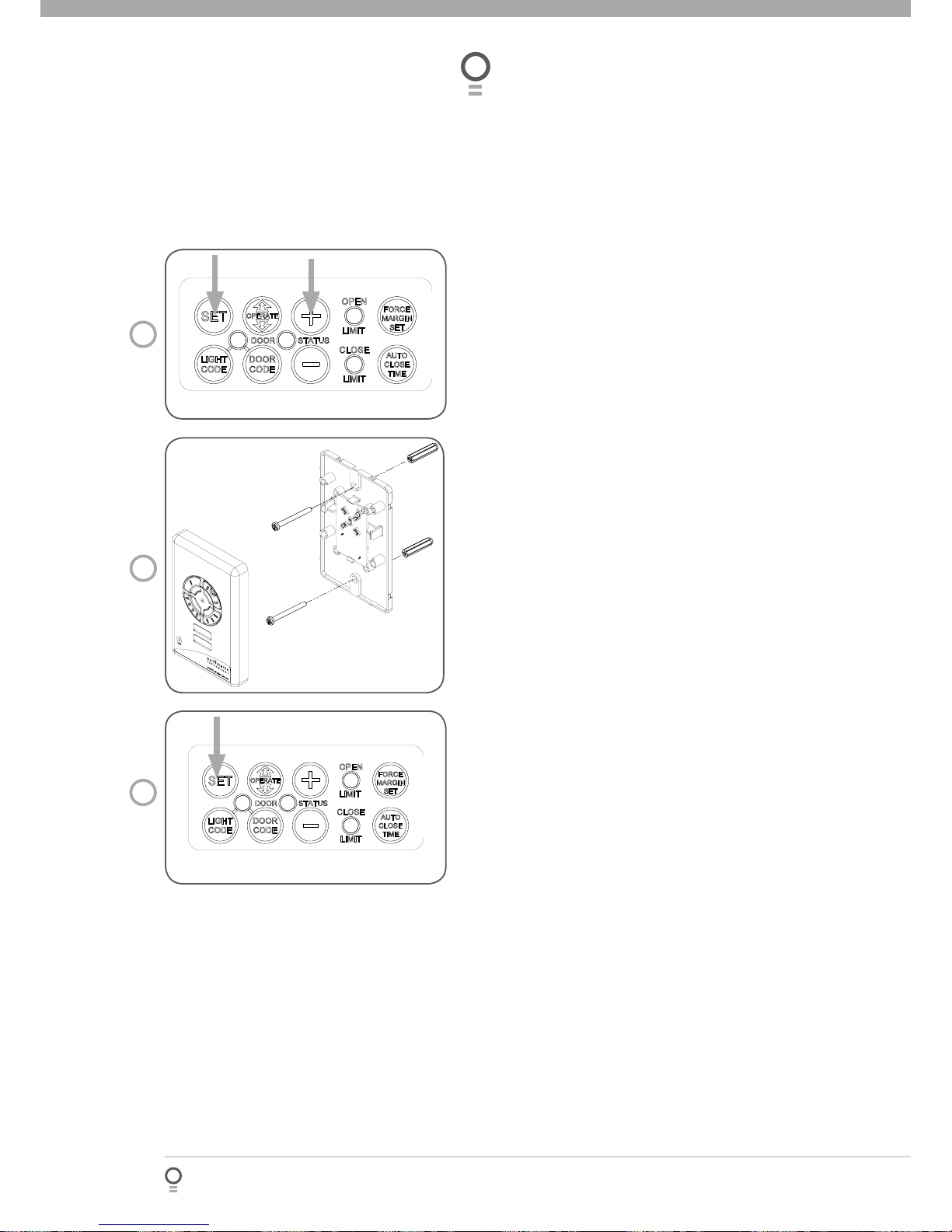

Final Setup

Step 23 - Setting of Courtesy Light Time

The preset courtesy light time is three minutes. This time
can only be changed by “PG3” programmer.

Step 24 - Setting the Pet Mode position

The default Pet Mode height can be changed as follows:

Make sure the door is closed, then press and
hold the OPEN button for six (6) seconds (Fig.

46), until you hear three beeps and the OPEN
and CLOSE LEDs fl ash rapidly.
Press the OPEN button to move the door to the
desired Pet Mode open position.
Press the SET button to record the new position.

When activated, Pet Mode drives the door to the preset
position from either above or below. Pet Mode’s active
status is indicated by both the OPEN and CLOSE LIMIT
LEDs being illuminated. If a Pet Mode button is pressed
while the door is moving the door will stop. If a Pet
Mode button is pressed when the door is in the Pet
Mode position, then the door will close.

Step 25 - Installing the Wall Mounted
Transmitter (Optional)

Remove the faceplate from the transmitter.
Affi x the baseplate in a convenient wall location
that is out of reach of children and convenient
to the customer (Fig 47). Make sure the door is
visible from this location.
Replace the faceplate.
To code the transmitter, see Steps 18.1 through

18.5 on page 21 and 22.

Step 26 - Reset all Factory Defaults

Turn power to opener off.

Press and hold the SET Button (Fig 48).

Turn power on while holding the SET button.

Continue to hold until all the LED’s are off.

This will not erase transmitter codes stored in

memory.

a.

b.

c.

a.
b.

c.
d.

a.
b.
c.

d.

48

fi g

47

fi g

Owner Installation Instructions GDO-9 29

Default Settings & Specifi cations

Factory default settings

Default Step Maximum

Courtesy light time 3 Mins. 4 Mins.

Obstruction force margin 2 1 12

Auto close time 0 Secs 1 Sec. 255 Secs.

Technical specifi cations

Dynamo™ Enduro™

Power supply 230V - 240V AC 50Hz 230V - 240V AC 50Hz

Transformer rating 24V DC 24V DC

Standby power 2.2 Watts 2.2 Watts

Motor power 100 Watts 100 Watts

Motor type 24V DC permanent magnet 24V DC permanent magnet

Shuttle travel distance in the C-Rail 2.8m approx (standard) 2.8m approx (standard)

Maximum shuttle travel distance in the C-Rail 5m (with extended C-Rail) 5m (with extended C-Rail)

Maximum door opening: Width x Height
Weight:

16.5m

2

100 kg

18m

2

100 kg

Minimum Clearance
(Bottom of C-Rail to highest point of door travel)

25mm 25mm

Short term peak force 800N (80kg) 1000N (100 kg)

Lift force 500N (50kg) 500N (50kg)

Nominal force 150N (15kg) 150N (15kg)

Receiver code storage capacity 14 x 4 button transmitter

codes

14 x 4 button transmitter
codes

Transmitter frequency 433.47, 433.92, 434.37MHz 433.47, 433.92, 434.37MHz

Coding type Multi-frequency Code

hopping

Multi-frequency Code
hopping

Number of code combinations Over 4.29 billion random

codes

Over 4.29 billion random
codes

Code generation Non-linear encryption

algorithm

Non-linear encryption
algorithm

Transmitter battery CR 2032, 3 Volts CR 2032, 3 Volts

Courtesy light Festoon style 24 volts 15

watts lamp

24 volts LED Module

Controller fuse 10A slow blow 10A slow blow

30

GDO-9 Owner Installation Instructions

Door Status Indicators

Door Opener State OPEN LED

(Green)

CLOSE LED
(Red)

STATUS
LED
(Yellow)

Beeper

Open On

Close On

Opening Flashing

Closing Flashing

Door travel stopped Flashing Flashing

Door obstructed
when opening

Flashing

Door obstructed
when closing

Flashing Beeps as door moves

Opener overloaded Alternating fl ashes Alternating

fl ashes

Door in open
position with Auto­Close mode selected

One second
fl ashes

Pet Mode Engaged On On

Mains power
interrupted

Rapid fl ashes

Service Due On 3 Beeps At The Start Of Each

Cycle

Button Functions

Buttons Function

OPERATE Opens/Stops/Closes the door

DOOR CODE Codes a transmitter button for operate, vocation,

auxiliary and pedestrian functions

LIGHT CODE Codes a transmitter button for light function

FORCE MARGIN SET & PLUS (+) Increases the obstruction force margin setting

FORCE MARGIN SET & MINUS (-) Decreases the obstruction force margin setting

FORCE MARGIN SET (then) SET Resets the factory default force margin settings

AUTO CLOSE TIME (then) PLUS (+) Increases the auto close delay time

AUTO CLOSE TIME (then) MINUS (-) Decreases the auto close delay time

AUTO CLOSE TIME (then) SET Resets the factory default auto close delay time

MINUS (-) for 6 secs. Clears the door limits set positions. Limits then

need to be reset

PLUS (+) for 6 secs. Enters pet (pedestrian) position mode

SET (then power on) & hold until all LED’s are off Deletes control parameters excluding transmitter

storage memory

DOOR CODE (then power on) & hold until all LED’s
are off

Deletes all transmitter storage memory

SET & DOOR CODE (the power on) and hold until all
LED’s are off

Deletes all control parameters and transmitter

storage memory.

SET Re-initialises the Opener to re-calculate force

margin

Owner Installation Instructions GDO-9 31

Symptom Possible cause Remedy

Door will not operate Mains power not switched on

Door is obstructed

Door is locked or motor jammed

Door tracks/hardware damaged

Switch on mains power

Remove obstruction

Unlock door or remove jam

Door requires service/repair by
qualifi ed technician

Door starts to close but
automatically reverses to
open position

Adverse weather conditions (wind
or cold) causing door to stiffen and
become tight in the tracks

Possible obstruction in
the doorway

Increase force margin setting.
See Step 16 on page 21

Remove obstruction

Gate operates from drive unit
(operate) button but not from
transmitter.*

*See note

Transmitter code not stored
in memory

Flat battery

Code transmitter into opener’s
memory. Refer Step 17.1 on page
22

Replace battery

Door will not close fully Door limits position need to

be reset

Reset limits positions. Refer Step

14.3 on page 19

Door will not open fully Door limits position need to

be reset

Reset limits positions. Refer Step

14.3 on page 19

Courtesy light not working Faulty light Replace globe or LED module

Auto close not working PE Beam or wiring faulty

PE Beam not aligned correctly

PE Beam is obstructed

Door obstructed when closing

Auto-close time not set

Repair PE Beam or replace wiring

Re-align optics. See PE Beam’s
instructions

Remove obstruction from the path
of PE Beam

Remove obstruction

See Step 20 on page 25

PLEASE NOTE:

Some areas may be prone to excessive radio interference brought on by devices such as cordless telephones,
wireless stereo headphones and baby monitors. It is possible that these devices could cause a degree of
interference such as to greatly reduce the range of the transmitter. In such an instance please contact your
Automatic Technology dealer for an alternative frequency replacement kit. As this is not a warrantable situation
but an environmental issue. Charges may apply for the changeover.

Intermittent operations may occur in areas which experience very strong winds. The strong wind puts
extra pressure on the door and tracks which may in turn trigger the safety obstruction detection system
intermittently.

PHOTO ELECTRIC BEAMS

must be installed if the closing force at the bottom edge of the door exceeds

400N (40 kg) force

Troubleshooting Guide

32

GDO-9 Owner Installation Instructions

Maintenance

Whilst your opener does not require any periodic
maintenance, the door that it is fi tted to, does.
Your garage door is a large, heavy, moving object
and should be tested regularly to ensure it is in
good condition. A poorly maintained door could
cause fatal or serious injuries or serious damage to
property.

To ensure a long and trouble free life for your
opener, the following is recommended:

Monthly

Disengage the opener and manually operate
the door: The door must be smooth to operate
by hand. An operating force on the bottom rail
should not exceed 150N (15kg) force.
Each month, check that the opener reverses
when the door contacts a 40mm high object
placed on the fl oor (AS3350).

NOTE: If the door does not operate smoothly, call
your installer.

•

•

Yearly

Automatic Technology suggests you contact your

installer to perform an annual door service.

CAUTION: Frequently examine door,
particularly cables, springs and mountings for
signs of wear, damage or imbalance. Do not
use if repair or adjustment is needed since
a fault in the installation or an incorrectly
balanced door may cause injury. (AS3350)

Adjustments should only be carried out by
experienced persons, as this function can
be dangerous if not performed under strict
safety procedures.

WARNING! Failure to maintain your garage
door may void the warranty on your garage
door opener.

Maintenance

Date Service by Signature Invoice No. Amount

Service Record

Record any maintenance in the following table to assist in any warranty service.

Owner Installation Instructions GDO-9 33

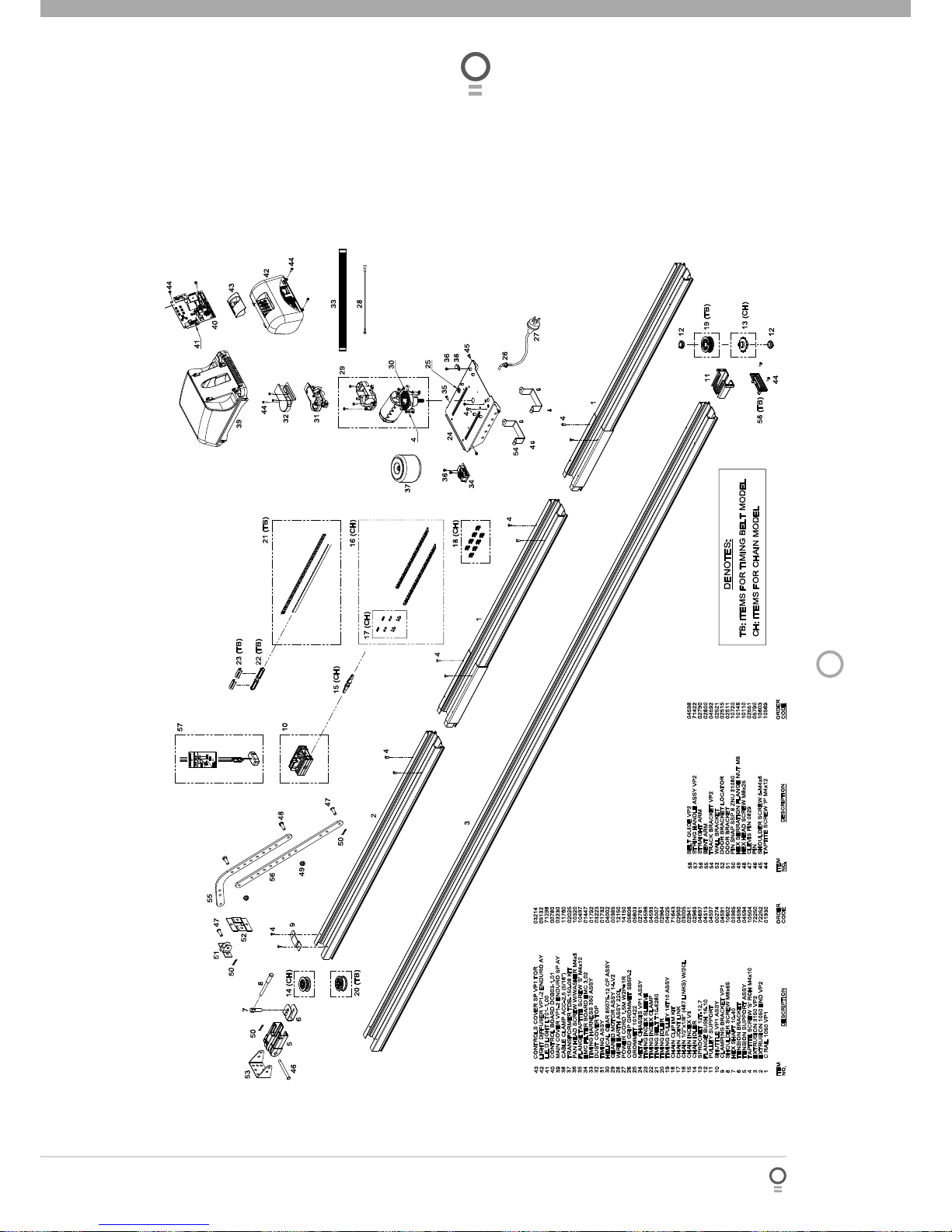

Enduro™ Parts Listing

49

fi g

34

GDO-9 Owner Installation Instructions

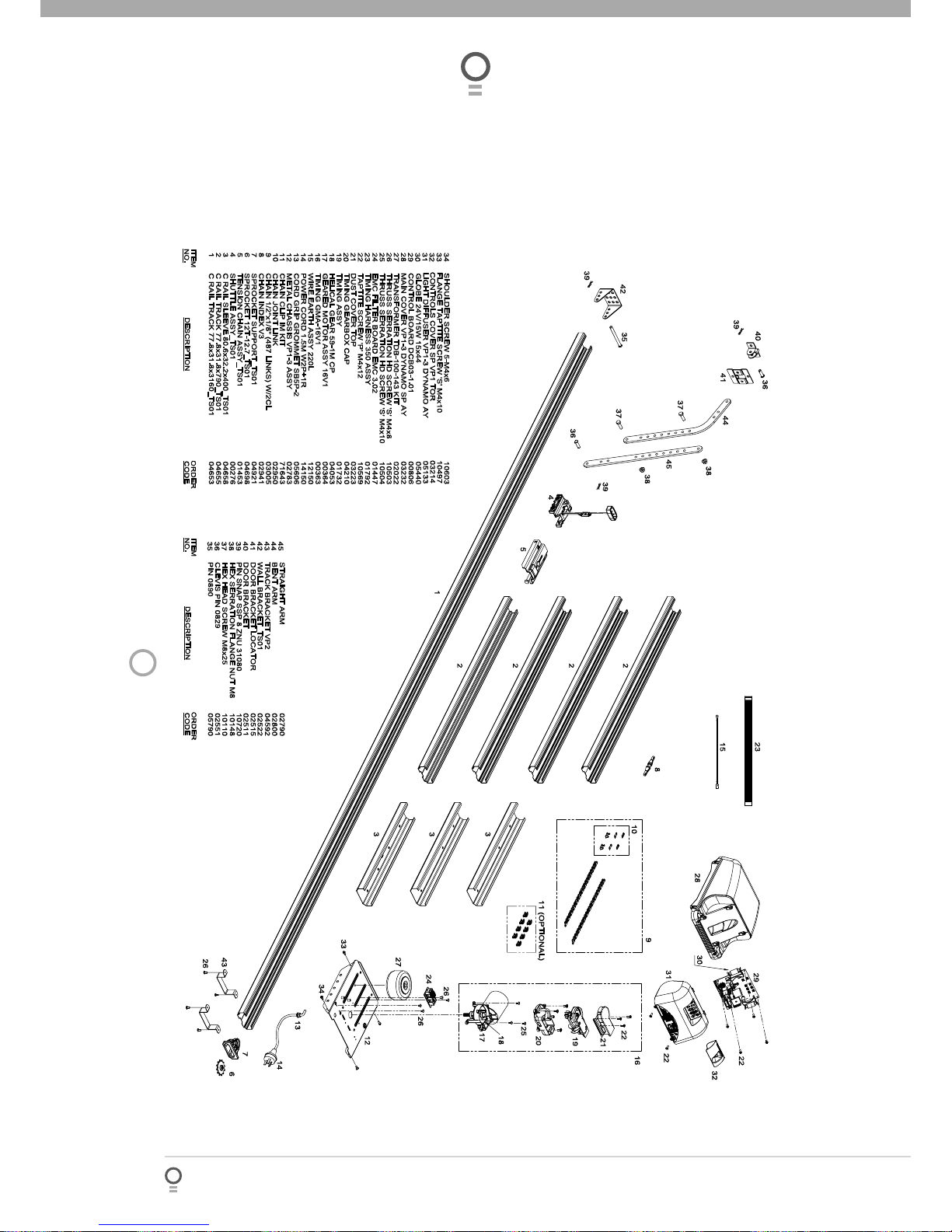

Dynamo™ Parts Listing

50

fi g

Owner Installation Instructions GDO-9 35

1. This Warranty is given by Automatic Technology (Australia)
Pty Ltd (ABN 11 007 125 368) (ATA), 6-8 Fiveways Boulevard,
Keysborough 3173, 1300 133 944, [email protected]

2. The Competition and Consumer Act 2010 (including the
Australian Consumer Law) and other relevant statutes provide a
set of statutory consumer guarantees and other legal rights that
cannot be excluded, restricted or modifi ed by contract. This
Warranty is in addition to and does not affect any of your rights
under the Australian Consumer Law and other relevant statutes.

3. Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation
of any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not
amount to a major failure.

4. Subject to your non-excludable rights under the Australian
Consumer Law, ATA expressly excludes any liability for
consequential loss, incidental or indirect damages (including
but not limited to damages for loss of business profi ts, business
interruption and loss of business information) due to a defect of
the GDO-9 (Product). In particular any loss or damage caused
to other equipment or accessories used with the product or
any loss resulting from a delay in repair is excluded to extent
permitted by law.

5. Subject to all of the matters set out below, ATA warrants in
relation to the Product that:

(a) the Product’s drive units will be free of any defects in material

and workmanship for at least 24 months after the date of
purchase (as evidenced by the sales docket receipt), or 5000
cycles, which ever occurs fi rst; and

(b) the Product’s other components and accessories will be free of

any defects in material and workmanship for at least 12 months
after the date of purchase (as evidenced by the sales docket
receipt).

6. No additional warranty will apply for Products repaired during
the relevant warranty period.

7. For all Products repaired outside the warranty period, a six (6)
month warranty that the Product will be free of any defects in
material and workmanship will apply from the date of dispatch
of the Product to you. ATA may charge you for any repairs
undertaken outside the warranty period, and will provide you
with a quotation in relation to any such costs for your approval
before proceeding with any repairs.

8. This Warranty applies only where you:

(a) immediately notify ATA at the contact details provided

in paragraph 1 above or notify the or the retailer that you
purchased the Product from of the alleged defect;

(b) return the product to the retailer that you purchased the

Product from; and

(c) present the relevant sales docket and this Warranty document

to the retailer to confi rm the date of purchase.

9. Except for this Warranty, ATA gives no warranties of any kind
whatsoever (whether express or implied), in relation to the
product, and, subject to paragraph 1 above, all warranties of
whatsoever kind relating to the product are hereby excluded.

10. This Warranty excludes damage resulting from:

(a) normal wear and tear;
(b) accidental damage;
(c) incorrect installation of the Product;
(d) blown fuses, electrical surges, power surges or power spikes;
(e) theft, fi re, fl ood, rain, water, lightning, storms or any other acts

of God;

(f) any installation, confi guration or use of the Product contrary to

the instructions supplied with the Product;

(g) maximum continuous operating time exceeding 1 minute in 10;

(h) the operating force exceeding 15kg* (150 Newton) when moving

the door manually to the open or closed position;

(i) the door surface area exceeding 18m2 for GDO-9 Enduro™ and

16.5m2 for GDO-9 Dynamo™,

(j) the door used with the Product not being in safe working order and

condition;
(k) repairs which are not authorised by ATA;
(l) any failure to install or maintain the Product in accordance with the

instructions supplied with the Product;
(m) any use which is not in accordance with the instructions provided

with the Product;
(n) deliberate or negligent damage to the Product;
(o) any unauthorised modifi cation to the Product;
(p) faulty or unsuitable wiring in the building in which the Product is

installed;
(q) damage caused by insects;
(r) any cost or expense relating to the recall of the Product;
(s) installation of a residential garage door opener in a commercial

or industrial premises or in a dwelling other than a single-family

dwelling;
(t) radio or electrical interference; or
(u) acts or omissions of any person (including service providers

approved by ATA) other than ATA.

11. ATA’s liability under this Warranty is limited, at ATA’s absolute

option, to replacing or repairing the product which ATA, in its

unfettered opinion, considers to be defective either in material

and/or workmanship or to credit the dealer with the price at which

the product was purchased by the dealer.

12. This Warranty does not extend to cover labour for installation of the

Product following repairs, the cost of which must be borne by you.

13. This Warranty is limited to Return-to-Base (RTB) repair and does

not cover labour for on-site attendance, the cost of which must be

borne by you.

14. Except as specifi ed in this Warranty, ATA will not charge you for any

repairs or replacements conducted under the Warranty. However,

ATA will charge you for any repairs which are not within the scope

of this Warranty (or which are not required to be undertaken free of

charge pursuant to the Australian Consumer Law).

15. This Warranty is void if the Product is not returned to the

manufacturer in original or suitably secure packaging.

16. This Warranty is only applicable for repairs to the product carried

out within Australia.

17. This Warranty does not cover consumable items including, without

limitation, globes, batteries and fuses.

18. This Warranty is not transferable.

19. Where the Product is retailed by any person other than ATA, except

for the warranty set out above, such person has no authority from

ATA to give any warranty or guarantee on ATA’s behalf in addition

to the warranty set out above.

20. Any provision of this Warranty that is prohibited or unenforceable

in any jurisdiction is ineffective as to that jurisdiction to the extent

of the prohibition or unenforceability. That does not invalidate

the remaining provisions of this Warranty nor affect the validity or

enforceability of that provision in any other jurisdiction.

21. Products presented for repair may be replaced by refurbished

goods of the same type rather than being repaired. Refurbished

parts may be used to repair the Product.

NOTES:

1. One (1) cycle = one (1) open and one (1) close action of the door.

2. This Warranty is to be read in conjunction with the owner’s copy of

the installation instruction manual.

3. * The door that the Product is used with should be balanced in such

a way that the user is able to open or close the door manually using

a force not greater than 150 Newton (15 kg), other than to initially

cause the door to start moving, which may require force in excess of

that specifi ed in this paragraph.

Warranty and Exclusion of Liability

GARAGE DOOR OPENERS | GATE OPENERS | REMOTE CONTROL ACCESS SOLUTIONS

© December 2011 Automatic Technology (Australia) Pty Ltd. All rights reserved. TrioCode™, Dynamo™ and Enduro™ are
trade marks of Automatic Technol ogy (Austr alia) Pty Ltd. No par t of this document may b e reproduced without prior p ermission.

In an ongoing commitment to product quality we reserve the right to change specifi cation without notice. E&OE.

Automatic Technololgy (Australia) Pty Ltd

ABN 11 007 125 368

6-8 Fiveways Boulevard
Keysborough, Victoria, 3173, Australia

P 1300 133 944

[phone]

(International Enquiries Only)

E [email protected]

www.ata-aust.com.au
