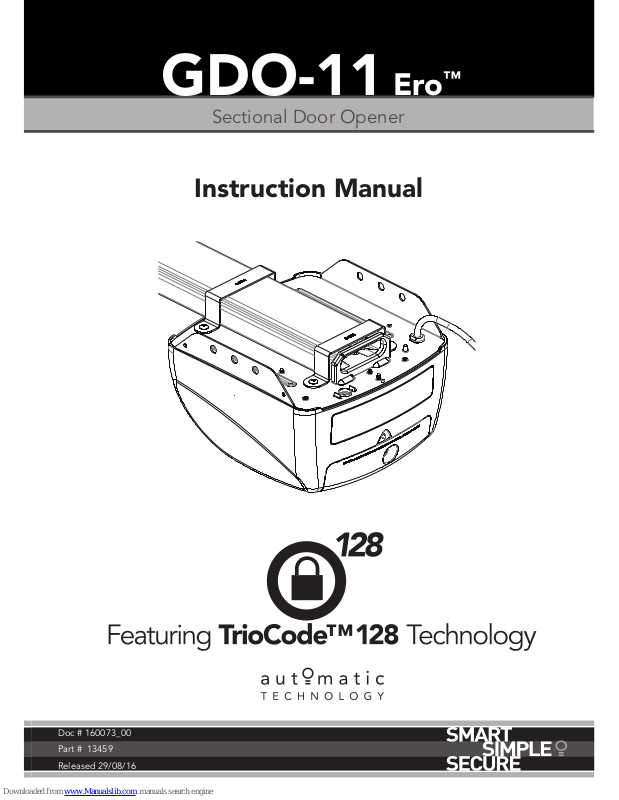

Sectional Door Opener

Instruction Manual

Doc # 160073_00

Part # 13459

Released 29/08/16

GDO-11

Ero

™

GDO-11 Instruction Manual

Table of Contents

1. Installation Safety Warnings! 3

2. Before you Begin 4

Examine the conditions in the garage: 4 Test the following before commencing installation: 4

3. Tools Required 4

4. Kit Contents 5

5. Position 5

6. Fit the Opener 6

7. Bracket Position 6

Wall Bracket Position: 6 Mounting The Wall Bracket: 6 Attach The Rail To The Wall Bracket 6

8. Perforated Angle 7

Attach Perforated Angle or equivalent 7 Alternative Mounting Option 7

9. Mounting Brackets and Arms 8

Mounting The Door Bracket: 8 Attaching the Arms 8

10. Connect to Power 8

11. Setting Limits 9

Setting the Datum: 9 Set the Limit Positions: 9 Resetting the Door Limit Positions 9 Reset all Factory Defaults 9 Setting the PET Mode position 9

12. Safety Testing 10

Test the Close Cycle 10 Testing the Open Cycle 10 Test the Manual Door Operation 10 Adjusting Safety Obstruction Force 10 To Increase Force Pressure 10 To Decrease Force Pressure 10 To Recall Factory Set Force 10 To Recalculate Force Margins 10

13. Control Board & Accessories 11

Control Board Layout 11 Auxiliary Output 11

14. Coding a Transmitter 12

Storing the Transmitter Code 12 Coding a Transmitter to Enable Vacation Mode 12 Coding a Transmitter to enable AUX Output 12 Setting the Transmitter to Operate PET Mode 12 Coding a Transmitter to the Courtesy Light 12 Installation of the Wall Mounted Transmitter 13 Remotely Coding Transmitters 13 Erasing a Stored Transmitter Code 13 Erasing All Transmitter Codes 13

15. Home Owner Safety Warnings! 14

16. Opener Safety & Security 15

Your Door CAN NOT be used when: 15 Your Door CAN be used when: 15 To Disengage the Opener: 15 To Re-Engage the Opener: 15

17. Operating your Opener 15

18. User Operating Controls 16

19. Door Status Indicators 16

20. Specifications 17

21. Troubleshooting 18

22. Maintenance 20

23. Battery Replacement 20

24. Battery Disposal 20

25. Service Schedule 21

26. Warranty 22

27. Optional Accessories 23

Installation Instructions

Home Owner Instructions

GDO-11 Instruction Manual

1. Installation Safety Warnings!

WARNING!

• The door may operate unexpectedly, therefore do not allow anything to stay in the path of the door.

• When operating the manual release while the door is open, the door may fall rapidly due to weak or broken springs, or due to being improperly balanced.

• The drive must not be used with a door incorporating a wicket door, unless the drive cannot be operated with the wicket door open.

• The drive is intended to be installed at least 2.5m above the floor.

• Do not disengage the opener to manual operation with children/persons or any objects including motor vehicles within the doorway.

• If the door is closing and is unable to re-open when obstructed, discontinue use. Do not use a door with faulty obstruction sensing

• When using auto close mode, a Photo Electric beam must be fitted correctly and tested for operation at regular intervals. Extreme caution is recommended when using auto close mode. All safety rules must be followed.

ELECTROCUTION!

• Place opener in protected area so that it does not get wet.

• Do not spray with water .

• Disconnect the power cord from mains power before making any repairs or removing covers. Only experienced service personnel should remove covers from the opener.

• If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualified person.

• Connect the opener to a properly earthed general purpose 240V mains power outlet installed by a qualified electrical contractor.

CAUTION:

Emergency Access • If garage has no pedestrian entrance door, an emergency access device should be

installed. This accessory allows manual operation of the garage door from outside in case of power failure.

Muscular strain • Practice correct lifting techniques (carton weighs approx 9kgs)

• Practice correct lifiting techniques when required to lift the door as per installation instructions.

Fall from ladder • Ensure ladder is the correct type for job.

• Ensure ladder is on flat firm ground that will take the weight without the legs sinking.

• Ensure user has 3 points of contact while on ladder.

Crush injury from unsecured door

• Place a 2 metre exclusion zone around area under the door while it is unsecured.

• Follow the installation instructions

Garage Door • Examine the door installation, in particular, springs and mountings for signs of wear, damage

and imbalance.

• The garage door must be well balanced. Sticking or binding doors must be repaired by a qualified garage door installer prior to installation of the opener.

• Remove or disengage all garage door locks and mechanisms prior to installation of the opener.

Entanglement • Never plug in and operate opener prior to installation.

• Keep hands and loose clothing clear of door and guides at all times.

Entrapment under operating door

• DO NOT operate the opener unless the garage door is in full view and free from objects such as cars and children/people. Make sure that the door has finished moving before entering or leaving the garage

• In order for the opener to sense an object obstructing the door way, some force must be exerted on the object. As a result the object, door and/or person may suffer minor damage or injury.

• Ensure the garage door is in good working order by undertaking regular servicing.

• Install the optional wall transmitter in a location where the garage door is visible, but out of the reach of children at a height of at least 1.5m.

• Photo Electric beams must be installed if the closing force at the bottom edge of the door exceeds 400N (40kg)

This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage.

GDO-11 Instruction Manual

3. Tools Required

2. Before you Begin

Test the following before commencing installation:

a. The door MUST BE in good operating condition. b. Manually move the door up and down, the door should move freely without

binding or sticking. c. The maximum force required to move the door should not exceed 15kg. d. Lift the door to about halfway. When released, the door should stay in place.

DIY

DO NOT DO IT YOURSELF:

If any of the above door requirements are not met, DO NOT attempt to fix yourself. Please contact a garage door professional. (P) 1300 133 944

Examine the conditions in the garage:

a. Look at the ceiling:

i. Is it plastered? The opener is mounted to a perforated angle which MUST be securely fastened to a structural support.

You will need to locate the structural beams in the ceiling which are generally 400mm apart.

ii. does it have exposed beams? The opener is mounted to a perforated angle which must be securely fastened to a

structural support like the exposed beams. You may need to install a 40mm thick board (not supplied) between structural supports.

b. Look at the wall above the garage door.

i. Is it brick? The wall bracket MUST be securely fastened to the wall with suitable screws and ensure it does not move.

Screwdrivers

Adjustable End Wrench

Sockets and Wrench

Pencil

Drill

2 x Screws

(M6 x 20mm)

Stepladder

Perforated Angle Metal pieces (32 x 32 x 1.5mm) x 1200mm length

4 x Screws

(M8 x 20mm)

4 x Bolts and Nuts

(M8)

Drill Bits

Pliers

Hack saw

Tape Measure

Level

ii. Is it timber? The wall bracket MUST be securely fastened to a structural

support. You may need to install a 40mm thick board (not supplied) between structural supports to fasten the wall bracket to.

GDO-11 Instruction Manual

4. Kit Contents

1. 1 x GDO-11 drive unit

2. 2 x Transmitters and batteries

3. 1 x Bent arm door attachment

4. 1 x Straight arm door attachment

5. 1 x Wall bracket TS01

6. 1 x Door bracket Locator

7. 1 x Door bracket

8. 3 x Pin Snap SSP 8 ZNU 31080

9. 2 x Hex Head screw M8x25

10. 1 x Pin 0890

11. 2 x Clevis Pin 0829

12. 2 x Hex Serration flange nut M8

13. 4 x Hex flange screw taptite ‘S’ M4 x 10

14. 1 x Visoclip

PLUS

15. 2 x Track Bracket

16. 1 x Pre-Assembled Single Piece C-Rail

10.00° min

DOORS HIGHEST

POINT

MINIMUM HEAD ROOM FOR STEEL RAIL 57mm

5. Position

Perforated Angle

The Opener:

a. MUST BE installed in a dry position, protected from weather. b. REQUIRES properly earthed 3 pin single phase power on the ceiling within an arms length of the opener. c. Requires a MINIMUM HEADROOM of 57mm between the highest point of the door’s travel and the ceiling. d. Use the diagram below as a reference when completing the installation.

118

GDO-11 Instruction Manual

6. Fit the Opener

Secure C-Rail to Opener:

a. Remove the Opener from the box and place onto towel. b. Locate and insert the shaft of drive unit 1 into the C-Rail’s sprocket. c. Fix the two track brackets 15 with four (4) M4 x 8 screws 14 supplied in accessory pack. d. Place drive unit back in packing box for protection.

Locate shaft into the sprocket

WARNING! DO NOT

use tek screws to affix rail. Only use the screws provided, and fix these into the pre-punched and threaded holes in the chassis.

7. Bracket Position

Wall Bracket Position:

a. Determine the centre of the door and mark this point with a line on the wall

above.

b. Raise the door and find the highest point of travel of the first (top) door panel.

60mm

Level

WARNING! The Opener must be securely fastened to structural supports, otherwise opener failure may ensue causing serious personal injury and / or property damage.

DO NOT DO IT YOURSELF: If sufficient structural support can not be found, contact a door profressional for installation.

DIY

c. Using step ladder and a level, transfer this height to the wall above the door

and mark a line 60mm above it, across the centre line.

Mounting The Wall Bracket:

a. Draw two lines extending 21.5mm from each side of the centre point. b. Centre the wall bracket 6 over the intersection of these two lines. Mark

centres for at least two holes and ensure it is into a solid mounting point. c. Drill holes in the wall with an appropriate bit. d. Secure to the wall using:

i. IF CONCRETE OR BRICK:

8mm (5/6”) loxins/dynabolts.

ii. IF TIMBER:

wood screw #20 or similar (min. 50mm).

Attach The Rail To The Wall Bracket

a. Leave the drive unit in its packing box on the floor for protection and lift the

other end of the C-Rail. b. Attach the C-Rail assembly 16 to the wall bracket 5 with the

90mm long pin 10 and secure with the supplied pin snap 8.

GDO-11 Instruction Manual

8. Perforated Angle

Attach Perforated Angle (not supplied) or equivalent

a. Measure across the ceiling from the centre point 3177mm (+/- 150mm) to find a supporting beam. b. Create a perforated angle which best suits your site. Use a hack saw to cut the L shape metal strips. Secure the perforated

angle to a supporting beam using diagrams shown below.

c. Raise the drive unit to the ceiling mounted perforated angle and secure with M8x20mm screws and nuts (not supplied). Strips

should not extend more than 18mm below centre of drive unit mounting holes.

d. To prevent moisture on the C-rail running into the powerhead it is recommended a strip of silicon sealant is placed across the

top of the C-rail just before the opener.

Ceiling Beams that run towards the door requires:

1 x perforated L shape metal strip and 2 x shorter perforate L shape metal drop down strips..

Ceiling Beams that run parallel to the door requires:

2 x perforated L shape metal strips and 2 x shorter perforate L shape metal drop down strips..

(Not supplied)

Drill hole at centre of track (recommended bolt size M6 or M8)

Ceiling

Aluminium rail

Shuttle VP2 assembly

Alternative Mounting Option

(for One piece door without track (Tilt Door / J-Type))

The opener can be fastened to the roof by driving a bolt through the C-Rail into a structural timber support. The bolt head’s height must not exceed 6mm.

GDO-11 Instruction Manual

9. Mounting Brackets and Arms

Mounting The Door Bracket:

a. The door bracket locator 6 is placed over the door bracket

, on the door’s centre line one-third down the top panel and

mounted using M6 or equivalent screws (not supplied), b. STEEL DOORS ONLY: Bracket can be welded in place.

NOTE: If in doubt about the door’s strength, reinforcement may be added to the door’s frame where necessary. Door damage may occur if the bracket is installed on a panel with insufficient strength. The opener’s warranty does not cover damage caused to the door and/or door panels.

Attaching the Arms

a. Assemble the bent arm 3 (connecting to the door) to the

right side of the straight arm 4 with bolts 9 and nuts 12

supplied in the accessory pack. Connect the straight arm 4 to

10. Connect to Power

Initial Preparation:

a. Swing open the controls cover to gain the access to the controls panel and

swing back into it position when setup is completed. b. Engage the C-Rail’s trolley (attached to the door via the arms) with the

chain index by moving the door. c. If the trolley does not “click” firmly onto the chain index, ensure that

the manual release cord is not in the disengaged position by pulling it

backwards.

NOTE: This cover has a label that says “Do not remove” however, this only applies during normal operation. This cover must be removed to setup the opener. Remove the button cover with a blade screwdriver.

d. Switch power on to the opener. The red CLOSE LIMIT LED will be flashing. e. Press and hold the MINUS (-) button - the door should start closing. If door

starts to close, release button.

NOTE: If the door opens, release the MINUS (-) button and press the OPERATE button once to change the motor’s direction.

the shuttle with a clevis pin 11 and a pin snap 8. Always use both bent and straight arms. b. Connect the assembled arm to the bracket with clevis pin 11 and pin snap 8. The angle “A” must be more than 10°.

GDO-11 Instruction Manual

11. Setting Limits

Set the Limit Positions:

The Limit Positions can vary due to site conditions, such as uneven ground. When setting the Close limits, ensure the position is when the door makes first contact with the ground. Alternatively for the Open limits the position should be at the height of the garage opening.

WARNING! In setting the close limit position, do not force the door into the floor with excessive force, as this can interfere with the ease of operation of the manual release mechanism.

a. Press and hold MINUS (-) button until the door reaches your

desired close limit position. The rubber strip at the bottom of the

door should form a good seal with the ground.

b. Release the MINUS (-) button when the door is near the desired

closed position. Single presses of the MINUS (-) button will inch

the door closer to the ground.

c. If the door overshoots press the PLUS (+) button to move the

door in the open direction.

d. When the door is at the desired close position, press the LIMIT

SET button, the OPEN LIMIT LED will now flash.

e. Press and hold the PLUS (+) button until the door reaches your

desired open limit position. Single presses of the PLUS (+) button

will inch the door open.

f. If the door overshoots press the MINUS (-) button to move the

door in the close direction.

g. When the door is at the desired open position, press the LIMIT

SET button.

WARNING! The door will automatically close, open and close again after the next step. Ensure that nothing is in the door’s path.

h. The door will now automatically close and open to calculate the

safety obstruction settings.

Resetting the Door Limit Positions

Limit positions can be deleted by:

a. Press and hold MINUS (-) button for six (6) seconds until the

CLOSE LIMIT LED flashes quickly.

b. Release the MINUS (-) button.

NOTE: If no action is taken within 30 seconds, the opener will return to normal operating mode and restore the original settings.

c. Follow steps a - f in Set the Limits Poisitions to set new limit

positions.

Reset all Factory Defaults

a. Turn power to the opener off. b. Press and hold the SET Button. c. Turn power on while holding the SET button.

Continue to hold until all LED’s are off.

d. This will not erase transmitter codes stored in

memory.

Setting the PET Mode position

When activated, PET mode drives the door to a preset position from the close position, therefore allowing a pet or parcel to go under the door. a. Drive and stop the door at the deisred PET mode

open position by pressing the transmitter button coded for Open/Stop/Close operation.

b. Press and hold the PLUS (+) button on the opener

for six (6) seconds until the OPEN and CLOSE LED’s are lit to record the new PET position.

c. Release the PLUS (+) button.

Setting the Datum:

a. Press and hold the MINUS (-) or PLUS (+) buttons to move the door to the

halfway position. Ensure that the door, shuttle and chain index are engaged. b. Using a small blade screw driver turn the datum adjust screw slowly until the

yellow status LED just illuminates.

c. d.

NOTE: If the status LED is already illuminated when power is connected then turn the datum adjust screw until the LED goes off then turn back one notch to illuminate again.

AUX

OSC0VEB20VEB1

V+

WARNING! The safety obstruction detection system is inoperable while MINUS (-) and PLUS (+) drive buttons are being used and travels limits are not set.

GDO-11 Instruction Manual

12. Safety Testing

Test the Close Cycle

a. Press the OPERATE button to open the door. b. If the door closes, press the OPERATE button to stop the door,

then press OPERATE again to open.

c. Place a piece of timber approximately 40mm high (or the openers

cardboard box) on the floor directly under the door.

d. Press the OPERATE button to close door. e. The door should strike the object and re-open. f. Remove the timber or cardboard box.

Testing the Open Cycle

a. Press the OPERATE button to close the door. b. Press OPERATE again to open the door. c. When the door reaches approximately half way, firmly grab the

door’s bottom rail - the door should stop. If the door does not reverse readily when closing, or stop when opening, put the door into manual by pulling down on the manual release string to diesengage the motor and contact 1300 133 924 for support.

Test the Manual Door Operation

Periodically disengage the opener and manually operate the door. The door must be smooth to operate by hand. The force required on the bottom rail should not exceed 15 kg.

CAUTION: Take care when completing a safety test. Failure to follow this warning can result in serious personal injury and/or property damage.

WARNING! If the door is closing and is unable to re-open when obstructed, discontinue use. Do not use a door with faulty obstruction sensing.

Wood 40mm high or opener cardboard box

To Recall Factory Set Force

a. Holding down the FORCE MARGIN SET button

and the LIMIT SET button for two seconds.

b. Release both buttons. The default setting should

now be recalled.

To Recalculate Force Margins

a. Press and hold the FORCE MARGIN SET Button for

six (6) seconds, the beeper will sound once.

b. The door will start to move and re-calculate force

margins. The door can move between the open and close limit positions up to four (4) times (depending on the position of the door and the power up condition).

c. A single beep will be heard once the process is

complete.

d. Test the force again as per Testing Close Cycle and

Testing Open Cycle.

Adjusting Safety Obstruction Force

The Safety Obstruction Force is calculated automatically during setup. Adjusting this is normally only necessitated by environmental conditions such as windy or dusty areas, and areas with extreme temperature changes.

To Increase Force Pressure

a. Hold down the FORCE MARGIN SET button. b. While holding the FORCE MARGIN SET button, press the PLUS

(+) button. Each press will increases the force margin. c. The OPEN LIMIT LED will flash each time the PLUS (+) button is

pressed to indicate an increase in force. d. If the OPEN LIMIT LED flashes continuously when the PLUS (+)

button is being pressed, this indicates that the maximum force

setting has been reached. e. Test the force again as per Testing Close Cycle and Testing Open

Cycle.

To Decrease Force Pressure

a. Hold down the FORCE MARGIN SET button. b. While holding the FORCE MARGIN SET button, press the MINUS

(-) button. Each press will decrease the force margin. c. The CLOSE LIMIT LED will flash each time the MINUS (-) button is

pressed to indicate a decrease in force. d. If the CLOSE LIMIT LED flashes continuously when the MINUS

(-) button is being pressed, this indicates that the minimum force

setting has been reached. e. Test the force again as per Testing Close Cycle and Testing Open

Cycle.

WARNING! If the door fails these tests, put the opener into manual mode, only operate the door by hand and call for service.

GDO-11 Instruction Manual

13. Control Board & Accessories

Control Board Layout

To access the control board: a. Remove the back cover by unscrewing the two (2) screws. b. Refer to below diagram.

Terminal Block

Network

Programmer

Solar Shunt

Solar / Battery Backup

Auxiliary Output

The auxiliary output can be used to control alarm or another garage door opener. A valid transmission from the pre-coded transmitter will cause the auxiliary output to pulse for approximately 1 (one) second. The maximum DC voltage must not exceed 35 volts DC. Maximum current must not exceed 80 ma.

External device, Alarm, Door or Gate opener.

GDO-11 Instruction Manual

14. Coding a Transmitter

Storing the Transmitter Code

The opener can only operated from remote control transmitters that have been programmed into its memory. Up to 64 codes can be stored in the memory. a. Press and hold the DOOR CODE button. b. Press Button 1 on the transmitter for two seconds. Release and pause for

two seconds. Press the Button 1 again for two seconds. c. Release the DOOR CODE button. The transmitter button is now coded,

press to test.

Coding a Transmitter Button to Enable Vacation Mode

The opener can be programmed into a “Vacation Mode” where the opener will not respond to any transmitter except the button of the transmitter that was programmed for vacation mode. d. Briefly press the DOOR CODE button once, then press it again and hold

(will beep two times on second press). e. Press one of the four (4) buttons on the transmitter for two (2) seconds,

pause for two (2) seconds, then press the same button again for two (2)

seconds. f. Release DOOR CODE button. g. Press and hold the transmitter button for six (6) seconds to set Vacation

Mode. The door code LED will stay lit while Vacation Mode is active. h. To reset Vacation Mode, press the same button for two seconds.

Coding a Transmitter to enable AUX Output

Briefly press the DOOR CODE button two (2) times, then press it again and hold (the opener will beep three (3) times on the third press). a. Press one of the four buttons on the transmitter for two (2) seconds,

pause for two (2) seconds, then press the same button again for two (2)

seconds. b. Release the DOOR CODE button. c. Press the transmitter button to test.

Setting the Transmitter to Operate PET (Pedestrian) Mode

The PET mode position (see Setting the Limits) must set prior to coding a transmitter. a. Briefly press the DOOR CODE button three (3) times, then press it again

and hold (the opener will beep four times on the fourth press). b. Choose a transmitter button not already coded into the receiver. Press

and hold this button for two (2) seconds, pause for two (2) seconds, then

press the same button again for two (2) seconds and release. c. Release the DOOR CODE button. d. Press the transmitter button to test.

Coding a Transmitter to the Courtesy Light

The transmitter can be programmed to operate the courtesy light on the opener independently of the door moving. a. Press and hold the LIGHT CODE button. b. Press one of the four buttons on the transmitter for two (2) seconds, pause

for two (2) seconds, then press the same button again for two (2) seconds. c. Release the LIGHT CODE button. d. Press the transmitter button to test.

Button 1

IMPORTANT NOTE: Only TrioCodeTM128 Technology Transmitters are compatible with this GDO-11 product.

GDO-11 Instruction Manual

Installation of the Wall Mounted Transmitter (optional)

a. Press and hold the DOOR CODE button. b. Press Button 1 on the transmitter for two seconds. Release and pause

for two seconds. Press the Button 1 again for two seconds.

c. Release the DOOR CODE button. The transmitter button is now coded,

press to test.

d. Mount the transmitter in a convenient location, yet out of reach of

children and at least 1.5m off the ground.

e. Make sure the door is visible from this location.

Remotely Coding Transmitters

Using this method transmitters can be coded without access to the opener’s control panel as long as a pre-coded transmitter is available.

a. Take any pre-coded transmitter. Press the button for the function to be

duplicated and release.

b. Using a small needle / pen, press and hold firmly for two seconds the

middle button, through the Coding Hole.

c. Within ten (10) seconds take the additional transmitter you wish to

code. Hold the new transmitter’s button for two seconds, pause for two

seconds, hold again for two seconds and then release.

d. Wait for ten (10) seconds and then press the new transmitter’s button

to test.

Erasing a Stored Transmitter Code

a. Select the transmitter you want to delete. b. Press and hold the DOOR CODE BUTTON. c. Press the transmitter button you would like to delete for two seconds,

pause for two seconds, press again for two seconds and then release.

d. Release the DOOR CODE BUTTON. The code should now be deleted.

Confirm this by pressing the transmitter button - the function (e.g. door

opening) should not respond.

Erasing All Transmitter Codes

a. Turn off power to the opener. b. While switched off, press and hold the DOOR CODE BUTTON. Turn on

power to the opener while holding this button.

c. The OPEN LIMIT, CLOSE LIMIT and DOOR STATUS LEDs will illuminate

for about five seconds. These LED’s will turn off and the CODING LED

will illuminate.

d. Release the DOOR CODE BUTTON. All stored codes will now be

deleted. Confirm this pressing buttons on any previously coded

transmitters - the opener should not respond.

14. Coding a Transmitter

GDO-11 Instruction Manual

Please read these important safety warnings!

WARNING!

• When operating the manual release while the door is open, the door may fall rapidly due to weak or broken springs, or due to being improperly balanced.

• DO NOT disengage the opener to manual operation with children/persons or any objects

including motor vehicles within the doorway.

• If the door is closing and does not re-open when obstructed, discontinue use. DO NOT use a door with faulty obstruction sensing.

ELECTROCUTION!

• Place opener in protected area so that it does not get wet.

• DO NOT spray with water .

• DO NOT open the protective covers.

• DO NOT operate opener if cable is damaged.

DO NOT DO IT YOURSELF

• Keep the garage door balanced. Sticking or binding doors must be repaired. Garage doors, door springs, brackets and their hardware are under extreme tension and can cause serious personal injury. DO NOT attempt any garage door adjustment. DO NOT use if repair or adjustment is needed. Call for a professional garage door service.

CAUTION:

Emergency access • If your garage has no pedestrian entrance door, an emergency access device should be

installed. This accessory allows manual operation of the garage door from outside in case of power failure.

Entrapment under operating door

• Watch the moving door and keep people away until the door is completely opened or closed.

DO NOT operate door when persons are near the door.

• DO NOT allow children to play with door controls or transmitters.

• Regularly conduct Open and Close cycle testing.

• Ensure the garage door is in good working order by undertaking regular servicing.

• Wall transmitters should be installed in a location where the garage door is visible, but out of the reach of children at a height of at least 1.5m.

• Install Safety Beams (recommended).

Fall from Ladder • Ensure ladder is the correct type for the job.

• Ensure ladder is on flat ground.

• Ensure user has 3 points of contact while on ladder.

Entanglement in or laceration from moving door

• Keep hands and loose clothing clear of door and guides at all times.

• Keep hands clear of moving door as sharp edges can cause cuts or lacerations.

DIY

15. Home Owner Safety Warnings!

GDO-11 Instruction Manual

16. Opener Safety & Security

Your Door CAN NOT be used by the opener when:

a. There is a locking device installed. b. There is a power failure.

Your Door CAN be used when:

a. There is an emergency, by disengaging the opener. b. There is a power failure, by disengaging the opener.

To Disengage the Opener:

a. It is recommended to do so with the door in the closed position. b. Pull the manual release cord towards the door, until you hear a click. c. Move the door manually.

To Re-Engage the Opener:

a. Check the door has not been locked by a locking device. b. Pull the manual release cord away from the door, until you hear a click. c. The door will now operate from the opener.

CAUTION: When the opener is manually disengaged, the door is no longer locked. To lock the door manually, re-engage the opener after the door is closed.

17. Operating your Opener

To Operate the opener:

a. Press the programmed transmitter button until your

door begins to move (usually 2 seconds). Make sure you can see the door when you use the transmitter.

b. If you are in a vehicle you should aim the transmitter

through your windscreen as shown.

c. Check that the door is fully open or closed before you

drive in or away.

d. If you press the transmitter whilst the door is moving

the door will stop. The next press of the transmitter will move the door in the opposite direction.

WARNING! When operating the manual release (while the door is open) the door may fall rapidly due to weak or broken springs, or due to being improperly balanced.

Do not disengage the opener to manual operation with children/persons or any objects including motor vehicles within the doorway.

CAUTION: Do not use the string handle as a mechanism to open the door. Failure to comply may cause serious injury.

GDO-11 Instruction Manual

19. Door Status Indicators

18. User Operating Controls

Button Function

1. OPERATE Opens/stops/closes the door

2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed

3. DOOR CODE (Blue) Is used for storing or erasing transmitter buttons for door operation

4. DOOR STATUS LED (Yellow) Illuminates when Service is due.

5. OPEN LED (Green) Illuminates and flashes as the door opens and remains on when the open limit position has been reached.

6. CLOSE LED (Red) Illuminates and flashes as the door opens closes, and remains on when the close limit position has been reached.

7. SET (Orange) Is used during installation. The SET button is also used to program the PET (Pedestrian) position and to re-initialise the opener.

Door Status Indicators OPEN LED (green) CLOSE LED (red) Beeper

Open On

Close On

Opening Flashing

Closing Flashing

Door travel stopped Flashing Flashing

Door obstructed when opening Flashing Beeps while door is

moving

Door obstructed when closing Flashing Beeps while door is

moving

Opener overloaded Alternating flashes Alternating flashes

Mains power interrupted Rapid flashes

GDO-11 Instruction Manual

20. Specifications

Technical Specifications GDO-11V3 Ero

™

Power supply 230V - 240Va.c. 50Hz

Maximum door opening: Door Height (standard rail): Maximum Door Weight: Door Area:

Door myst be well balanced and able to be operated by hand, as per warranty conditions and AS/NZS 4505:2012

2440mm

100kg

16.5m

Minimum headroom 25mm

Short Term Peak force 650N

Rated force 400N (40kg)

Nominal force 150N (15kg)

Receiver type Multi-frequency UHF FM

(433.47, 433.92 & 434.37MHz)

Receiver code storage capacity 8 X TriocodeTM128

4-button Transmitters

Coding System TrioCodeTM 128 Type

Coding type Non-linear encryption algorithm

Number of code combinations Over 100 billion random codes

Transmitter battery CR2032 (3 Volts)

Courtesy light Festoon style lamp 24volts 15 watts

Network connectivity Network compatible,

(requires optional Smart Phone Control Kit)

Note: Intermittent operations may occur in areas which experience very strong winds. The strong wind puts extra pressure on the door and tracks which may in turn intermittently trigger the safety obstruction detection system.

GDO-11 Instruction Manual

21. Troubleshooting

Symptom Possible cause Remedy

The opener does not work from the transmitter

Garage door in poor condition e.g. springs may be broken

The opener does not have power

The battery in the transmitter is flat

Transmitter does not contain TrioCodeTM 128 Technology

The opener has been put into “Vacation Mode”

The transmitter button is not programmed to operate the door.

Door Code LED is flashing yet the opener is not working.

Check the door’s operation

Plug a device of similar voltage (e.g. a hairdryer) into the power point and check that it is OK

Replace the battery

Check that the transmitter has grey buttons and the model number on the back displays V2. Contact dealer for support if otherwise.

Turn off “Vacation Mode” (Section 14)

Code in the transmitter

Ensure the correct button on the transmitter is being pressed.

One transmitter works but the other/s do not

Faulty transmitter

Flat battery

Replace transmitter

Replace battery

The chain moves but the door remains stationary

The opener is disengaged Re-engage the opener

Motor is running but chain is not moving

Damage motor assembly Contact your dealer for support.

The transmitter range varies or is restricted

Variations are normal depending on conditions e.g. temperature or external interference

The battery life is exhausted

Position of the transmitter in the motor vehicle

Make sure you can see the door when you use the transmitter.

Check the battery status by pressing a button (flashing or no light requires battery to be changed)

Aim the transmitter through the windscreen.

The Courtesy light does not work

LED has failed Change LED.

The door reverses for no apparent reason

This may occur occasionally from environmental conditions such as areas that are windy, dusty or have extreme temperature changes.

If Safety beams are installed they may be partially obstructed.

Ensure the door runs smoothly before increasing the force pressure.

Ensure the beam path is not obstructed. Check the Alignment.

Auto Close not working Safety Beam or wiring faulty Repair Safety Beam or replace wiring.

Re-align optics. See Safety Beam instructions.

The door stops or moves very slowly under battery (Optional Battery Back Up Accessory)

The batteries may have little OR no charge

Connect mains power and leave the batteries to charge. The batteries may take 24 to 48 hours to reach their maximum charge capacity.

GDO-11 Instruction Manual

21. Troubleshooting

If You Need a Service Call

If the opener needs a service please call the dealer who installed the garage door opener (their contact details are usually on a sticker on the back of your garage door). For product assistance contact 1300 133 944 within Australia.

BEFORE CALLING you should have the following information to assist in providing the appropriate service:

1. Has anything happened since the opener last operated OK, e.g. a storm, a jolt to the door etc.?

2. What is the current light status on the opener?

3. Manually disengage the door (Section 16). How easy is it to manually open and close the door?

4. What model is the opener? (Model no. information is located at the rear of the opener)

5. Who installed the opener? (Dealer details should be on a sticker on the back of your garage door)

6. When was it installed? (If known)

Date Time Number of Beeps

Symptom Possible cause Remedy

The SERVICE LED has started to flash and is beeping numerous times

A Fault has been detected. The fault will be active each time an attempt is made to operate the door.

Record opener function (How many beeps?) then press the SET button once to reset the opener. If the fault continues to be tripped contact 1300 133 944 for support.

The Open (Green) LED and Close (Red) LED are flashing alternatively

Opener is overloaded Check the doors operation by disengaging the motor

and ensuring the door runs smoothly. If necessary make door adjustments or contact your door professional.

The Open (Green) LED continues to flash

Door obstructed when opening Clear away any obstructions and test door opens

correctly. (If door is damaged, contact your door professionl).

The Close (Red) LED continues to flash

Door obstructed when closing

Limits may be cleared

Clear away any obstructions and test door closes correctly. (If door is damaged, contact your door professional).

Remove all power sources (including the battery backup). Wait till all lights are out (10-15 secs), then reconnect power. If Red LED is flashing, limits are not set. Reset Limits.

GDO-11 Instruction Manual

22. Maintenance

Door Maintenance

A poorly maintained door could cause fatal / serious injuries or damage to property.

• Frequently examine the door, particularly the cables, springs and mountings for signs of wear, damage or imbalance. DO NOT USE if repair or adjustment is needed since a fault in the installation or an incorrectly balanced door may cause injury.

• Fasterners: Check all screws, nuts and bolts to ensure they are secure.

• Spring Tension: It is natural for springs to lose tension. Should the door become hard to operate or completely inoperative, contact a door professional.

• Guide Tracks: Clean the internal sections of the guide tracks every 3 - 6 months with a cloth dampened with mineral turps or methylated spirits.

DO NOT DO IT YOURSELF:

WARNING! Failure to maintain your garage door may void the warranty on your garage door opener.

DIY

Door adjustments should only be carried out by experienced persons, as this function can be dangerous if not performed under strict safety procedures.

When batteries reach the end of their usual life in accordance with Australian Battery Recycling Initiative please follow the next simple steps for protecting the environment. Refer to the Automatic Technology website for information on where to recycle batteries in Australia.

DO NOT throw the batteries in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in the municipal waste. Check your local regulations for appropriate disposal of the batteries.

Recycling all batteries will have other environmental and social benefits:

WARNING! Prior to disposal, recycling, or collection, all battery terminals must be securely insulated with a non conductive material to prevent any two batteries from short circuiting and generating heat during storage or transport. Battery terminals may be insulated with electrical tape; or batteries may be individually packaged in a non conductive material (e.g., plastic bag or original packaging).

24. Battery Disposal

Battery Type: 3V Lithium Battery CR2032.

• To test the battery is working, press and

hold a transmitter button. Check Light Status table to determine if battery needs replacing

Light Status Battery Status

Solid OK

Flashing Requires replacement

No light Requires replacement

23. Battery Replacement

Use a pen to push the battery down through the side opening to release battery

Run the Safety Testing procedures MONTHLY in Section 13 to ensure garage door is fit for use.

tip

• Use finger nails to separate

the transmitter casing to expose circuit board.

• Use a non-metallic object

(e.g. pen) to remove the battery.

• Some batteries are less toxic but hazardous for other

reasons. Lithium batteries can explode or catch fire in landfill, while button cells are dangerous if swallowed by children. Recycling offers a safe and environmentally responsible solution for end of life batteries.

• Battery recycling recovers non-renewable materials such

as lead, cadmium, stella, zinc, manganese, cobalt, silver, plastics and rare earth elements.

• Removal of batteries and other hazardous household products from household waste facilitates the recovery of organic materials through alternative waste technologies such as composting. Batteries and heavy metals are known contaminants in compost.

• The community supports recycling because it reduces waste to landfill and achieves environmental benefits.

GDO-11 Instruction Manual

25. Service Schedule

Year /

Approx. Cycles

Date Details

1 / 3,000

2 / 6,000

3 / 9,000

4 / 12,000

5 / 15,000

GDO-11 Instruction Manual

26. Warranty

Product: GDO-11V3 Ero

Purchased from:______________________________Purchaser:___________________________________ (described as “you” below)

Address:_____________________________________Installed by:__________________________________

Installed on (date):____________________________Invoice No:__________________________________

This Warranty is given by Automatic Technology (Australia) Pty Ltd (ABN 11 007 125

368) (ATA), 6-8 Fiveways Boulevard, Keysborough 3173, 1300 133 944, sales@ automatictechnology.com.au

2. The Competition and Consumer Act 2010 (including the Australian Consumer Law) and other relevant statutes provide a set of statutory consumer guarantees and other legal rights that cannot be excluded, restricted or modified by contract. This Warranty is in addition to and does not affect any of your rights under the Australian Consumer Law and other relevant statutes.

3. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation of any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

4. Subject to your non-excludable rights under the Australian Consumer Law, ATA expressly excludes any liability for consequential loss, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) due to a defect of the

GDO-11 Ero™ (Product). In particular any loss or damage caused to other

equipment or accessories used with the product or any loss resulting from a delay in repair is excluded to extent permitted by law.

5. Subject to all of the matters set out below, ATA warrants in relation to the Product that:

(a) the Product’s drive units will be free of any defects in material and workmanship

for at least 5 years after the date of purchase (as evidenced by the sales docket receipt), or 10000 cycles, which ever occurs first; and

(b) the Product’s other components and accessories will be free of any defects in

material and workmanship for at least 12 months after the date of purchase (as evidenced by the sales docket receipt).

6. No additional warranty will apply for Products repaired during the relevant warranty period.

7. For all Products repaired outside the warranty period, a six (6) month warranty that the Product will be free of any defects in material and workmanship will apply from the date of dispatch of the Product to you. ATA may charge you for any repairs undertaken outside the warranty period, and will provide you with a quotation in relation to any such costs for your approval before proceeding with any repairs.

8. This Warranty applies only where you:

(a) immediately notify ATA at the contact details provided in paragraph 1 above

or notify the or the retailer that you purchased the Product from of the alleged defect;

(b) return the product to the retailer that you purchased the Product from; and (c) present the relevant sales docket and this Warranty document to the retailer to

confirm the date of purchase.

9. Except for this Warranty, ATA gives no warranties of any kind whatsoever (whether express or implied), in relation to the product, and, subject to paragraph 1 above, all warranties of whatsoever kind relating to the product are hereby excluded.

10. This Warranty excludes damage resulting from:

(a) normal wear and tear; (b) accidental damage; (c) incorrect installation of the Product; (d) blown fuses, electrical surges, power surges or power spikes; (e) theft, fire, flood, rain, water, lightning, storms or any other acts of God; (f) any installation, configuration or use of the Product contrary to the instructions

supplied with the Product;

(g) maximum continuous operating time exceeding 1 minute in 10; (h) the operating force exceeding 15kg* (150 Newton) when moving the door

manually to the open or closed position;

(i) the door surface area exceeding 16.5m2 for GDO-11 Ero

™

;

(j) the door used with the Product not being in safe working order and condition; (k) repairs which are not authorised by ATA; (l) any failure to install or maintain the Product in accordance with the instructions

supplied with the Product; (m) any use which is not in accordance with the instructions provided with the Product; (n) deliberate or negligent damage to the Product; (o) any unauthorised modification to the Product; (p) faulty or unsuitable wiring in the building in which the Product is installed; (q) damage caused by insects; (r) any cost or expense relating to the recall of the Product; (s) installation of a residential garage door opener in a commercial or industrial premises

or in a dwelling other than a single-family dwelling; (t) radio or electrical interference; or (u) acts or omissions of any person (including service providers approved by ATA) other

than ATA.

11. ATA’s liability under this Warranty is limited, at ATA’s absolute option, to replacing or

repairing the product which ATA, in its unfettered opinion, considers to be defective

either in material and/or workmanship or to credit the dealer with the price at which

the product was purchased by the dealer.

12. This Warranty does not extend to cover labour for installation of the Product following

repairs, the cost of which must be borne by you.

13. This Warranty is limited to Return-to-Base (RTB) repair and does not cover labour for

on-site attendance, the cost of which must be borne by you.

14. Except as specified in this Warranty, ATA will not charge you for any repairs or

replacements conducted under the Warranty. However, ATA will charge you for any

repairs which are not within the scope of this Warranty (or which are not required to

be undertaken free of charge pursuant to the Australian Consumer Law).

15. This Warranty is void if the Product is not returned to the manufacturer in original or

suitably secure packaging.

16. This Warranty is only applicable for repairs to the product carried out within Australia.

17. This Warranty does not cover consumable items including, without limitation, globes,

batteries and fuses.

18. This Warranty is not transferable.

19. Where the Product is retailed by any person other than ATA, except for the warranty

set out above, such person has no authority from ATA to give any warranty or

guarantee on ATA’s behalf in addition to the warranty set out above.

20. Any provision of this Warranty that is prohibited or unenforceable in any jurisdiction

is ineffective as to that jurisdiction to the extent of the prohibition or unenforceability.

That does not invalidate the remaining provisions of this Warranty nor affect the

validity or enforceability of that provision in any other jurisdiction.

21. Products presented for repair may be replaced by refurbished goods of the same

type rather than being repaired. Refurbished parts may be used to repair the

Product.

NOTES:

1. One (1) cycle = one (1) open and one (1) close action of the door.

2. This Warranty is to be read in conjunction with the owner’s copy of the installation

instruction manual.

3. * The door that the Product is used with should be balanced in such a way that the

user is able to open or close the door manually using a force not greater than 150

Newton (15 kg), other than to initially cause the door to start moving, which may

require force in excess of that specified in this paragraph.

GDO-11 Instruction Manual

27. Optional Accessories

There are a range of additional accessories for your added convenience and security. Contact your Dealer for installation of these accessory items.

• Safety Beams - Provides additional protection if the door is closing onto your property or person. Simply breaking the beam “stops” the door!

• Keyring Transmitter - Ideal for personal use when entry into the house may be via the garage.

• Wall Button Transmitter - Allows you to operate the opener within 10 metres of the door. Ideal for mounting inside the house.

• Wireless Keypad - The entry keypad allows entry to the garage without using a transmitter.

• Battery Back-up - The opener has a provision for a Battery Back Up kit that allows continued operation of the door in the absence of mains power.

IMPORTANT NOTE:

Only TrioCode

128

Technology Transmitters

and Keypads are compatible

with this GDO-11 product.

Is your opener

beeping or flashing?

It may be time for a service

(for more details see section 22)

For a service, contact your dealer using the details below...

Dealer:

Automatic Technology GDO-11 Ero Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
