Automatic Cobra Installation Manual

Page 1

Cobra

®

Overhead Garage Door Opener

Installation Manual

Page 2

Page 3

WARNING – IT IS VITAL FOR THE SAFETY
OF PERSONS TO FOLLOW ALL
INSTRUCTIONS. SAVE THESE
INSTRUCTIONS!

Watch the moving door and keep people away
until it is completely opened or closed. Do not
allow children to play with door controls. Keep
remote controls away from children.

Use caution when operating manual release if the
door is open, since it may fall rapidly if out of
balance or if springs are weak or broken.
Property damage or serious personal injury could
result.

Disconnect electric power to the garage door
opener before making repairs or removing
covers.

This product is provided with a power supply cord of
special design. If damaged, it must be replaced by a
cord of the same type obtained from your Automatic
Technology distributor, and must be specially fitted.

IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION AND USE

These safety alert symbols mean WARNING – a personal safety or property damage instruction. This
garage door opener is designed and tested to offer reasonable safe service provided it is installed,
operated, maintained and tested in strict accordance with the instructions contained in this manual.

WARNING – INCORRECT INSTALLATION
CAN LEAD TO SEVERE INJURY. FOLLOW
ALL INSTALLATION INSTRUCTIONS.

Door must not extend over public footpaths or
roads during operation.

Install only on a properly balanced garage door in
good operating condition. Sticking or binding doors

must be repaired. Garage doors and components
attached to them are under extreme tension. Do not
attempt to repair or adjust them. Get professional
garage door service

This unit must be installed in a dry position that
is protected from the weather.

After installation and adjustment, ensure that your
garage door reverses on contact with a 40mm high
object placed on the floor. Repeat monthly and

adjust as necessary.

WARNING!

Please read the following information carefully.

Failure to comply with these instructions could result in:

• Death

• Serious Injury

• Damage to property

• Voiding of opener warranty

A B

C

The Cobra® Overhead Garage Door Opener is suitable for the following types of doors:

A - One piece door with horizontal track

B - Sectional door with curved track

C - One piece door without track / J-Style tilt door

Page 4

Thank you!

Welcome to the installation and instruction manual for your new
Automatic Technology Cobra overhead garage door opener.

Created and designed by the latest technological advances, and using the best
possible components in the most stringent manufacturing processes athis opener
will provide many years of reliable, faithful and safe service to you and your family.

TABLE OF CONTENTS

PRODUCT FEATURES............................................................................................. 5

OPERATING CONTROLS........................................................................................ 6 - 8

INSTALLATION....................................................................................................... 9 - 16

DOOR TRAVEL LIMITS............................................................................................ 17

SAFETY FORCE MARGIN....................................................................................... 18

CODING/DELETING TRANSMITTERS.................................................................... 19 - 21

FIITING PE BEAMS..................................................................................................21

PROGRAMMING OPERATING MODES & COURTESY LIGHT.............................. 22 - 24

FACTORY DEfAULT SETTINGS & SPECIFICATIONS............................................. 25

WARRANTY............................................................................................................. 27

Page 5

PRODUCT FEATURES

OPERATION
To open or close the door simply press the hand held transmitter, the wall mounted transmitter, or optional wall
switch. During an open or close cycle the door can be stopped by pressing the button while the door is in motion.
The next actuation will move the door in the opposite direction.

SecruaCode® HOPPING CODE TECHNOLOGY

Every time a SecuraCode® transmitter is used, it generates a new access code from 4.29 billion possibilities. This ran­dom process makes it is near impossile for unwanted operation of your Cobra® Overhead Garage Door Opener.

AUTO CALCULATE THE LIMITS AND SAFETY FORCE
During installation, after setting the open and close positions with your SecuraCode® transmitter, the Cobra® Over-
head Garage Door Opener automatcially measures the force required to move your door. These travel limits and the
safety force will be stored in the memory. Also, the current door position will be remembered during a power failure
or if the door is moved manually.

SAFETY OBSTRUCTION SYSTEM

Should the door contact an obstacle or be restricted in any manner while closing it will automatically reverse. This
level of safety force is automatically calculated when the Cobra® Overhead Garage Door Opener is initially installed.
The door will also stop if restricted whilst opening. The Safety Obstruction Force should be checked at least once a
month.

AUTO COURTESY LIGHT

A SecuraCode® transmitter button can be programmed to independantly operate the courtesy light. The courtesy
light also turns on with any door operation, shutting off after an adjustable specifi ed time.

VACATION MODE

A SecuraCode® transmitter can be programmed to lock and unlock all other transmitters programmed into the
openers’ memory. This will prevent any transmitter other than the programmed one from opening the door, stop­ping unauthorised access while you are away.

PET (PEDESTRIAN) MODE

A SecuraCode® transmitter button can be programmed to partially open the door for a pet to enter or exit the
garage at any time. The door opening position is also programmable so that the door can be opened to a suitable
height for pedestrian access.

AUTO-CLOSE

The Cobra® Overhead Garage Door Opener can be programmed to automatically close after the door is fully
opened. The auto close time is adjustable. The Photo Electric Beam must be installed to prevent the door closing
when an obstruction may still be present, thus causing personal injury or damage to property.

PHOTO ELECTRIC BEAM

The Cobra® Overhead Garage Door Opener has an input for a Photo Electric Beam to be connected for extra safety
protection as well as ustilisation of the auto-close mode.

ALARM / STATUS OUTPUT
An external alarm may be toggled on/off by pressing the SecuraCode® transmitter button. If the alarm function is
not used the alarm output can function as a Door Status output.

MANUAL OPERATION
If the power to the Cobra® Overhead Garage Door Opener is disrupted for any reason, the door can be disengaged
by pulling down on the string handle on an angle towards the door. This will allow you to manually open or close the
door. To re-engage the opener pulls the string handle away from the door.

STANDBY (Power Save) MODE
If the Cobra® Overhead Garage Door Opener is left for fi ve minutes without any button presses, the unit will enter
standby mode. The decimal point indicator on the display will turn on. The unit will continue usual operation. When
the next button press occurs the display will again turn on.

Page 6

OPERATING CONTROLS

/($51 ,167$//

.

ALM

LT

LC

K

24V

OSC

COM

COM

PE

P1

P2

12

3

4

5

6

7

1. ENGAGE DISENGAGEMENT HANDLE, EASY ACCESS TRANSMITTER

The “manual release” engage/disengagement handle has a wireless transmitter within its housing. If the button is
pressed it will open, stop or close the garage door.

2 ENGAGE/DISENGAGEMENT CORD
When pulled down towards the door this will disengage the door to the manual mode, particularly when there is a
power failure. Pulling down away from the door and releasing will engage the door to the auto mode. The length
of the cord is adjustable.

3. LEARN BUTTON

Pressing the LEARN button momentarily scrolls through the modes in the following order. The appropriate letter
will be shown on the display

1) Handheld. Program in a transmitter button to operate the Door.

2) Courtesy Light. Program in a transmitter button to operate the light.

3) Alarm. Program in a transmitter button to pulse the Alarm output.

4) Pet. Program in a transmitter button to operate the Pet position.

5) Locked. Program in a transmitter to operate the Vacation mode.

6)

Erase. Erase transmitter (function) from memory.

7)

Factory settings. Keep all transmitter codes and set all other settings to defaults.

Page 7

OPERATING CONTROLS

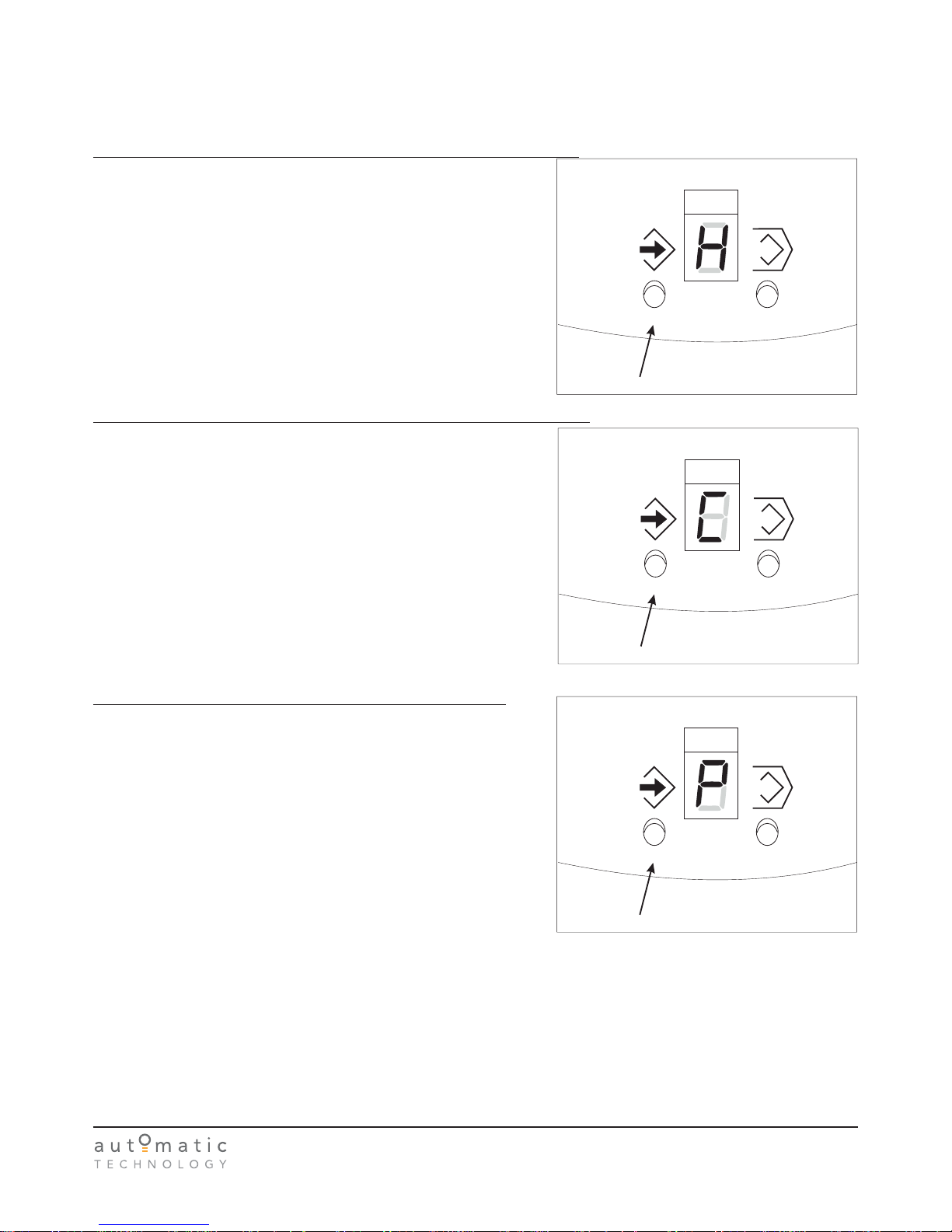

4. DISPLAY

General Display Codes

dcc ro7 Flashes on the display once the opener powers up (dc opener chain drive,
fi rmware revision o7)

r Reset limits, Door has not been set to its limits
P Flashes on the display, door is stationary and in Pet Mode
O Flashes on the display, door is stationary and not at the close, open or pet posi

tions

O Door is currently Open
C Door is currently Closed
E On the last operation an obstruction was detected
t Will only fl ash briefl y before going to E. Indicates Hall Effect sensor timeout
d Will only fl ash briefl y before going to E. Indicates standard door obstruction
S Indicates the door is probably closed but being obstructed, E.g. snow around the

door

b The opto beam is indicating an obstruction.
H The door has been detected as too heavy
LoC Flashes on the display, door is on vacation lock mode.
EOS Flashes on the display, door was forced open via BMS. Power must be removed to

reset this.
o Flashes on the display, the close position has been set, it is ready to move the
door to open position.
. Unit is in power save mode

5. INSTALL BUTTON

Pressing the INSTALL button momentarily scrolls through the modes in the following order.
The appropriate letter will be shown on the display.

1)

Limits. Set the Limits.

2) Force. Set the Force Margin.

3) Pet. Set the Pet mode

4) Autoclose. Set the Autoclose Time.

5) Courtesy Time. Set the Courtesy Light Time.

Pressing the LEARN button at any time or waiting for 10 seconds exits this menu.

6. TERMINAL P1

Alarm/Status(ALM)

Pressing the transmitter button associated with the Alarm function, the alarm terminal will
enable the output to pulse for a preset period so that an external alarm may be toggled on/off.
If there are no transmitter buttons memorised for the security alarm this output will function as
a door Status output. When the door is open or partially open the output will be on. When the
door is closed the output will be off. When the door is moving the output will toggle at the rate
of 2Hz.

Page 8

OPERATING CONTROLS (continued)

6. TERMINAL P1 (continued)

Light (LT)

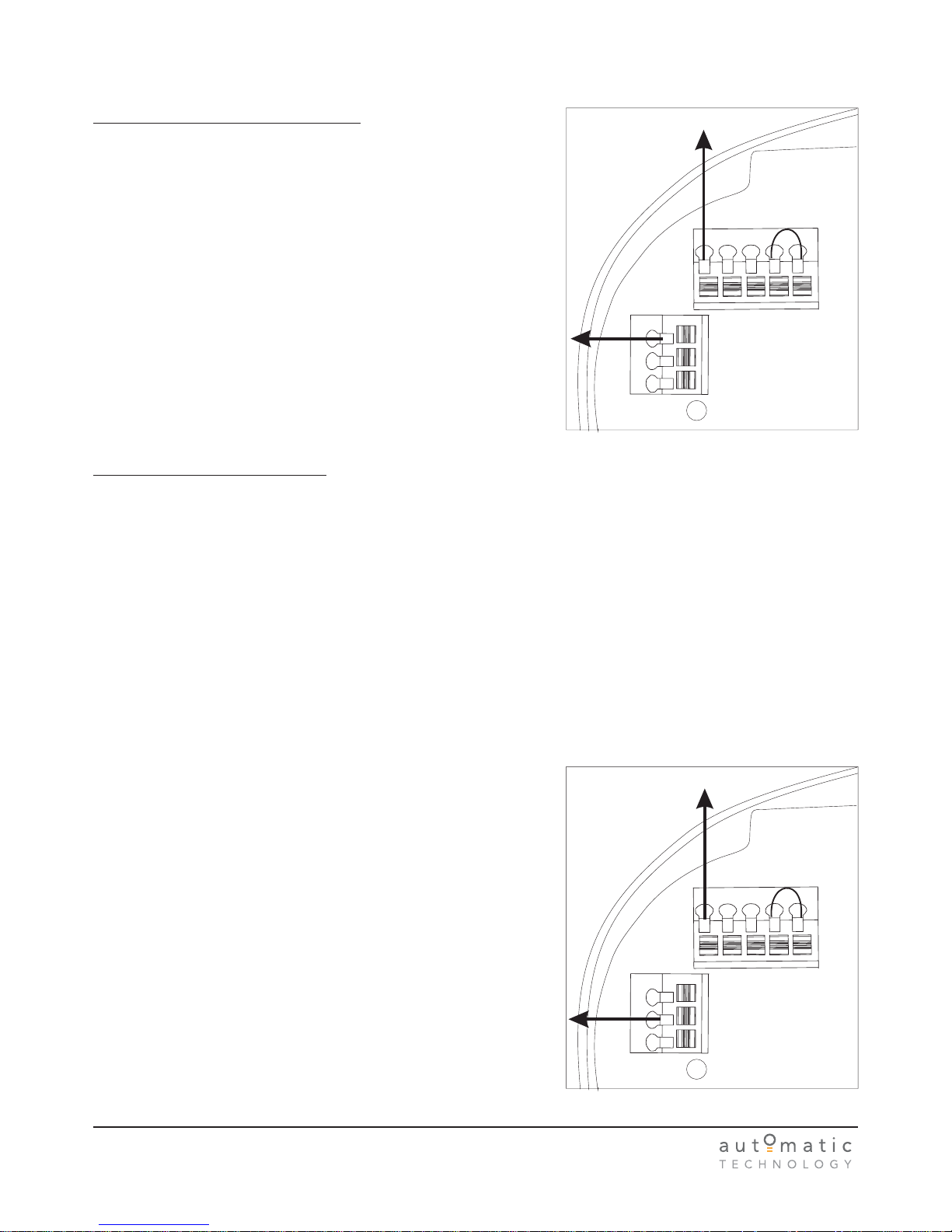

A 24V DC relay of the appropriate contact voltage can be connected to the light terminal (LT)
and 24V terminal to control external lights by the transmitter button associated with the cour­tesy light or with any door operation.

Lock (LCK)

When a button programmed for vacation mode is pressed, the door will not respond to any
other transmitters after the door reaches its close position until this mode is reversed.

If there is no transmitter button programmed for vacation mode, then the terminal will function
as a BMS input. When the door reaches its close position, the door will be forced to open and
then opener will freeze until it is powered up again

7. TERMINAL P1

Photo Electric Beam Input (PE)

A link between PE and COM has to be removed when connecting a Photo Electric Beam.

NOTE: The link must not be removed otherwise the opener will not function correctly. Re­move only when a PE beam is to be connected.

24V Power Supply (24V)

24V output supplies 24V DC 20% ripple at 60mA to power an external receiver or electronic
device, etc.

Open/Stop/Close Input (OSC)

OSC INPUT is used for the connection of a wired switch (momentary contact). This switch
can then be used to open, stop or close the door. Wire the normally open momentary
contact switch to the OSC and COM terminals.

Page 9

2

1

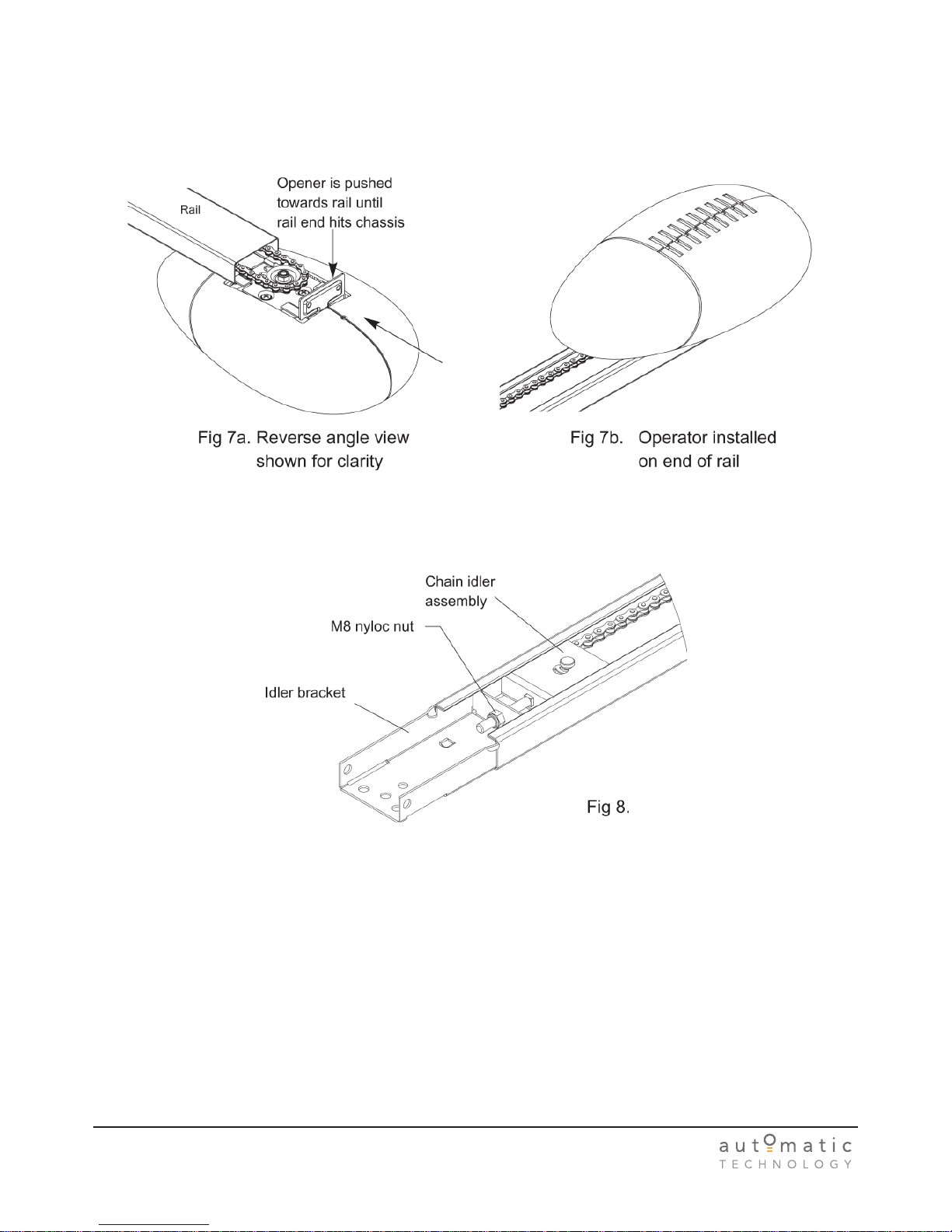

INSTALLATION

Tools you may need

)LJ D
7LOW GRRU IL[LQJ

6HOIGULOOLQJ
ILQH WKUHDG
WHF

VFUHZV

'RRU EUDFNHW
IOXVK ZLWK WRS
RI

GRRU

'RRU EUDFNHW
UG

GRZQ

6HOIGULOOLQJ
ILQH WKUHDG
WHF

VFUHZV

7RS

SDQHO

)LJ E
6HFWLRQDO GRRU
IL[LQJ

STEP ONE:

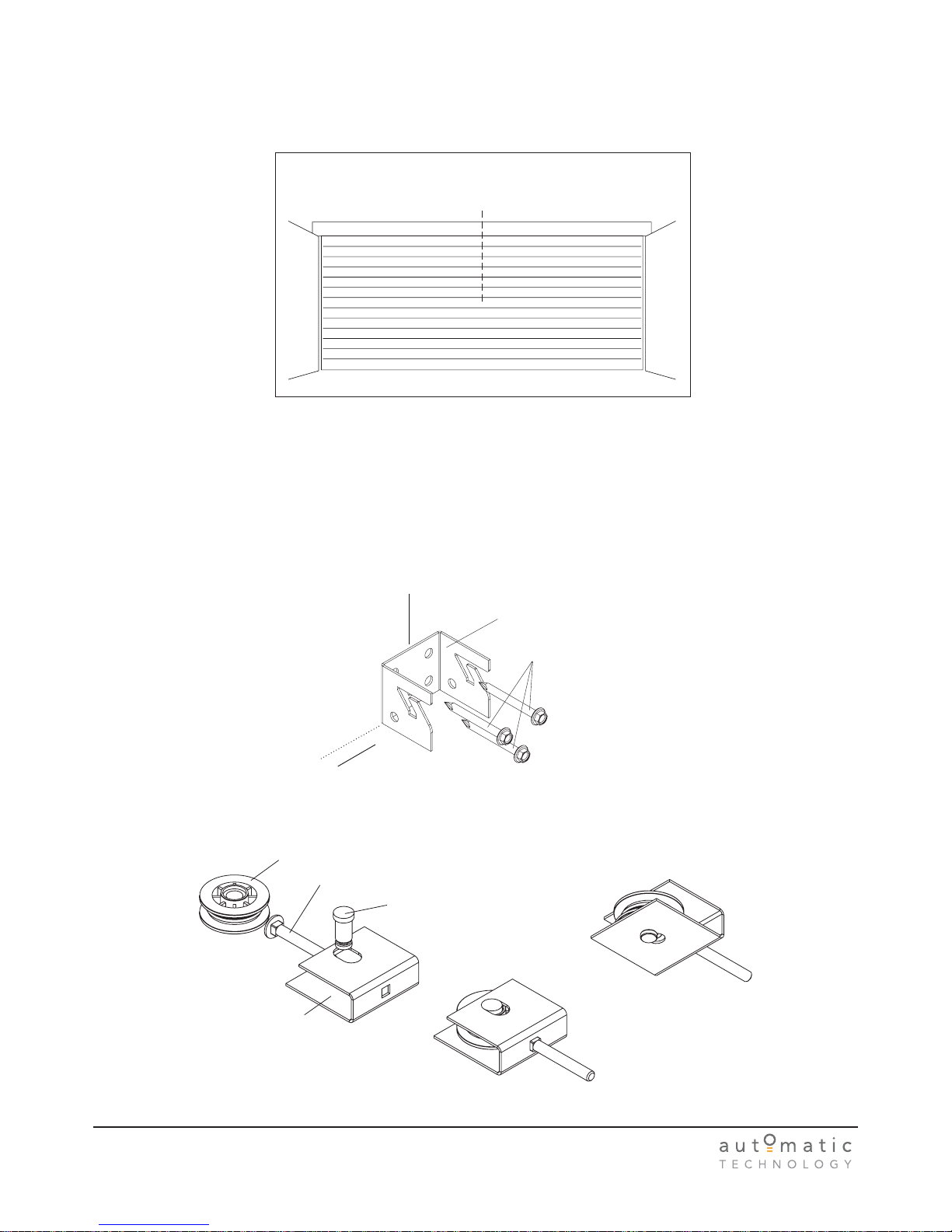

PLEASE NOTE - Ensure the bracket is mounted on door at a position of high strength as large forces can be

transmitted to the door at this location.

Tilt Door
Mount Door Bracket fl ush to top of door at centre position (see fi g 1a).

Sectional Door

Mount Door Bracket about one-third of the way down the top door panel at centre position (see fi g 1b).
