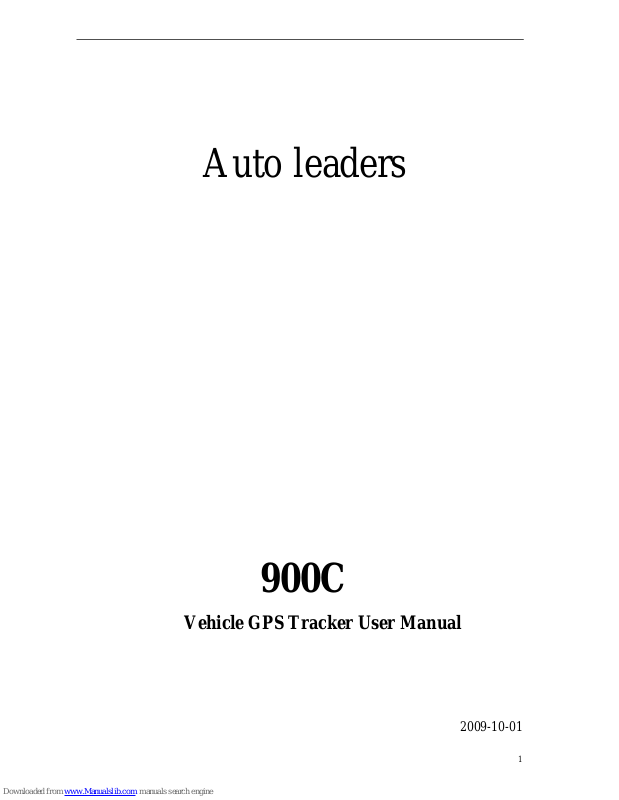

Auto leaders
900C
Vehicle GPS Tracker User Manual
2
Table of Contents
1. Working Directions....................................................................................................................3
2. GPS Tracker Installation...............................................................................................................3
2.1. Product Parts List ................................................................................................................3
2.2. Precaution before Installation ..............................................................................................4
2.3. Installation............................................................................................................................5
2.4. Wiring Description................................................................................................................6
3. Operating Instructions .................................................................................................................7
4. SMS Tracking by Mobile............................................................................................................10
4.1. Position Report Function...................................................................................................10
4.2. Tracking Function..............................................................................................................11
4.3. Stop tracking function………………..……………………………..….……...........................11
5. GPRS Tracking by computer................................................................................................... .12
5.1.Set APN..............................................................................................................................12
5.1.Set IP and Port...................................................................................................................12
3
1. Working Directions
Thank you for your purchase of 900C Vehicle GPS Tracker. In order to realize the full functions of
this product, please read this manual carefully before starting to use the product.
1. This product can only be maintained and repaired by qualified professional service personnel. If you detach this product for maintenance or repair, your warranty will be invalidated.
2. When connecting the other devices, read carefully their instruction manuals, so as to carry out correct installation; do not connect incompatible device.
3. Please use genuine original parts and qualified batteries and peripheral equipments, so as to avoid damage to this product.
4. As this product is a high-tech product, please read carefully this manual before starting to use the product, so as to avoid inappropriate operation.
5. Drivers should not operate this product while driving a vehicle, thereby, affecting safe driving.
6. This product can work properly only when GSM communication is in good condition.
7. Please reduce electromagnetic wave interference to the product; and use it properly.
8. GPS communication is liable to be affected by environmental shielding; may fail to carry out positioning during certain circumstances. It will resume the positioning function as soon as it leaves the shielding environment. This is normal. Please do not worry when encountering such problem.
9. Each signal sent out from the system will be confirmed for successful transmission in the base station of the mobile operator. However, if system stoppage occurs or if the mobile telephone is preset to a switch off state by the customer, it cannot ensure successful transmission.
10.
For safety reason, do not tell the other people your 900C mobile number, without taking
precautions. Otherwise, your privacy may be compromised along with other safety problem.
4
2. Wiring Installation
2.1. Product Parts List
GPS Tracker Unit
GPS Antenna
GSM Antenna
Car Charger Lighter Socket
5
2.2. Precaution before Installation
1 Check if all the parts are included.
2
Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set and that it can dial out and receive telephone calls and SMS without problem.
3
Before install the SIM card; make sure to cut off power from the GPS Tracker unit. The correct installation method is to push the tray completely into the GPS Tracker unit, until you feel it is hooked by something.
4 Find a suitable place inside the car for installing the unit.
5
Check if all the wiring has been connected correctly; then connect the GPS Tracker unit to
the power source.
2.3. INSTALLATION
2.3.1 Step 1: Install SIM Card
1
Using a speculate object to poke the small button of the SIM card seat, and then it will pop-up a small drawer.
2
Put the SIM card in the drawer, and put back the drawer, as direction shown in the picture.
3
Make sure to turn off the power before install the SIM card.
4
Make sure to deactivate the PIN code, so that the SIM card can operate without PIN protection.
5
Before install the SIM card to the GPS Tracker, please use a mobile phone to make sure the SIM card can make & receive phone calls without problem.
6
Before install the SIM card to the GPS Tracker, please use a mobile phone to empty the
SMS storage of the SIM card.
2.3.2 Step 2: Connect GSM Antenna
1
Connect the GSM Antenna to the unit.
2
Fasten the connection by turning the screw in the bottom.
3
Please do not swing round the antenna itself.
6
2.3.3 Step 3: Connect GPS Antenna
1
GPS antenna is used to receive satellite signals in the sky. It should be positioned at a place where it will have an unobstructed view of the sky. The ideal location is top of the dashboard or close to the rear window of the car.
2
GPS antenna can pick up signals through glass and plastic, but will not "see the sky" through metal or other conductive surfaces. To avoid distractions of GPS signal, make sure the antenna is not covered or shielded by any object containing metal, such as the metallic windshield.
3
If your car is with metallic windshield please cut a hole on the windshield above the place
where you put the GPS antenna, so that the antenna can receive the GPS signals.
2.3.4 Step 4: Connect power charging
900C connects to the 4pin and 6pin wires.
2.4. Wiring Description
4 pins connector
Pin Color function
1 Red power switch
2 Red power switch
3 Yellow Connect to door sensor
4 Green Undefined input .
for example you can use it to detect the signal of car alarm
7
6 pins connector
Pin Color function
1 Red DC in
Input voltage: 8-40V Suggestion: 12V
2 Black GND 3 Brown Output , starter kill relay you can use it to cut the electricity or oil of the car
4 White SOS button 5 Green Output , starter kill relay you can use it to cut the electricity or oil of the car
6 Blue ACC signal detecting
According to the relay parameter to make sure to following requirement:
The input voltage of relay must be suited to the car battery
3. Operating Instructions
SMS protocol of 900C, the default password of 900C is 000000
SMS Instruction Format Remark
1 Request one position A******,000 000: command code
******: password, default 000000
2 Modify user password A******,001,###### 001: command code
******: old password , default 000000
######: new password
3 Set a preset phone
number for SOS button or monitoring number.
A******,002,1, Tel Number
002: command code ******: password, default 000000
1 : Set SOS number Tel Number: Preset Tel. number (Tel Number must <20 digits )
When this button is
pressed, 900C will send the SOS and position message to the preset number.
A******,002,2, Tel Number
002: command code ******: password, default 000000
2 : Set monitoring number Tel Number: Preset Tel. number
8
(Tel Number must <20 digits )
4 Set the time interval of
position refresh to SOS number
A******,003,XXX 003: command code
******: password, default 000000
XXX: (3 digital) XXX =000,stop XXX = 001 – 999 time internal (unit: min)
5 Set low power alarm
When the 900C voltage is lower than the preset value, 900C will send one lower power alarm SMS to the control number. Otherwise, there is not this function in vehicle tracker
A******,004,X
004: command code ******: password, default 000000
X : voltage preset value X=0, close (default ) X =1, <3.5V send SMS alarm X =2, <3.6V send SMS alarm X =3, <3.7V send SMS alarm X =4, <3.8V send SMS alarm X =5, <3.9V send SMS alarm
6 Set over speed alarm
When the 900C speed higher than the preset value, 900C will send one over speed alarm SMS to the control number.
A******,005,XX 005: command code
******: password, default 000000
XX : the speed preset value XX = 00 , close 01 XX 99 (unit: XX Km/h)
7 GPRS Status, To
check GPRS Status
A******,502 502: command code
******: password, default 000000
8 Get IMEI
A******,505 505: command code
******: password, default 000000
9 Set GPRS interval of
position refresh
A******,506,00030 506: command code
******: password, default 000000
00030: Such as 30 seconds interval is 00030
10
Check GPRS internal
of position refresh
A******,507 507: command code
******: password, default 000000
11
Inquire GPRS
parameter Including IP, Port, APN
A******,006 006: command code
******: password, default 000000
12
Control the output A******,007,P,F 007: command code
9
******: password, default 000000
P: the position of the output P =1 output 1 P =2 output 2
F: the control signal F =1 give the relay the current to drive it (cut off the car power). F =0 cut off the current of the relay (comeback the normal).
13
Time zone setting A******,008,+8 008: command code
******: password, default 000000
+8: Set the local time zone, the default value is +8
14
Inquire the system
parameter. Including the software version, password, interval, speed limit, area limit, I/O state, GPS state, SOS number, control number, etc
A******,009 009: command code
******: password, default 000000
15 GPRS switch A******,010,X 010: command code
******: password, default 000000
X: GPRS function =0 GPRS OFF =1 GPRS UDP =2 GPRS TCP
16 SET APN A******,011,APN,
username,password
011: command code ******: password, default 000000
APN: GPRS use this gateway to connect internet. Username: APN Username Password: APN Password
The default APN is CMNET
17
Set the center IP and
Port
A******,012,IP:Port 012: command code
******: password, default 000000
10
Set the server parameter
IP: Platform server ip Port: Platform server port
18 LED Light Switch A******,666, X 666: command code
******: password, default 000000
X: LED Light Switch X =0 LED Light OFF X =1 LED Light ON
19 Reset to factory settings A******,888 888: command code
******: password, default 000000
20 Restart Tracker A******,999 999: command code
******: password, default 000000
4. SMS Tracking by Mobile
4.1. Position Report Function
4.1.1. Get position from vehicle - way 1:
No matter where you are, when you want to know the position of your vehicle
Step1
Send a SMS message or make a telephone call to the 900C.
Step2
vehicle will report its location back to you by SMS, which including the position information
Edit a message as following format, and then send it to 900C:
Command Remark Send Format:
A+Password+,+000
Get position command code is: 000
For Example Send message:
A000000,000
000: command code 000000: password, default 000000
Back information:
Lat:2232.6022N, Lon:11402.2969E
This mean your position is on North Latitude 22 degree 32.2232 cent and East Longitude 114 degree 2.2969 cent
11
4.1.2. Get position from vehicle - way 2:
Apply for one position service by another way: you need pre-storage the phone number in SIM
card:
Step1
Make a cell phone call to 900C
Step2
After listening the ring of 900C, it will hold off after two rings.
Step3
Then, after 10 second, the cell phone will receive the Position SMS. (its means is 900C will send Position Data every 5 minute.)
4.2. Tracking Function
Tracking report function can be turned on or off according to the requirements of the user. Tracking function will continually report vehicle position until it get stop command .In this tracking mode, 900C will send one position message at a preset time interval.
Step1. Edit a message as following format, then send it to 900C
Command Remark
Send Format:
A+Password+,+003,+XXX Note: XXX , if XXX=000 it is
STOP tracking Unit: preset minute interval Command code : 003
For example:
A000000,003,003 003: command code
000000: password, default 000000 003: 3 minute interval
It means is 900C will send Position Data every 3 minute.
Step2. 900C will send back one SMS-----Set Time OK. This SMS means that 900C is in tracking mode now and preset time interval is 3 minutes.
Step3. 900C will send back position SMS at preset time interval. In this example, the SMS will send back at preset time interval: 3 minute
4.3. Stop tracking function.
12
This function is used to turn off tracking report function. Edit a message as following format, and then send it to 900C:
Command Remark
Command format: A+passwaord+,+003+,+000
For example: A000000,003,000
003: command code 000000: password, default
000: 0 minute interval, mean stop back
5. GPRS Tracking by Computer
The default mode is GPRS when powering on the unit. The default setting is ours; you need to send the following SMS to Set APN and IP, Port. (If you use our server, you only need to set APN).
5.1. Set APN
Send the SMS to the tracker as following format
Command Remark
Command format:
A+Password+,+011,+APN
For example:
A000000,011,CMNET 011 : Command code
000000: password, default 000000 CMNET: APN, is gateway to connect internet, Each country is different,
5.2.Set IP and Port
Send the SMS to the tracker as following format:
Command Remark
Command format:
A+Password+,+012,+IP:Port
For example:
A000000, 012,119.147.24.211:8886 012 : Command code
000000: password, default 000000
119.147.24.211 Platform server ip 8886: Platform server software Port
When the 900C connect to the monitor system, the power LED flash by 1 S. Then you can login in the tracking server to manage your car.
