INTRODUCTION
Congratulations on purchasing the Autograph XUSB-2 Changeover system.
The Autograph XUSB-2 is designed for the quick and efficient changeover of two
computer systems incorporating; USB Keyboard and Mouse, Dual Display VGA outputs,
MIDI inputs and output and Contact Closure control.
The system was designed to easily changeover both Macintosh and Windows based PC’s
and incorporates dual redundant midi interfaces and controllers for firing GO, STOP,
PREVIOUS and NEXT messages.
Should you experience any problems with your XUSB-2 please contact:
Service Department
Autograph Sound Recording Ltd
2 Spring Place
London NW5 3BA
United Kingdom
Tel. +44 (0)20 7485 4515
Fax. +44 (0)20 7284 1233
Email. service@autograph.co.uk
3 | Page
IMPORTANT SAFETY PRECAUTIONS
This section contains definitions, warnings, and practical information to ensure a safe
working environment. Please take time to read this section before installing or using
this unit. Please do not dispose of these instructions.
General Safety
Read these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Do not expose this apparatus to rain or moisture.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves
or other apparatus (including amplifiers) that produce heat.
4 | Page
• There are no user-adjustments, or user-servicable items, inside this apparatus.
Do not remove the covers of this apparatus; doing so will invalidate your
warranty.
• Adjustments or alterations to this apparatus may affect the performance such
that safety and/or international compliance standards may no longer be met.
Caution
• Hazardous voltages may be present inside this apparatus.
• Do not operate this apparatus with the covers removed.
• To reduce the risk of electric shock, do not perform any servicing other than that
contained in these Installation Instructions unless you are qualified to do so.
Refer all servicing to qualified service personnel and ensure that all power cords
are disconnected when servicing this apparatus.
Power Safety
• This apparatus is fitted with a universal power supply, approved and certified for
operation in this apparatus. There are no user-replaceable fuses.
• Multiple power cords may be supplied with this unit – use only the power cord
appropriate to your local power wiring. Alternative power cords may be used if
rated 2.5A or above and fitted with a 3-pin IEC320 connector.
• An external over-current protection device is required to protect the wiring to
this apparatus. This protection device must be installed according to current
wiring regulations. In certain countries this function is supplied by use of a
fused plug.
• If an extension power cable or adaptor is used, ensure that the total power
rating of the power cable and/or adaptor is not exceeded.
• An external disconnect device is required for this apparatus; a detachable power
cord, as fitted to this equipment, is a suitable disconnect device. The power
socket used for this apparatus should be located nearby and be easily accessible.
• All power cords must be disconnected to isolate this apparatus completely.
• Unplug this apparatus during an electrical storm or when unused for long
periods of time.
Installation Notes
• When installing this apparatus, either fix it into a standard 19" rack or place the
apparatus on a secure level surface.
• When this apparatus is rack mounted, fit all rack screws. Rack shelves are
recommended for this apparatus.
• Do not operate this apparatus whilst it is covered or boxed in any way.
• Ensure that no strain is placed on the cables connecting to this apparatus.
Ensure also that such cables are not placed where they can be stepped on,
pulled or tripped over.
5 | Page
PRESENT
STATUS
GO STOP
NEXTPREV
1 2 3 4 5 6 7
8
MIDI
PC2
JOYS TICK
PC2 DATA KVM
GPI
+5V +12V
PSU INDICATORS
PC1
21 3
5 6
7
4
S
ignature
S
eries
XUSB-2 USB COMPUTER CHANGE OVER
JSTICK
GPI
PC 2
PC 1
GPI/
MIDI
MIDI IN
MIDI OUT
OUT A
PC 2A PC 1A
SW 6
GPI LINK
ON
CONSOLE
KEYBAORD/
MOUSE
SW 5
MIDI LINK
ON
PC 2
PC 1
OUT A
PC 2A PC 1A
OUT B
PC 2B
PC 1B
REMOTE
100-240VAC
SW 1 Se t MIDI Ch. Switch 1 (1)
SW 2 Se t MIDI Ch. Switch 2 (2)
SW 3 Se t MIDI Ch. Switch 3 (4)
SW 4 Se t MIDI Ch. Switch 4 (8)
SW 7 N ot Used
SW 8 R emote Mom./Latch
DIP SWITC H OPTION S
SW
8 9 10 11
1312
14 15 16
17 18 19 20 21 22 23
FRONT & REAR PANEL DRAWINGS
6 | Page
PANEL DESCRIPTIONS
1 Front Panel USB
These connectors provide easy access to USB connections of PC1 and PC2 independently
of the changeover system. These ports are available at all times and connect through
the GPI/MIDI connection on the rear panel (21 and 21). Please note that these ports are
USB1.1 compliant only (12Mbps)
2 MIDI Present indicator
This indicator will illuminate when a midi message is sent to the midi output of the
changeover unit
3 GPI Indicators
These indicators will illuminate when a GPI is activated. GO, STOP, PREVIOUS and NEXT
are accessed from the joystick port, GPI 1-8 from the GPI port on the rear of the unit.
4 PC2 (Master Changeover)
Activating this button will result in the unit changing all connections from PC1 to PC2.
When this button is illuminated PC2 is selected. This button changes over KVM, MIDI in
and out and GPI connections. (Subject to status of buttons5 & 6 see below)
5 Independent Data Changeover
This button allows the changeover of MIDI in and out and GPI control without switching
the KVM facilities. When illuminated MIDI and GPI control are active from PC2. This
button operates in conjunction with the PC2 Master Changeover button (4).
6 Independent KVM Changeover
This button allows the changeover of Keyboard, Video Displays and Mouse without
switching the MIDI and GPI facilities. When illuminated KVM is active from PC2. This
button operates in conjunction with the PC2 Master Changeover button (4).
7 | Page
Pin
Function
Pin
Function
IMPORTANT NOTE:
The Master changeover operates in conjunction with both KVM and DATA
changeover buttons from their current state. Hence when the Master changeover
button is activated both KVM and DATA changeovers change state from their
current position. Because of this it is possible to get out of sync if operating the
unit remotely. Users should make sure before a show that when the PC2 button is
pressed both DATA and KVM buttons are illuminated.
7. Status Display Indicator
This LCD display provides information as to the outputs and health status of the XUSB-
2. Each time an input contact is activated the display registers the MIDI event
generated. The display will also indicate PSU faults and default MIDI channel
assignment.
8 Mains IEC connection
The XUSB-2 requires 110Vac – 240Vac at 50Hz main supply.
9 Remote Connector
This four pin XLR connector allows for remote changeover of the system and an
additional latching relay output for changeover of further connected units.
Pins 1 & 2 provide a momentary contact allowing changeover of the PC2 master
changeover function.
Pins 3 & 4 provide a latching relay output which is closed when PC2 master
changeover is activated.
10 VIDEO output A & B
These 15pin VGA connectors provide dual head VGA outputs from the KVM switch.
11 VIDEO inputs 1A&B and 2A&B
These 15pin VGA connectors provide dual head VGA inputs to the KVM switch. VGA
from PC1 should be connected to 1A and 1B. PC2 connected to 2A and 2B.
12 USB Console Connectors
These connectors allow connection of a USB mouse and Keyboard that will be switched
between PC1 and PC2. Other USB devices may work but are not supported at this time.
13/14 Keyboard & Mouse USB Connections
These connections should be made to PC1 and PC2 respectively. They facilitated the
keyboard and mouse control of both PC’s. DATA control is transported by an additional
USB cable and connected to the DATA/GPI ports (20/21).
15 GPI Connector
This connector allows for additional General Purpose inputs that can be used to control
additional effects. The connector is wired to allow use of standard Analogue Audio
Dtype cables.
8 | Page
1
GPI 8 (+ve)
14
GPI 8 (-ve)
2
NC
15
GPI 7 (+ve)
3
GPI 7 (-ve)
16
NC 4 GPI 6(+ve)
17
GPI 6 (-ve)
5
NC
18
GPI 5 (+ve)
6
GPI 5 (-ve)
19
NC 7 GPI 4 (+ve)
20
GPI 4 (-ve)
8
NC
21
GPI 3 (+ve)
9
GPI 3 (-ve)
22
NC
10
GPI 2 (+ve)
23
GPI 2 (-ve)
11
NC
24
GPI 1 (+ve)
12
GPI 1 (-ve)
25
NC
13
+5VDC
9 | Page
Pin
Function
Pin
Function
1
NC 9 NC
2
GO
10
PREVIOUS
3
NC
11
NC
4
GND
12
NC
5
GND
13
NC 6 NC
14
NEXT
7
STOP
15
NC
8
+5VDC
16 Joystick Connector
This connector accesses the GO STOP PREVIOUS and NEXT buttons. The connector is
wired to be compatible with standard 15pin PC joysticks using SW1-4. Connections are
made by connecting and input to ground. A 5VDC powers rail is supplied for
illumination of buttons.
Joystick Pinout:
17 MIDI link Indicator
When illuminated activated any midi messages received at the MIDI IN connector to be
passed to the MIDI in of both PC1 and PC2 regardless of Master Changeover Switch.
This facility allows for pseudo tracking via MIDI. See 19 for more details.
18 GPI Link Indicator
When illuminated any GPI messages received by the unit connector to be passed to both
PC1 and PC2 regardless of Master Changeover Switch. This facility allows for pseudo
tracking via GPI. See 19 for more details.
10 | Page
Pos
Description
Default
1
Set MIDI CH bit 0
On 2 Set MIDI CH bit 1
On 3 Set MIDI CH bit 2
On 4 Set MIDI CH bit 3
On 5 MIDI Link
On 6 GPI Link
On 7 n/a
Off 8 Remote (momentary or Latching)
On
19 OPTION Selection Switch
The XUSB-2 contains two MIDI generators that allow for MIDI messages to be
generated and sent to PC outputs when GPI inputs are activated. (SEE: ) This DIP switch
can be used to set the default MIDI channel and common functionality of the box
Standard key Sets:
11 | Page
By Default the XUSB-2 is pre-programmed with MIDI note messages on the default
MIDI channel set by the above switches. These can be modified by MIDI sysex using an
application provided. (Windows PC and MIDI interface required)
20/21 GPI & MIDI USB Connections
These connections should be made to PC1 and PC2 respectively. They facilitated the
MIDI and GPI control of both PC’s. KVM control is transported by an additional USB
cable and connected to the Keyboard/Mouse ports (13/14).
22 MIDI IN Connector
This connector allows for MIDI to be input to either or both PC’s as explained above.
23 MIDI OUTPUTS
The XUSB-2 incorporates a 1 in four out MIDI Thru box permanently attached to the
output of the actively selected PC. All outputs are opto-isolated and switch from PC1
output to PC2 output with DATA switching as outlined above.
Installation and Drivers
The XUSB-2 includes two internal USB MIDI interfaces. These units are OEM MIDI
Interface that do not require drivers other than those included with your operating
system.
Windows Installation
Drivers are included on most major releases of Windows XP and Windows 7. Windows
Vista is not supported.
Macintosh OSX Installation
Supported Apple Operating Systems: OSX Yosemite (10.10), OSX Mavericks (10.9), OSX
Mountain Lion (10.8). Previous versions of OSX are not supported.
12 | Page
Other Notes:
Please note that Apple keyboards are not supported by apple over a USB extension cable
length greater than 1m. Apple keyboards may work with active USB extensions but no
guarantees are made.
13 | Page

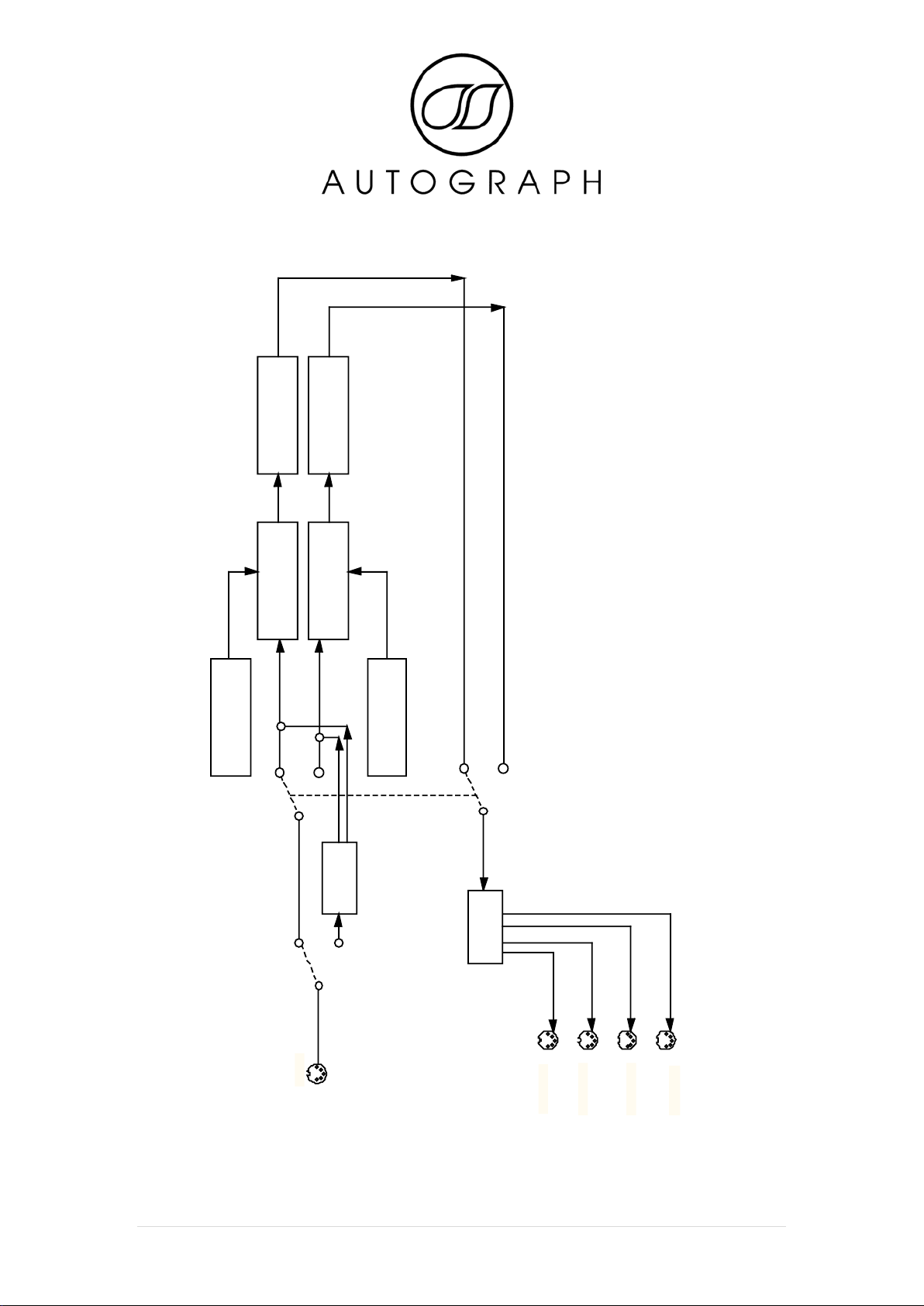

MIDI Flow Drawing:
MIDI IN
SW 3
A/B MASTER
CHANGOVER
MIDI LINK
SWITCH
MIDI MERGE #A
MIDI MERGE #B
USB MIDI INTERFACE #A
USB MIDI INTERFACE #B
GPI -> MIDI #A
GPI -> MIDI #B
MIDI THRU
MIDI THRU
MIDI OUT #1
MIDI OUT #2
MIDI OUT #3
MIDI OUT #4
14 | Page
Loading...
