Turny Evo has two basic functions: swivel the seat in/out and forwards/backwards movement for comfort. Note that it is not possible to swivel the seat out when the door is
closed, nor is it possible to adjust comfort once swivel out has begun.
The path that Turny Evo follows is preprogrammed by your installation technician. In the
case of faults or deviations from the preprogrammed path, the seat will stop and cannot
be manoeuvred normally. In this event ,Turny Evo loses its position and must be reset
through an emergency operation. Should this occur, follow the instructions for “Emergency operation by hand held control”. Once this is completed, Turny Evo will function
as normal again. Contact your installation technician if emergency operation must be
performed often.
In the case of certain electrical faults, emergency operation with the hand held control
will not work. Should this occur, follow the instructions for “Emergency operation with
the emergency operation kit”. Always contact your installation technician after a manual
emergency operation to remedy the fault before using Turny Evo again.
Presentation
4
Turny Evo Getting seated
Operation
Operation
Optional function buttons light up GREEN.
Hold the selected button down. When the seat reaches
its preprogrammed end position, it will stop automatically. To stop movement, release the button.
Turny Evo's location in the vehicle on the right or left
side determines the functions of buttons 2 and 4.
Hand held control
COMFORT
forwards
COMFORT
backwards
SWIVEL
in or out
SWIVEL
in or out
5
Getting seated Turny Evo
EN
Operation
Operating Turny Evo
Swivel in and out
A door icon is displayed
on the right of the screen
when the door is open.
Turny Evo will follow its
preprogrammed path.
6
Turny Evo Getting seated
Adjusting comfort
Foldable footrest
This function will also
work while driving with
a closed door.
7
Getting seated Turny Evo
EN
Operation
Using the hand held control
0°
45°
113 °
Lift OK
IN
OUT
Crash safety
pin
The illustration on the left shows a fully swivelled in Turny Evo
where the crash safety pin has locked the seat in the correct
position.
8
Turny Evo Getting seated
Emergency-mode operation
Activate the emergency operating menu
Hold down the yellow button until
the picture ”enter code” is displayed.
Then enter the code1, 1, 1, 2
1
Swivel the seat in
The seat must be lifted all the way up and swiveld all the way in. Switch between
movements and directions until the “up” and ”in” symbols have greyed out.
Note that the symbol for ”in” is laterally inverse in a left-side Turny Evo.
2
Lift Swivel
Activate direction
Select movement
Lengthwise
Up In
9
Getting seated Turny Evo
EN
Emergency-mode operation

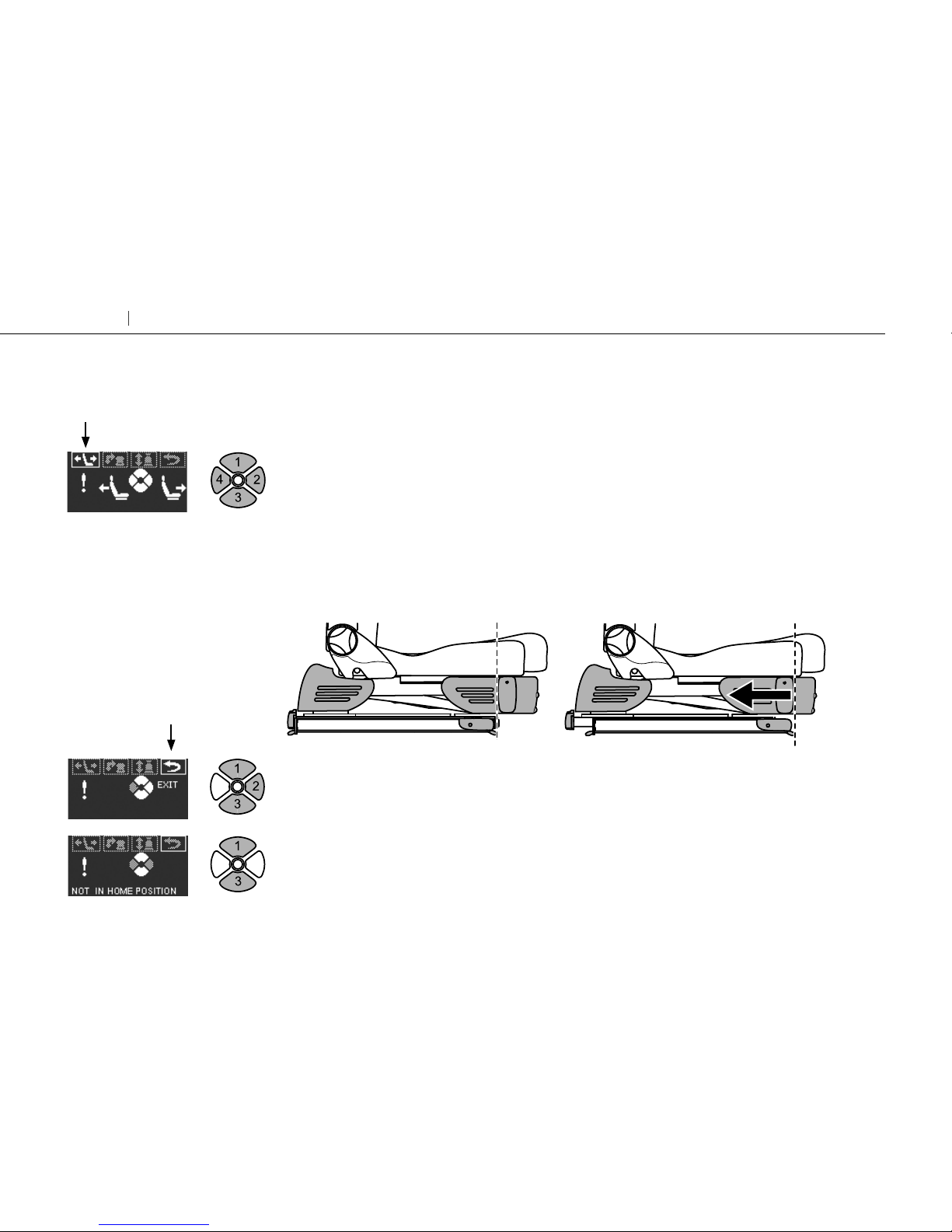

Press 1 or 3 and select “lengthwise”. Run the seat to the specified starting position by pressing 2 or 4 for “forwards” or “backwards”.
Press 4 for “backwards”. Run the seat backwards until the “exit” symbol lights up.
If the seat stops before ”exit” lights up you can override the system by forcing the seat backwards by holding in button 4 for ”backwards” for four seconds. If the “exit” does not light up
step 2 may have to be repeated.
Press 1 or 3 and select “exit”.
Press 2 to confirm “exit”. Turny Evo is now back in its normal operating mode.
If this screen is displayed the criteria to exit the system has not been achieved.
Go back and do 9.1 again and then step 9.2.
Press 1 or 3 to select the main menu at the top.
Starting position
Lengthwise
Exit
Run backwards
10
Turny Evo Getting seated
Exit the emergency-mode operation menu
3
Using the emergency operation kit
0°
45°
113 °
Lift OK
IN
OUT
Crash safety
pin
The illustration on the left shows a fully swivelled in Turny Evo
where the crash safety pin has locked the seat in the correct
position.
11
Getting seated Turny Evo
EN
Emergency-mode operation
LIFT / Alt. 1 - Easy but slow
Insert the socket in the hole in the upper rear cover.
Crank the ratchet clockwise to raise the seat.
Swivel the seat in
The seat must be lifted all the way up and swiveld all the way in. Begin by releasing the turning
mechanism if these manoeuvres must be combined and cannot be done separately. Adjust
lengthwise as necessary. For swivel and lengthwise movement, see overleaf.
12
Turny Evo Getting seated
LIFT / Alt. 2 - Strenuous but fast
Remove the yellow lock plate in front of the safety curtain.
Raise the seat manually. Keep the lock plate for the visit to
the workshop.
13
Getting seated Turny Evo
EN
Emergency-mode operation
SWIVEL
Pull out the yellow lock plate at the front of the base plate
to release the turning mechanism. Swivel the seat all the
way in and then slide the lock plate back to lock the seat in
position.
14
Turny Evo Getting seated
LENGTHWISE ADJUSTMENT
Insert the socket in the hole in the lower rear cover. Crank
the ratchet counterclockwise to move the seat backwards.
15
Getting seated Turny Evo
EN
Emergency-mode operation
As necessary .............................................................. Carefully vacuum clean Turny Evo. Use no liquids.
• The product documentation must always be taken along to vehicle inspections.
• Always contact your installation technician when dismantling.
16
Turny Evo Getting seated
Care instructions
Hand held control /
- does not light up ............................................
- shows warning/fault message .................
Unusual noises heard during operation .....
- The hand held control must be in “sleep mode”,. Open the door.
- Check that the wiring to the hand held control is connected and undamaged.
- Check that the fuse is intact and that the car battery is charged.
- Follow the instructions for “Emergency operation using the emergency kit”.
- Identify the message on the following pages and perform the recommended
action.
- Follow the instructions for “Emergency operation by hand held control”.
- Follow the instructions for “Emergency operation using the emergency kit”.
- Do not use the Turny Evo. Contact your installation technician for an overhaul.
17
Getting seated Turny Evo
EN
Troubleshooting
Troubleshooting
The backrest is reclined too far. Lifting movement
out is stopped. Lift up is still possible.
Raise the backrest. Raise the seat again if it is dicult
to get to the knob.
Incomplete seat swiveld-in. Turny Evo is not in a
crash-safe position. The symbol is laterally inverse
on a left-side Turny Evo.
Swivel the seat all the way in.
Low battery charge. Charge the vehicle battery.
1. Hand held control spiral-haped cable break.
2. Connection problems between the hand held
control and the circuit board.
1. Replace the cable.
2. Contact your installation technician.
1. Swivel motor blocked.
2. Swivel motor pulse generator fault.
1. Lift motor blocked.
2. Lift motor pulse generator fault.
1. Check that there are no obstructions.
2. Follow the emergency operation instructions. Contact your installation technician if the fault persists.
1. Lengthwise adjustment motor blocked.
2. Lengthwise adjustment motor pulse generator
fault.
Warnings/error messages
Recommended action
18
Turny Evo Getting seated
Swivel motor pinch protection activated.
Lift motor pinch protection activated.
When encountering an obstruction, Turny Evo will
stop and back a little. Remove the obstruction and
try again.
Lengthwise adjustment motor pinch protection
activated.
Cable break or faulty limit switch sender for the
swivel motor.
Cable break or faulty limit switch sender for the lift
motor.
Follow the emergency operation instructions. Contact your installation technician if the fault persists.
Cable break or faulty limit switch sender for the
lengthwise adjustment motor.
Recommended action
Warnings/error messages
19
Getting seated Turny Evo
EN
Troubleshooting
Swivel motor overloaded.
Lift motor overloaded.
Make sure there are no obstructions and try again
with an empty seat. Contact your installation technician if the fault persists.
Lengthwise adjustment motor overloaded
Swivel motor switch activated in wrong position.
Lift motor switch activated in wrong position.
Follow the “Emergency operation with hand held
control” instructions to reset Turny Evo's start
position. Contact your installation technician if the
fault persists.
Lengthwise adjustment motor switch activated in
wrong position.
Turny Evo has lost its position.
Follow the “Emergency operation with hand held
control” instructions to reset Turny Evo's start
position. Contact your installation technician if the
fault persists.
Recommended actionWarnings/error messages
20
Turny Evo Getting seated
Please contact your installation technician if you require further assistance or need to ask questions about warranty. We recommend keeping the following information to hand at all times /
Model /
Serial number /
Year of manufacture /
Date of purchase /
Notes /
Contact details for the installation engineer /
21
Getting seated Turny Evo
EN
Troubleshooting
* Weight capacity refers to the total weight of the seat, its accessories and the user.
Length with upfolded foot rest ................................................. 70.3 cm
Width ...................................................................................................... 54.2 cm
Installation height, up to seat attachment ........................... 16.3 cm
Swivel increments..................................................................................0 -113°
Lengthwise movement ...................................................................... 41 cm
Lift height ...................................................................................................39 cm
Product weight........................................................................................ 84 kg
Weight capacity* .................................................................................. 180 kg
Max power consumption .......................................................................14A
Power consumption, at rest .................................................... ≈ 0,8 mA
Fuse .....................................................................................................................15A
Power requirements ................................................................................ 12V
From behind, swiveld out to the right and loweredFrom above, swiveld out to the right
16. 3 cm
70.3 cm
54.2 cm
39 cm
113 °
Technical specification
22
Turny Evo Getting seated
23
Getting seated Turny Evo
EN
Introduction for users
Introduction for users
Date /
Name of dealer /
Signature, installation engineer Signature, user
Autoadapt would like you, as a user, to feel secure and comfortable with your new product. For that reason, it is your installer’s duty to go through the following with you /
• Safety
• Operation
• Emergency-mode operation
If any questions about the product should come up later on, you are of course very
welcome to contact your installation engineer again.
The above chapters have been gone through /
Declaration of conformity
Conforms to following Laws,
Directives and Standards /
EN 292-2/A1
72/245/EEC, 74/60/EEC, 77/541/EEC, ISO 7637-1, 74/408/EEC, 76/115/EEC2005/41 EC, EN 12182, EN 55022, 93/42/EEC, 95/28/EC, 89/392/EEC. ECE R-10,
ECE R-14, ECE R-17, ECE R-21, FMVSS 201, 207, 208, 209, 210, 225, 302.
EN 60204-1, EN 61000-4-2:1995, ISO 3795, 2006/28/EC, 2006/42/EC
2007/47/EEC, LVFS 2003:11
We relate to comparing practical tests at Swedish National Testing and
Research Institute with reference number F 810835B, F909834,
F924532, FX 0024441, FX 002441A, FX 006316, P100001, P100002, P100003,
PX 00726A, PX 00726B. LCA 5106 730011,51067300211,51067300311
The original anchor points of the OEM-seat must be used.
Autoadapt AB, Stenkullen 2015-02-01
Håkan Sandberg
CEO
Manufacturer /
Autoadapt AB
Åkerivägen 7, 443 61 Stenkullen
Sweden
Phone: +46 302 254 00
E-mail: support @ autoadapt.com
www.autoadapt.com
Declares that the product /
Turny Evo, including mounting console
made by Autoadapt
Accredited by SWEDAC as testing laboratory in accordance with ISO/IEC 17025:2005
Quality system certified in accordance with ISO 9001:2008
Illustrations, descriptions and specifications in the user manual are based on current product information.
Autoadapt reserves the right to make alterations without previous notice.
© 2015 Autoadapt AB
1976
ISO/IEC 17025
422820-3 2015/04
facebook.com/autoadapt
twitter.com/autoadapt
www.autoadapt.com
AUTOADAPT AB
Åkerivägen 7
S-443 61 Stenkullen
Sweden
Phone: +46 302 254 00
E-mail: info@autoadapt.com
Loading...
