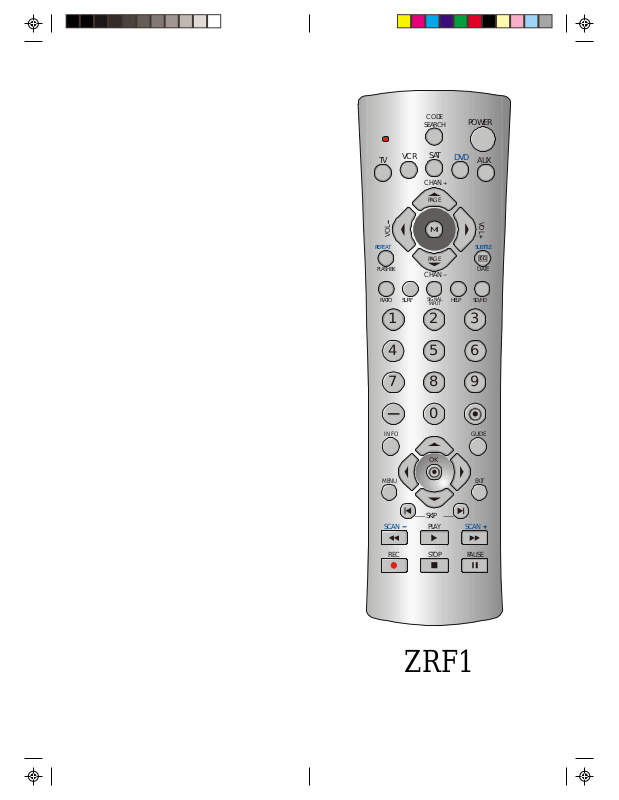

Authinx ZRF1 Users manual
REC
23
45
6
789
0
REPEAT
POWER
1
CHAN
VOL
VOL
VCR
TV
CODE
RATIO
FLASHBK
DATE
INFO
EXITMENU
OK
INPUT
SEARCH
SAT
PAGE
PAGE
CHAN
DVD
AUX
SUBTITLE
SIGNAL
SURF
SCAN SCAN
HELP
GUIDE
SKIP
PLAY
STOP PAUSE
SD/HD
ZRF1
IntroductionTable of Contents
Introduction ......................................................3
Setup ...............................................................4
Battery Installation .......................................4
Battery Saver...............................................4
Code Saver ................................................. 4
Power-On default ........................................4
TV Punch Through Feature ..........................5
VCR/DVD Punch Through Feature .............. 5
Code Setup ................................................. 5
Button Functions............................................... 6
Advanced Functions .........................................8
DirecTV Functions.......................................8
SA T Functions .............................................9
DVD Functions..........................................10
VCR/DVD Punch Through Feature ............ 11
TV/VCR/INPUT ....................................... 11
TV/VCR and TV/DVD Combo units ......... 11
Code Entry.....................................................12
Direct Code Entry......................................12
Code Search ............................................. 13
Brand Search.............................................14
Code Identification Feature ........................16
Product Operation.......................................... 17
RF Receiver ...................................................18
Troubleshooting ..............................................19
Congratulations on your purchase of a Zenith Universal
Remote Control. Zenith Universal Remotes let you
replace a broken or lost remote or combine more than
one remote into one.
This remote control operates the common features of
most but not all models and brands of IR Infrared
Controlled Video Equipment. This remote may provide
functions that are not available on your equipment.
Some functions of your particular equipment (e.g. menu
functions) may not be controlled by this remote.
In such cases, use the original remote control for your
equipment. Please use this manual to become familiar
with your Zenith Universal Remote. After you are
familiar with your remote the first thing you need to do is
to install batteries and setup your remote for your
particular product and brand.
The remote also transmits wireless Radio Frequency
(RF) commands. The wireless receiver (included)
receives these commands and converts them to regular
Infrared (IR) commands. These IR commands are then
emitted from the IR Extender (also included) to control
your A/V components. This lets you control your A/V
components from ANY room in your home - you don’t
need to aim the remote at your component!
Thank you for buying a Zenith remote and we hope it
will give you many years of service.
FCC Caution
THIS DEVICE COMPLIES WITH P ART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THA T
MA Y CAUSE UNDESIRED OPERA TION.
This equipment generates and uses radio frequency
energy, and if not installed and used properly , that is, in
strict accordance with the manufacturers instructions, it
may cause interference to radio and television reception.
It has been type tested and found to comply with the
limits for remote control devices in accordance with the
specifications in Sub-Parts B and C of Part 15 of FCC
Rules, which are designed to provide reasonable
protection against such interference in a residential
installation. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio or television
reception, which can be determined by unplugging the
equipment, try to correct the interference by one or more
of the following measures.
• Reorient the antenna of the radio/TV experiencing the
interference.
• Relocate the interface with respect to the radio/TV .
• Move the interface away from the radio/TV .
• Plug the interface into an outlet on a different electrical
circuit from the radio/TV
experiencing the interference.
• If necessary, consult your local Dealer for additional
suggestions.
NOTE: Modifications to any of the components in this
kit will void the user’s authority to operate this
equipment.
