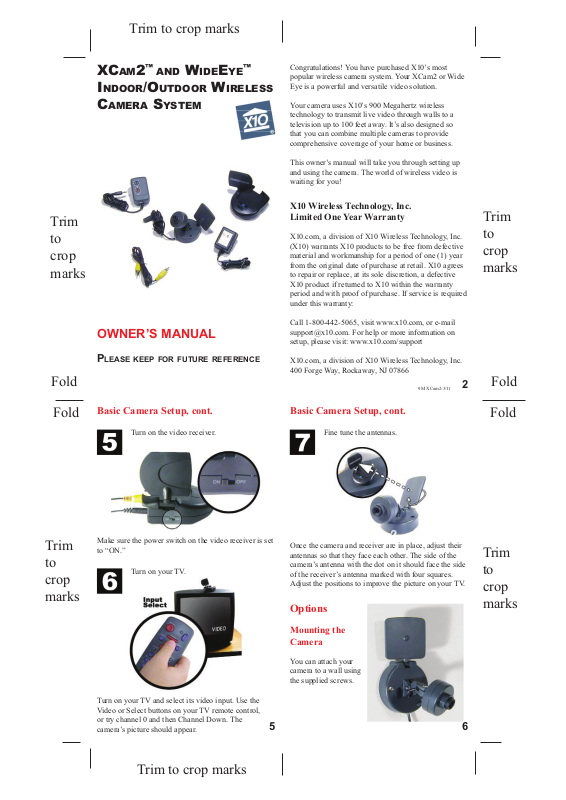

OWNER’S MANUAL

PLEASE KEEP FOR FUTURE REFERENCE

XCAM2

™

AND WIDEEYE

™

INDOOR/OUTDOOR WIRELESS
CAMERA SYSTEM

Turn on the video receiver.

Make sure the power switch on the video receiver is set
to “ON.”

Turn on your TV.

Turn on your TV and select its video input. Use the
Video or Select buttons on your TV remote control,
or try channel 0 and then Channel Down. The
camera’s picture should appear.

Once the camera and receiver are in place, adjust their
antennas so that they face each other. The side of the
camera’s antenna with the dot on it should face the side
of the receiver’s antenna marked with four squares.
Adjust the positions to improve the picture on your TV.

Fine tune the antennas.

Options

Mounting the
Camera

You can attach your
camera to a wall using
the supplied screws.

Basic Camera Setup, cont. Basic Camera Setup, cont.

5 6

Trim to crop marks

Trim
to
crop
marks

Trim
to
crop
marks

Fold

Fold

Fold

Fold

Congratulations! You have purchased X10’s most
popular wireless camera system. Your XCam2 or Wide
Eye is a powerful and versatile video solution.

Your camera uses X10’s 900 Megahertz wireless
technology to transmit live video through walls to a
television up to 100 feet away. It’s also designed so
that you can combine multiple cameras to provide
comprehensive coverage of your home or business.

This owner’s manual will take you through setting up
and using the camera. The world of wireless video is
waiting for you!

X10 Wireless Technology, Inc.
Limited One Year Warranty

X10.com, a division of X10 Wireless Technology, Inc.
(X10) warrants X10 products to be free from defective
material and workmanship for a period of one (1) year
from the original date of purchase at retail. X10 agrees
to repair or replace, at its sole discretion, a defective
X10 product if returned to X10 within the warranty
period and with proof of purchase. If service is required
under this warranty:

Call 1-800-442-5065, visit www.x10.com, or e-mail
[e-mail]. For help or more information on
setup, please visit: www.x10.com/support

X10.com, a division of X10 Wireless Technology, Inc.
400 Forge Way, Rockaway, NJ 07866

9M XCam2-3/11

2

Trim
to
crop
marks

Trim to crop marks

Your camera is ready to go out of the box! Follow these
steps for a quick setup of your new Camera system.

You should have: a camera and its power supply; a
wireless video receiver and its power supply; and a
video cable.

Basic Camera Setup

Connect the camera to power.

Plug the camera’s power supply into a standard wall
outlet. Plug the other end into the camera. Remove
the protective cover from the camera’s lens.

Connect the wireless video receiver to power.

Put your video receiver in a convenient place near or
on your TV. Plug its power supply into a standard wall
outlet and the other end into the video receiver.

Basic Camera Setup, cont.

Connect the video receiver to your TV.

Connect the video cable into the video-out jack
on the video receiver and into the video-in jack on
your TV.

Recording with a VCR

You can confi gure your XCam2 camera so that you can
record its video signal on your VCR. It’s easy:

1. Make sure your VCR is connected to play back on
your TV.

2. Set up your camera according to the instructions in
steps 1 thru 7.

3. Connect the video cable from the video receiver into
the Video In jack on your VCR.

With the camera connected to the VCR, you will be
able record surveillance video while watching on your
TV. Check your VCR owner’s manual if you aren’t sure
how to select the camera as the video source.

Options, cont.

Multi-Camera Systems

How does it work?

XCam2 cameras are designed so that you can use more
than one camera together with one wireless video
receiver. You select different cameras using a remote
control. The cameras should be set in groups of four,
i.e., A1, A2, A3, and A4, or A5, A6, A7, and A8. You
change the setting by turning the dials on the camera’s
power supply. Ensure all of your cameras are set to the
same Housecode, e.g. A.

Setting Up Multiple Cameras

1. Get together the parts of your multi-camera system:
the cameras and power supplies, video receiver and
power supply, video cable, transceiver module, and
camera remote control.

2. Set up your fi rst camera and your video receiver
according to the instructions in steps 1 thru 7.

3. Plug in the transceiver module and extend the
antenna.

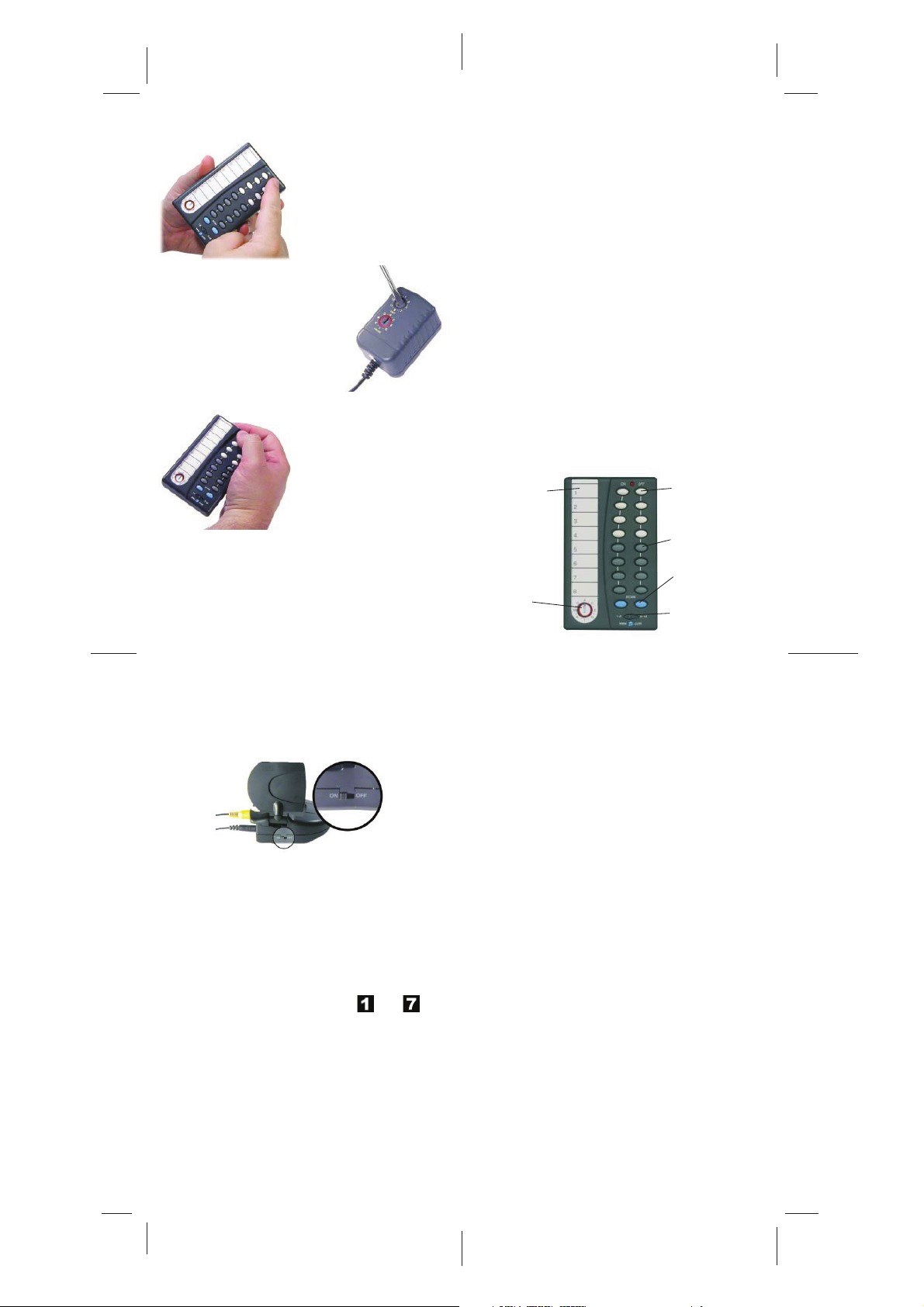

4. Remove the battery cover and
put four AAA batteries into the
remote. Make sure to match the
batteries to the + and – marks
inside the battery case.

3 4

7 8

Trim
to
crop
marks

Trim
to
crop
marks

Trim to crop marks

Fold

Fold

Fold

Fold

Trim
to
crop
marks

Unpack these items.
