Authinx WR10A Users manual

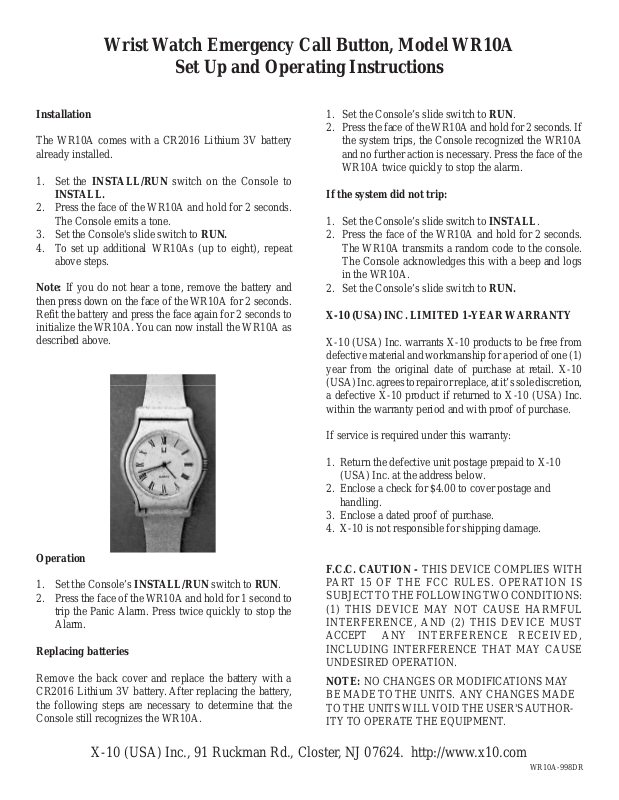

Wrist Watch Emergency Call Button, Model WR10A

Set Up and Operating Instructions

Installation

The WR10A comes with a CR2016 Lithium 3V battery
already installed.

1. Set the INSTALL/RUN switch on the Console to

INSTALL.

2. Press the face of the WR10A and hold for 2 seconds.
The Console emits a tone.

3. Set the Console's slide switch to RUN.

4. To set up additional WR10As (up to eight), repeat
above steps.

Note: If you do not hear a tone, remove the battery and
then press down on the face of the WR10A for 2 seconds.
Refit the battery and press the face again for 2 seconds to
initialize the WR10A. You can now install the WR10A as
described above.

1. Set the Console’s slide switch to RUN.

2. Press the face of the WR10A and hold for 2 seconds. If
the system trips, the Console rec ognized the WR10A
and no further action is necessary. Pr ess the face of the
WR10A twice quickly to stop the alarm.

If the system did not trip:

1. Set the Console’s slide switch to INSTALL.

2. Press the face of the WR10A and hold for 2 seconds.
The WR10A transmits a random code to the console.
The Console acknowledges this with a beep and logs
in the WR10A.

2. Set the Console’s slide switch to RUN.

X-10 (USA) INC. LIMITED 1-YEAR WARRANTY

X-10 (USA) Inc. warrants X-10 products to be free from
defective material and workmanship for a period of one (1)
year from the original date of purchase at retail. X-10
(USA) Inc. agrees to repair or replace, at it’s sole discretion,
a defective X-10 product if returned to X-10 (USA) Inc.
within the warranty period and with proof of purchase.

Operation

1. Set the Console’s INSTALL/RUN switch to RUN.

2. Press the face of the WR10A and hold for 1 second to
trip the Panic Alarm. Press twice quickly to stop the
Alarm.

Replacing batteries

Remove the back cover and replace the battery with a
CR2016 Lithium 3V battery. After replacing the battery,
the following steps are necessary to determine that the
Console still recognizes the WR10A.

If service is required under this warranty:

1. Return the defective unit postage prepaid to X-10
(USA) Inc. at the address below.

2. Enclose a check for $4.00 to cover postage and
handling.

3. Enclose a dated proof of purchase.

4. X-10 is not responsible for shipping damage.

F.C.C. CAUTION - THIS DEVICE COMPLIES WITH
PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERA TION.

NOTE: NO CHANGES OR MODIFICATIONS MAY
BE MADE T O THE UNITS. ANY CHANGES MADE
TO THE UNITS WILL V OID THE USER'S A UTHOR­ITY TO OPERA TE THE EQUIPMENT .

X-10 (USA) Inc., 91 Ruckman Rd., Closter, NJ 07624. http://www.x10.com

WR10A-998DR
