Autel Intelligent Tech MAXISYSMY908 User Manual

Trademarks

Autel®, MaxiSysTM, MaxiDAS®, MaxiScan®, MaxiTPMS®, MaxiVideoTM, MaxiRecorderTM, and MaxiCheckTM are trademarks of Autel Intelligent Technology Co., Ltd, registered in China, the United States and other countries. All other marks are trademarks or registered trademarks of their respective holders.

No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Autel.

Disclaimer of Warranties and Limitation of Liabilities

All information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Autel reserves the right to make changes at any time without notice. While information of this manual has been carefully checked for accuracy, no guarantee is given to the completeness and correctness of the contents, including but not limited to the product specifications, functions, and illustrations.

Autel will not be liable for any direct damages or for any special, incidental, or indirect damages or for any economic consequential damages (including lost profits).

IMPORTANT: Before operating or maintaining this unit, please read this manual carefully, paying extra attention to the safety warnings and precautions.

For Services and Support:

pro.auteltech.com

www.auteltech.com

1-855-288-3587/1-855-AUTELUS (North America) 0086-755-86147779 (China)

Support@auteltech.com

For technical assistance in all other markets, please contact your local selling agent

Safety Information

For your own safety and the safety of others, and to prevent damage to the device and vehicles upon which it is used, it is important that the safety instructions herein presented throughout this manual be read and understood by all persons operating, or coming into contact with, the device.

There are various procedures, techniques, tools, and parts for servicing vehicles, as well as in the skill of the person doing the work. Because of the vast number of test applications and variations in the products that can be tested with this equipment, we cannot possibly anticipate or provide advice or safety messages to cover every circumstance. It is the automotive technician’s responsibility to be knowledgeable of the system being tested. It is crucial to use proper service methods and test procedures. It is essential to perform tests in an appropriate and acceptable manner that does not endanger your safety, the safety of others in the work area, the device being used, or the vehicle being tested.

Before using the device, always refer to and follow the safety messages and applicable test procedures provided by the manufacturer of the vehicle or equipment being tested. Use the device only as described in this manual. Read, understand, and follow all safety messages and instructions in this manual.

Safety Messages

Safety messages are provided to help prevent personal injury and equipment damage. All safety messages are introduced by a signal word indicating the hazard level.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury to the operator or to bystanders.

Safety Instructions

The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered do not jeopardize your personal safety.

DANGER: When an engine is operating, keep the service area WELL VENTILATED or attach a building exhaust removal system to the engine exhaust system. Engines produce carbon monoxide, an odorless, poisonous gas that causes slower reaction time and can lead to serious personal injury or loss of life.

iii

Safety Information Important Safety Instructions

Do Not Turn the Volume Up Too Loud When Using Headphones

Listening at high volumes that over-stimulate the ear for long periods of time may result in loss of hearing.

SAFETY WARNINGS:

 Always perform automotive testing in a safe environment.  Wear safety eye protection that meets ANSI standards.  Keep clothing, hair, hands, tools, test equipment, etc. away from all

moving or hot engine parts.

 Operate the vehicle in a well ventilated work area, for exhaust gases are

poisonous.

 Put the transmission in PARK (for automatic transmission) or NEUTRAL

(for manual transmission) and make sure the parking brake is engaged.

 Put blocks in front of the drive wheels and never leave the vehicle

unattended while testing.

 Use extreme caution when working around the ignition coil, distributor cap,

ignition wires and spark plugs. These components create hazardous voltages when the engine is running.

 Keep a fire extinguisher suitable for gasoline, chemical, and electrical fires

nearby.

 Do not connect or disconnect any test equipment while the ignition is on or

the engine is running.

 Keep the test equipment dry, clean, free from oil, water or grease. Use a

mild detergent on a clean cloth to clean the outside of the equipment as necessary.

 Do not drive the vehicle and operate the test equipment at the same time.

Any distraction may cause an accident.

 Refer to the service manual for the vehicle being serviced and adhere to

all diagnostic procedures and precautions. Failure to do so may result in personal injury or damage to the test equipment.

 To avoid damaging the test equipment or generating false data, make

sure the vehicle battery is fully charged and the connection to the vehicle DLC is clean and secure.

 Do not place the test equipment on the distributor of the vehicle. Strong

electro-magnetic interference can damage the equipment.

Contents

SAFETY INFORMATION ........................................................................................... III

CHAPTER 1 USING THIS MANUAL ...................................................................... 1

1.1 CONVENTIONS .................................................................................................... 1

1.1.1 Bold Text .................................................................................................. 1

1.1.2 Terminology ............................................................................................ 1

1.1.3 Notes and Important Messages .............................................................. 1

1.1.4 Hyperlinks ................................................................................................ 1

1.1.5 Procedures ............................................................................................... 2

CHAPTER 2 GENERAL INTRODUCTION ............................................................... 3

2.1 MAXISYS DISPLAY TABLET ..................................................................................... 3

2.1.1 Functional Description ............................................................................. 3

2.1.2 Power Sources ......................................................................................... 5

2.1.3 Technical Specifications ........................................................................... 6

2.2 VCI – BLUETOOTH DIAGNOSTIC INTERFACE .............................................................. 7

2.2.1 Functional Description ............................................................................. 7

2.2.2 Technical Specifications ........................................................................... 8

2.2.3 Power Sources ......................................................................................... 8

2.3 VCI – J2534 ECU PROGRAMMING DEVICE ............................................................. 8

2.3.1 Functional Description ............................................................................. 8

2.3.2 Power Sources ....................................................................................... 10

2.3.3 Technical Specifications......................................................................... 10

2.4 ACCESSORY KIT ................................................................................................. 11

2.4.1 Main Cable ............................................................................................ 11

2.4.2 OBD I Adapters ...................................................................................... 11

2.4.3 Other Accessories .................................................................................. 12

CHAPTER 3 GETTING STARTED ......................................................................... 14

3.1 POWERING UP .................................................................................................. 14

3.1.1 Application Buttons ............................................................................... 15

3.1.2 Locator and Navigation Buttons ............................................................ 16

3.1.3 System Status Icons ............................................................................... 17

3.2 POWERING DOWN ............................................................................................ 17

3.2.1 Reboot System ....................................................................................... 18

3.3 INSTALLING COMPUTER SOFTWARE ....................................................................... 18

3.3.1 Printing Operation ................................................................................. 19

CHAPTER 4 DIAGNOSTICS OPERATIONS ........................................................... 20

4.1 ESTABLISHING VEHICLE COMMUNICATION .............................................................. 20

4.1.1 Vehicle Connection ................................................................................ 20

4.1.2 VCI Connection ...................................................................................... 22

4.1.3 No Communication Message ................................................................ 25

4.2 GETTING STARTED ............................................................................................. 26

4.2.1 Vehicle Menu Layout ............................................................................. 26

4.3 VEHICLE IDENTIFICATION ..................................................................................... 28

4.3.1 Auto VIN Scan ........................................................................................ 28

4.3.2 Manual VIN Input .................................................................................. 29

4.3.3 Manual Vehicle Selection ...................................................................... 30

4.3.4 Alternative Vehicle Identification .......................................................... 33

4.4 NAVIGATION ..................................................................................................... 33

4.4.1 Diagnostics Screen Layout ..................................................................... 33

4.4.2 Screen Messages ................................................................................... 36

4.4.3 Making Selections ................................................................................. 36

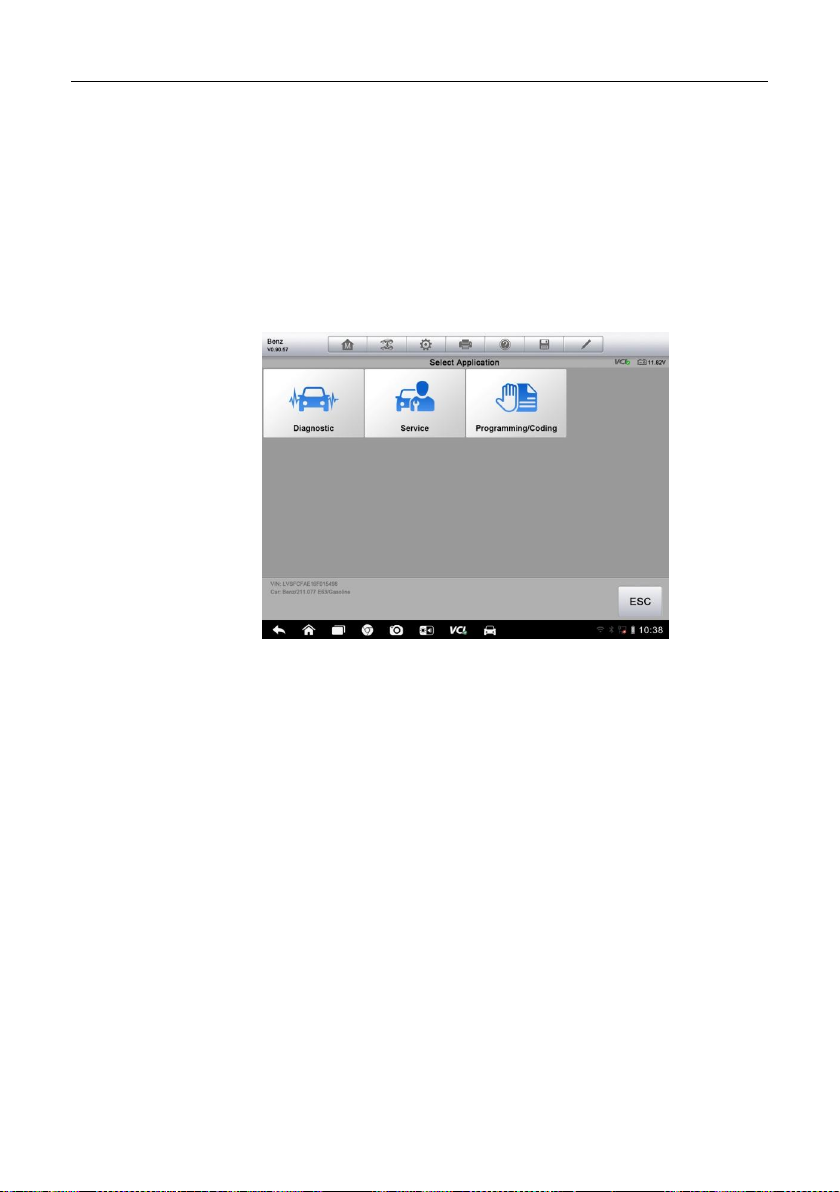

4.5 MAIN MENU .................................................................................................... 37

4.6 DIAGNOSIS ....................................................................................................... 37

4.6.1 ECU Information .................................................................................... 41

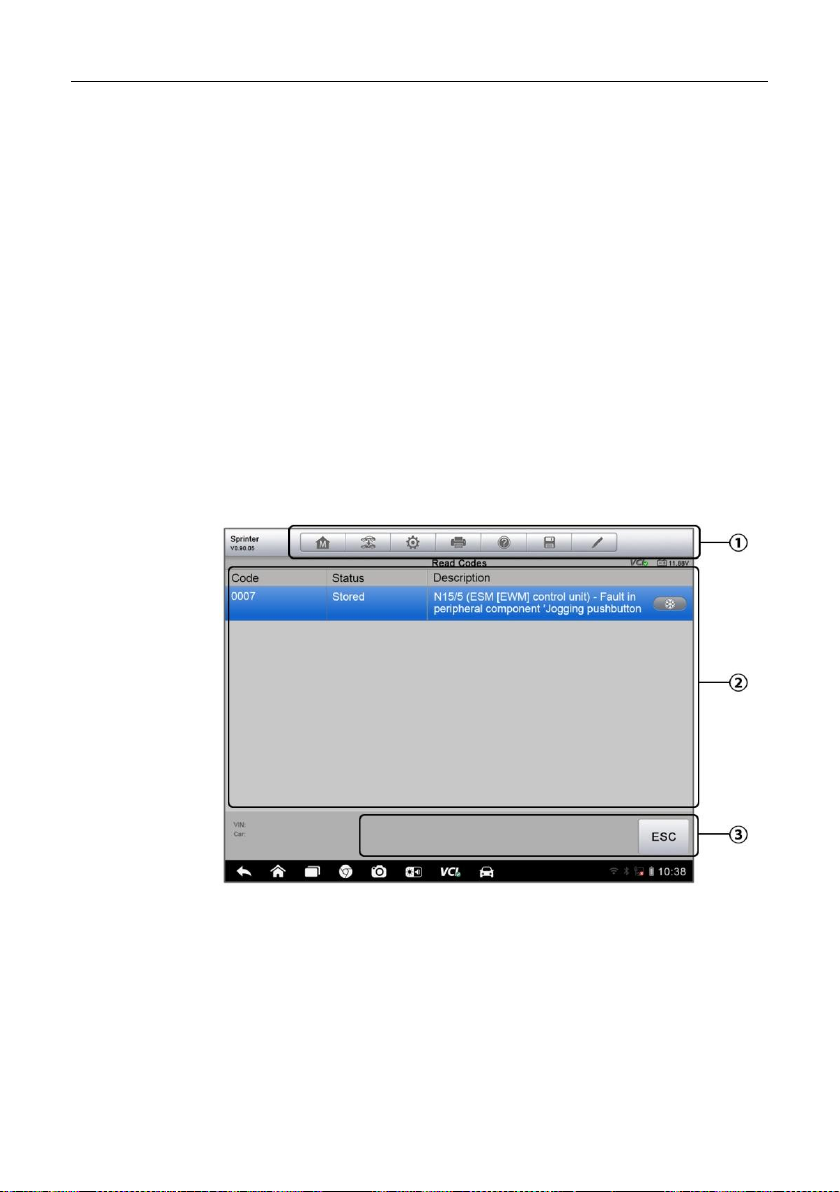

4.6.2 Read Codes ............................................................................................ 42

4.6.3 Erase Codes ........................................................................................... 43

4.6.4 Live Data................................................................................................ 43

4.6.5 Active Test ............................................................................................. 50

4.6.6 Special Functions ................................................................................... 51

4.7 SERVICE ........................................................................................................... 52

4.7.1 Function Descriptions ............................................................................ 52

4.8 PROGRAMMING AND CODING .............................................................................. 53

4.9 GENERIC OBD II OPERATIONS ............................................................................. 57

4.9.1 General Procedure ................................................................................. 57

4.9.2 Function Descriptions ............................................................................ 59

4.10 EXITING DIAGNOSTICS .................................................................................... 62

CHAPTER 5 DATA MANAGER OPERATIONS ....................................................... 63

5.1 OPERATIONS..................................................................................................... 63

5.1.1 Image Files ............................................................................................ 63

5.1.2 PDF Files ................................................................................................ 65

5.1.3 Review Data .......................................................................................... 66

5.1.4 Apps Manager (Coming soon) ............................................................... 66

5.1.5 Message (Coming soon) ........................................................................ 67

5.1.6 Data Logging (Coming soon) ................................................................. 67

CHAPTER 6 MAXIFIX OPERATIONS ................................................................... 68

6.1 NAVIGATION ..................................................................................................... 68

6.1.1 Terminology ........................................................................................... 70

6.2 OPERATIONS..................................................................................................... 71

6.2.1 Home ..................................................................................................... 71

6.2.2 Your Cloud ............................................................................................. 72

6.2.3 Search Fix .............................................................................................. 74

6.2.4 Q&A ....................................................................................................... 75

6.2.5 Support .................................................................................................. 75

CHAPTER 7 SETTINGS OPERATIONS ................................................................. 76

7.1 OPERATIONS..................................................................................................... 76

7.1.1 Unit ........................................................................................................ 76

7.1.2 Language ............................................................................................... 77

7.1.3 Printing Setting ...................................................................................... 77

7.1.4 Wired Network ...................................................................................... 78

7.1.5 Push Message ........................................................................................ 78

7.1.6 About ..................................................................................................... 79

7.1.7 System Settings ..................................................................................... 79

CHAPTER 8 SHOP MANAGER OPERATIONS ...................................................... 80

8.1 VEHICLE HISTORY .............................................................................................. 81

8.1.1 Historical Test Record ............................................................................ 82

8.2 WORKSHOP INFORMATION .................................................................................. 83

8.3 CUSTOMER MANAGER ....................................................................................... 84

8.3.1 History Notes ......................................................................................... 86

CHAPTER 9 UPDATE OPERATIONS .................................................................... 88

CHAPTER 10 VCI MANAGER OPERATIONS .......................................................... 90

10.1 BLUETOOTH PAIRING ...................................................................................... 91

10.2 WIRED NETWORK CONNECTION ....................................................................... 92

CHAPTER 11 REMOTE DESK OPERATIONS .......................................................... 94

11.1 OPERATIONS ................................................................................................. 94

CHAPTER 12 SUPPORT OPERATIONS .................................................................. 96

12.1 PRODUCT REGISTRATION ................................................................................. 96

12.2 SUPPORT SCREEN LAYOUT ............................................................................... 97

12.3 MY ACCOUNT ............................................................................................... 98

12.4 USER COMPLAINT .......................................................................................... 98

vii

12.5 SUPPORT COMMUNITIES ............................................................................... 101

12.6 TRAINING CHANNELS .................................................................................... 103

12.7 FAQ DATABASE ........................................................................................... 104

CHAPTER 13 REMOTE PROGRAM OPERATIONS (COMING SOON) .....................105

CHAPTER 14 TRAINING OPERATIONS ................................................................105

CHAPTER 15 QUICK LINK OPERATIONS .............................................................107

CHAPTER 16 DIGITAL INSPECTION OPERATIONS ...............................................108

16.1 ADDITIONAL ACCESSORIES ............................................................................. 109

16.2 OPERATIONS ............................................................................................... 111

CHAPTER 17 SCOPE OPERATIONS (COMING SOON) ..........................................113

CHAPTER 18 MAINTENANCE AND SERVICE .......................................................114

18.1 MAINTENANCE INSTRUCTIONS........................................................................ 114

18.2 TROUBLESHOOTING CHECKLIST ....................................................................... 115

18.3 ABOUT BATTERY USAGE ................................................................................ 115

18.4 SERVICE PROCEDURES ................................................................................... 116

CHAPTER 19 COMPLIANCE INFORMATION ........................................................118

CHAPTER 20 WARRANTY ..................................................................................119

viii

Chapter 1 Using This Manual

This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment

that are not included on your system. Contact your sales representative for availability of other modules and optional tools or accessories.

1.1 Conventions

The following conventions are used.

1.1.1 Bold Text

Bold emphasis is used to highlight selectable items such as buttons and menu options.

Example:

 Tap OK.

1.1.2 Terminology

The term “select” means highlighting a button or menu item and tapping it to confirm the selection.

1.1.3 Notes and Important Messages

The following messages are used.

Notes

A NOTE provides helpful information such as additional explanations, tips, and comments.

Important

IMPORTANT indicates a situation which, if not avoided, may result in damage

to the test equipment or vehicle.

1.1.4 Hyperlinks

Hyperlinks, or links, that take you to other related articles, procedures, and illustrations are available in electronic documents. Blue colored text indicates a selectable hyperlink.

Using This Manual Conventions

1.1.5 Procedures

An arrow icon indicates a procedure. Example:

 To use the camera:

1 Tap the Camera button. The camera screen opens. 2 Focus the image to be captured in the view finder. 3 Tap the blue circle. The view finder now shows the captured picture

and auto-saves the taken photo.

Chapter 2 General Introduction

The MaxiSysTM/MaxiSys ProTM Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful A9 quad-core 1.40GHz processor, and a 9.7 inch LED capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiSys organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

There are two main components to the MaxiSys system:

 MaxiSys Display Tablet -- the central processor and monitor for the system  Vehicle Communication Interface (VCI) -- the device for accessing vehicle data

NOTE: Autel provides two optional VCI devices for your choice. One is the J2534 Programming Device; the other is the Bluetooth Diagnostic Interface, both will be introduced in this chapter.

This manual describes the construction and operation of these devices and how they work together to deliver diagnostic solutions.

2.1 MaxiSys Display Tablet

2.1.1 Functional Description

Figure 2-1 MaxiSys Tablet Front View

1. 9.7” LED Capacitive Touch Screen

2. Ambient Light Sensor – detects ambient brightness

3. Microphone 3

General Introduction MaxiSys Display Tablet

Figure 2-2 MaxiSys Tablet Back View

1. Audio Speaker

2. Collapsible Stand – extends from the back to allow hands-free viewing of

the display tablet at a 30 degree angle

3. Camera Lens

4. Camera Flash

Figure 2-3 MaxiSys Tablet Left Side

1. SIM (subscriber identity module ) Card Slot - optional module

2. Mini SD (secure digital) Card Slot - optional module

3. Mini USB (universal serial bus) OTG Port

4. Head Phone Jack

General Introduction MaxiSys Display Tablet

Figure 2-4 MaxiSys Tablet Top View

1. DC Power Supply Input Port

2. Ethernet Port

3. HDMI (high-definition multimedia interface) Port

4. USB Port

5. VGA (video graphics array) Port

6. Lock/Power Button – turns the MaxiSys tool on and off with long press, or

locks the screen with short press

2.1.2 Power Sources

The MaxiSys Display Tablet can receive power from any of the following sources:

 Internal Battery Pack  AC/DC Power Supply  Vehicle Power

Internal Battery Pack

The display tablet can be powered with the internal rechargeable battery, which if fully charged can provide sufficient power for about 6.5 hours of continuous operation.

AC/DC Power Supply

The display tablet can be powered from a wall socket using the AC/DC power adapter. The AC/DC power supply also charges the internal battery pack.

Vehicle Power

The display tablet can be powered from the cigarette lighter or other suitable power port on the test vehicle through a direct cable connection. The vehicle power cable connects to the DC power supply port on the top side of the display unit.

General Introduction MaxiSys Display Tablet

Item

Description

Operating System

Android

4.0, Ice Cream Sandwich

Processor

Samsung Exynos Quad-Core Processor 1.4GHz

Memory

2GB RAM & 32GB On-board Memory

Display

9.7 inch LED capacitive touch screen with 1024x768P resolution

Connectivity

 Ethernet: RJ45 Ethernet Connection  Wi-Fi (802.11 a/b/g/n)  USB: 2.0  Bluetooth v.2.1 + EDR

Camera (rear)

Rear-facing, 5.0 Megapixel, AF with Flashlight

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output

 Microphone  Dual Speakers  4-Band 3.5 mm stereo/standard headset jack

Power and Battery

 11000 mAh 3.7 V lithium-polymer battery  Charging via 12 V AC/DC power supply

Input Voltage

12 V (9-24 V)

Power Consumption

6.5 W

Operating Temperature

-10 to 55°C (14 to 131°F)

Storage Temperature

-20 to 70°C (-4 to 158°F)

Housing

Strong plastic housing with protective rubber boot

Dimensions (W x H x D)

300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)

Weight

NW: 1.42 kg (3.13 lb), MaxiSys GW: 8.655 kg (19.08 lb); MaxiSys Pro GW: 8.052 kg (17.75 lb)

Protocols

ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP

2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

2.1.3 Technical Specifications

General Introduction VCI – Bluetooth Diagnostic Interface

2.2 VCI – Bluetooth Diagnostic Interface

2.2.1 Functional Description

Figure 2-5 Bluetooth Diagnostic Interface – for MaxiSys

1. Vehicle Data Connector (DB15-Pin)

2. Power LED - illuminates solid green when powered on

3. Vehicle LED - flashes green when communicating with the vehicle’s

network

4. Error LED - illuminates solid red when serious hardware failure occurs;

also flashes red when performing software/firmware update

5. Bluetooth LED - illuminates solid green when connected with the

MaxiSys display tablet through Bluetooth communication; also flashes green when transmitting data between the vehicle and the display tablet

6. USB LED – illuminates solid green when the device is properly

connected and communicating with the MaxiSys display tablet via the USB cable

7. USB Port

Communication

The Bluetooth Diagnostic Interface supports both Bluetooth and USB communication. It can transmit vehicle data to the MaxiSys Display Tablet with or without a physical connection. The working range of the transmitter through Bluetooth communication is about 755 feet (about 230 m). A signal lost due to moving out of range automatically restores itself when the display unit is brought closer to the VCI unit.

General Introduction VCI – J2534 ECU Programming Device

Item

Description

Communications

 Bluetooth V.2.1 + EDR  USB 2.0

Wireless Frequency

2.4 GHz

Input Voltage Range

12 VDC

Supply Current

200 mA @ 12 VDC

Operating Temperature

0°C to 50°C (ambient)

Storage Temperature

-20°C to 70°C (ambient)

Dimensions (L x W x H)

147.5 mm (5.80”) x 85.5 mm (3.37”) x 29.0 mm (1.14”)

Weight

0.215 kg (0.473 lb)

2.2.2 Technical Specifications

2.2.3 Power Sources

The Bluetooth Diagnostic Interface operates on 12-volt vehicle power, which it receives through the vehicle data connection port. The unit powers on whenever it is connected to an OBD II/EOBD compliant data link connector (DLC).

2.3 VCI – J2534 ECU Programming Device

2.3.1 Functional Description

Figure 2-6 J2534 ECU Programming Device – for MaxiSys Pro

General Introduction VCI – J2534 ECU Programming Device

1. Ethernet Port

2. USB Port

3. Power LED - illuminates solid green when powered on

4. Error LED - illuminates solid red when serious hardware failure occurs

5. Bluetooth LED - illuminates solid green when connected with the

MaxiSys display tablet through Bluetooth communication

6. Ethernet LED - illuminates solid green when connected with the MaxiSys

display tablet or an existing LAN via the Ethernet serial cable

7. USB Status Light -- illuminates solid green when the device is properly

connected and communicating with the MaxiSys display tablet or the PC via the USB cable

8. Vehicle LED - flashes green when communicating with the vehicle’s

network

IMPORTANT: Do not disconnect the reprogramming device while this status light is on! If the flash reprogramming procedure is interrupted while the vehicle’s ECU is blank or only partially programmed, the module may be unrecoverable.

9. Bluetooth Antenna

10. DC Power Supply Input Port

11. Vehicle Data Connector (DB26-Pin MVCI)

12. External Programming Voltage Output Port

13. A/D Input Port

J2534 Reprogramming Capability

The J2534 ECU Programming Device is a SAE J2534-1 & -2 compliant PassThru reprogramming interface device. Using the updated OEM software, it is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.

Communication

The J2534 ECU programming device supports Bluetooth, Ethernet and USB communication. It can transmit vehicle data to the MaxiSys display tablet with or without a physical connection. The working range of the transmitter through Bluetooth communication is 755 feet (about 230 m). A signal lost due to moving out of range automatically restores itself when the display tablet unit is brought closer to the VCI unit.

General Introduction VCI – J2534 ECU Programming Device

Item

Description

Communications

 Ethernet: RJ45 Ethernet connection  Bluetooth  USB 2.0

Input Voltage Range

6 VDC to 26 VDC

Supply Current

300 mA @ 6 VDC 200 mA @ 12 VDC 110 mA @ 24 VDC

Operating Temperature

0°C to +60°C (ambient)

Storage Temperature

-65°C to +100°C (ambient)

Dimensions (L x W x H)

183.8mm (7.23”) x 135.5mm (5.33”) x 41mm (1.6”)

Weight

0.54 kg (1.20 lb)

2.3.2 Power Sources

The J2534 programming device can receive power from both of the following sources:

 Vehicle Power  AC/DC Power Supply

Vehicle Power

The J2534 programming device operates on 12-volt vehicle power, which it receives through the vehicle data connection port. The device powers on whenever it is connected to an OBD II/EOBD compliant data link connector (DLC). For non OBD II/EOBD compliant vehicles, the device can be powered from a cigarette lighter or other suitable power port on the test vehicle using the auxiliary power cable.

AC/DC Power Supply

The J2534 programming device can be powered from a wall socket using the AC/DC power adapter.

2.3.3 Technical Specifications

NOTE: For additional information please refer to the accompanied user

manual for the J2534 ECU Programming Device.

General Introduction Accessory Kit

Benz-14

Chrysler-16

BMW-20

Kia-20

Nissan-14

GM/Daewoo-12

Honda-3

Fiat-3

2.4 Accessory Kit

2.4.1 Main Cable

The VCI device can be powered through the Main Cable when connected to an OBD II/EOBD compliant vehicle. The Main Cable connects the VCI device to the vehicle’s data link connector (DLC), through which the VCI device can transmit vehicle data to the MaxiSys display tablet.

Figure 2-7 Main Cable – 1.5 m in length

2.4.2 OBD I Adapters

The OBD I adapters are for Non-OBD II vehicles. The adapter used depends on the type of vehicle make being tested. The most common adapters are shown below.

General Introduction Accessory Kit

PSA-2

Benz-38

VW/Audi-2+2

Chang’an-3

Mitsubishi/Hyun

dai -12+16

Standard 2.0 USB Cable

Connects the display tablet to the VCI unit.

Mini USB Cable

Connects the display tablet to the PC.

AC/DC External Power Adapter

Connects the display tablet to the external DC power port for power supply.

Compact Disc (CD)

Includes the User Manual, Printing Services Program and Update Application, etc.

Stylus Pen

Provides precise touch and control, while protecting your touch screen from scratching.

Ethernet Serial Cable

Connects the display tablet to the VCI unit (for MaxiSys Pro only).

2.4.3 Other Accessories

General Introduction Accessory Kit

Cigarette Lighter

Provides power to the display tablet or the J2534 programming device through connection to the vehicle’s cigarette lighter receptacle, as some non-OBD II vehicles cannot provide power via the DLC connection.

Clipper Cable

Provides power to the display tablet or the J2534 programming device, through connection to the vehicle’s battery (for MaxiSys Pro only).

Chapter 3 Getting Started

Make sure the MaxiSys Display Tablet has a charged battery or is connected to the DC power supply (see 2.1.2 Power Sources on page 5).

3.1 Powering Up

Press the Lock/Power button on the top right side of the display tablet to switch the unit on. The system boots up, and shows the lock screen. Press and drag the inner ring to the edge of the circle to unlock the screen; the MaxiSys Job Menu is shown.

Figure 3-1 Sample MaxiSys Job Menu

1. Application Buttons

2. Locator and Navigation Buttons

3. Status Icons

NOTE: The screen is locked by default when you first turn on the display tablet. It is recommended to lock the screen to protect information in the system and reduce battery usage.

Almost all operations on the display tablet are controlled through the touch screen. The touch screen navigation is menu driven, which allows you to quickly locate the test procedure, or data that you need, through a series of choices and questions. Detailed descriptions of the menu structures are found in the chapters for the various applications.

Getting Started Powering Up

Name

Button

Description

Diagnostics

Configures the unit to operate as a diagnostic tool. See Diagnostics Operations on page 20.

Data Manager

Opens the organization system for saved data files. See Data Manager Operations on page 63.

MaxiFix

Launches the MaxiFix platform which provides the most compatible and abundant repair techniques and diagnostics database. See MaxiFix

Operations on page 68.

Settings

Allows you to set the MaxiSys system settings, and to view the general information about the Display Tablet. See Settings Operations on page

76.

Shop Manager

Allows you to edit and save workshop information and customer data, as well as reviewing test vehicle history records. See Shop Manager

Operations on page 80.

Update

Checks for the latest update available for the MaxiSys system, and performs updating procedures. See Update Operations on page 88.

VCI Manager

Establishes and manages Bluetooth or wired connections to the VCI device. See VCI Manager

Operations on page 90.

Remote Desk

Configures your unit to receive remote support using the TeamViewer application program. See

Remote Desk Operations on page 94.

Support

Launches the Support platform which synchronizes Autel’s on-line service base station with the MaxiSys tablet. See Support Operations on page 96.

3.1.1 Application Buttons

The Application buttons configure the MaxiSys for the type of operation or activity to be performed. The table below gives brief descriptions of the available applications.

Use the stylus pen or your finger tip to select an application from the Job Menu.

Table 3-1 Applications

Getting Started Powering Up

Name

Button

Description

Remote Program

Configures your unit to operate as a PassThru interface to allow remote control for vehicle diagnosis and ECU reprogramming. See Remote

Program Operations (Coming soon) on page 105.

Training

Allows you to store and play technical tutorial and training videos about the device usage or vehicle diagnostic techniques. See Training Operations on page 105.

Quick Link

Provides associated website bookmarks to allow quick access to product update, service, support and other information. See Quick Link Operations on page 107.

Digital Inspection

Configures the unit to operate as a video scope device by connecting to an Imager head cable for close vehicle inspections. See Digital Inspection

Operations on page 108.

Scope

Configures the unit to operate as a lab scope, graphing multimeter, or digital multimeter. See

Scope Operations (Coming soon) on page 113.

Name

Button

Description

Locator

Indicates the location of the screen. Swipe the screen left or right to view the previous or next screen.

Back

Returns to the previous screen.

Home

Returns to Android System’s Home screen.

Recent Apps

Displays a list of applications that are currently working. To open an app, touch it. To remove an app, swipe it to the right.

Chrome

Launches the Chrome browser.

3.1.2 Locator and Navigation Buttons

Operations of the Navigation buttons at the bottom of the screen are described in the table below:

Table 3-2 Locator and Navigation Buttons

Getting Started Powering Down

Name

Button

Description

Camera

Opens the camera with short press; takes and saves screenshot image with long press. The saved files are auto-stored in the Data Manager application for later reviews. See

Data Manager Operations on page 63.

Display & Sound

Allows you to adjust the brightness of the screen and the volume of the audio output.

VCI

Opens the VCI Manager application. The tick icon at the bottom right corner indicates the display tablet is communicating with the VCI device, otherwise a cross icon displays.

MaxiSys Shortcut

Returns to the MaxiSys operation interface from other Android applications.

 To use the camera:

1. Tap the Camera button. The camera screen opens.

2. Focus the image to be captured in the view finder.

3. Tap the inner blue circle. The view finder now shows the captured picture and auto-saves the taken photo.

4. Tap the thumbnail image on the top right corner of the screen to view the stored image.

5. Tap the Back or Home button to exit the camera application.

Refer to Android documentation for additional information.

3.1.3 System Status Icons

These are the standard status icons of the Android operating system. Your MaxiSys display tablet is a fully functional Android Pad. Refer to Android documentation for additional information.

3.2 Powering Down

All vehicle communications must be terminated before shutting down the MaxiSys display tablet. A warning message displays if you attempt to shut down while the VCI unit is communicating with the vehicle. Forcing a shut down while communicating may lead to ECM problems on some vehicles. Exit the Diagnostics application before powering down.

Getting Started Install Computer Software

 To power down the MaxiSys tablet:

1. Press and hold the Lock/Power Button.

2. Tap OK; the tablet will turn off in a few seconds.

3.2.1 Reboot System

In case of system crash, press and hold the Lock/Power button for 8 seconds to reboot the system.

3.3 Installing Computer Software

The MaxiSys/MaxiSys Pro Diagnostic Platform allows you to realize some of its functions on a computer to enhance capabilities and improve user experience. To realize these functions on a computer, you need to install certain software.

There are two Setup.exe program packages contained in the CD provided with the MaxiSys tool kit. The packages include the following applications:

1. PC Link - launches a Printing Services program which receives and allows editing the files sent from the MaxiSys tablet for printing

2. Driver Program - setup driver program for the VCI device

3. Network Configuration Program and Update Agent - network configuration program and firmware update agent for the VCI device (for J2534 ECU programming device)

4. Update Agent - firmware update agent for the VCI device (for Bluetooth communication interface)

 To install the Setup.exe program

1. Insert the CD into the CD-ROM of the computer. The driver

installation wizard will load momentarily.

2. Click on Next on the welcome page.

3. Click the Change button, and select a destination folder to install the

program, and click Next to continue. Or directly click Next to continue without changing the default installation folder.

4. Click Install and the Setup.exe program will be installed onto the

computer.

Getting Started Install Computer Software

3.3.1 Printing Operation

This section describes how to receive file from the MaxiSys tablet and perform printing through the computer:

 To perform printing through the computer

1. Install the PC Link (Printing Services program) to the computer.

2. Make sure the display tablet is connected to the computer network,

either via Wi-Fi or LAN, before printing. See 7.1.3 Printing Setting on page 77 for more information.

3. Run the Printing Services program on the computer.

4. Tap the Print button on the toolbar displayed in various applications

of the MaxiSys system. A temporary file will be created and sent to the computer for printing.

5. Click the Printer Server tab on the top of the program interface on

the computer, and wait for the printing file to load.

6. Click the Print button to start printing.

NOTE: Make sure the computer installed with the Printing Services program is connected to a printer.

Refer to the accompanied user manual for the corresponding VCI device for detailed information about the operation of the network configuration program and/or the update agent.

Chapter 4 Diagnostics Operations

By establishing a data link to the electronic control systems of the vehicle being serviced through the VCI device, the Diagnostics application allows you to retrieve diagnostic information, view live data parameters, and perform active tests. The Diagnostics application can access the electronic control module (ECM) for various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more.

4.1 Establishing Vehicle Communication

The Diagnostics operations require connecting the MaxiSys/MaxiSys Pro Diagnostic Platform to the test vehicle through the VCI device using the main cable, and test adapters (for non-OBD II vehicles). To establish proper vehicle communication to the MaxiSys display tablet, you need to perform the following steps:

1. Connect the VCI device to the vehicle’s DLC for both communication and power source.

2. Connect the VCI device to the MaxiSys display tablet via Bluetooth pairing, USB connection, or Ethernet connection. (Ethernet connection is only available for the J2534 Programming Device.)

3. When these are done, check the VCI navigation button at the bottom bar on the screen, if the button displays a green tick icon at the lower right corner, the MaxiSys/MaxiSys Pro diagnostic platform is ready to start vehicle diagnosis.

4.1.1 Vehicle Connection

The method used to connect the VCI device to a vehicle’s DLC depends on the vehicle’s configuration as follows:

 A vehicle equipped with an On-board Diagnostics Two (OBD II)

management system supplies both communication and 12-volt power through a standardized J-1962 DLC.

 A vehicle not equipped with an OBD II management system supplies

communication through a DLC connection, and in some cases supplies 12-volt power through the cigarette lighter receptacle or a connection to the vehicle battery.

Diagnostics Operations Establishing Vehicle Communication

OBD II Vehicle Connection

This type of connection only requires the main cable without any additional adapter.

 To connect to an OBD II vehicle

1. Connect the main cable’s female adapter to the Vehicle Data

Connector on the VCI device, and tighten the captive screws.

2. Connect the cable’s 16-pin male adapter to the vehicle’s DLC, which

is generally located under the vehicle dash.

NOTE: The vehicle’s DLC is not always located under the dash; refer to the user manual of the test vehicle for additional connection information.

Non-OBD II Vehicle Connection

This type of connection requires both the main cable and a required OBD I adapter for the specific vehicle being serviced.

There are three possible conditions for Non-OBD II vehicle connection:

 DLC connection supplies both communication and power.  DLC connection supplies communication and power is to be supplied via

the cigarette lighter connection.

 DLC connection supplies communication and power is to be supplied via

connection to the vehicle battery.

 To connect to a Non-OBD II Vehicle

1. Connect the main cable’s female adapter to the Vehicle Data

Connector on the VCI device, and tighten the captive screws.

2. Locate the required OBD I adapter and connect its 16-pin jack to the

main cable’s male adapter.

3. Connect the attached OBD I adapter to the vehicle’s DLC.

NOTE: Some adapters may have more than one adapter or may have test leads instead of an adapter. Whatever the case, make the proper connection to the vehicle’s DLC as required.

Diagnostics Operations Establishing Vehicle Communication

 To connect the cigarette lighter

1. Plug the DC power connector of the cigarette lighter into the DC

power supply input port on the device.

2. Connect the male connector of the cigarette lighter into the vehicle’s

cigarette lighter receptacle.

 To connect the clipper cable - for MaxiSys Pro only

1. Connect the tubular plug of the clipper cable to the male connector

of the cigarette lighter.

Figure 4-1 Connection between Cigarette Lighter and Clipper Cable

2. Plug the DC power connector of the cigarette lighter into the DC

power supply input port of the J2534 programming device.

3. Connect the clipper cable to the vehicle’s battery.

NOTE: After the VCI device is successfully connected to the vehicle, the Power LED on the device illuminates, and a brief beep sound will be heard.

4.1.2 VCI Connection

After the VCI device is properly connected to the vehicle, the Power LED on the VCI device illuminates solid green light, and is ready to establish communication with the MaxiSys display tablet.

The Bluetooth Diagnostic Interface, which comes with the MaxiSys tool kit, supports 2 communication methods with the MaxiSys display tablet: Bluetooth and USB.

The J2534 ECU Programming Device, which comes with the MaxiSys Pro tool kit, supports 3 communication methods with the MaxiSys display tablet: Bluetooth, USB, and Ethernet connection.

Diagnostics Operations Establishing Vehicle Communication

Pairing Up via Bluetooth

Among all methods, Bluetooth pairing is recommended as the first choice for the communication between the MaxiSys display tablet and the VCI device. The working range for Bluetooth communication is about 755 feet (230 m); this means you can perform vehicle diagnosis freely around the workshop with greater convenience.

If you use more than one VCI device to connect to the test vehicles when customers are many, you can perform vehicle diagnosis on various vehicles conveniently, by pairing the MaxiSys display tablet separately to each of the VCI devices connected to the different test vehicles, via Bluetooth, without the need to repeat the plugging and unplugging procedure, which is unavoidable through traditional wired connection, thus saves you more time and provides more efficiency.

 To pair up the MaxiSys display tablet with the VCI device via

Bluetooth

1. If not already done, power up the MaxiSys display tablet.

2. Select the VCI Manager application from the MaxiSys Job Menu.

3. When the VCI Manager application is opened, the device

automatically starts scanning for available VCI devices around for Bluetooth pairing. The found devices are listed in the Setting section on the right side of the screen.

NOTE: If no VCI device is found, this may indicate that the signal strength of the transmitter is too weak to be detected. In this case try to get closer to the device, or reposition the VCI device, and remove all possible objects that causes signal interference. When these are done, tap the Scan button at the top right corner to start searching again.

4. Depending on the VCI type you use, the device name may display

as Maxi suffixed with a serial number. Select the required device for pairing.

5. When paring is successfully done, the connection status displayed

to the right of the device name is shown as Paired.

6. Wait for a few seconds, and the VCI button on the system

Navigation bar at the bottom of the screen shall display a green tick icon, indicating the display tablet is connected to the VCI device, and is ready to perform vehicle diagnosis.

Refer to 10.1 Bluetooth Pairing on page 91 for additional information.

Diagnostics Operations Establishing Vehicle Communication

USB Cable Connection

The USB cable connection is a simple and quick way to establish communication between the MaxiSys display tablet and the VCI device. After properly connecting the USB cable from the tablet to the VCI device, the VCI navigation button at the bottom bar of the screen shows a green tick icon in a few seconds, and the USB LED on the VCI device illuminates solid green light, indicating the connection between the devices is successful.

The MaxiSys/MaxiSys Pro diagnostic platform is now ready to perform vehicle diagnosis.

NOTE: Since the USB connection provides the most stable and fastest communication, it is highly recommended to apply this communication method when operating ECU programming or coding. When all the three communication methods are applied at the same time, the MaxiSys system will use the USB communication as the default priority.

Wired Connection via Ethernet

NOTE: This communication method is only available for connecting the

MaxiSys display tablet to the J2534 ECU programming device, which comes with the MaxiSys Pro tool kit.

This section describes the general procedure to connect the tablet with the J2534 ECU programming device via Ethernet connection. To establish successful communication, you need to set up the network configuration on the display tablet.

 To connect the MaxiSys display tablet with the VCI device via

Ethernet

1. If not already done, power up the MaxiSys display tablet.

2. Connect the MaxiSys Display Tablet to the J2534 ECU

programming device with the accompanied Ethernet serial cable.

3. Select the VCI Manager application from the MaxiSys Job Menu.

4. Select the Wired Network option on the Connection Mode list. The

Ethernet Setting screen displays on the right section.

5. Select a connection type:

 DHCP – obtains the LAN IP address automatically  Manual – allows you to enter IP address manually

Diagnostics Operations Establishing Vehicle Communication

6. If Manual is selected, you need to set the IP address on your own.

NOTE: If you are not sure about the specific IP address values, please contact your network administrator.

7. Tap Apply to set up the wired network connection.

When the wired network is successfully connected, the connection status is displayed as Connected, and the two status lights at the corners alongside the Ethernet Ports on the display tablet illuminate. The solid amber light indicates steady connection, and the flashing green light indicates active communication, between the units. The VCI navigation button at the bottom bar shall display a green tick icon after a few seconds, indicating the MaxiSys Pro diagnostic platform is ready to perform vehicle diagnosis.

Refer to 10.2 Wired Network Connection on page 92 for additional information. NOTES: After the MaxiSys/MaxiSys Pro diagnostic platform has successfully

established communication with the vehicle, the VCI device makes a long beep sound for confirmation.

4.1.3 No Communication Message

A. If the MaxiSys Display Tablet is not connected to the VCI device, an

“Error” message displays. An “Error” message indicates the display tablet is not communicating with the VCI device, and so cannot gain access to the vehicle control module. In this case, you need to do the following check-ups:

 Check if the VCI device is powered on.  In case of wireless connection, check if the network is configured

correctly, or if the right device has been paired.

 If during the diagnosis process, the communication is suddenly

interrupted due to the loss of signal, check if there is any object that causes signal interruption.

 Check if the VCI device is properly positioned. It is recommended to

put the VCI device with the front side up.

 Try standing closer to the VCI device to obtain more stable signals,

and faster communication speed.

Diagnostics Operations Getting Started

 In case of wired connection, check the cable connection between

the display tablet and the VCI device.

 Check if the green LED on the VCI device is illuminated for

Bluetooth, Ethernet, or USB.

 Check if the Error LED on the VCI device is on, this may indicate

there is a communication error between the devices, in this case try re-establishing the connection again; if this does not work, there may be a hardware problem with the device, in this case contact for technical support.

B. If the VCI device is unable to establish a communication link, a prompt

message displays with check instructions. The following conditions are the possible causes for this massage to display:

 The VCI device is unable to establish a communication link with the

vehicle.

 You’ve selected a system for testing that the vehicle is not equipped

with.

 There is a loose connection.  There is a blown vehicle fuse.  There is a wiring fault on the vehicle, or the data cable or adapter.  There is a circuit fault in the data cable or adapter.  Incorrect vehicle identification was entered.

4.2 Getting Started

Prior to first use of the Diagnostics application, the VCI device must be synchronized with the MaxiSys Display Tablet to establish a communication link. See VCI Manager Operations on page 90.

4.2.1 Vehicle Menu Layout

When the VCI device is properly connected to the vehicle, and paired to the MaxiSys Display Tablet, the platform is ready to start vehicle diagnosis. Tap on the Diagnostics application button on the MaxiSys Job Menu, the screen then opens the Vehicle Menu.

Diagnostics Operations Getting Started

Name

Button

Description

Home

Returns to the MaxiSys Job Menu.

VIN Scan

Touching this button opens a dropdown list; tap

Auto Detect for auto VIN detection; tap Manual Input to enter VIN manually.

All

Displays all the vehicle makes in the vehicle menu.

History

Displays the stored test vehicle history records. This option provides you direct access to the previously tested vehicle recorded during previous test sessions. See 8.1 Vehicle History on page 81.

USA

Displays the USA vehicle menu.

Figure 4-2 Sample Vehicle Menu Screen

1. Top Toolbar Buttons

2. Manufacturer Buttons

Top toolbar Buttons

The operations of the Toolbar buttons at the top of the screen are listed and described in the table below:

Table 4-1 Top Toolbar Buttons

Diagnostics Operations Vehicle Identification

Name

Button

Description

Europe

Displays the European vehicle menu.

Asia

Displays the Asian vehicle menu.

Domestic

Displays the Domestic vehicle menu.

Touching this button opens the virtual keyboard, allowing you to manually enter the specific vehicle make required.

Cancel

Touching this button exits the search screen, or cancels an operation.

Manufacturer Buttons

The Manufacturer buttons display the various vehicle logos and the brand names. Select the required manufacturer button after the VCI device is properly connected to the test vehicle to start a diagnostic session.

The small envelop icon displays beside the vehicle brand name is tappable, touching which displays an attached PDF file, showing relevant information, such as vehicle coverage and function list etc for the corresponding vehicle make.

4.3 Vehicle Identification

The Maxisys diagnostic system supports four methods for Vehicle Identification.

1. Auto VIN Scan

2. Manual VIN Input

3. Manual Vehicle Selection

4. OBD Direct Entry

4.3.1 Auto VIN Scan

The MaxiSys diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.

Diagnostics Operations Vehicle Identification

 To perform Auto VIN Scan

1. Tap the Diagnostics application button from the MaxiSys Job Menu.

The Vehicle Menu displays. (Figure 4-2)

2. Tap the VIN Scan button on the top toolbar.

3. Select Auto Detect. The tester starts VIN scanning on the vehicle’s

ECU. Once the test vehicle is successfully identified, the system will guide you to the Vehicle Diagnostics screen directly.

Figure 4-3 Sample Vehicle Diagnostics Screen

4.3.2 Manual VIN Input

For some vehicles that do not support the Auto VIN Scan function, the MaxiSys diagnostic system allows you to enter the vehicle VIN manually, or simply take a photo of the VIN sticker for quick vehicle identification.

 To perform Manual VIN Input

1. Tap the Diagnostics application button from the MaxiSys Job Menu.

The Vehicle Menu displays. (Figure 4-2)

2. Tap the VIN Scan button on the top toolbar.

3. Select Manual Input.

4. Tap the input box and enter the correct VIN.

Diagnostics Operations Vehicle Identification

Figure 4-4 Manual VIN Input

5. Tap Done. The vehicle will be identified in a few seconds, and once

the matching is successful, the system will guide you to the Vehicle Diagnostics screen directly. (Figure 4-3)

6. Tap Cancel to exit Manual Input.

4.3.3 Manual Vehicle Selection

When the vehicle’s VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, you can choose to select the vehicle manually.

There are generally three ways to enter the vehicle information:

A. Step-by-step Vehicle Selection

This mode of vehicle selection is menu driven; you simply follow the screen prompts and make a series of choices. Each selection you make advances you to the next screen. A Back button at the lower right corner of the screen returns you to the previous screen. Exact procedures may vary somewhat by various vehicles being serviced.

Diagnostics Operations Vehicle Identification

B. Manual Vehicle Entry

This mode allows you to manually enter and save specific vehicle information, such as PCM Part Number, Vehicle Calibration Number, or Tear Tag. This function enables direct access to the vehicle's ECM and saves your time of doing step-by-step entry selections.

 To perform Manual Vehicle Entry - take Ford for example

1. Tap the Diagnostics application button from the MaxiSys Job Menu.

The Vehicle Menu displays. (Figure 4-2)

2. Tap the USA or the All button on the top toolbar.

3. Select the Ford button from the vehicle menu.

4. Select Manual Vehicle Entry from the Vehicle Selection Menu.

(Figure 4-5) A series of information screen displays, tap Yes to continue.

Figure 4-5 Sample Vehicle Selection Menu

5. Select one of the three entries in the option screen - PCM Part

Number, Calibration Number or Tear Tag.

6. Take the PCM Part Number entry for example; you need to fill up

the accurate vehicle information in the input boxes.

Diagnostics Operations Vehicle Identification

Figure 4-6 PCM Part Number Input Screen

7. Tap OK to continue when the input is done. A confirming screen

showing the Vehicle Information displays.

8. Check if the vehicle information is correct, and then from the

confirming screen, select: a) Yes to continue. b) No to return to the vehicle selection menu.

9. Select Yes and the vehicle diagnostics screen displays.(Figure 4-3)

C. Auto Vehicle Entry

Some vehicles provide an auto scan feature, which allows you to skip the step-by-step vehicle identification procedure and retrieve the specific vehicle information from the vehicle’s ECU directly.

 To perform Auto Vehicle Entry - take Ford for example

1. Tap the Diagnostics application button from the MaxiSys Job

Menu. The Vehicle Menu displays. (Figure 4-2)

2. Tap the USA or the All button on the top toolbar.

3. Select the Ford button from the vehicle menu.

4. Select Start New Session from the vehicle selection menu. A

confirming screen showing the Vehicle Information displays.

Diagnostics Operations Navigation

5. Check if the vehicle information is correct, and then from the

confirming screen, select: a) Yes to continue. b) No to return to the vehicle selection menu.

6. Select Yes and the Vehicle Diagnostics screen displays. (Figure

4-3)

4.3.4 Alternative Vehicle Identification

Occasionally, you may identify a test vehicle that the tester does not recognize; the database does not support, or has some unique characteristics that prevent it from communicating with the tester through the normal channels. In these instances, you are provided with the OBD direct entry, through which you can perform generic OBD II or EOBD tests. See 4.9 Generic OBD II

Operations on page 57 for additional information.

4.4 Navigation

This section describes how to navigate the Diagnostics interface and select test options.

4.4.1 Diagnostics Screen Layout

The Diagnostics screens typically include four sections. (Figure 4-7)

Figure 4-7 Sample Diagnostics Screen

Diagnostics Operations Navigation

Name

Button

Description

Home

Returns to the MaxiSys Job Menu.

Vehicle Swap

Touching this button allows you to exit the diagnostic session of the currently identified test vehicle, and returns you to the vehicle menu screen to select another vehicle for testing.

Settings

Opens the setting screen. See Settings Operations on page 76.

Saves and prints a copy of the displayed data. See

3.3.1 Printing Operation for additional information

on page 19.

Help

Provides instructions or tips for operations of various diagnostic functions.

Save

Tapping this button opens a submenu, on which there are 3 options available to save the displayed data.

 Tap Save This Page to take a screenshot


 Tap Save All Data to save a PDF file (mostly

used to save data that cover more than 1 page)

 Tap Start Saving to record a video clip (only

available for recording Live Data or special

graph data) All saved data are stored in the Data Manager application for later reviews. See Data Manager

Operations on page 63.

1. Diagnostics Toolbar

2. Status Information Bar

3. Main Section

4. Functional Buttons

Diagnostics Toolbar

The Diagnostics toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls. The table below provides a brief description for the operations of the Diagnostics toolbar buttons:

Table 4-2 Diagnostics Toolbar Buttons

Diagnostics Operations Navigation

Name

Button

Description

Data Logging

Records the communication data and ECU information of the test vehicle. The saved data can be reported and sent to the technical center via the internet. (Coming soon)

 To perform data printing in Diagnostics

1. Tap the Diagnostics application button from the MaxiSys Job Menu. The Print button on the diagnostic toolbar is available throughout the whole Diagnostics operations.

2. Tap Print whenever you want to make a printing. A drop-down menu appears.

a) Print This Page – prints a screenshot copy of the current

screen

b) Print All Page – prints a PDF copy of all displayed data

3. A temporary file will be created and sent to the computer for printing.

4. When the file is transferred successfully, a confirmation message displays.

NOTE: Make sure the display tablet is connected to the computer network, either via Wi-Fi or LAN, before printing. For more instructions on printing, see

3.3.1 Printing Operation on page 19 for detailed information.

Status Information Bar

The Status Information Bar at the top of the Main Section displays the following items:

1. Menu Title – indicates the menu subject of the Main Section

2. VCI Icon – indicates the communication status between the tablet and the VCI device

3. Battery Icon – indicates the battery status of the VEHICLE

Main Section

The Main Section of the screen varies depending on the stage of operations. The main section can show vehicle identification selections, the main menu, test data, messages, instructions and other diagnostic information.

Diagnostics Operations Navigation

Functional Buttons

The displayed Functional Buttons at this section of the screen varies depending on the stage of operations. They can be used to navigate, save or clear the diagnostic data, exit scanning as well as make other functional controls. The functions of these buttons will be introduced respectively in the following sections of the corresponding test operations.

4.4.2 Screen Messages

Screen messages appear when additional input is needed before proceeding. There are mainly three types of on-screen messages as to their purposes: Confirmation, Warning, and Error.

Confirmation Messages

This type of messages usually displays as an “Information” screen, which informs you when you are about to perform an action that cannot be reversed or when an action has been initiated and your confirmation is needed to continue.

When a user-response is not required to continue, the message displays briefly before automatically disappearing.

Warning Messages

This type of messages informs you when completing the selected action may result in an irreversible change or loss of data. The typical example for this is the “Erase Codes” message.

Error Messages

Error messages inform you when a system or procedural error has occurred. Examples of possible errors include a disconnected cable or communication interruption due to certain reasons.

4.4.3 Making Selections

The Diagnostics application is a menu driven program that presents a series of choices one at a time. As you select from a menu, the next menu in the series displays. Each selection narrows the focus and leads to the desired test. Use your fingertip or the stylus pen to make menu selections.

Diagnostics Operations Diagnosis

4.5 Main Menu

The Diagnostics application allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or programming. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU reprogramming, for various vehicle control systems, such as engine, transmission, ABS and more.

The Vehicle Diagnostics screen (Figure 4-3) has three main options:

1. Diagnosis – a comprehensive section which includes all available functions: reading, clearing, saving and printing diagnostic information, as well as performing active tests and special functions

2. Service – a separate section designed to perform vehicle scheduled service and maintenance, such as to reset the service lights and perform calibration for various systems

3. Programming/Coding – a separate section designed for quick access to ECU reprogramming operations

After a section is selected and the tablet establishes communication with the vehicle via the VCI device, the corresponding function menu or selection menu displays.

4.6 Diagnosis

There are two options available when accessing the Diagnosis section:

1. Auto Scan – starts auto scanning for all the available systems on the vehicle

2. Control Units – displays a selection menu of all available control units of the test vehicle

Auto Scan

The Auto Scan function performs a comprehensive scanning over all the systems on the vehicle’s ECU in order to locate fault systems and retrieve DTCs. The sample operation interface of Auto Scan displays as below:

Diagnostics Operations Diagnosis

Figure 4-8 Sample Auto Scan Operation Screen

1. Navigation Bar

2. Main Section

3. Functional Buttons

 Navigation Bar

1. List Tab – displays the scanned data in list format

2. Tree Tab – display the scanned data in system distribution diagram format

3. Progress Bar – indicates the test progress

 Main Section

A. List Tab

Column 1 - displays the system numbers Column 2 - displays the scanned systems Column 3 - displays the diagnostic marks indicating different conditions

of the test result:

-!-: Indicates that the scanned system may not support the code

reading function, or there is a communication error between the tester and the control system.

Diagnostics Operations Diagnosis

Name

Description

Back

Returns to the previous screen or exit Auto Scan.

Pause

Suspends scanning and changes to show the Continue button.

Confirms the test result, and continues to the system diagnosis after selecting the required system by tapping the item in the Main Section.

Quick Erase

Deletes codes. A warning message screen will display to inform you of possible data loss when this function is selected.

Report

Displays the diagnostic data in the report form.

Save

Saves the diagnostic session as a history record, this allows you to quickly restore access to the test systems.

-?-: Indicates that the vehicle control system has been detected, but

the tester cannot accurately locate it.

Fault | #: Indicates there is/are detected fault code(s) present; “#”

indicates the number of the detected faults.

Pass | No Fault: Indicates the system has passed the scanning

process and no fault has been detected.

B. Tree Tab

The tree tab screen displays a system distribution diagram of the vehicle control modules. The scanned system which has passed scanning with no fault is shown in blue font; whereas the scanned system that has been detected with fault present is shown in red font.

 Tab the

perform further diagnosis and other test activities. A Function Menu screen (Figure 4-9) shall then display.

 Functional Buttons

The table below provides a brief description of the Functional Buttons’ operations in Auto Scan:

Table 4-3 Functional Buttons in Auto Scan

> button to the right of the system item, on which you want to

○

Diagnostics Operations Diagnosis

Control Units

This option allows you to manually locate a required control system for testing through a series of choices. You simply follow the menu driven procedure, and make proper selection each time; the program will guides you to the diagnostic function menu after a few choices you’ve made.

Figure 4-9 Sample Function Menu Screen

The Function Menu options vary slightly by different vehicles. The function menu may include:

 ECU Information – provides the retrieved ECU information in detail.

Selecting opens an information screen.

 Read Codes – displays detailed information of DTC records retrieved

from the vehicle control module.

 Erase Codes – erases DTC records and other data from the ECM.  Live Data – retrieves and displays live data and parameters from the

vehicle’s ECU.

 Active Test – provides specific subsystem and component tests. This

selection may appear as Actuators, Actuator Test, or Function Tests, etc., and the tests options vary depending on the manufacturer and model.

Diagnostics Operations Diagnosis

 Special Functions – provides component adaptation or variant coding

functions for custom configurations, and also allows you to reprogram adaptive values for certain components after making repairs. Depending on the test vehicle, this selection may sometimes appear as Control Unit Adaptations, Variant Coding, Configuration or something similar.

NOTE: With the diagnostic toolbar on top of the screen throughout the whole diagnostic procedures, you are allowed to make various controls of the diagnostic information at anytime, such as printing and saving the displayed data, get help information, or perform data logging, etc.

 To perform a diagnostic function

1. Establish communication with the test vehicle via the VCI device.

2. Identify the test vehicle by selecting from the menu options.

3. Select the Diagnosis section.

4. Locate the required system for testing by Auto Scan or through

menu driven selections in Control Units.

5. Select the desired test from the Function Menu.

4.6.1 ECU Information

This function retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications. The sample ECU Information screen displays as below:

Figure 4-10 Sample ECU Information Screen

Diagnostics Operations Diagnosis

1. Diagnostics Toolbar Buttons – see Table 4-2 Diagnostics Toolbar

Buttons on page 34 for detailed descriptions of the operations for each

button.

2. Main Section – the left column displays the item names; the right column shows the specifications or descriptions.

3. Functional Button – In this case, only a Back (or sometimes an ESC) button is available; tap it to exit after viewing.

4.6.2 Read Codes

This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested, on some vehicles, freeze frame data can also be retrieved for viewing. The sample Read Codes screen displays as below:

Figure 4-11 Sample Read Codes Screen

1. Diagnostics Toolbar Buttons – see Table 4-2 Diagnostics Toolbar

Buttons on page 34 for detailed descriptions of the operations for each

button.

2. Main Section

 Code Column – displays the retrieved codes from the vehicle.

Diagnostics Operations Diagnosis

 Status Column – indicates the status of the retrieved codes.  Description Column – detailed descriptions for the retrieved codes.  Snowflake Icon – only displays when freeze frame data is available

for viewing; Selecting displays a data screen, which looks very similar to the Read Codes interface, therefore same operation method may be applied.

3. Functional Button – in this case, only a Back (or sometimes an ESC) button is available; tap it to return to the previous screen or exit the function.

4.6.3 Erase Codes

After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function. Before performing this function, make sure the vehicle’s ignition key is in the ON (RUN) position with the engine off.

 To erase codes

1. Tap Erase Codes from the Function Menu.

2. A warning message displays to inform you of data loss when this

function is applied. a) Tap Yes to continue. A confirming screen displays when the

b) Tap No to exit.

3. Tap ESC on the confirming screen to exit Erase Codes.

4. Check the Read Codes function again to ensure the operation is

successful.

4.6.4 Live Data

When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary from one vehicle to another. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles.

operation is successfully done.

Diagnostics Operations Diagnosis

Gesture scrolling allows you to quickly move through the data list. Simply touch the screen and drag your finger up or down to reposition the parameters being displayed if the data covers more than one screen. The figure below shows a typical Live Data screen:

Figure 4-12 Sample Live Data Screen

1. Diagnostics Toolbar Buttons – tap the drop-down button at the top center of the screen displays the toolbar buttons. See Table 4-2

Diagnostics Toolbar Buttons on page 34 for detailed descriptions of the

operations for each button.

2. Main Section

 Name Column – this column displays the parameter names.

a) Check Box - tap the check box at the left side of the parameter

name to make selection of an item. Tap the check box again to deselect the item.

b) Drop-down Button – tapping the drop-down button at the right

side of the parameter name opens a submenu, which provides various choices for data display mode.

 Value Column – displays the values of the parameter items.  Range Column - displays the minimum and the maximum limit

value.

 Unit Column – displays the unit for the parameter values.

Diagnostics Operations Diagnosis

 To change the Unit mode, tap the Setting button on the top toolbar

and select a required mode. See 7.1.1 Unit on page 76 for more information.

3. Display Mode

There are 4 types of display modes available for data viewing, allowing you to view various types of parameters in the most suitable way for better data check-ups.

Tapping the drop-down button on the right side of the parameter name opens a submenu. There are 4 buttons to configure the data display mode, plus one Help button on the right, tappable when additional information is available for your reference.

Each parameter item displays the selected mode independently. Analog Gauge Mode – displays the parameters in form of an analog

meter graph Text Mode – this is the default mode which displays the parameters in

texts and shows in list format NOTE: Reading of status parameters, such as a switch reading, which

are mostly in word form, like ON, OFF, ACTIVE, and ABORT, etc., can only be displayed in Text Mode. Whereas reading of value parameters, such as a sensor reading, can be displayed in text mode and other graph modes.

Waveform Graph Mode – displays the parameters in waveform graphs When displaying this mode, three control buttons will appear on the right

side of the parameter item, allowing you to manipulate the display status.

 Text Button – resumes Text Display Mode  Scale Button – changes the scale values, which are displayed

below the waveform graph. There are 4 scales available: x1, x2, x4 and x8.

 Zoom-in Button – tap once to display the selected data graph in

full screen

Digital Gauge Mode– displays the parameters in form of a digital gauge graph

Full Screen Display – this option is only available in the waveform graph mode, and mostly used in Graph Merge status for data comparison. There are three control buttons available on the top right side of the screen under this mode.

Diagnostics Operations Diagnosis

 Edit Button – tapping this button opens an edit window, on which

you can set the waveform color and the line thickness displayed for the selected parameter item.

 Scale Button - changes the scale values, which are displayed

below the waveform graph. There are 4 scales available: x1, x2, x4 and x8.

 Zoom-out Button – exits full screen display.

 To edit the waveform color and line thickness in a data graph

1. Select 1 to 3 parameter items to display in Waveform Graph mode.

2. Tap the Zoom-in Button on the right to display the data graph in

full screen.

3. Tap the Edit Button, an edit window appears.

4. Select a parameter item on the left column.

5. Select a desired sample color from the second column.

6. Select a desired sample line thickness from the right column.

7. Repeat step 4-7 to edit the waveform for each parameter item.

8. Tap Done to save the setting and exit, or tap Cancel to exit without

saving.

4. Functional Buttons

The operations of all the available functional buttons on Live Data screen are described below:

Back – returns you to the previous screen or exit the function. Record – starts recording the retrieved live data; the recorded data is

then stored as a video clip in the Data Manager application for future reviews. This function could be triggered automatically at preset threshold value or manually as you choose, and the triggering mode and record duration can be configured in the Setting mode of Live Data.

Freeze – displays the retrieved data in freeze mode.

 Previous Frame – Moves to the previous frame in the freeze data.  Next Frame – Moves to the next frame in the freeze data.

Resume – this button appears when the Record or Freeze function is applied. Tapping this button stops data recording, or exit freeze data mode, and resumes normal data display mode.

Diagnostics Operations Diagnosis

Flag – this button appears when the Record function is applied. Tapping

this button sets flags for the recorded data at points wherever you choose, when playing back the recorded video clip later in Data Manager, the preset flag will enable a popup to allow input of text to take notes.

Clear Data –tapping which clears all previously retrieved parameter values at a cutting point whenever you choose.

To Top – moves a selected data item to the top of the list. Graph Merge – tap this button to merge selected data graphs (for

Waveform Graph Mode only). This function is very useful when making comparison for different parameters.

NOTE: This mode supports Graph Merge for 2 to 3 parameter items only, so select no less than 2 or more than 3 items each time when making graph merge.

 To cancel Graph Merge mode, tap the drop-down button on the

right side of the parameter name, and select a data display mode.

Show Selected/Show All – tap this option to exchange between the two options; one displays the selected parameter items, the other displays all the available items.

Setting – tapping this button opens a setting screen, which allows you to set the trigger mode, recording duration, and various threshold values for data recording, and make other controls.

Figure 4-13 Sample Setting Mode in Live Data

Diagnostics Operations Diagnosis

There are 4 navigation buttons on top of the Setting mode screen.

 Range Button – displays the configuration screen on which you can

set the threshold values, an upper limit and a lower limit, for triggering the buzzer alarm. This function is only applied to the Waveform Graph display mode.

a) MIN – tapping which opens a virtual keyboard, allows you to

enter the required lower limit value

b) MAX – tapping which opens a virtual keyboard, allows you to

enter the required upper limit value

c) Buzzer Alarm – switches the alarm on and off. The alarm

function makes a beep sound as a reminder whenever the data reading reaches the preset minimum or maximum point

 To set threshold limits for the parameter values

1. Tap the Setting functional button at the bottom of the Live Data screen.

2. Tap the Range navigation button.

3. Select a parameter item on the left column, or enter the item name in the Search bar.

4. Tap on the right side of the MIN button, and enter the required minimum value.

5. Tap on the right side of the MAX button, and enter the required maximum value.

6. Tap the ON/OFF button on the right side of the Buzzer Alarm button to turn it on or off.

7. Tap Done to save the setting and return to the Live Data screen; or tap Cancel to exit without saving.

If the threshold limits are successfully set, two horizontal lines now appear on each of the data graphs (when Waveform Graph Mode is applied) to indicate the alarming point. The threshold lines are shown in different colors than the waveform of the parameters for distinction.

 Record Button – displays the configuration screen for Record

Setting, on which you can set the trigger type, duration and trigger point for the data recording function.

Diagnostics Operations Diagnosis

a) Trigger Type – sets the trigger mode for data recording, mainly

of two kinds: Manual and Auto. There are four options available:

1) Manual – allows you to manually start and stop data recording

2) DTC – auto triggers data recording when any DTC is detected

3) DTC Check Mode – auto triggers data recording when certain pre-selected DTC types are detected

4) Parameter – auto triggers data recording when any parameter value reaches the preset threshold

b) Duration – sets the recording time (for Auto trigger mode only) c) Trigger Point – reserves a relative percentage of a record

length before the data recording start point for reference (for Auto trigger mode only)

 To perform setting for live data record

1. Tap the Setting functional button at the bottom of the Live Data screen.

2. Tap the Record navigation button.

3. Tap the ○> button on the right of Trigger Type bar and select the required trigger mode.

4. Tap the ○> button on the right of Duration bar and select a length of time.

5. Tap the ○> button on the right of Trigger Point bar and select a relative percentage of a record length to be reserved before the data recording start point.

6. Tap Done to save the setting and return to the Live Data screen; or tap Cancel to cancel without saving and exit Setting.

 Done Button - confirms and saves the setting, and returns you to

the Live Data screen.

 Cancel Button – cancel the setting operation, and returns you to

the Live Data screen.

Diagnostics Operations Diagnosis

4.6.5 Active Test

The Active Test function is used to access vehicle-specific subsystem and component tests. Available test vary by manufacturer, year, and model, and only the available tests display in the menu.

During an active test, the tester outputs commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

Selecting Active Test opens a menu of test options that varies by make and model. Selecting a menu option activates the test. Follow all screen instructions while performing tests. How and what information is presented on the screen varies according to the type of test being performed. Some toggle and variable control tests display Active Test Controls at the top of the screen with data stream information below, or vice versa.

Figure 4-14 Sample Active Test Screen

The functional buttons at the lower right corner of the Active Test screen manipulate the test signals. The operational instructions are displayed on the main section of the test screen. Simply follow the on-screen instructions and make appropriate selections to complete the tests. Each time when an operation is successfully executed, message such as “Command Finished”, “Activation Successful”, or something similar displays.

Tap the ESC functional button to exit the test when finished.

Diagnostics Operations Diagnosis

4.6.6 Special Functions

These functions perform various component adaptations, allowing you to recalibrate or configure certain components after making repairs or replacement.

The main section of the Adaptation Operation screen displays a list of operational and vehicle status information, which mainly consists of four parts:

1. The first part in the top line shows the description of the operation being performed, and the execution status is displayed on the right, such as Completed, or Activated, etc.

2. The second part shows the preconditions or requirements for executing the operation being selected.

3. The third part displays the current conditions of the vehicle control module being learned for comparison to the preconditions suggested by the second part. If the current condition of the control module is out of the suggested limit value, you must adjust the vehicle condition to meet the requirement.

4. The last part displays the instruction of how to use the functional button at the lower right corner of the screen to manipulate the teach-in operations.

Figure 4-15 Sample Adaptation Operation Screen

Diagnostics Operations Service

Read the information carefully and check the vehicle condition accordingly, when you are sure that the vehicle is ready to perform the adaptation, simply follow the instruction provided to make appropriate selections. When the operation is done, an execution status message such as Completed, Finished or Successful, displays.

Tap the ESC button to exit the function.

4.7 Service

The Service section is specially designed to provide you quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.

The most commonly performed service functions include:

 Oil Reset Service  TPMS Programming Service  EPB Service  ABS/SRS Services  SAS Calibration Service  DPF Regeneration Service

4.7.1 Function Descriptions

This section describes the main functions for vehicle service:

Oil Reset Service

This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.

Tire Pressure Monitor System (TPMS) Service

This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.

Diagnostics Operations Programming and Coding

Electric Parking Brake (EPB) Service

This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

ABS/SRS Services

This function allows you to perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.

Steering Angle Sensor (SAS) Service

This service function allow you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.

DPF Regeneration Service

The Diesel Particulate Filter service function performs the regeneration procedure which is the DPF cleaning operation to clear the blockage through continuous burning of the particulate matter captured in the DPF filter. If the DPF light on the vehicle comes on and you successfully complete a DPF regeneration cycle, you will notice that the DPF light will automatically turn off.

4.8 Programming and Coding

Since the introduction of OBD II and leading up to modern Hybrids and EVs, computers and software in cars have been expanding at an exponential rate. In-car software is becoming one of the leading needs for service, and updating software may be the only way to fix some of these issues:

 Drivability  Fuel Efficiency  Power Loss  Fault Codes  Durability of Mechanical Parts

Diagnostics Operations Programming and Coding

The Programming and Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements.

NOTE: The programming function can only be applied through connection with the J2534 programming device, which serves as a PassThru interface to establish communication with and transfer data to the vehicle’s ECU.

Available programming or coding operations vary by the test vehicle, and only the available operations display in the menu.

There are two general types of programming operations: A. Coding – also known as Teach-in Program, Component Adaptation or

something similar, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

B. Reprogramming Operations – downloads new version of software

subscription from the on-line server database through internet access (this procedure is done automatically when the MaxiSys display tablet is connected to the internet, so there is no need to check for software subscriptions yourself), and reprograms the newest software version to the vehicle’s ECU.

NOTE: Ensure that the display tablet is connected to the Internet before applying the ECU programming function, so that the display tablet is able to obtain access to the manufacturer’s server for update service.

Selecting the Programming or Coding function opens a menu of operation options that varies by make and model. Selecting a menu option either shows a programming interface or opens another menu of additional choices. Follow all screen instructions while performing the programming or coding operations. How and what information is presented on the screen varies according to the type of operation being performed.

Diagnostics Operations Programming and Coding

Variant Coding

Figure 4-16 Sample Variant Coding Screen

The main section of the Variant Coding screen displays a list of vehicle components and the coding information which mainly consists of three parts:

1. The top line on the list displays the instruction of how to use the

functional button at the lower right corner of the screen to manipulate the coding operations.

2. The second part under the top line of the list displays all available

systems for coding on the left side, and the coding data or value on the right side.

3. The bottom line of the main section displays the functional buttons, which

allow you to manipulate the operation.

Check the vehicle condition and the coding information carefully, and use the functional button to edit Codes for the corresponding components, tap Send when you finish edit for all the items. When the operation is done, an execution status message such as Completed, Finished or Successful, may display.

Tap the ESC button to exit the function.

Diagnostics Operations Programming and Coding

Reprogramming Operation

Typical reprogramming operations require you to input and validate VIN number first. Tap the input box and enter the correct number, the programming interface then displays.

Figure 4-17 Sample Reprogramming Operation Screen

The main section of the reprogramming interface provides you certain hardware version, and current software versions’ information, as well as the information of the newest software versions to be programmed to the control units.

Throughout the programming procedure, a series of on-screen operational instructions will display to guide you through.

Carefully read the on-screen information and follow the instruction to execute the programming procedure.

Re-flash Errors

IMPORATANT: When reprogramming onboard, always make sure the vehicle

battery is fully charged and in good working condition. During reprogramming there is a risk of having the operation failure if voltage falls below the proper operation voltage. Sometimes a failed operation can be recovered, but there is a chance that failed reprogramming could ruin the control module. We recommend connecting an external battery charger to the vehicle to ensure a successful operation.

Diagnostics Operations Generic OBD II Operations

Occasionally a flash update procedure may not complete properly. Common causes of flash errors include poor cable connections between the display tablet, VCI, and vehicle, turning off the vehicle ignition switch before the flash procedure is complete, or low vehicle battery voltage.

If the process crashes, recheck all the cable connections to assure good communications and reinitialize the flash procedure. The programming procedure will automatically repeat if the previous operation does not succeed.

4.9 Generic OBD II Operations

A fast-access option for OBD II/EOBD vehicle diagnosis is available on the Vehicle Menu screen (Figure 4-2). This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related. The OBD direct access option is also used for testing OBD II/EOBD compliant vehicles that are not included in the Diagnostics database.

Functions of the diagnostics toolbar buttons at the top the screen are the same as those available for specific vehicle diagnostics. See Table 4-2

Diagnostics Toolbar Buttons on page 34 for details.

4.9.1 General Procedure

 To access the OBD II/EOBD diagnostics functions

1. Tap the Diagnostics application button from the MaxiSys Job Menu. The Vehicle Menu displays.

2. Tap the EOBD button. There are two options to establish communication with the vehicle.

 Auto Scan – When this option is selected the diagnostic tool

attempts to establish communication using each protocol in order to determine which one the vehicle is broadcasting on.

 Protocol – When this option is selected the screen opens a

submenu of various protocols. A communication protocol is a standardized way of data communication between an ECM and a diagnostic tool. Global OBD may use several different communication protocols.

Diagnostics Operations Generic OBD II Operations

3. Select a specific protocol if the Protocol option is selected. Wait for the OBD II Diagnostic Menu to appear.

Figure 4-18 Sample OBD II Diagnostic Menu

NOTE: The ○i button displayed beside the function name is tappable,

tapping which opens a bubble with additional function information.

4. Select a function option to continue.

 DTC & FFD  I/M Readiness  Live Data  O2 Sensor Monitor  On-Board Monitor  Component Test  Vehicle Information  Vehicle Status

NOTE: Some functions are supported only on certain vehicle makes.

Diagnostics Operations Generic OBD II Operations

4.9.2 Function Descriptions

This section describes the various functions of each diagnostic option:

DTC & FFD

When this function is selected, the screen displays a list of Stored Codes and Pending Codes. When the Freeze Frame data of certain DTCs are available for viewing, a snowflake button will display on the right side of the DTC item. The Erase Codes function can be applied by tapping the functional button at the lower bottom of the screen.

Figure 4-19 Sample DTC & FFD Screen

 Stored Codes

Stored codes are the current emission related DTCs from the ECM of the vehicle. OBD II/EOBD Codes have a priority according to their emission severity, with higher priority codes overwriting lower priority codes. The priority of the code determines the illumination of the MIL and the codes erase procedure. Manufacturers rank codes differently, so expect to see differences between makes.

 Pending Codes

These are codes whose setting conditions were met during the last drive cycle, but need to be met on two or more consecutive drive cycles before the DTC actually sets. The intended use of this service is to assist the service technician after a vehicle repair and after clearing diagnostic information, by reporting test results after a single driving cycle.

Diagnostics Operations Generic OBD II Operations

a) If a test failed during the driving cycle, the DTC associated with that

test is reported. If the pending fault does not occur again within 40 to 80 warm-up cycles, the fault is automatically cleared from memory.

b) Test results reported by this service do not necessarily indicate a

faulty component or system. If test results indicate another failure after additional driving, then a DTC is set to indicate a faulty component or system, and the MIL is illuminated.

 Freeze Frame

In most cases the stored frame is the last DTC that occurred. Certain DTCs, those that have a greater impact on vehicle emission, have a higher priority. In these cases, the highest priority DTC is the one for which the freeze frame records are retained. Freeze frame data includes a “snapshot” of critical parameter values at the time the DTC is set.

 Erase Codes

This option is used to clear all emission related diagnostic data such as, DTCs, freeze frame data and manufacturer specific enhanced data from the vehicle’s ECM, and resets the I/M Readiness Monitor Status for all vehicle monitors to Not Ready or Not Complete status.

A confirmation screen displays when the clear codes option is selected to prevent accidental loss of data. Select Yes on the confirmation screen to continue, or No to exit.

I/M Readiness

This function is used to check the readiness of the monitoring system. It is an excellent function to use prior to having a vehicle inspected for compliance to a state emissions program. Selecting I/M Readiness opens a submenu with two choices:

 Since DTCs Cleared – displays the status of monitors since the last time

the DTCs are erased.

 This Driving Cycle – displays the status of monitors since the beginning

of the current drive cycle.

Diagnostics Operations Generic OBD II Operations

Live Data

This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.

Live data can be displayed in various modes, see 4.6.4 Live Data on page 43 for detailed information.

O2 Sensor Monitor

This option allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

The O2 Sensor Monitor test function is not supported by vehicles which communicate using a controller area network (CAN). For O2 Sensor Monitor tests results of CAN-equipped vehicles, refer to On-Board Monitor.

On-Board Monitor

This option allows you to view the results of On-Board Monitor tests. The tests are useful after servicing or after erasing a vehicle’s control module memory.

Component Test

This service enables bi-directional control of the ECM so that the diagnostic tool is able to transmit control commands to operate the vehicle systems. This function is useful in determining how well the ECM responds to a command.

Vehicle Information

The option displays the vehicle identification number (VIN), the calibration identification, and the calibration verification number (CVN), and other information of the test vehicle.

Vehicle Status

This item is used to check the current condition of the vehicle, including communication protocols of OBD II modules, retrieved codes amount, status of the Malfunction Indicator Light (MIL), and other additional information may be displayed.

Diagnostics Operations Exiting Diagnostics

4.10 Exiting Diagnostics

The Diagnostics application remains open as long as there is an active communication with the vehicle. You must exit the diagnostics operation interface to stop all communications with the vehicle before closing the Diagnostics application.

NOTE: Damage to the vehicle electronic control module (ECM) may occur if communication is disrupted. Make sure the all connections, such as data cable, USB cable, and wireless or wired network, are properly connected at all times during testing. Exit all tests before disconnecting the test cable or powering down the tool.

 To exit the Diagnostics application

1. From an active diagnostic screen, tap the Back or ESC functional

button to exit a diagnostic session step-by-step; Or

2. Tap the Vehicle Swap button on the diagnostics toolbar to return to

the Vehicle Menu screen.

3. From the vehicle menu screen, tap the Home button on the top

toolbar; or tap the Back button on the navigation bar at the bottom of the screen. Or

4. Tap the Home button on the diagnostics toolbar to exit the

application directly to the MaxiSys Job Menu.

Now, the Diagnostics application is no longer communicating with the vehicle and it is safe to open other MaxiSys applications, or exit the MaxiSys Diagnostic System and return to the Android System’s Home screen.

Chapter 5 Data Manager Operations

The Data Manager application is used to store, print, and review the saved files. Most operations are controlled through the toolbar.

Selecting the Data Manager application opens the file system menu. Different file types are sorted separately under different options, there are six types of information files to be viewed or played back.

Figure 5-1 Sample Data Manager Main Screen

5.1 Operations

Data Manager Operations are based on toolbar controls, details are explained in the following sections.

5.1.1 Image Files

The Image section is a JPG database containing all captured screenshot images.

Data Manager Operations Operations

Name

Button

Description

Back

Returns to the previous screen.

Enter Edit

Touching this button shows the editing toolbar to print, delete or view image information.

Cancel

Touching this button close the editing toolbar or cancels file search.

Quickly locates the image file by entering the vehicle name, test path, file name or file info.

Info

Touching this button opens a window displaying the detail information of the image.

Touching this button prints the selected image.

Delete

Touching this button deletes the selected image.

Figure 5-2 Sample Image Database Screen

1. Toolbar Buttons – used to edit, print and delete the image files. See

Table 5-1 Toolbar Buttons in JPG Database on page 64 for detailed

information.

2. Main Section – displays the stored images.

Table 5-1 Toolbar Buttons in JPG Database

Data Manager Operations Operations

 To edit image information

1. Select Data Manager application from the MaxiSys Job Menu.

2. Select Image to access the JPG database.

3. Select an image to display it in full screen.

4. Tapping the screen once displays the editing toolbar.

5. Tap the Info button to open a window displaying the image

information.

6. Tap the Edit button on the top right corner of the window. The editing

screen displays.

7. Edit the image information by entering the new file name, and file

information.

8. Tap Done to save the information and exit, or tap Cancel to exit

without saving.

 To delete selected images

1. Select Data Manager application from the MaxiSys Job Menu.

2. Select Image to access the JPG database.

3. Tap the Enter Edit button to display the editing toolbar.

4. Select the images that need to be deleted by tapping the thumbnail

images, the selected thumbnail displays a tick icon at the bottom right corner.

5. Tap the Delete button, and then Delete Selected, now the selected

images are deleted.

5.1.2 PDF Files

The PDF section stores and displays all PDF files of saved data. After entering the PDF database, select a PDF file to view the stored information.

This section uses the standard Adobe Reader application for file viewing and editing, please refer to the associated Adobe Reader manual for more detailed instructions.

Data Manager Operations Operations

5.1.3 Review Data

The Review Data section allows you to playback the recorded data frames of live data streams.

On the Review Data main screen, select a record file to playback.

Figure 5-3 Sample Data Playback Screen

1. Drop-down Toolbar – tap the button at the top center of the screen to open the Drop-down Toolbar

2. Main Section – displays the recorded data frames

3. Navigation Toolbar – allows you to manipulate data playback

Use the Navigation Toolbar buttons to playback the record data from frame to frame.

Tap Back to exit data playback.

5.1.4 Apps Manager (Coming soon)

This section allows you to manage the applications installed on the MaxiSys Diagnostics System. Selecting this section opens a managing screen, on which you can check all the available vehicle applications, and make various controls, such as uninstalling, forcing stop, or clearing data, etc.

Data Manager Operations Operations

5.1.5 Message (Coming soon)

The MaxiSys System receives regular service or notification messages from the on-line server through the Internet. All messages that have been received and read are stored in this section automatically for later reviews.

5.1.6 Data Logging (Coming soon)

The Data Logging function records communication data and ECU information when malfunction occurred during testing procedures. The recorded data will be sent to the technical center via the Internet for troubleshooting. The technical center then feedbacks a fix file to the user, usually within 48 hours. An update for the patch will later be submitted and posted on-line for all users to download.

Chapter 6 MaxiFix Operations

The MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiSys users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.

While the MaxiFix provides the abundant troubleshooter information available, the database keeps growing with daily troubleshooting resources by recording the reported solution cases, and the advisory reports of the MaxiSys users from all over the world.

Information in the MaxiFix database is organized into a series of diagnostic tips that are designed to quickly lead you to the root cause of a particular problem on the test vehicle, which will help you quickly find solution for various diagnostic problems.

6.1 Navigation

You need to register the device to your online account before launching the MaxiFix platform, see 12.1Product Registration on page 96 for details.

Figure 6-1 Sample MaxiFix Home Page

MaxiFix Operations Navigation

The MaxiFix interface has 3 main areas:

1. Header Bar – located across the top of the page, is used to select vehicles and perform keyword searches.

2. Navigation Bar – located along the left-hand side of the page, is used to access the main features of MaxiFix.

3. Main Screen – The center portion of the page presents content based on the vehicle attributes and keywords selected. The main screen also has tabs that allow you to switch between functions. Which tabs are available depend on which function is selected on the Navigation Bar.

Header Bar

The Header Bar, which runs across the top of the page, features:

 A Select Vehicle button to open the vehicle identification window, and

vehicle information bar displaying the active vehicle information, for example “2013 > Honda > Crosstour > EX”.

 A search field used for entering keywords, codes, or symptoms.

Select Vehicle Button

The “Select Vehicle” button, located on the Header Bar, is used to identify which vehicle you want to reference on MaxiFix. Vehicle attributes are selected from a sequence of option lists. Make a selection to advance through the lists. This data is used to filter searches so that only information that applies to the identified vehicle is shown.

 To select a vehicle

1. Tap the Select Vehicle button on the Header Bar at the top of the

page.

2. Select the year of the vehicle from the list that displays.

3. Select the make of the vehicle from the list that displays.

4. Select the model of the vehicle from the list that displays.

5. Select the submodel of the vehicle from the list that displays.

6. Select the engine of the vehicle from the list that displays.

7. After making a full selection by choosing all vehicle attributes, the

screen refreshes and the selected vehicle is now shown on the Header Bar.

MaxiFix Operations Navigation

6.1.1 Terminology

MaxiFix Tip

MaxiFix Tips are concise and complete descriptions of a real fix for a particular vehicle repair issue. A MaxiFix Tip is a combination of proven fixes and vehicle specific data we have collected and analyzed into an all-in-one information source to help you fix vehicle problems quickly and easily.

On MaxiFix you can search for Tips or enter your own Tip to help other community members resolve vehicle issues.

MaxiFix Tips consist of 3 types of Tips:

1. Autel Certified Tips – these tips have gone through rigorous review by experts.

2. Real Fix Tips – these tips are gathered from actual shop repair orders and are presented in an easy to understand Complaint, Cause, Correction format.

3. MaxiFix Community Tips – these are Tips that have been created by the MaxiFix Community Members.

 To search for a MaxiFix Tip

1. Tap the Select Vehicle button on the Header Bar at the top of the

page to select a specific vehicle.

2. Enter a search term into the input field of the search bar which is

located on the Main Screen.

3. The search results are displayed in a list. Find a subject that

interests you; tap it to view the full details.

Fixed It!

The “Fixed It!” designation that appears in the head line of a Tip indicates that the Tip in question has actually helped at least one technician in the community repair a vehicle. Anytime you read a Tip you are given the opportunity to add to the Fixed It! count if the Tip helped you repair a problem. Each time someone taps “Fixed It!” in the tip, one is added to the total number of Fixed It! for the tip. The Fixed It! count lets you easily see what tips are actually helping to resolve vehicle issues.

MaxiFix Operations Operations

6.2 Operations

The Navigation Bar is on the left side of the screen. Buttons on the Navigation Bar launch the main sections of MaxiFix. Available Navigation Bar selections include:

 Home – shows the recently viewed questions and fixes, along with the

Leaderboard.

 Your Cloud – shows all your posts including Questions and Tips in the

community, and allows you to ask a question and enter a tip.

 Search Fix – allows you to search for information from all available

resources on MaxiFix, including: Open Questions, Tips, and Real Fixes, and displays search results.

 Q&A – displays the latest questions and fixes.  Support – opens the FAQ page, or a message box for contacting

Customer Service by email.

6.2.1 Home

Home, is the first option on the Navigation Bar along the left side of the screen, opens the home page on MaxiFix. There are two functions available.

 Leaderboard – shows the top ranked MaxiFix community members.  My Recently Viewed – shows a list with links to the Questions, Tips, and

Real Fixes that you recently visited.

Leaderboard

The Leaderboard shows the top ranked MaxiFix community members. Community members are awarded points for answering questions, and those who gather the most points show on the MaxiFix Leaderboard. The more points you have the better the chance you have to get on the Leaderboard.

To show on the Leaderboard the community members must answer questions to get points.

MaxiFix Operations Operations

Points System

 1 point is awarded for answering a question.  5 points are awarded if your answer is rated as “Good Answer” by the

MaxiFix community member who asked the question.

 10 points are awarded if your answer is rated as the “Best Answer” by

the MaxiFix community member who asked the question.

6.2.2 Your Cloud

Your Cloud, the second option on the Navigation Bar along the left side of the screen, opens your personal MaxiFix page. To access the features on Your Cloud page you can either select from the tabs or use the links on the top of the page:

 Opened Questions – opens a list with links to the opened questions that

you have posted to the community

 Closed Questions – opens a list with links to the closed questions that

you have posted to the community

 Your Tips – opens a list with links to tips that you have contributed to the

community

 Ask the Experts – allows you to post a question to the community  Enter a Tip – allows you to share your personal repair experience with

the community

Tap Your Cloud on the Navigation Bar along the left side of the screen, to display all questions and tips that you have contributed to the community.

 To ask a question on MaxiFix

1. If not already done, tap Select Vehicle on the Header Bar and

enter the identifying attributes of the vehicle you would like to ask a question about.

2. Tap Your Cloud on the Navigation Bar along the left-side of the

screen to open the Your Cloud page.

3. On the Your Cloud page find Ask the Experts; tap this link to open

the Question Page. The Question page has 4 sections:

 Subject – this is where you enter a brief subject for the

question.

MaxiFix Operations Operations

 Symptoms – this is where you describe how the vehicle is

behaving.

 Diagnostics Steps Performed/Parts Replaced – include any

previous diagnostic tests that you performed, including the results of the tests. Also list any parts that were replaced during previous diagnostic work.

 Your Question – ask a clear and concise question that you

want to ask the community. Be sure to be descriptive and concise when asking your question.

4. Tap the Cancel button at the right-side bottom of the page to delete

your question and return to the Your Cloud page. Or,

5. Tap the Submit button at the right-side bottom of the page to ask

your question of the community.

“Good Answer” or “Best Answer” ratings

Rating answers is one way to give back to the MaxiFix community. The member that originally asked the question gets to select a “Good Answer” and a “Best Answer” from all of the responses. The community member that provided the Good Answer or Best Answer to a question is recognized for their contribution.

About Good Answers and/or Best Answers:

 Only one answer can be rated “Best Answer”.  More than one answer can be rated “Good Answer”.  Only the MaxiFix community member who asked the question can rate

the answers.

Close a Question

Questions that you post to the community need to be closed once the vehicle repair issue has been resolved. You are encouraged to document the fix, and an important part doing so is providing information on what actually fixed the vehicle so that other MaxiFix community members can use the information as well. To close a question click the “Close Question” button on the right side of your question. Your question is now converted to a MaxiFix Community Tip. As part of closing the question, if you haven’t already, you will be asked to award Best Answer and Good Answers ratings to reward those community members that helped you by giving them Leaderboard points.

MaxiFix Operations Operations

Create a Tip

If you have a new fix to a specific vehicle problem please share! Create a MaxiFix community Tip to share your expertise with other technicians in the MaxiFix community.

A MaxiFix community Tip is a short yet complete description of the repair for a particular vehicle problem.

 To ceate a new MaxiFix Tip

1. Select Your Cloud from the Navigation Bar.

2. Tap Select Vehicle from the Header Bar and enter the identifying

attributes of the vehicle you are writing the Tip about.

3. On the Your Cloud page find Enter a Tip; tap this link to open the Tip

Page.

4. Enter the Tip Title in the Title field.

5. Compose your Tip in the Content field. Includes as much information

as possible, while keeping the information concise and to the point. A Tip should provide accurate information that is easy to read, understand, and follow.

6. Tap the Cancel button at the right-side bottom of the page to delete

your tip and return to the Your Cloud page. Or,

7. Tap the Submit button at the right-side bottom of the page to

contribute your tip to the community.

6.2.3 Search Fix

Search Fix, the third option on the Navigation Bar along the left side of the screen, presents search results for the active vehicle. Search results are listed in various categories:

 All – includes all search results, including related Questions, Tips, and

Real Fixes to your search.

 Questions – presents a list of open Question discussed in the

community that may be pertinent to your search.

 Tips – presents a list of Tips that directly correlate to your search criteria.

Select a Tip from the list to open and review the complete Tip.

MaxiFix Operations Operations

 Real Fixes – presents a list of Tips that have been gathered from actual

shop repair orders and are presented in an easy to understand Complaint, Cause, Correction format.

6.2.4 Q&A

Q&A, the fourth option on the Navigation Bar along the left side of the screen, presents the latest updated questions and tips in MaxiFix community. There are two tabs available to look up:

 Latest Questions – displays a list of latest posted questions. Select a

question from the list to join the discussion or submit an answer to contribute your expertise.

 Latest Tips – displays a list of latest posted tips. Select a tip from the list

to find out the repair advice and tip contributed by a community member. If you find the tip is helpful to solve your repair problem, you can give the tip one Fixed It! point by tapping it.

6.2.5 Support

Support, the last option on the Navigation Bar along the left side of the screen, opens a page that provides 2 ways to gain support from MaxiFix:

1. A message form to contact the administrator of MaxiFix.

2. A Frequently Asked Questions (FAQ) link that answers the most frequent questions we hear from MaxiFix community members.

If you wish to contact the administrator of this site please use the contact form. Select “Support” from the Navigation Bar to open the comment window. To allow the administrator to respond to your question or issue, the following information should be provided:

 Your name  A contact email address  A contact phone number

Chapter 7 Settings Operations

Selecting Settings application opens a setup interface, on which you can adjust default setting and view information about the MaxiSys system. There are seven options available for the MaxiSys system settings:

 Unit  Language  Printing Setting  Wired Network  Push Message  About  System Settings

7.1 Operations

This section describes the operation procedures for the settings.

7.1.1 Unit

This option allows you to adjust the measurement unit for the diagnostic system.

 To adjust the unit setting

1. Tap the Settings application on the MaxiSys Job Menu.

2. Tap the Unit option on the left column.

3. Select the required measurement unit, Metric or English. A tick icon

will display to the right of the selected unit.

4. Tap the Home button on the top left corner to return to the MaxiSys

Job Menu. Or select another setting option for the system setup.

Settings Operations Operations

7.1.2 Language

This option allows you to adjust the display language for the MaxiSys system.

 To adjust the language setting

1. Tap the Settings application on the MaxiSys Job Menu.

2. Tap the Language option on the left column.

3. Select the required language. A tick icon will display to the right of

the selected language.

4. Tap the Home button on the top left corner to return to the MaxiSys

Job Menu. Or select another setting option for the system setup.

7.1.3 Printing Setting

This option provides 2 options for printer connection, allowing you to print any data or information anywhere and anytime either via PC network or Wi-Fi. For more information about printing, see 3.3.1 Printing Operation on page 19.

 To setup the printer connection

1. Tap the Settings application on the MaxiSys Job Menu.

2. Tap the Printing Setting option on the left column.

3. Select the desired connection type to the printer. A tick will display to

the left of the selected option.

 Print to Network – connects to the printer through the PC via

an existing LAN

 Print to Wi-Fi – connects the printer through the PC via Wi-Fi

connection

4. Tap the Home button on the top left corner to return to the MaxiSys

Job Menu. Or select another setting option for the system setup.

Settings Operations Operations

7.1.4 Wired Network

This option allows you to enable or disable the wired network connectivity, as well as to perform Ethernet configuration.

 To operate Ethernet configuration

1. Tap the Settings application on the MaxiSys Job Menu.

2. Tap the Wired Network option on the left column.

3. Tap the ON/OFF button to enable the Wired Network connection. If

the connectivity is enabled the button turns blue, or if disabled the button turns gray.

4. Tap the ○> button to the right of the Ethernet Configuration option,

a setup window displays.

5. Select a connection type:

 DHCP – obtains the LAN IP address automatically  Static IP – allows manual input of IP address

6. If Static IP is selected, you need to enter the IP values manually.

NOTE: If you are not sure about the specific IP address values, please contact your network administrator.

7. Tap Save to save the Ethernet configuration setting; or tap Cancel

to exit without saving.

8. Tap the Home button on the top left corner to return to the MaxiSys

Job Menu. Or select another setting option for the system setup.

7.1.5 Push Message

This option allows you to turn the Push Message function on or off. The Push Message function configures the MaxiSys tablet to receive regular on-line messages from the server for system update notifications or other service information via the Internet. It is highly recommended to keep this function on all the time, so you won’t miss out any new update for MaxiSys or event from Autel. Internet access is required for receiving on-line messages.

Settings Operations Operations

 To enable the Push Message function

1. Tap the Settings application on the MaxiSys Job Menu.

2. Tap the Push Message option on the left column.

3. Tap the ON/OFF button to enable or disable the Push Message

function. If the function is enabled the button turns blue, or if disabled the button turns gray.

4. Tap the Home button on the top left corner to return to the MaxiSys

Job Menu. Or select another setting option for the system setup.

When the Push Message function is turned on, and new messages are received by the MaxiSys device, a notification message displays on the MaxiSys Job Menu. Press on the message bar and drag it down, and the received messages are shown in the list, slide the list up or down to view all if the message list covers more than one screen.

Tapping a specific message launches the corresponding application. For example, if you tap on an Update notification message, the Update application will be launched.

7.1.6 About

The About option provides information of the MaxiSys diagnostic device regarding the product name, version, hardware, and serial number, etc.

 To check the MaxiSys product information in About

1. Tap the Settings application on the MaxiSys Job Menu.

2. Tap the About option on the left column. The product information

screen displays on the right.

3. Tap the Home button on the top left corner to return to the MaxiSys

Job Menu, or select another setting option for the system setup, after viewing.

7.1.7 System Settings

This option provides you a direct access to the Android background system setting interface, on which you can adjust various system settings for the Android system platform, regarding wireless and networks settings, various device settings such as sound and display, as well as system security settings, and check the associated information about the Android system, etc. Refer to Android documentation for additional information.

Name

Button

Description

Back

Returns to the previous screen.

Diagnostics

Touching this button directs you to the vehicle’s Diagnostics screen to activate a direct test session.

Enter Edit

Touching this button shows the editing toolbar to print or delete the selected file.

Delete

Touching this button deletes the selected vehicle record item from the list.

Quickly locates the vehicle record by entering the vehicle name or test path.

Cancel

Touching this button to cancel edit or file search.

Edit

Touching this button allows you to edit information for the displayed file.

Add Account

Touching this button to create a new customer account file.

Chapter 8 Shop Manager Operations

The Shop Manager application helps you to manage the workshop information, customer information records, and keep test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service. There are three main functions available:

 Vehicle History  Workshop Information  Customer Manager

The operations of these functions of the Shop Manager application are mainly manipulated by the toolbar buttons, which are listed and described in the table below:

Table 8-1 Top Toolbar Buttons in Shop Manager

Shop Manager Operations Vehicle History

Name

Button

Description

History Notes

Touching this button opens a note form, which allows you to create audio record, attach picture or video, or edit text notes, etc.

Vehicle History

Touching this button opens the Vehicle History screen which displays the correlated test vehicle records.

Done

Save the file when complete editing.

8.1 Vehicle History

This function stores records of test vehicle history, including vehicle information and the retrieved DTCs from previous diagnostic sessions, and displays all information in an easy-to-check table list, on which you can view summarized details and manually input other information about the test vehicle and diagnostic loggings, etc. The Vehicle History also provides direct access to the previously tested vehicle and allows you to restart a diagnostic session without the need to do vehicle identification again.

Figure 8-1 Sample Vehicle History Screen

1. Top Toolbar Buttons – navigates and makes various controls of the application.

2. Main Section – displays all the vehicle history records information.

Shop Manager Operations Vehicle History

 To activate a test session for the recorded vehicle

1. Tap the Shop Manager application on the MaxiSys Job Menu.

2. Select Vehicle History

3. Tap the Diagnostics button at the bottom of the thumbnail of a

vehicle record item. Or,

4. Select a vehicle record item by tapping the thumbnail.

5. A Historical Test record sheet displays, check the recorded

information of the recorded test vehicle, and tap the Diagnostics button on the upper right corner.

6. The vehicle’s Diagnostics screen displays, now a new diagnostic

session is activated, see 4.6 Diagnosis on page 37 for detailed instructions on vehicle diagnostic operations.

8.1.1 Historical Test Record

The Historical Test record sheet of the tested vehicle is a detailed data form, which includes all general information of the vehicle such as vehicle year, make and model, etc., and the diagnostic trouble codes retrieved from the previous test sessions, as well as other service details which can be added manually by the technician himself.

Figure 8-2 Sample Historical Test Record Sheet

Shop Manager Operations Workshop Information

 To edit the Historical Test record sheet

1. Tap the Shop Manager application on the MaxiSys Job Menu.

2. Select Vehicle History.

3. Select the specific vehicle history record thumbnail from the main

section. The Historical Test record sheet displays.

4. Tap the Edit button to start editing.

5. Tap on each item to input the corresponding information or add

attaching files or images.

NOTE: The vehicle VIN number, or license and the customer information account are correlated by default. Adding one of the information will automatically associate the other item in the record sheet, provided that the later one exists.

6. Tap Add to Customer to correlate the Historical Test record sheet to

an existing customer account, or add a new associating account to be correlated with the test vehicle record. See 8.3 Customer

Manager on page 84 for more information.

7. Tap Done to save the updated record sheet, or tap Cancel to exit

without saving.

8.2 Workshop Information

The Workshop Information form allows you to edit, input and save the detailed workshop information, such as shop name, address, phone number and other remarks, which, when printing vehicle diagnostic reports and other associated test file, will appear as the header of the printed documents.

Shop Manager Operations Customer Manager

Figure 8-3 Sample Workshop Information Sheet

 To edit the Workshop Information sheet

1. Tap the Shop Manager application on the MaxiSys Job Menu.

2. Select Workshop Information.

3. Tap the Edit button on the top toolbar.

4. Tap on each field to input the appropriate information.

5. Tap Done to save the updated workshop information sheet, or tap

Cancel to exit without saving.

8.3 Customer Manager

The Customer Manager function allows you to create and edit customer accounts. It helps you to save and organize all customer information accounts that are correlated with the associated test vehicle history records, which is a great support for the arrangement of daily workshop business.

 To create a customer account

1. Tap the Shop Manager application on the MaxiSys Job Menu.

2. Select Customer Manager.

3. Tap the Add Account button. An empty information form displays,

tap each field to input the appropriate information.

NOTE: The items that must be filled are indicated as required fields.

Shop Manager Operations Customer Manager

4. Tap the □+ photo frame beside the Name chart to add a photo. A

sub menu displays, select Take Photo to take a new photo for the account, or select Choose Photo to choose from the existing files.

5. Some customers may have more than one vehicle for service; you

can always add new vehicle information to the account to be correlated. Tap Add New Vehicle Information, and then fill in the vehicle information. Tap the ○x button to cancel adding.

6. Tap Done to save the account, or tap Cancel to exit without saving.

 To edit a customer account

1. Tap the Shop Manager application on the MaxiSys Job Menu.

2. Select Customer Manager.

3. Select a customer account by tapping the corresponding name card.

A Customer Information sheet displays.

4. Tap the Edit button on the top toolbar to start editing.

5. Tap on the input field where needs to be altered or supplemented,

and enter updated information.

6. Tap Done to save the updated information, or tap Cancel to exit

without saving.

 To delete a customer account

1. Tap the Shop Manager application on the MaxiSys Job Menu.

2. Select Customer Manager.

3. Select a customer account by tapping the corresponding name card.

A Customer Information sheet displays.

4. Tap the Edit button on the top toolbar to start editing.

5. Tap the Delete Customer Information button. A confirmation

message displays.

6. Tap OK to confirm the command, and the account is deleted. Tap

Cancel to cancel the request.

Shop Manager Operations Customer Manager

8.3.1 History Notes

The History Notes function allows you to add audio and video records, text notes and photos, to keep multi-media work logs for the associated customer account, which can be very helpful when dealing with repeat customers. Keeping notes for each vehicle serviced for each customer will keep you always on track and well organized in business.

 To access History Notes

1. Tap the Shop Manager application on the MaxiSys Job Menu.

2. Select Customer Manager or Vehicle History.

3. Select a customer account by tapping the corresponding name card.

A Customer Information sheet displays (if Customer Manager is selected). Or, select a vehicle history record item to open the Historical Test record sheet (if Vehicle History is selected).

4. Tap the History Notes button on the top bar. Now the History Notes

screen displays.

Figure 8-4 Sample History Notes Screen

1. Functional Buttons – navigates and make various controls of the function

2. Main Section – displays the note list on the left column and the detail information of the selected note on the right column

Shop Manager Operations Customer Manager

Name

Button

Description

Back

Returns to the previous screen.

Delete

Touching this button deletes the selected note.

Quickly locates the required note by entering the note title.

Cancel

Touching this button to cancel edit or file search.

Edit

Touching this button opens an edit window allowing you to edit notes and attach files.

Add Notes

Touching this button to add new note in History Notes.

Audio Record

Performs audio recording and creates audio files.

Add Photos

Opens the image file for selection, and adds the selected photos to History Notes.

Take a Video

Records a video and adds the file to History Notes.

Take a Photo

Takes photos and adds the files to History Notes.

Save

Saves notes.

Table 8-2 Function Buttons in History Notes

 To add a note in History Notes

1. Access History Notes.

2. Tap the Add Notes button. An edit window displays.

3. Tap on the Title bar to input a note title.

4. Tap on the blank space below to edit a text note or remark.

5. Select a function button on the top to add files in any form you

choose.

6. Tap Save to save the note; tap Discard or Cancel to exit without

saving.

Chapter 9 Update Operations

The internal programming of the MaxiSys Diagnostic System, known as the firmware, can be updated using the Update application. Firmware updates increase the MaxiSys applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database.

The display device automatically searches for available updates for all of the Maxisys components when it is connected to the internet. Any updates that are found can be downloaded and installed on the device. This section describes installing an update to the MaxiSys Diagnostic System firmware. A notification message displays if an update is available when the Push Message function is enabled in the Settings application (See 7.1.5 Push Message on page 78 for details).

Figure 9-1 Sample Update Screen

1. Navigation and Controls

 Home Button – returns to the MaxiSys Job Menu  Update All – updates all available updates  Search Bar – search specific update item by inputting the file name, for

example: a vehicle make

2. Status Bar

 Left Side – displays the MaxiSys device model information and serial number  Right Side – displays an update progress bar indicating the completion status

Update Operations Operations

3. Main Section

 Left Column – displays vehicle logos and update firmware version information;

tap the About button displays a function list in PDF showing more details about the firmware

 Middle Column – displays a brief introduction about the new changes to the

firmware operation or capabilities. Tap ○i button to open an information screen to view more details, and tap the dim area around to close the window.

 Right Column – according to the operation status of each firmware item, the

button displays differently. a) Tap Update to update the selected item. b) Tap Pause to suspend the updating procedure. c) Tap Continue to go on updating the suspended update.

 To update the firmware

1. Power up the MaxiSys Display Tablet, and ensure that it is connected to a power source and with steady internet connection.

2. Tap the Update application button from the MaxiSys Job Menu; or tap the update notification message when received one. The Update application screen displays.

3. Check all available updates:

 If you decide to update all the items, tap the Update All button.  If you only want to update some individual items, tap the Update button

on the right column of the specific item.

4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.

5. When the updating process is completed, the firmware will be installed automatically. The new version will replace the original version if there is one.

Chapter 10 VCI Manager Operations

This application allows you to pair up the MaxiSys Display Tablet with the VCI device, either the J2534 Programming Device or the Bluetooth Diagnostic Interface, and to check the communication status.

Figure 10-1 Sample VCI Manager Screen

1. Connection Mode – there are two connection modes available for selection. The connection state is displayed alongside.

 Bluetooth Paring – when paired to a Bluetooth device, the connection state

displays as Paired; otherwise it displays as Unpaired.

 Wired Network Connection (for J2534 ECU Programming Device only) –

when connected to a Local Area Network, the connection status displays as Connected; otherwise it displays as Disconnected.

 Select a connection mode to manage and set up connection.

2. Settings – this section allows you to manage wireless pairing or set up network connection.

 Bluetooth Setting – searches and displays the type and a partial serial

number for all of the devices available for pairing. Tap a required device to start pairing. The Bluetooth status icon displayed to the left of the device name indicates the received signal strength.

 Ethernet Setting – allows you to perform network configuration.

VCI Manager Operations Bluetooth Pairing

10.1 Bluetooth Pairing

The VCI device needs to be either connected to a vehicle or to an available power source, so that it is powered up during the synchronization procedure. Make sure the MaxiSys Display Tablet has a charged battery or is connected to an AC/DC power supply.

 To pair the VCI device with the Display Tablet

1. Power on the MaxiSys Display Tablet.

2. Connect the 26-pin end of the data cable to the J2534 ECU Programming Device’s vehicle data connector.

3. Connect the 16-pin end of the data cable to the vehicle data link connector (DLC).

4. Tap the VCI Manager application on the MaxiSys Job Menu of the display tablet.

5. Select Bluetooth from the connection mode list.

6. Tap the Scan button at the top right corner. Now the device starts searching for available pairing units.

7. Depending on the VCI type you use, the device name may display as Maxi suffixed with a serial number. Select the required device for pairing.

8. When paring is successfully done, the connection status displayed to the right of the device name is shown as Paired.

9. Wait a few seconds, and the VCI button on the system Navigation bar at the bottom of the screen shall display a green tick icon, indicating the display tablet is connected to the VCI device.

10. Tap the paired device again to unpair it.

11. Tap the Back button on the top left to return to the MaxiSys Job Menu.

NOTE: A VCI device can be paired to only one Display Tablet each time, and once it’s been paired, the device will not be discoverable for any other unit.

VCI Manager Operations Wired Network Connection

10.2 Wired Network Connection

The Wired Network is applied for connecting the MaxiSys Display Tablet with J2534 ECU Programming Device or to an existing LAN. This section describes connecting the display tablet with the J2534 ECU Programming Device through the Ethernet cable.

The J2534 ECU Programming Device needs to be either connected to a vehicle or to an AC/DC power source, so that it is powered up when communicating with the display tablet. Make sure the MaxiSys Display Tablet has a charged battery or is connected to an AC/DC power supply.

 To connect the display tablet with the J2534 ECU Programming

Device through wired network

1. Power on the MaxiSys Display Tablet.

2. Connect the 26-pin end of the data cable to the J2534 ECU

Programming Device’s vehicle data connector.

3. Connect the 16-pin end of the data cable to the vehicle data link

connector (DLC).

4. Connect the MaxiSys Display Tablet to the programming device with

the accompanied Ethernet serial cable.

5. Tap the VCI Manager application on the MaxiSys Job Menu of the

display tablet.

6. Select Wired Network from the connection mode list. Now the

Ethernet Setting interface displays.

7. Select a connection type:

 DHCP – obtains the LAN IP address automatically  Manual – allows you to enter IP address manually

8. If Manual is selected, you need to set the IP address on your own.

NOTE: If you are not sure about the specific IP address values, please

contact your network administrator.

9. Tap Apply to set up the wired network connection.

10. Tap the Back button on the top left to return to the MaxiSys Job

Menu.

Autel Intelligent Tech MAXISYSMY908 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
