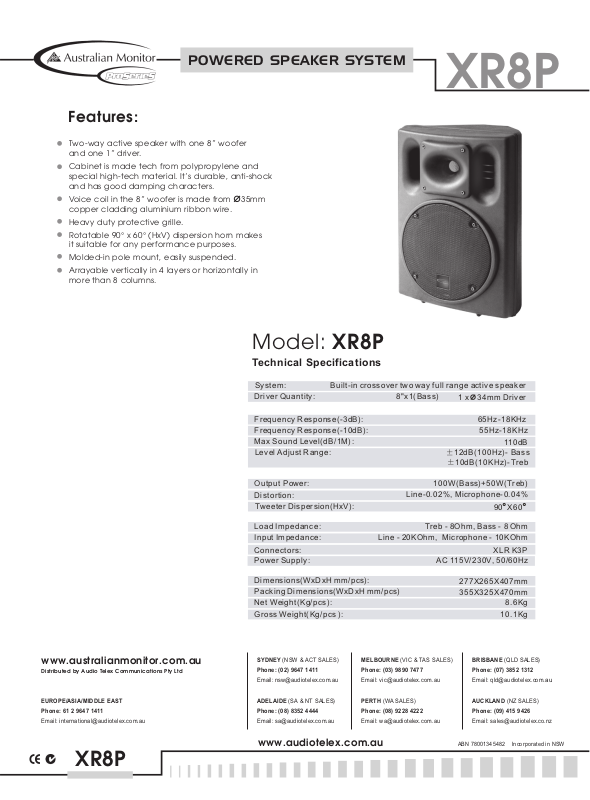

Australian Monitor. XR8P Brochure
System:
Driver Quantity:
Frequency Response(-3dB):
Frequency Response(-10dB):
Max Sound Level(dB/1M):
Output Power:
Distortion:
Load Impedance:
Input Impedance:
Connectors:
Power Supply:
Dimensions(WxDxH mm/pcs):
Packing Dimensions(WxDxH mm/pcs)
Net Weight(Kg/pcs):
Gross Weight(Kg/ ):pcs
Level Adjust Range:
Tweeter Dispersion(HxV):
Built-in crossover two way full range active speaker
8"x1(Bass)
1 x 34mm Driver
65Hz-18KHz
55Hz-18KHz
110dB
100W(Bass)+50W(Treb)
Line-0.02%, Microphone-0.04%
Treb - 8Ohm, Bass - 8 Ohm
Line - 20KOhm, Microphone - 10KOhm
XLR K3P
277X265 mmX407
355X325X470mm
8.6Kg
10.1Kg
12dB(100Hz)- Bass
10dB(10KHz)-Treb
AC 115V/230V, 50/60Hz
90 X60
Features:
XR8P
Technical Specifications
Model: XR8P
XR8P
Two-way active speaker with one 8” woofer
and one 1” driver.
Cabinet is made tech from polypropylene and
special high-tech material. It’s durable, anti-shock
and has good damping characters.
Voice coil in the 8” woofer is made from 35mm
copper cladding aluminium ribbon wire.
Heavy duty protective grille.
Rotatable 90° x 60° (HxV) dispersion horn makes
it suitable for any performance purposes.
Molded-in pole mount, easily suspended.
Arrayable vertically in 4 layers or horizontally in
more than 8 columns.
POWERED SPEAKER SYSTEM
SYDNEY (NSW & ACT SALES)
Phone: (02) 9647 1411
Email: nsw@audiotelex.com.au
MELBOURNE (VIC & TAS SALES)
Phone: (03) 9890 7477
Email: vic@audiotelex.com.au
BRISBANE (QLD SALES)
Phone: (07) 3852 1312
Email: qld@audiotelex.com
.au
ADELAIDE (SA & NT SALES)
Phone: (08) 8352 4444
Email: sa@audiotelex.com.au
PERTH (WA SALES)
Phone: (08) 9228 4222
Email: wa@audiotelex.com.au
AUCKLAND (NZ SALES)
Phone: (09) 415 9426
Email: sales@audiotelex.co.nz
www.australianmonitor.com.au
Distributed by Audio Telex Communications Pty Ltd
ABN 78001345482 Incorporated in NSW
www.audiotelex.com.au
EUROPE/ASIA/MIDDLE EAST
Phone: 61 2 9647 1411
Email: international@audiotelex.com.au
No:
Made inChina
INPUT
THRU
1. Volume control.
2. Clip indicator.
3. Line input signal presence indicator.
4. Line/microphone selector.
5. Power supply input. Make sure that the
voltage selector is set for your country’s
correct voltage.
6. 115V/230V voltage input selector.
Make sure that the voltage selector is
set for your country’s correct voltage.
7. Bass control.
8. Treble control.
9. Microphone input signal presence
indicator.
10. Line/microphone output.
(Direct connection to input)
11. Line/microphone input.
12. Protection fuse. Use only fuses of a
2.5 Amp rating.
13. Power ON/OFF switch.
XR8P
