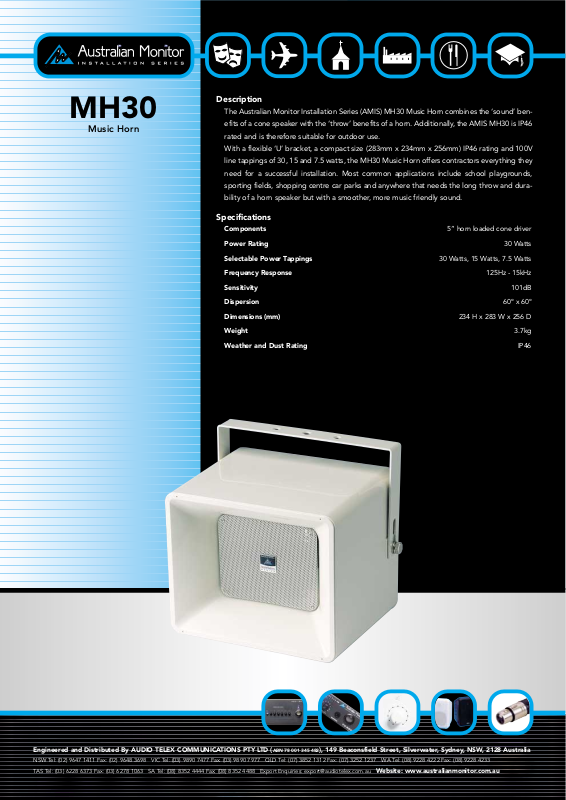

Australian monitor MH30 BROCHURE

MH30
Music Horn
Description
The Australian Monitor Installation Series (AMIS) MH30 Music Horn combines the ‘sound’ ben-
efits of a cone speaker with the ‘throw’ benefits of a horn. Additionally, the AMIS MH30 is IP46
rated and is therefore suitable for outdoor use.
With a flexible ‘U’ bracket, a compact size (283mm x 234mm x 256mm) IP46 rating and 100V
line tappings of 30, 15 and 7.5 watts, the MH30 Music Horn offers contractors everything they
need for a successful installation. Most common applications include school playgrounds,
bility of a horn speaker but with a smoother, more music friendly sound.
Specifications
Components 5” horn loaded cone driver
Power Rating 30 Watts
Selectable Power Tappings 30 Watts, 15 Watts, 7.5 Watts
Frequency Response 125Hz - 15kHz
Sensitivity 101dB
Dispersion 60º x 60º
Dimensions (mm) 234 H x 283 W x 256 D
Weight 3.7kg
Weather and Dust Rating IP46
Engineered and Distributed By AUDIO TELEX COMMUNICATIONS PTY LTD (ABN 78 001 345 482), 149 Beaconsfield Street, Silverwater, Sydney, NSW, 2128 Australia
NSW Tel: (02) 9647 1411 Fax: (02) 9648 3698 VIC Tel: (03) 9890 7477 Fax: (03) 9890 7977 QLD Tel: (07) 3852 1312 Fax: (07) 3252 1237 WA Tel: (08) 9228 4222 Fax: (08) 9228 4233
TAS Tel: (03) 6228 6373 Fax: (03) 6278 1063 SA Tel: (08) 8352 4444 Fax: (08) 8352 4488 Export Enquiries: export@audiotelex.com.au
Website: www.australianmonitor.com.au
