User Manual
Rackmount LCD Drawer
15", 17", 19", 20" screen size
Models
RP115 / 117 / 119 Series
Models
RP220 Series
- Ultra high resolution 1600 x 1200
- 2U height
Options :
- AV / BNC
- Touchscreen
- DVI
- DC power
Models
RP1415 / 1417 / 1419 Series
- Short depth version
Blank page
Chapter 1 Getting Started
1.1
Important Safeguards..........................................................1
1.2
Regulatory Notice................................................................2
1.3
Package Contents...............................................................3
1.4
Before Installation...............................................................4
1.5
Unpacking...........................................................................4
1.6
Optional Accessories...........................................................4
1.7
Peripheral Products.............................................................5
1.8
Structure Diagram...............................................................5
1.9
Installation..........................................................................6
1.10
Connection.........................................................................7
Chapter 2 Operation
2.1
On-screen Display Operation..............................................7
2.2
On-screen Menu..............................................................8-9
Chapter 3 LCD Specifi cation.......................................................10
Chapter 4 AV, BNC, DVI Options
4.1
DVI-D Option.....................................................................11
4.2
S-Video + RCA Input Option..............................................11
4.3
S-Video + BNC Input Option.............................................11
4.4
On-screen Menu for DVI, BNC, S-Video & RCA Input......12
Chapter 5 T ouchscreen Options..............................................13
Chapter 6 DC Power Options......................................................14
Chapter 7 Troubleshooting..........................................................15
Chapter 8 Dimensions......................................................................16
Contents
1.1 Important Safeguards Chapter 1
P. 1
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi -
cation, or failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
P. 2
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is
given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned envi-
ronment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it
and the power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage
and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equip
ment and invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service
personnel.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equip-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
1.2 Regulatory Notice Chapter 1
1.3 Package Contents Chapter 1
P. 3
1
4
U
s
e
r
M
a
n
u
a
l
6
5
32 7
8
Rackmount LCD drawer x 1 pc
Fasteners for rear L-bracket x 4 pcs
330mm rear mounting L-bracket x 1 pair
* RP115 / 117 series mounting depth-adjustable from 220 to 820mm
* RP119 / 220 series mounting depth-adjustable from 270 to 870mm
* RP1415 / 1417 series mounting depth-adjustable from 110 to 710mm
* RP1419 series mounting depth-adjustable from 150 to 750mm
6' VGA cable (male to male) x 1 pc
User manual x 1 pc
Power cord x 1 pc
Auto switch power adapter ( for external power version) x 1pc
Key x 2 pcs
5
4
2
6
1
3
7
8
1.6 Optional Accessories
■
It is very important to locate the Rackmount LCD Drawer in a suitable environment.
■ The surface for placing and fi xing the Rackmount LCD Drawer should be stable and level or mounted into a suitable
cabinet.
■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,
water, moisture and vibration.
■ Convenience for connecting the Rackmount LCD Drawer to the related facilities should be well considers too.
The Rackmount LCD Drawer comes with the standard parts shown on the package contents. Check and make sure they
are included and in good condition. If anything is missing, or damage, contact the supplier immediately.
1.5 Unpacking
1.4 Before Installation
Chapter 1
P. 4
1. Power Cord
1.1 IEC power cord
1.2 NEMA 5-15 power cord (US)
1.3 BS 1363 power cord (UK)
1.4 CEE 7/4 power cord (German)
1.5 AS 3112 power cord (Australia)
P. 5
1.7 Peripheral Products Chapter 1
1.8 Structure Diagram
Item Model No. Description
DB-15 KVM
IP-802 / IP-1602
CV-802 / CV-1602
CV-401 / CV-801 / CV-1601
CV-S801 / CV-S1601
8 / 16-port IP PS/2 KVM
8 / 16-port two console PS/2 KVM
4 / 8 / 16-port PS/2 KVM
8 / 16-port USB KVM
Cat5 KVM
UIP-1602 / UIP-3202
U-1602 / U-3202
U1601 / U3201
16 / 32-port IP Cat5 KVM
16 / 32-port two console Cat5 KVM
16 / 32-port high density Cat5 KVM
KVM Extender
IP-101
CV-101
CV-S101
IP KVM extender
Cat5 PS/2 KVM Extender
Cat5 USB KVM Extender
Keyboard Drawer
RK-1
RK-2
Rackmount keyboard drawer (with KVM options)
Rackmount keyboard drawer (short depth version)
For 15" LCD
SAMSUNG Class A TFT LCD panel
Adjustable rear mounting L-bracket
1
1
2
2
3
3
4
LCD membrane button
Lock with keys
4
P. 6
1.9 Installation Chapter 1
■ Install each rear L-bracket using two fasteners shown
in Figure 1.
■ Leaving the fasteners slightly loose
Figure 1. Installing the rear L-bracket to the LCD keyboard drawer.
■ Measure the front and rear mounting depth of the
rack.
■ Align each rear L-bracket to a suitable length and
tighten the fasteners shown in Figure 2.
Figure 2. Aligning the rear L-brackets to a suitable length for the rack.
■ Fixed the the LCD keyboard drawer into the rack.
* Hardware (screws and cage nuts) for fi xing the
mounting bracket to the rack is not provided.
Figure 3. Fixing the LCD keyboard drawer into the rack.
P. 7
1.10 Connection Chapter 1
Caution : The Rackmount LCD Drawer are hot-pluggable, but components of connected
devices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and un-
plugging cables while servers and KVM are powered on may cause irreversible damage of
the servers, KVM and Rackmount LCD Drawer. Before attempting to connect anything to
the Rackmount LCD Drawer, we suggest that turn off power to all devices before connect-
ing them. Apply power to connected devices again only after the Rackmount LCD Drawer
receiving power.The company is not responsible for damage caused in this way.
VGAPower
2.1 On-screen Display Operation Chapter 2
Exit the OSD screen
Shortcut key to auto adjustment by pressed the button for 5 seconds or
Toggle analog, digital & video connection (DVI-D and video options only)
Scrolls through menu options and adjusts the displayed control
Display the OSD menu
Power on / off LCD
Power light
Green = On
Orange = Power saving
15" LCD membrane
17", 19" & 20" LCD membrane
Internal power version
External power version ( For short depth version - RP1415 / 1417 / 1419 )
P. 8
2.2 On-screen Menu Chapter 2
BRIGHTNESS / CONTRAST
Brighthtness: Adjust background black level of the screen image.
Contrast: Adjust the difference between the image background (black level)
and the foreground (white level).
AUTO ADJUST
Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion. A "Adjusting" message is displayed
during the process.
Auto Tune: Optimize phase, clock, position and size. An "Adjusting" message is displayed during the process.
PHASE/CLOCK
Phase / Clock: To enter into the phase & clock sub menu
H/V POSITION
H/V Position: Align the screen image left or right and up or down.
MISC
Information: Display the current resolution, refresh rate and frequency information on the screen.
OSD Timer: Set the time duration in seconds that the OSD is visible after the last button is pressed.
The factory default is 10 seconds.
Color: Select the screen color - 5500K, 6500K & 9500K. The factory default is 9500 K.
Language: Select the language in which the OSD menu is displayed -
English, Chinese (中文), Japanese (日本語), German, French, Spanish, Italian
RESET Restore the settings to factory defaults.
MAIN MENU
BRIGHTNESS/CONTRAST
PHASE/CLOCK
H/V POSITION
MISC
RESET
AUTO
ADJUST
For RP115 / 117 / 119 / 1415 / 1517 / 1419 series
2.2 On-screen Menu Chapter 2
P. 9
1. Image
Brightness: Adjust background black level of the screen image
Contrast: Adjust the difference between the image background
(black level) and the foreground (white level)
Sharpness: Adjust the image from weak to sharp
Saturation: Adjust the saturation of the image color
Hue: Adjust the screen hue value
2. Geometry
Auto Confi g: Adjust automatically sizes, centers, and fi ne tunes the video
signal to eliminate waviness and distortion.An “ Adjusting”
message is displayed during the process.
H. Position: Align the screen image left or right
V. Position: Align the screen image up or down
Clock : Adjust the clock value
Phase: Aldjust the phase value
3. Function
OSD Position: Adjust OSD menu horizontal and vertical position
OSD Zoom: Adjust the difference between the image background
(black level) and the foreground (white level).
Color Temp: Select the screen color - 5500K, 6500K & 9500K.
The factory default is 6500 K.
4. System
Language: Select the language in which the OSD menu is displayed -
English, Chinese (中文), Japanese (日本語), German,
French, Spanish, Italian.
Time: Function is not supported
Power OFF: Function is not supported
Reset: Recall returns the adjustments back to factory settings.
Note : The current resolution and refresh rate information show on the top right hand side
of the screen when the LCD powered on.
For RP220 series
Item Description
Form Factor 1U rack mounting on slide-out rails
LCD Manufacturer
Diagonal Size 15" TFT 17" TFT 19" TFT 20" TFT
Max. Resolution 1024 x 768 1280 x 1024 1280 x 1024 1600 x 1200
Brightness (cd/m²) Min. 250 300 300 300
Color Support 16.2 Mil. 16.2 Mil. 16.7 Mil. 16.7 Mil.
Contrast Ratio (typ.) 450:1 700:1 1000:1 800:1
Viewing Angle (H/V) 130˚ x 100˚ 150˚ x 135˚ 150˚ x 135˚ 160˚ x 160˚
Display Area (mm) 304 x 228 337 x 270 376 x 301 408 x 306
Tr Response Time (ms) 3 2 1.3 1
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Resolution
640 x 350, 70 Hz
720 x 400, 70 Hz
640 x 480, 60/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75 Hz
1024 x 768, 60/ 70/ 72/ 75 Hz
-- 1152 x 864, 60/ 70/ 75 Hz
-- 1280 x 1024, 60/ 70/ 75 Hz
-- 1600 x 1200, 60 Hz
Plug & Play DDC EDID 1.3
Console Port (Combo)
3-in-1 DB15 connector for VGA / keyboard /mouse
Support USB & PS/2 servers or KVM Switches
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Max. 40 Watt, Standby 5 Watt
Compatilibity Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.
Regulation Approval FCC, CE
Options
Graphic Input DVI-D, BNC, S-Video & RCA video input
DC Power DC power input with 12V, 24V, 48V selection
Touchscreen Resistive and capacitive Resistive
Environmental
Operation 0˚ to 50˚C Degree
Storage -5˚ to 65˚C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
P. 1 0
3.1 LCD Specifi cations Chapter 3
P. 11
4.1 DVI-D Option Chapter 4
DVI-D
Remarks
■ Package includes with a 6' DVI-D cable
■ The depth of RP1415 / 1417 will be extended from 440 mm ( 17.3" ) to 480mm ( 18.9" )
■ The depth of RP1419 will be extended from 480 mm ( 18.9" ) to 520mm ( 20.5" )
4.2 S-Video + RCA Input Option
Remarks
■ Package includes an extra 6ft S-Video and 6ft RCA cables
VGA
S-Video VGA
4.3 S-Video + BNC Input Option
Remarks
■ Package includes an extra 6ft S-Video cable
VGA
RCA
S-Video BNC

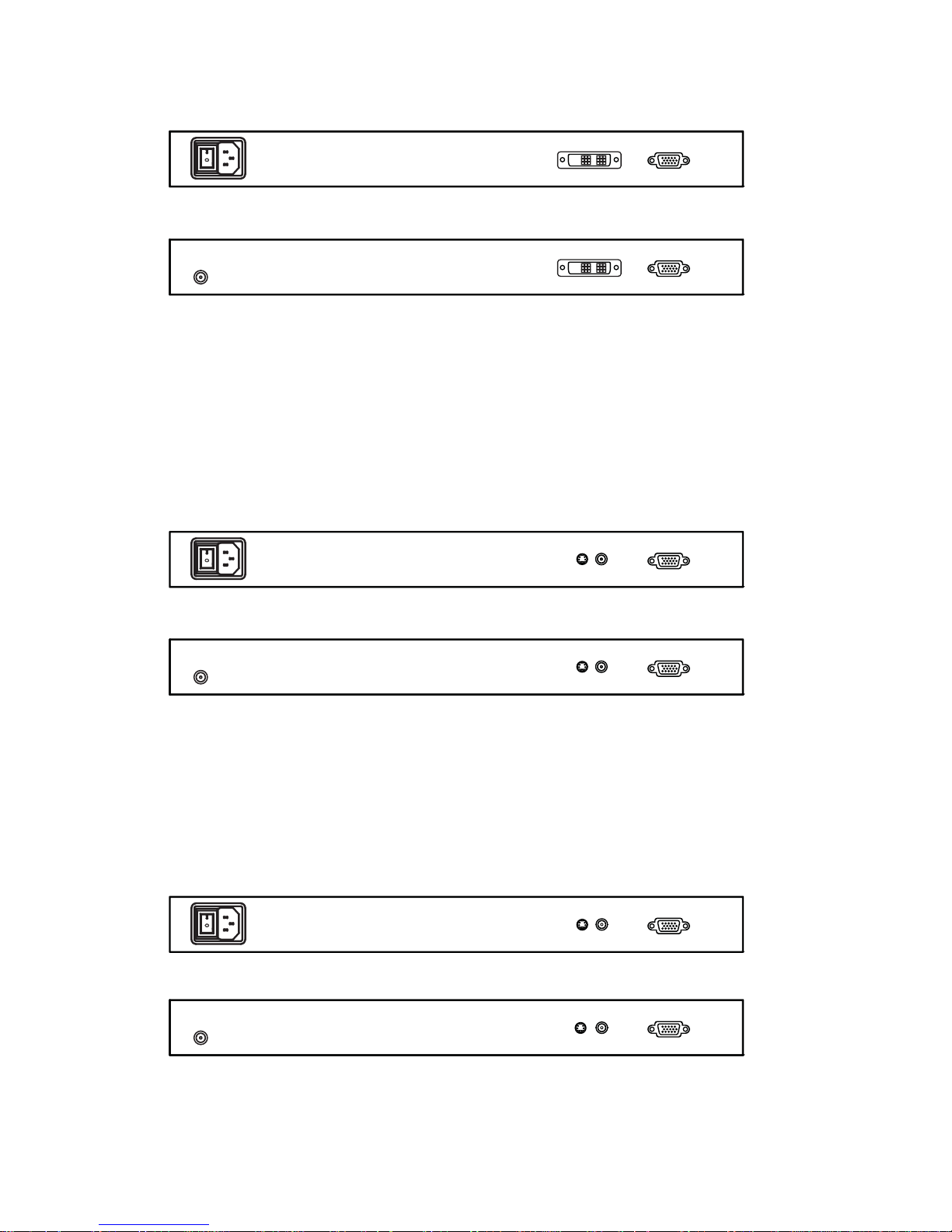

Internal power version
External power version ( For short depth version - RP1415 / 1417 / 1419 )
Internal power version
External power version ( For short depth version - RP1415 / 1417 / 1419 )
Internal power version
External power version ( For short depth version - RP1415 / 1417 / 1419 )
4.4 On-screen Menu for DVI, BNC, S-Video & RCA Input Chapter 4
P.12
1. Image
Brightness: Adjust background black level of the screen image
Contrast: Adjust the difference between the image background
(black level) and the foreground (white level)
Sharpness: Adjust the image from weak to sharp
Saturation: Adjust the saturation of the image color
Hue: Adjust the screen hue value
2. Geometry
Auto Confi g: Adjust automatically sizes, centers, and fi ne tunes the video
signal to eliminate waviness and distortion.An “ Adjusting”
message is displayed during the process.
H. Position: Align the screen image left or right
V. Position: Align the screen image up or down
Clock : Adjust the clock value
Phase: Aldjust the phase value
3. Function
OSD Position: Adjust OSD menu horizontal and vertical position
OSD Zoom: Adjust the difference between the image background
(black level) and the foreground (white level).
Color Temp: Select the screen color - 5500K, 6500K & 9500K.
The factory default is 6500 K.
4. System
Language: Select the language in which the OSD menu is displayed -
English, Chinese (中文), Japanese (日本語), German,
French, Spanish, Italian.
Time: Function is not supported
Power OFF: Function is not supported
Reset: Recall returns the adjustments back to factory settings.
Note : The current resolution and refresh rate information show on the top right hand side
of the screen when the LCD powered on.
P. 1 3
5.1 Touchscreen Options Chapter 5
Model -15TRB / -15TRS -17TRB / -17TRS -19TRB / -19TRS -20TRB / -20TRS
Screen size 15" 17" 19" 20"
Interface USB / serial
Optical transmittance 82%±5%
Surface hardness ≥3H (JIS K5400)
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
3M Capacitive
Model -15TCB_3M / -15TCS_3M -17TCB_3M / -17TCS_3M -19TCB_3M / -19TCS_3M
Screen size 15" 17" 19"
Interface USB / serial
Optical transmittance 88%
Surface hardness Mohs’ hardness rating: 6
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
e-Resistive
Remarks
■ USB touchscreen package includes an extra 6ft USB cable, quick reference guideline and CD disc
■ Serial touchscreen package includes an extra 6ft serial cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully.
USB VGAPower
Serial VGAPower
USB interface
Serial interface
Internal power version
External power version
Internal power version
External power version
( For short depth version - RP1415 / 1417 / 1419 )
( For short depth version - RP1415 / 1417 / 1419 )
P. 1 4
6.1 DC Power Options Chapter 6
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Effi ciency 84% 85% 85%
Remarks
■ Package does not include power cord and AC power adapter
■ The depth of RP1415 / 1417 will be extended from 440 mm ( 17.3" ) to 490mm ( 19.3" )
■ The depth of RP1419 will be extended from 480 mm ( 18.9" ) to 530mm ( 20.9" )
VGADC Power input
1. How do I adjust the resolution?
P. 1 5
7.1 Troubleshooting Chapter 7
To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in
Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter-
mined by the display card in your computer.
2. Is interference signal appeared on LCD normal when shutting down the computer ?
In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered
normal. The image quality can be improved by adjusting the phase or pixel rate automatically or manually.
3. The membrane button power light is not ON
Press the power On /Off on LCD membrane button to check if the monitor is in the ON mode.
Check the power cord is properly connected to the LCD keyboard drawer and power outlet.
4. Screen image is not centered or sized properly
Press the button for two seconds to automatically adjust the image.
Adjust the H-position and V-position settings via On-screen menu.
P. 1 6
8.1 Dimensions Chapter 8
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RP115 series
442 x 550 x 44.2 mm
17.4 x 21.6 x 1.74"
581 x 705 x 175 mm
22.9 x 27.8 x 6.9"
10 kg
22 lb
15 kg
33 lb
RP117 series
442 x 550 x 42 mm
17.4 x 21.6 x 1.74"
581 x 705 x 175 mm
22.9 x 27.8 x 6.9"
12 kg
26 lb
17 kg
37 lb
RP119 series
442 x 600 x 44 mm
17.4 x 23.6 x 1.73"
581 x 755 x 172 mm
22.9 x 29.7 x 6.8"
13 kg
29 lb
18 kg
39 lb
RP220 series
442 x 600 x 88 mm
17.4 x 23.6 x 3.5"
581 x 753 x 216 mm
22.9 x 29.6 x 8.5"
14 kg
31 lb
19 kg
42 lb
RP1415 series
442 x 440 x 44 mm
17.4 x 17.3 x 1.73"
584 x 601 x 169 mm
23 x 23.7 x 6.7"
10 kg
22 lb
15 kg
33 lb
RP1417 series
442 x 440 x 44 mm
17.4 x 17.3 x 1.73"
584 x 601 x 169 mm
23 x 23.7 x 6.7"
12 kg
26 lb
17 kg
37 lb
RP1419 series
442 x 480 x 44 mm
17.4 x 18.9 x 1.73"
584 x 641 x 169 mm
23 x 25.2 x 6.7"
13 kg
29 lb
18 kg
39 lb
CV-RP11-0807V1
The company reserves the right to modify product specifi cations without prior notice and assumes no reponsibility for any error which
may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved.
Loading...
